Plankis Camp

Designed for full-time living, this custom X31 side-entry camp combines a full bed, reclining loveseat, four-person dinette, and front three-quarter bathroom. Extensive cabinetry and exterior storage keep daily essentials organized, while solar power, heated plumbing, a wood stove, furnace, and air conditioning support life on the road.

Designed For: Full-Time Living
Platform: X31 Camp
Location: Rapid City, South Dakota
Pricing: Contact Us

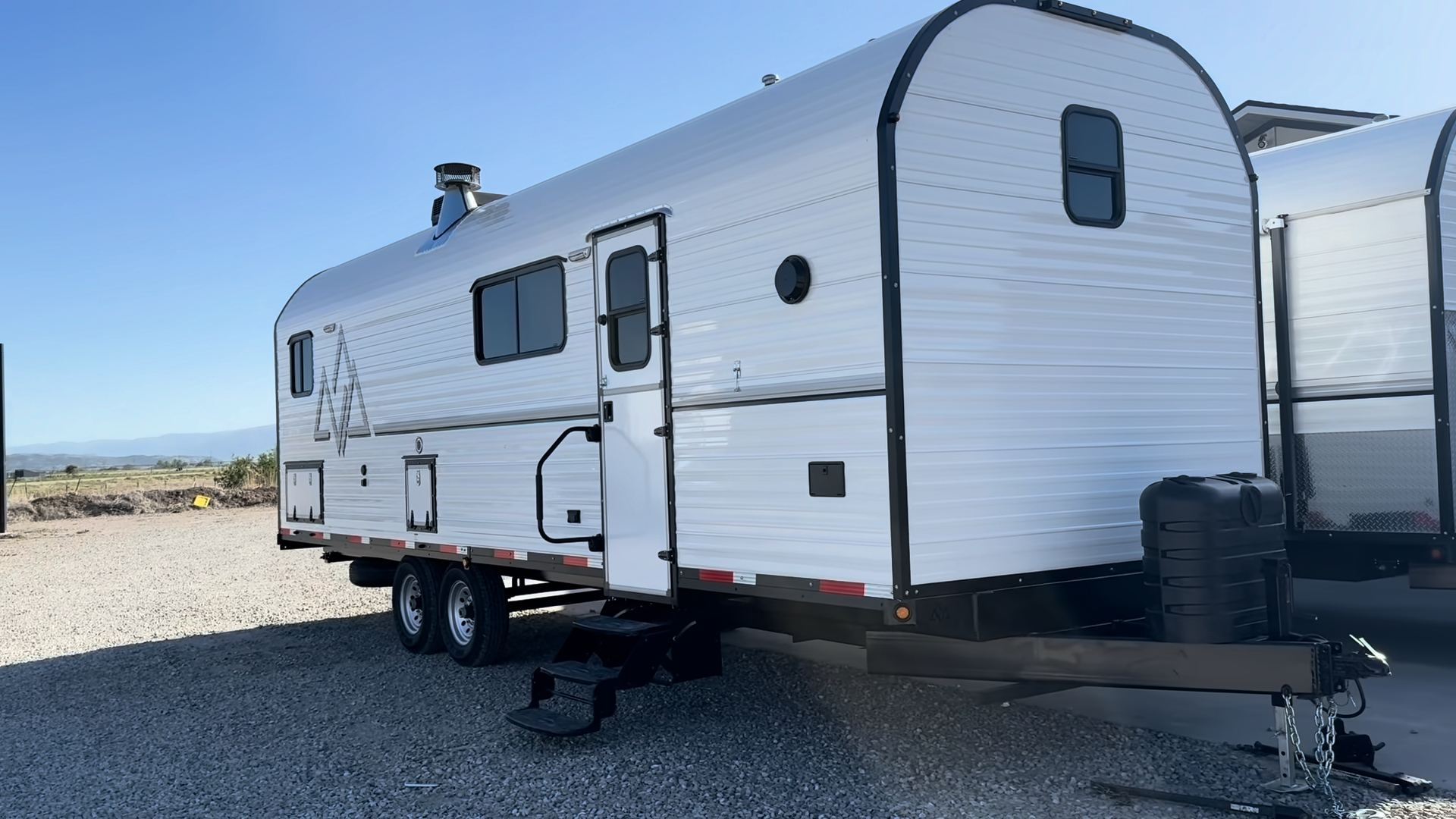

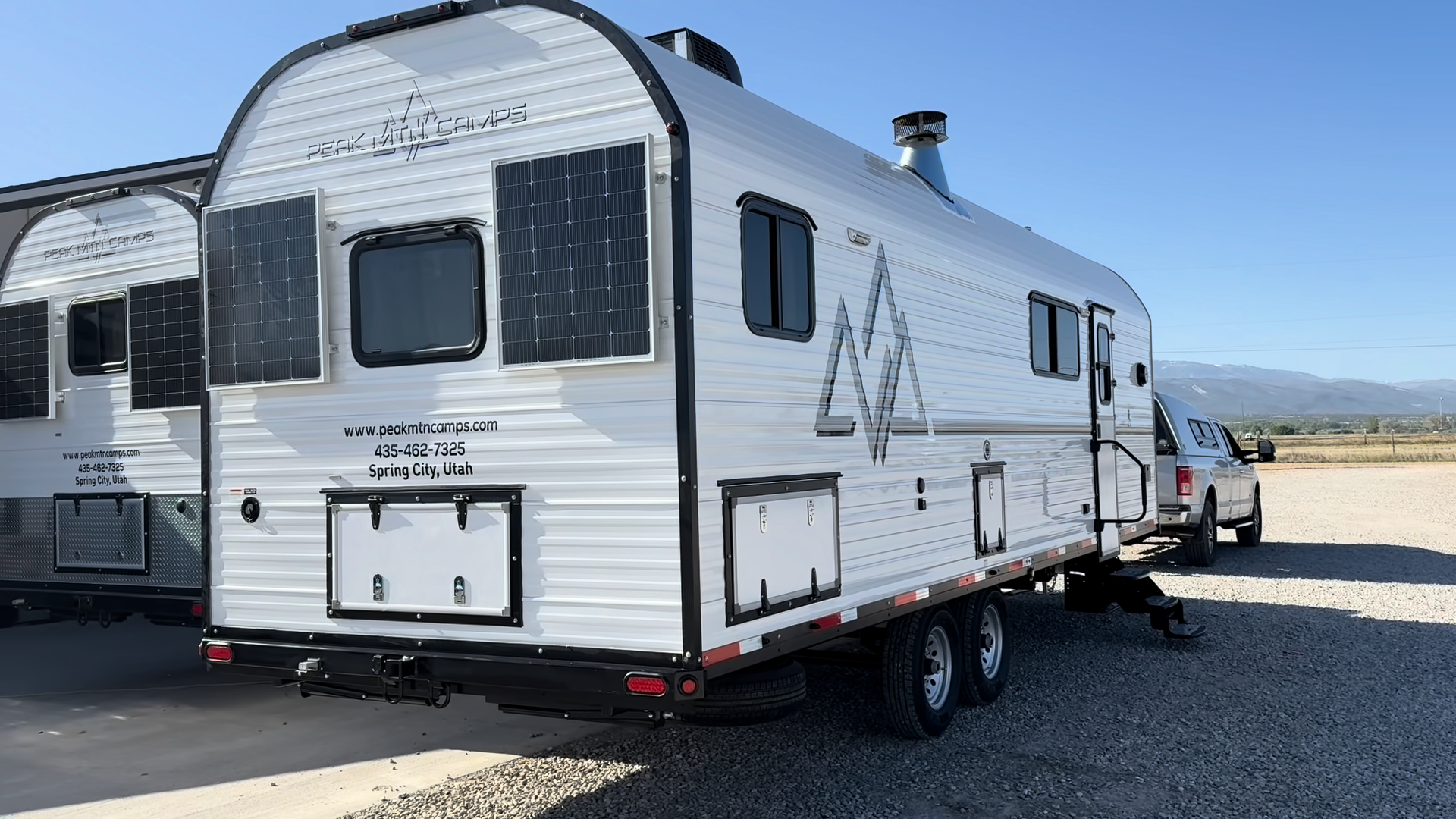

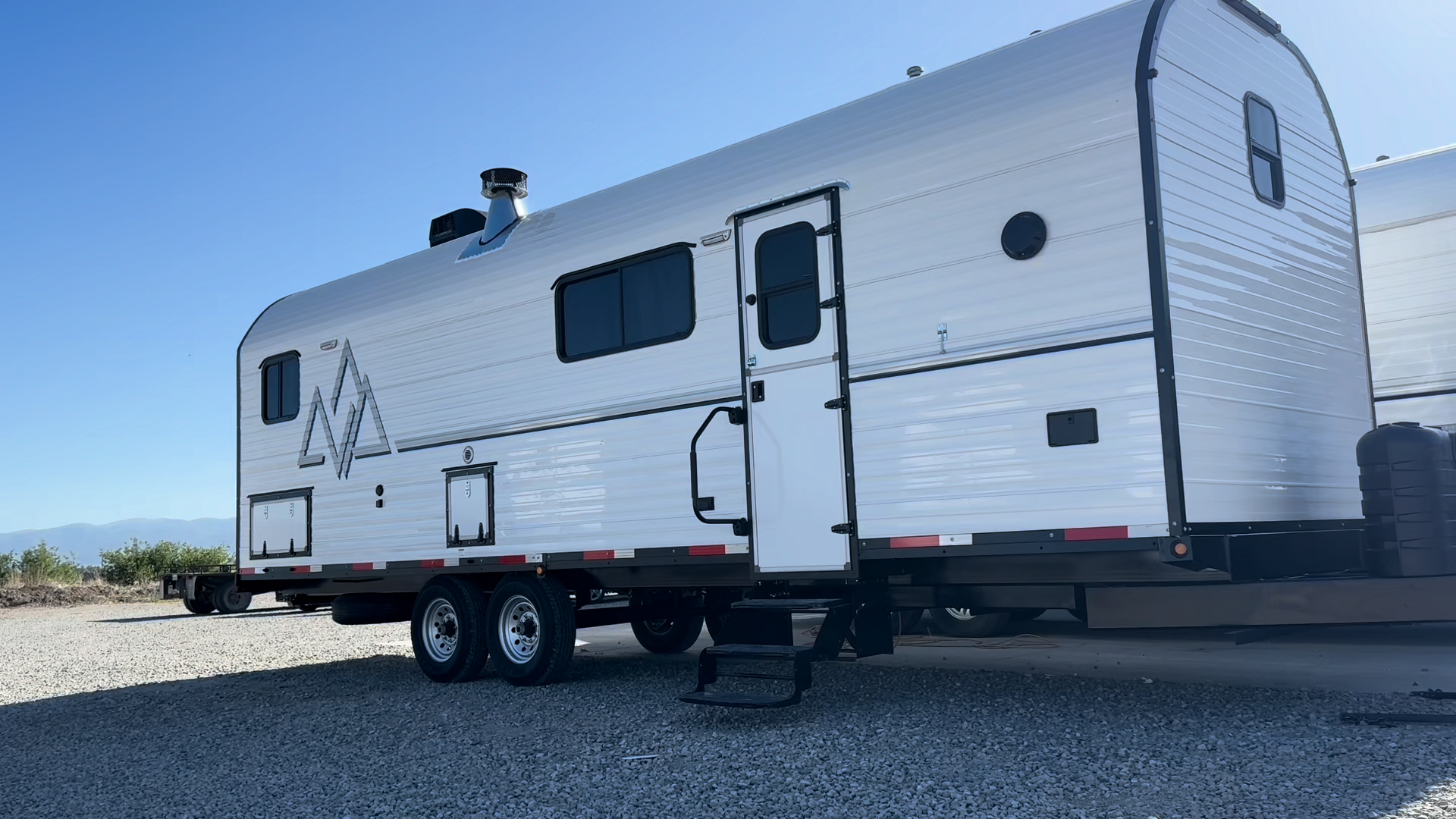

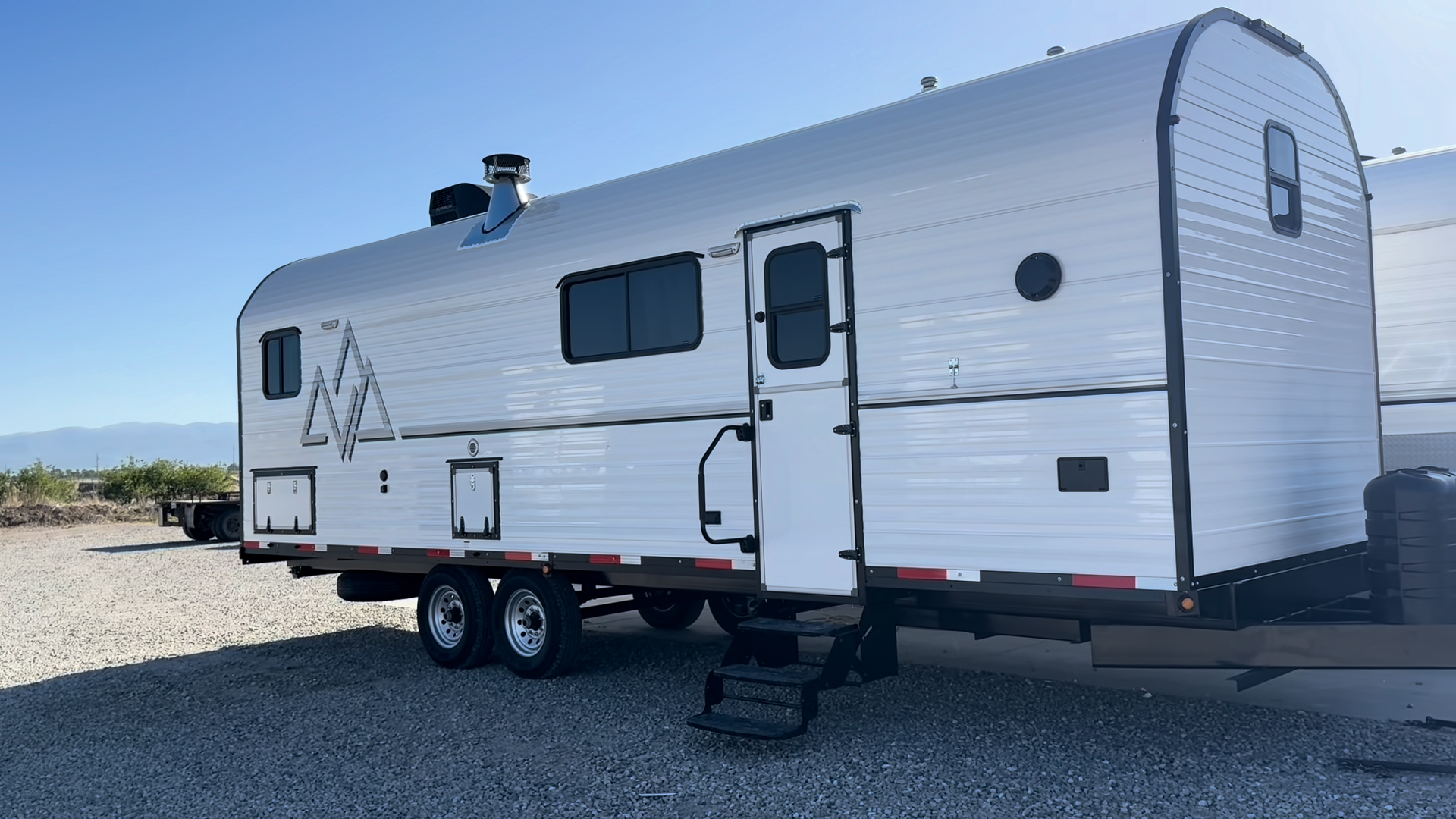

White Plankis Camp #124 with side entry steps, tandem wheels, storage hatches, mountain graphics, and a front hitch. — Exterior Plankis Camp #124 – Full Entry‑Side Exterior

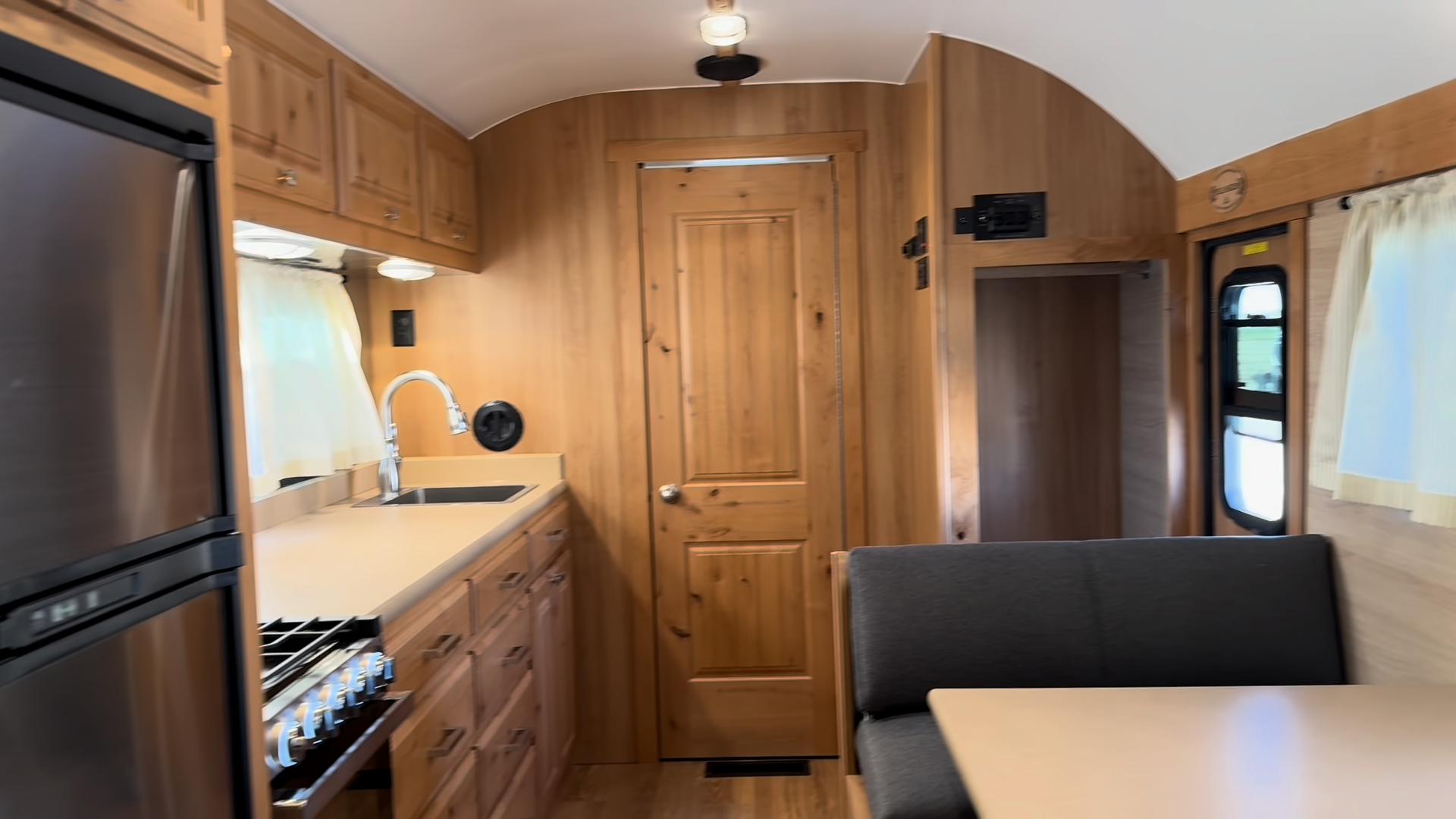

View toward the front of Plankis Camp #124 showing kitchen cabinets, refrigerator, dinette, and bathroom door. — Interior Plankis Camp #124 – Kitchen and Dinette Facing Front of Camp

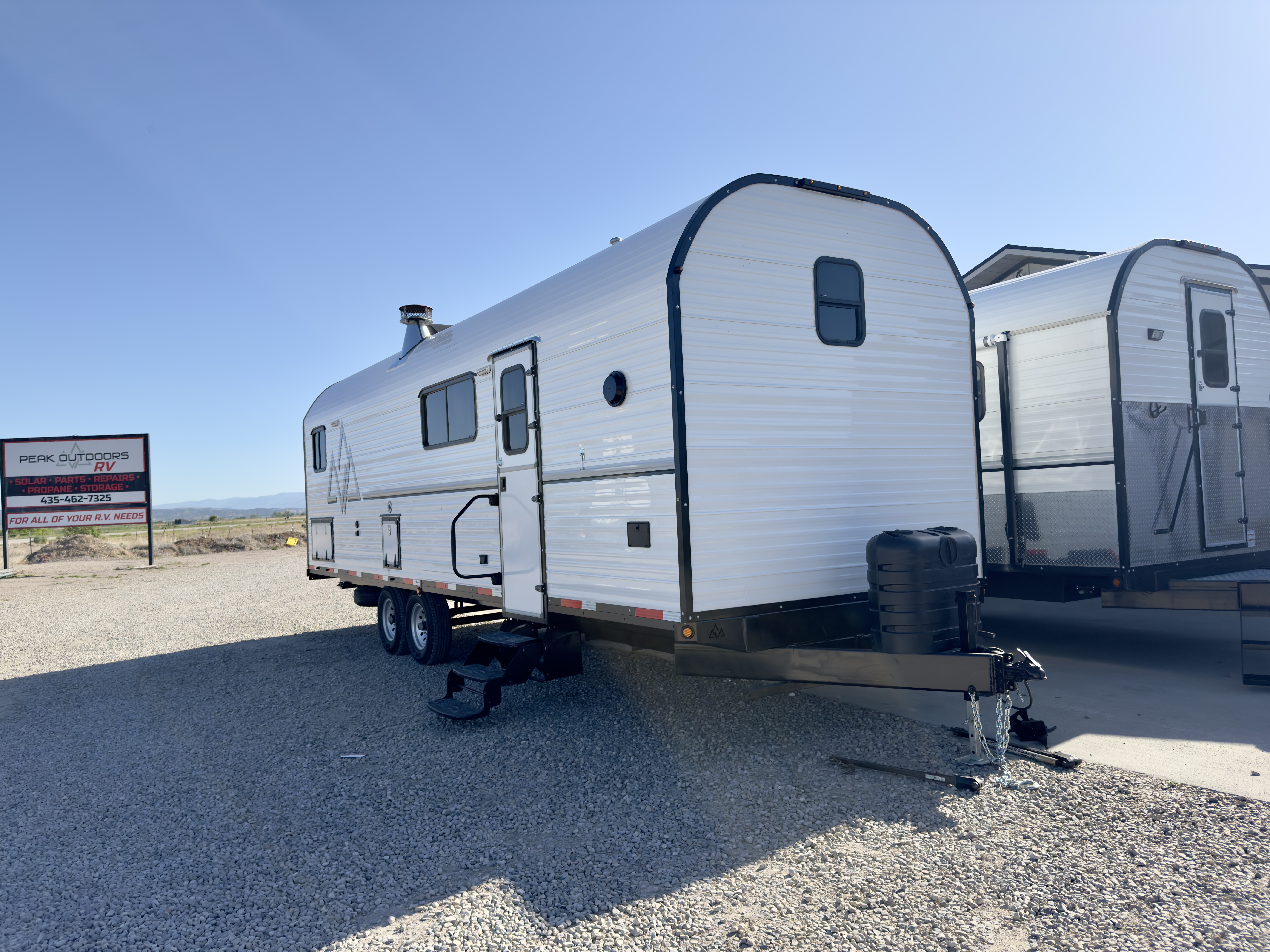

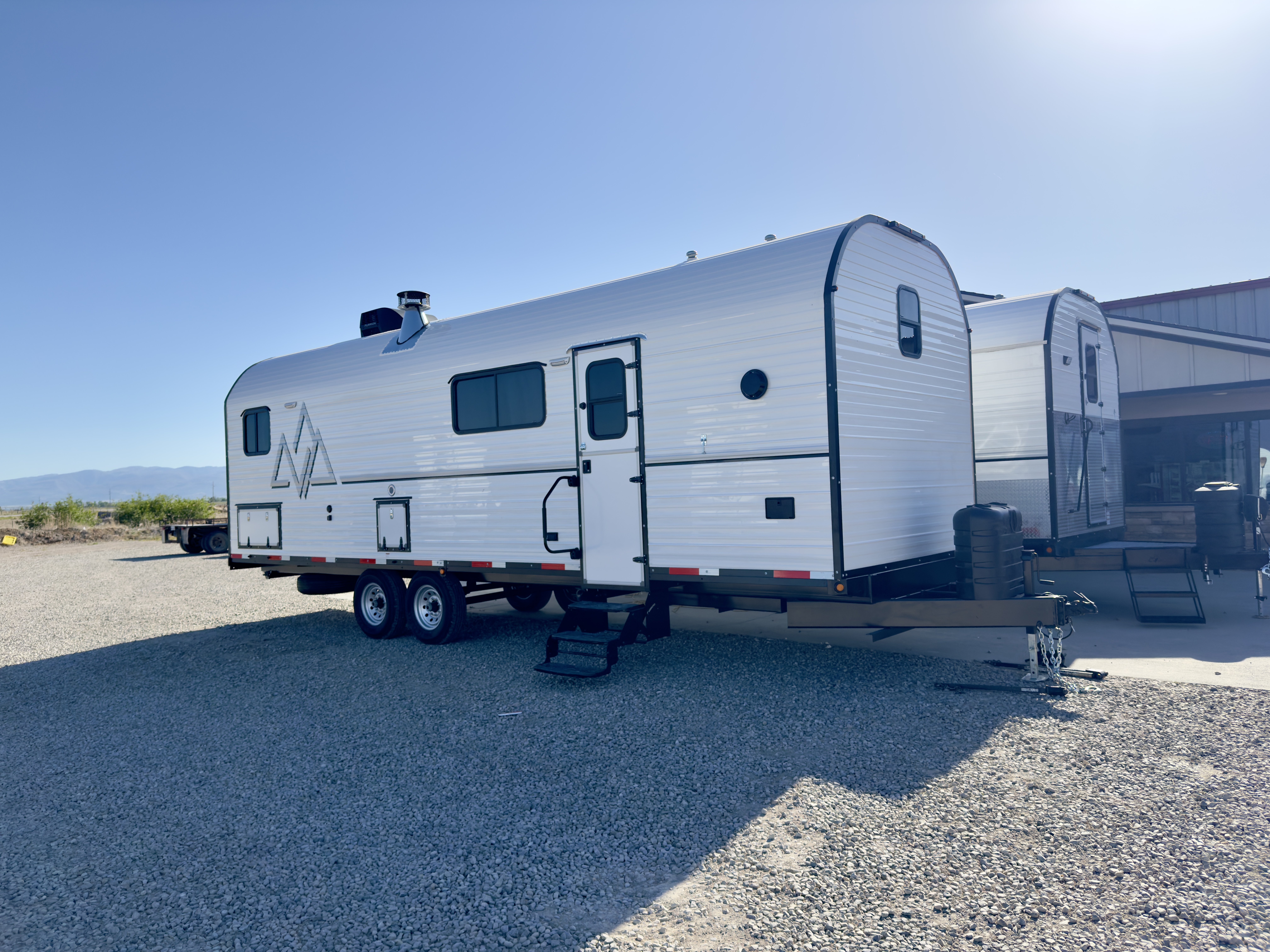

Front three-quarter view of Plankis Camp #124 with a curved front wall, entry steps, propane cover, and hitch. — Exterior Plankis Camp #124 – Front Three‑Quarter Exterior with Hitch

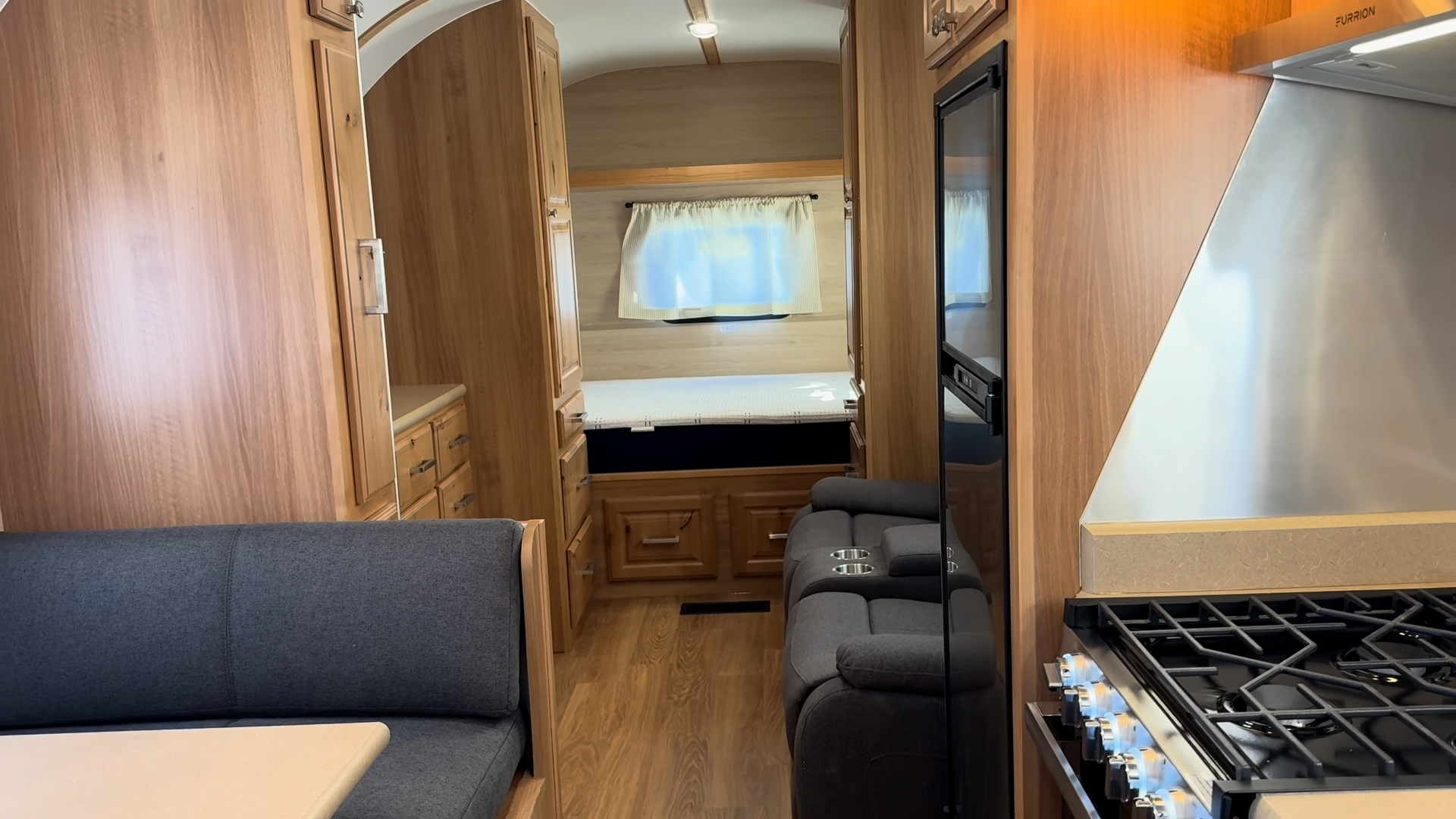

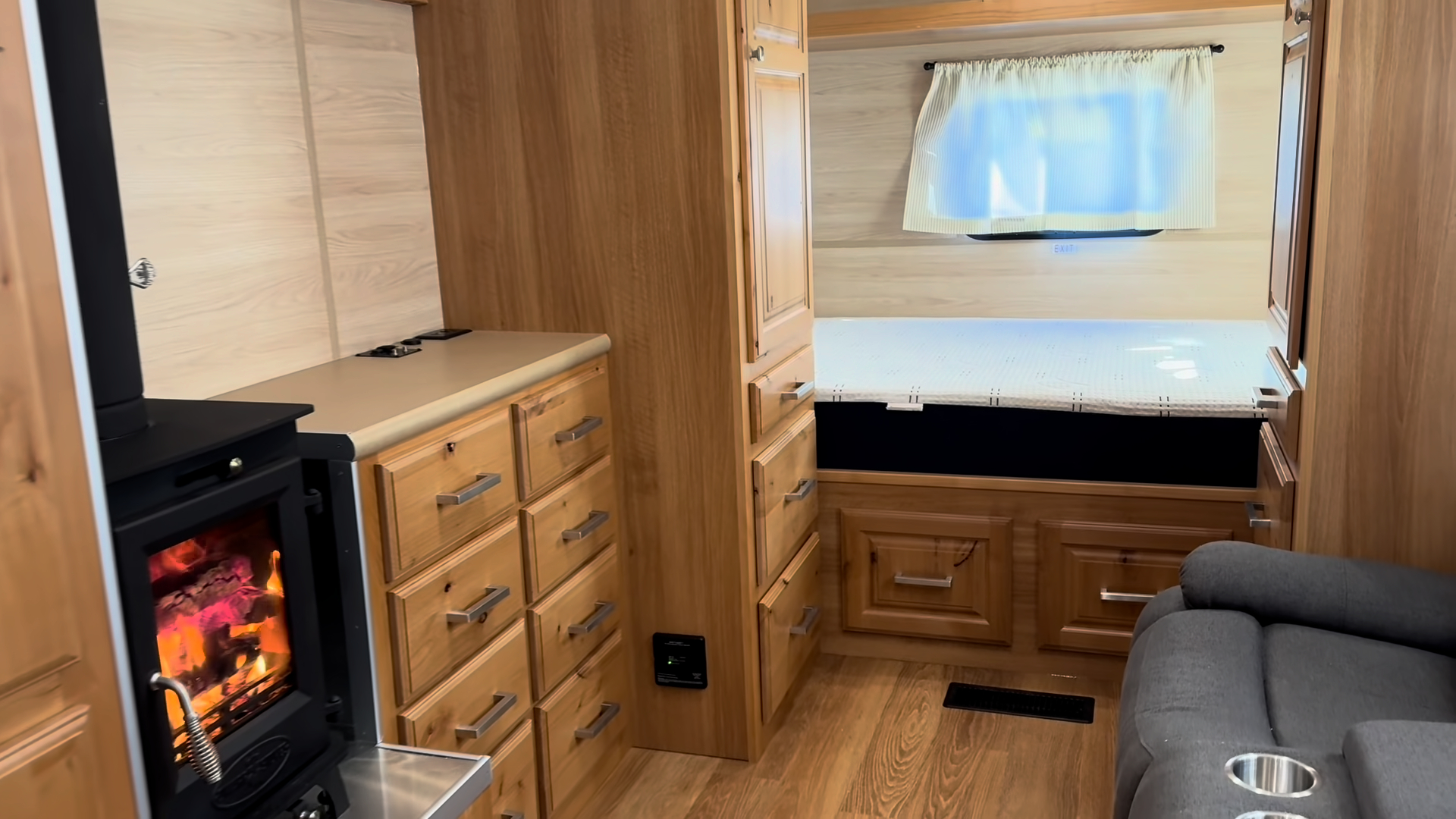

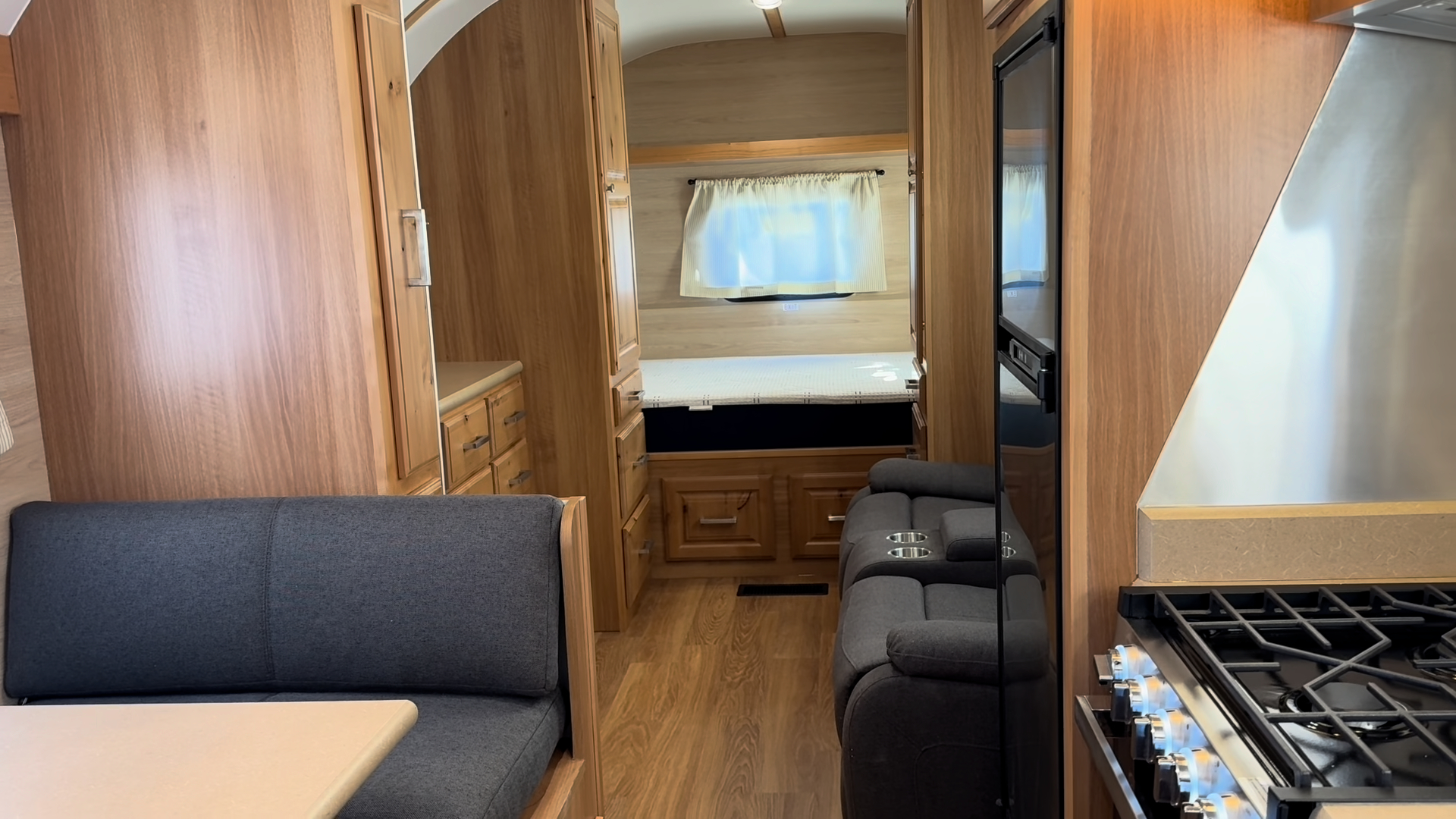

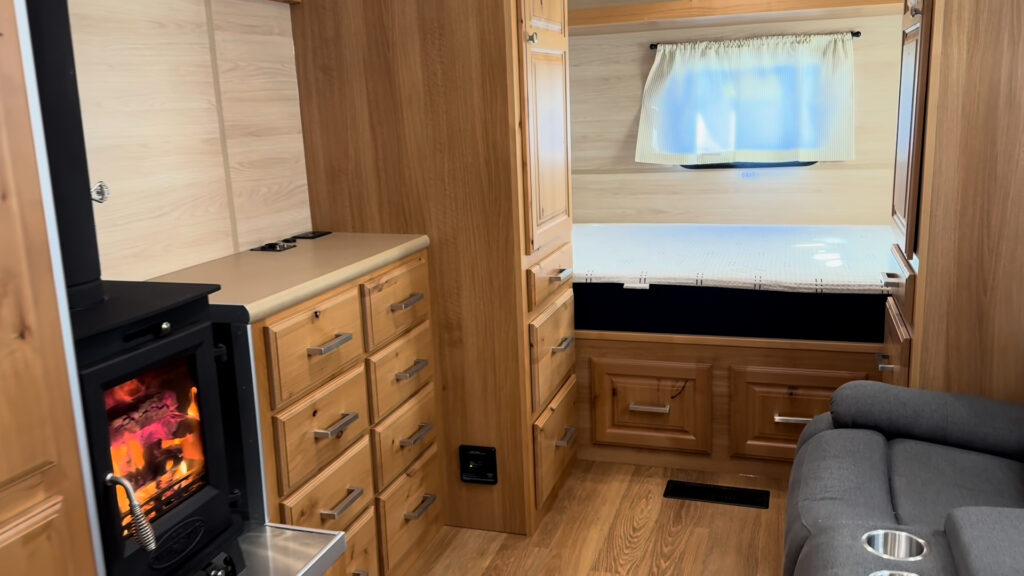

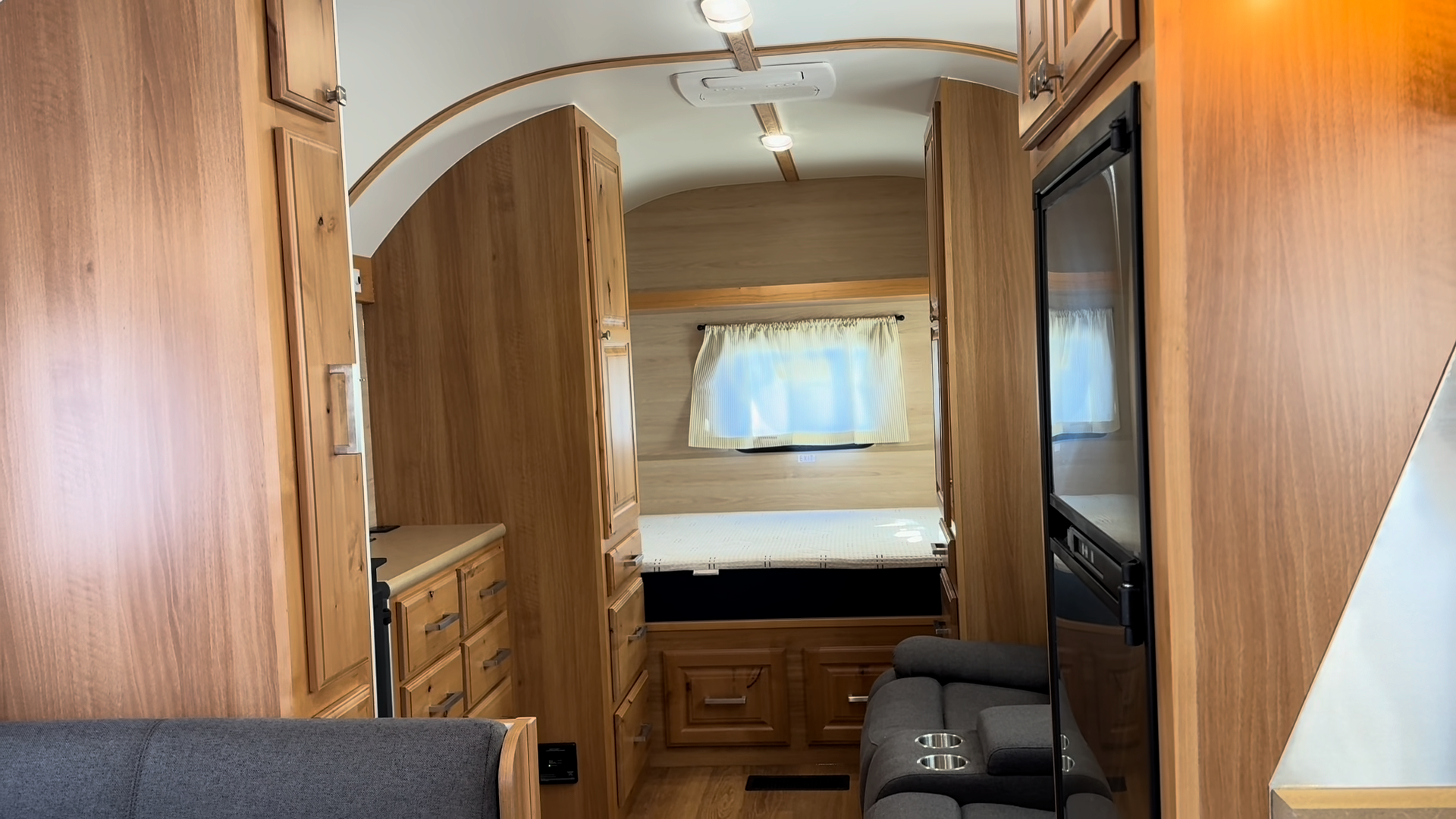

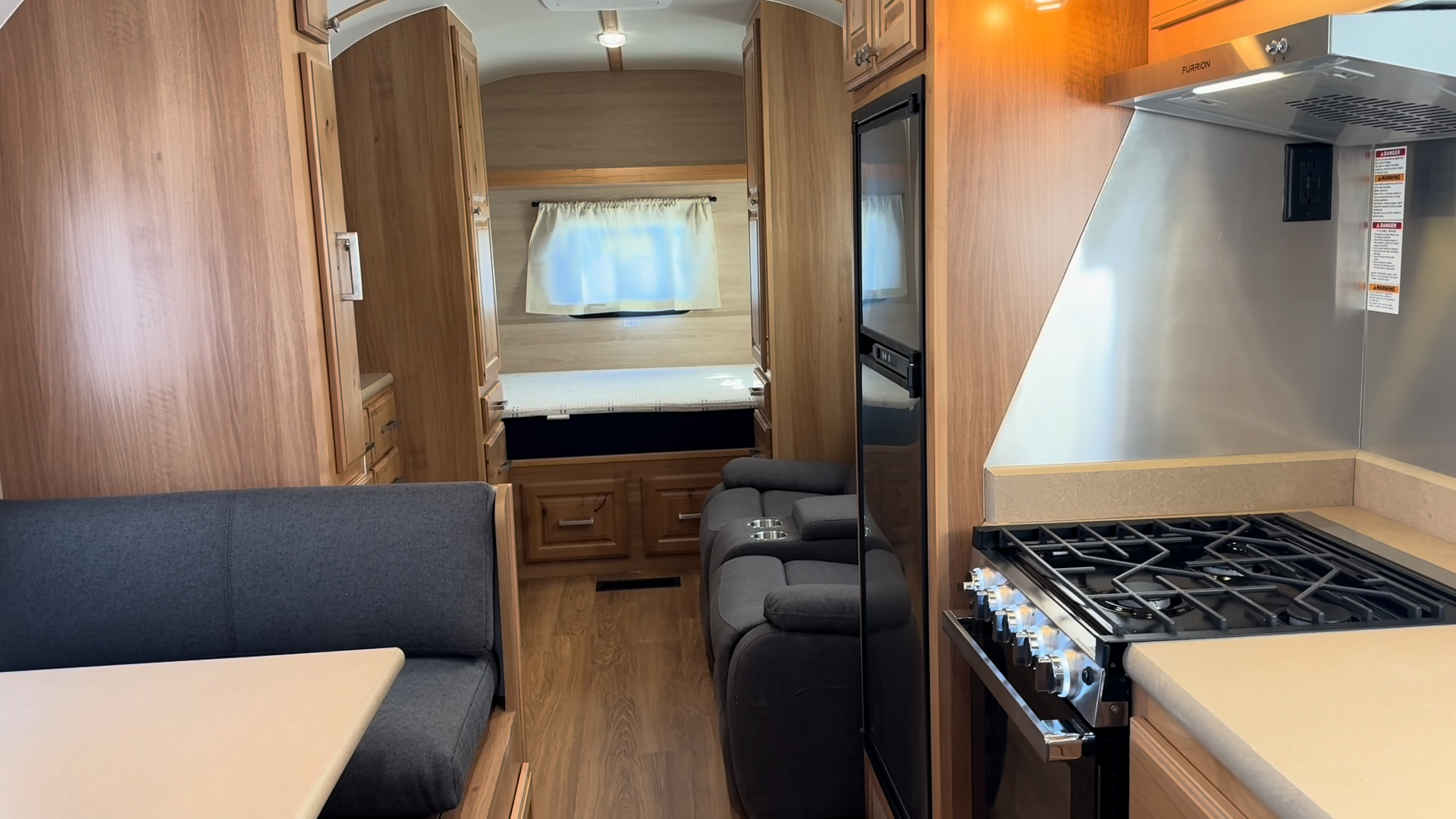

Interior of Plankis Camp #124 with a black stove, wood drawers, seating, and a bed between tall cabinets. — Interior Plankis Camp #124 – Living Area Toward the Bed

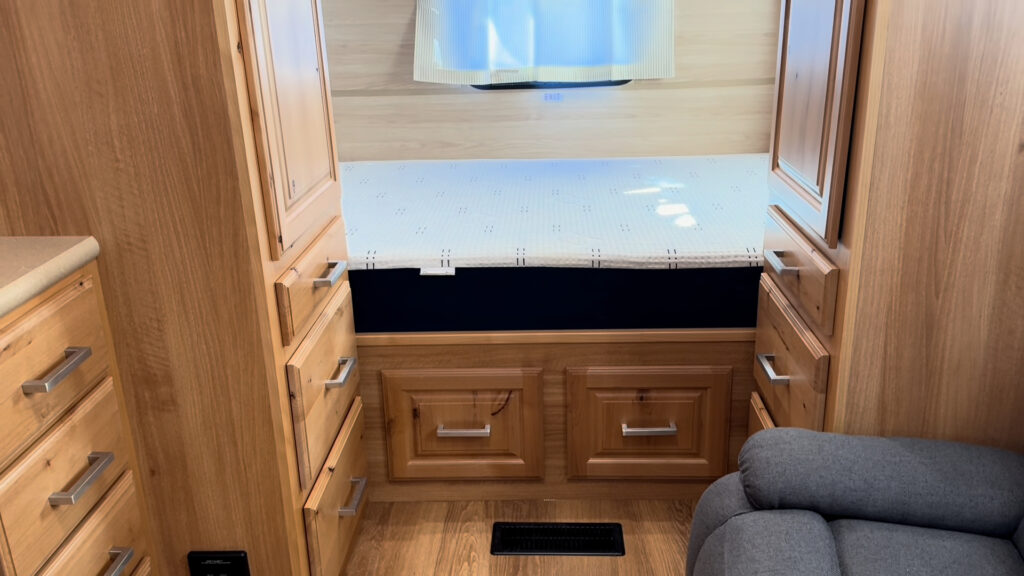

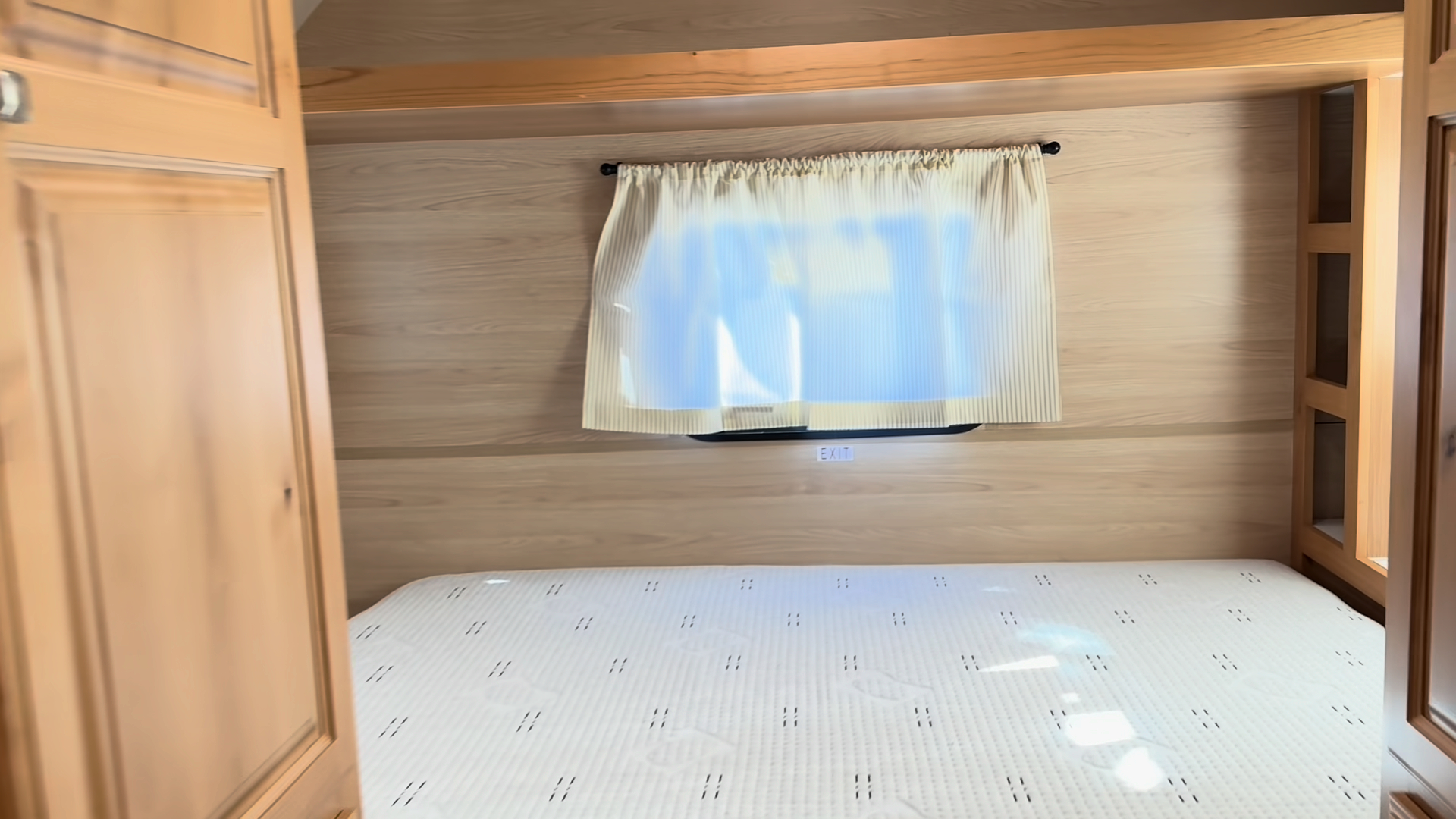

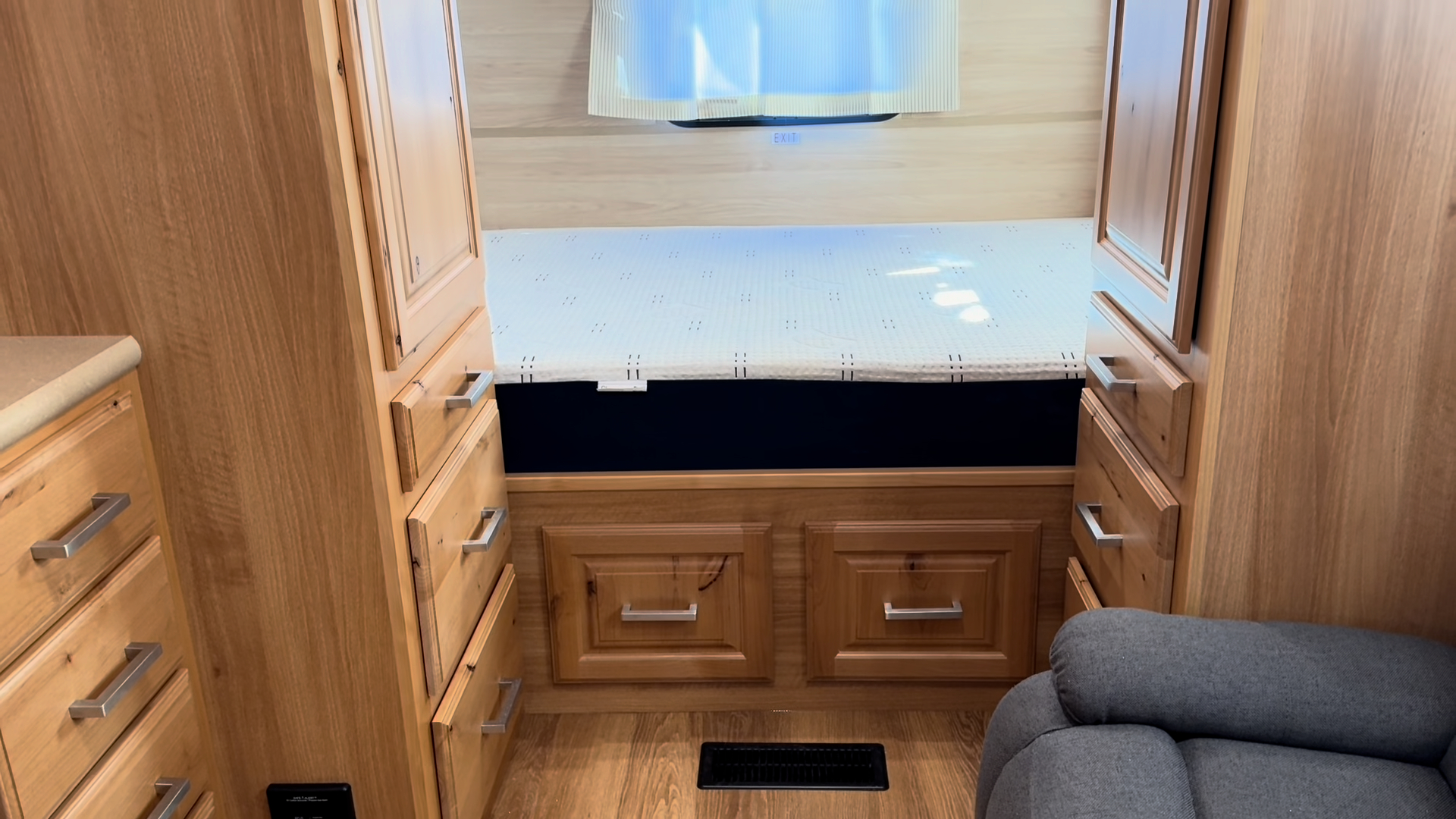

Bed beneath a curtained window in Plankis Camp #124, framed by tall wood cabinets and open side shelving. — Interior Plankis Camp #124 – Bed and Rear Window

Layouts & Drawings

Floor Plans

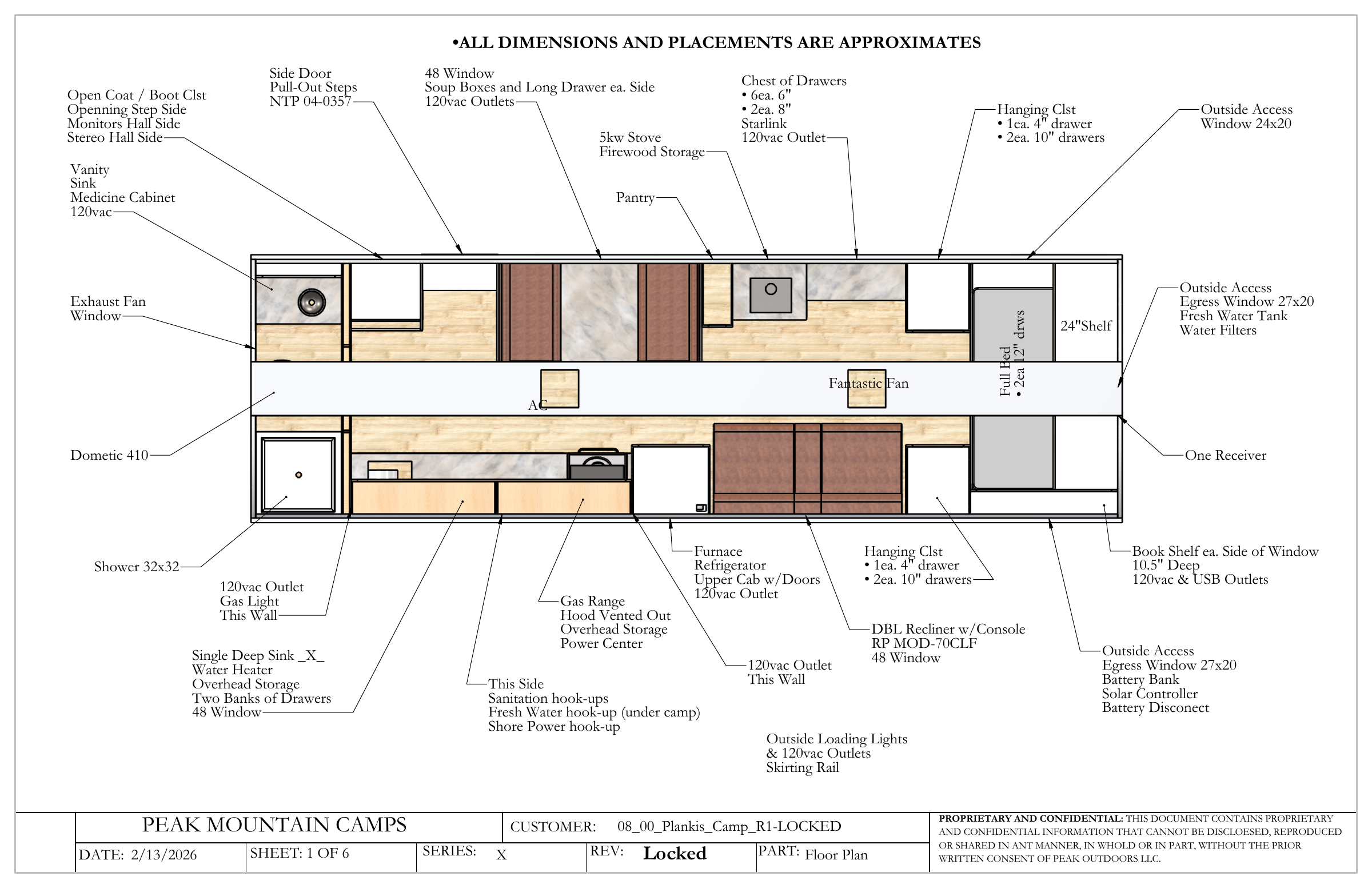

Plankis Camp #124 annotated floor plan, drawing page 1 of 6. — Plankis Camp #124 – Annotated Floor Plan

Build Details

Specifications

Exterior

Entry

Entry Layout: Highlighted feature: Side Entry
Entry Door Style: Dutch Door

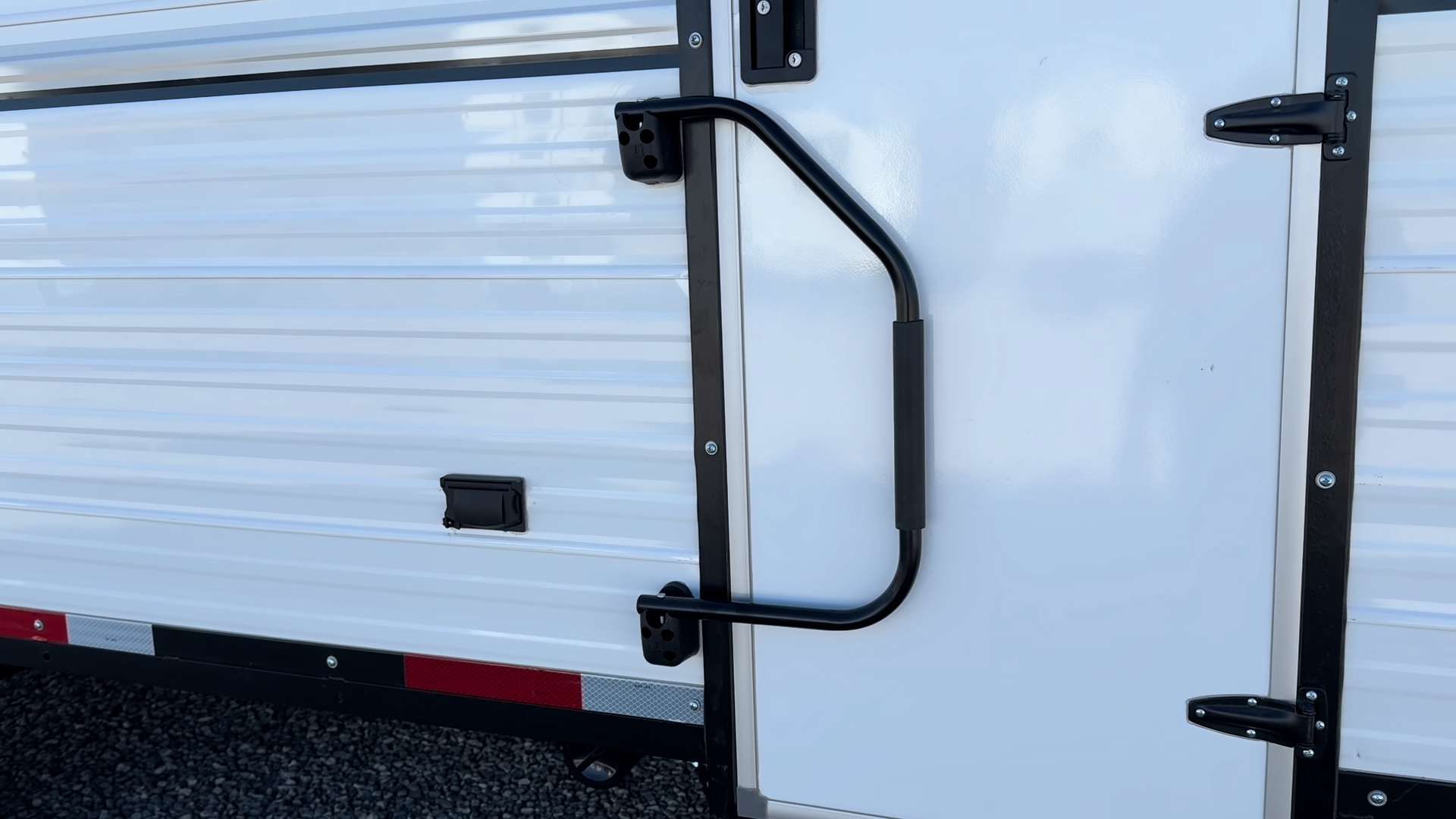

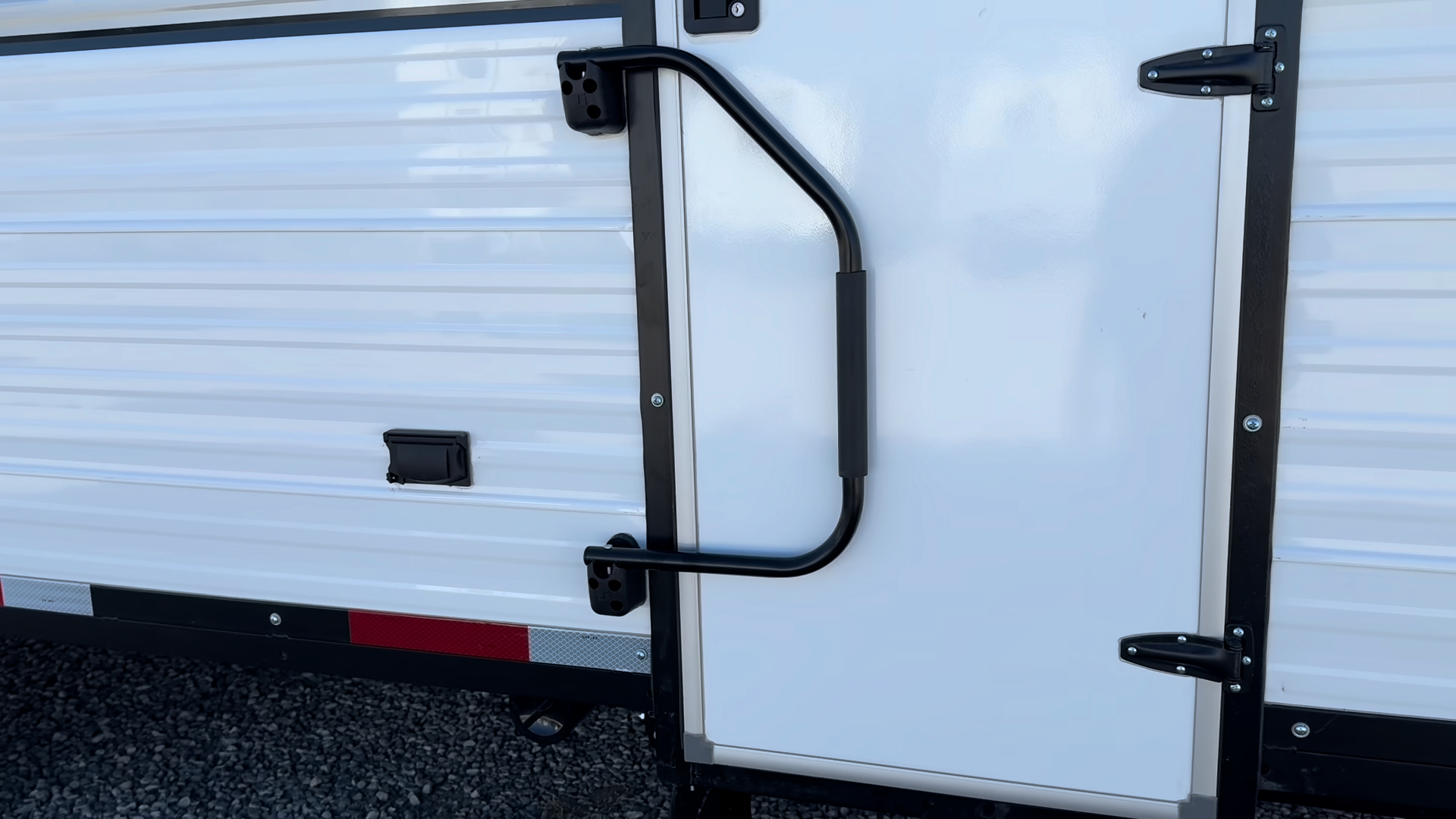

Entry Railing: Standard Fold-Away Hand Railing

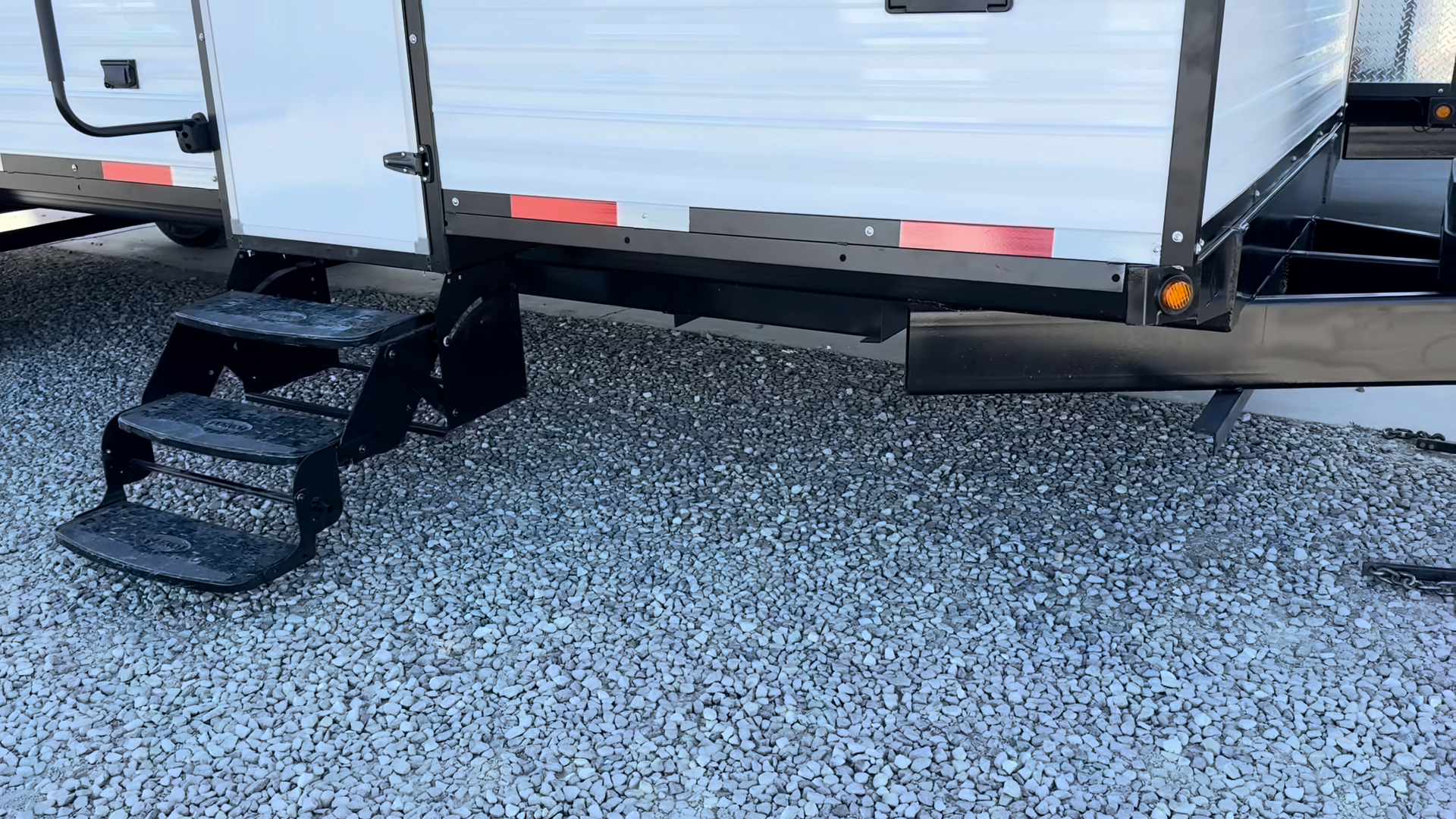

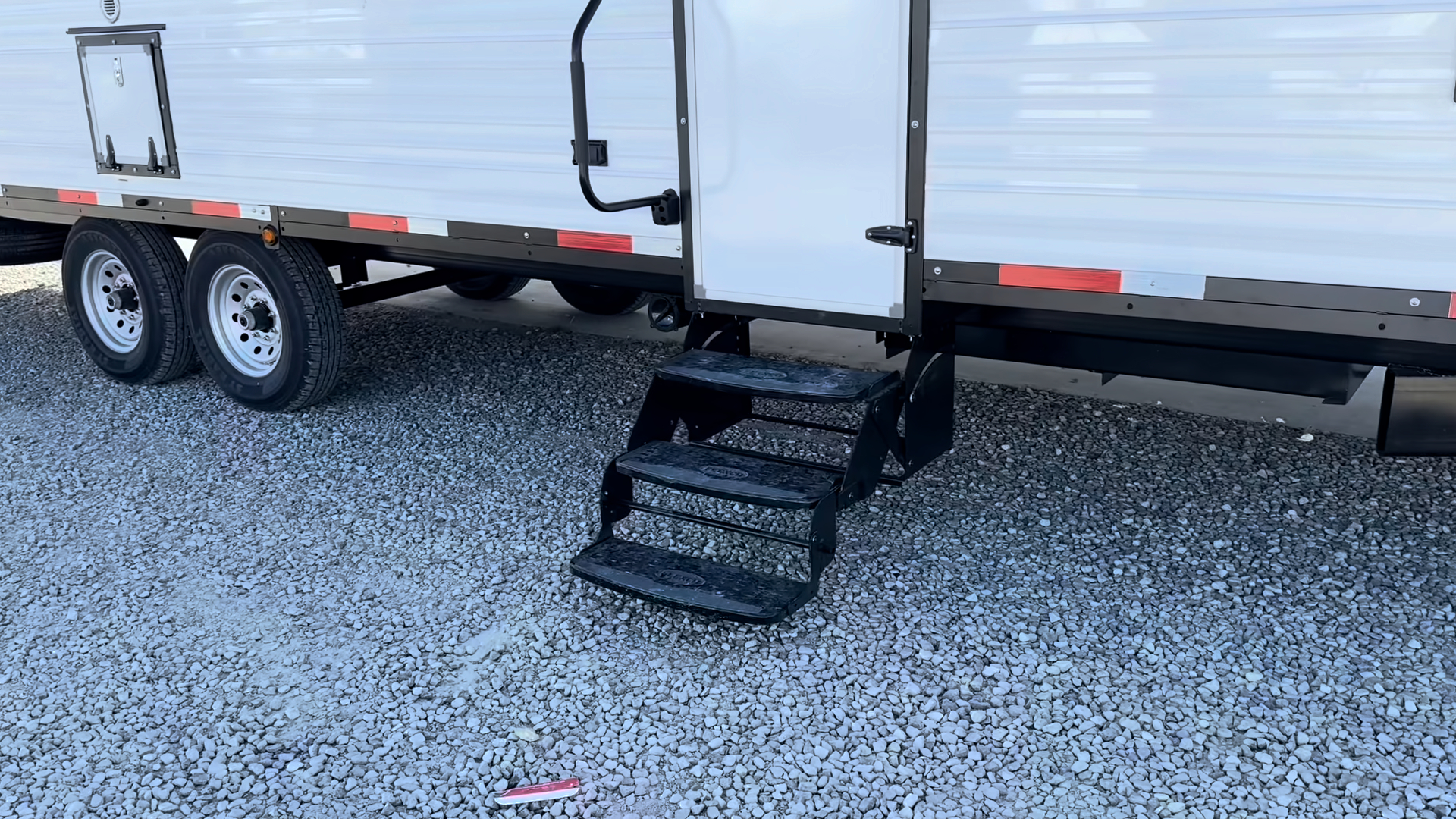

Entry Steps: Pull-Out Fold-Under Steps

Storage

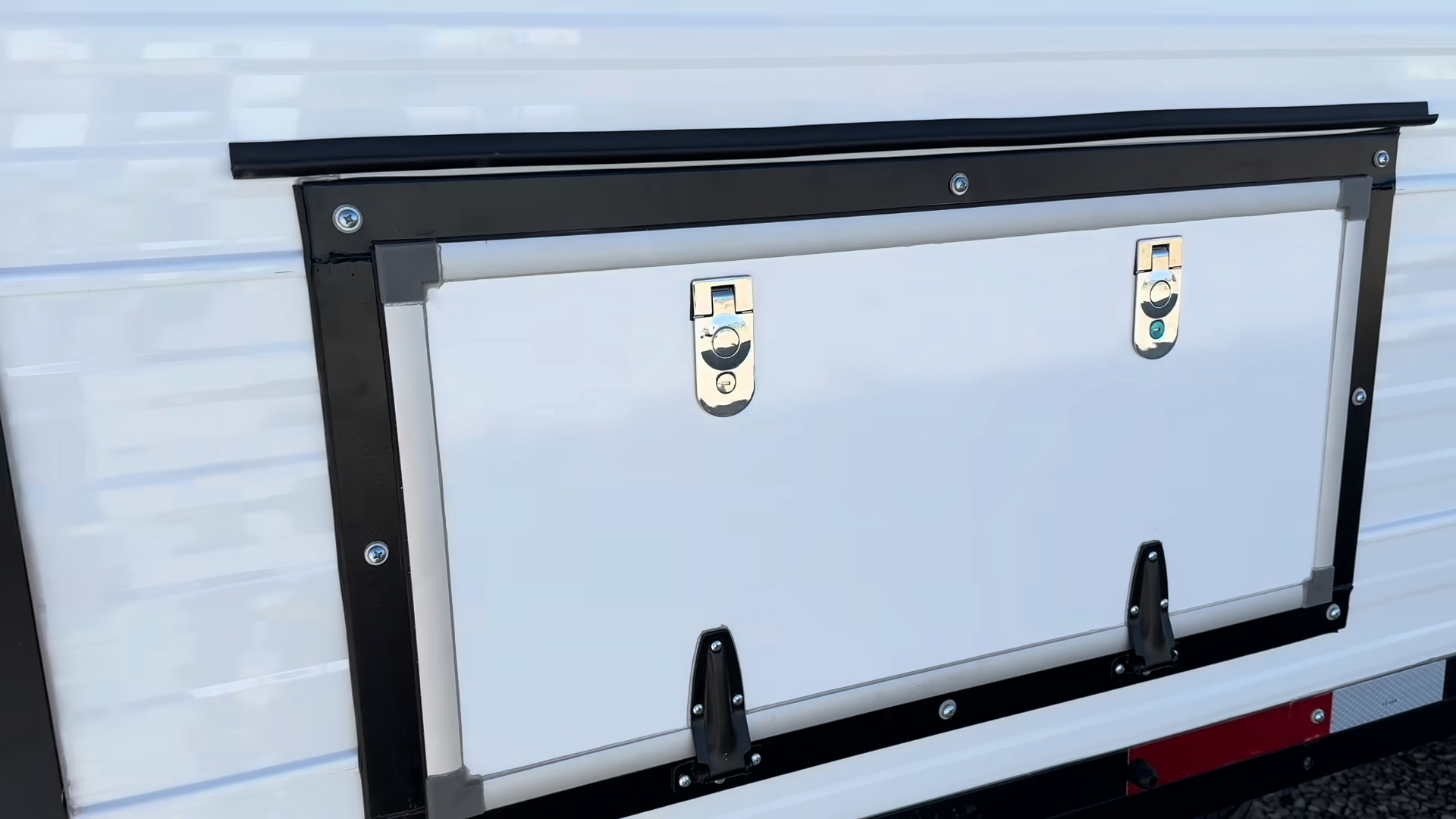

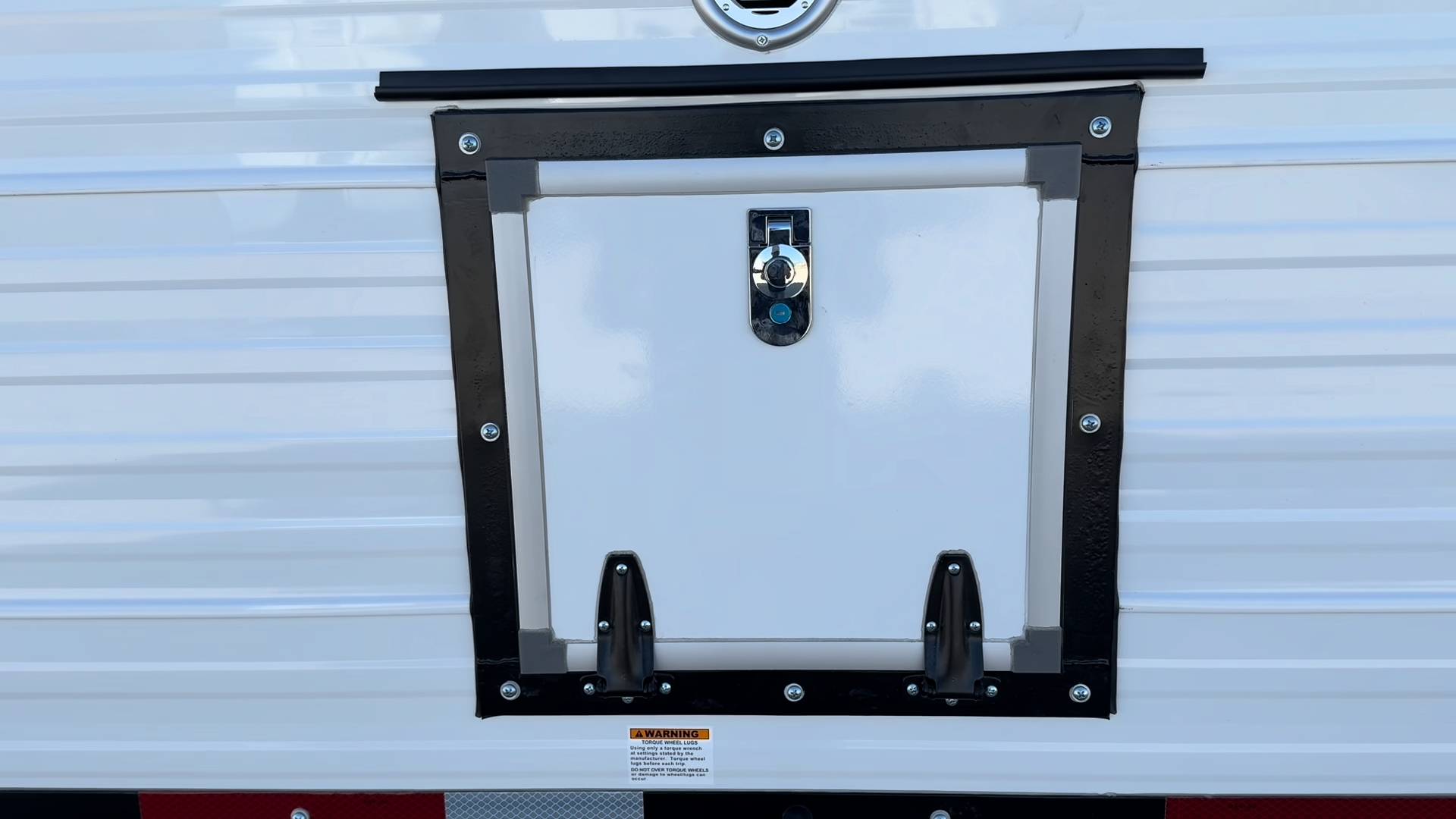

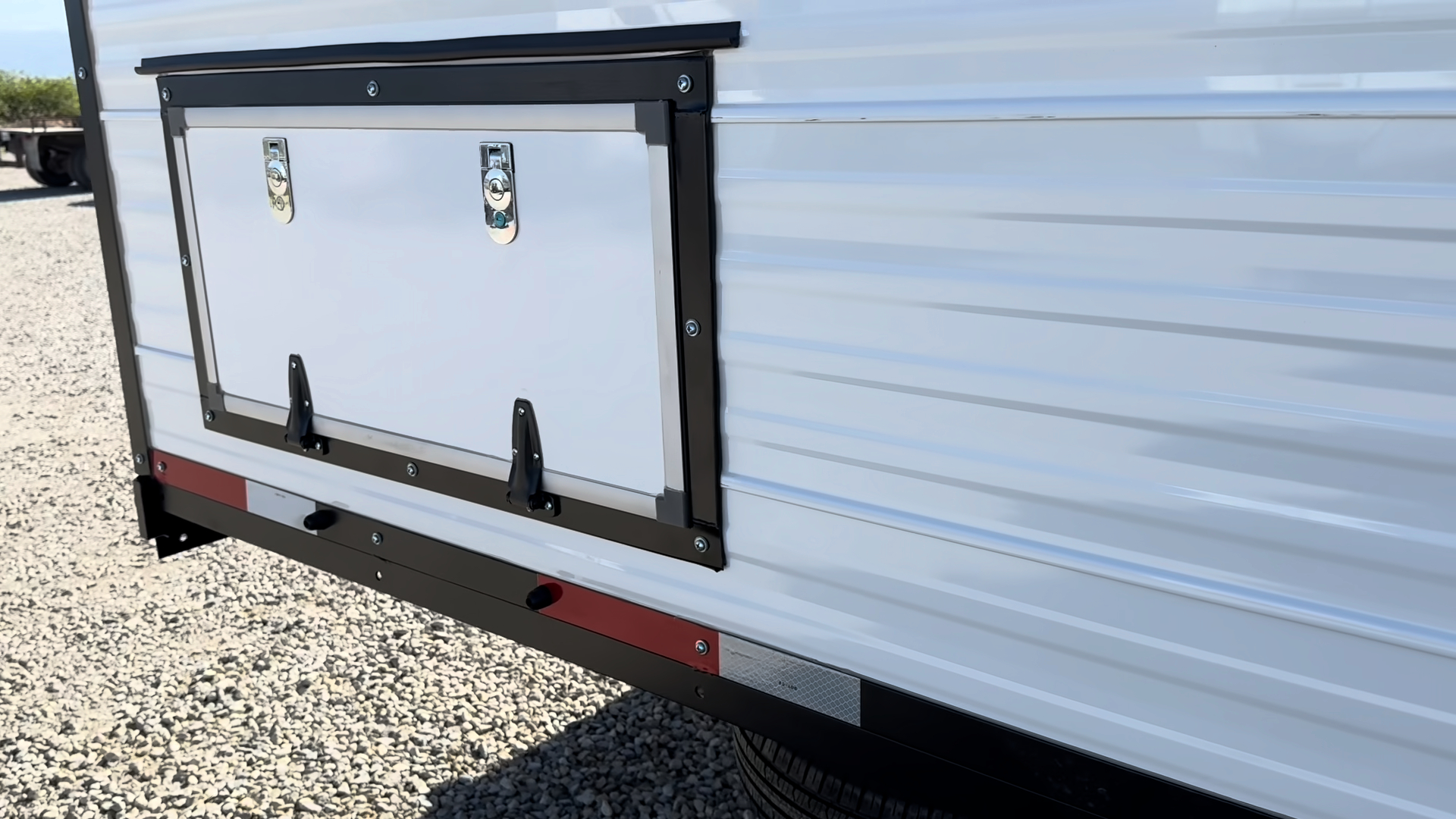

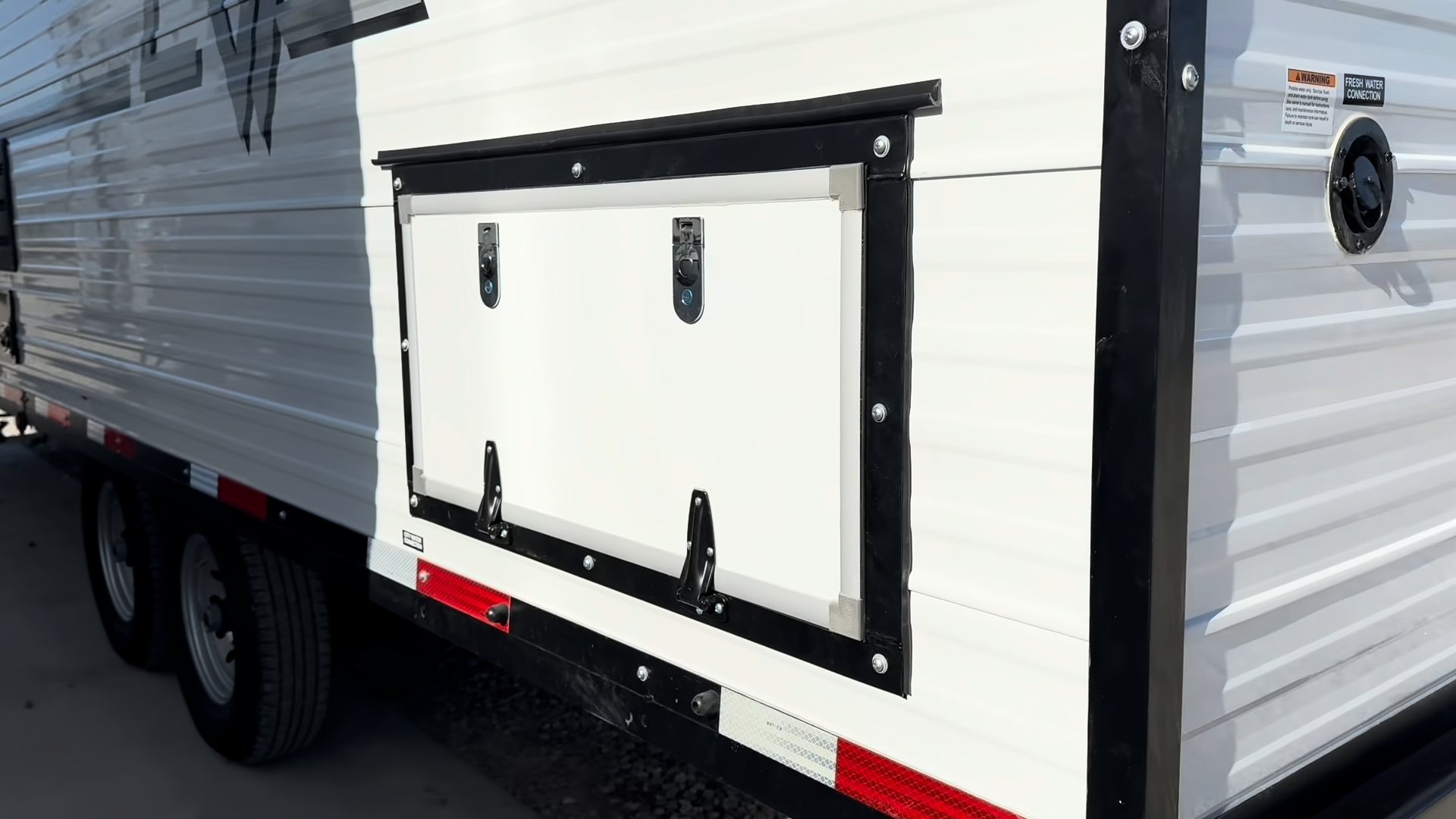

Exterior Compartments: 4x Exterior Compartments (Including Wood Box)
Compartment Doors & Latches: Keyed Doors With Adjustable Latches

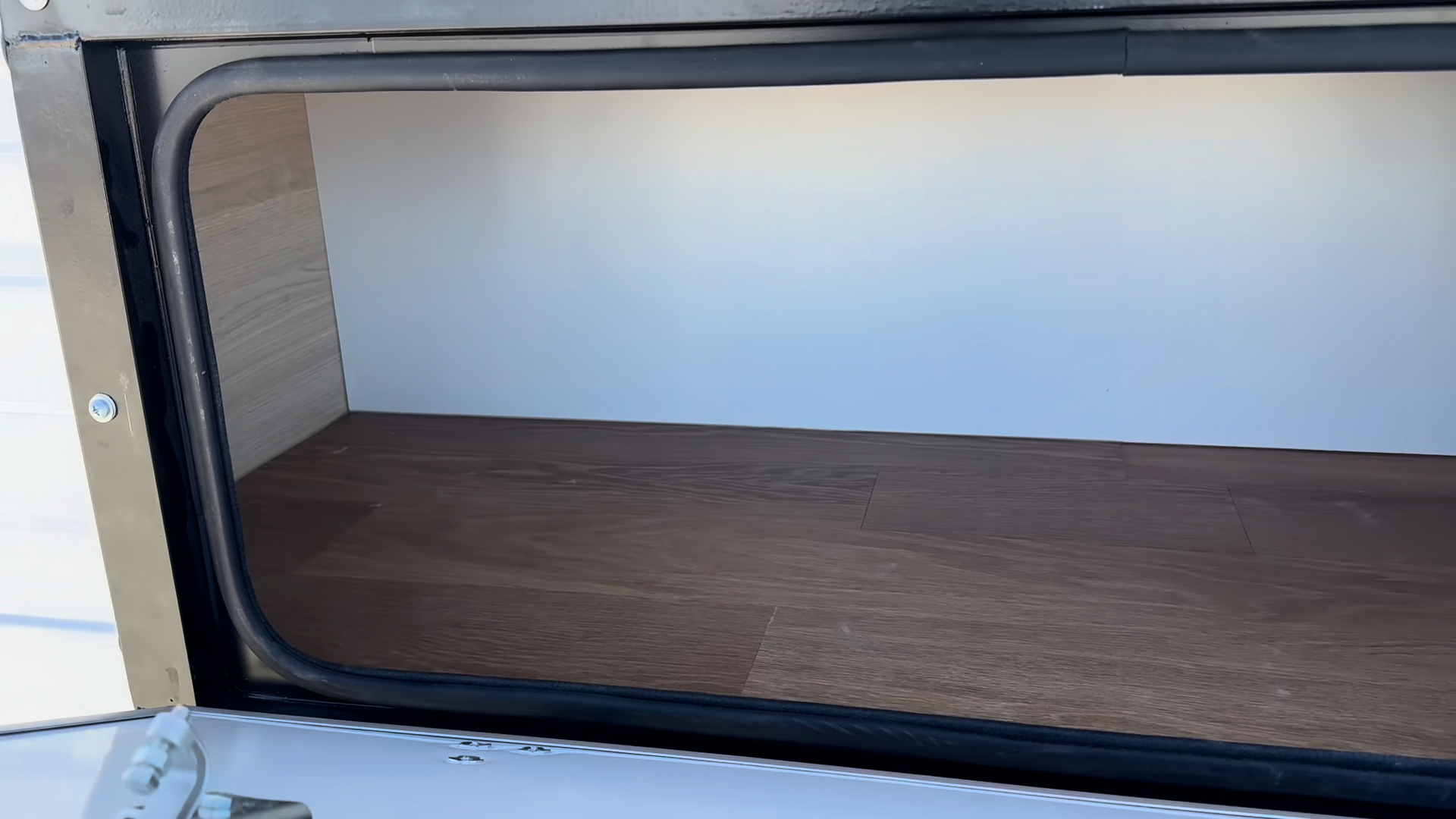

Compartment Sealing: Dual-Sealed
Compartment Lighting: LED Lighting in Exterior Compartments
Wood Box: Standard Pass-Through Wood Box

Construction

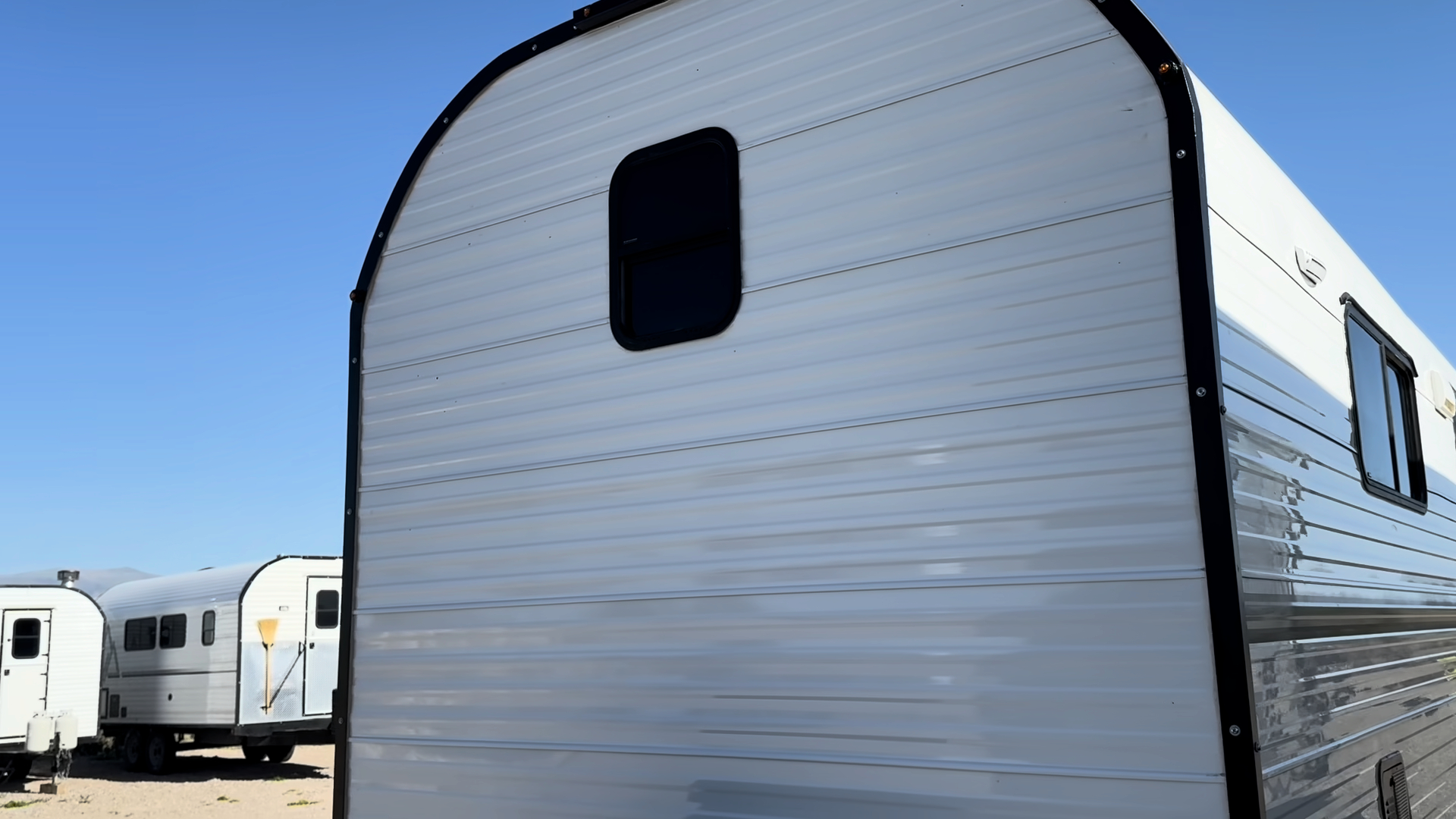

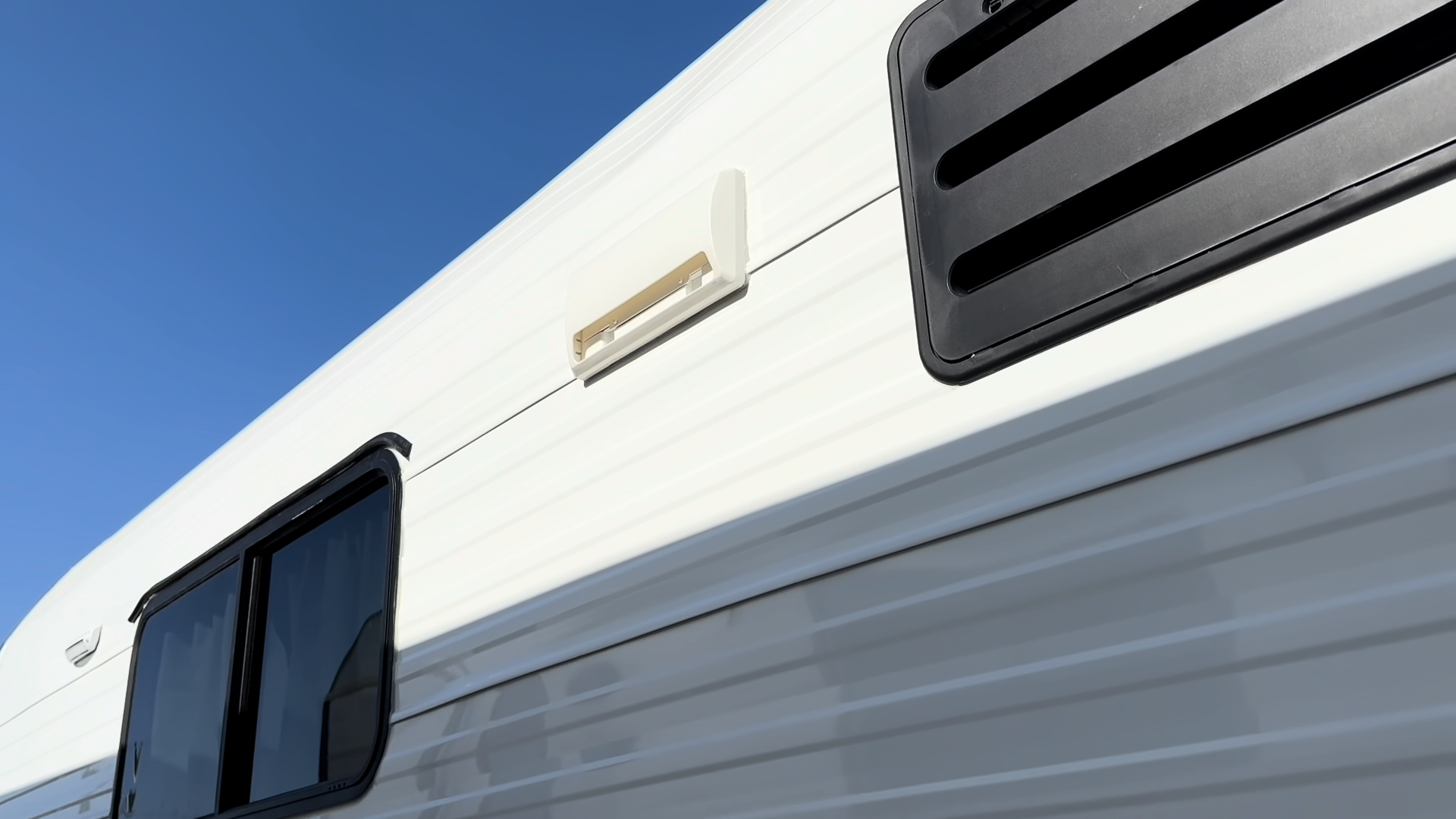

Siding / Wrapping: White Aluminum Siding
Structural Reinforcement: Angle Iron On Exterior Edges
Windows: 7x Dual-Pane Windows With Sliders, Screens, & Rain Gutters

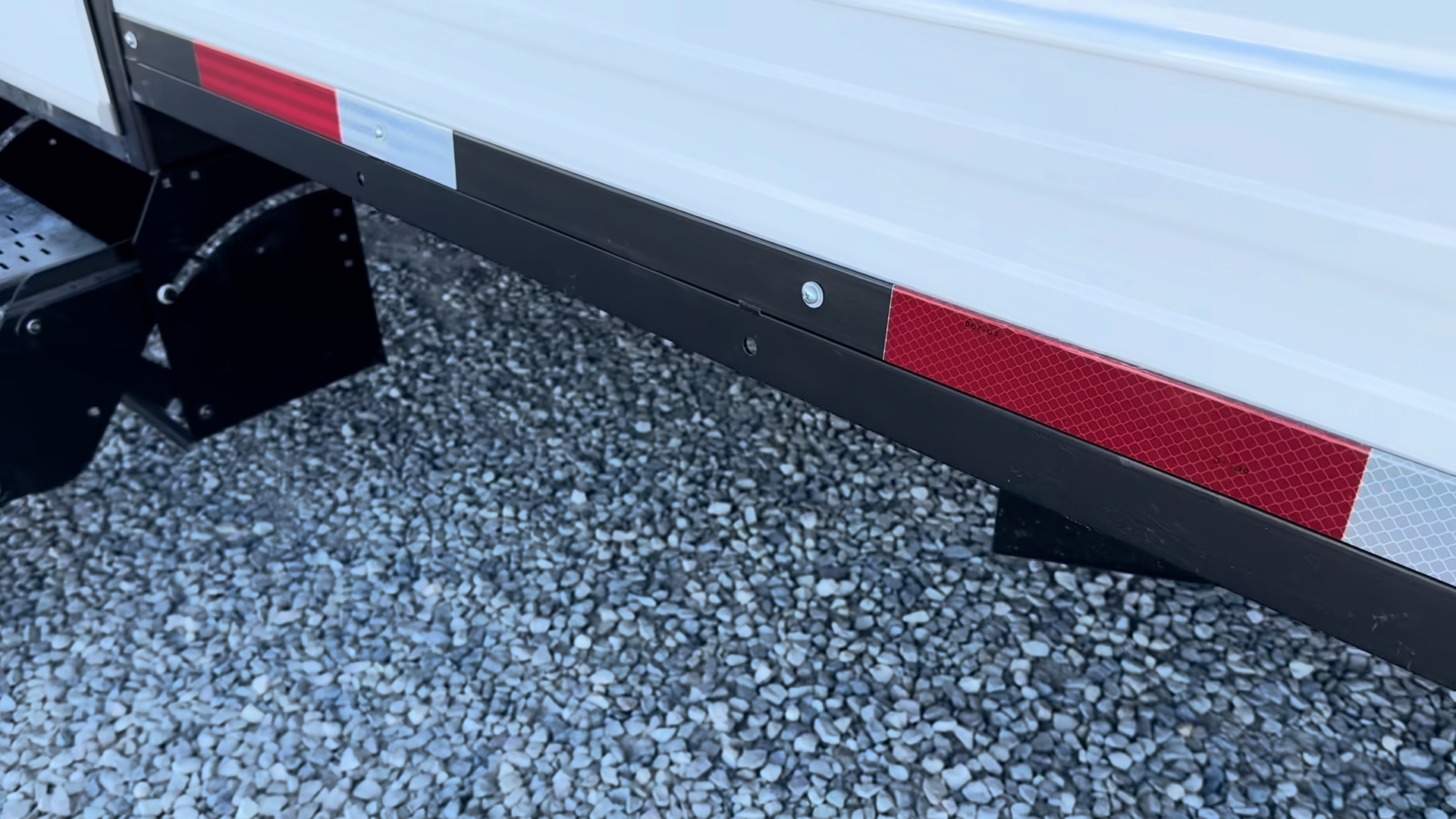

Skirting Rails: Highlighted feature: Yes

Power & Lighting

Exterior Lights: Highlighted feature: Surround LED Loading Lights (1x Front, 2x Road-Side, 2x Curb-Side)
Exterior Power Connections: Highlighted feature: AC Outlet Near Entry Door

Interior

General

Layout: Fully Custom (Designed with Customer)
Sleep Capacity: 2 Adults

Entry / Hallway

Configuration: Side Entry

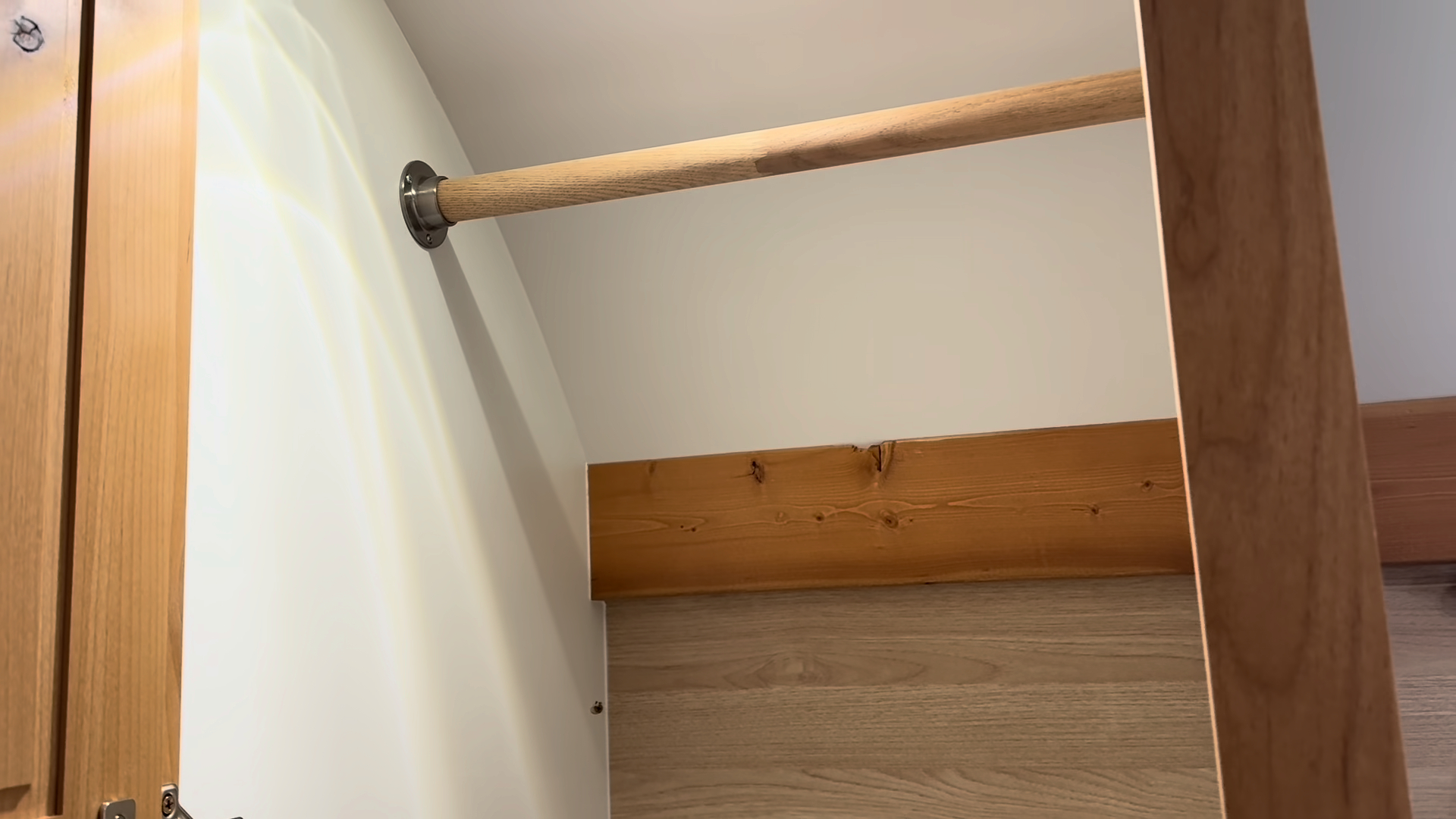

Closet Storage: Highlighted feature: Large Open Entry Closet w/ Hanging Rod
Boot Storage: Below Open Closet

Kitchen

Refrigerator: 7 cu ft Propane/Electric Fridge-Freezer
Microwave Cabinet: Standard Upper Microwave Cabinet with AC Outlet (Above Fridge)

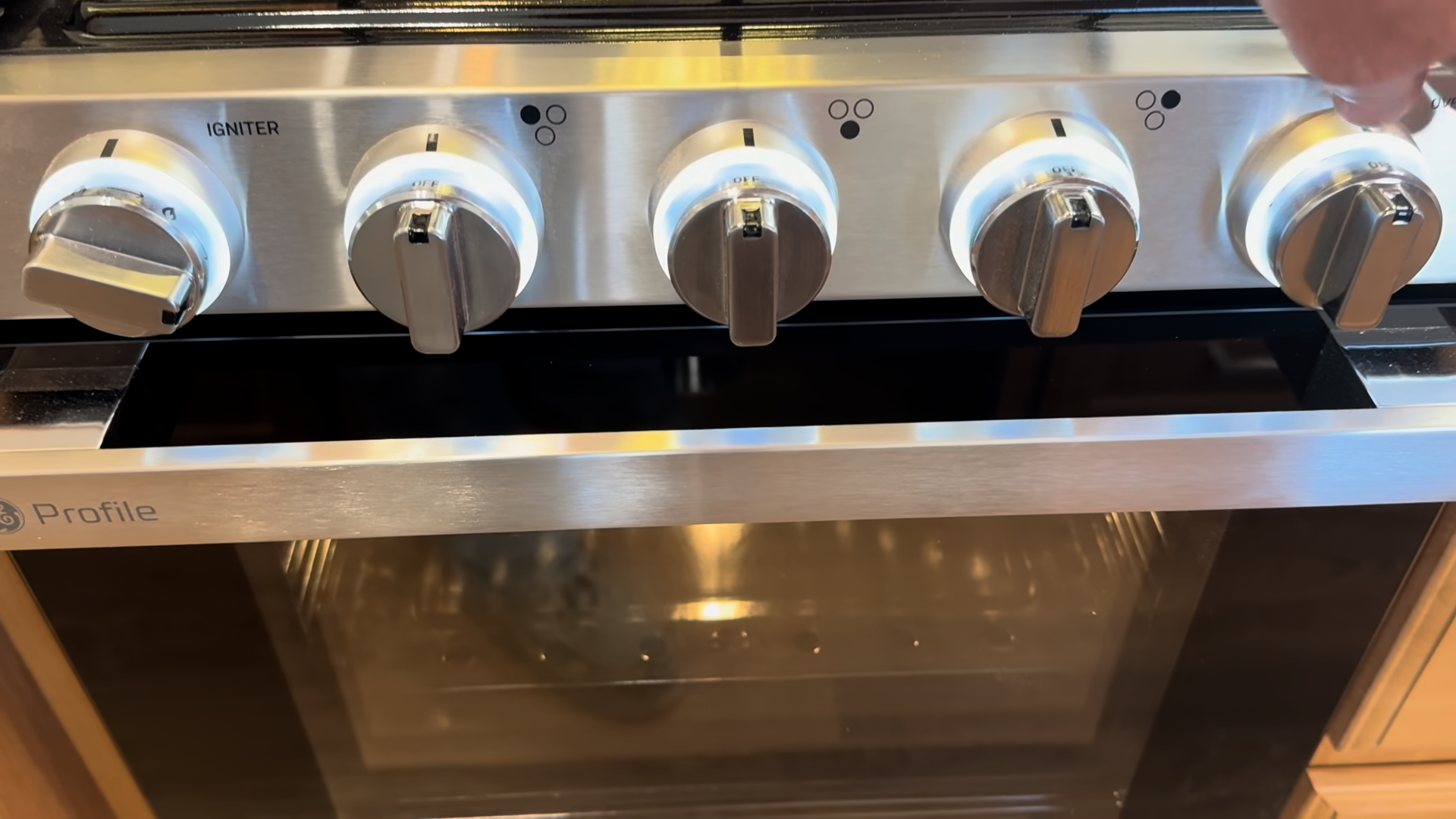

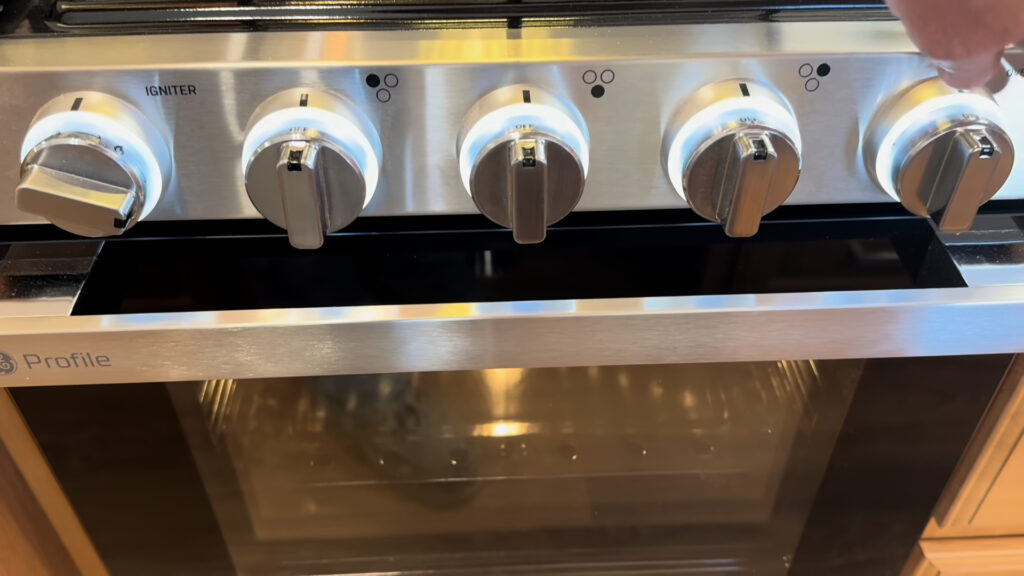

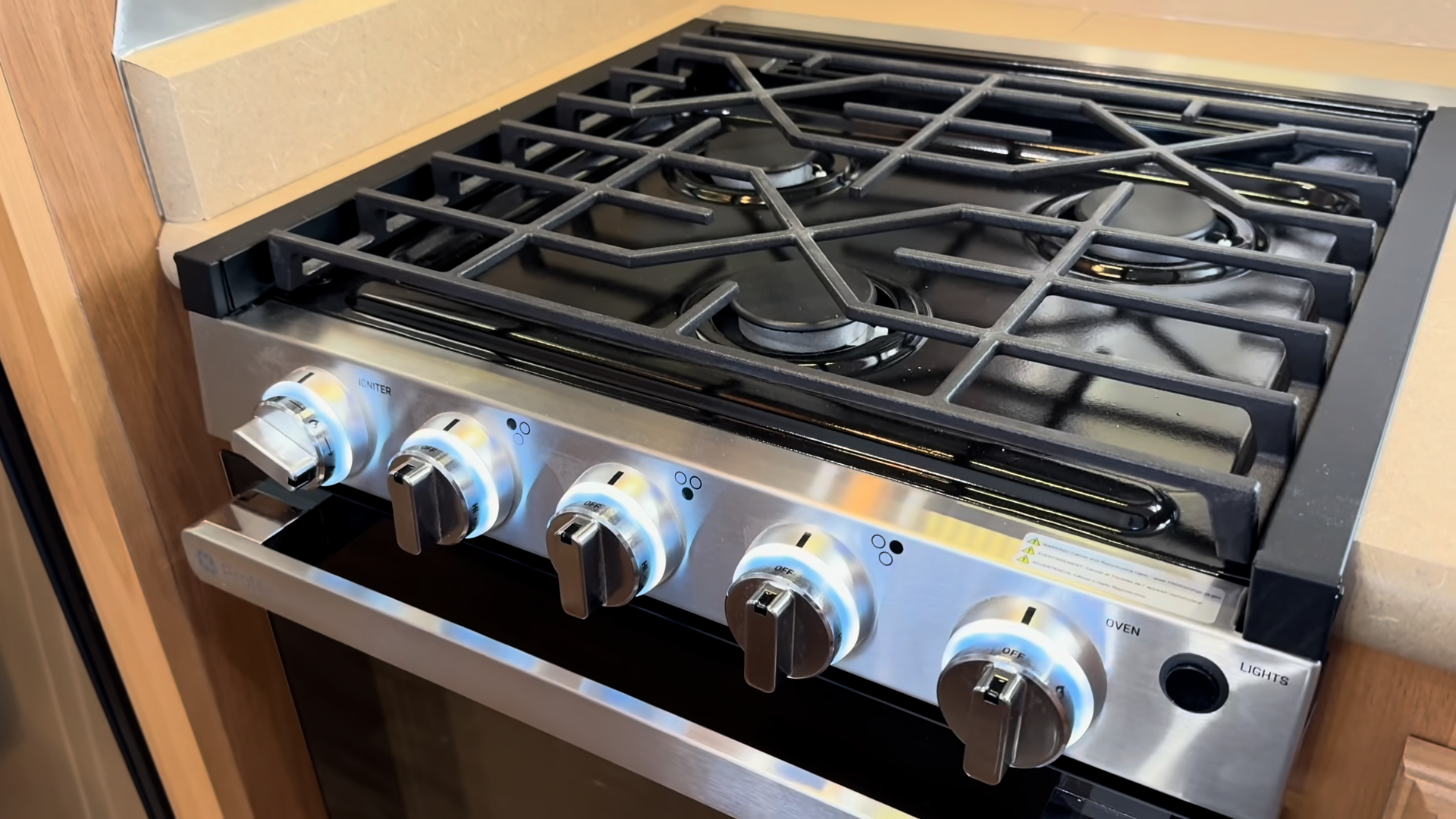

Stovetop / Oven: Highlighted feature: GE 3-Burner Cooktop and Oven with Direct Spark

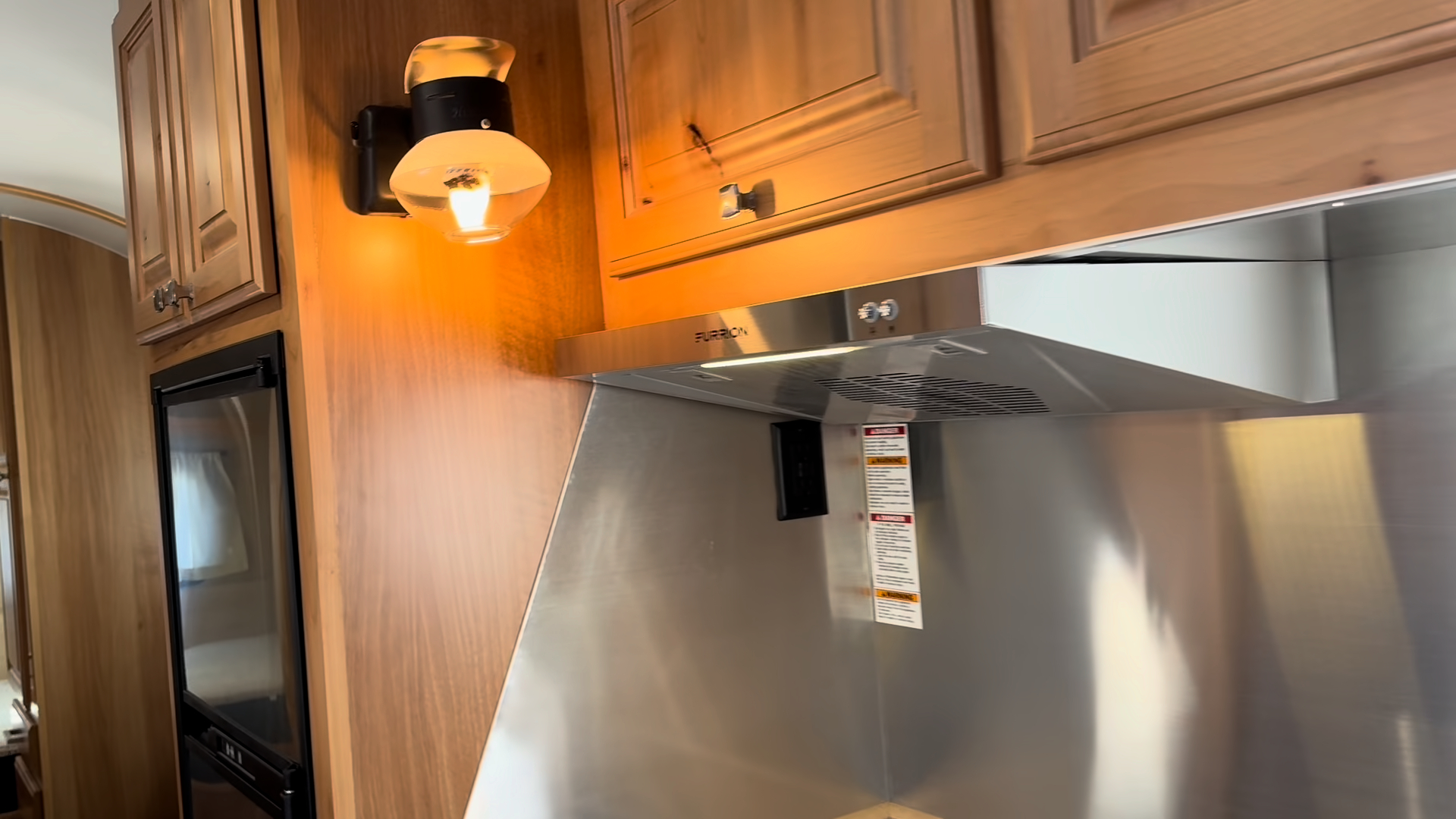

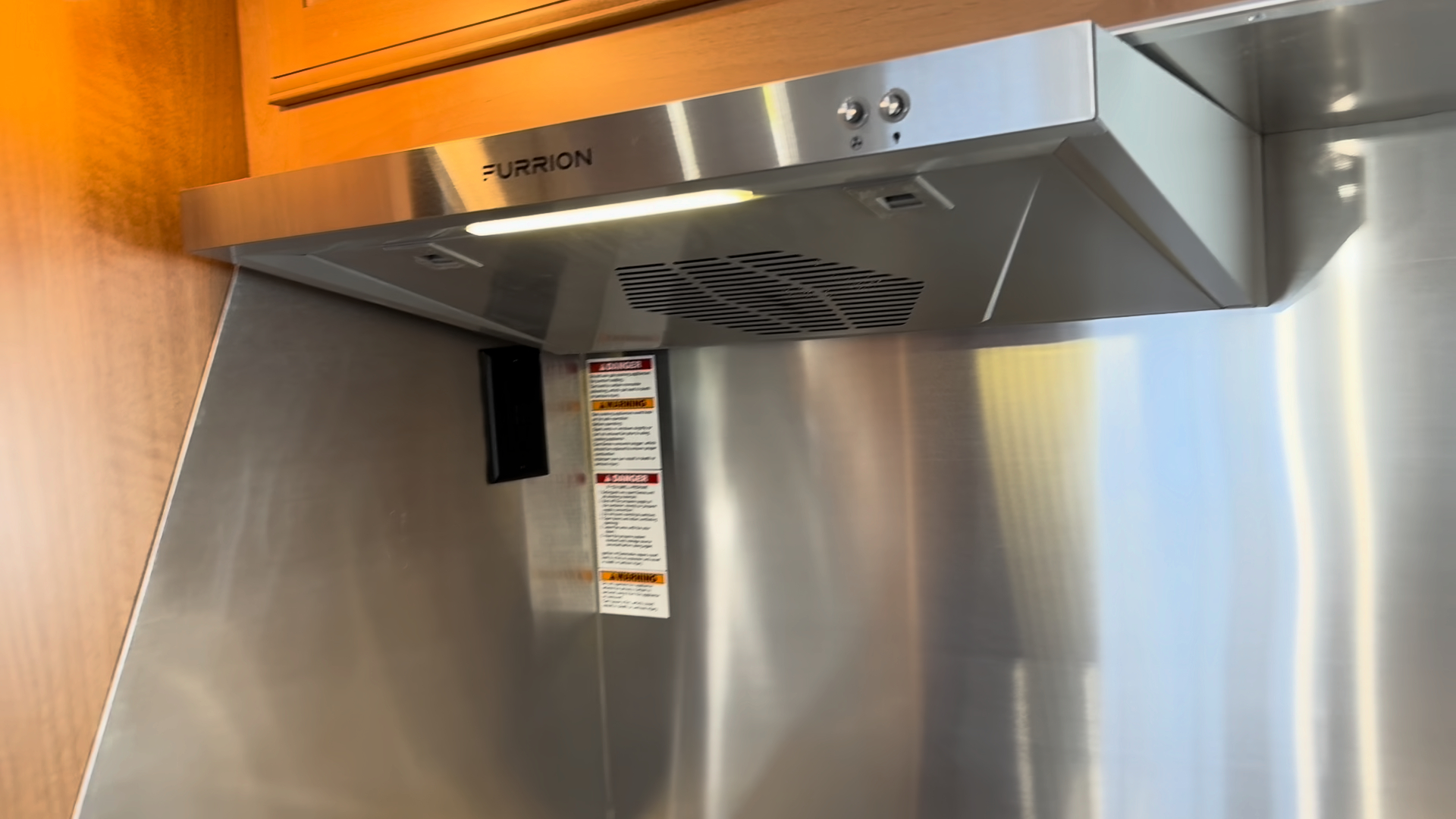

Range Hood: Highlighted feature: Stainless Steel Furrion Range Hood / Exhaust Fan

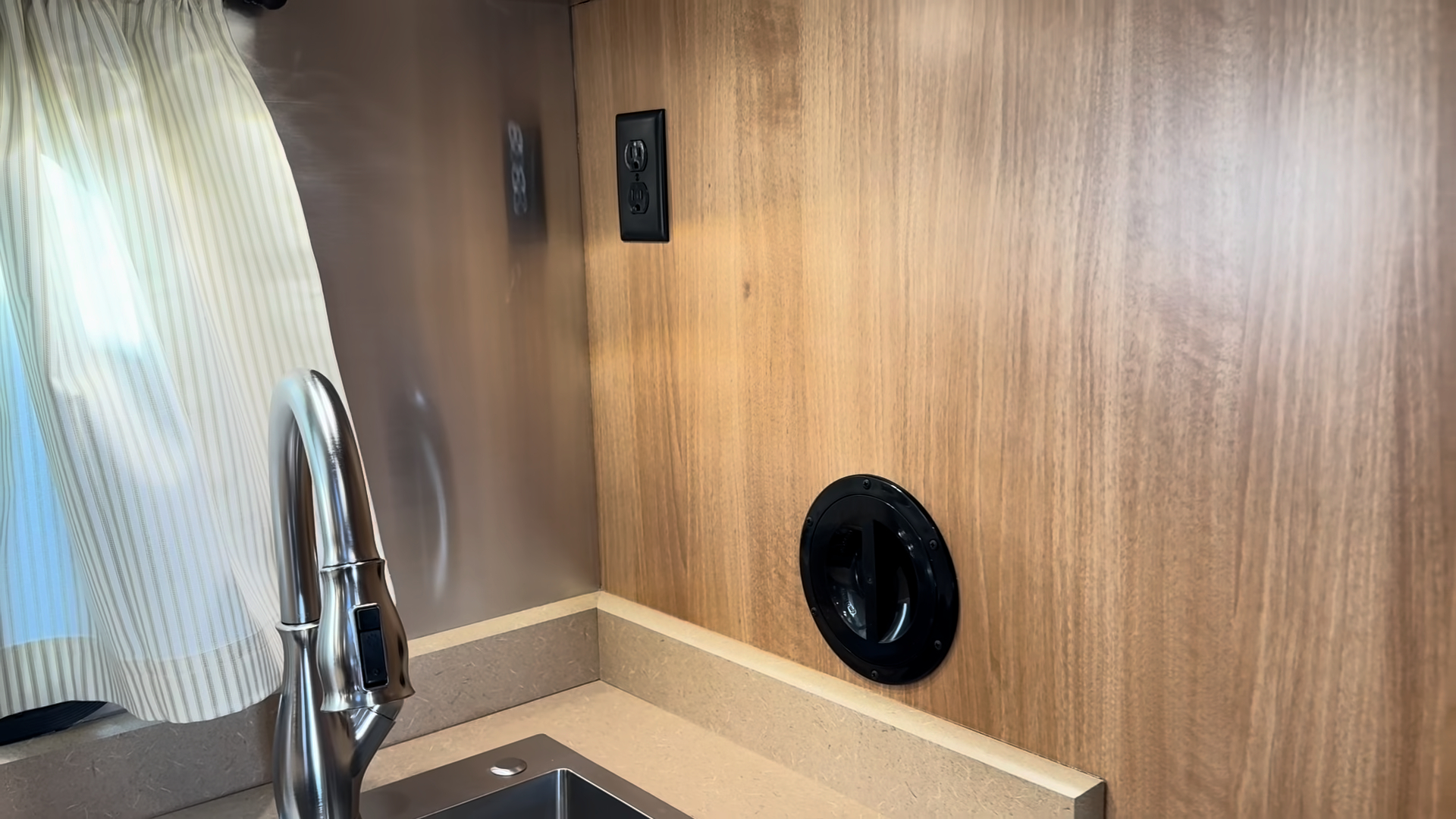

Sink: Single Deep Sink w/ Delta Residential-Grade Faucet
Pantry: 2x Pull-Out Pantries (Near Wood Burning Stove)

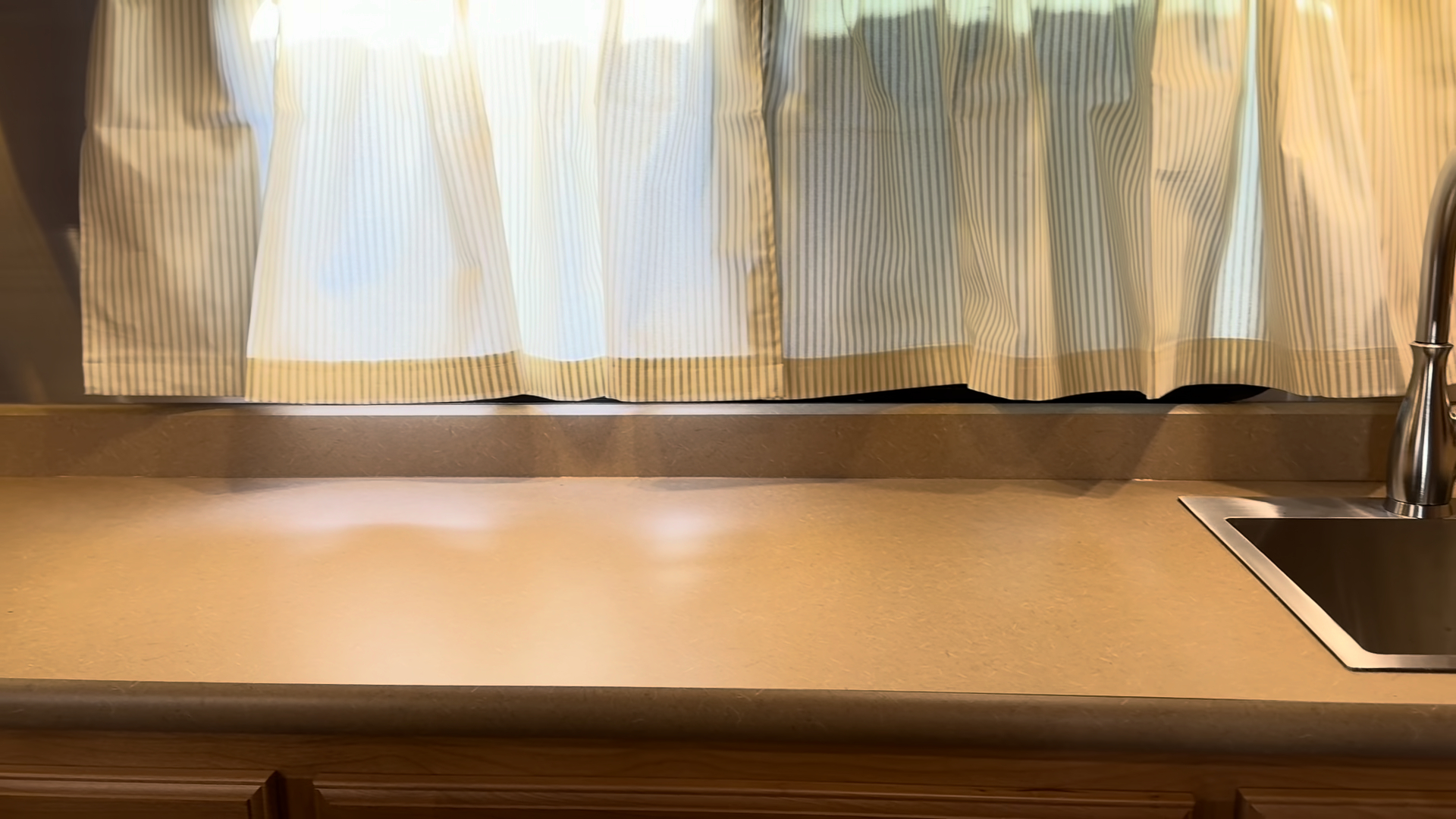

Prep Surface: Highlighted feature: Plentiful Counter Space
Overhead Cabinet Storage: 2x Large Overhead Kitchen Cabinets

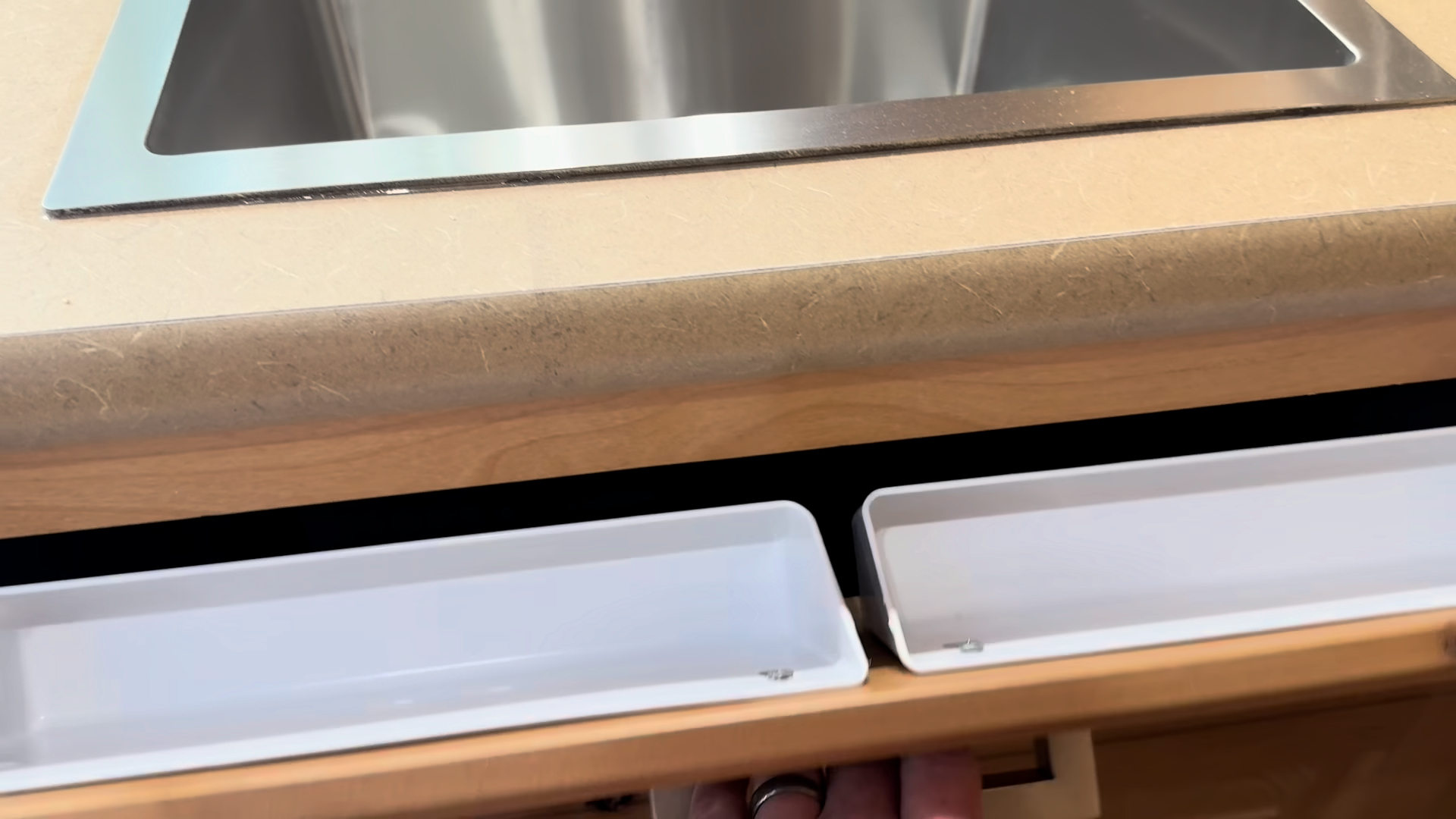

Sink Tip-Outs: Double Sink Tip-Outs
Drawer Storage: Highlighted feature: Two Banks of Four Drawers Each (Eight Total)
Open Storage: Open Storage Below Sink
Power: Highlighted feature: 2x AC Outlets on Walls & 2x AC Outlets Below Overhead Storage
Window: Large 48 in. Kitchen Window Above Sink

Dining

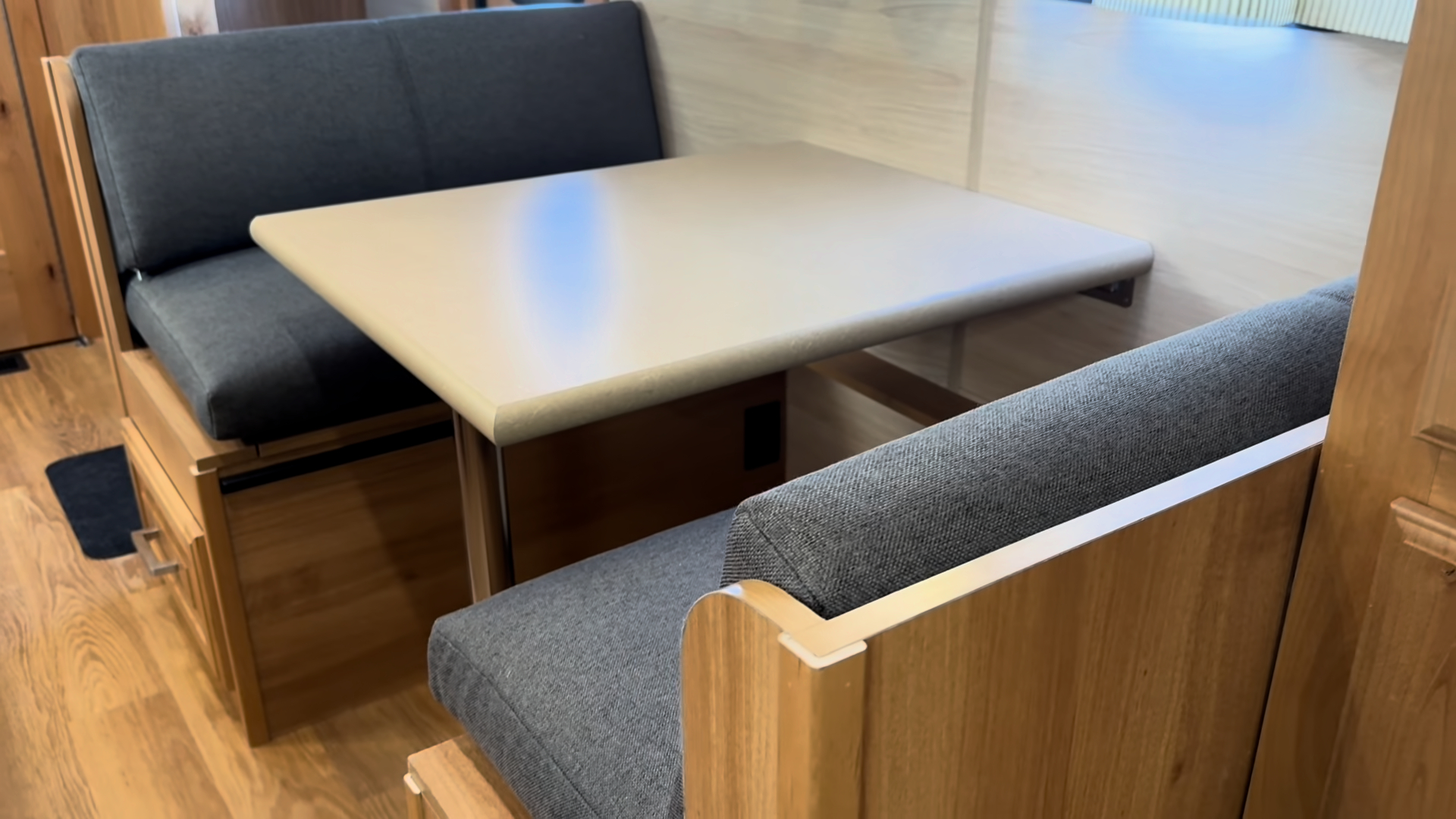

Dinette: 4-Person Dinette (Folds Into Bed)
Bench Storage: Highlighted feature: Bench Soup Boxes & Long Drawers (Each Side)
Power: Highlighted feature: AC Outlet On Bench Below Table
Window: Large 48 in. Window Above Dinette

Living & Entertainment Space

Layout: Highlighted feature: Semi-Separated/Partitioned Living Space

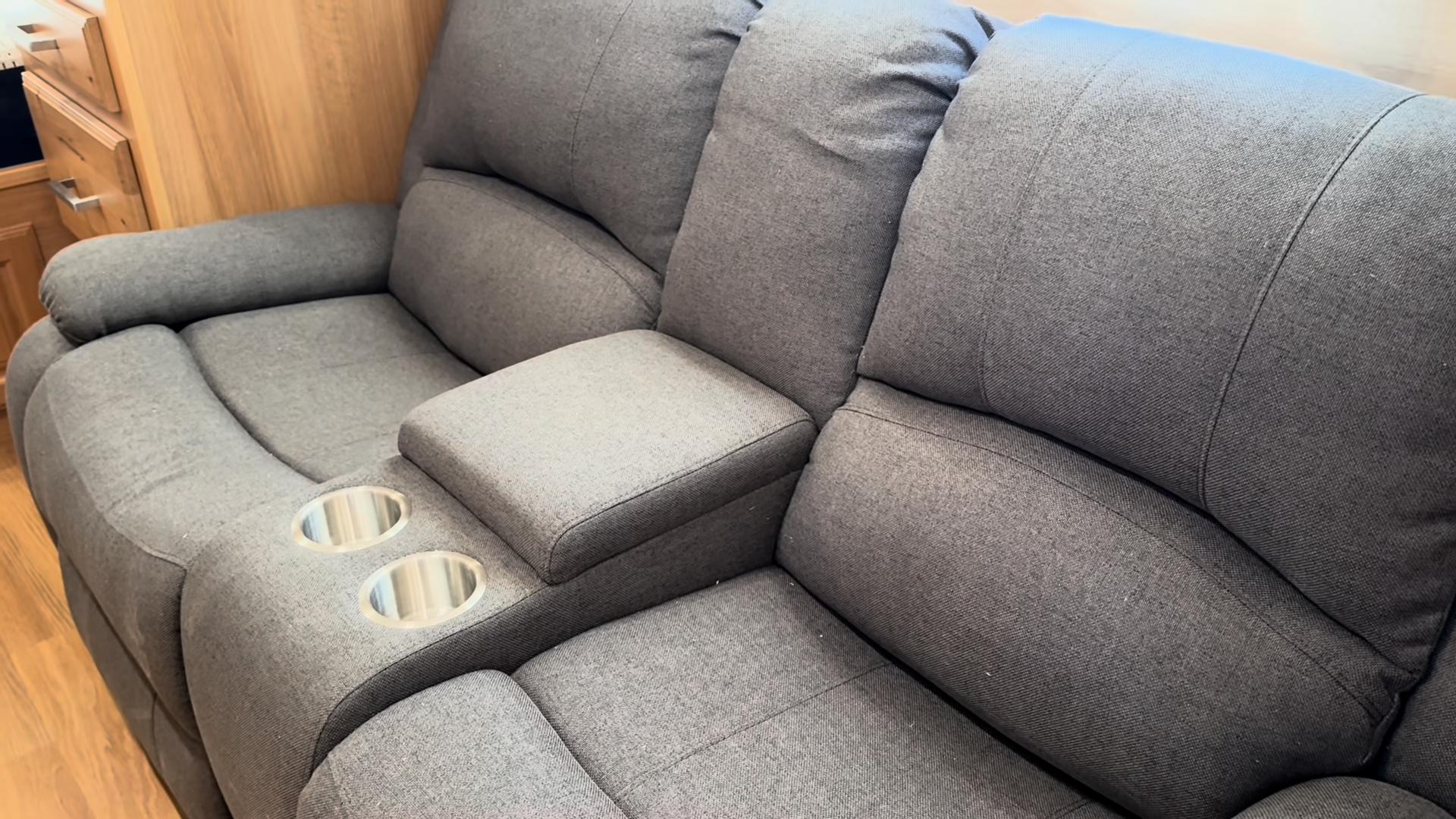

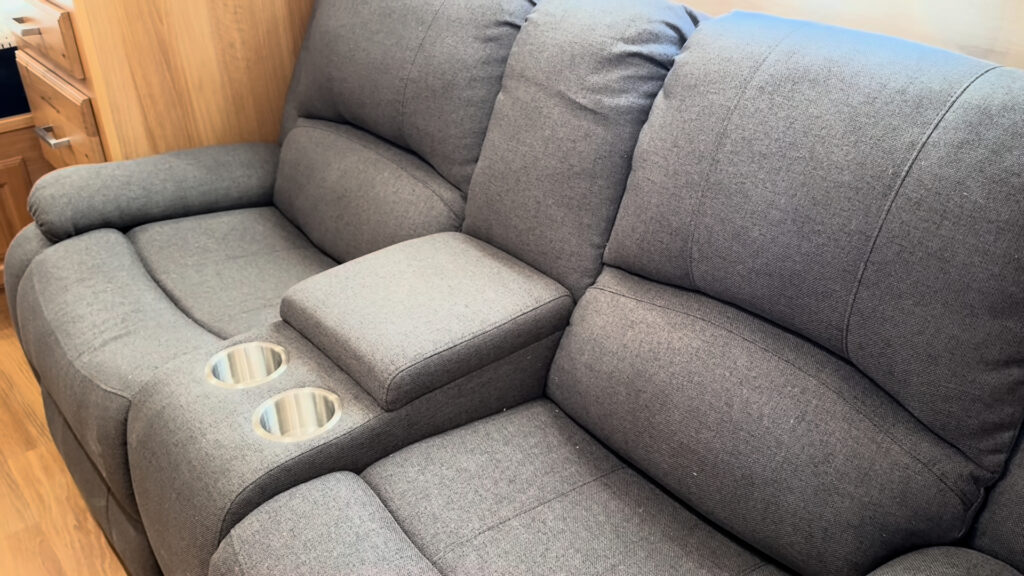

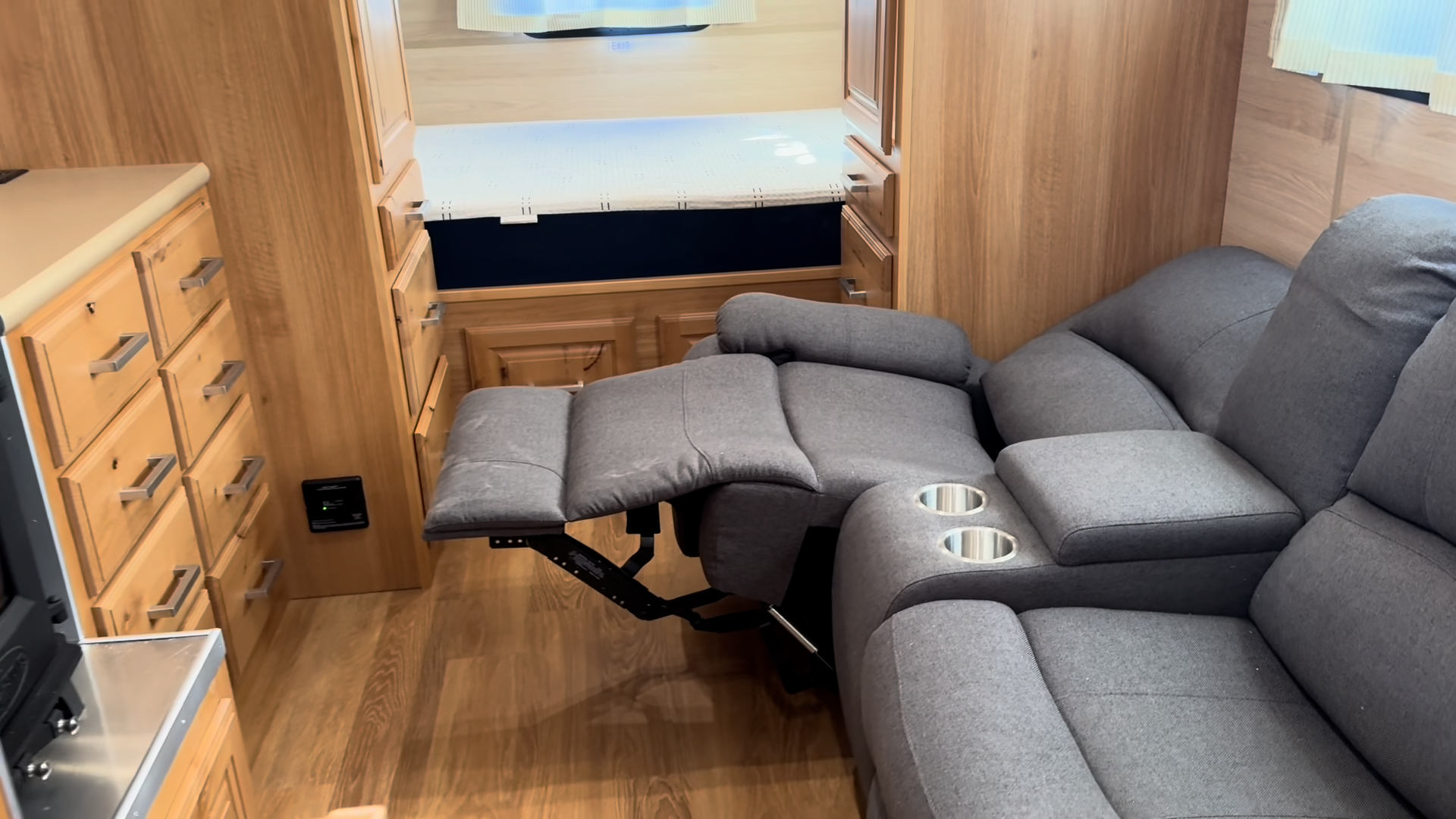

Primary Seating: Double Recliner w/ Center Console (MOD-70CLF)

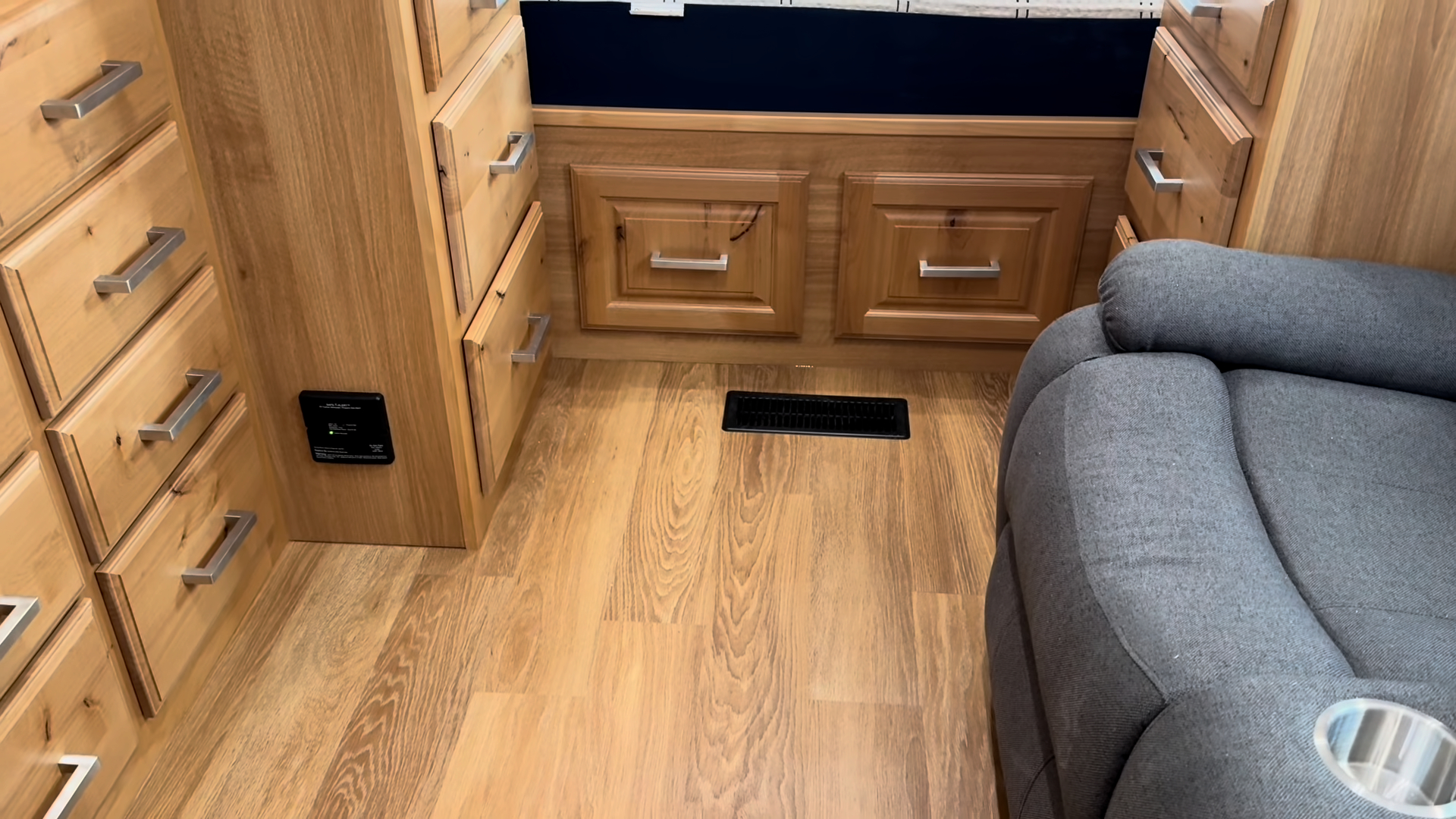

Entertainment / Media Storage: Large Chest of Eight Drawers
Power & Connections: DC/AC Outlets, USB Ports, RJ45, & USB Connections on Media Center
Window: Large 48 in. Window Above Recliners

Bedroom / Sleeping

Layout: Highlighted feature: Semi-Separated/Partitioned Sleeping Space

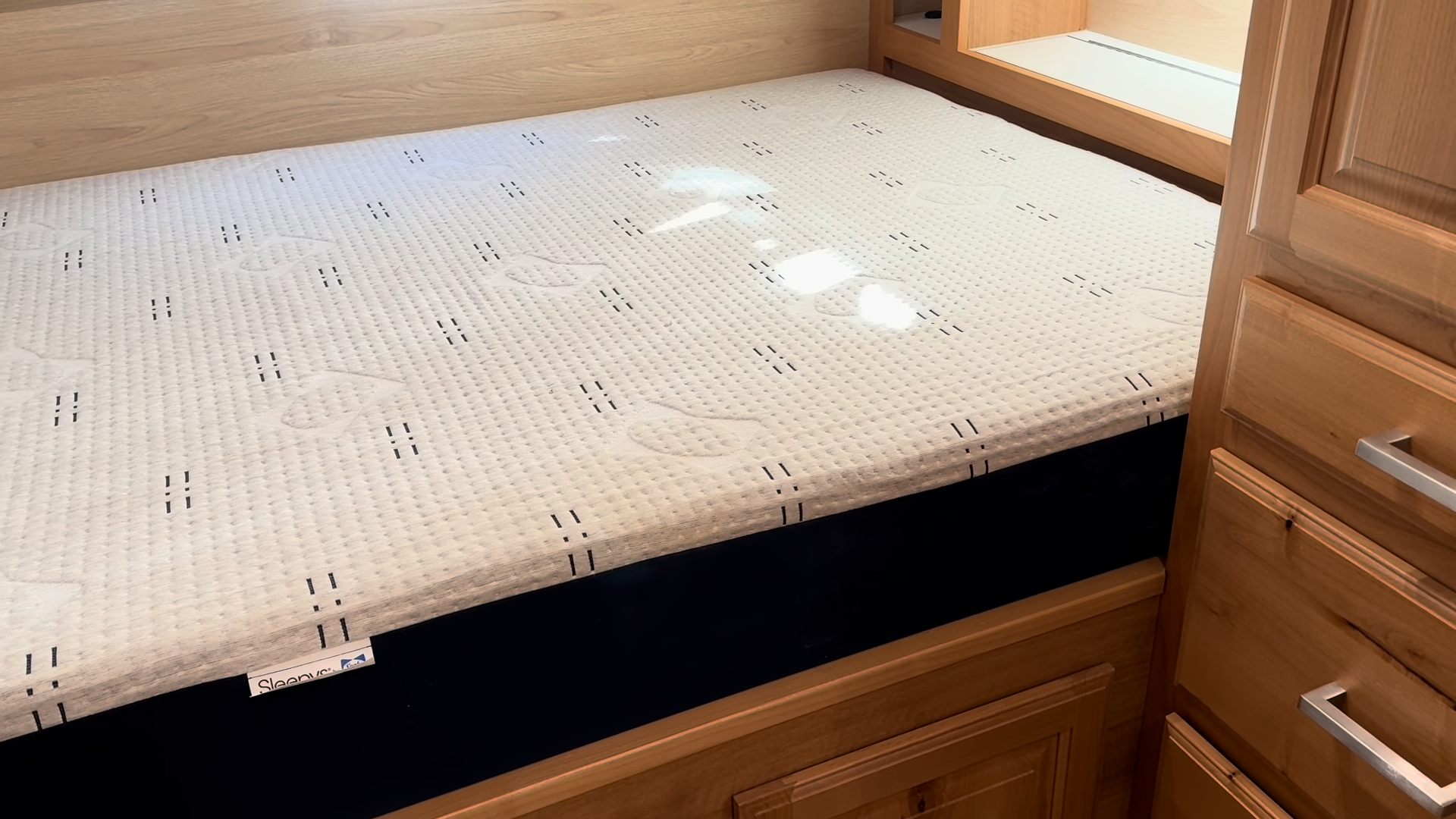

Bed Configuration: Full East/West Bed
Mattresses: Added

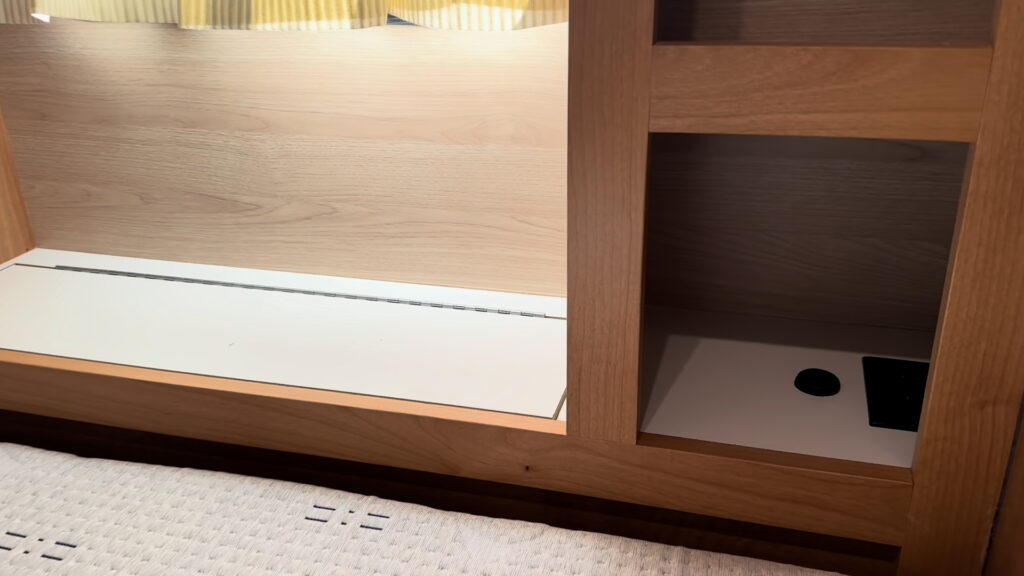

Headboard / Shelf Storage: Short Headboard w/ Bookshelves (Driver's Side)

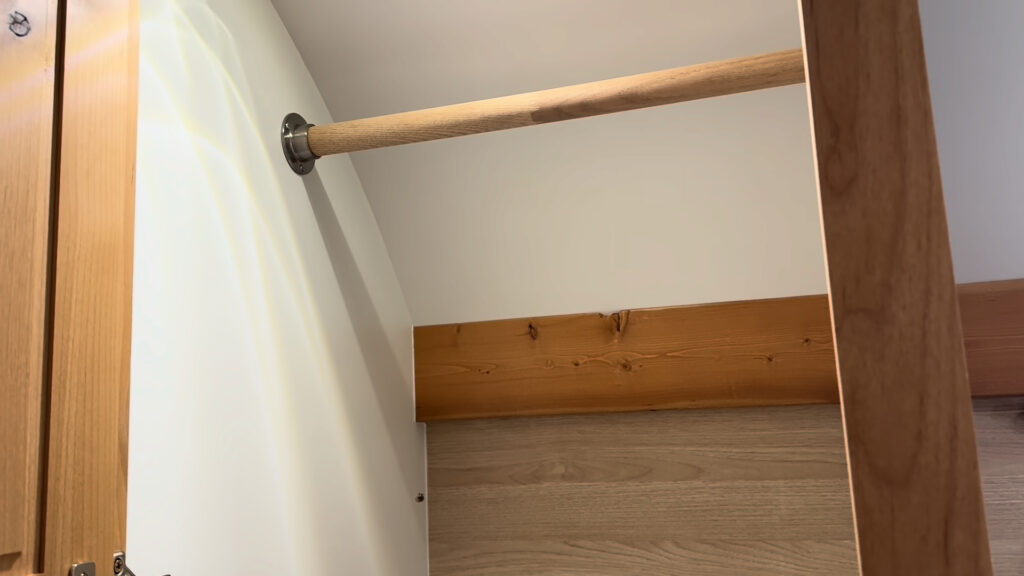

Wardrobes: Highlighted feature: 2x 24 in. Closet Wardrobes w/ Hanging Rod & Three Drawers (Each Side of Camp)
Overhead Storage: Large 24 in. Shelf Above Bed
Under-Bed / Trundle Storage: 2x Large Drawers Beneath Bed

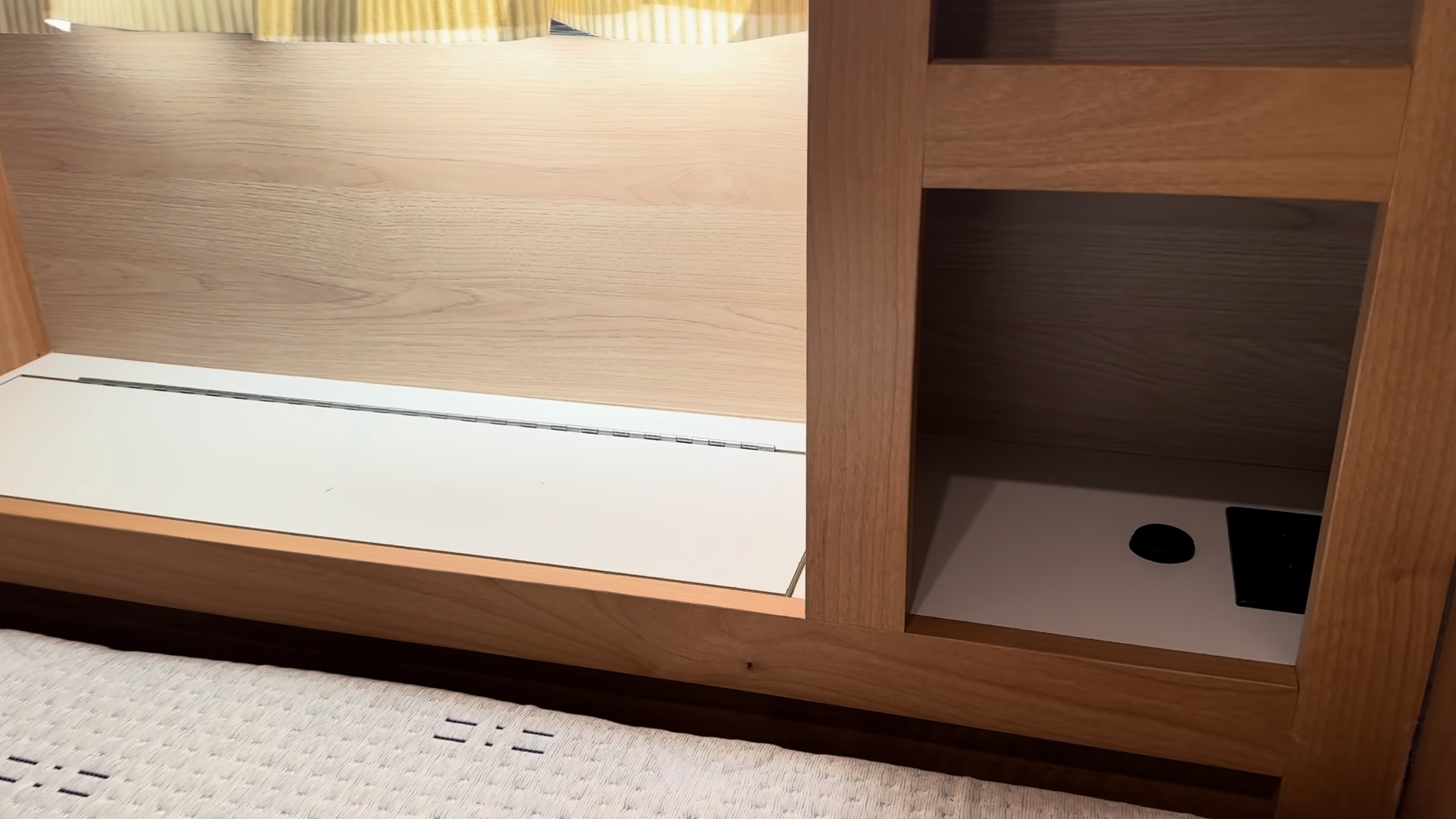

Additional Storage: Headboard Cubby with Lift Door
Power & Connections: AC/DC Outlets & USB Ports At Headboard (Both Sides)
Window(s): 2x 24 in. Side Windows & Single Rear Egress Window

Bathroom

Size / Configuration: Small Three-Quarter Bath at Front of Camp
Door: Solid Hardwood Door with Full Length Hinge

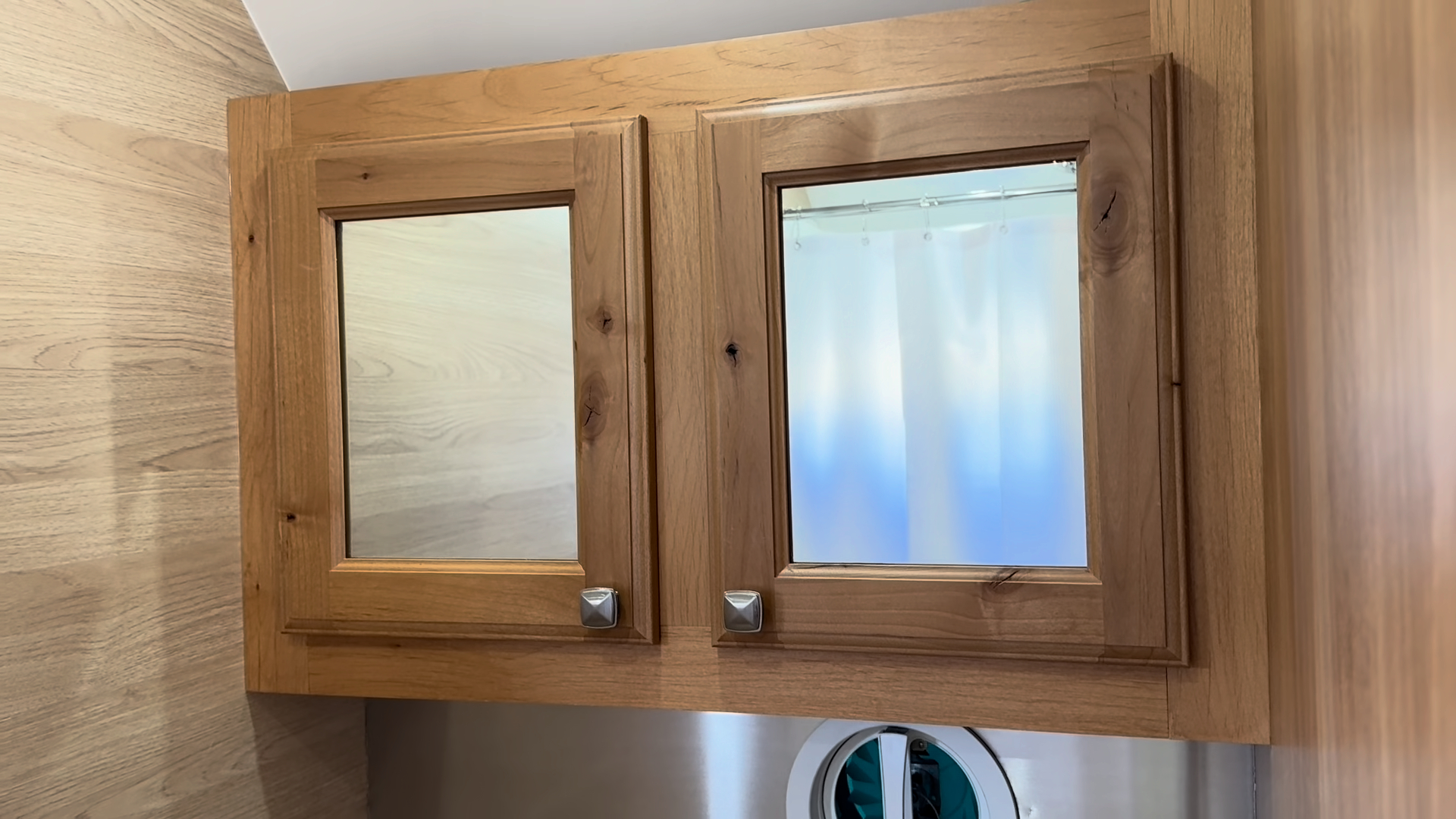

Medicine Cabinet: Mirrored Medicine Cabinet

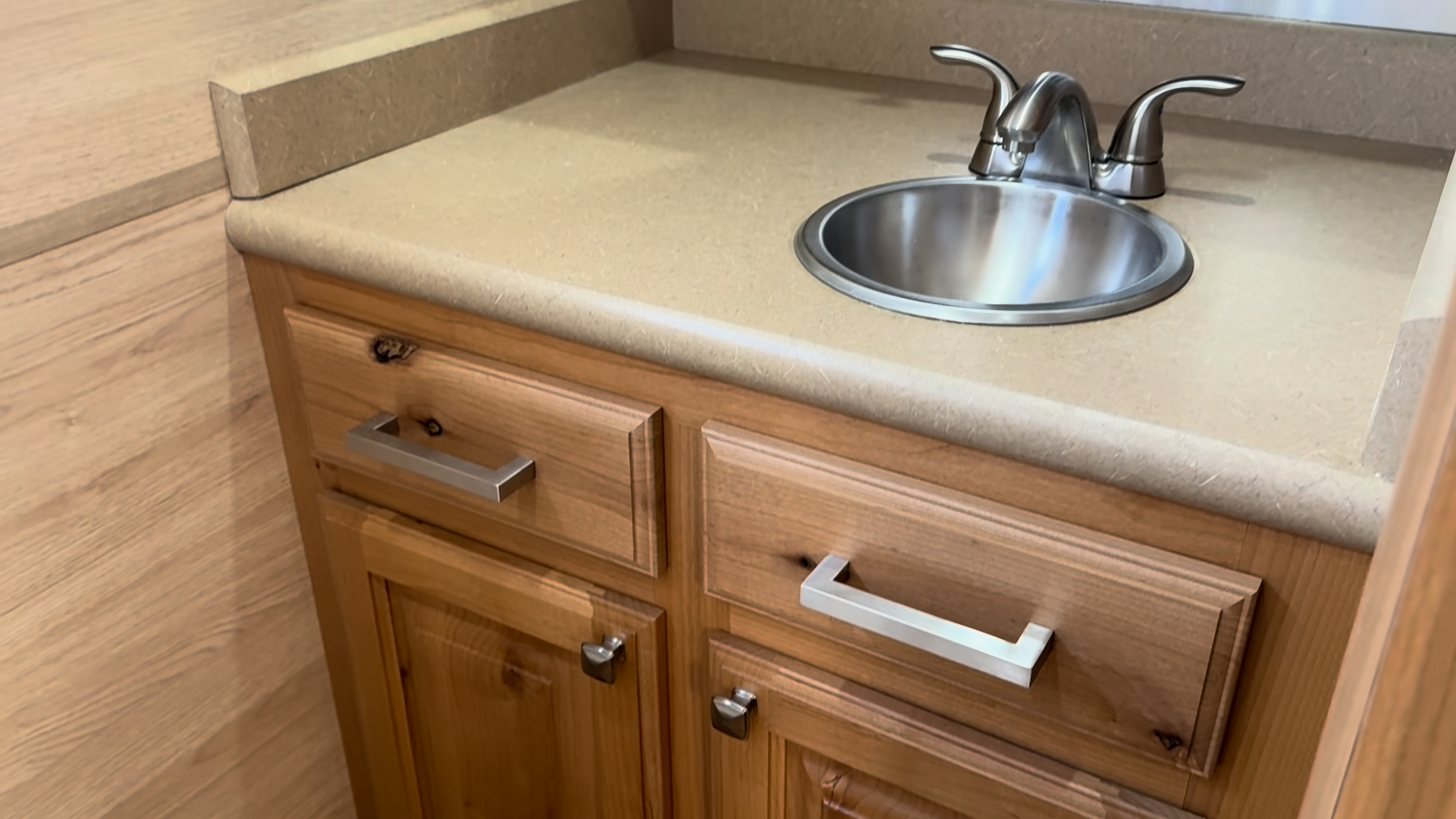

Vanity: Large Vanity with Open Storage Beneath

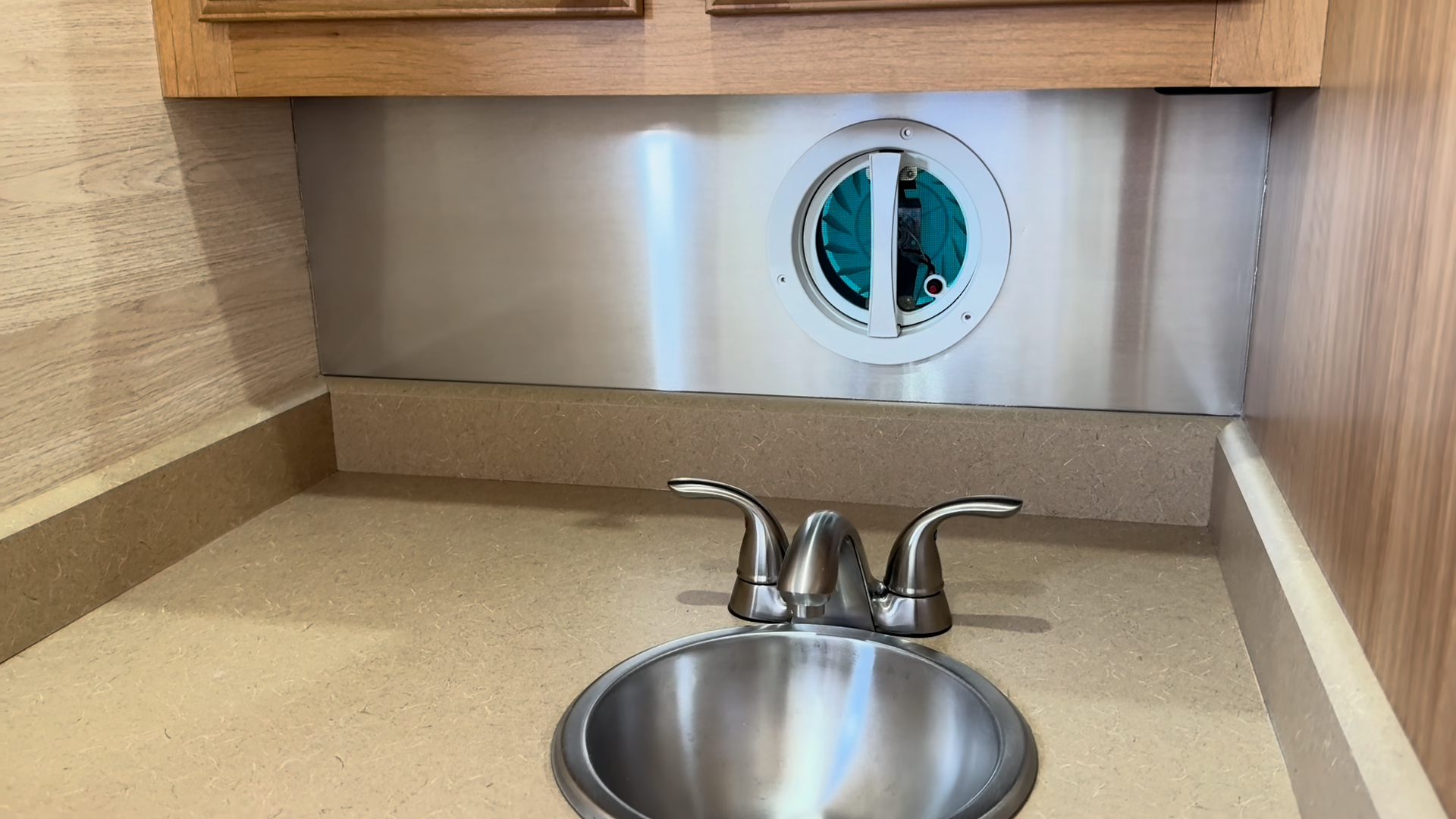

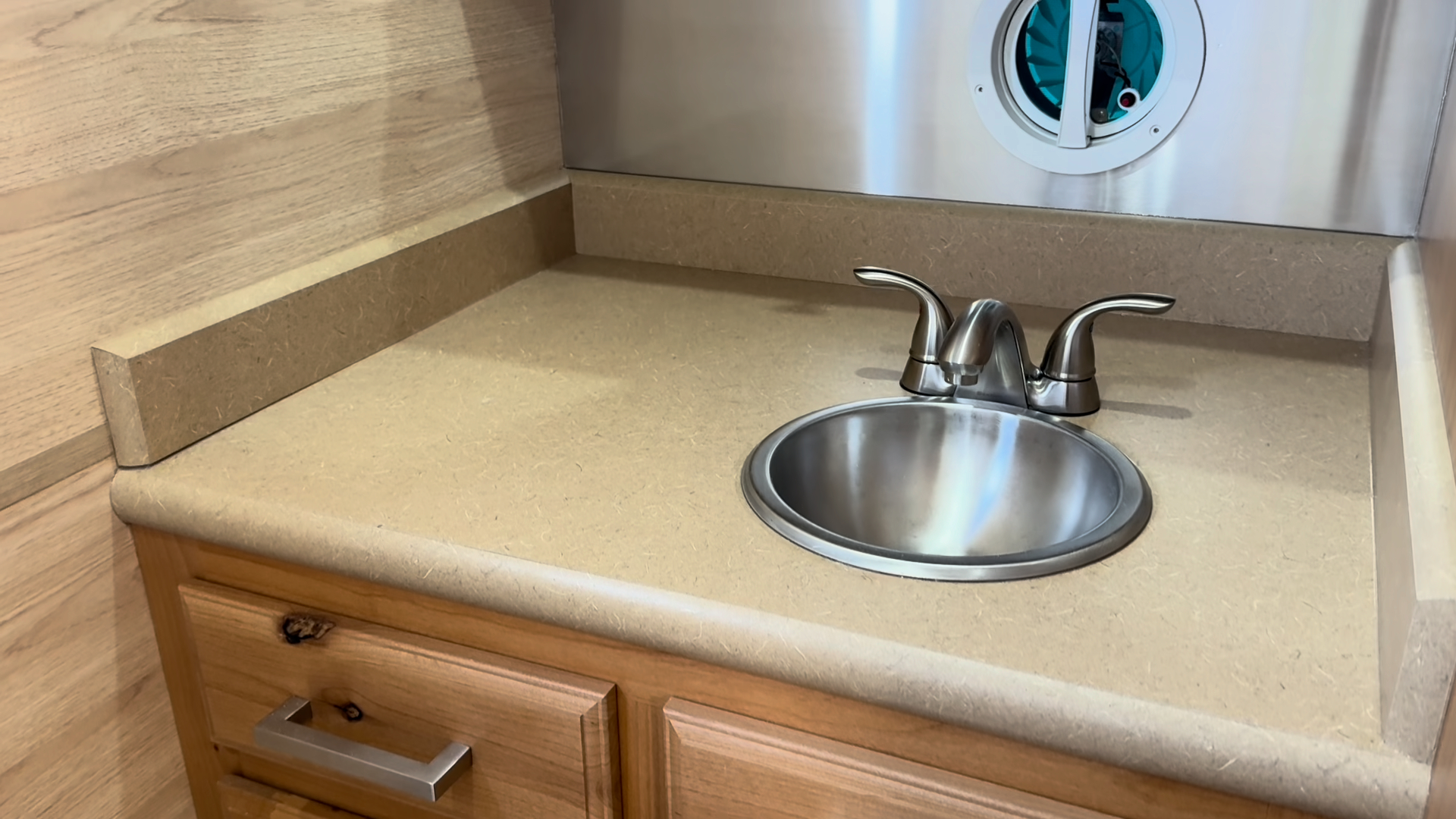

Sink: Small Round Stainless Steel Sink with Residential Faucet

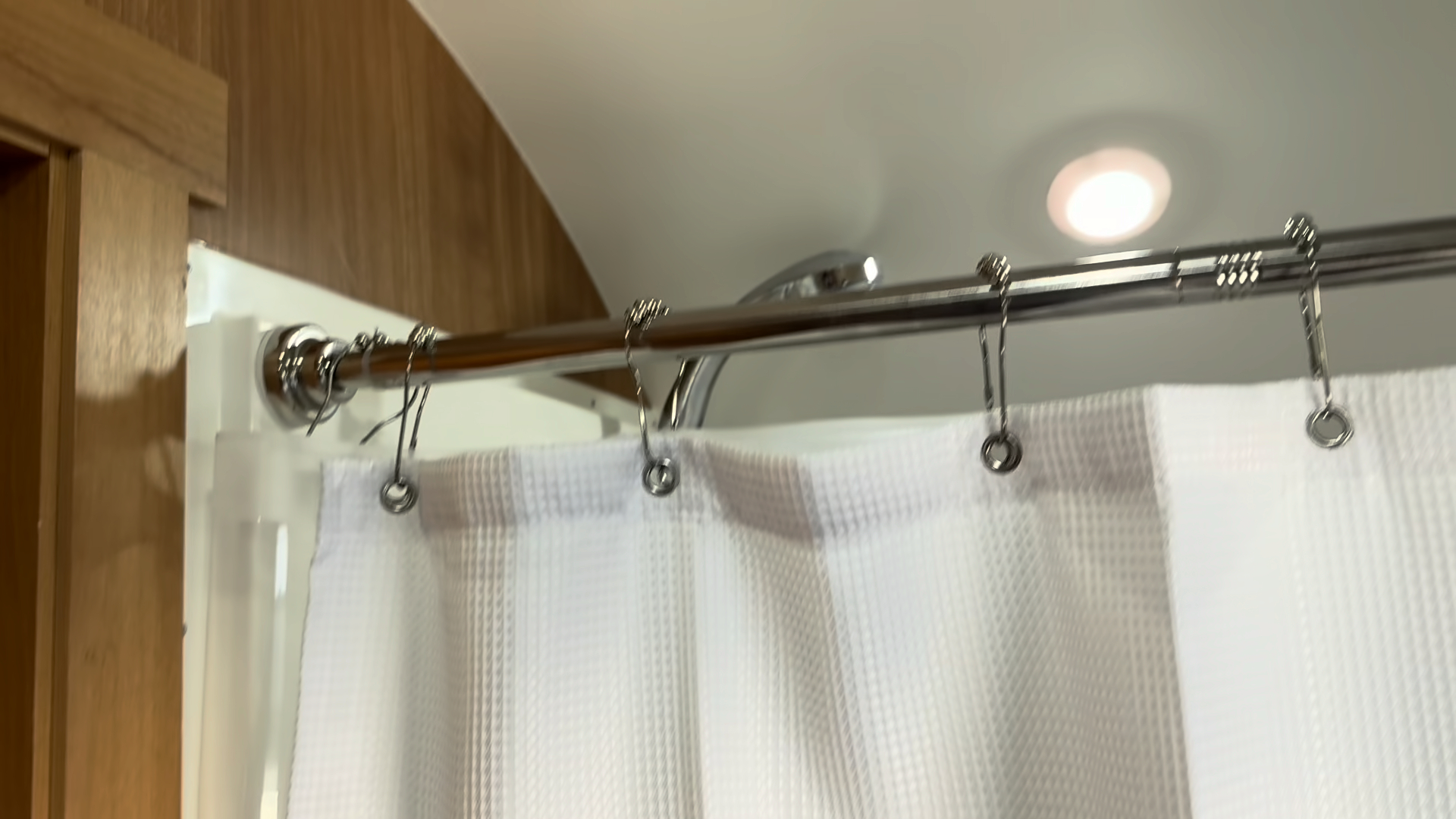

Shower: 32 x 32 in. Shower with Curtain & Stainless Steel Fixtures

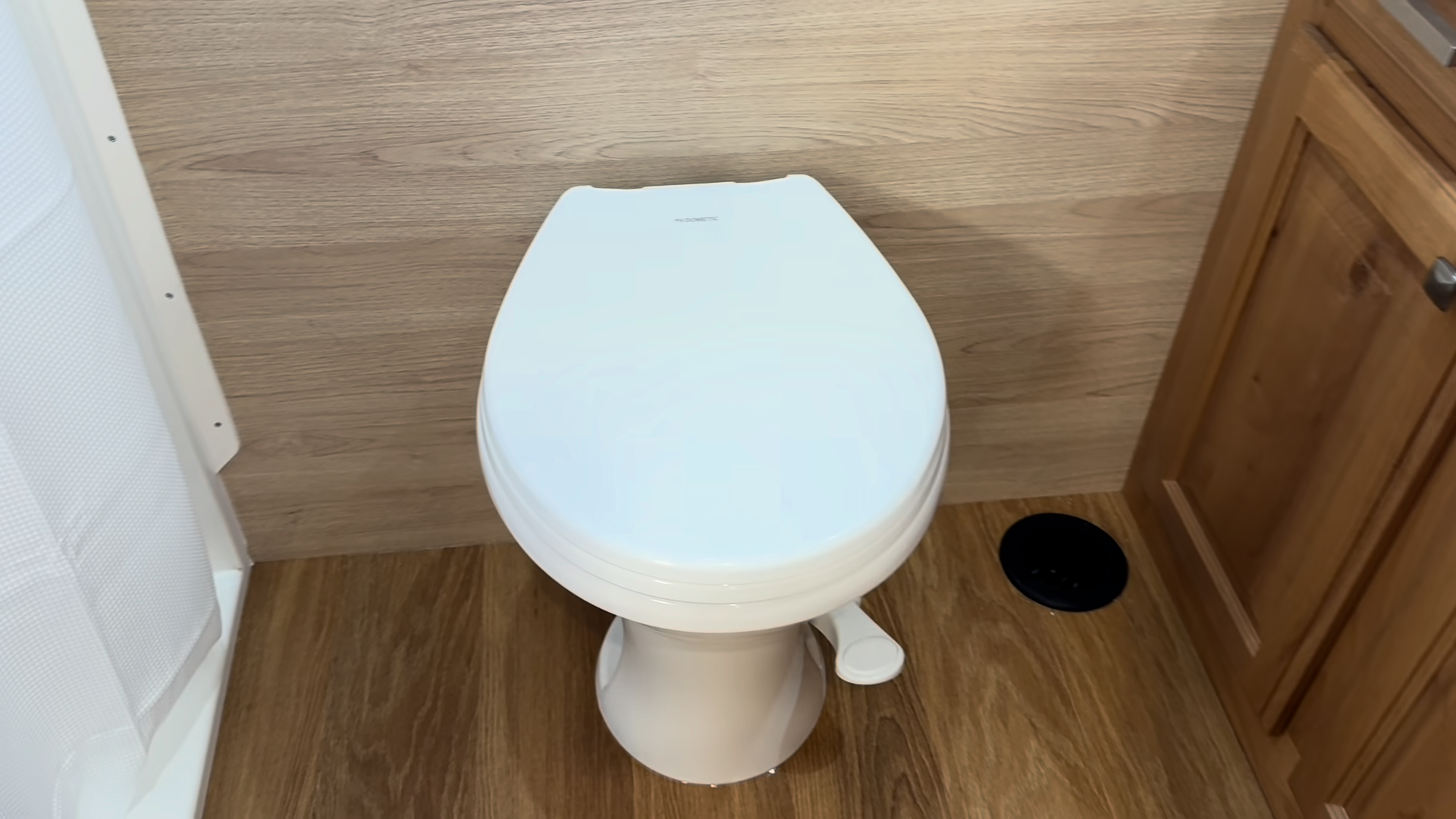

Toilet: Small Dometic Porcelain Toilet (China Bowl) w/ Foot Pedal Flush
Window: Small Frosted Sliding Window (Front of Camp)
Ventilation: 12V Bathroom Exhaust Fan
Power: Single AC Outlet Below Medicine Cabinet

Lighting

Interior Lights: Dimmable LED Lights With Master & Individual Switches

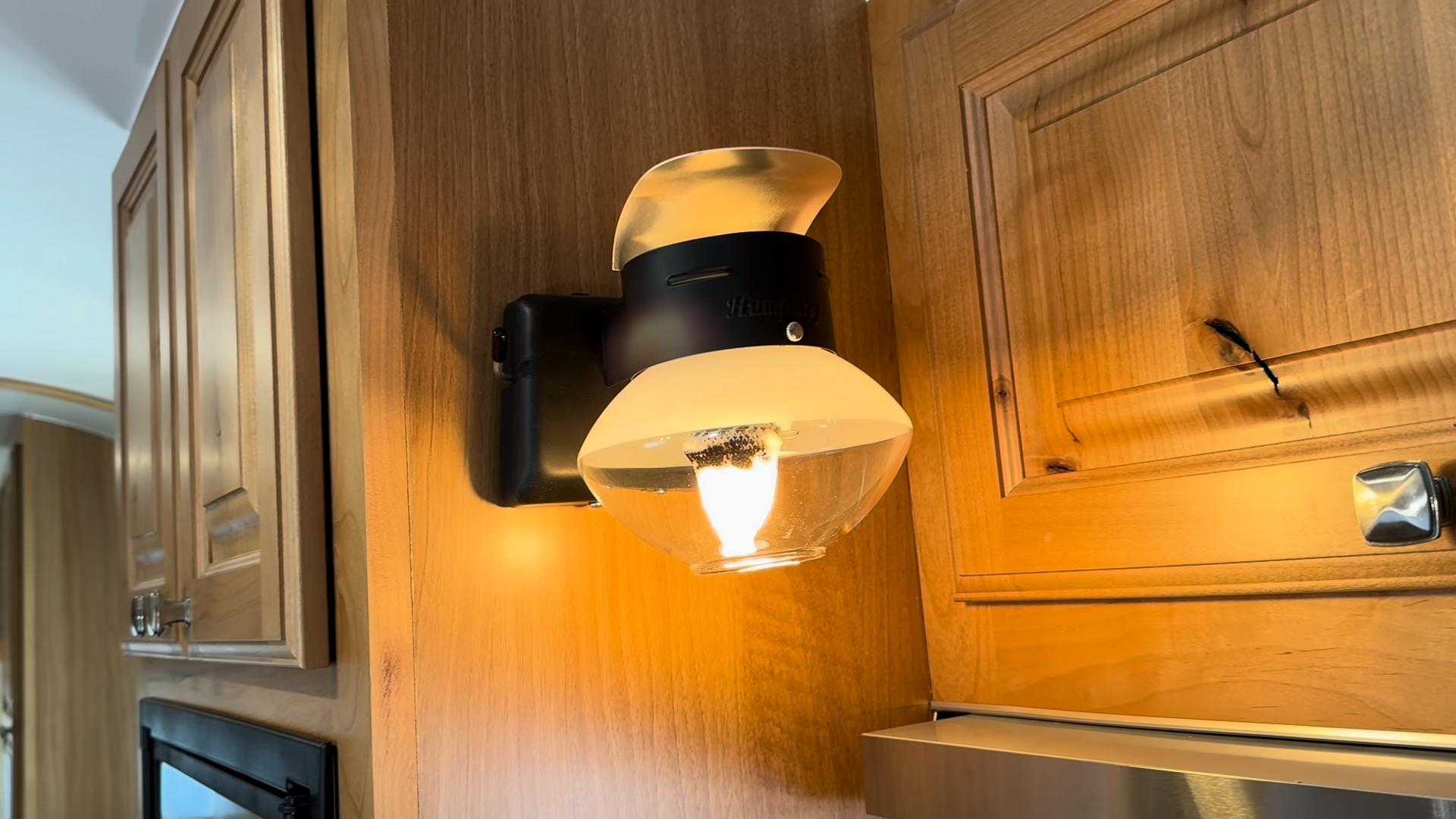

Propane Gas Light: Single Wall-Mounted Gas Light
Compartment Lighting: LED Lighting Added in Cabinets & Closets

Fuel & Power

Power

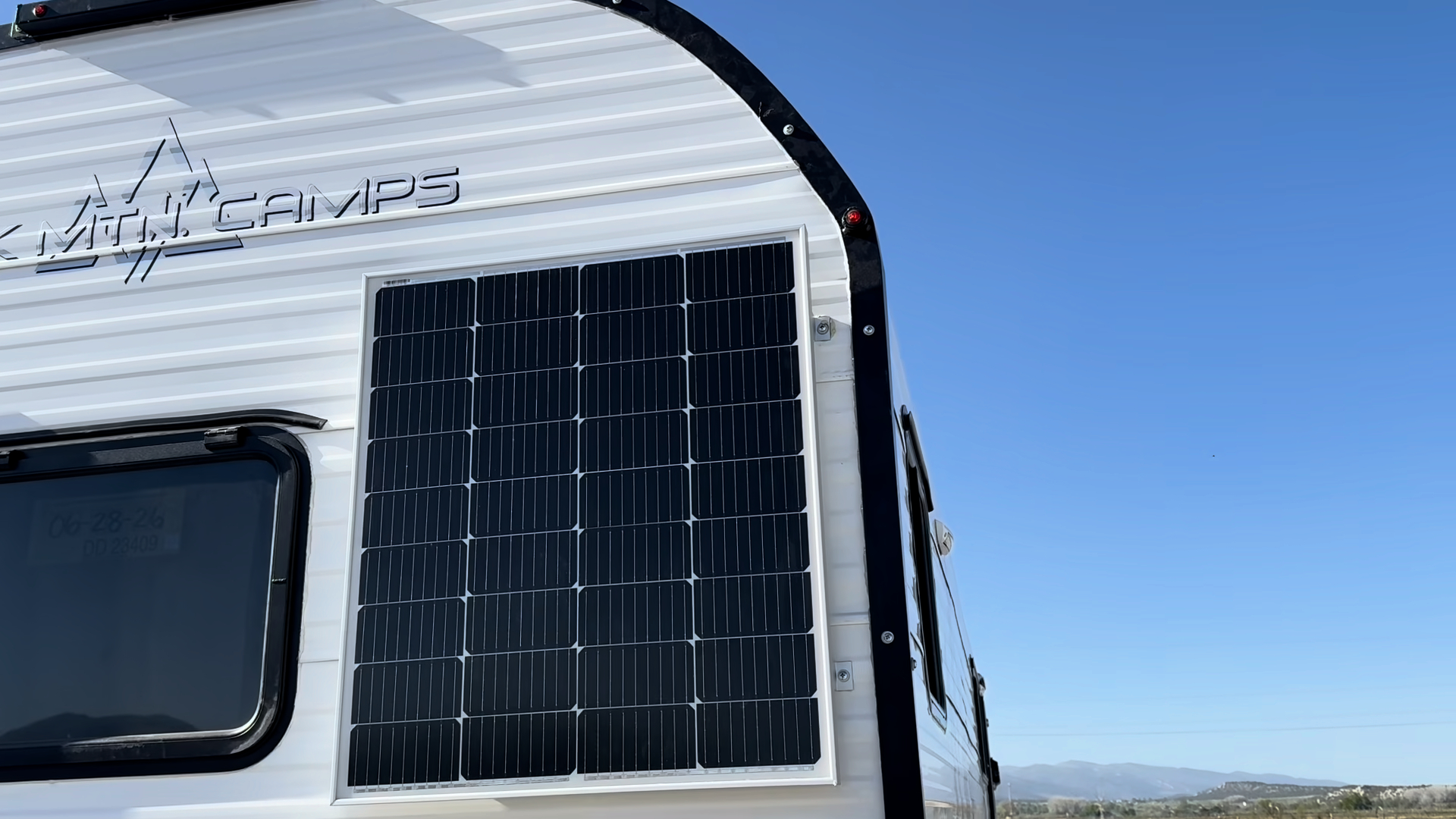

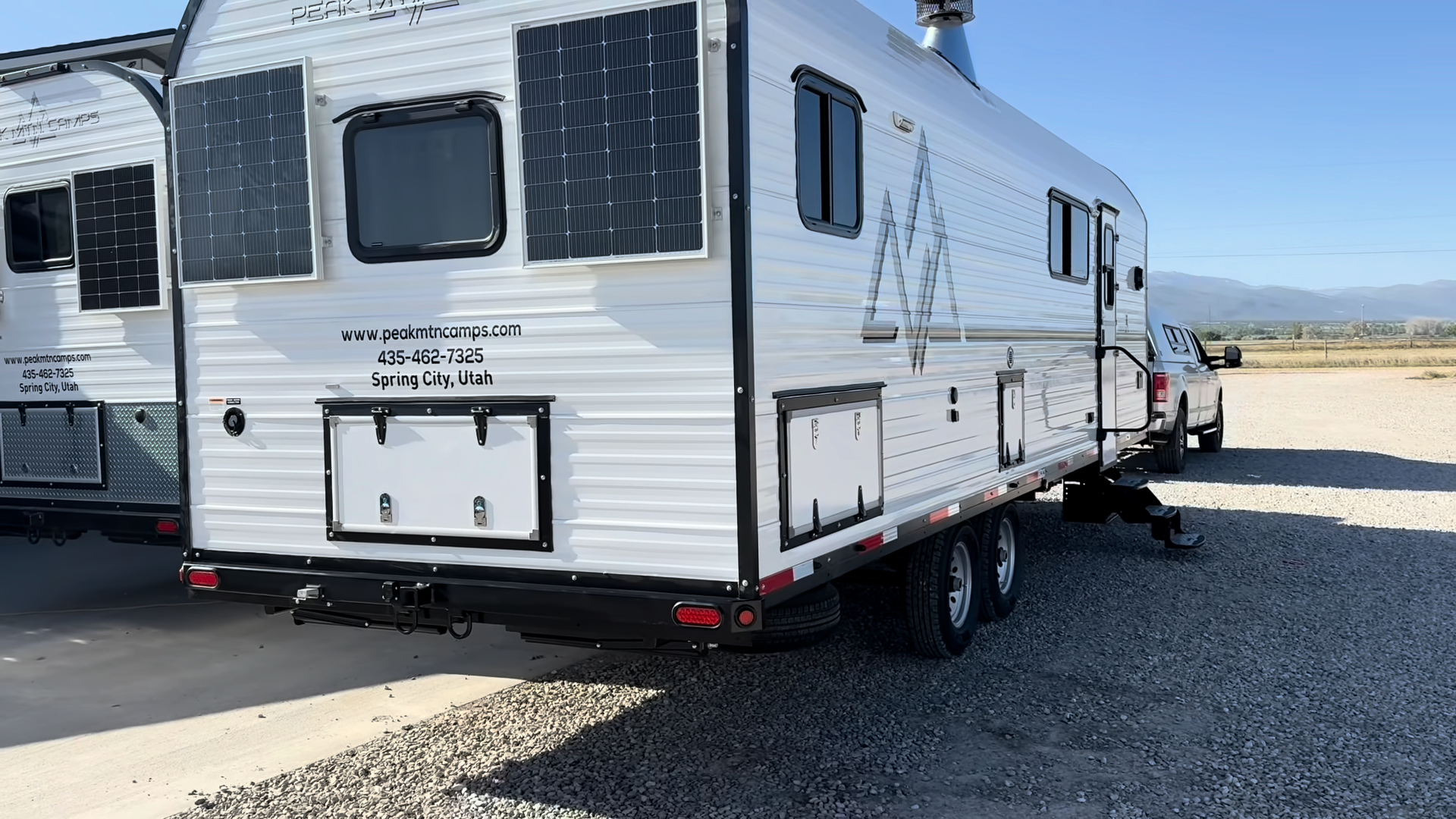

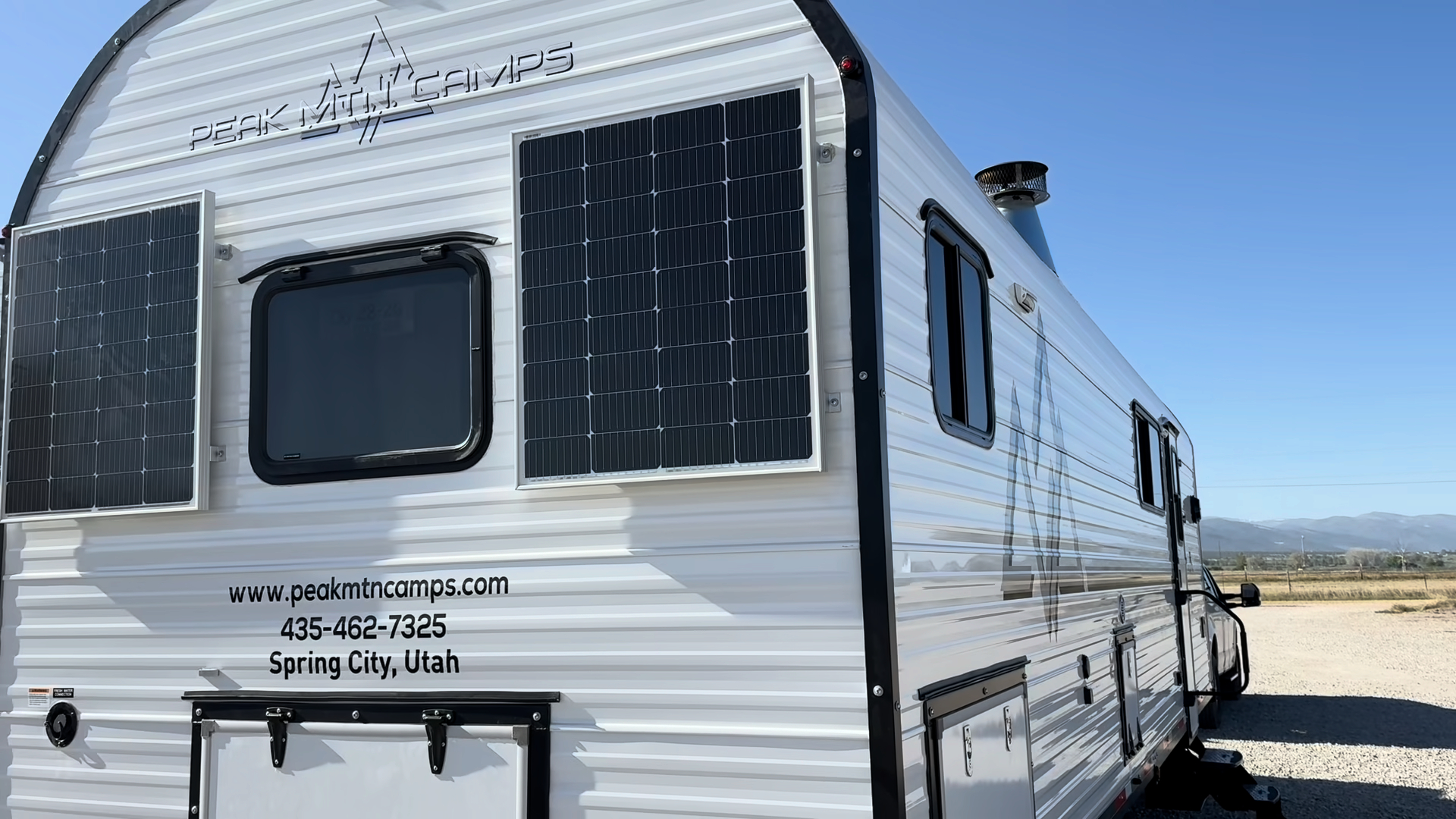

Solar Panels: Two 100 W Panels
Solar Controller: Standard

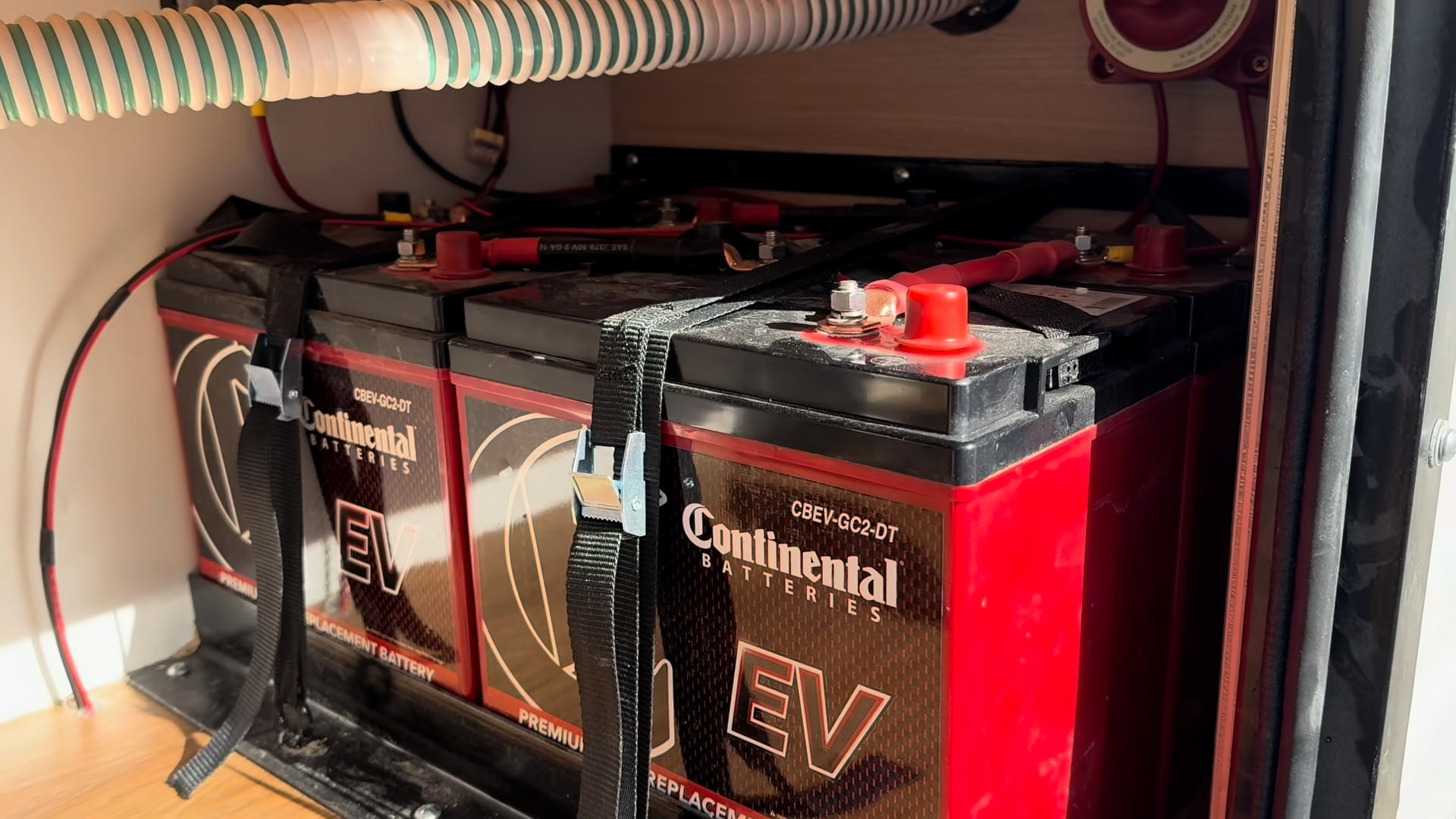

Battery Bank: 4x 6V AGM Deep Cycle Batteries

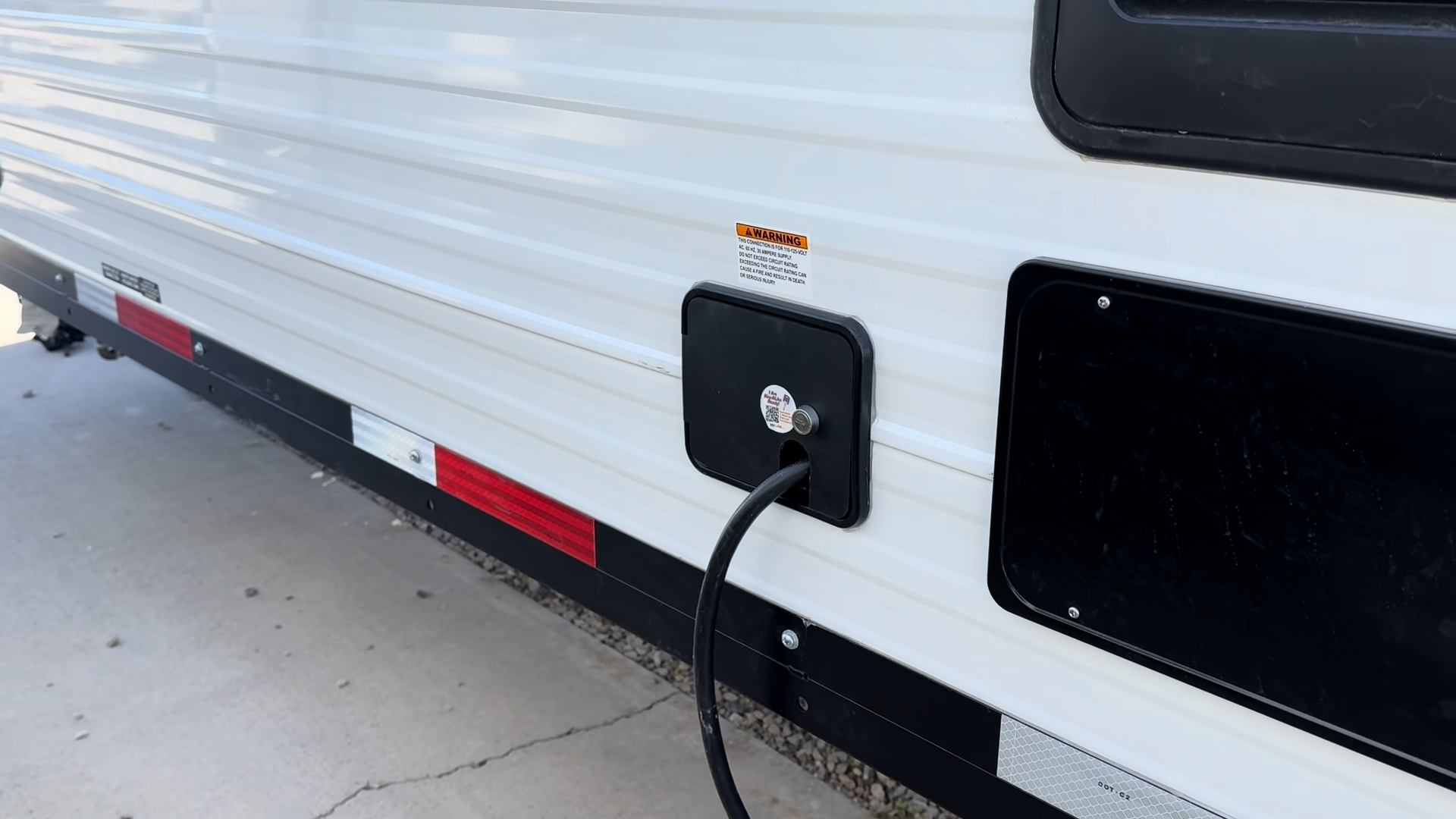

Shore Power: 30 A Service Hookup (25 ft. Cord Included)
Accessible Electrical Systems & Wiring: Standard

Propane

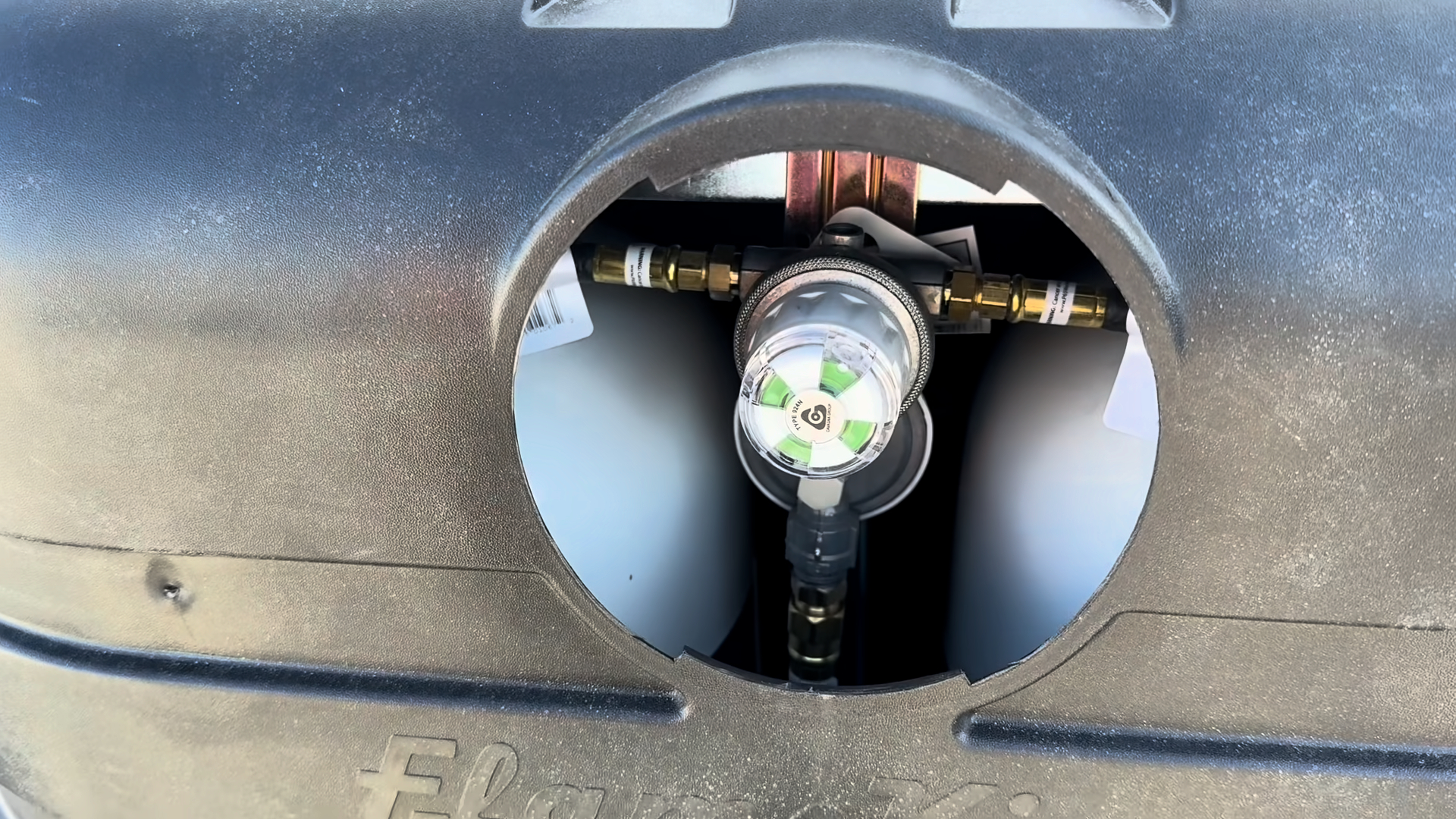

Tanks: Two 7 gal. 30 lb Tanks
Tank Cover: Quick Access Propane Tank Cover

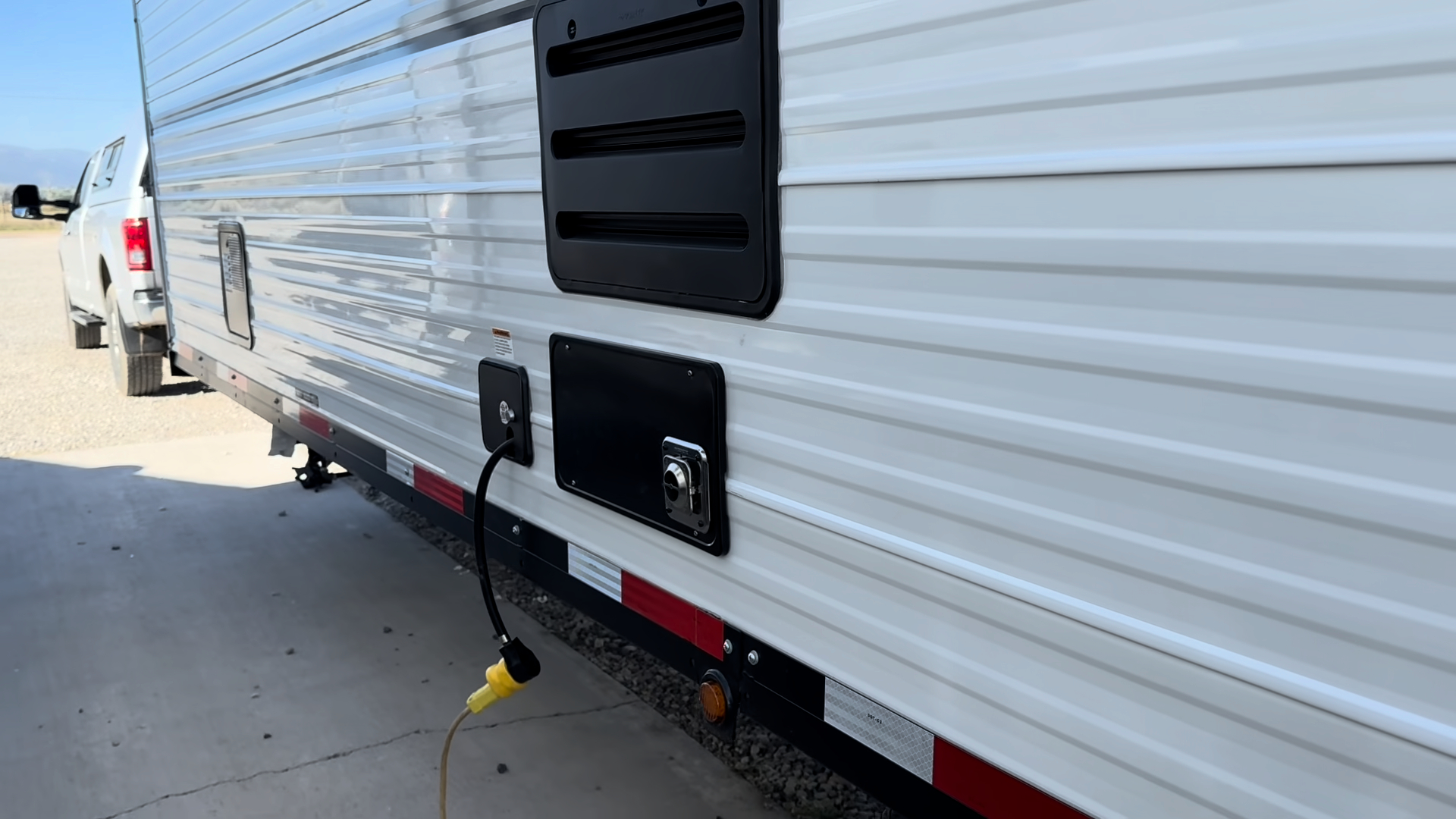

Propane Connections: 1x Quick-Connect (Road Side)

Plumbing

General

Plumbing Protection: Fully Insulated & Heated Plumbing
Fittings: Brass & Stainless Steel Water Fittings

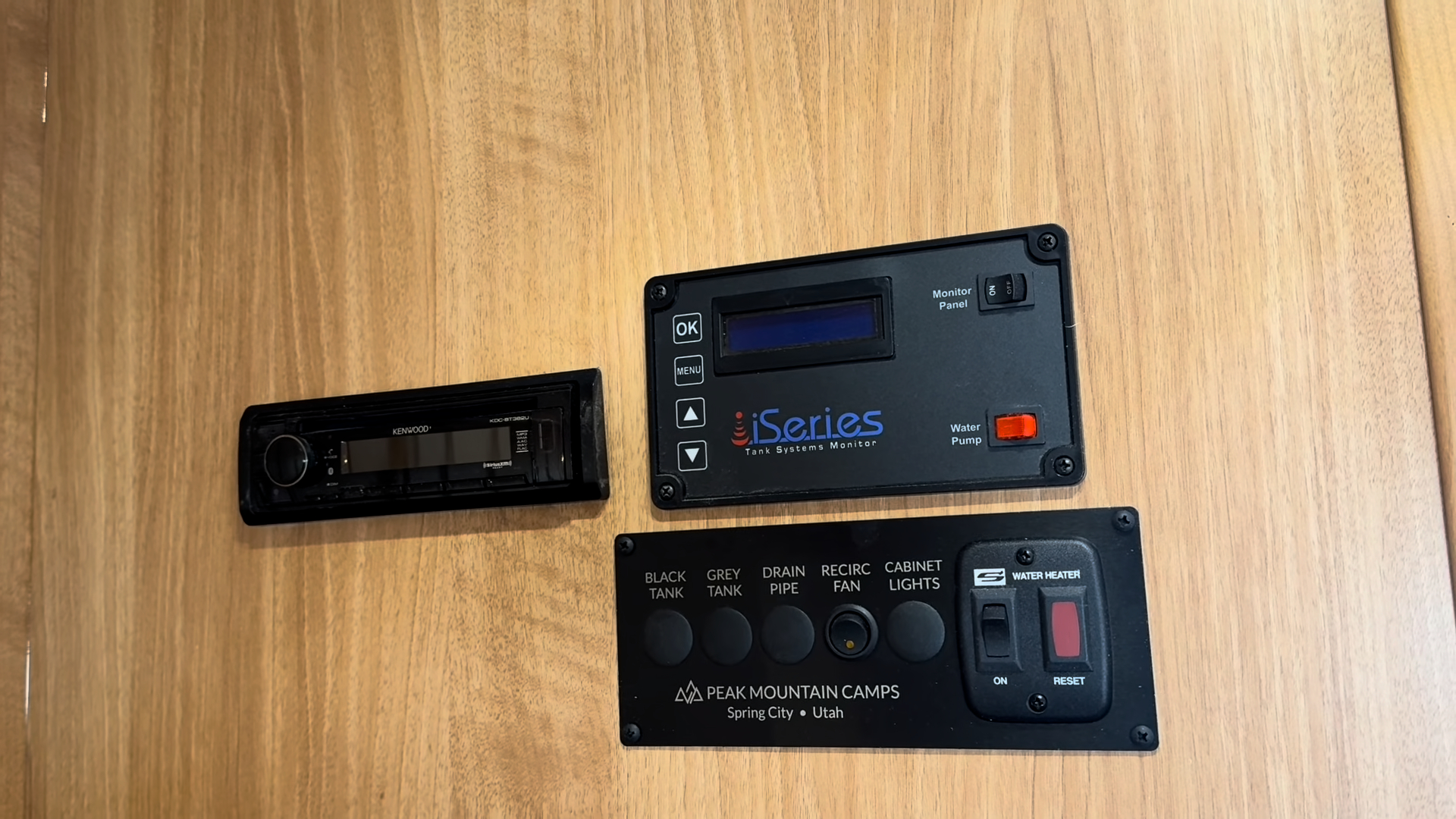

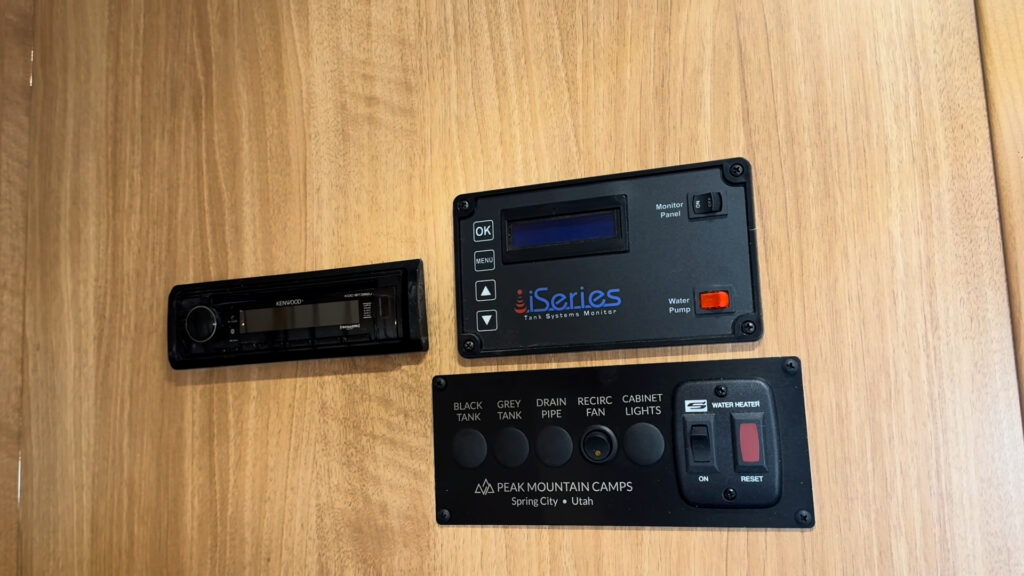

Monitoring Panel: Tank Monitors for Fresh, Gray, and Black Water Tanks
Accessible Plumbing Systems: Standard

Fresh Water

Fresh Water Tank(s): 42 gal. Fresh Water Tank

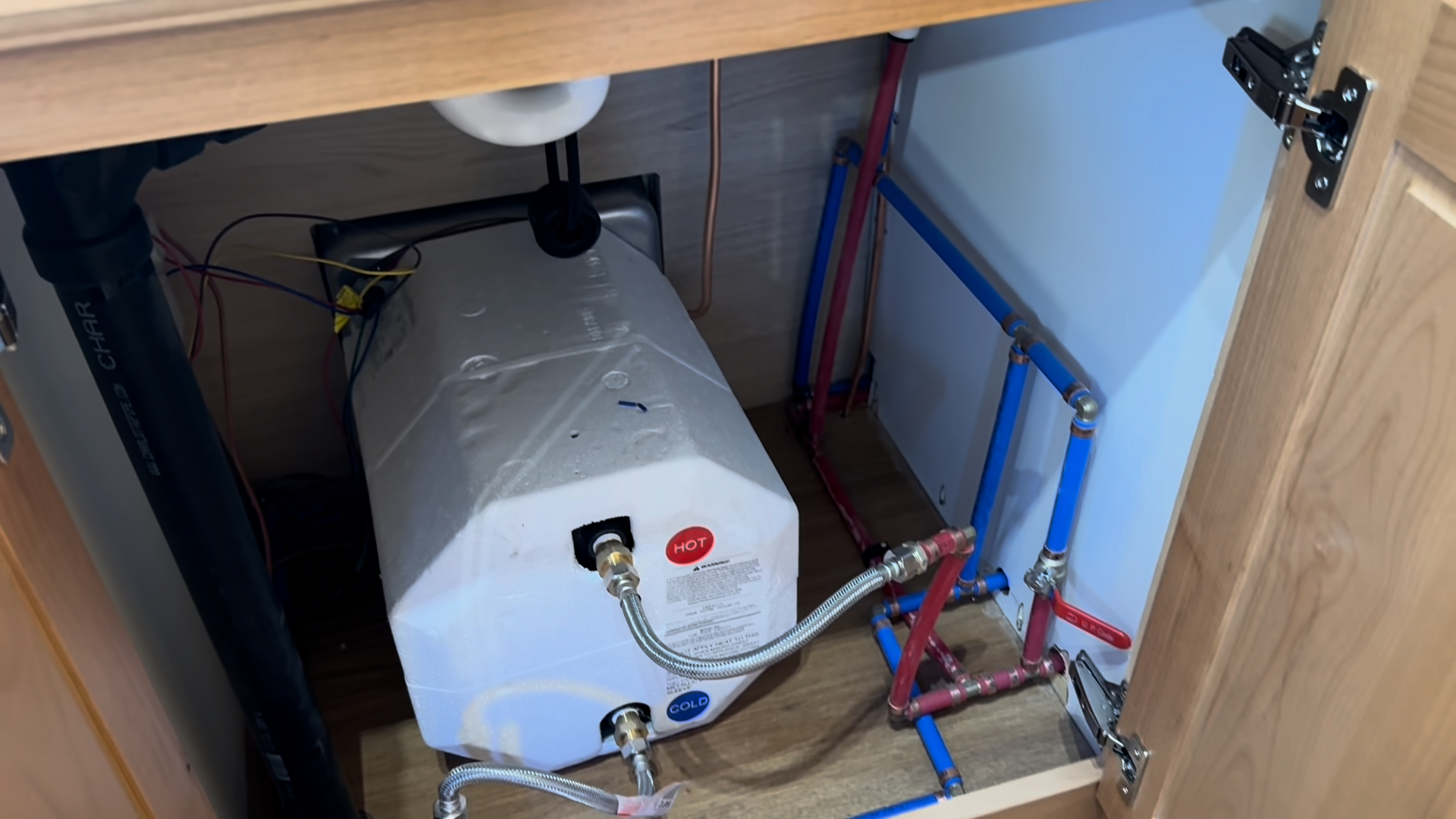

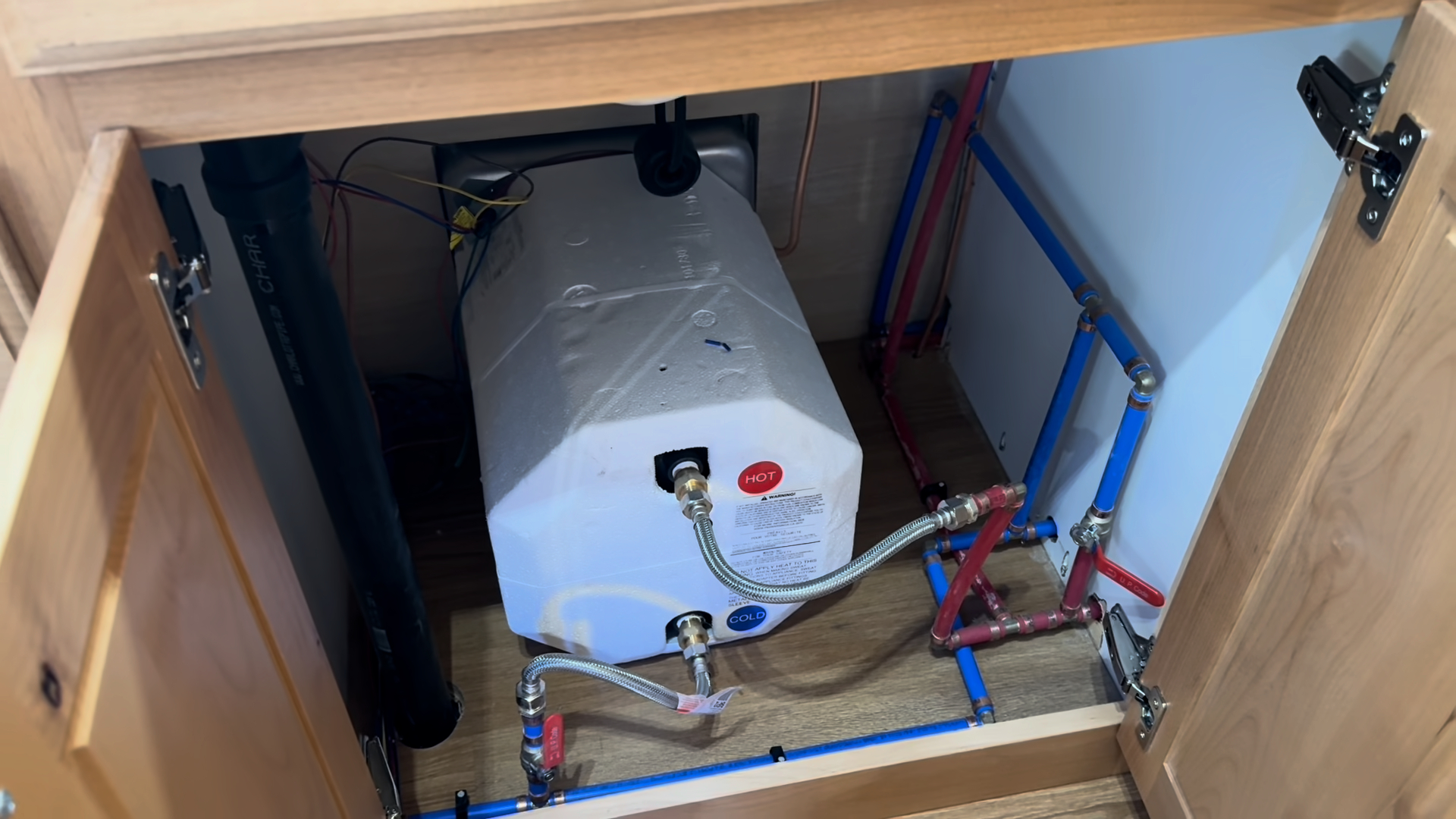

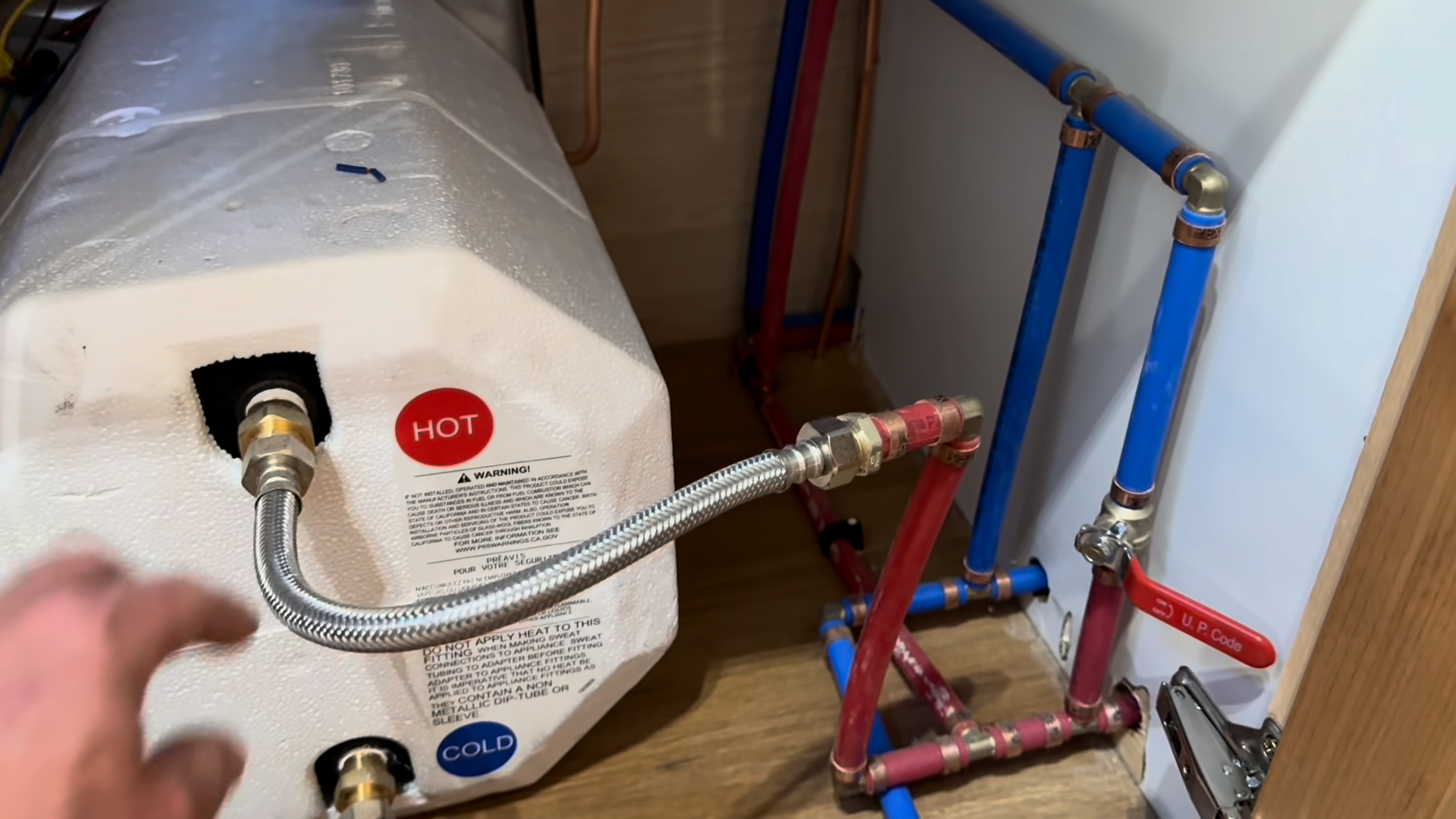

Water Heater: 6 gal. Propane Water Heater (Under Kitchen Sink)
Water Pump: Standard Shurflo 12V Water Pump

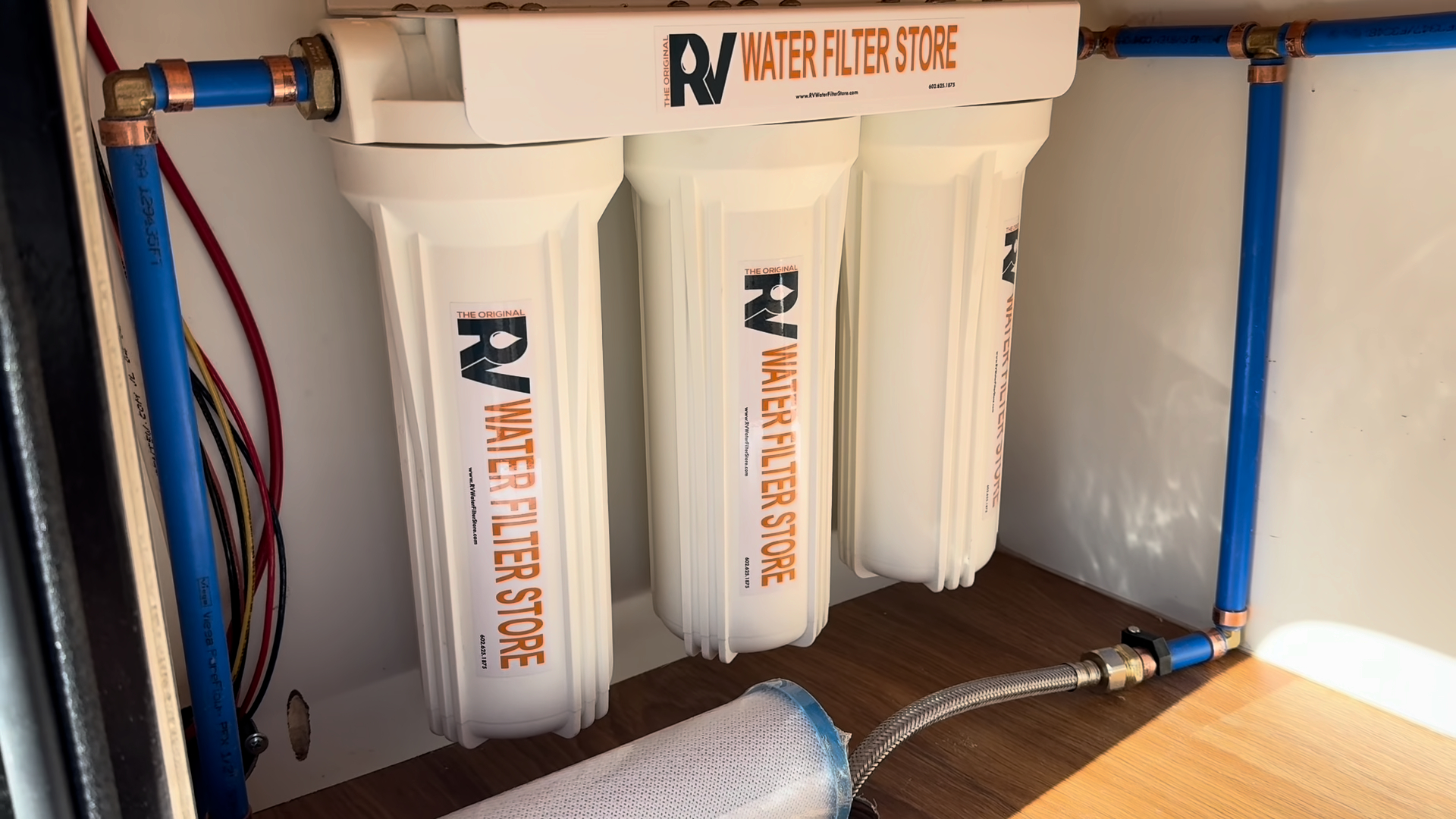

Water Filtration: Highlighted feature: 3-Canister Water Filtration System

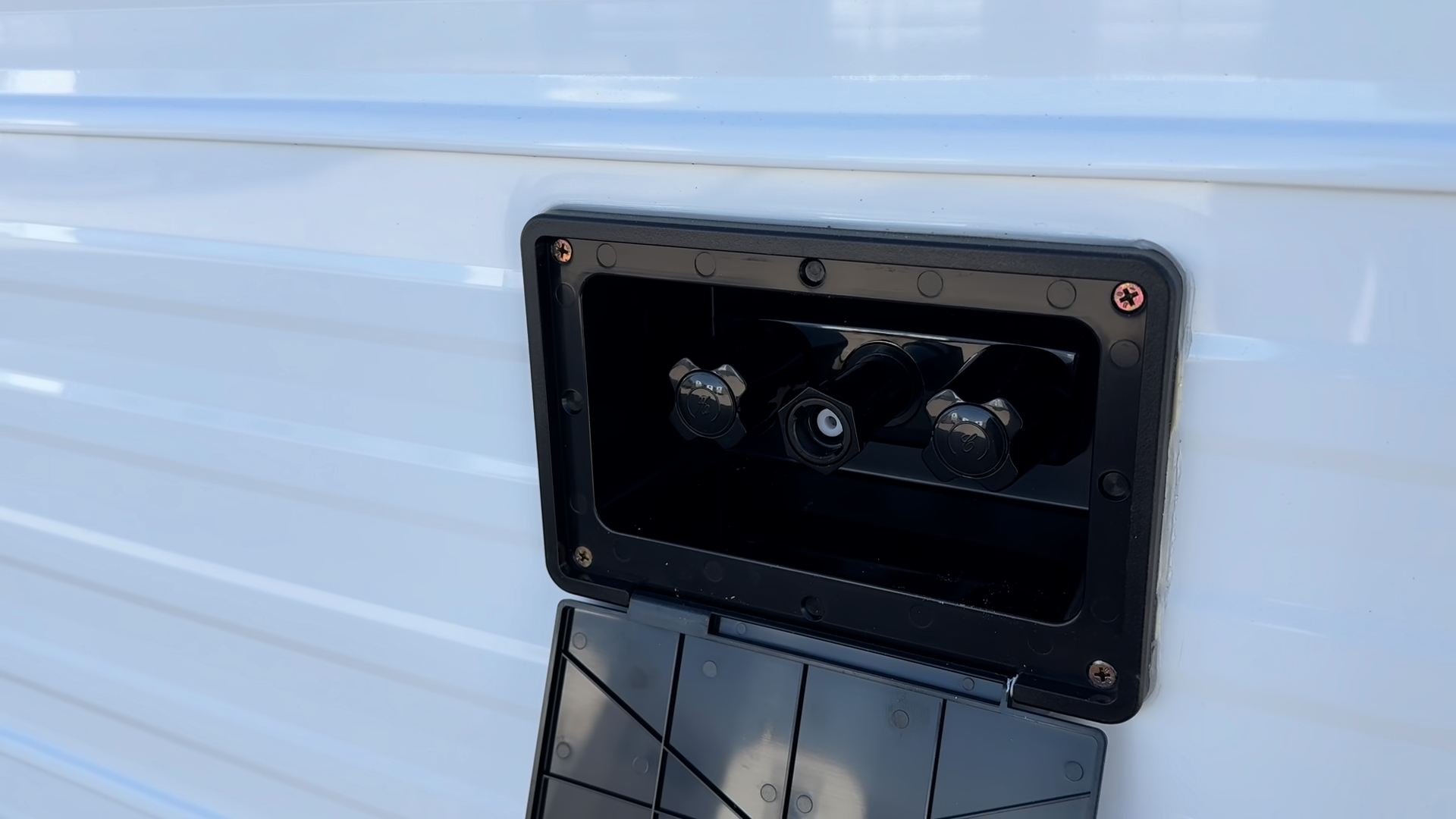

Exterior Shower: External Spray Port w/ Interior Shutoff Valves

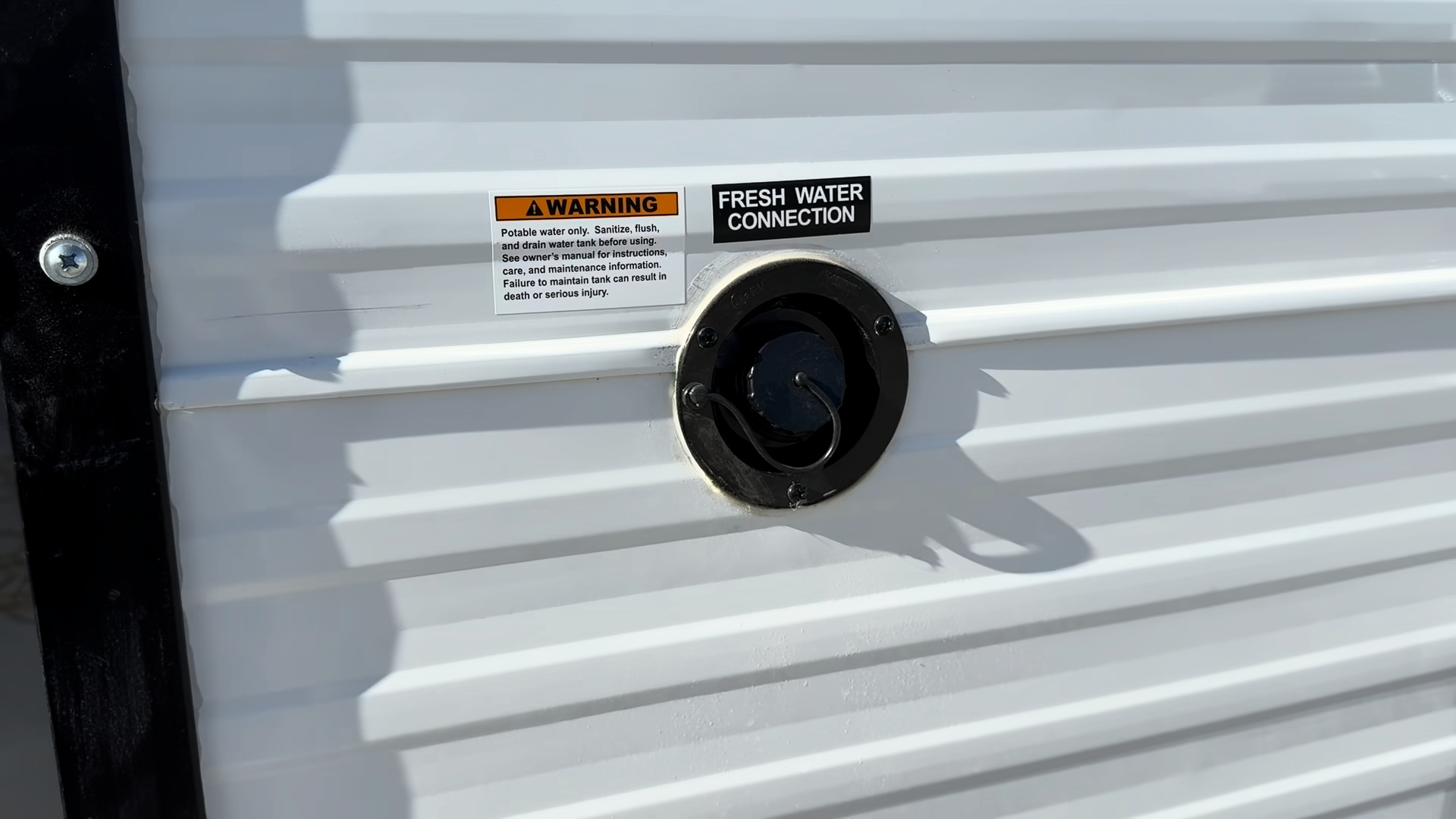

Fresh Water Connection: Standard
City Water Connection: Standard (Under Camp)

Waste Water

Holding Tank Cover: Insulated Metal Tank Cover
Sewer Hose Storage: Standard
Black Water Tank: 35 gal. Black Water Tank
Gray Water Tank: 35 gal. Gray Water Tank

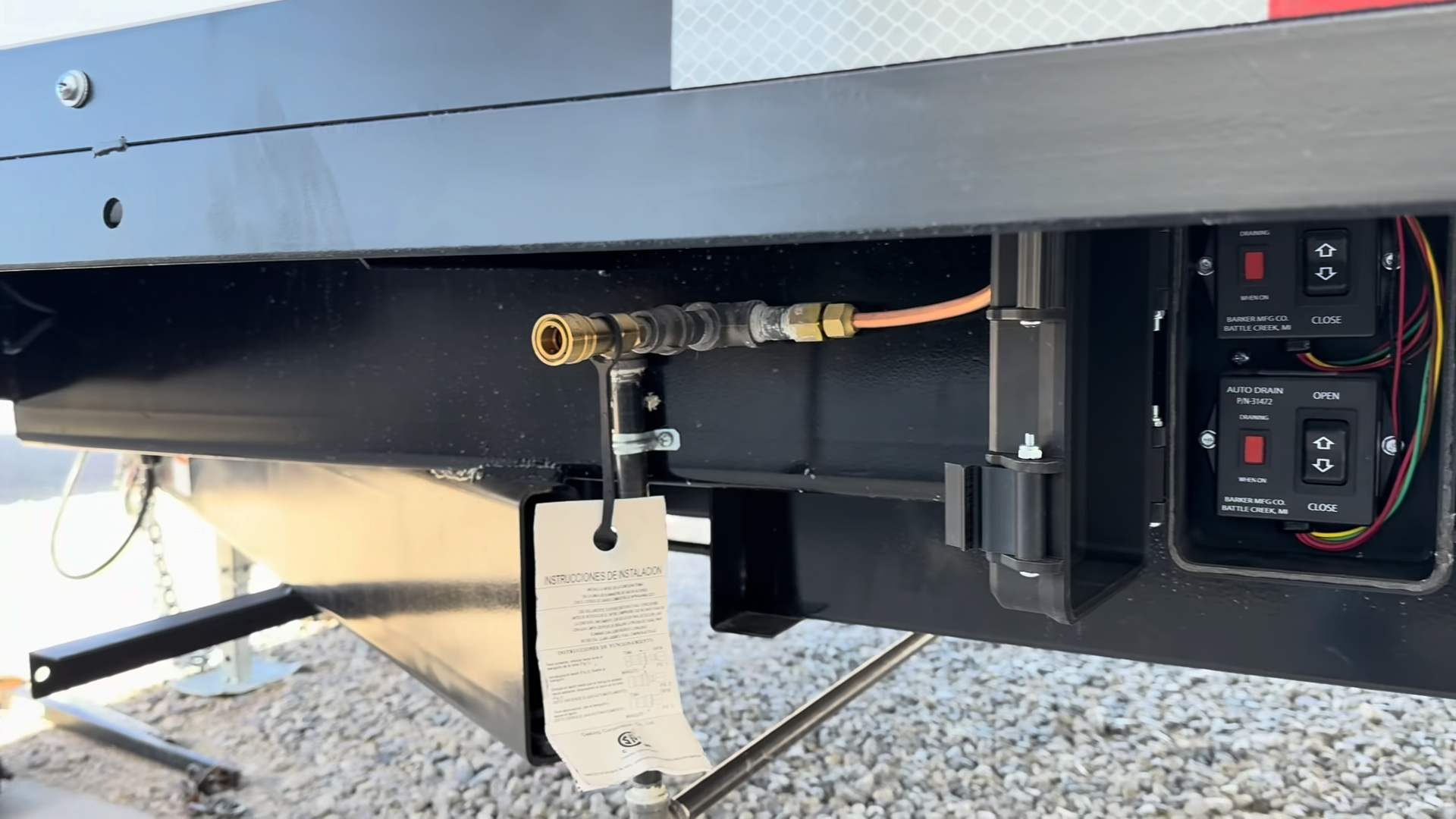

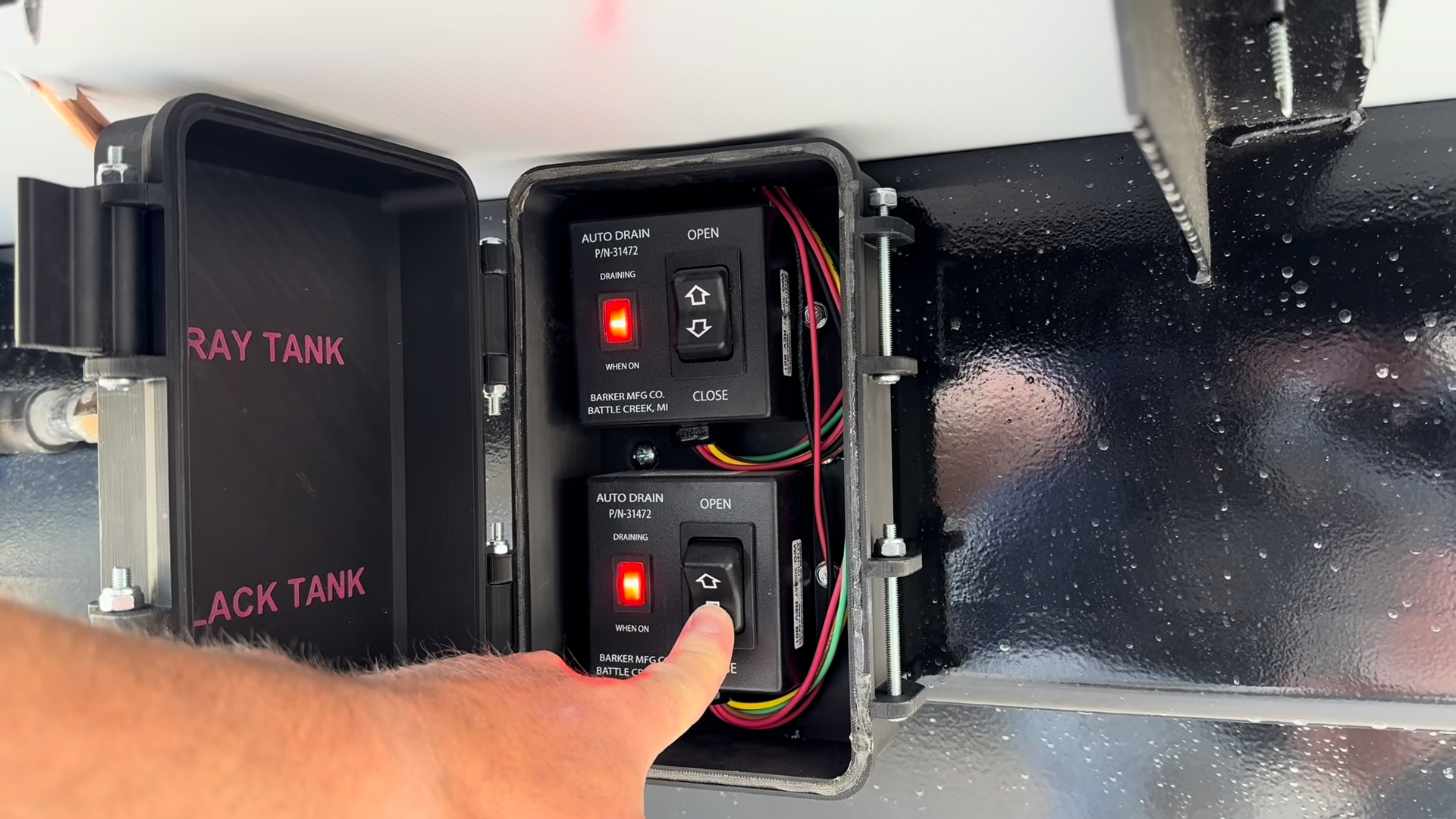

Electric Waste Gates: Highlighted feature: Added
Sewage Hook-Up: Standard

Climate Control

Heating & Cooling

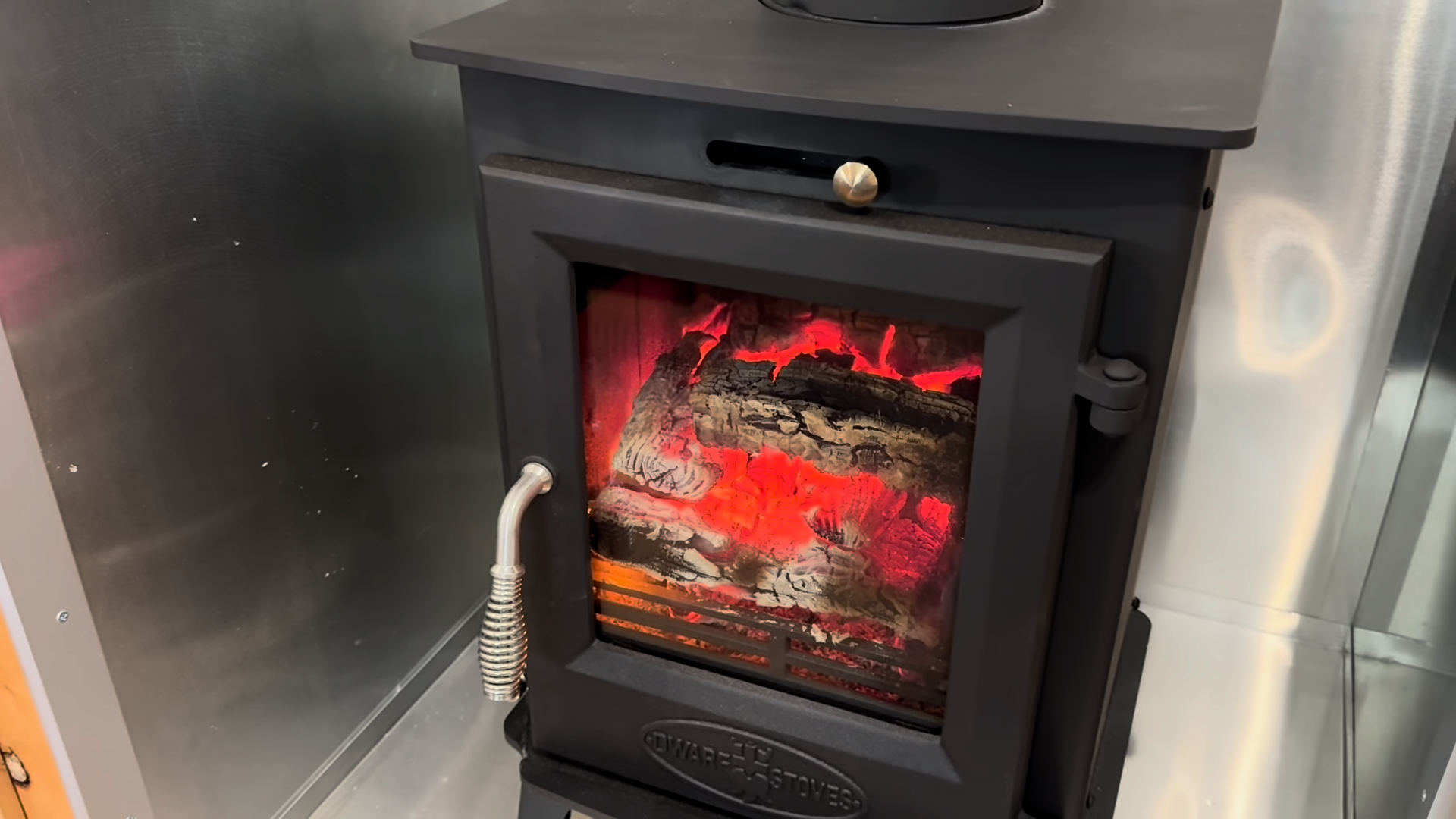

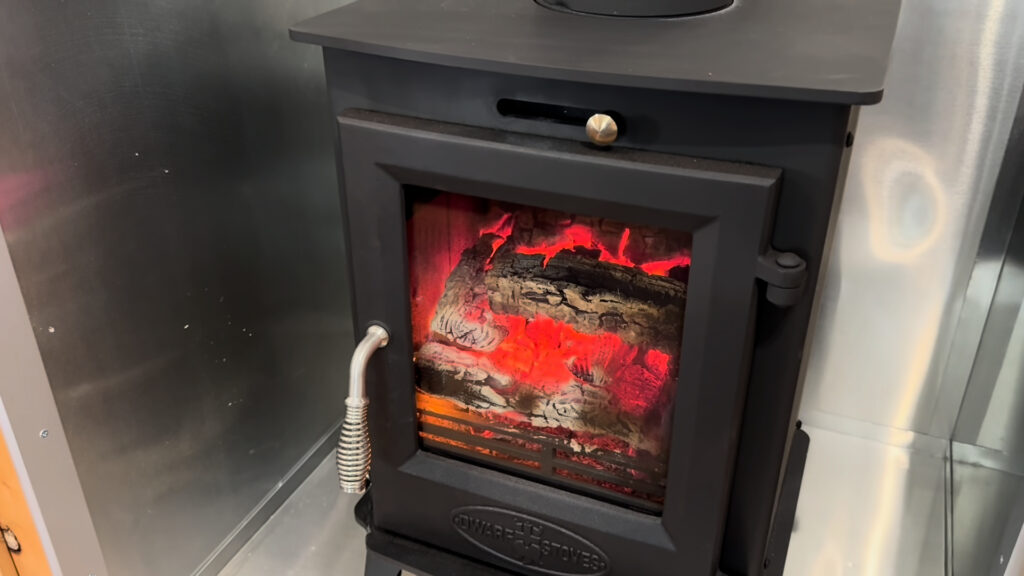

Wood Burning Stove: Standard

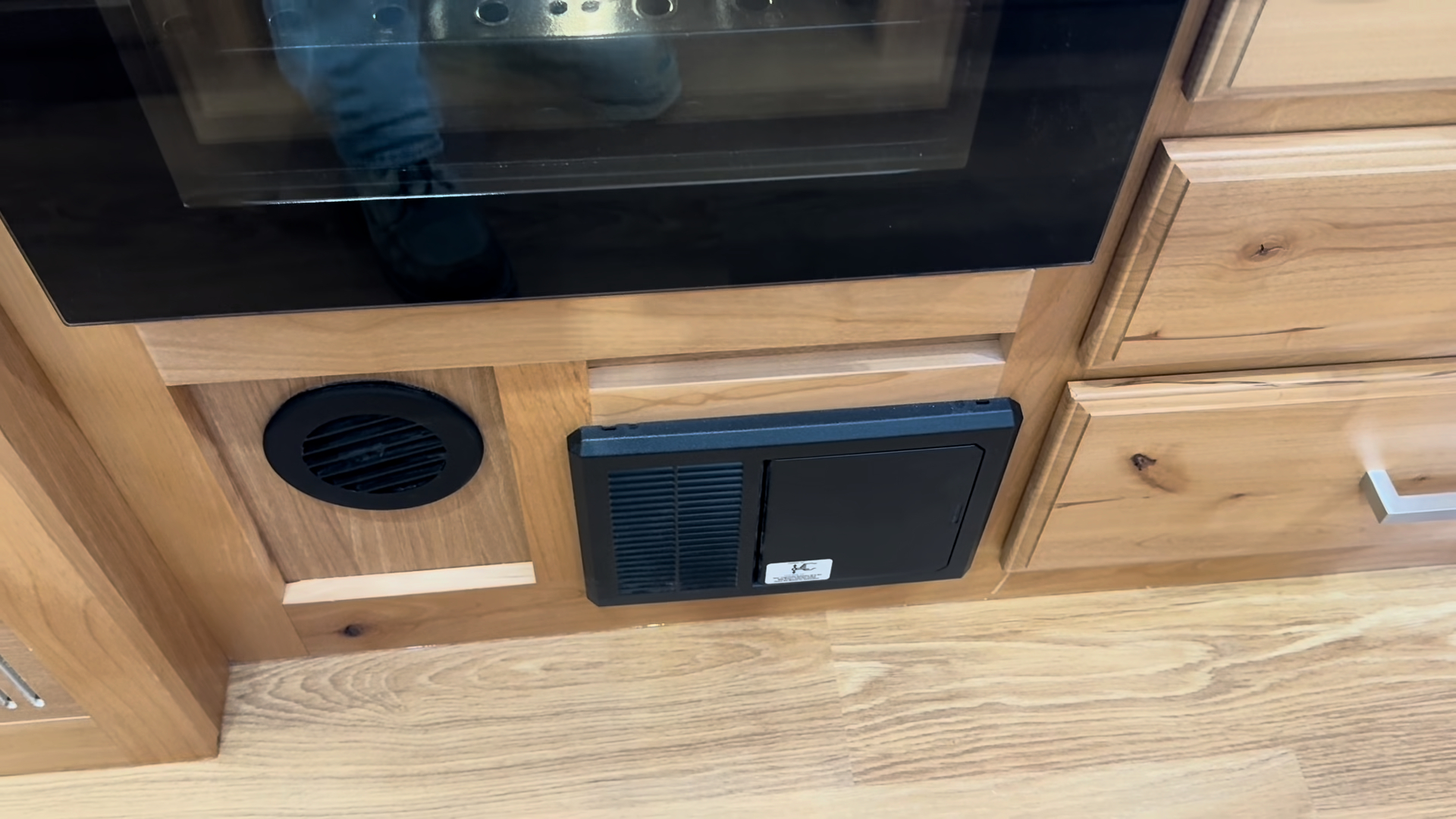

Furnace: 30,000 BTU Forced-Air Furnace

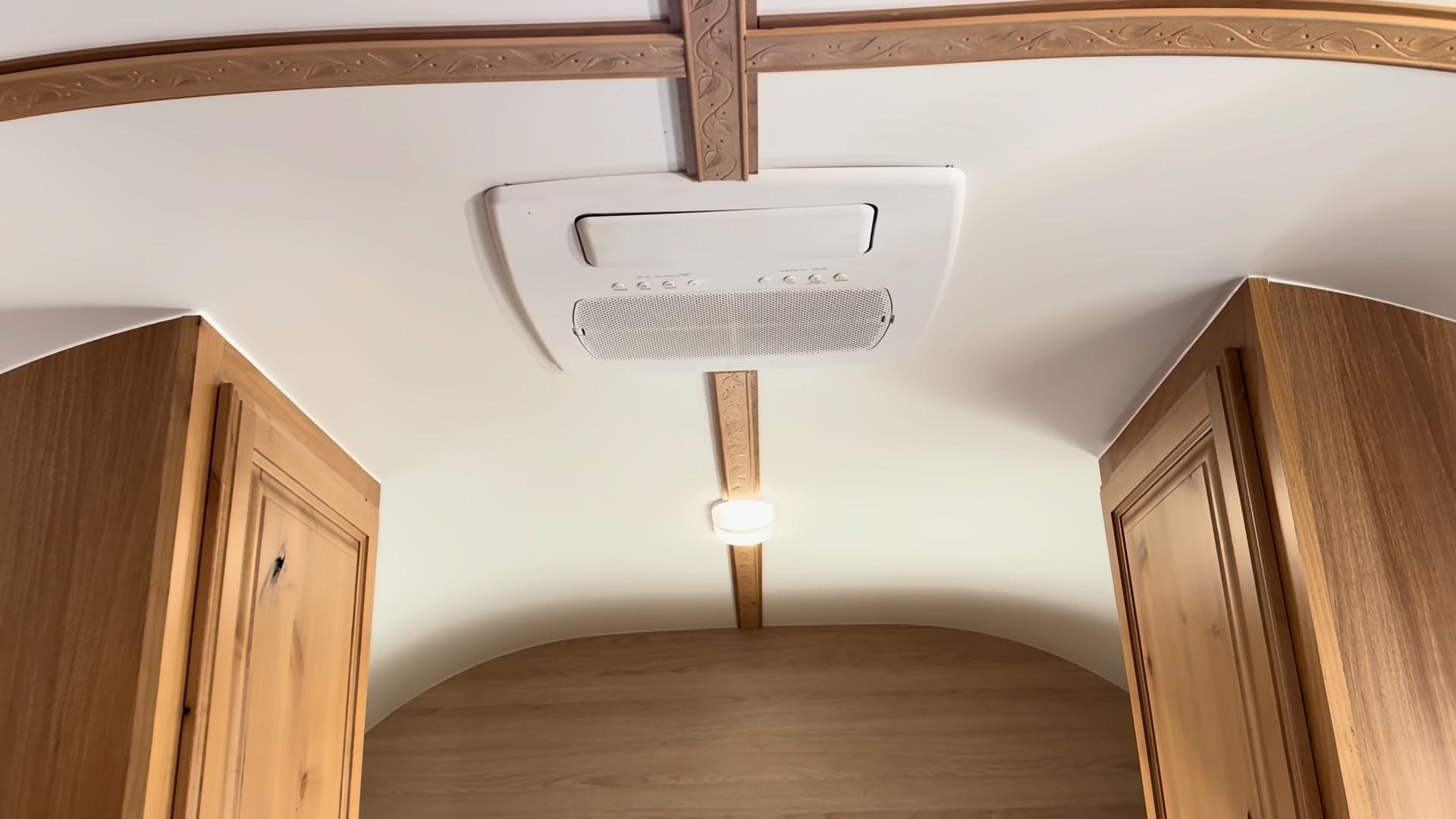

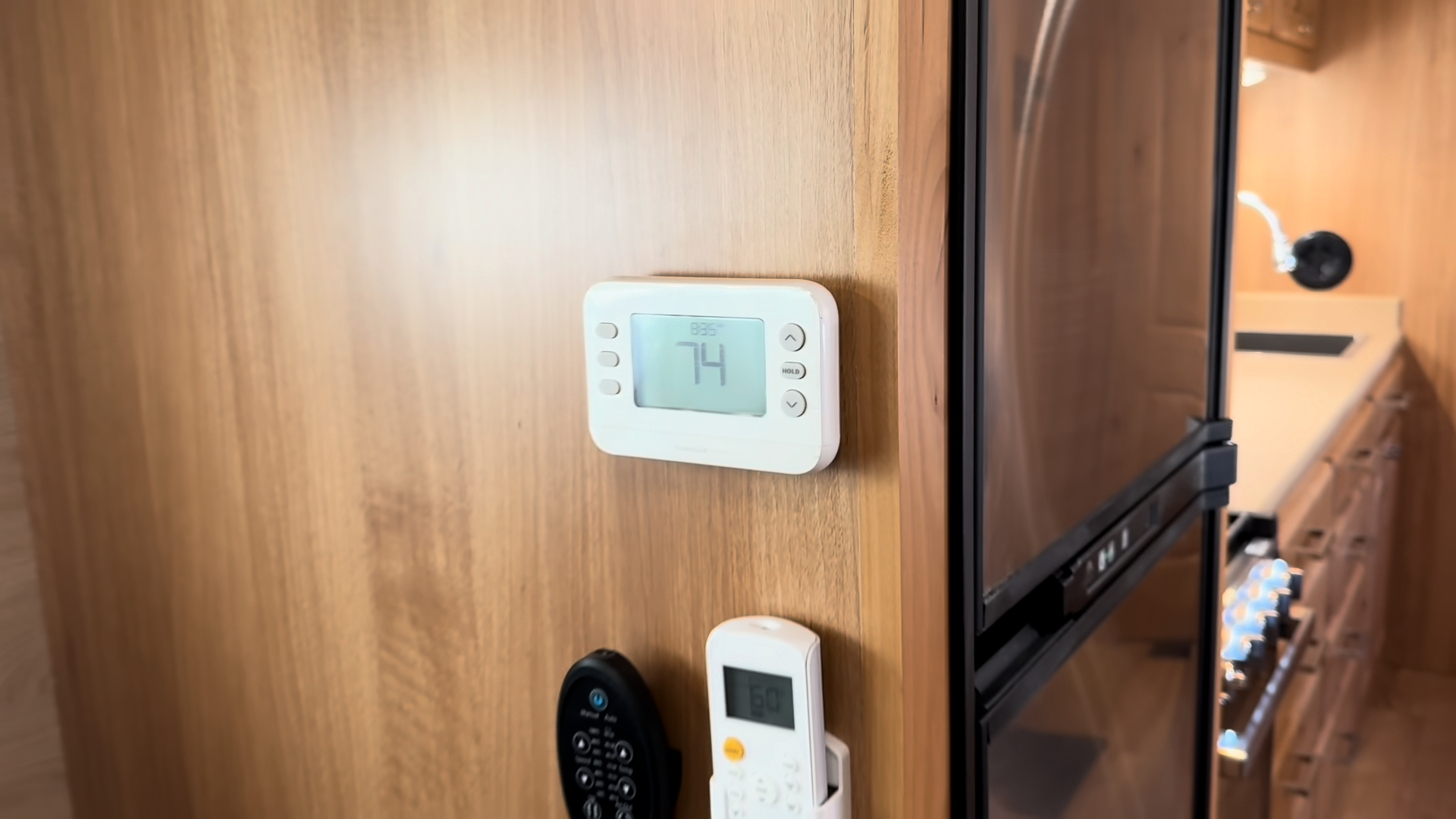

Air Conditioning: Highlighted feature: Furrion Ultrasonic Variable-Speed Temperature-Controlled A/C with Remote

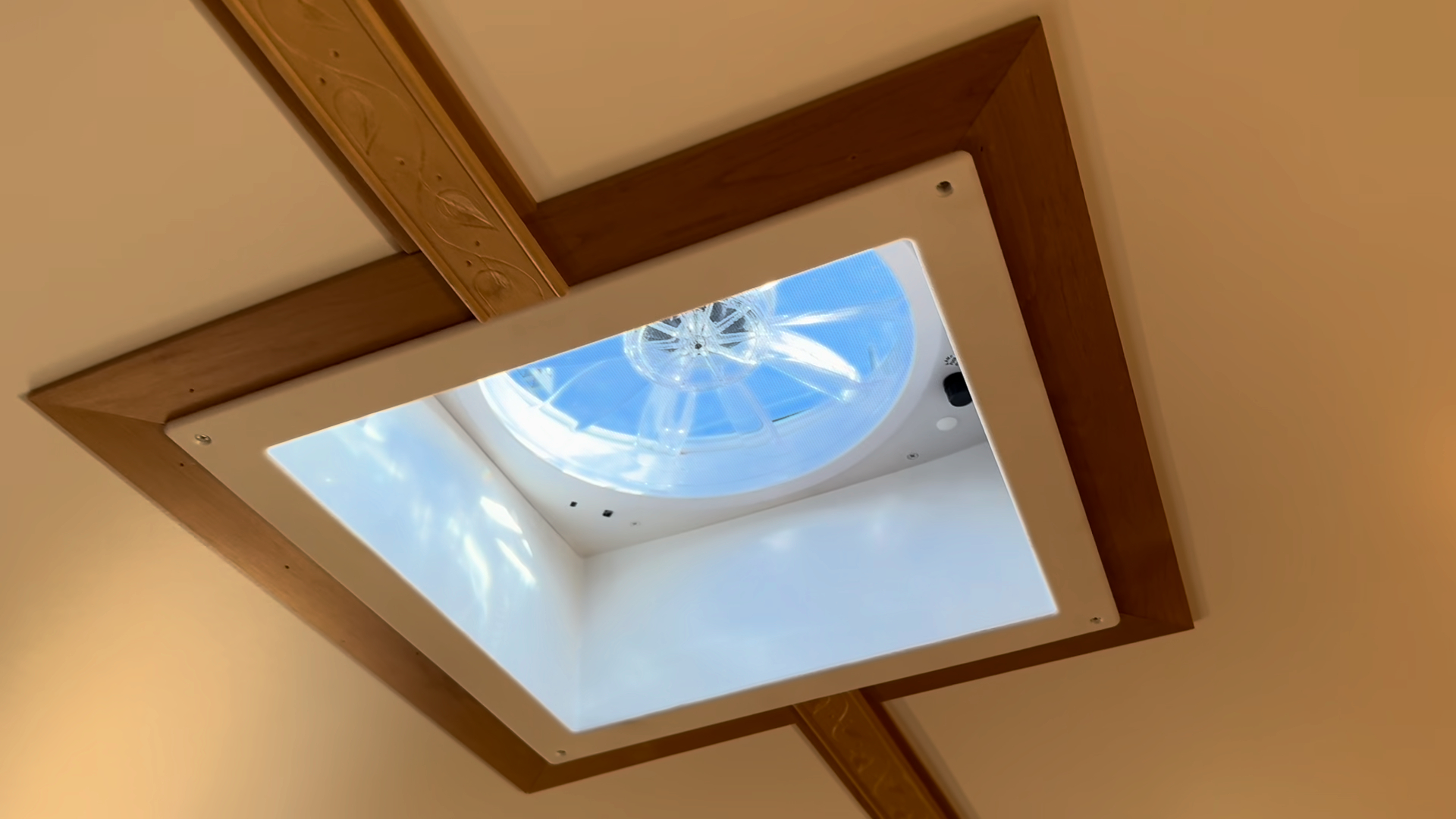

Ventilation: Highlighted feature: Fantastic Fan with Remote, Temperature Control, & Rain Sensing
Recirculation Fan: Standard 12V Air Circulating Fan

Internet & Entertainment

Connectivity

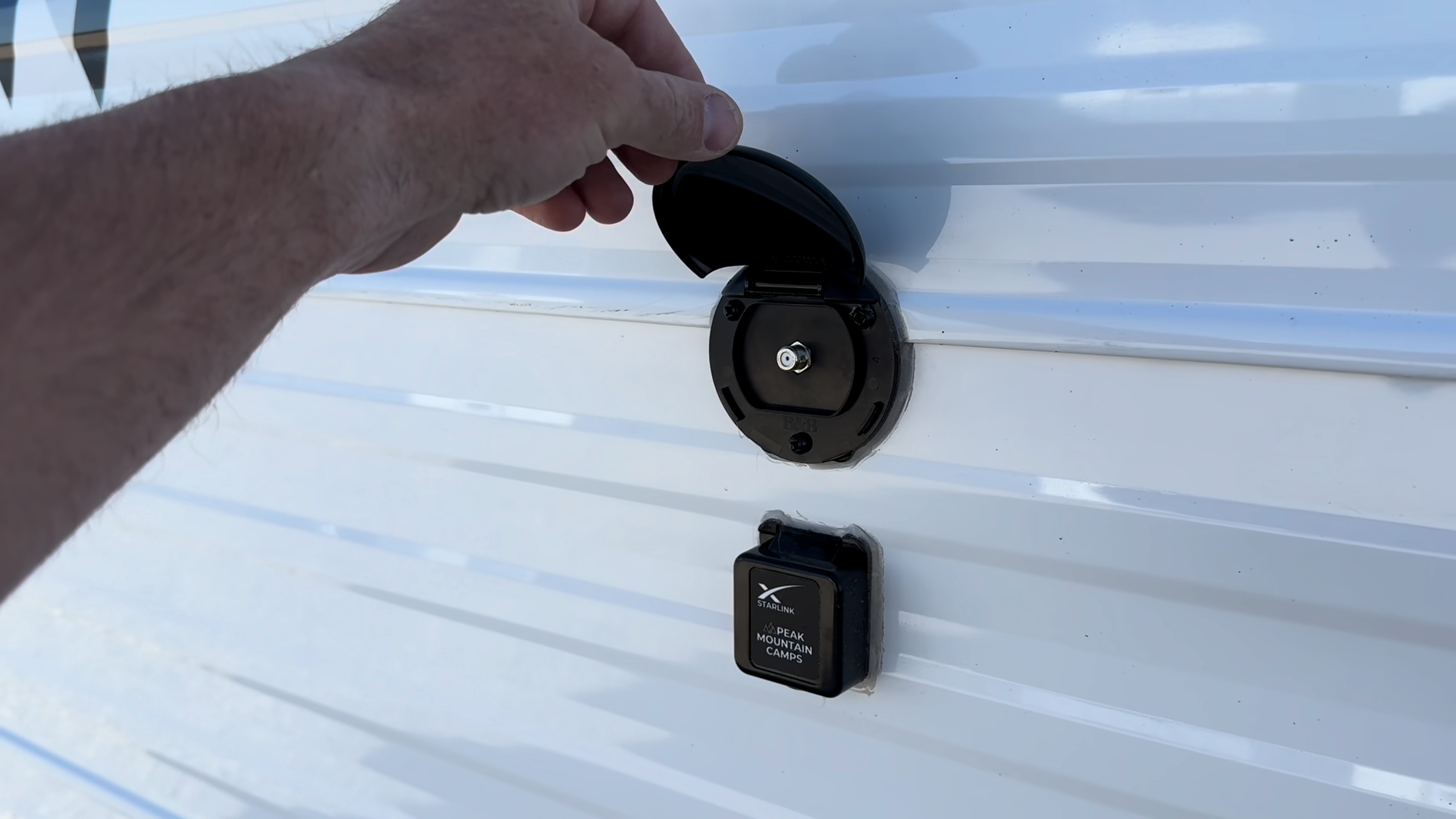

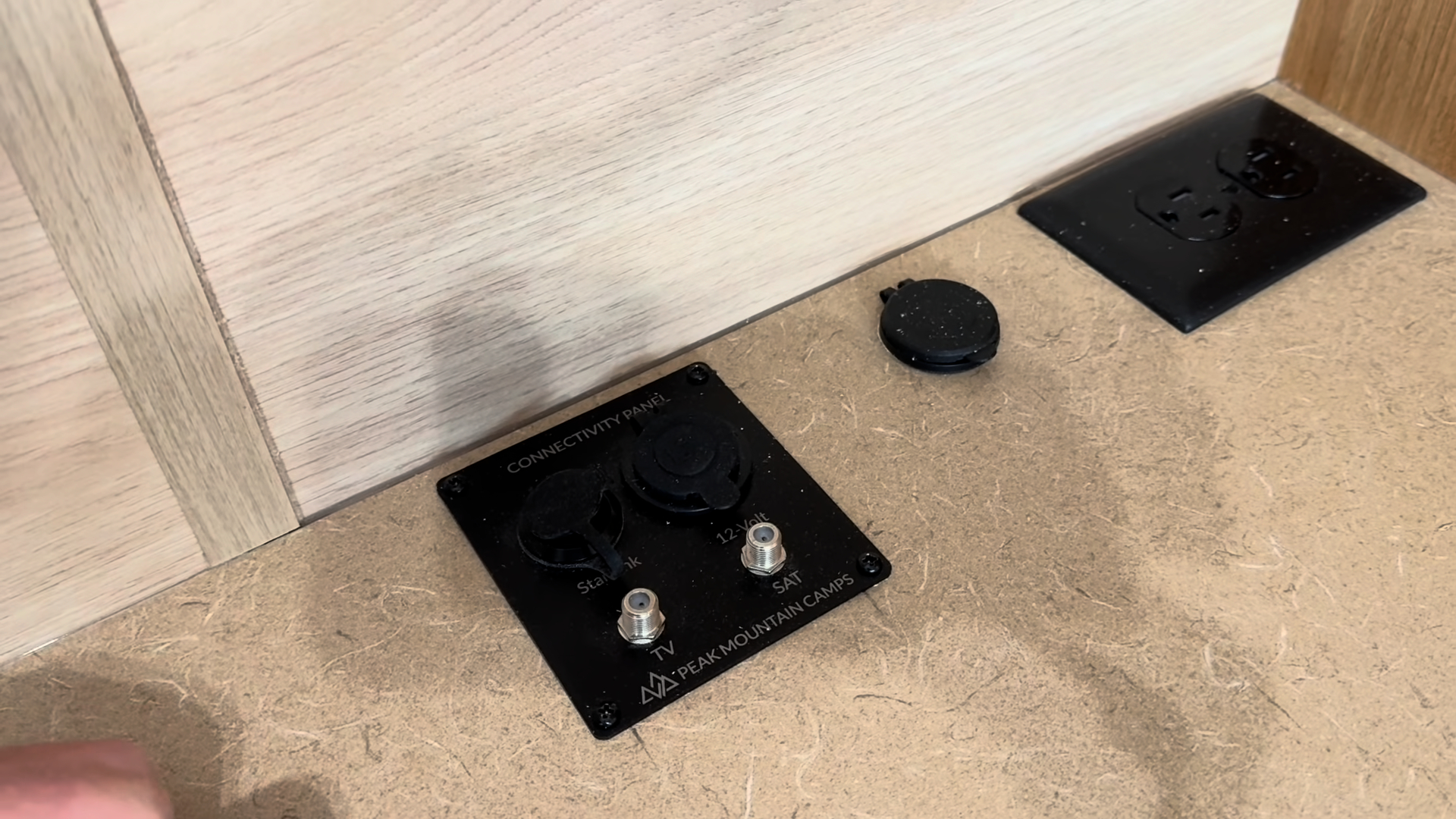

Exterior Ethernet Port (RJ45): Standard (Ready For Starlink)
Exterior Coax Port: Standard

Entertainment

TV: Prepped for TV (DC Socket & Coax On Wall Above Media Drawers)
Stereo: Highlighted feature: Built-In Kenwood Stereo with CD Player, Bluetooth & Satellite Connection
Premium Sound System: Highlighted feature: Built-In Speakers In Ceiling

Construction & Finishes

Construction

Ceiling Insulation: 6 in., R-19
Floor Insulation: 6 in., R-19
Walls: 2 in. Thick
Serviceability: Utilities Remain Accessible For Repairs

Cabinetry

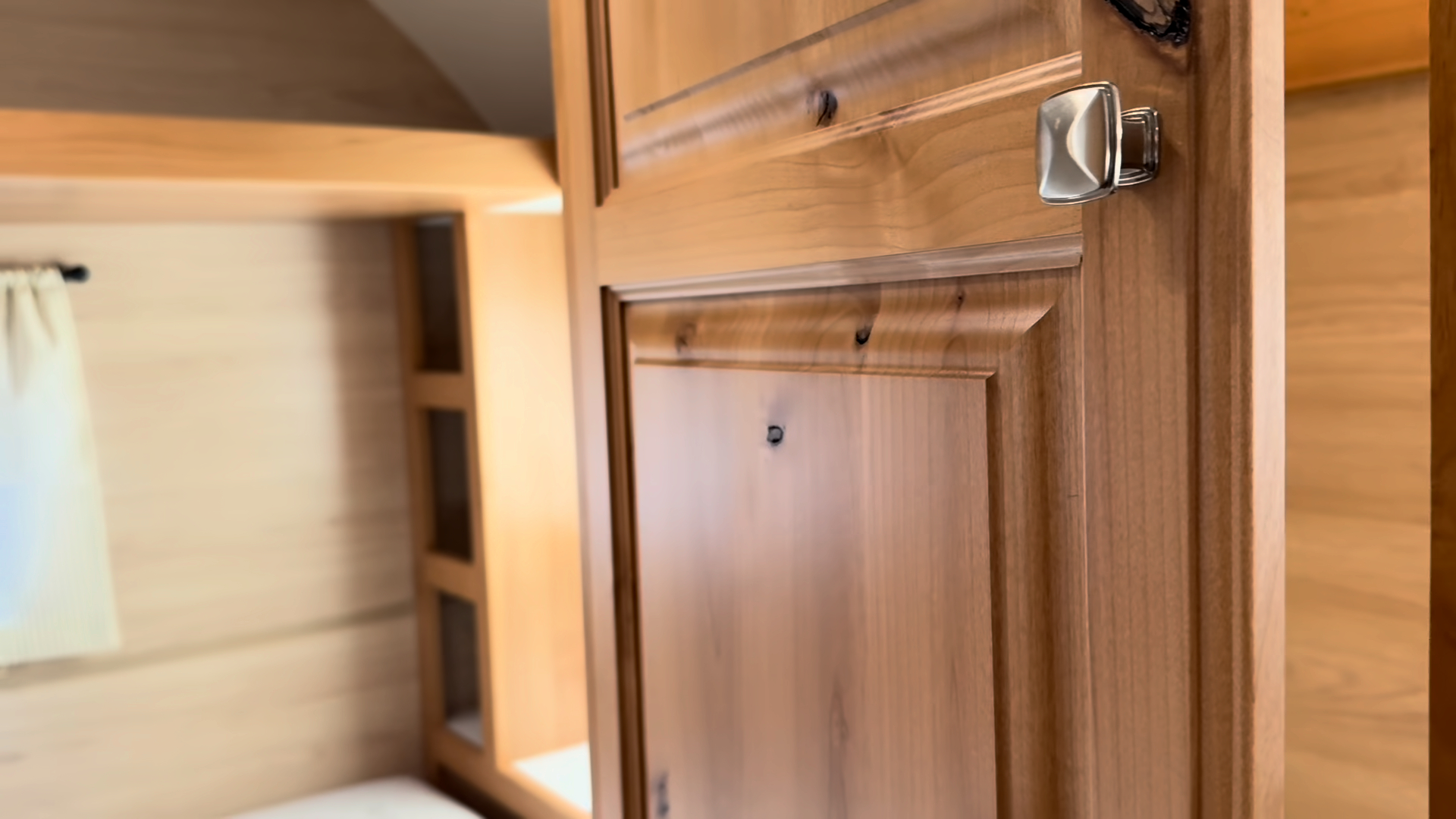

Cabinets: All-Hardwood Cabinets
Hinges: Soft-Close Hinges
Drawer Construction: Dovetail Construction
Drawer Slides: Self-Latching, Travel-Secure Slides
Thumb Latches: Included On Large Drawers
Overhead Cabinet Doors: Gas-Strut-Supported Cabinet Doors

Finishes & Colors

Wall Color: Wilsonart Norwegian Ash (8241-38)
Cabinet Color: Wilsonart Brazilwood (7946-38)
Countertop: Wilsonart Natural Tigris (4669-60)
Cabinet Hardware: Brushed Nickel Drawer Pulls & Knobs
Recliners & Cushions: Fossil Linen

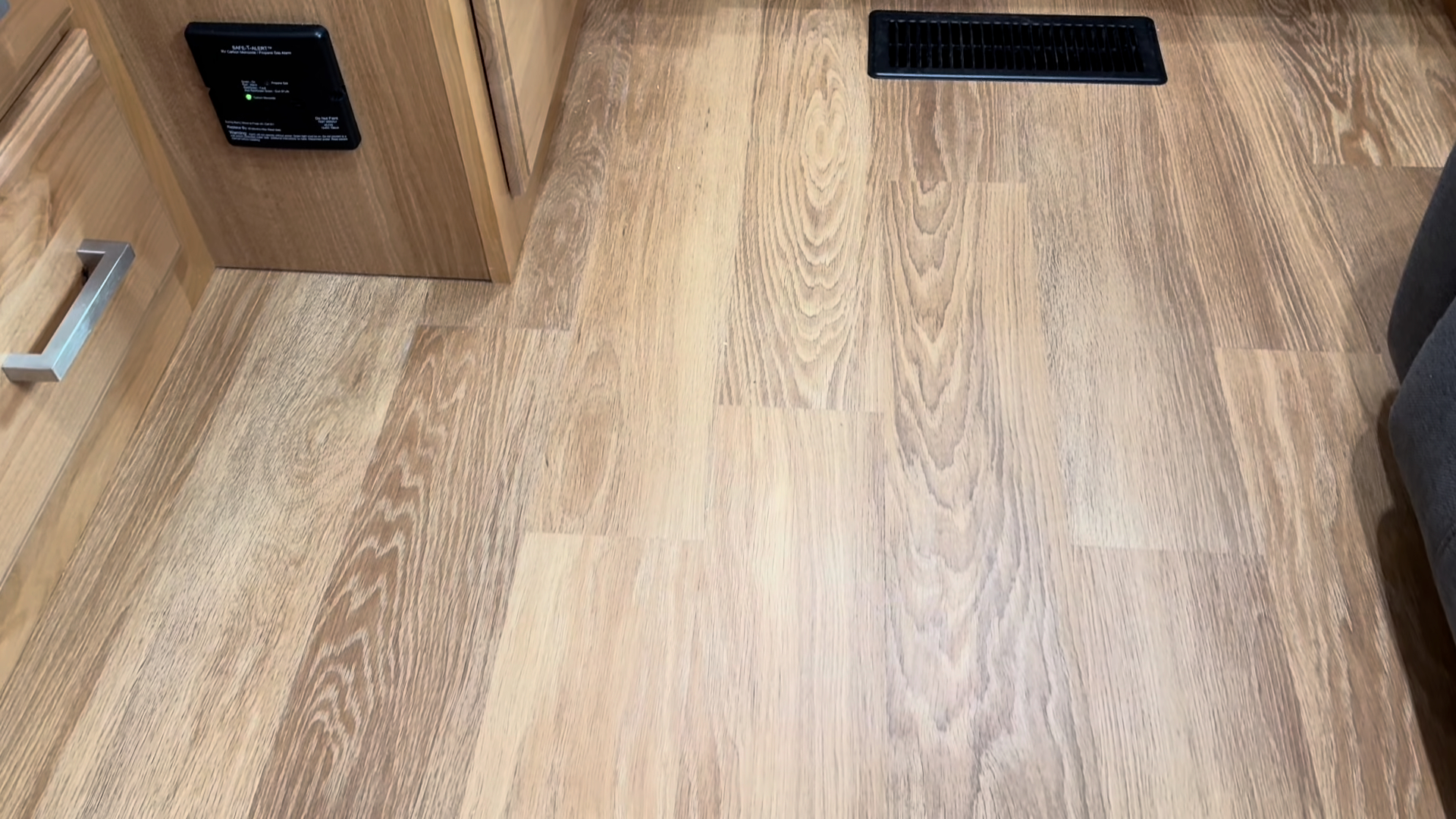

Flooring: Luxury Vinyl Plank Flooring
Floor Color: Karndean Honey Limed Oak (KP-155)
Ceiling Trim: Rosewood Carved Ceiling Trim

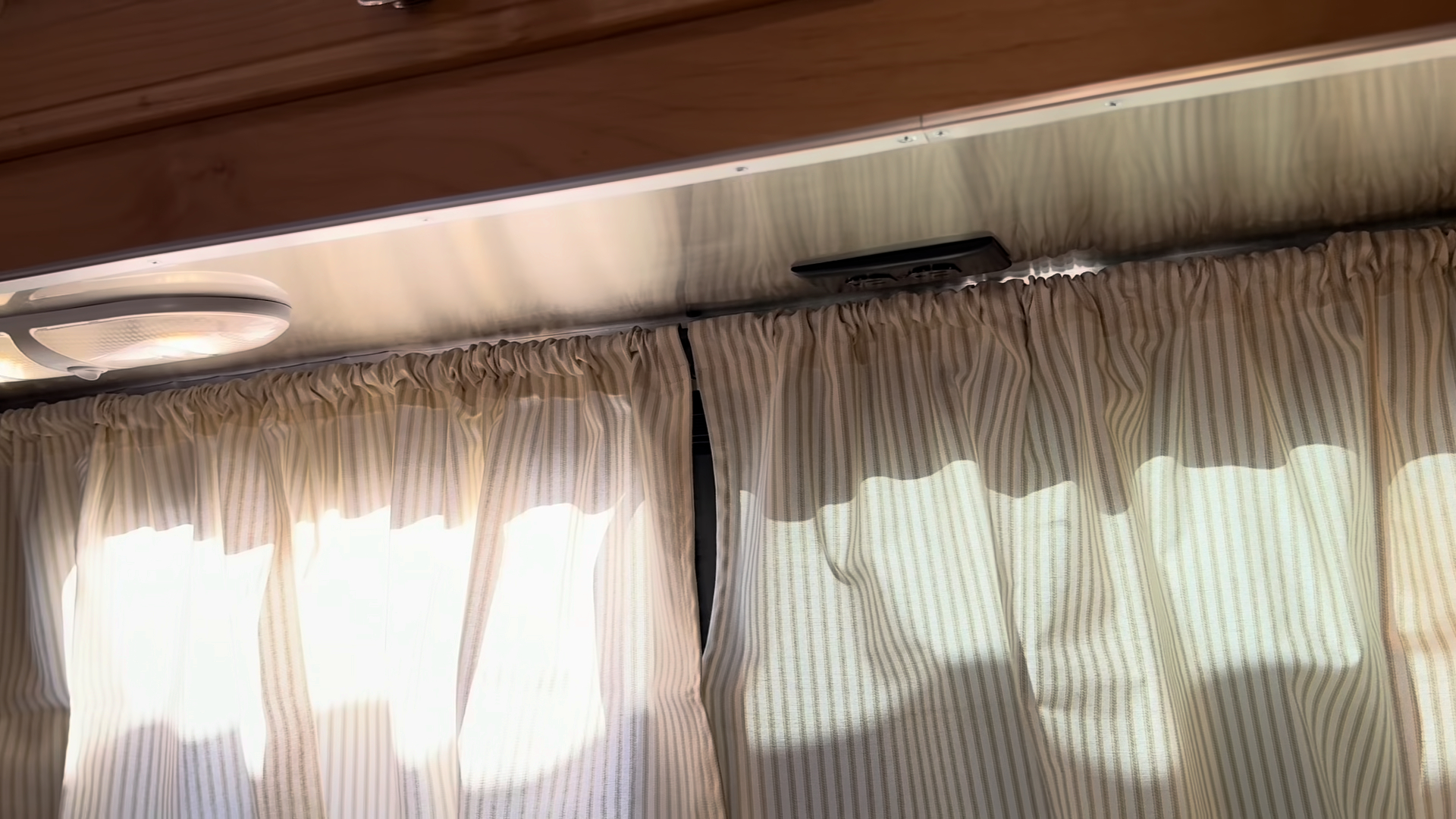

Window Shades: Striped Curtains

Frame, Chassis, & Towing

Frame

Frame Construction: Highlighted feature: Custom-Engineered For Best Towing Characteristics
Platform: X31
Clearance: Approx. 30 in. to Frame Angle Iron
Wheel Wells: Metal-Encased Wheel Wells to Protect from Road Debris and Damage from Tire Blowouts
Stabilizer Jacks: All Four Corners

Chassis

Axles: Dual 7,200 lb Axles w/ Easy Lube Hubs
Wheels: 8-Lug Wheels with 16 in. Rims
Tires: 16 in. E-Load ST235/80R16 (10-Ply)
Brakes: Standard Trailer Brakes
Suspension: Over-The-Axle Leaf-Sprung Suspension

Towing

Hitch Type: Bumper Pull
Coupler: Adjustable 2 5/16 in. 15,000 lb Coupler
Ball Height: Adjustable

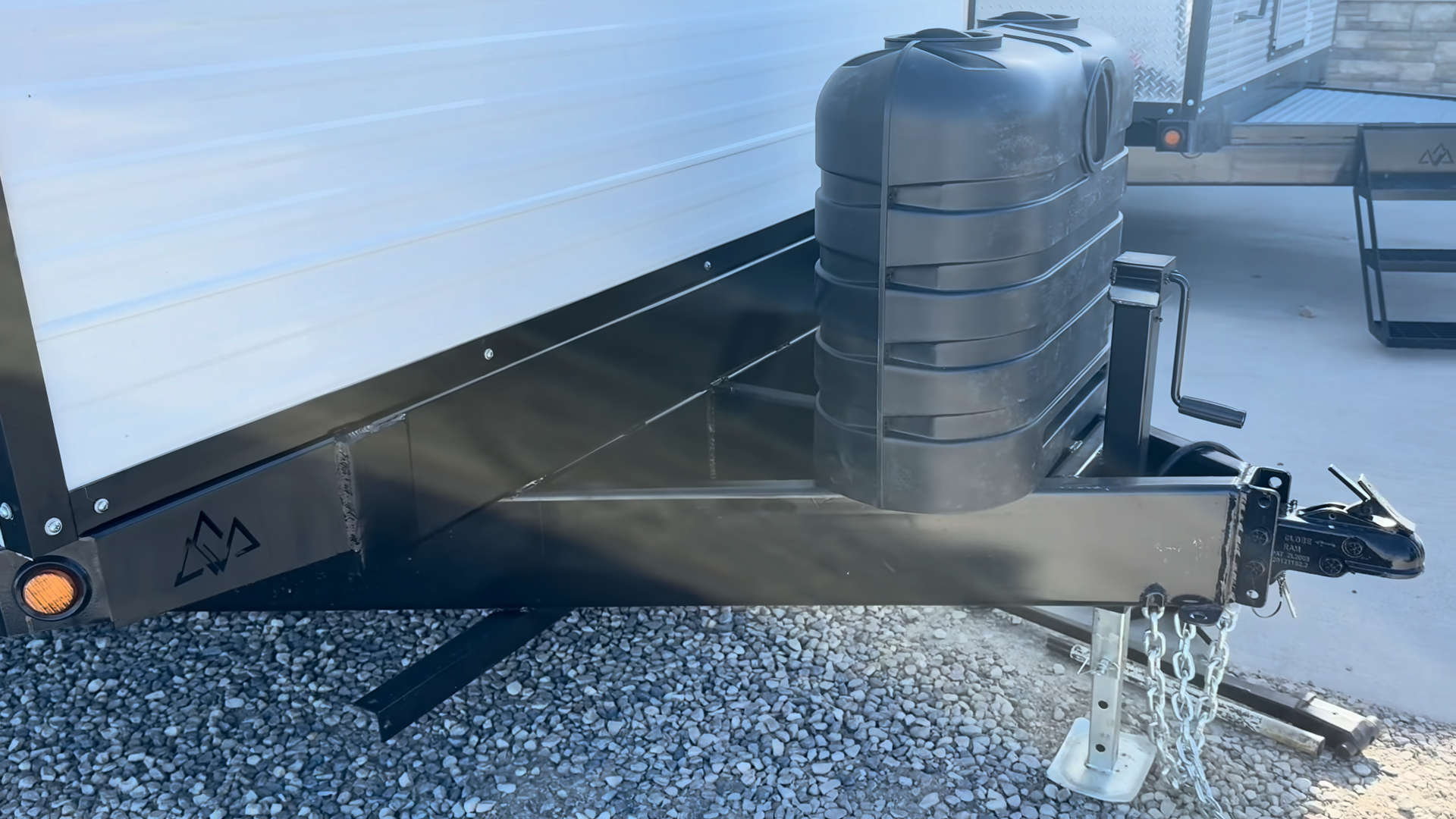

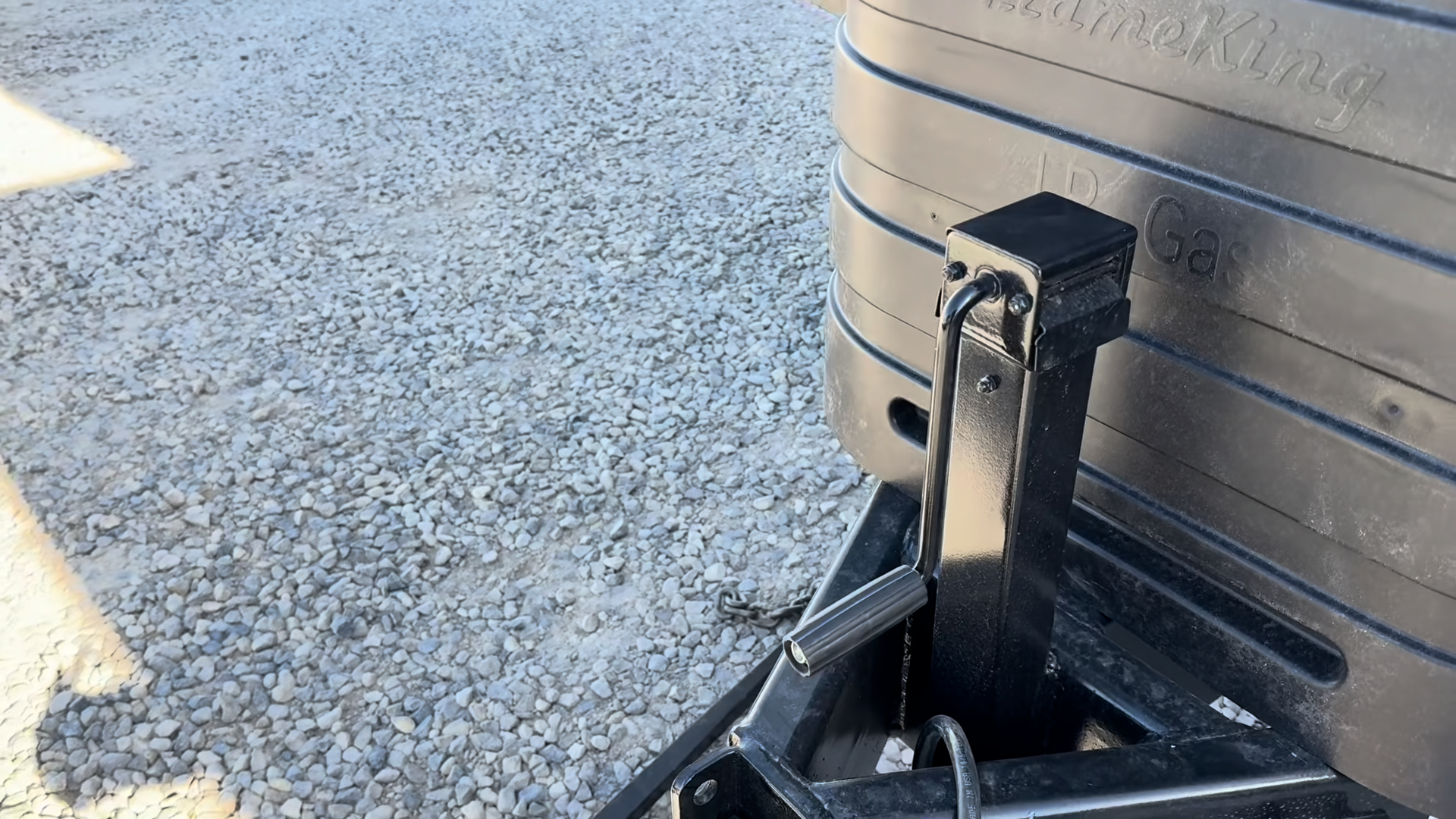

Tongue Jack: Drop Leg Side-Wind Manual Jack

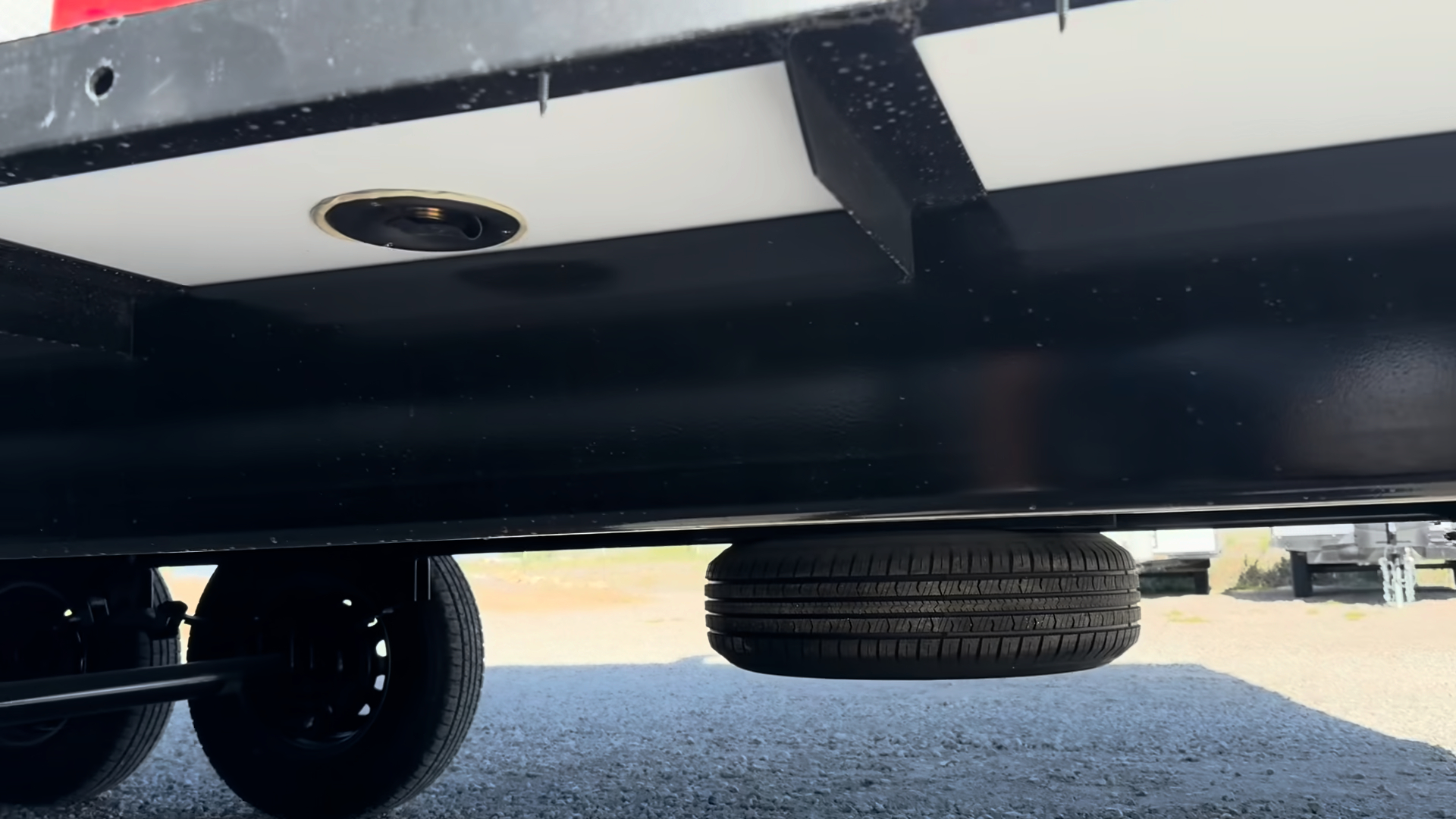

Spare Tire: Standard Drop-Down Spare Tire

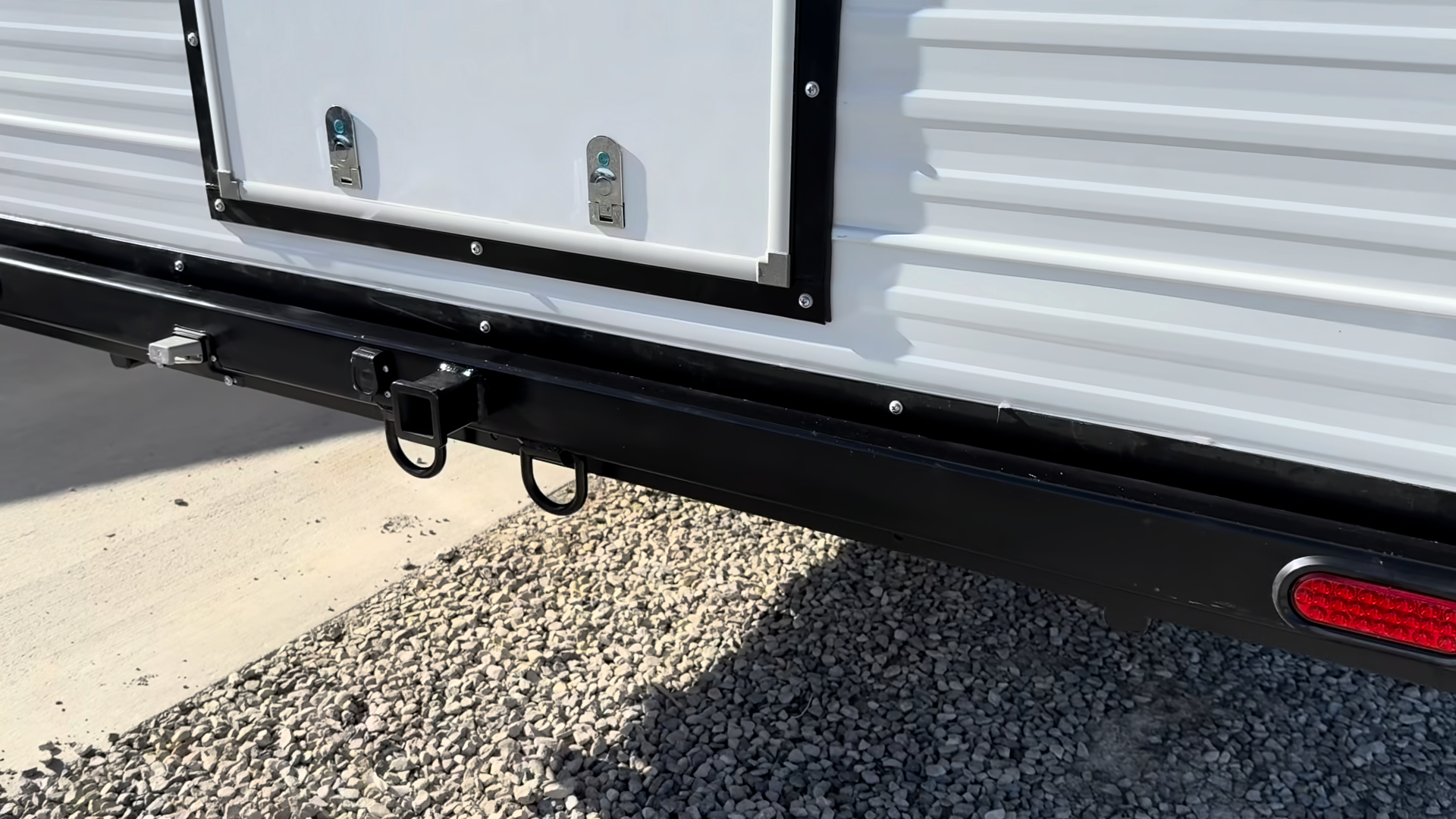

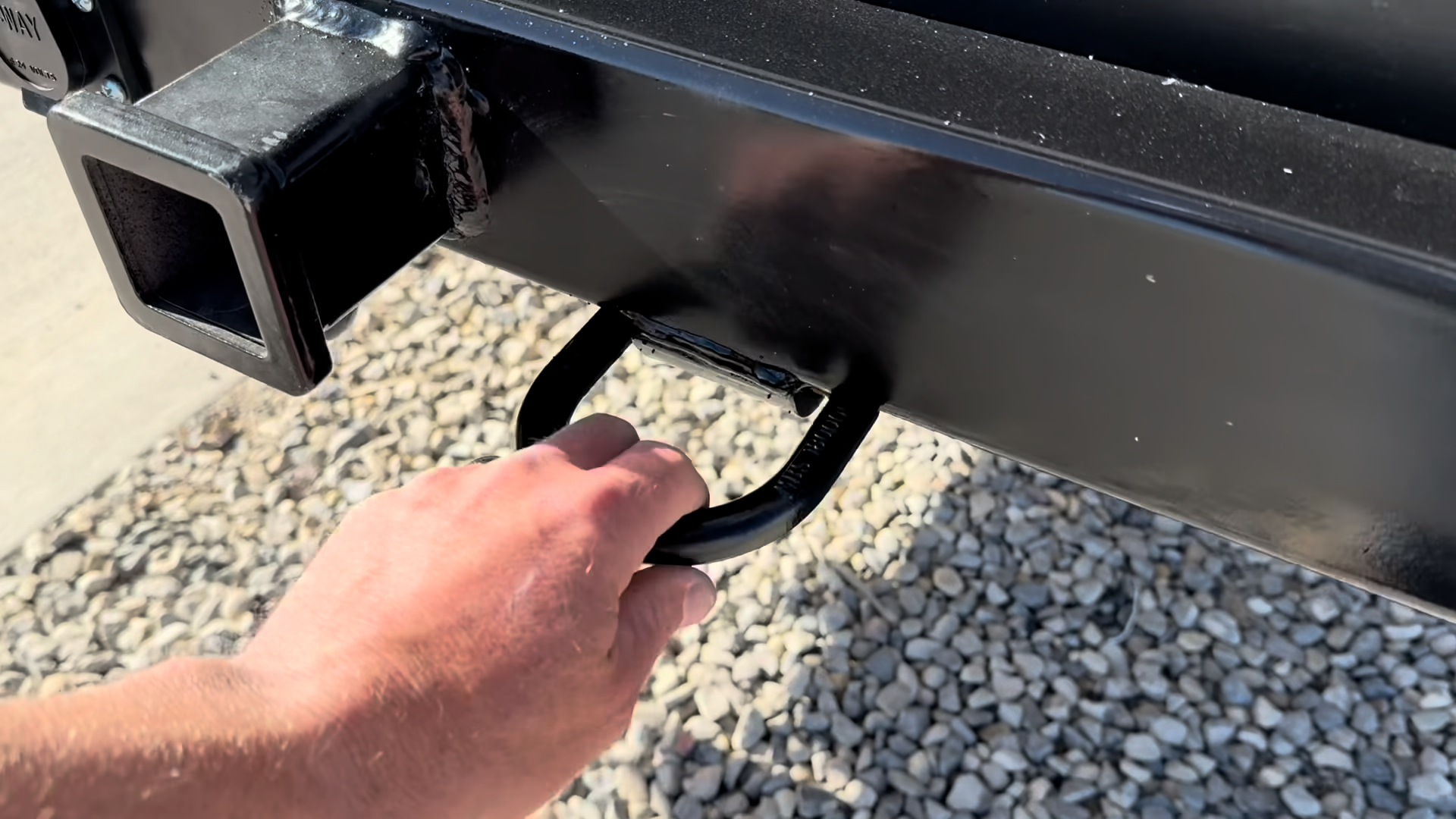

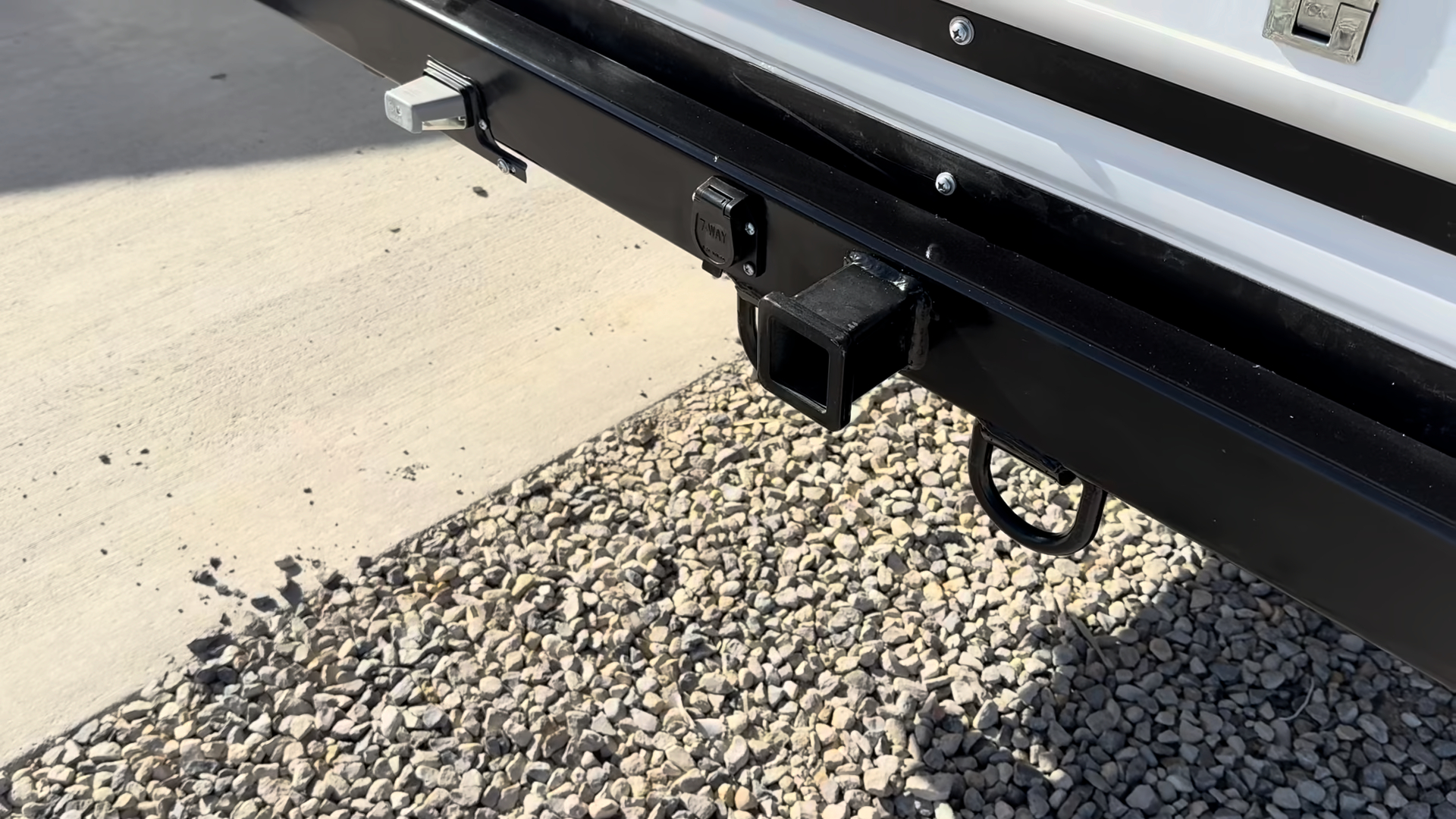

Rear Receiver: Standard 2 in. Receiver Rated For Pulling Doubles

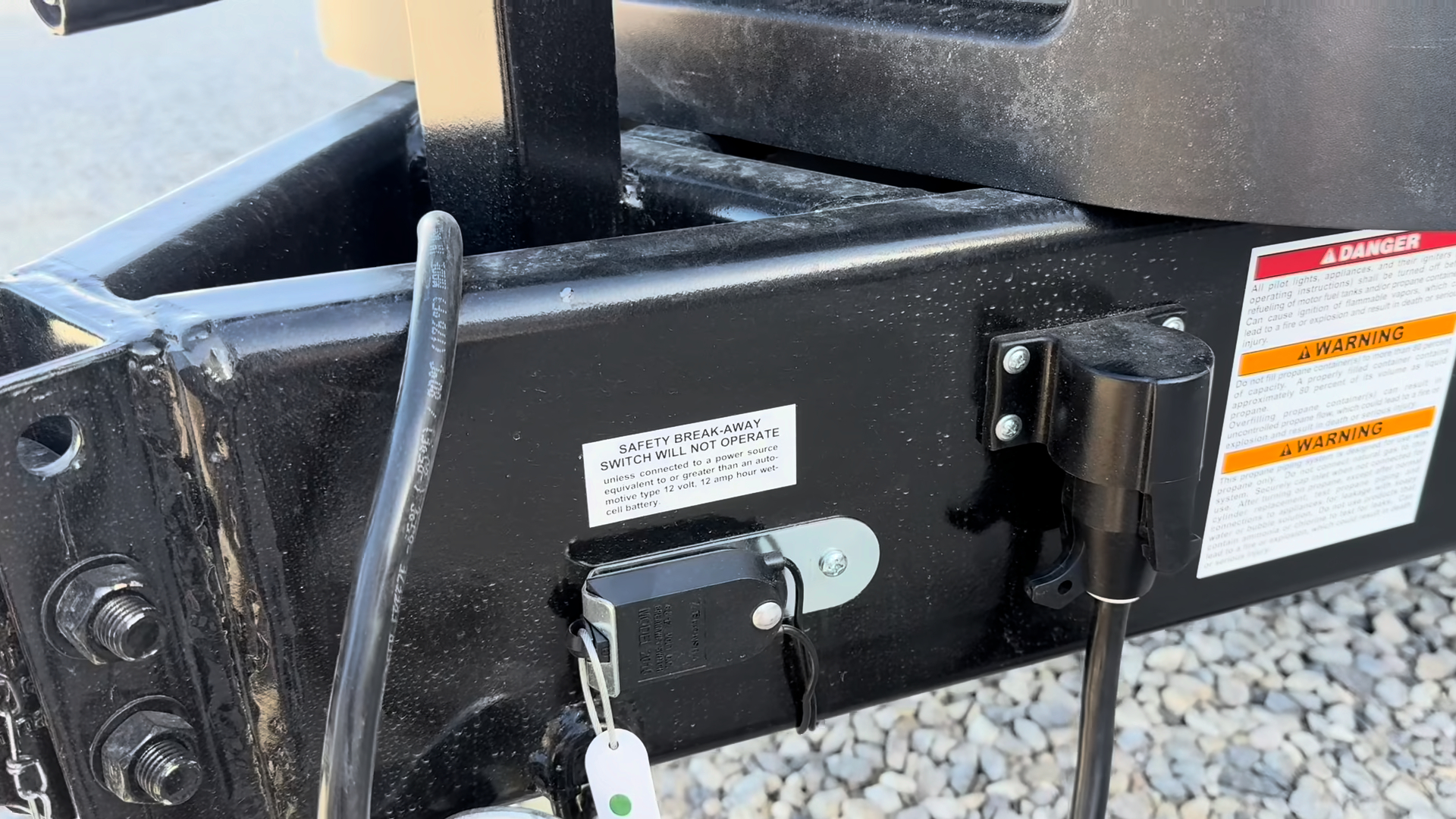

7-Way Plug: Standard
Towing Chains: Included

Safety

General

CO/LP Detector: Standard
Egress Window: Rear Egress Window

Highway Safety

Road Markers: DOT-Compliant Markers

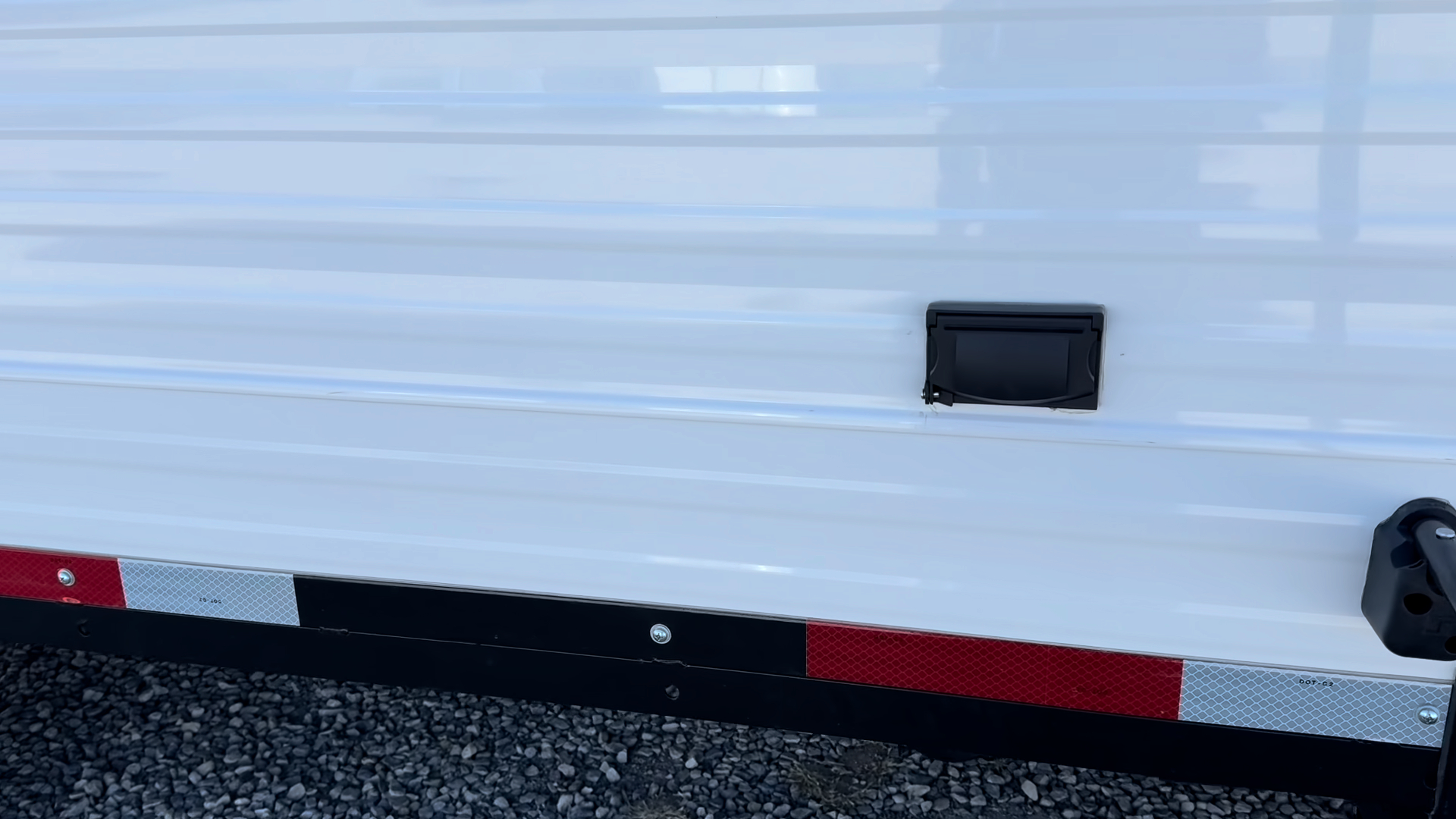

Reflective Tape: Canadian-Compliant Reflective Striping
Taillights: Standard
Trailer Lights: DOT-Compliant LED Lights
License Plate Lighting: Standard

Fire Safety

Smoke Detector: Standard
Fire Extinguisher: Standard
Fire Backer: Fire Backer Behind Wood Stove & Fire-Lined Cabinetry
Chimney: Triple-Wall Flue & Chimney
Battery Disconnect: Standard
NFPA 1192 Compliant: Yes

Dimensions

Exterior Measurements

Length: 31 ft.
Width: 102 in.

Interior Measurements

Length: 27 ft.
Width: 96 in.
Area: 216 sqft.

Weight

Dry Weight: 11,000 lbs
GVWR: 14,400 lbs

More Details

Build

Camp Name & Number: Plankis Camp (#124)
Designed For: Full-Time Living
Homebase: Rapid City, South Dakota
Completion: May 2026
