Kendall Camp
An X35 front-entry camp for three, built for year-round off-grid living with a queen bed and Twin XL bunk, a full bathroom, dedicated washer/dryer, generous storage, solar power, and multiple heating and cooling systems.
- Platform
- X35 Camp
- Location
- Lawton, OK
- Pricing Build pricing changes over time with material and component availability, supply-chain costs, and inflation. Final sale prices are kept private out of respect for each owner's privacy.
- Contact Us
Inside And Out

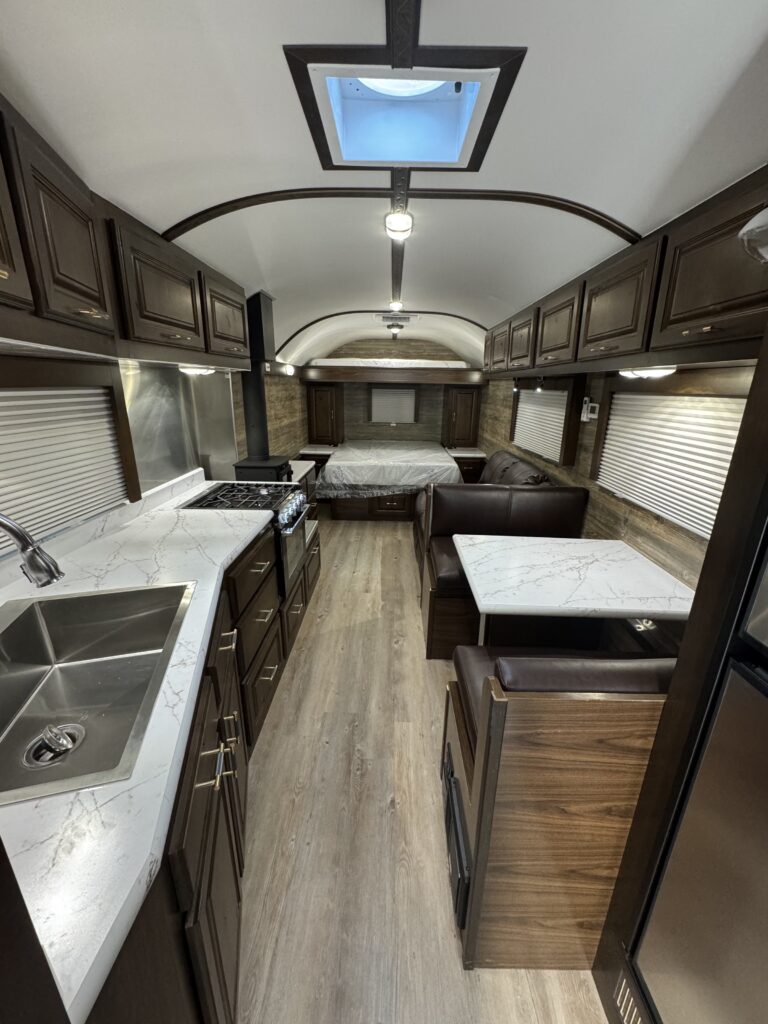

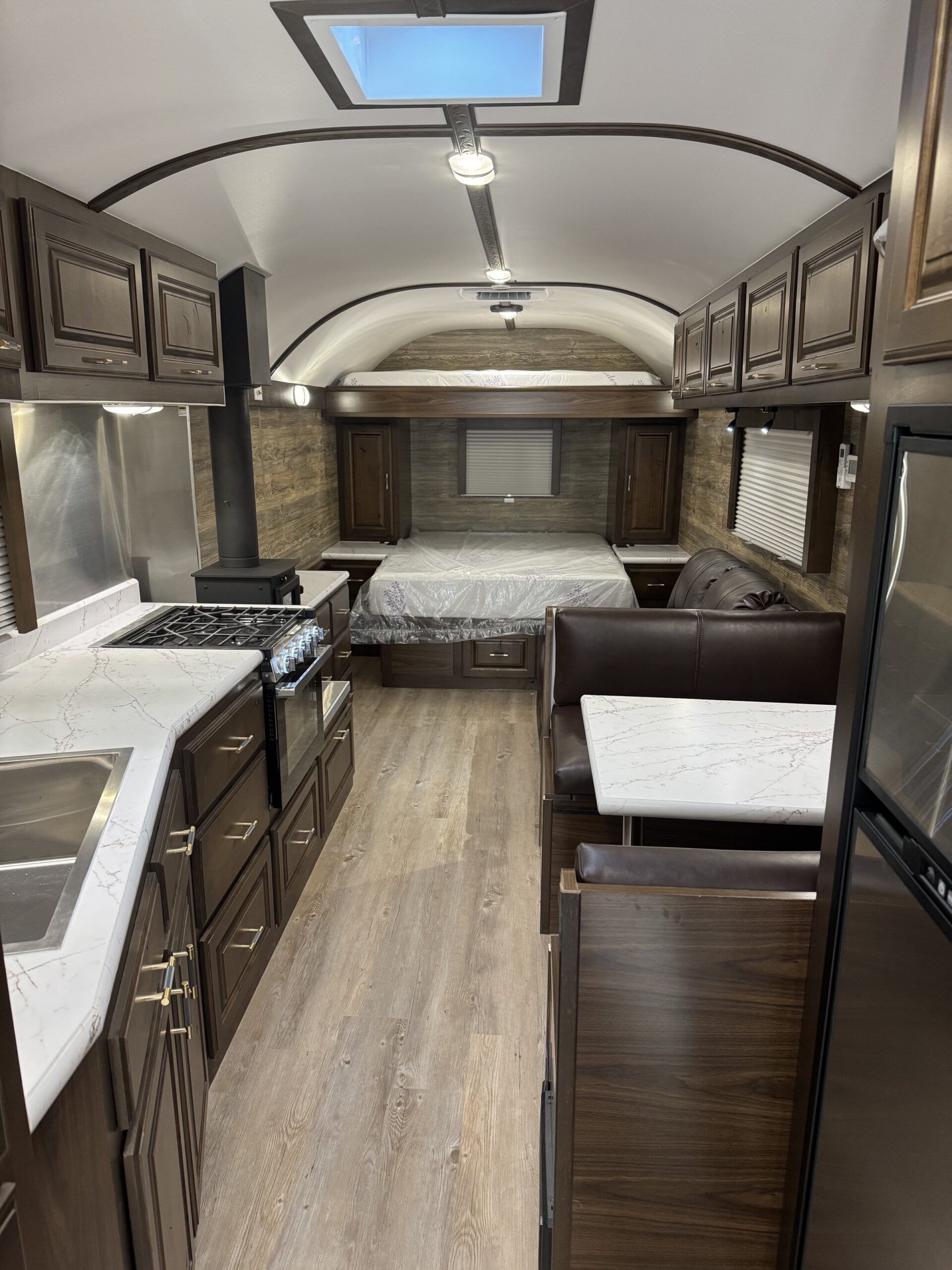

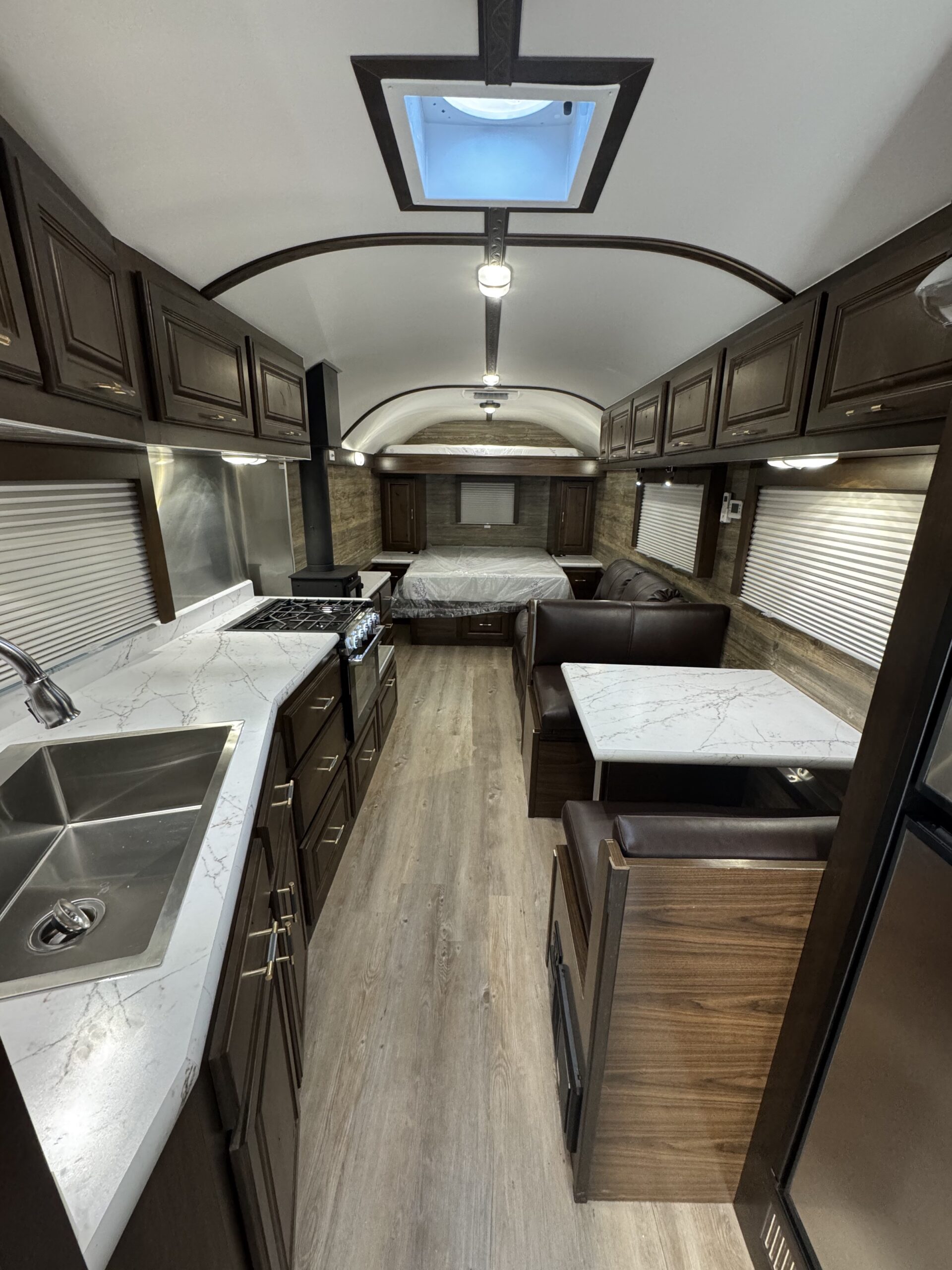

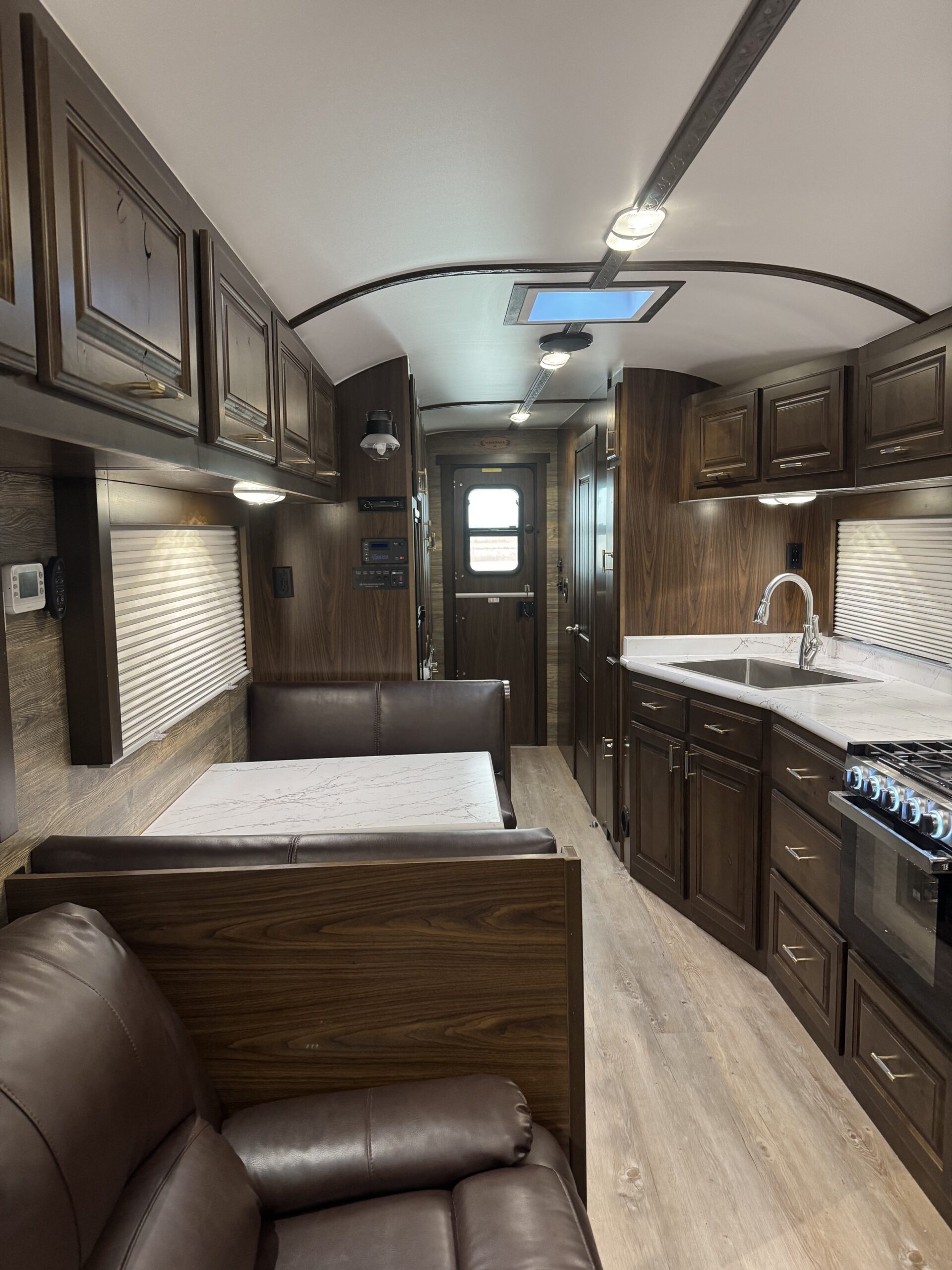

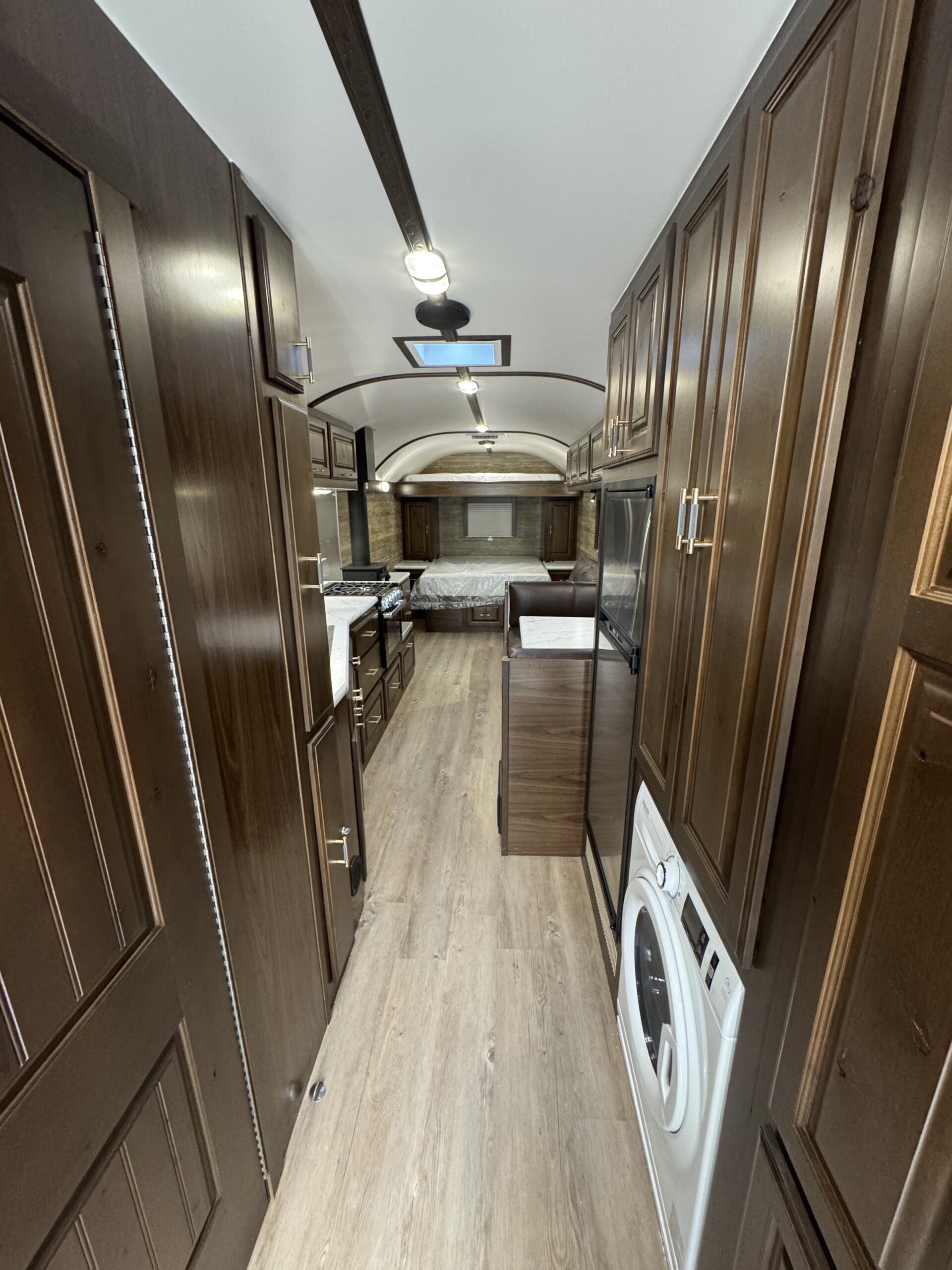

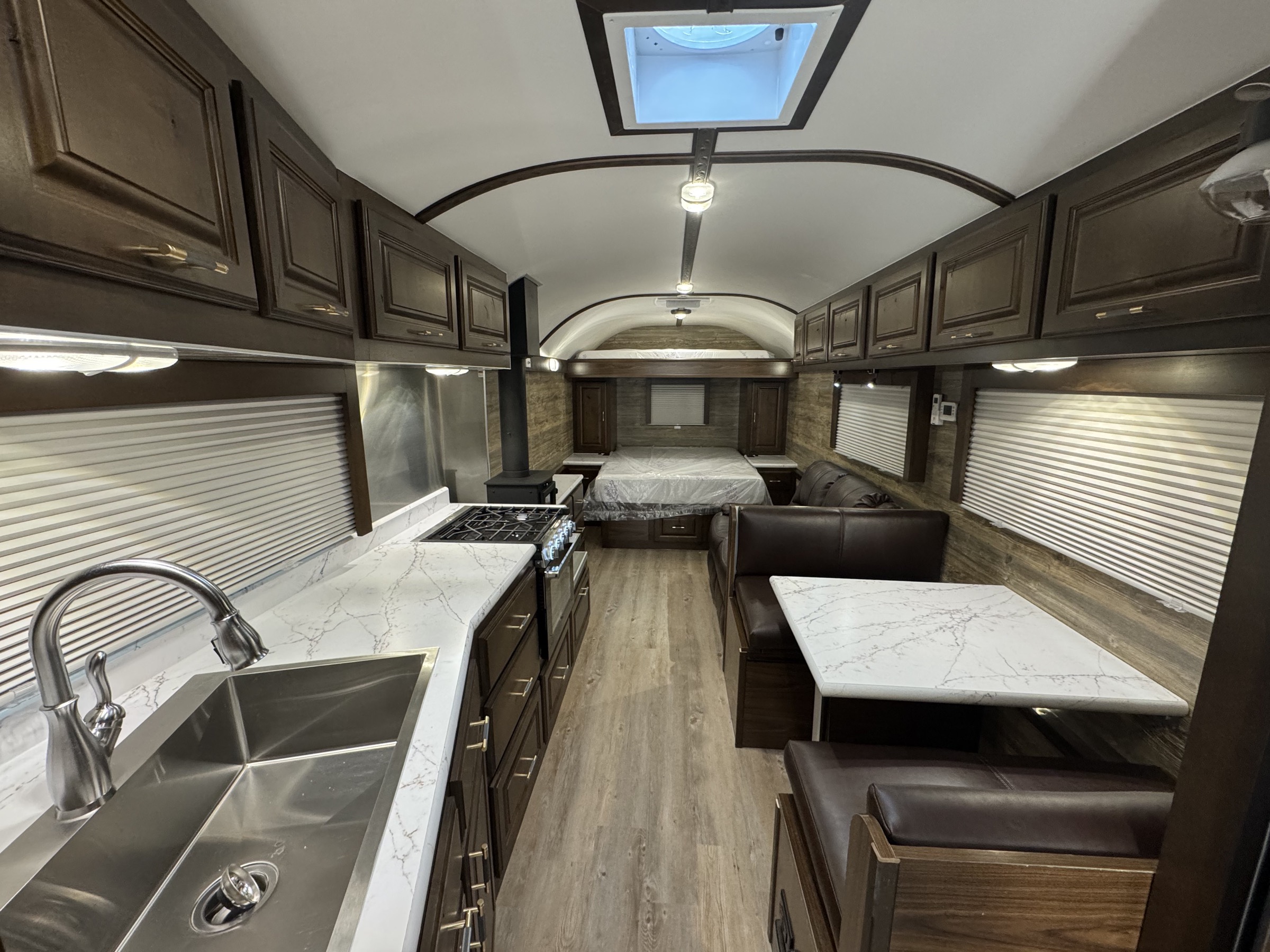

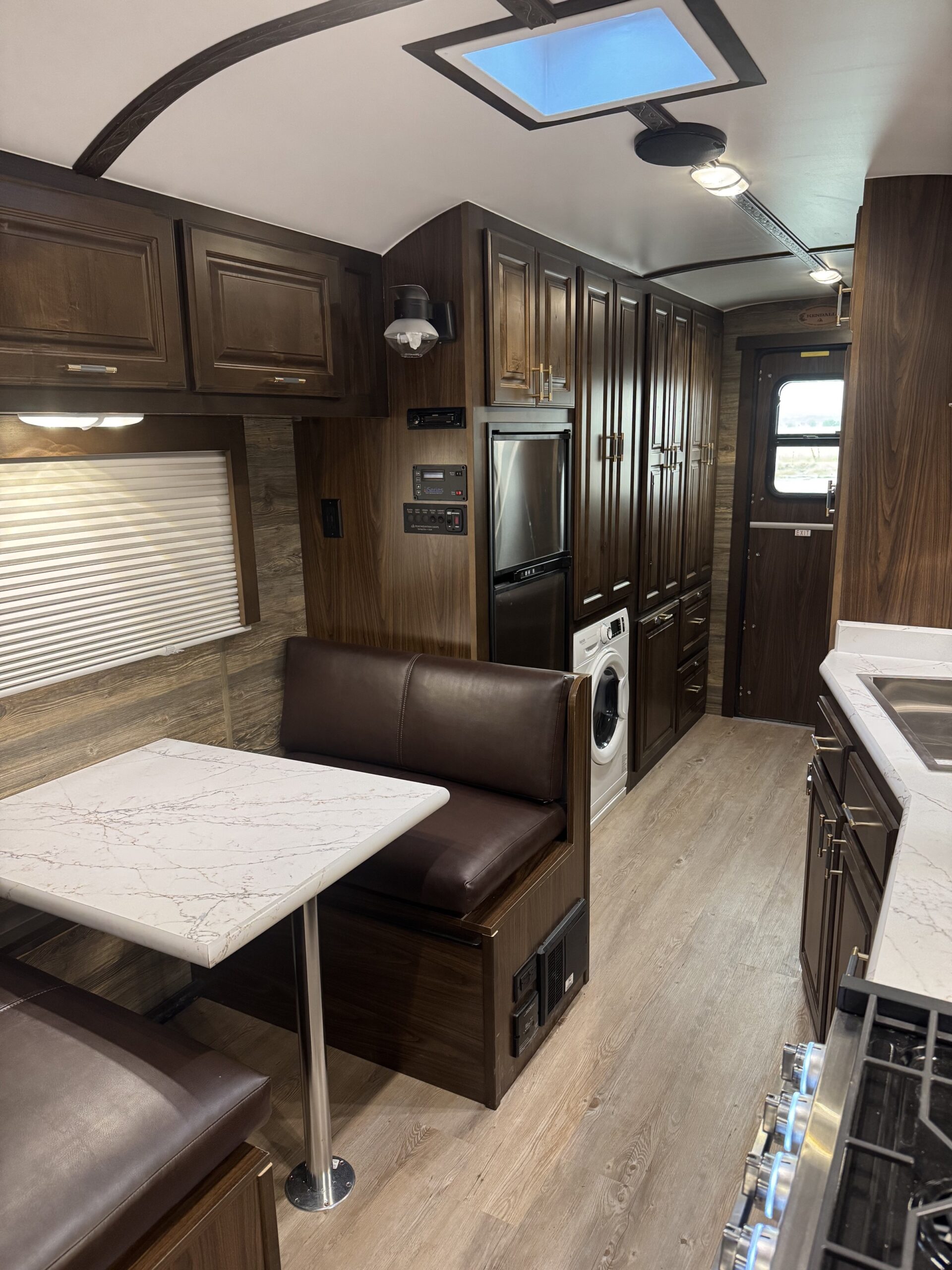

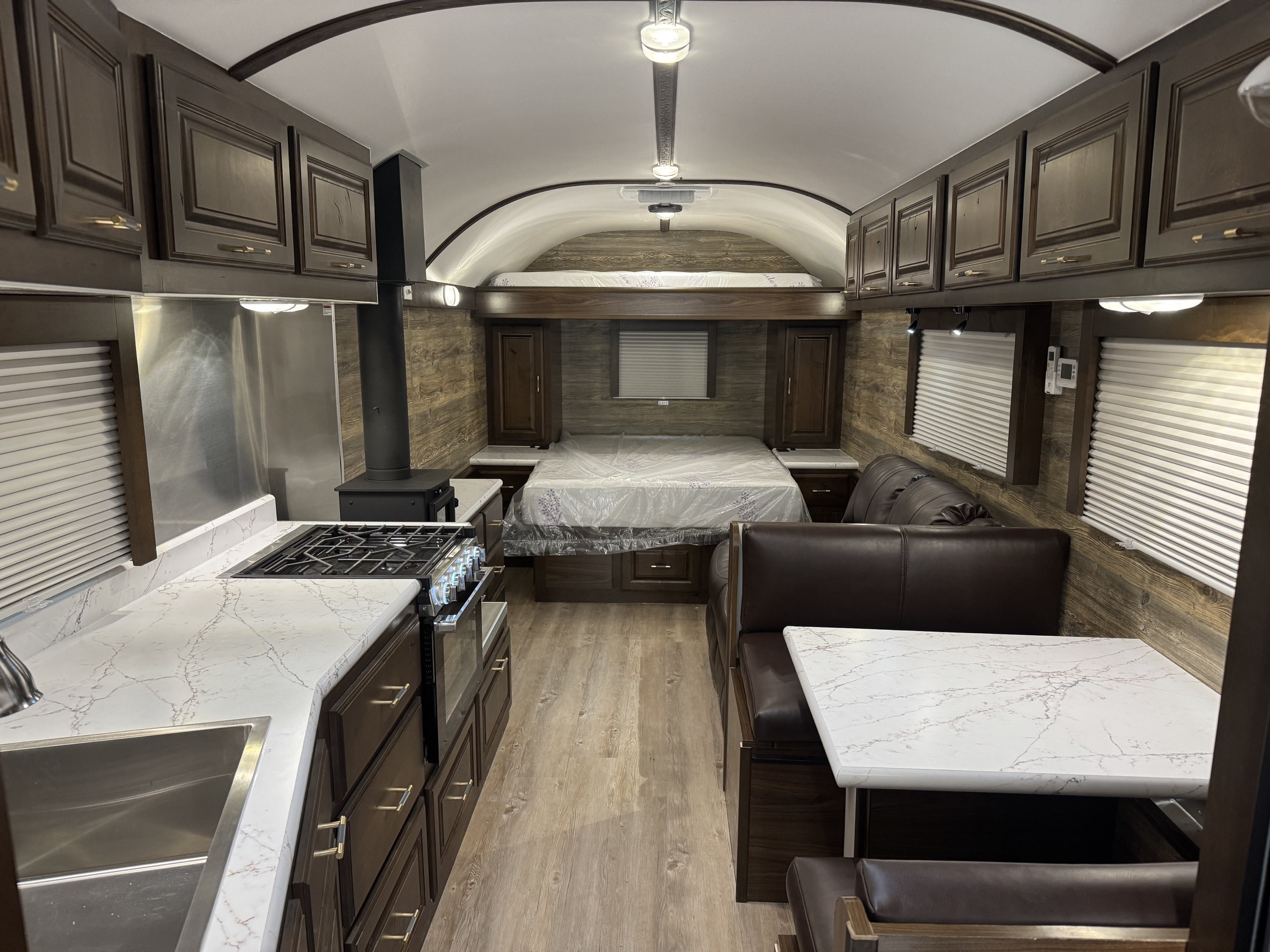

Camp Photos
Take a closer look at Kendall Camp, from its exterior construction to the spaces and details inside. Browse the layout, storage, finishes, and everyday features that make this build its own, and open any photo for a closer view.
Layouts & Drawings

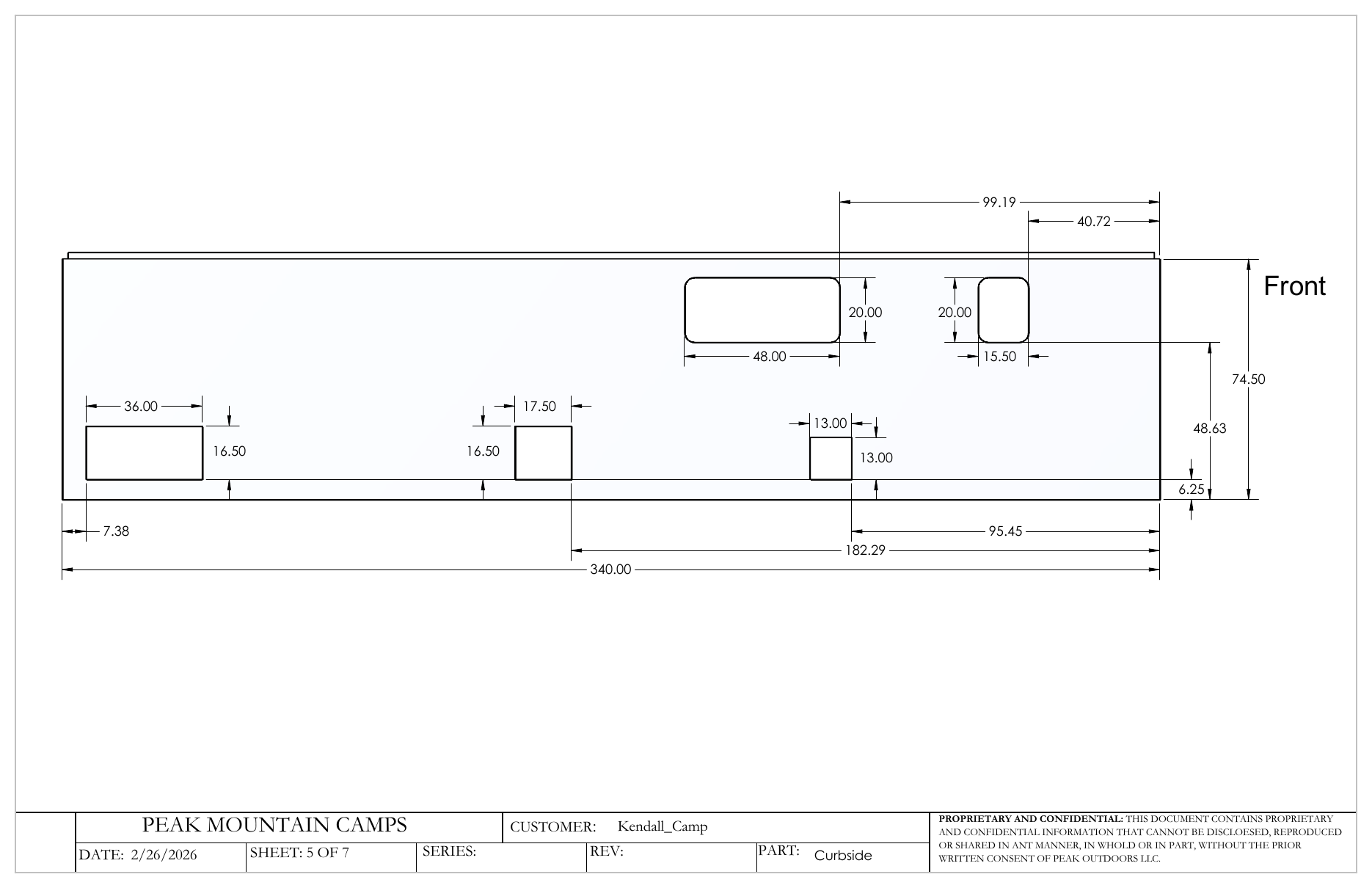

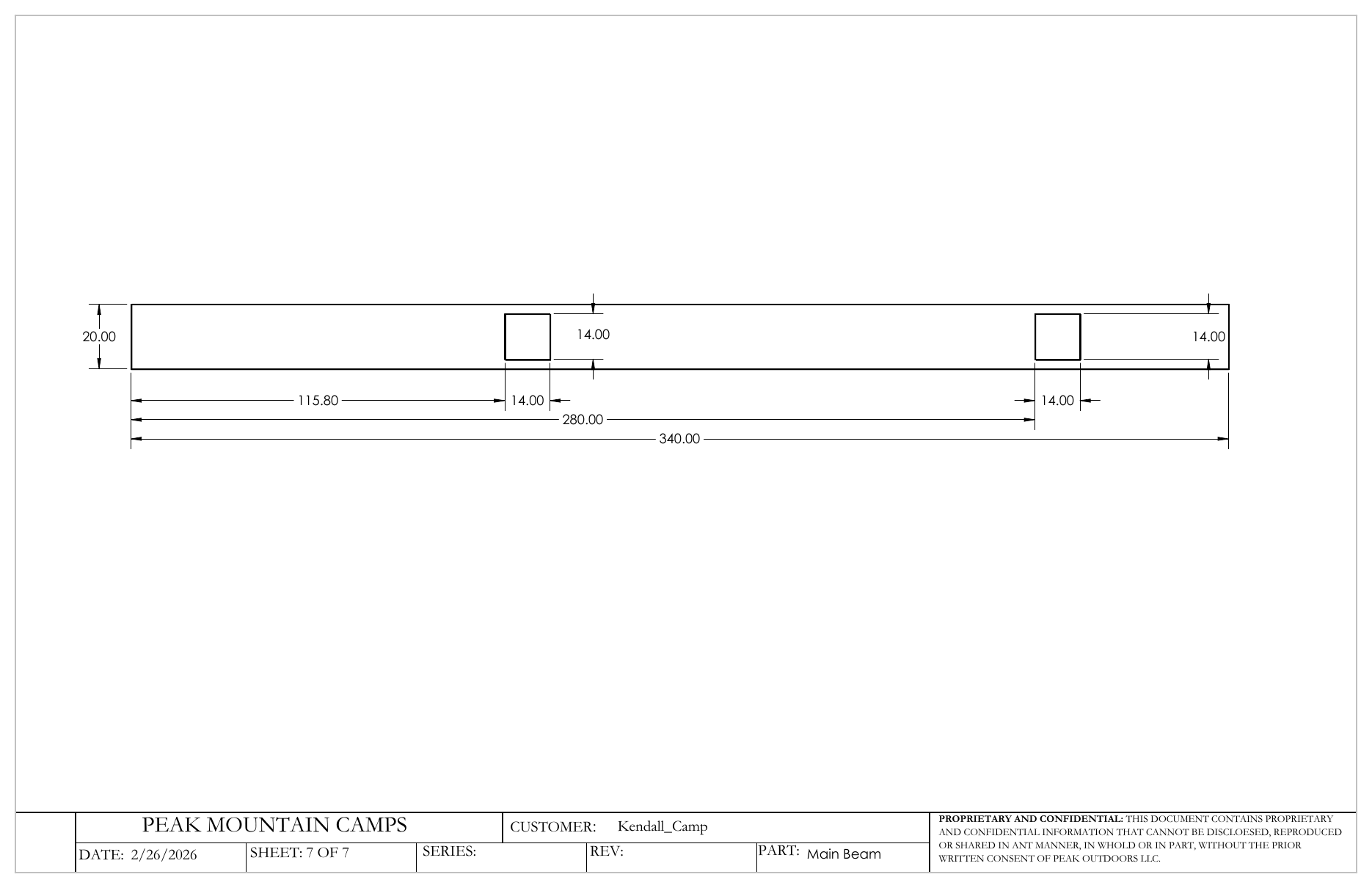

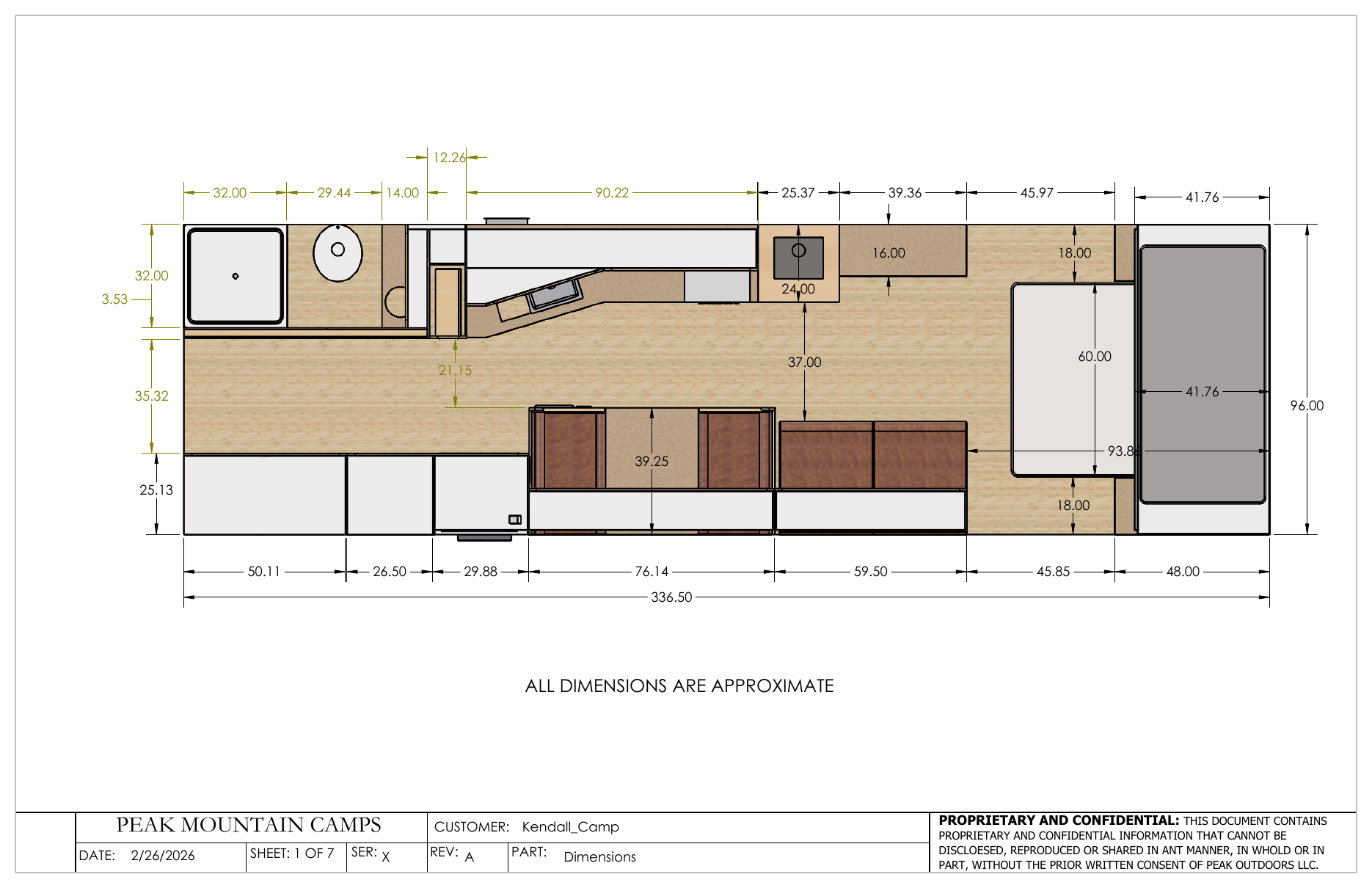

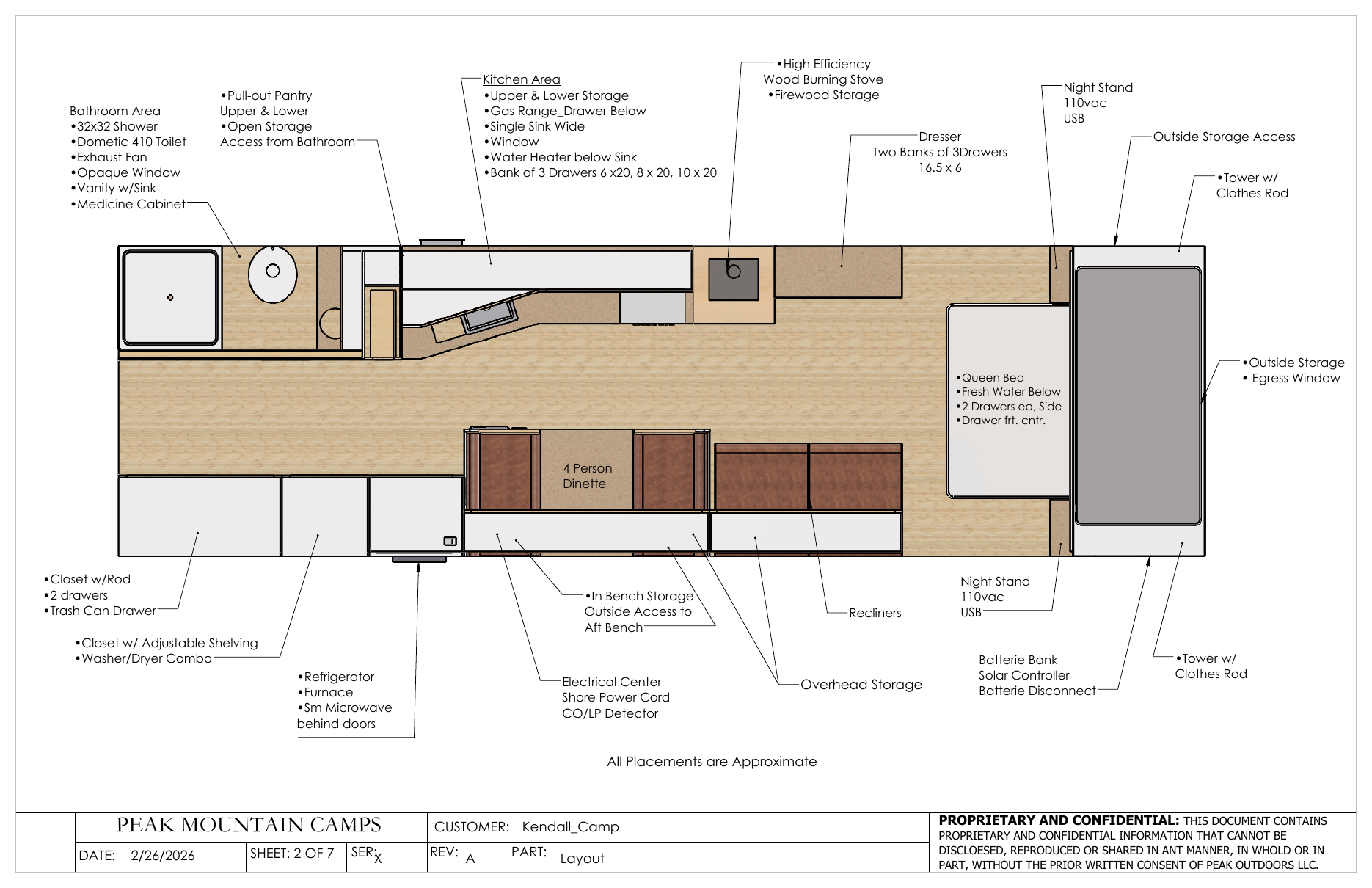

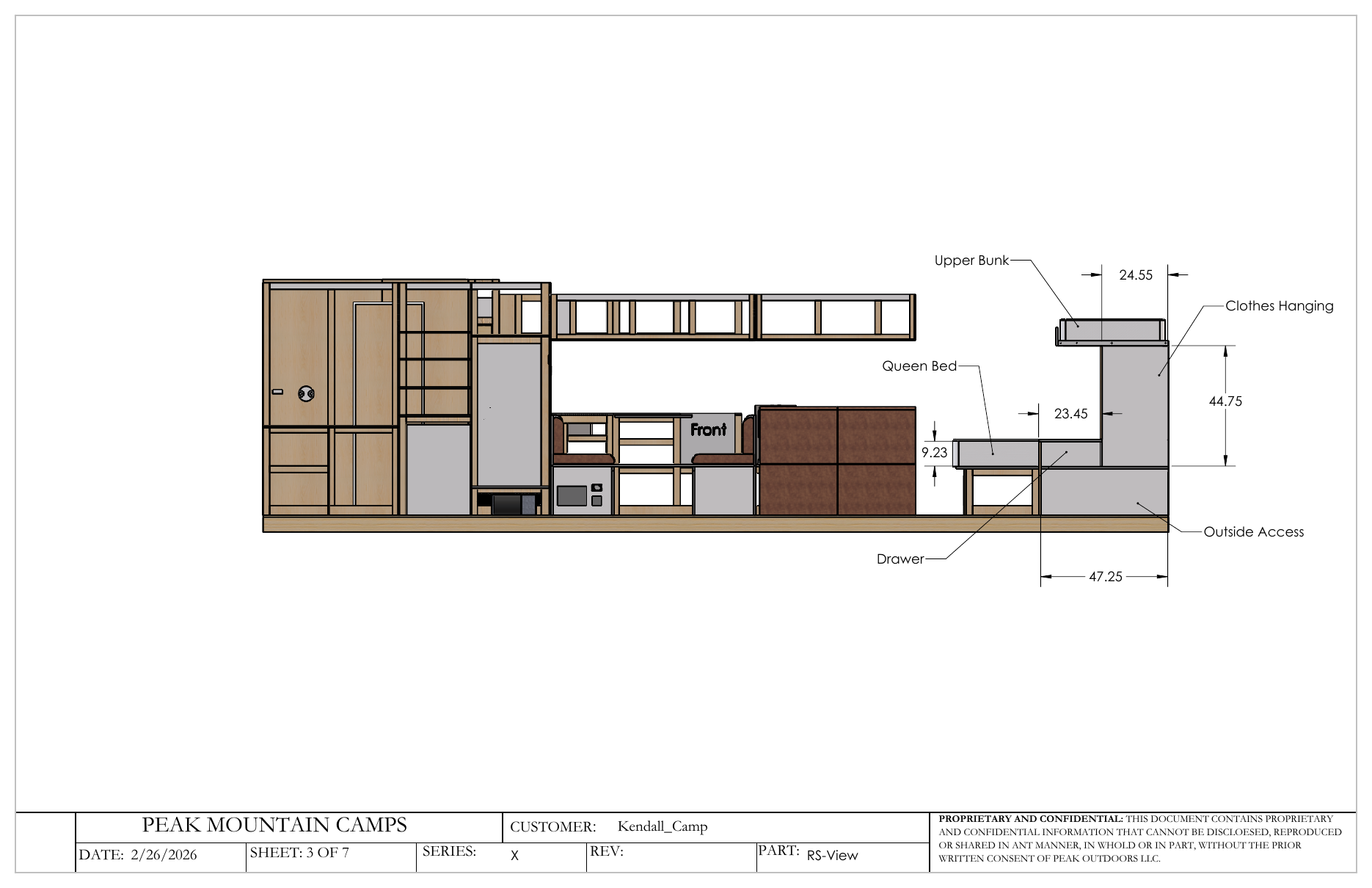

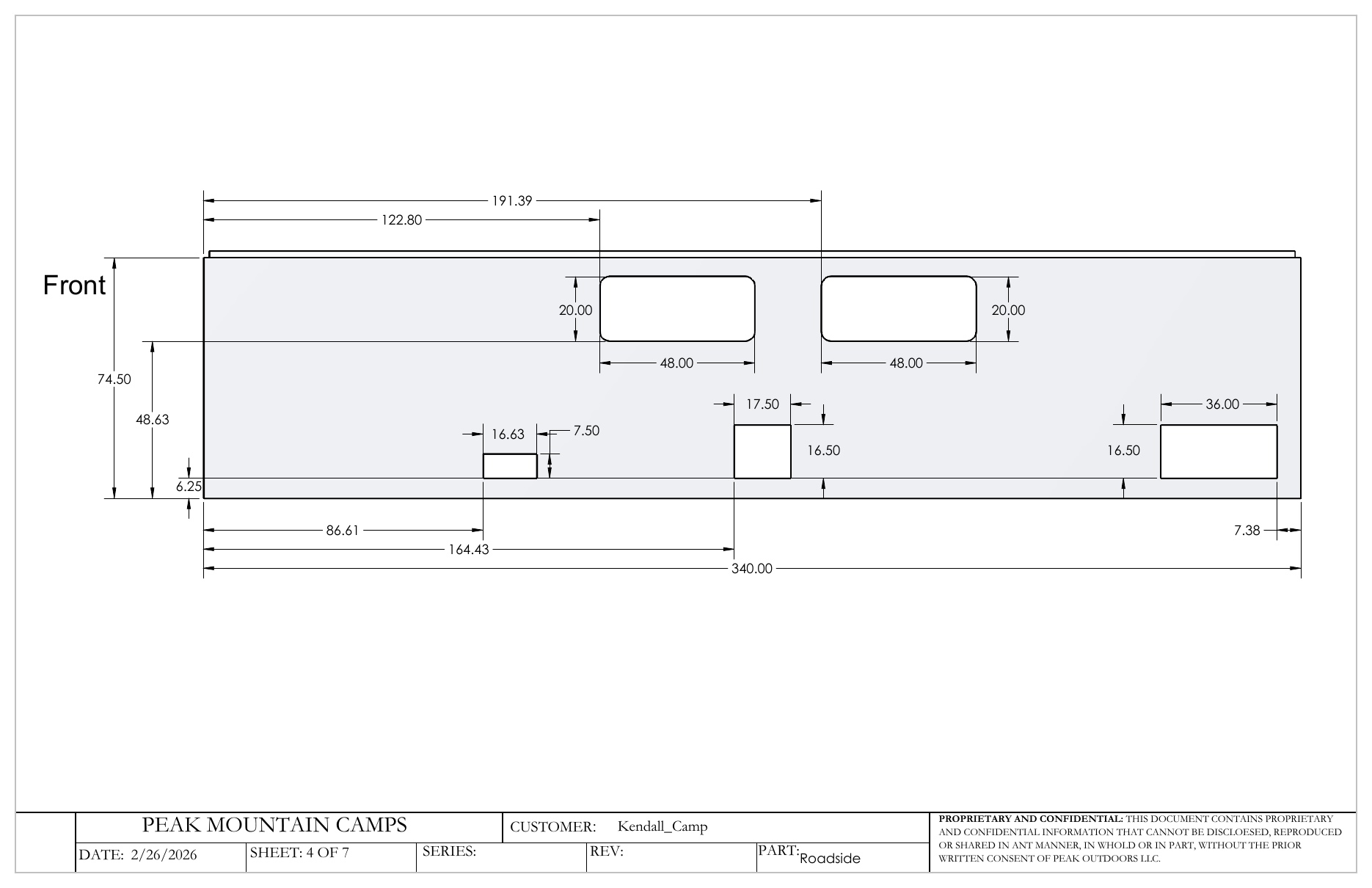

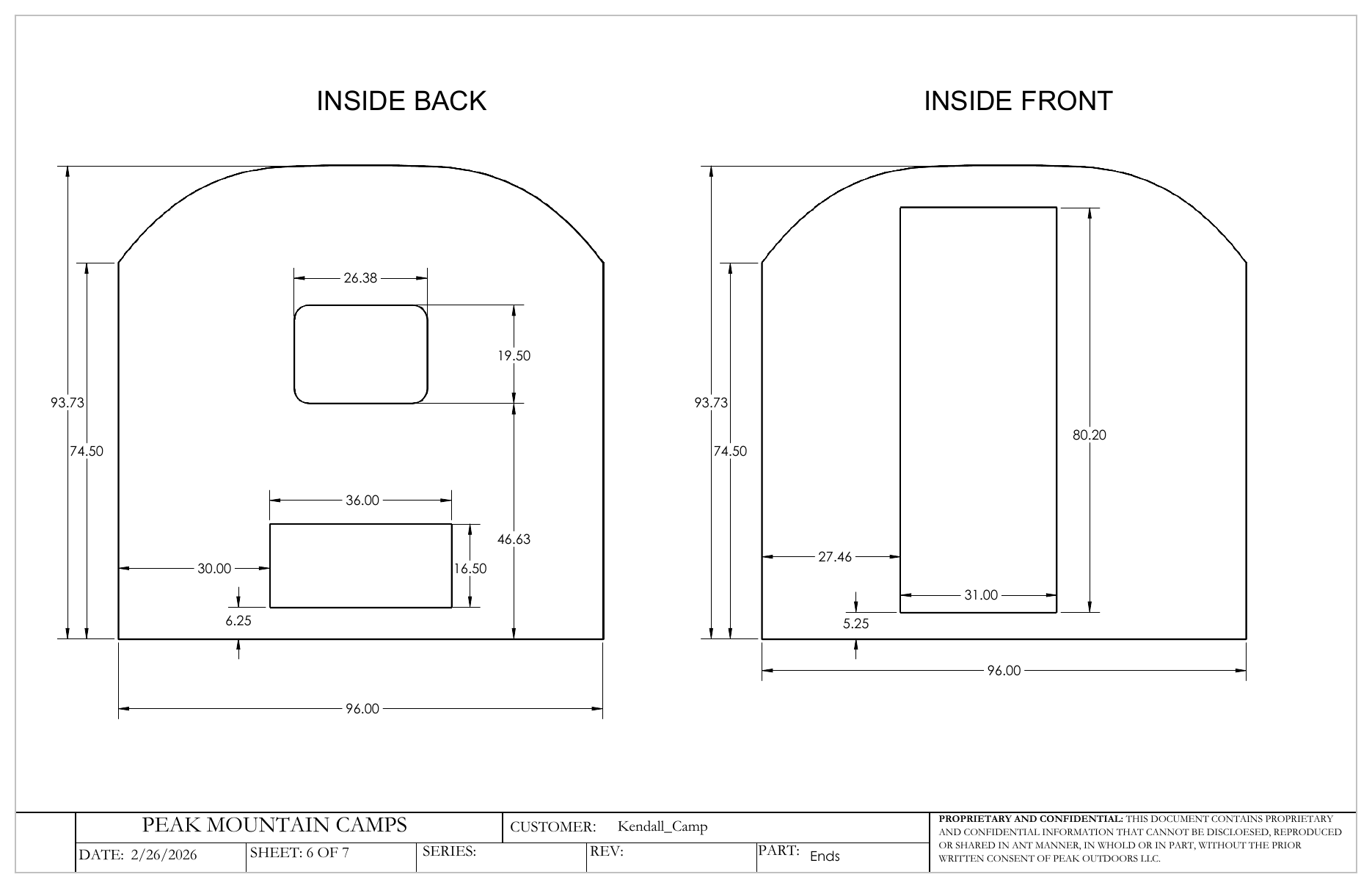

Floor Plans
Build Details
Specifications
Exterior
General
- Entry Layout
-
Traditional Front Entry
- Entry Door Style
-
Dutch Door
- Entry Railing
-
Fold-Away Hand Railing
- Patio / Tongue
-
Standard
- Windows
-
4x Dual-Pane Windows With Sliders & Screens / 1x Egress Window
- Exterior Lights
-
Highlighted feature:
6x Dimmable LED Lights (1x Front, 2x Each Side, 1x Rear)
- Backup Light
-
Highlighted feature:
Rear Light Wired to Illuminate While Backing
- Siding / Wrapping
-
Highlighted feature:
White Aluminum Siding w/ Diamond Plate Wrapping All Sides
- Structural Reinforcement
-
Angle Iron On Exterior Edges
Storage
- Tongue Storage Access
-
Removable Decking
- Exterior Compartments
-
4x Exterior Compartments (Including Wood Box)
- Compartment Doors & Latches
-
Keyed Doors With Adjustable Latches
- Compartment Sealing
-
Dual-Sealed
- Compartment Lighting
-
LED Lights in. Exterior Compartments
- Wood Box
-
Standard Pass-Through Wood Box
- Broom Holder
-
Traditional Horseshoe Broom Holder w/ Corn Broom
- Under-Frame Storage
-
Highlighted feature:
2x Underbelly Storage Boxes
Interior
General
- Layout
-
Fully Custom (Designed with Customer)
- Sleep Capacity
-
3 Adults
Entry / Hallway
- Closet Storage
-
Highlighted feature:
Large Double Closets with Hanging Rod
- Drawers
-
2x Large Drawers Below Forward Closet
- Washer / Dryer
-
Highlighted feature:
High-Efficiency Washer/Dryer w/ Closet & Shelving Above
- Waste Bin Storage
-
Highlighted feature:
Trash Can Drawer
Kitchen
- Refrigerator
-
Raised 7 cu ft Propane/Electric Fridge-Freezer
- Microwave
-
Small Counter-Top Microwave in. Cabinet
- Microwave Cabinet
-
Yes (Above Fridge)
- Stovetop / Oven
-
Highlighted feature:
GE 3-Burner Cooktop and Oven with Direct Spark
- Sink
-
Large Single Stainless Steel Sink w/ Residential-Grade Faucet
- Pantry
-
2x Pull-Out Pantries
- Prep Surface
-
Large Counter Space
- Overhead Cabinet Storage
-
Upper Cabinet Storage
- Drawer Storage
-
3x Large Drawers in. Cabinet, 1x Drawer Under Range
- Open Storage
-
Large Open Storage Below Sink
- Power
-
Single AC Outlet on Wall
- Window
-
48 in. Large Kitchen Window Above Sink
Dining
- Dinette
-
4-Person Dinette (Can Fold Into Bed)
- Bench Storage
-
Open Storage Under Forward Bench
- Overhead Storage
-
Large Overhead Cabinet
- Power
-
1x AC Outlet On Wall, 1x On Forward Bench
- Window
-
48 in. Large Window Over Dinette
Living & Entertainment Space
- Primary Seating
-
2-Person Reclining Sofa (MOD-58CM)
- Entertainment / Media Storage
-
6x Drawer Dresser / Entertainment Center
- Overhead Storage
-
Large Overhead Cabinet
- Reading Lights
-
2x LED Reading Lights Above Recliner
- Power & Connections
-
AC & DC Outlets & USB Connections on Media Center
- Window
-
Large Window Above Recliners
Bedroom
- Bed Configuration
-
North/South Queen Bed with High Twin XL East/West Upper Bunk
- Mattresses
-
Added
- Nightstands
-
2x Nightstands
- Wardrobes
-
2x Wardrobes with Shelving (Above Nightstands)
- Under-Bed / Trundle Storage
-
3x Large Drawers (1x Foot, 2x Per Side)
- Power
-
2x AC Outlets & USB-A/C Ports On Nightstands
- Window
-
Single Rear Egress Window
Bathroom & Laundry
- Size / Configuration
-
Compact
- Door
-
Solid Hardwood Door
- Medicine Cabinet
-
Mirrored Medicine Cabinet
- Vanity
-
Single Drawer & Sink Tip-Out with Open Storage Beneath
- Sink
-
Small Stainless Steel Sink w/ Residential-Grade Faucet
- Shower
-
32x32 in. Shower w/ Glass Door
- Toilet
-
Dometic 410 Porcelain Toilet
- Window
-
Small Frosted Sliding Window
- Ventilation
-
12V Exhaust Fan
Lighting
- Interior Lights
-
Dimmable LED Lights With Master & Individual Switches
- Propane Gas Light
-
One Wall-Mounted Gas Light
- Compartment Lighting
-
12V LED Cabinet/Closet Lights
Fuel & Power
Power
- Solar Panels
-
Two 100 W Panels
- Solar Controller
-
Standard
- Battery Bank
-
4x 6V Deep Cycle Batteries
- Shore Power
-
30 A Service Hookup (25 ft. Cord Included)
- Accessible Electrical Systems & Wiring
-
Standard
Propane
- Tanks
-
Two 7 gal. 30 lb Tanks
- Tank Cover
-
Quick Access Propane Tank Cover
- Propane Connections
-
1x Quick-Connect
Plumbing
General
- Plumbing Protection
-
Fully Insulated & Heated Plumbing
- Fittings
-
Brass & Stainless Steel Water Fittings
- Monitoring Panel
-
Tank Monitors for Fresh, Gray, and Black Water Tanks
- Accessible Plumbing Systems
-
Standard
Fresh Water
- Fresh Water Tank(s)
-
42 gal. Fresh Water Tank
- Water Heater
-
6 gal. Water Heater (Below Kitchen Sink)
- Water Pump
-
Shurflo 12V Water Pump
- Exterior Shower
-
External Spray Port
- Fresh Water Connection
-
Standard
- City Water Connection
-
Standard
Waste Water
- Holding Tank Cover
-
Insulated Metal Tank Cover
- Sewer Hose Storage
-
Standard
- Black Water Tank
-
35 gal. Black Water Tank
- Gray Water Tank
-
35 gal. Gray Water Tank
- Electric Waste Gates
-
Highlighted feature:
Added
- Sewage Hook-Up
-
Standard
Climate Control
Heating & Cooling
- Wood Burning Stove
-
High-Efficiency Wood-Burning Stove
- Furnace
-
30,000 BTU Forced-Air Furnace w/ Thermostat (Below Fridge)
- Air Conditioning
-
Highlighted feature:
Furrion Ultrasonic Variable-Speed Temperature-Controlled A/C with Remote
- Ventilation
-
Dometic Fantastic Fan w/ Remote
- Recirculation Fan
-
12V Circulating Fan
Internet & Entertainment
Connectivity
- Exterior Ethernet Port (RJ45)
-
Standard (Ready For Starlink)
- Exterior Coax Port
-
Standard
Entertainment
- TV
-
Prepped for TV
- Stereo
-
Kenwood Bluetooth/Satellite Stereo with CD Player
- Surround Sound
-
Premium Built-In Speakers in. Ceiling
Construction & Finishes
Construction
- Ceiling Insulation
-
6 in., R-19
- Floor Insulation
-
6 in., R-19
- Walls
-
2 in. Thick
- Serviceability
-
Utilities Remain Accessible For Repairs
Cabinetry
- Cabinets
-
All-Hardwood Cabinets
- Hinges
-
Soft-Close Hinges
- Drawer Construction
-
Dovetail Construction
- Drawer Slides
-
Self-Latching, Travel-Secure Slides
- Thumb Latches
-
Included On Large Drawers
- Overhead Cabinet Doors
-
Gas-Strut-Supported Cabinet Doors
Finishes & Colors
- Wall Color
-
Wilsonart Amaretto Pine (8224-16)
- Cabinet Color
-
Wilson Montana Walnut (7110-78)
- Countertop
-
Wilsonart North Bridge (5073-07)
- Cabinet Hardware
-
Gold/Gray Aluminum Barrel Pulls
- Recliners & Cushions
-
Mahogany
- Flooring
-
Luxury Vinyl Plank Flooring
- Floor Color
-
Karndean Country Oak (VGW81T)
- Ceiling Trim
-
Rosewood Carved Ceiling Trim
- Window Shades
-
Window Shades with Blind Boxes
- Wood Accents & Engravings
-
Plain
Frame, Chassis, & Towing
Frame
- Frame Construction
-
Custom-Engineered For Best Towing Characteristics
- Platform
-
X35
- Clearance
-
29 in. to Bottom Angle Iron
- Stabilizer Jacks
-
All Four Corners
- Entry Steps
-
Heavy-Duty Fold-Up Tongue Steps
Chassis
- Axles
-
Tandem 7,200 lb Axles w/ Easy Lube Hubs
- Wheels
-
8-Lug Wheels with 16 in. Rims
- Tires
-
16 in. E-Load ST235/80R16 10-Ply Tires
- Brakes
-
Standard Trailer Brakes
- Suspension
-
Over-The-Axle Leaf-Sprung Suspension
Towing
- Hitch Type
-
Bumper Pull
- Coupler
-
Adjustable 2 5/16 in. 15,000 lb Coupler
- Tongue Jack
-
Drop Leg Side-Wind Jack
- Spare Tire
-
Standard Drop-Down Spare Tire
- Rear Receiver
-
2 in. Receiver Rated For Pulling Doubles - Check Local Regulations
- 7-Way Plug
-
Standard
- Towing Chains
-
Included
Safety
General
- CO/LP Detector
-
Standard
- Egress Window
-
Rear Egress Window
- Road Markers
-
DOT-Compliant Markers
- Reflective Tape
-
Canadian-Compliant Reflective Striping
- Taillights
-
Standard
- Trailer Lights
-
DOT-Compliant LED Lights
- Smoke Detector
-
Standard
- Fire Extinguisher
-
Standard
- Fire Backer
-
Fire Backer Behind Wood Stove & Fire-Lined Cabinetry
- Chimney
-
Triple-Wall Flue & Chimney
- Battery Disconnect
-
Standard
- NFPA 1192 Compliant NFPA 1192 is the National Fire Protection Association standard for recreational vehicles. It establishes minimum fire and life-safety criteria. Learn more about NFPA 1192
-
Yes
Dimensions
Exterior Measurements
- Length
-
35 ft.
- Height
-
11 1/2 ft.
Interior Measurements
- Length
-
29 ft.
- Width
-
96 in.
- Height
-
7 1/2 ft.
Weight
- GVWR Gross Vehicle Weight Rating
-
14,400 lb
More Details
Build
- Camp Name & Number
-
Kendall Camp (#125)
- Completion
-
June 2026
Take A Tour
Camp Video
Your Camp, Your Way
Ready To Build Your Own?
Tell us how you camp, and we will help shape a trailer around the way you use it.
2 Comments
Have a question or something useful to add? Share it with other Peak Outdoors readers.
Just curious about the average price. I don’t need an exact, but ballpark. Looks incredible, but I would need to buy a bigger truck to haul it. The builds look awesome, and it would be for full time travel.
Thank you! For a custom camp similar to Kendall, I’d use roughly $90-$100K as a planning ballpark. The price of a new build depends on the layout, features, and current costs. As far as a truck goes, we generally recommend a properly equipped 3/4-ton to 1-ton diesel pickup. We’d check its towing and payload ratings against the finished camp.
