Hanson Camp

This custom X33 build is designed for two, with a split bedroom featuring two Twin XL beds and a living area with a two-person reclining sofa. It also has a full kitchen, a three-quarter bathroom, generous wardrobe storage, and a washer/dryer combo. Insulated, heated plumbing, a wood stove, furnace, air conditioning, solar panels, a six-battery bank, and a 3,000-watt inverter support travel in changing conditions.

Platform: X33 Camp
Location: Rockford, IL
Pricing: Contact Us

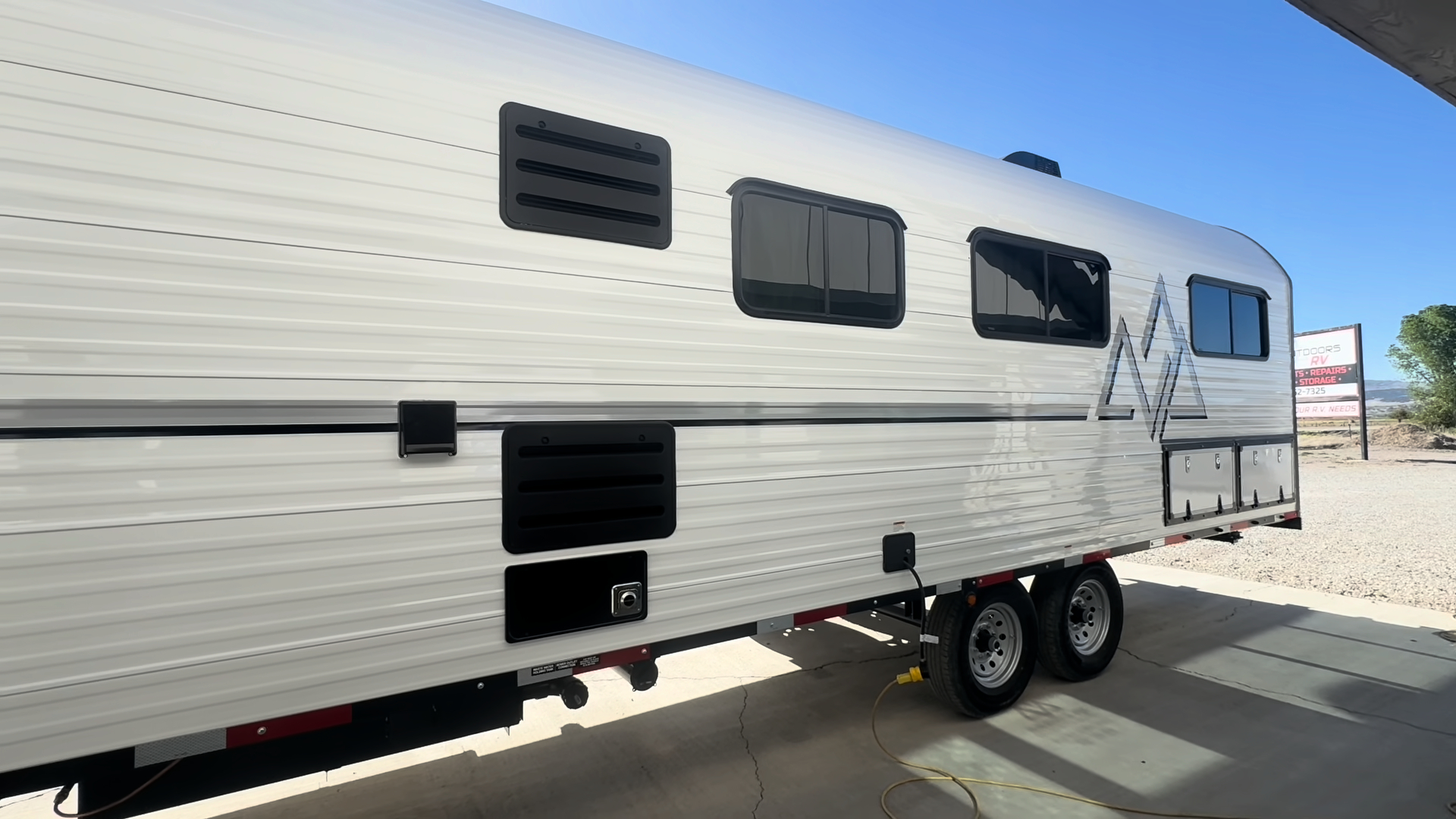

Exterior Hanson Camp Roadside Exterior

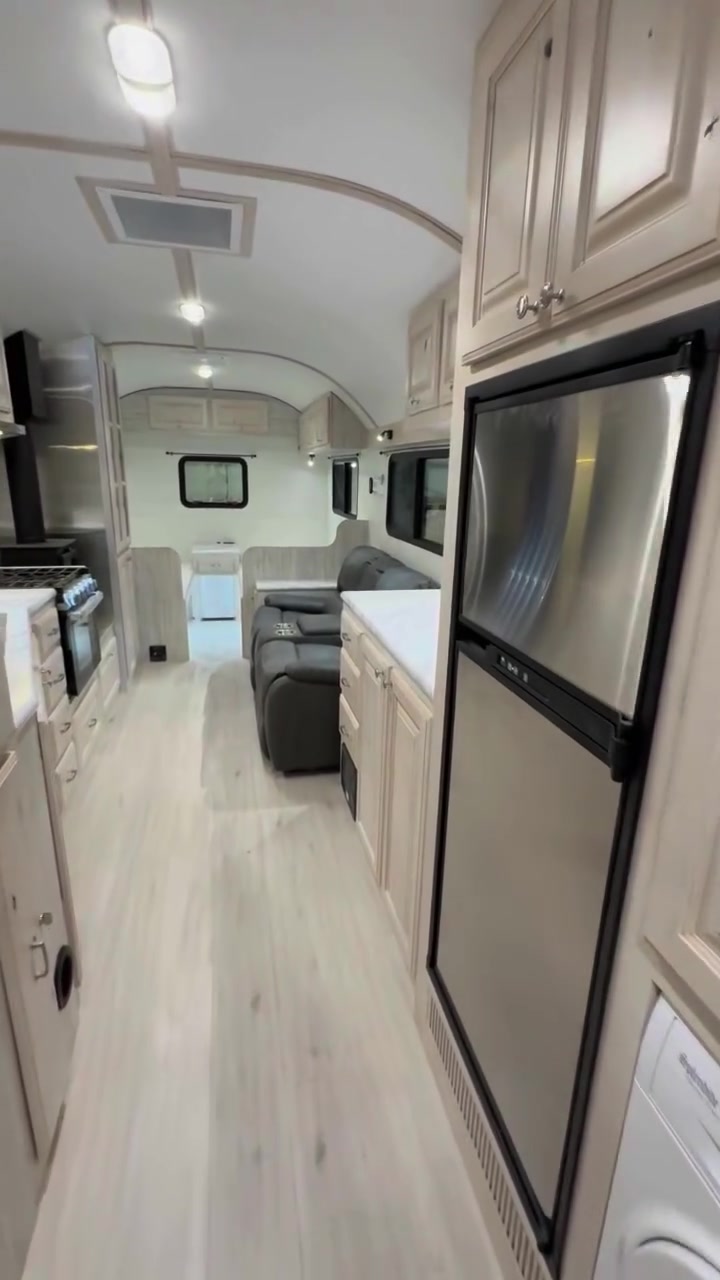

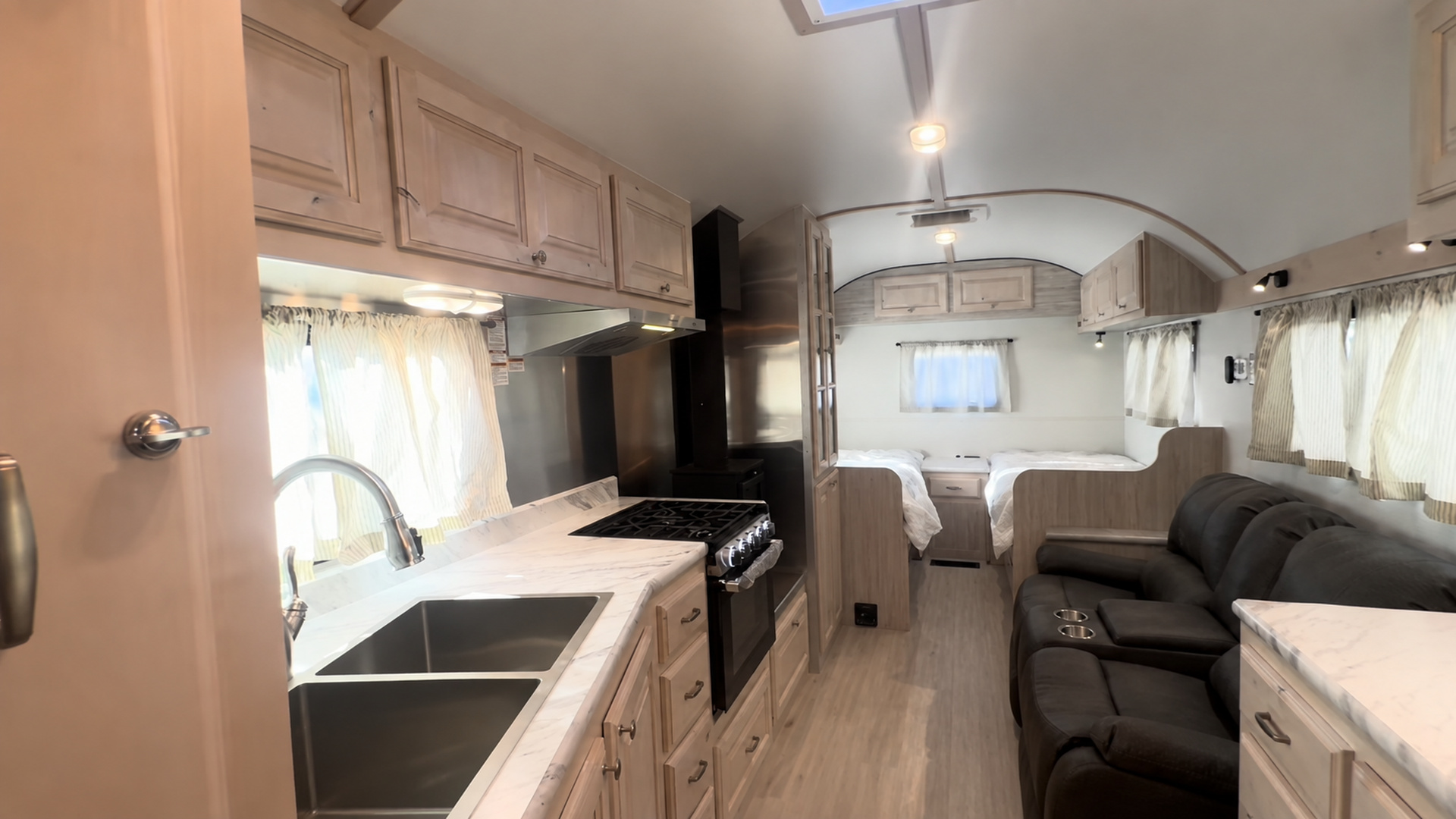

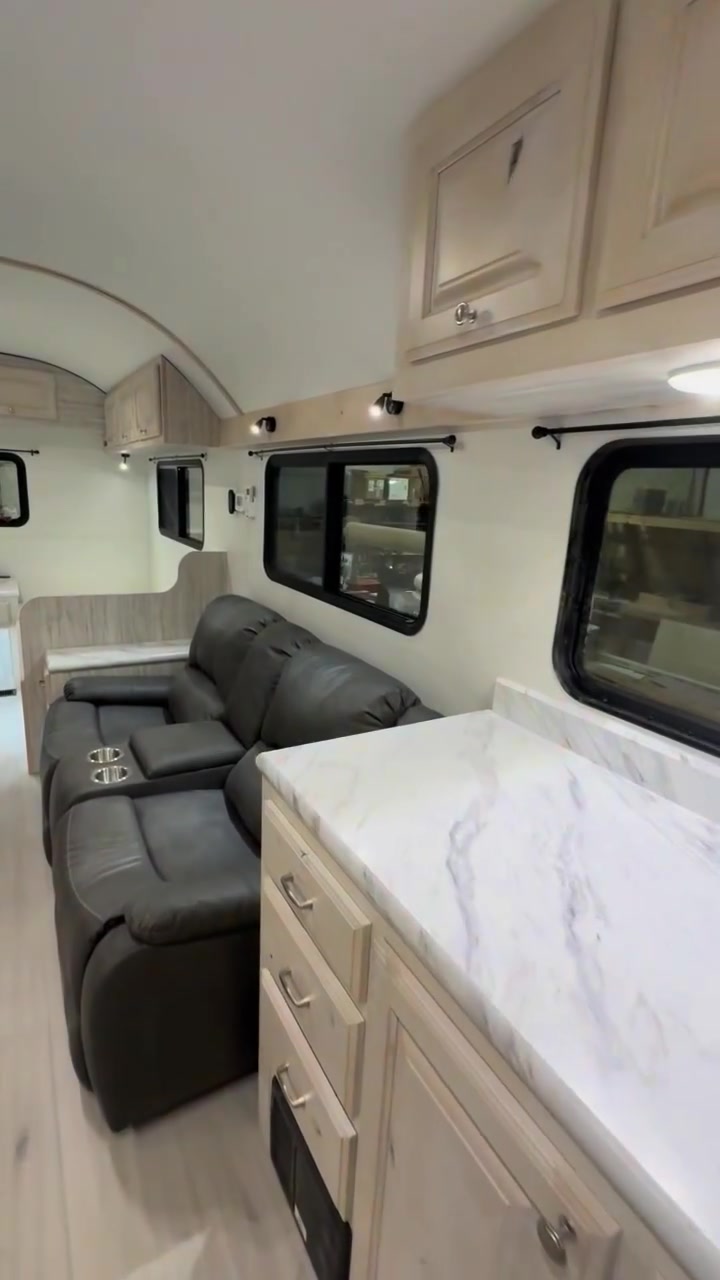

Wide view from the kitchen toward the reclining sofa and split twin-bed sleeping area. — Interior Hanson Camp Interior Overview

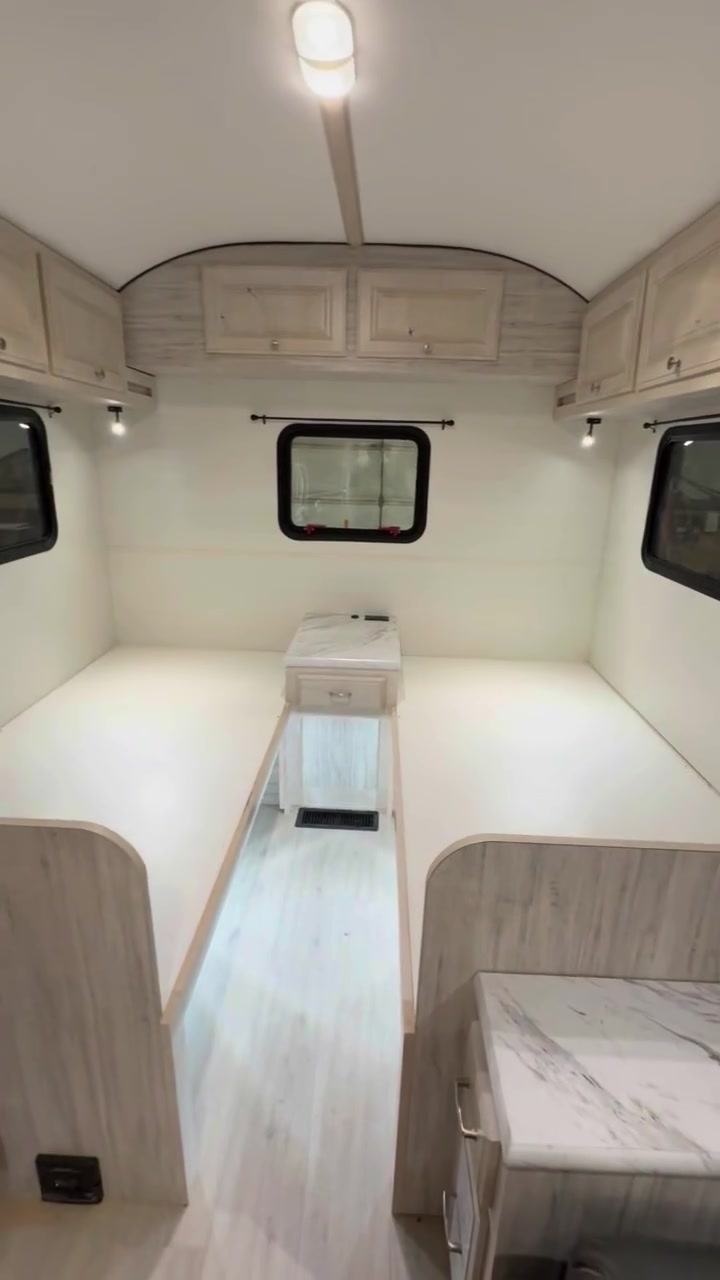

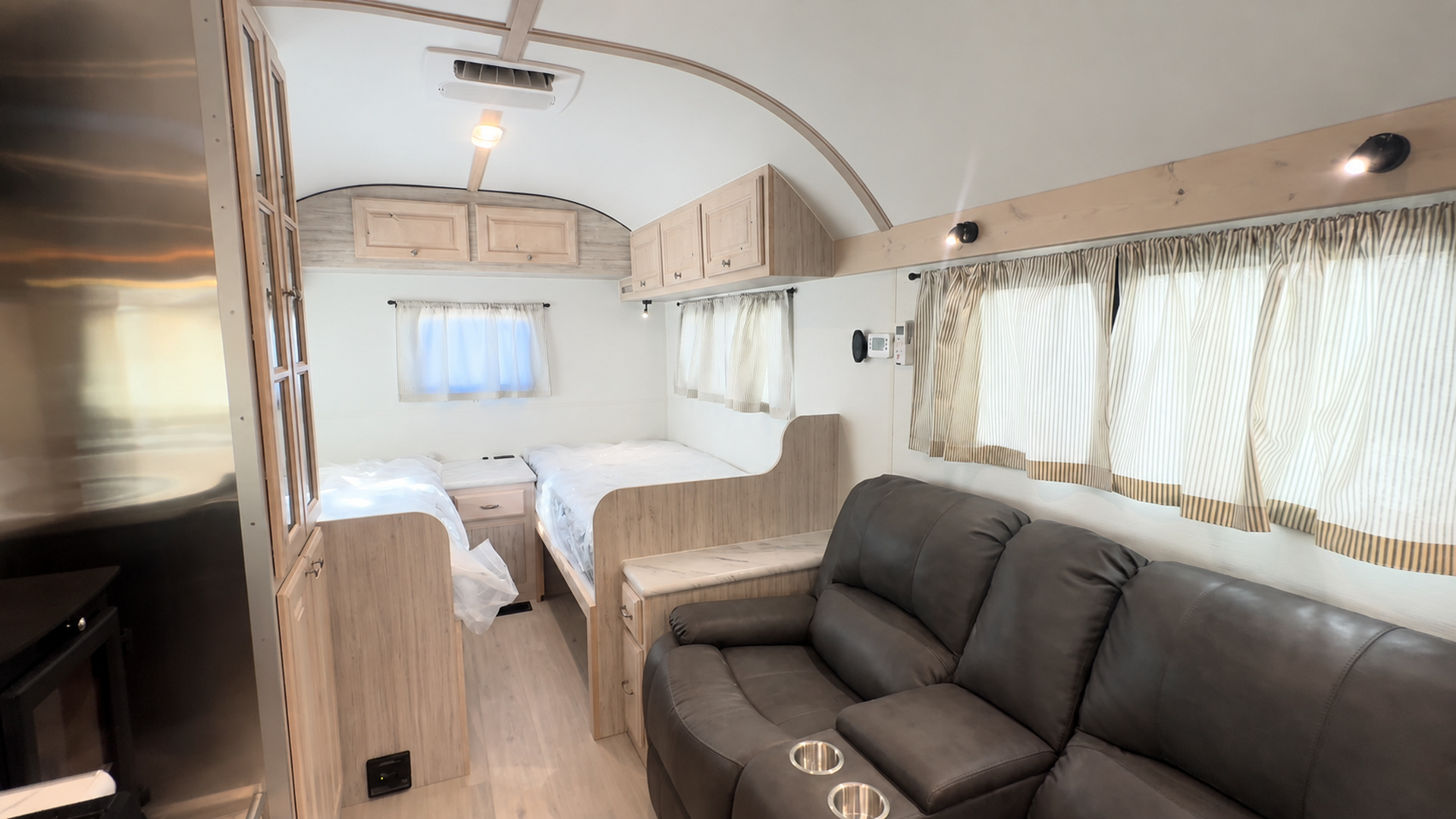

Two Twin XL beds at the back of the camp, with a reclining sofa in the foreground. — Interior Hanson Camp Twin Beds and Recliner

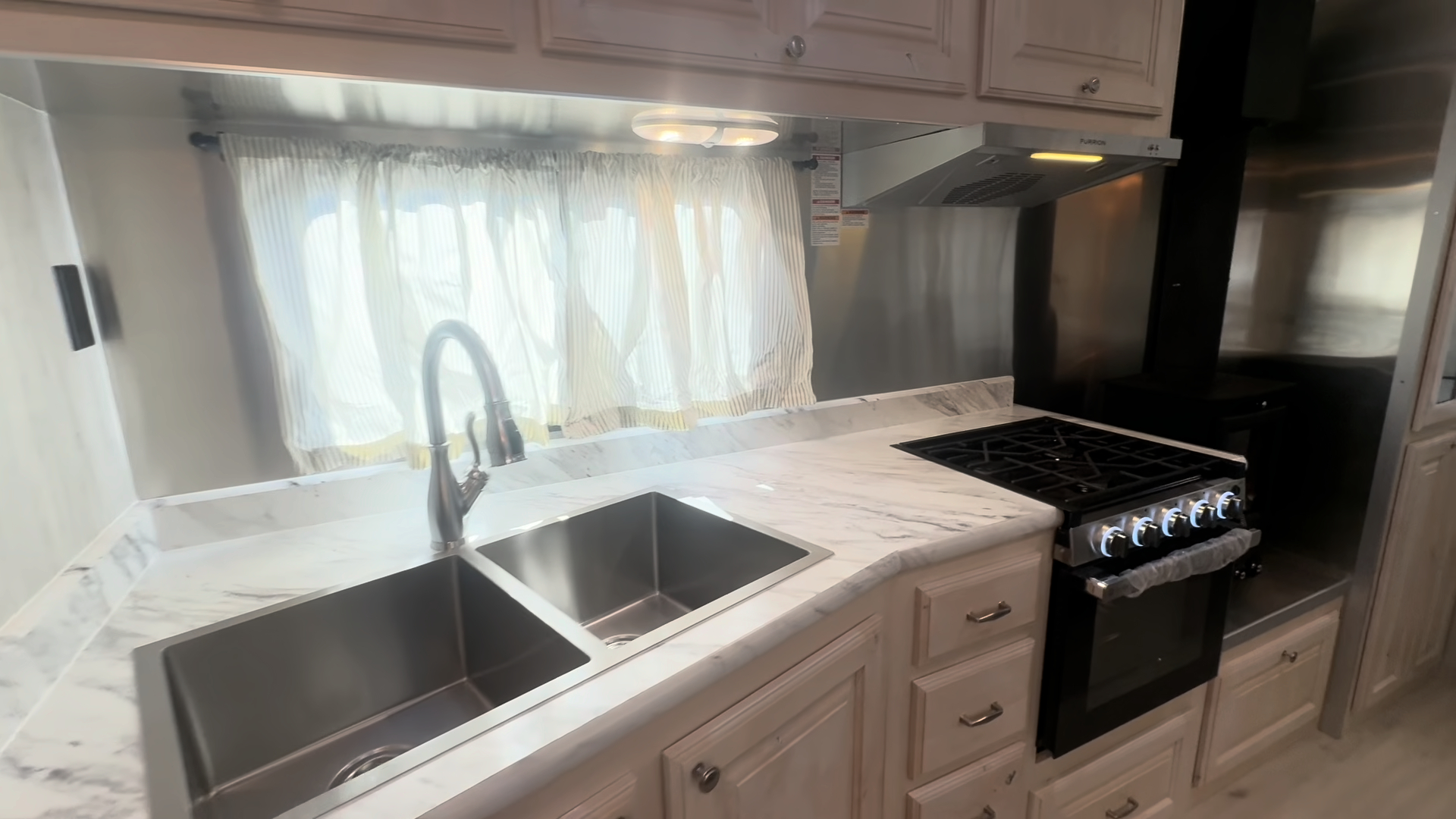

Kitchen counter with stainless steel double sink, window, range, and cabinets. — Interior Hanson Camp Kitchen Overview

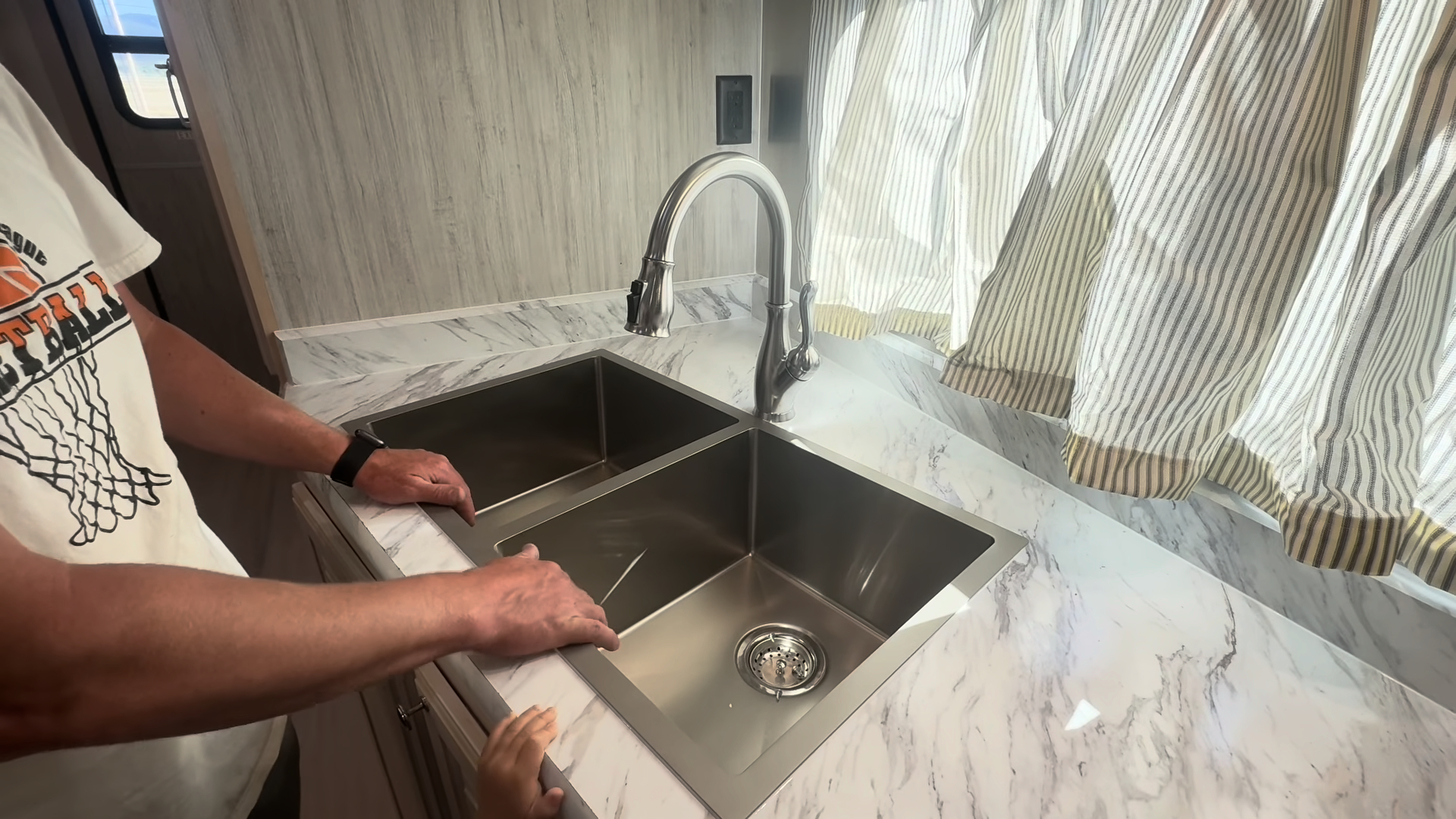

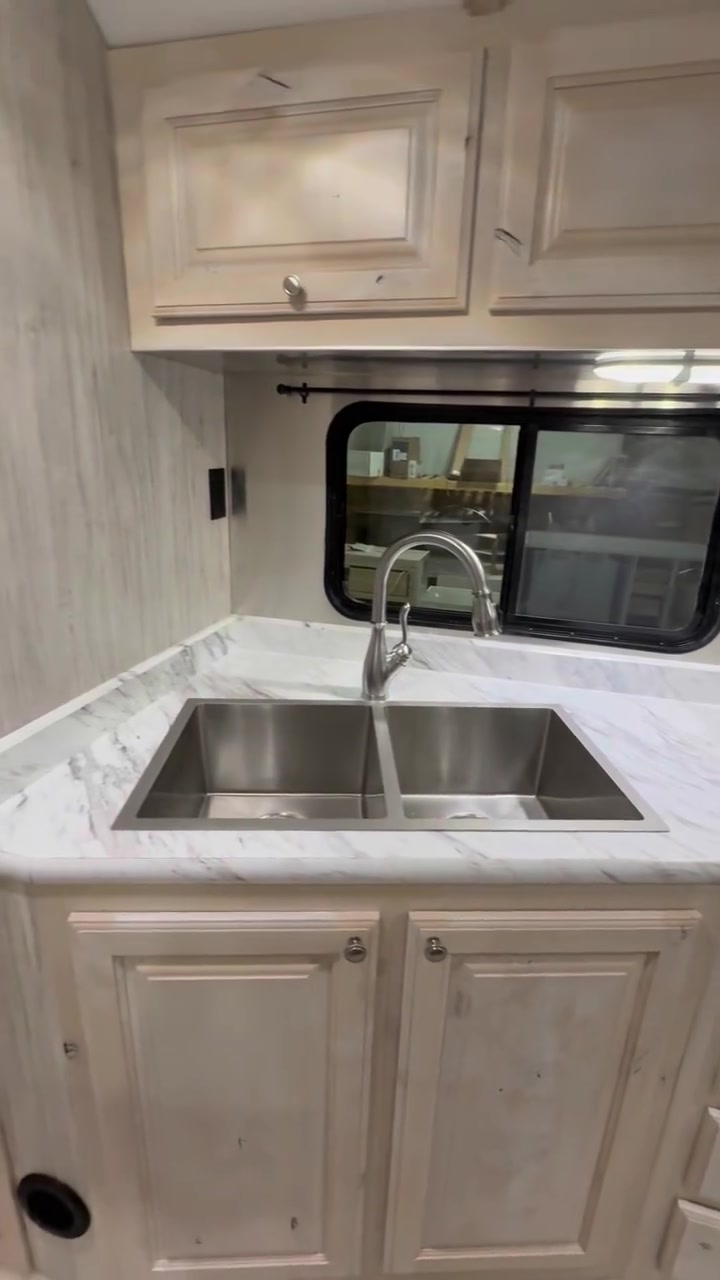

Close view of the stainless steel double sink and faucet beneath the kitchen window. — Interior Hanson Camp Double Kitchen Sink

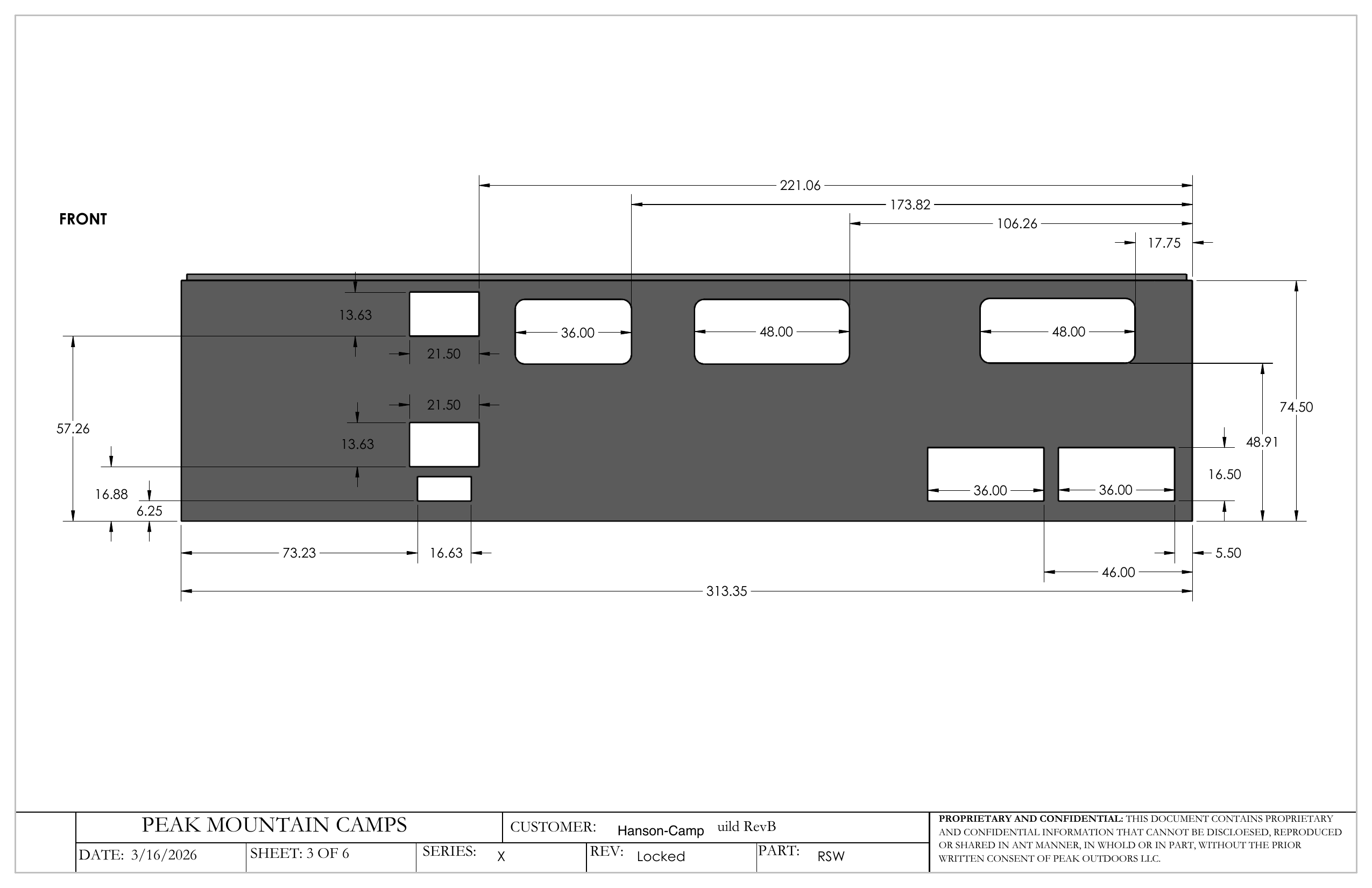

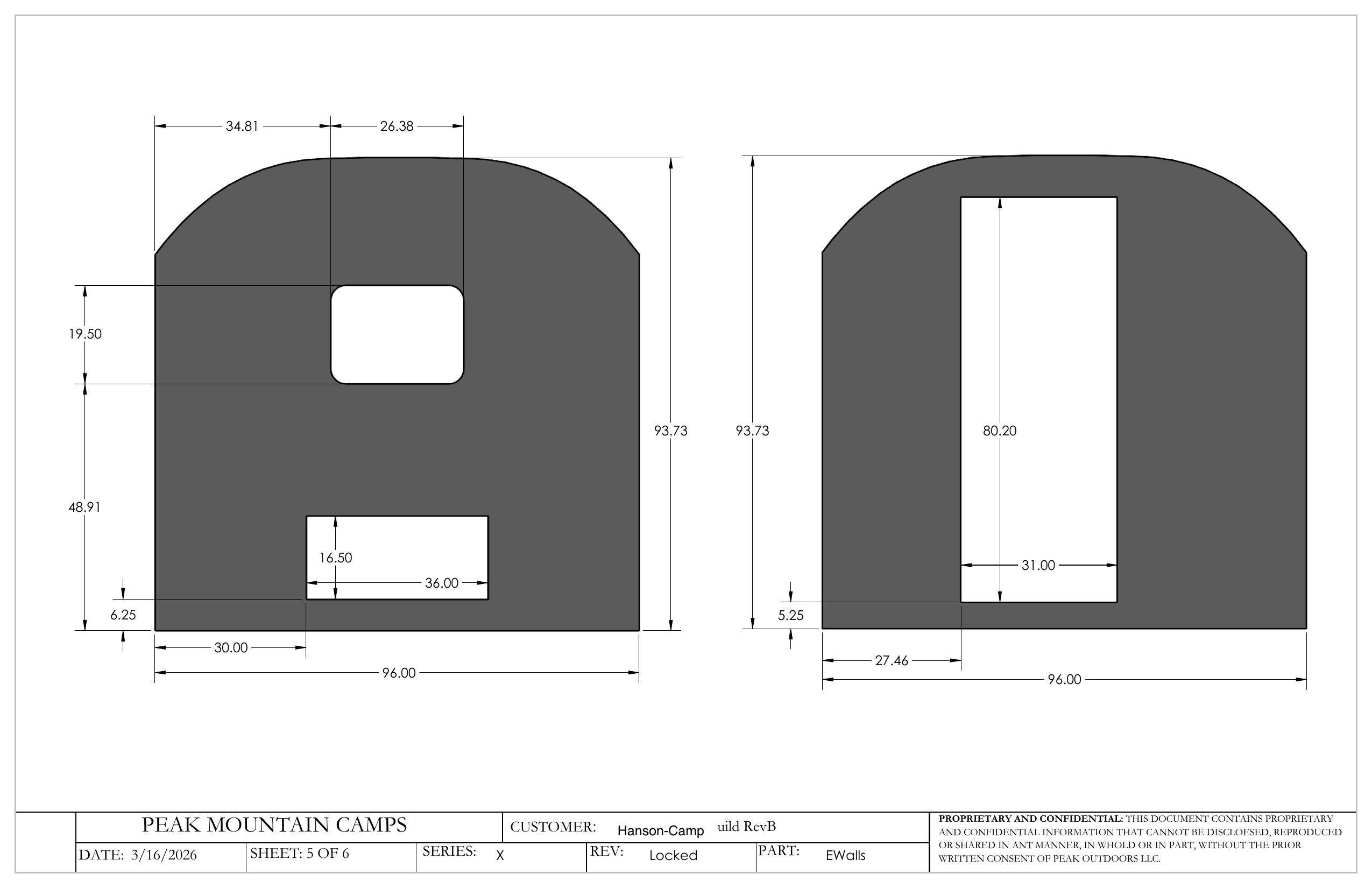

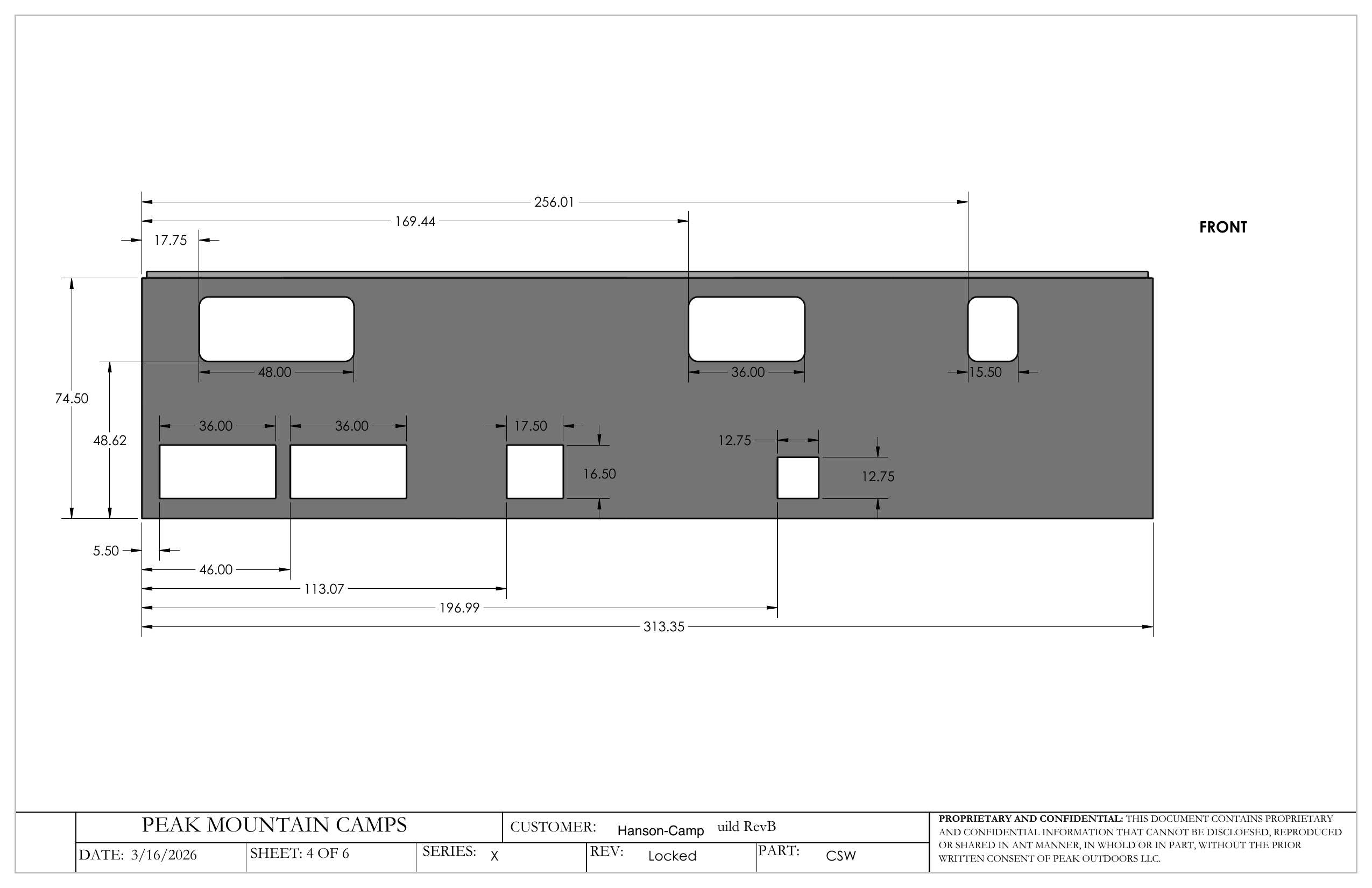

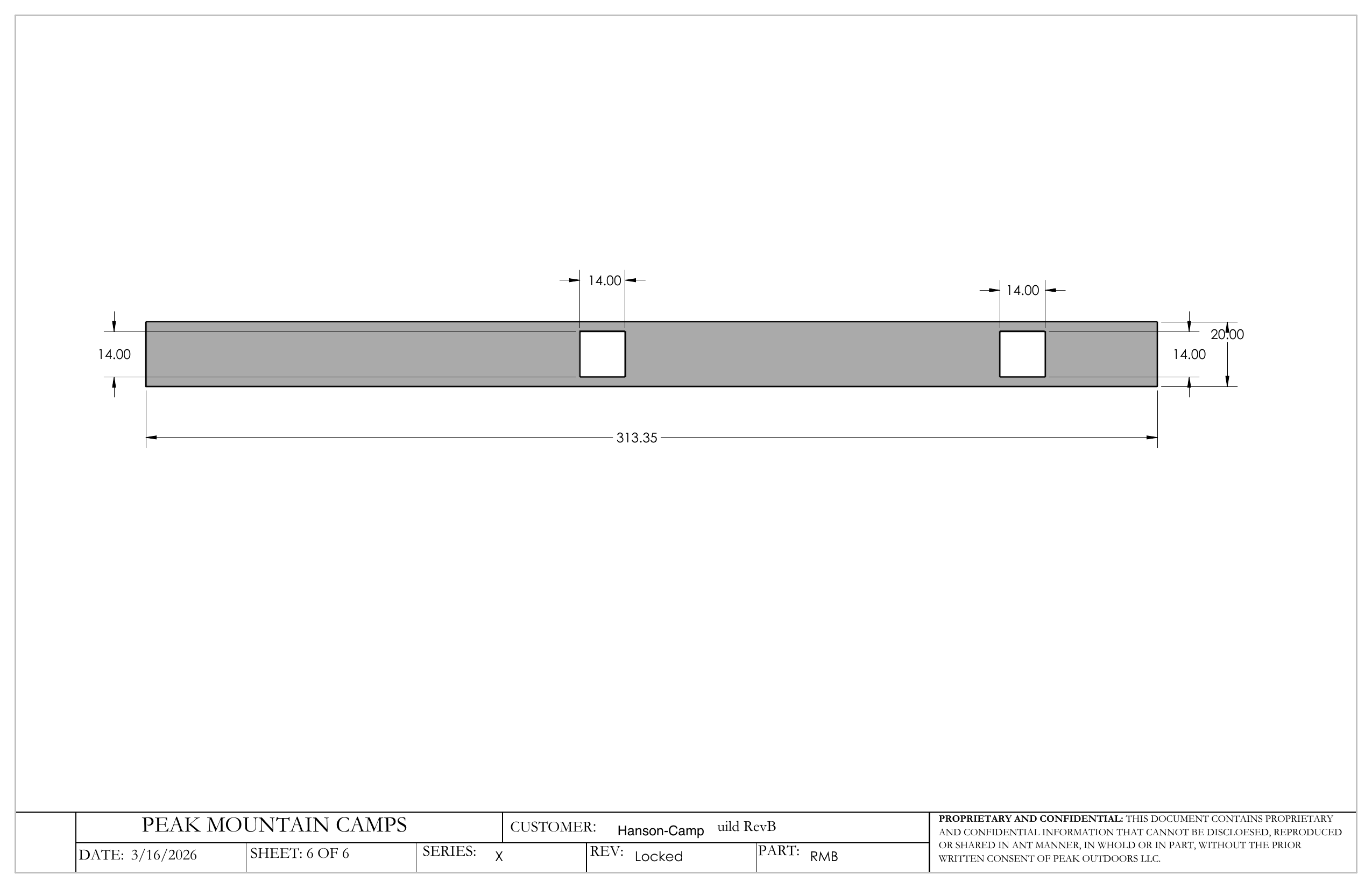

Layouts & Drawings

Floor Plans

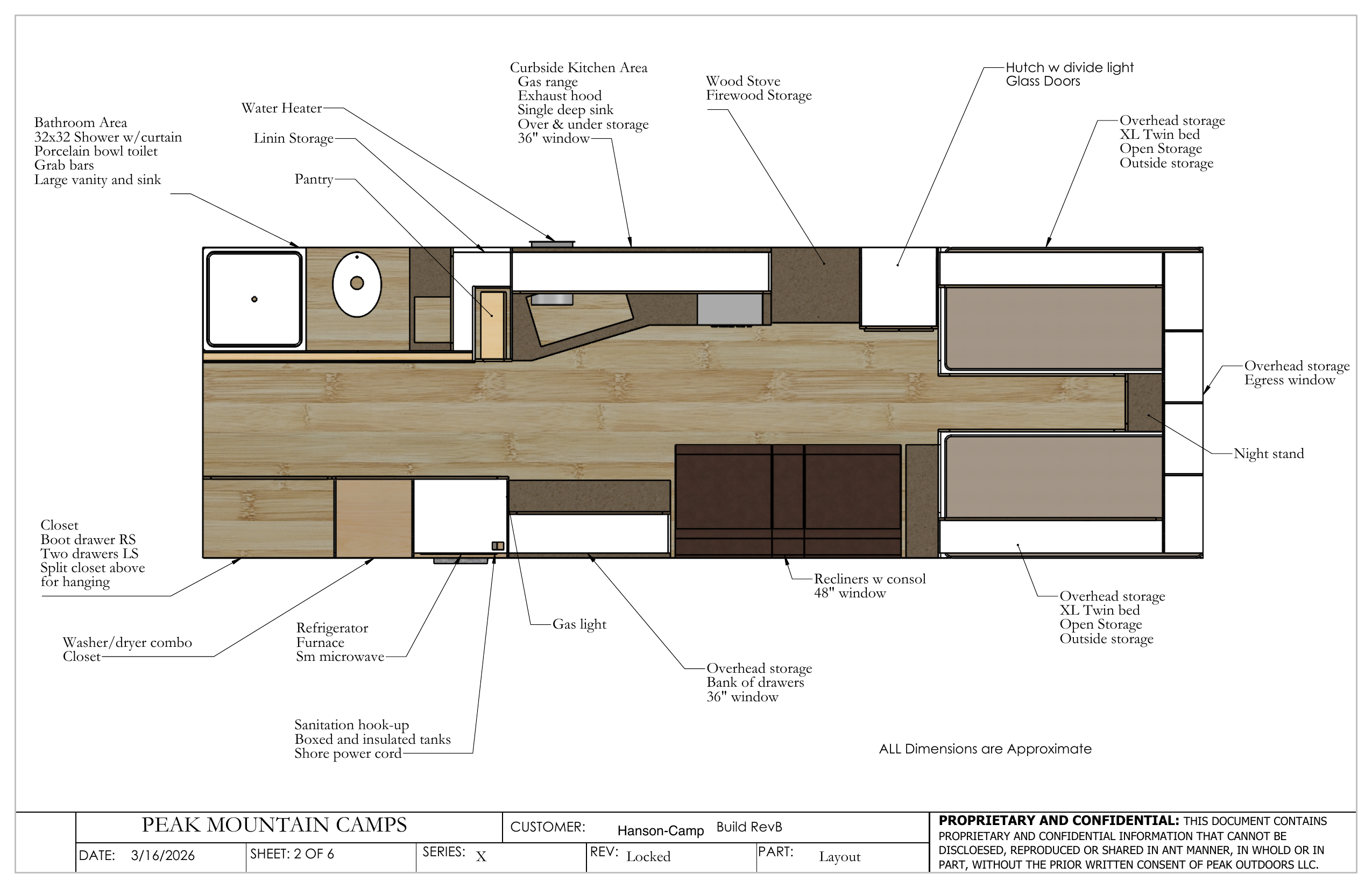

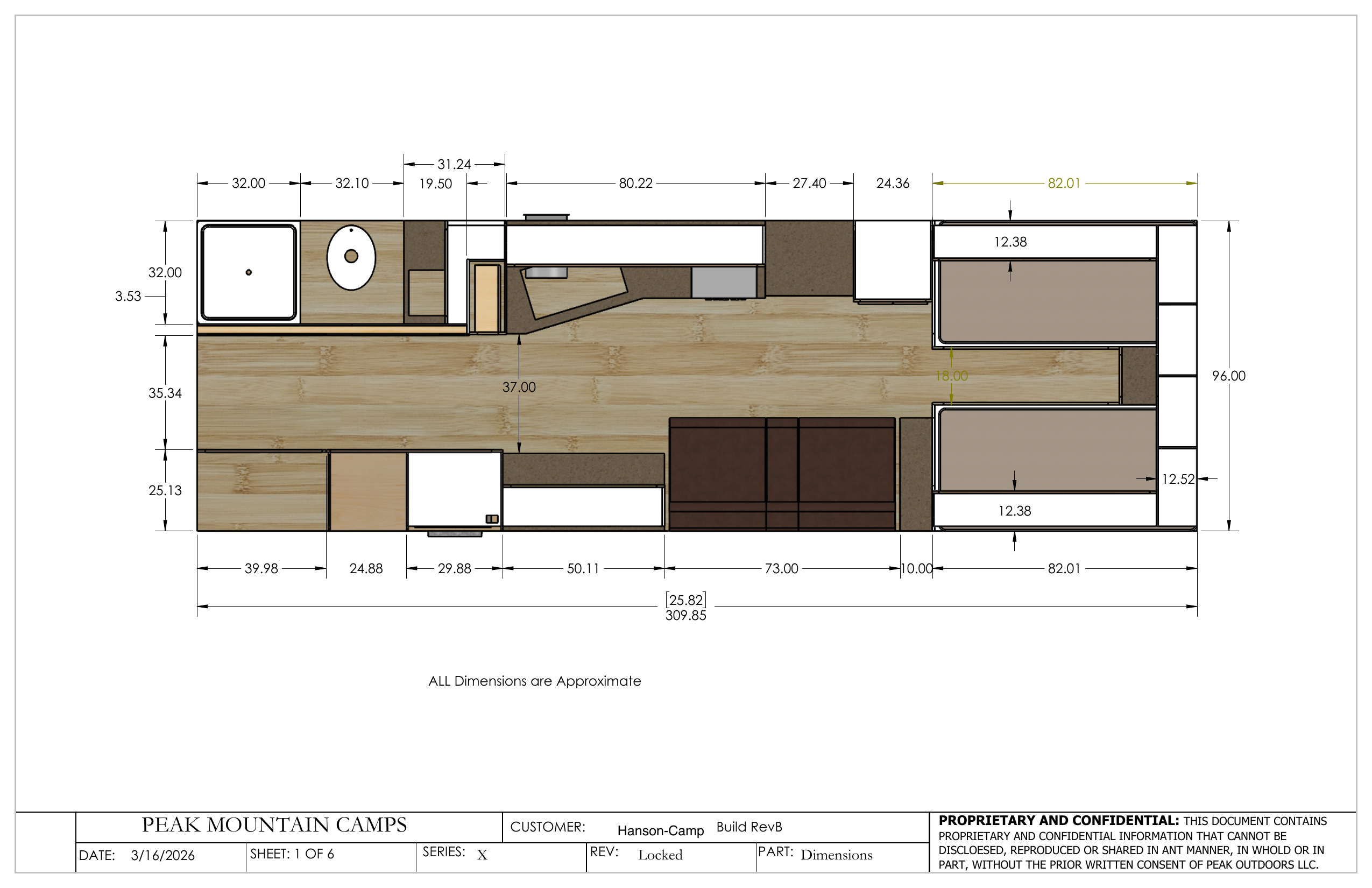

Dimensioned overhead floor plan for Hanson Camp #126. — Hanson Camp Floor Plan – Dimensions

Build Details

Specifications

Exterior

General

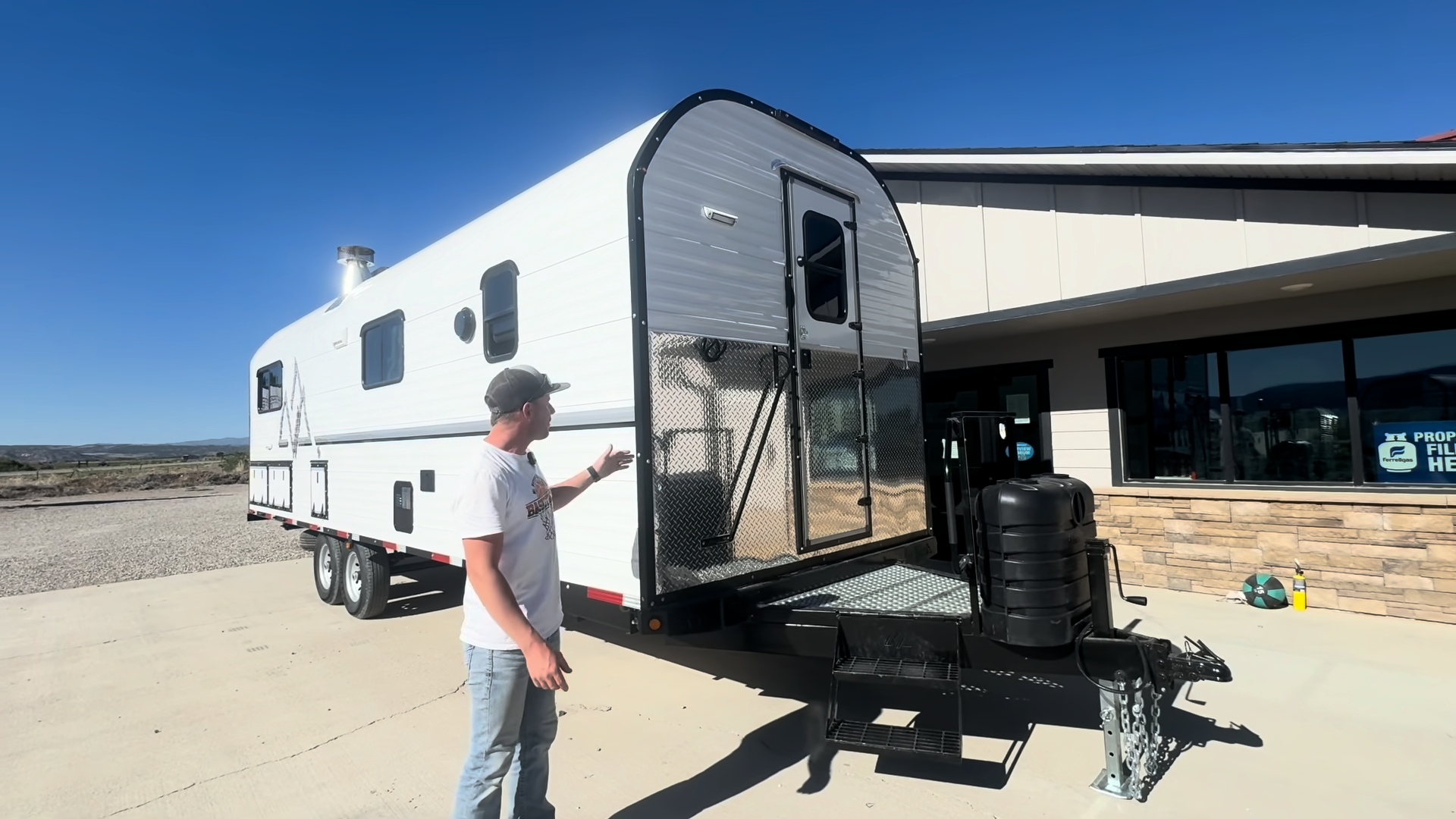

Entry Layout: Traditional Front Entry
Entry Door Style: Highlighted feature: Solid
Entry Railing: Fold-Away Hand Railing
Patio / Tongue: Standard

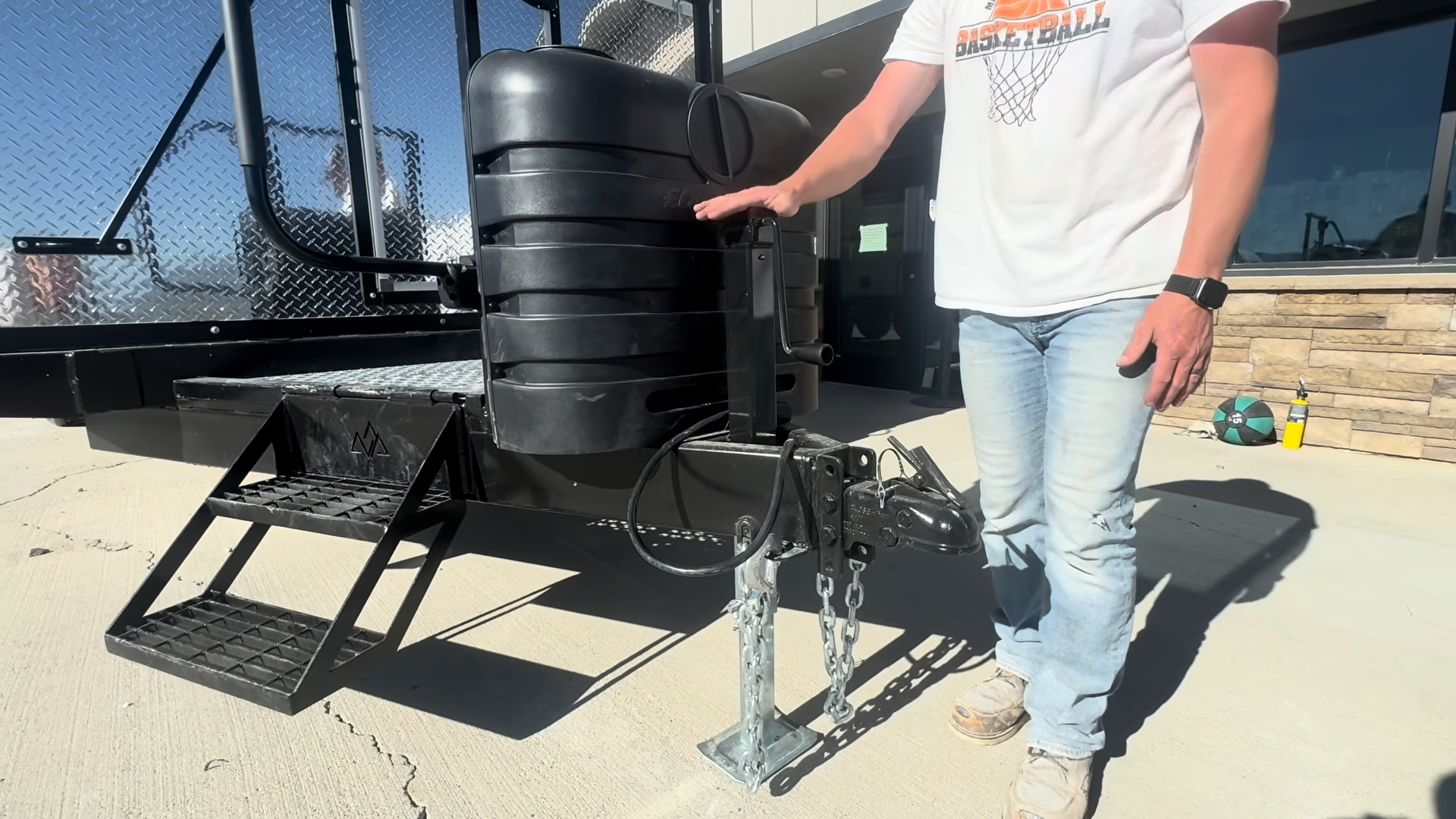

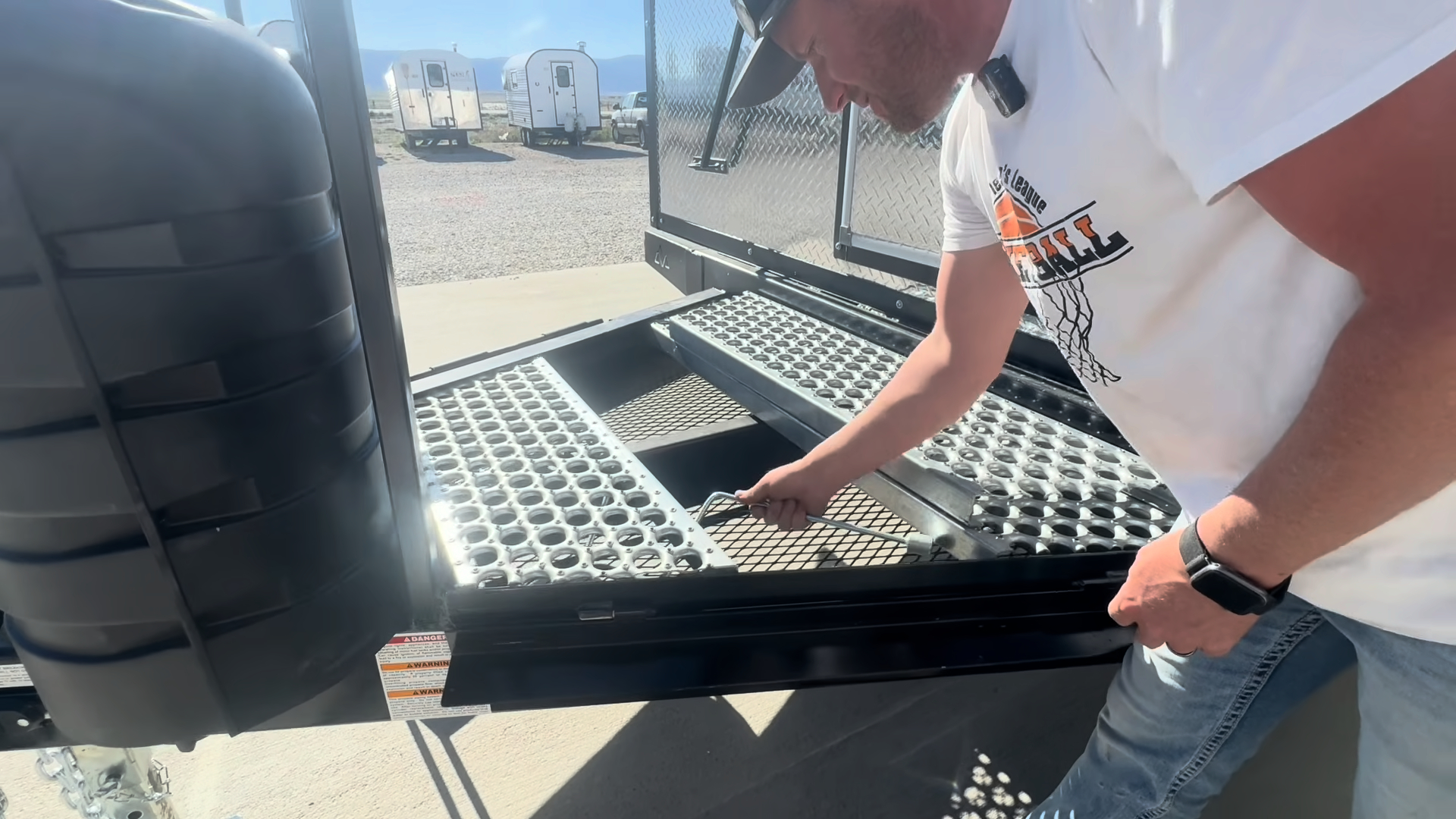

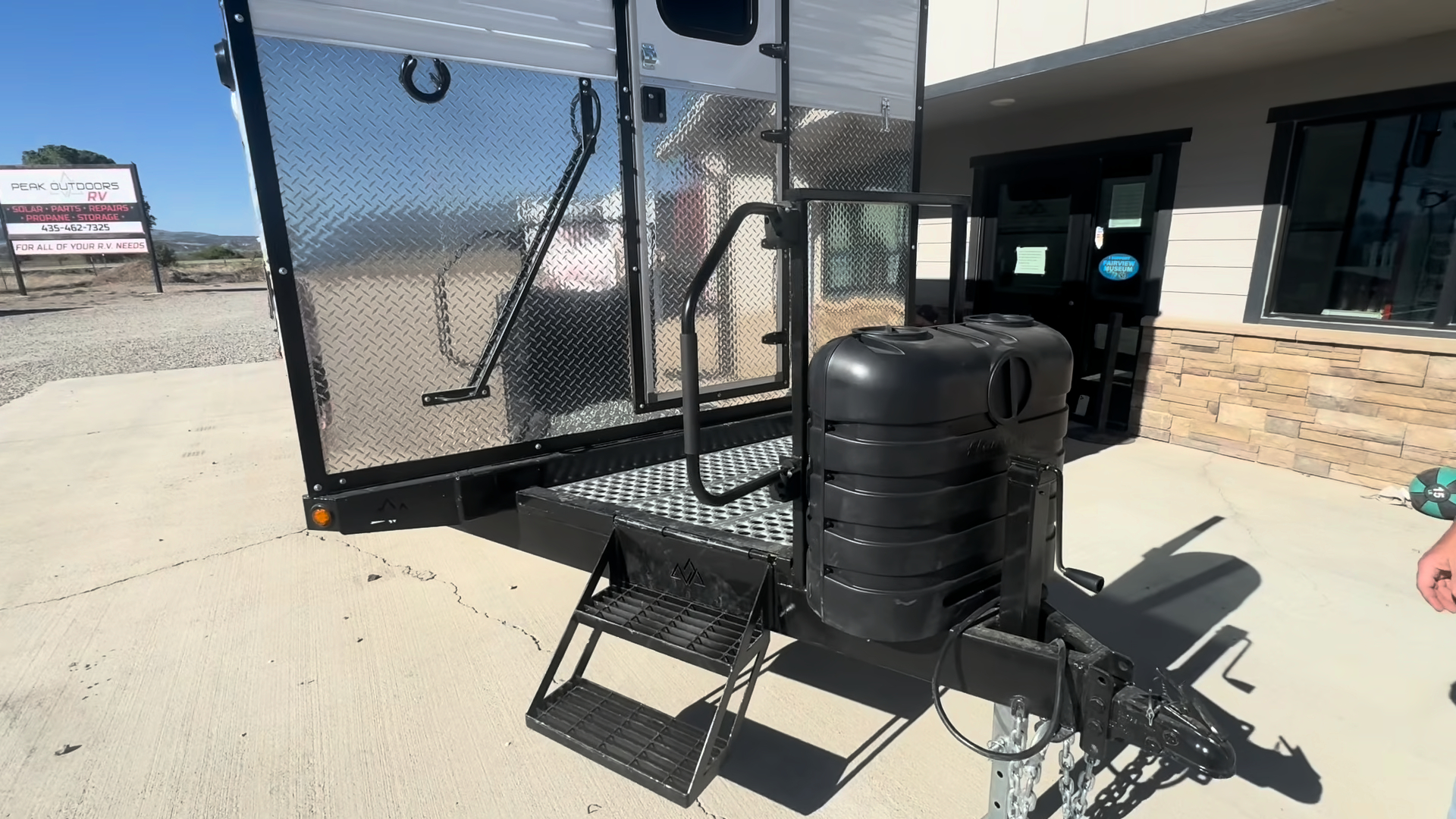

Entry Steps: Heavy-Duty Fold-Up Tongue Steps
Siding / Wrapping: White Aluminum Siding With Front Diamond Plate
Structural Reinforcement: Angle Iron On Exterior Edges
Windows: Highlighted feature: 6x Dual-Pane Windows With Sliders, Screens, & Rain Gutters / Single Rear Egress Window
Exterior Lights: Highlighted feature: Standard Front LED Light with 2x Lights Above Rear Side Compartments

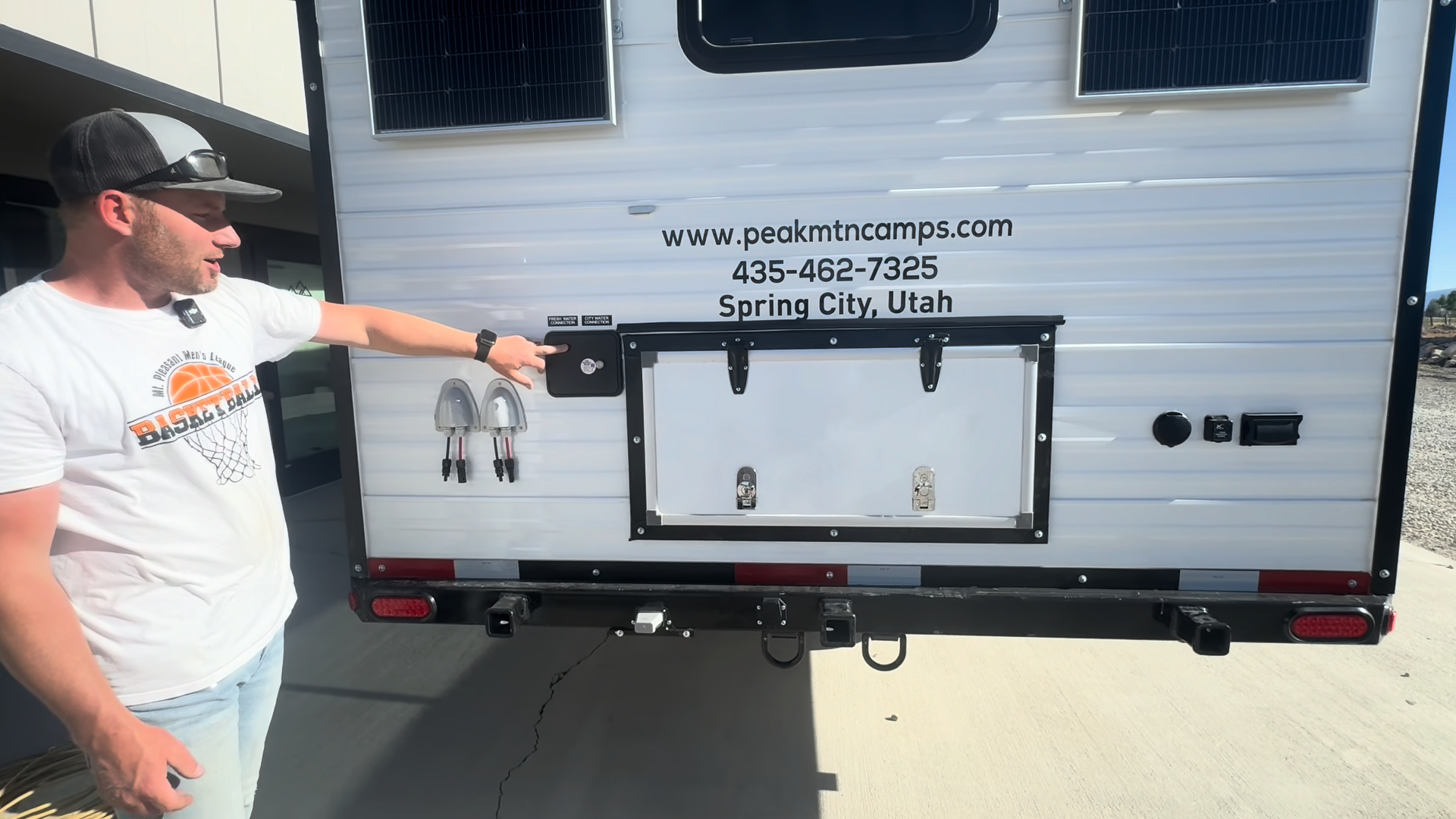

Exterior Power Connections: Highlighted feature: AC Outlet On Rear of Camp

Storage

Tongue Storage Access: Removable Decking for Storing Chains, Tire Chocks, etc.

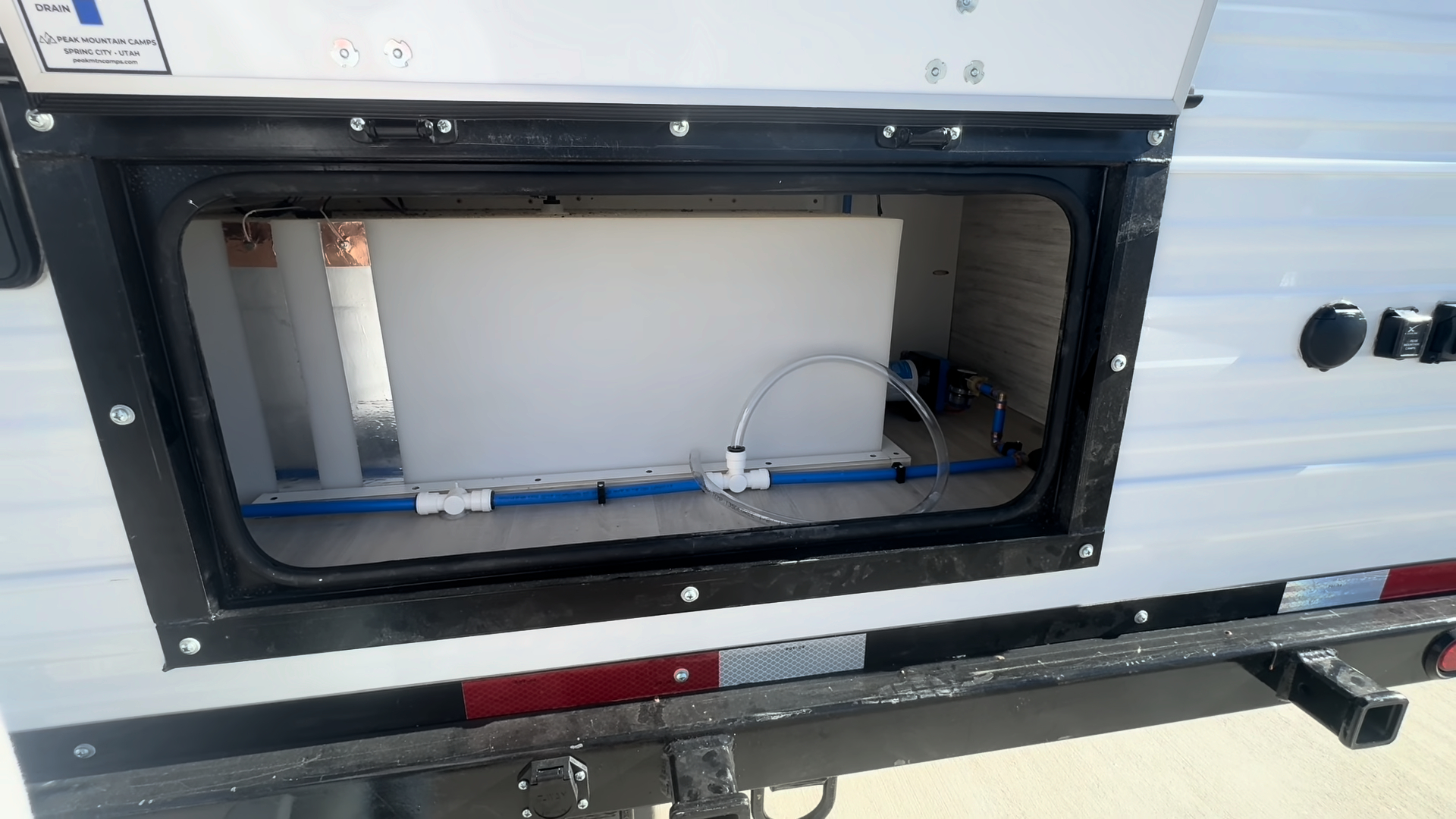

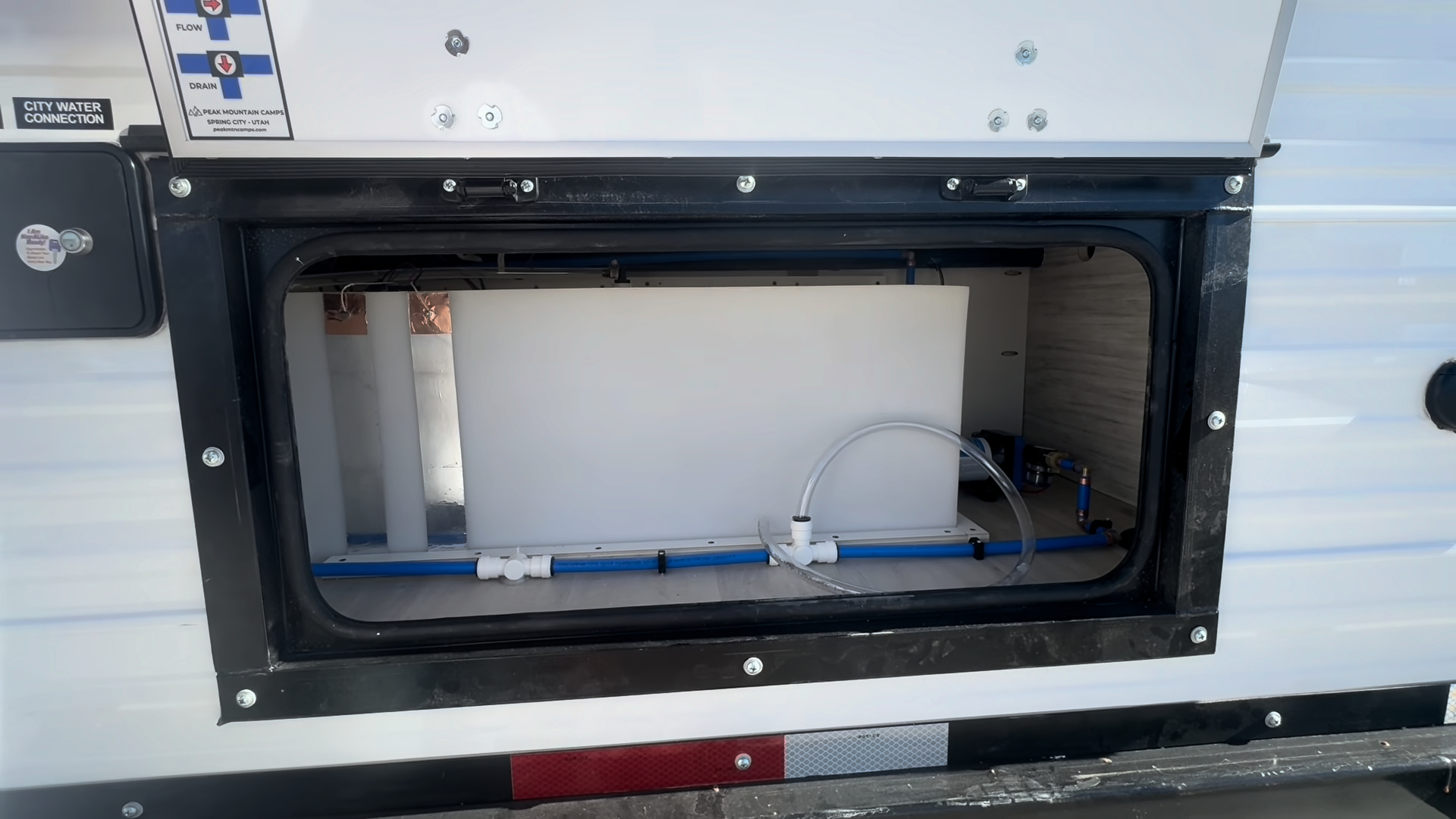

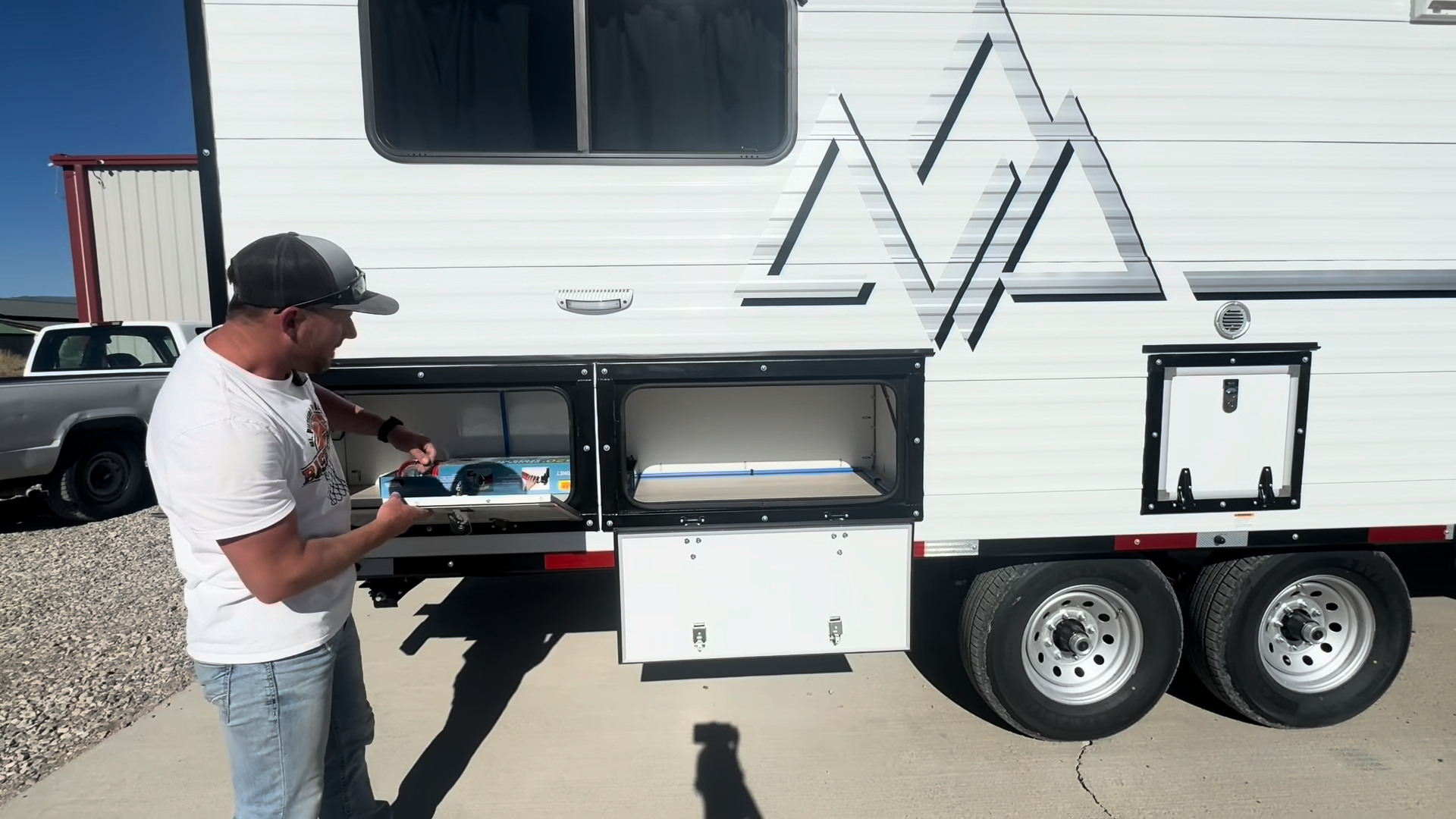

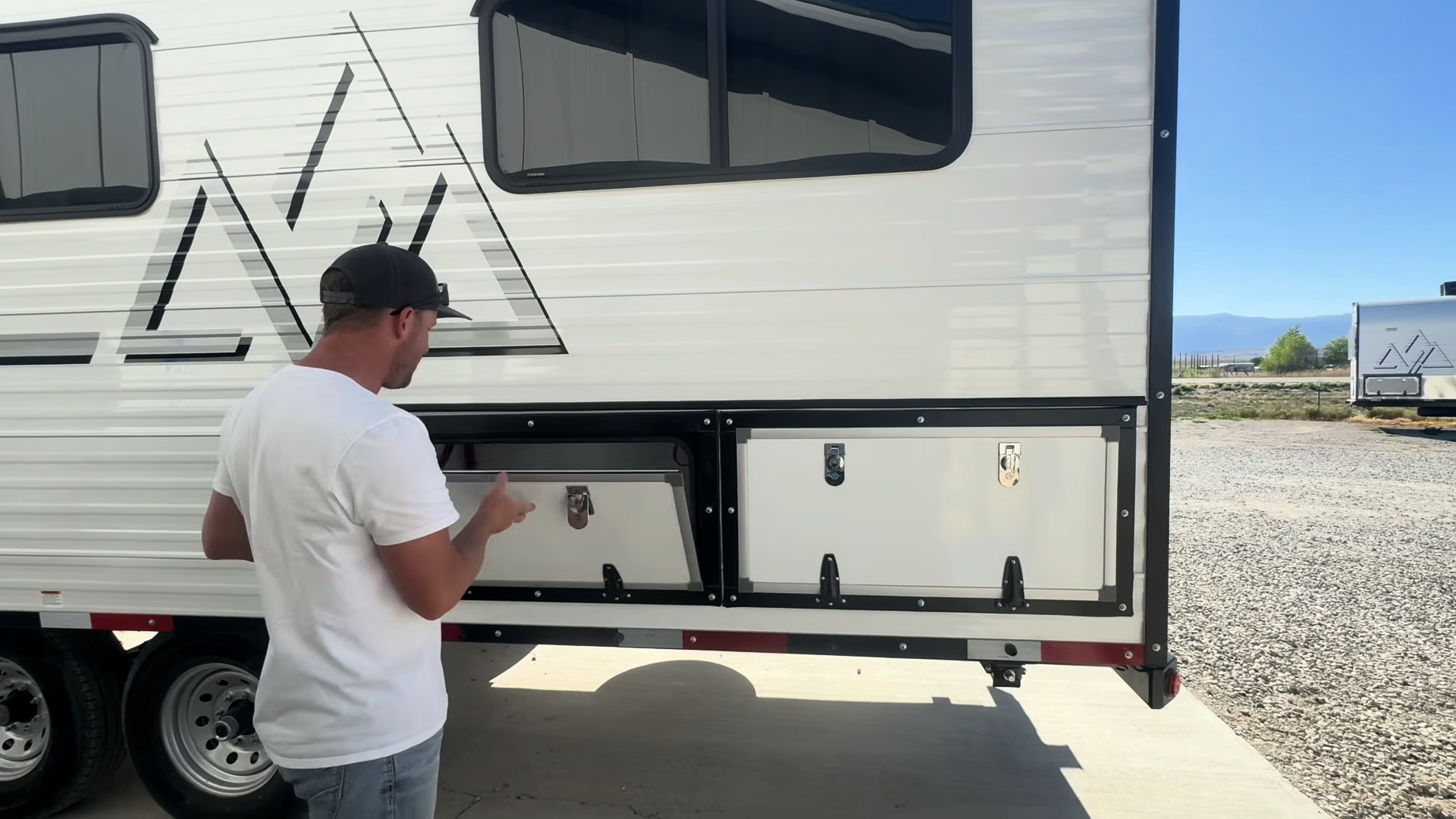

Exterior Compartments: 4x Exterior Compartments (Including Wood Box)
Compartment Doors & Latches: Keyed Doors With Adjustable Latches
Compartment Sealing: Dual-Sealed
Compartment Lighting: LED Lights Inside Exterior Compartments

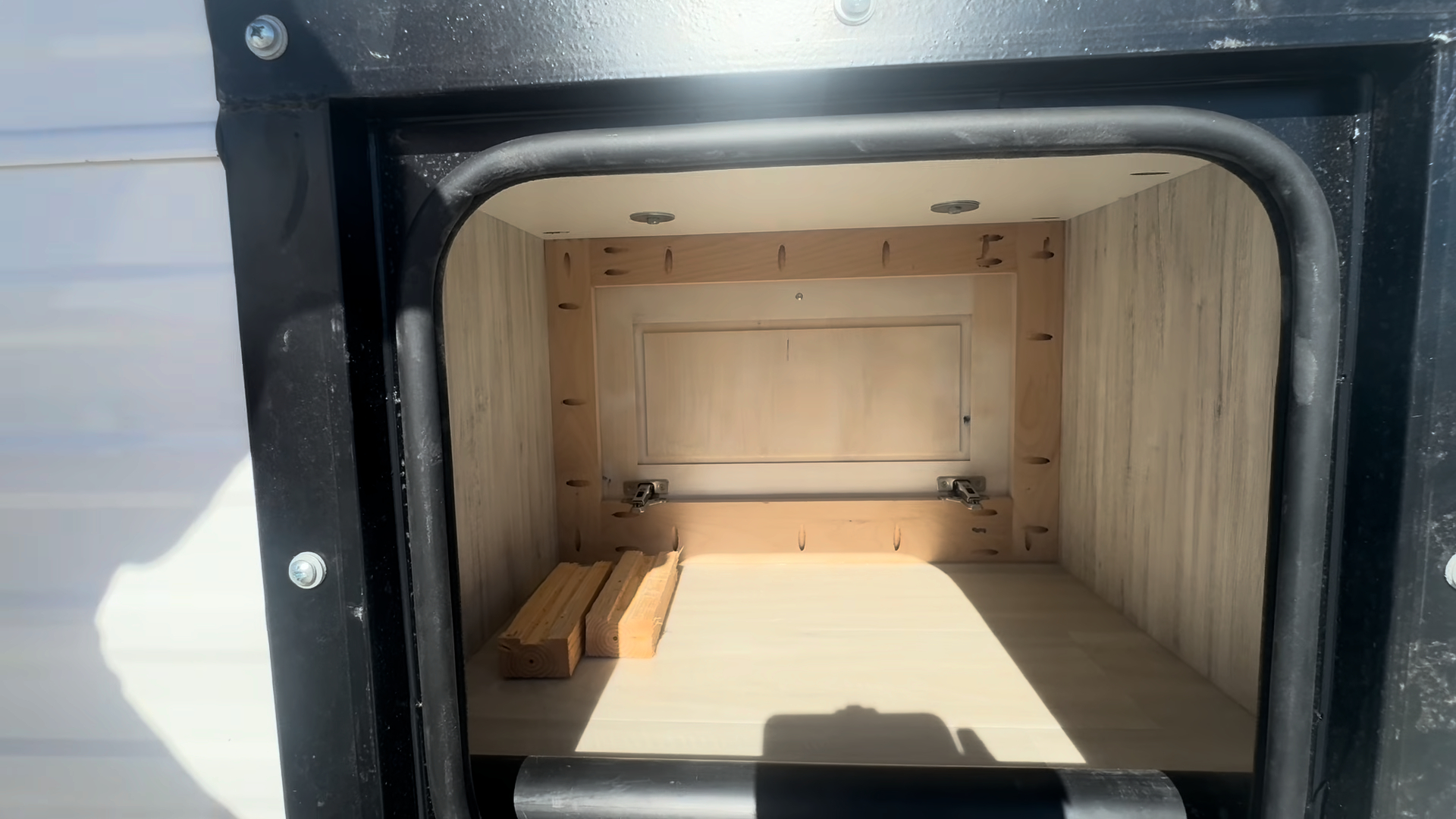

Wood Box: Standard Pass-Through Wood Box
Broom Holder: Traditional Horseshoe Broom Holder With Corn Broom

Interior

General

Layout: Fully Custom (Designed with Customer)
Sleep Capacity: 2 Adults

Entry / Hallway

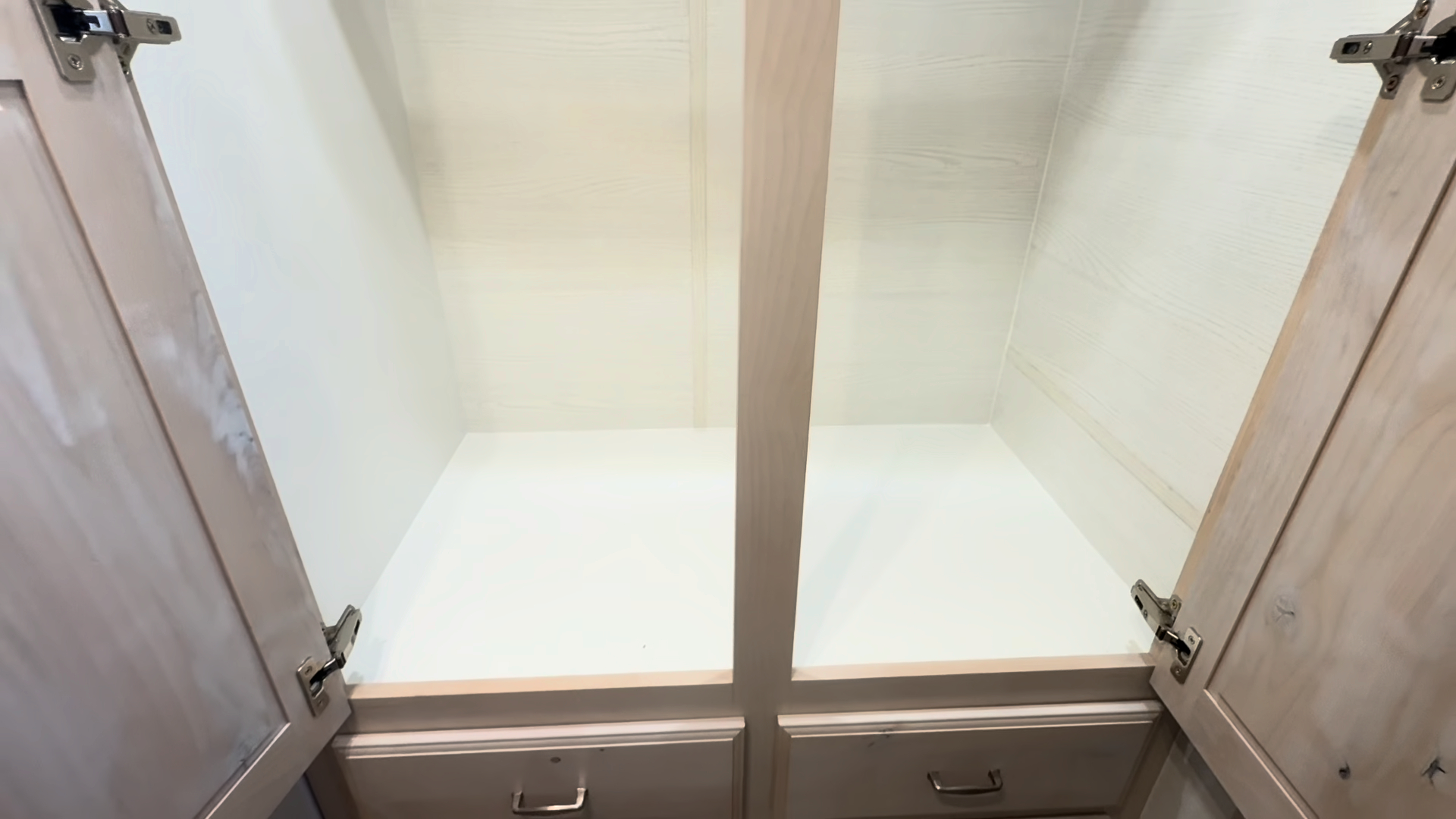

Closet Storage: Highlighted feature: 2x Large Wardrobe Closets w/ Hanging Rod
Boot Storage: Large Boot Drawer Beneath Wardrobe
Drawer Storage: 4x Large Closet Drawers Beneath Wardrobe

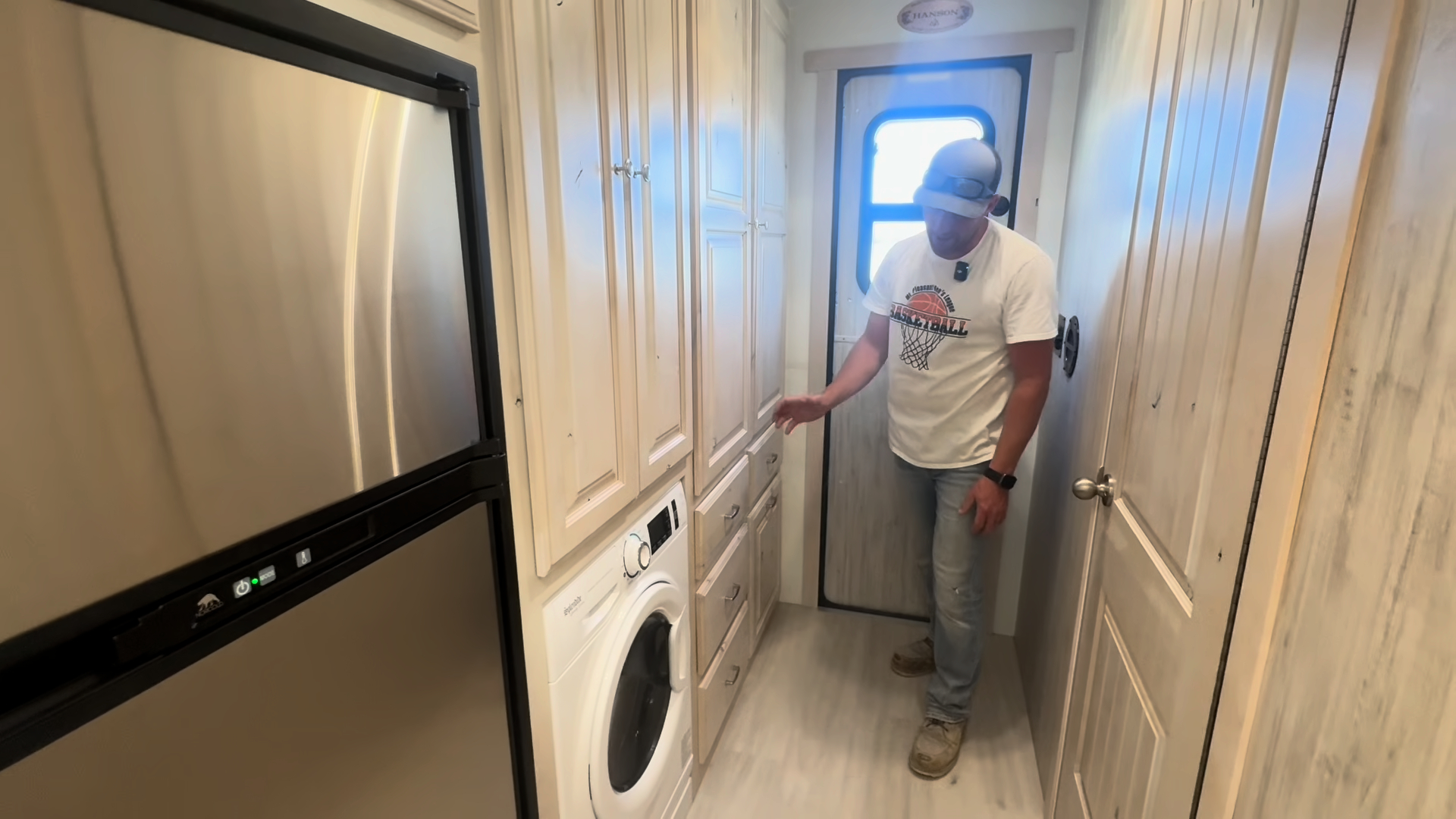

Washer / Dryer: Highlighted feature: High-Efficiency Washer/Dryer Combo

Kitchen

Refrigerator: Elevated 7 cu ft Propane/Electric Fridge-Freezer

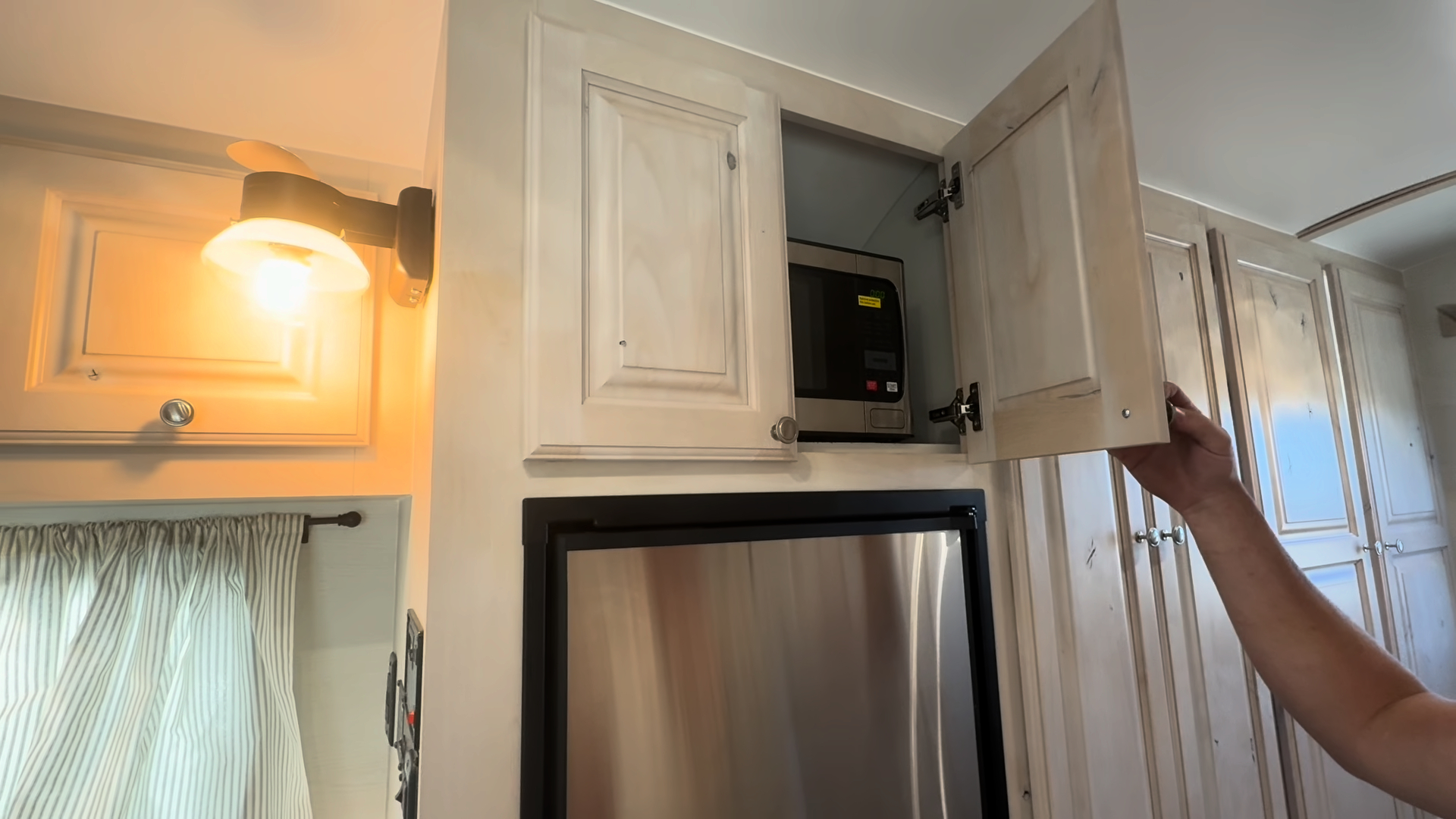

Microwave: Highlighted feature: Microwave Cabinet Above Fridge with Small Microwave Added

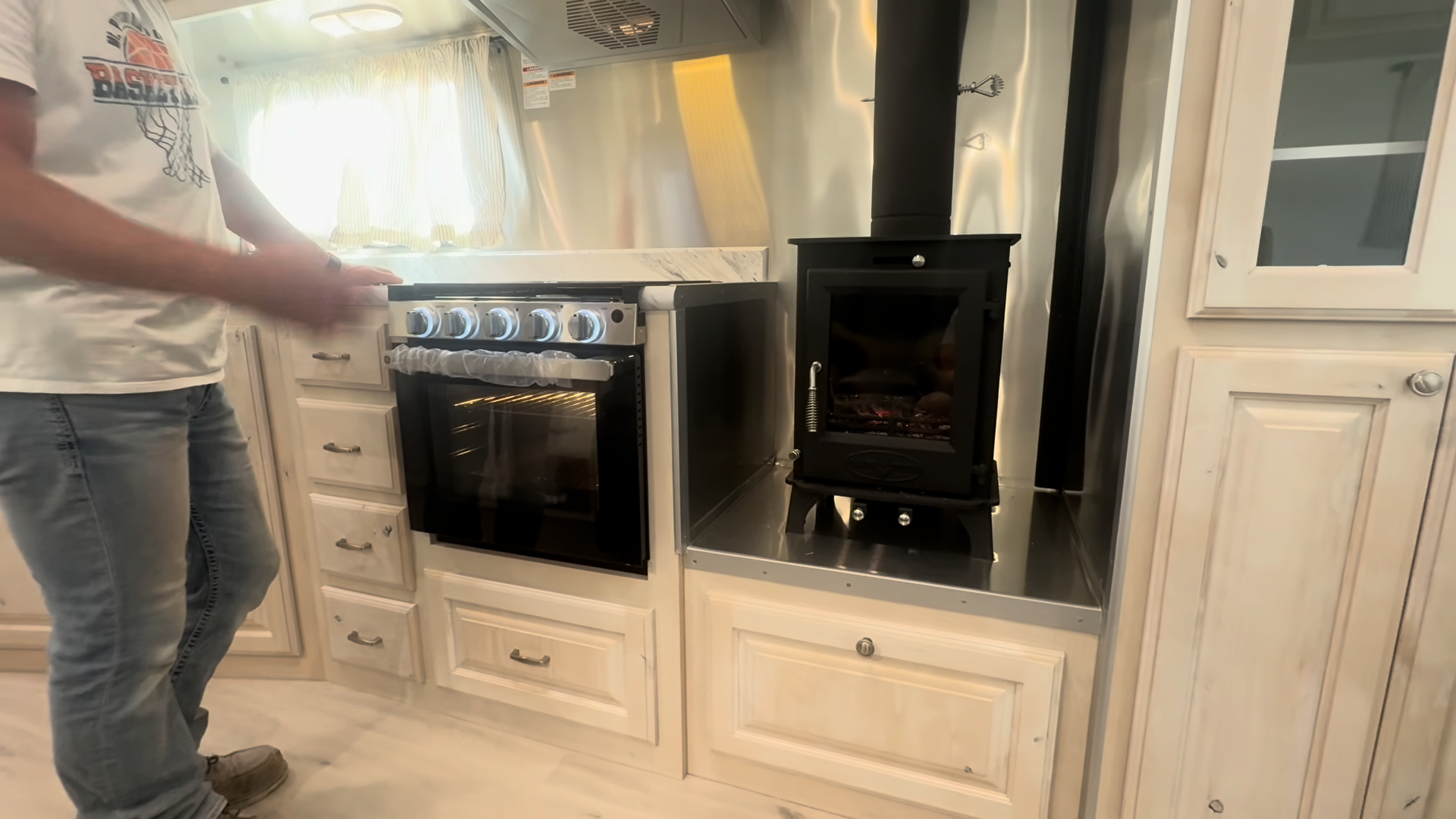

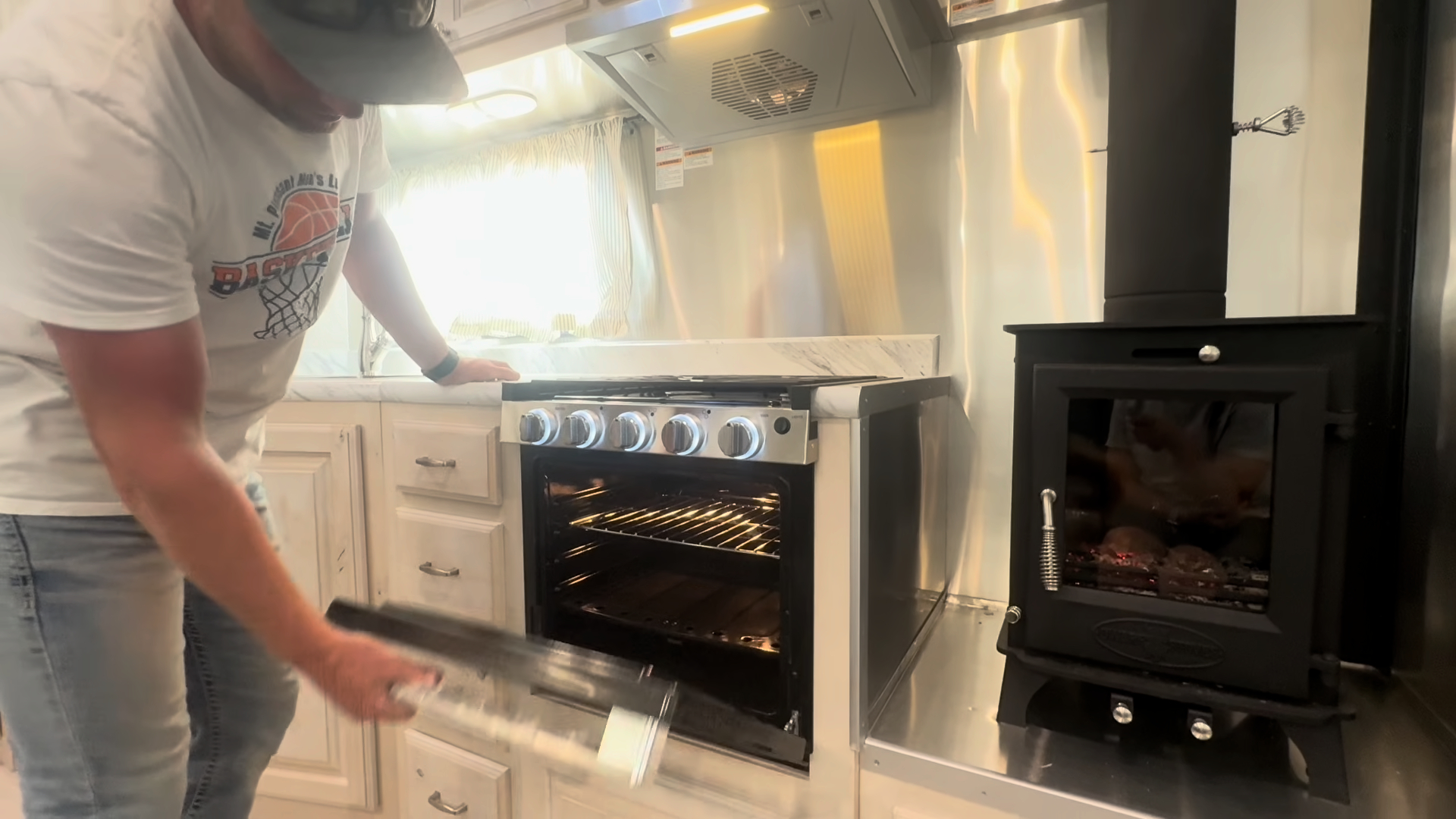

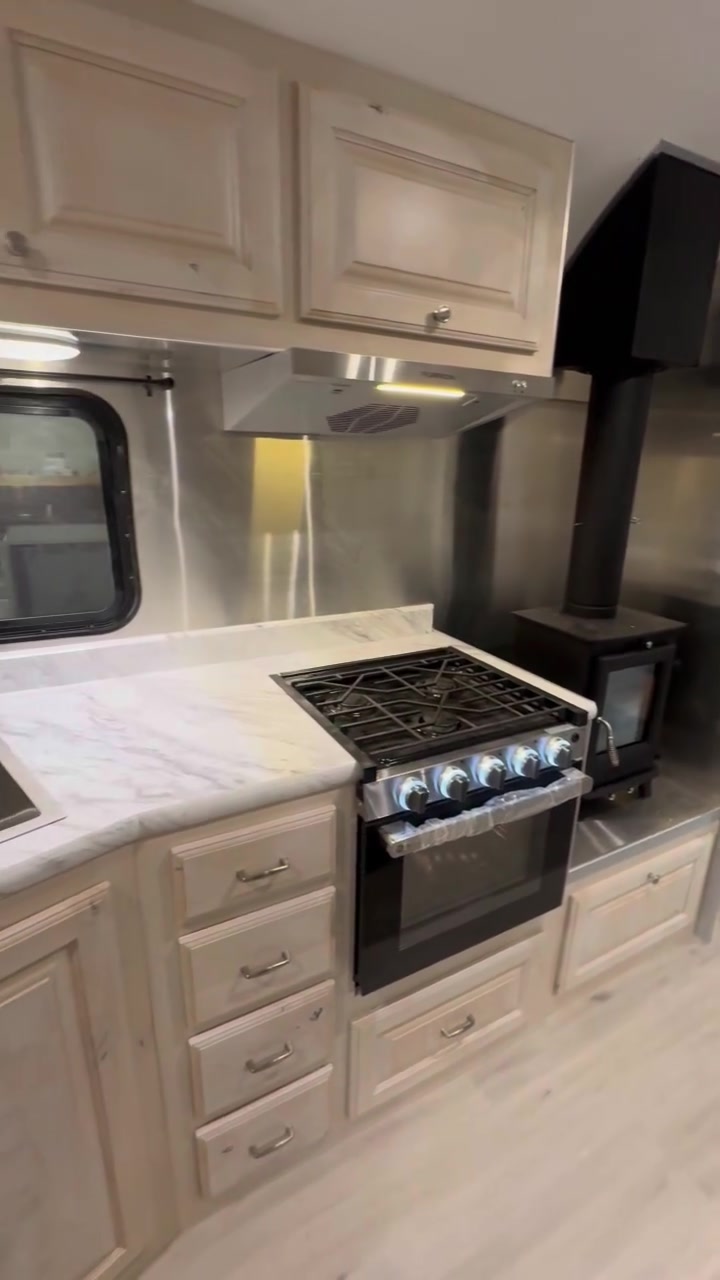

Stovetop / Oven: Highlighted feature: GE 3-Burner Cooktop and Oven with Direct Spark
Range Hood: Highlighted feature: Furrion Range Hood / Exhaust Fan
Sink: Highlighted feature: Large Stainless Steel Double Sink with Delta Residential-Grade Brushed Nickel Faucet
Pantry: 2x Pull-Out Pantries & Small Upper Cabinet
Prep Surface: Highlighted feature: Plentiful Counter Space
Overhead Cabinet Storage: Small Overhead Cabinet Above Driver's Side Counter & Large Overhead Cabinet Above Sink & Stove
Drawer Storage: 3x Drawers & 4-Drawer Bank By Stove
Open Storage: Large Open Storage Within Driver's Side Counter & Open Storage Below Sink
Power: 1x AC Outlet at Driver's Side Counter & 1x AC Outlet Near Sink
Window: Single Large Window Above Driver's Side Counter & Large Window Above Sink

Living & Entertainment Space

Primary Seating: Highlighted feature: 2-Person Reclining Sofa with Center Console (MOD-70CG)
End Table Storage: Single Long End Table at Foot of Bed with Two Drawers

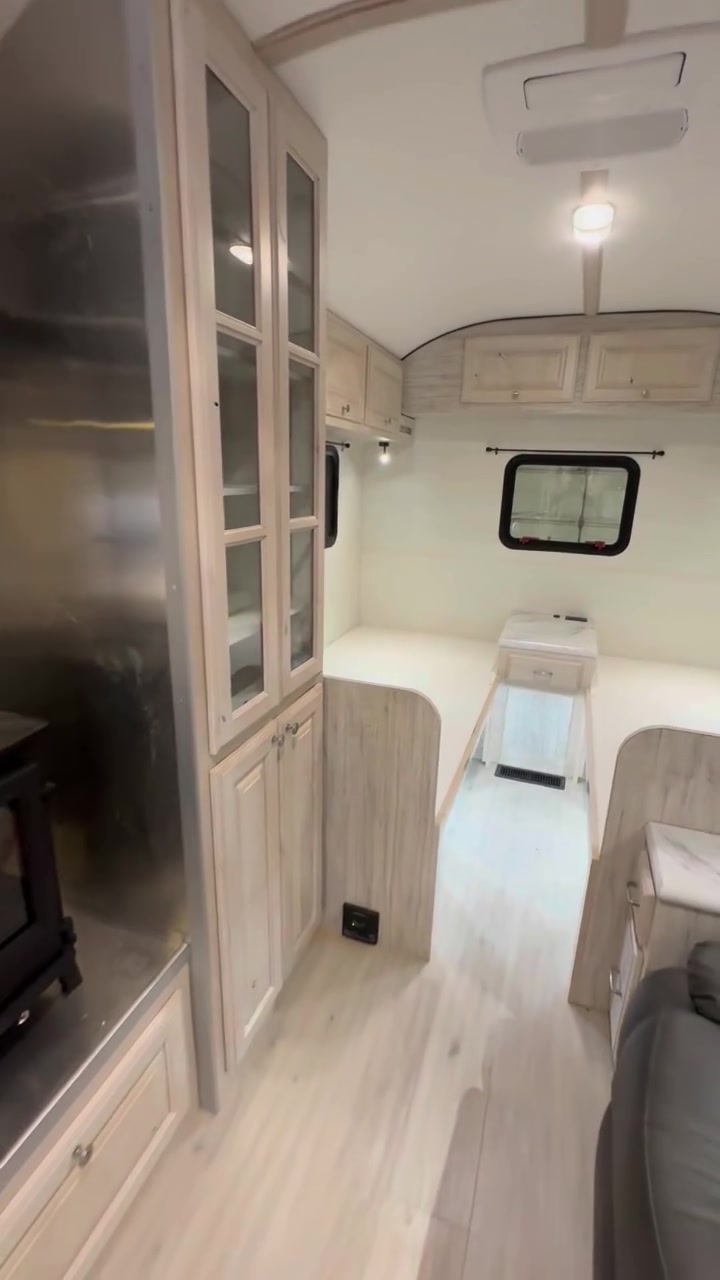

Additional Storage: Highlighted feature: Large Top-to-Bottom Hutch with Glass Doors & Shelving
Reading Lights: 2x LED Reading Lights Above Recliner Seats
Power & Connections: AC Outlet & USB Ports on End Table
Window: Large Window Above Recliners

Bedroom

Layout: Split-Bed Layout
Bed Configuration: 2x Twin XL North/South Beds
Mattresses: 2x Twin XL Mattresses
Nightstands: Single Centered Nightstand with Single Drawer

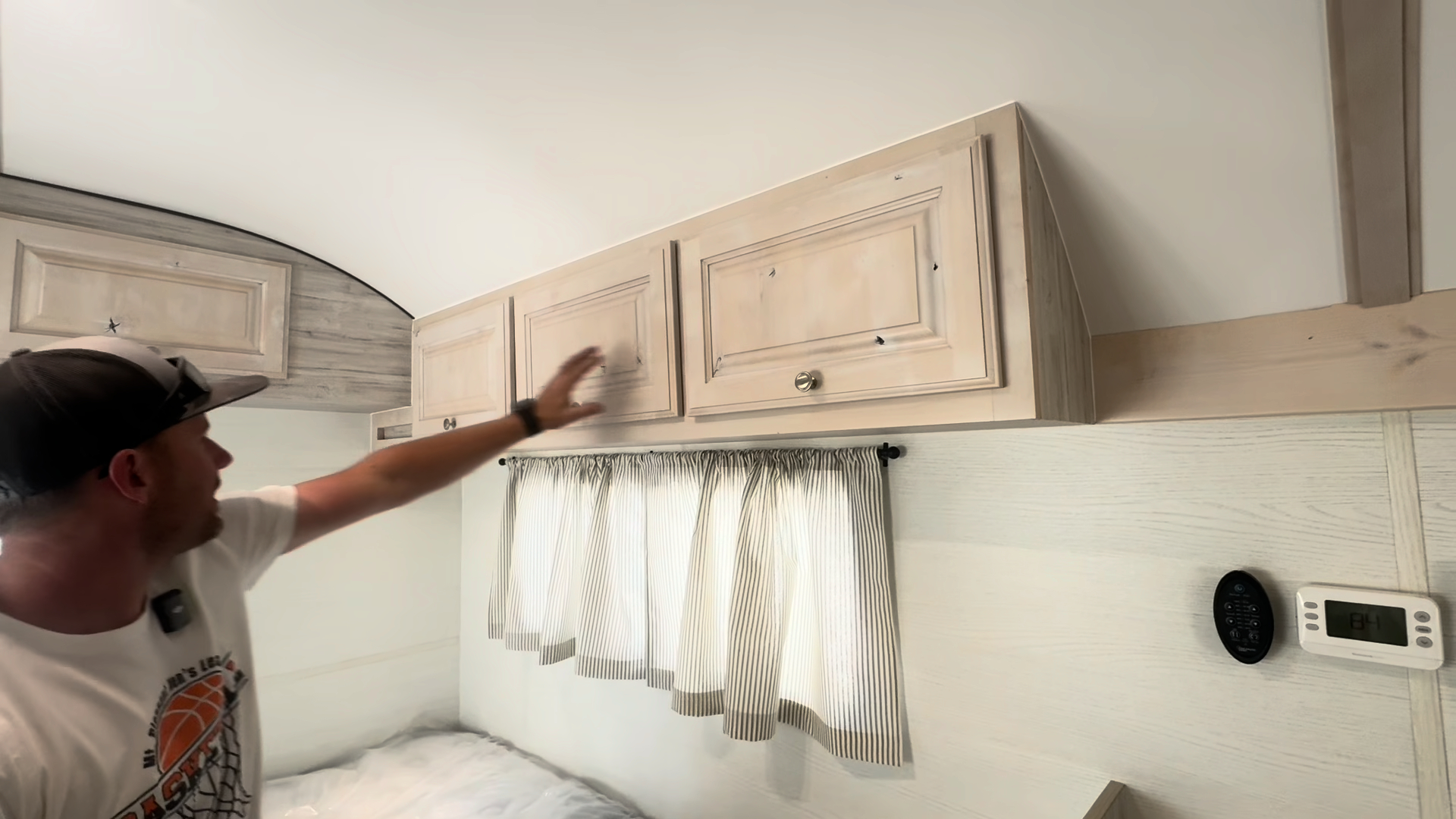

Overhead Storage: 3x Large Overhead Cabinets (Rear Cabinet Has Ports for Internet Connections)

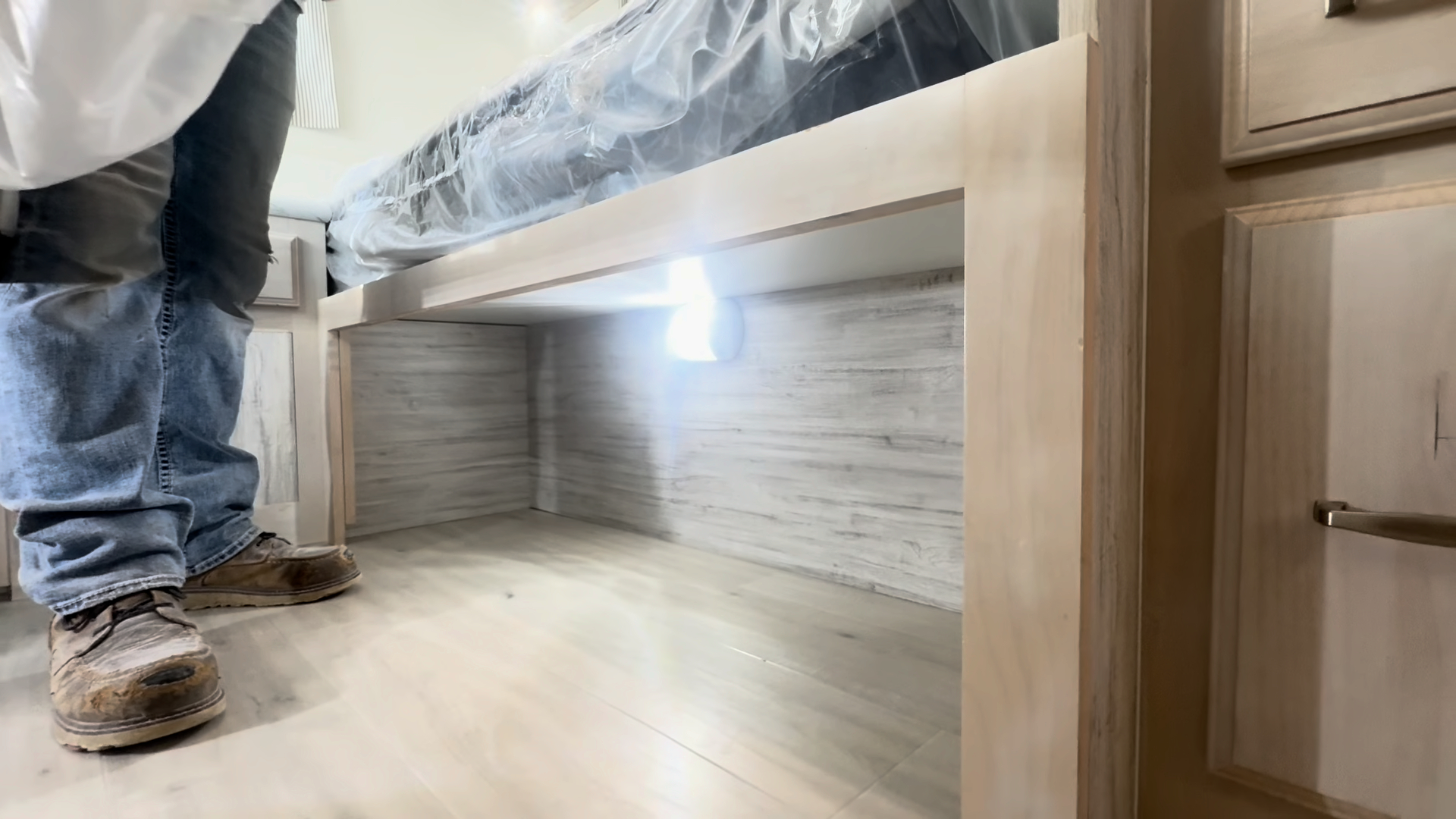

Under-Bed / Trundle Storage: Highlighted feature: Large Lighted Open-Storage Under Beds
Reading Lights: 2x LED Reading Lights (One Above Each Bed)
Power & Connections: AC/DC Outlets & USB Ports on Nightstand, Router/Internet Connections Within Rear Upper Cabinet
Window(s): Highlighted feature: 2x Large Side Windows & Single Rear Egress Window

Bathroom & Laundry

Size / Configuration: Small Three-Quarter Bath
Door: Highlighted feature: Solid Hardwood Door with Full Length Hinge & Grab Handle
Medicine Cabinet: Mirrored Medicine Cabinet w/ Shelving
Vanity: Standard Vanity with Small Drawer, Shelving, & Open Storage
Sink: Highlighted feature: Larger Stainless Steel Sink with Brushed Nickel Residential Faucet
Shower: 32 x 32 in. Shower with Curved Shower Curtain & Stainless Steel Fixtures
Toilet: Small Dometic Porcelain Toilet (China Bowl) w/ Foot Pedal Flush
ADA Grab Bars: Highlighted feature: Added to Bathroom Door & Shower
Window: Small Frosted Sliding Window
Ventilation: 12V Bathroom Exhaust Fan
Power: Single AC Outlet Below Medicine Cabinet

Lighting

Interior Lights: Dimmable LED Lights With Master & Individual Switches
Propane Gas Light: Single Wall-Mounted Gas Light
Compartment Lighting: LED Lighting Inside Closets & Cabinets

Fuel & Power

Power

Solar Panels: Highlighted feature: Two 100 W Panels with Two Additional Solar Ports
Solar Controller: Standard

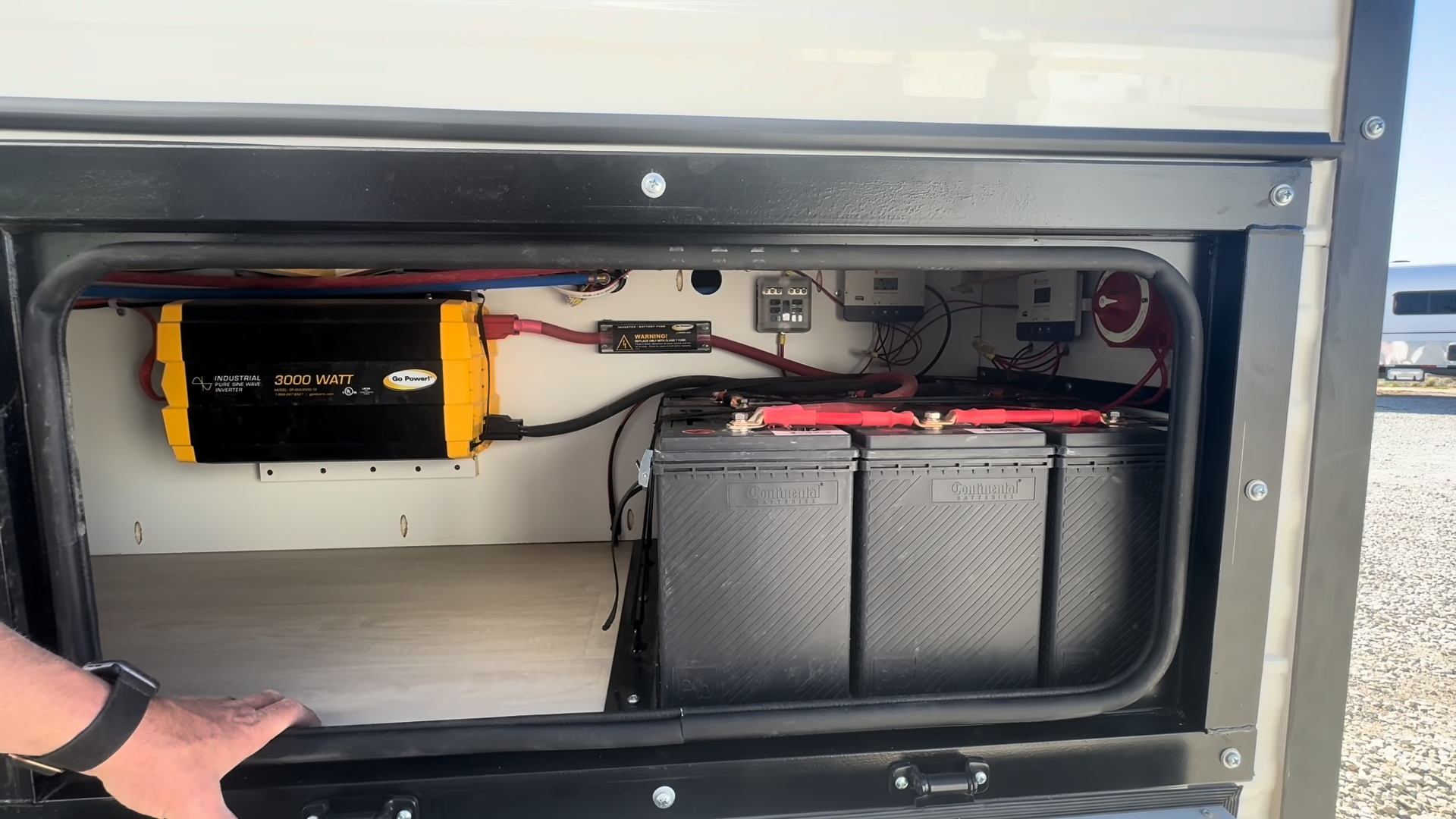

Battery Bank: 6x 6V 225 Ah Batteries
Shore Power: 30 A Service Hookup (25 ft. Cord Included)
Inverter: Highlighted feature: 3,000W Inverter
Accessible Electrical Systems & Wiring: Standard

Propane

Tanks: Two 7 gal. 30 lb Tanks
Tank Cover: Quick Access Propane Tank Cover
Propane Connections: 1x Quick-Connect on Curbside

Plumbing

General

Plumbing Protection: Fully Insulated & Heated Plumbing
Fittings: Brass & Stainless Steel Water Fittings

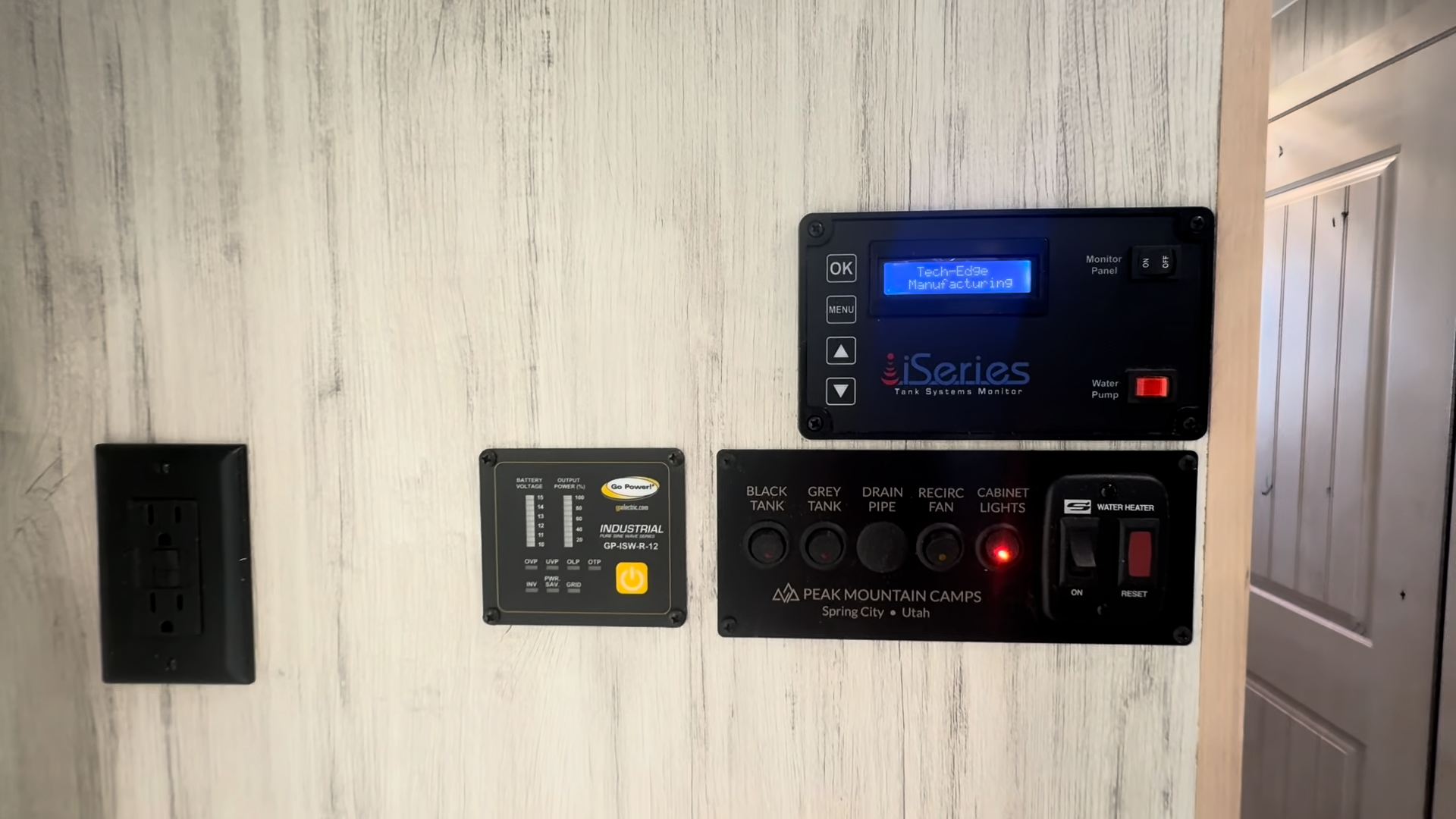

Monitoring Panel: Tank Monitors for Fresh, Gray, and Black Water Tanks
Accessible Plumbing Systems: Standard

Fresh Water

Fresh Water Tank(s): 42 gal. Fresh Water Tank
Water Heater: 6 gal. Propane Water Heater (Under Kitchen Sink)
Water Pump: Standard Shurflo 12V Water Pump

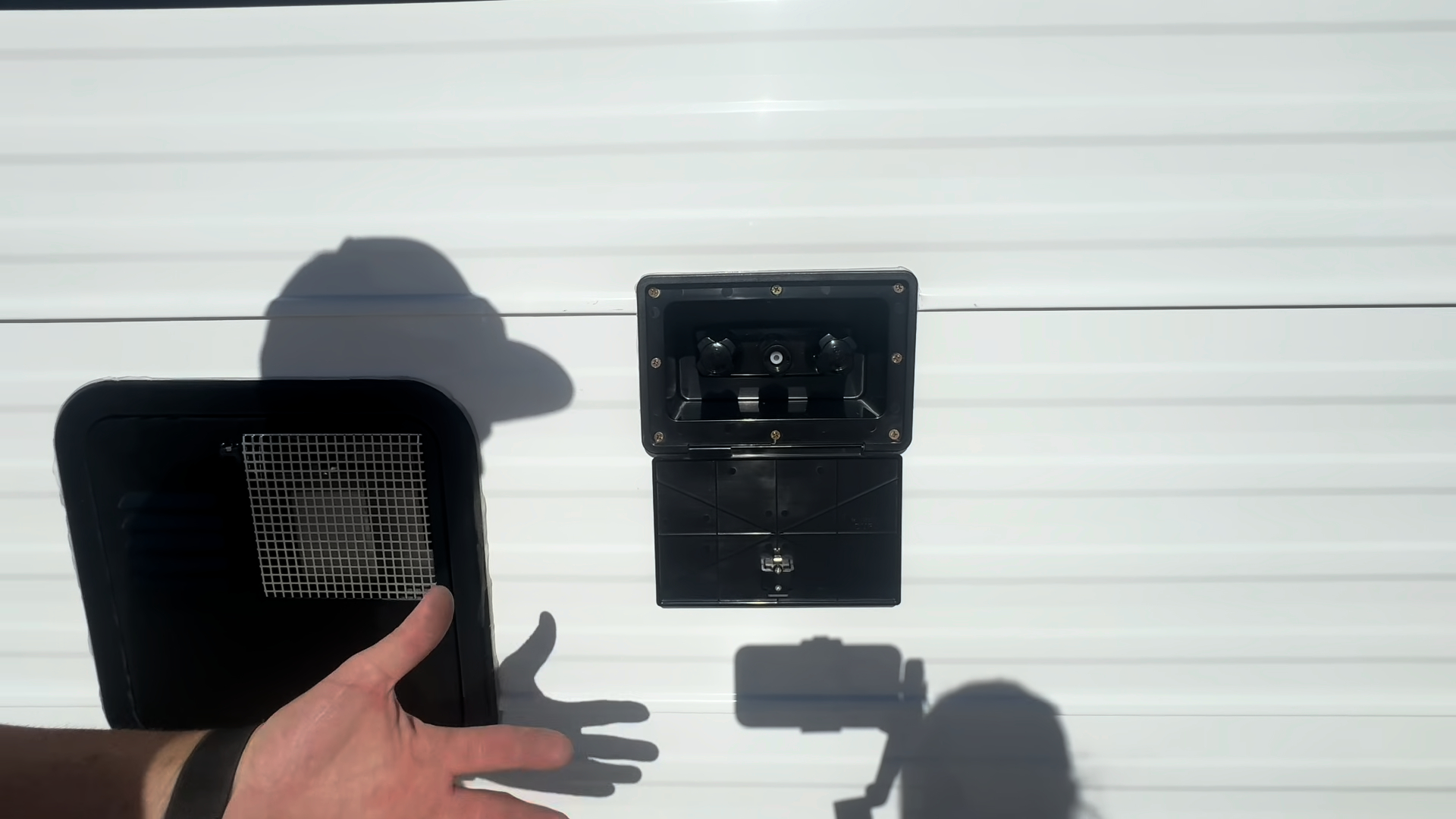

Exterior Shower: External Spray Port
Fresh Water Connection: Standard
City Water Connection: Standard

Waste Water

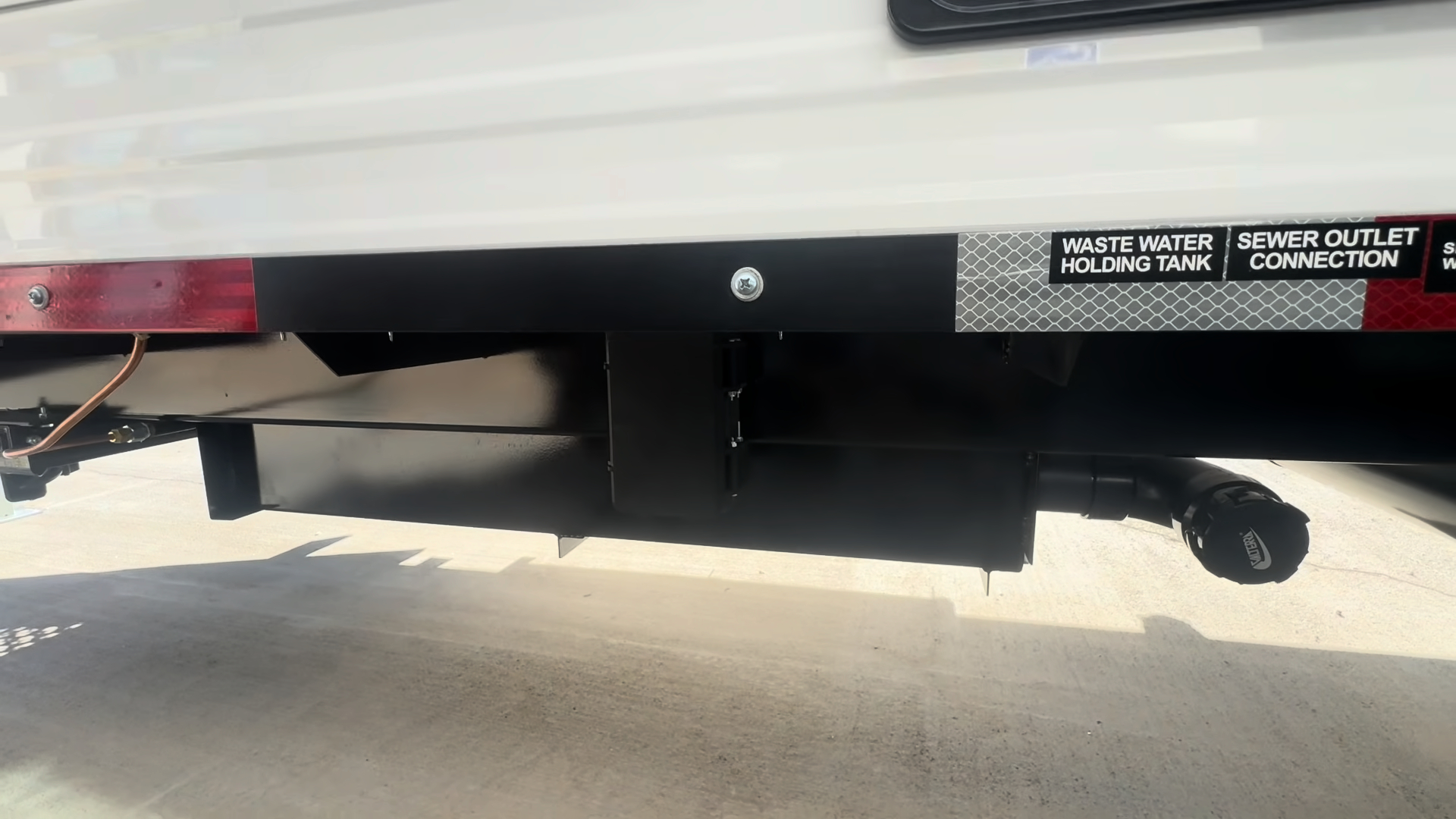

Holding Tank Cover: Insulated Metal Tank Cover
Tank Heating Elements: Highlighted feature: Electric Heating Blankets Added
Sewer Hose Storage: Standard
Black Water Tank: 35 gal. Black Water Tank
Gray Water Tank: 35 gal. Gray Water Tank

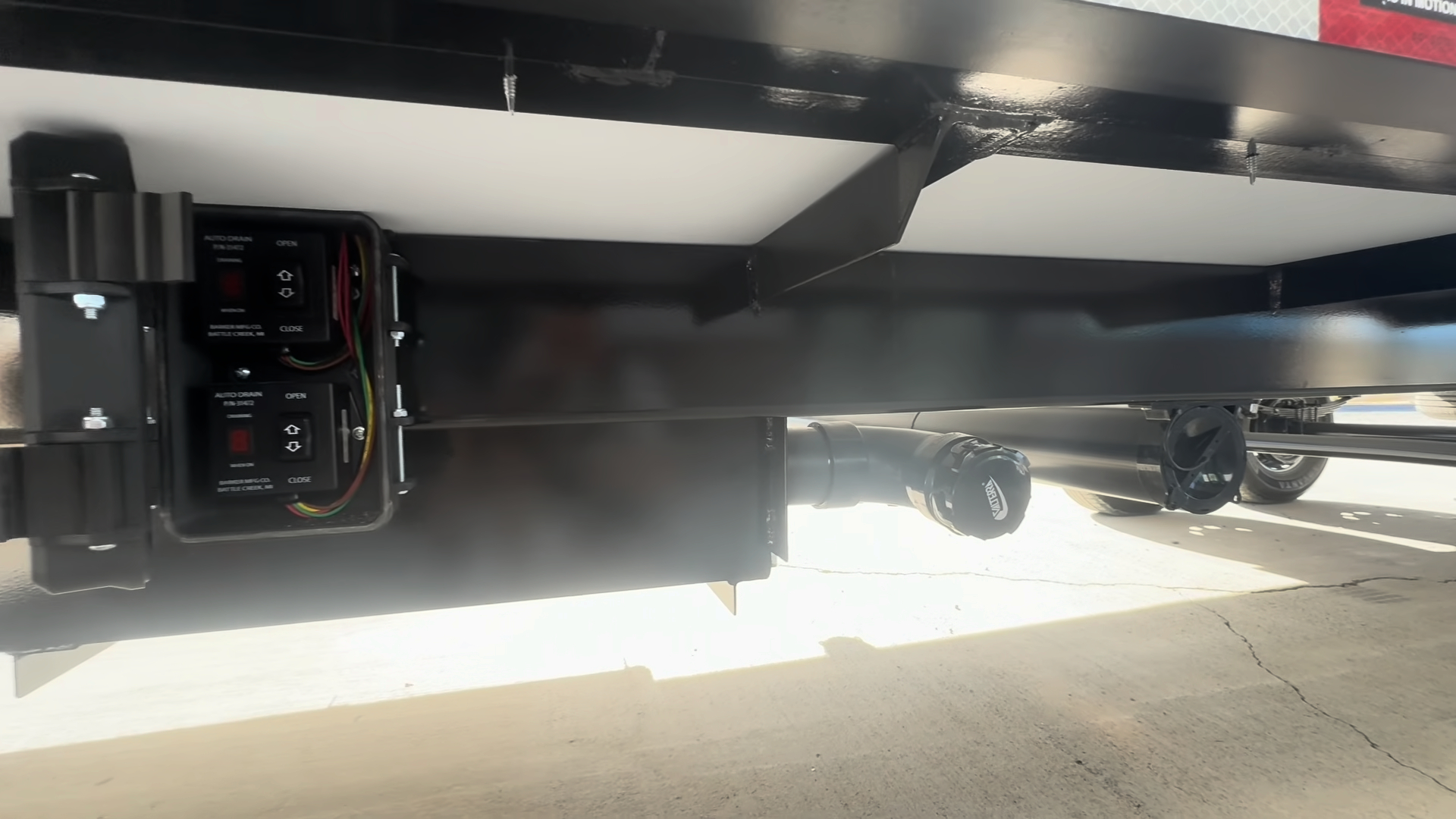

Electric Waste Gates: Highlighted feature: Added
Sewage Hook-Up: Standard

Climate Control

Heating & Cooling

Wood Burning Stove: Standard
Furnace: 30,000 BTU Forced-Air Furnace (Under Fridge)

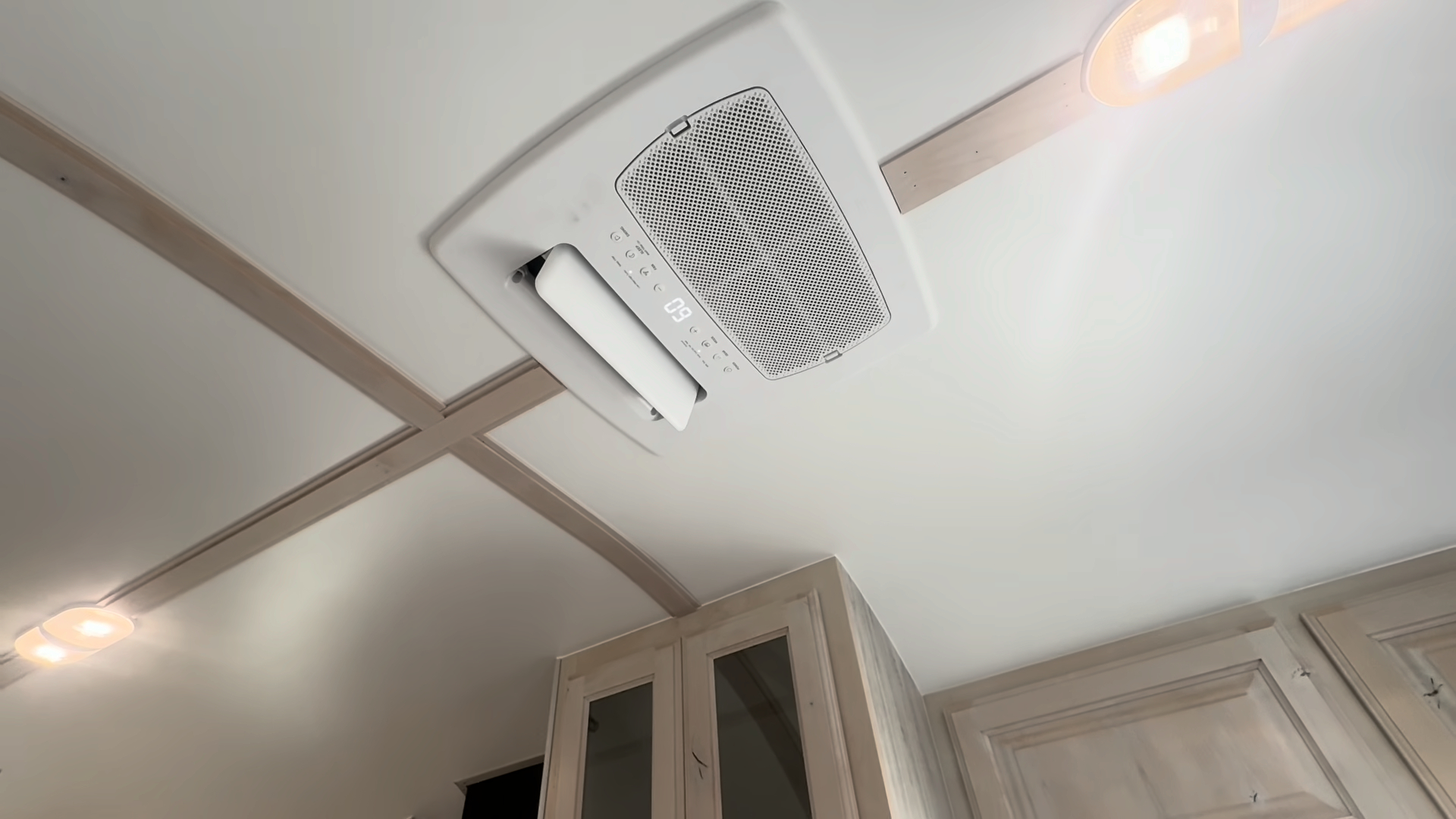

Air Conditioning: Highlighted feature: Furrion Ultrasonic Variable-Speed Temperature-Controlled A/C with Remote
Ventilation: Highlighted feature: Fantastic Fan with Remote, Temperature Control, & Rain Sensing
Recirculation Fan: Standard 12V Air Circulating Fan

Internet & Entertainment

Connectivity

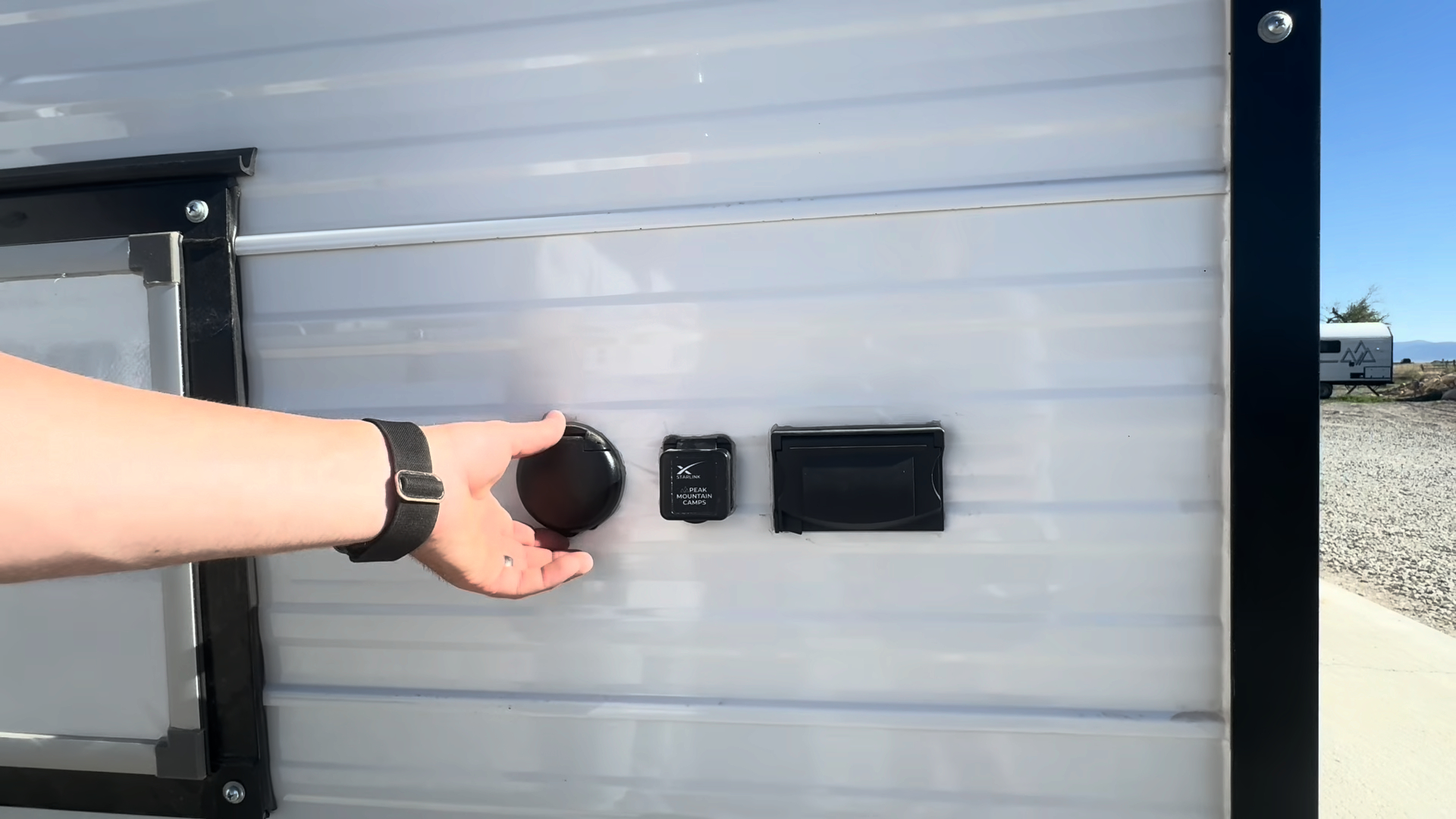

Exterior Ethernet Port (RJ45): Standard (Ready For Starlink)
Exterior Coax Port: Standard

Entertainment

TV: Prepped for TV – DC Outlet & Coax Connection Within Sleeping Area

Construction & Finishes

Construction

Ceiling Insulation: 6 in., R-19
Floor Insulation: 6 in., R-19
Walls: 2 in. Thick
Serviceability: Utilities Remain Accessible For Repairs

Cabinetry

Cabinets: All-Hardwood Cabinets
Hinges: Soft-Close Hinges
Drawer Construction: Dovetail Construction
Drawer Slides: Self-Latching, Travel-Secure Slides
Thumb Latches: Included On Large Drawers

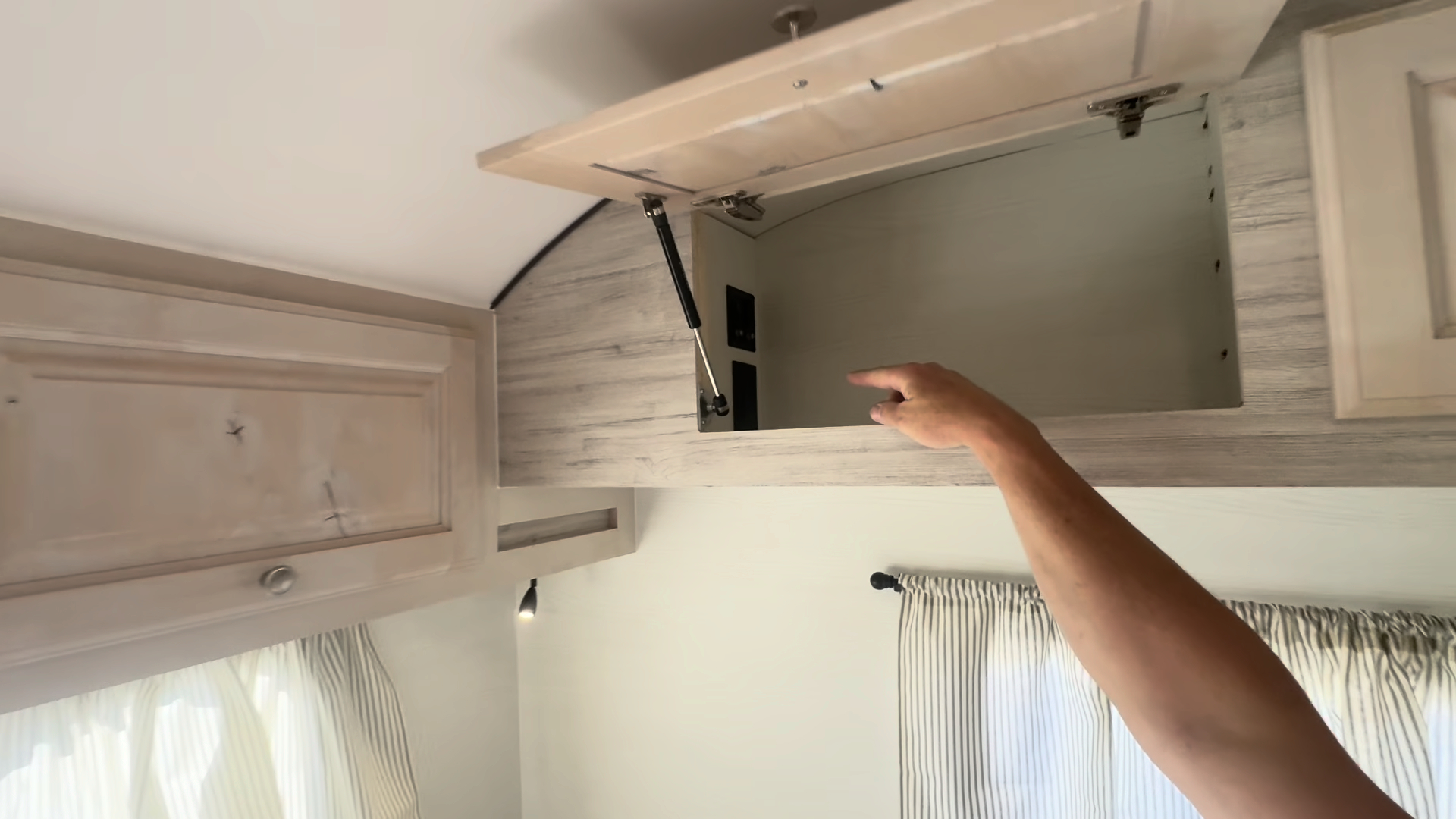

Overhead Cabinet Doors: Gas-Strut-Supported Cabinet Doors

Finishes & Colors

Wall Color: Wilsonart White Barn (7977-12)
Cabinet Color: Wilsonart White Driftwood (8200-16)
Countertop: Wilsonart Calcutta Marble (4925-07)
Cabinet Hardware: Brushed Nickel Knobs & Pull Handles
Recliners & Cushions: Gunmetal
Flooring: Luxury Vinyl Plank Flooring
Floor Color: Karndean Cotton Oak (RL38)
Ceiling Trim: Plain Wood Ceiling Trim
Window Shades: Striped Curtains with Curtain Rods
Wood Accents & Engravings: None

Frame, Chassis, & Towing

Frame

Frame Construction: Custom-Engineered For Best Towing Characteristics
Platform: X33

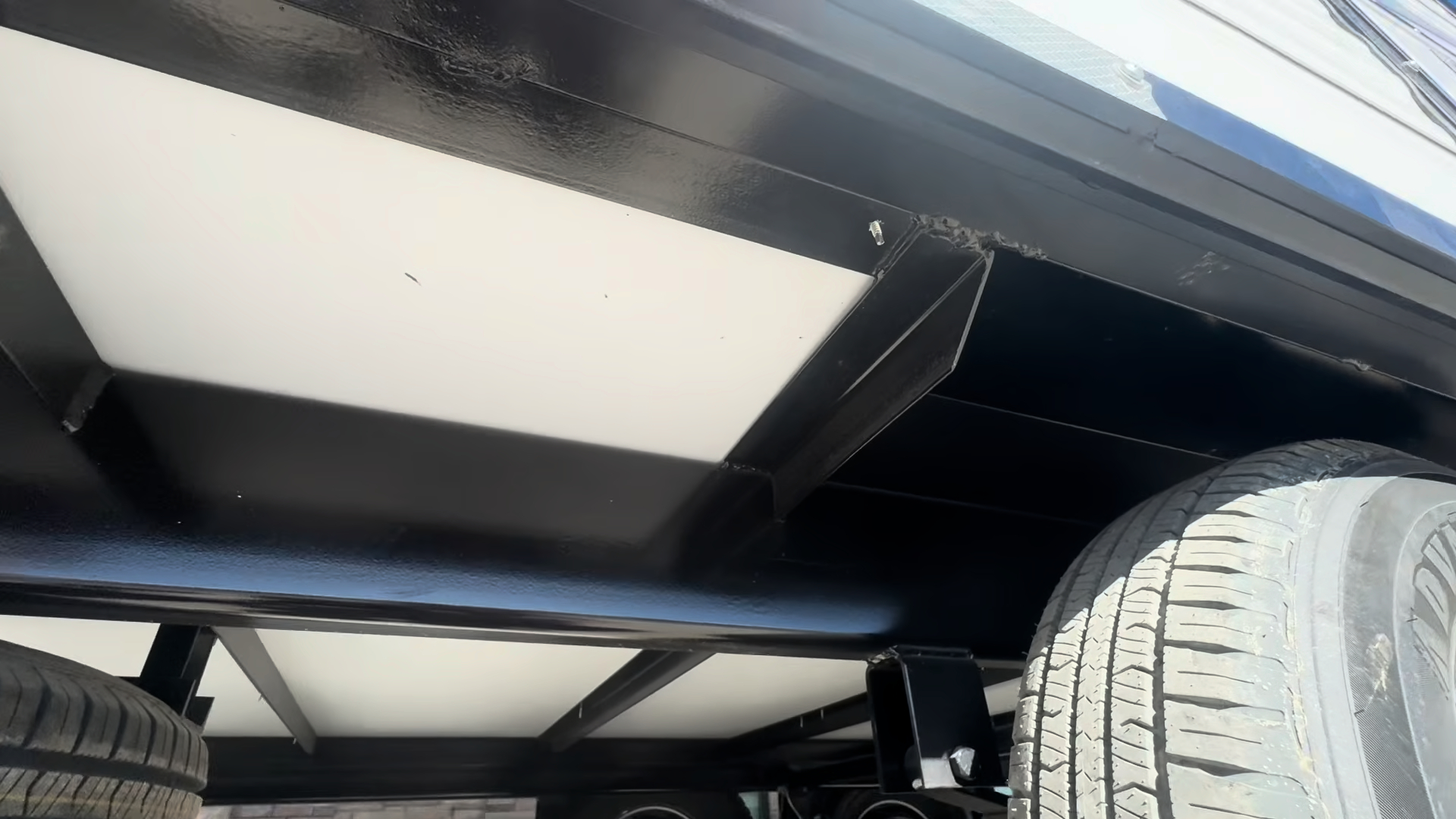

Wheel Wells: Metal-Encased Wheel Wells to Protect from Road Debris and Damage from Tire Blowouts
Stabilizer Jacks: All Four Corners

Chassis

Axles: Dual 7,200 lb Axles w/ Easy Lube Hubs
Wheels: 8-Lug Wheels with 16 in. Rims
Tires: 16 in. E-Load ST235/80R16 (10-Ply)
Brakes: Standard Trailer Brakes
Suspension: Over-The-Axle Leaf-Sprung Suspension

Towing

Hitch Type: Bumper Pull
Coupler: Adjustable 2 5/16 in. 15,000 lb Coupler
Ball Height: Adjustable
Tongue Jack: Manual Jack
Spare Tire: Standard Drop-Down Spare Tire
Rear Receiver: 3x 2 in. Receiver Rated For Pulling Doubles, Bike Racks, etc.
7-Way Plug: Standard
Towing Chains: Included

Safety

General

CO/LP Detector: Standard
Egress Window: Rear Egress Window
Road Markers: DOT-Compliant Markers
Reflective Tape: Canadian-Compliant Reflective Striping
Taillights: Standard
Trailer Lights: DOT-Compliant LED Lights
Smoke Detector: Standard
Fire Extinguisher: Standard
Fire Backer: Fire Backer Behind Wood Stove & Fire-Lined Cabinetry
Chimney: Triple-Wall Flue & Chimney
Battery Disconnect: Standard
NFPA 1192 Compliant: Yes

Dimensions

Exterior Measurements

Length: 33 ft.
Width: 102 in.
Height: 11 ft. 8 in.

Interior Measurements

Length: 26 ft.
Width: 96 in.
Height: 7 ft. 4 in.

Weight

Dry Weight: 10,900 lb
Tongue Weight: 12% Of Total Weight

More Details

Build

Camp Name & Number: Hanson Camp (#126)
Homebase: Rockford, Illinois
Completion: June 2026
