Schrauth Camp
A triple-axle custom camp with adjustable Twin XL beds, six-battery off-grid power, water treatment, a wood stove, and generous residential storage.
- Designed For
- Extended Off-Grid Travel
- Platform
- X40 Camp
- Pricing
- Contact Us
Inside And Out
Camp Photos
Explore the craftsmanship, layout, and practical details throughout the Schrauth Camp.
Layouts & Drawings

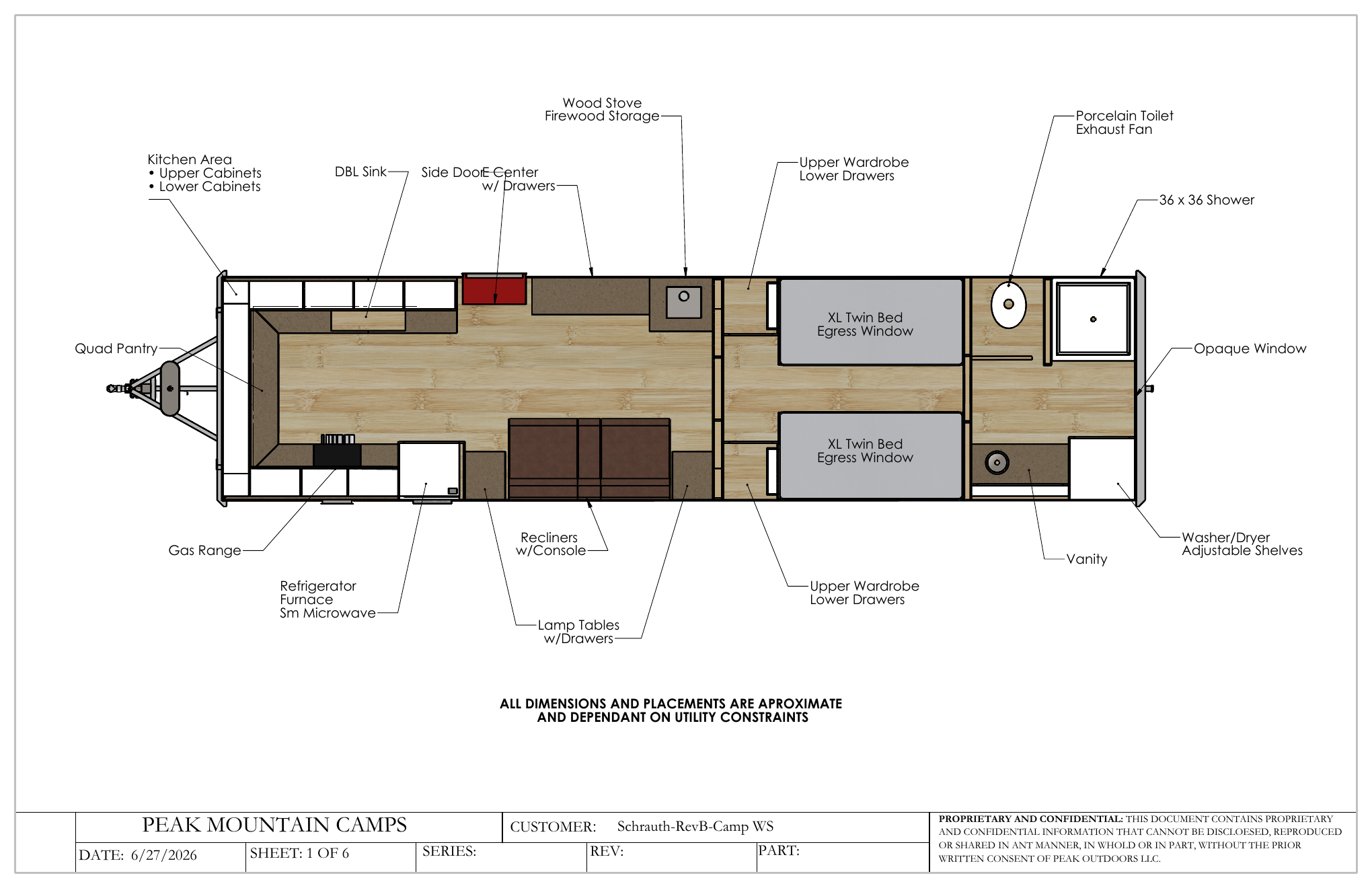

Floor Plans
Build Details
Specifications
Exterior
General
- Entry Layout
- Highlighted feature: Side entry
- Entry Door Style
- Dutch door
- Entry Railing
- Yes
- Windows
- Windows with sliders & screens
- Exterior Lights
- Included
- Diamond Plate Wrapping
- Front only
- Exterior Awning
- Yes
Storage
- Removable Decking
- Removable decking for storage access
- Compartments
- Exterior storage
- Wood Box
- Pass-through wood box
Interior
Living Space
- Primary Seating
- Double recliners with console
- Entertainment Center
- 6-drawer entertainment center with connections
- Storage
- 2x end tables with double drawers
- Reading Lights
- Two reading lights above recliner
- Connections
- Coax connections on entertainment center
- AC Outlet
- 4x 12-volt AC outlets (1x wall, 2x end tables, 1x entertainment center)
- DC Sockets
- 1x socket on TV wall and 1x socket on entertainment center
- USB Ports
- Recliner console with 2x USB-A ports
Kitchen
- Refrigerator
- 7 cu ft fridge/freezer
- Microwave Cabinet
- Large cabinet above fridge (no microwave)
- Stovetop & Oven
- Gas range with exterior-vented hood
- Sink
- Large single sink with residential-grade faucet
- Pantry
- 4x slide-out pantries
- Overhead Cabinets
- 10x overhead cabinets
- Tip-Outs
- 4x sink tip-outs
- Open Storage
- Large open storage below sink
- Drawers
- 11x drawers (4 mid-size drawers by sink, 7 small drawers by oven)
- AC Outlets
- 3x 12-volt AC outlets
Bathroom
- Size / Configuration
- Highlighted feature: Extra large (laundry and bath)
- Door
- Solid hardwood door
- Vanity
- 2x tip-outs and large open storage beneath sink
- Medicine Cabinet
- Large
- Shower
- 36 x 36 in.
- Shower Door
- Glass swinging door
- Sink
- Small stainless steel sink with residential faucet
- Toilet
- Porcelain bowl
- Washer/Dryer
- Highlighted feature: Washer/dryer combo
- Wardrobe
- Large wardrobe with adjustable shelving above washer/dryer
- Window
- Frosted sliding window
- Ventilation
- Bathroom exhaust fan
- AC Outlets
- Single 12-volt AC outlet
Sleeping Space
- Layout
- Highlighted feature: Dedicated bedroom with pocket doors
- Bed Configuration
- Highlighted feature: Adjustable Twin XL beds
- Sleep Capacity
- 2
- Nightstands
- 2x wall alcoves
- Wardrobes
- 2x large wardrobes with hanging rod and two large drawers
- Storage
- 3 large drawers beneath each bed
- Reading Lights
- 2x reading lights above each bed
- AC Outlets
- Each alcove has 2x 12-volt AC outlets
Hallway / Entry
- Closet
- Quad pull-out pantries, wardrobes, and drawers
Lighting
- Interior Lights
- Standard
- Propane Gas Light
- One wall-mounted gas light
- Closet Lighting
- Yes
- Cabinet Lighting
- Yes
Fuel & Power
Power
- Solar Panels
- Two 100 W panels plus additional solar port
- Solar Controller
- Included
- Battery Bank
- Six 6 V deep-cycle batteries
- Shore Power
- 30 A
Propane
- Tanks
- Two 7 gal, 30 lb tanks
- Tank Cover
- Quick access propane tank cover
- Propane Quick Connects
- 1x on passenger side
Plumbing
General
- Plumbing Protection
- Fully insulated & heated plumbing
- Fittings
- Brass and stainless steel water fittings
- Monitoring Panel
- Integrated tank-level monitor system with alarms
Fresh Water
- Fresh Water Tanks
- 42 gal
- Water Heater
- 6 gal
- Water Treatment
- Highlighted feature: 3-stage water filtration and water softener with drinking-water bypass
- Fresh Water Connection
- Yes
- City Water Connection
- City water hookup
Waste Water
- Holding Tank Cover
- Insulated metal tank cover
- Sewer Hose Storage
- Included
- Black Water Tank
- 35 gal black water tank
- Gray Water Tank
- 35 gal gray water tank
Climate Control
Heating & Cooling
- Wood Burning Stove
- High-efficiency wood-burning stove
- Furnace
- 30,000 BTU
- Air Conditioning
- Highlighted feature: Soft-start air conditioner
- Ventilation
- Highlighted feature: Fantastic Fan with remote, temperature control, and rain sensing
Internet & Entertainment
Connectivity
- Exterior Starlink/Internet Port
- Starlink ready
Construction & Finishes
Construction
- Ceiling Insulation
- 6 in., R-19
- Floor Insulation
- 6 in., R-19
- Walls
- 2 in. thick
- Serviceability
- Utilities remain accessible for repairs
Cabinetry
- Cabinets
- All-hardwood cabinets
- Hinges
- Soft-close hinges
- Drawer Construction
- Dovetail construction
- Drawer Slides
- Self-latching travel-secure slides
- Drawer Thumb Latches
- Included on large drawers
- Overhead Storage
- Gas-strut-supported cabinet doors
Finishes & Colors
- Ceiling Trim
- Rosewood ceiling trim
- Windows Shades
- Highlighted feature: Pull-down shades with blind boxes
Frame & Towing
Frame
- Frame Construction
- Custom-Built
- Platform
- X40
- Clearance
- 32 in. to bottom of camp angle iron
- Stabilizer Jacks
- All four corners
- Entry Steps
- Heavy-duty fold-up tongue steps
Chassis
- Axles
- Triple 7,200 lb easy-lube axles
- Wheels
- 8-lug wheels with 16 in. rims
- Tires
- ST235/80R16, 10-ply E-load
- Brakes
- Electric brakes on all axles
- Suspension
- Over the axle leaf sprung suspension
Towing
- Coupler
- Adjustable 2 5/16 in., 15,000 lb coupler
- Ball Height
- 22 in. to top of ball at center coupler position
- Tongue Jack
- Bulldog electric tongue jack
- Spare Tire
- Standard
- Rear Receiver
- 2 in. receiver rated for pulling doubles - check local regulations
- 7-Way Plug
- Standard
Safety
- CO Detector
- Carbon monoxide detector
- Egress Window
- Rear egress window
- Road Markers
- DOT-compliant markers
- Reflective Tape
- Highlighted feature: Canadian-compliant reflective striping
- Taillights
- Standard
- Smoke Detector
- Standard
- Fire Backer
- Heat-resistant fire backer behind wood stove
- Chimney System
- Triple-wall flue and chimney
- NFPA 1192 Compliant NFPA 1192 is the National Fire Protection Association standard for recreational vehicles. It establishes minimum fire and life-safety criteria. Learn more about NFPA 1192
- Yes
More Details
Build
- Camp Name & Number
- Schrauth Camp (#129)
Your Camp, Your Way
Ready To Build Your Own?
Tell us how you camp, and we will help shape a trailer around the way you use it.
2 Comments
Have a question or something useful to add? Share it with other Peak Outdoors readers.
Have you attempted, or is it possible, to install a gun safe in a unit? Like a 6, 8, or 10-long gun setup. 56 high x 22 wide x 20 deep, Dry weight 328.
Yes, we have incorporated gun cabinets into builds before. Our design team would need to review the safe dimensions, 328 lb. dry weight, and intended location to determine how it could be integrated within the camp’s dimensional and structural constraints.
Here’s a video featuring a Peak Camp with a gun cabinet: https://youtu.be/2EWIeYyrVxc?si=RXxmcEzZxKChUAJc
