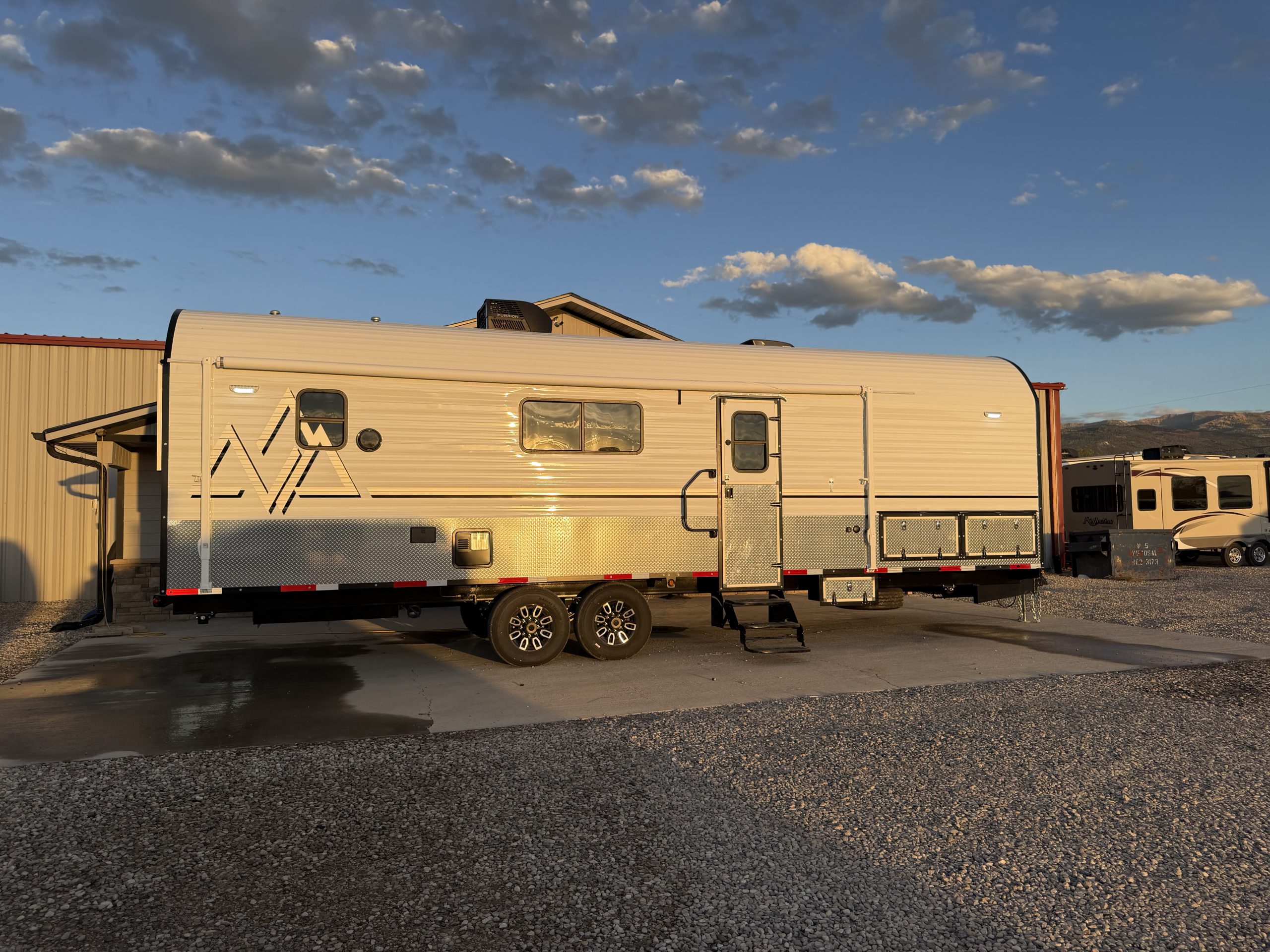

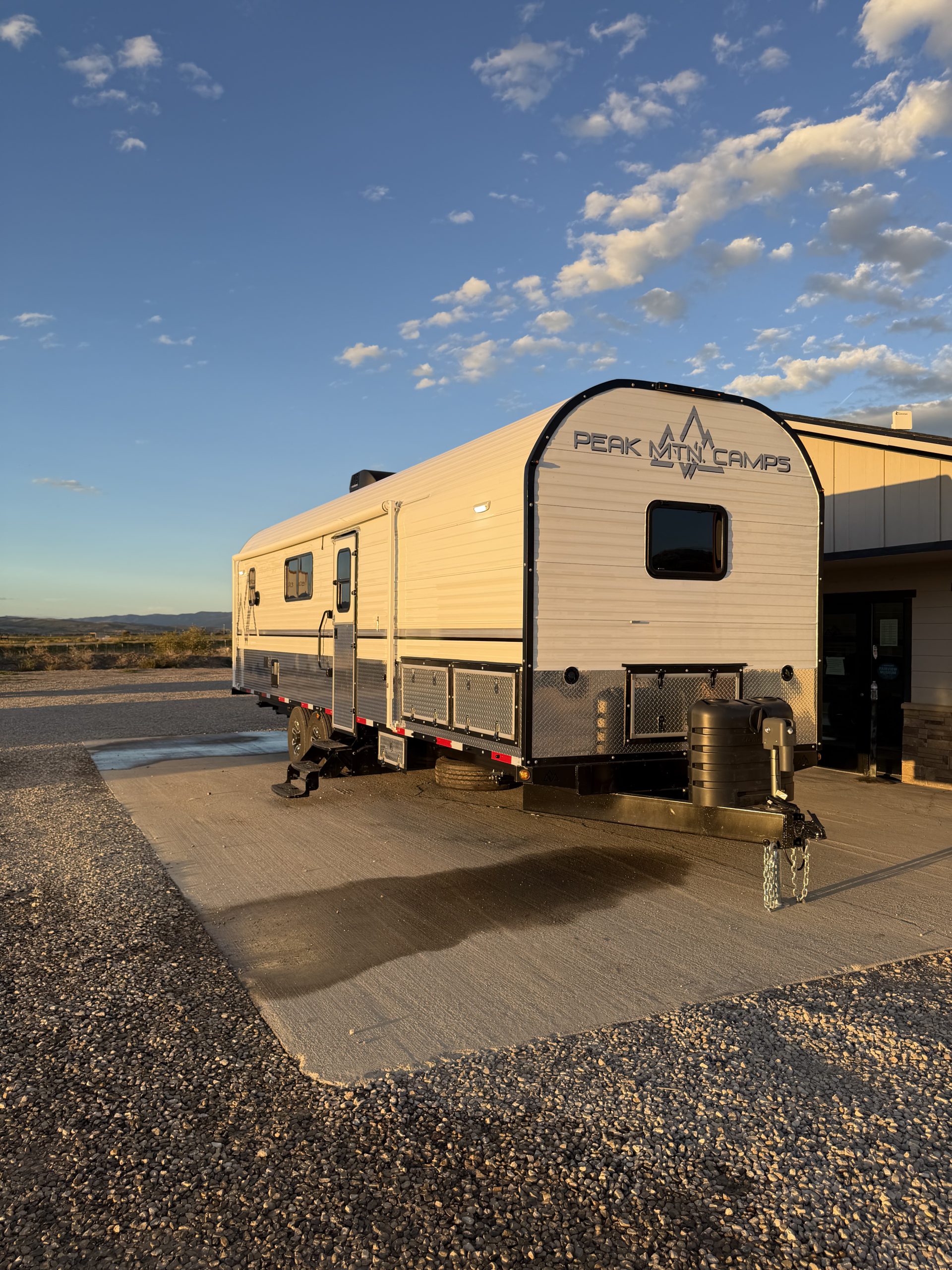

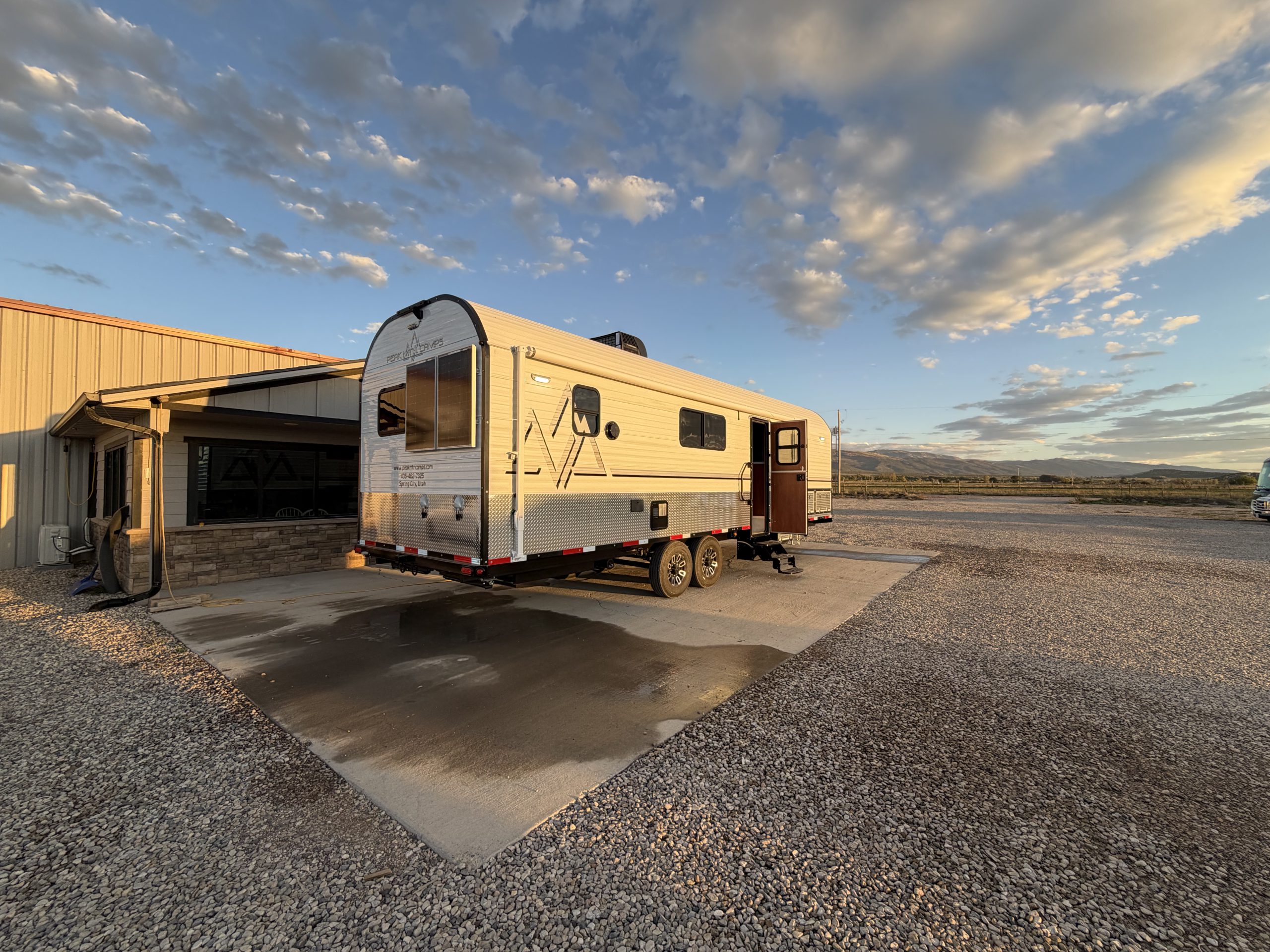

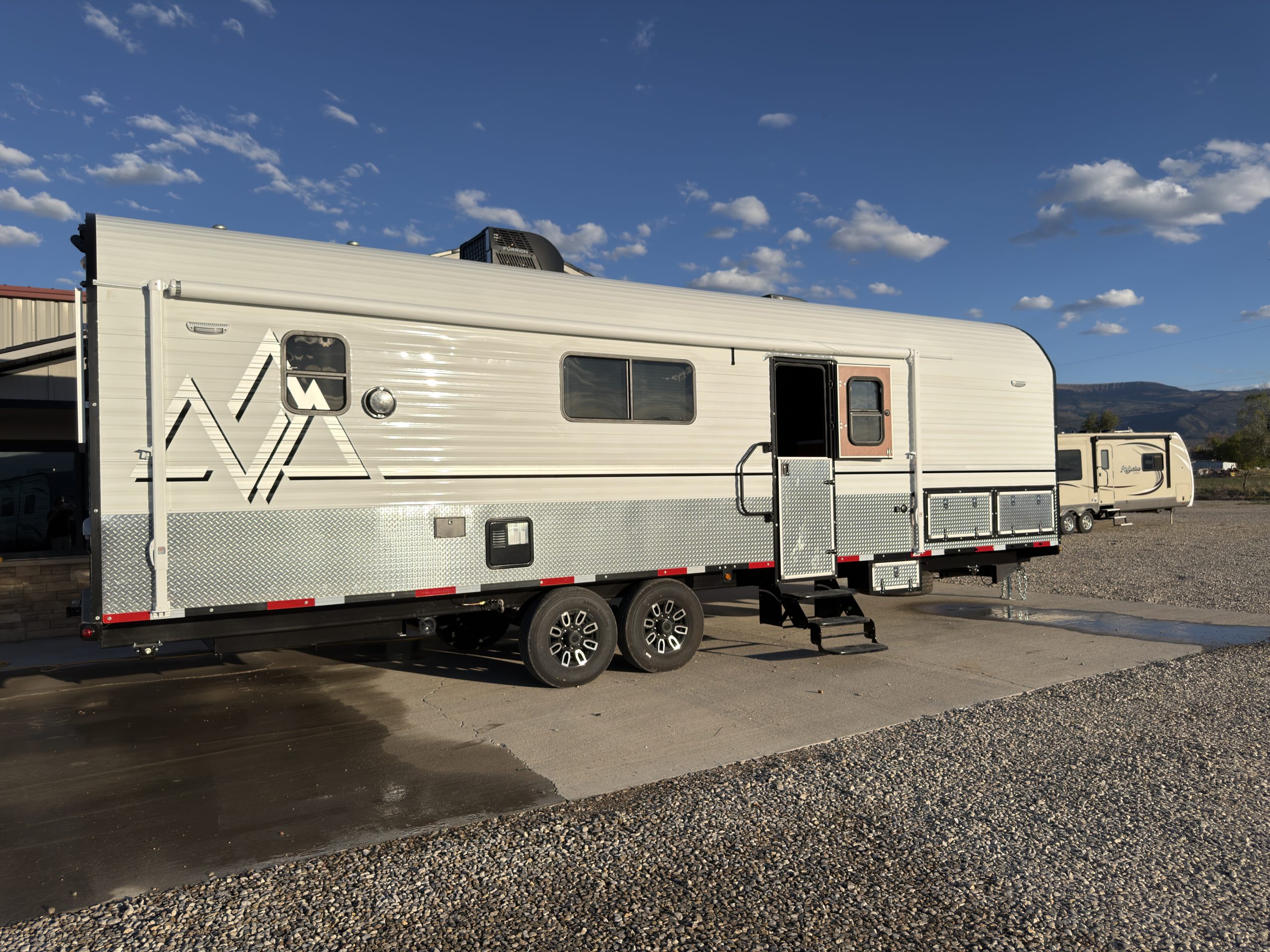

Keulen Camp
This custom X34 side-entry layout features a dedicated corner office with a large desk. Wild Cherry cabinets, Ice Mist countertops, and Pearl Onyx flooring give the interior a distinctive color palette.
- Platform
- X34 Camp
- Pricing Build pricing changes over time with material and component availability, supply-chain costs, and inflation. Final sale prices are kept private out of respect for each owner's privacy.
- Contact Us
Inside And Out
Camp Photos

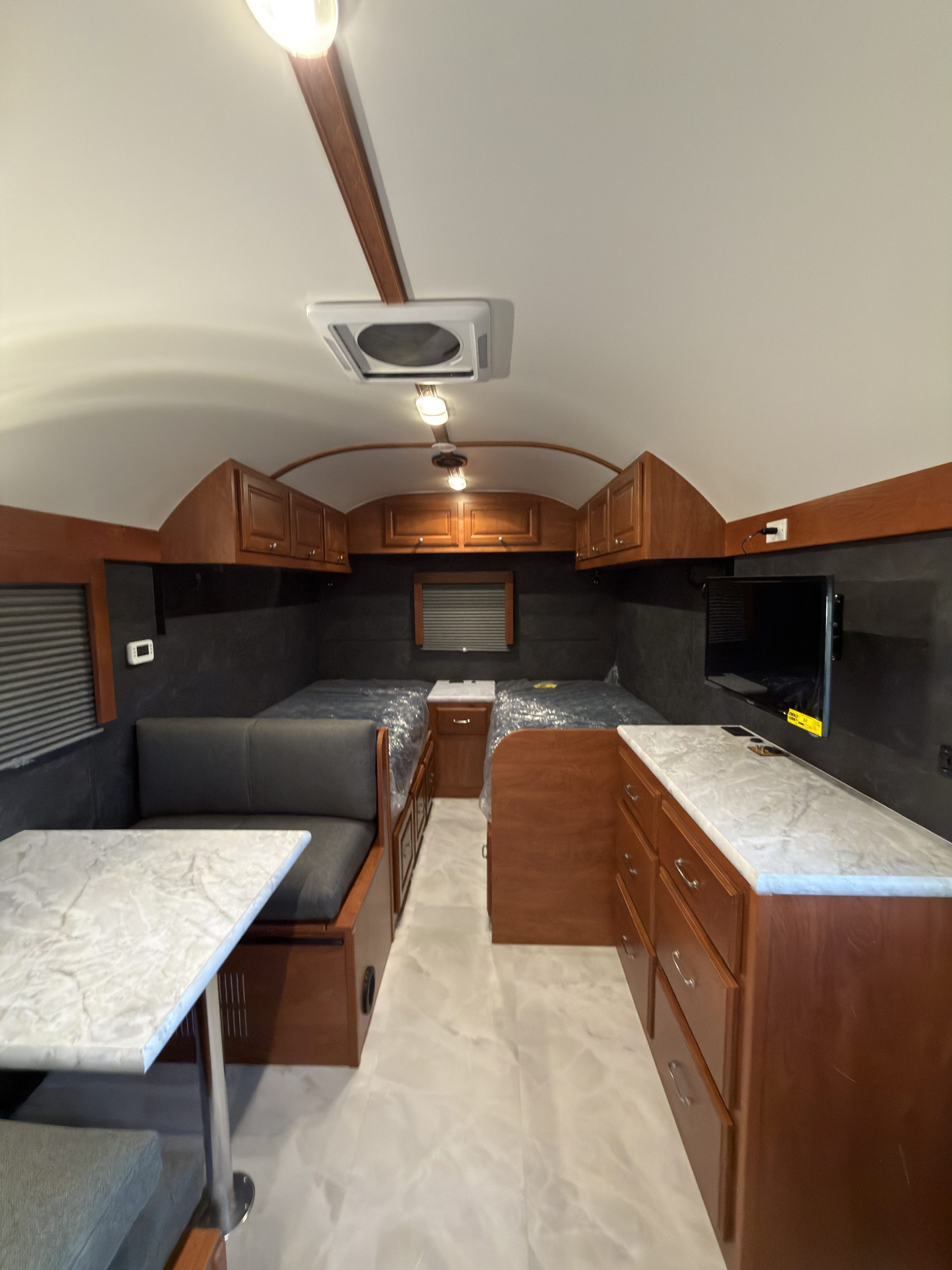

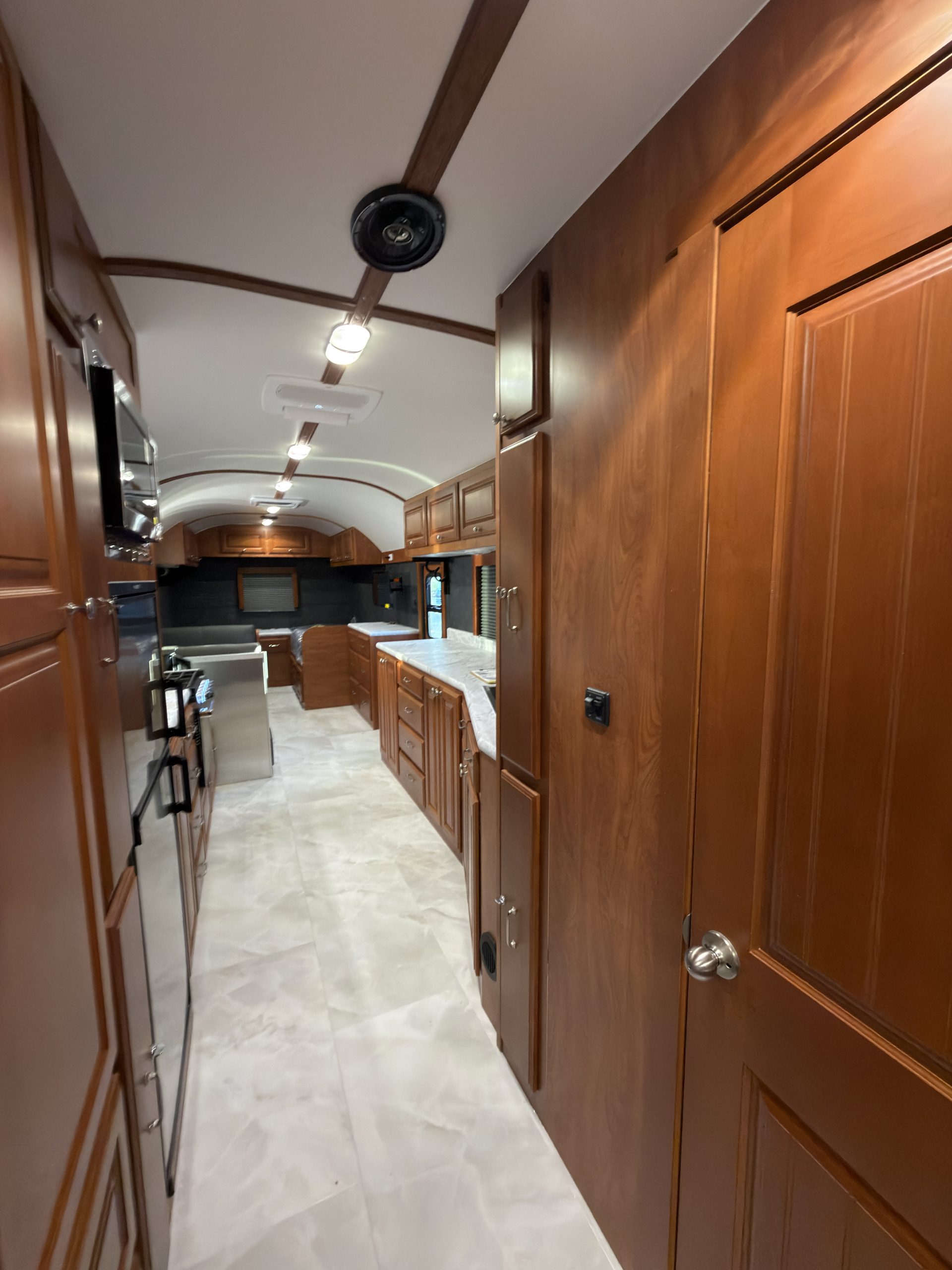

Take a closer look at Keulen Camp, from its exterior construction to the spaces and details inside. Browse the layout, storage, finishes, and everyday features that make this build its own, and open any photo for a closer view.
Layouts & Drawings

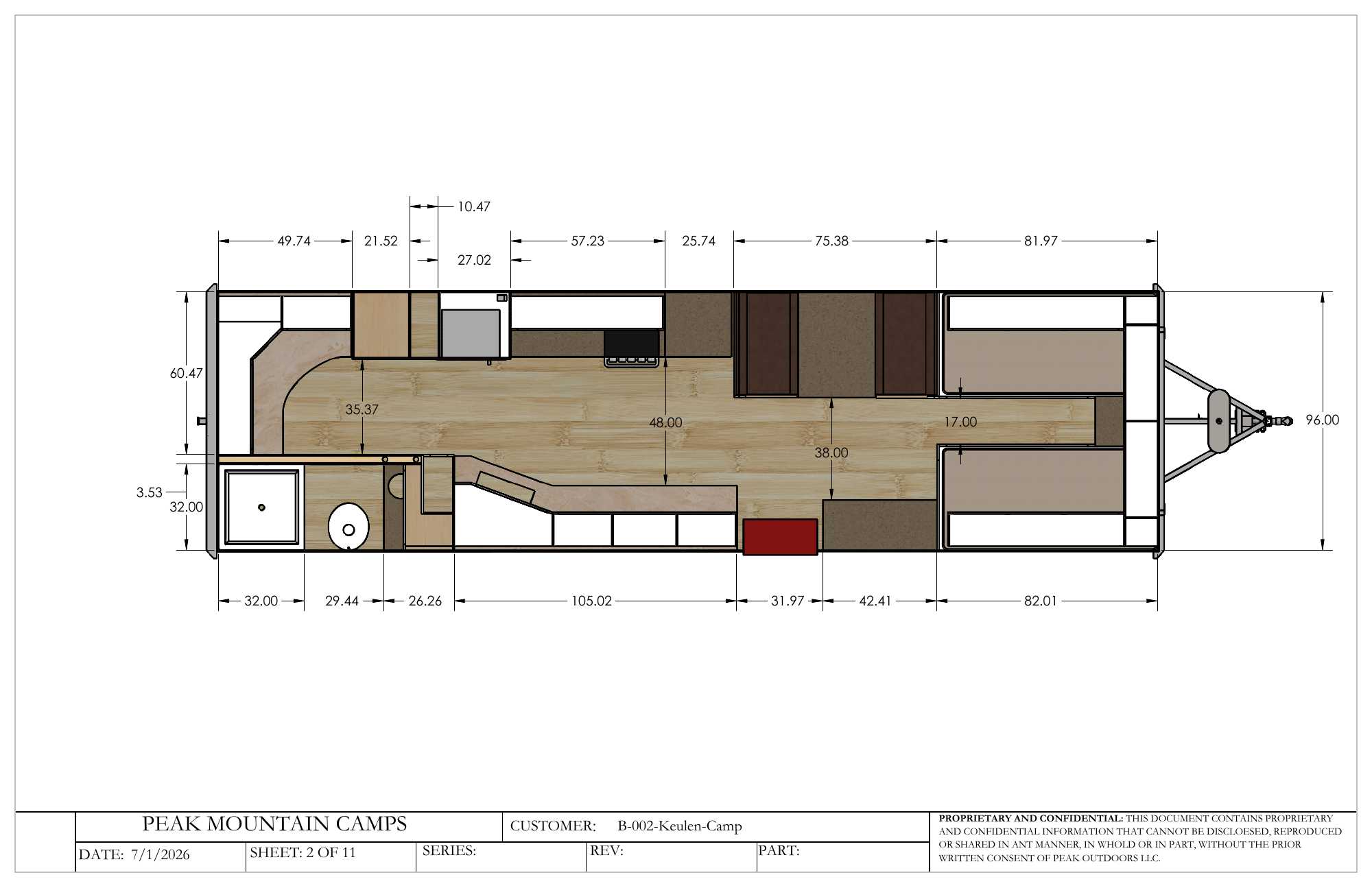

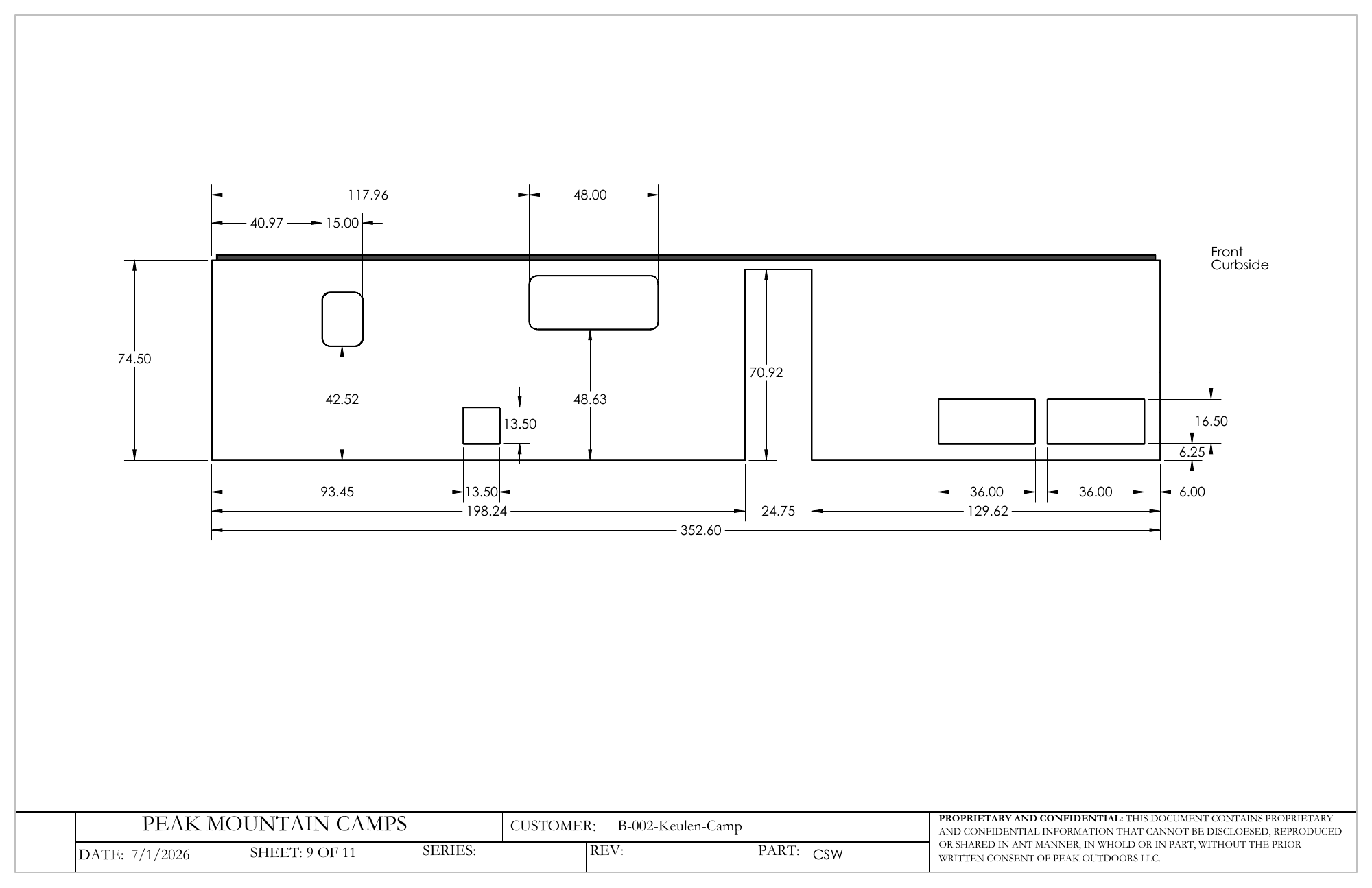

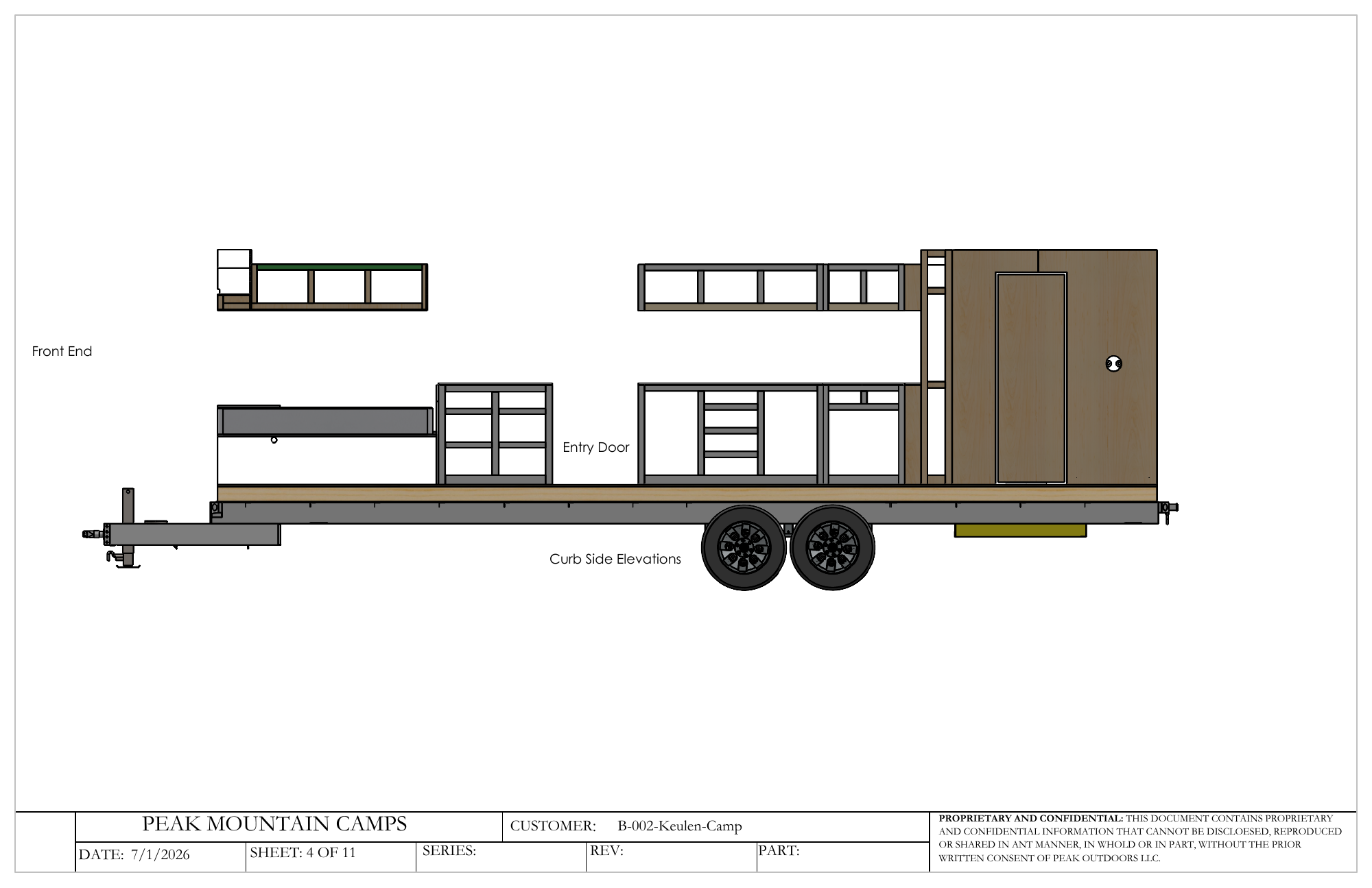

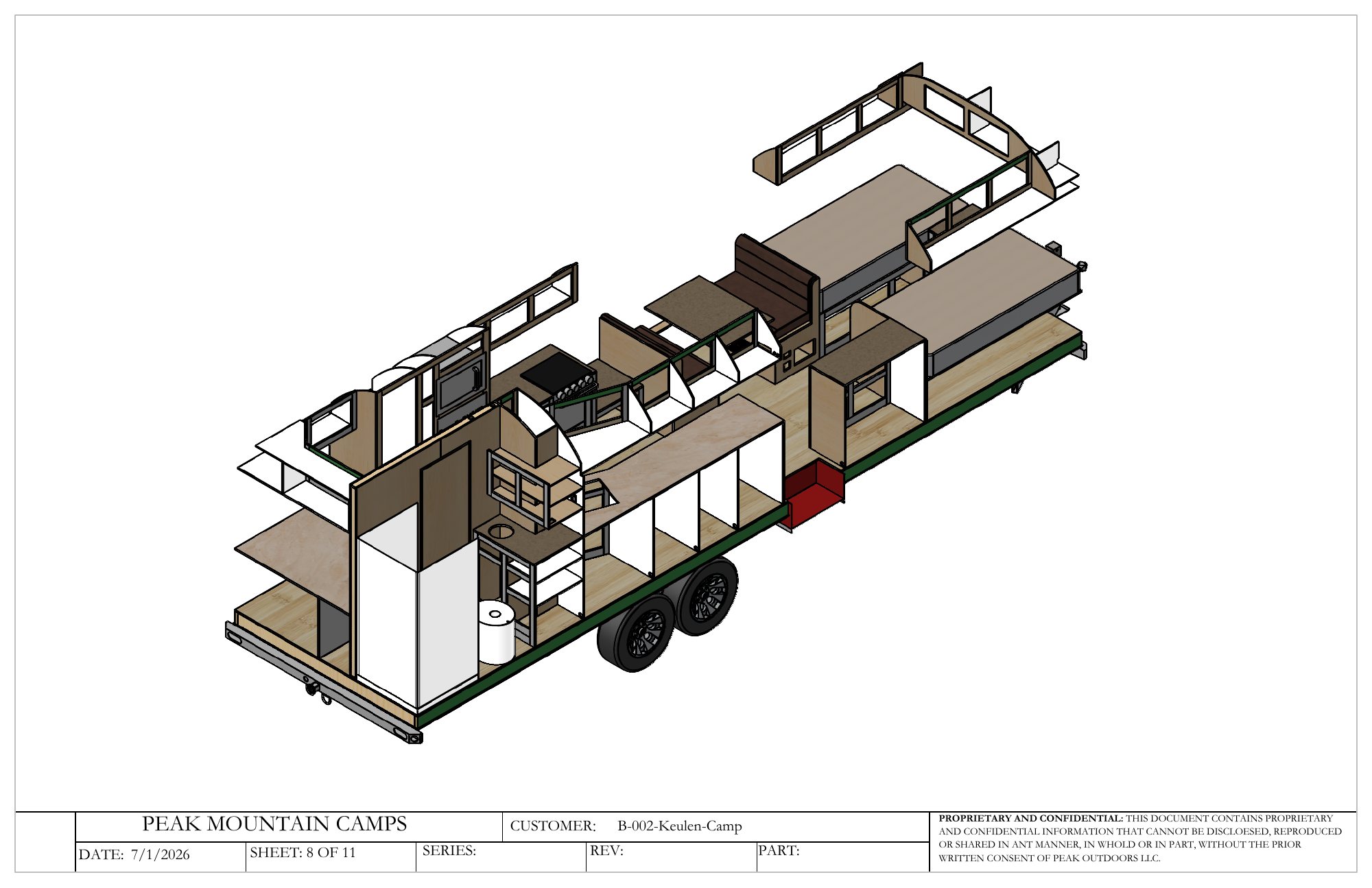

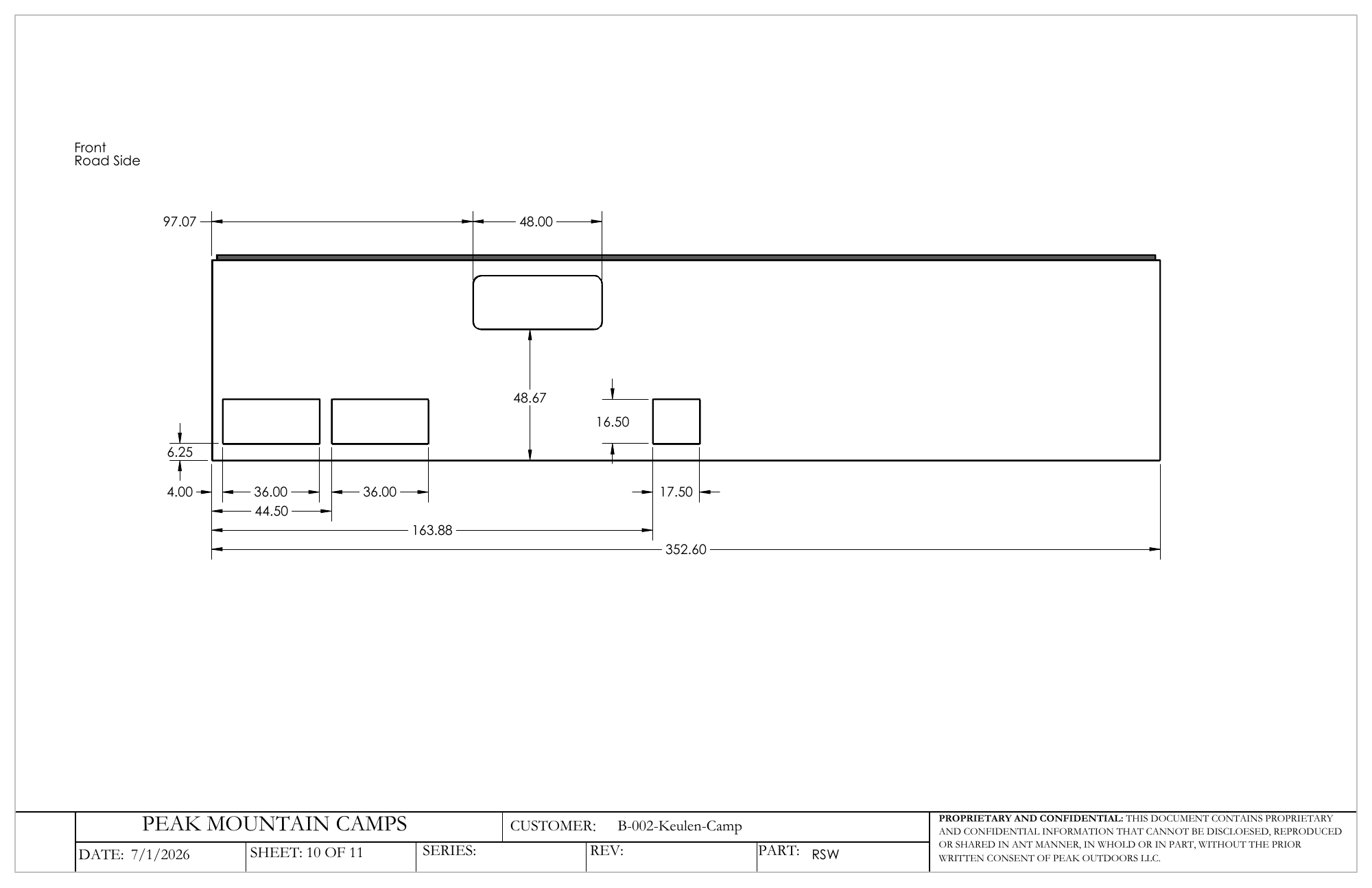

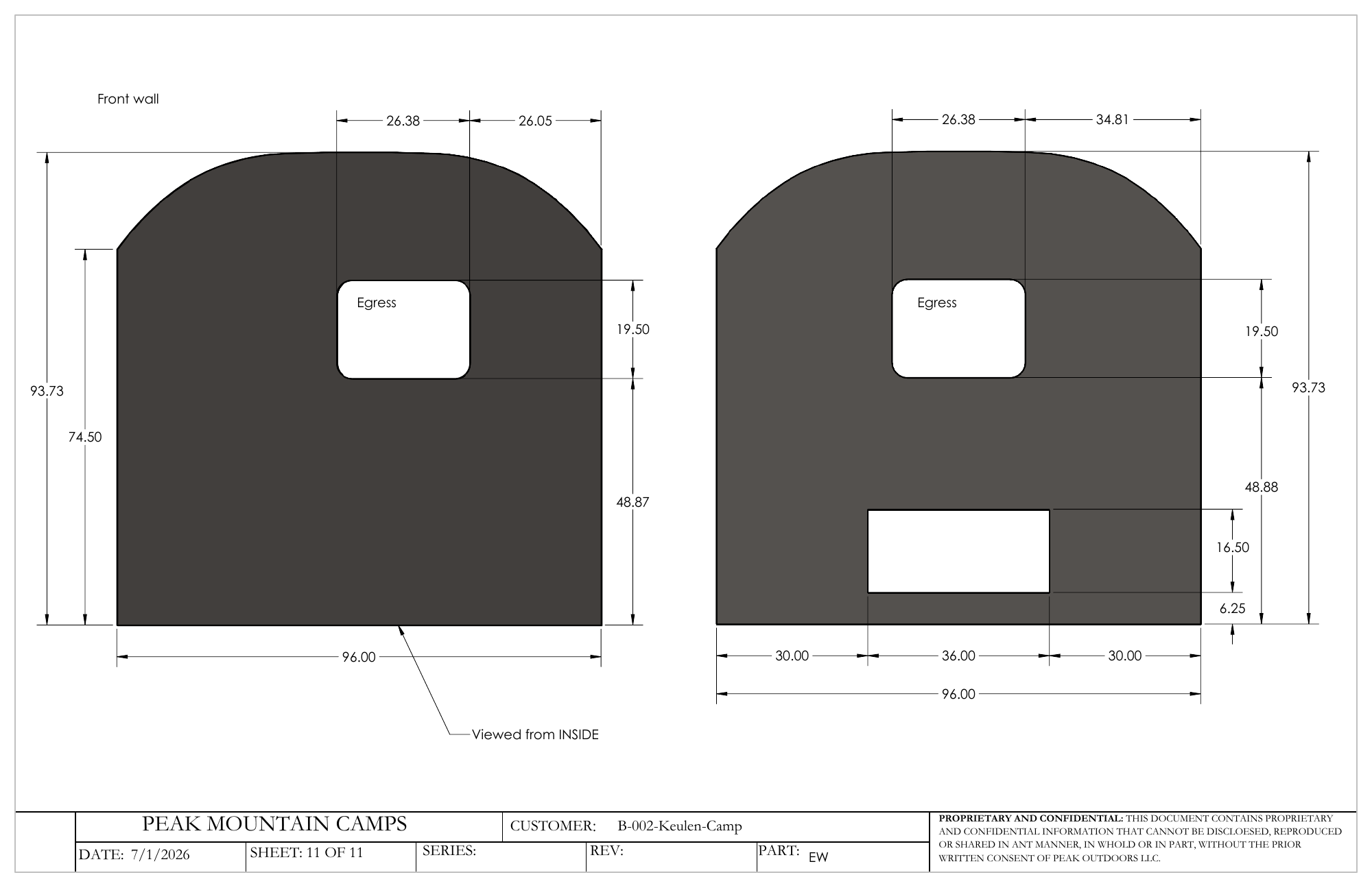

Floor Plans
Build Details
Specifications

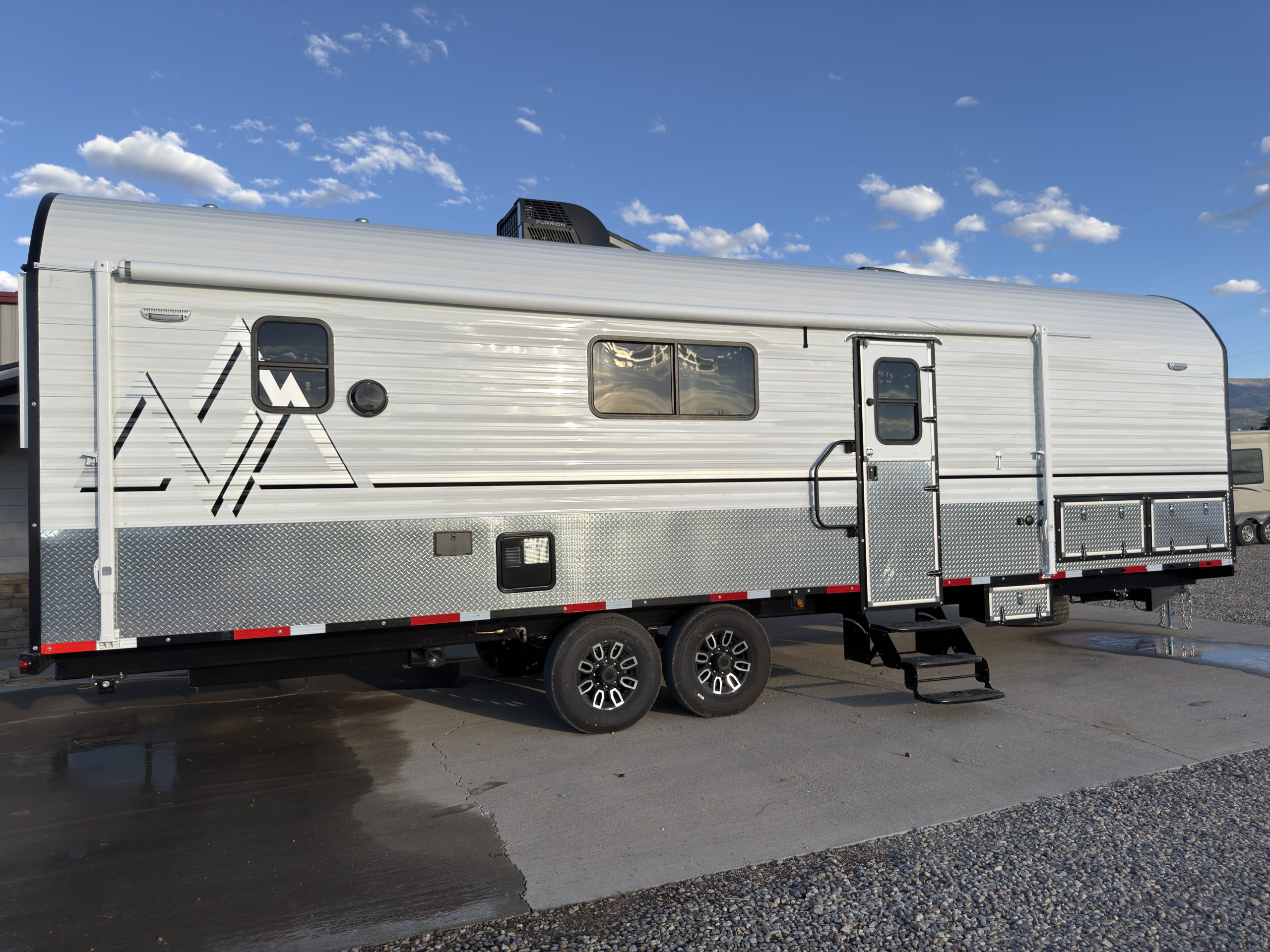

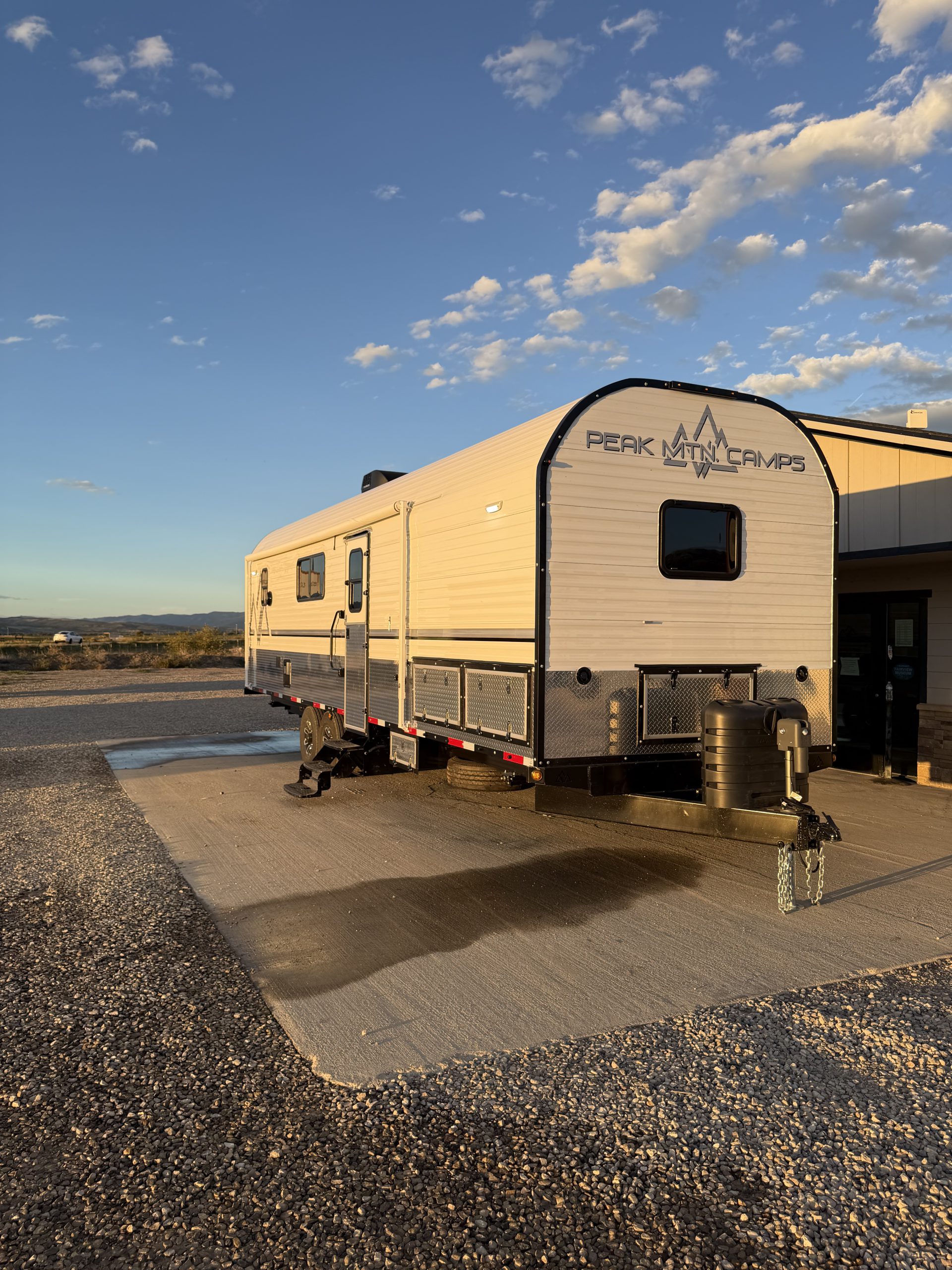

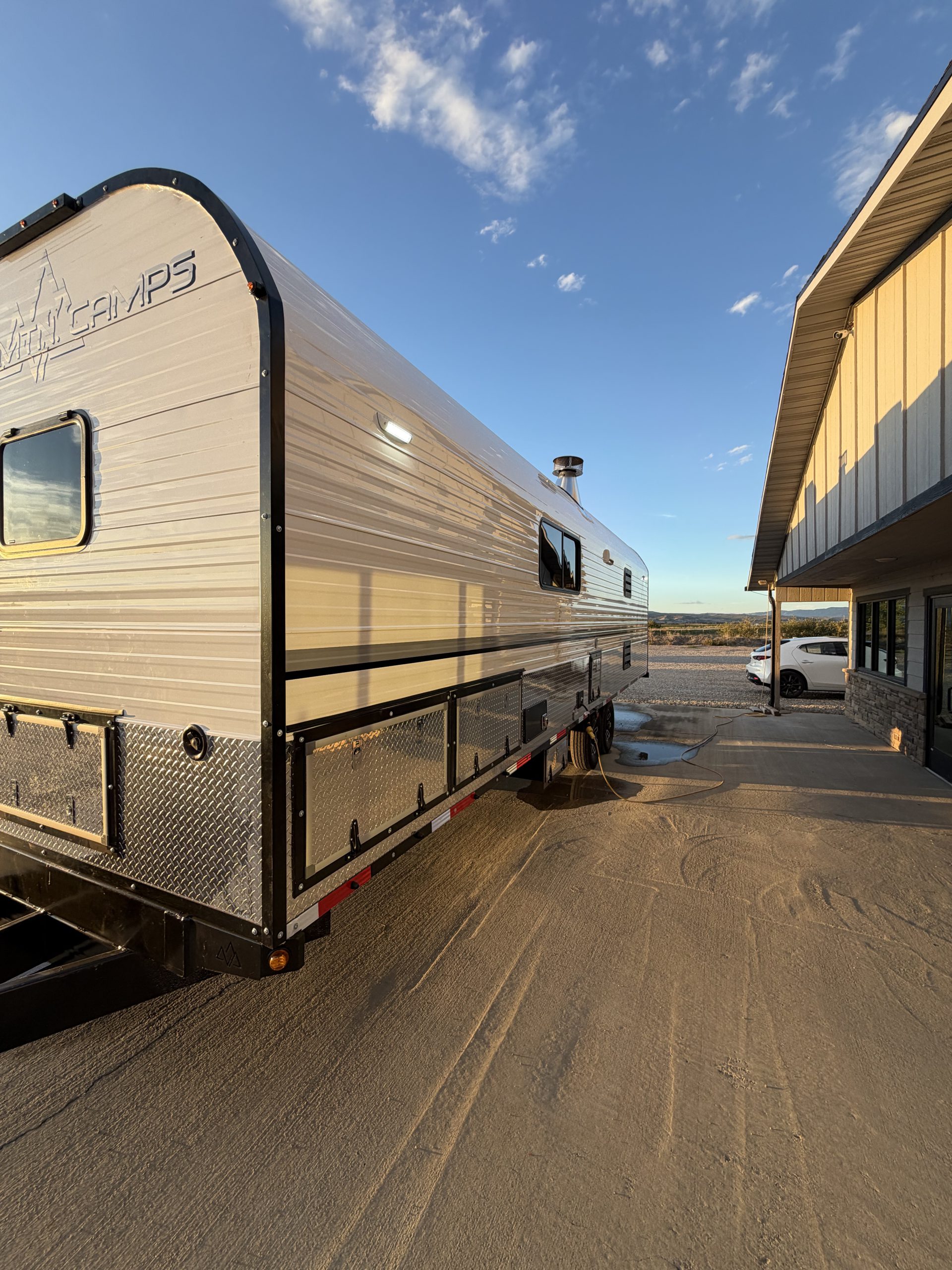

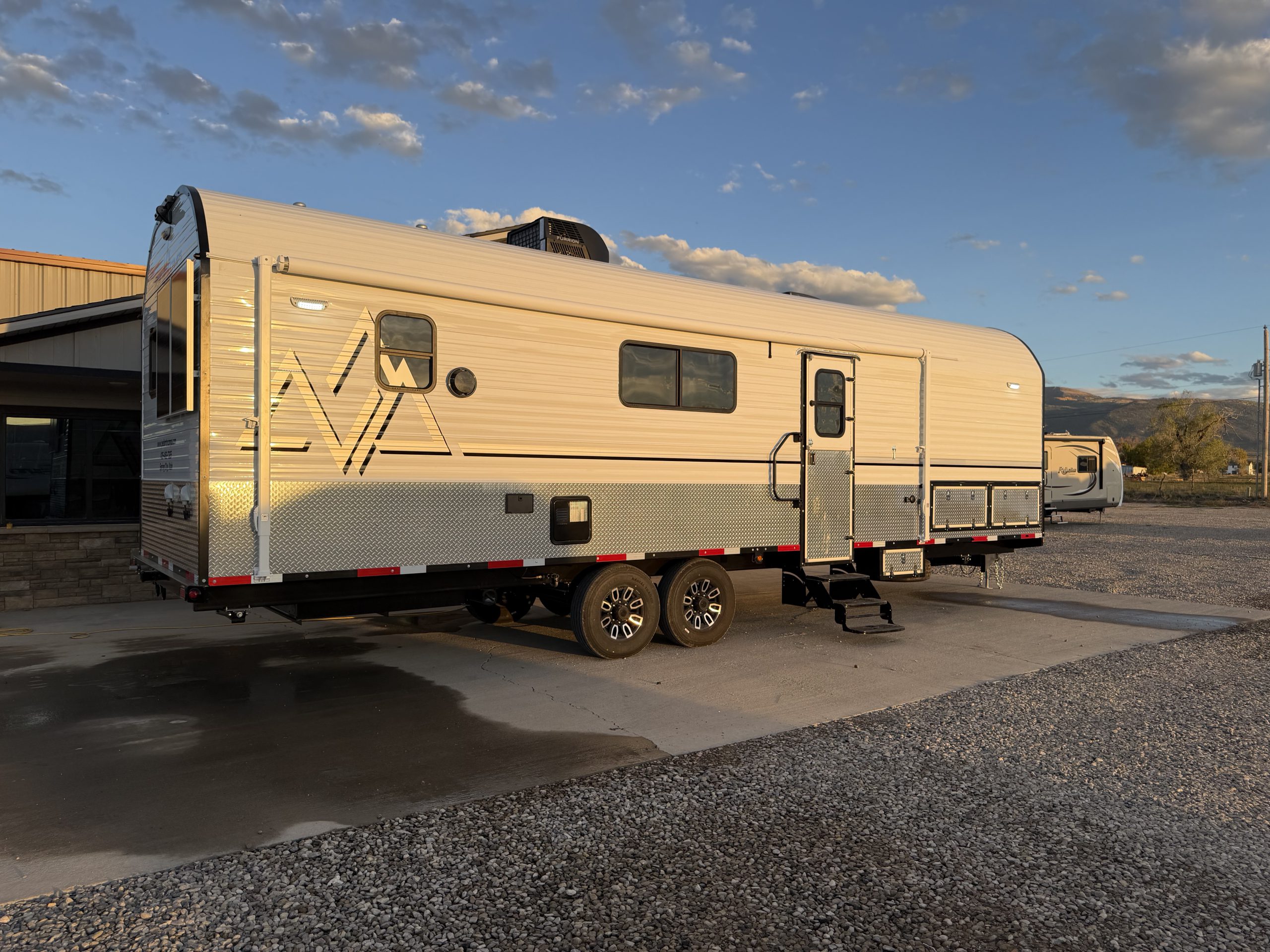

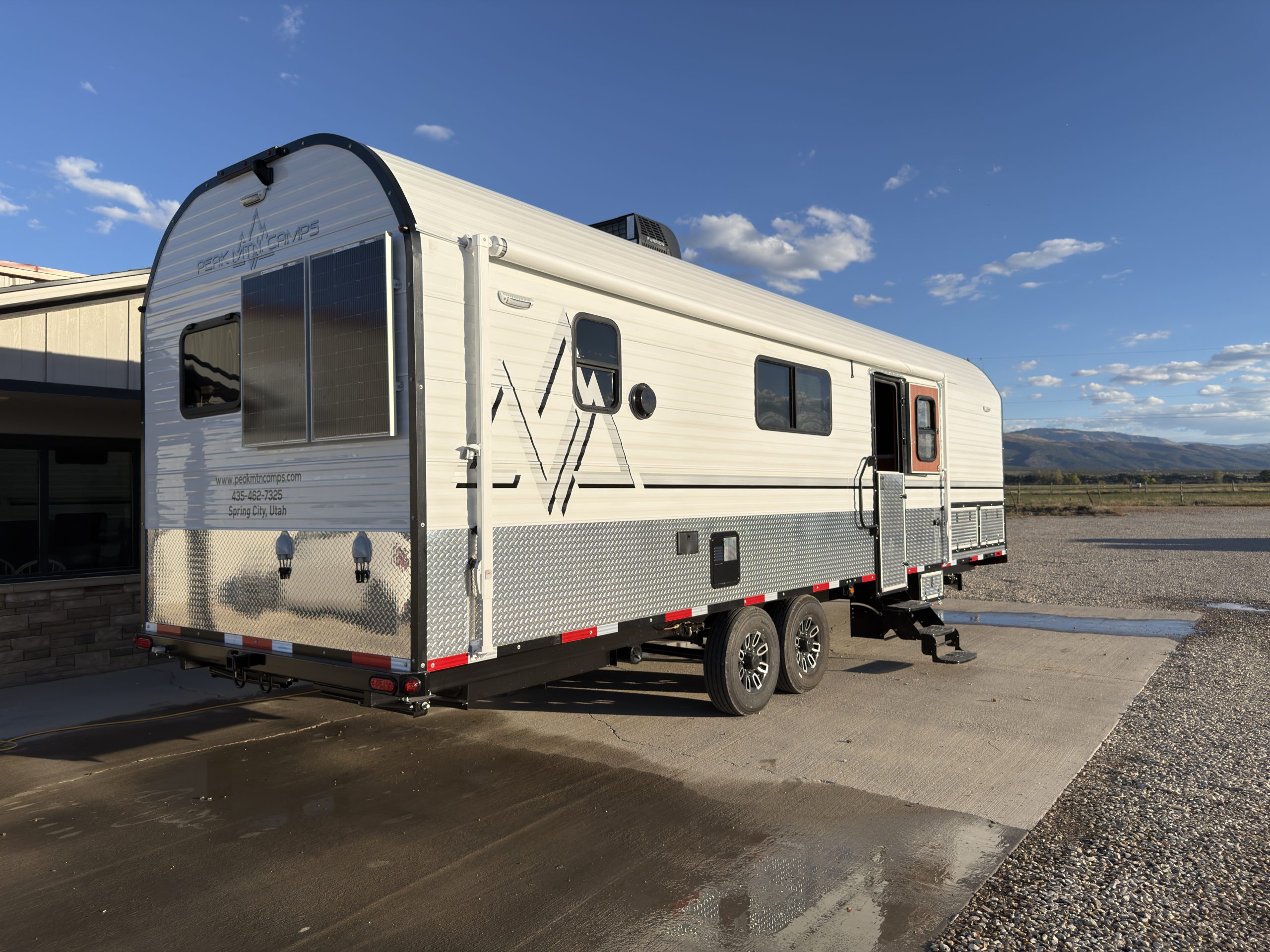

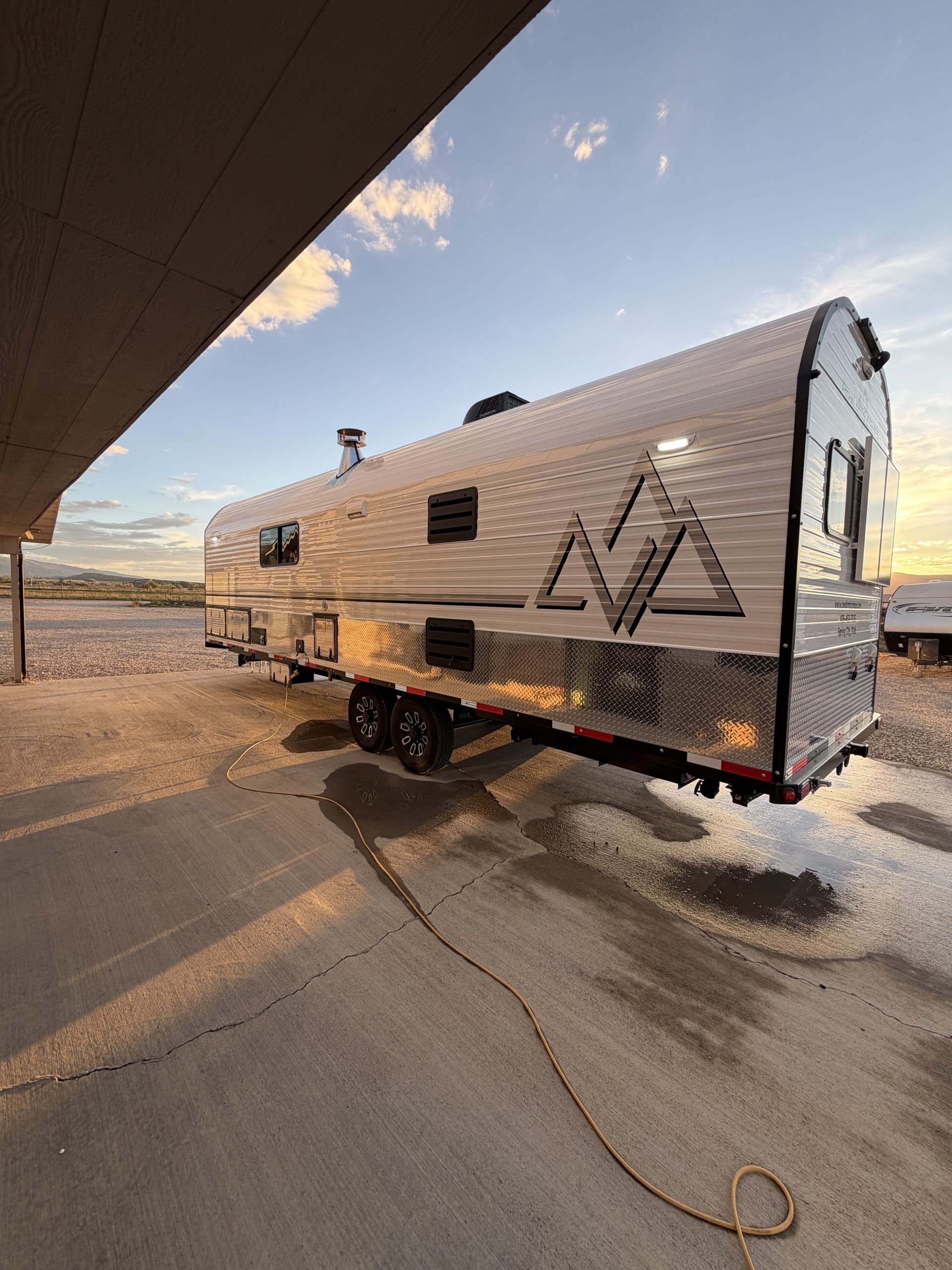

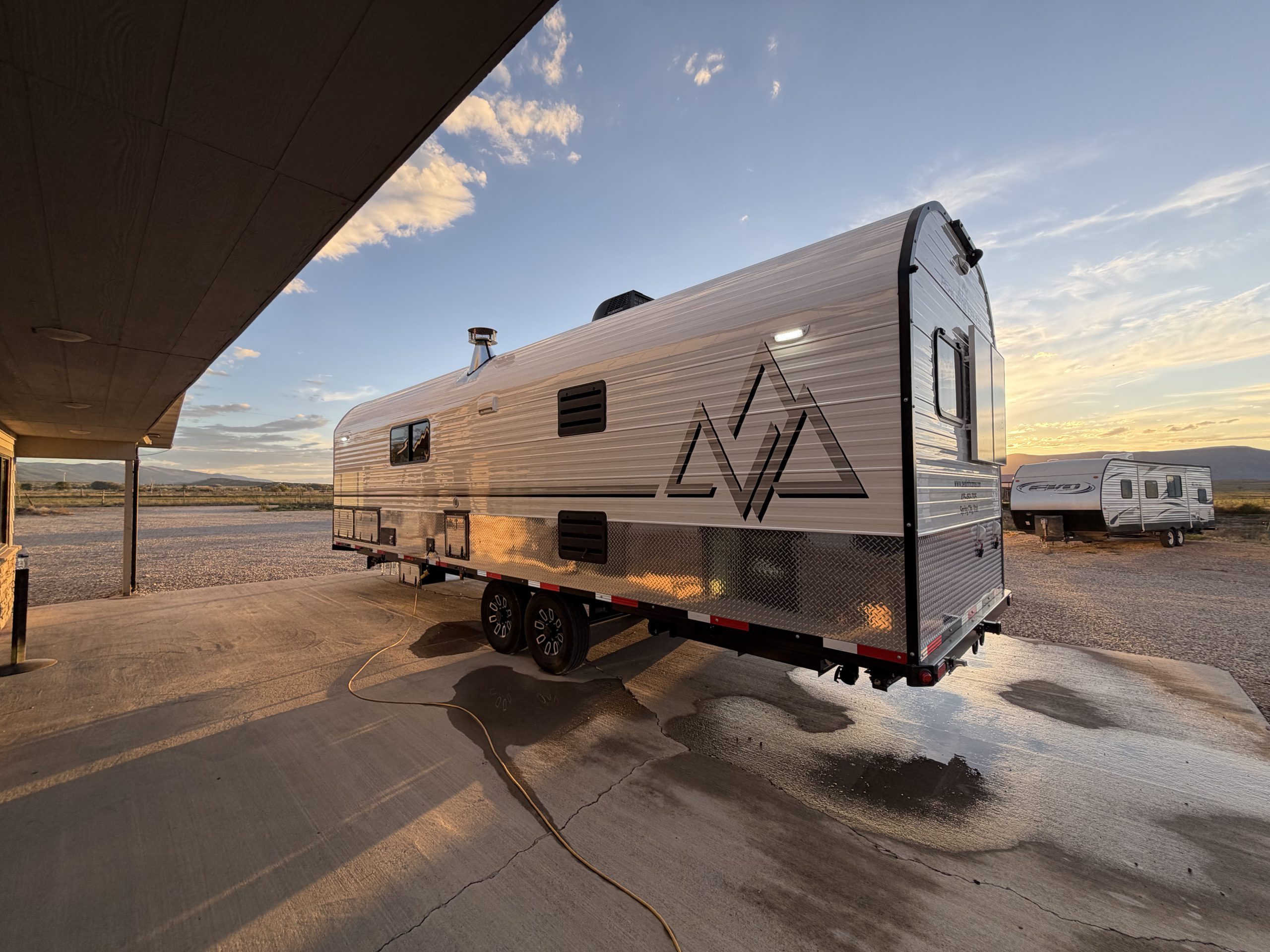

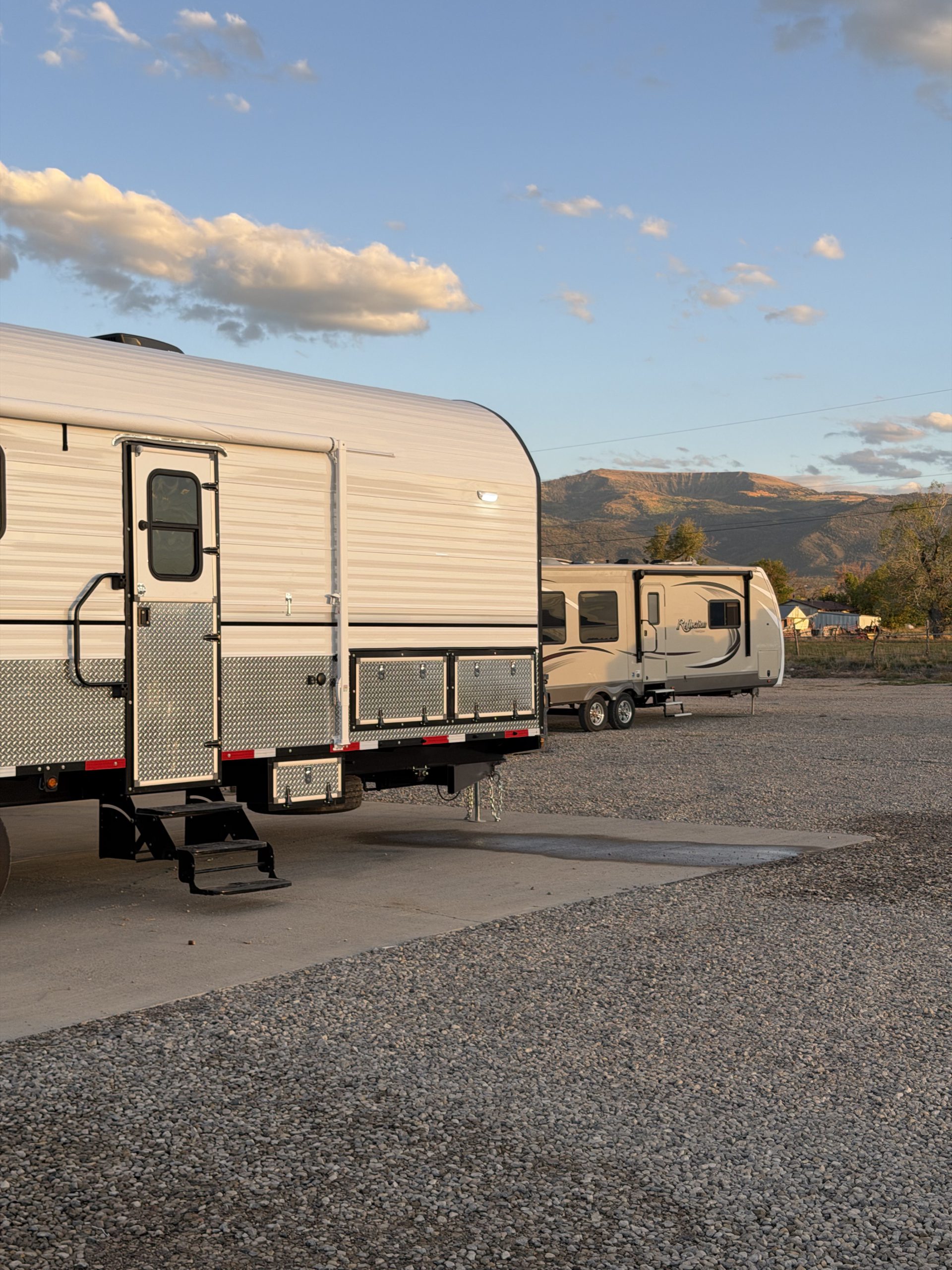

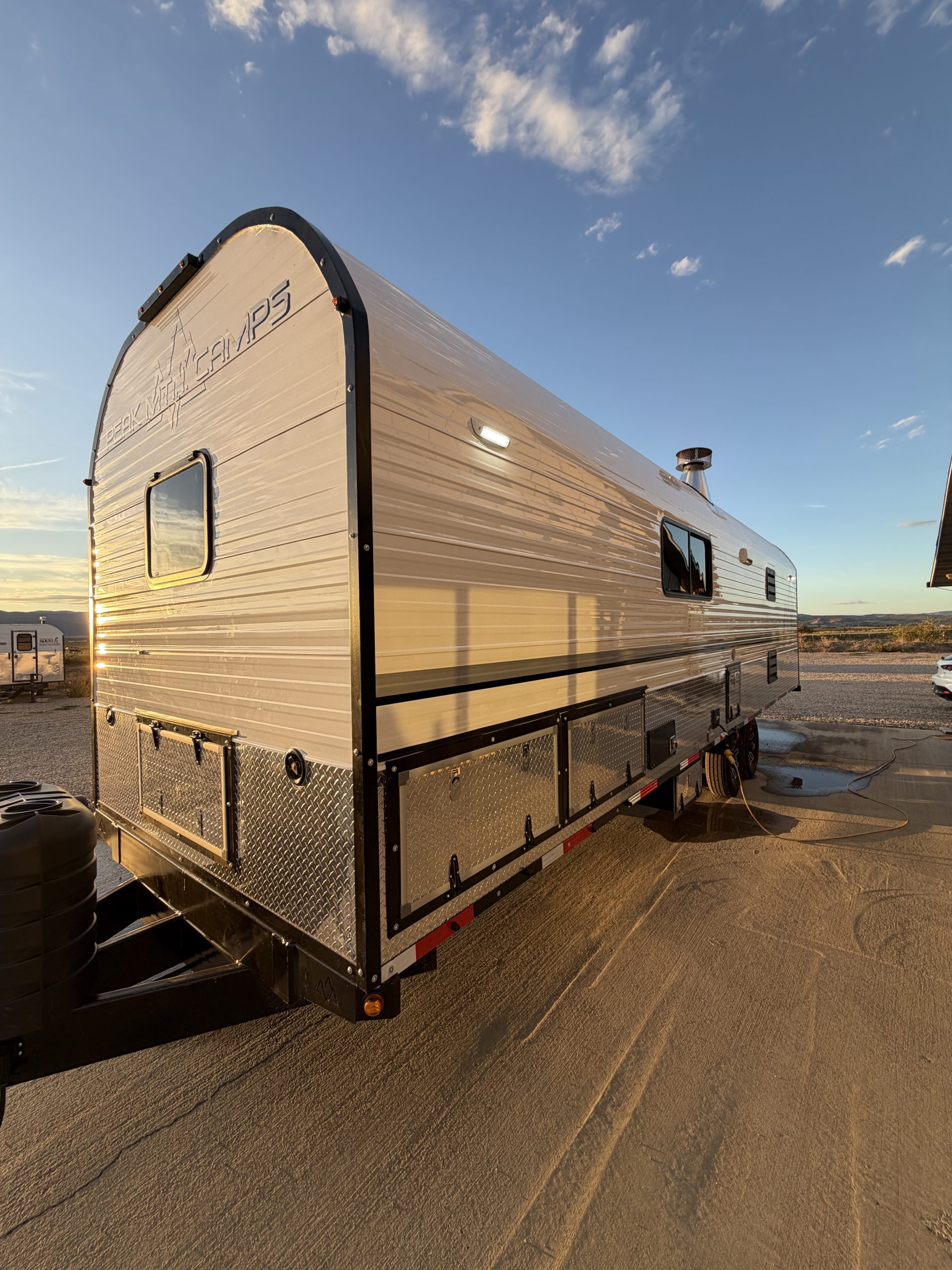

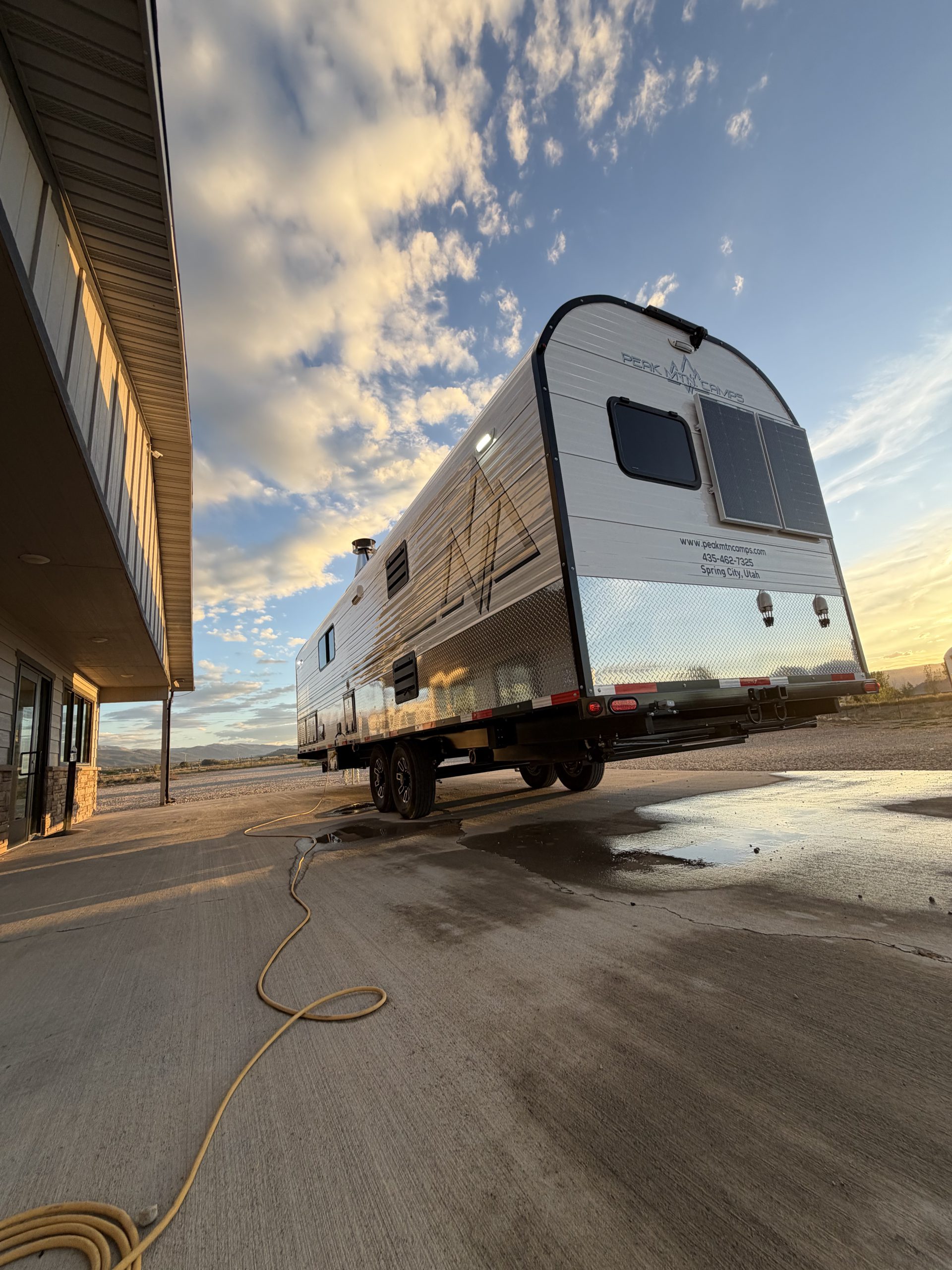

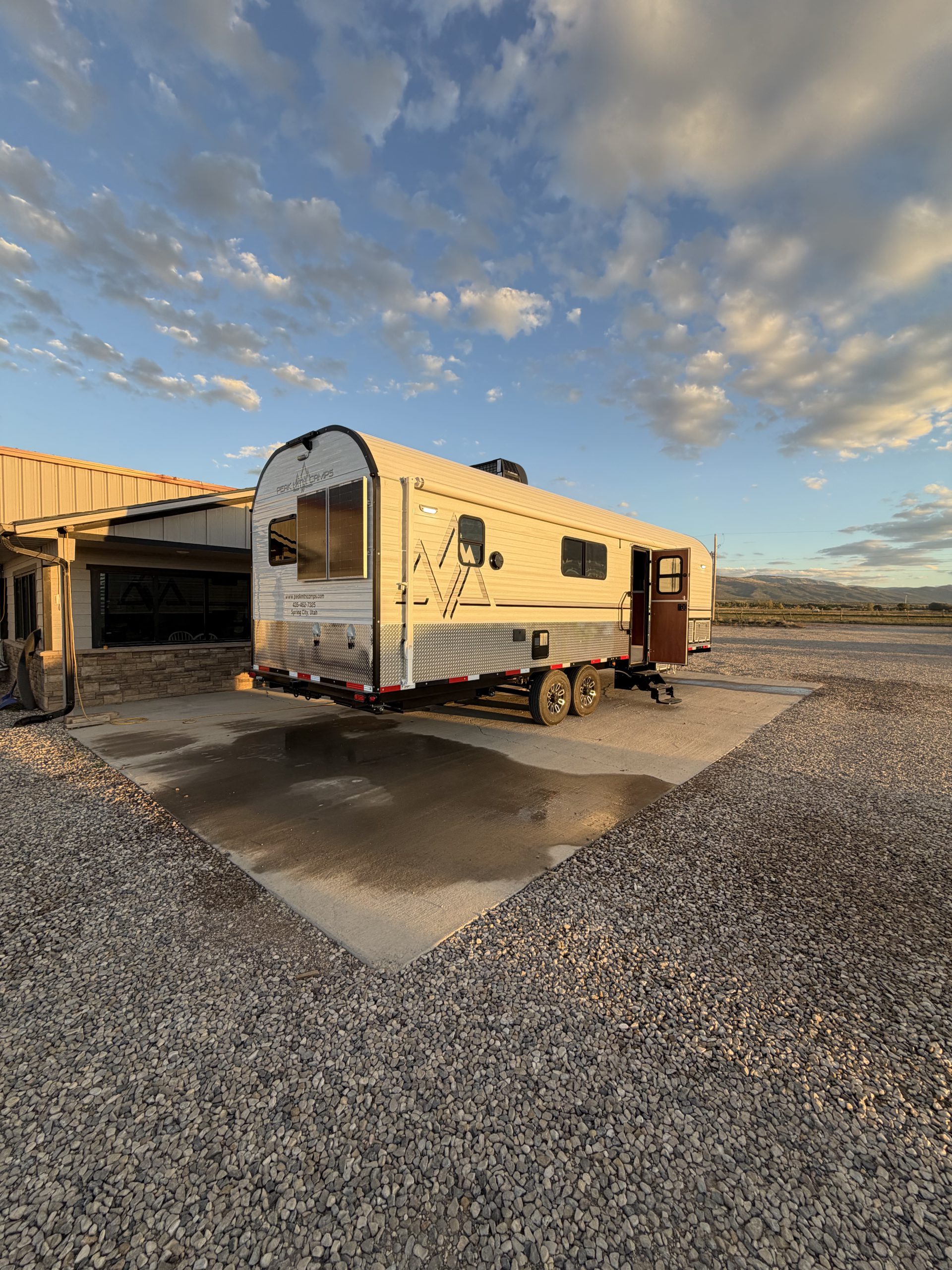

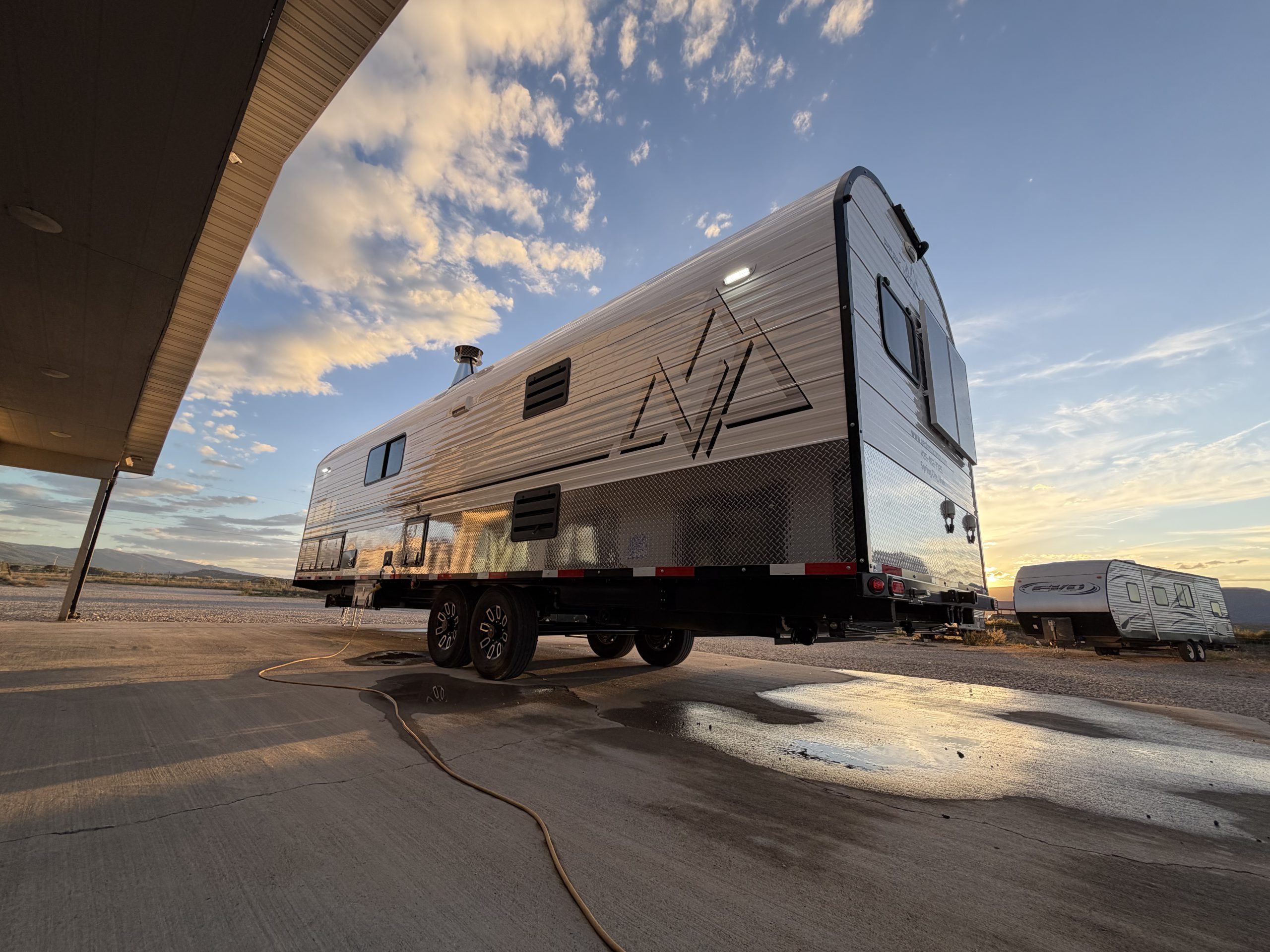

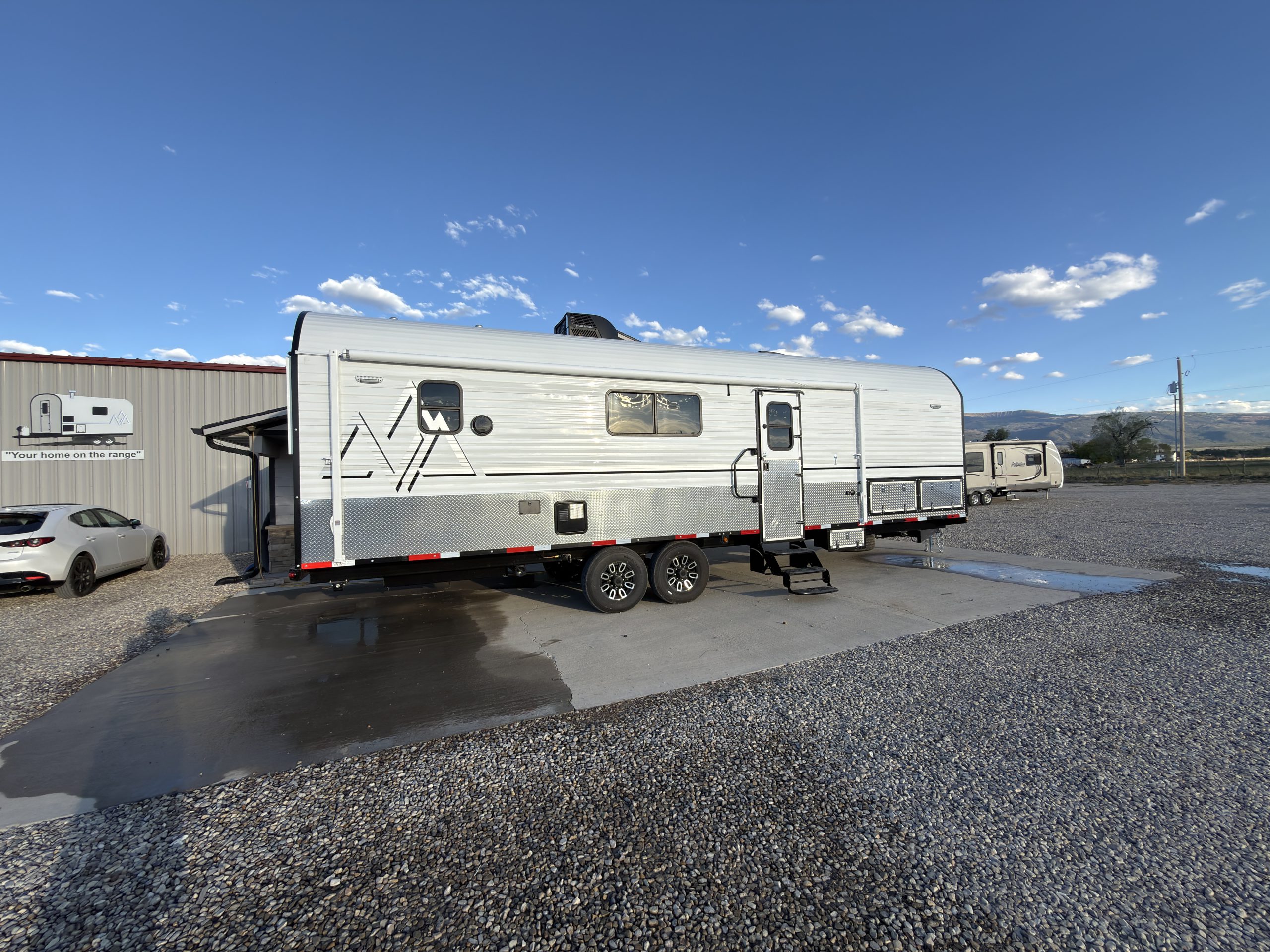

Exterior

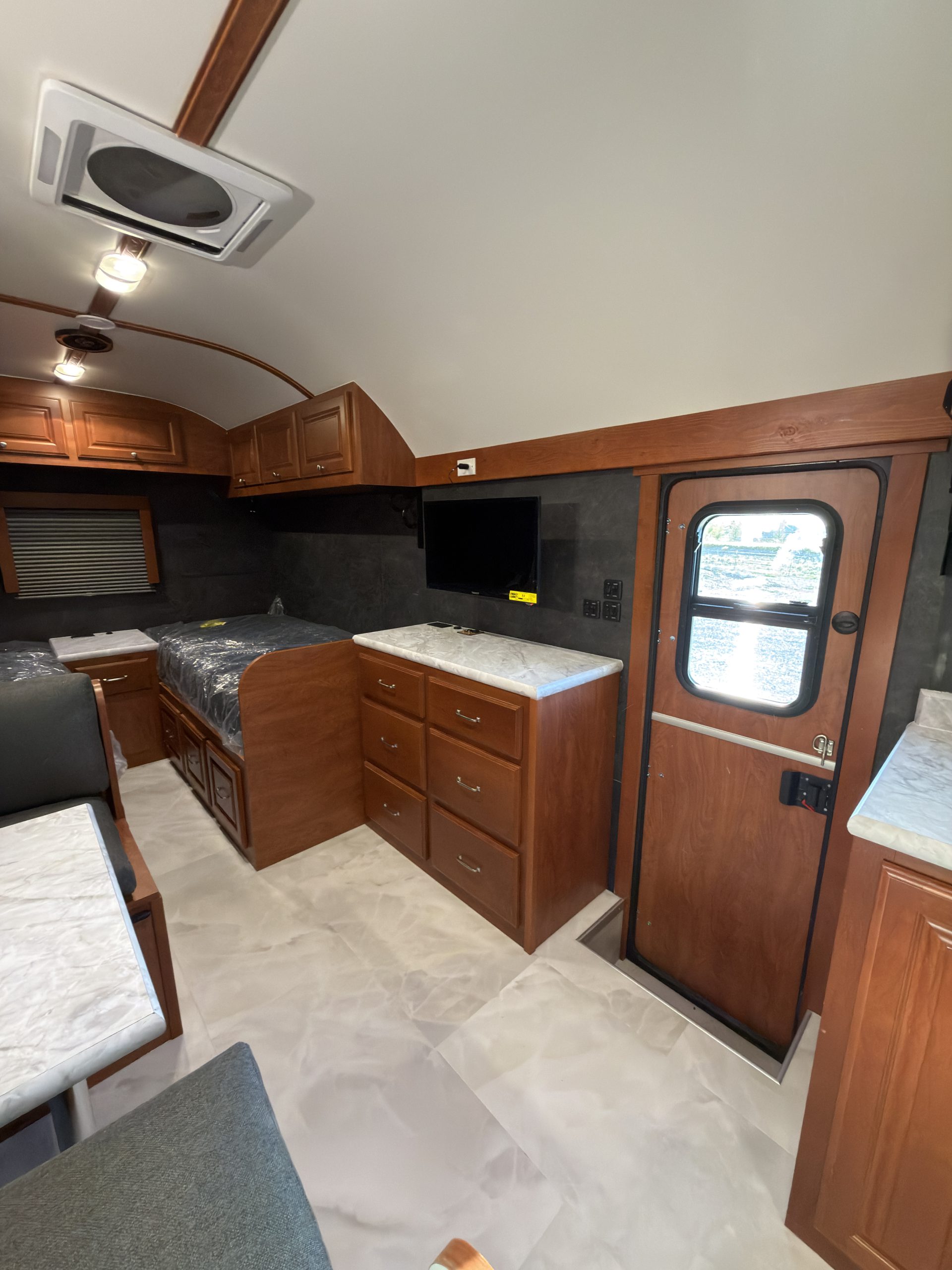

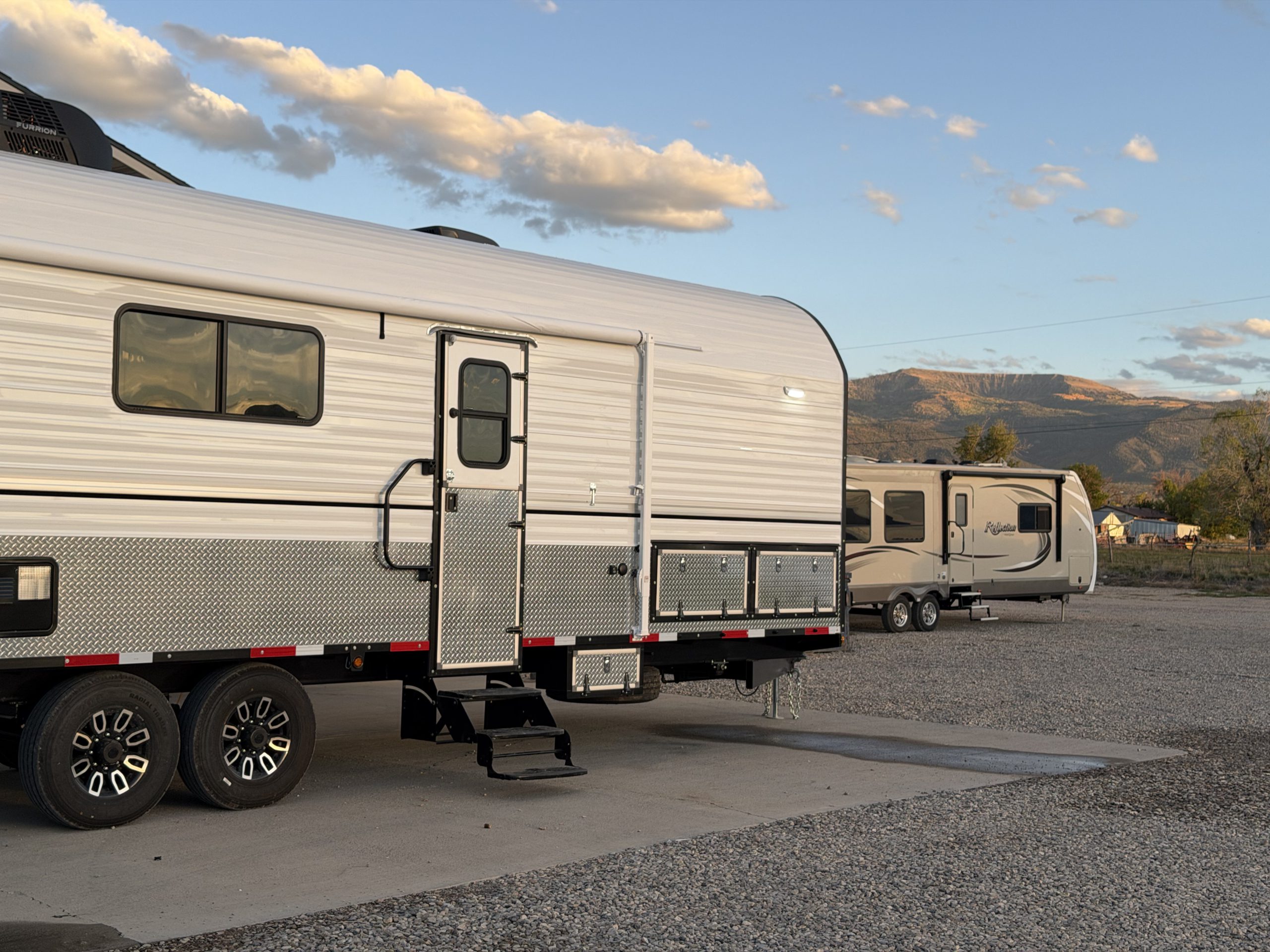

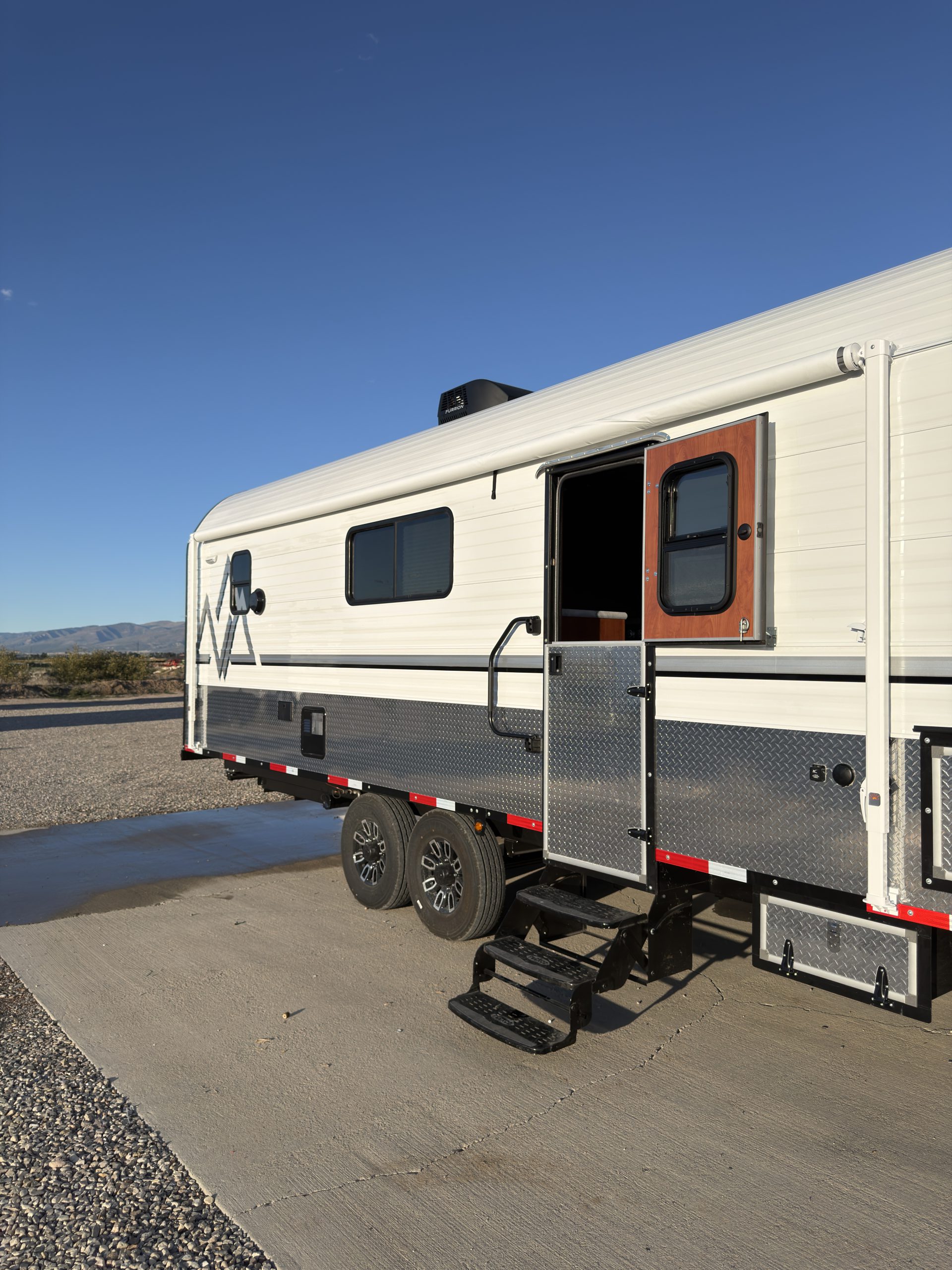

Entry
- Entry Layout
- Highlighted feature: Side Entry

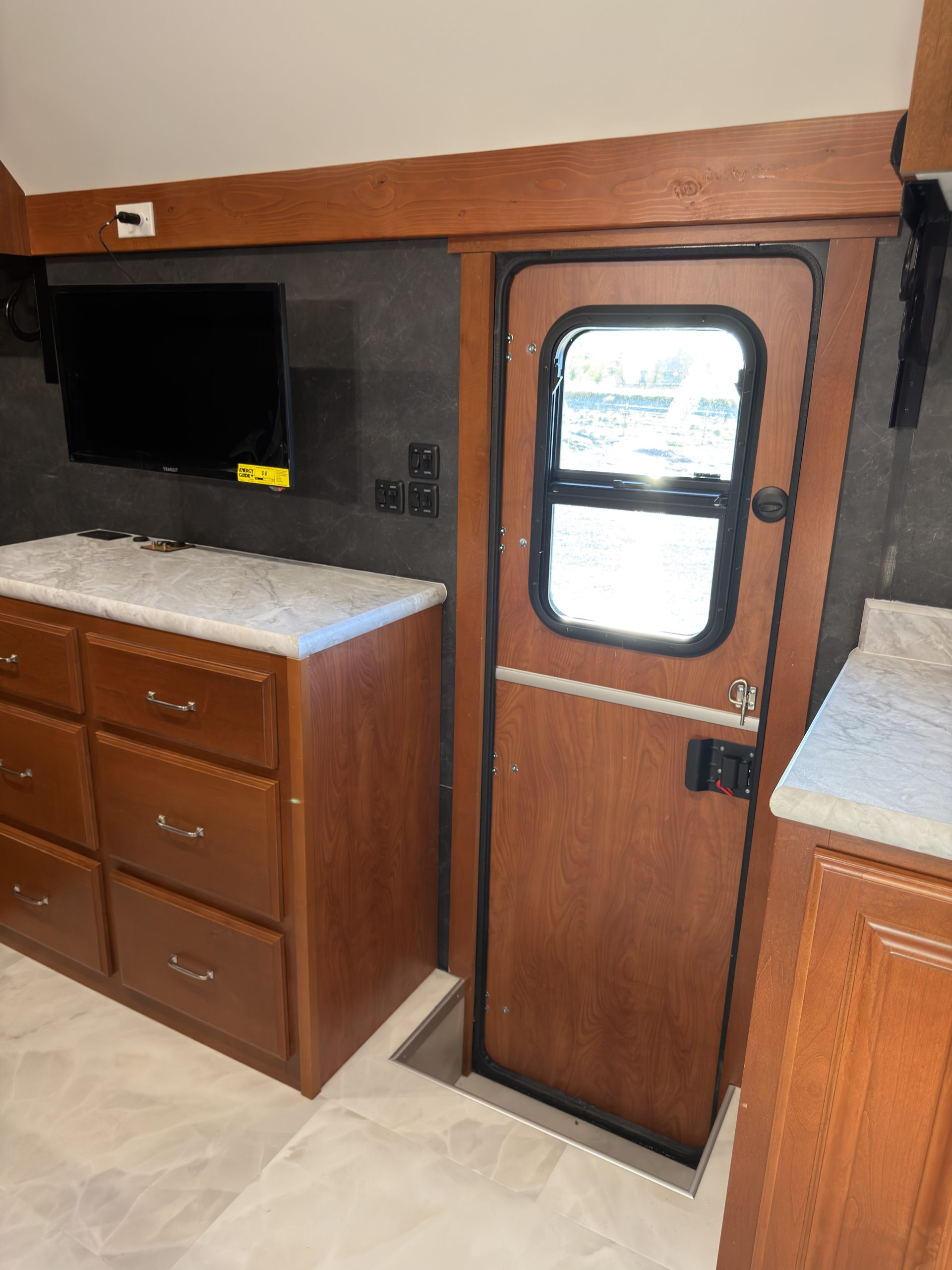

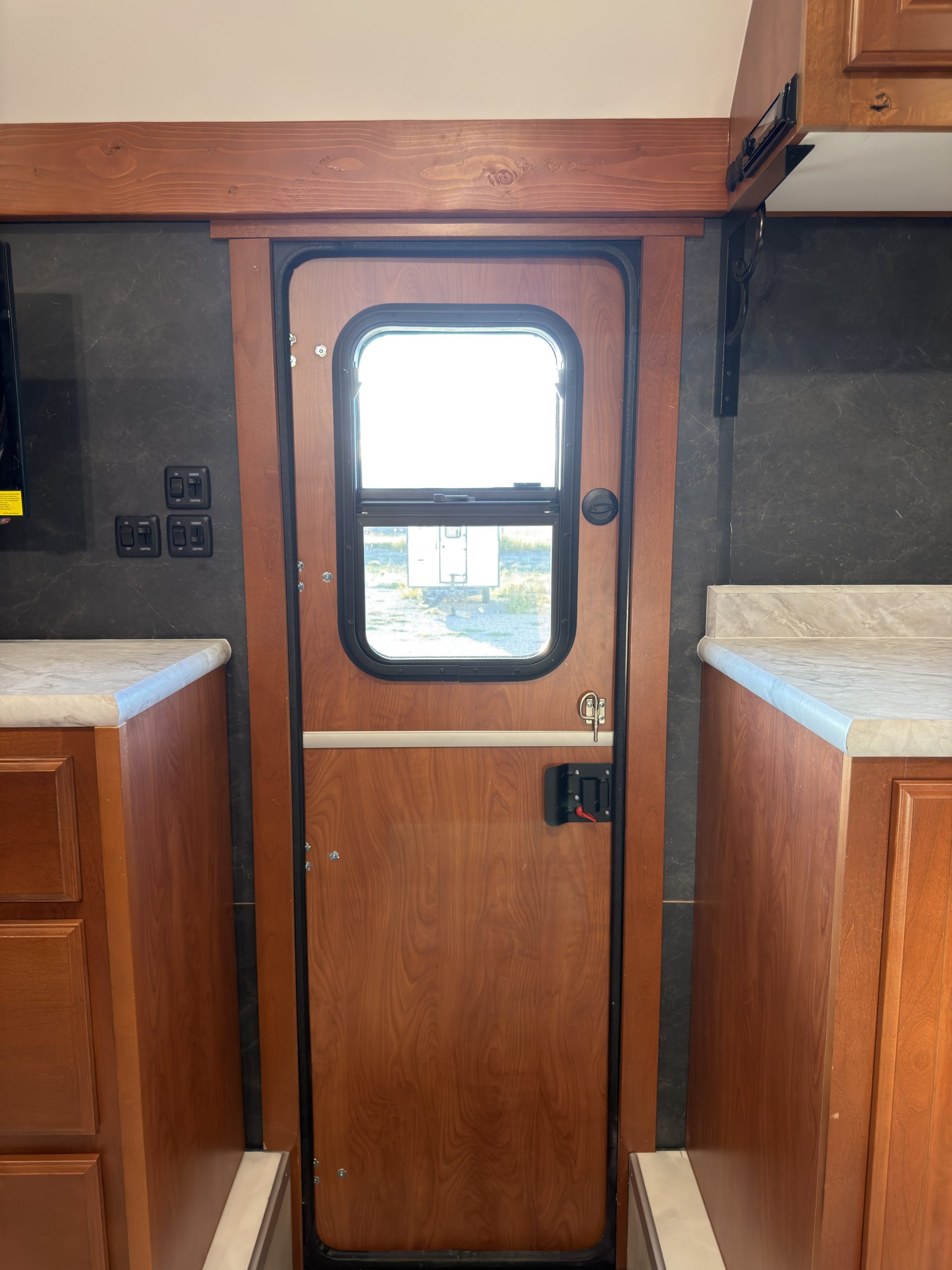

- Entry Door Style
- Dutch Door
- Entry Railing
- Standard Fold-Away Hand Railing
- Entry Steps
- Pull-Out Fold-Under Steps
Storage

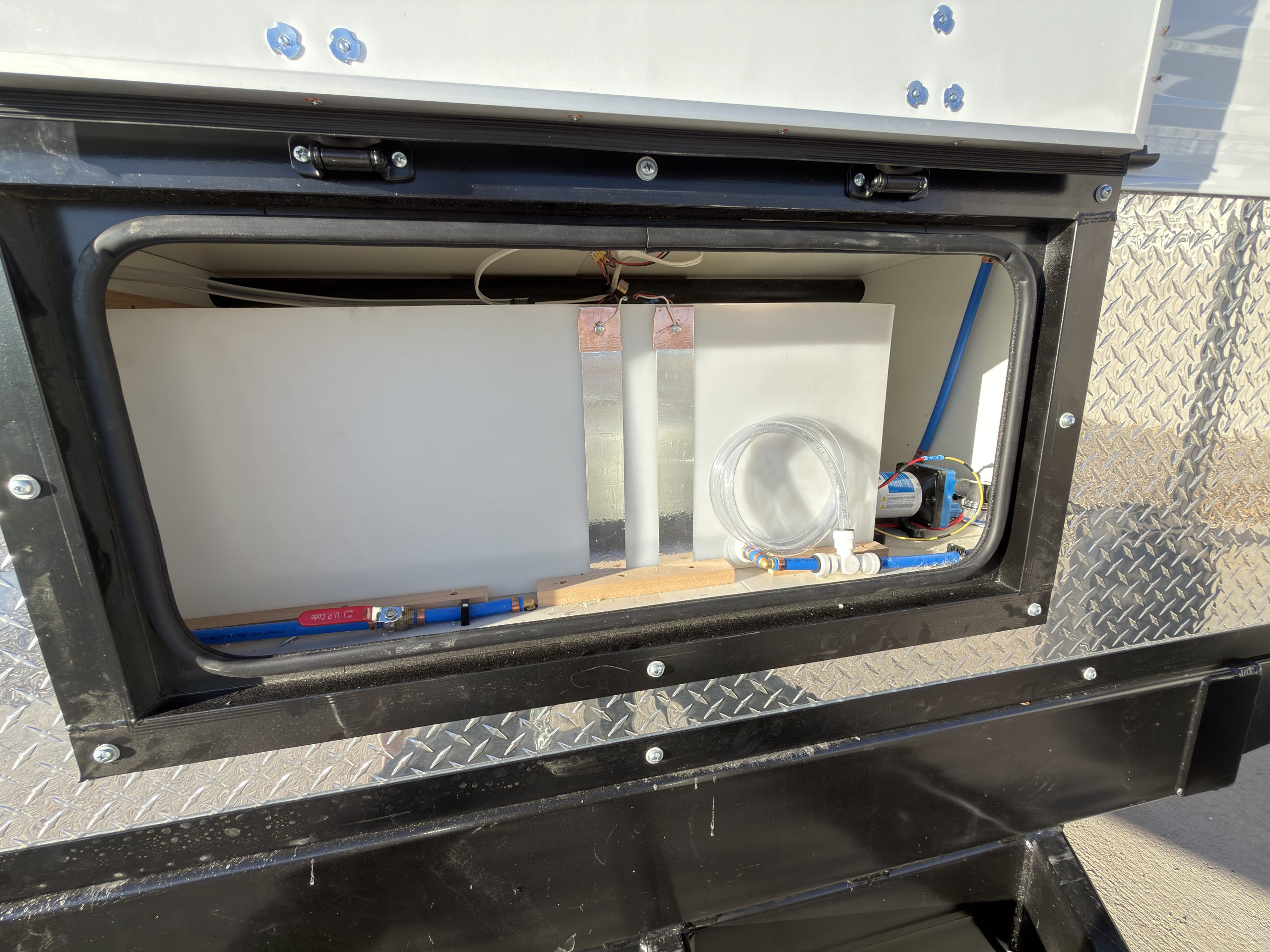

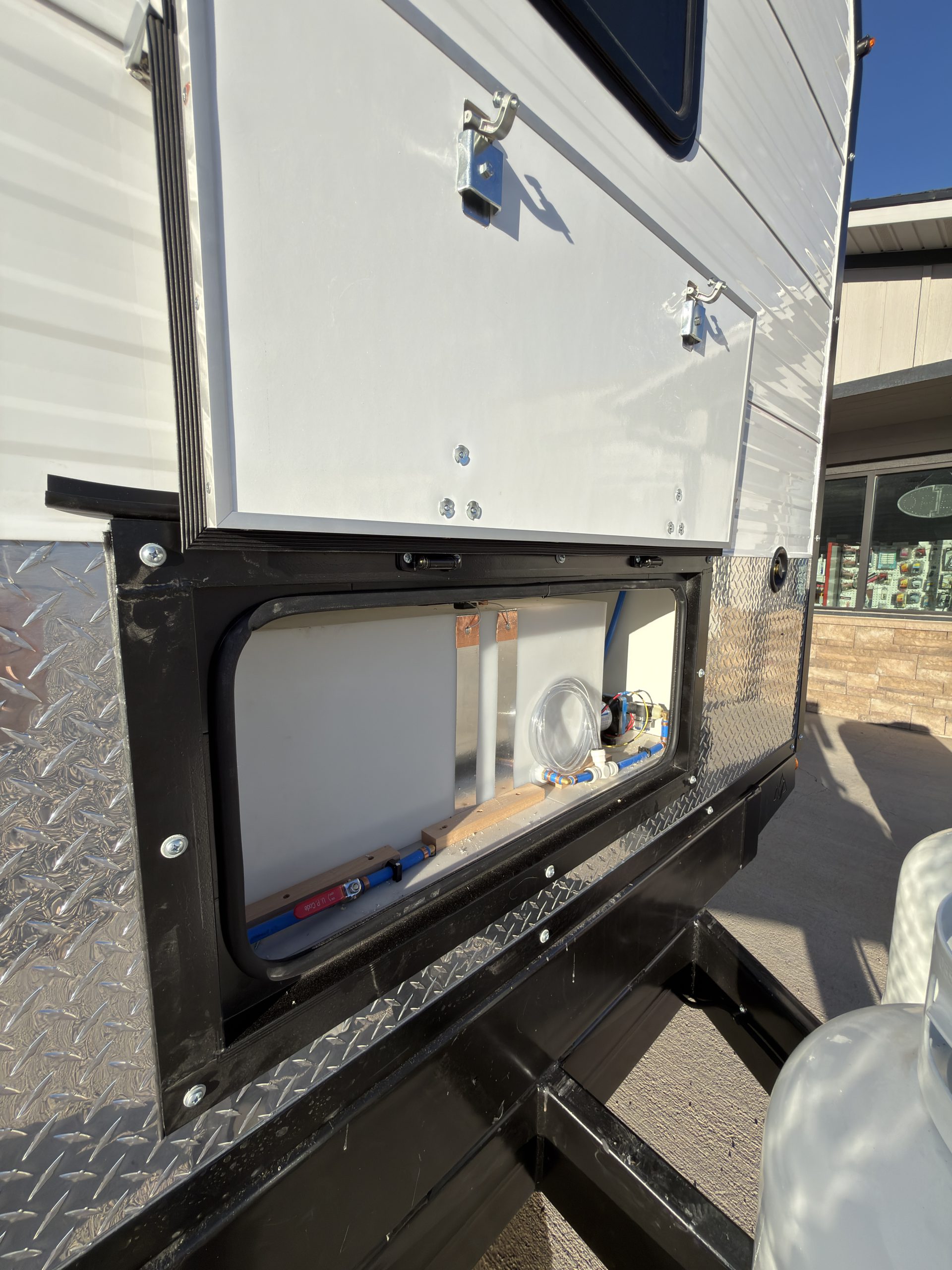

- Exterior Compartments
- Highlighted feature: 6x Exterior Storage Compartments (Including Wood Box & Under-Frame Storage Boxes)
- Compartment Doors & Latches
- Keyed Doors With Adjustable Latches

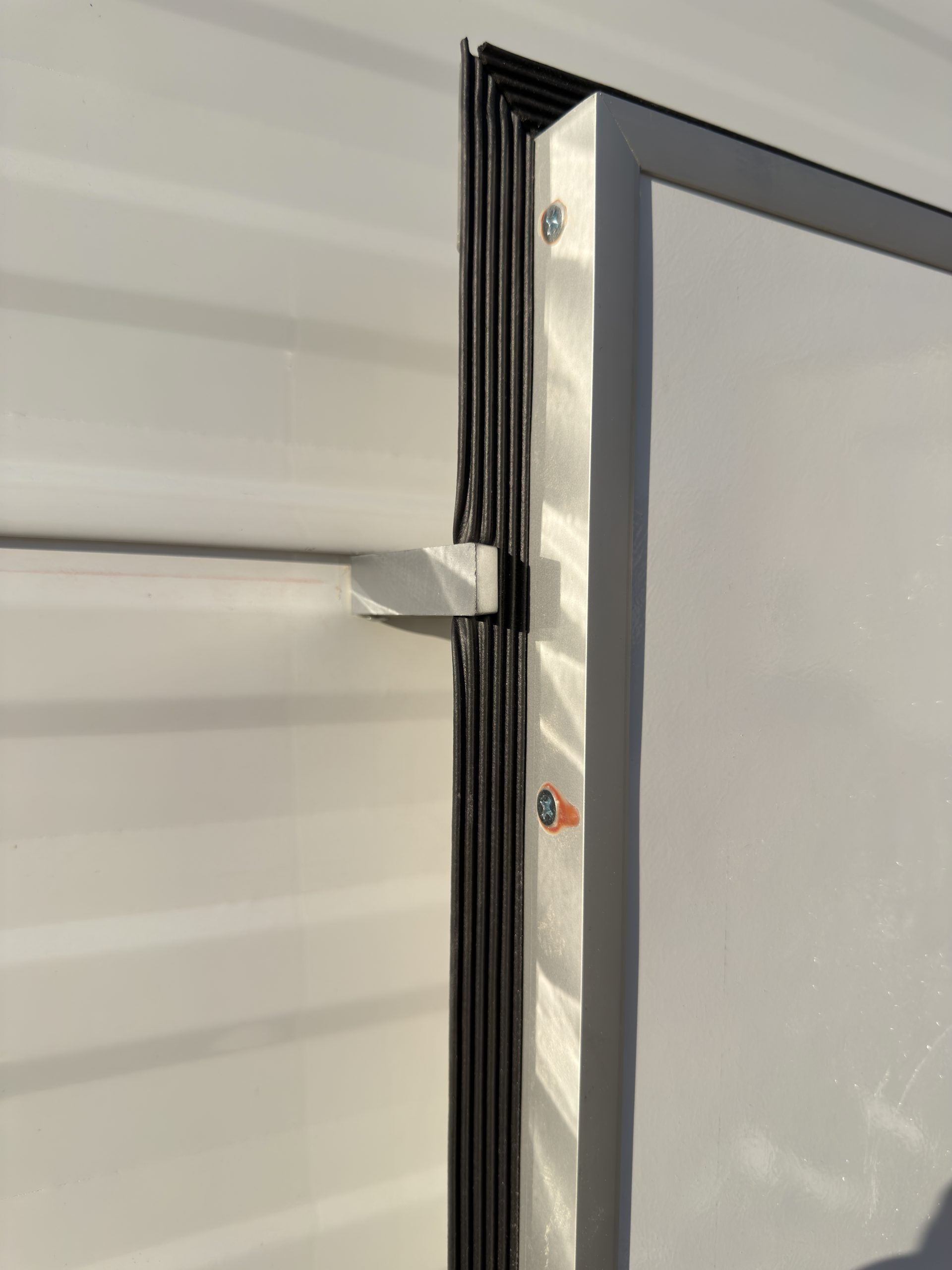

- Compartment Sealing
- Dual-Sealed
- Compartment Lighting
- 12V LED Lights In Exterior Compartments
- Wood Box
- Standard Pass-Through Wood Box
- Under-Frame Storage
- Highlighted feature: 2x Under-Frame Storage Compartment (Each Side)
Construction
- Siding / Wrapping
- Highlighted feature: White Aluminum Siding With Diamond Plate On All Sides
- Structural Reinforcement
- Angle Iron On Exterior Edges
- Windows
- 3x Dual-Pane Windows With Sliders, Screens, & Rain Gutters & 2x Egress Windows
- Exterior Awning
- Highlighted feature: Added
Power & Lighting
- Exterior Lights
- Highlighted feature: Surround LED Loading Lights (1x Front, 2x Road-Side, 2x Curb-Side, 1x Back)
- Backup Light
- Highlighted feature: Rear Light Wired to Illuminate While Backing

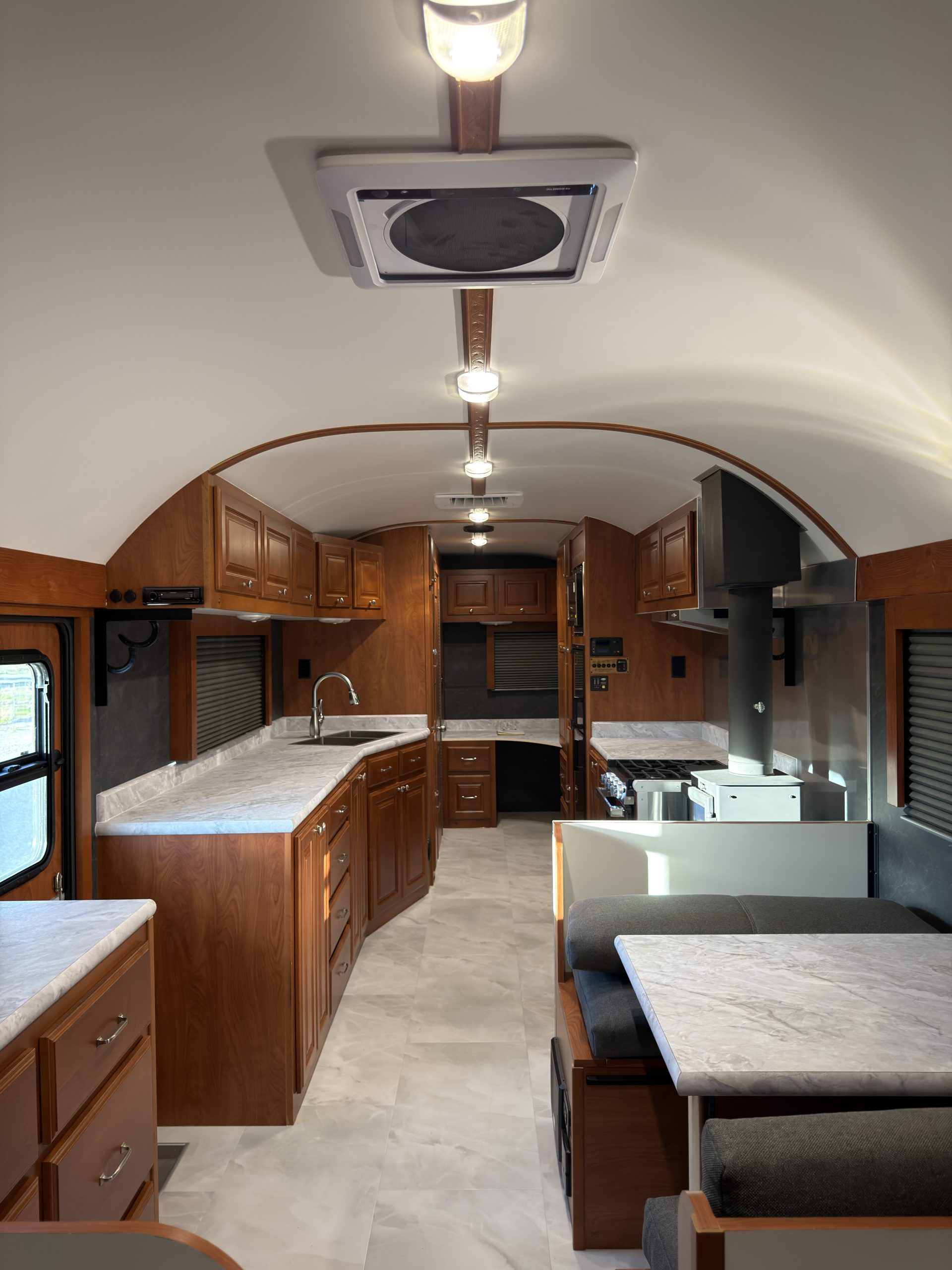

Interior
General
- Layout
- Fully Custom (Designed with Customer)
- Sleep Capacity
- 3 Adults

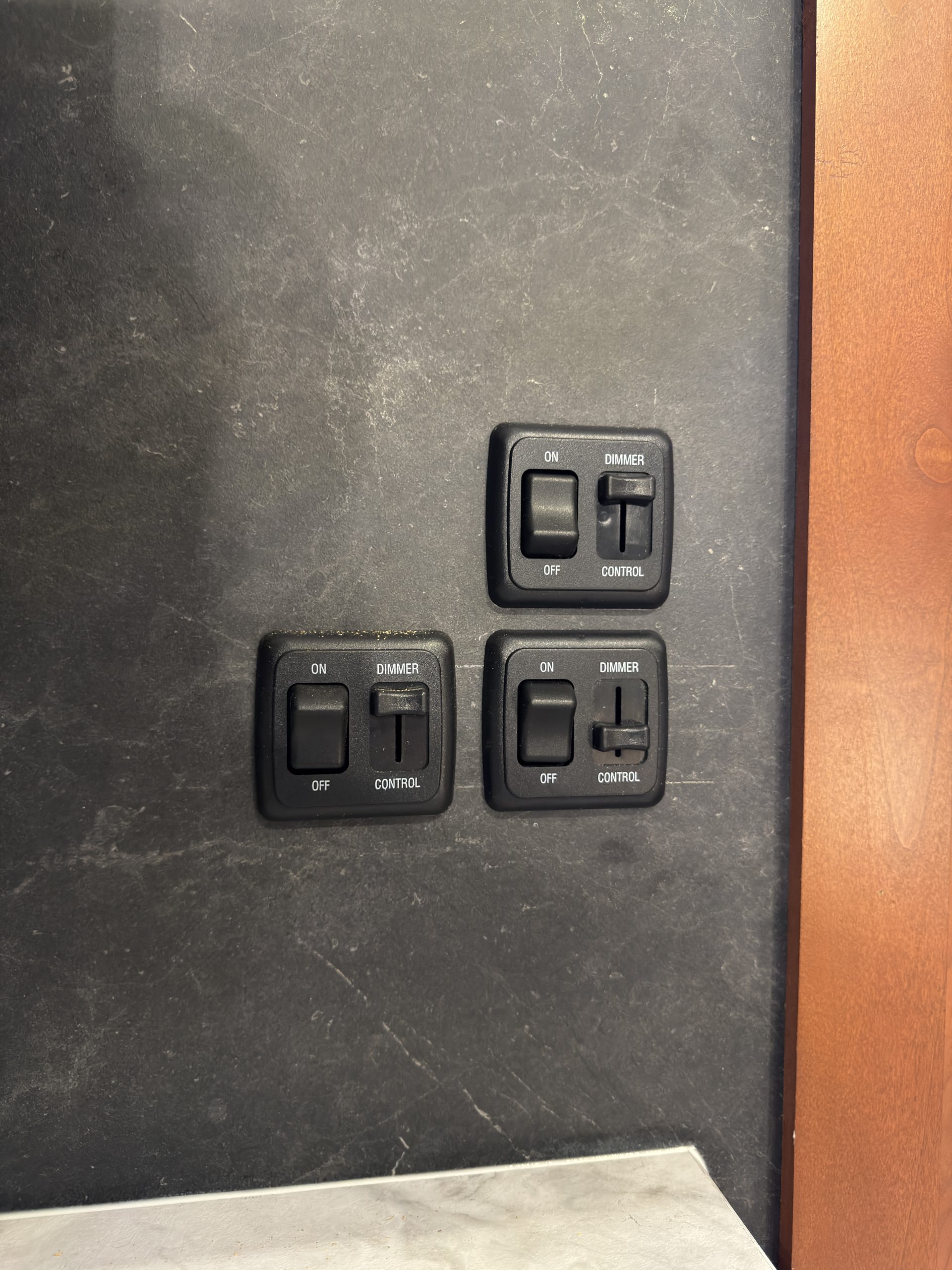

- Interior Lights

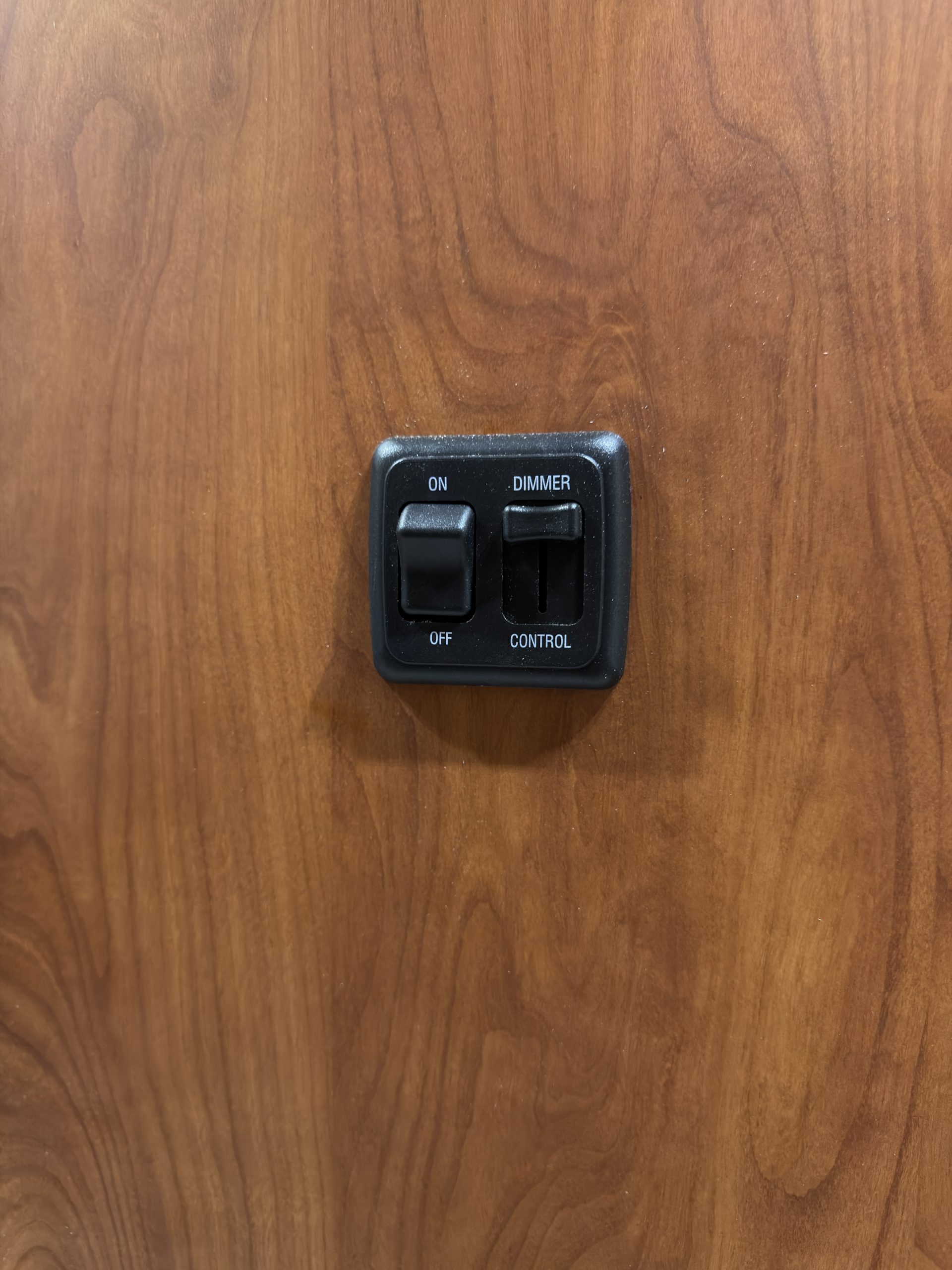

- Dimmable LED Lights With Master & Individual Switches
- Compartment Lighting
- LED Lights Added to Storage Cabinets & Closets

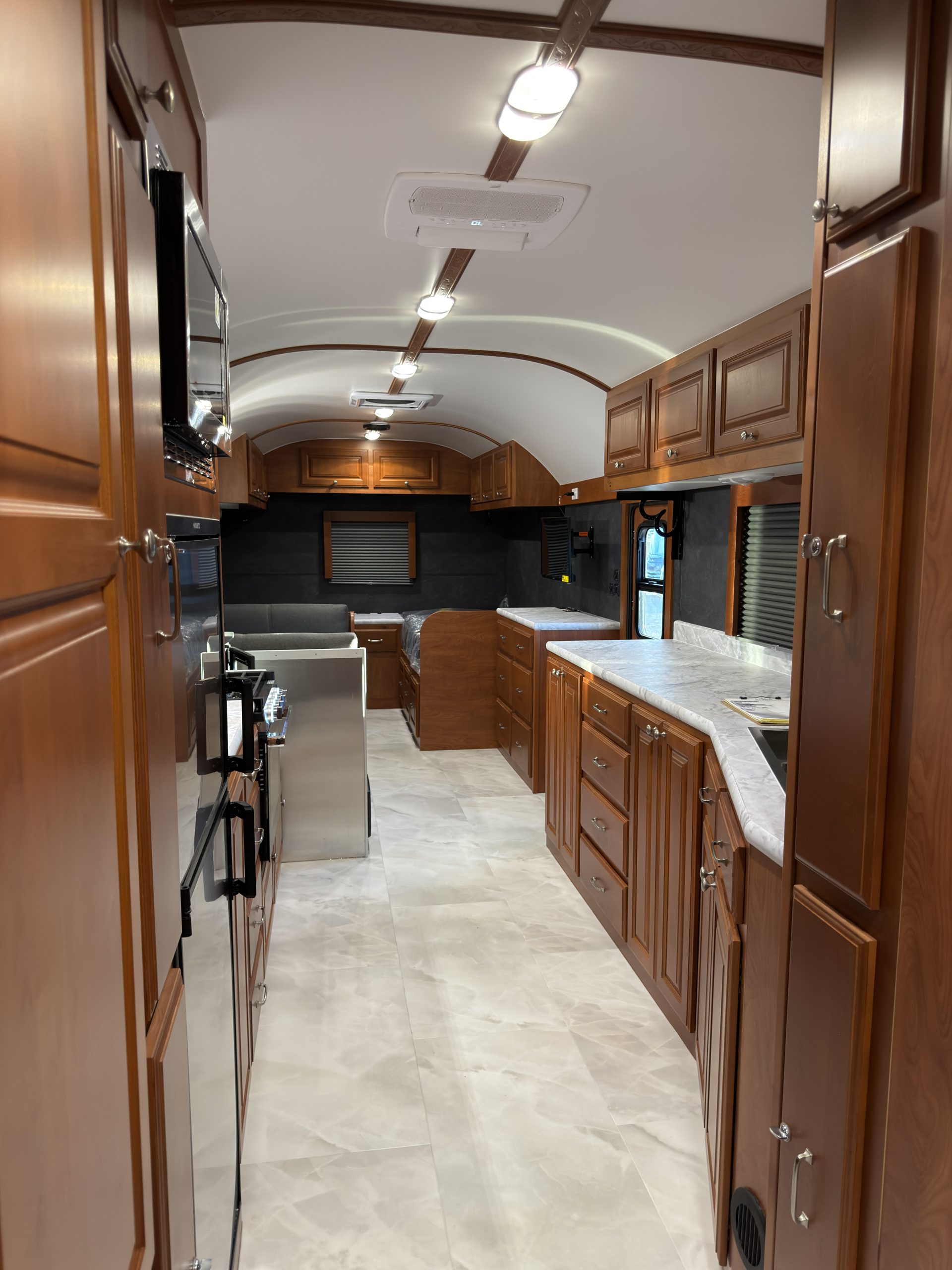

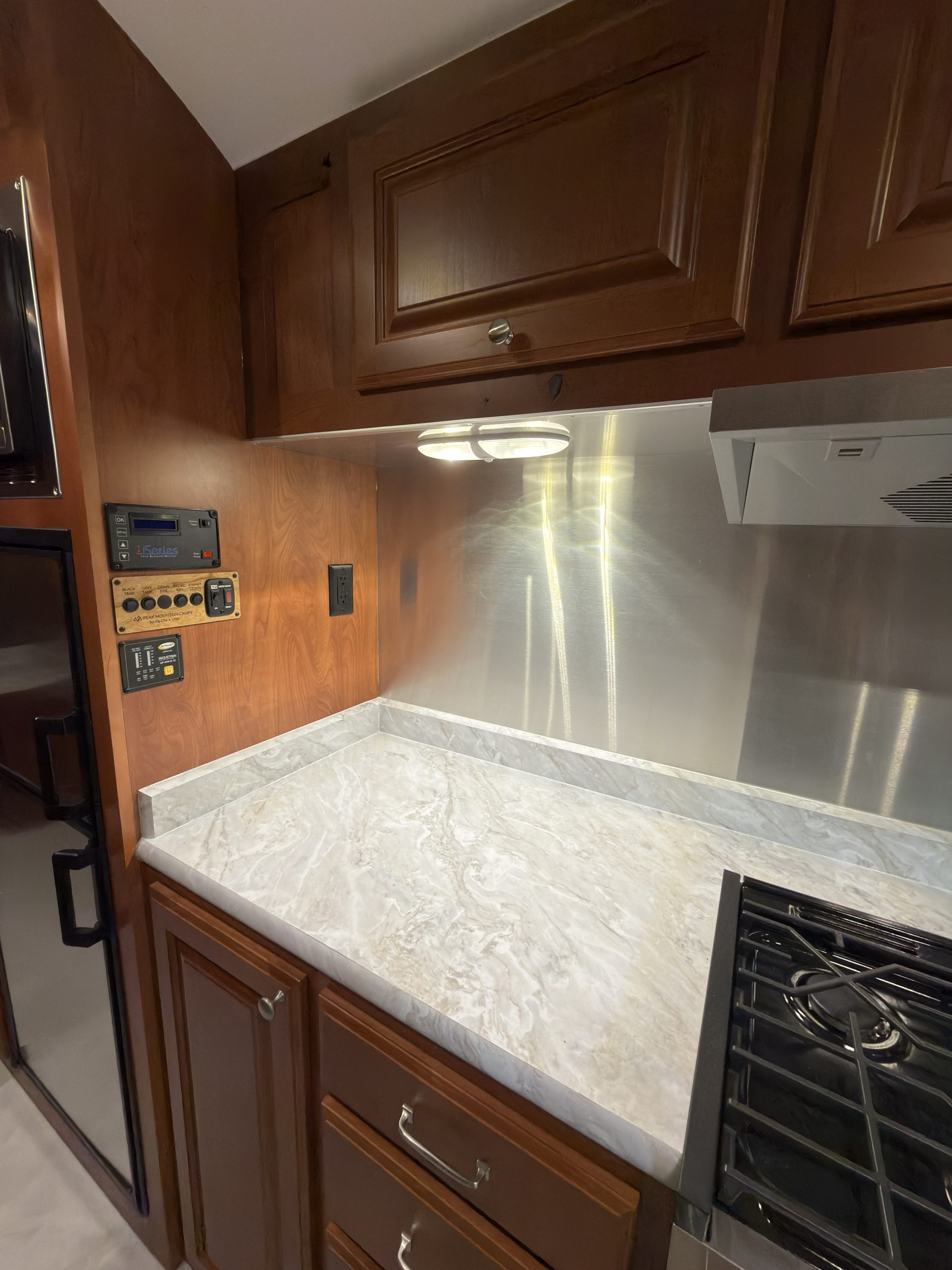

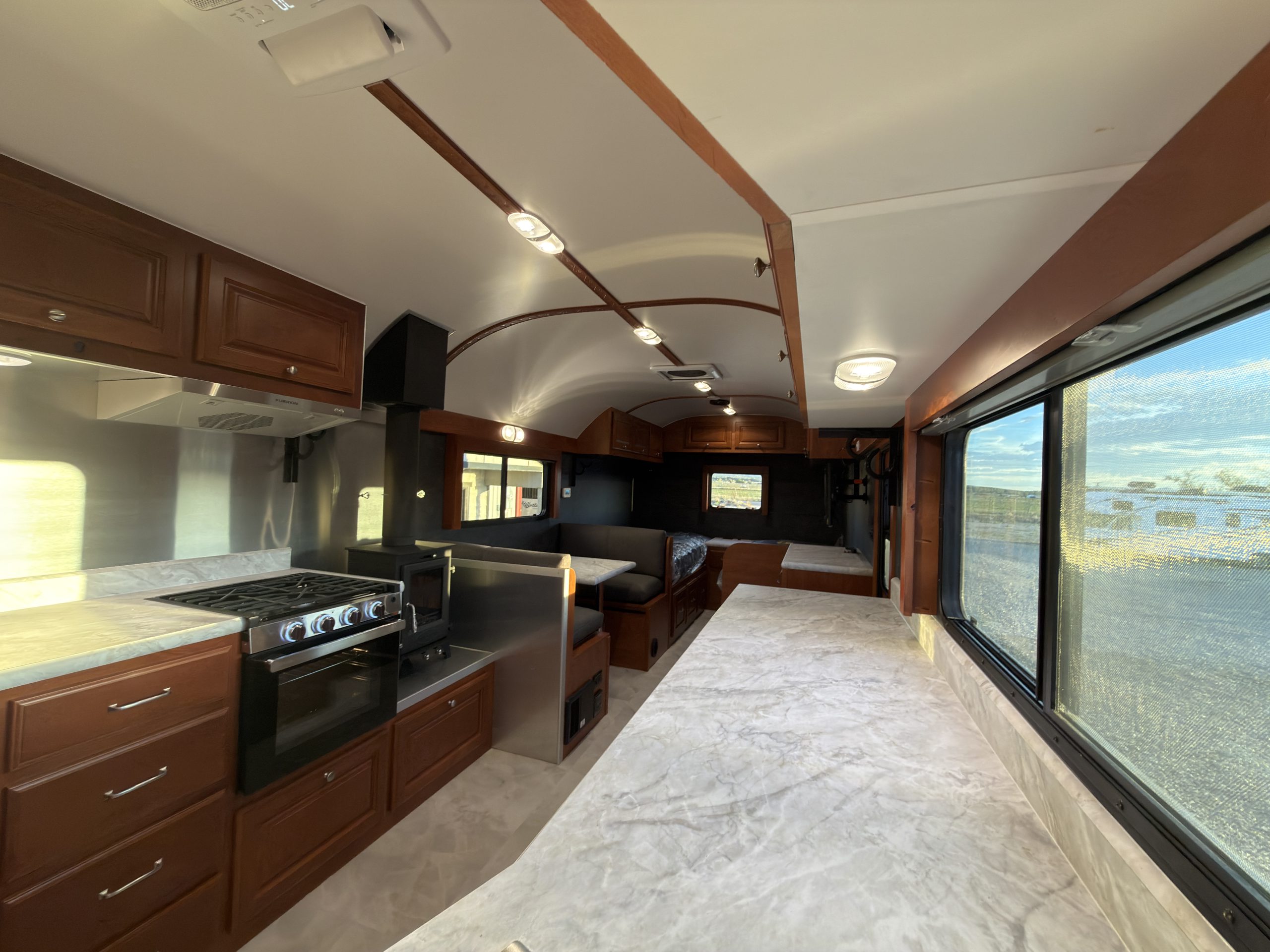

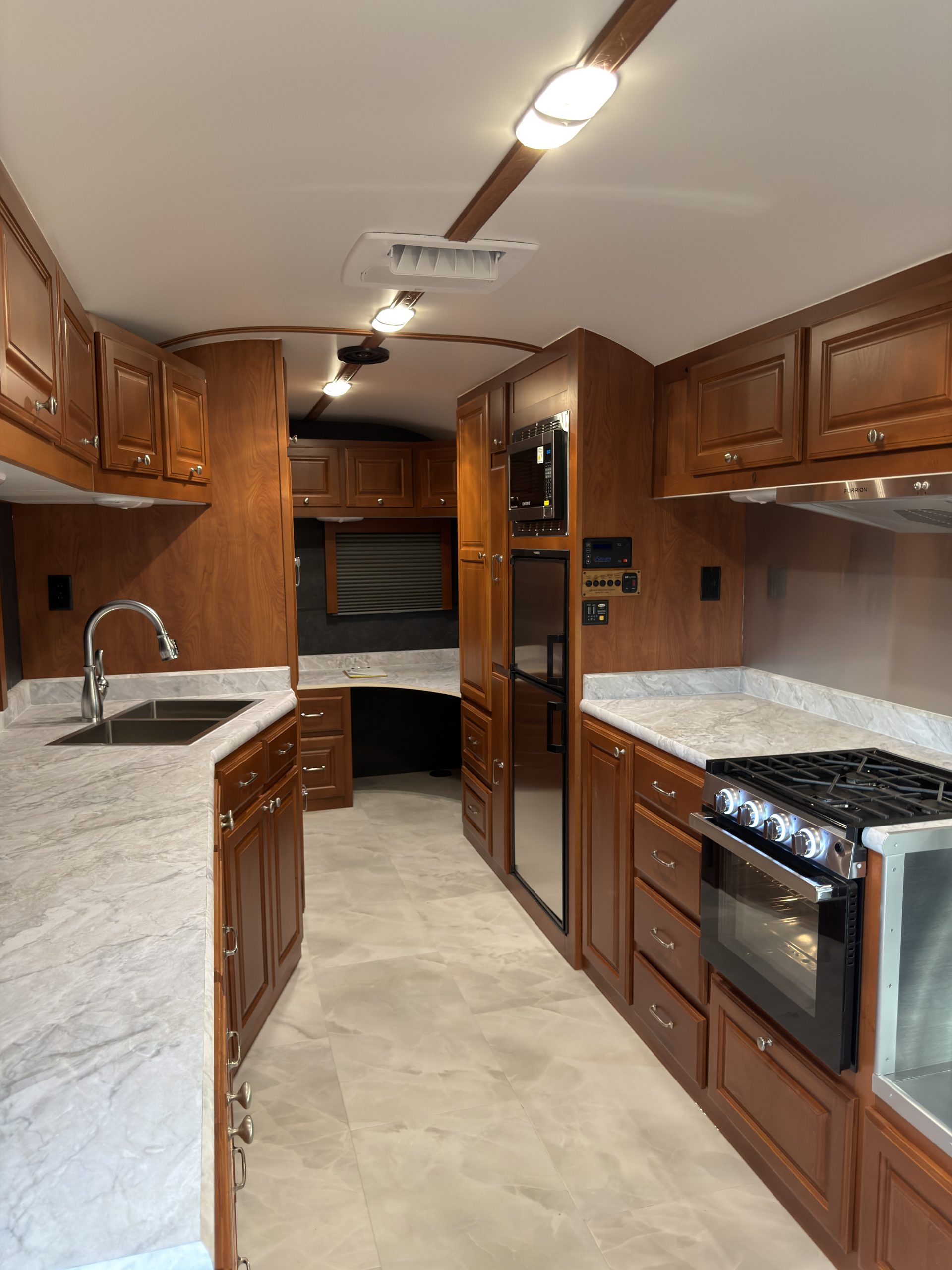

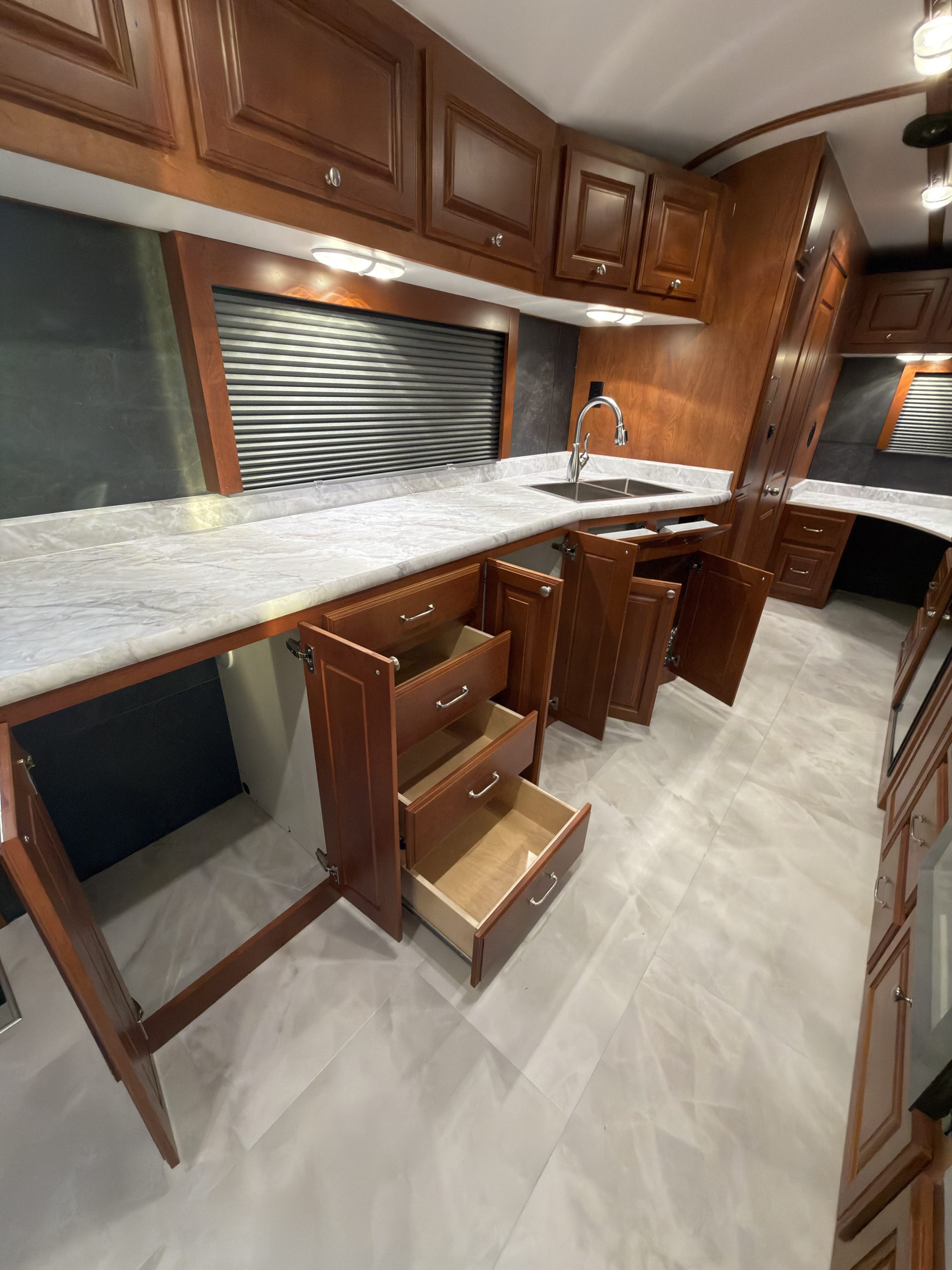

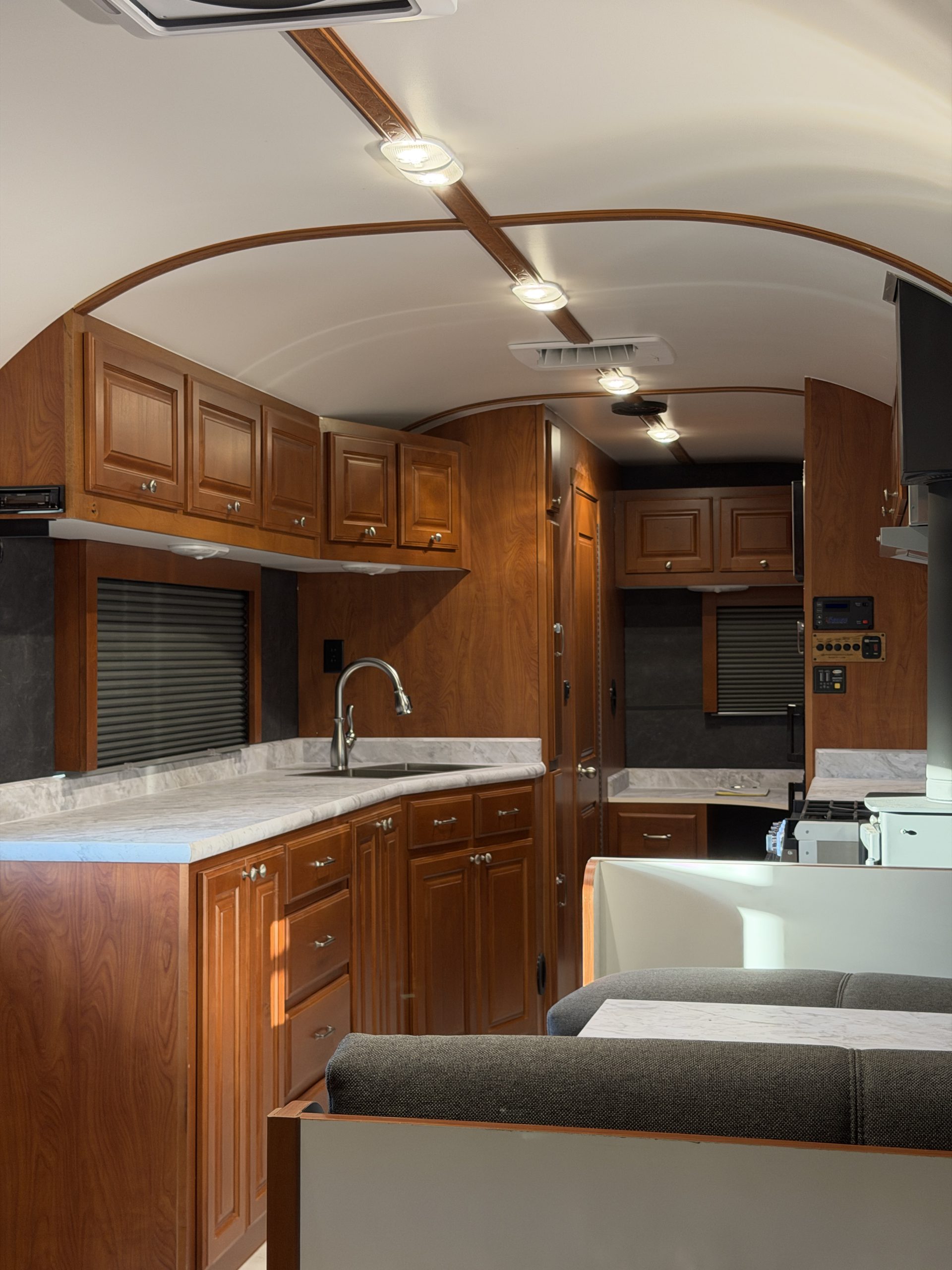

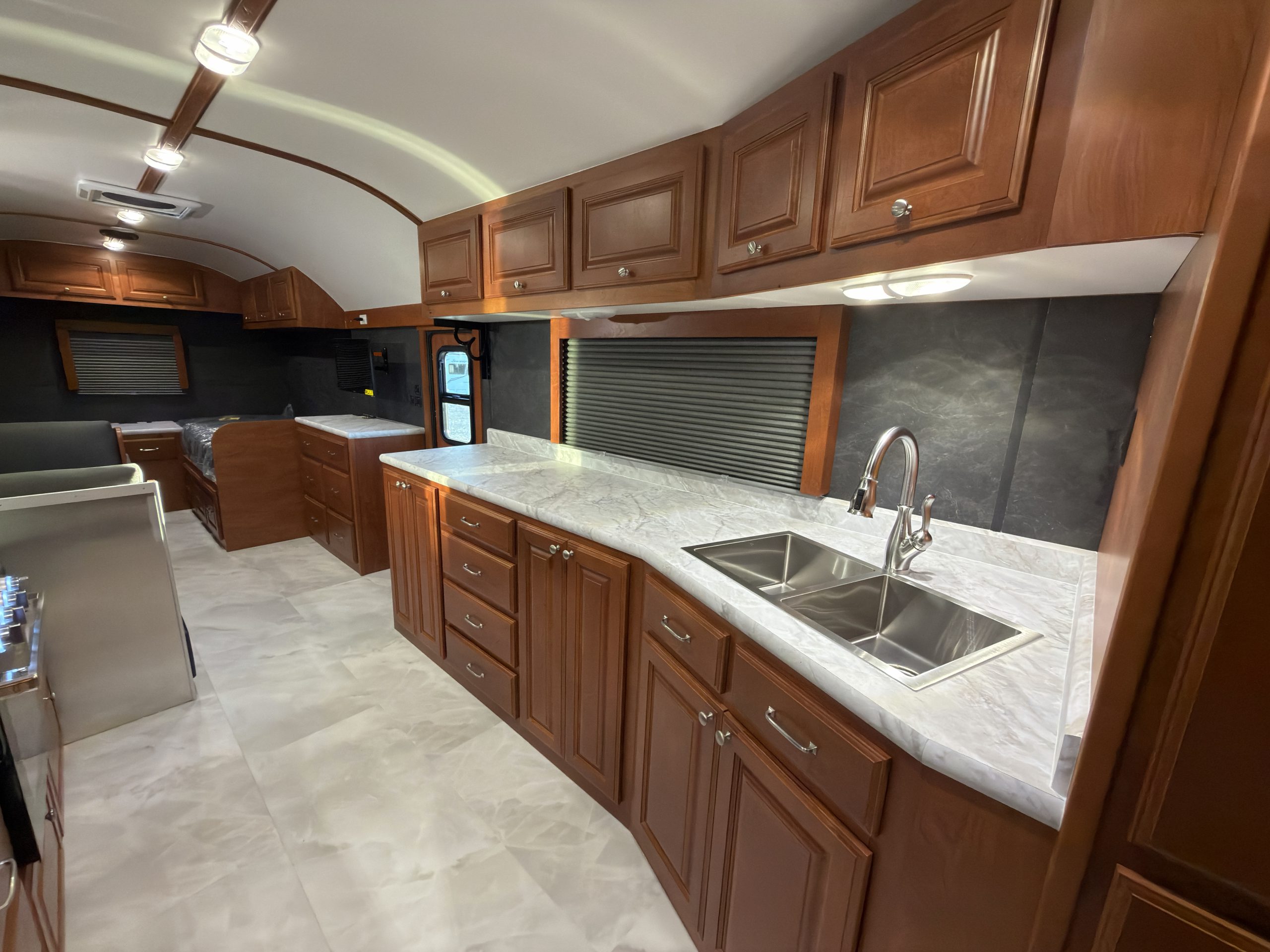

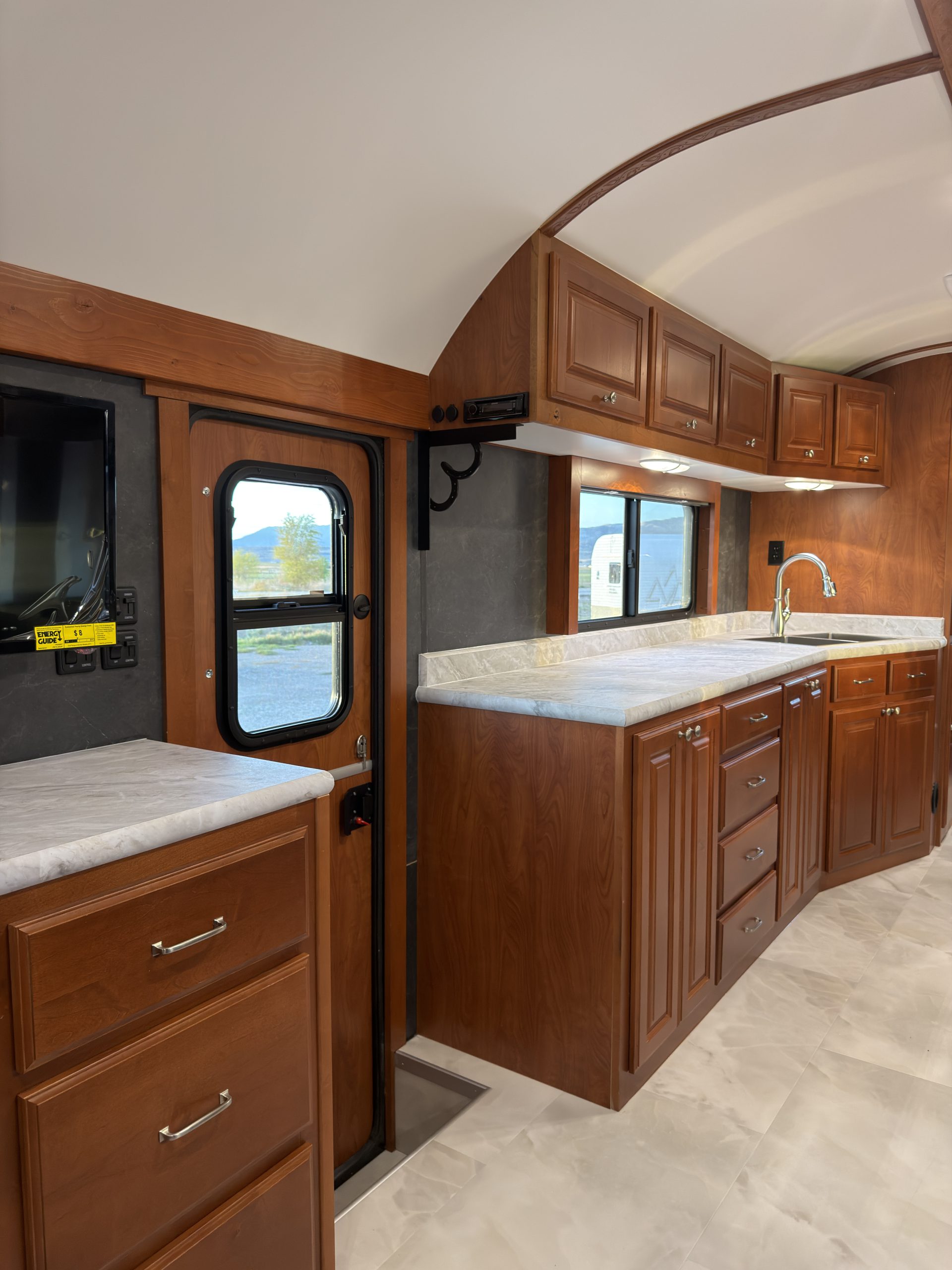

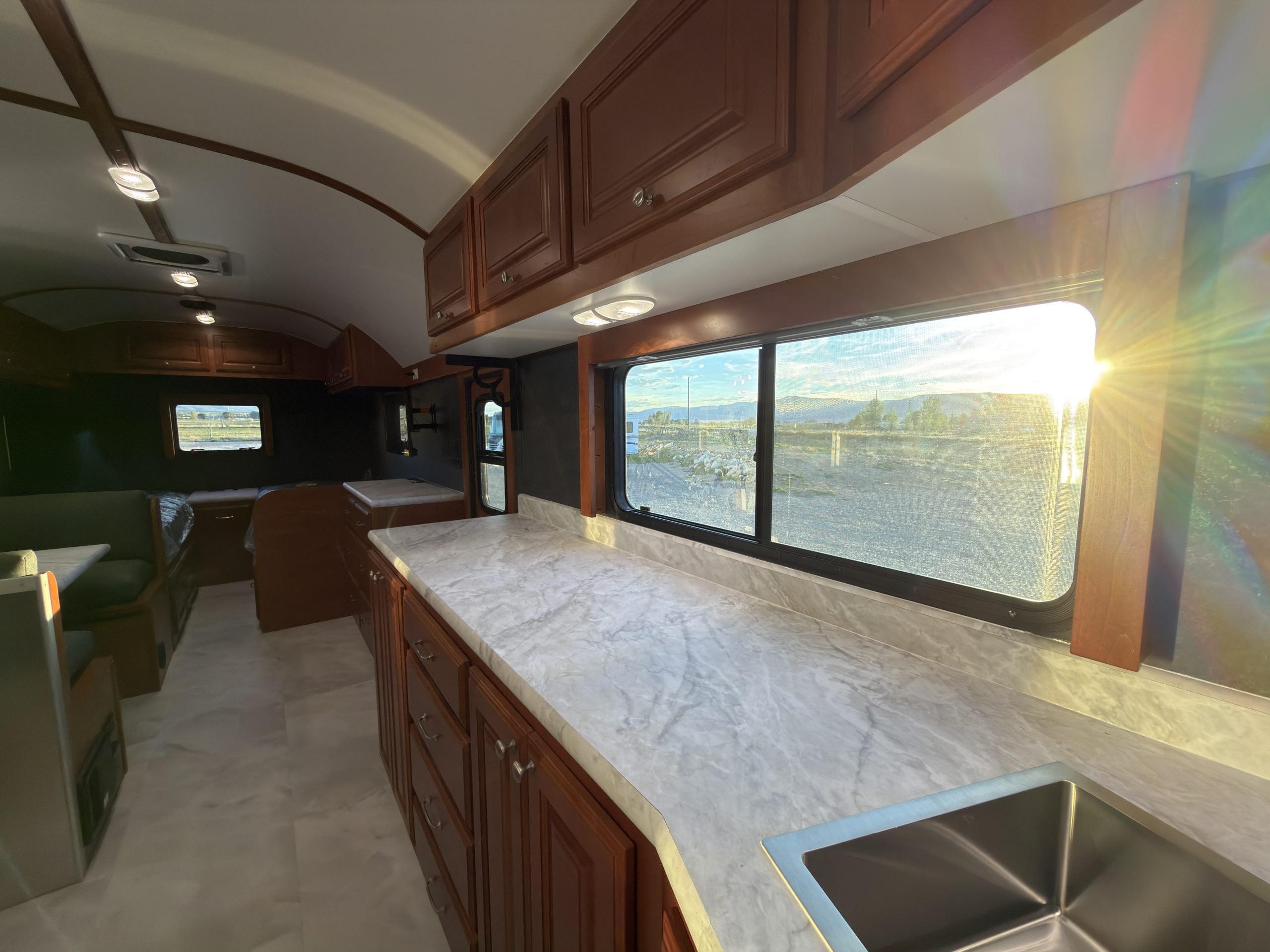

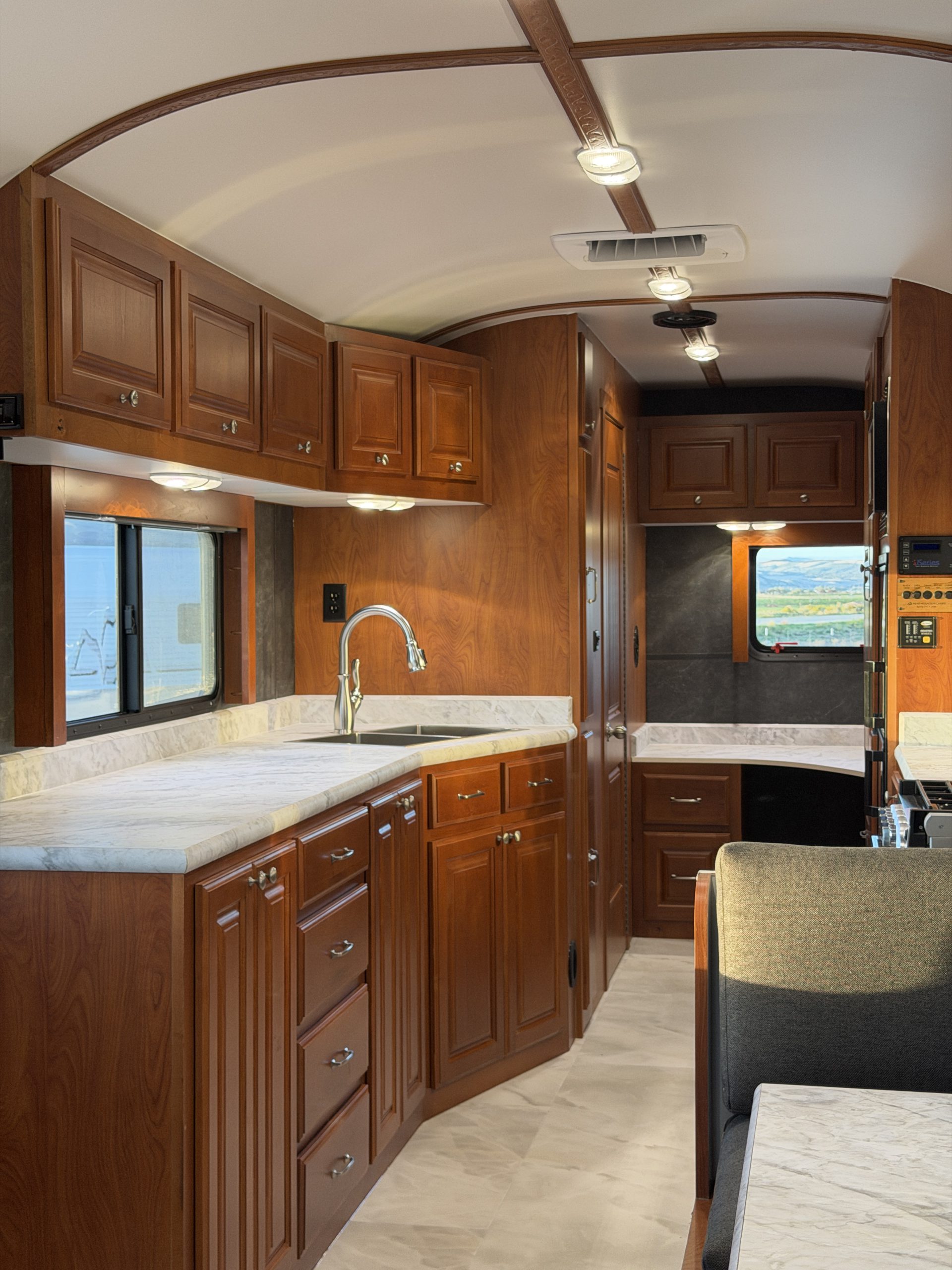

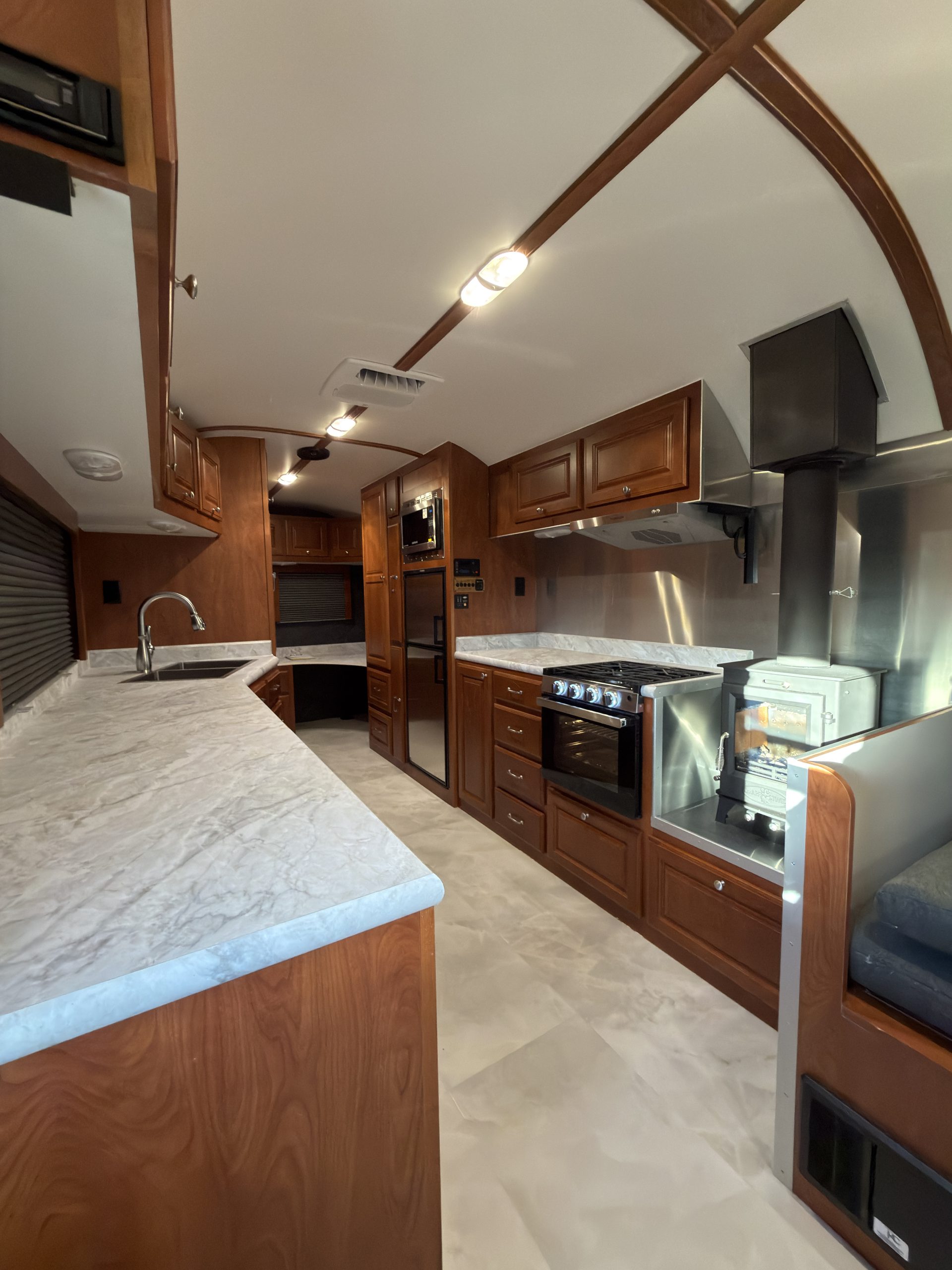

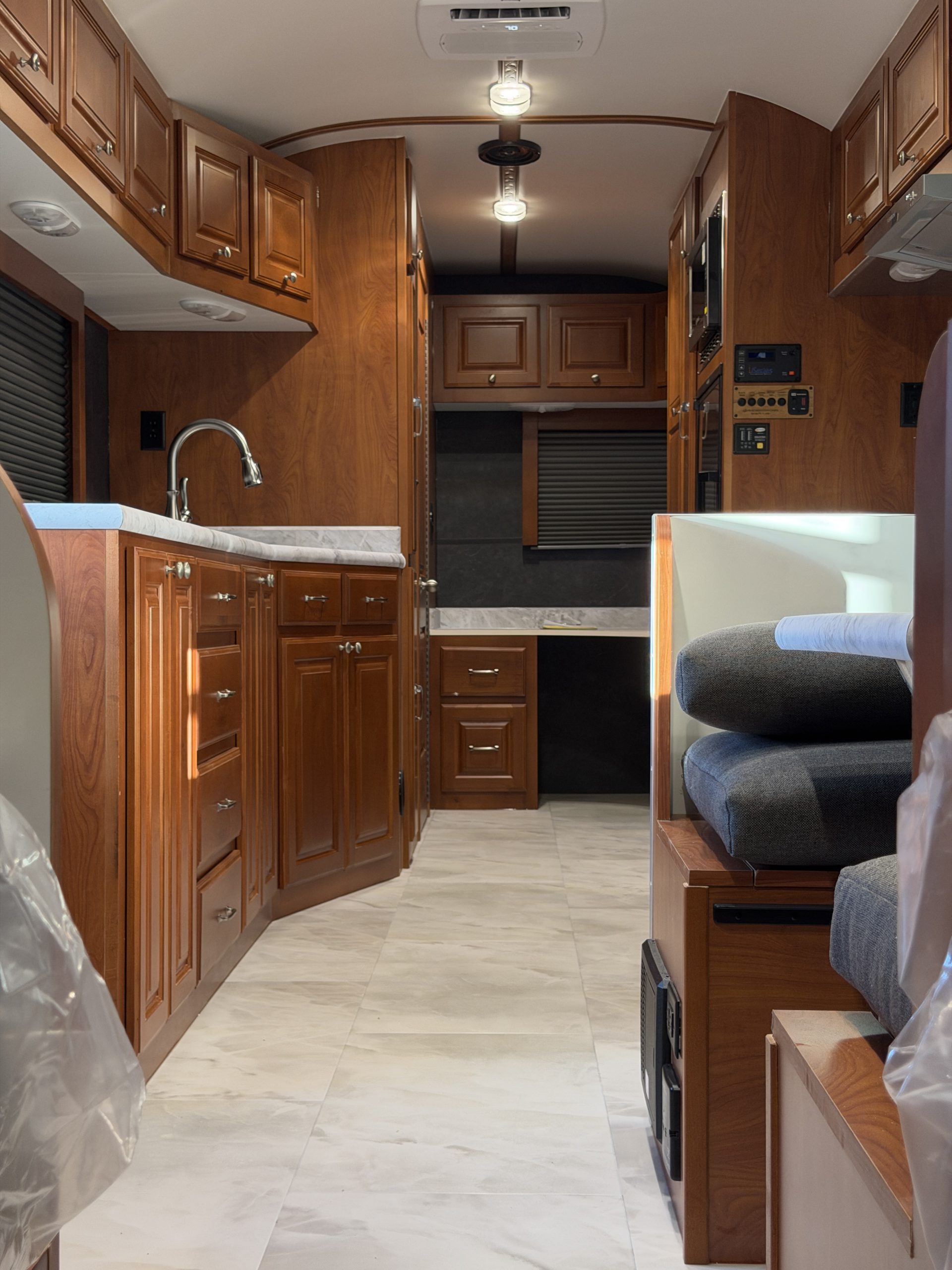

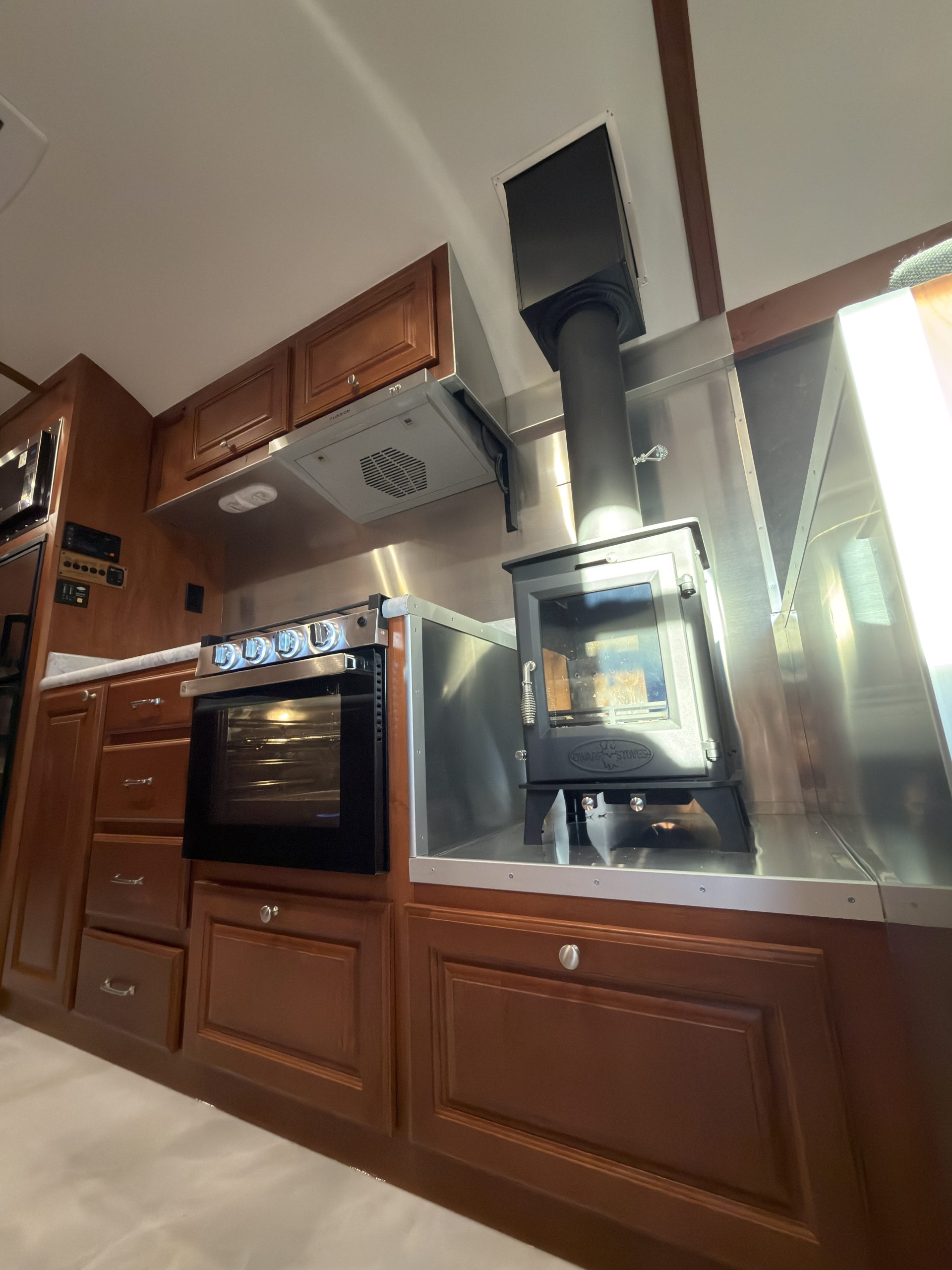

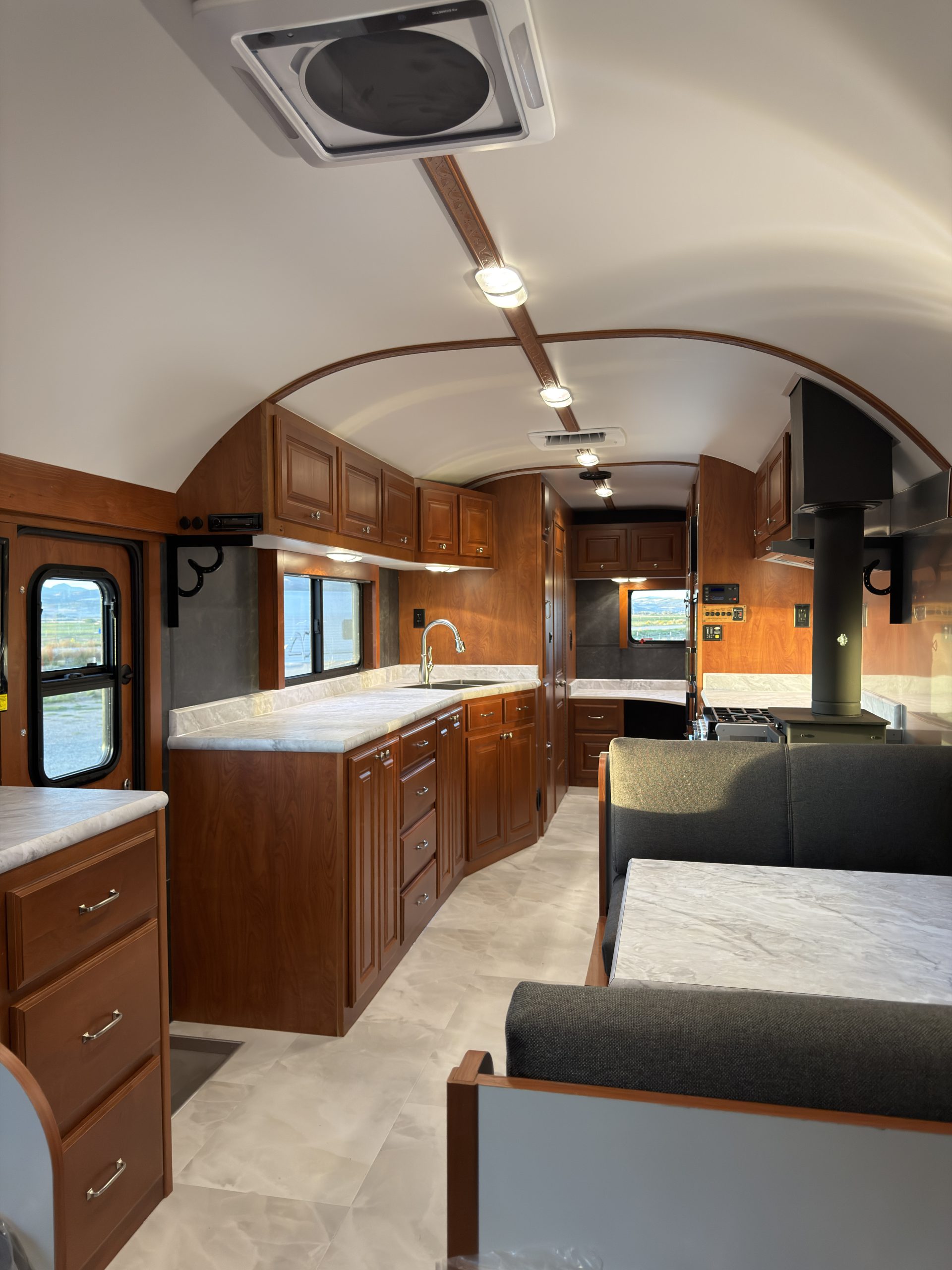

Kitchen

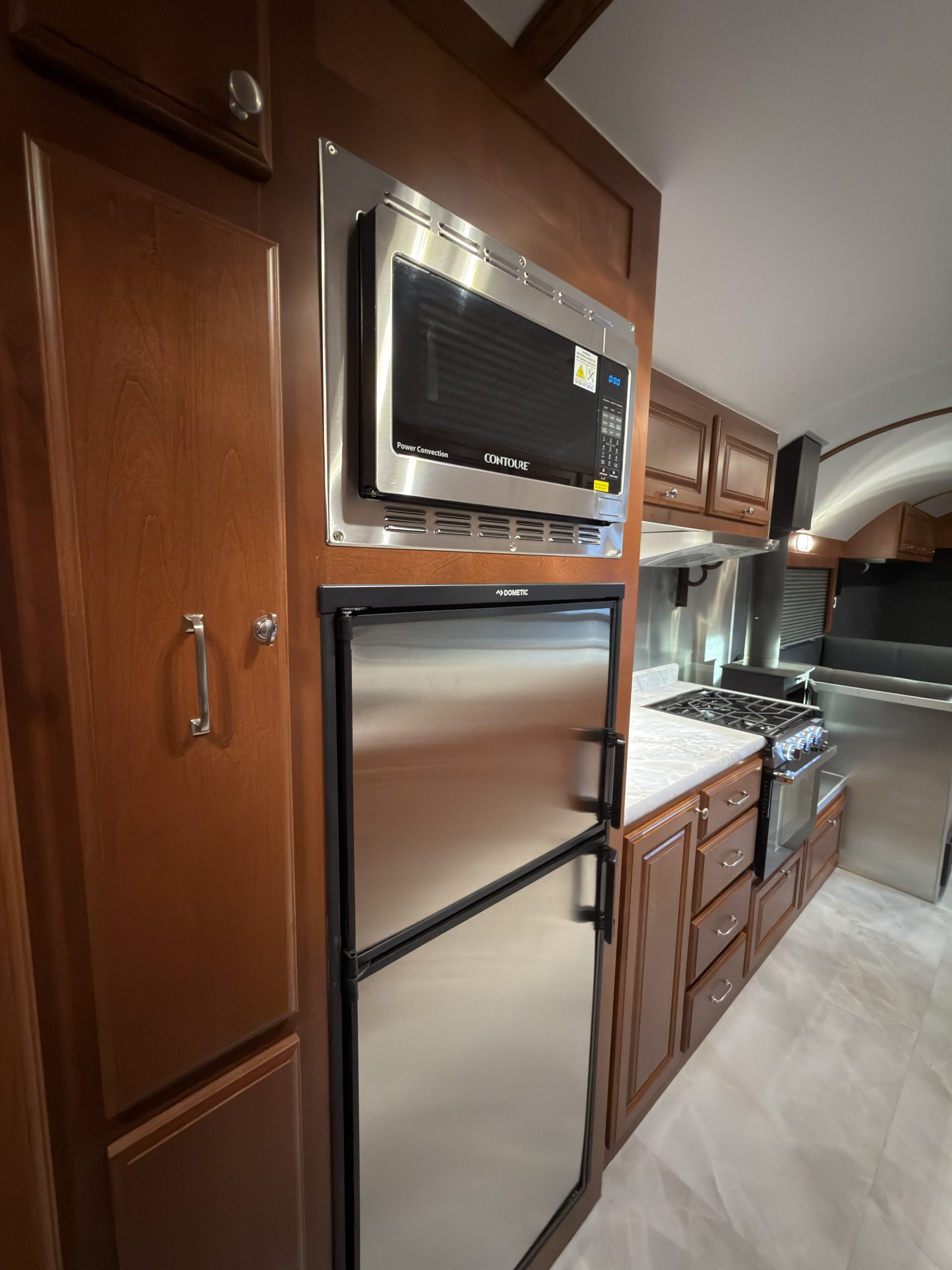

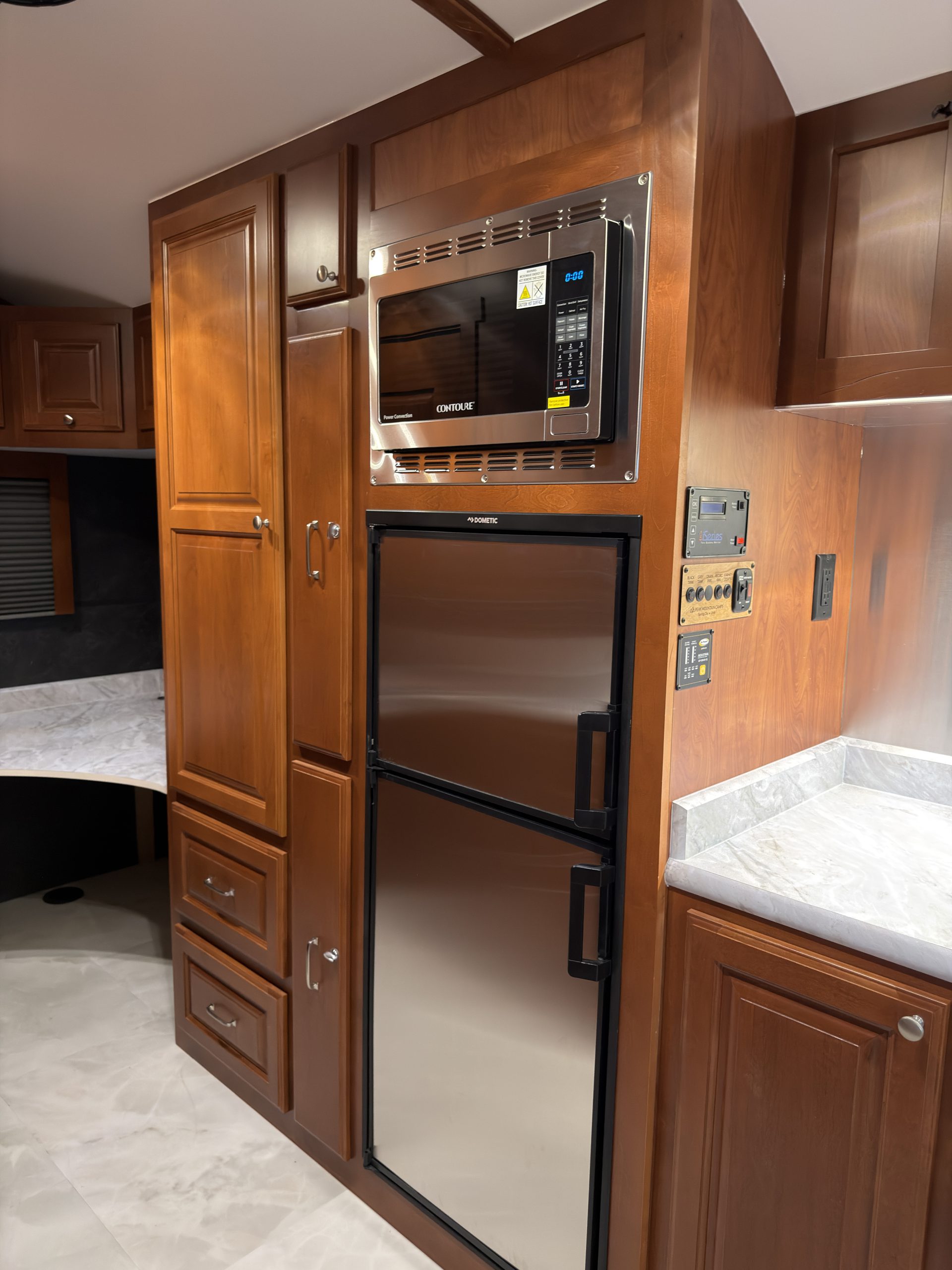

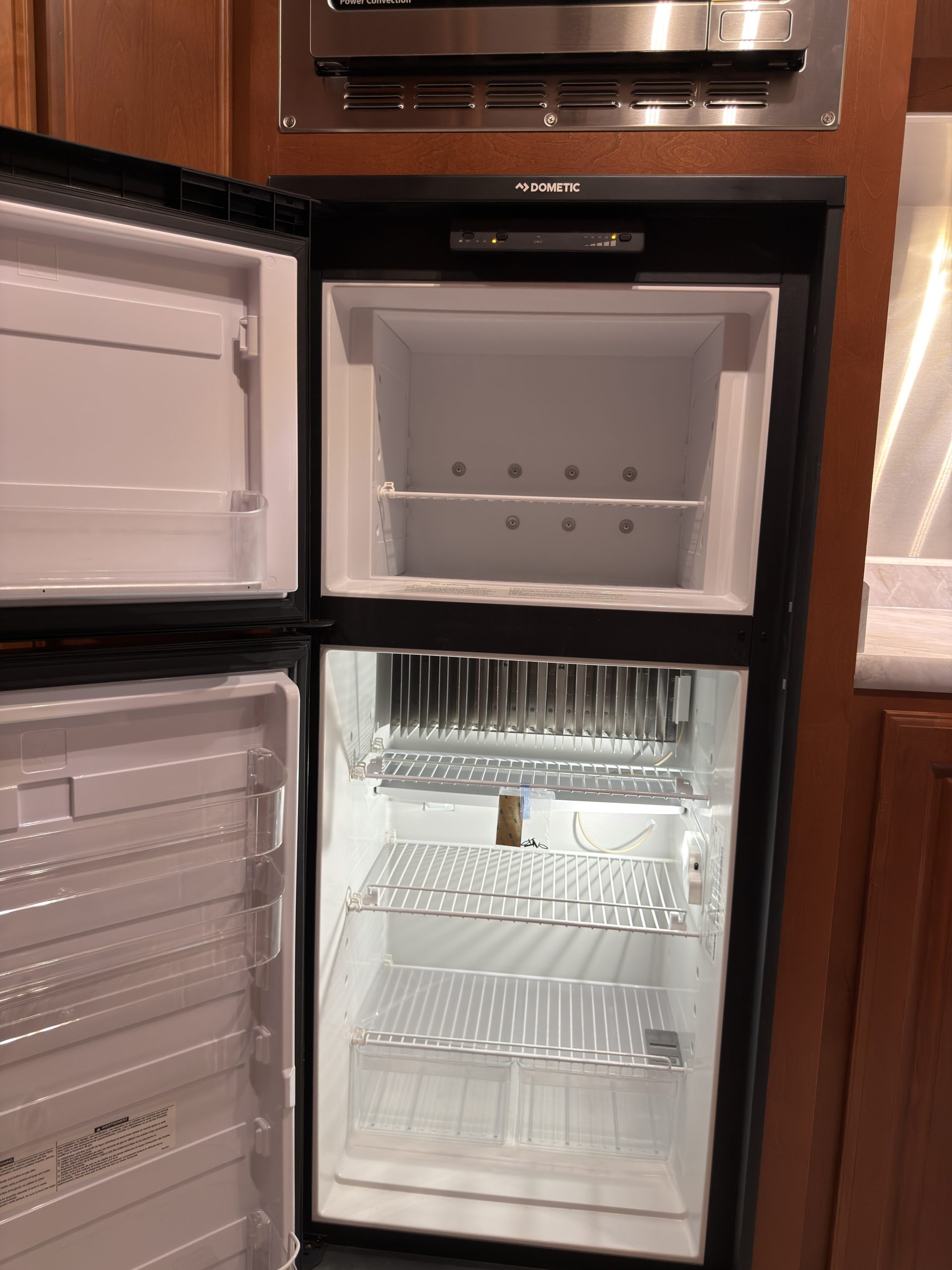

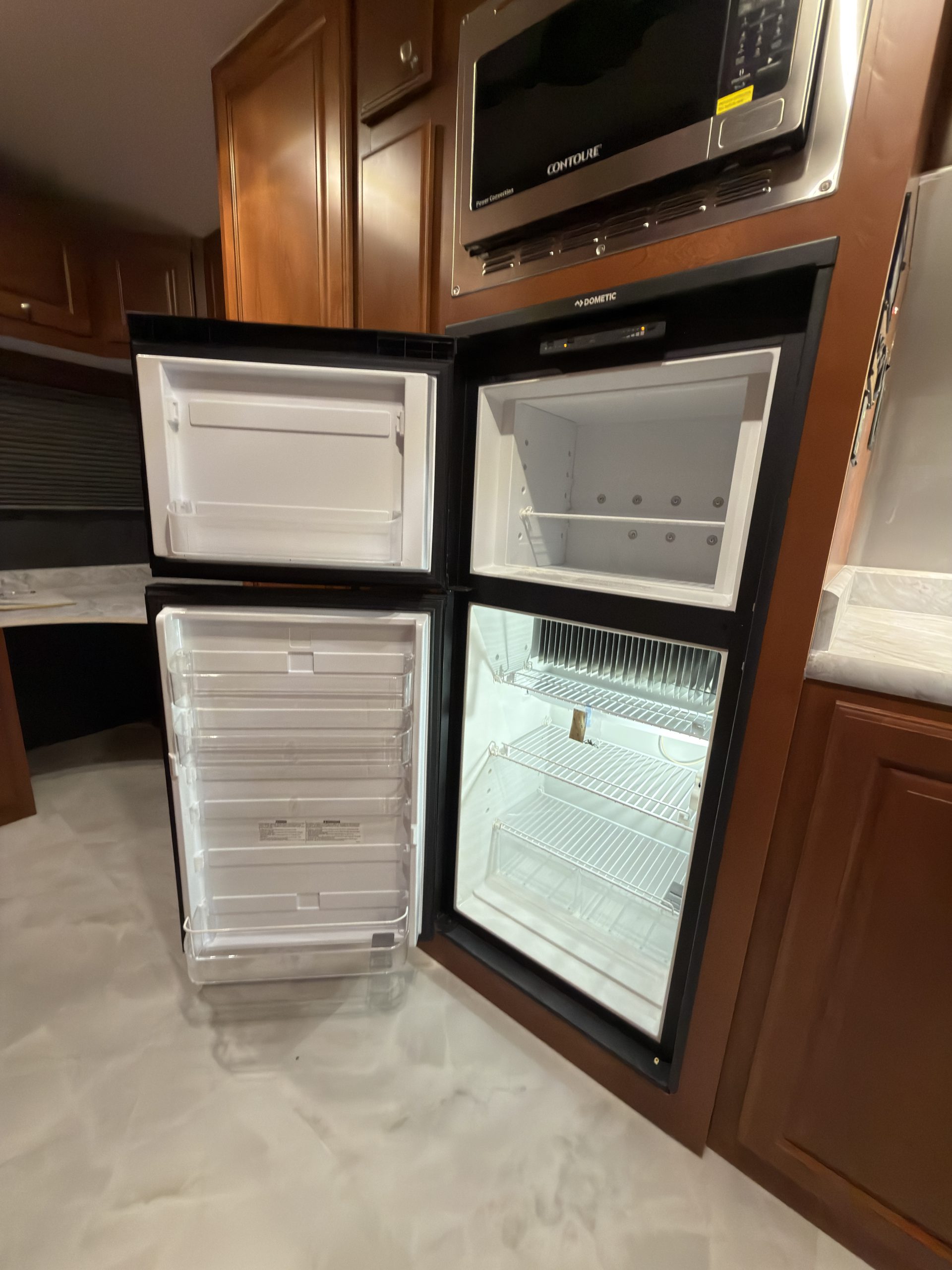

- Refrigerator
- 7 cu ft Stainless Steel Propane/Electric Fridge-Freezer

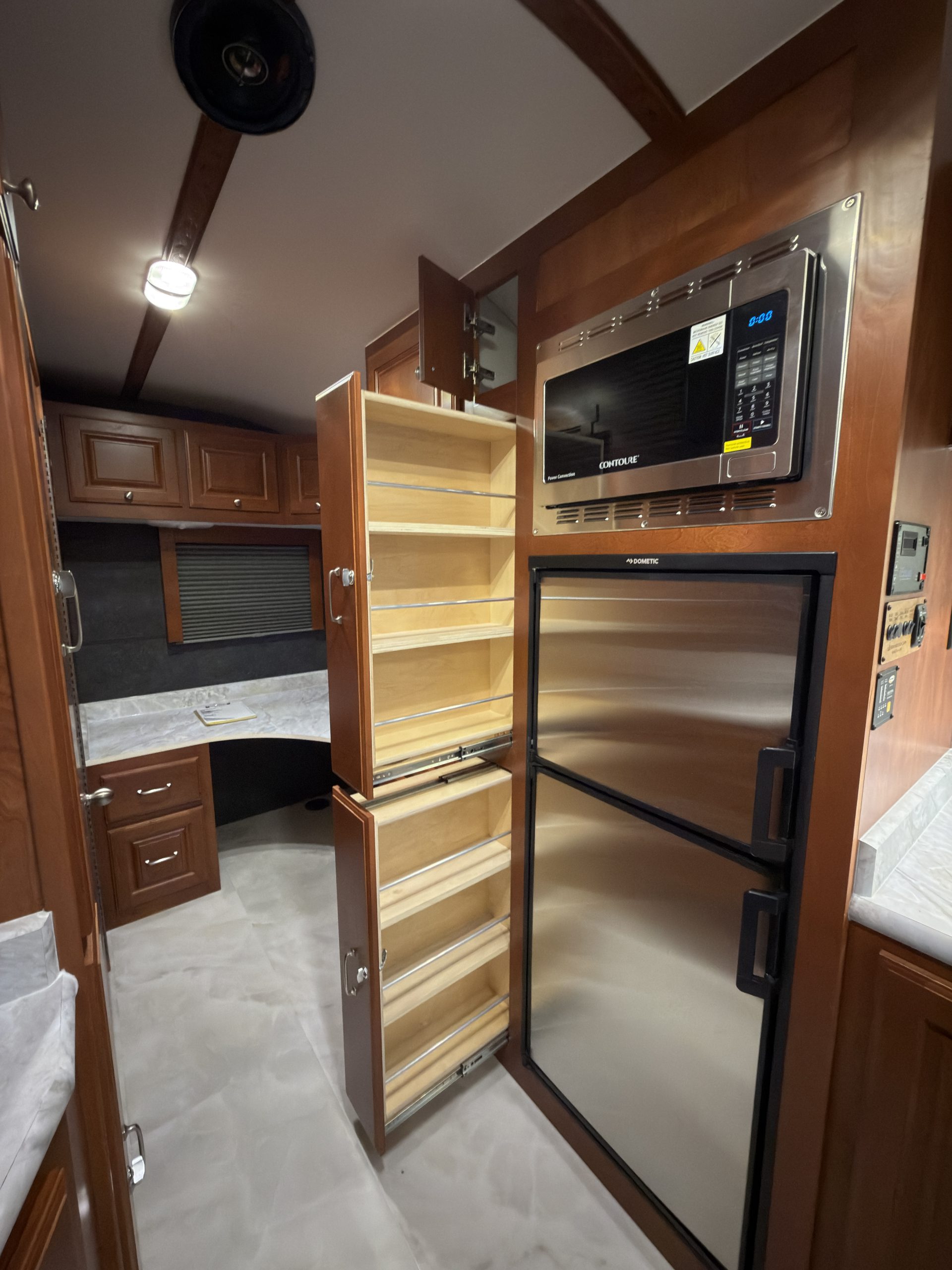

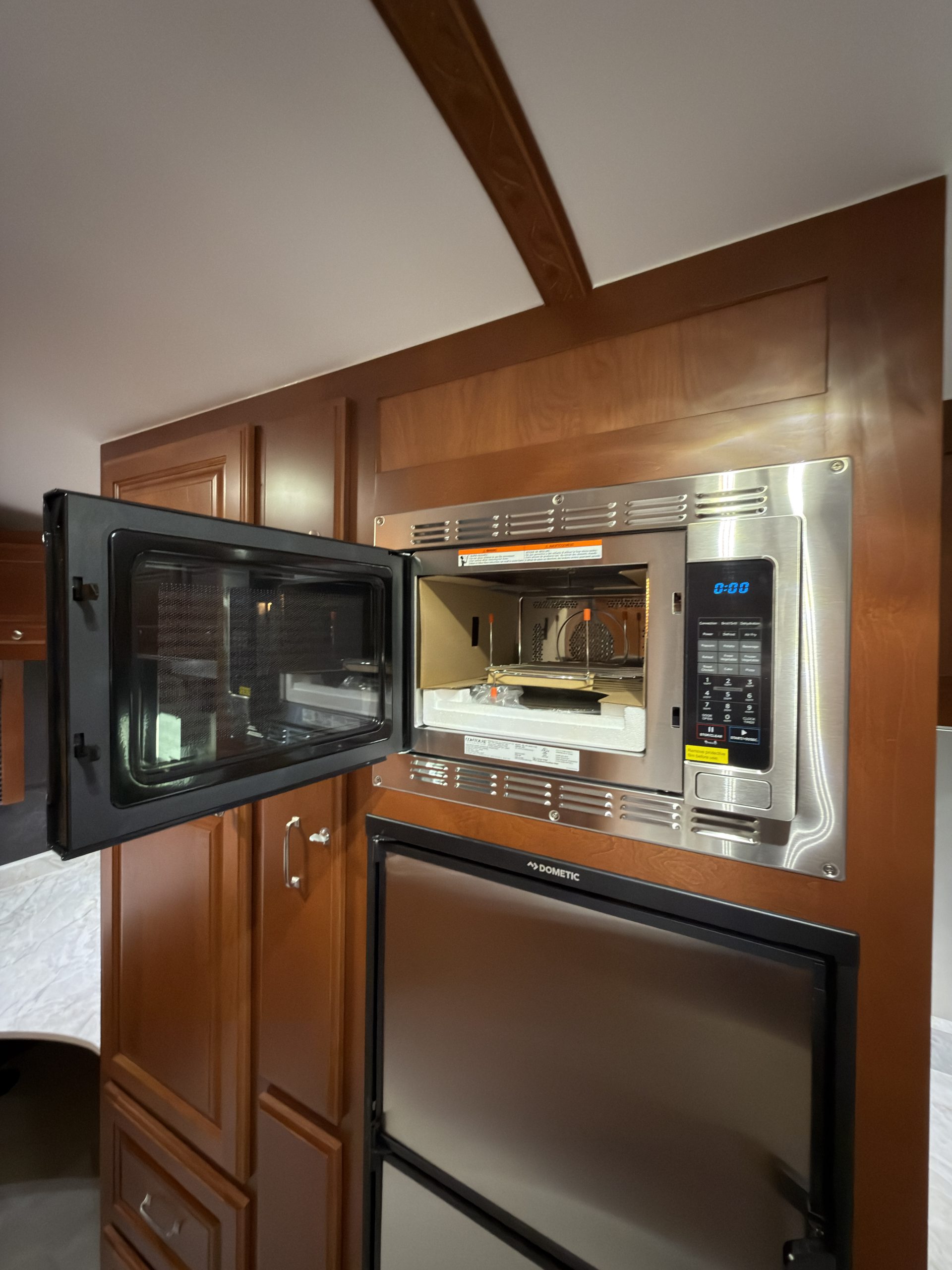

- Microwave

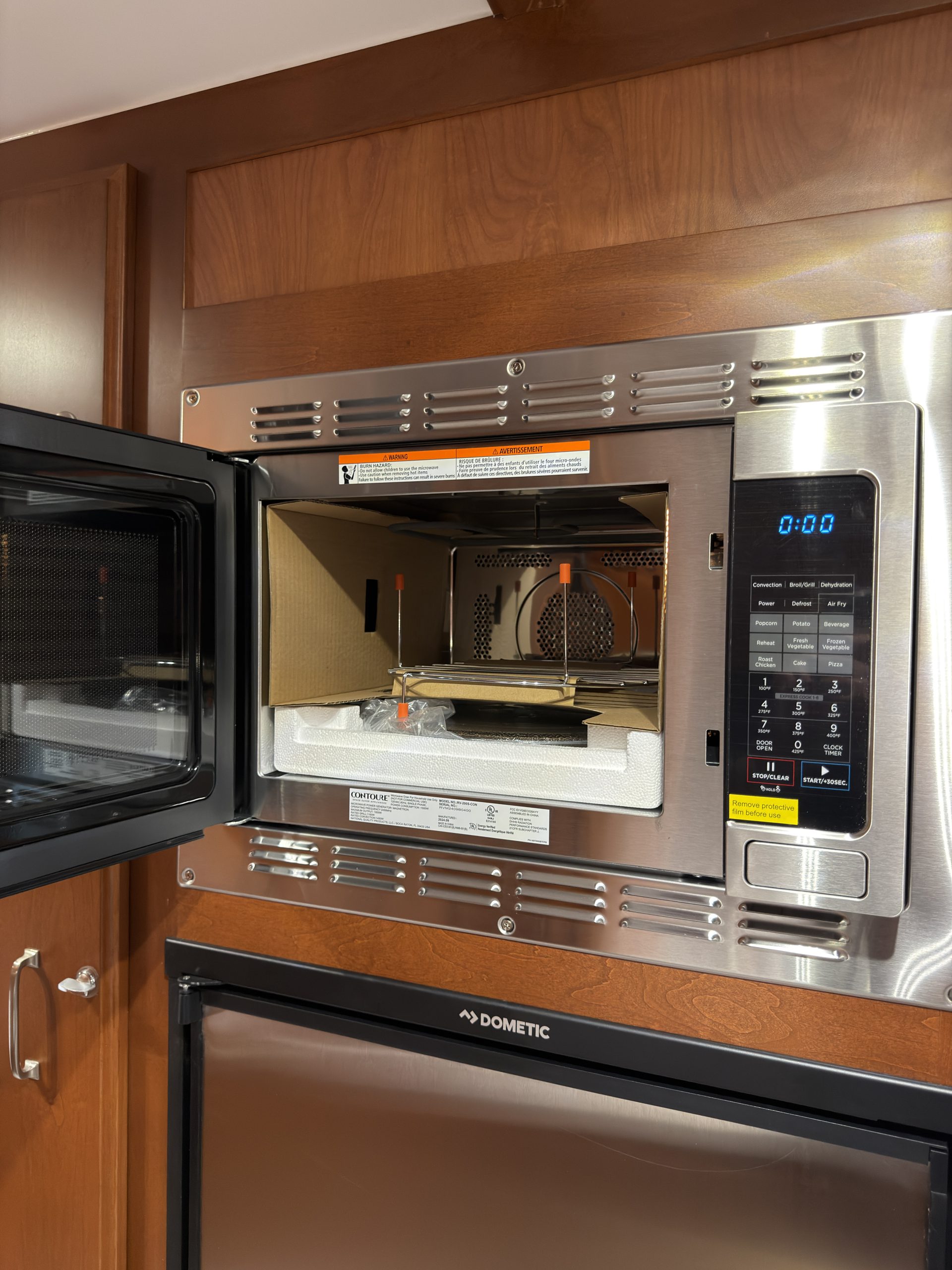

- Highlighted feature: Large Built-In Microwave Oven with Air Fryer
- Stovetop / Oven

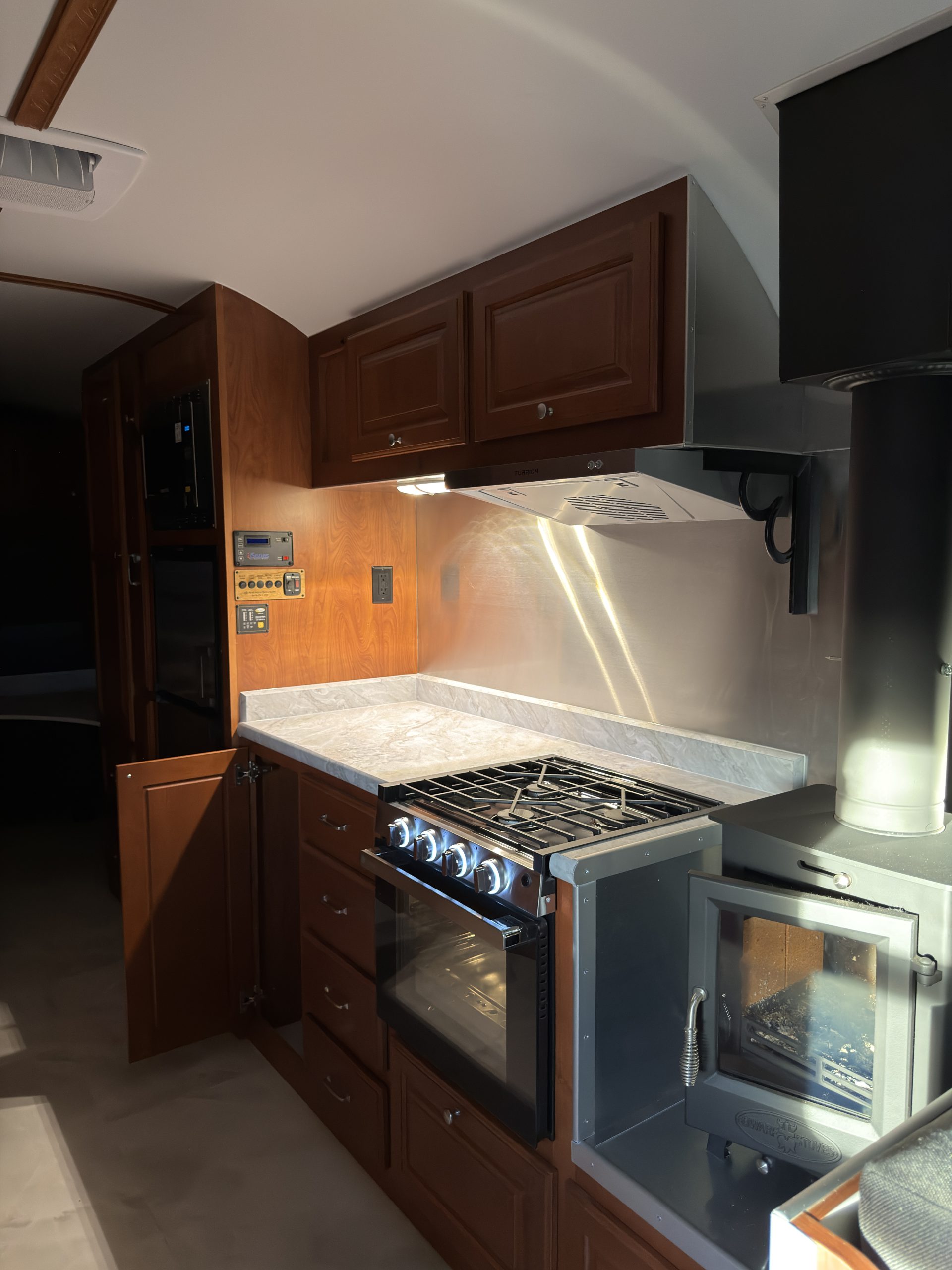

- Highlighted feature: 21 in. GE 3-Burner Cooktop and Oven with Direct Spark
- Range Hood

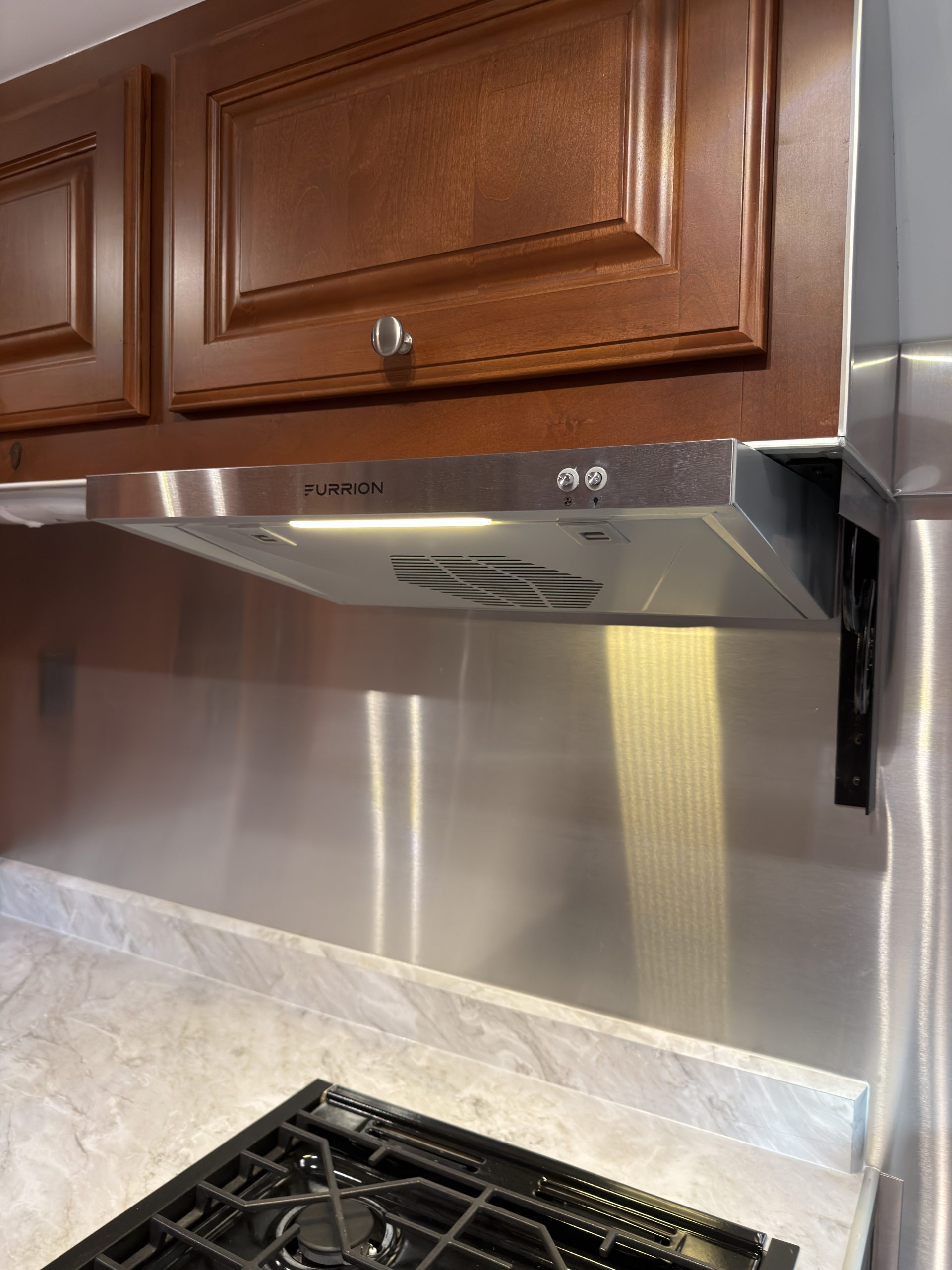

- Highlighted feature: Furrion Range Hood / Exhaust Fan

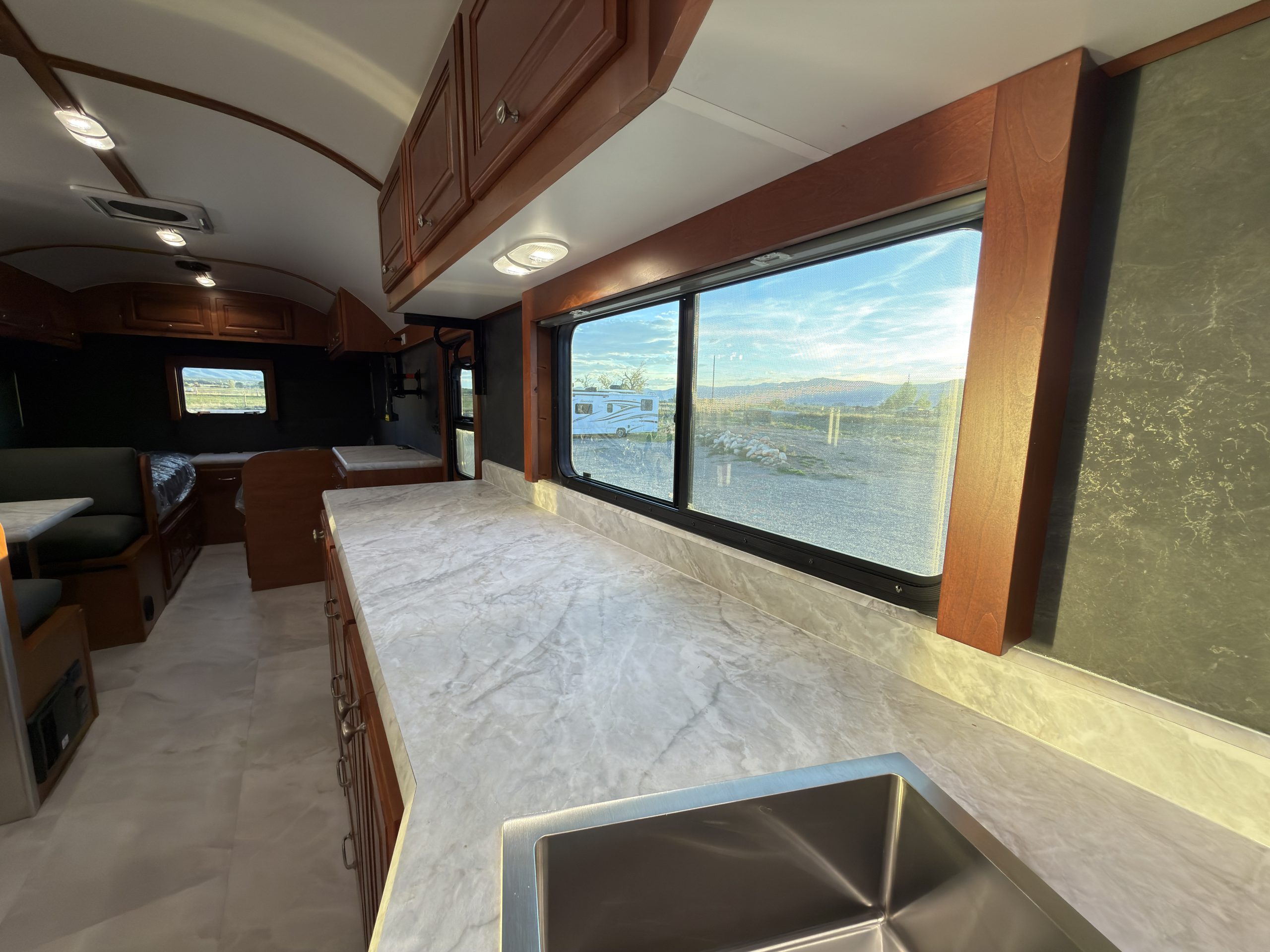

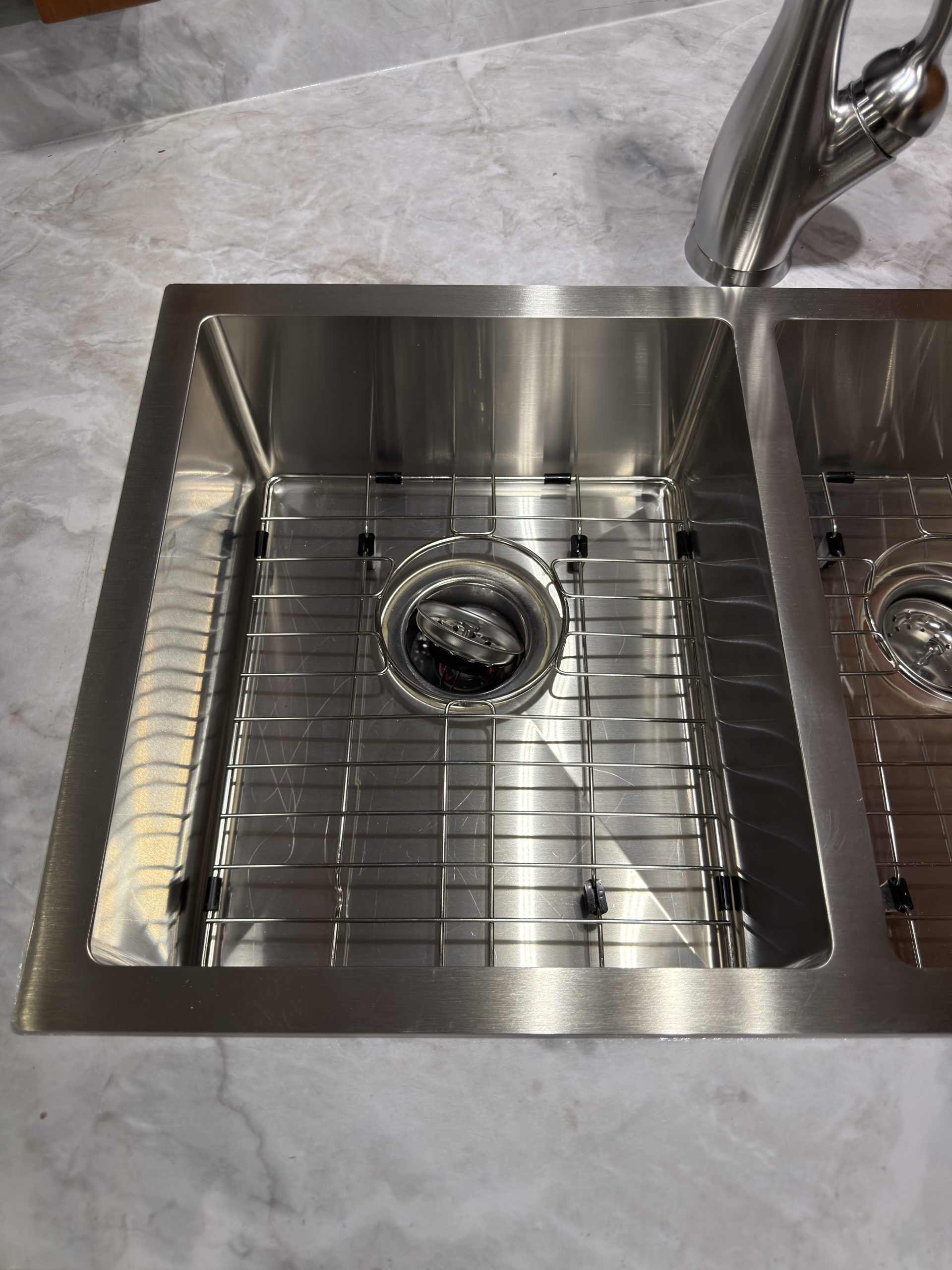

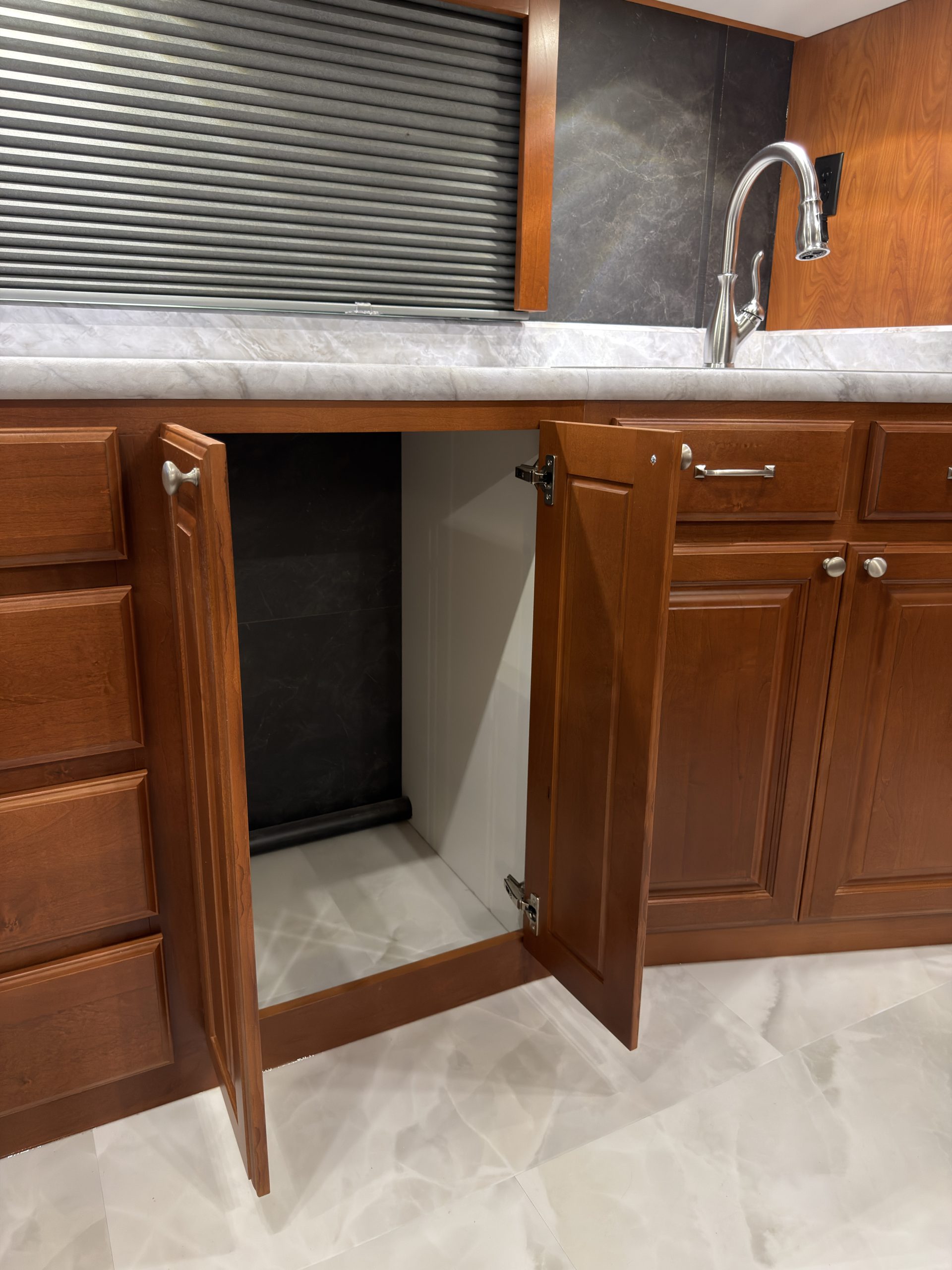

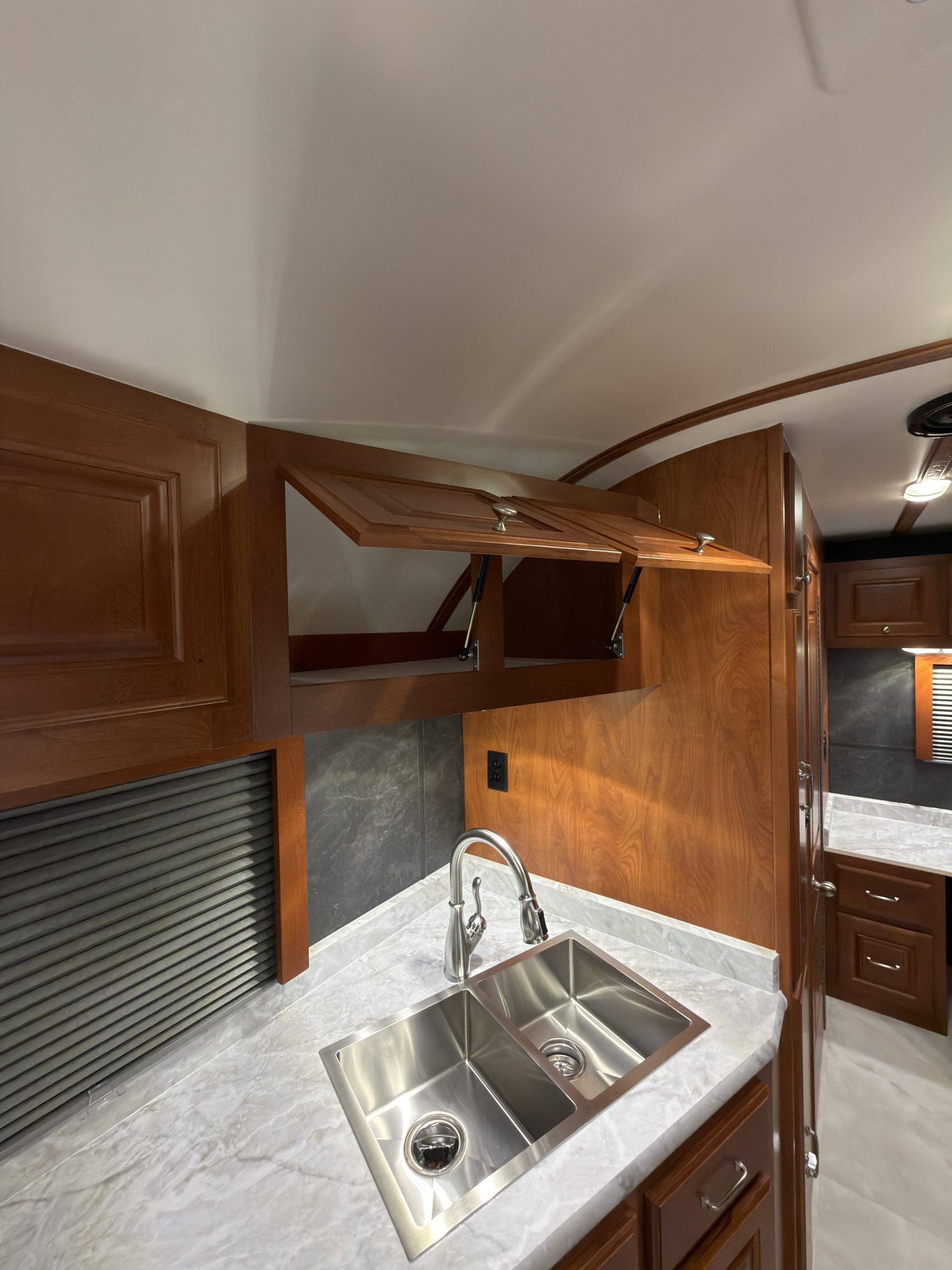

- Sink

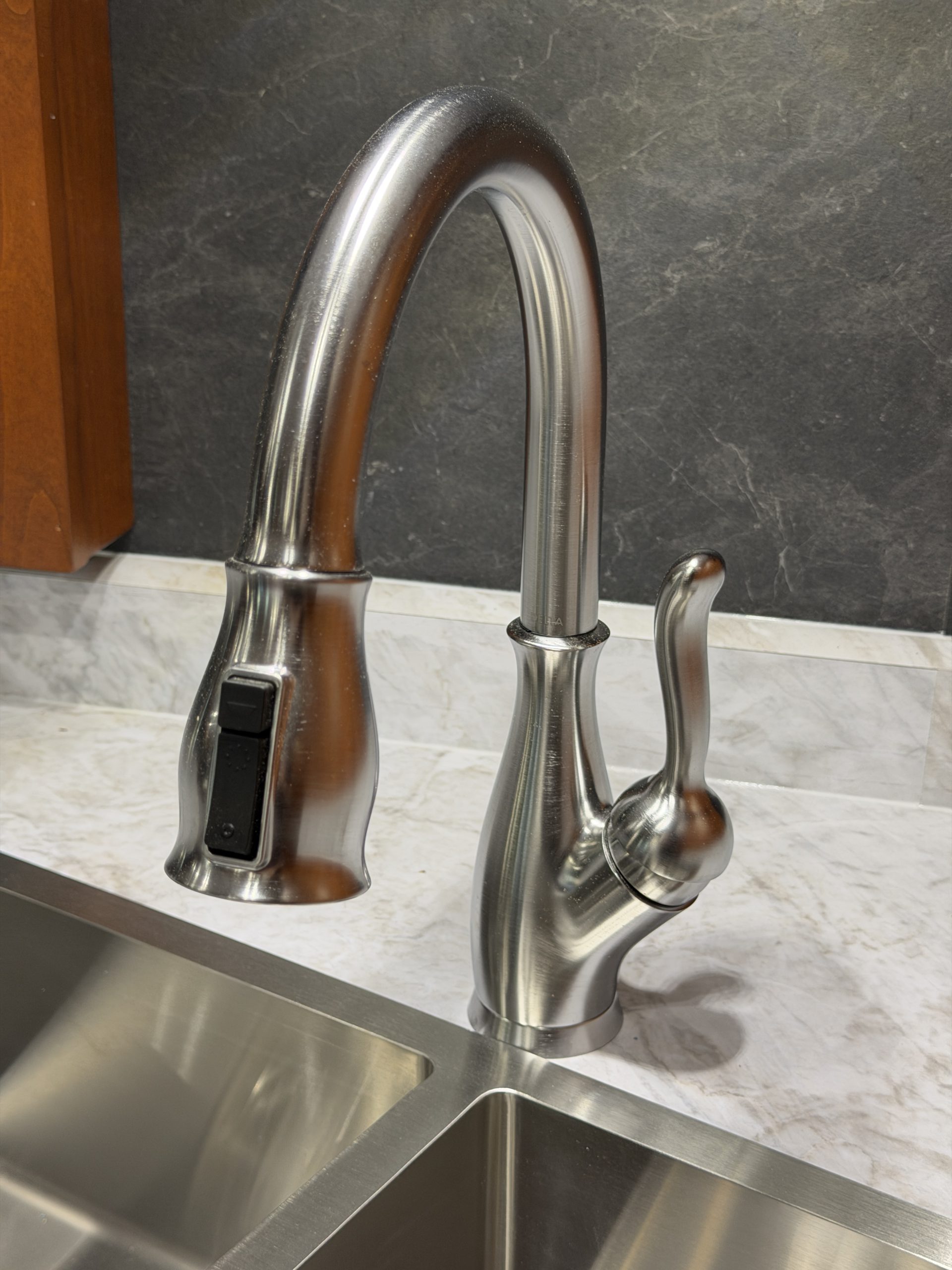

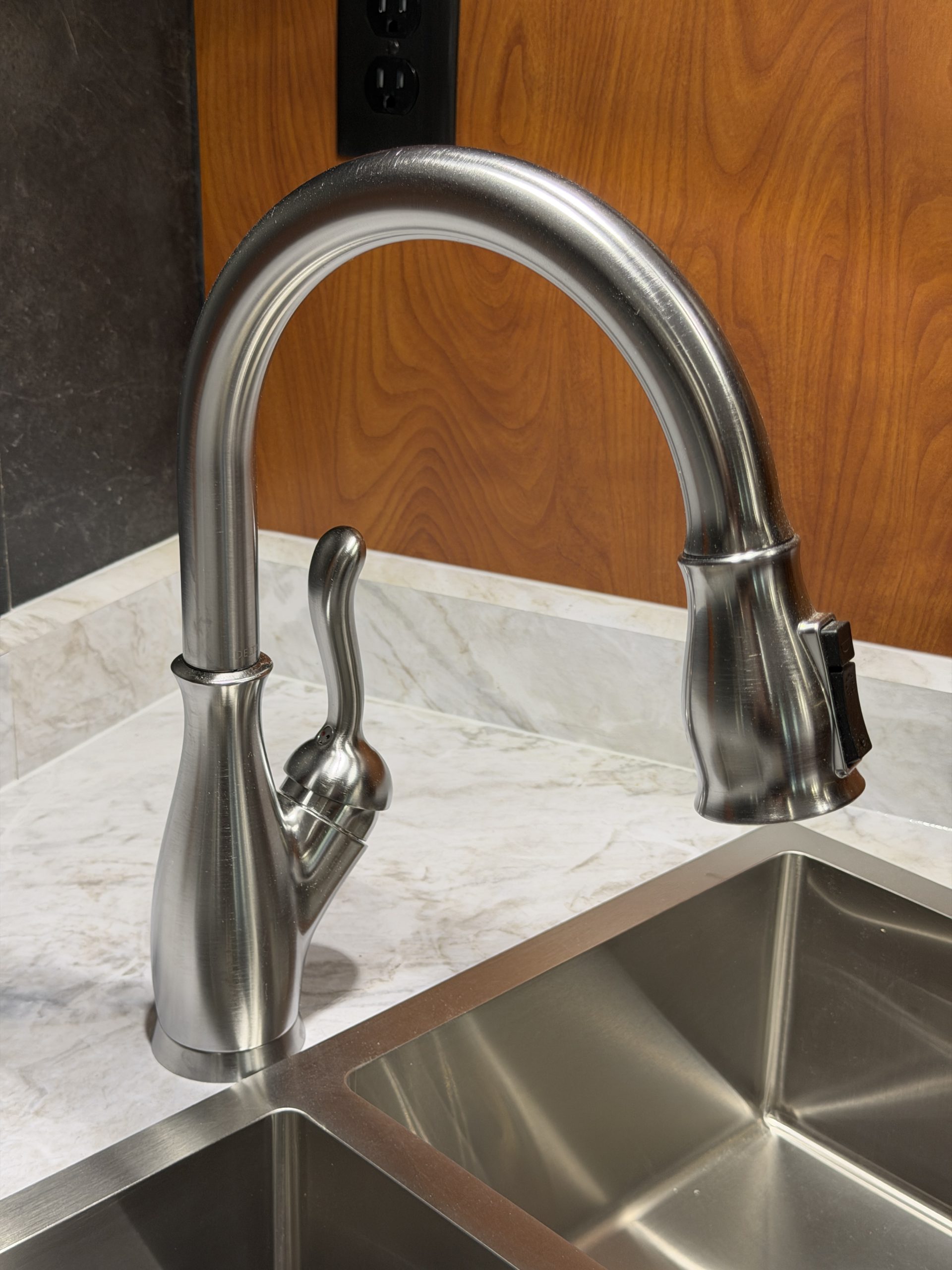

- Highlighted feature: Deep Double Stainless Steel Sink with Delta Residential Fixtures

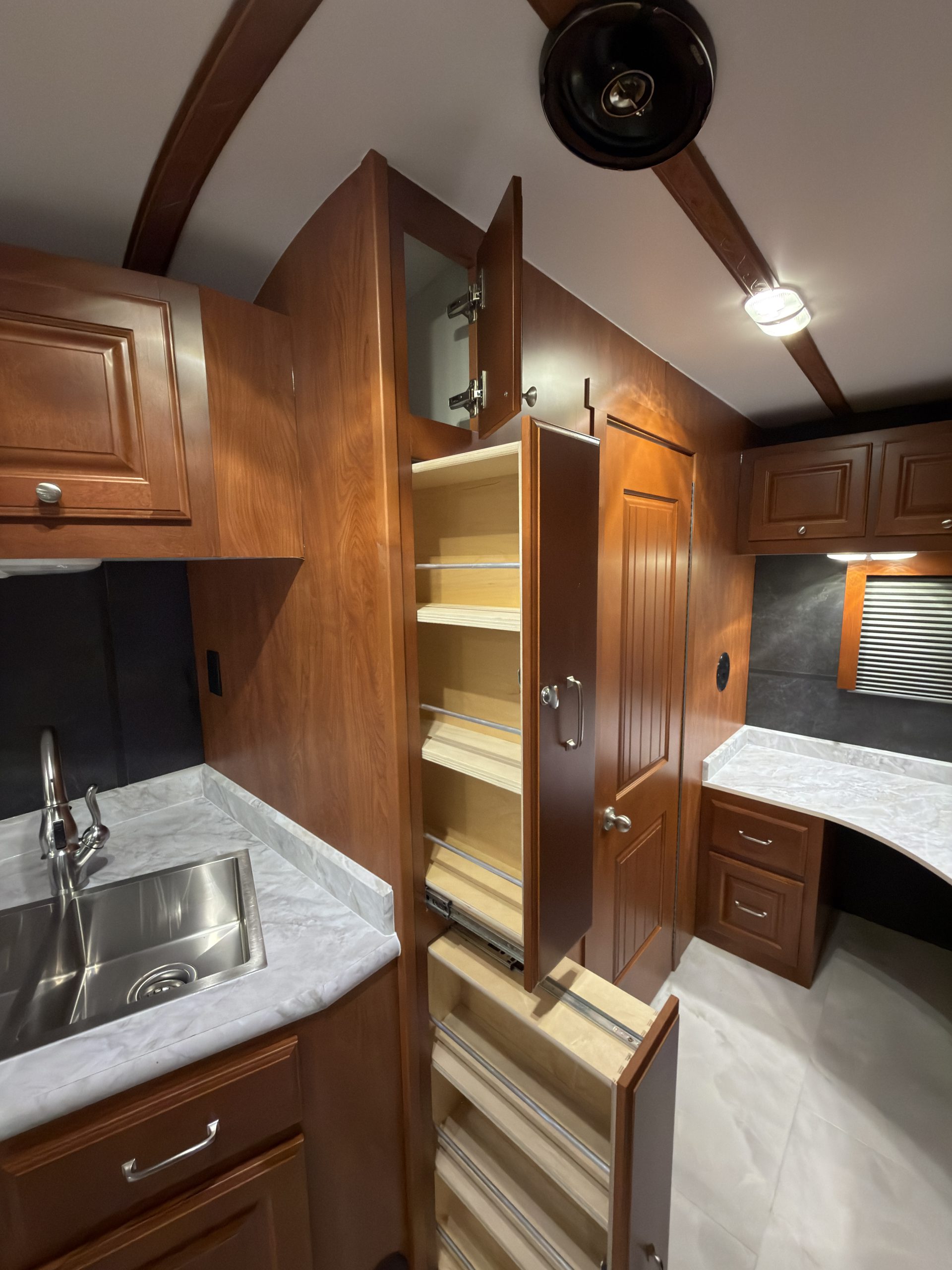

- Pantry

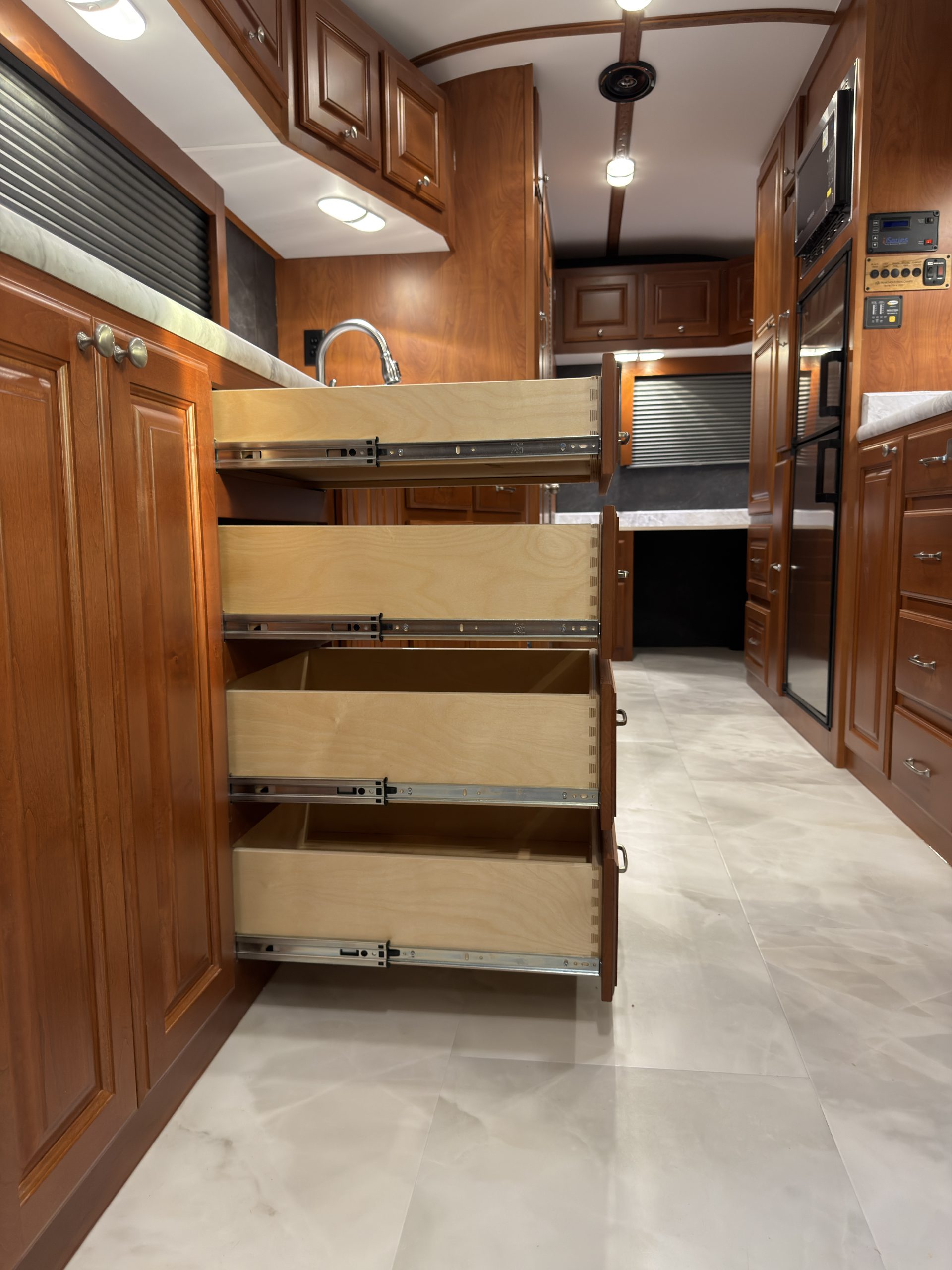

- 4x Slide-Out Pantries
- Prep Surface
- Highlighted feature: Plentiful Counter Space
- Overhead Cabinet Storage
- 5x Overhead Storage Cabinets Above Both Kitchen Counters

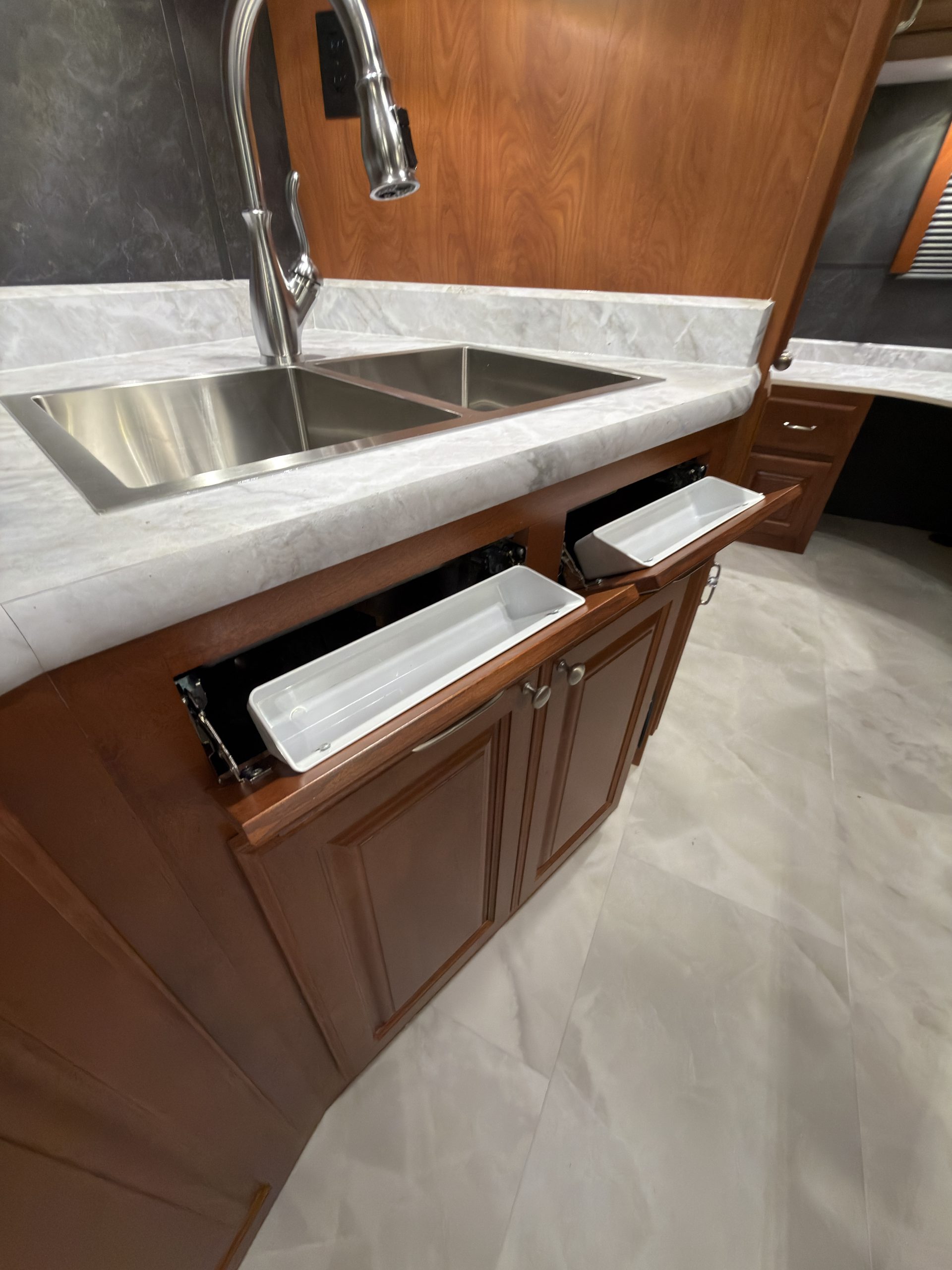

- Sink Tip-Outs
- Double Sink Tip-Out Trays

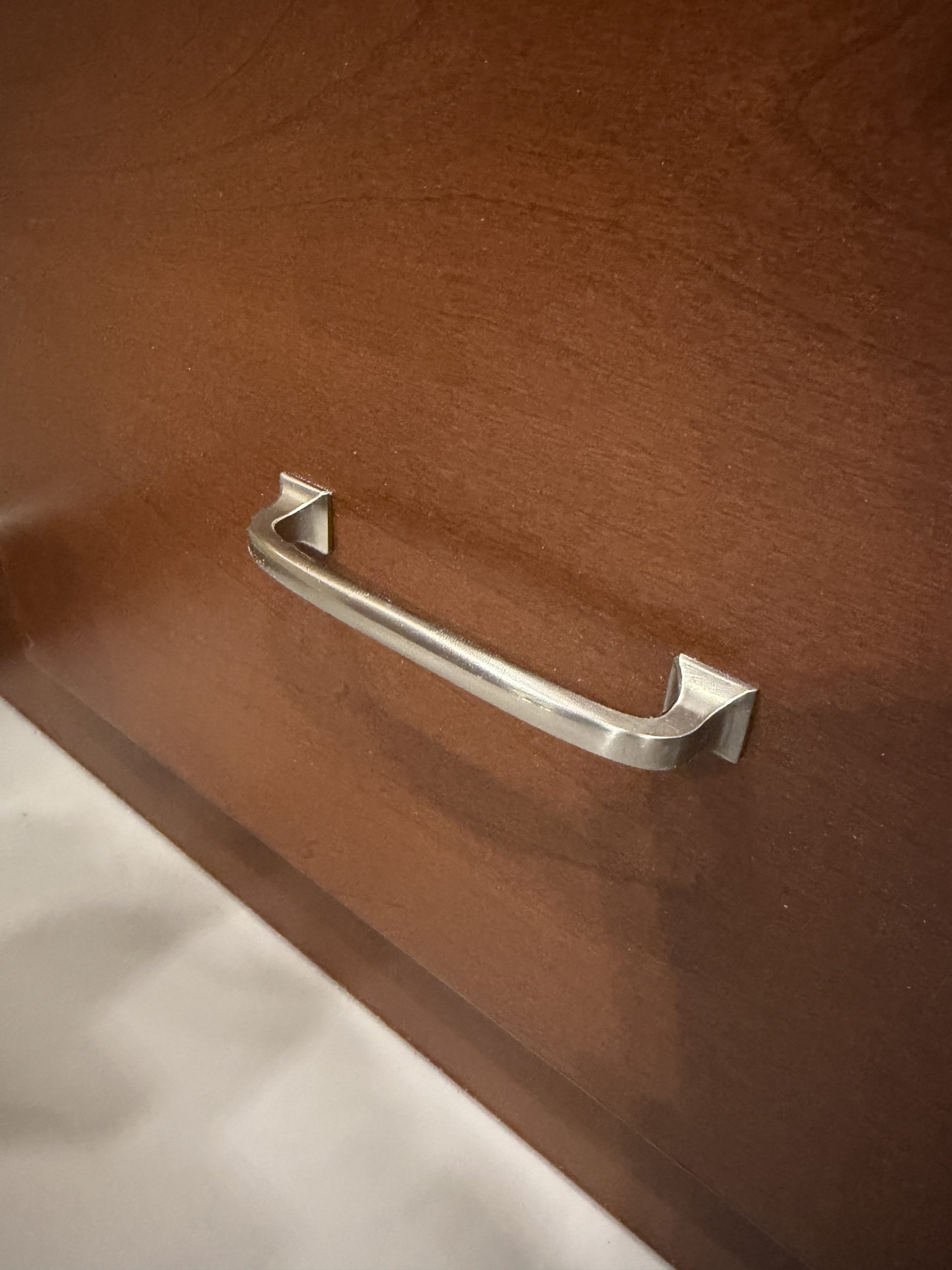

- Drawer Storage

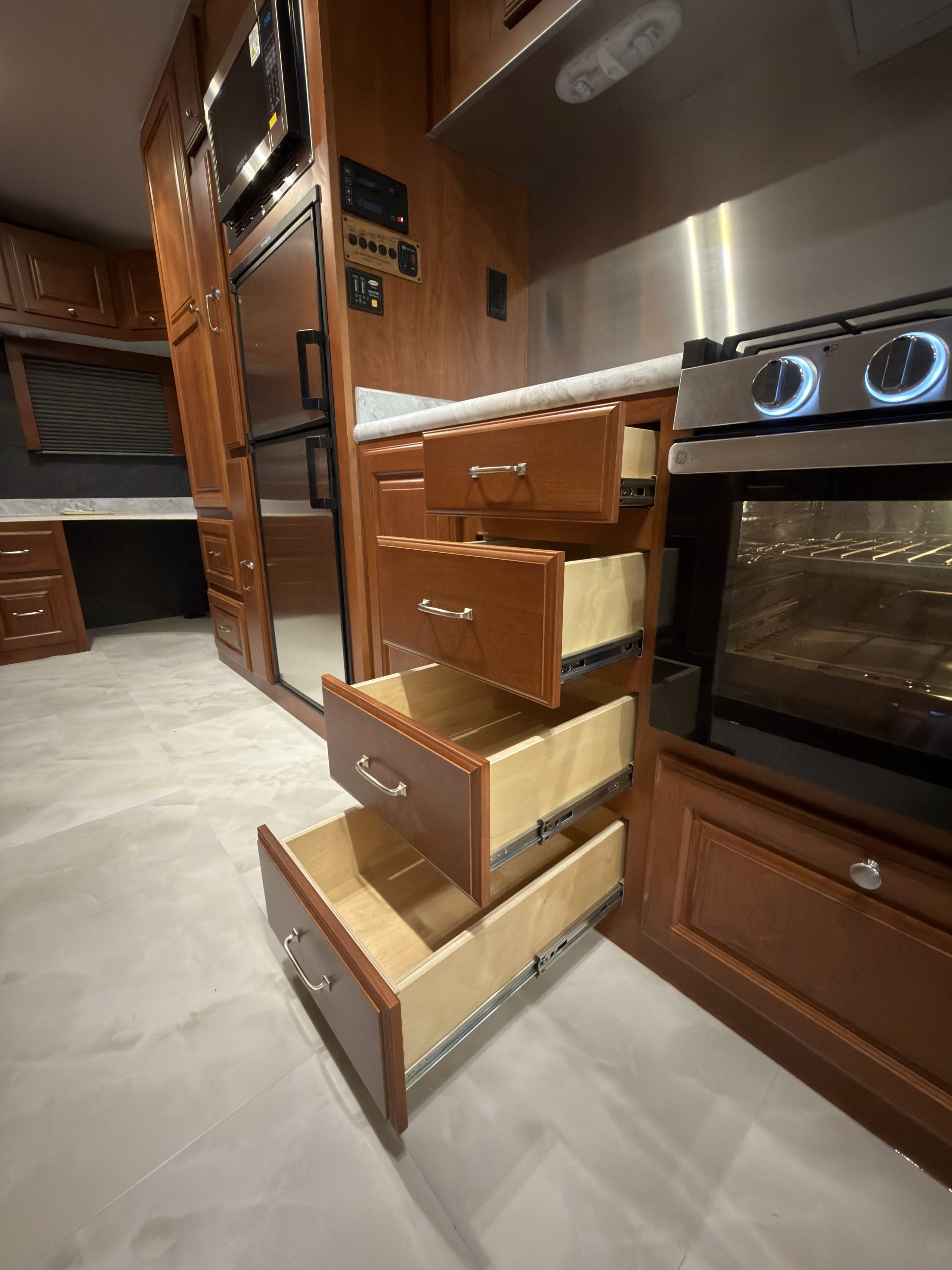

- 8x Kitchen Drawers

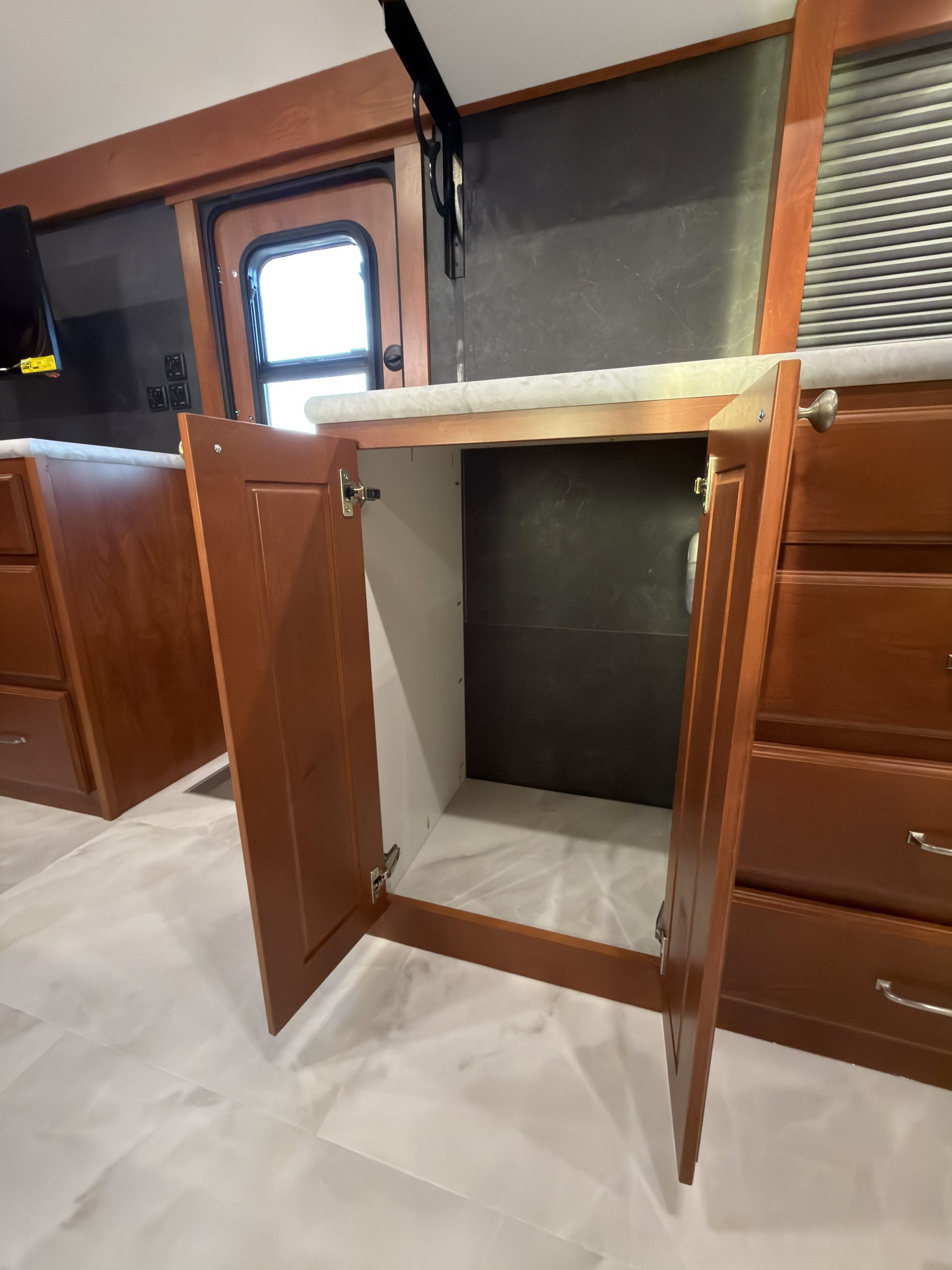

- Open Storage
- 3x Large Cabinets with Open Storage
- Lighting
- Lighting Added Below Upper Cabinets
- Power

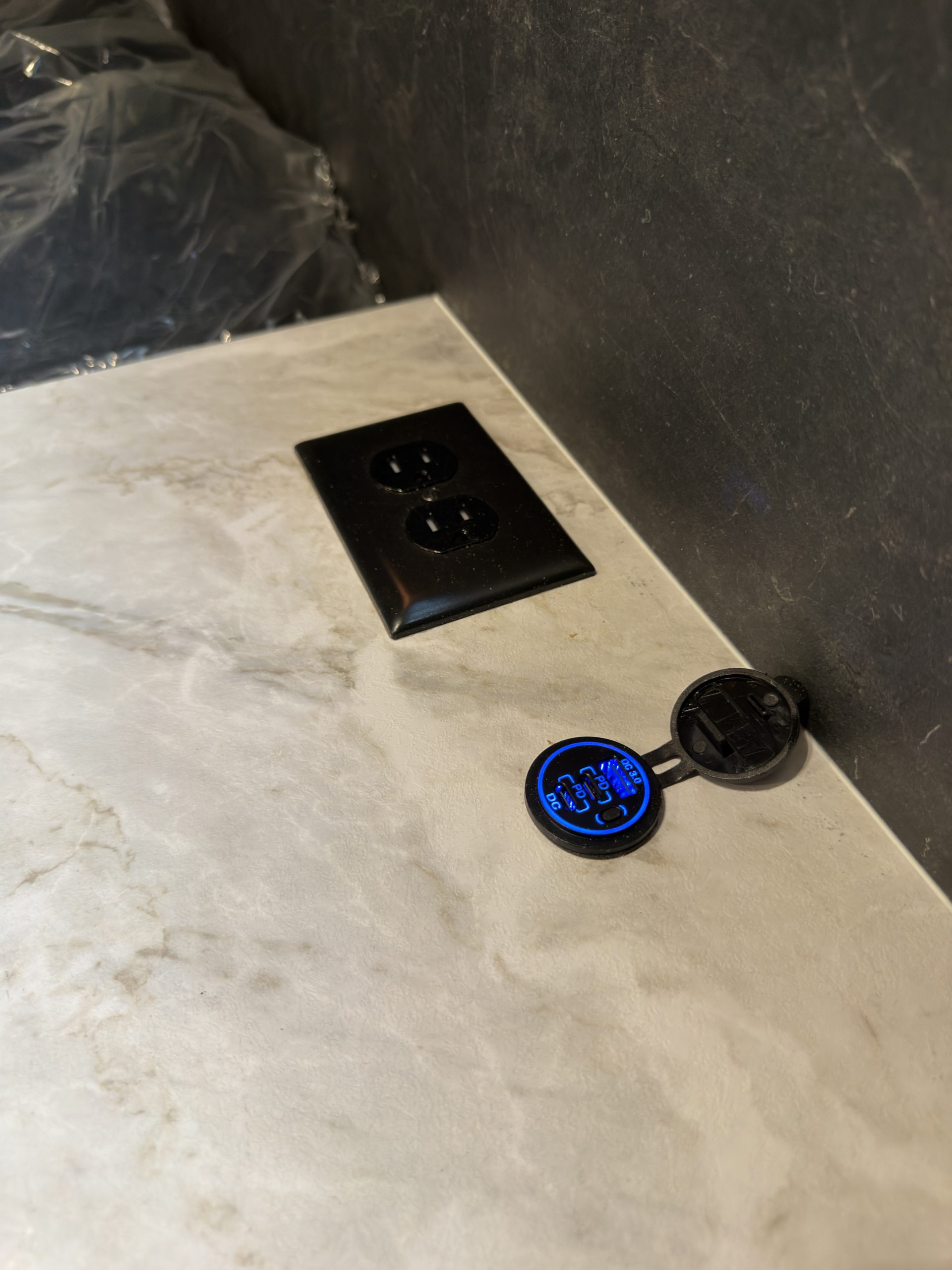

- 2x Wall AC Outlets
- Window
- Large 48 in. Window Above Sink

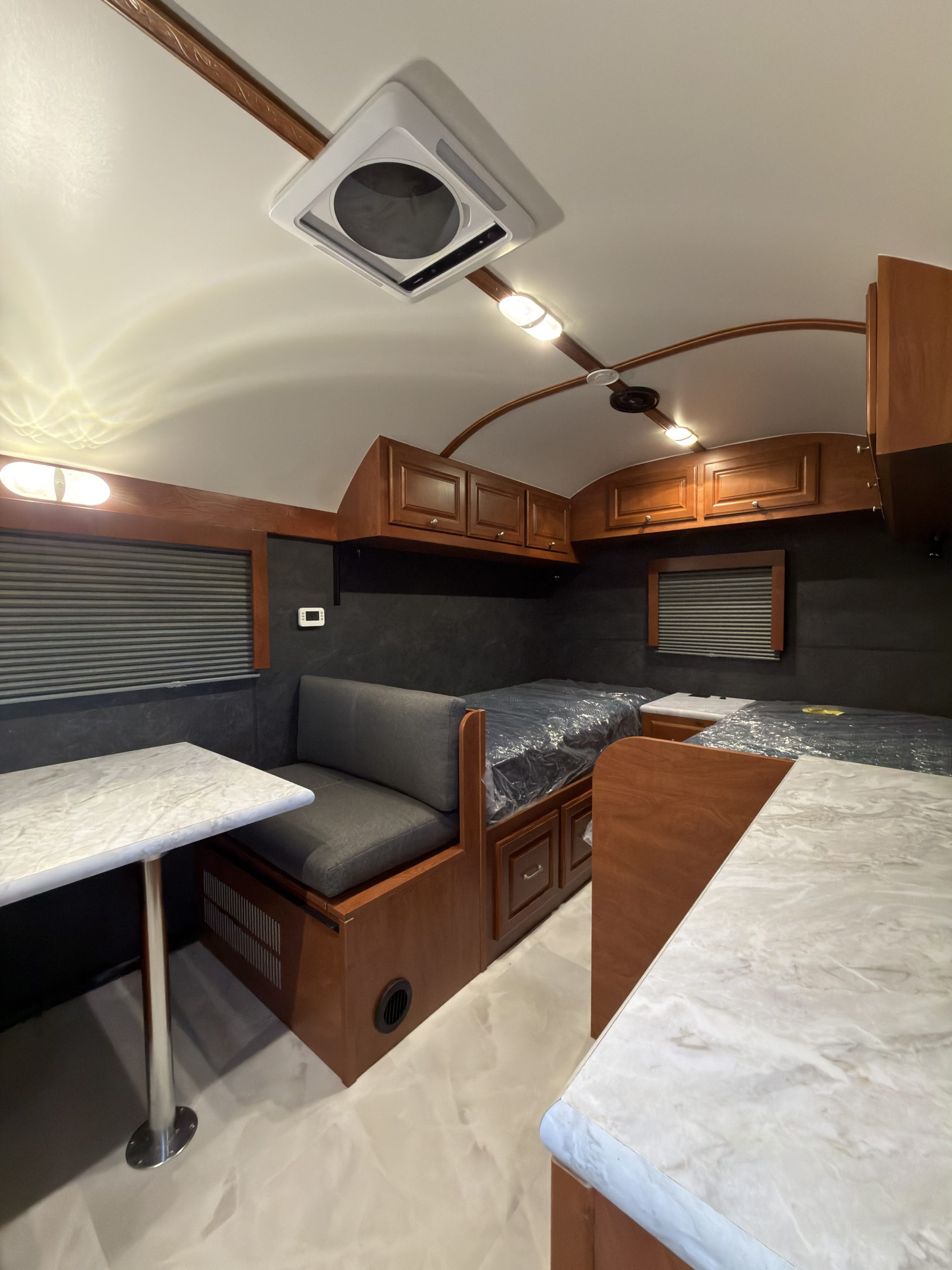

Dining

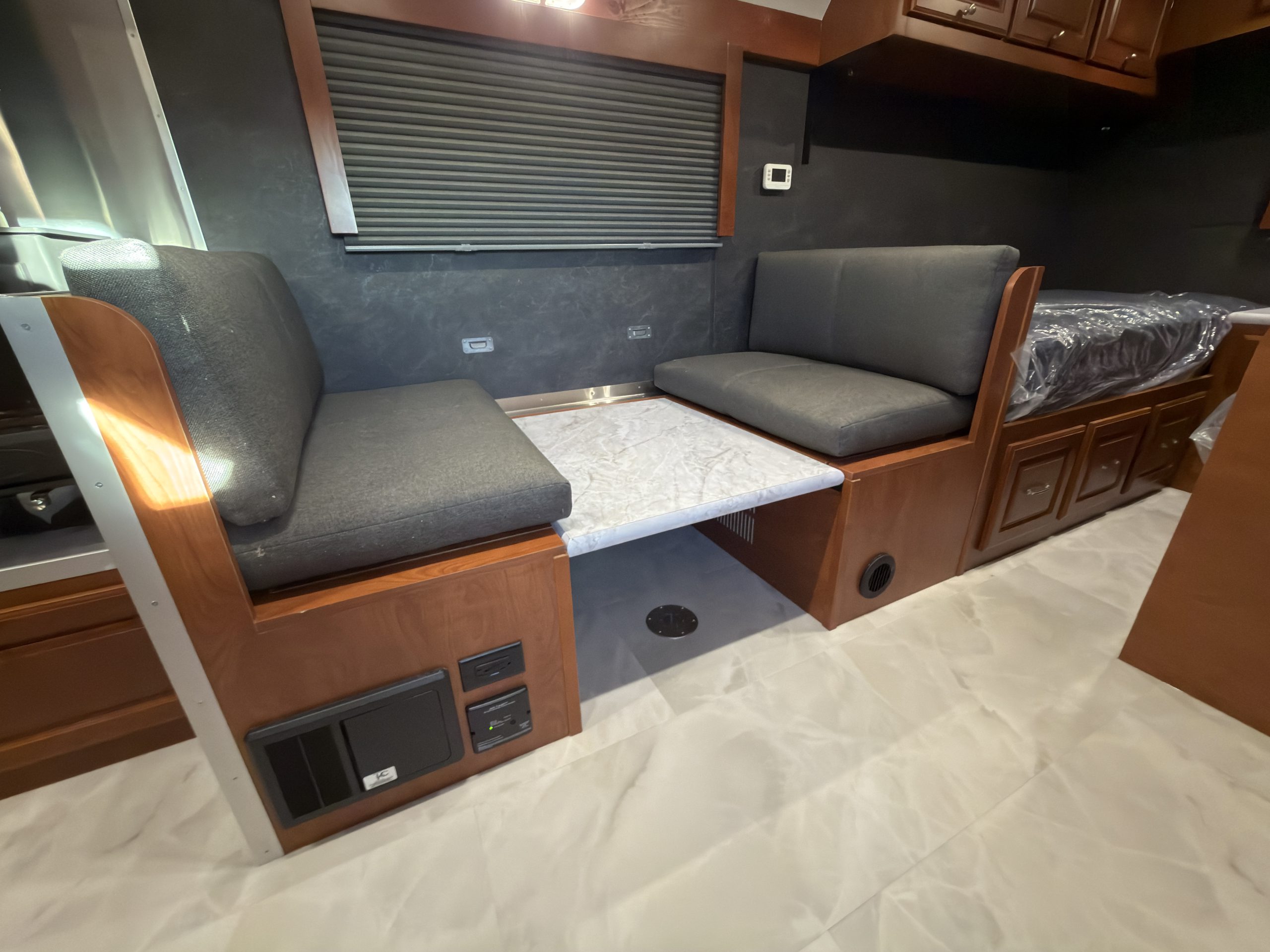

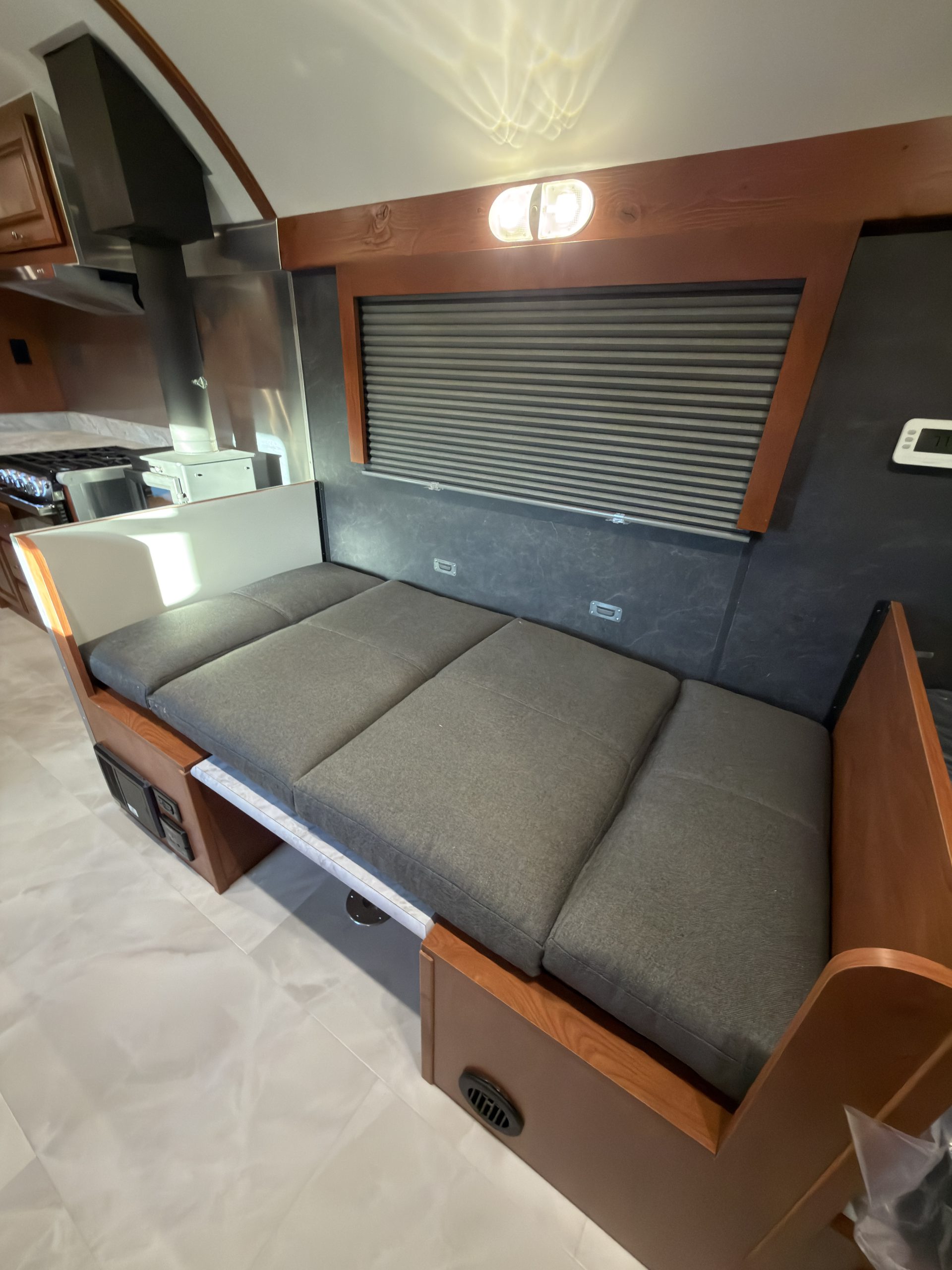

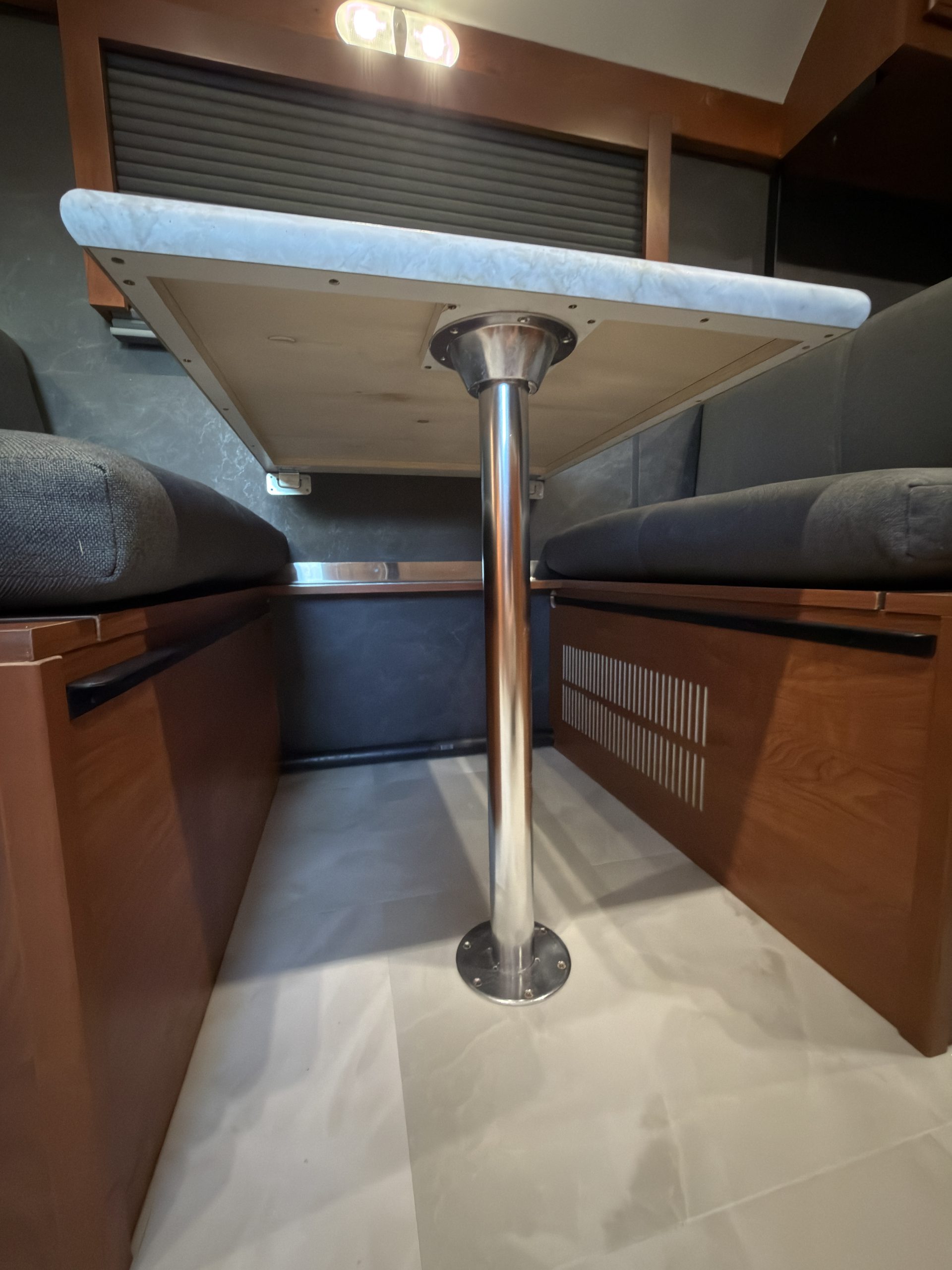

- Dinette

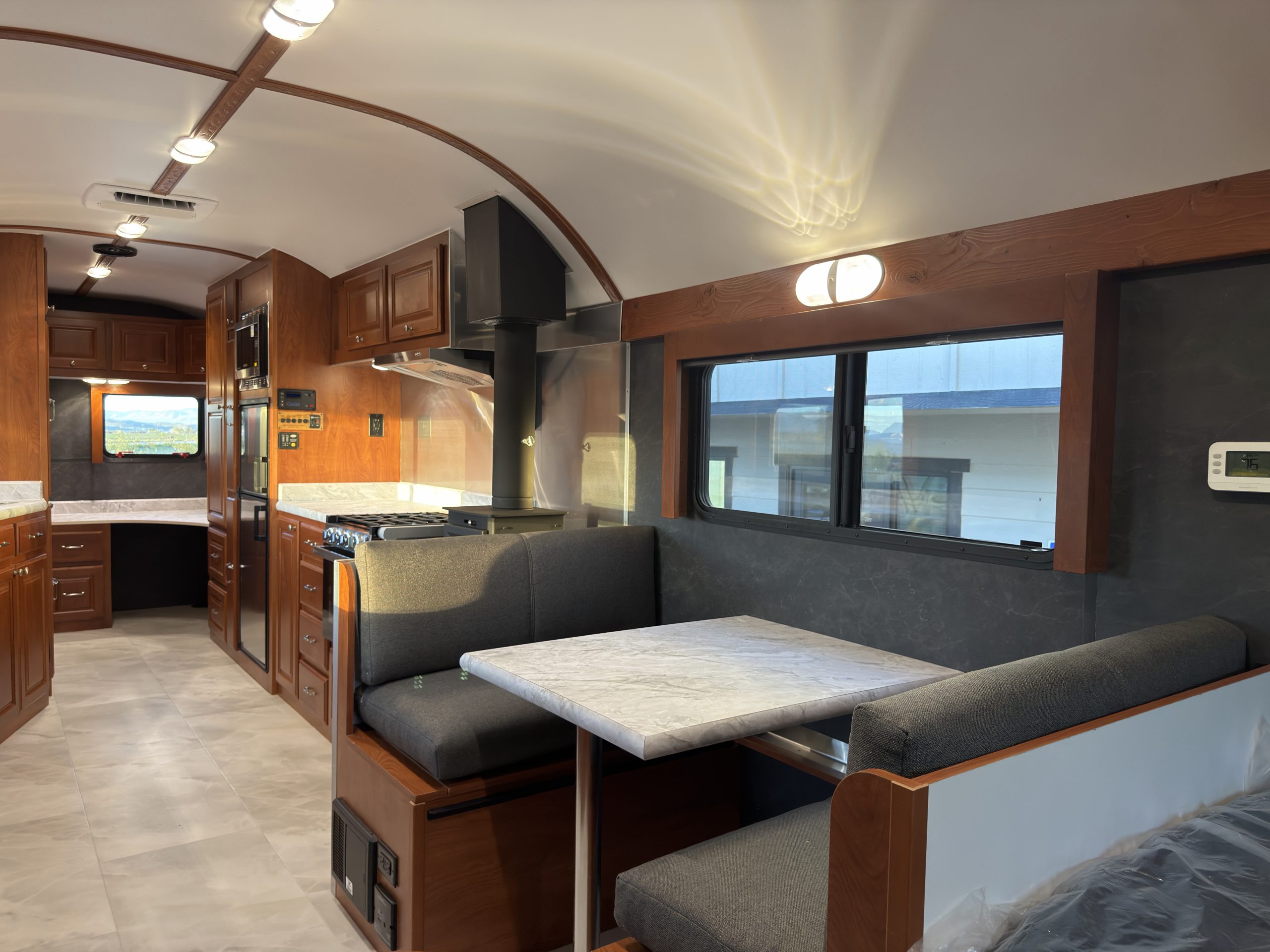

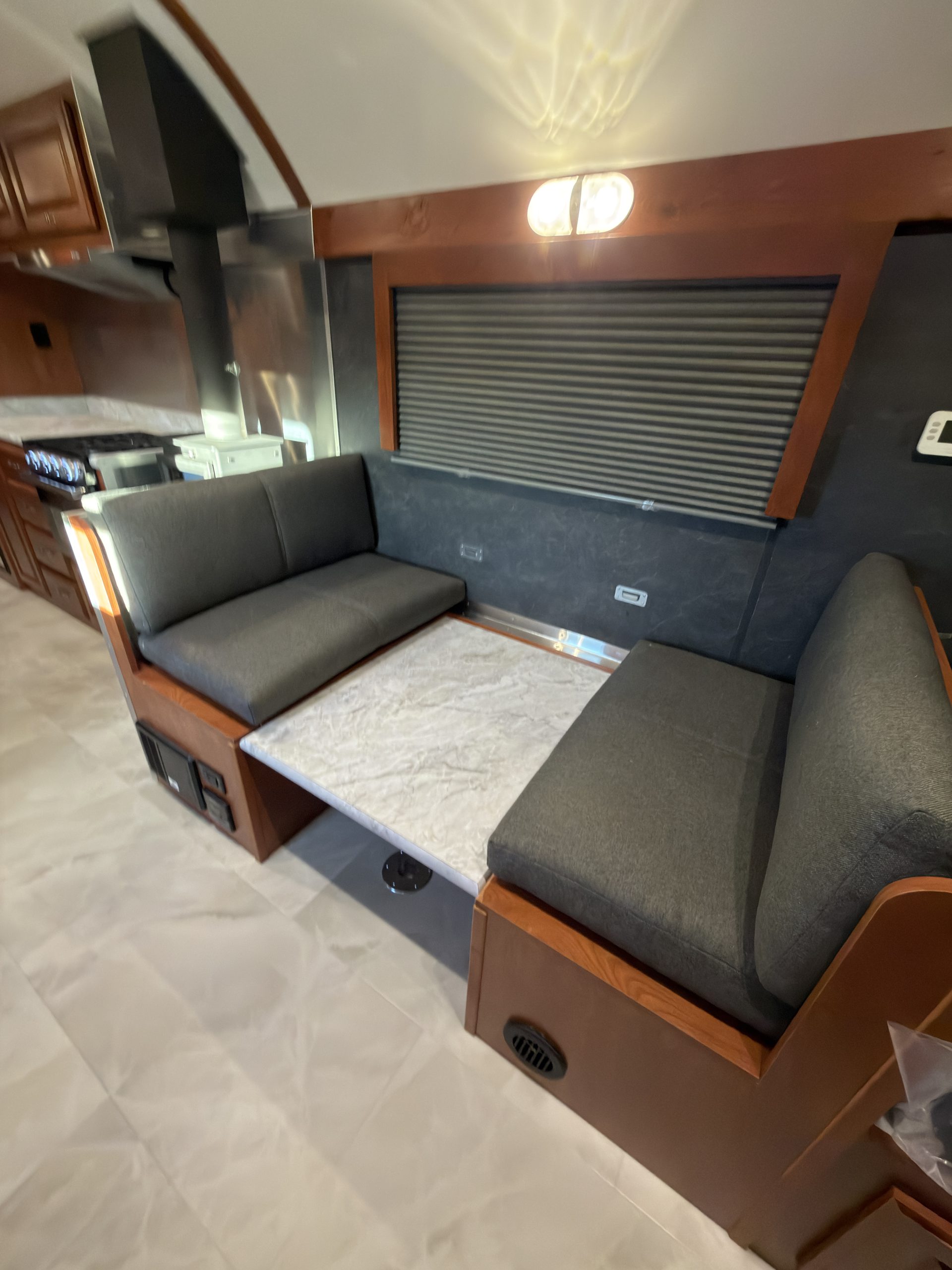

- 4-Person Dinette Booth (Folds Into Bed)
- Bench Storage
- Soup Boxes in Each Bench
- Power
- Power Center with AC Outlet on Bench End
- Window
- Large 48 in. Window Above the Dinette
Living & Entertainment Space
- Primary Seating
- Dinette
- Entertainment / Media Storage
- Large Chest of Six Drawers (Below TV)

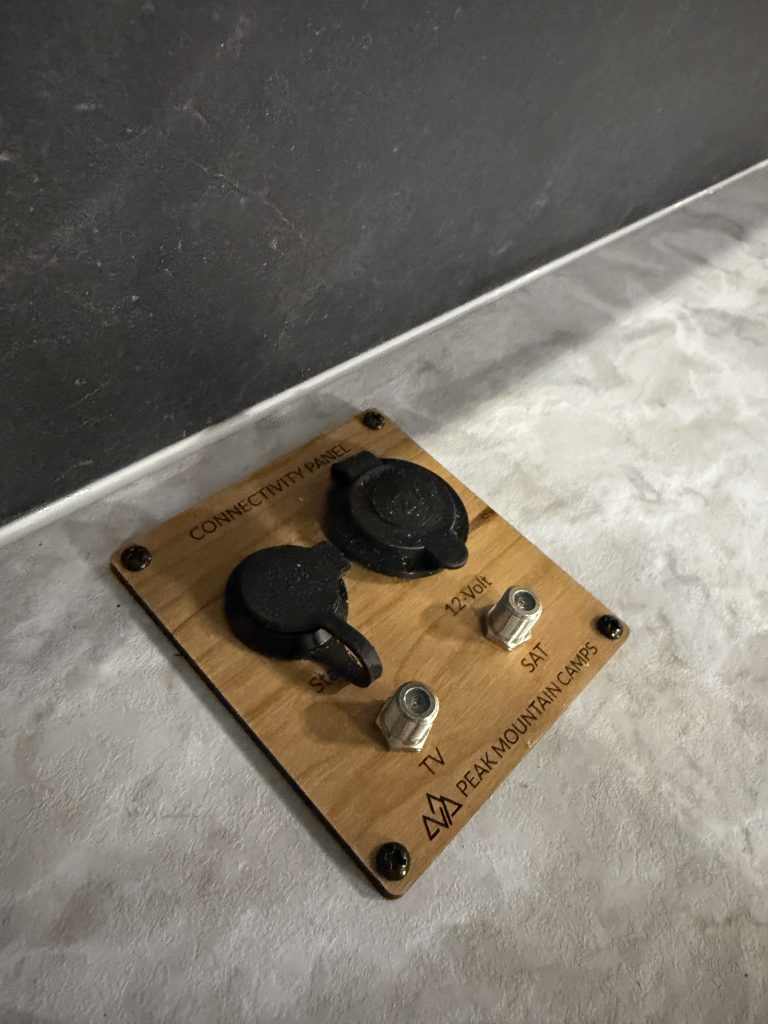

- Power & Connections

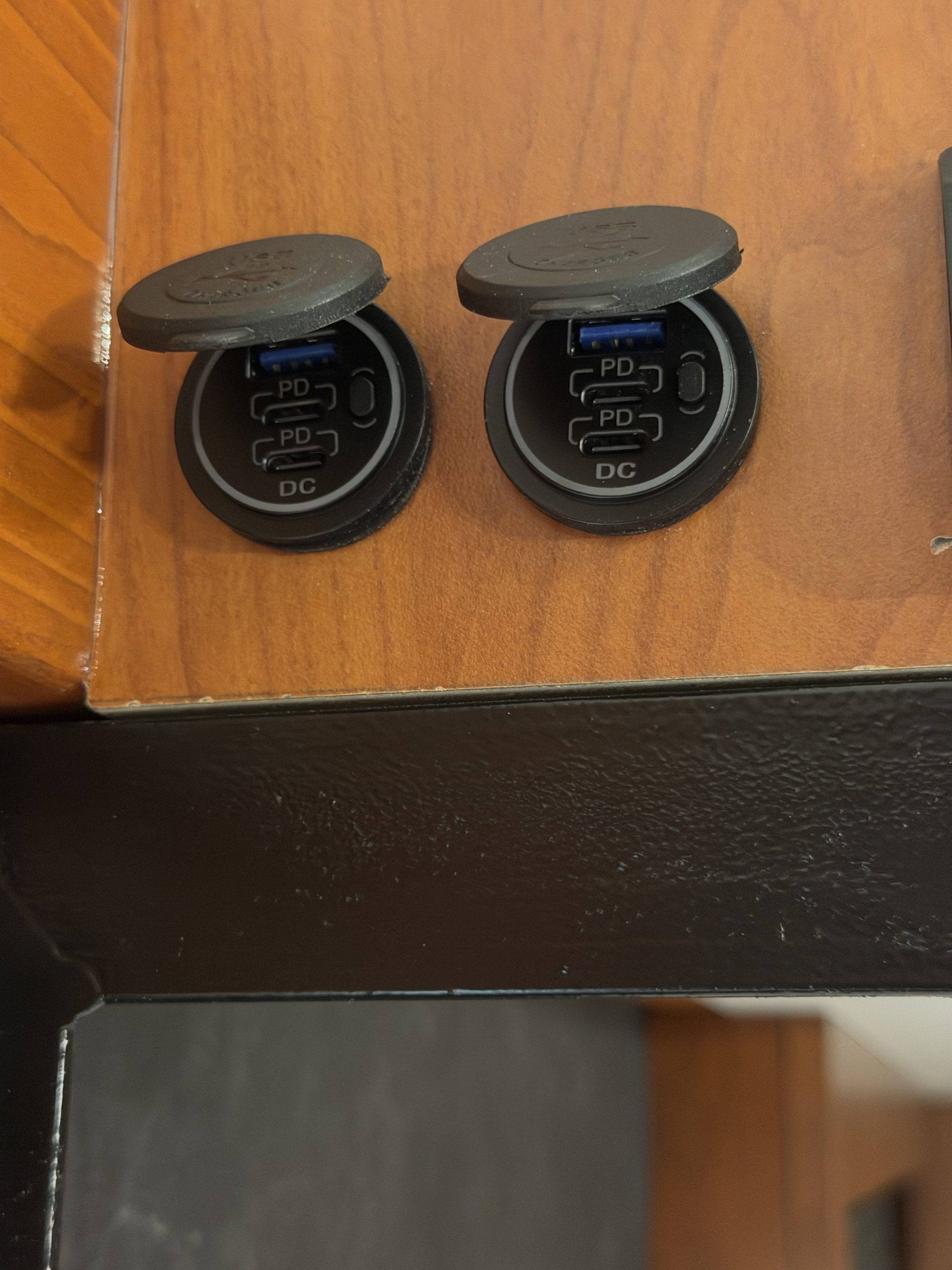

- USB Port Connections On Cabinet with Radio (At Entry); Single 12V DC Socket & Coax Connection on TV Wall; USB Ports, AC Outlet, DC Socket, Internet & Coax Connections on Media Center

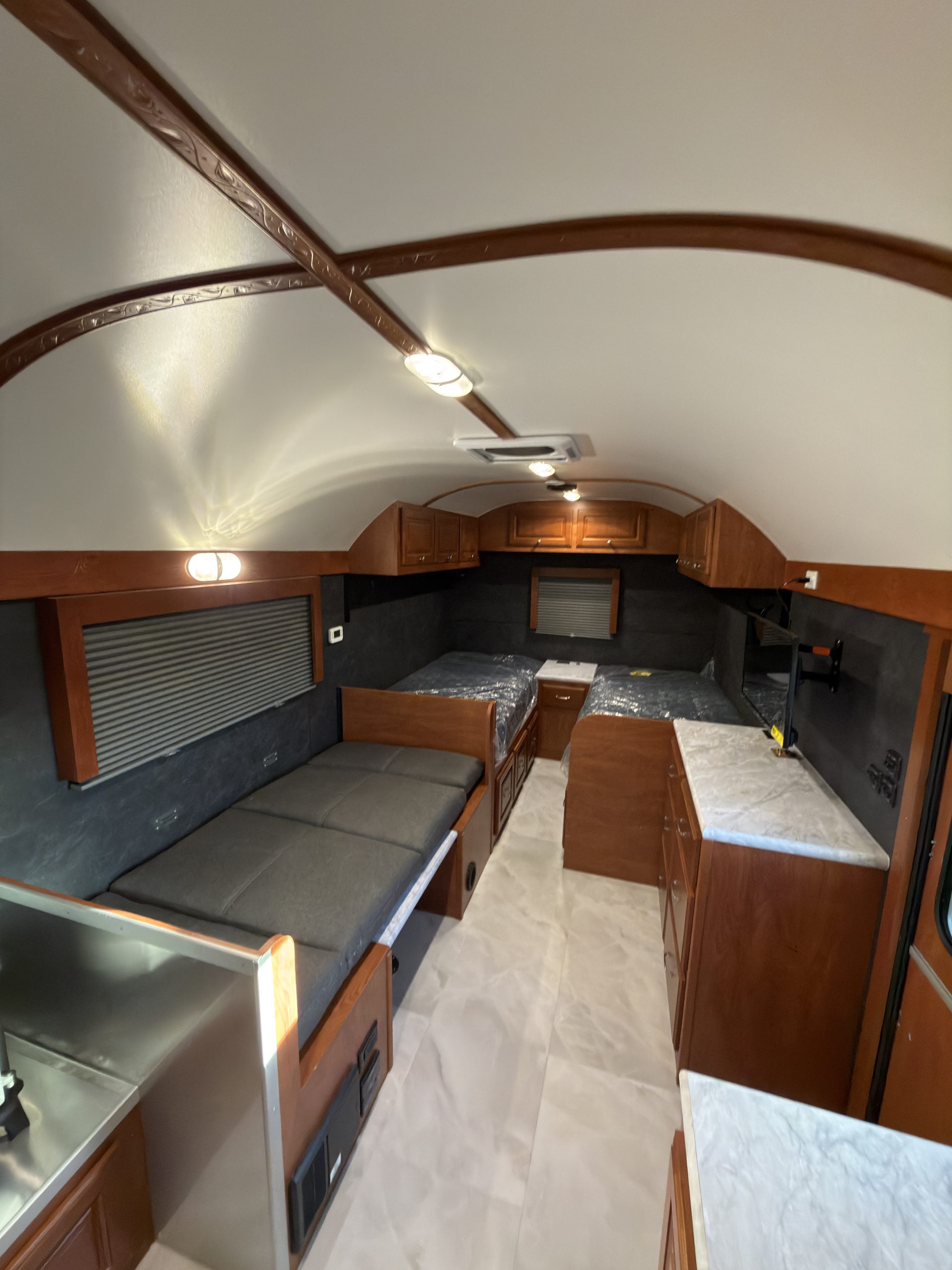

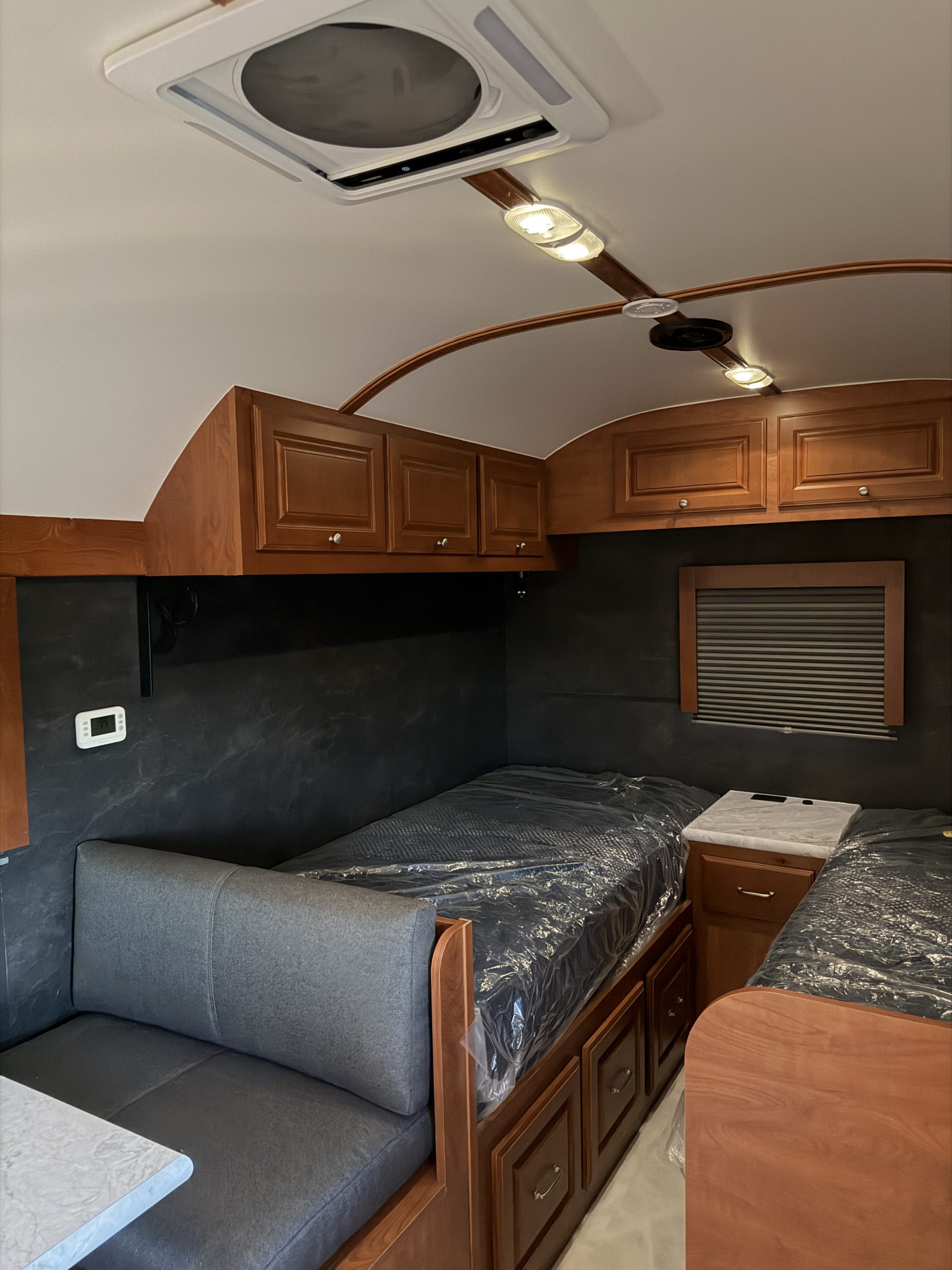

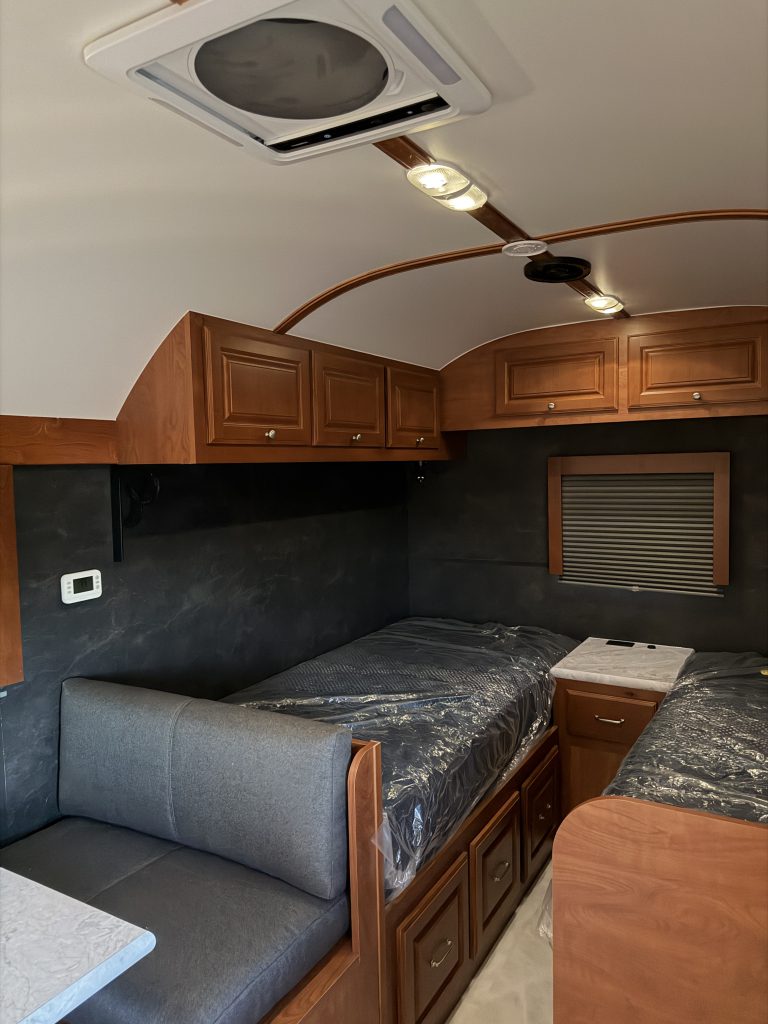

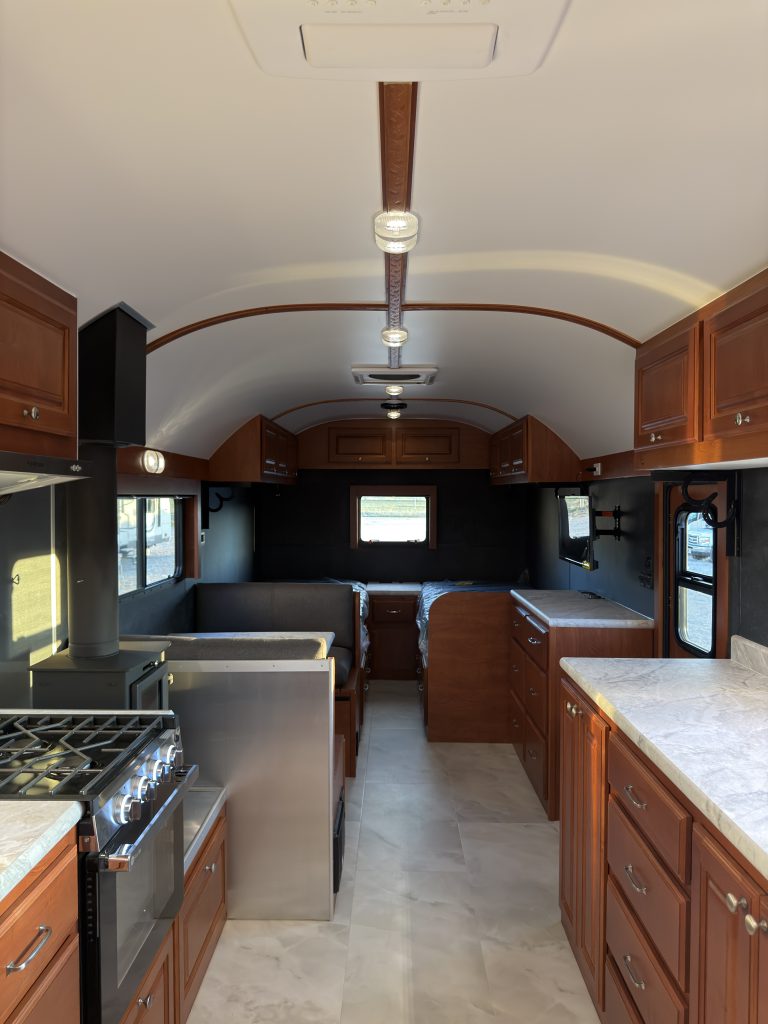

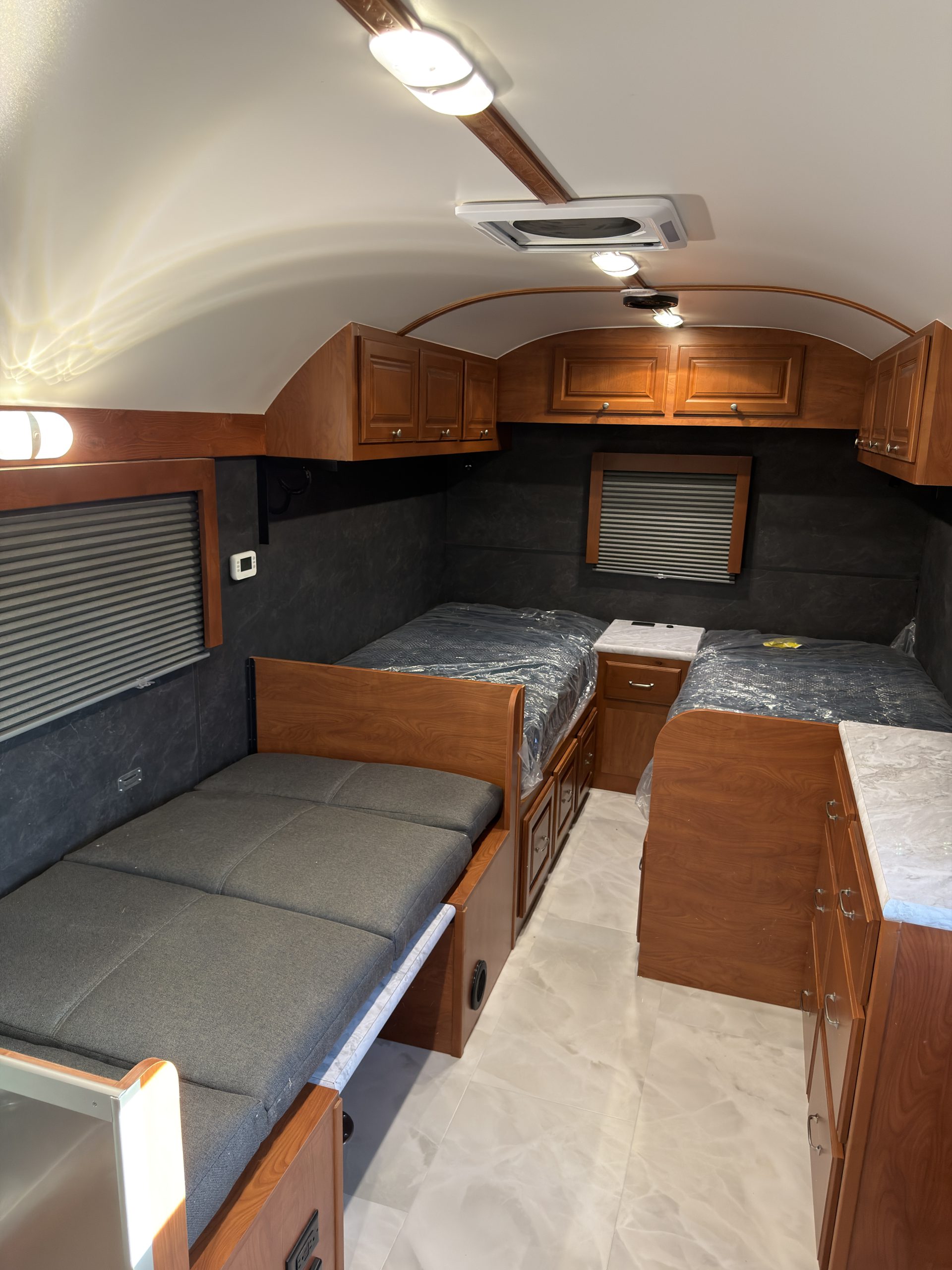

Bedroom / Sleeping
- Layout
- Split-Bed Layout
- Bed Configuration
- 2x Twin XL North/South Beds
- Mattresses
- 2x Twin XL DreamCloud PressureSmart Technology Firm Mattresses

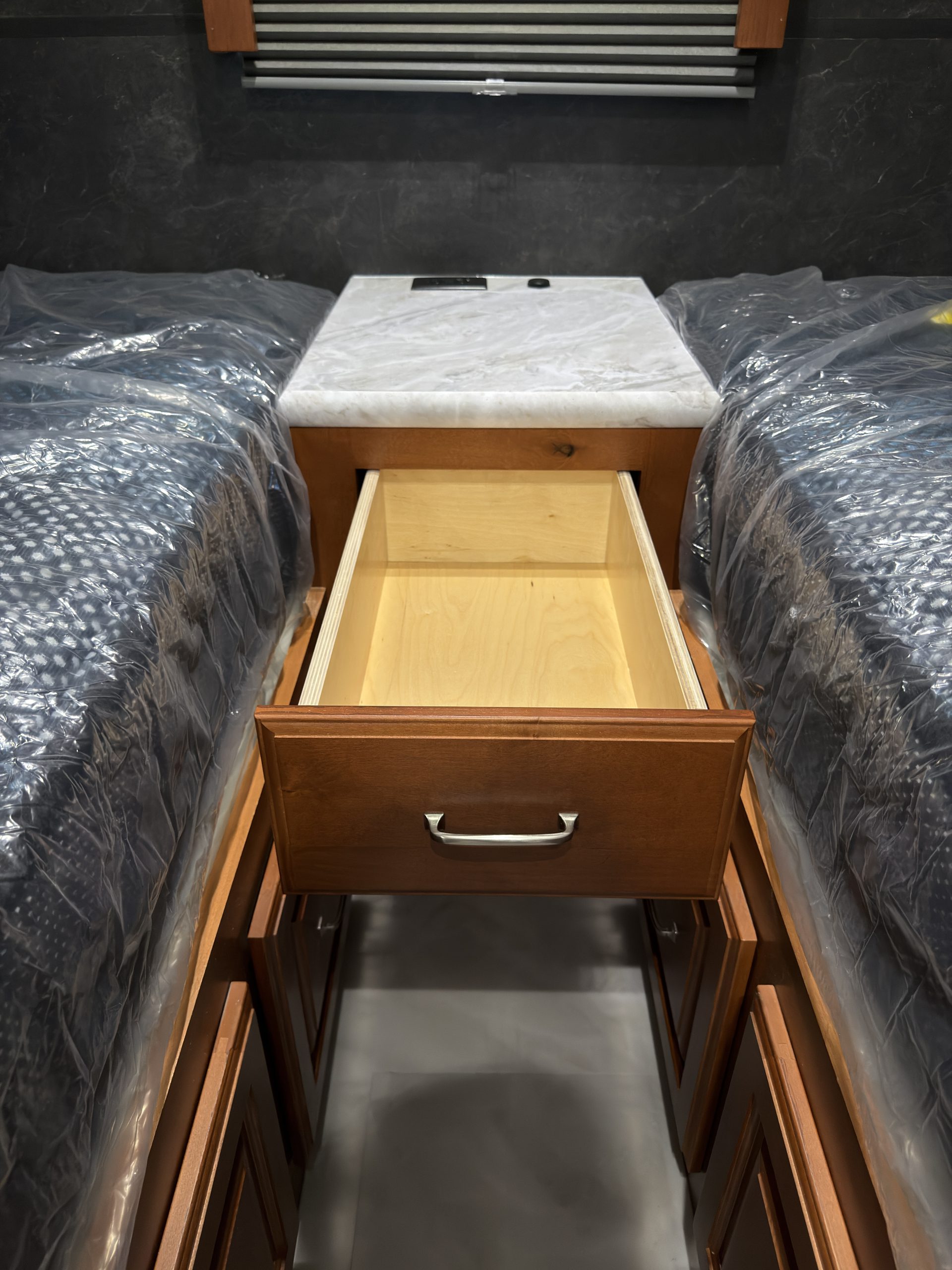

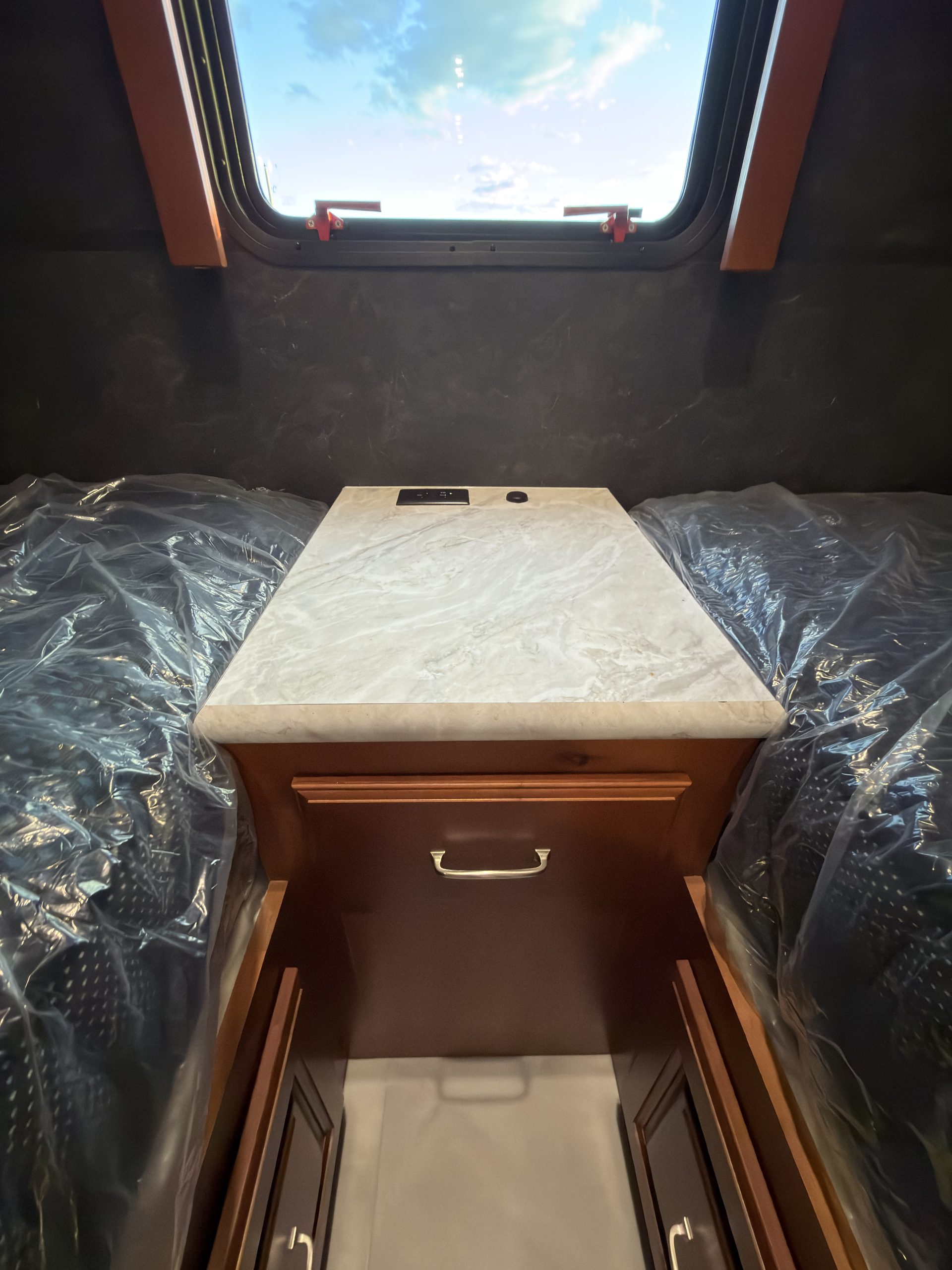

- Nightstands
- Single Nightstand Between Beds with Single Drawer & USB/Power Connections

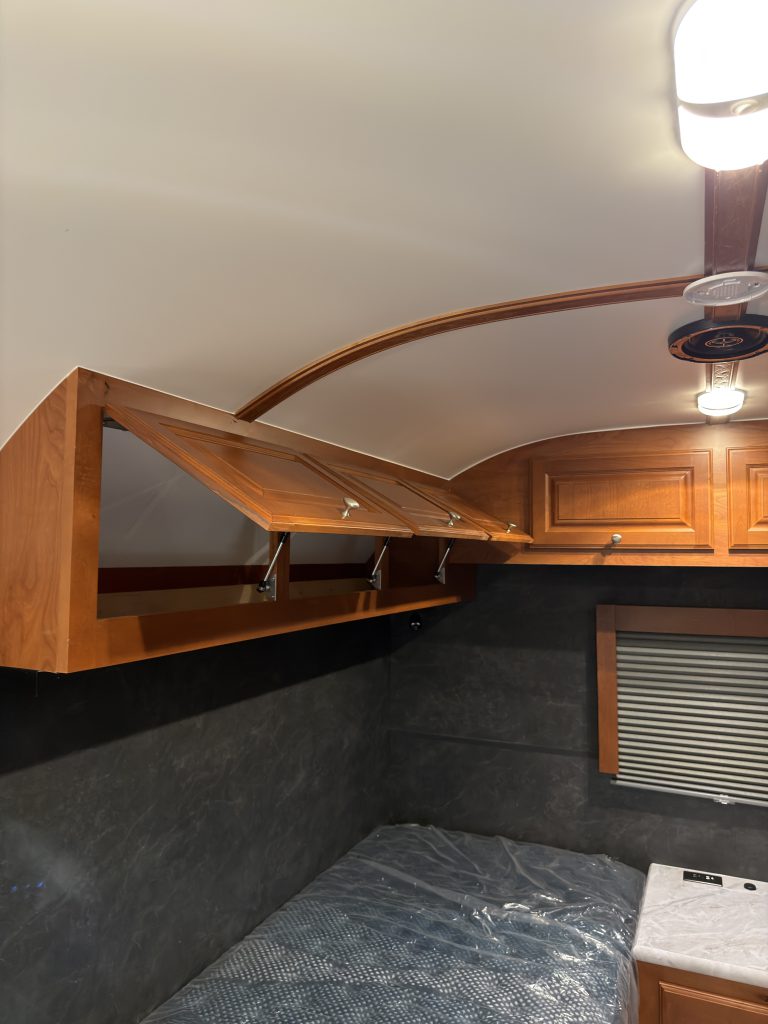

- Overhead Storage
- 4x Large Overhead Storage Cabinets

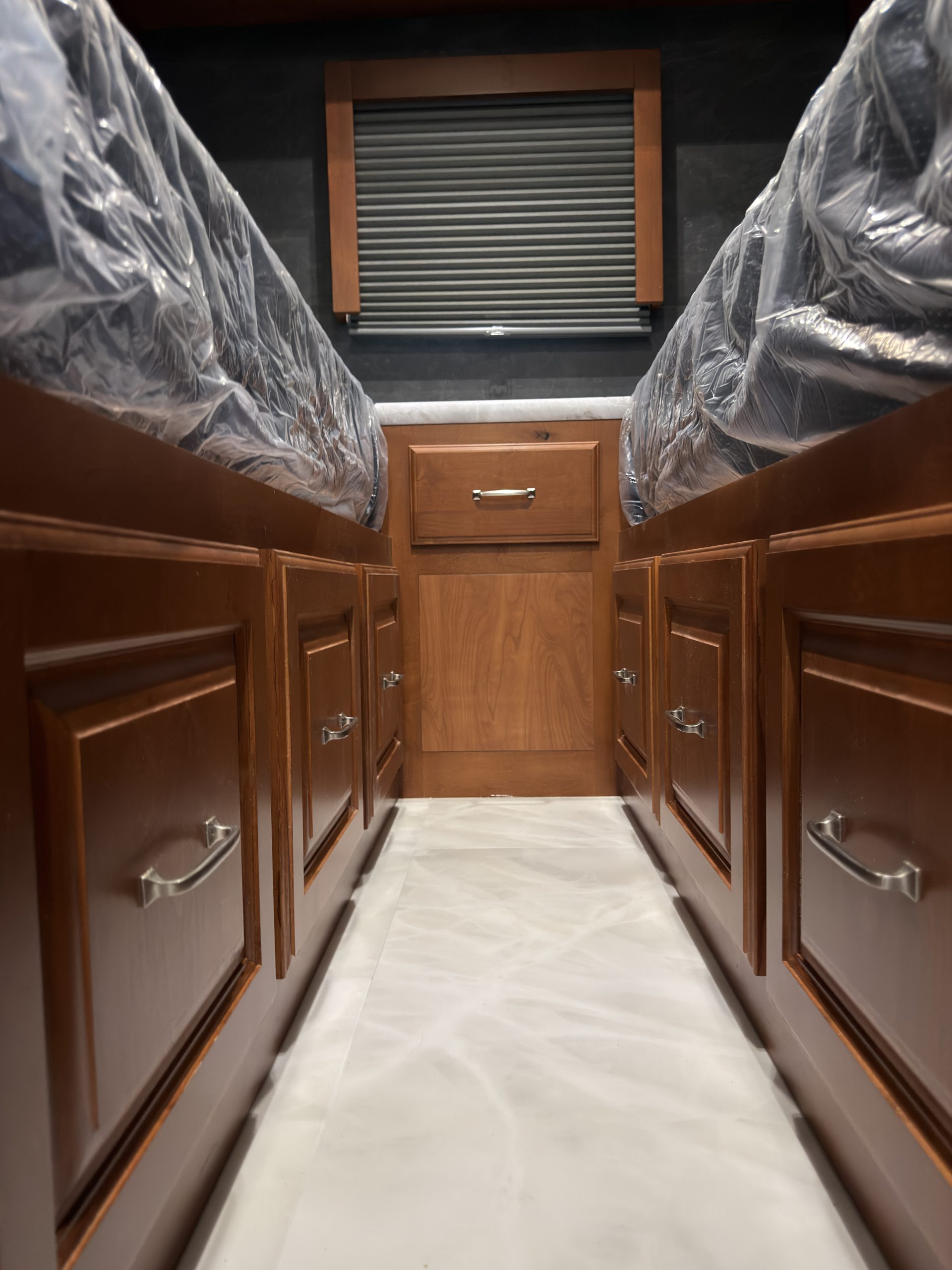

- Under-Bed / Trundle Storage

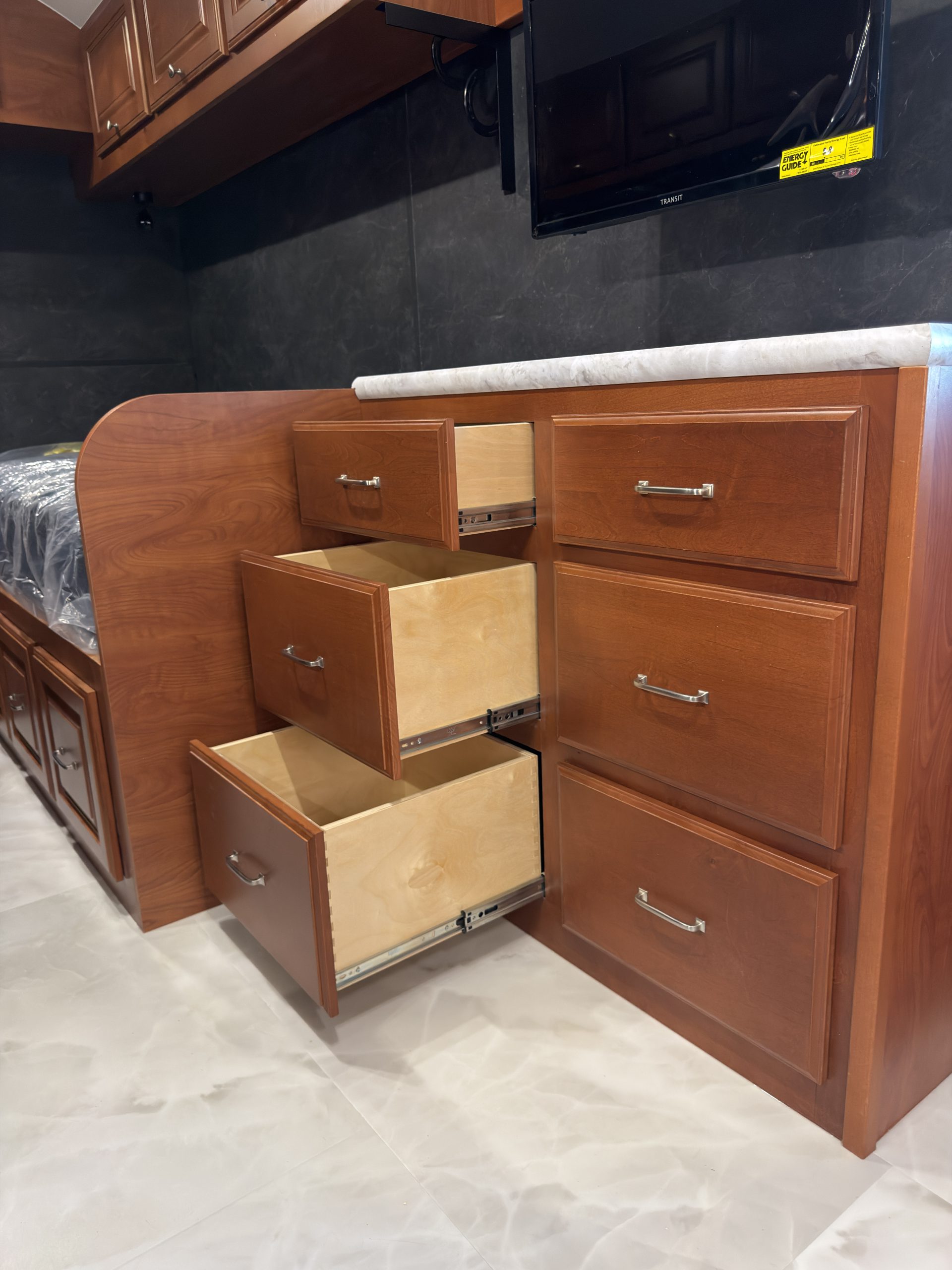

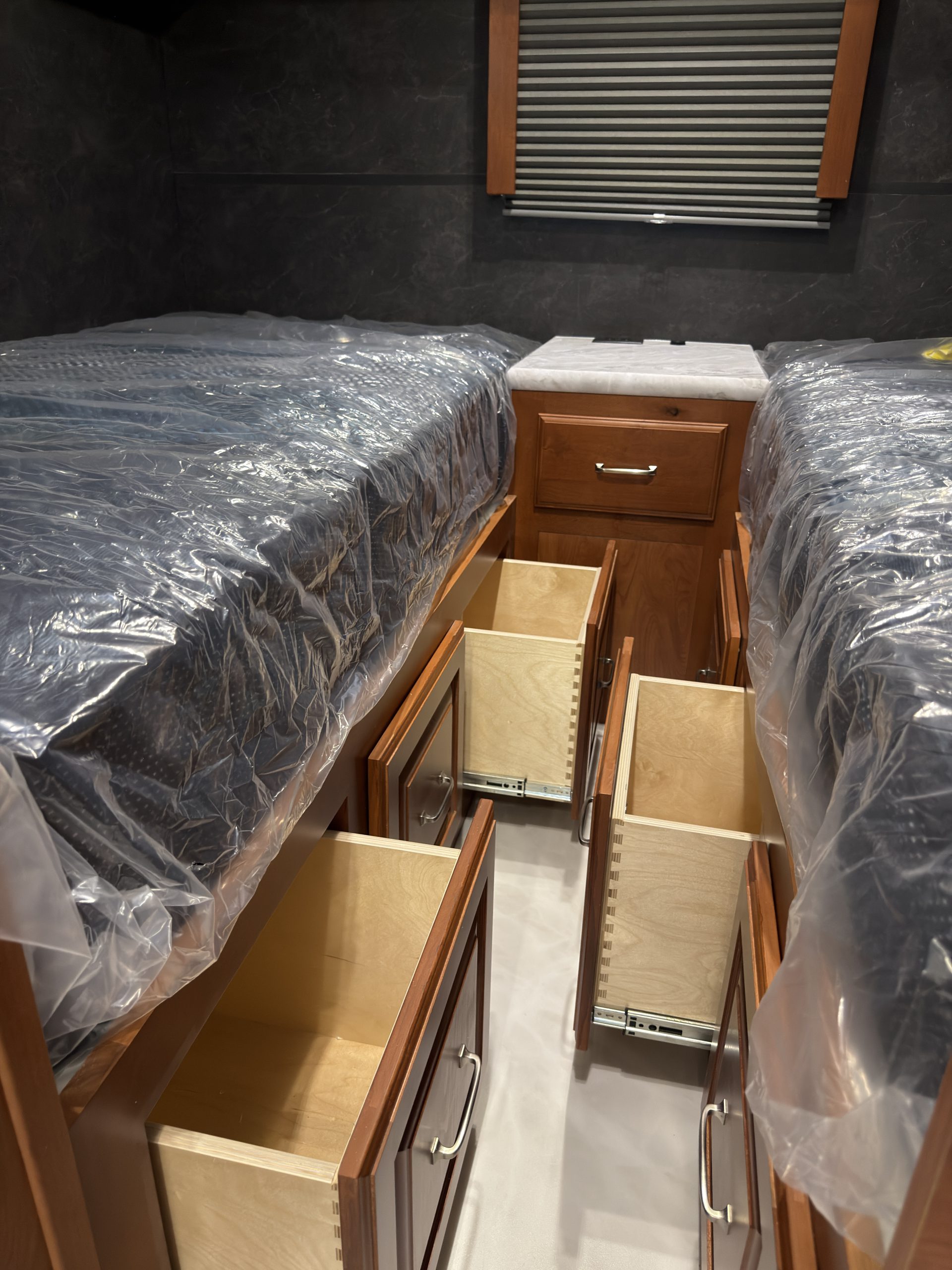

- 3x Large Drawers Under Each Bed
- Lighting
- Highlighted feature: LED Reading Lights Above Each Bed
- Power & Connections
- AC Outlet & USB Ports on Nightstand
- Window
- Front Egress Window

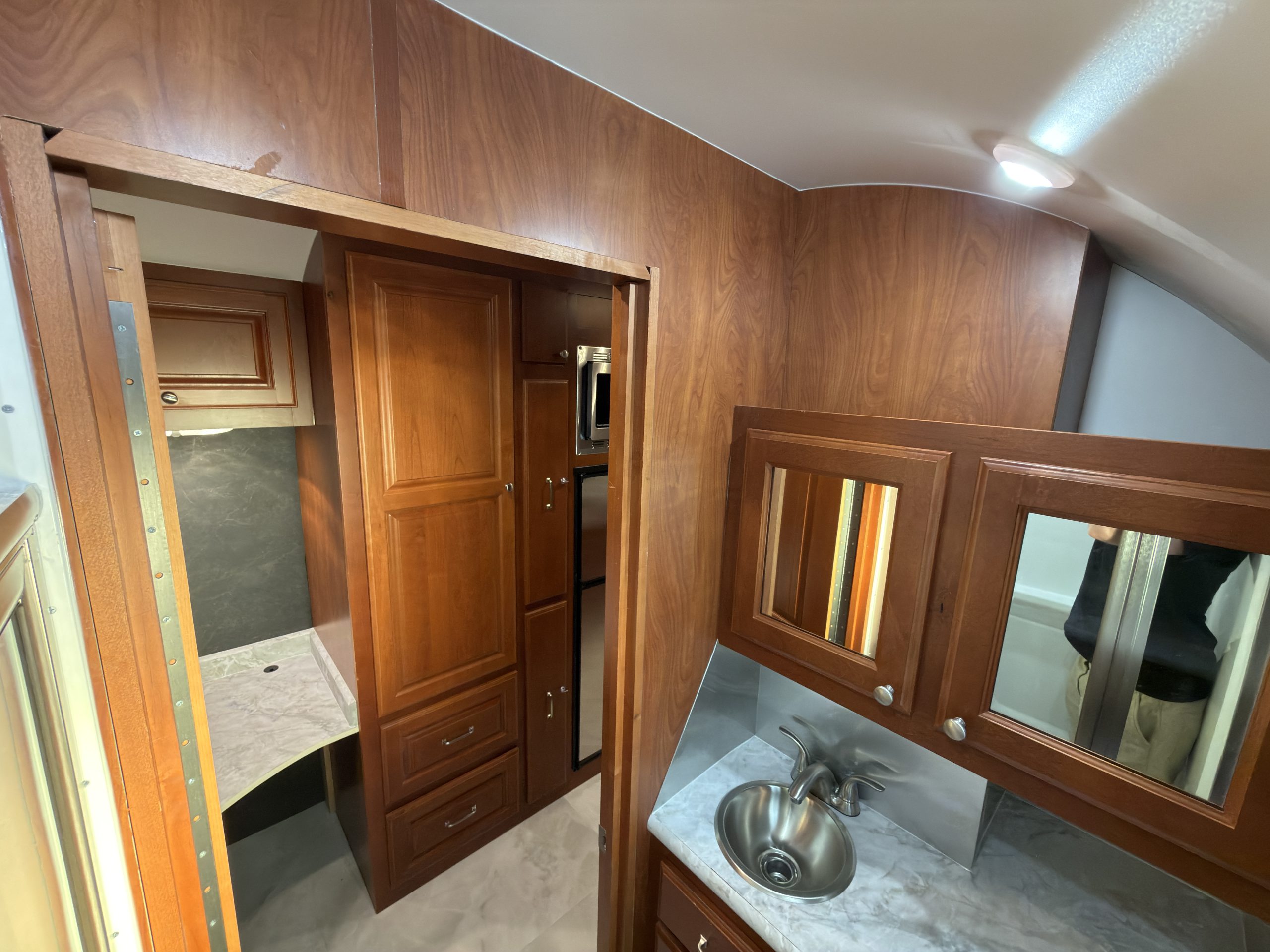

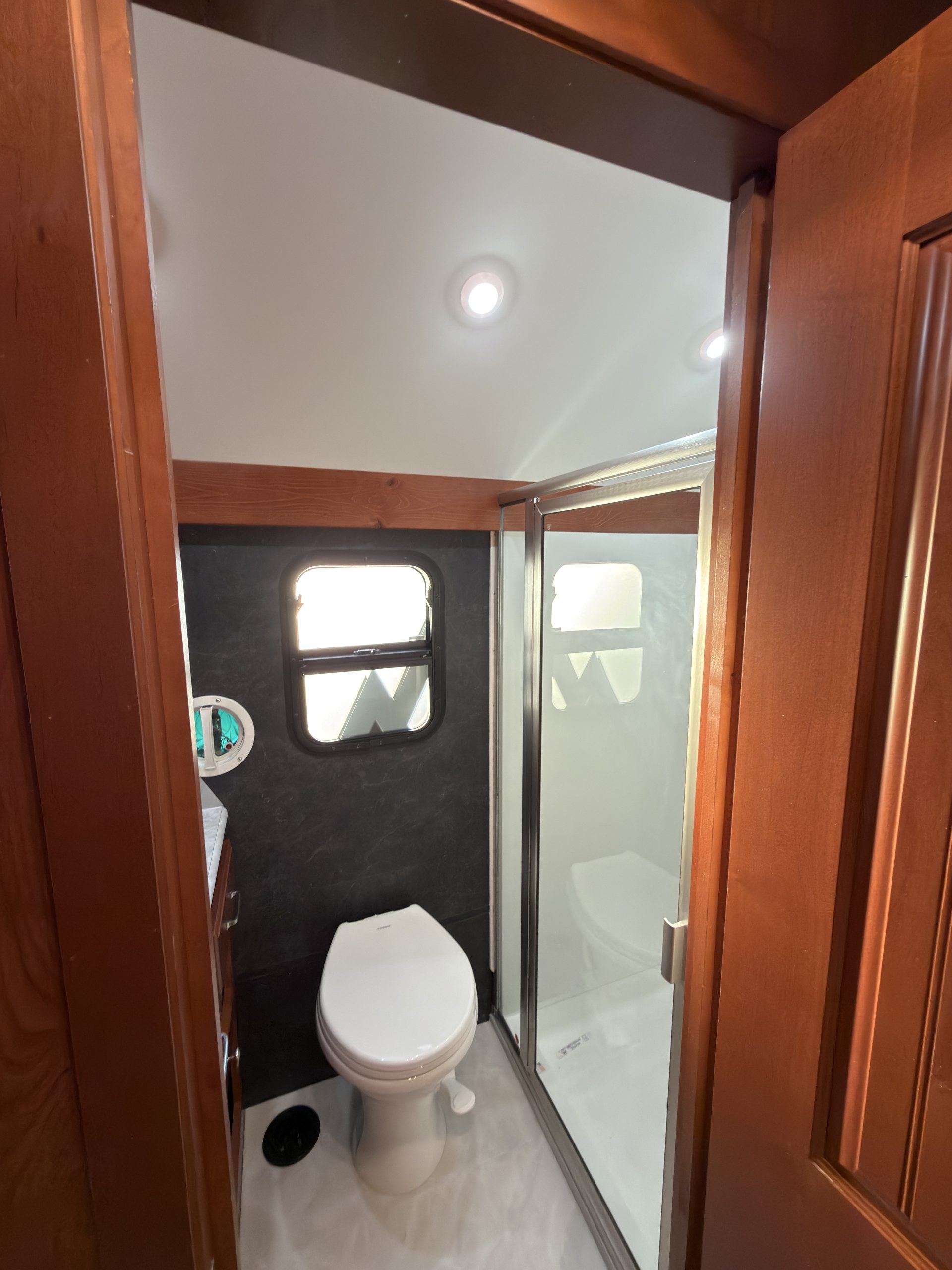

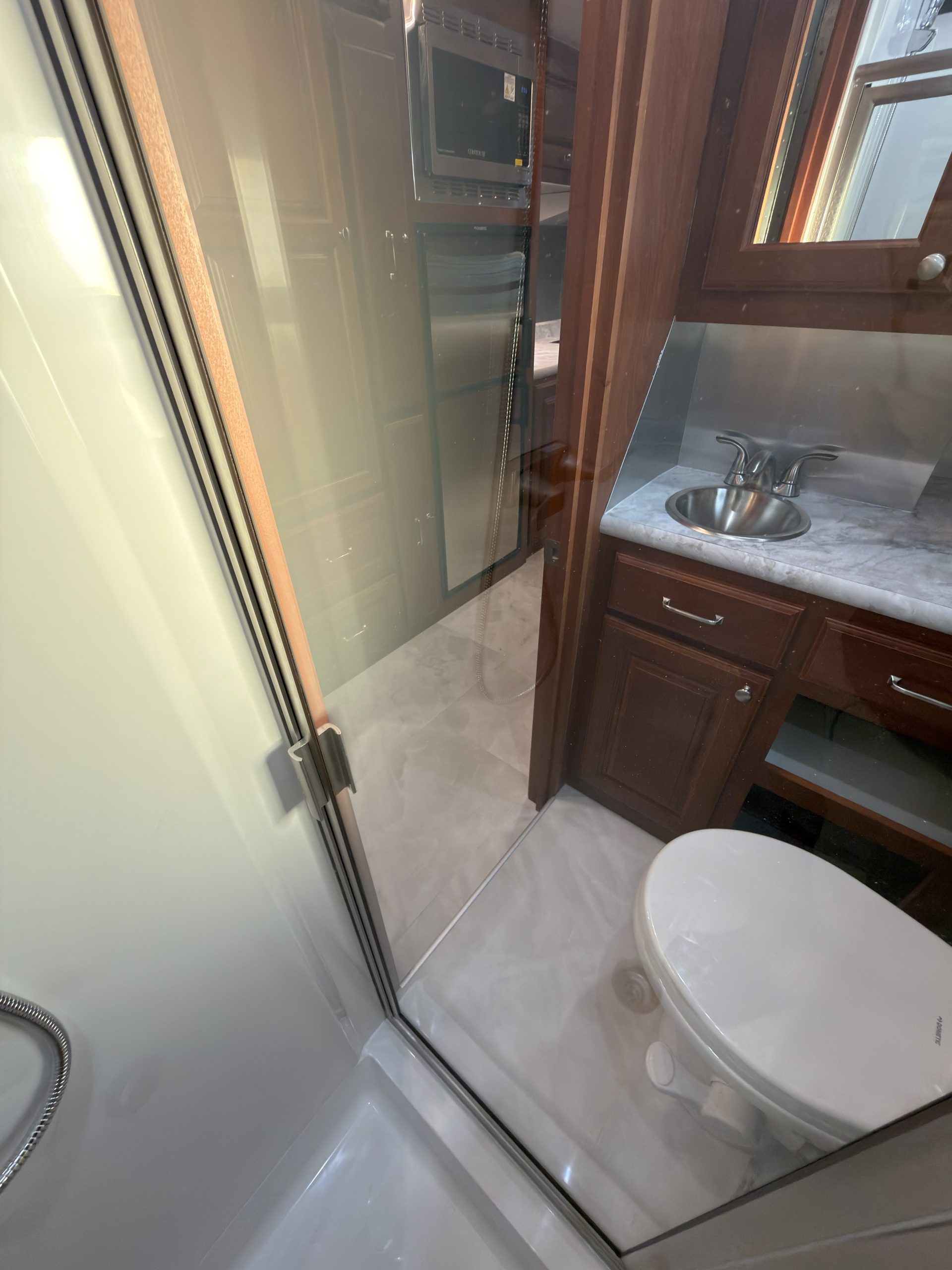

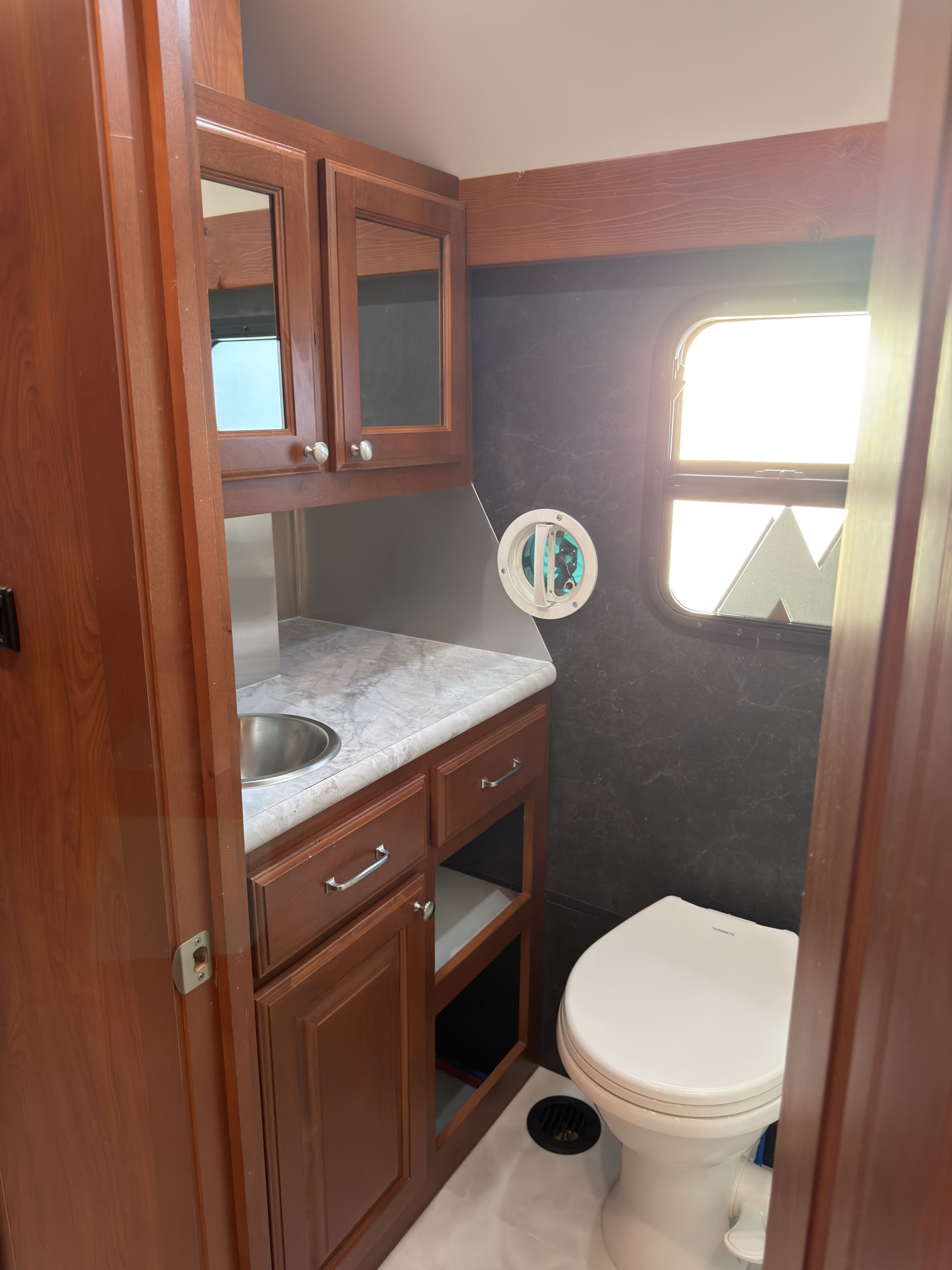

Bathroom
- Size / Configuration
- Small Three-Quarter Bath

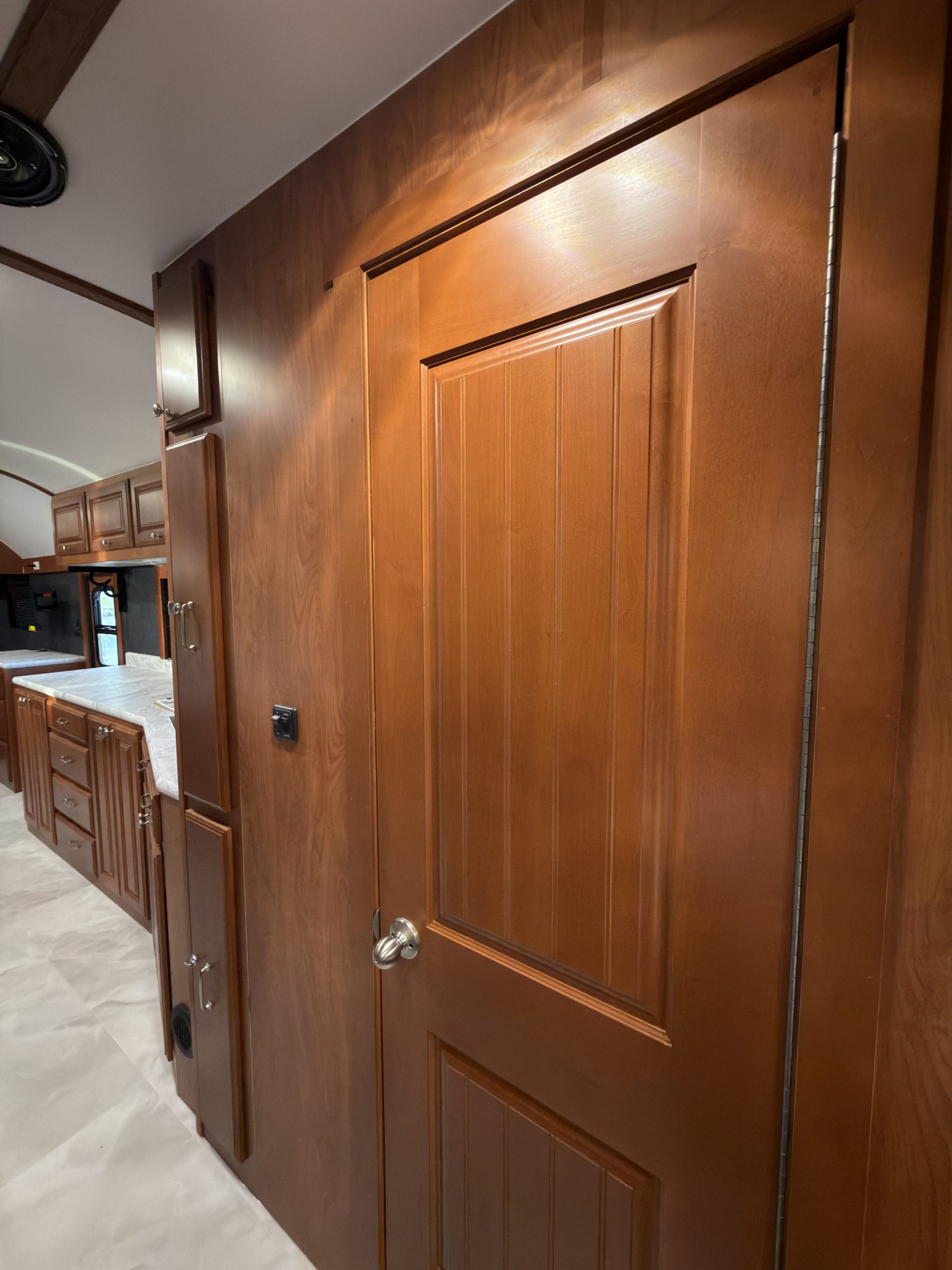

- Door
- Solid Hardwood Door with Full Length Hinge

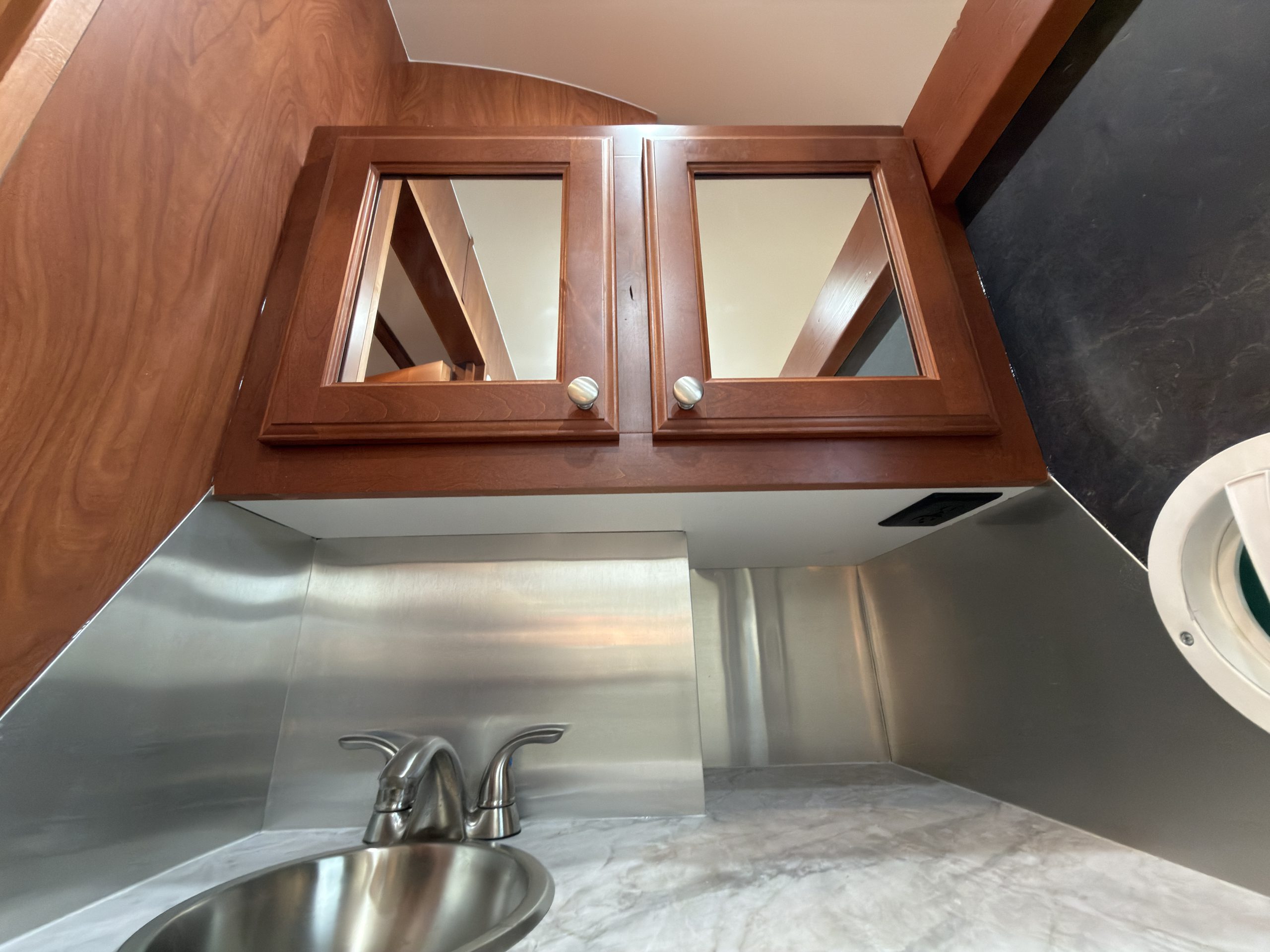

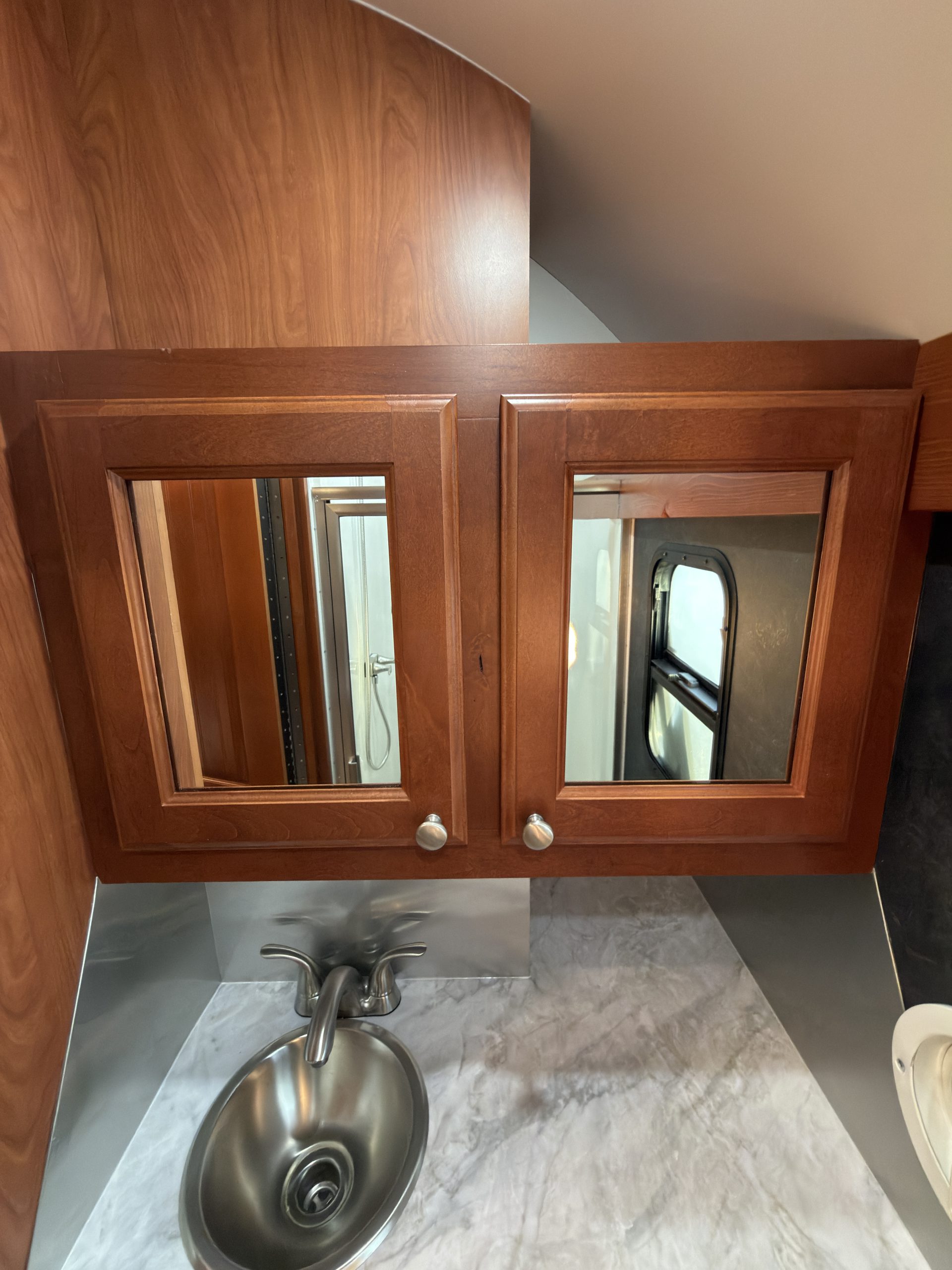

- Medicine Cabinet

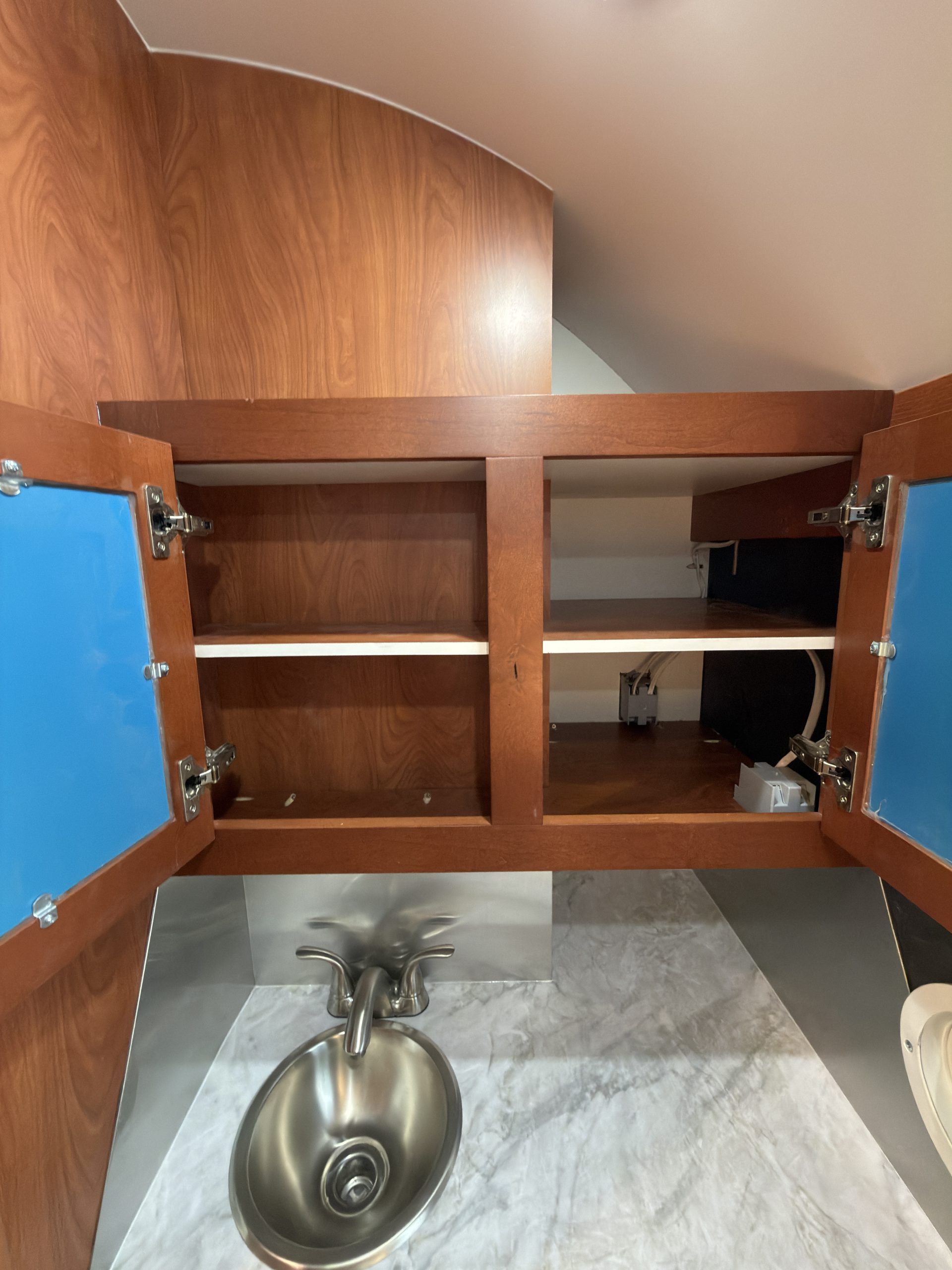

- Mirrored Medicine Cabinet w/ Shelving

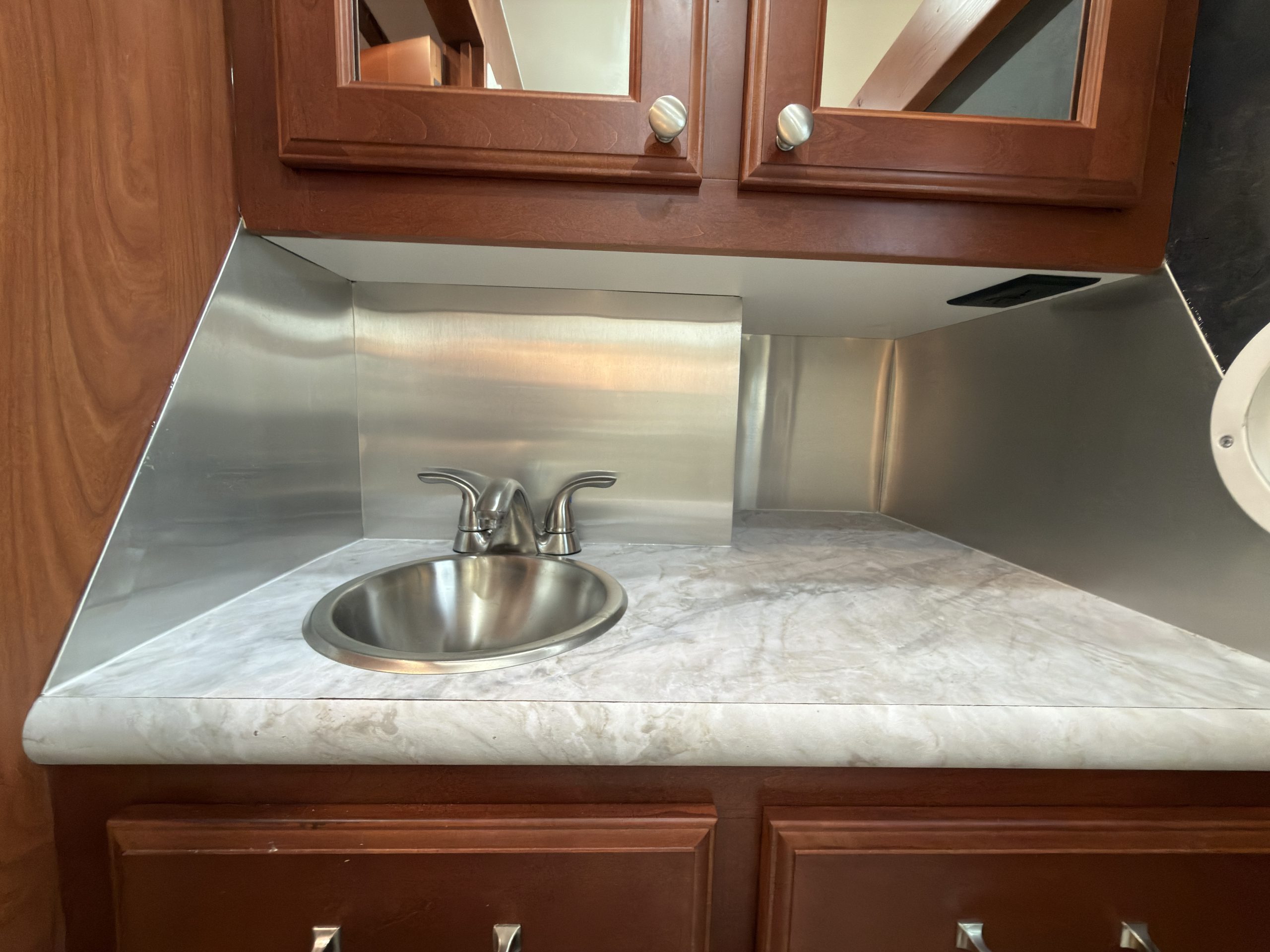

- Vanity

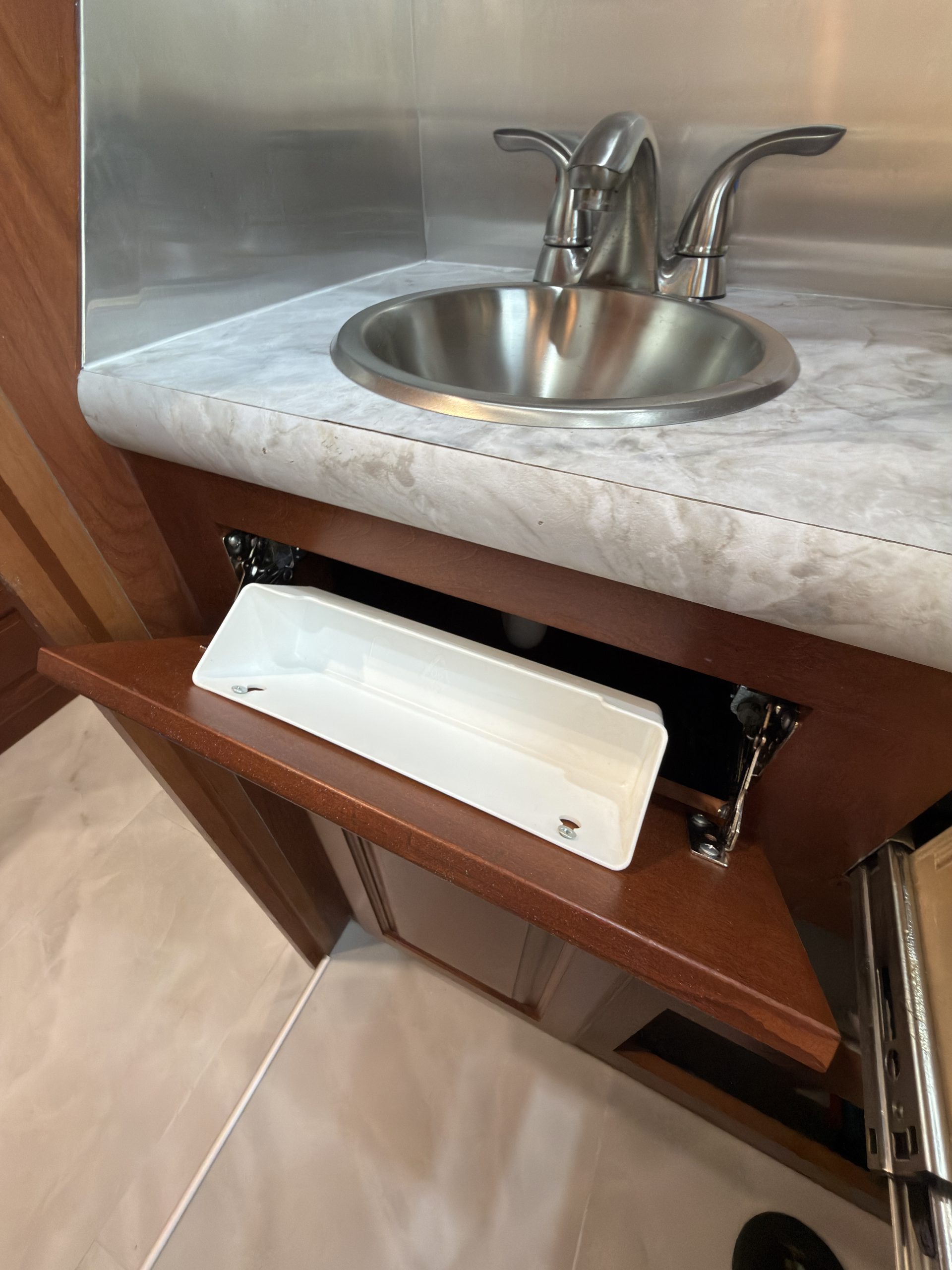

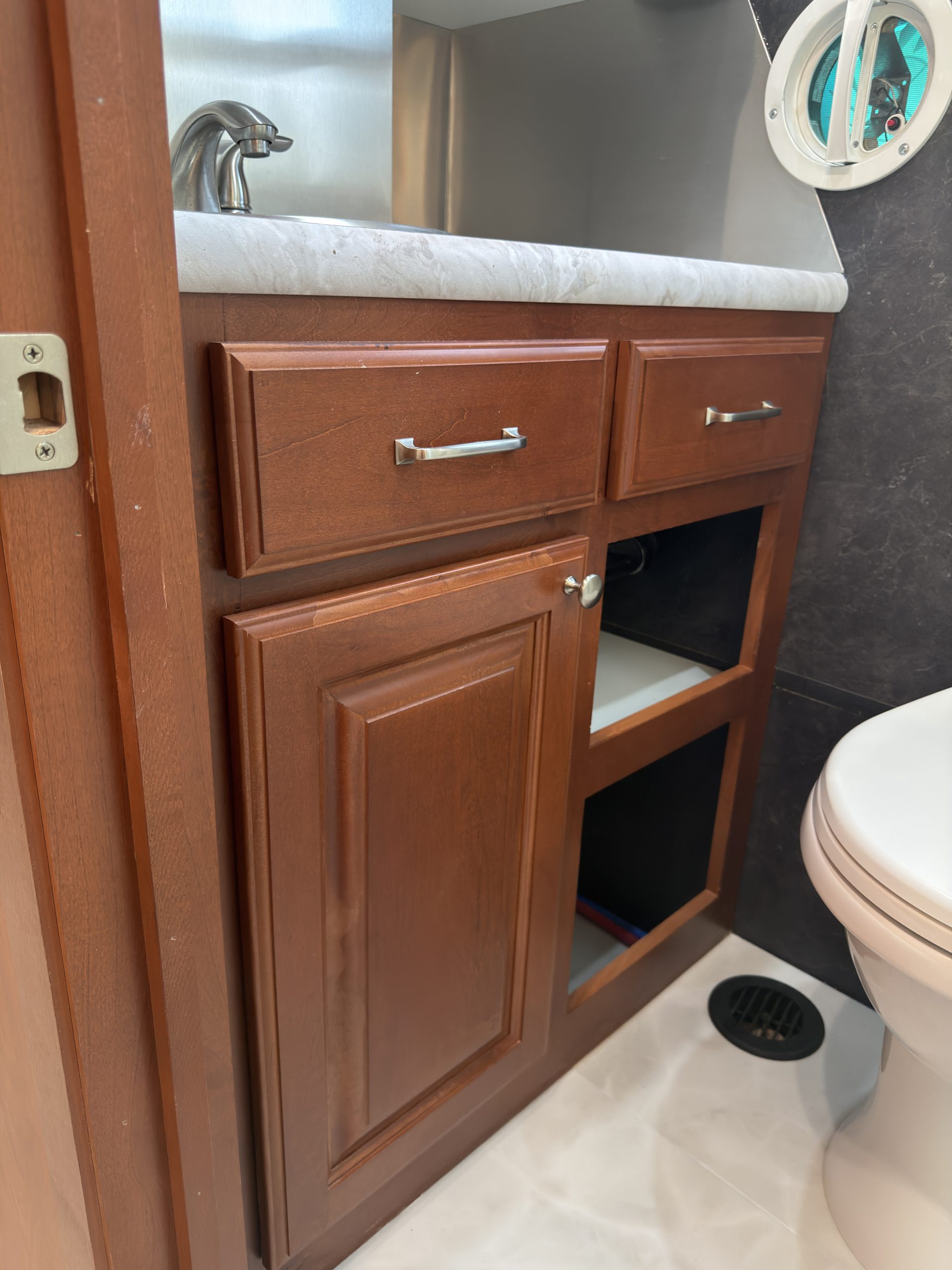

- Standard Vanity with Small Drawer, Sink Tip-Out, Shelving, & Open Storage

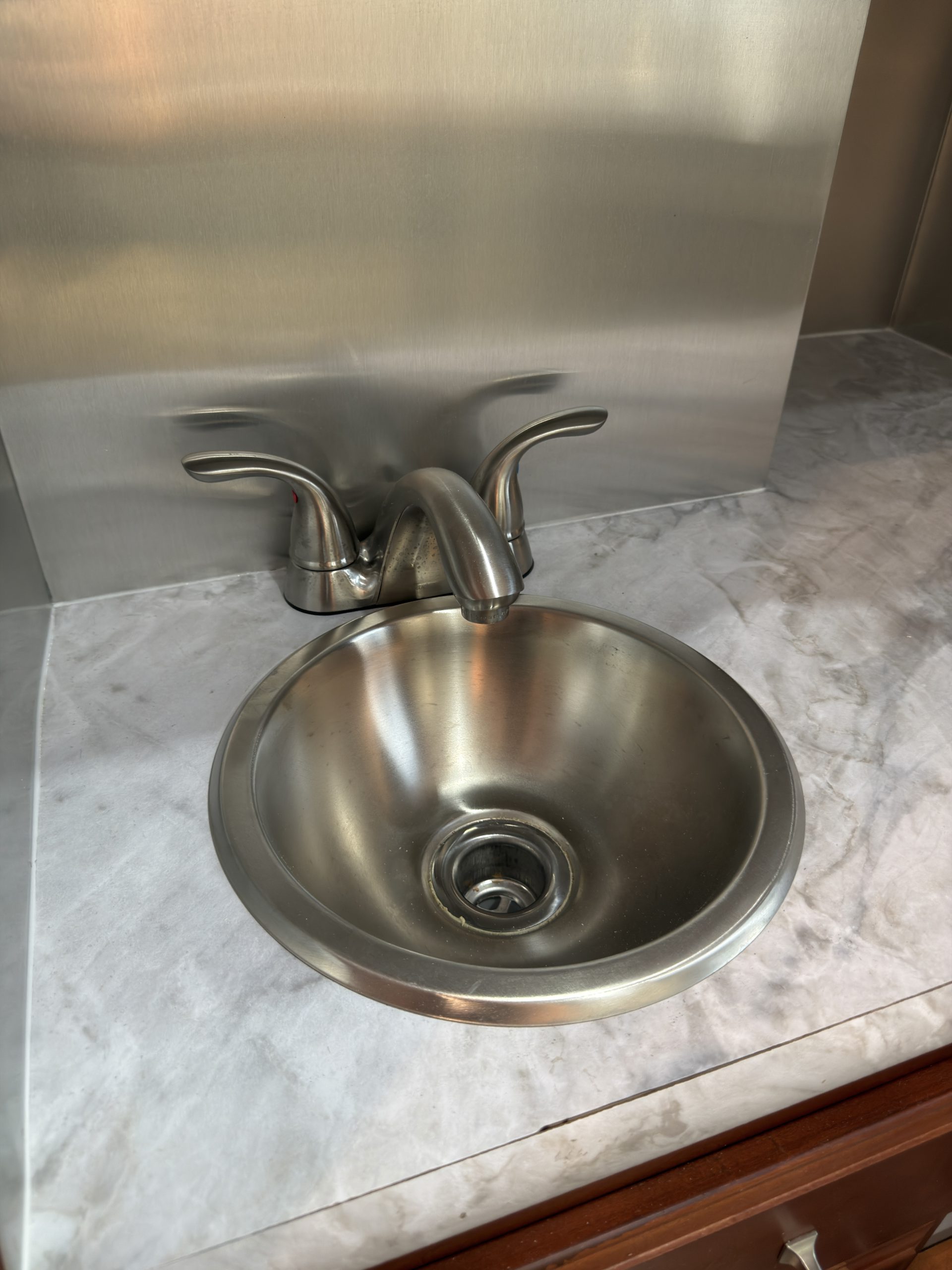

- Sink
- Small Round Stainless Steel Sink with Residential Faucet

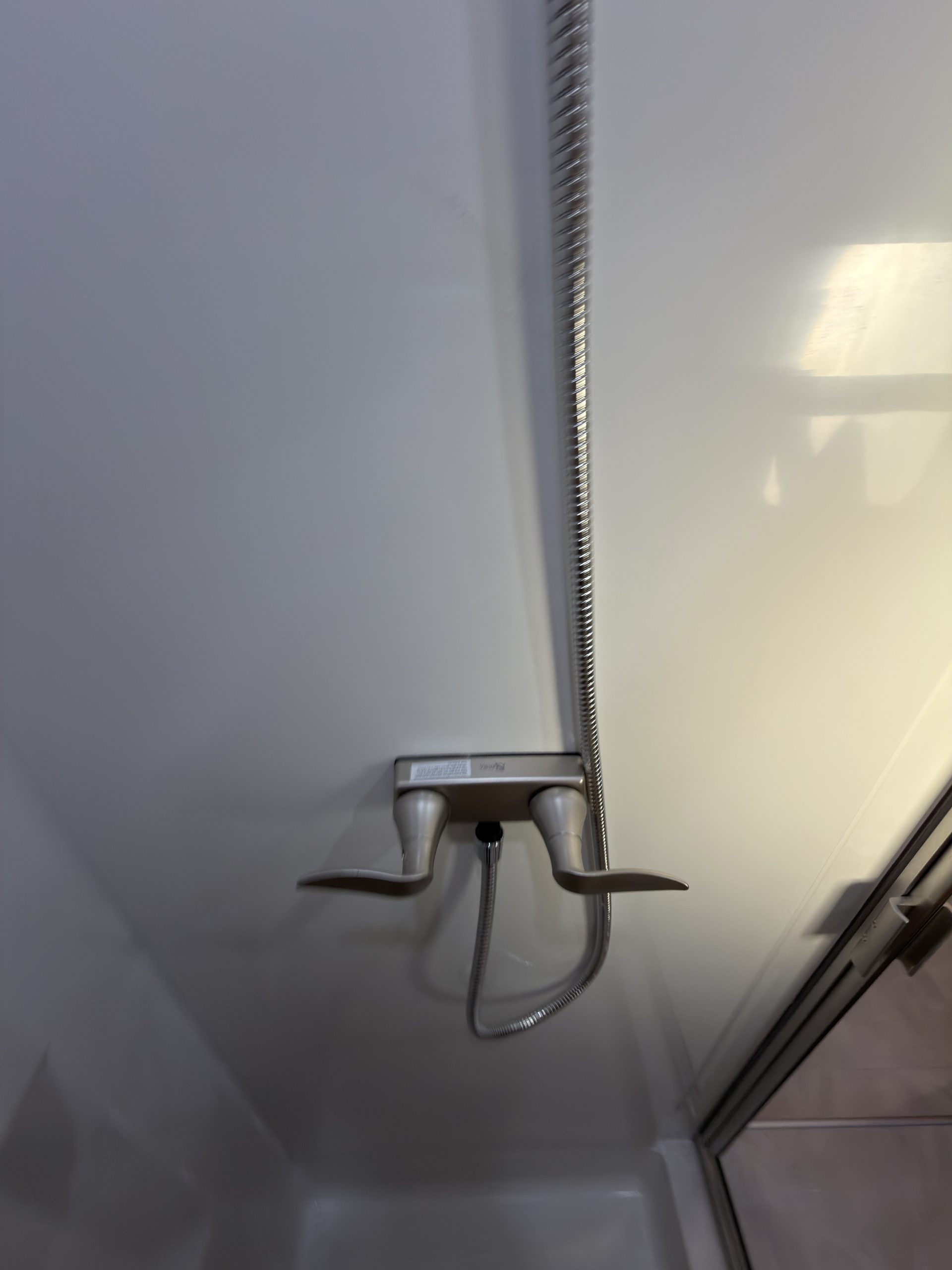

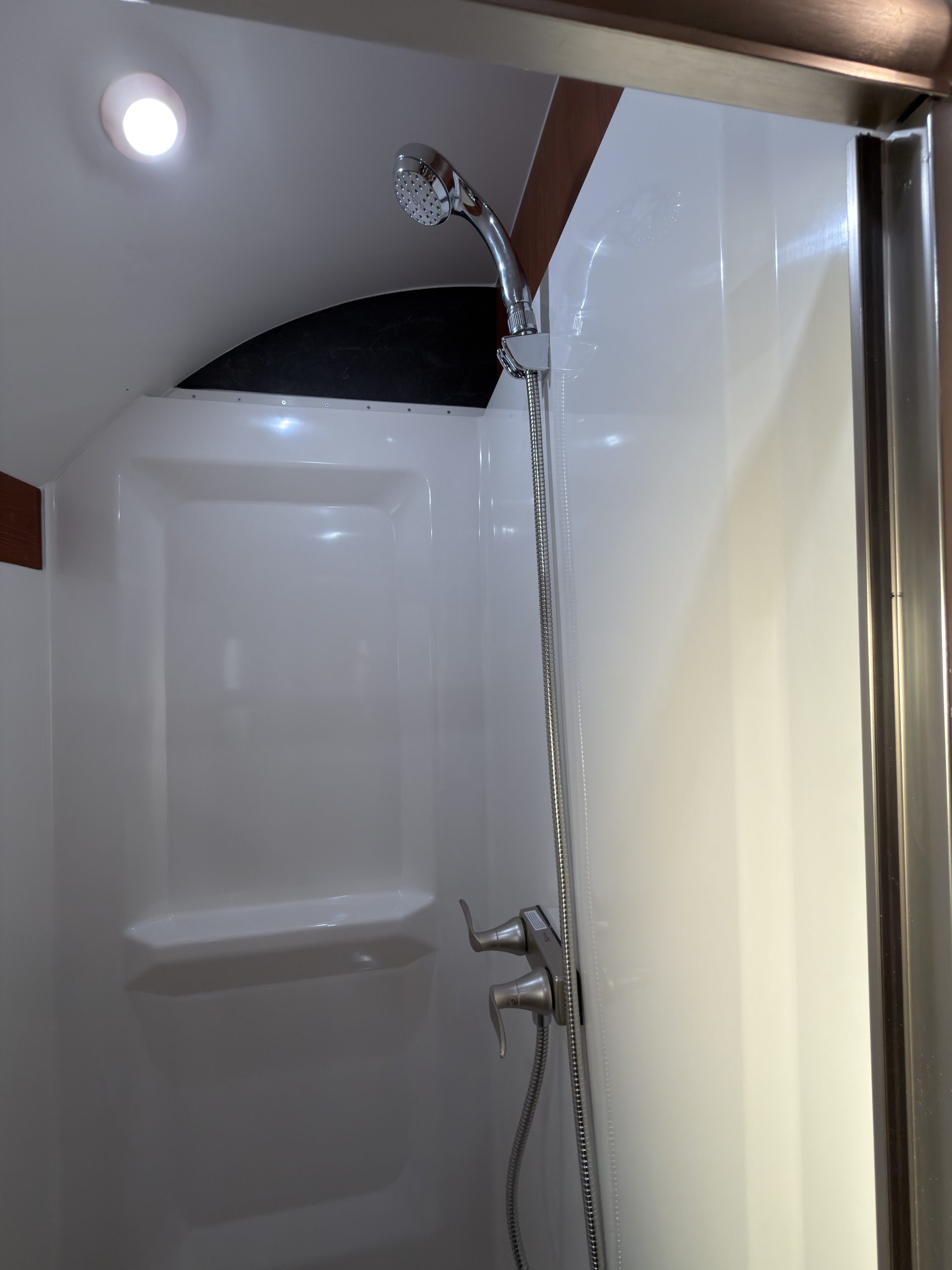

- Shower

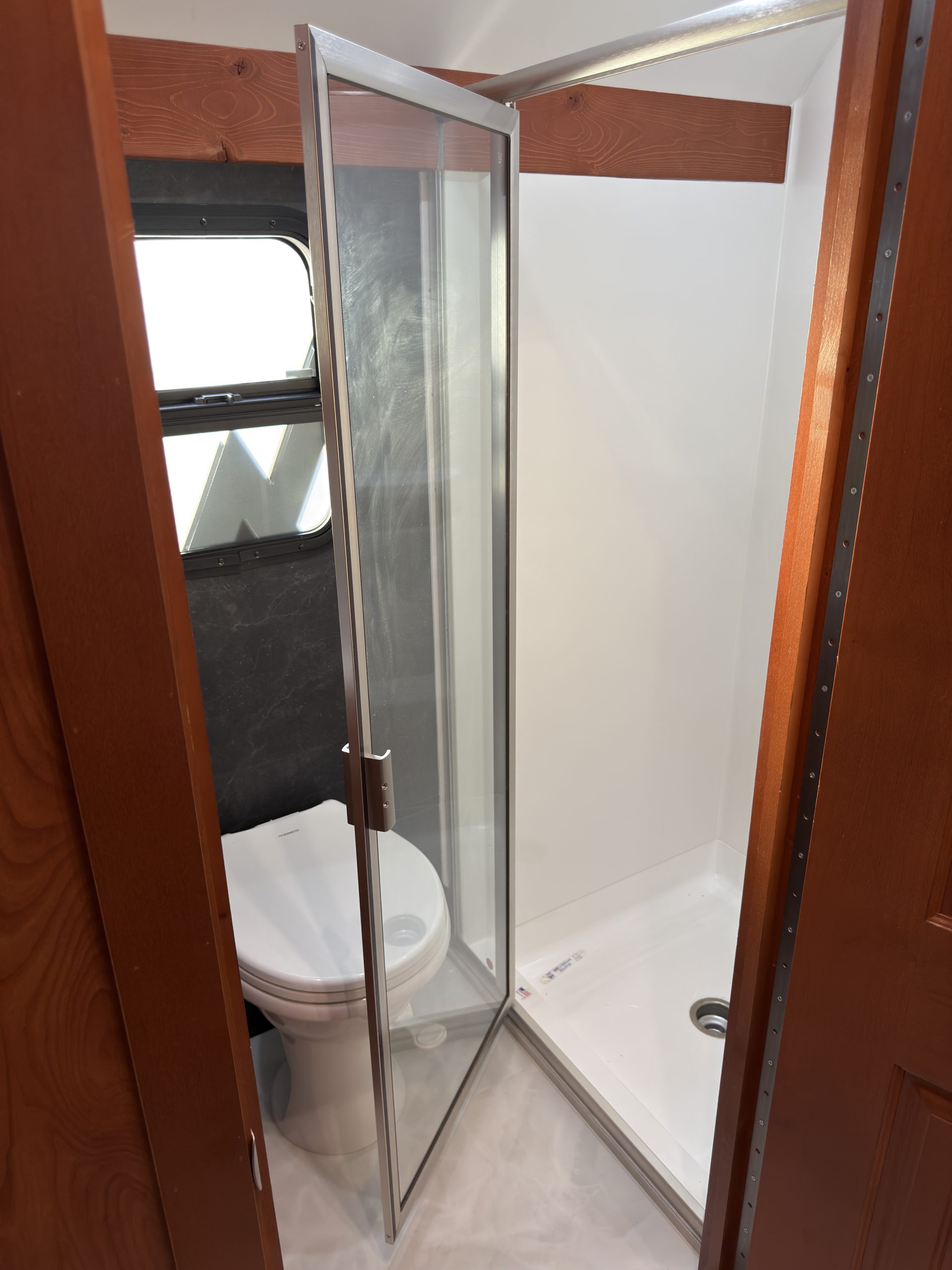

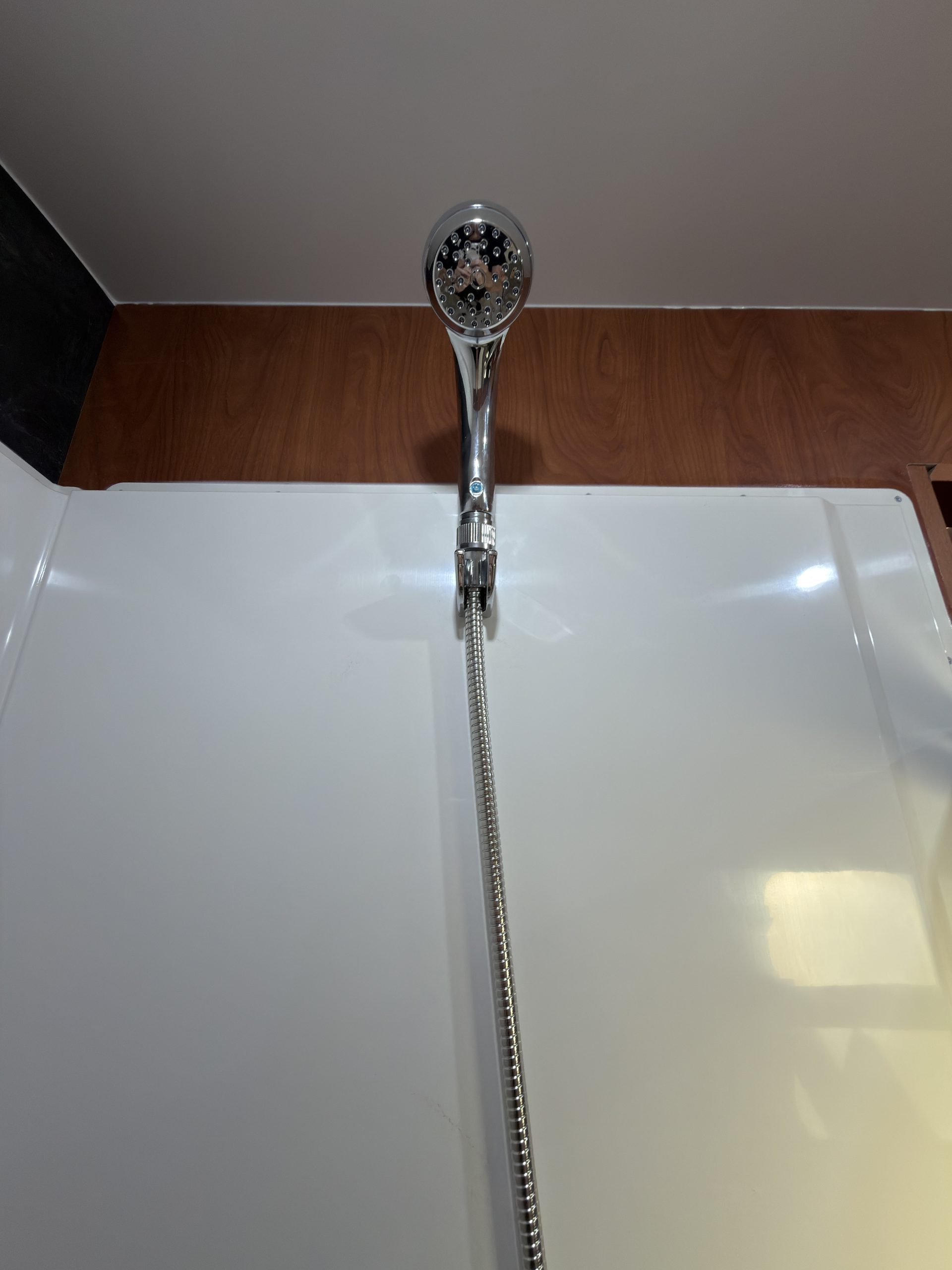

- 32 x 32 in. Shower with Glass Door & Stainless Steel Fixtures
- Toilet
- Small Dometic Porcelain Toilet (China Bowl) w/ Foot Pedal Flush
- Window
- Small Frosted Sliding Window
- Ventilation
- 12V Bathroom Exhaust Fan

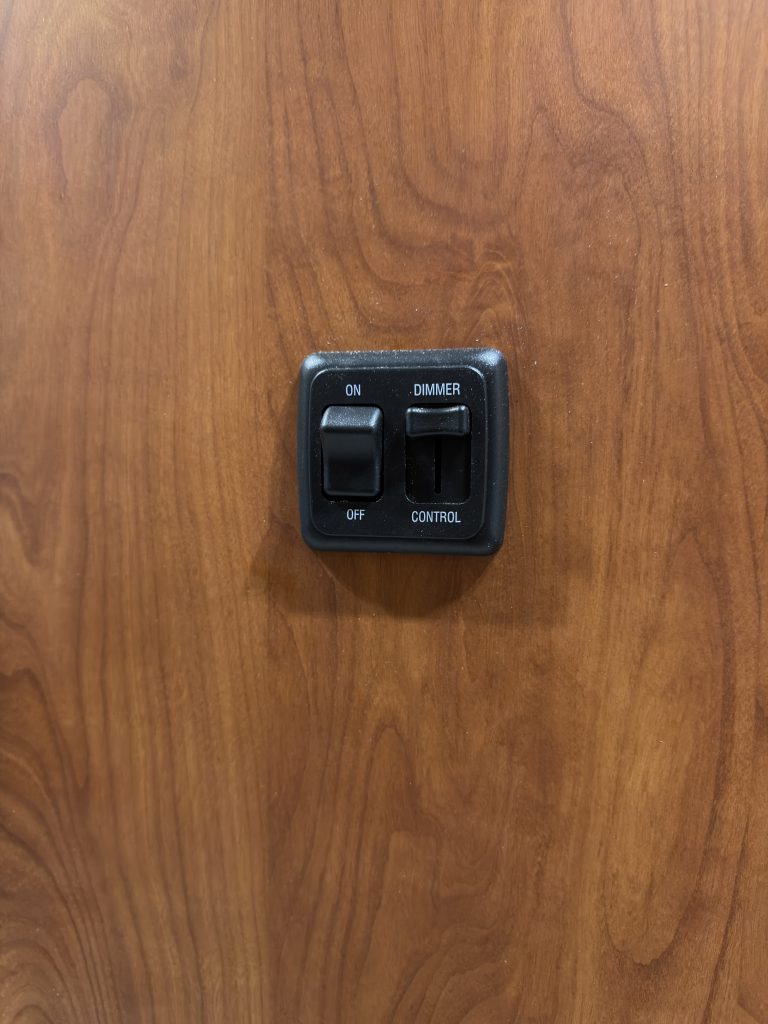

- Lighting
- Small Dimmable LED Ceiling Lights
- Power
- Single AC Outlet Below Medicine Cabinet

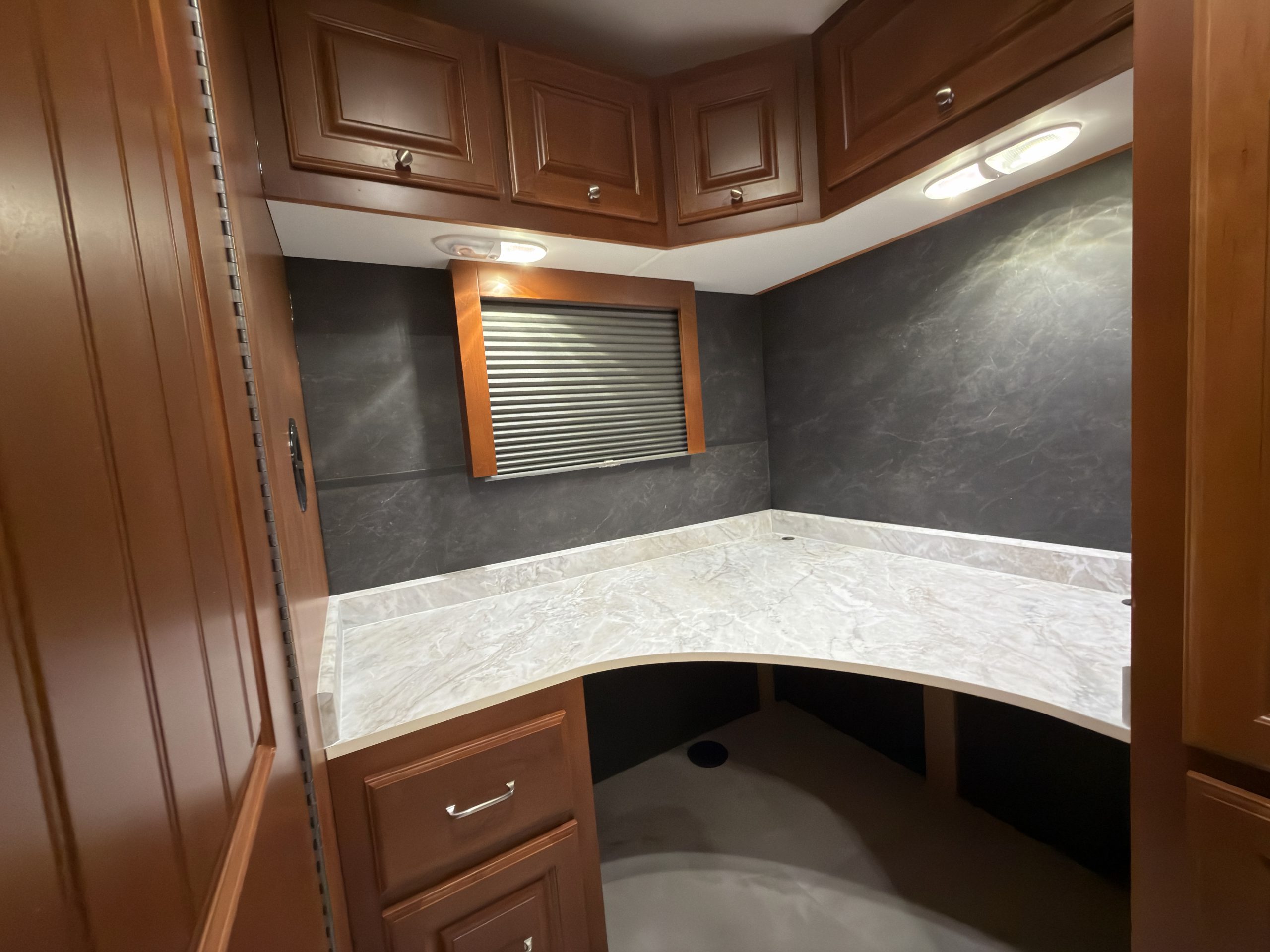

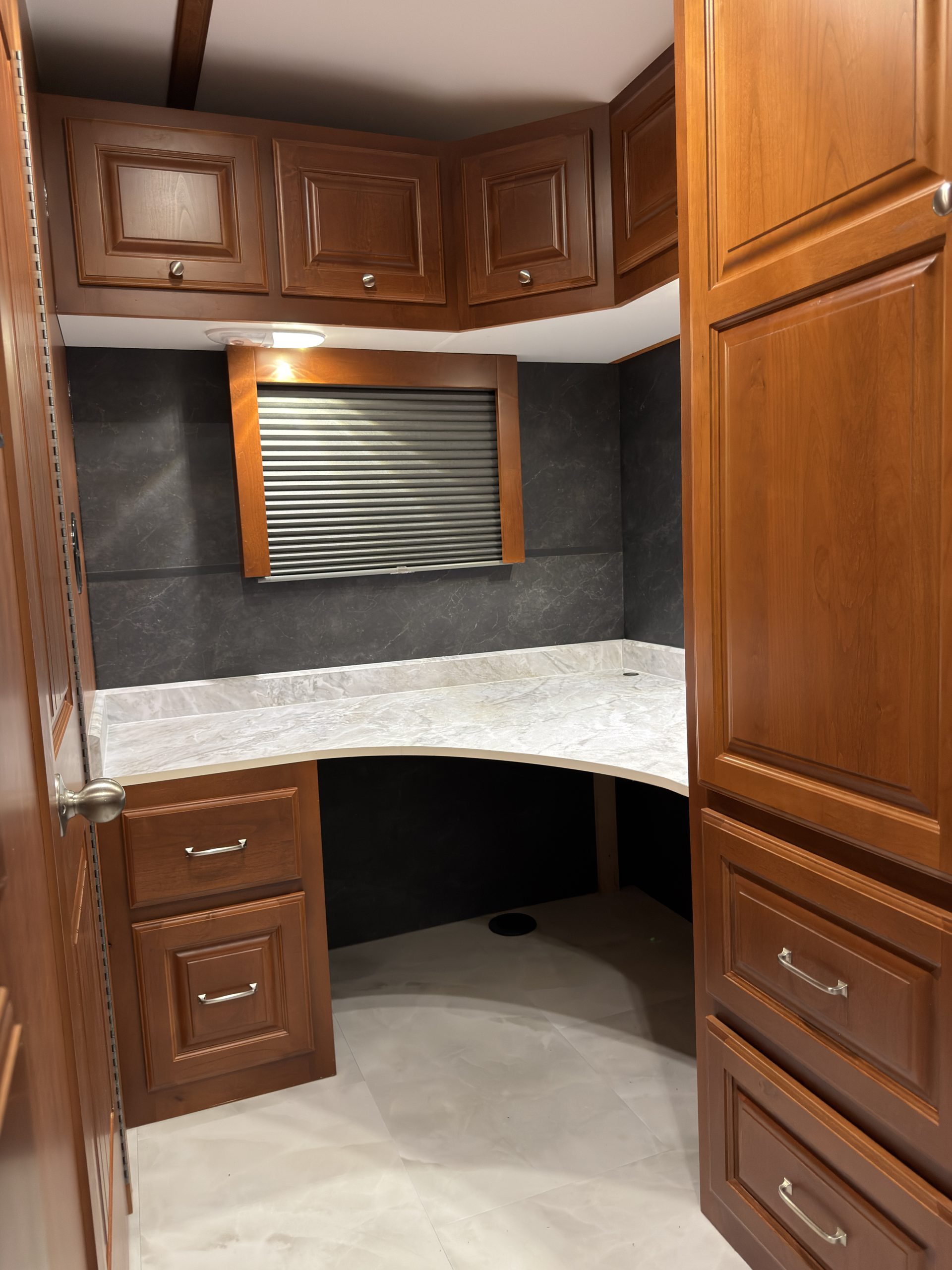

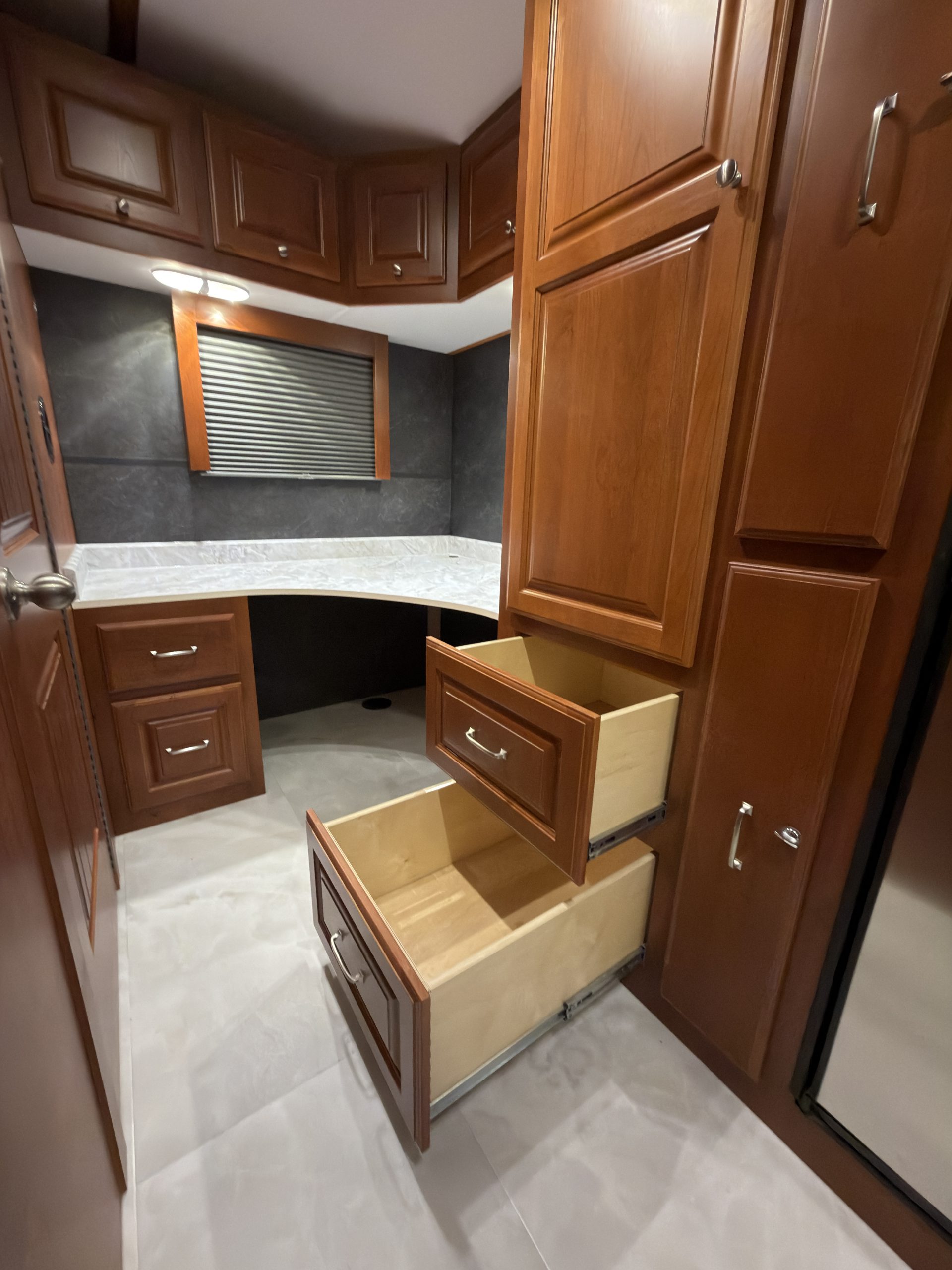

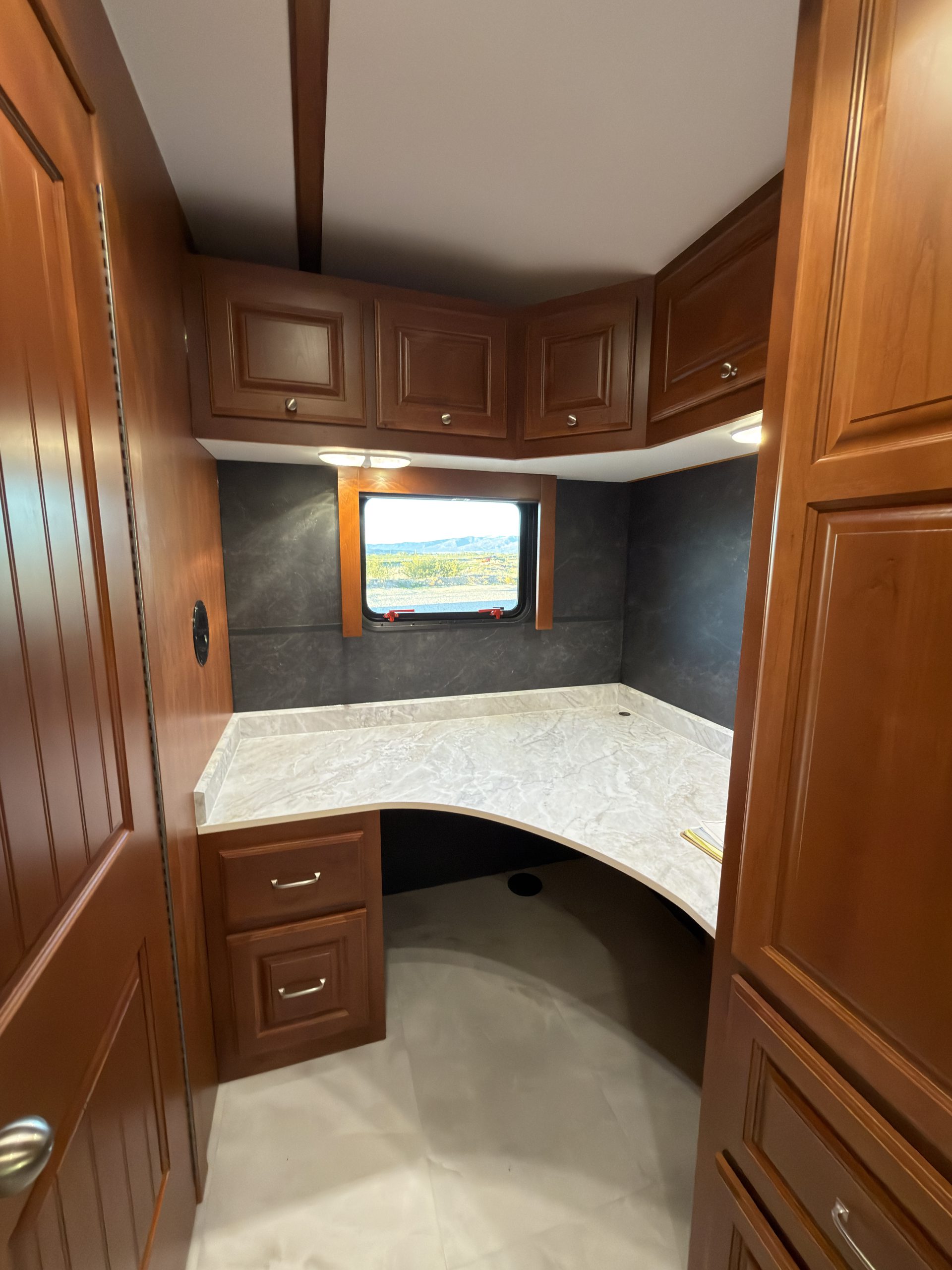

Office / Closet Space
- Layout
- Highlighted feature: Dedicated Office Space

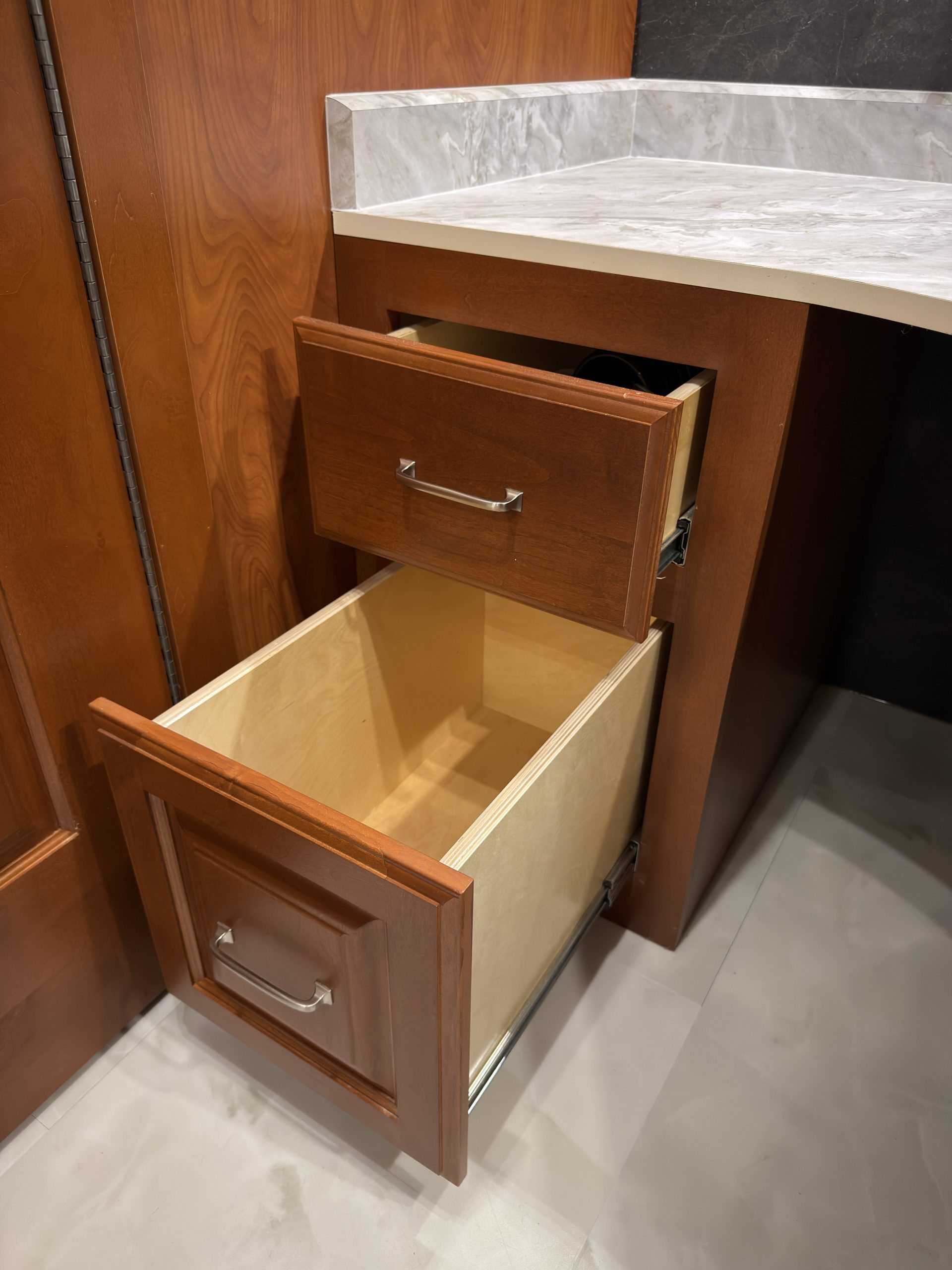

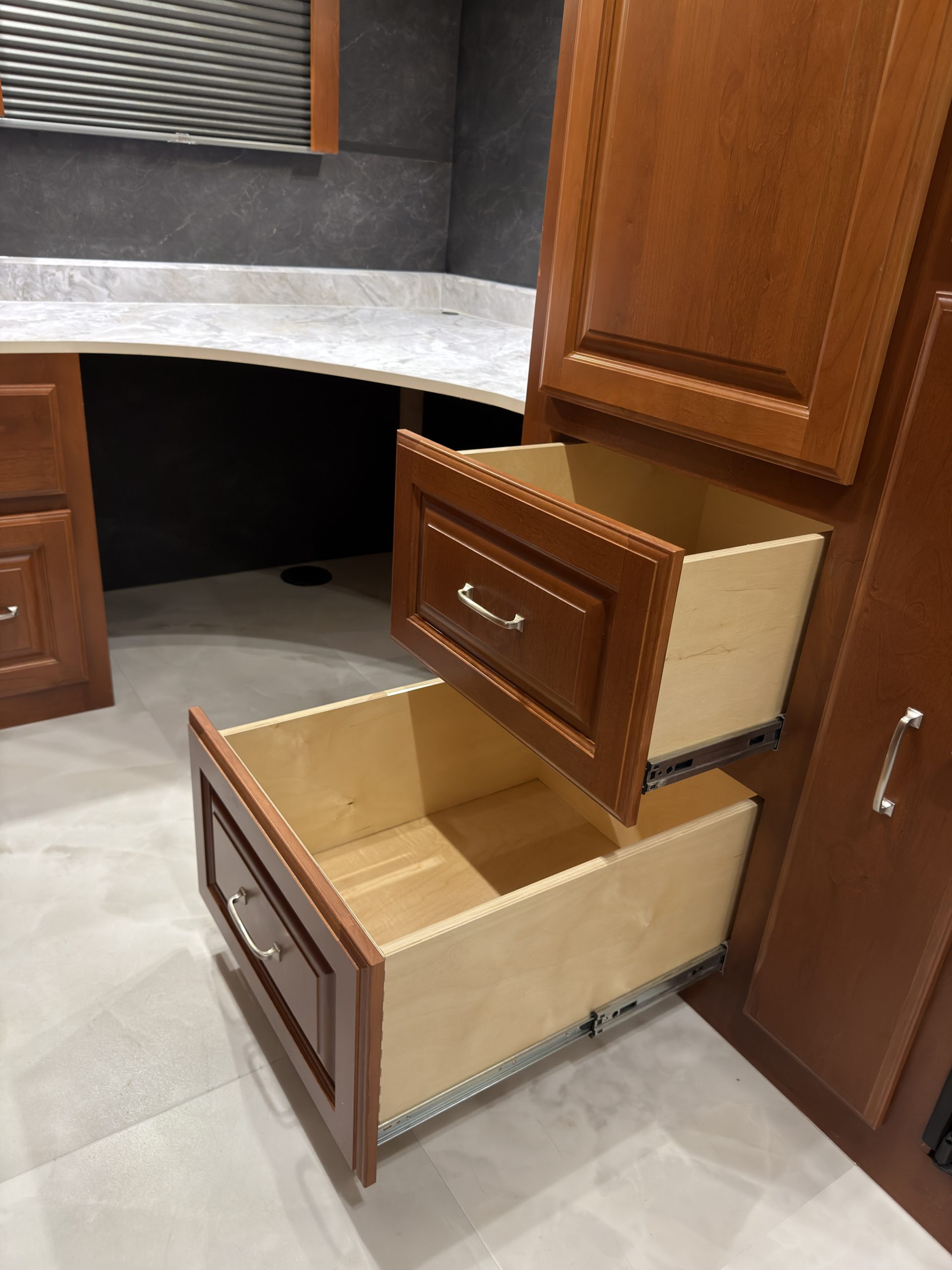

- Desk
- Highlighted feature: Large Corner Desk with Drawers & Cable Pass-Throughs

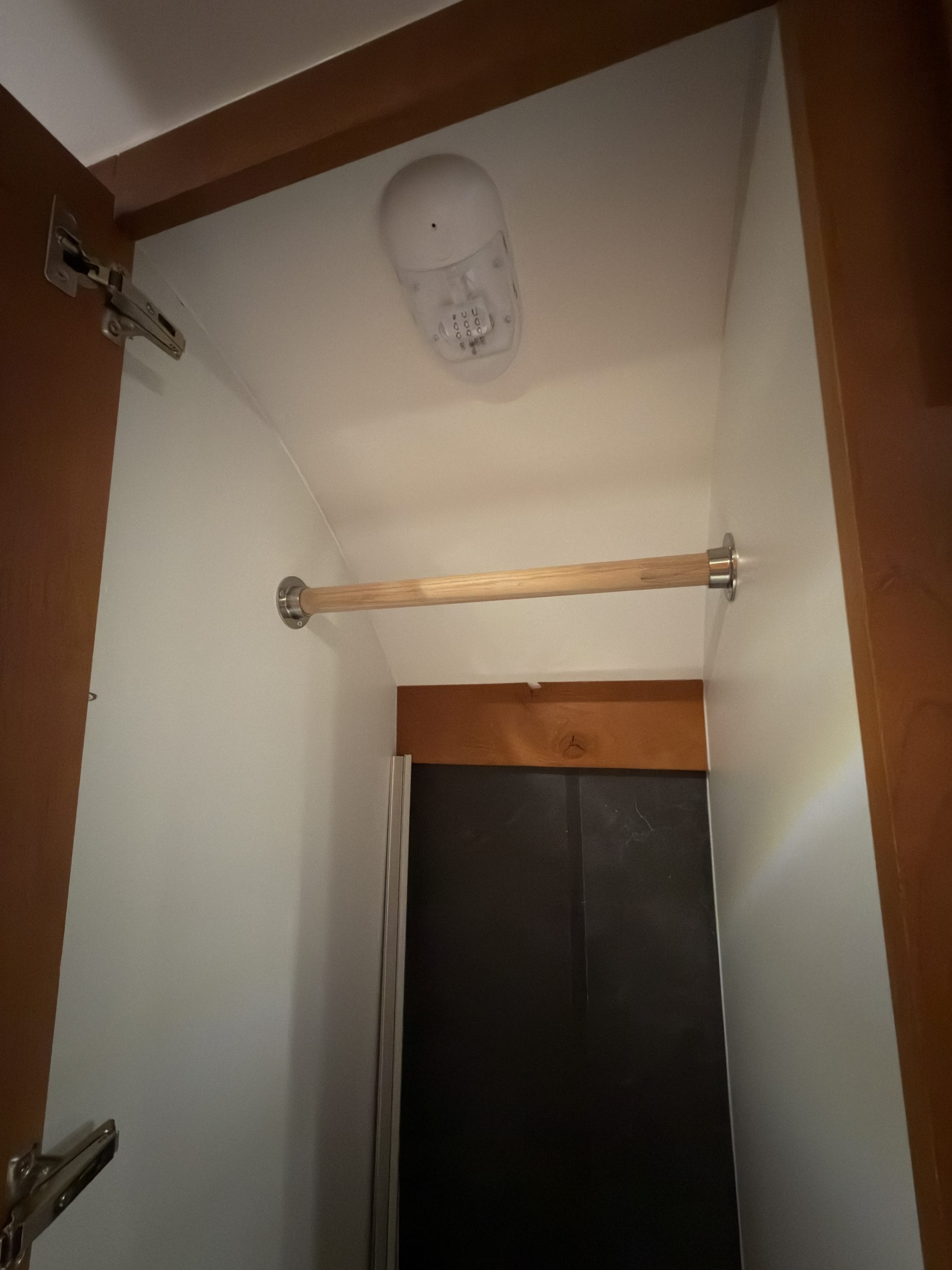

- Wardrobes
- Large Closet Wardrobe with Hanging Rod & Double Drawer (Across From Bathroom)
- Overhead Storage
- Large Overhead Storage Cabinets Above Desk

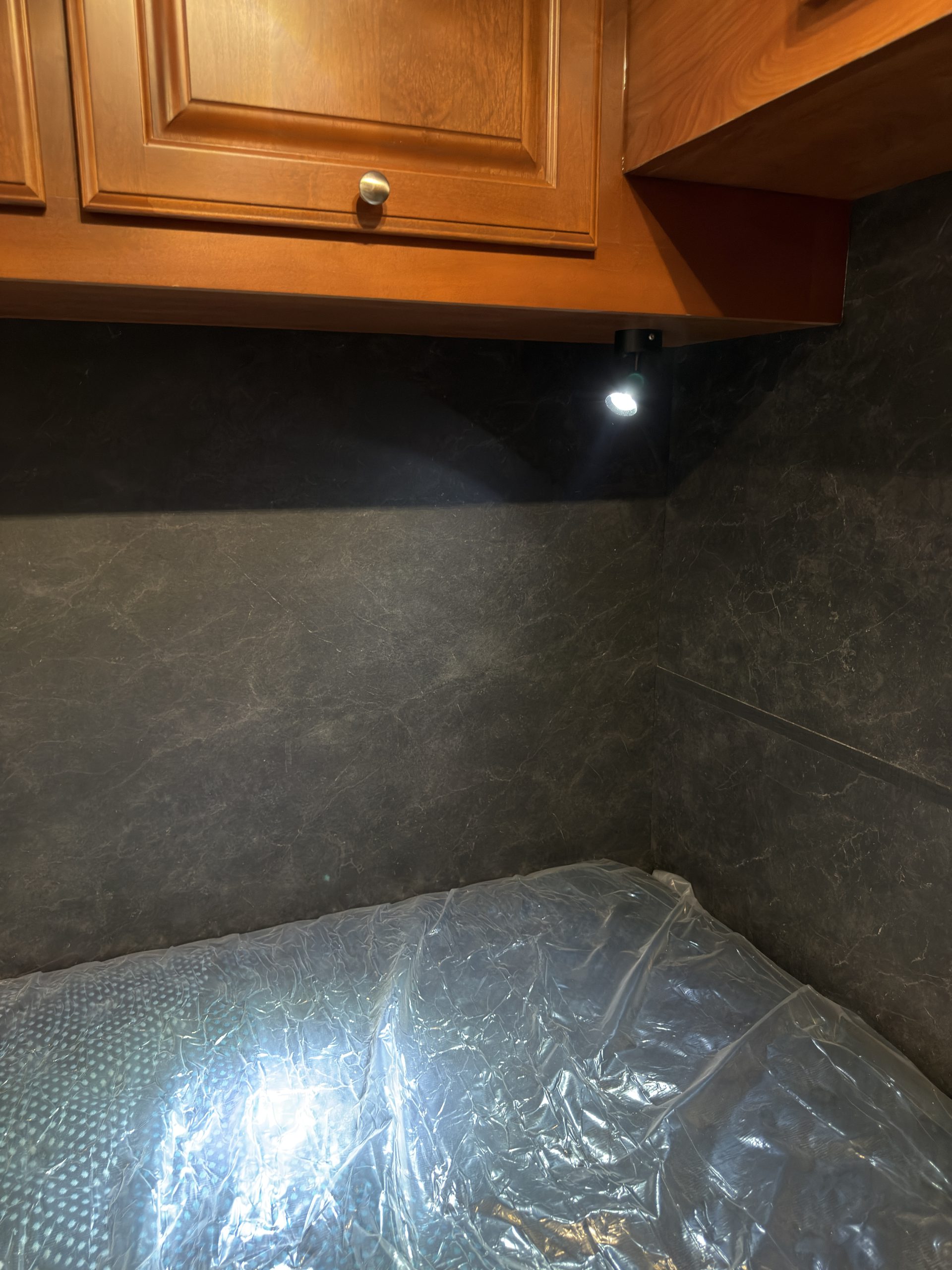

- Lighting
- Lighting Added Below Upper Cabinets

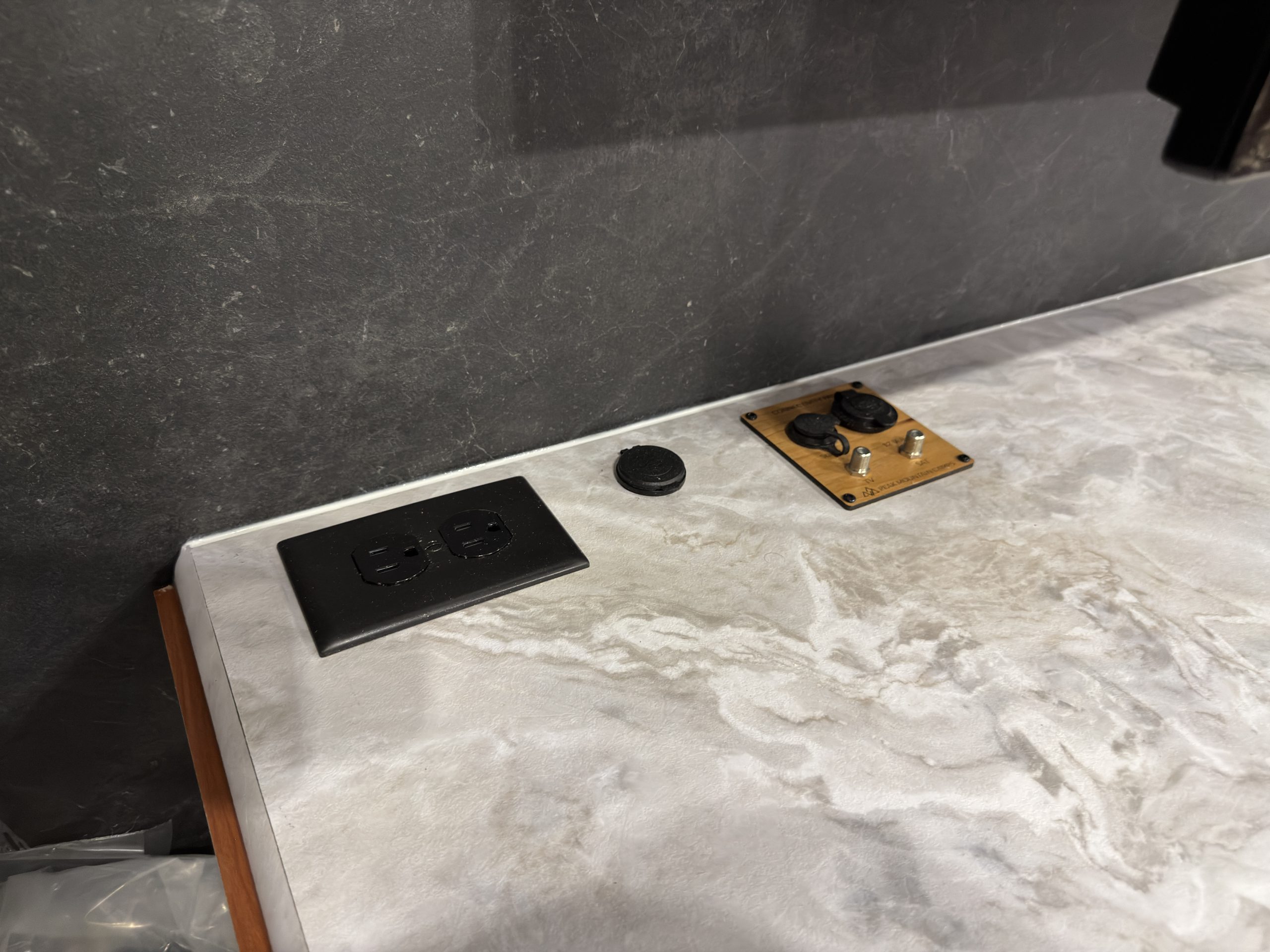

- Power & Connections

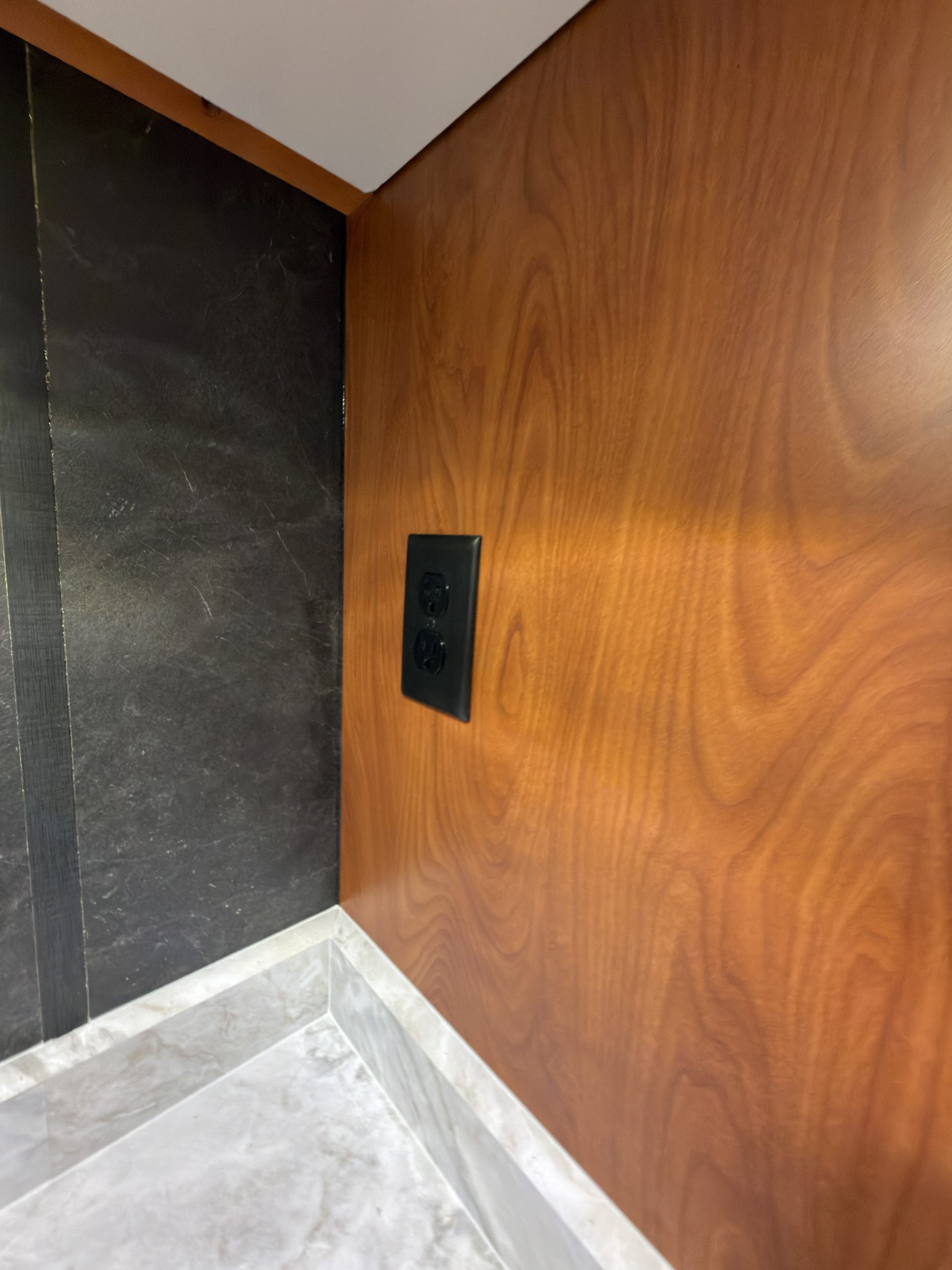

- AC Outlet Below Desk
- Window
- Rear Egress Window
Fuel & Power
Power
- Solar Panels
- Two 100 W Panels
- Additional Solar Ports
- Highlighted feature: Two Additional Solar Ports
- Solar Controller
- Standard
- Battery Bank
- 6x 6V Deep Cycle Batteries
- Power Center
- 120V AC / 12V DC
- Shore Power
- 30 A Service Hookup (25 ft. Cord Included)
- Inverter
- Highlighted feature: 3,000W Inverter
- Accessible Electrical Systems & Wiring
- Standard
Propane

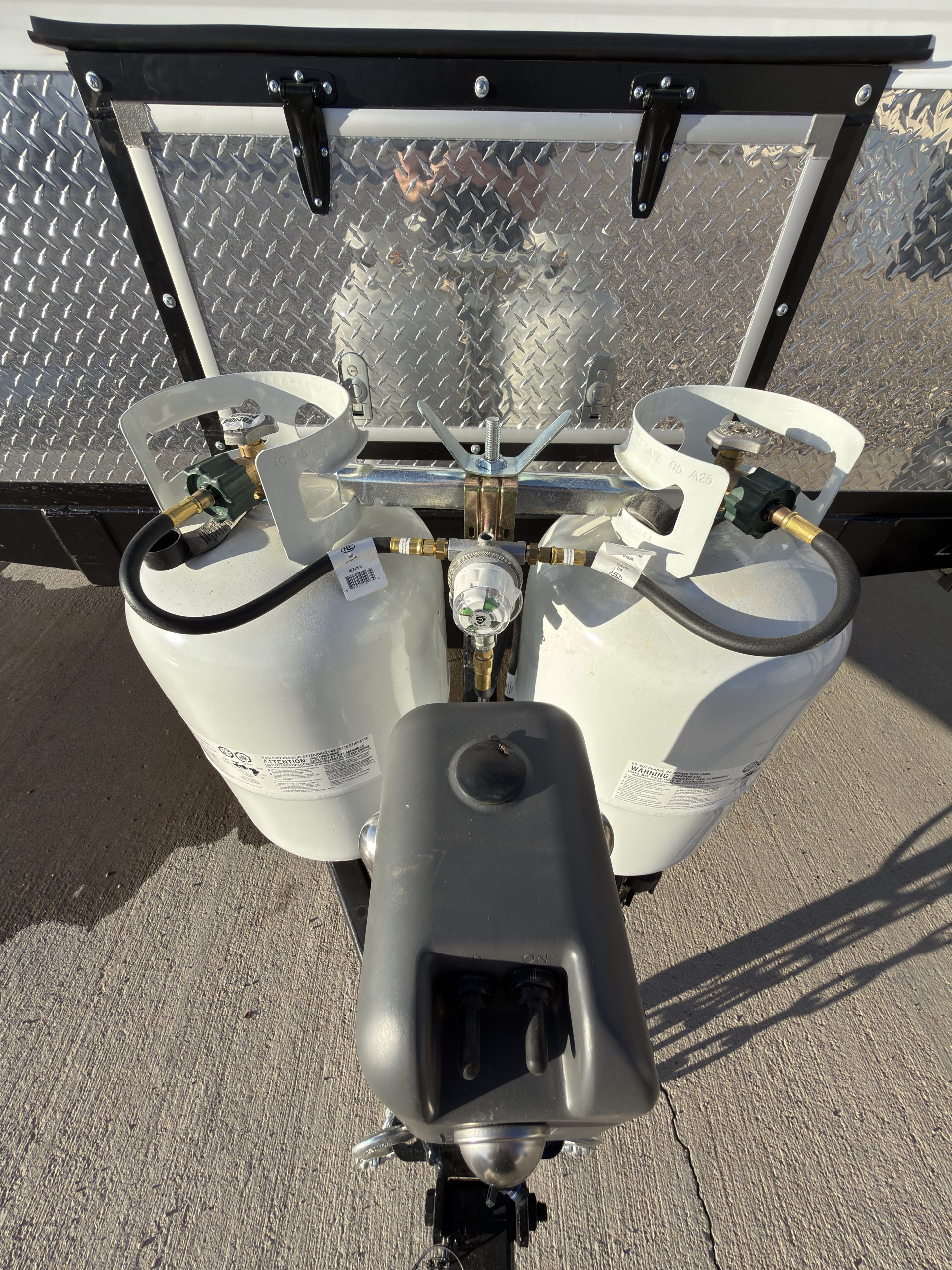

- Tanks
- Two 7 gal. 30 lb Tanks
- Tank Cover
- Quick Access Propane Tank Cover
- Propane Connections
- 1x Quick-Connect on Road-Side

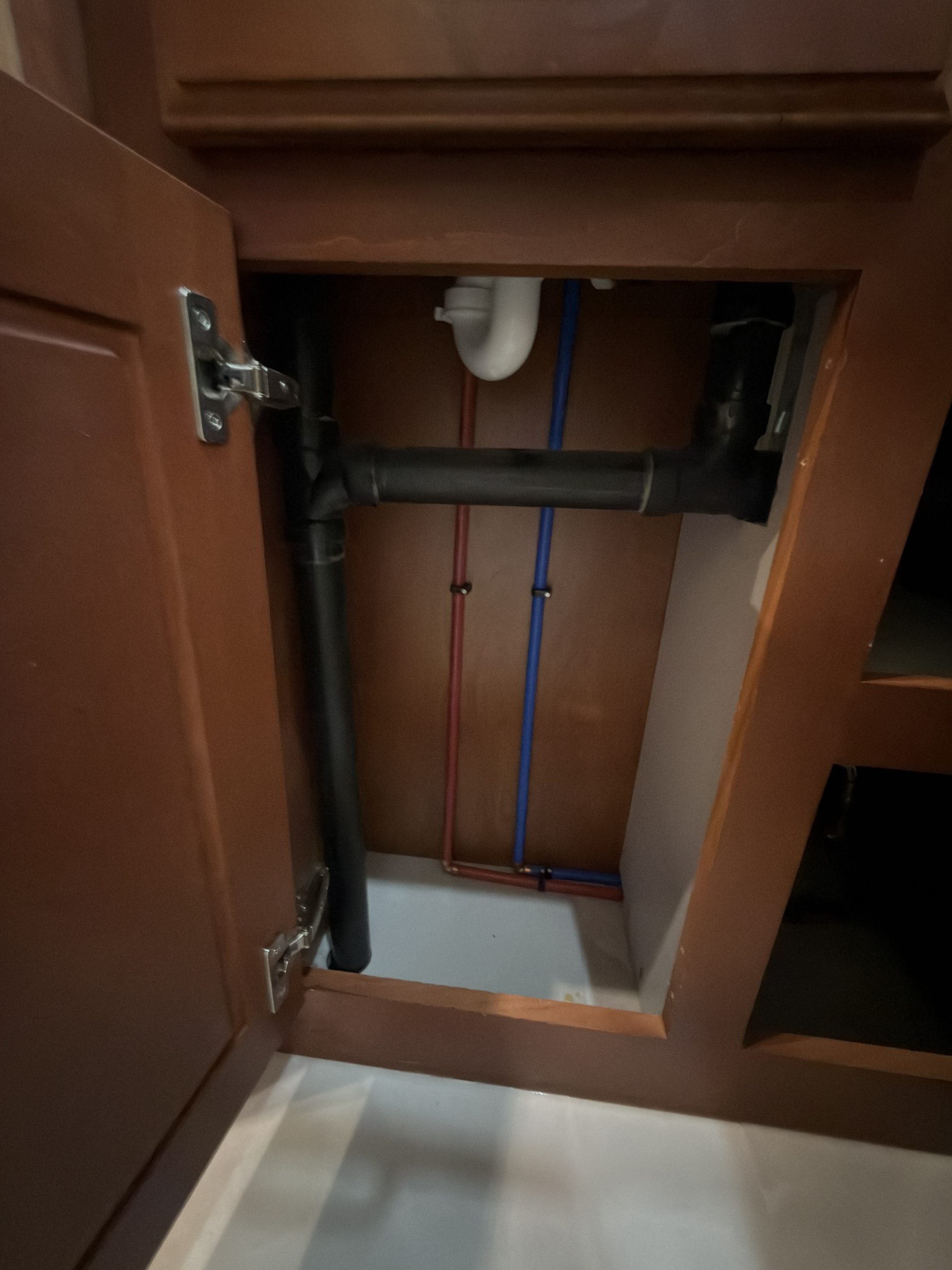

Plumbing
General
- Plumbing Protection
- Fully Insulated & Heated Plumbing
- Fittings
- Brass & Stainless Steel Water Fittings

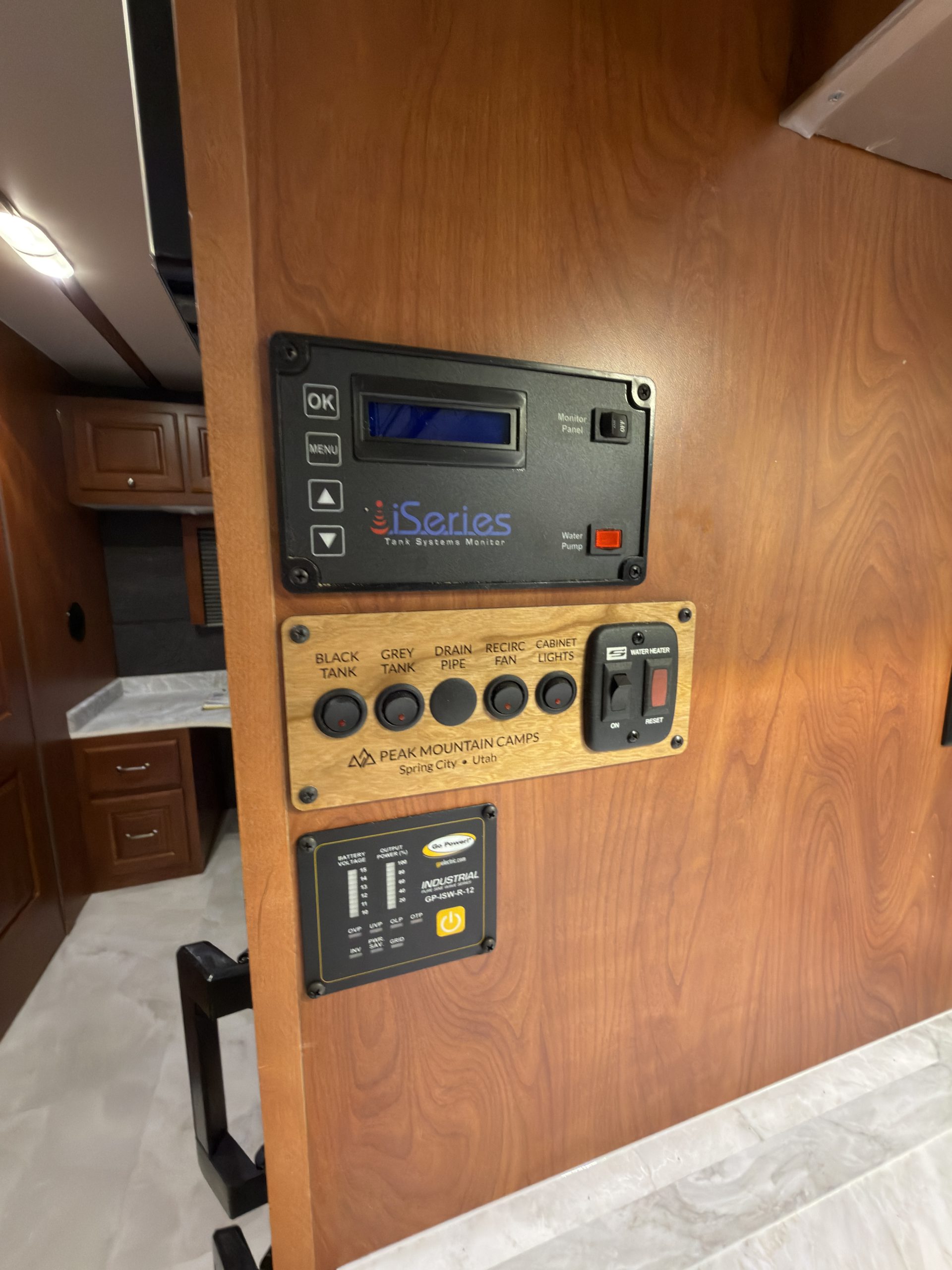

- Monitoring Panel
- Tank Monitors for Fresh, Gray, and Black Water Tanks
- Accessible Plumbing Systems
- Standard
Fresh Water
- Fresh Water Tank(s)
- 42 gal. Fresh Water Tank

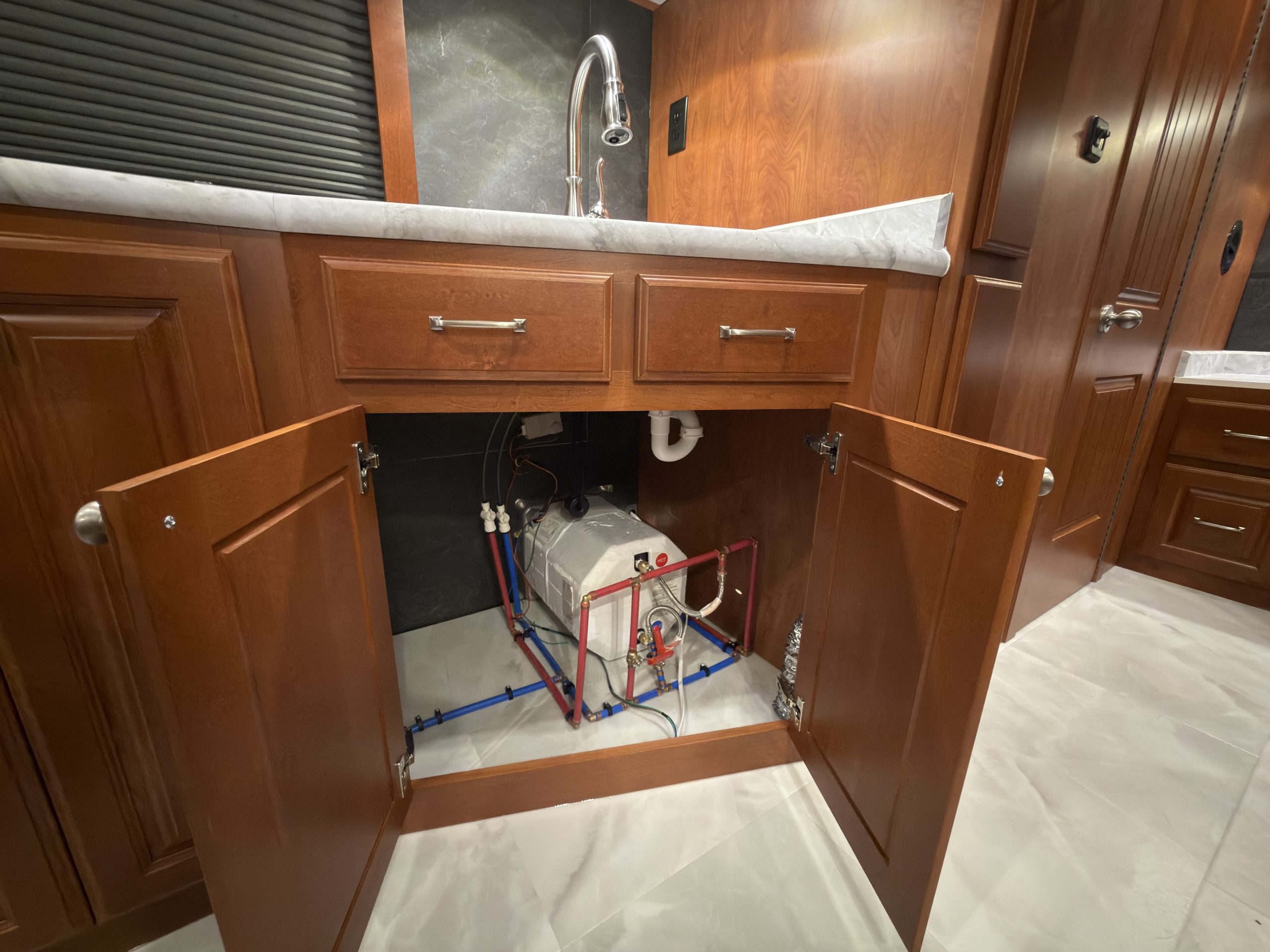

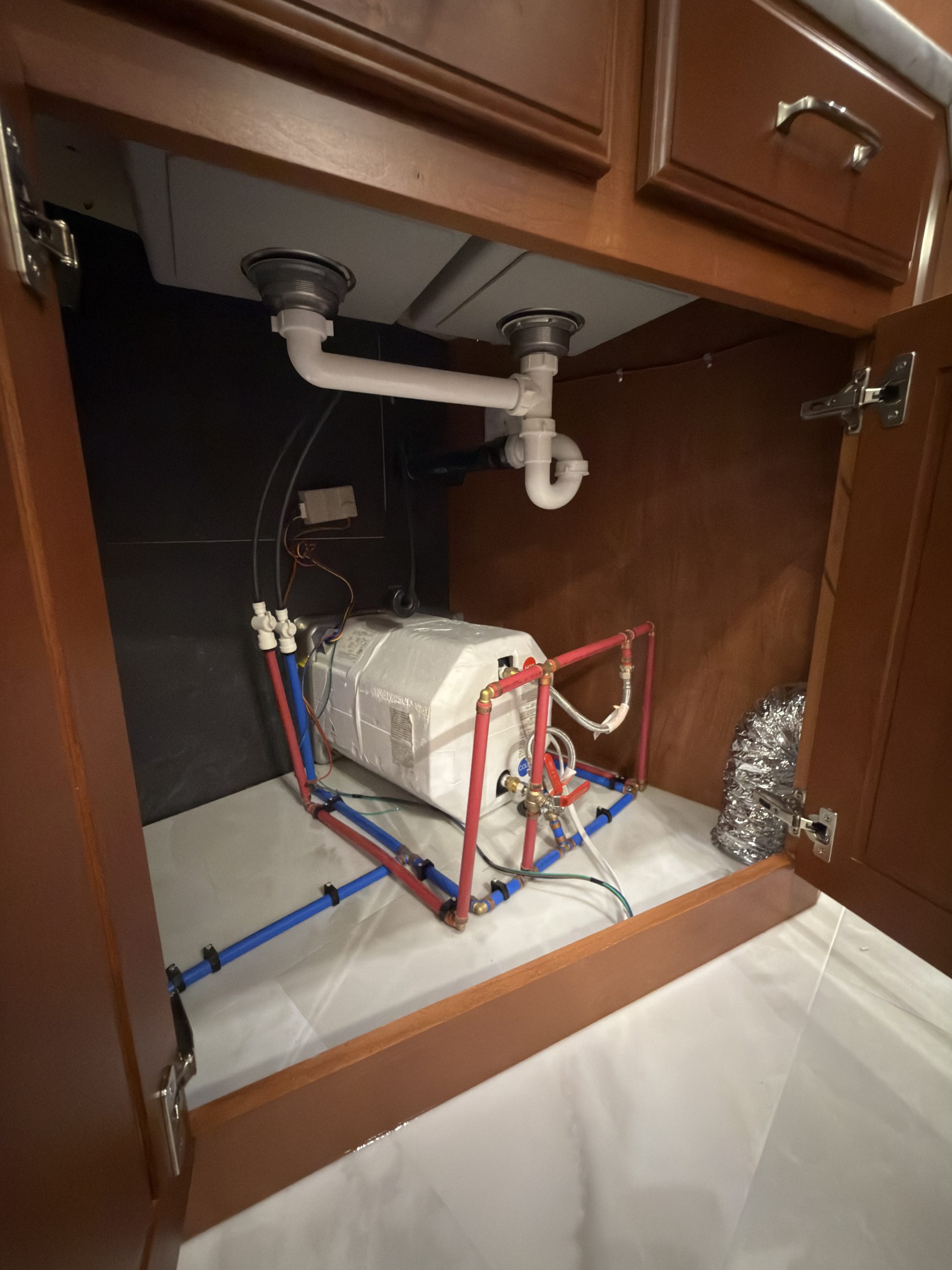

- Water Heater

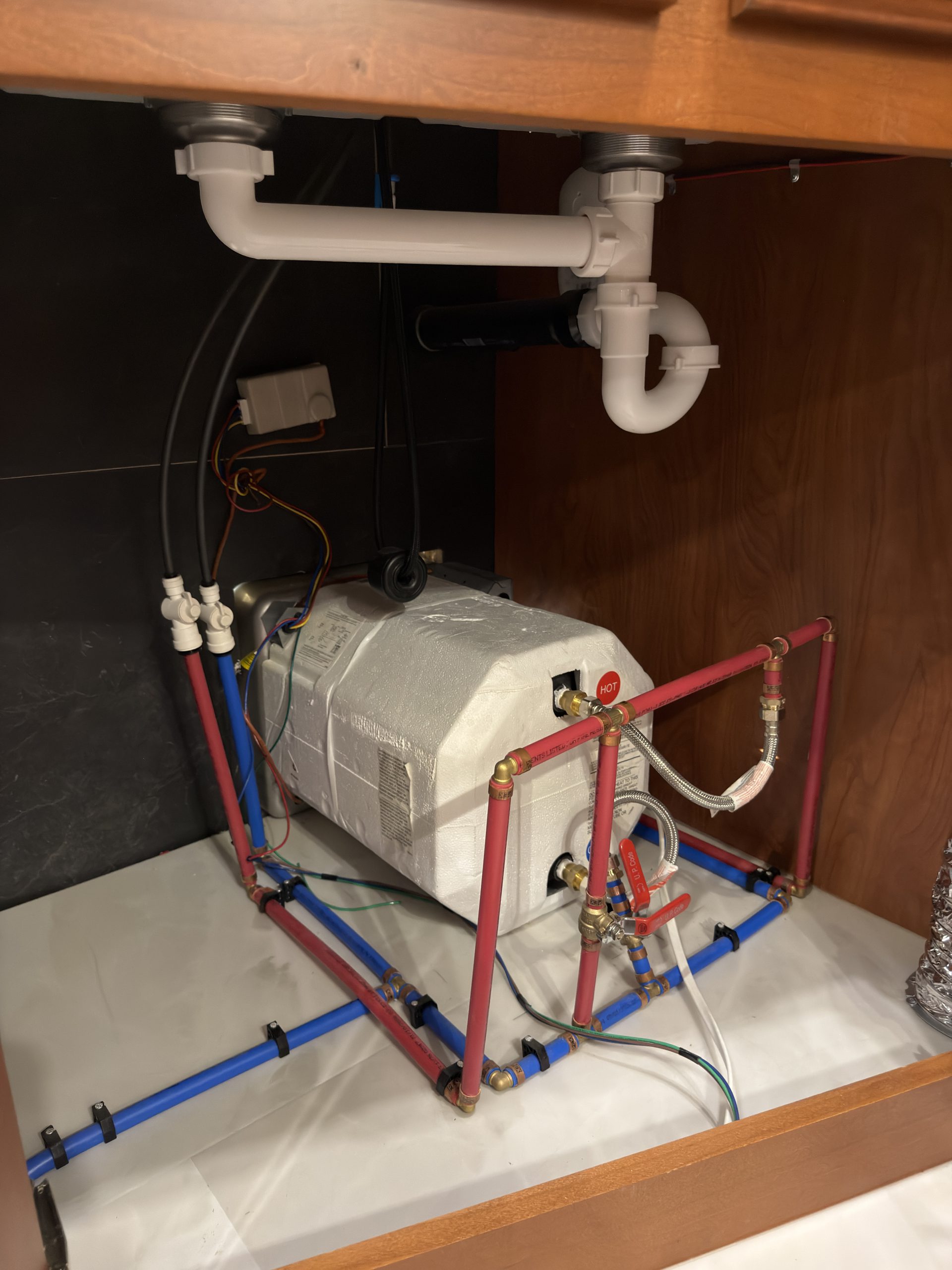

- 6 gal. Gas/Electric Water Heater (Under Kitchen Sink)
- Water Pump
- Standard Shurflo 12V Water Pump

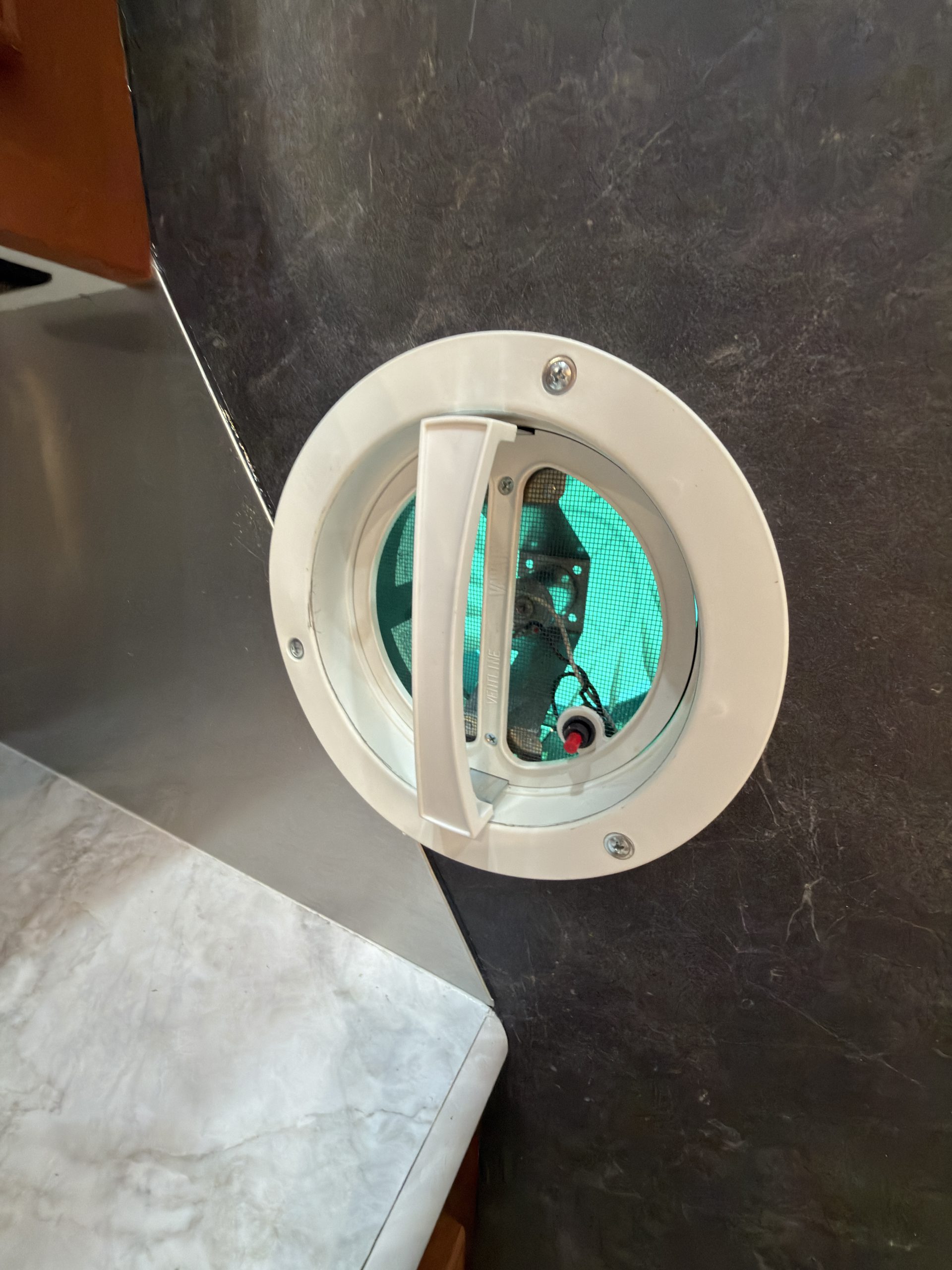

- Exterior Shower
- External Spray Port w/ Interior Shutoff Valves
- Fresh Water Connection
- Standard
- City Water Connection
- Standard
Waste Water
- Holding Tank Cover
- Insulated Metal Tank Cover
- Tank Heating Elements
- Highlighted feature: Added
- Sewer Hose Storage
- Standard
- Black Water Tank
- 35 gal. Black Water Tank
- Gray Water Tank
- 35 gal. Gray Water Tank
- Sewage Hook-Up
- Standard
Climate Control
Heating & Cooling

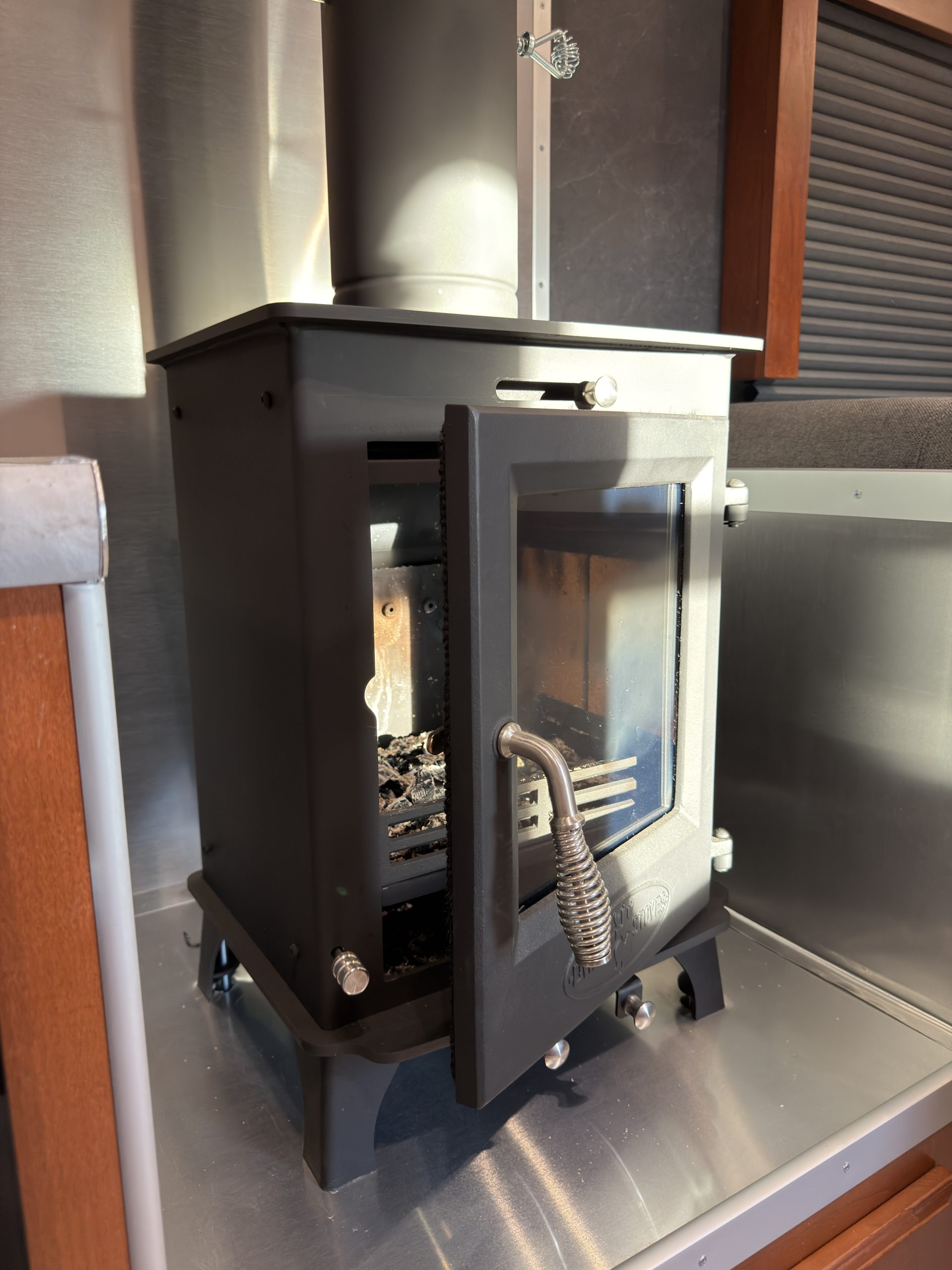

- Wood Burning Stove
- Standard
- Furnace

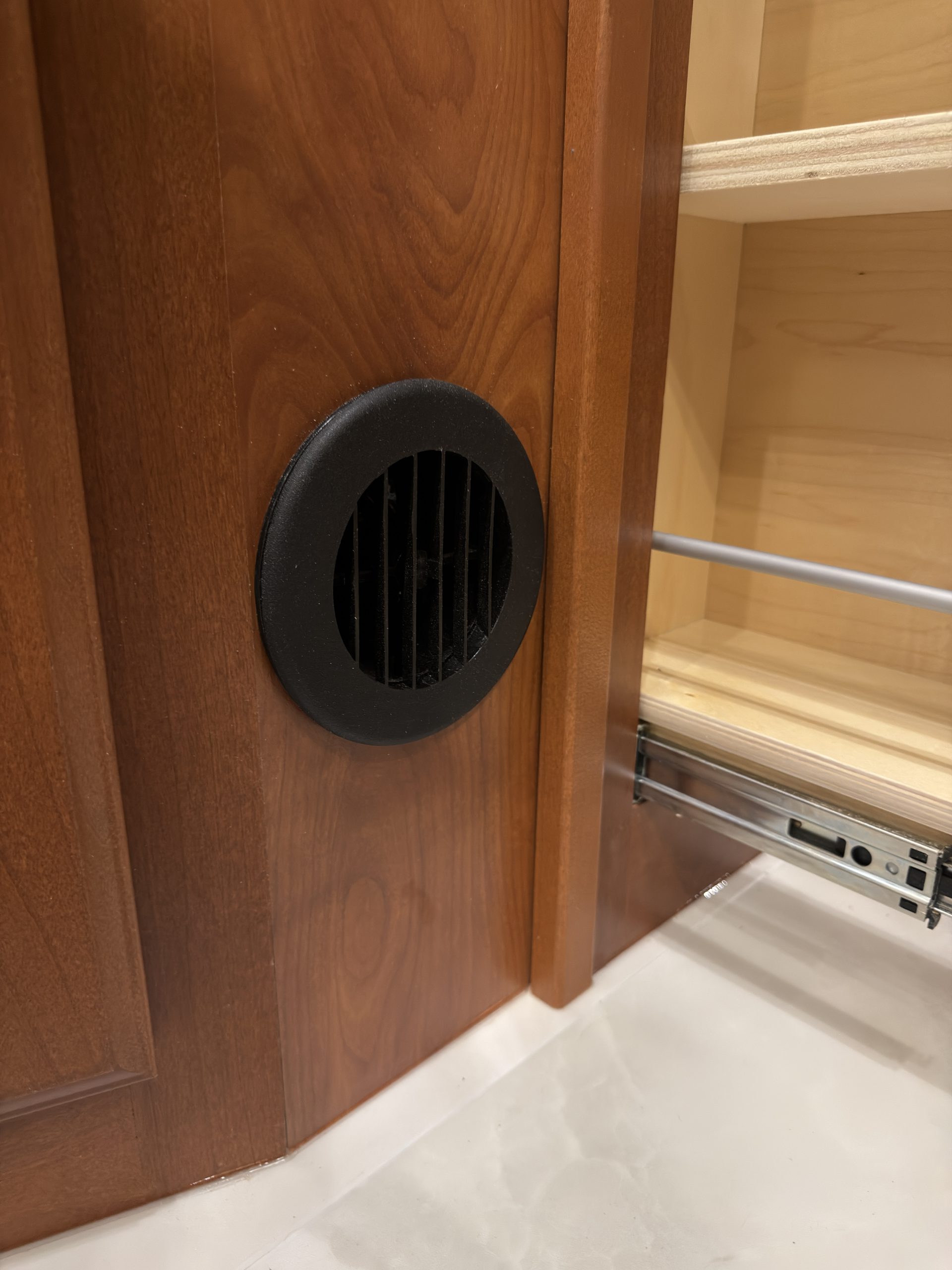

- 30,000 BTU Forced-Air Furnace (Under Dinette Bench)

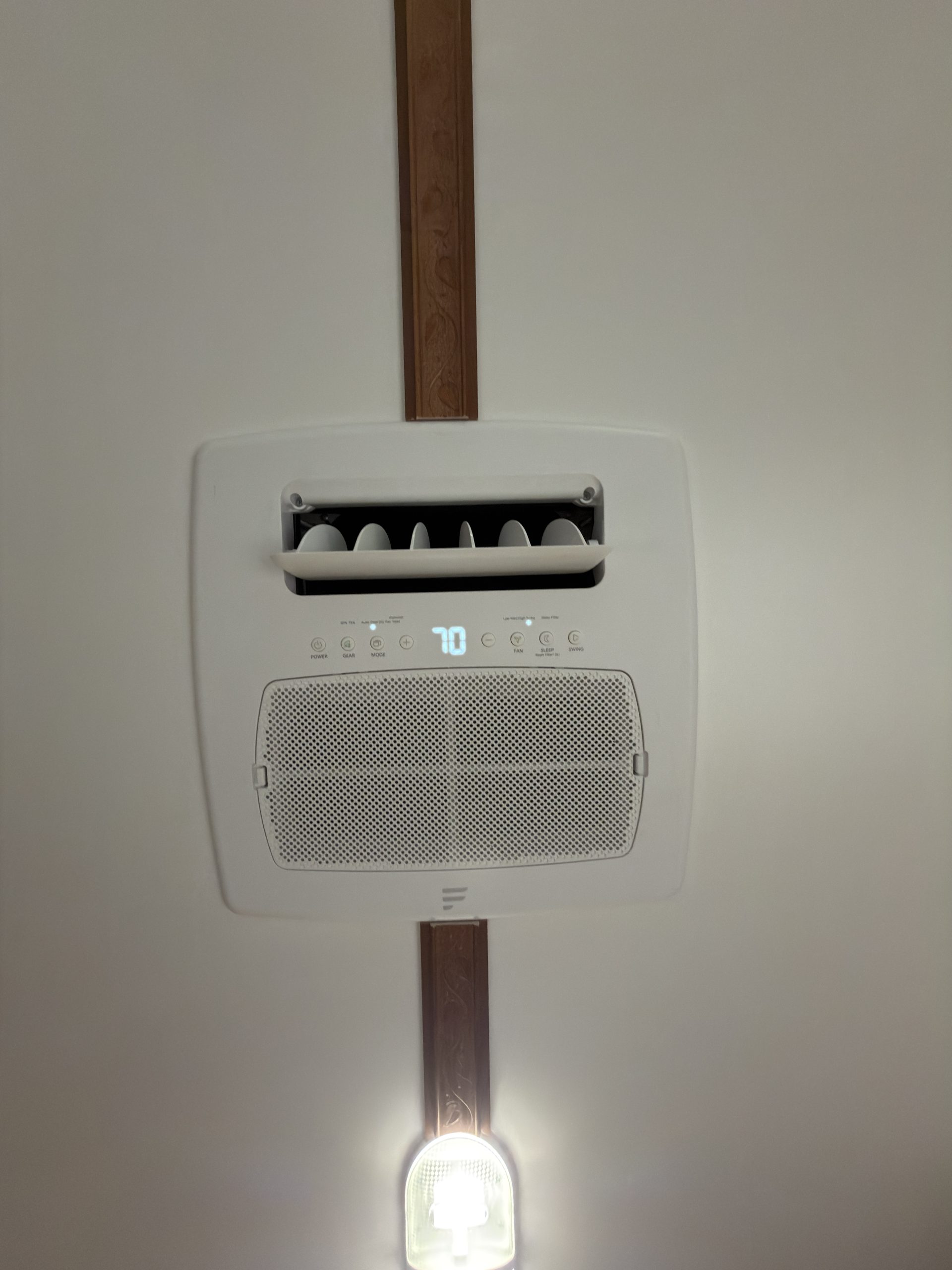

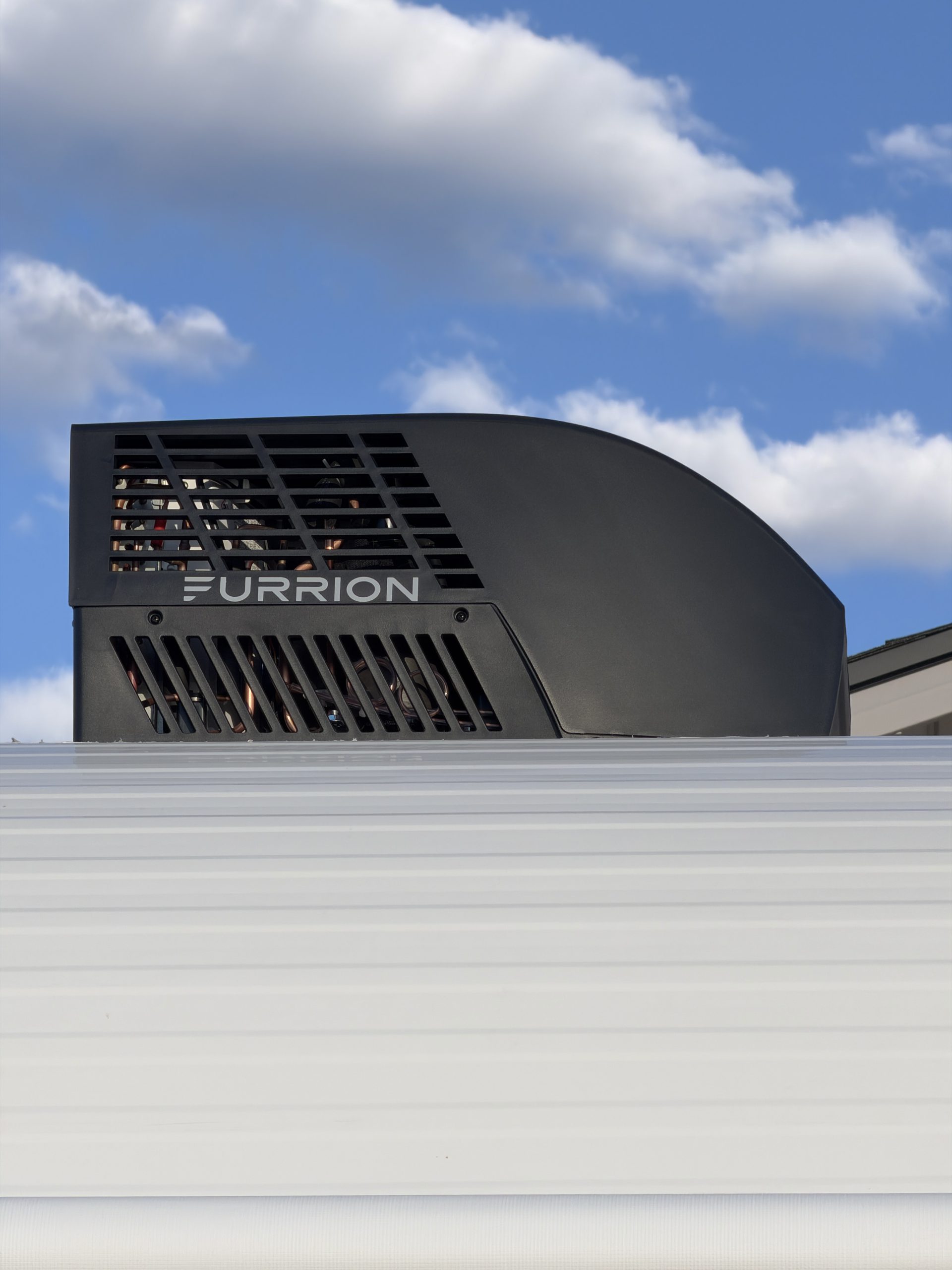

- Air Conditioning
- Highlighted feature: Furrion Ultrasonic Variable-Speed Temperature-Controlled A/C with Remote

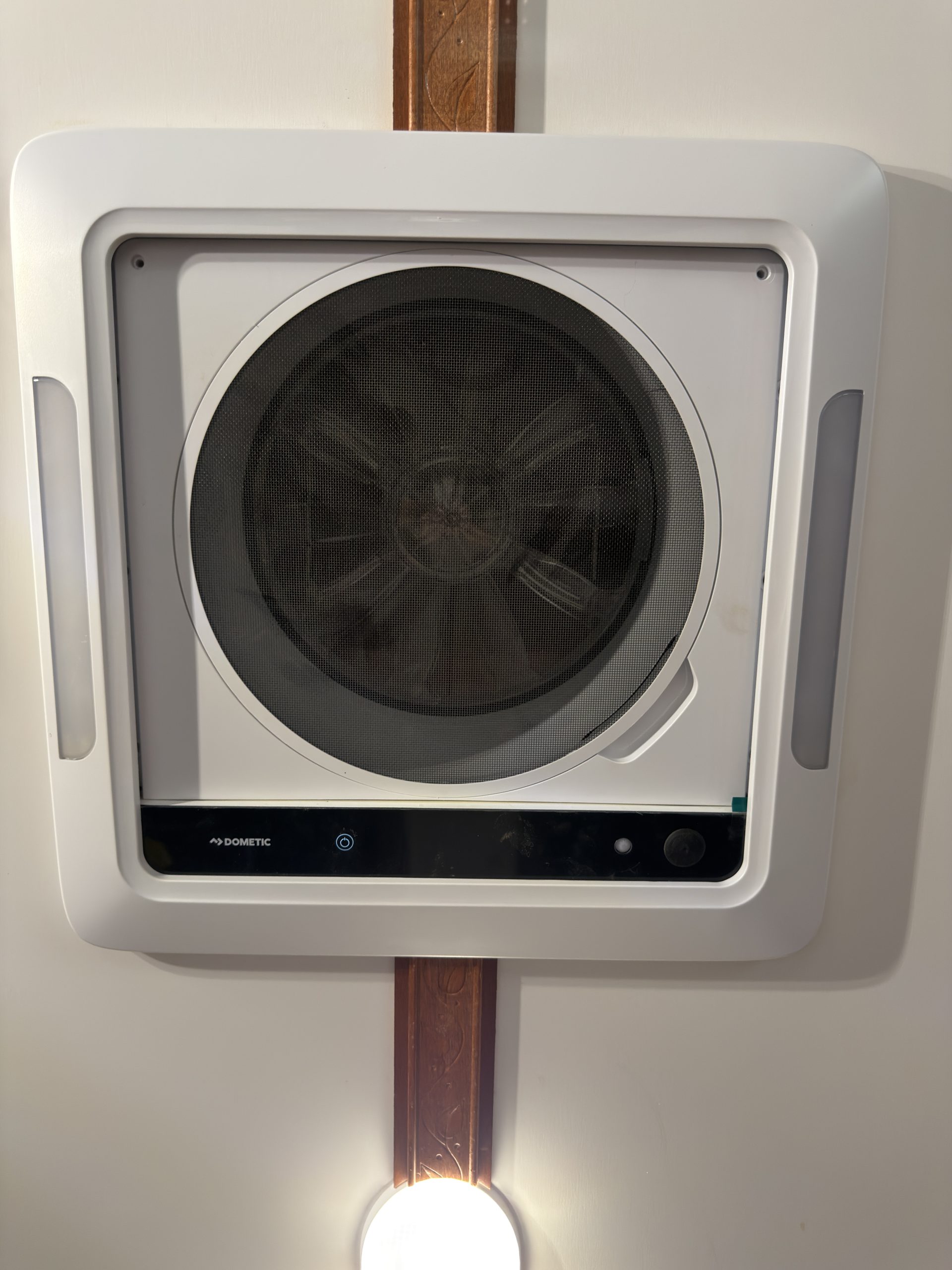

- Ventilation
- Highlighted feature: Fantastic Fan with Remote, Temperature Control, & Rain Sensing
- Recirculation Fan
- Standard 12V Air Circulating Fan
Internet & Entertainment
Connectivity
- Exterior Ethernet Port (RJ45)
- Standard (Ready For Starlink)
- Exterior Coax Port
- Standard
Entertainment
- TV
- Highlighted feature: 28 in. 12V Mounted TV
- Stereo
- Highlighted feature: Built-In Kenwood Stereo with CD Player, Bluetooth & Satellite Connection
- Premium Sound System

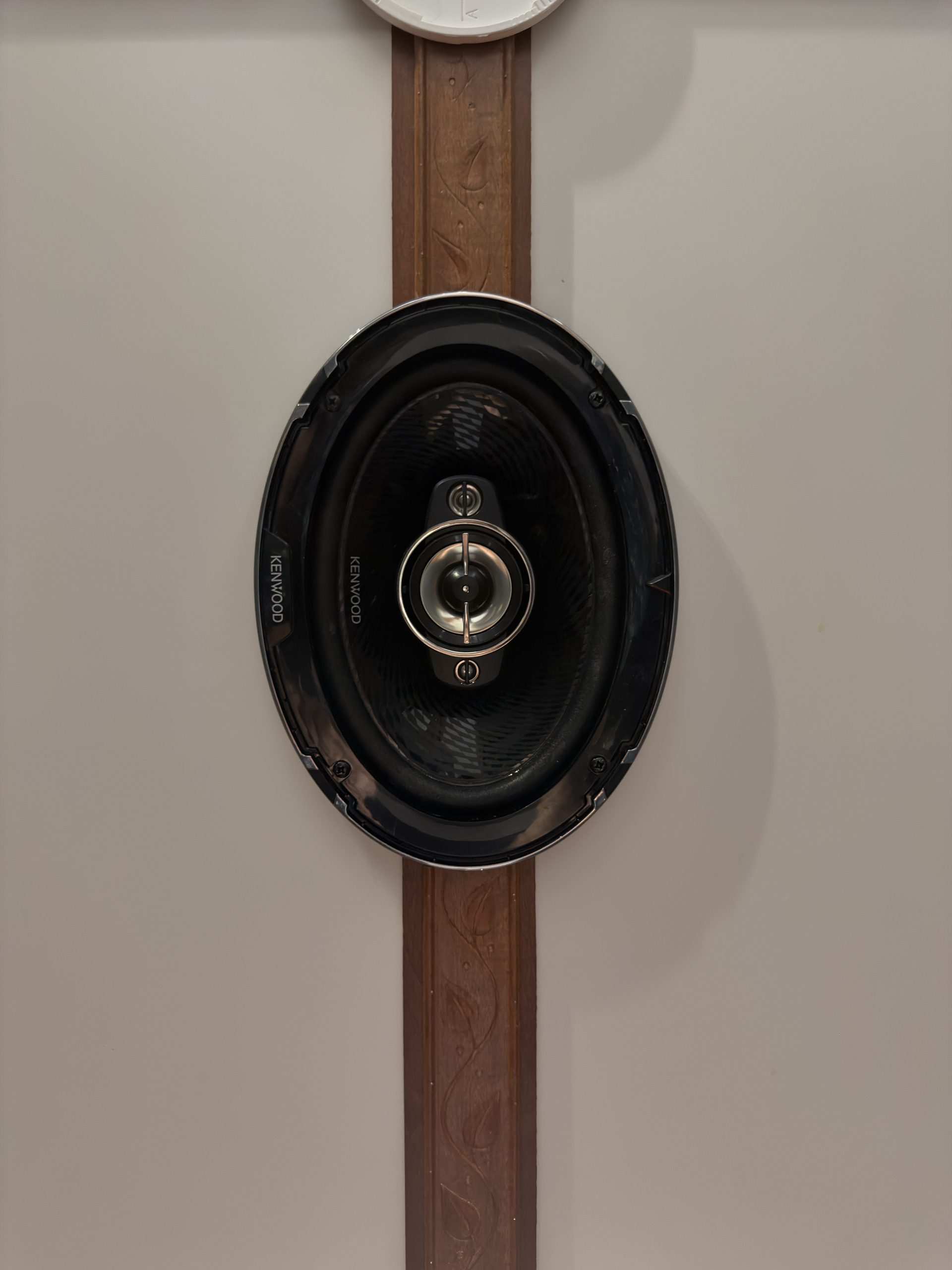

- Highlighted feature: Built-In Speakers In Ceiling
Construction & Finishes
Construction
- Ceiling Insulation
- 6 in., R-19
- Floor Insulation
- 6 in., R-19
- Walls
- 2 in. Thick
- Serviceability
- Utilities Remain Accessible For Repairs
Cabinetry
- Cabinets
- All-Hardwood Cabinets
- Hardwood
- Plain Alder

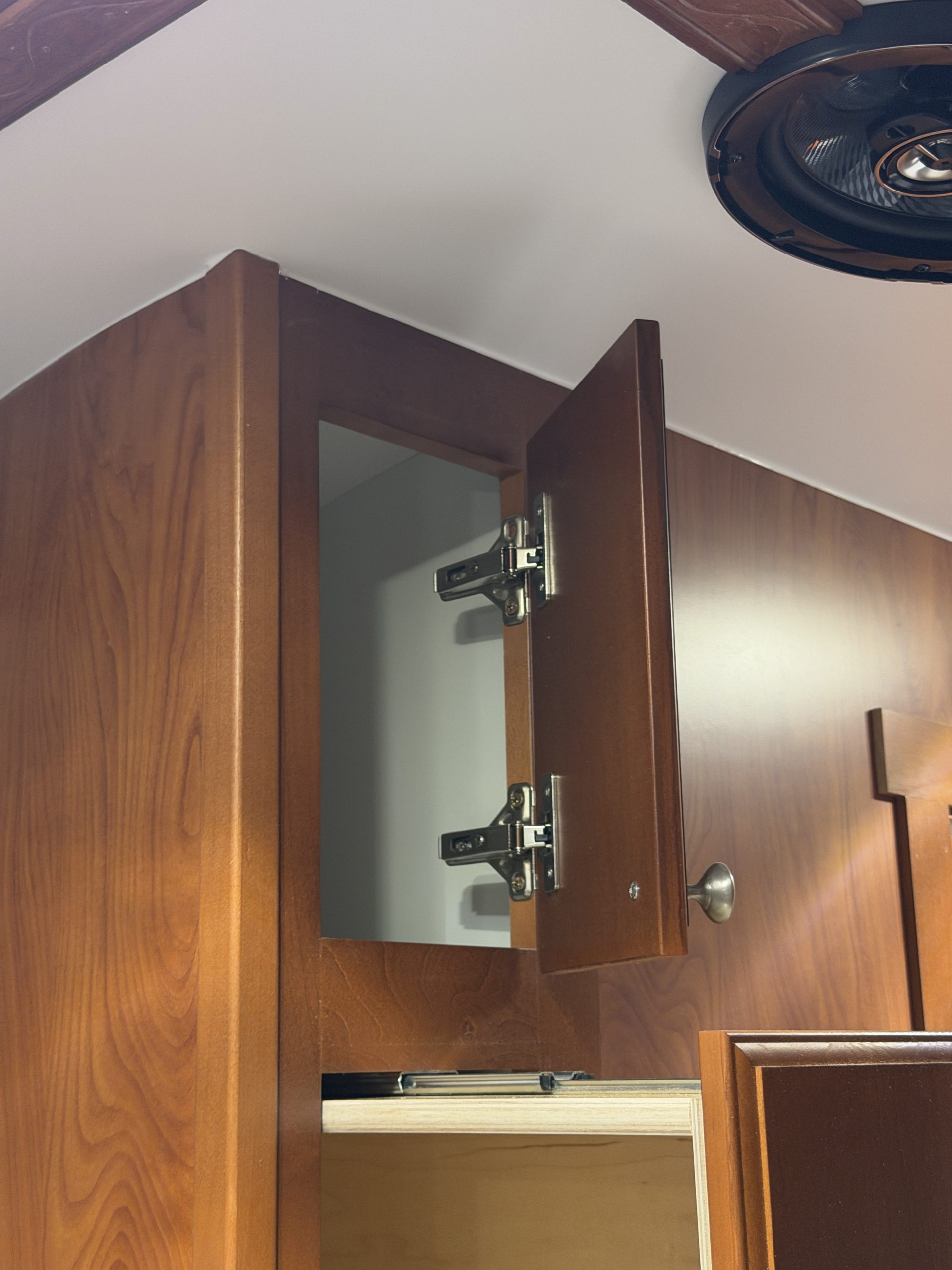

- Hinges
- Soft-Close Hinges

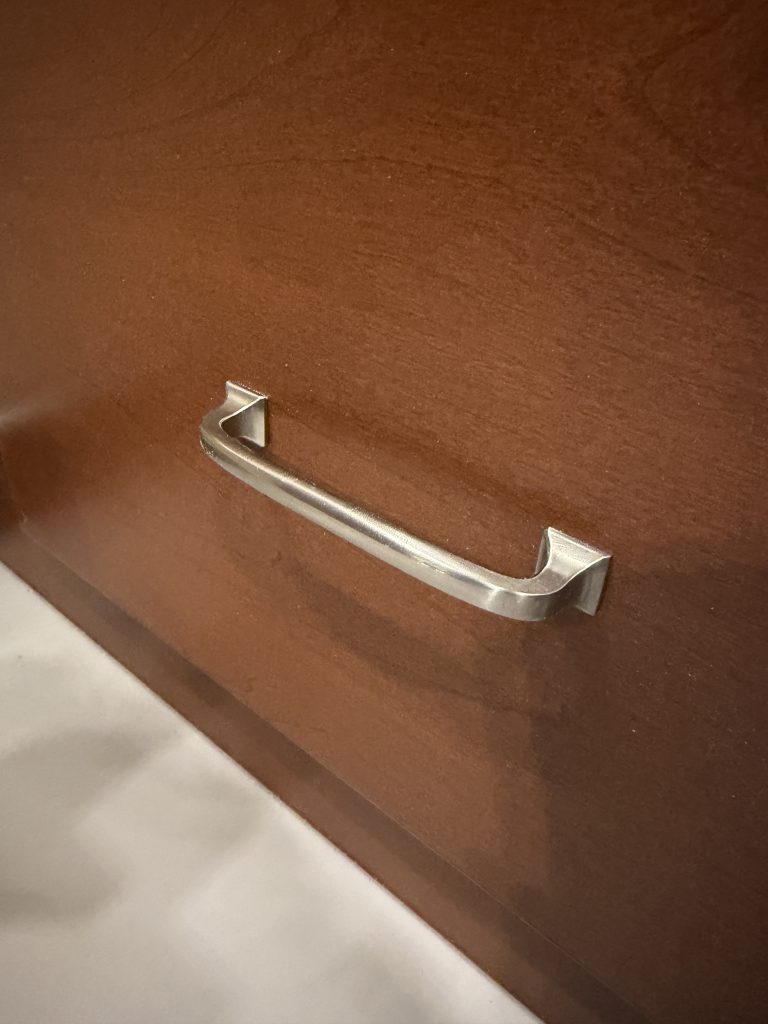

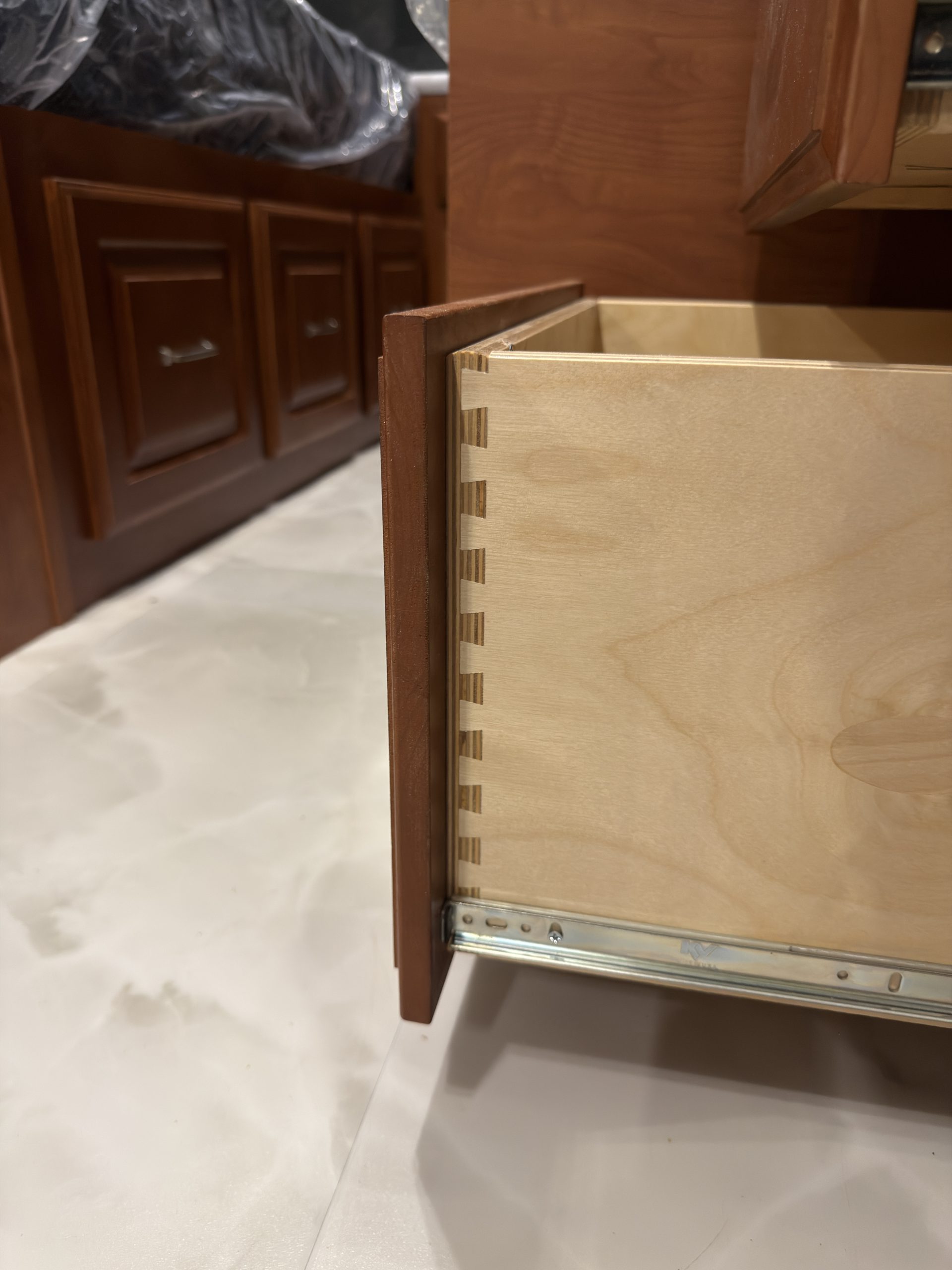

- Drawer Construction
- Dovetail Construction
- Drawer Slides
- Self-Latching, Travel-Secure Slides
- Thumb Latches
- Included On Large Drawers

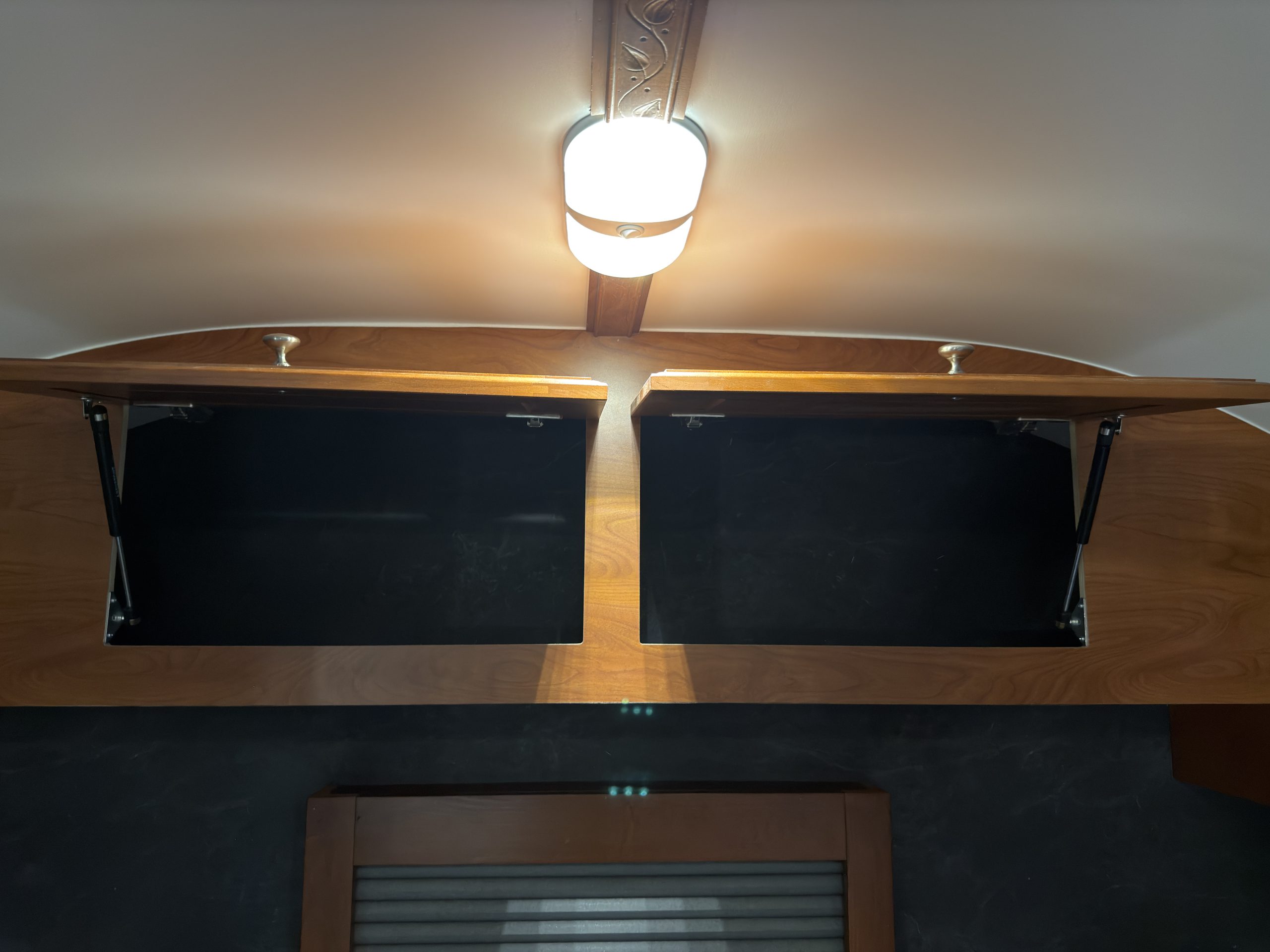

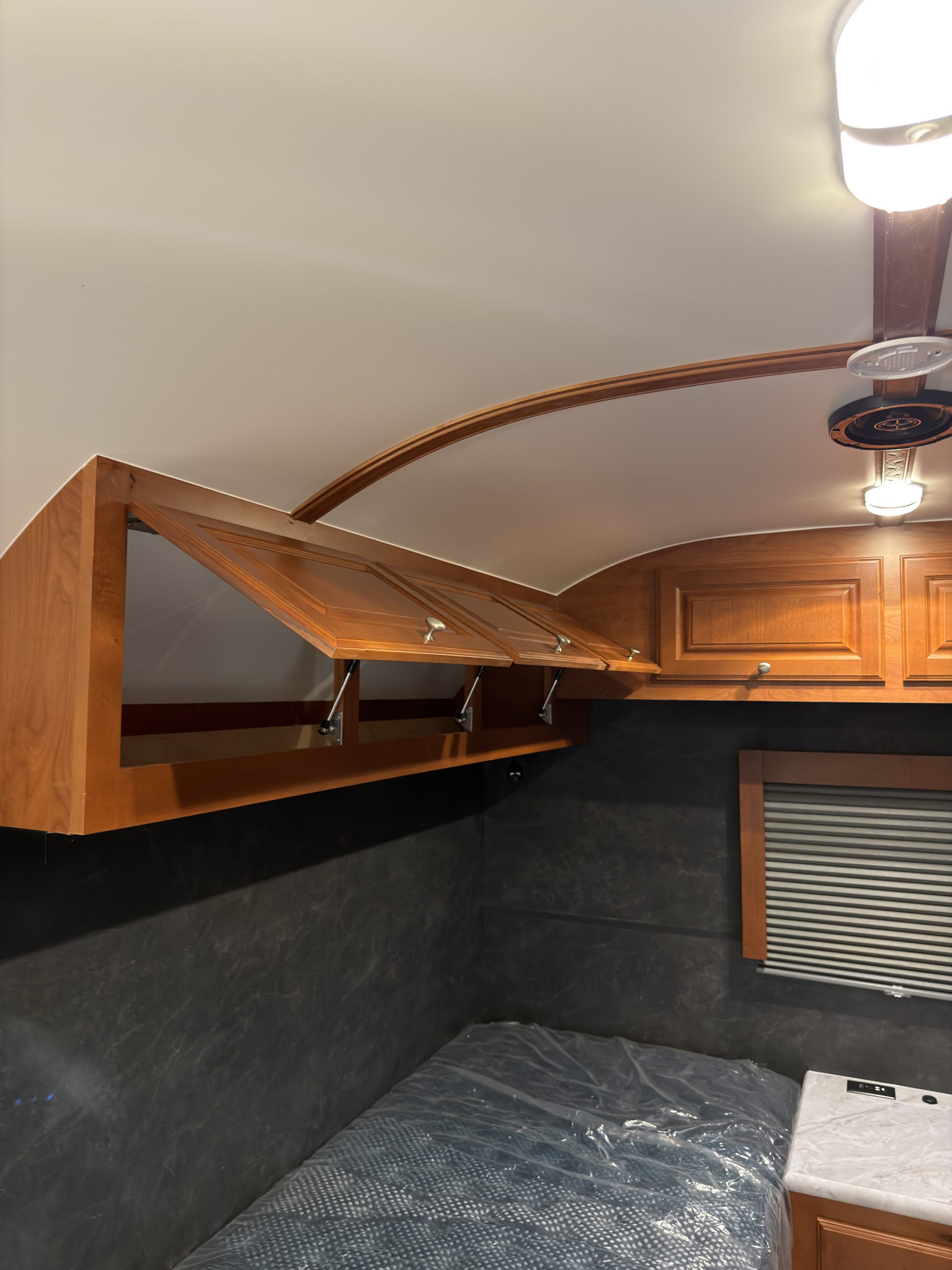

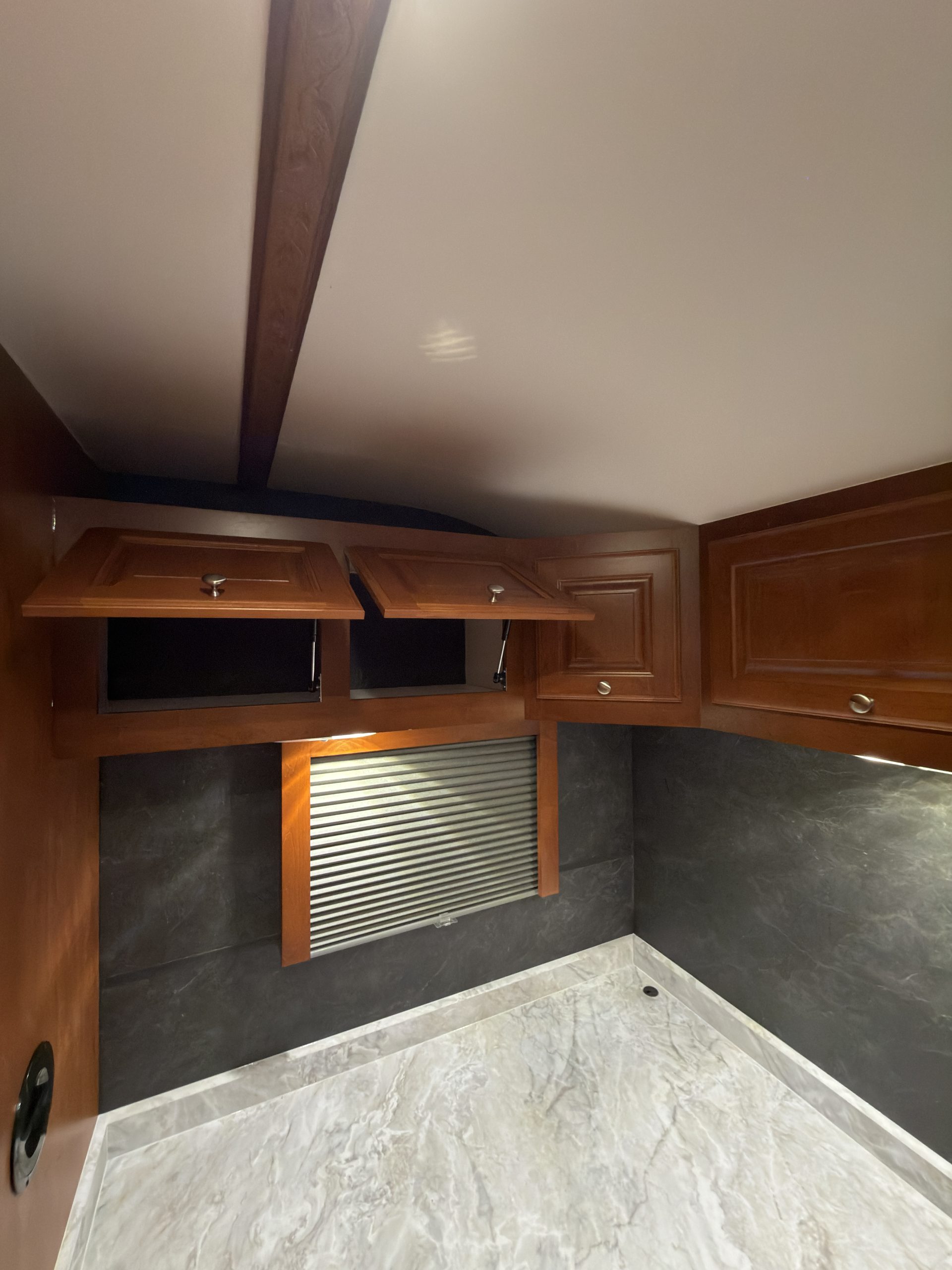

- Overhead Cabinet Doors
- Gas-Strut-Supported Cabinet Doors
Finishes & Colors
- Wall Color
- Wilsonart Lisola (5043-15)
- Cabinet Color
- Wilsonart Wild Cherry (7054-60)
- Countertop
- Wilsonart Ice Mist (5054-15)
- Cushions
- Fossil Linen
- Flooring
- Luxury Vinyl Plank Flooring
- Floor Color
- Karndean Pearl Onyx (LM35)
- Ceiling Trim

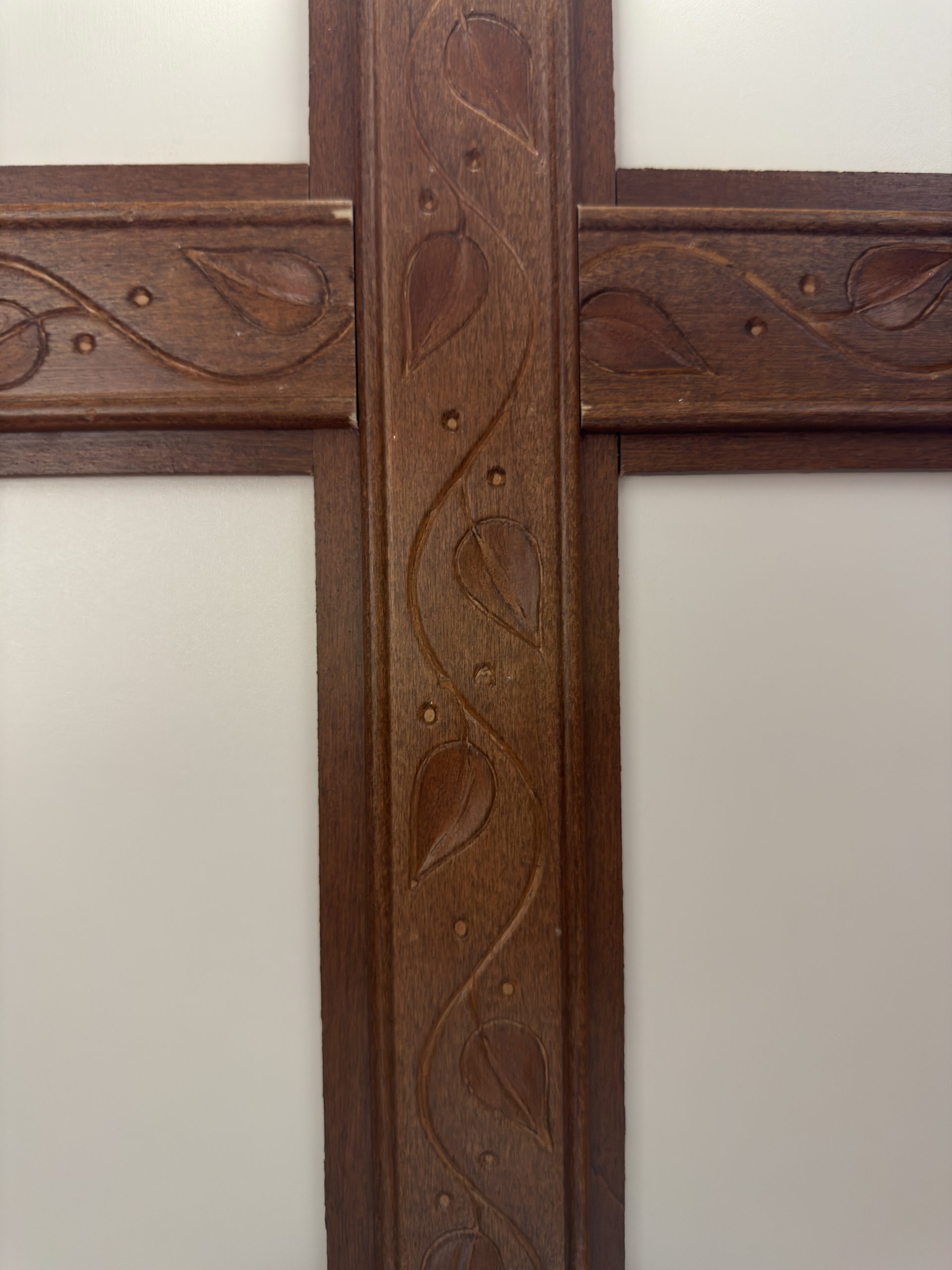

- Rosewood Carved Ceiling Trim
- Window Shades
- Pull-Down Shades with Blind Boxes
Frame, Chassis, & Towing
Frame
- Frame Construction
- Highlighted feature: Custom-Engineered For Best Towing Characteristics
- Platform
- X34

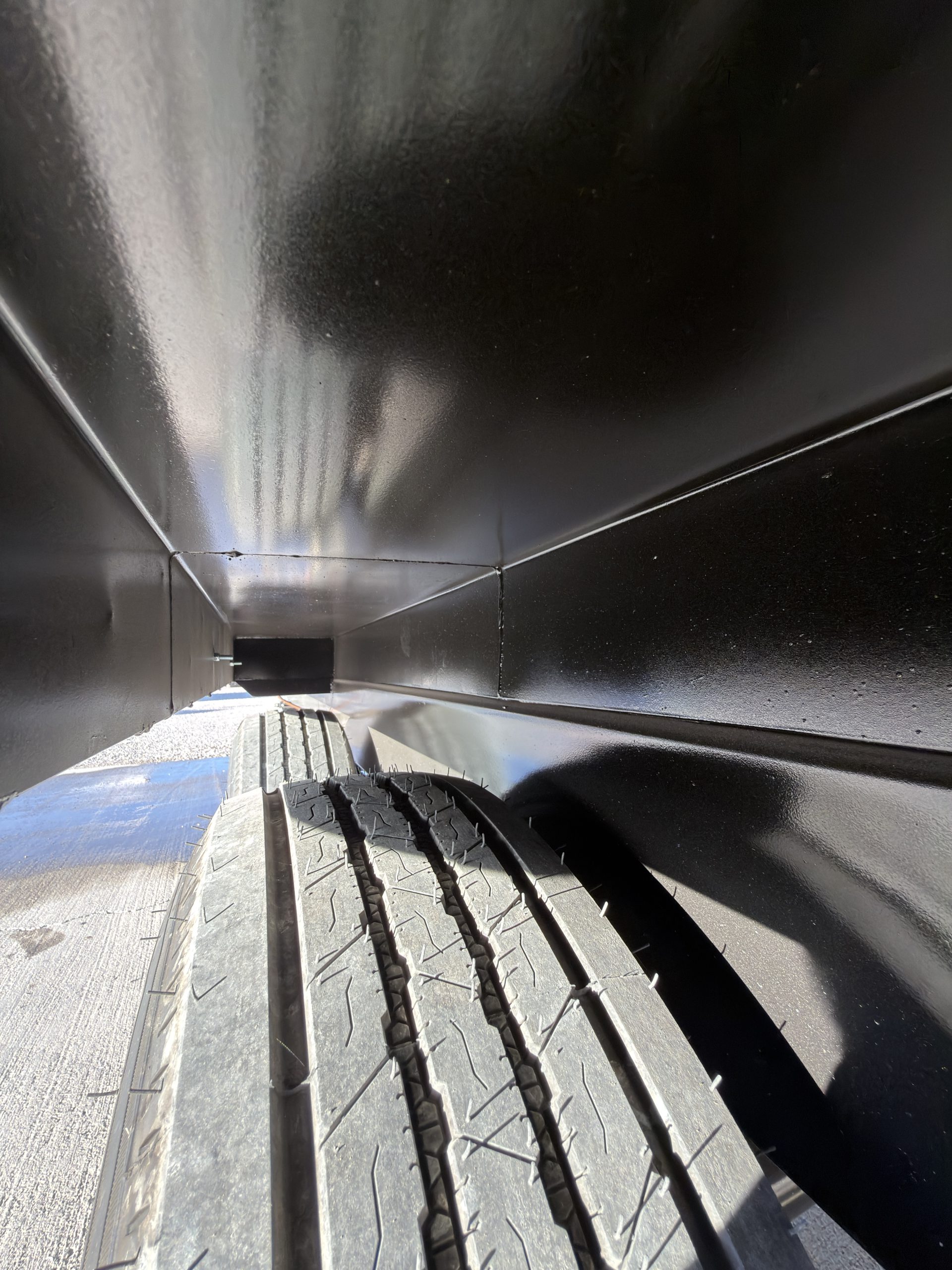

- Wheel Wells
- Metal-Encased Wheel Wells to Protect from Road Debris and Damage from Tire Blowouts
- Stabilizer Jacks
- All Four Corners
Chassis
- Axles
- Dual 7,200 lb Axles w/ Easy Lube Hubs
- Wheels
- 4x 8-Lug Aluminum Wheels with 16 in. Rims
- Tires
- 16 in. E-Load ST235/80R16
- Brakes
- Standard Trailer Brakes
- Suspension
- Over-The-Axle Leaf-Sprung Suspension

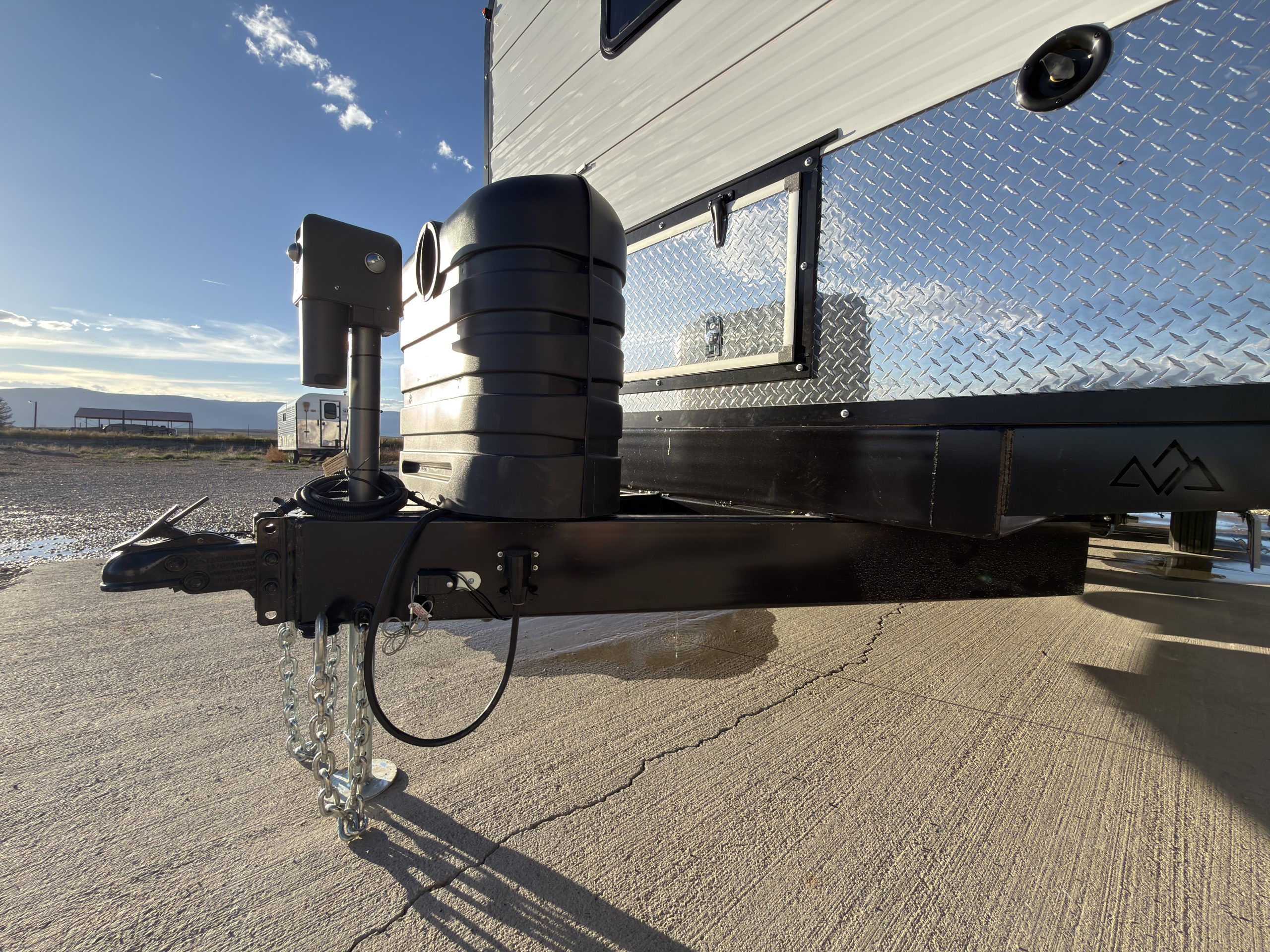

Towing

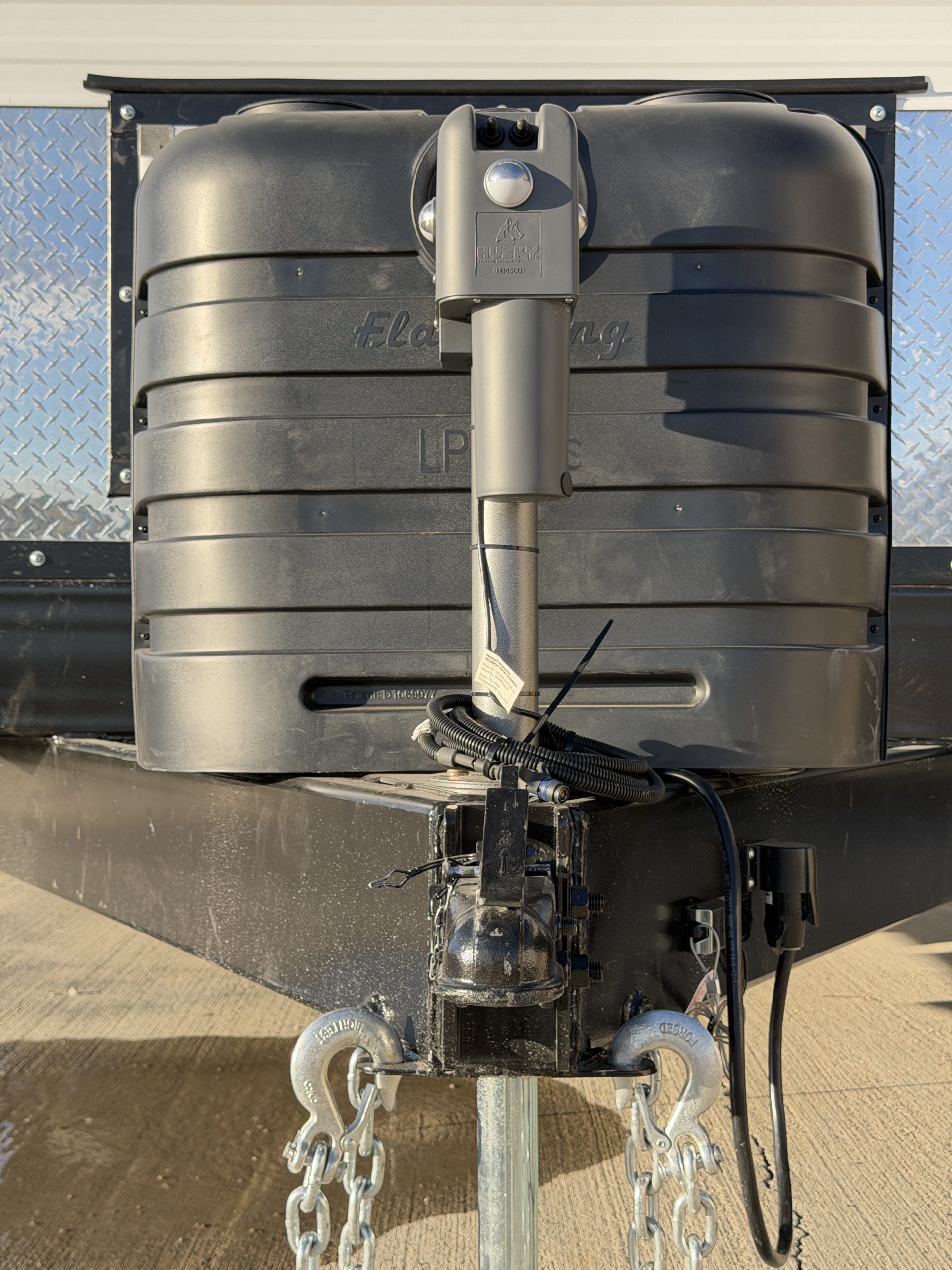

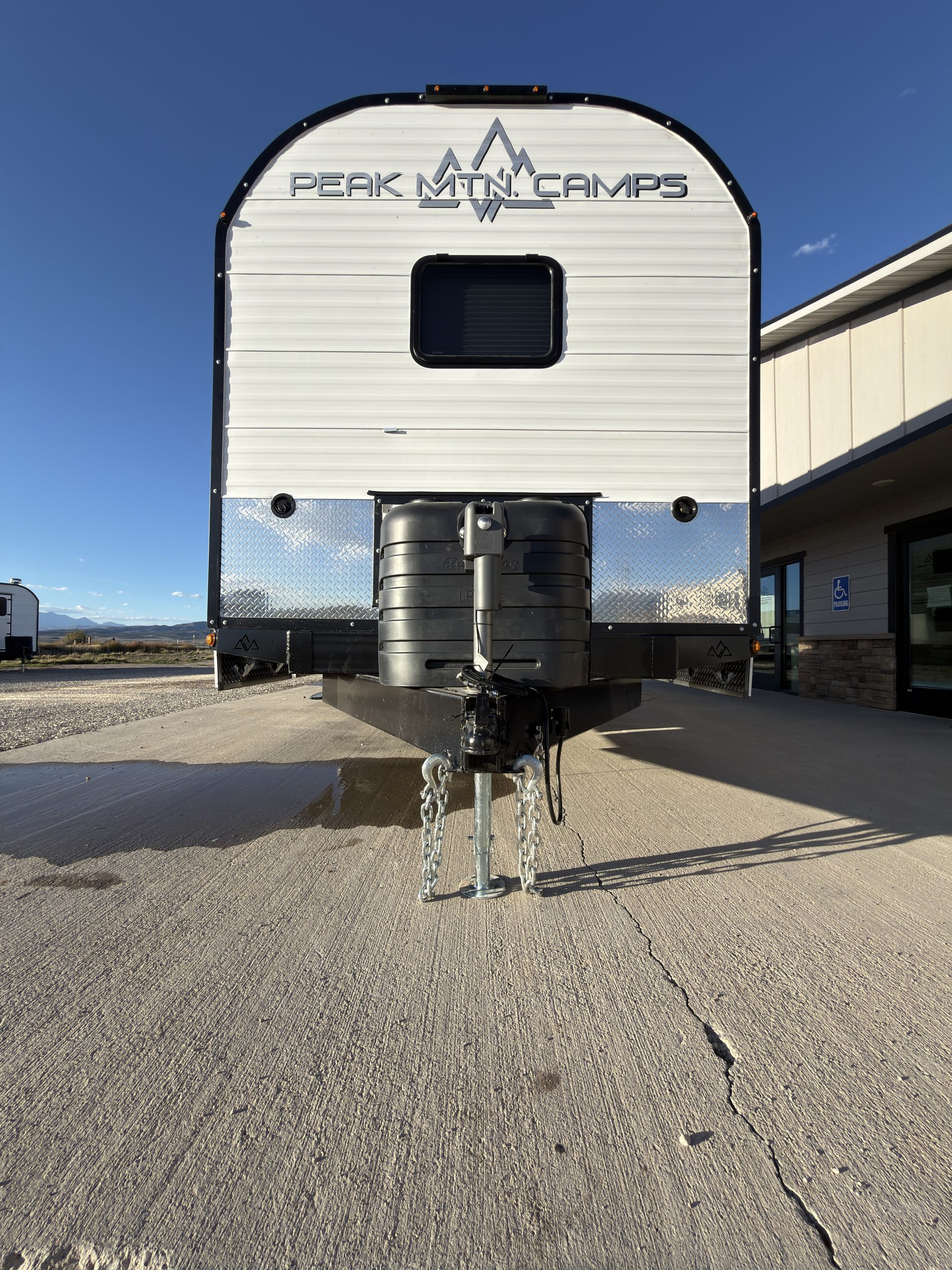

- Hitch Type
- Bumper Pull
- Coupler
- Adjustable 2 5/16 in. 15,000 lb Coupler
- Ball Height
- Adjustable
- Tongue Jack

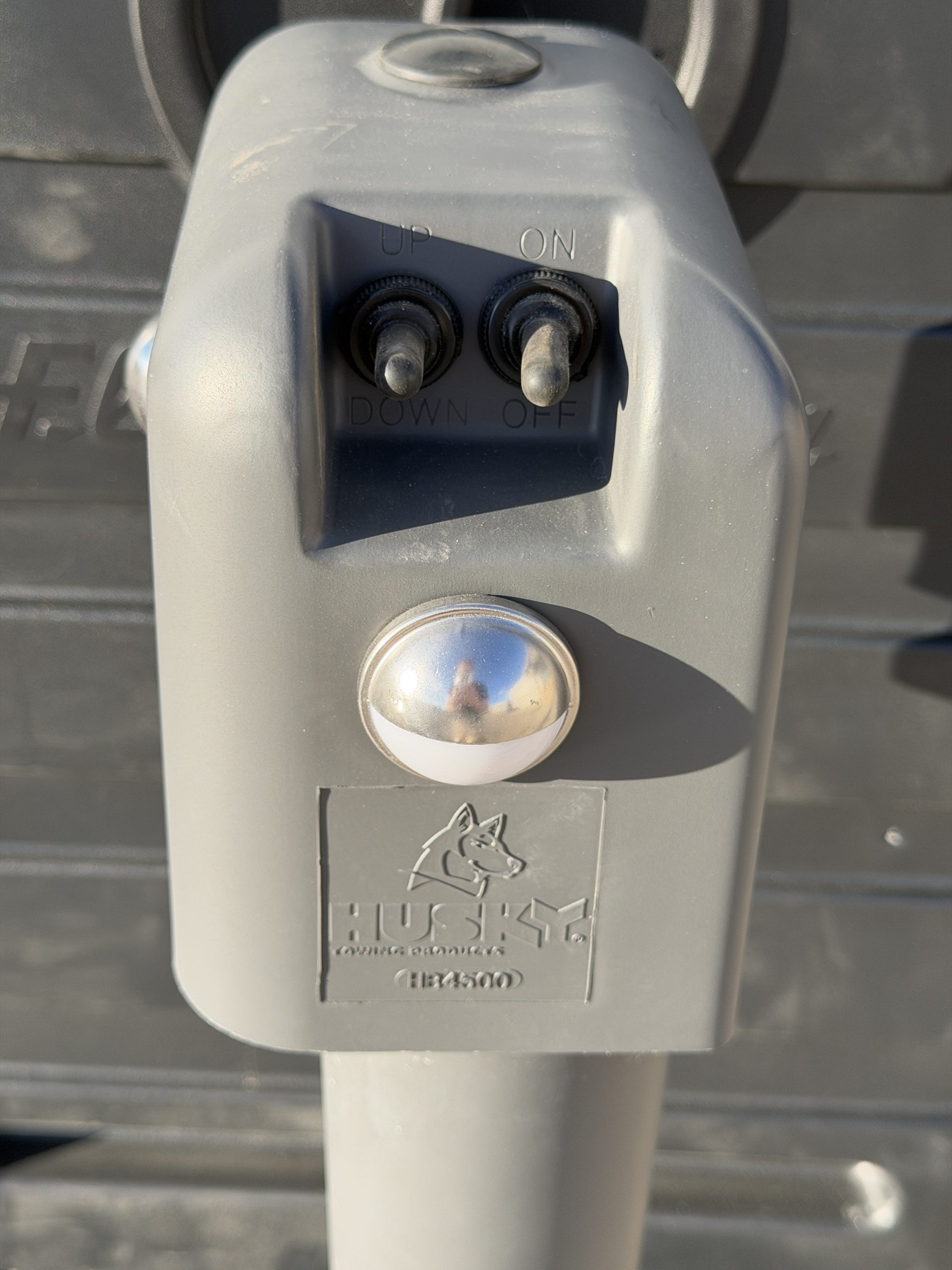

- Highlighted feature: Husky Electric Tongue Jack

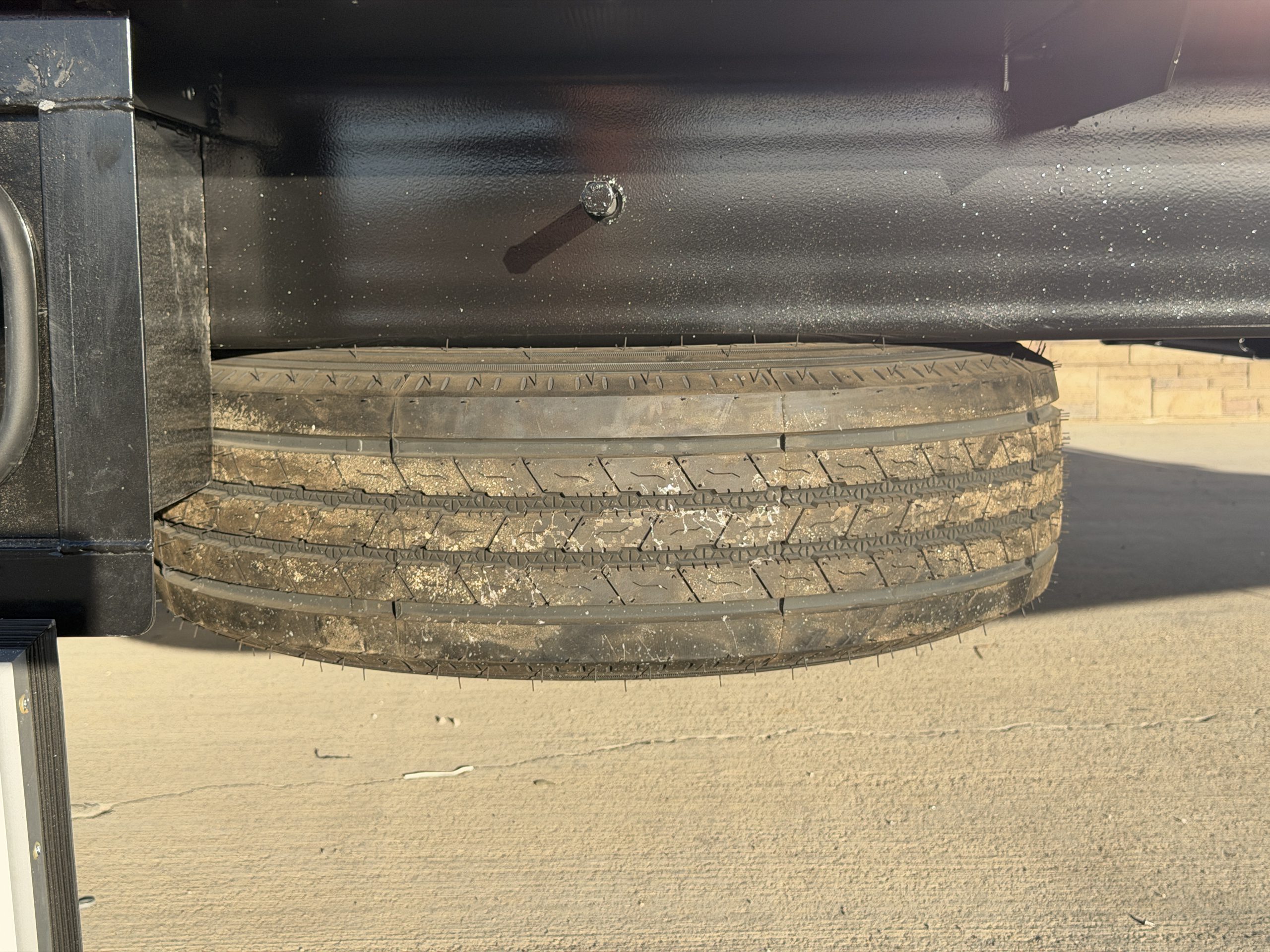

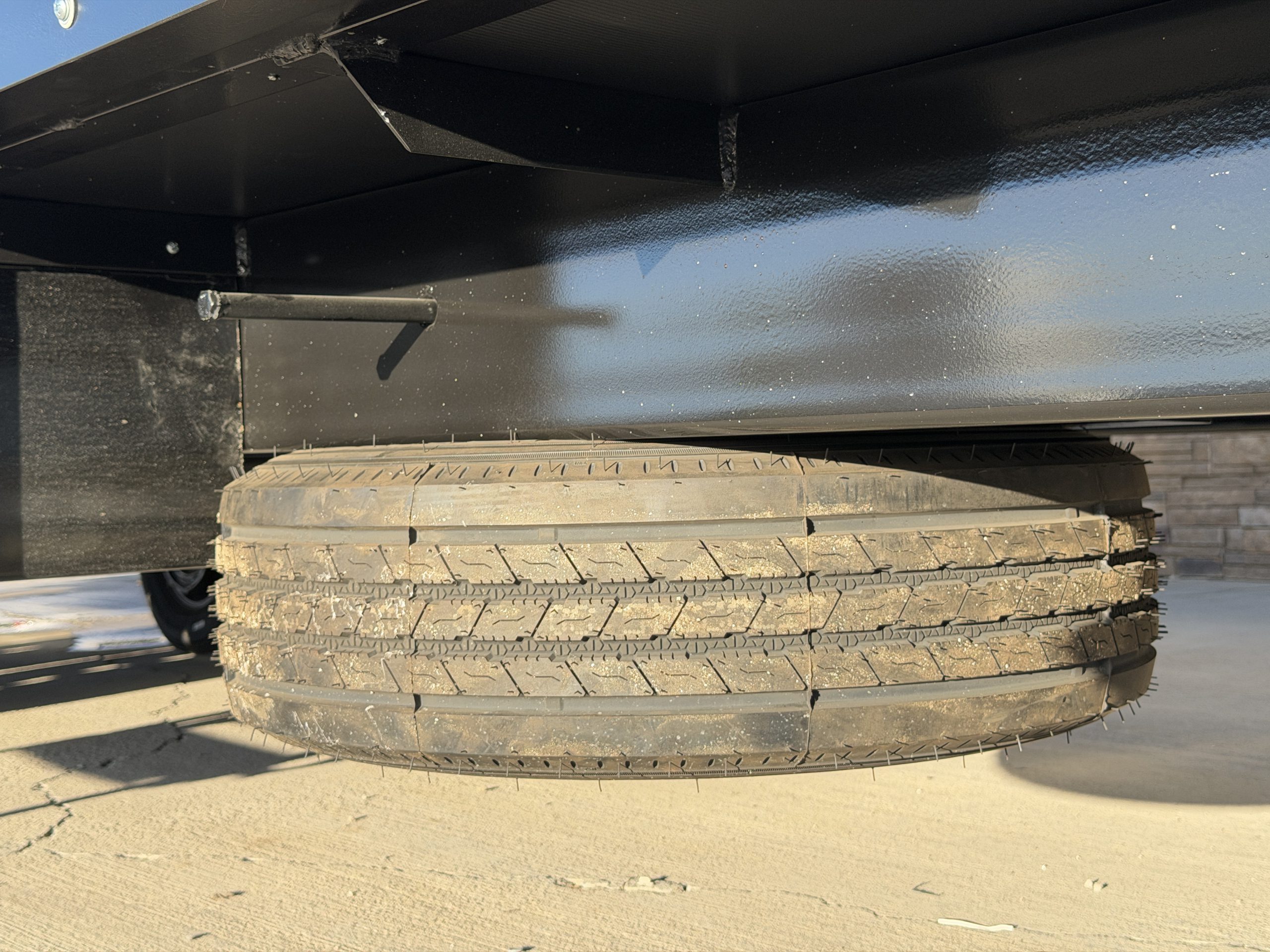

- Spare Tire
- Standard Drop-Down Spare Tire
- Rear Receiver Check Local Regulations
- Standard 2 in. Receiver Rated For Pulling Doubles
- 7-Way Plug
- Standard
- Towing Chains
- Included
Safety
General
- CO/LP Detector
- Standard
- Egress Window
- Highlighted feature: 2x Egress Windows (Front & Back)
Highway Safety
- Road Markers
- DOT-Compliant Markers
- Reflective Tape
- Canadian-Compliant Reflective Striping
- Taillights
- Standard
- Trailer Lights
- DOT-Compliant LED Lights
- License Plate Lighting
- Standard
- Cameras
- Highlighted feature: Backup Camera
Fire Safety
- Smoke Detector
- Standard
- Fire Extinguisher
- Standard
- Fire Backer
- Fire Backer Behind Wood Stove & Fire-Lined Cabinetry
- Chimney
- Triple-Wall Flue & Chimney
- Battery Disconnect
- Standard
- NFPA 1192 Compliant National Fire Protection Association's Standard On Recreational Vehicles Learn more about NFPA 1192
- Yes
Dimensions
Exterior Measurements
- Length Bumper to Tongue
- 33 ft. 11 in.
- Width
- 102 in.
- Height
- 11 ft. 8 in.
Interior Measurements
- Length
- 29 ft. 5 in.
- Width
- 96 in.
- Height
- 7 ft. 10 in.
- Area
- 235 sqft.
Weight
- GVWR Gross Vehicle Weight Rating (Axle Weight Sum)
- 14,400 lbs
More Details
Build
- Camp Name & Number
- Keulen Camp
- Completion
- September 2026
