Nielsen Camp

An X31 camp for three, built for year-round off-grid comfort with two Twin XL beds and an upper bunk, a bathroom, custom hardwood cabinetry, solar power, and distinctive Western and fishing-inspired finishes.

Platform: X31 Camp
Location: Englewood, Colorado
Pricing: Contact Us

Road-Side Exterior with Open Storage - Selected Build Image in Nielsen Camp #133 — Exterior Nielsen Camp Road‑Side Exterior with Open Storage – Selected Build Image

Full Interior Overview on Nielsen Camp #133 (View 1) — Interior Nielsen Camp Full Interior Overview toward Entry

Sleeping Area Toward Kitchen on Nielsen Camp #133 (View 1) — Interior Nielsen Camp Sleeping Area toward Kitchen – Wide View

Full Kitchen from Sleeping Area in Nielsen Camp #133 — Interior Nielsen Camp Full Kitchen from Sleeping Area

Wood-Burning Stove on Nielsen Camp #133 (View 1) — Interior Nielsen Camp Wood‑Burning Stove Installation

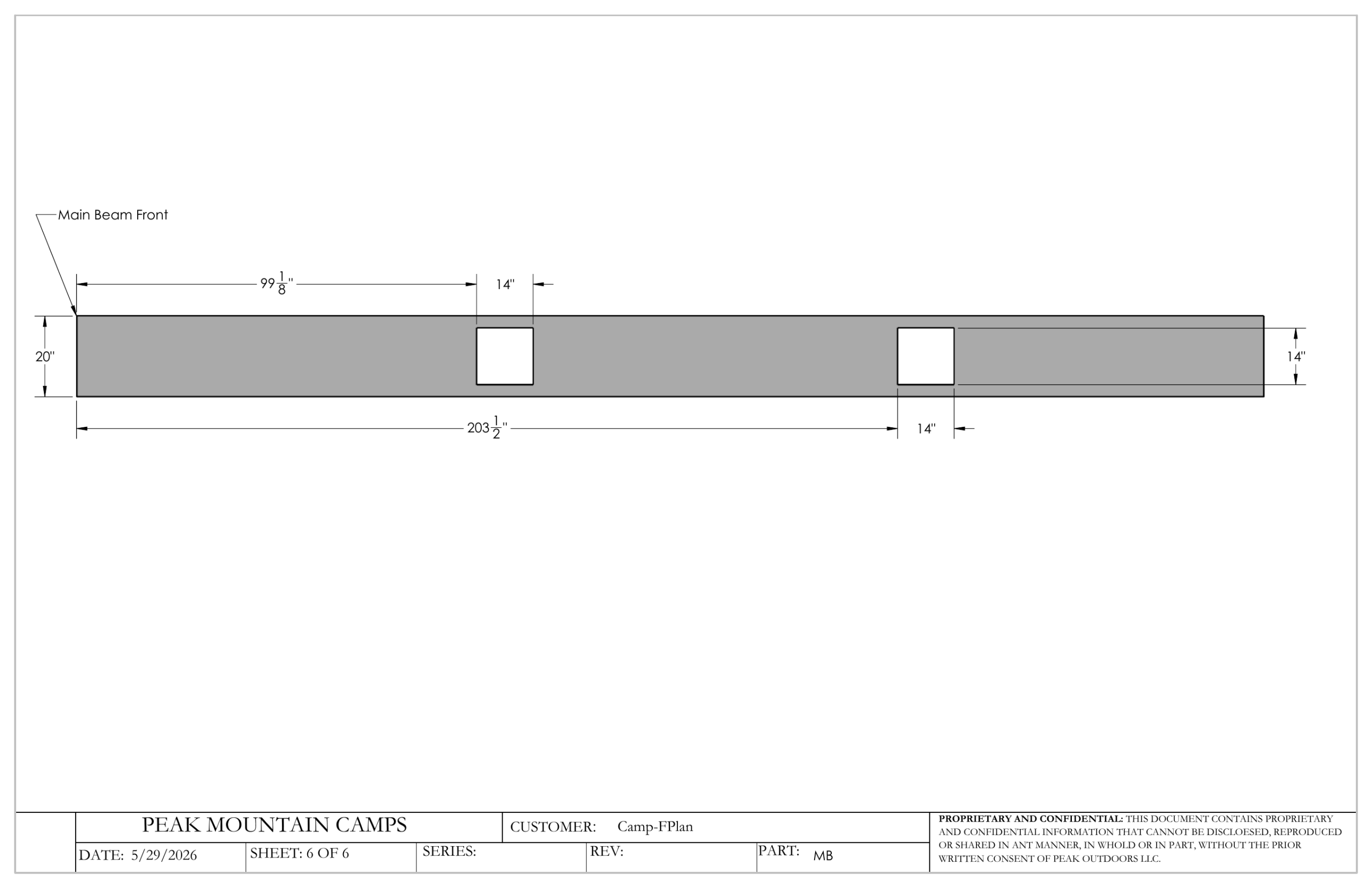

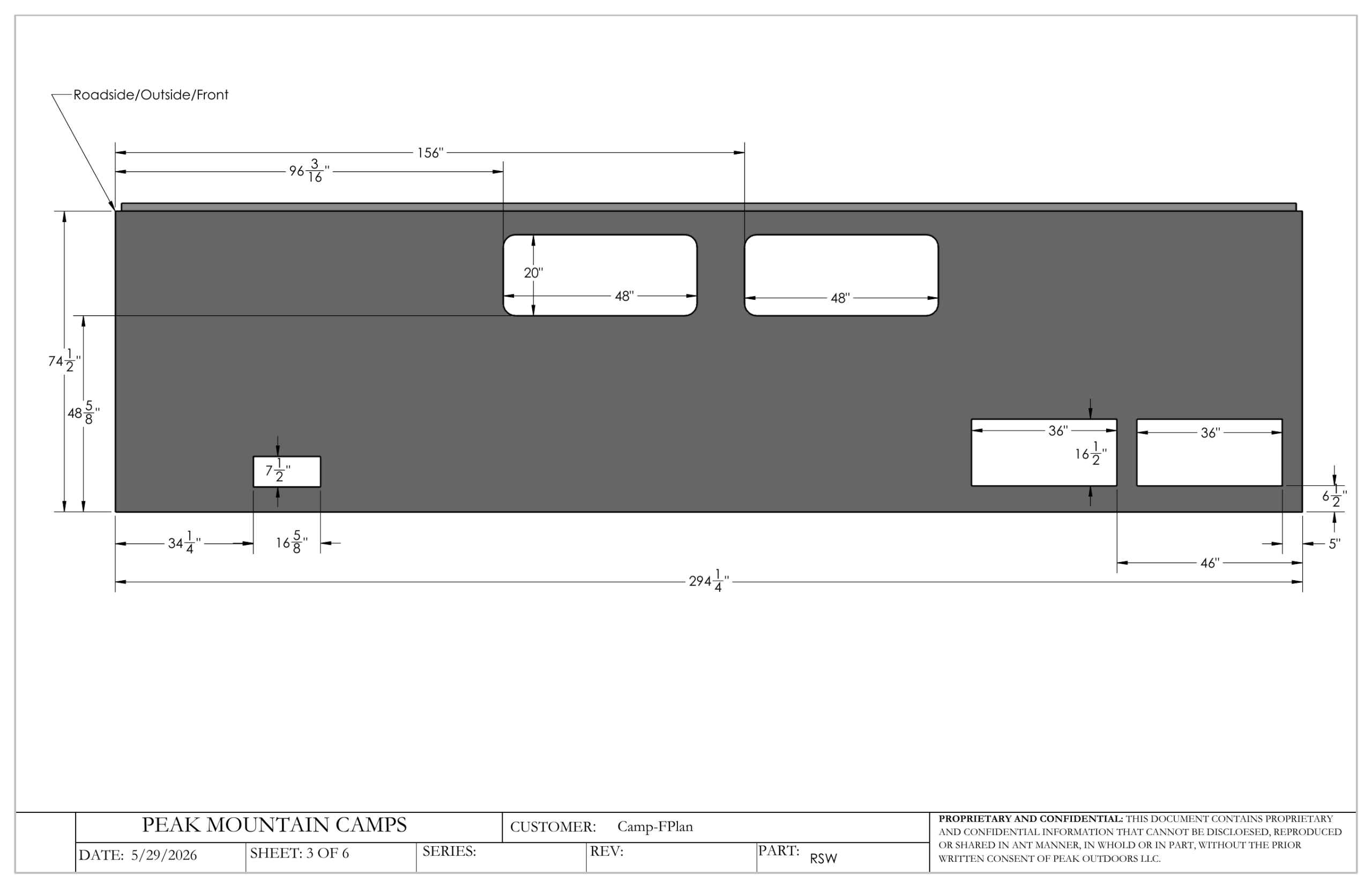

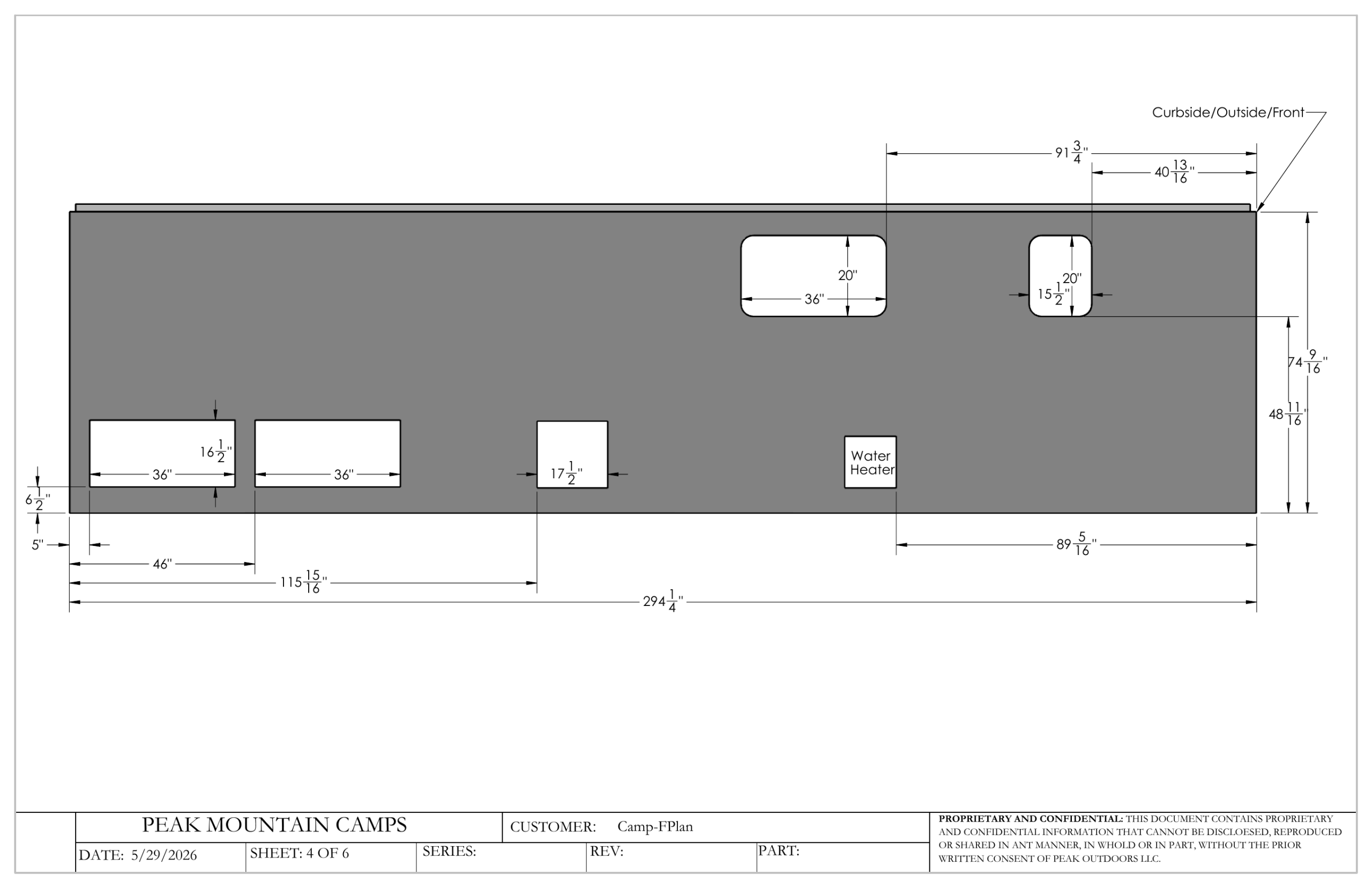

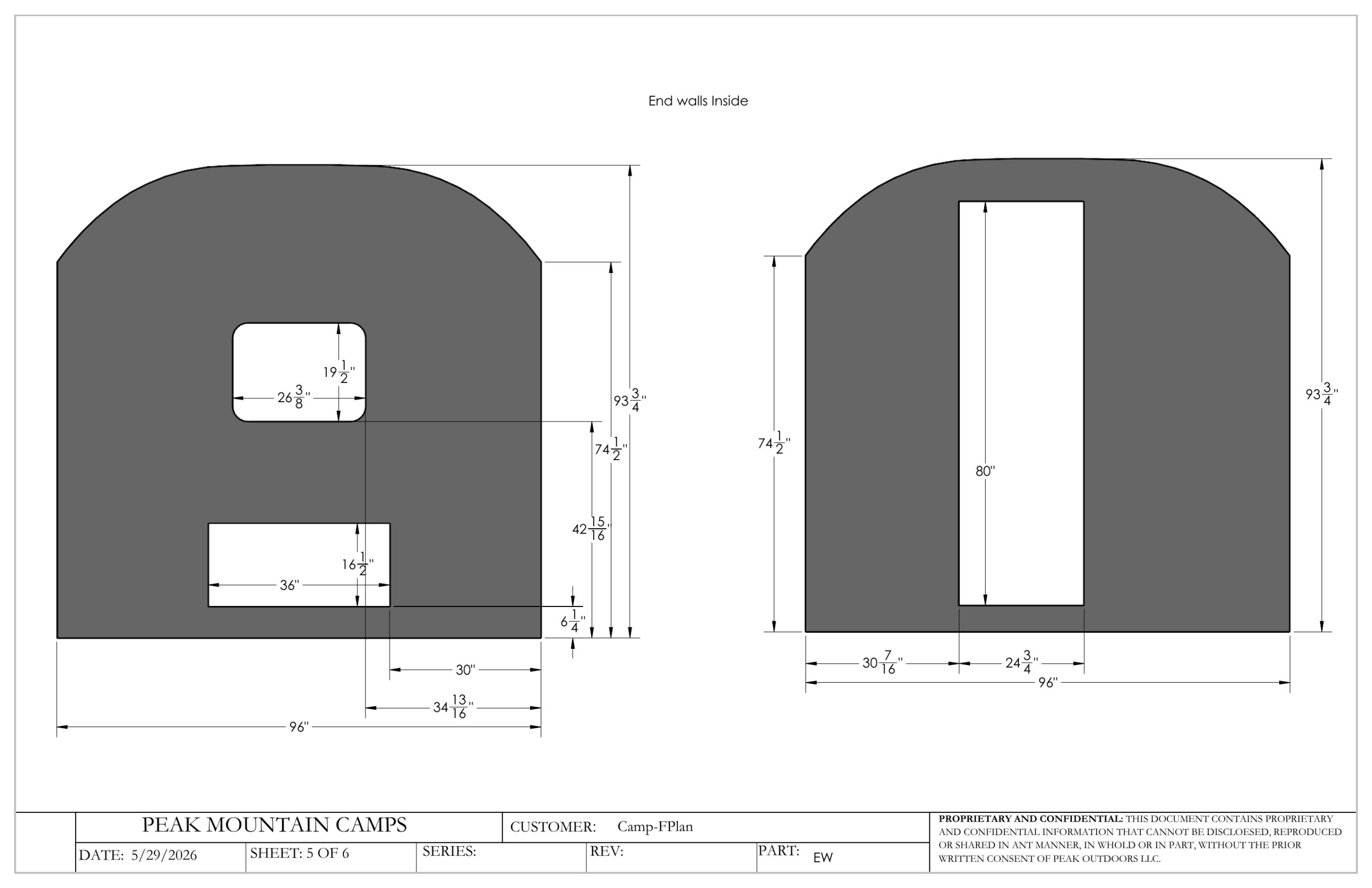

Layouts & Drawings

Floor Plans

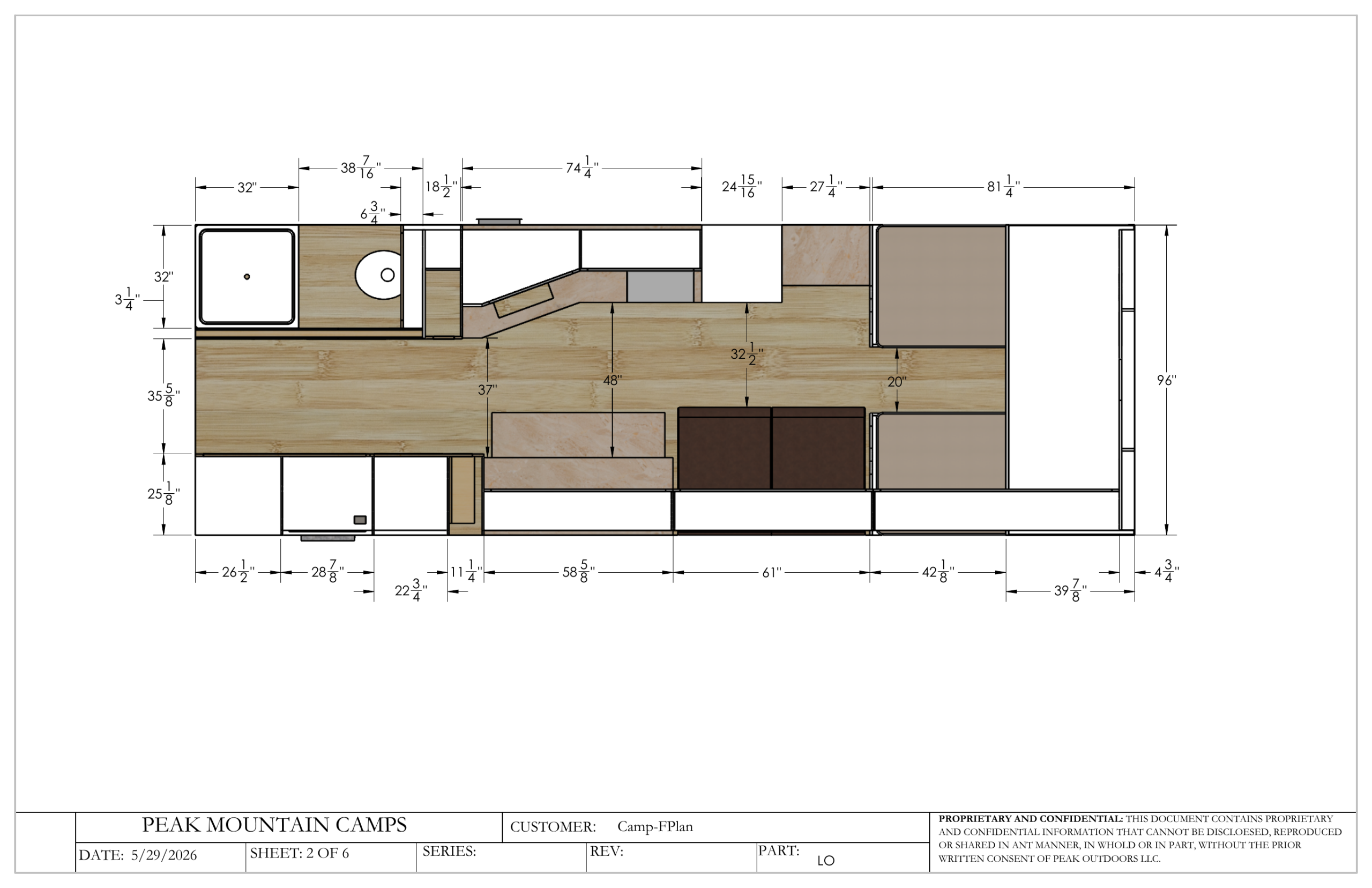

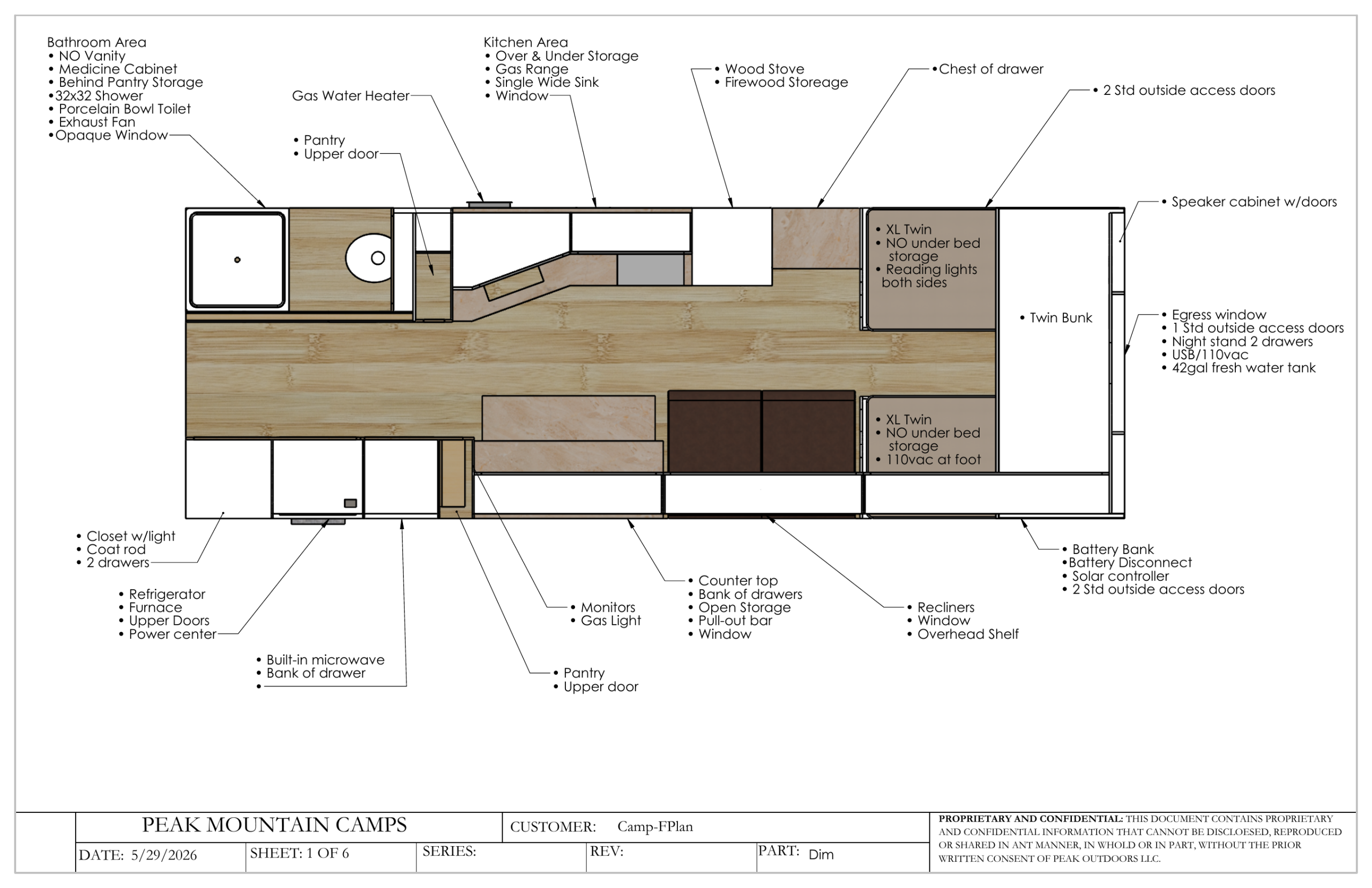

Nielsen Camp Floor Plan - Annotated Interior Layout for Nielsen Camp #133 — Nielsen Camp Floor Plan – Annotated Interior Layout

Build Details

Specifications

Exterior

General

Entry Layout: Traditional Front Entry
Entry Door Style: Dutch Door
Entry Railing: Yes
Patio / Tongue: Standard
Windows: 4x Windows With Sliders & Screens & Rear Egress Window
Exterior Lights: Highlighted feature:
Dimmable Front LED Light & 2x Exterior Side Lights Above Storage Compartments
Siding / Wrapping: Highlighted feature:
White Aluminum Siding w/ Front Diamond Plate & Red Graphics
Structural Reinforcement: Highlighted feature:
Red Painted Angle Iron On Exterior Edges

Storage

Tongue Storage Access: Removable Decking
Exterior Compartments: 2x Large Exterior Storage Compartments w/ Multiple Access Doors (Excluding Wood Box & Under-Frame Storage Box)
Compartment Doors & Latches: Keyed Doors With Adjustable Latches
Compartment Sealing: Dual-Sealed
Compartment Lighting: Highlighted feature:
LED Compartment Lighting
Wood Box: Standard Pass-Through Wood Box
Broom Holder: Traditional Horseshoe Broom Holder
Under-Frame Storage: Highlighted feature:
1x Under-Frame Storage Compartment (On Curb Side)

Interior

General

Layout: Fully Custom (Designed with Customer)
Sleep Capacity: 3

Entry / Hallway

Closet Storage: Highlighted feature:
Large Entry Closet w/ Hanging Rod & Two Larger Drawers

Kitchen

Refrigerator: Raised 7 cu ft Propane/Electric Fridge-Freezer
Microwave: Highlighted feature:
Built-In Microwave Oven
Microwave Cabinet: Yes
Stovetop / Oven: 3-Burner Cooktop
Sink: Single Stainless Steel Sink with Black Residential-Grade Faucet
Pantry: 4x Slide-Out Pantries with Two Upper Cabinets
Overhead Cabinet Storage: Large Overhead Storage Cabinet
Sink Tip-Outs: Dual Sink Tip-Outs
Drawer Storage: Bank of Four Large Drawers
Open Storage: Open Storage Under Sink & Open Storage w/ Shelving Under Stovetop
Power: Single Wall A/C Outlet
Window: Large Kitchen Window Behind Sink

Dining

Dinette: 2 Person Slide-Out Bar
Bar Storage: Open Storage Under Bar & Bank of Three Drawers
Overhead Storage: Large Overhead Cabinet
Power: Wall Outlet Above Bar
Window: Large Window Above Bar

Living & Entertainment Space

Primary Seating: Two Seat Recliner w/ Removable Center Console
Entertainment / Media Storage: Chest of Six Drawers
Overhead Storage: Large Overhead Cabinet
Reading Lights: 2x LED Reading Lights Above Recliner
Power & Connections: AC Outlet on Recliner-Side Bed Footboard (Pony Wall), 12-Volt Socket & Coax Connection on TV Wall
Window: Large Window Above Recliners

Bedroom

Bed Configuration: 2x Twin XL North/South Beds w/ Upper Twin XL Bunk
Mattresses: Twin Mattresses
Nightstands: Single Middle Nightstand with Two Drawers
Overhead Storage: Large Overhead Cabinet
Additional Storage: Highlighted feature:
2x Horseshoe Wall Hooks
Reading Lights: 2x Reading Lights (1 Per Bed)
Power: A/C Outlet & USB-A/C Ports On Nightstand & A/C Outlet on Driver's Side Footboard (Pony Wall)

Bathroom & Laundry

Door: Solid Hardwood Door with Full Length Hinge
Medicine Cabinet: Yes
Open Storage: Open Storage & Shelving Behind Toilet / Beneath Medicine Cabinet
Additional Storage: Storage Space Above Medicine Cabinet
Shower: 32 x 32 in. Shower with Black Handheld Shower Head
Shower Door: Shower Curtain
Sink: No Bathroom Sink
Toilet: Dometic dPorcelain Toilet (Below Medicine Cabinet)
Window: Small Frosted Bathroom Window
Ventilation: 12V Exhaust Fan

Lighting

Interior Lights: Dimmable LED Lights With Master & Individual Switches
Propane Gas Light: One Wall-Mounted Gas Light
Compartment Lighting: 12V LED Lights

Fuel & Power

Power

Solar Panels: Two 100 W Panels
Solar Controller: Standard
Battery Bank: 6x 6V Deep Cycle Batteries
Shore Power: 30 A Service Hookup With 25 ft. Cord Included
Inverter: Highlighted feature:
3,000 W Inverter

Propane

Tanks: Two 7 gal. 30 lb Tanks
Tank Cover: Quick Access Propane Tank Cover
Propane Connections: 1 x Quick-Connect on Front Curb Side

Plumbing

General

Plumbing Protection: Fully Insulated & Heated Plumbing
Fittings: Brass & Stainless Steel Water Fittings
Monitoring Panel: Tank Monitors for Fresh, Gray, and Black Water Tanks

Fresh Water

Fresh Water Tank(s): 42 gal. Fresh Water Tank
Water Heater: 6 gal. Propane Water Heater (Under Sink)
Water Pump: Shurflo 12V Water Pump
Exterior Shower: External Spray Port
Fresh Water Connection: Standard
City Water Connection: Standard

Waste Water

Holding Tank Cover: Insulated Metal Tank Cover
Tank Heating Elements: Highlighted feature:
Added
Sewer Hose Storage: Standard
Black Water Tank: 35 gal. Black Water Tank
Gray Water Tank: 35 gal. Gray Water Tank
Electric Waste Gates: Highlighted feature:
Added
Sewage Hook-Up: Yes

Climate Control

Heating & Cooling

Wood Burning Stove: Standard
Furnace: 30,000 BTU Forced Air Furnace
Air Conditioning: Highlighted feature:
Furrion Ultrasonic Variable-Speed Temperature-Controlled A/C with Remote (in. Living Space)
Ventilation: Highlighted feature:
Dometic Fantastic Fan with Remote, Temperature Control, & Rain Sensing (in. Bedroom)
Recirculation Fan: 12V Air Circulating Fan

Internet & Entertainment

Connectivity

Exterior Ethernet Port (RJ45): Standard (Starlink-Ready)
Exterior Coax Port: Standard

Entertainment

TV: Prepped for TV
Stereo: Kenwood Stereo
Surround Sound: Premium Built-In Kenwood Speakers in. Rear Speaker Cabinet

Construction & Finishes

Construction

Ceiling Insulation: 6 in., R-19
Floor Insulation: 6 in., R-19
Walls: 2 in. Thick
Serviceability: Utilities Remain Accessible For Repairs

Cabinetry

Cabinets: All-Hardwood Cabinets
Hinges: Soft-Close Hinges
Drawer Construction: Dovetail Construction
Drawer Slides: Self-Latching, Travel-Secure Slides
Thumb Latches: Included On Large Drawers
Overhead Cabinet Doors: Gas-Strut-Supported Cabinet Doors

Finishes & Colors

Wall Color: Wilsonart Antique Bourbon Pine (8215-15)
Cabinet Color: Wilsonart Brazilwood (7946-38)
Countertop: Wilsonart Oiled Soapstone (4882-38)
Cabinet Hardware: Deer Horn Door Knobs and Fish Drawer Handles
Recliners & Cushions: Mahogany (MOD-58CM-FCH)
Flooring: Luxury Vinyl Plank Flooring
Floor Color: Mannington Heritage Buckskin (FXP610)
Ceiling Trim: Rosewood Carved Ceiling Trim
Window Shades: Timeless Taupe Window Shades with Engraved Blind Boxes
Wood Accents & Engravings: Western/Fishing - Featuring Stage Coaches & Cowboys
Decor: Welded Horseshoe Hooks & Accents

Frame, Chassis, & Towing

Frame

Frame Construction: Custom-Engineered
Platform: X31
Stabilizer Jacks: All Four Corners
Entry Steps: Heavy-Duty Fold-Up Tongue Steps

Chassis

Axles: Dual 7,200 lb Axles w/ Easy Lube Hubs
Wheels: Highlighted feature:
Aluminum Wheel Rims
Tires: 16 in. E-Load ST235/80R16 10-Ply Tires
Brakes: Standard Trailer Brakes (Both Axles)
Suspension: Over-The-Axle Leaf-Sprung Suspension

Towing

Hitch Type: Bumper Pull
Coupler: Adjustable 2 5/16 in. 15,000 lb Coupler
Tongue Jack: Drop Leg Side-Wind Jack
Spare Tire: Standard
Rear Receiver: 3x 2 in. Receiver Rated For Pulling Doubles
7-Way Plug: Standard

Safety

General

CO/LP Detector: Standard
Egress Window: Rear Egress Window

Highway Safety

Road Markers: DOT-Compliant Markers
Reflective Tape: Canadian-Compliant Reflective Striping
Taillights: Standard
Trailer Lights: DOT-Compliant LED Lights
Cameras: Vision+ S Side & Rear Cameras

Fire Safety

Smoke Detector: Standard
Fire Extinguisher: Standard
Fire Backer: Fire Backer Behind Wood Stove & Fire-Lined Cabinetry
Chimney: Triple-Wall Flue & Chimney
Battery Disconnect: Standard
NFPA 1192 Compliant: Yes

Dimensions

Interior Measurements

Width: 96 in.

Weight

GVWR: 14,400 lb (6,538 kg)

More Details

Build

Camp Name & Number: Nielsen Camp (#133)
Homebase: Englewood, Colorado
Completion: September 2026

Get A Quote

2 Comments

Have a question or something useful to add? Share it with other Peak Outdoors readers.

Jeff

October 3, 2026 at 8:25 am

I have a 23′ gooseneck beaver tail trailer. Would you build a camp on it?

Reply
1. Austin Peak Staff

  October 3, 2026 at 10:48 pm

  Hi Jeff, thanks for asking! We build our camps on frames designed specifically for each build, so we wouldn’t be able to use your existing trailer.

  Using an existing trailer may seem like a way to save money, but adapting a camp to it typically adds design time, labor, materials, and modifications that make the project more expensive. It also limits how we can lay out and construct the camp.

  We design each camp and its frame together, with weight distribution, structural support, and towing characteristics in mind. Starting with a frame built specifically for the camp lets us optimize the whole setup from the beginning.

  Reply
