Watson Camp
A custom X33 build with two Twin XL beds, a reclining sofa, and a large cedar-lined entry closet. A full kitchen, three-person dinette, and three-quarter bath share the interior with hardwood cabinetry, carved rosewood ceiling trim, and wildlife engravings. A wood-burning stove, dual solar panels, and 84 gallons of fresh water support extended stays, while red Peak graphics finish the white exterior.
- Platform
- X33 Camp
- Location
- Delta, Utah
- Pricing Build pricing changes over time with material and component availability, supply-chain costs, and inflation. Final sale prices are kept private out of respect for each owner's privacy.
- Contact Us
Inside And Out
Camp Photos
Take a closer look at Watson Camp, from its exterior construction to the spaces and details inside. Browse the layout, storage, finishes, and everyday features that make this build its own, and open any photo for a closer view.

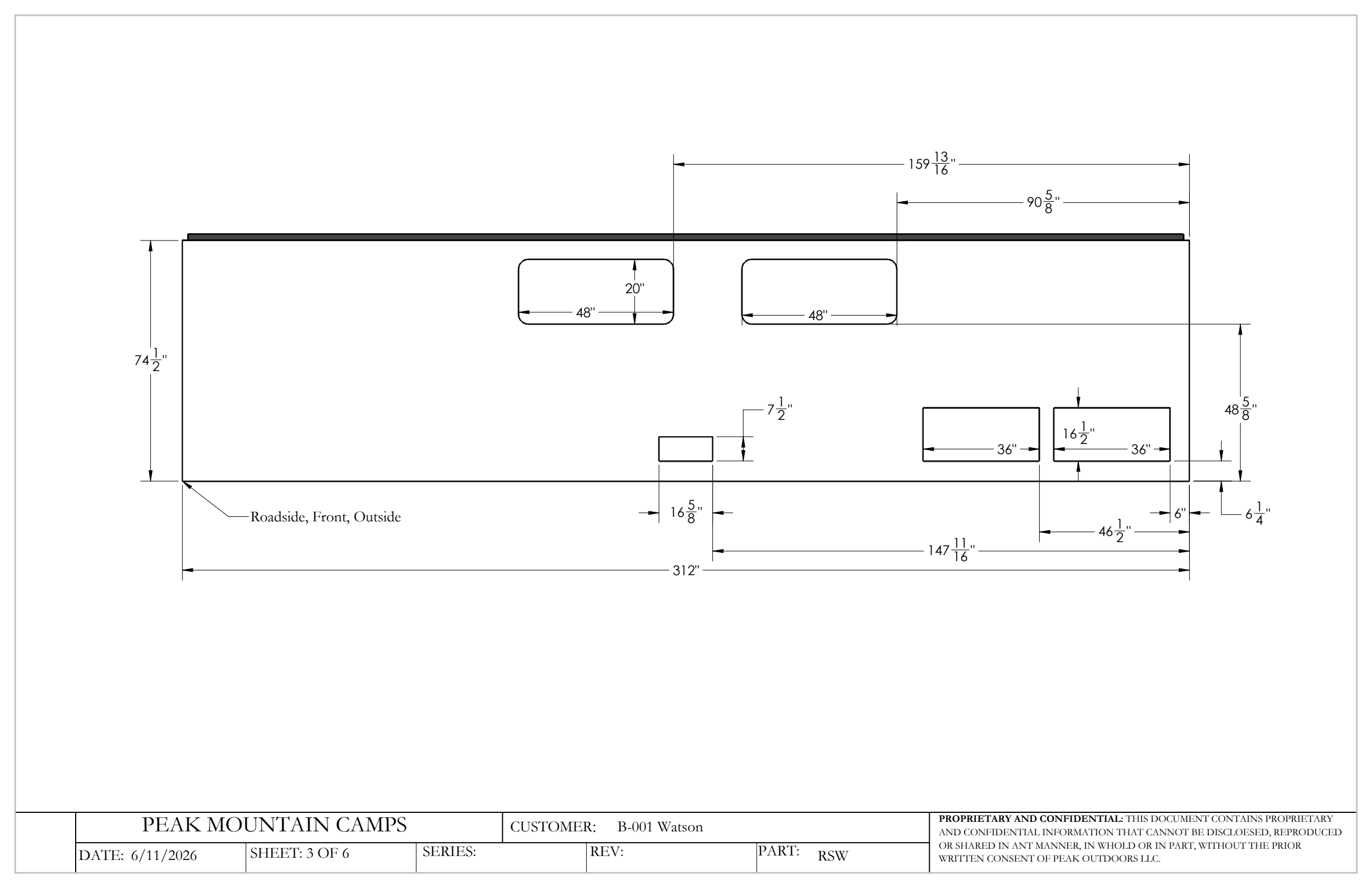

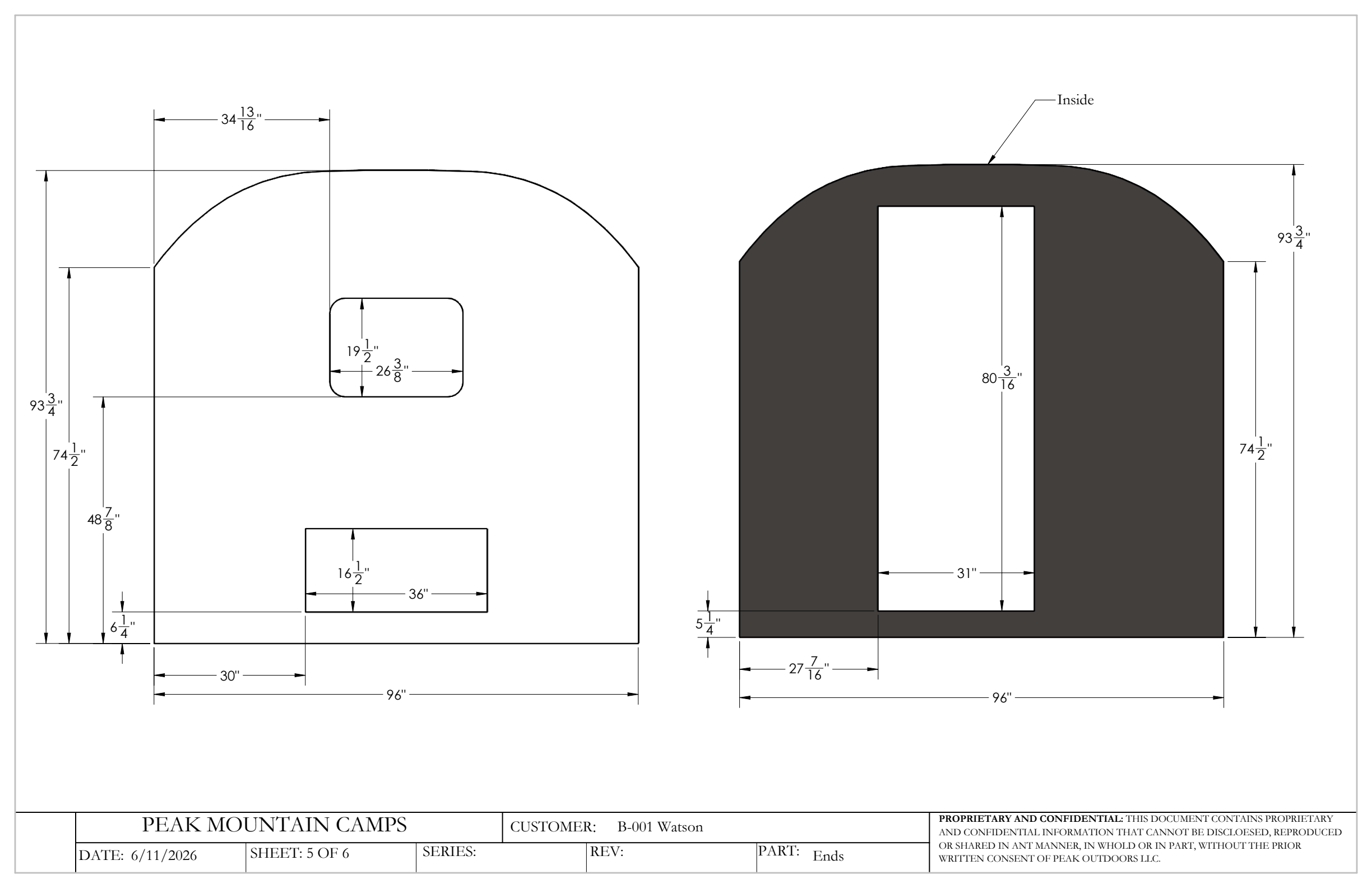

Layouts & Drawings

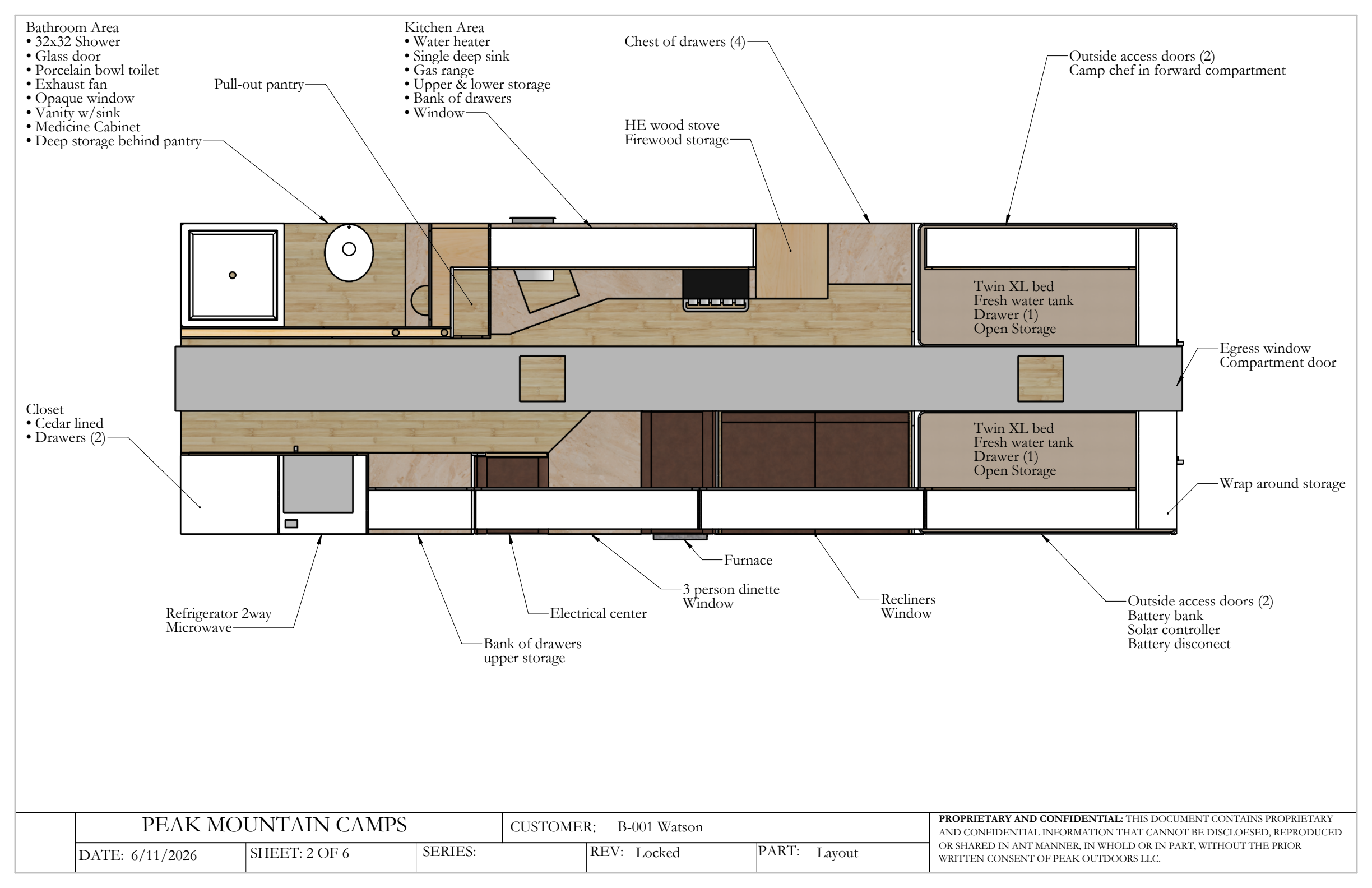

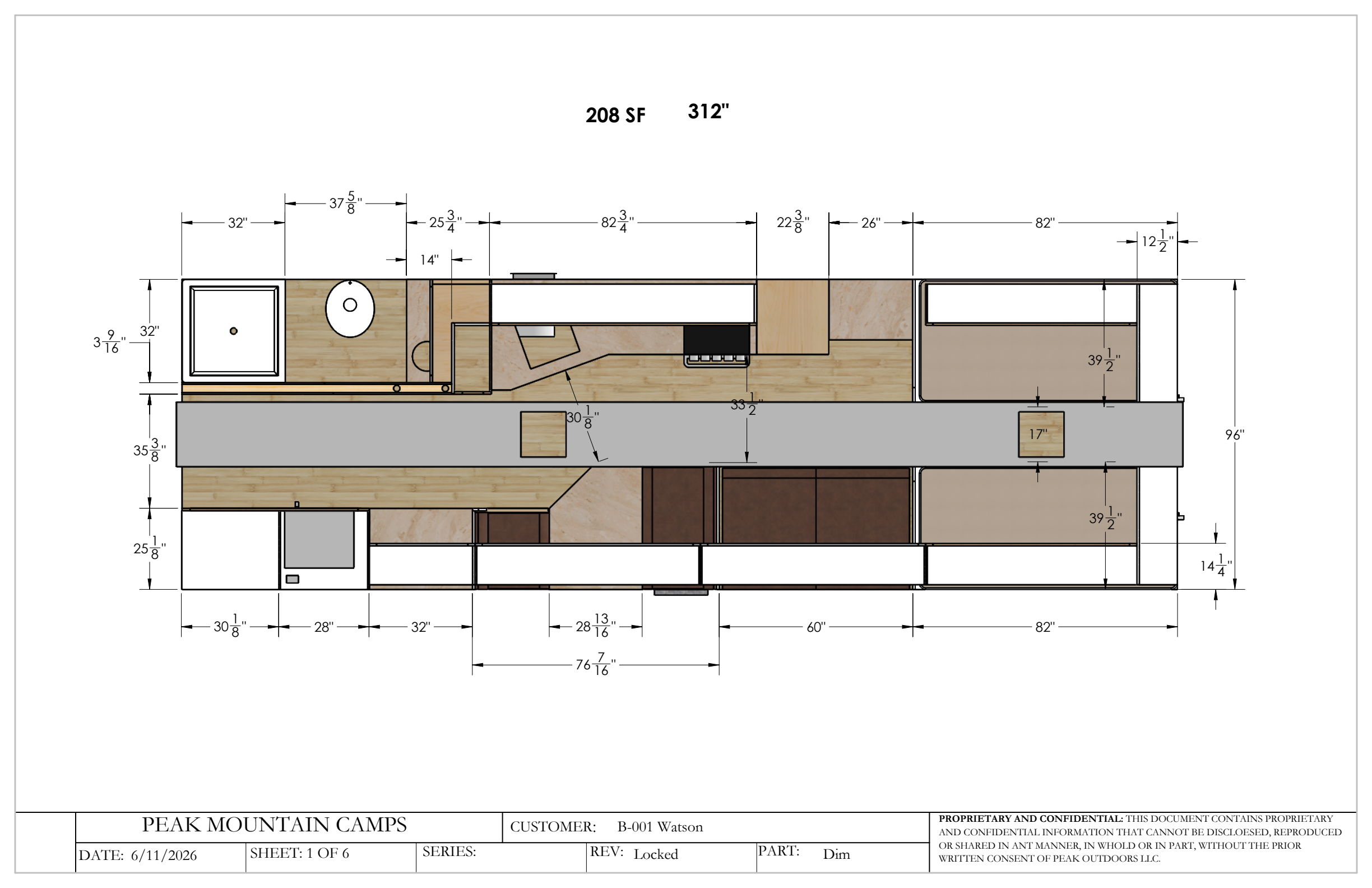

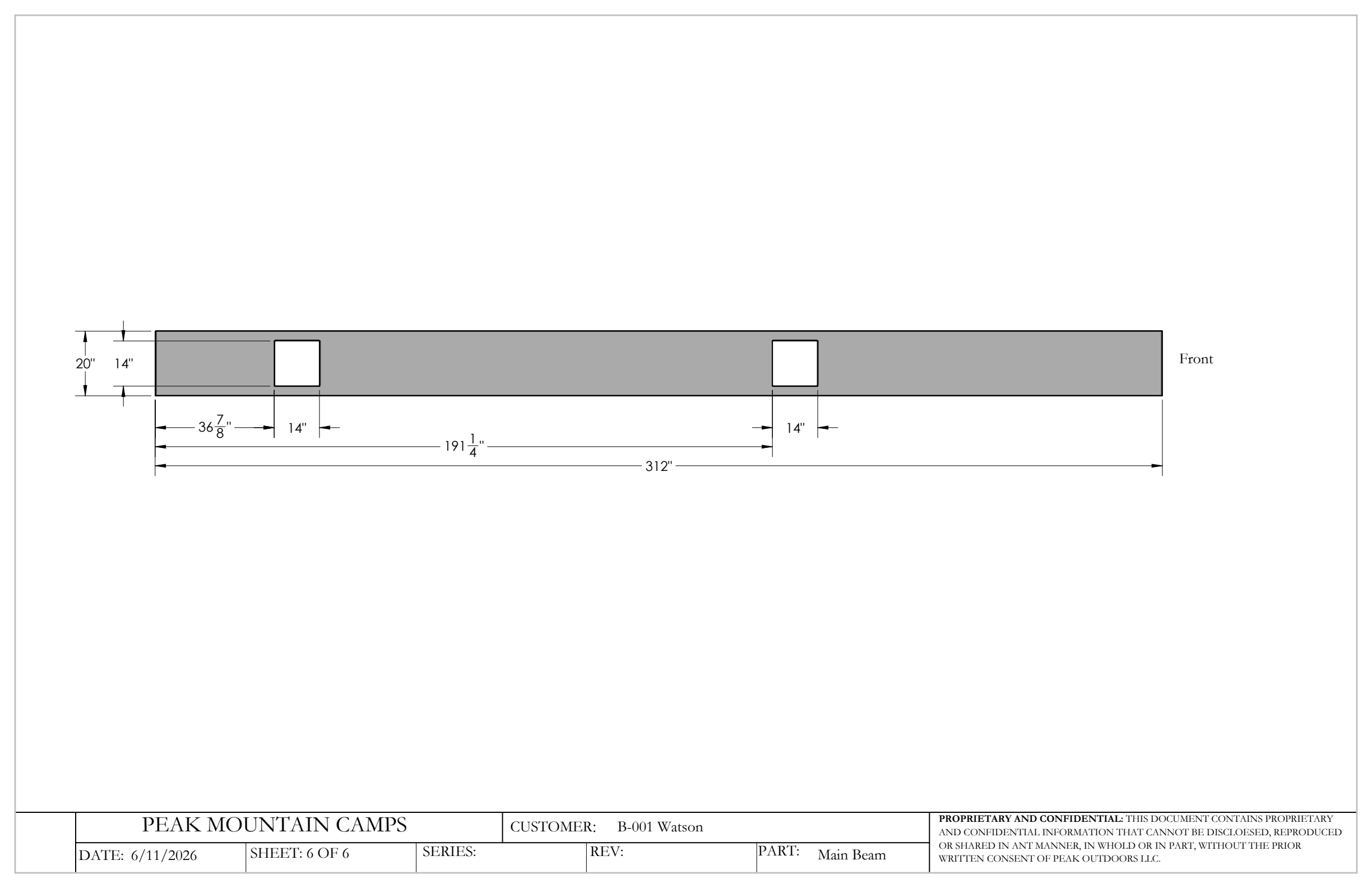

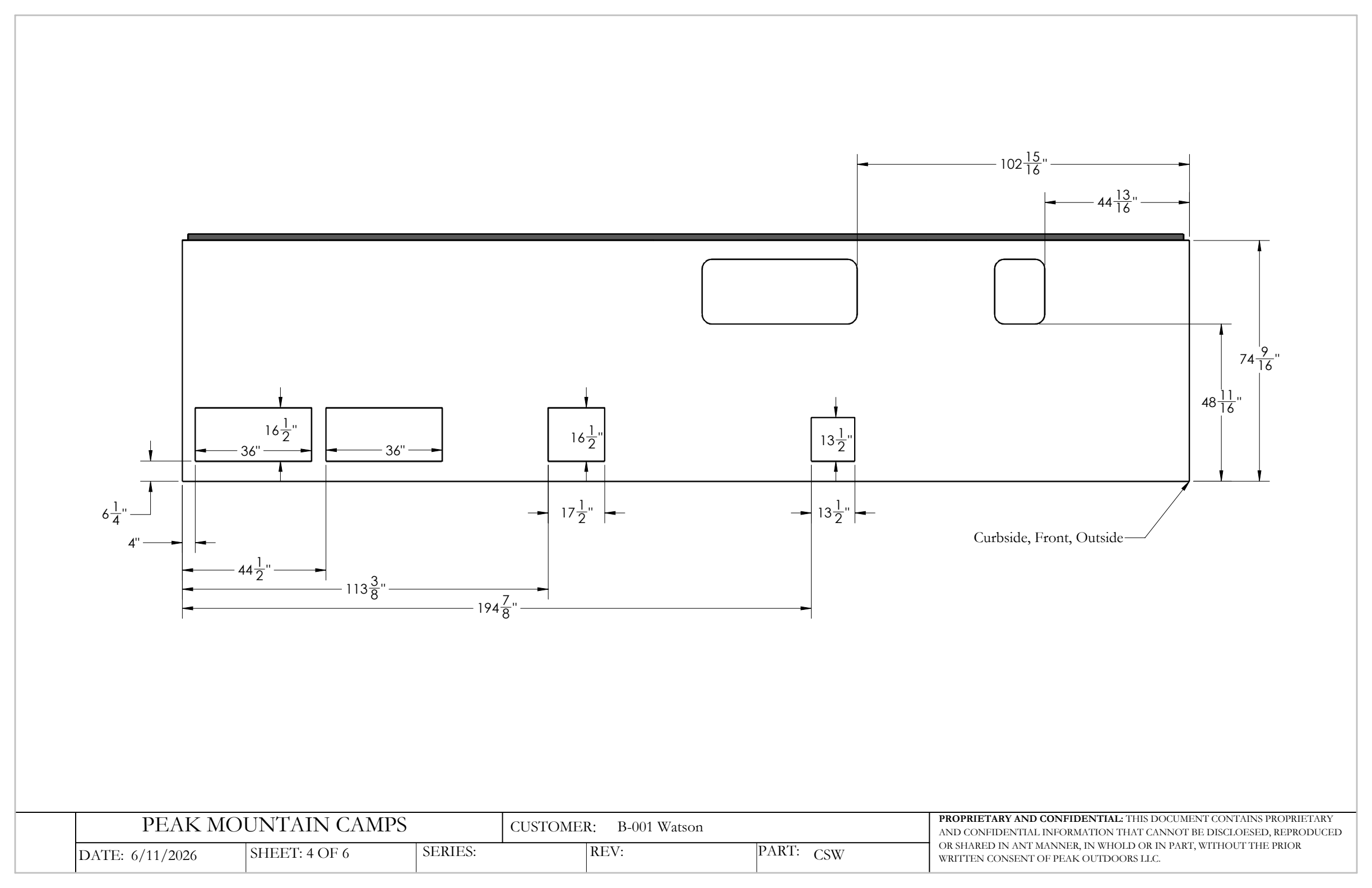

Floor Plans
Build Details
Specifications

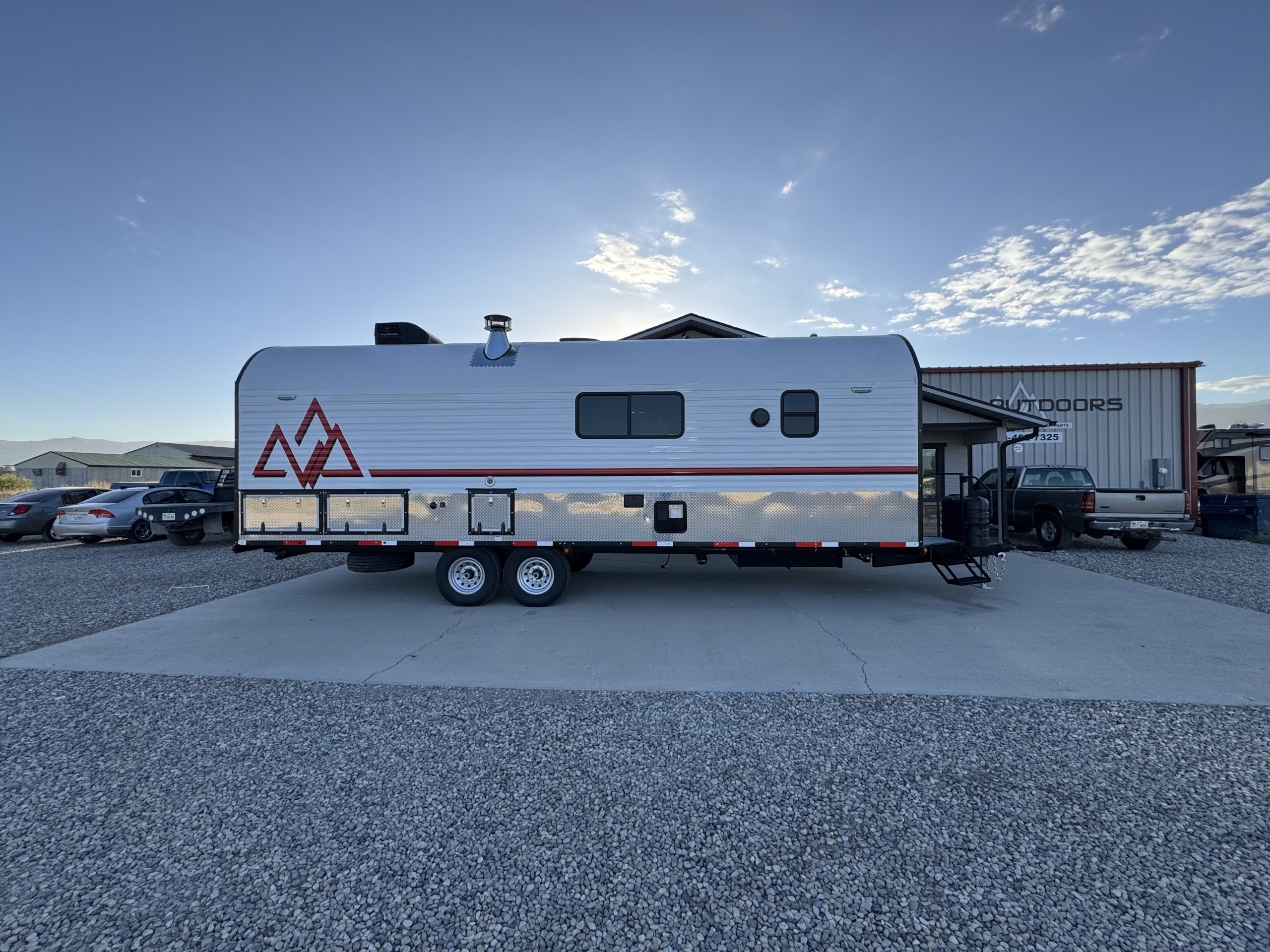

Exterior

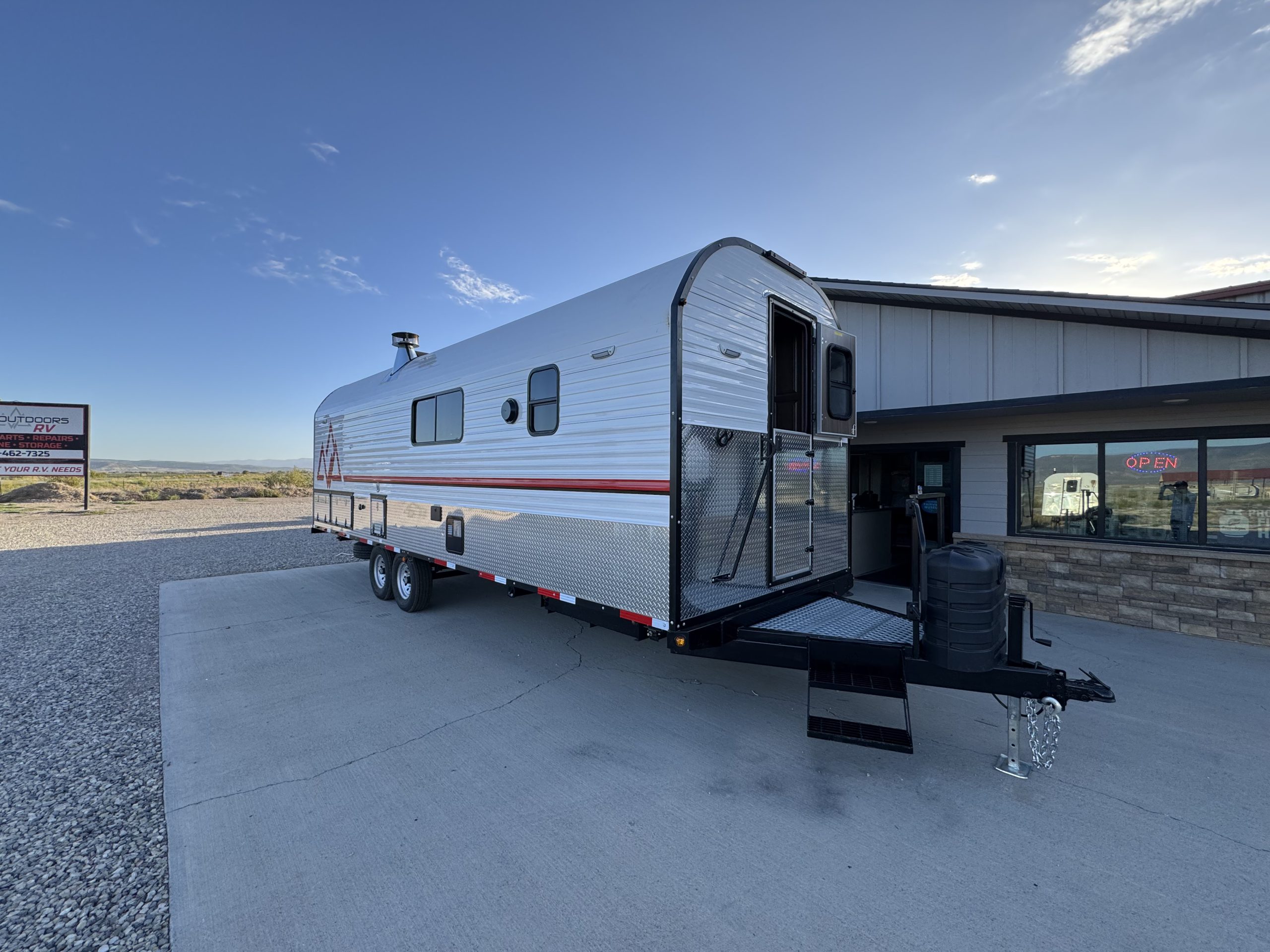

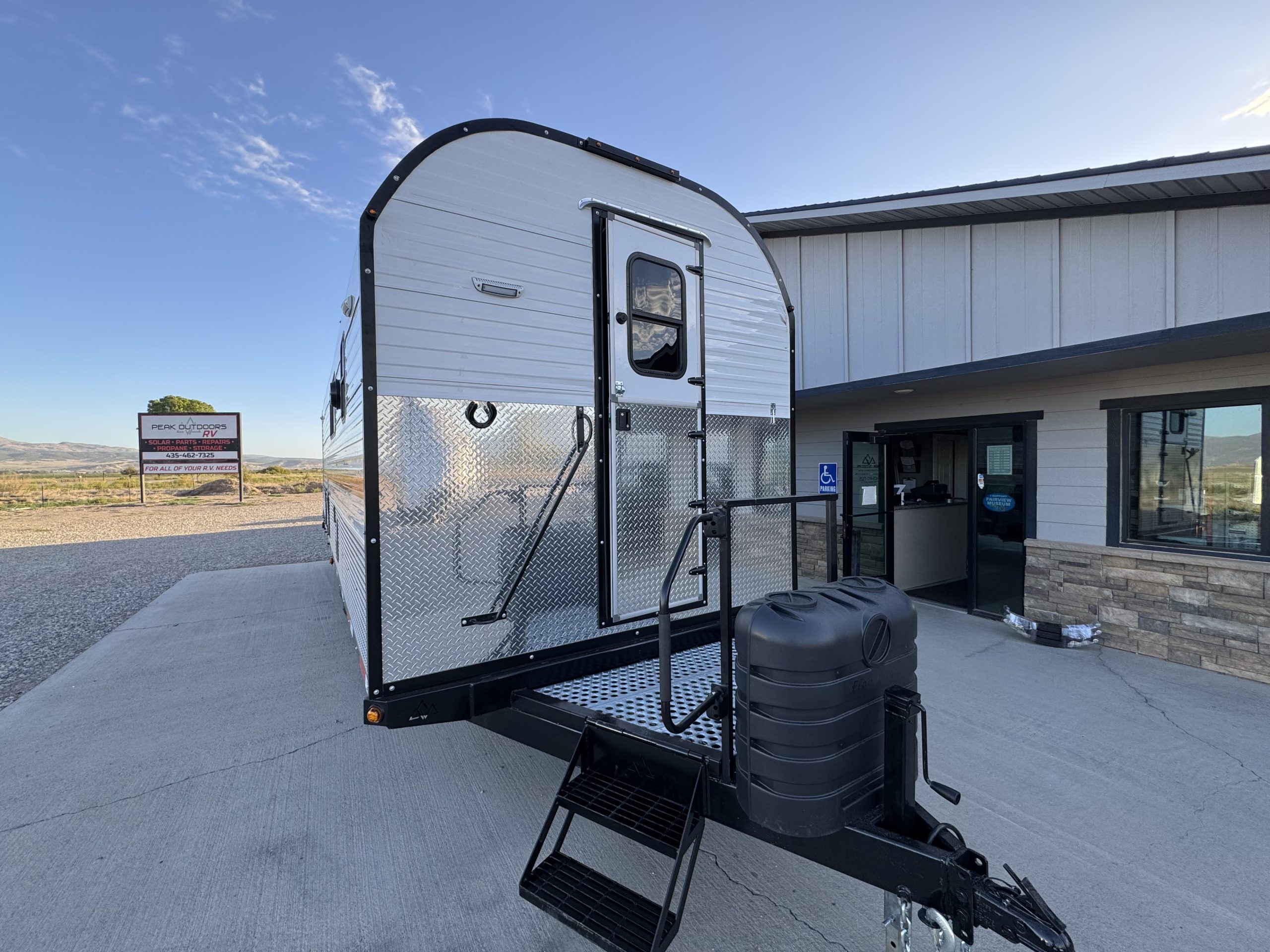

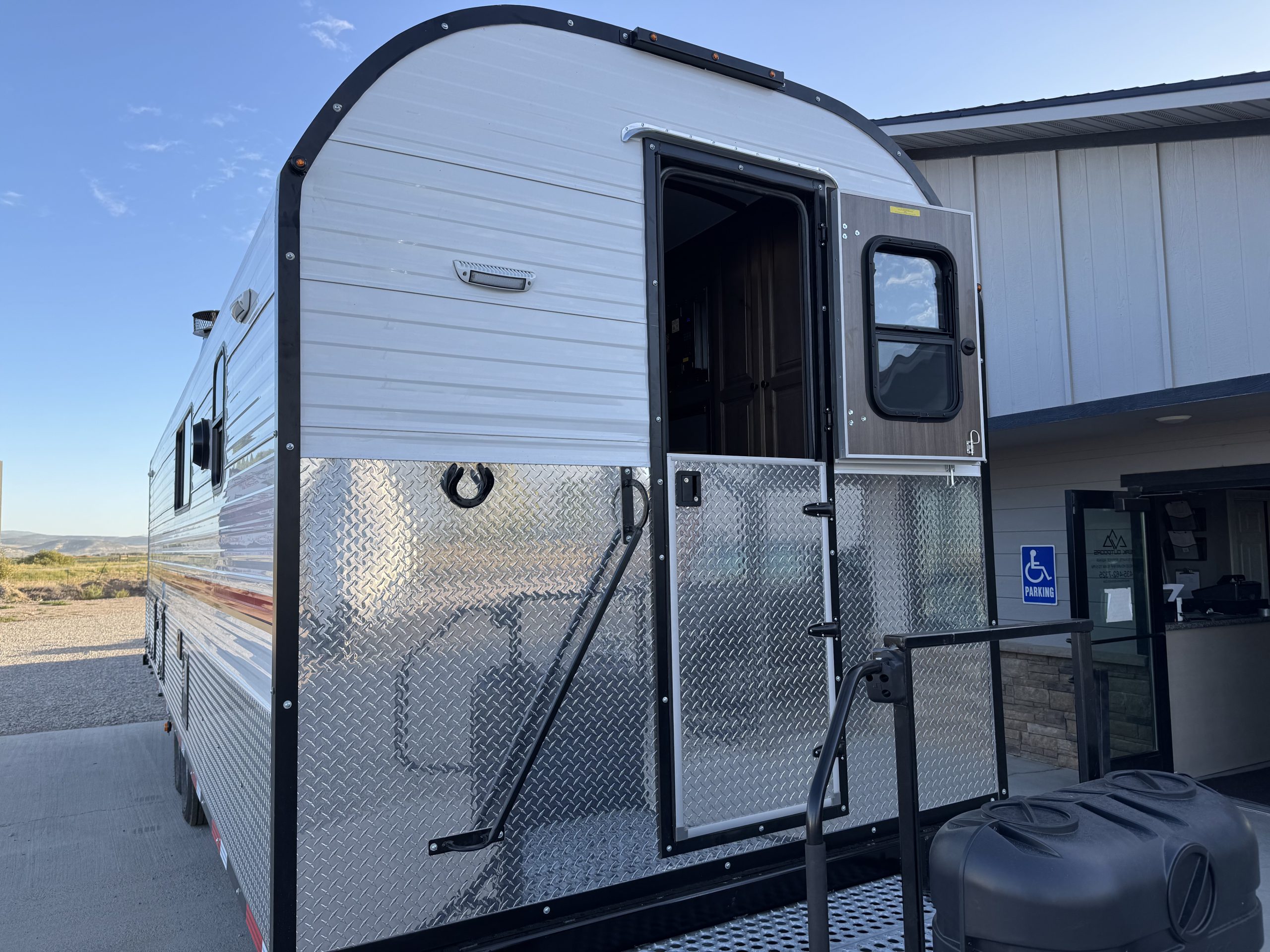

Entry
- Entry Layout
- Traditional Front Entry

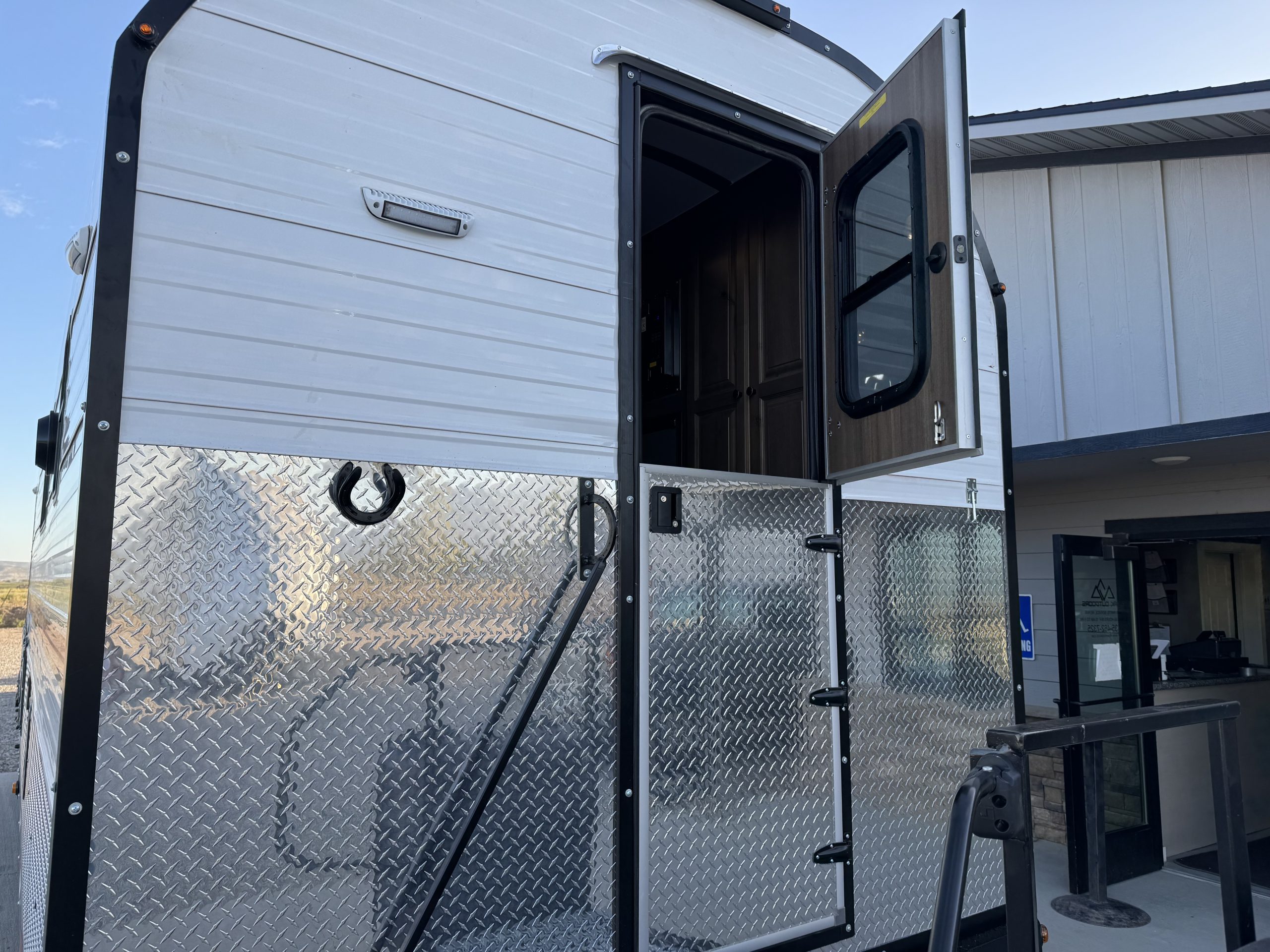

- Entry Door Style
- Dutch Door
- Entry Railing
- Standard Fold-Away Hand Railing & Welded Wall Railing

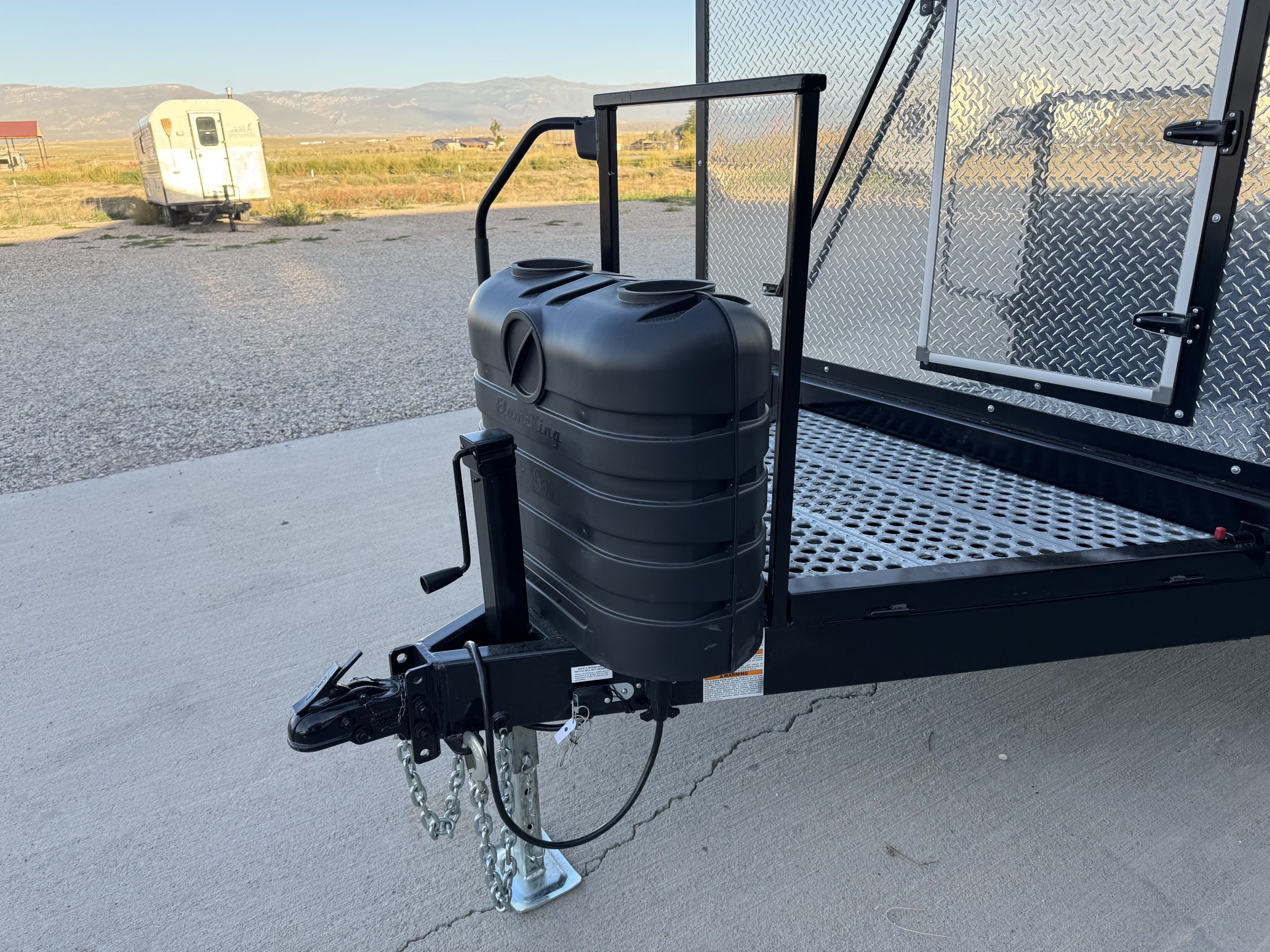

- Patio / Tongue
- Standard
- Entry Steps
- Heavy-Duty Fold-Up Tongue Steps
Storage
- Tongue Storage Access
- Removable Decking for Storing Chains, Tire Chocks, etc.
- Exterior Compartments
- Highlighted feature: Small Pass-Through Wood Box; Large Double Door Curbside Compartment w/ Camp Chef Cooker ; Large Double Door Roadside Compartment w/ Power System; Large Rear Compartment with Fresh Water Tanks & Pump
- Compartment Doors & Latches
- Keyed Doors With Adjustable Latches
- Compartment Sealing
- Dual-Sealed
- Compartment Lighting
- LED Lighting Added to Exterior Compartments
- Wood Box
- Standard Pass-Through Wood Box
- Broom Holder
- Traditional Horseshoe Broom Holder
Construction

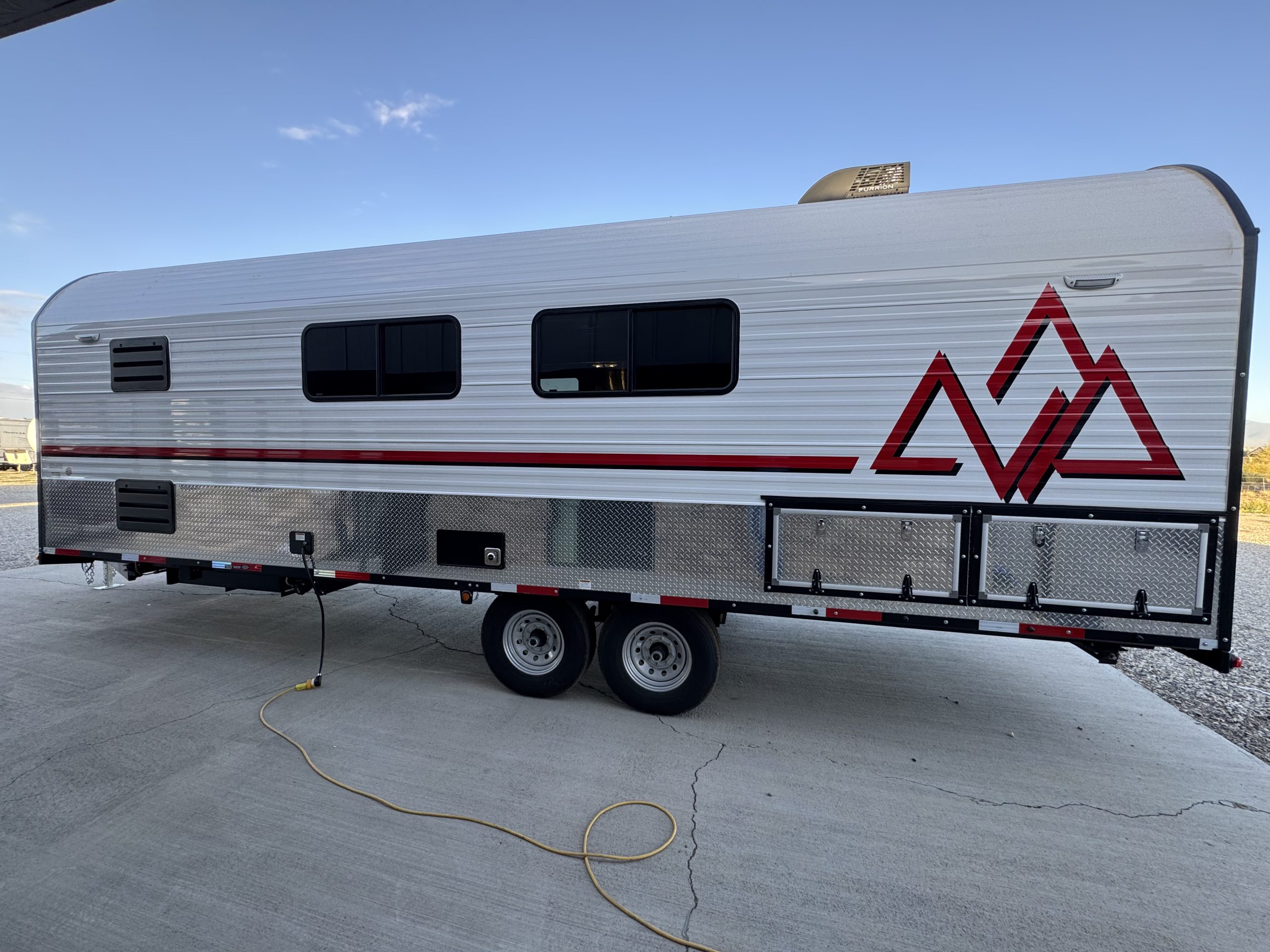

- Siding / Wrapping

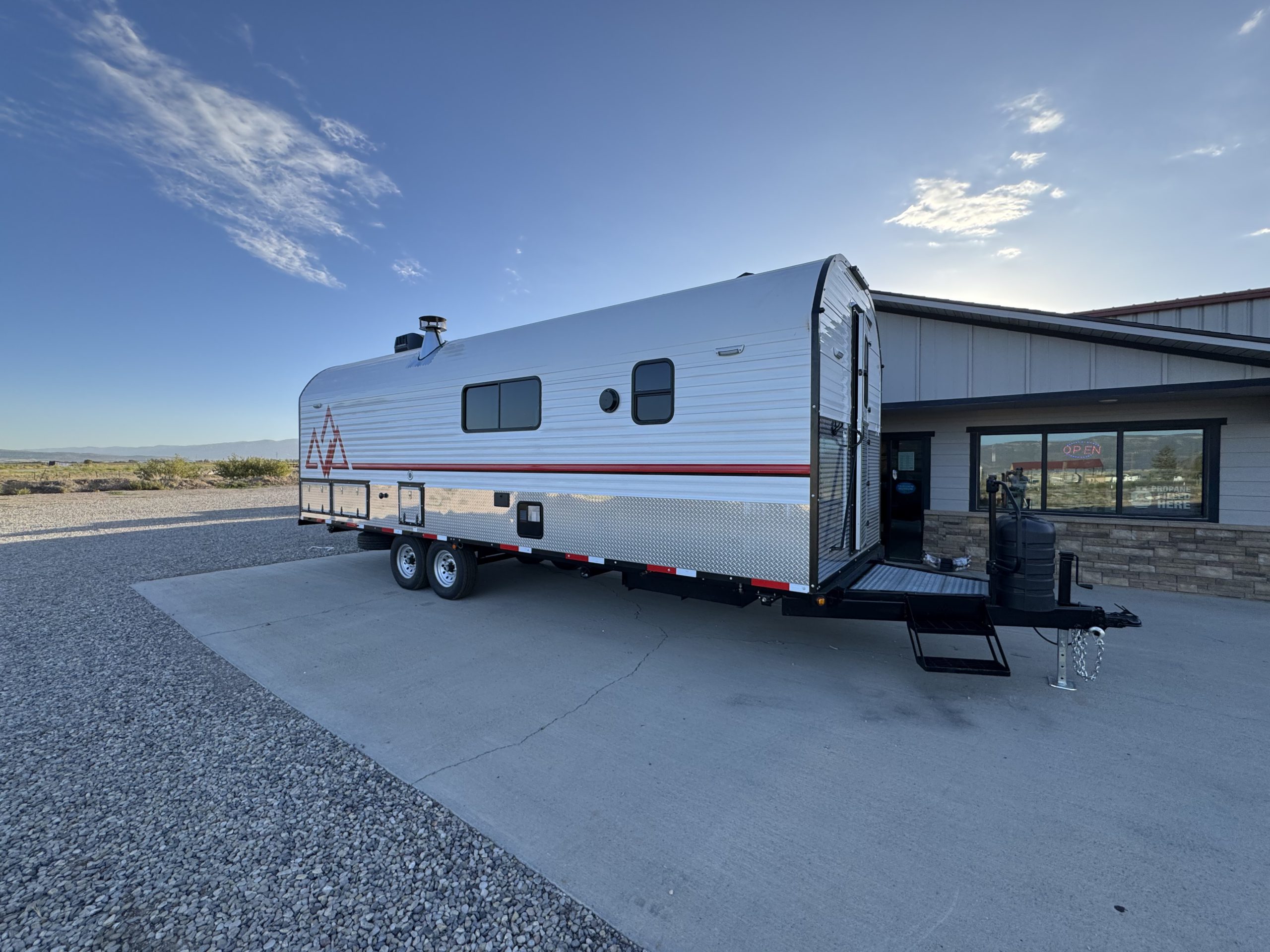

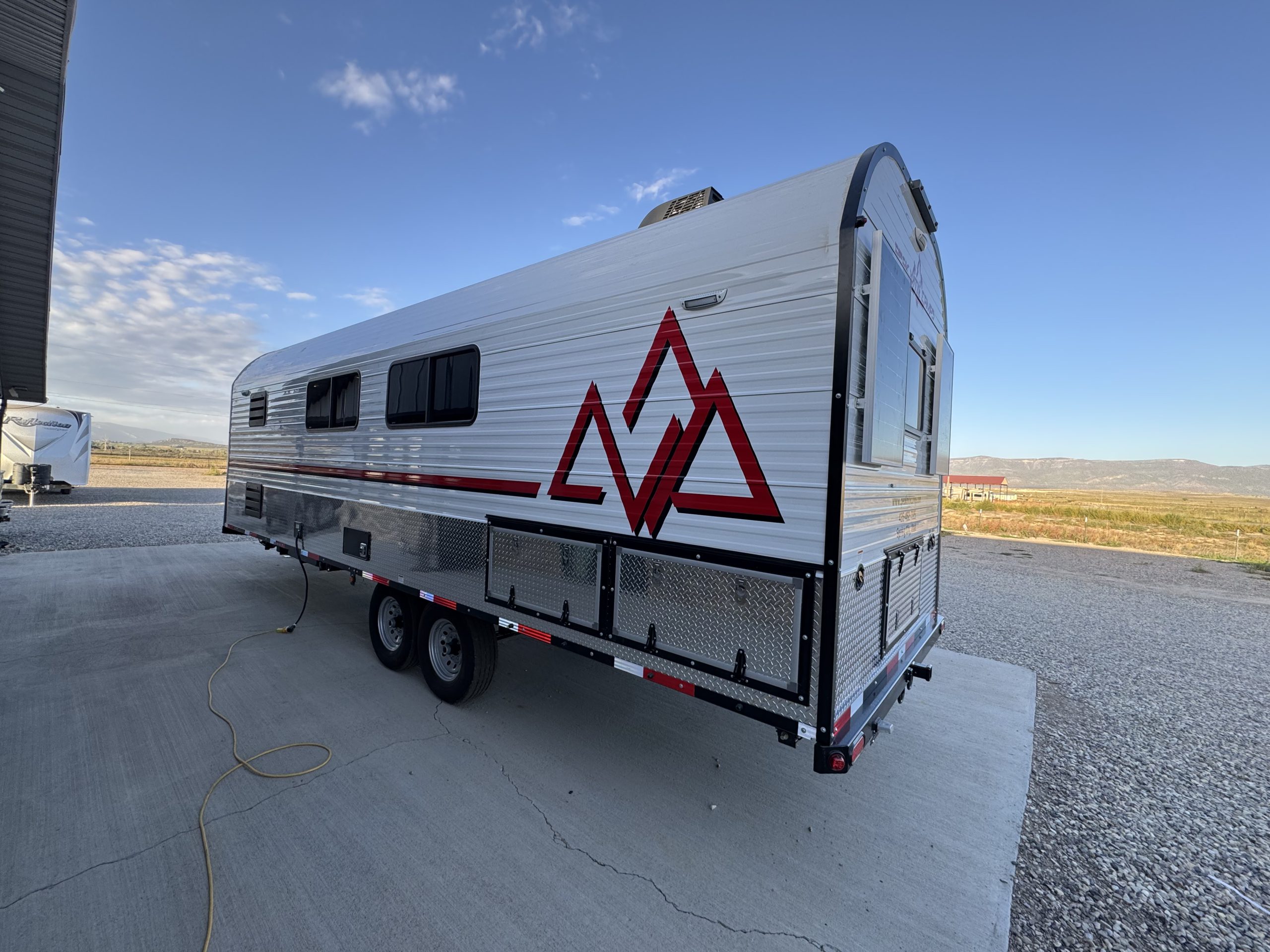

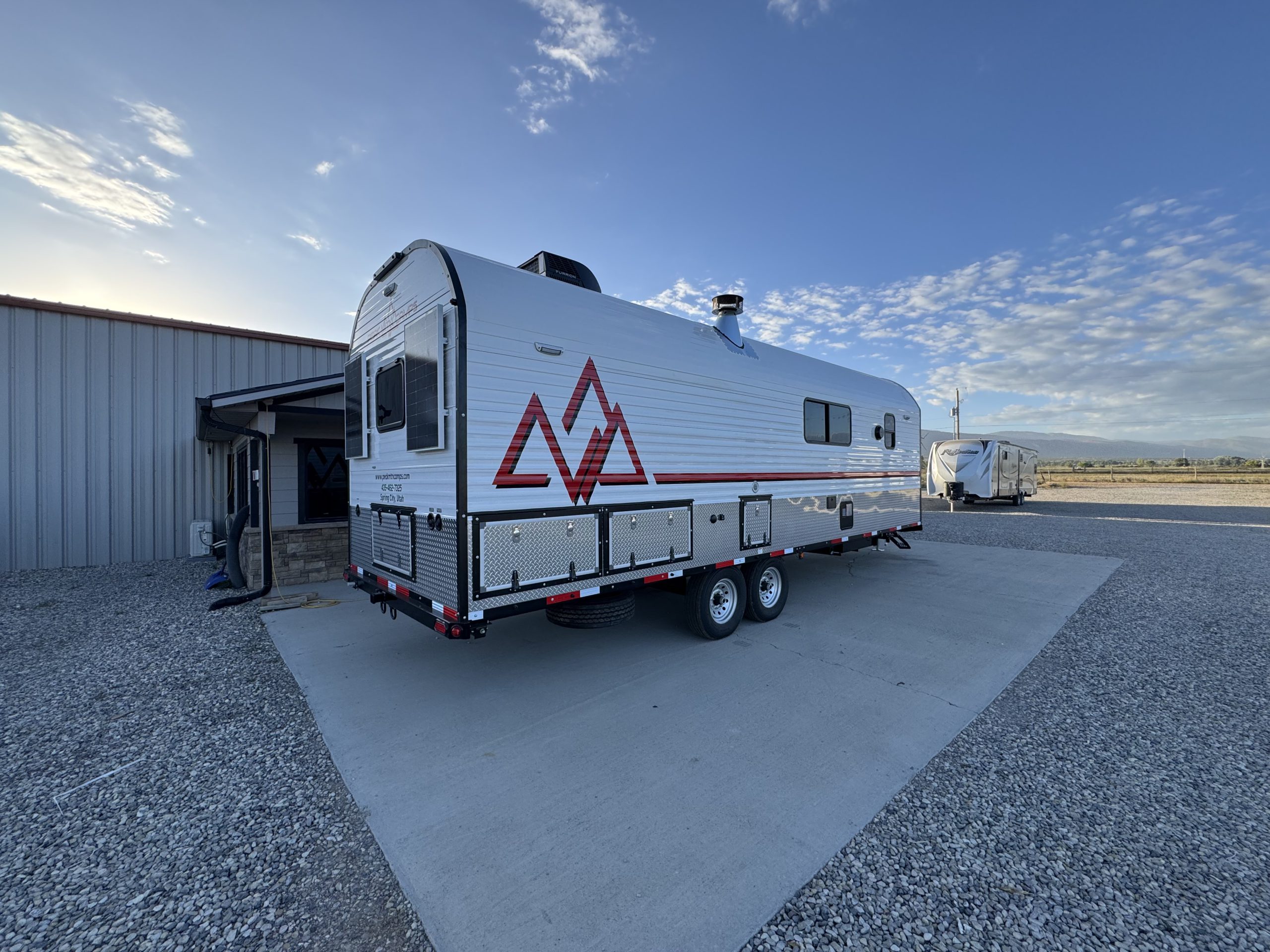

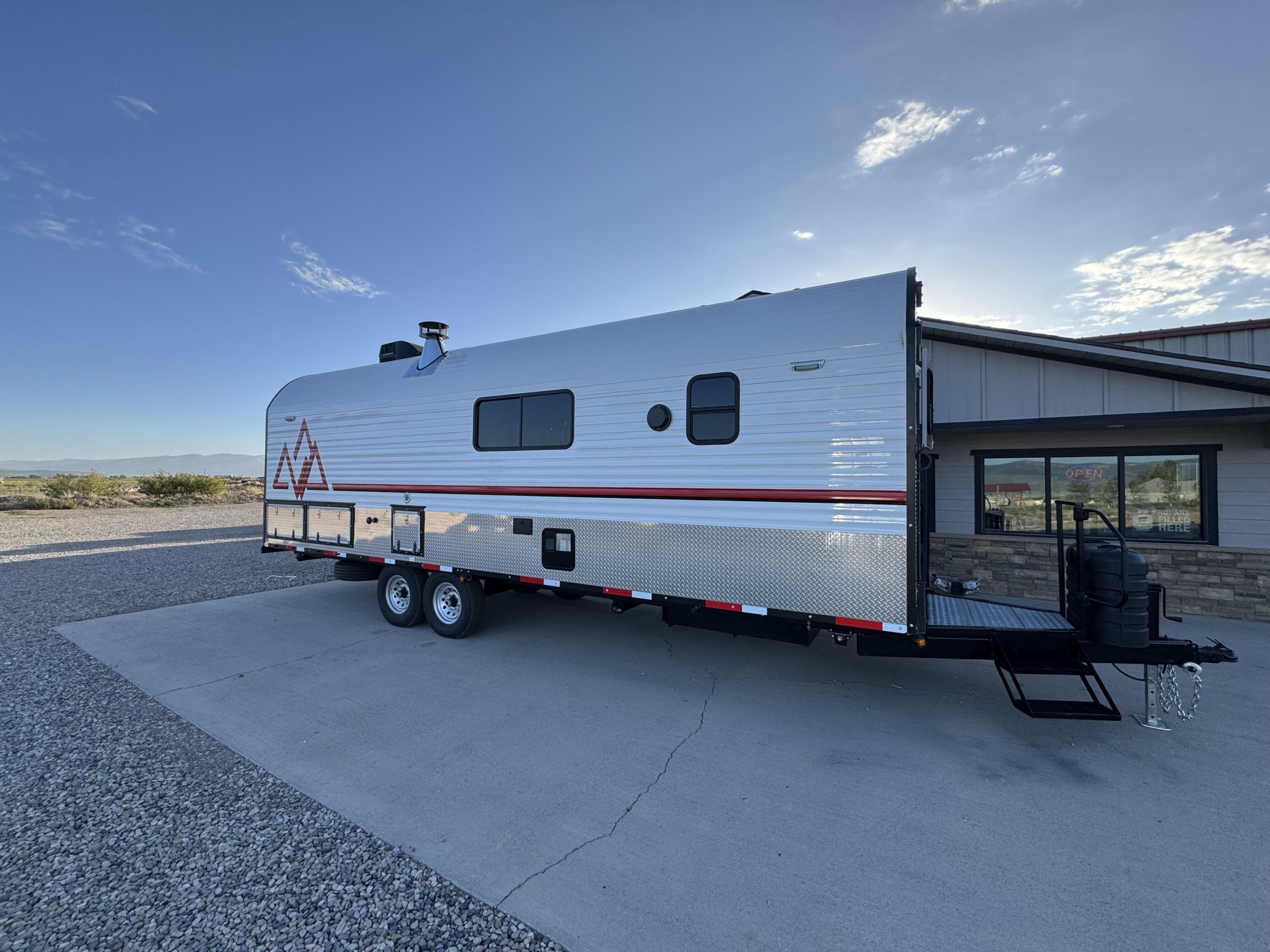

- Highlighted feature: White Aluminum Siding With Diamond Plate On All Sides & Red Graphics
- Structural Reinforcement
- Angle Iron On Exterior Edges
- Windows
- 3x Dual-Pane Windows (Sliders, Screens, & Rain Gutters) & Rear Egress Window
Power & Lighting
- Exterior Lights
- Highlighted feature: Surround LED Loading Lights (1x Front, 2x Road-Side, 2x Curb-Side, 1x Back)

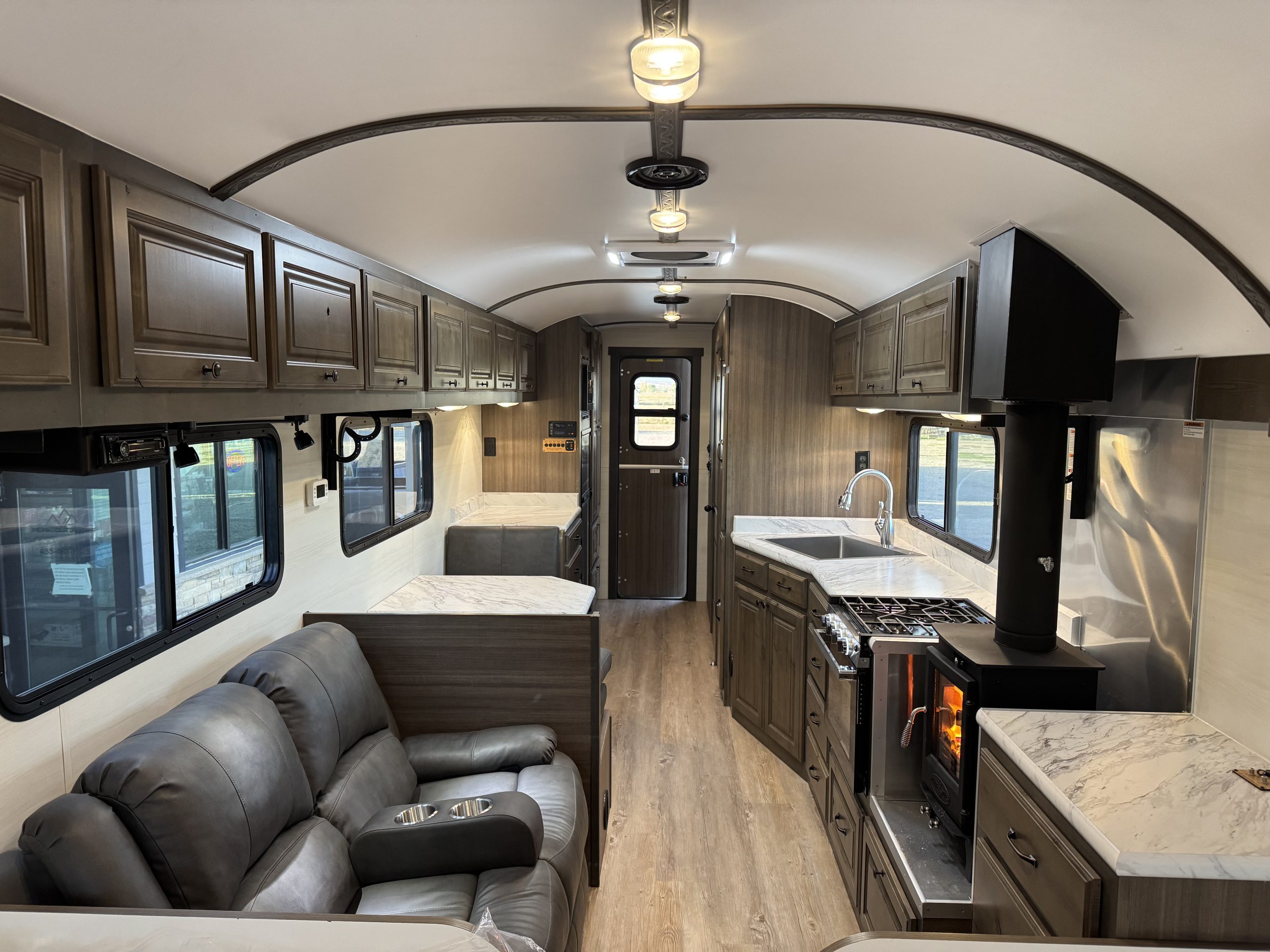

Interior
General
- Layout
- Fully Custom (Designed with Customer)
- Sleep Capacity
- 2 Adults
- Interior Lights
- Dimmable LED Lights With Master & Individual Switches
- Compartment Lighting
- LED Lighting Added to Closets & Open-Storage Cabinets
Entry / Hallway
- Closet Storage

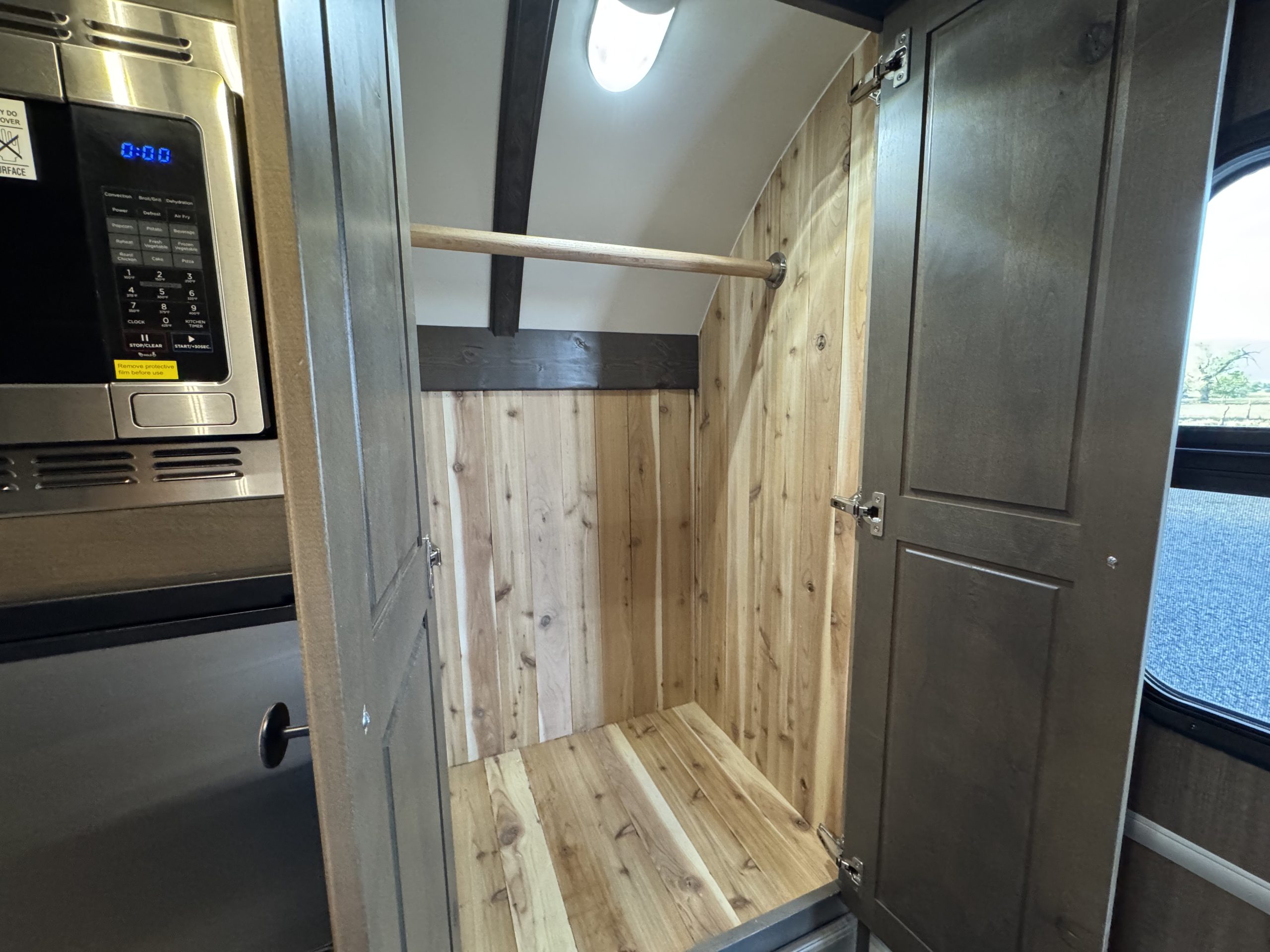

- Highlighted feature: Large Cedar-Lined Entry Closet w/ Hanging Rod
- Drawer Storage
- Two Large Drawers Beneath Closet
- Lighting
- Closet Lighting

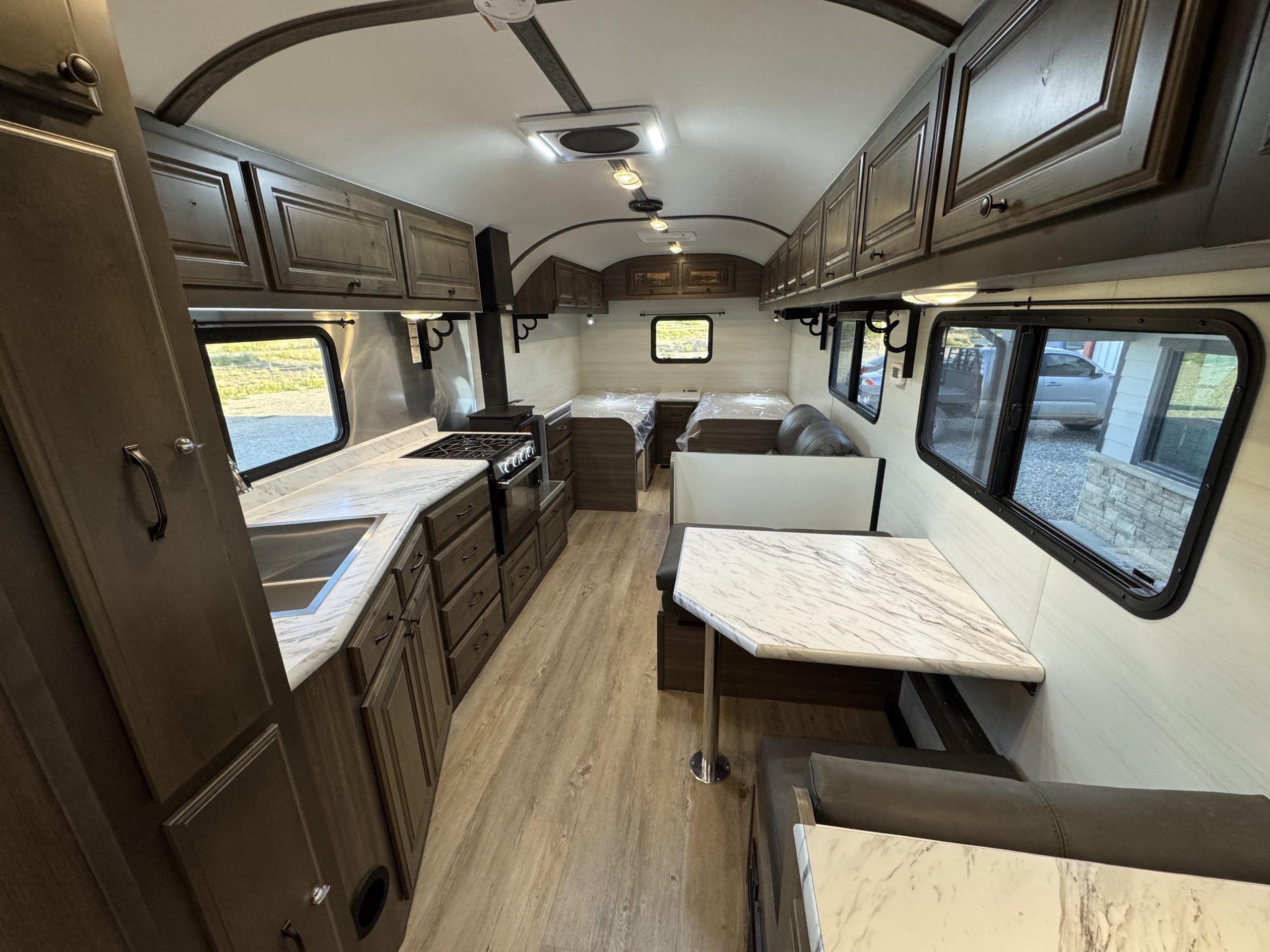

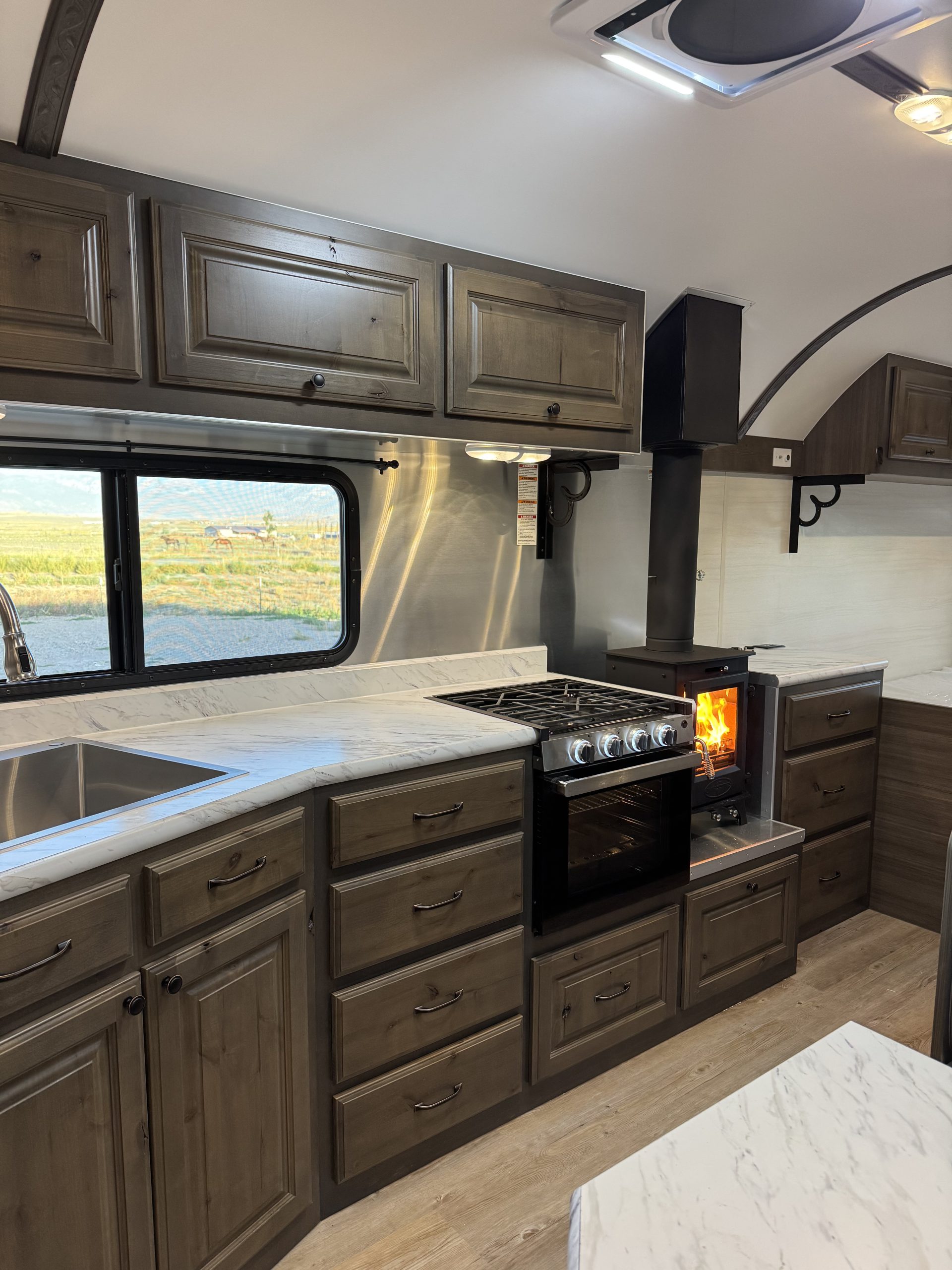

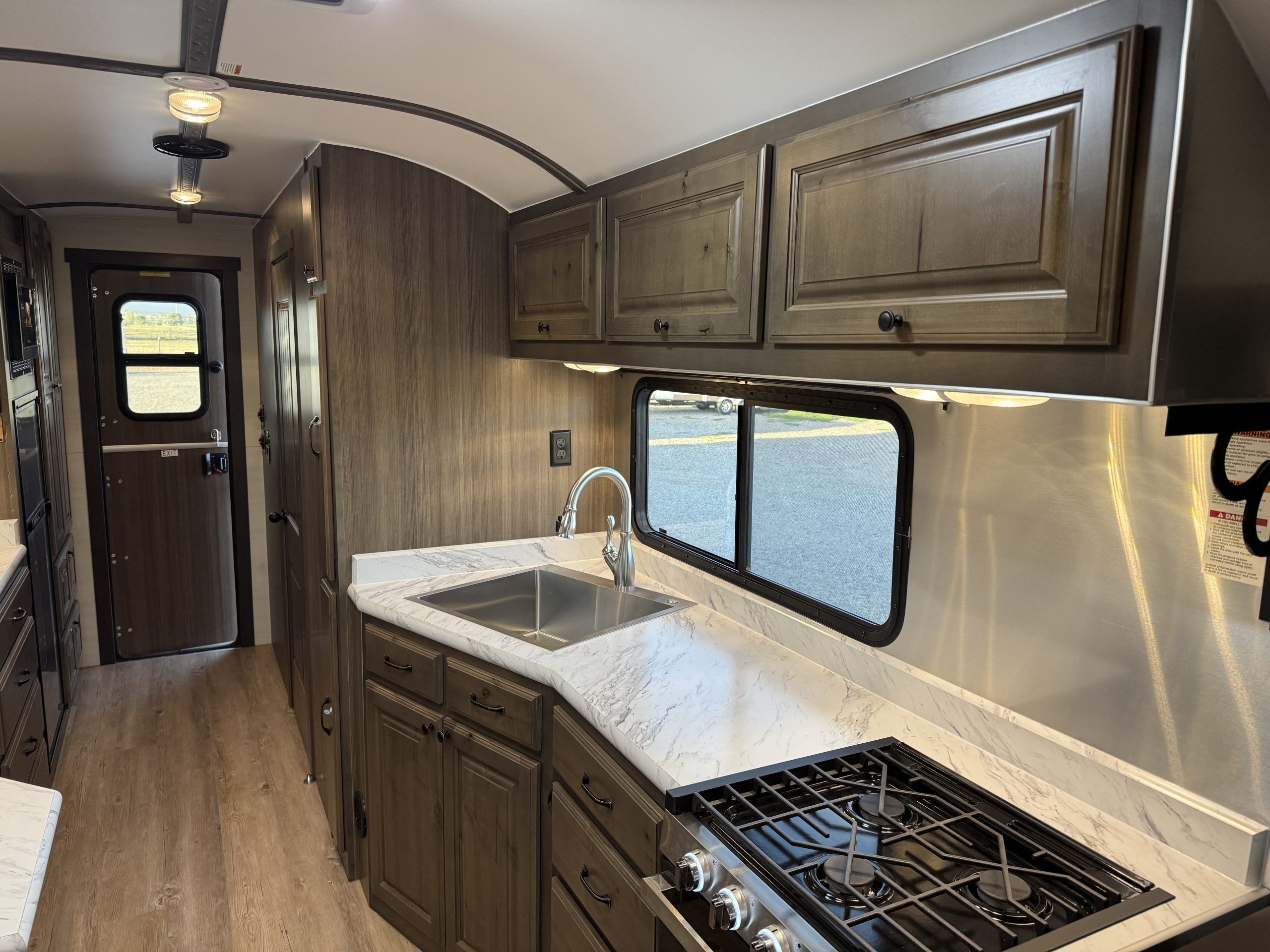

Kitchen
- Refrigerator
- 7 cu ft Propane/Electric Fridge-Freezer
- Microwave

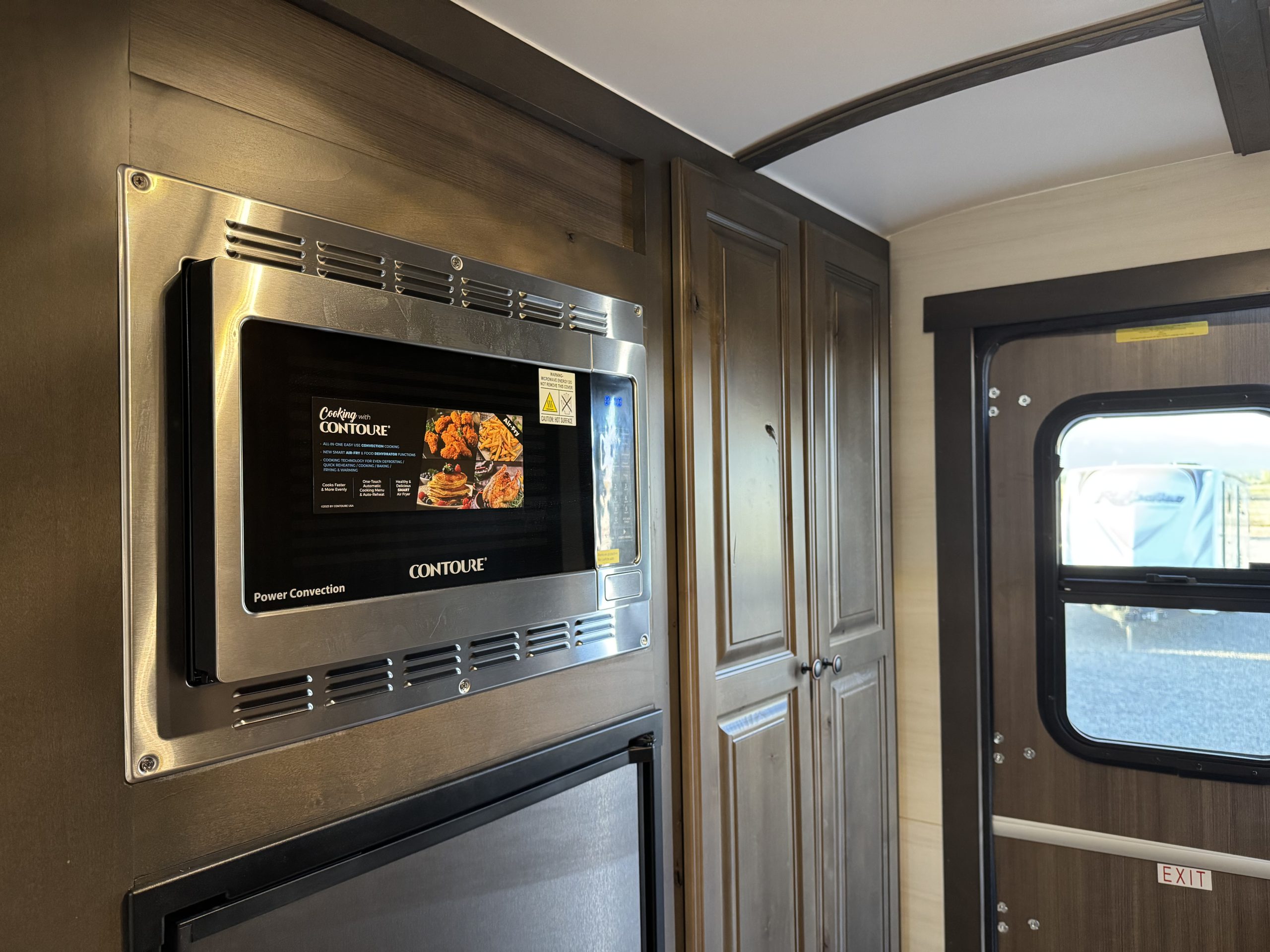

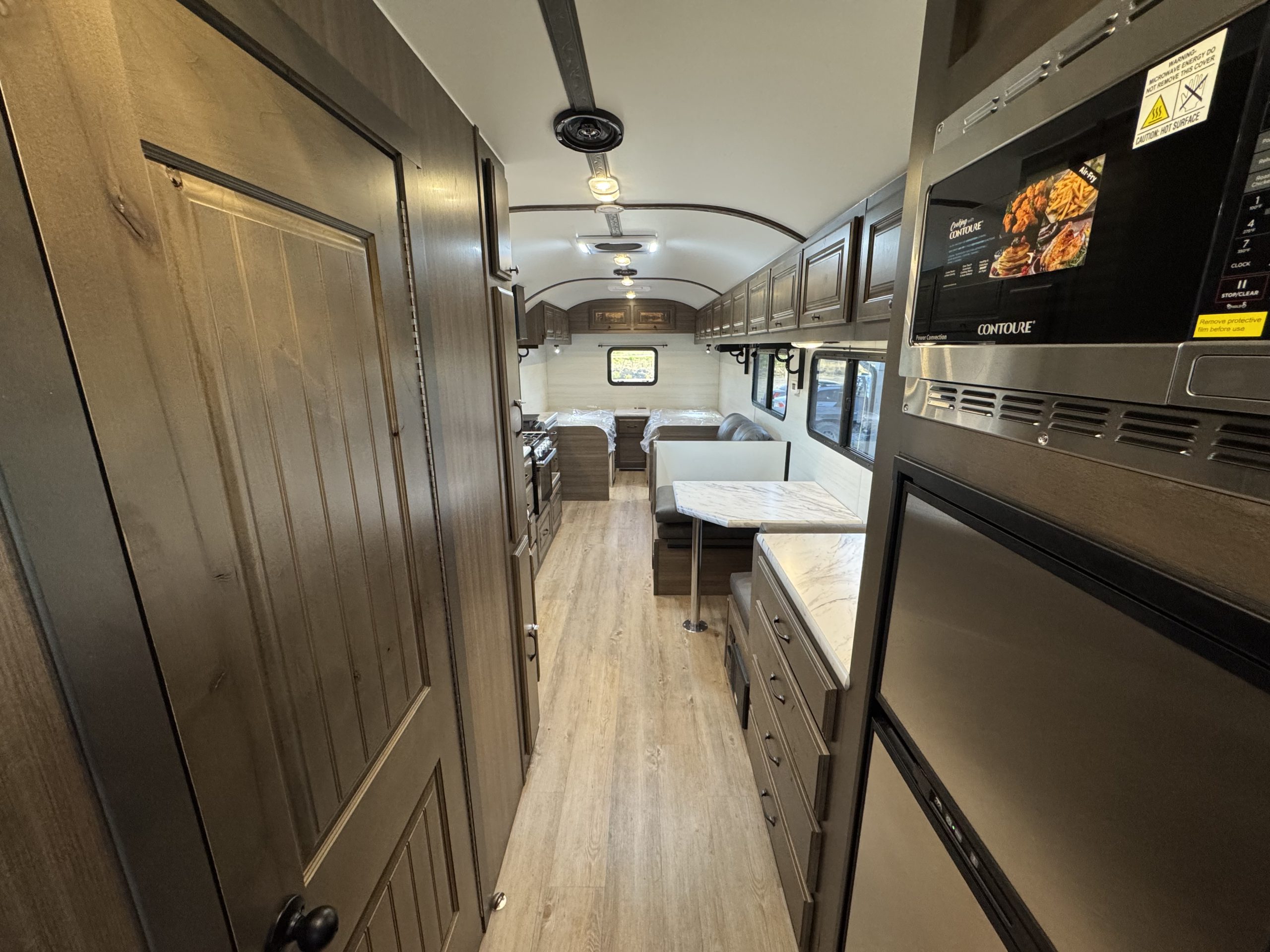

- Highlighted feature: Large Built-In Microwave Oven with Air Fryer (Above Fridge)
- Stovetop / Oven

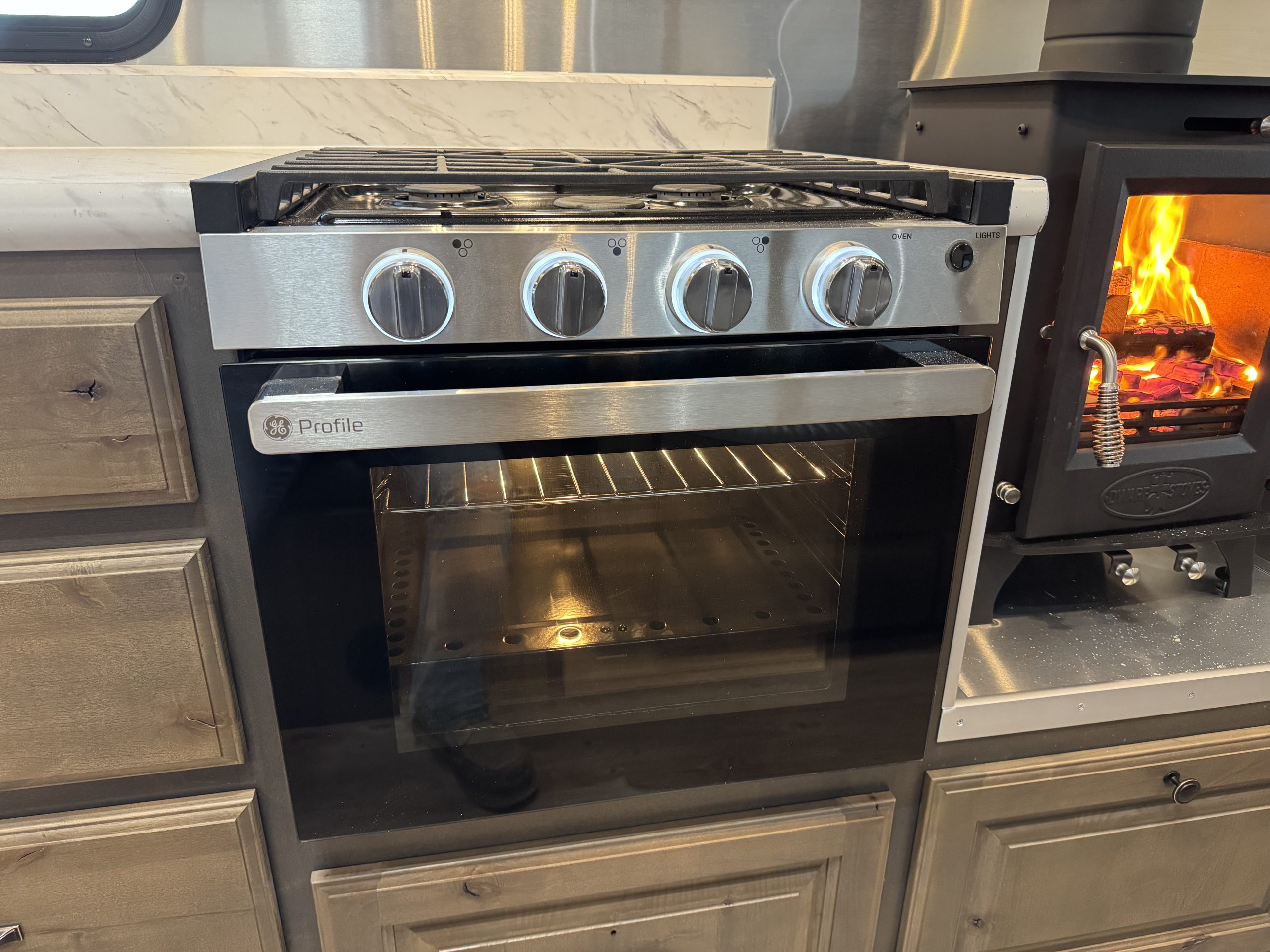

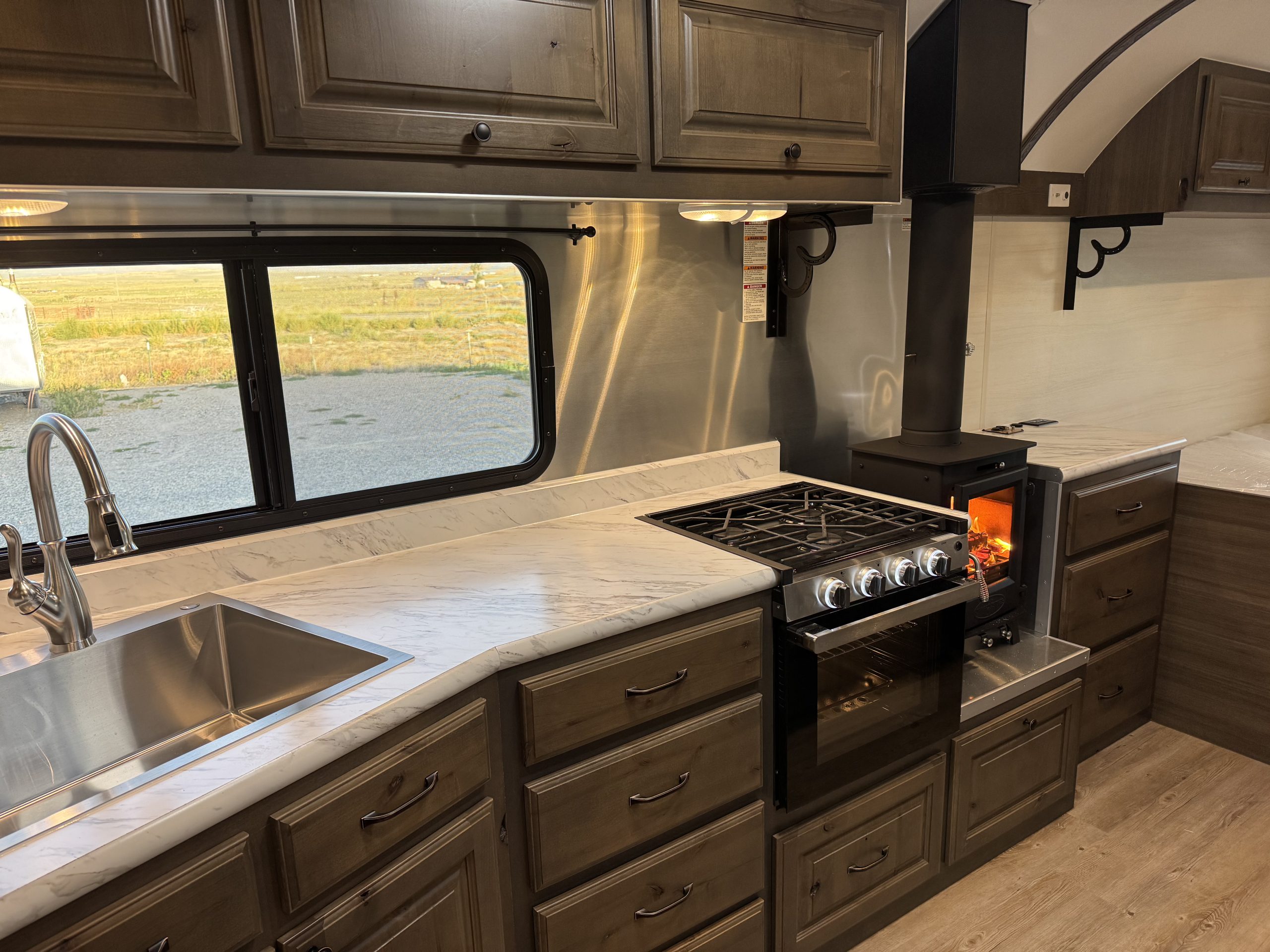

- Highlighted feature: 21 in. GE 3-Burner Cooktop and Oven with Direct Spark

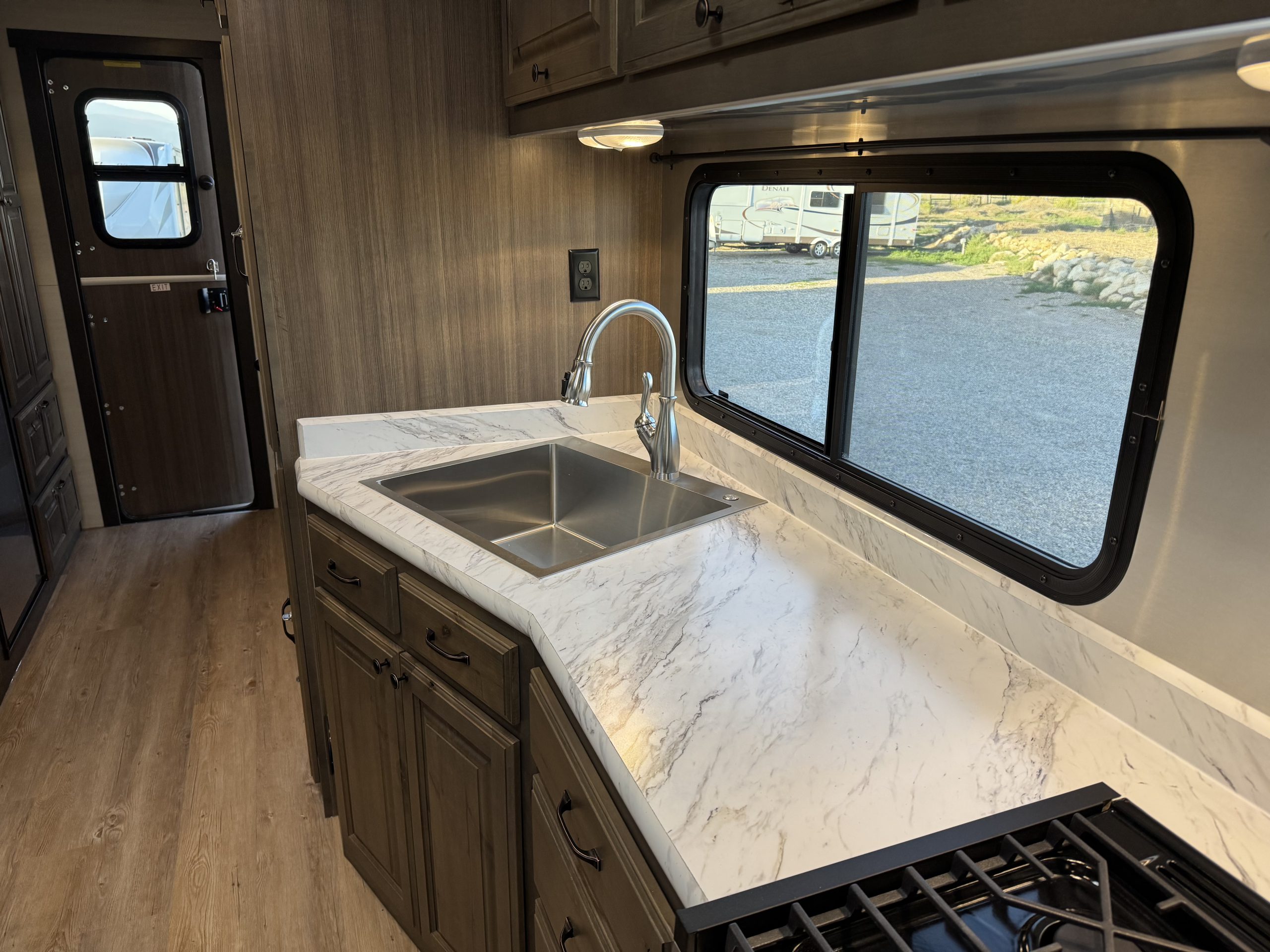

- Sink
- Single Stainless Steel Sink with Delta Residential-Grade Faucet
- Pantry
- 2x Pull-Out Pantries w/ Small Upper Cabinet
- Prep Surface
- Large Counter Space & Dinette
- Overhead Cabinet Storage
- Large Overhead Cabinets (Each Side of Camp)
- Drawer Storage
- 2x Bank of Four Drawers (By Oven & By Fridge)
- Open Storage
- Open Storage Below Sink & Oven
- Lighting
- LED Lighting Below Overhead Storage
- Power
- AC Outlets on Walls Above Countertop
- Window
- Large 48 in. Window Above Sink
Dining
- Dinette
- 3-Person Dinette Booth
- Overhead Storage
- Large Overhead Cabinet (Outlet Beneath)
- Lighting
- LED Light Below Overhead Cabinet
- Power
- AC Outlet Below Overhead Cabinet (Above Dinette)
- Window
- Large 48 in. Window Above Dinette
Living & Entertainment Space
- Layout
- Highlighted feature: Recliner Setup
- Primary Seating

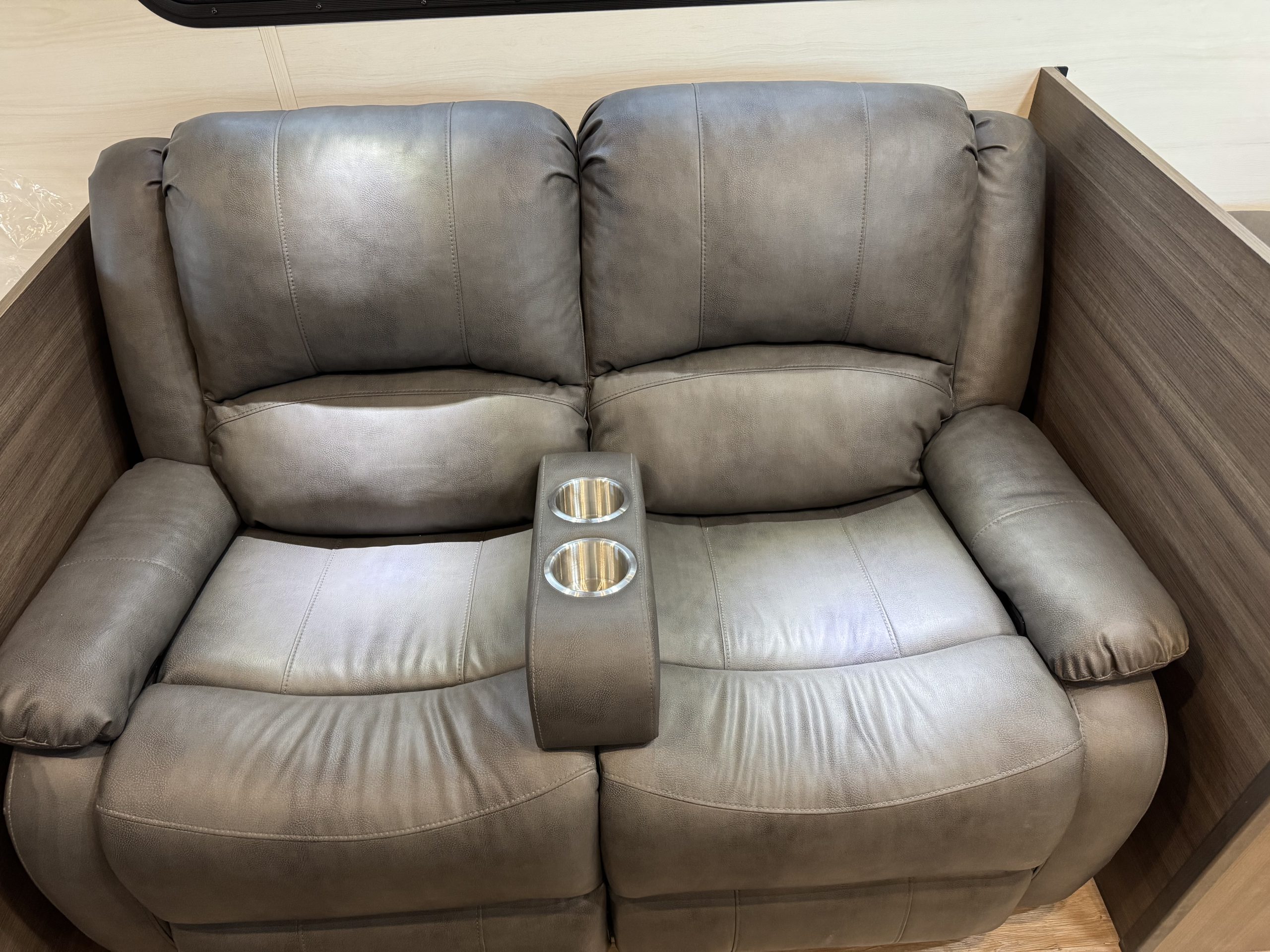

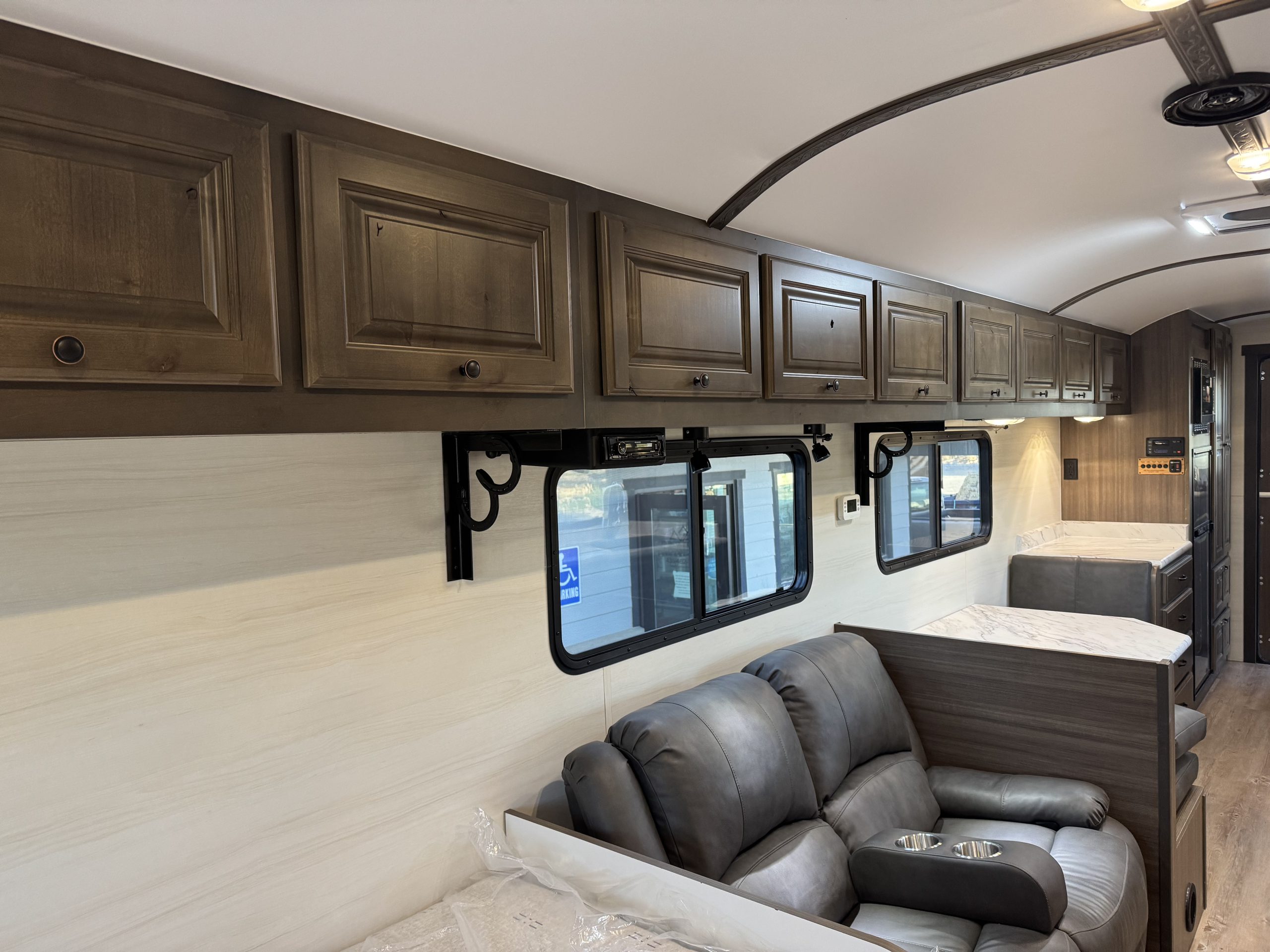

- Highlighted feature: 2-Person Reclining Sofa w/ Removable Center Console (MOD-58CG)
- Entertainment / Media Storage
- Chest of 5 Drawers
- Overhead Storage
- Large Overhead Storage Cabinet
- Lighting
- Highlighted feature: LED Reading Lights Above Each Seat
- Power & Connections
- AC Outlet, DC Socket, USB Ports, & Coax Connections on Media Chest
- Window
- Large 48 in. Window Above Recliners
Bedroom / Sleeping
- Layout
- Split-Bed Layout
- Bed Configuration
- 2x Twin XL North/South Beds
- Mattresses
- Twin XL Mattresses
- Nightstands
- Single Middle Nightstand with Single Drawer & Power/USB Connections
- Overhead Storage
- 3x Large Overhead Cabinets (Wrap-Around Storage)
- Under-Bed / Trundle Storage
- Single Drawer & Open Storage Below Each Bed
- Lighting
- Highlighted feature: LED Reading Lights Above Each Bed
- Power & Connections
- AC Outlet & USB Ports on Nightstand
- Window
- Rear Egress Window

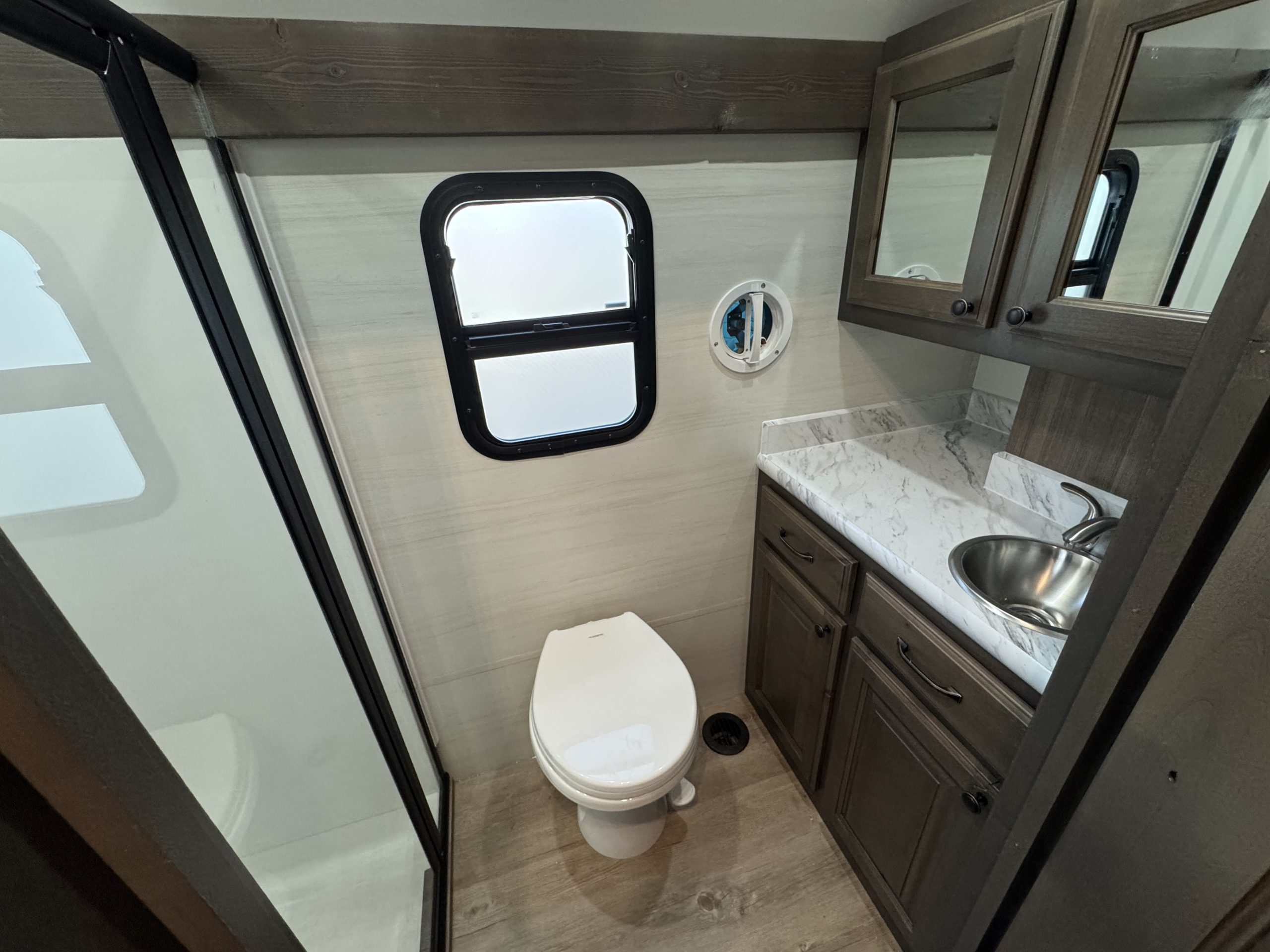

Bathroom
- Size / Configuration
- Small Three-Quarter Bath
- Door
- Solid Hardwood Door with Full Length Hinge

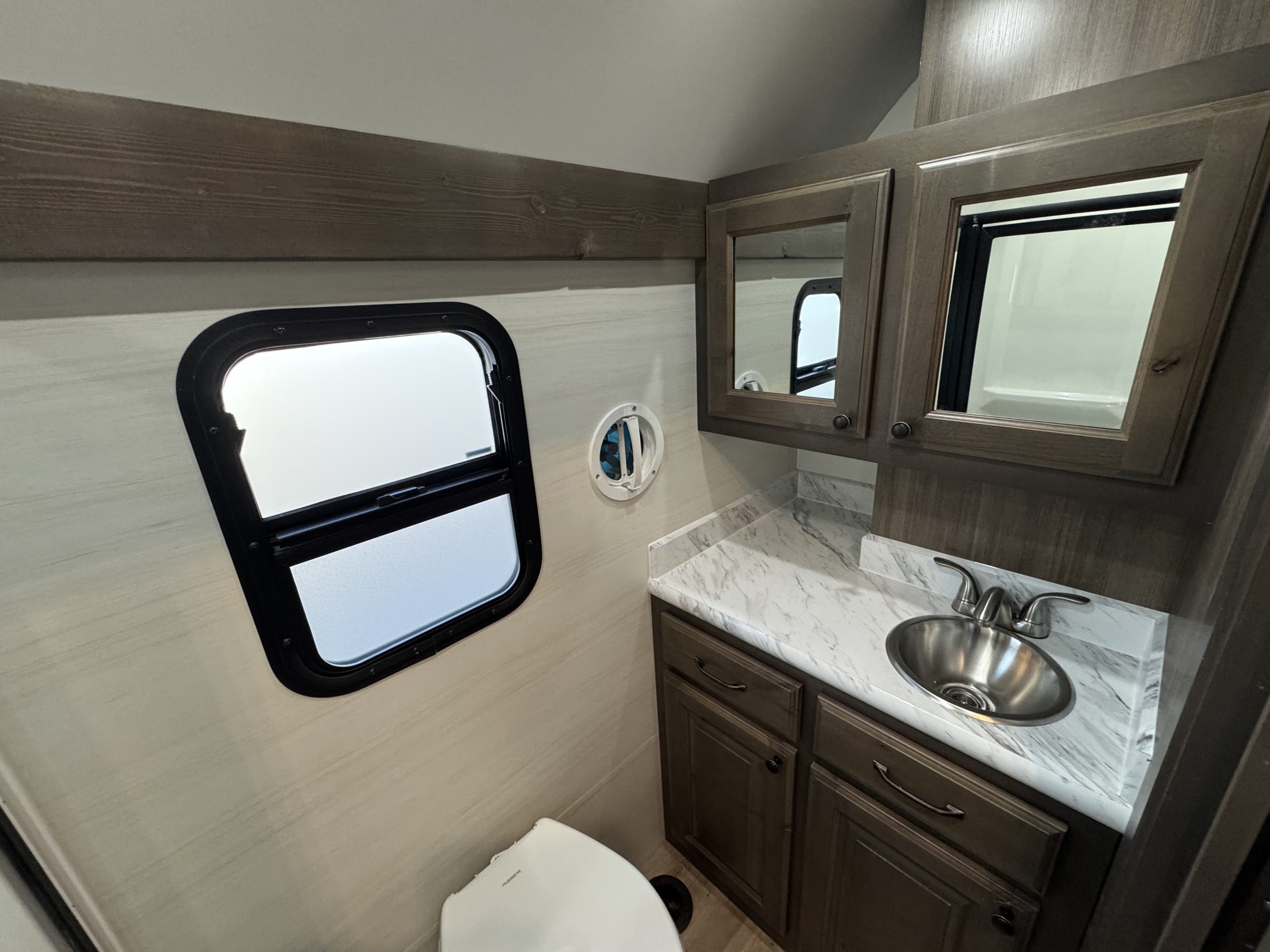

- Vanity
- Standard Vanity with Small Drawer, Shelving, & Closed Storage
- Sink
- Small Round Stainless Steel Sink with Residential Faucet
- Shower

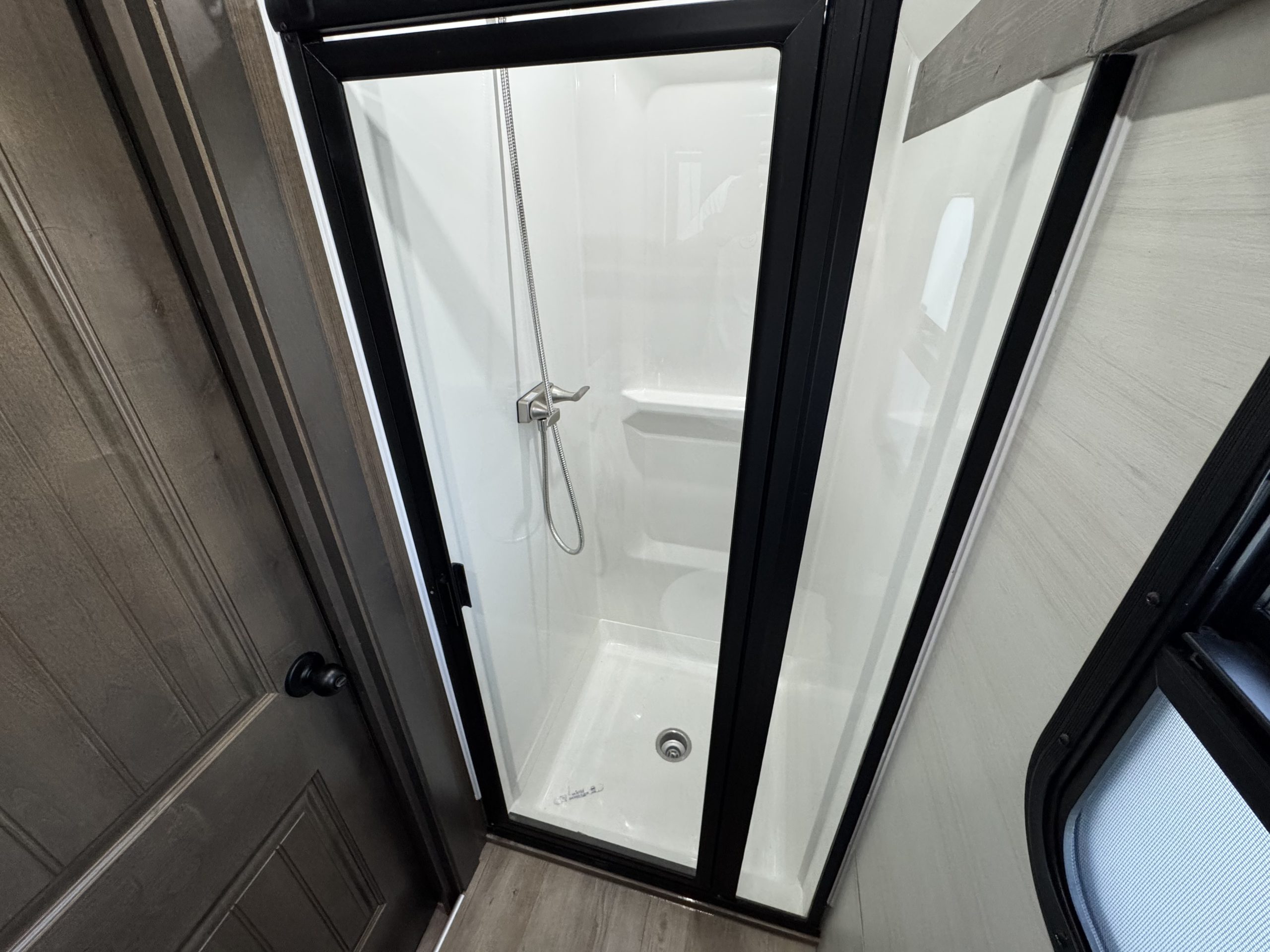

- 32 x 32 in. Shower with Glass Door & Stainless Steel Fixtures
- Toilet
- Small Dometic Porcelain Toilet (China Bowl) w/ Foot Pedal Flush
- Window
- Small Frosted Sliding Window
- Ventilation
- 12V Bathroom Exhaust Fan
- Lighting
- Small Dimmable LED Ceiling Pocket Lights
- Power
- Single AC Outlet Below Medicine Cabinet
Fuel & Power
Power

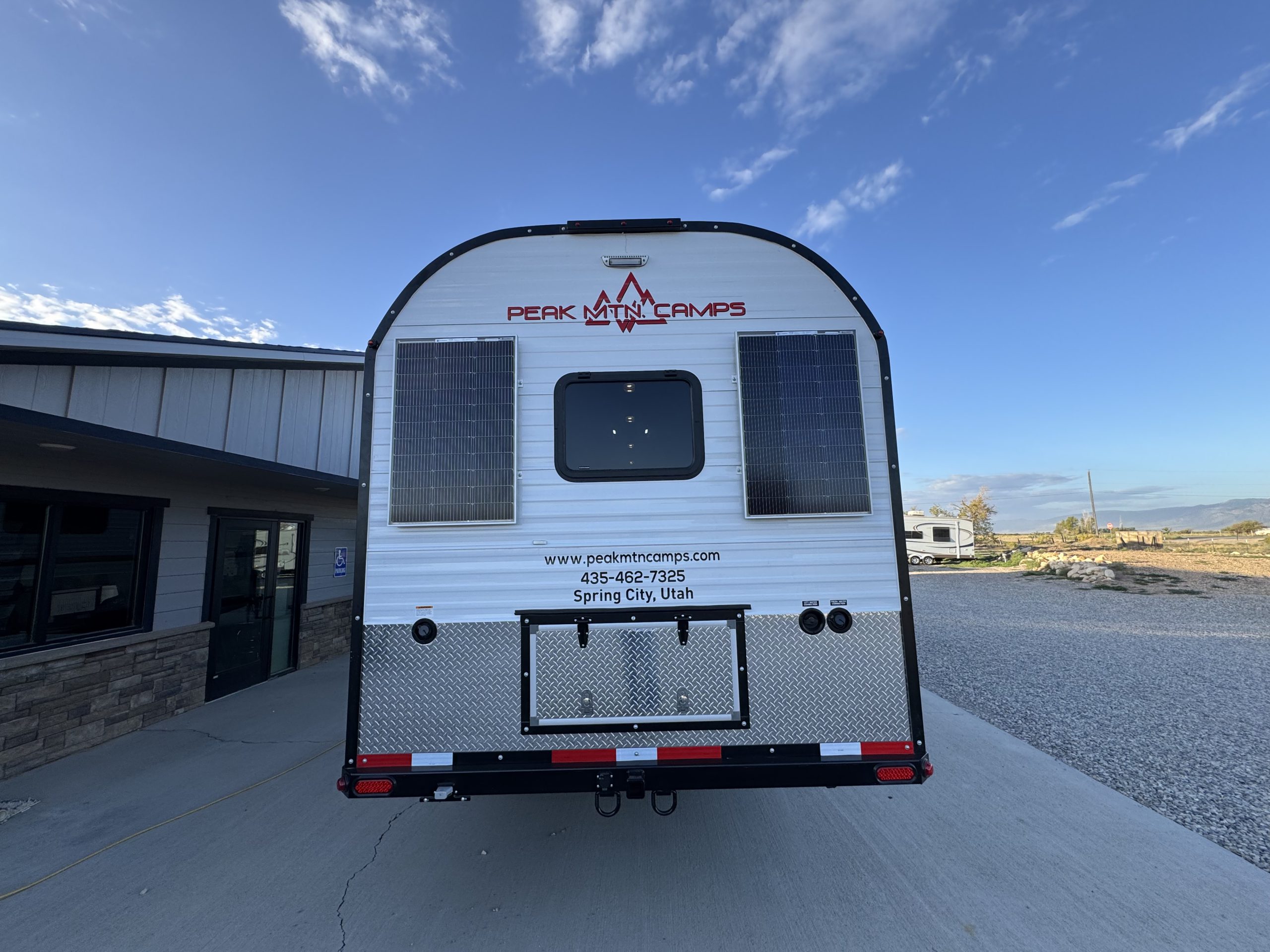

- Solar Panels
- Two 100 W Panels
- Solar Controller
- Standard
- Battery Bank
- 6x 6V Deep Cycle Batteries
- Power Center
- 120V AC / 12V DC (Under Dinette Bench)
- Shore Power
- 30 A Service Hookup (25 ft. Cord Included)
- Accessible Electrical Systems & Wiring
- Standard
Propane
- Tanks
- Two 7 gal. 30 lb Tanks
- Tank Cover
- Quick Access Propane Tank Cover
- Propane Connections
- 1x Quick-Connect (Curbside)
Plumbing
General
- Plumbing Protection
- Fully Insulated & Heated Plumbing
- Fittings
- Brass & Stainless Steel Water Fittings
- Monitoring Panel
- Tank Monitors for Fresh, Gray, and Black Water Tanks
- Accessible Plumbing Systems
- Standard
Fresh Water
- Fresh Water Tank(s)
- Highlighted feature: 2x 42 gal. Fresh Water Tank
- Water Heater
- 6 gal. Propane Water Heater (Under Kitchen Sink)
- Water Pump
- Standard Shurflo 12V Water Pump
- Exterior Shower
- External Spray Port w/ Interior Shutoff Valves
- Fresh Water Connection
- Standard
- City Water Connection
- Standard
Waste Water
- Holding Tank Cover
- Insulated Metal Tank Cover
- Sewer Hose Storage
- Standard
- Black Water Tank
- 35 gal. Black Water Tank
- Gray Water Tank
- 35 gal. Gray Water Tank

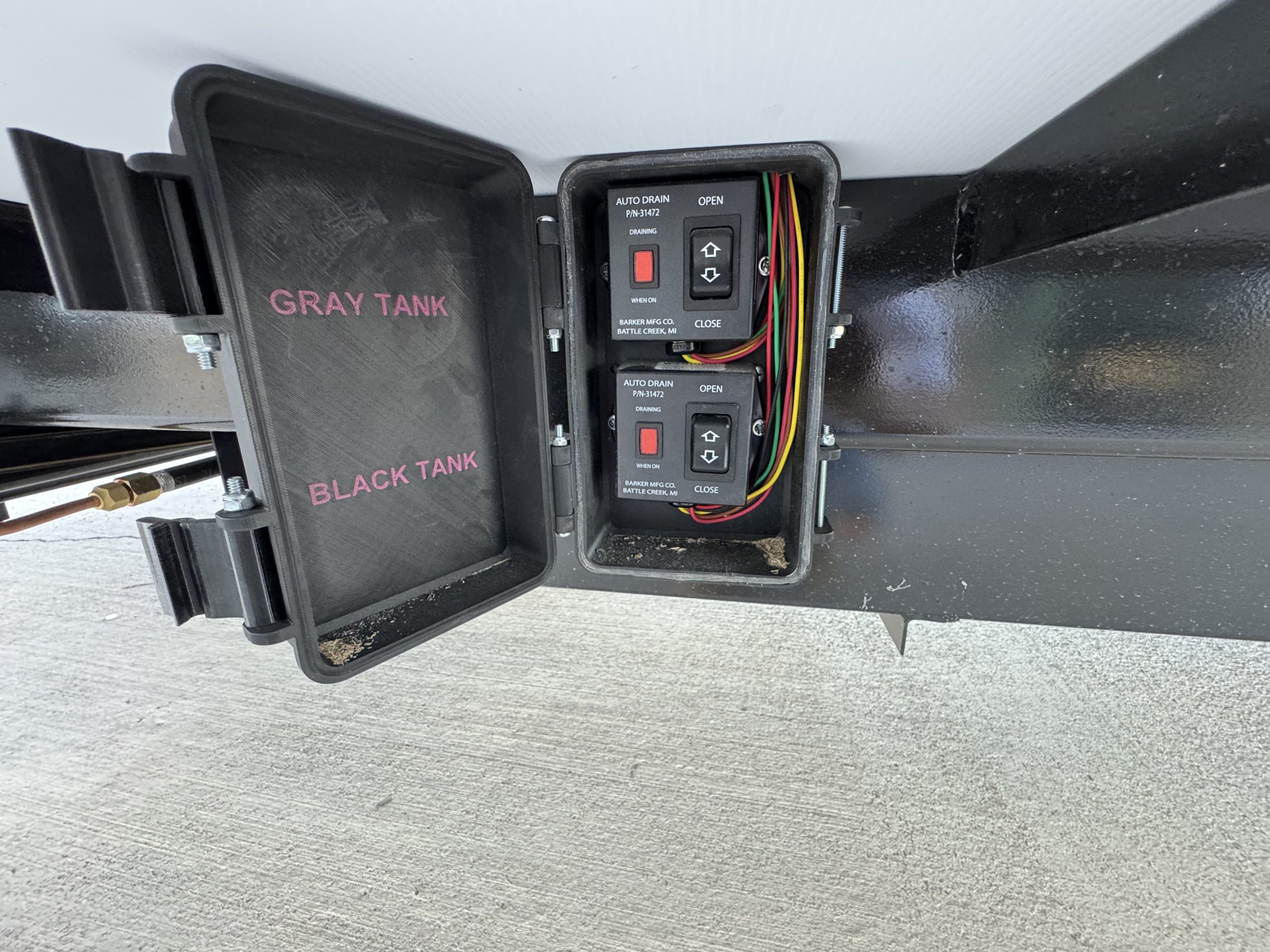

- Electric Waste Gates
- Highlighted feature: Added
- Sewage Hook-Up
- Standard
Climate Control
Heating & Cooling

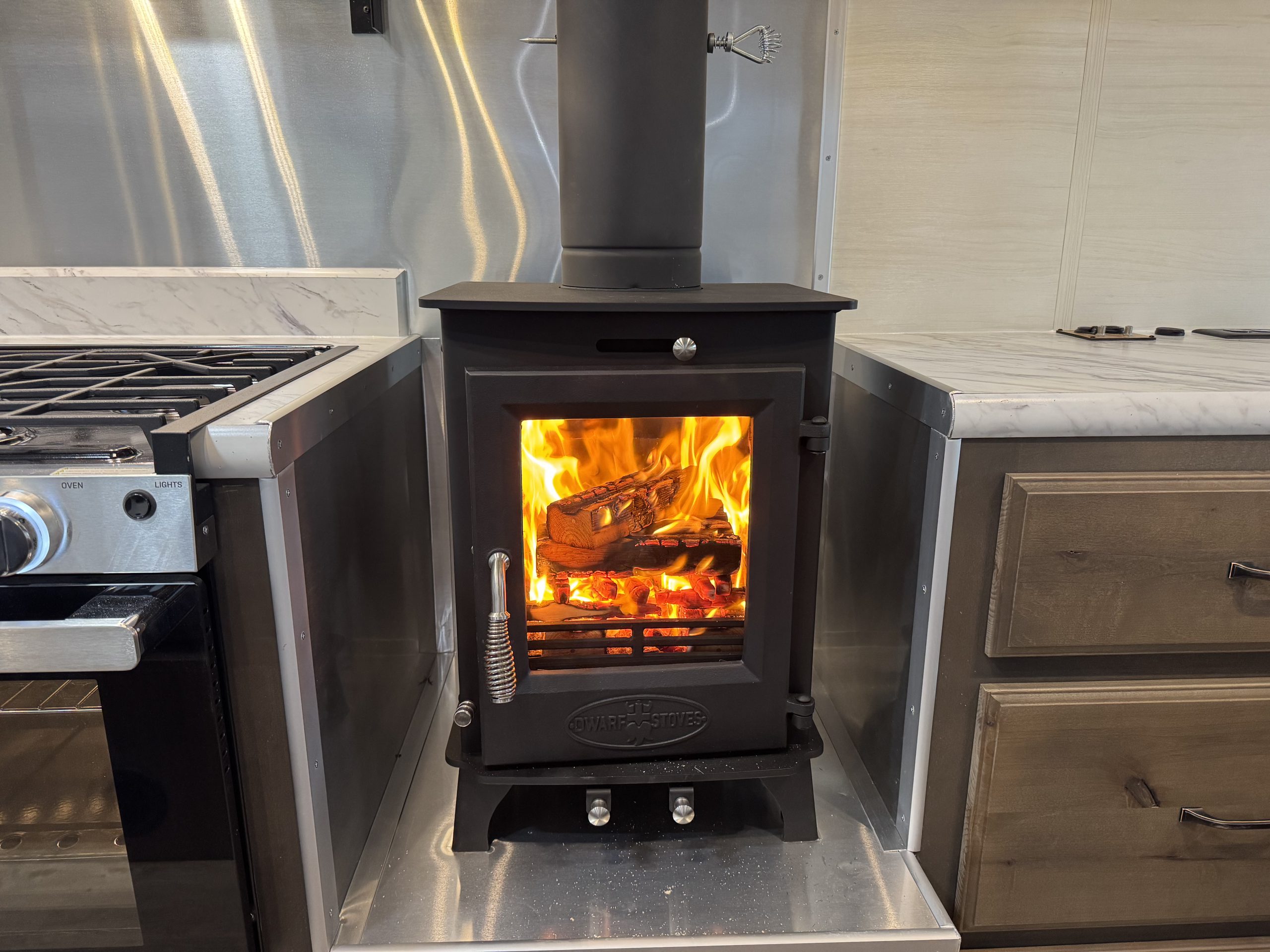

- Wood Burning Stove
- Standard
- Furnace
- 30,000 BTU Forced-Air Furnace (Under Dinette Bench)
- Air Conditioning

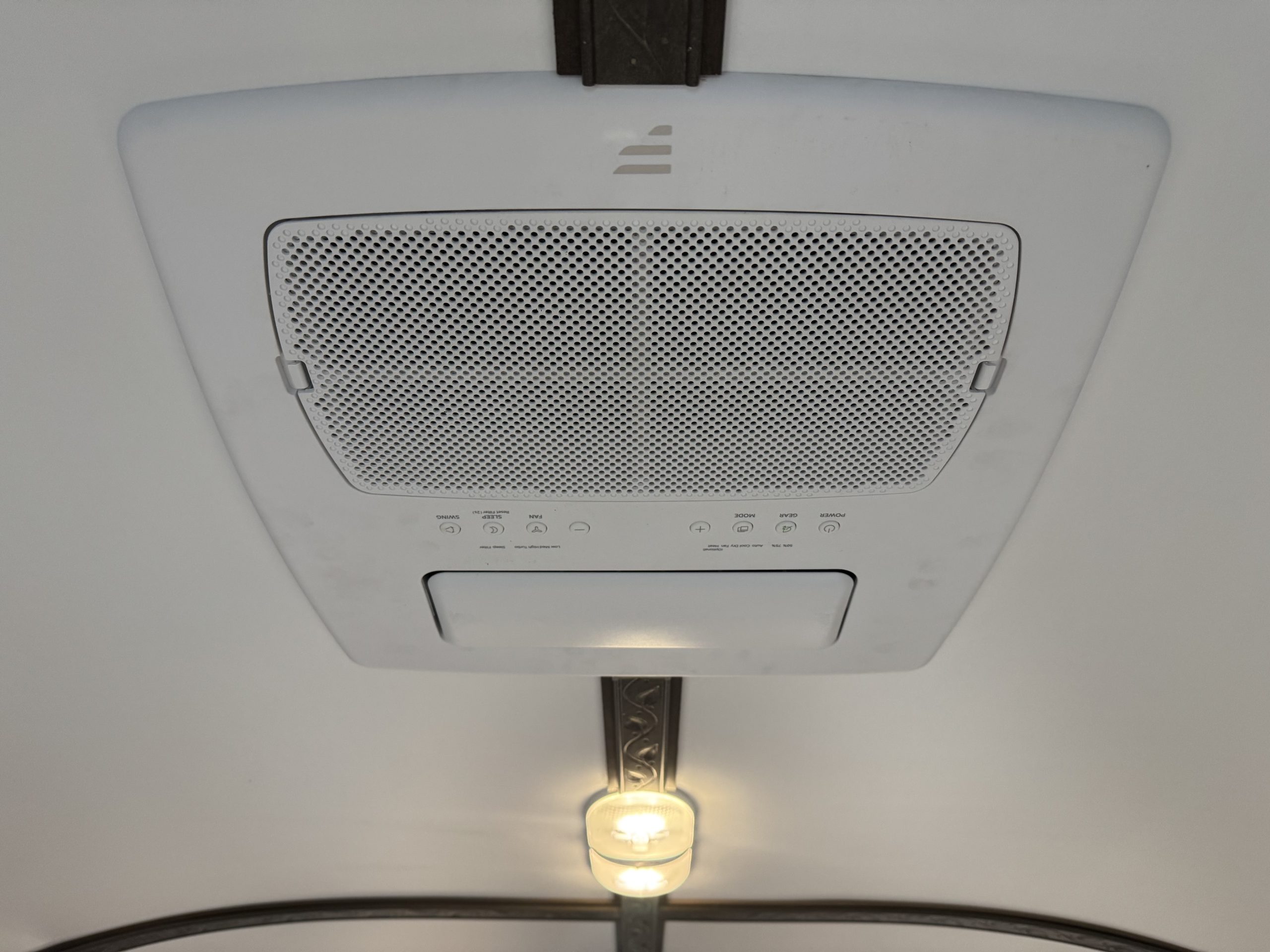

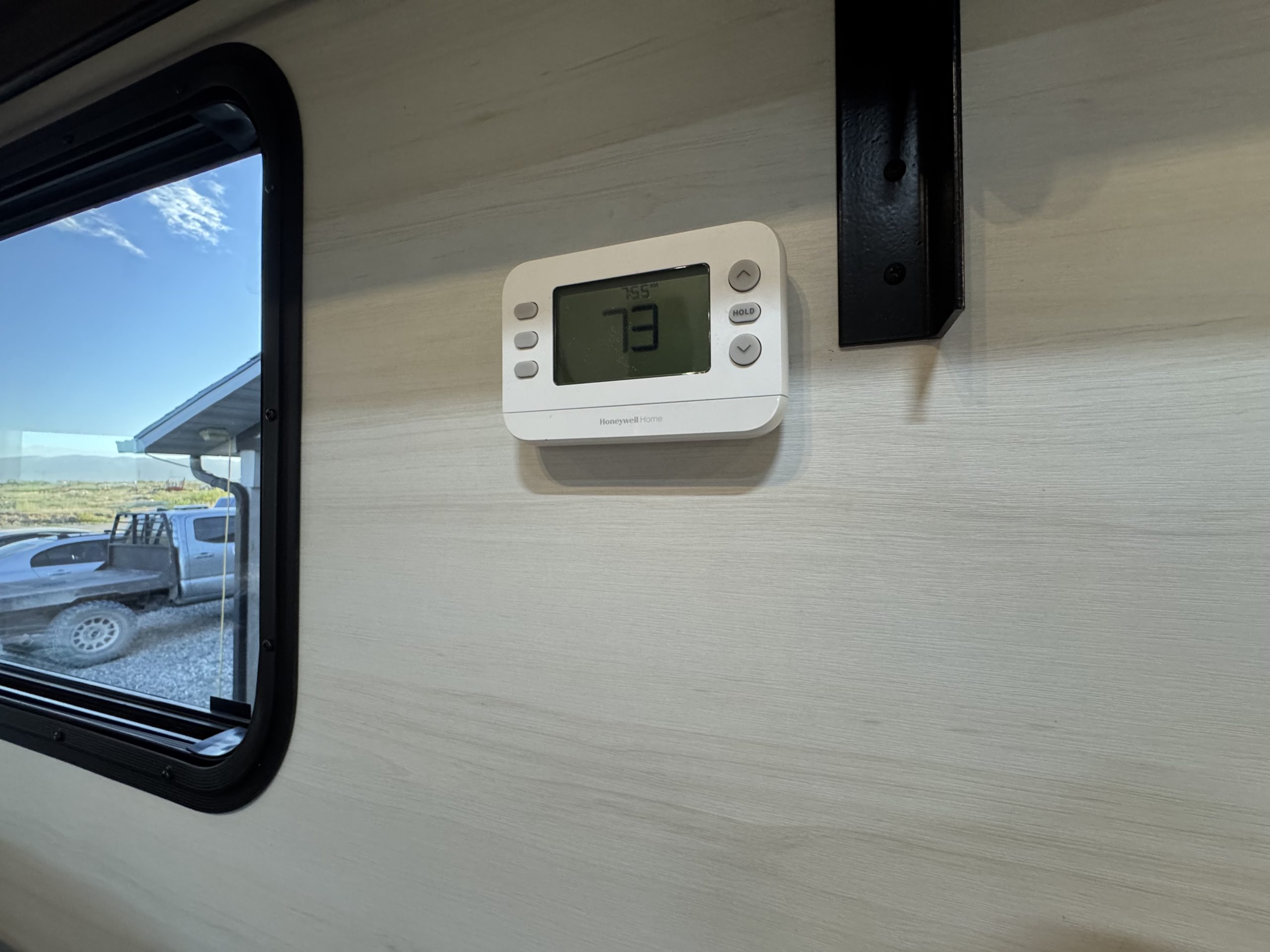

- Highlighted feature: Furrion Ultrasonic Variable-Speed Temperature-Controlled A/C with Remote
- Ventilation
- Highlighted feature: Fantastic Fan with Remote, Temperature Control, & Rain Sensing
- Recirculation Fan
- Standard 12V Air Circulating Fan
Internet & Entertainment
Connectivity
- Exterior Ethernet Port (RJ45)
- Standard (Ready For Starlink)
- Exterior Coax Port
- Standard
Entertainment
- TV
- Prepped for TV (TV Mount Added)
- Stereo
- Highlighted feature: Built-In Kenwood Stereo with CD Player, Bluetooth & Satellite Connection
- Premium Sound System

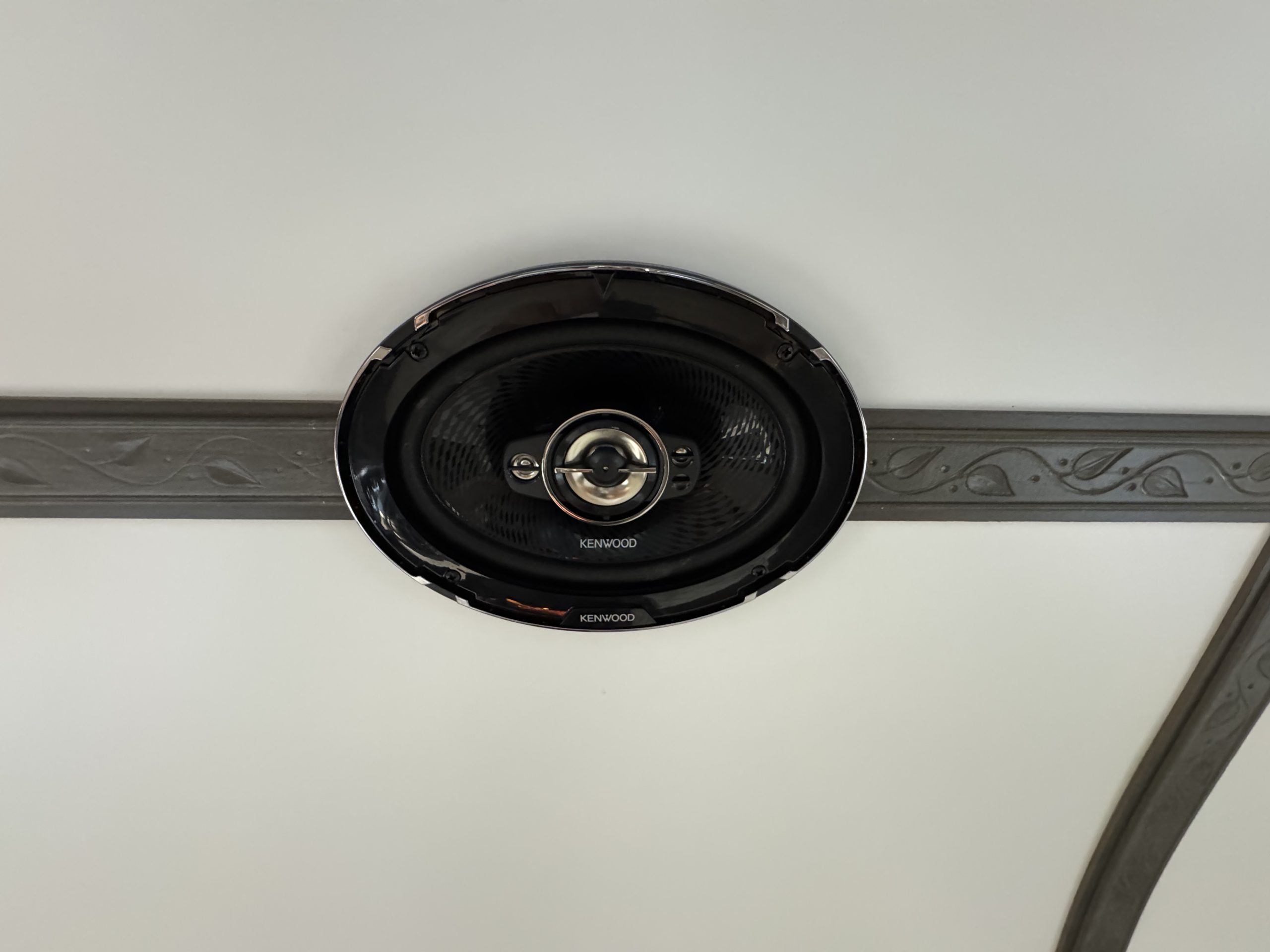

- Highlighted feature: Built-In Speakers In Ceiling
Construction & Finishes
Construction
- Ceiling Insulation
- 6 in., R-19
- Floor Insulation
- 6 in., R-19
- Walls
- 2 in. Thick
- Serviceability
- Utilities Remain Accessible For Repairs
Cabinetry
- Cabinets
- All-Hardwood Cabinets
- Hardwood
- Knotty Alder
- Hinges
- Soft-Close Hinges
- Drawer Construction
- Dovetail Construction
- Drawer Slides
- Self-Latching, Travel-Secure Slides
- Thumb Latches
- Included On Large Drawers
- Overhead Cabinet Doors
- Gas-Strut-Supported Cabinet Doors
Finishes & Colors
- Wall Color
- Wilsonart White Cypress (7976-12)
- Cabinet Color
- Wilsonart Studio Teak (7960-18)
- Countertop
- Wilsonart Calcutta Marble (4925-38)
- Cabinet Hardware
- Rubbed Bronze Pulls, Knobs, & Handles
- Recliners & Cushions
- Tiona Gunmetal
- Flooring
- Luxury Vinyl Plank Flooring
- Floor Color
- Karndean Country Oak (VGW81T)
- Ceiling Trim

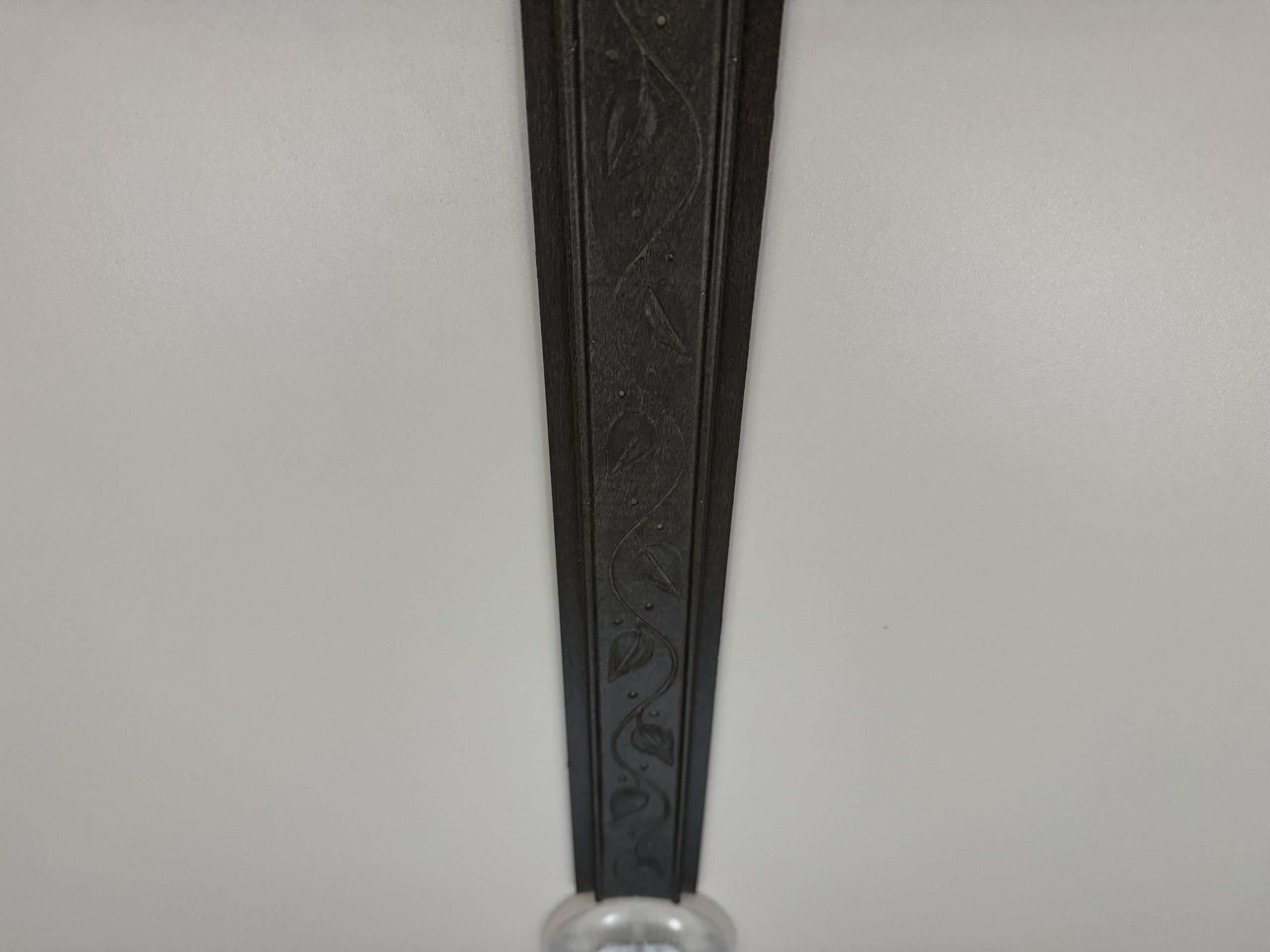

- Rosewood Carved Ceiling Trim
- Window Shades
- Curtains
- Wood Accents & Engravings

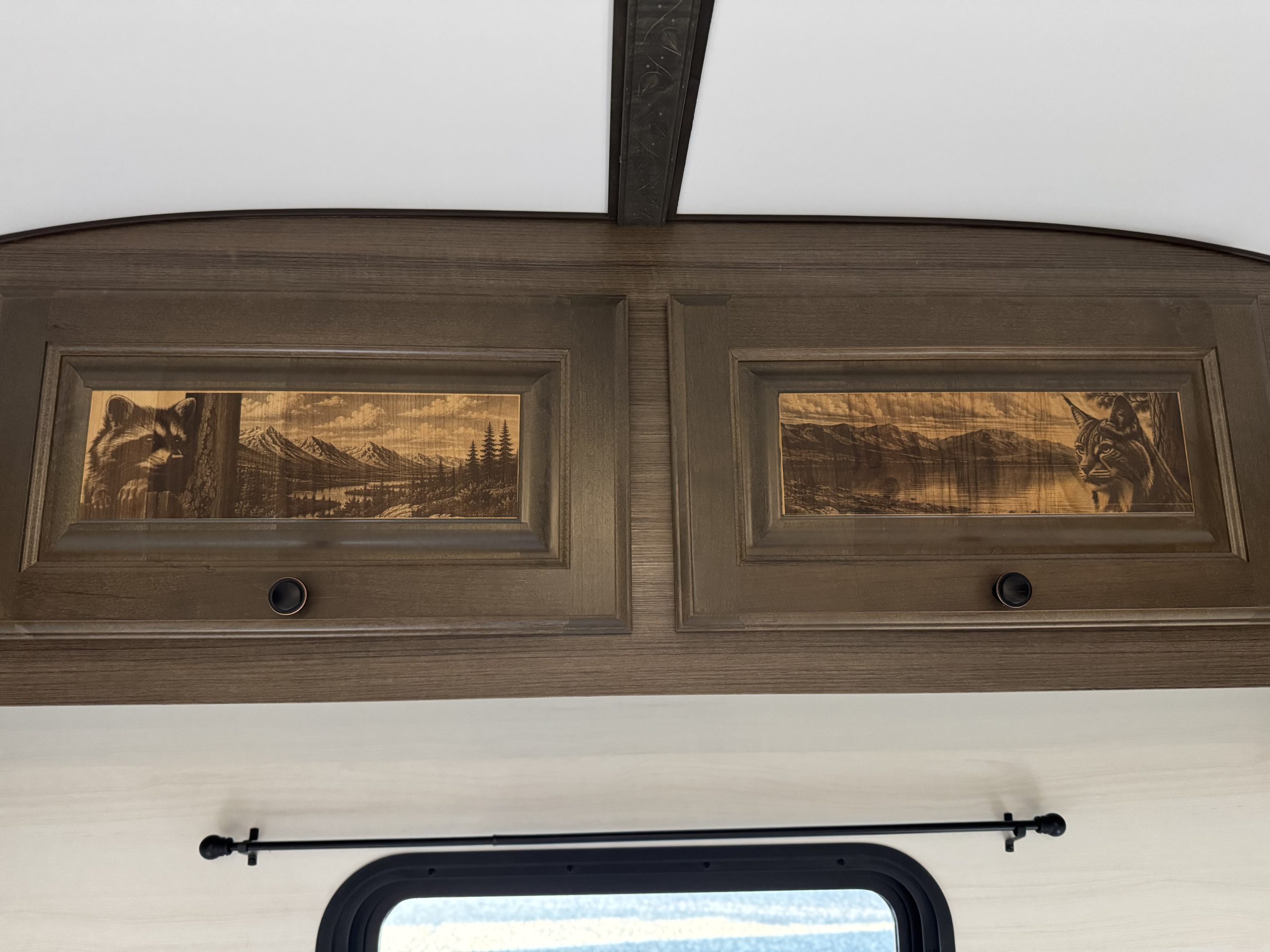

- Highlighted feature: Bobcat & Raccoon Laser Engravings
- Decor
- Welded Horseshoe Accents
Frame, Chassis, & Towing
Frame
- Platform
- X33
- Wheel Wells
- Metal-Encased Wheel Wells to Protect from Road Debris and Damage from Tire Blowouts
- Stabilizer Jacks
- All Four Corners
Chassis
- Axles
- Dual 7,200 lb Axles w/ Easy Lube Hubs
- Wheels
- 8-Lug Wheels with 16 in. Rims
- Tires
- 16 in. E-Load ST235/80R16
- Brakes
- Standard Trailer Brakes
- Suspension
- Over-The-Axle Leaf-Sprung Suspension
Towing
- Hitch Type
- Bumper Pull
- Coupler
- Adjustable 2 5/16 in. 15,000 lb Coupler
- Ball Height
- Adjustable
- Tongue Jack
- Drop Leg Side-Wind Manual Jack
- Spare Tire
- Standard Drop-Down Spare Tire
- Rear Receiver Check Local Regulations
- Standard 2 in. Receiver Rated For Pulling Doubles
- 7-Way Plug
- Standard
- Towing Chains
- Included
Safety
General
- CO/LP Detector
- Standard
- Egress Window
- Rear Egress Window
Highway Safety
- Road Markers
- DOT-Compliant Markers
- Reflective Tape
- Canadian-Compliant Reflective Striping
- Taillights
- Standard
- Trailer Lights
- DOT-Compliant LED Lights
- License Plate Lighting
- Standard
Fire Safety
- Smoke Detector
- Standard
- Fire Extinguisher
- Standard
- Fire Backer
- Fire Backer Behind Wood Stove & Fire-Lined Cabinetry
- Chimney
- Triple-Wall Flue & Chimney
- Battery Disconnect
- Standard
- NFPA 1192 Compliant National Fire Protection Association's Standard On Recreational Vehicles Learn more about NFPA 1192
- Yes
Dimensions
Exterior Measurements
- Width
- 102 in. (X-Series)
Interior Measurements
- Width
- 96 in. (X-Series)
- Area
- 208 sqft.
Weight
- GVWR Gross Vehicle Weight Rating (Axle Weight Sum)
- 14,400 lbs (6,538 kg)
More Details
Build
- Camp Name & Number
- Watson Camp (#134)
- Homebase
- Delta, Utah
- Completion
- September 2026
