Van Niewkoop Camp

This custom X27 camp pairs a traditional front-entry layout with a raised California king bed, a four-person dinette, and hardwood cabinetry. A full kitchen, shower, and Cinderella incinerating toilet provide everyday comfort, while solar power, a 3,000-watt inverter, and 84 gallons of fresh water support time away from hookups.

Platform
X27 Camp
Pricing Build pricing changes over time with material and component availability, supply-chain costs, and inflation. Final sale prices are kept private out of respect for each owner's privacy.
Contact Us

Inside And Out

Camp Photos

Take a closer look at Van Niewkoop Camp, from its exterior construction to the spaces and details inside. Browse the layout, storage, finishes, and everyday features that make this build its own, and open any photo for a closer view.

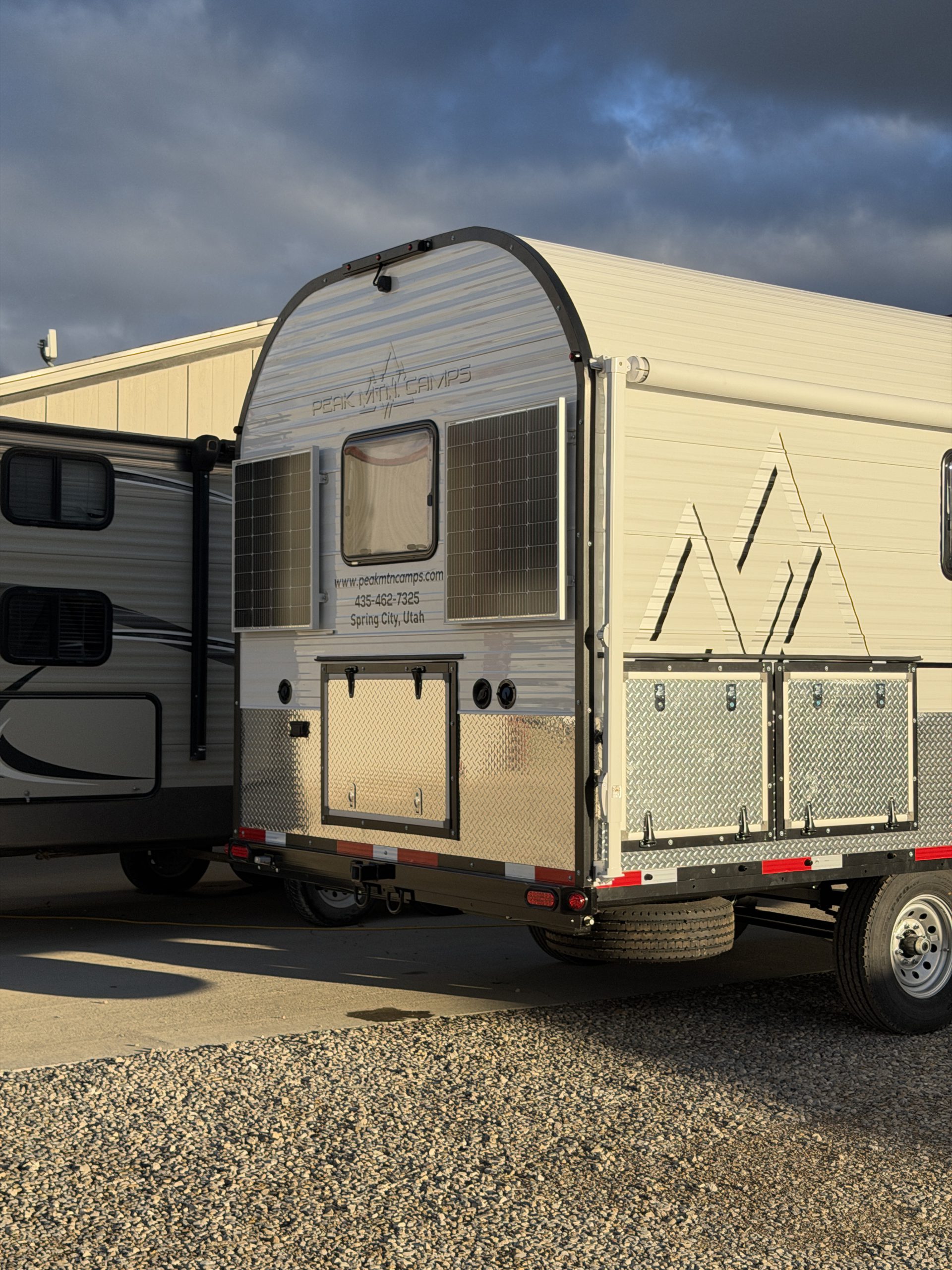

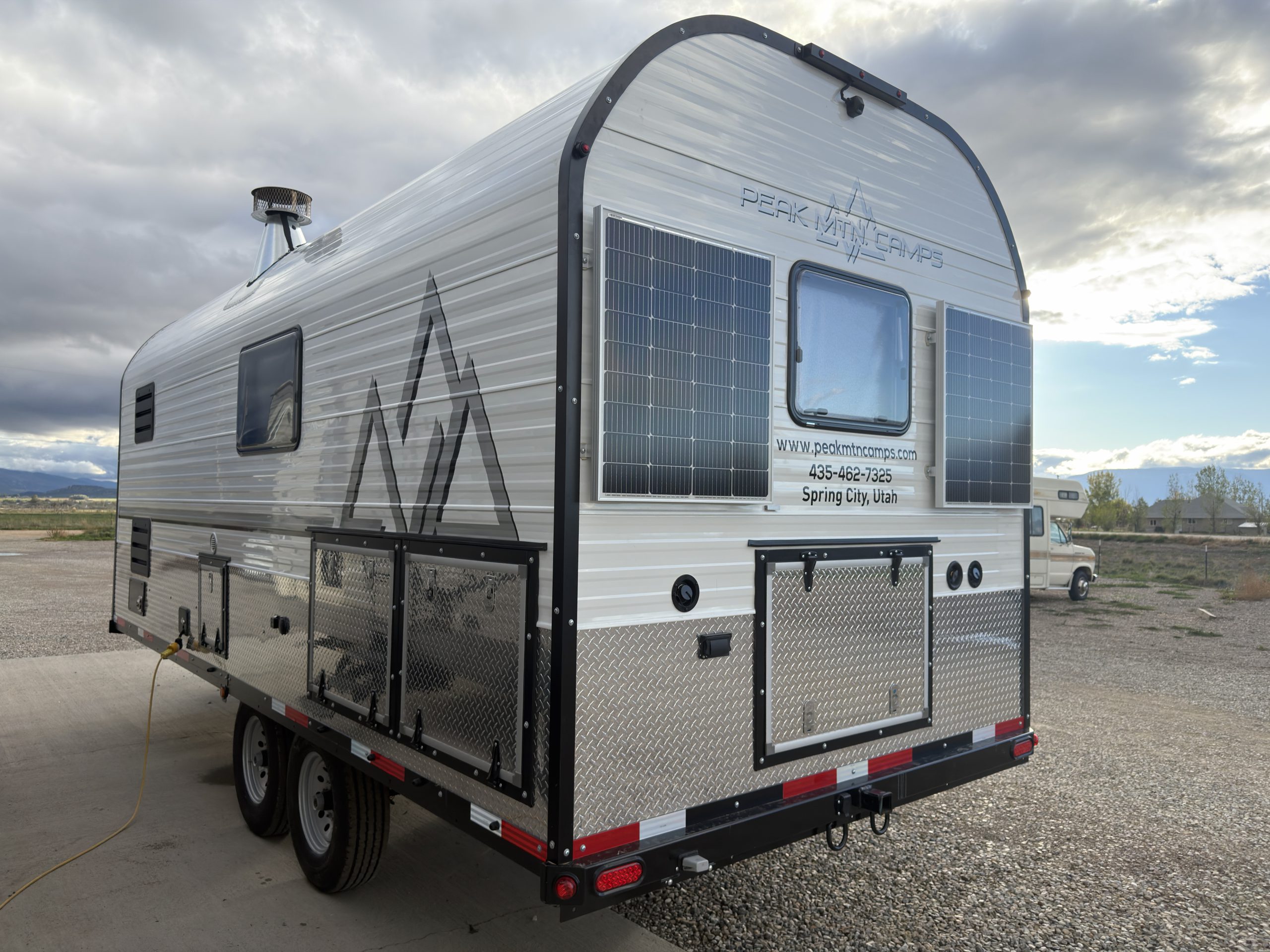

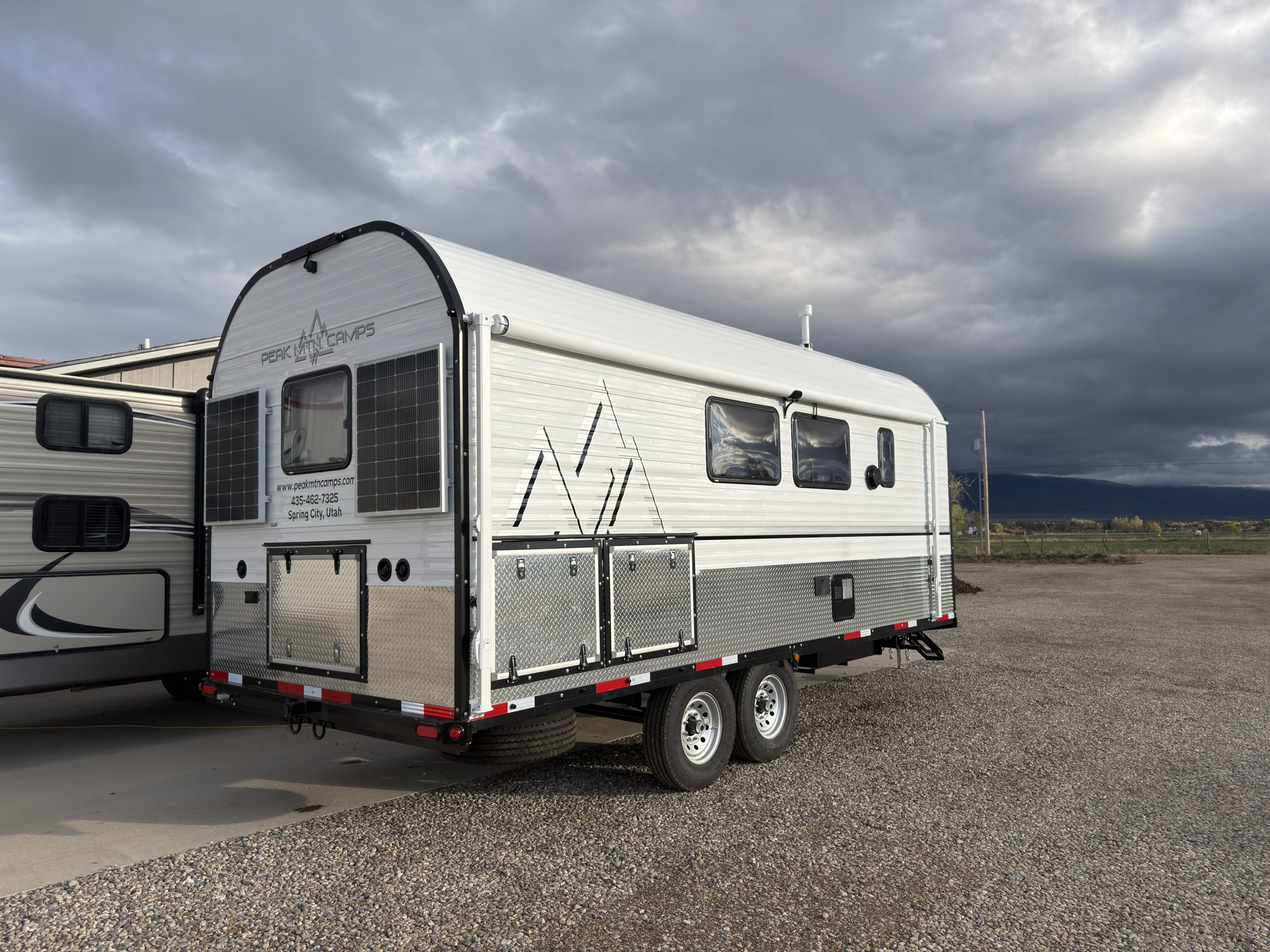

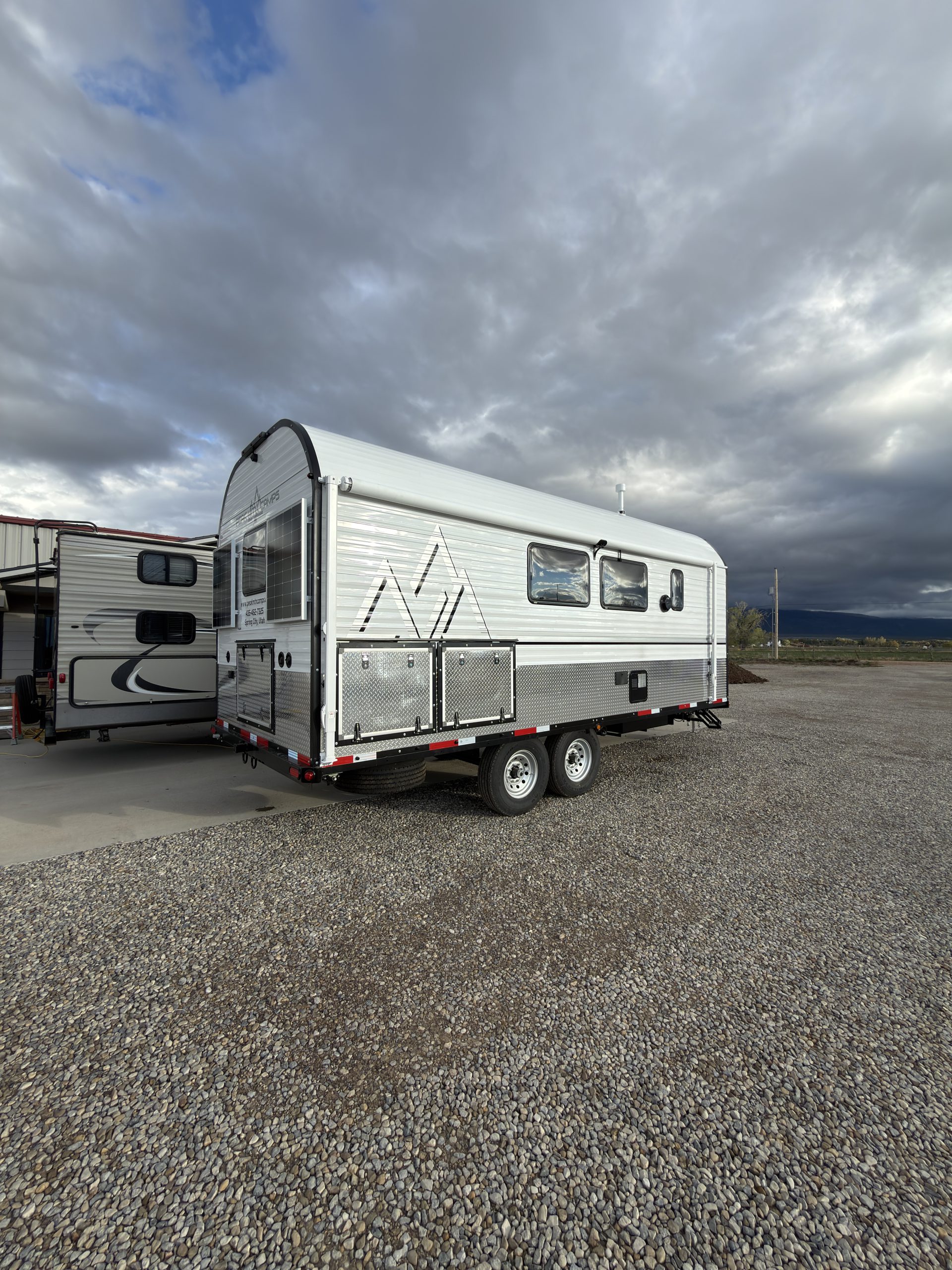

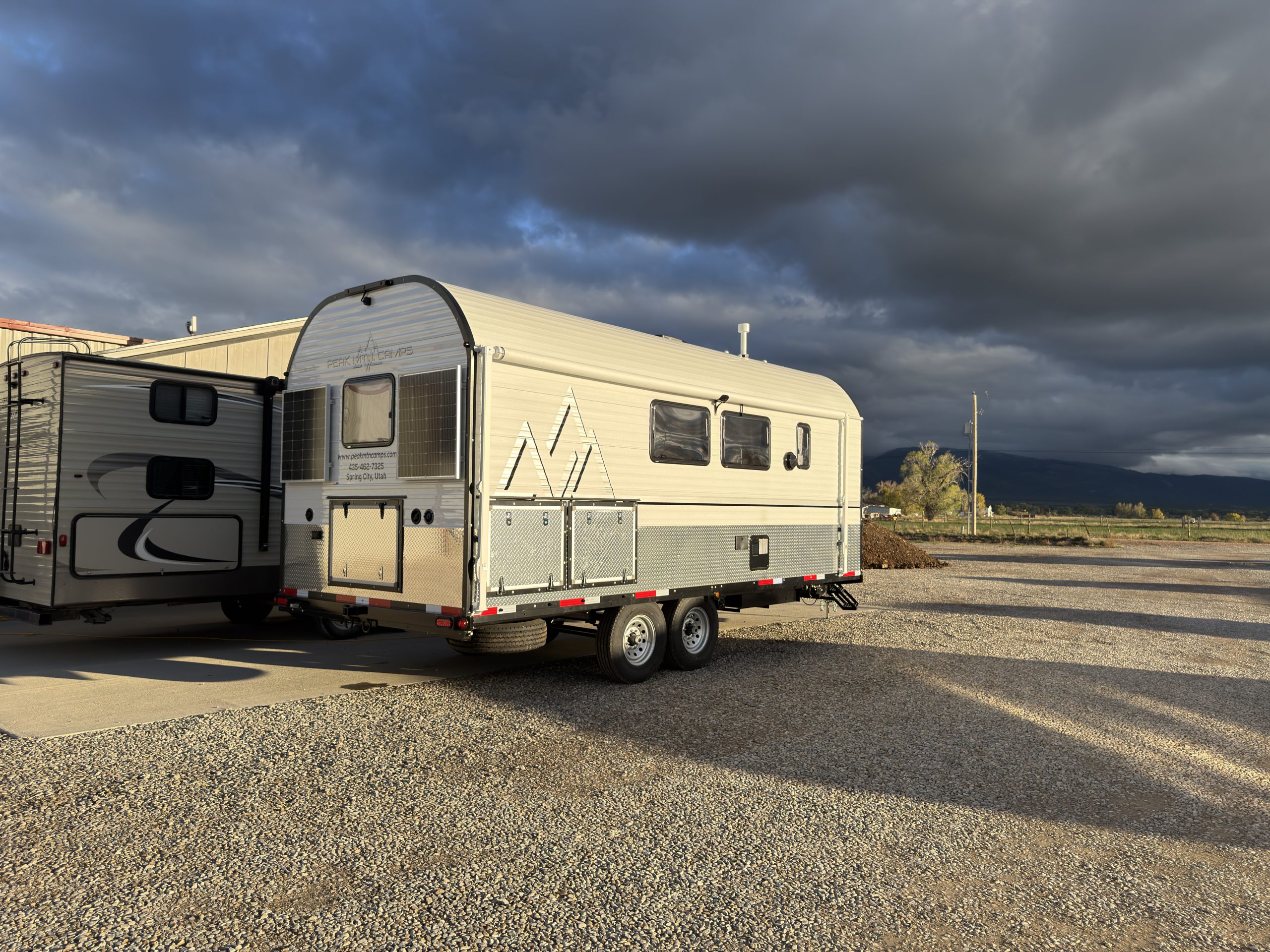

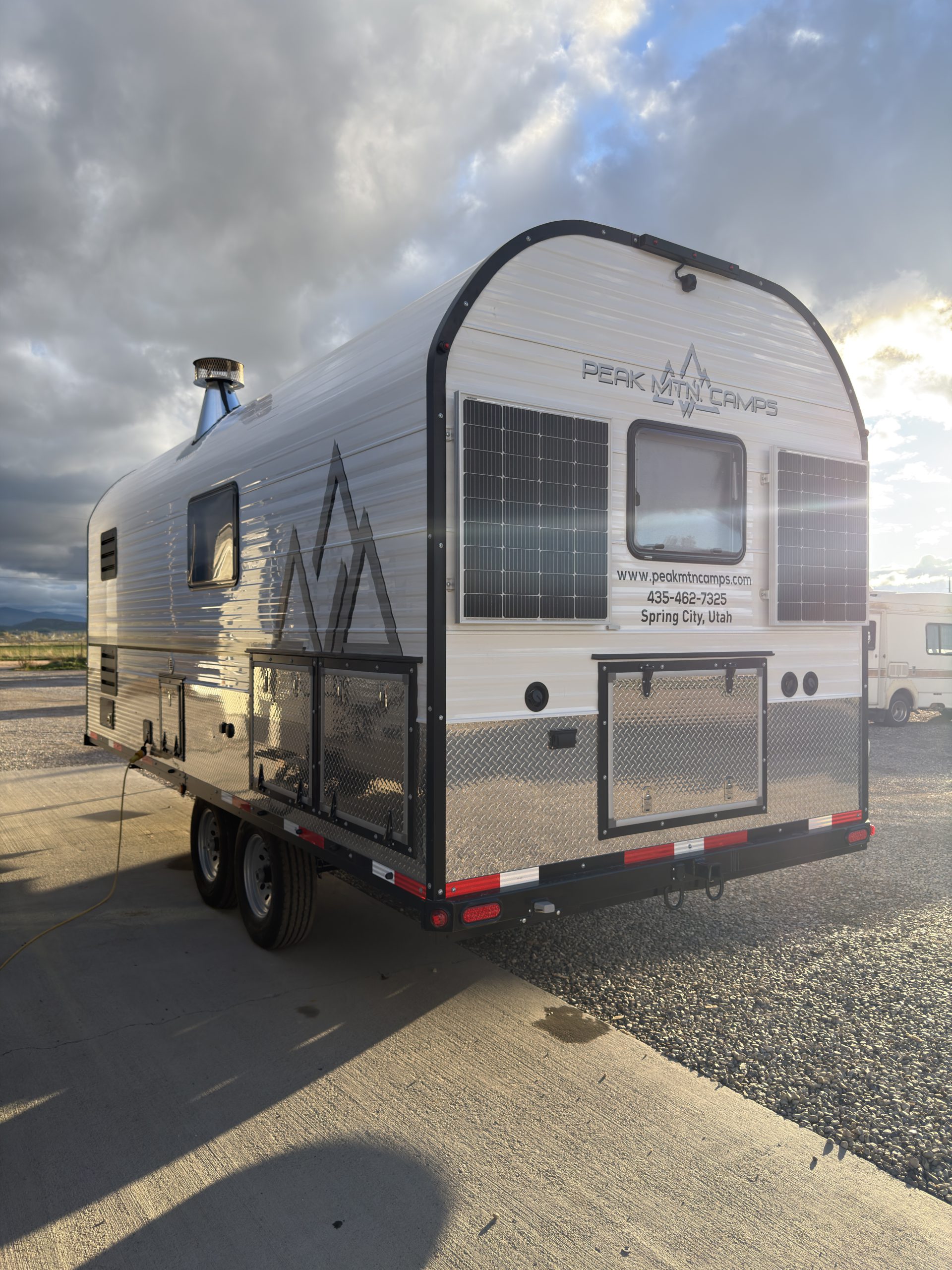

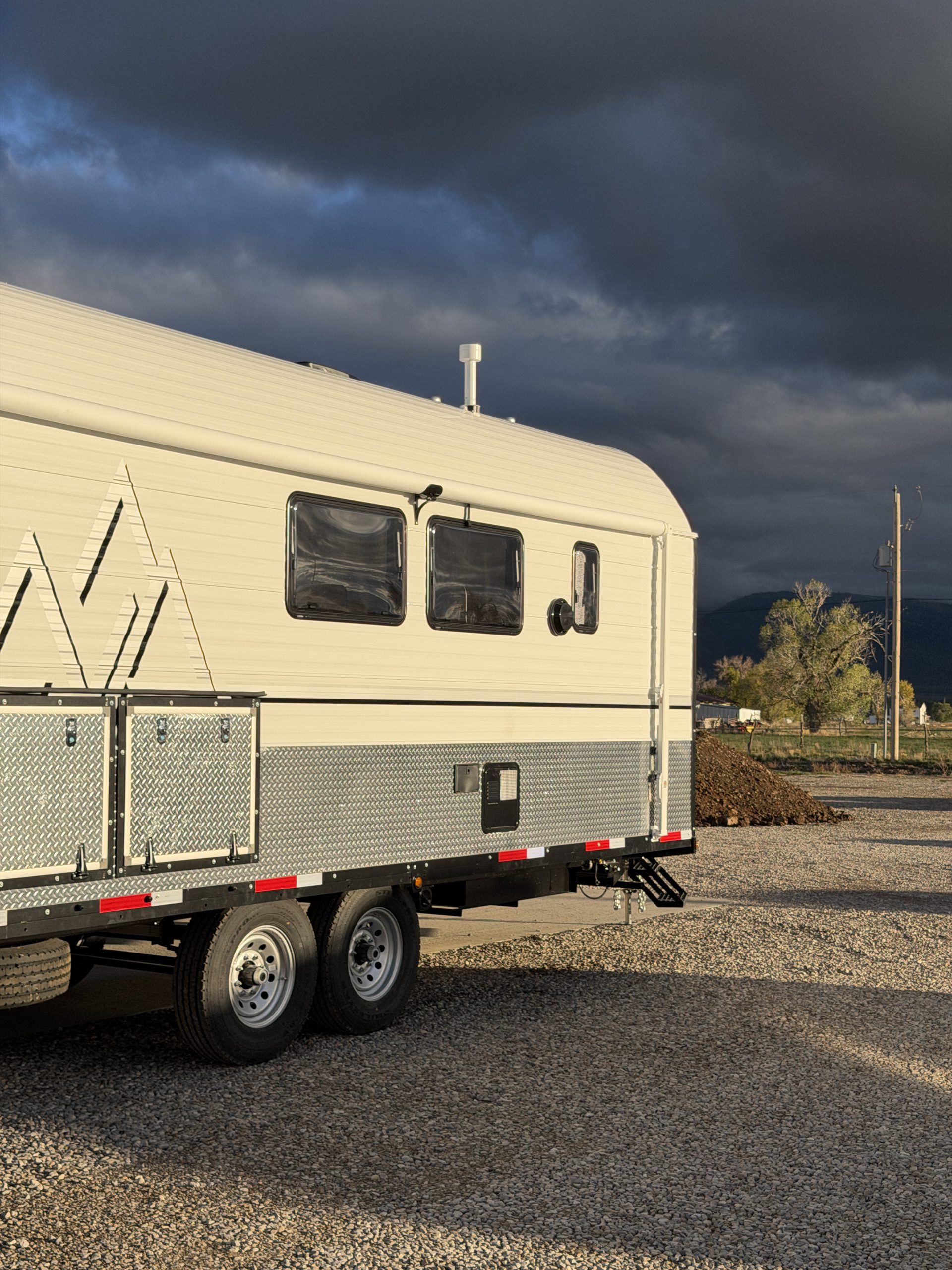

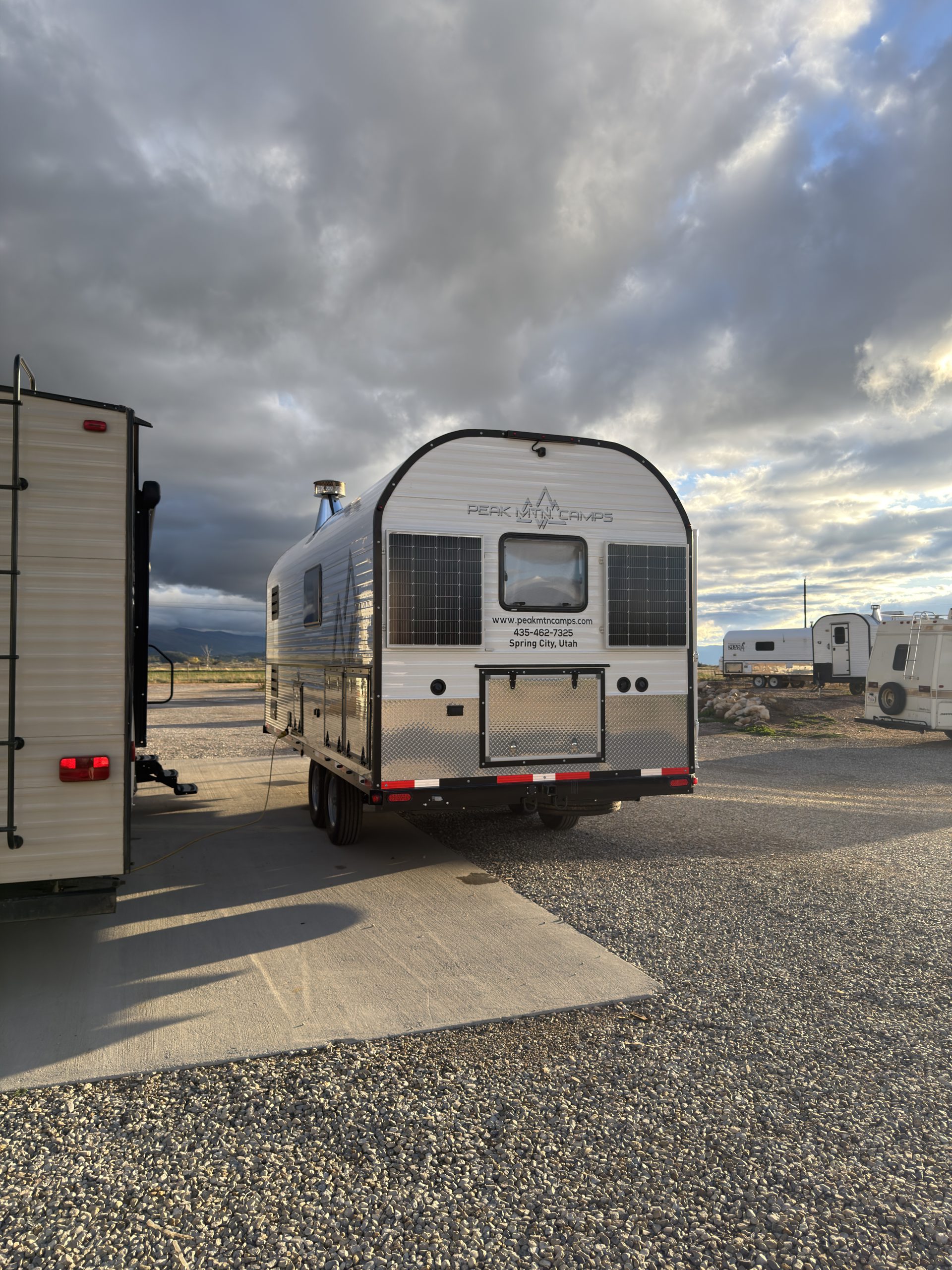

Backlit rear corner view of the camp exterior in Van Niewkoop Camp #136.
Exterior Van Niewkoop Camp #136 – Rear Corner Backlit View

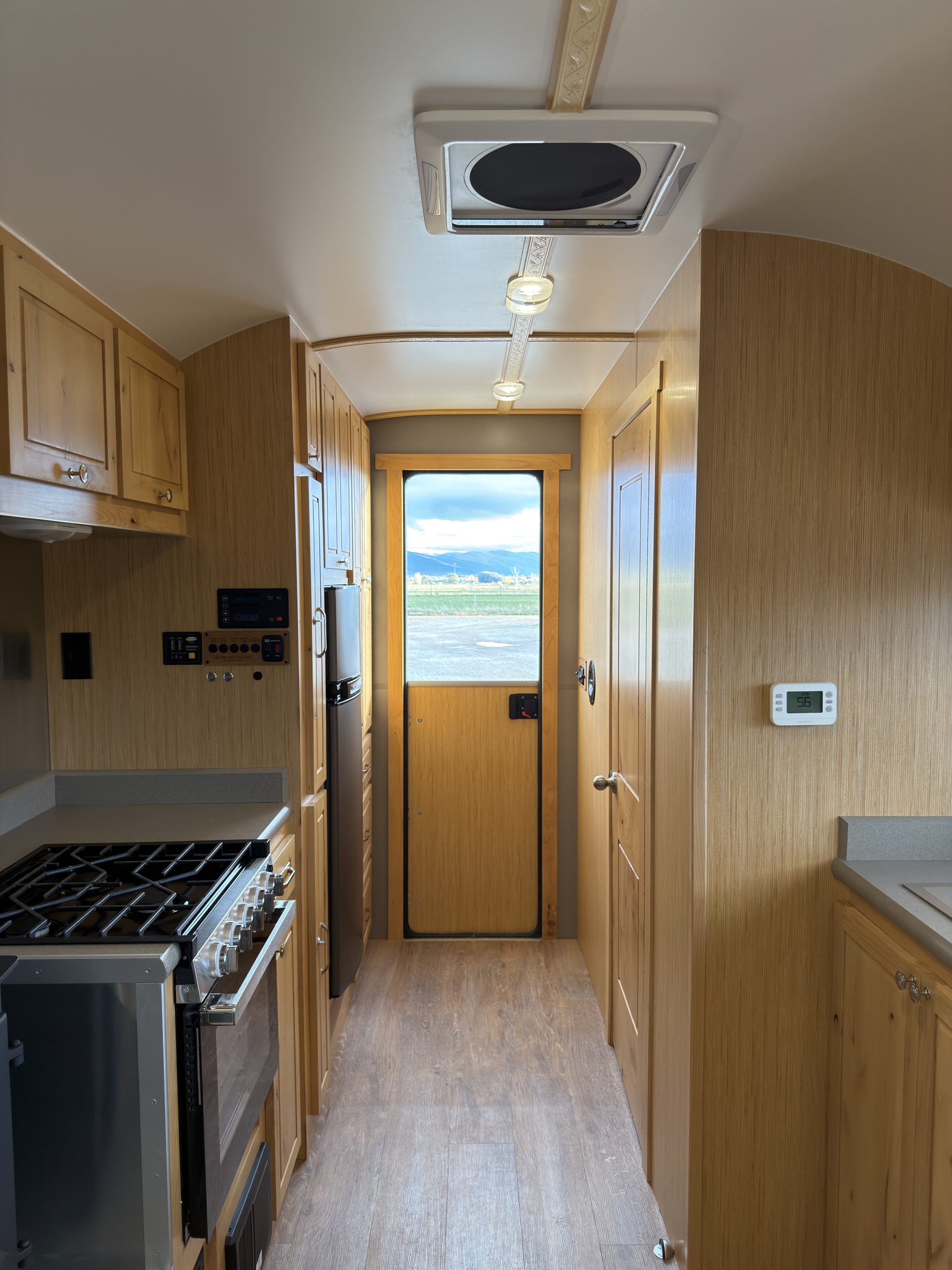

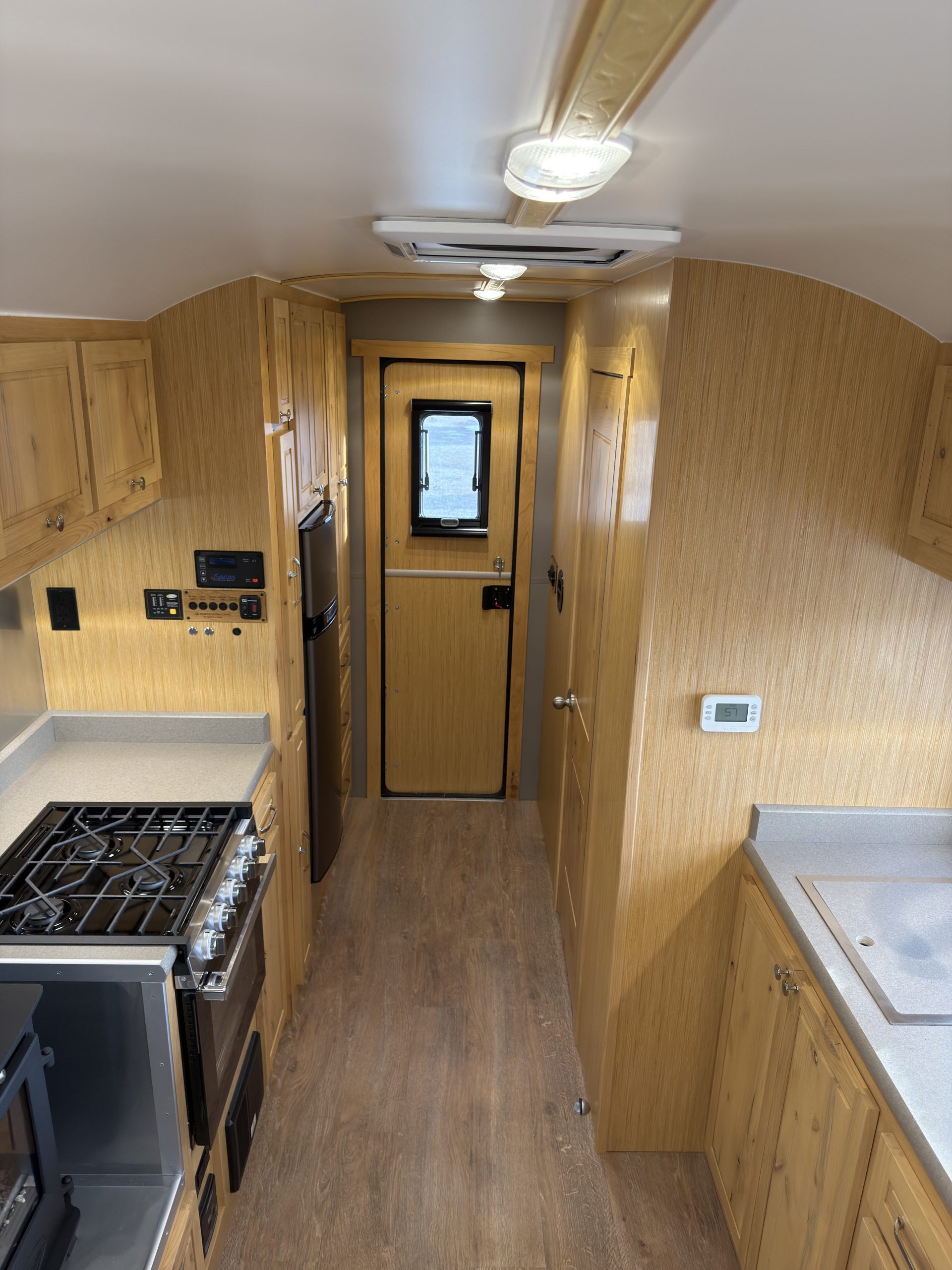

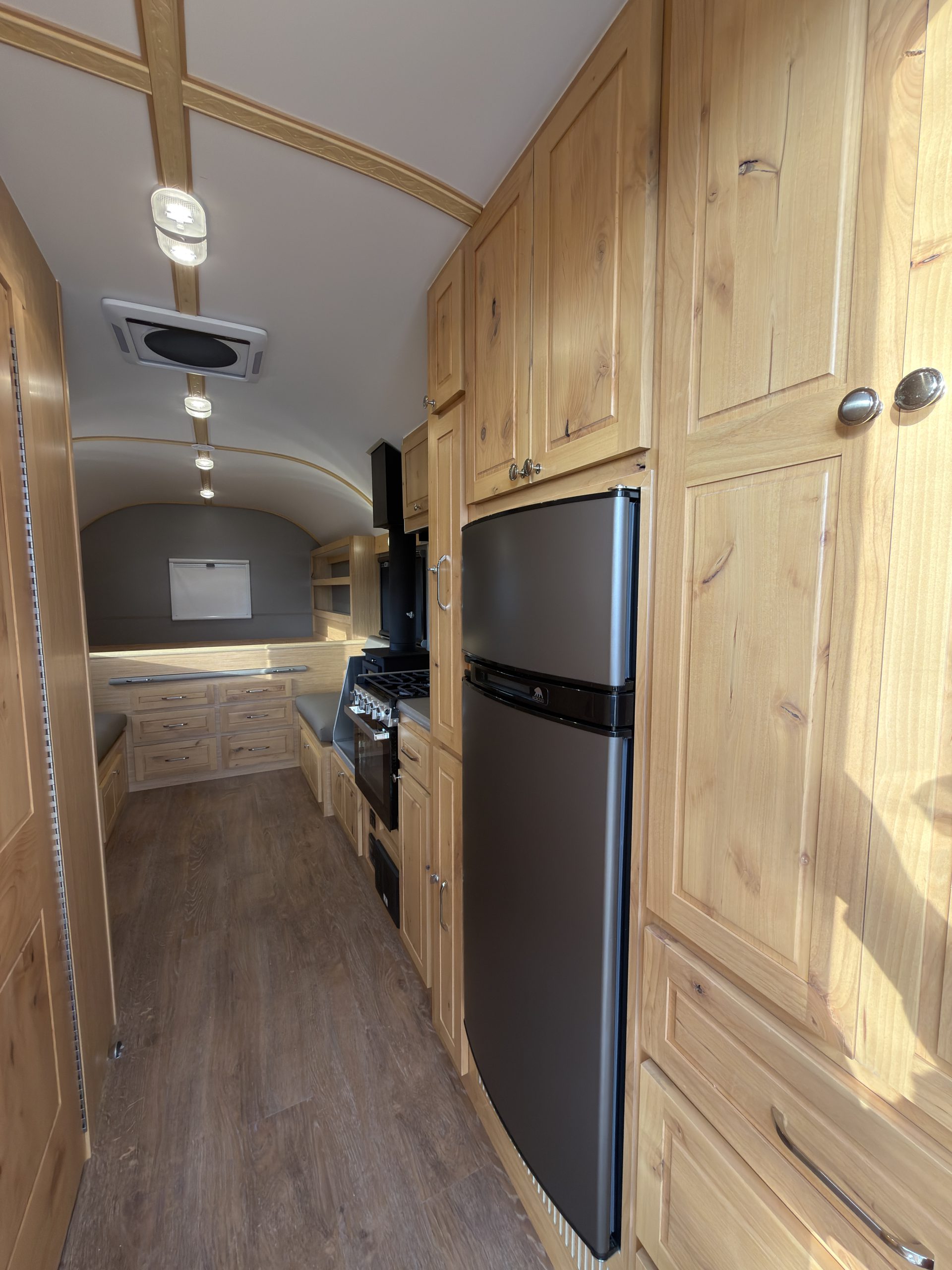

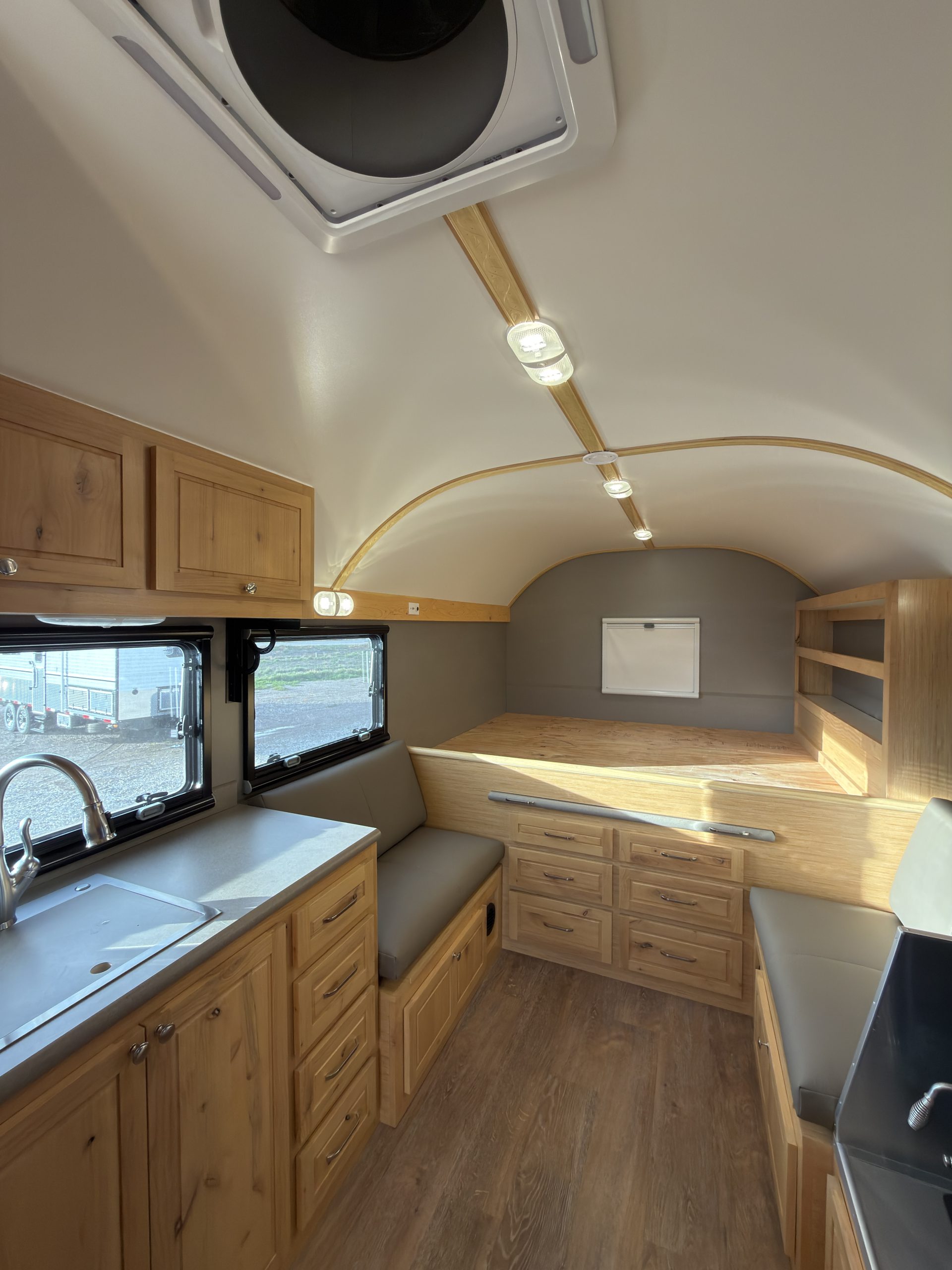

Van Niewkoop Camp #136: Interior aisle with hardwood cabinetry, luxury vinyl plank flooring, and the raised rear bed.
Construction Van Niewkoop Camp #136 – hardwood Interior and Rear Bed

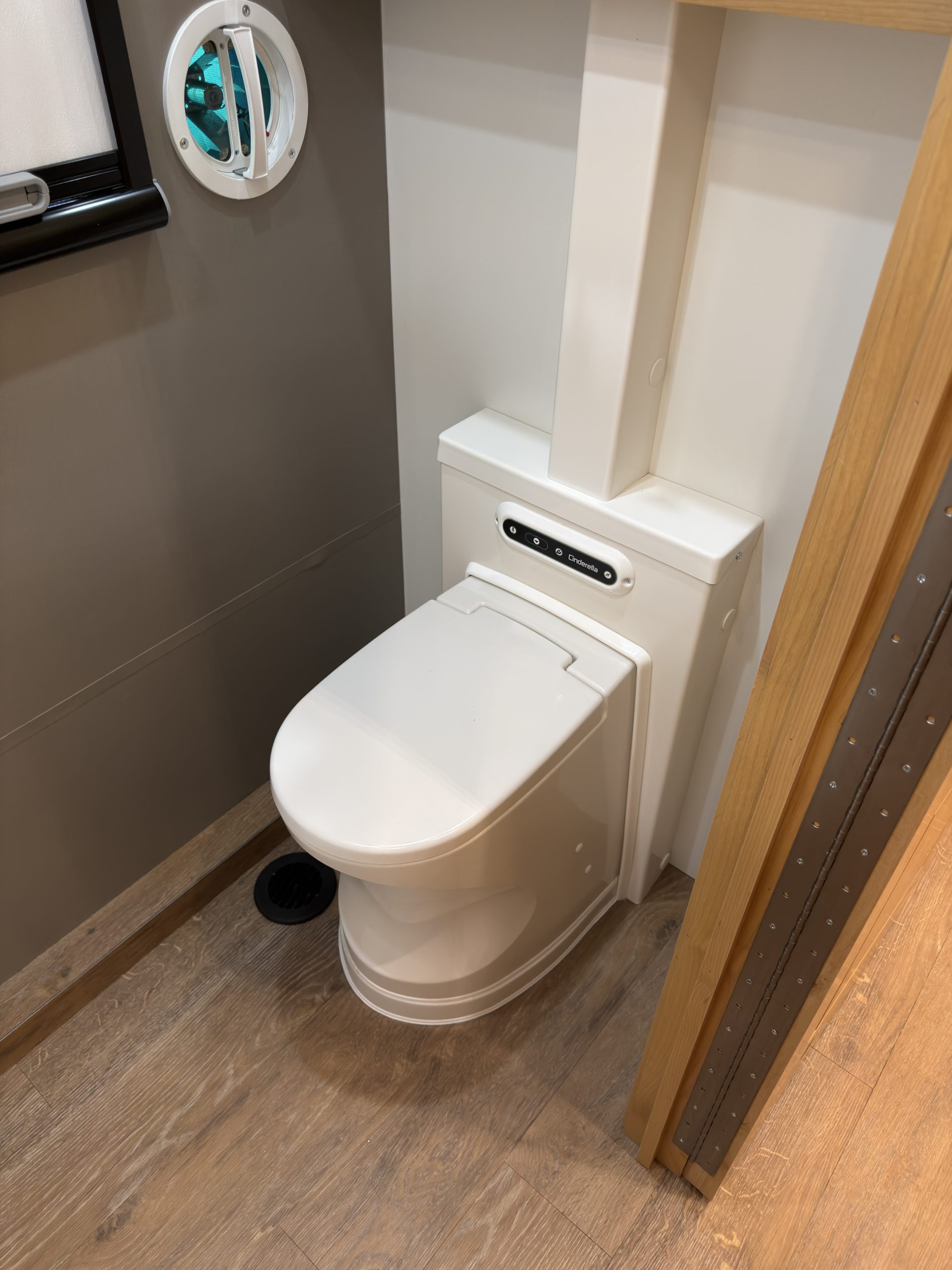

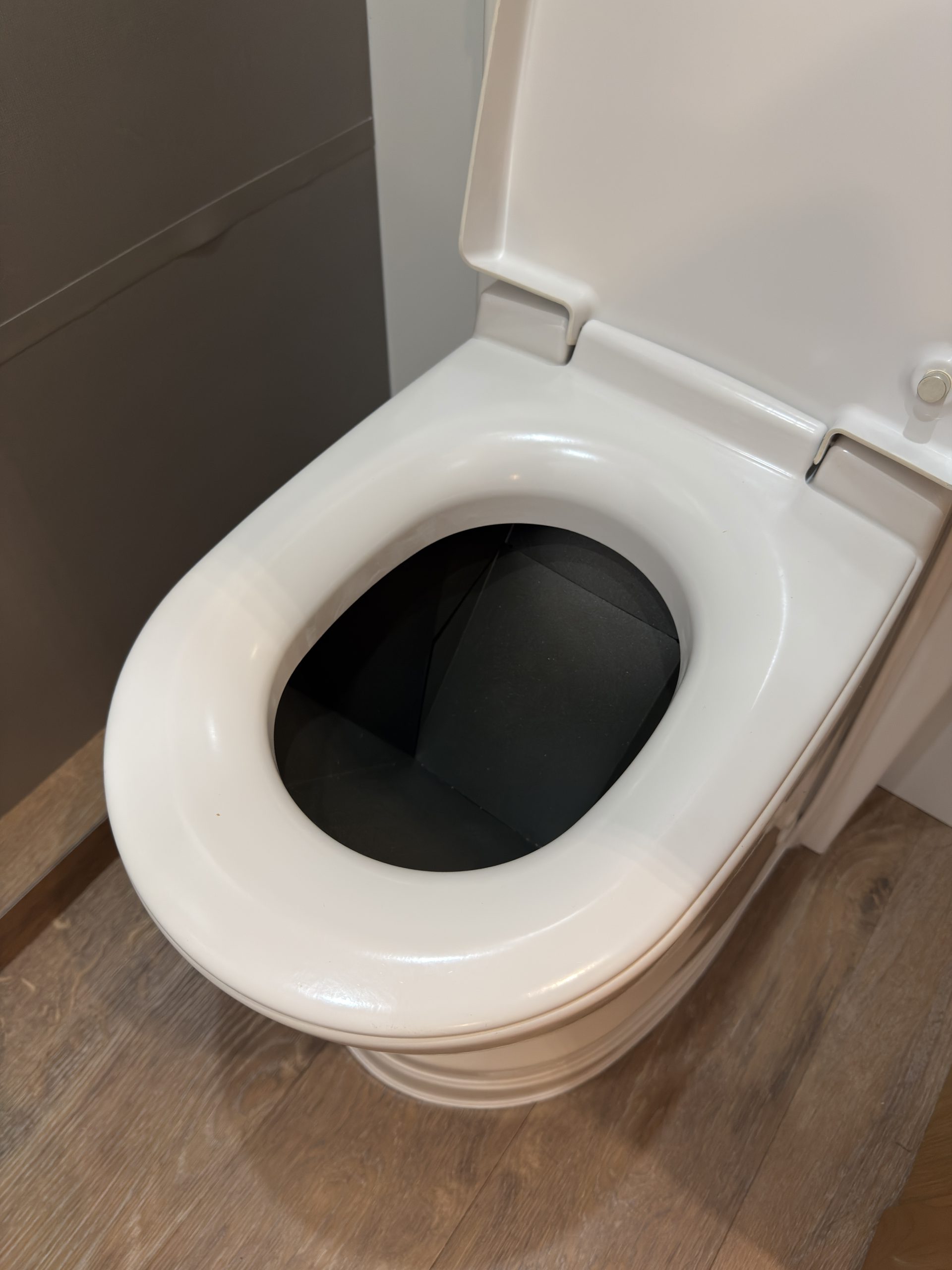

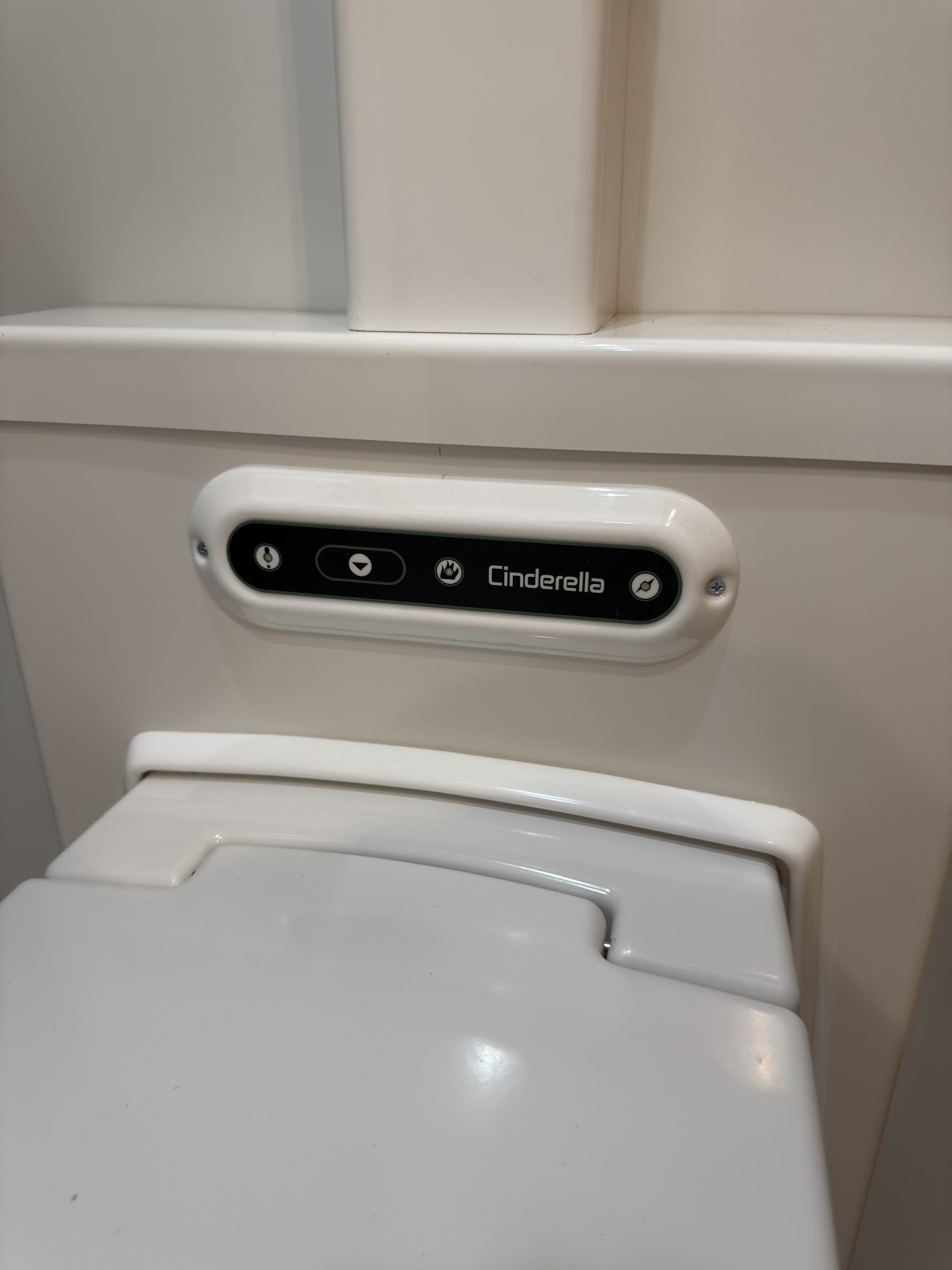

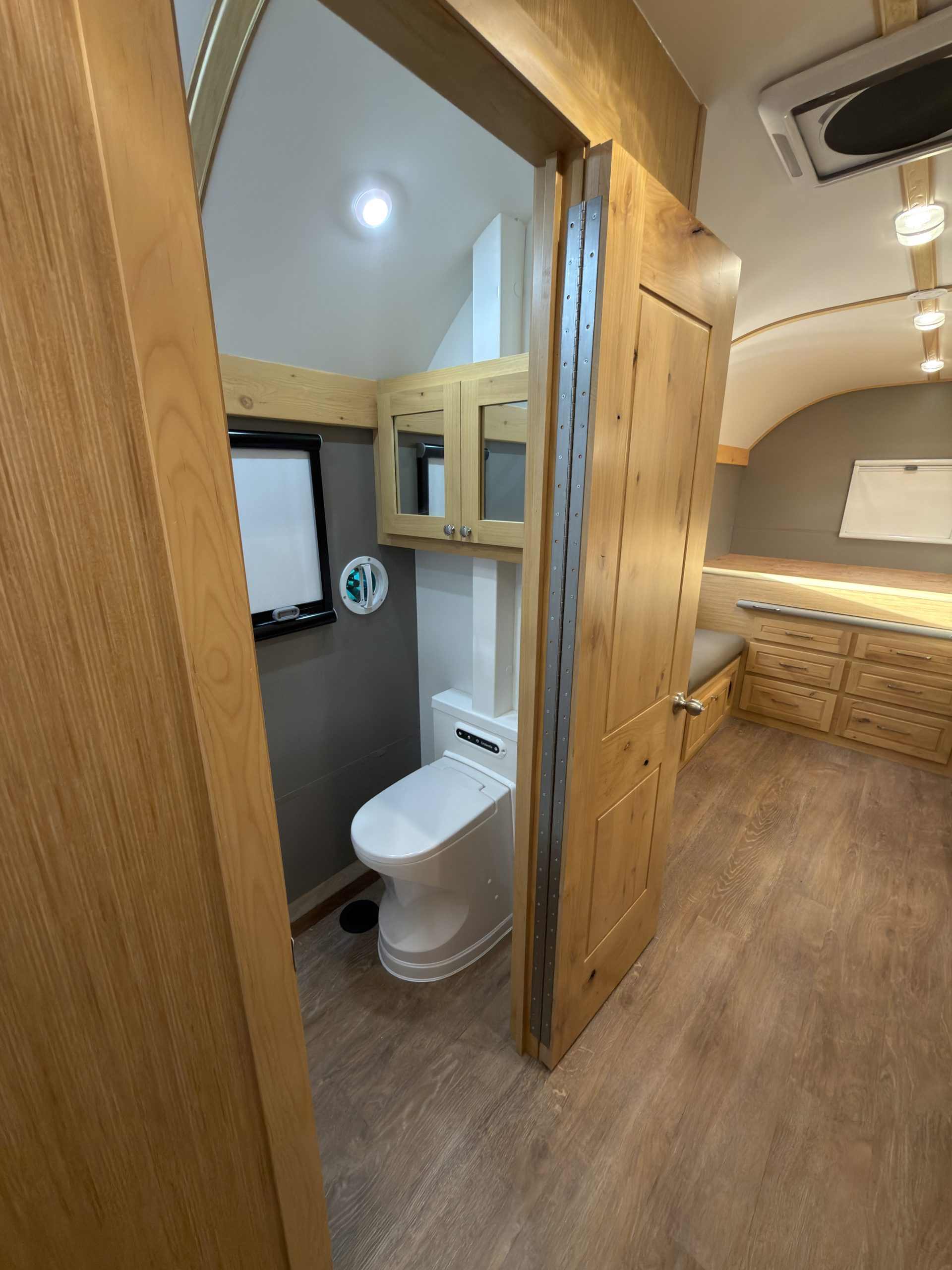

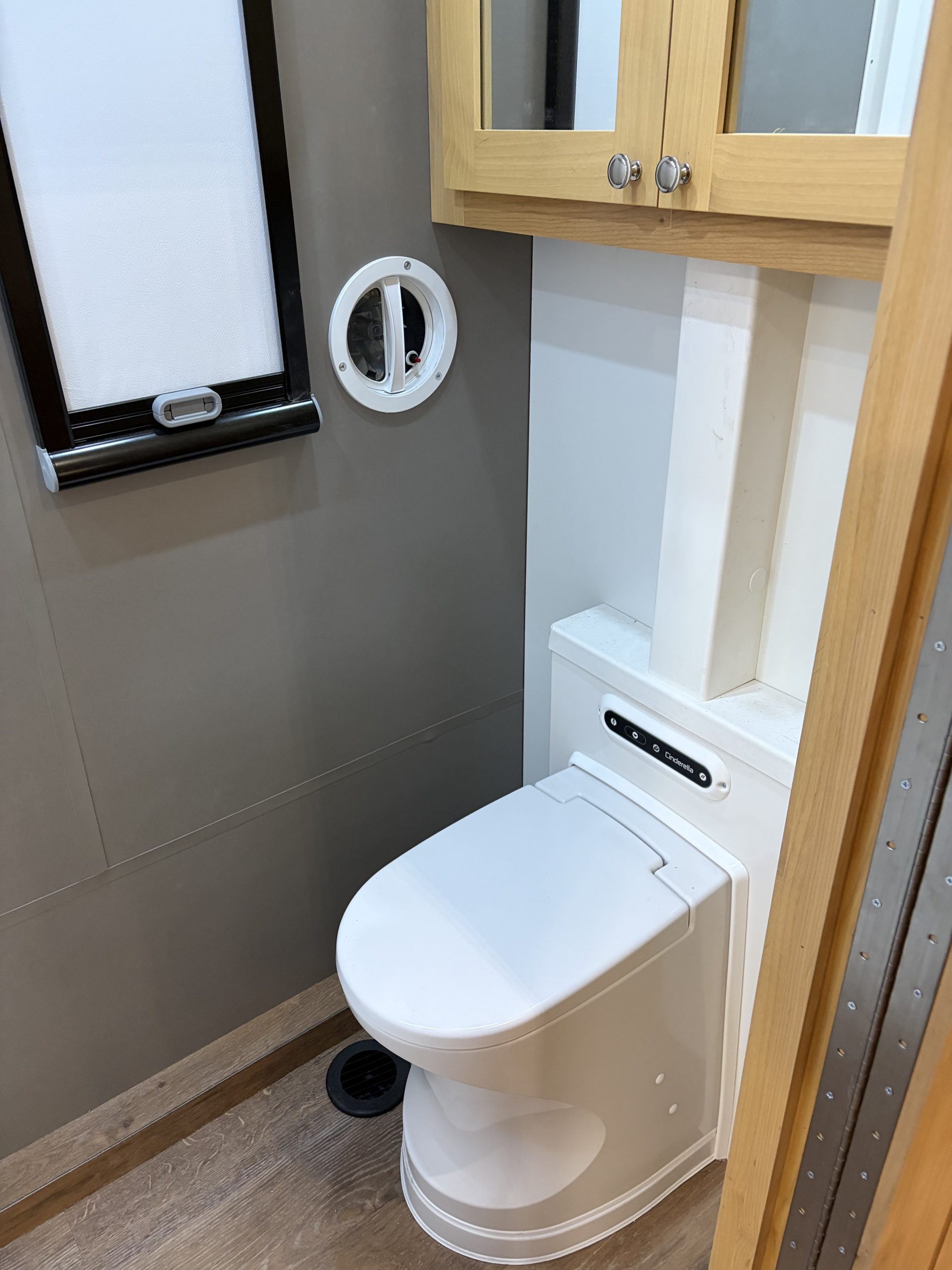

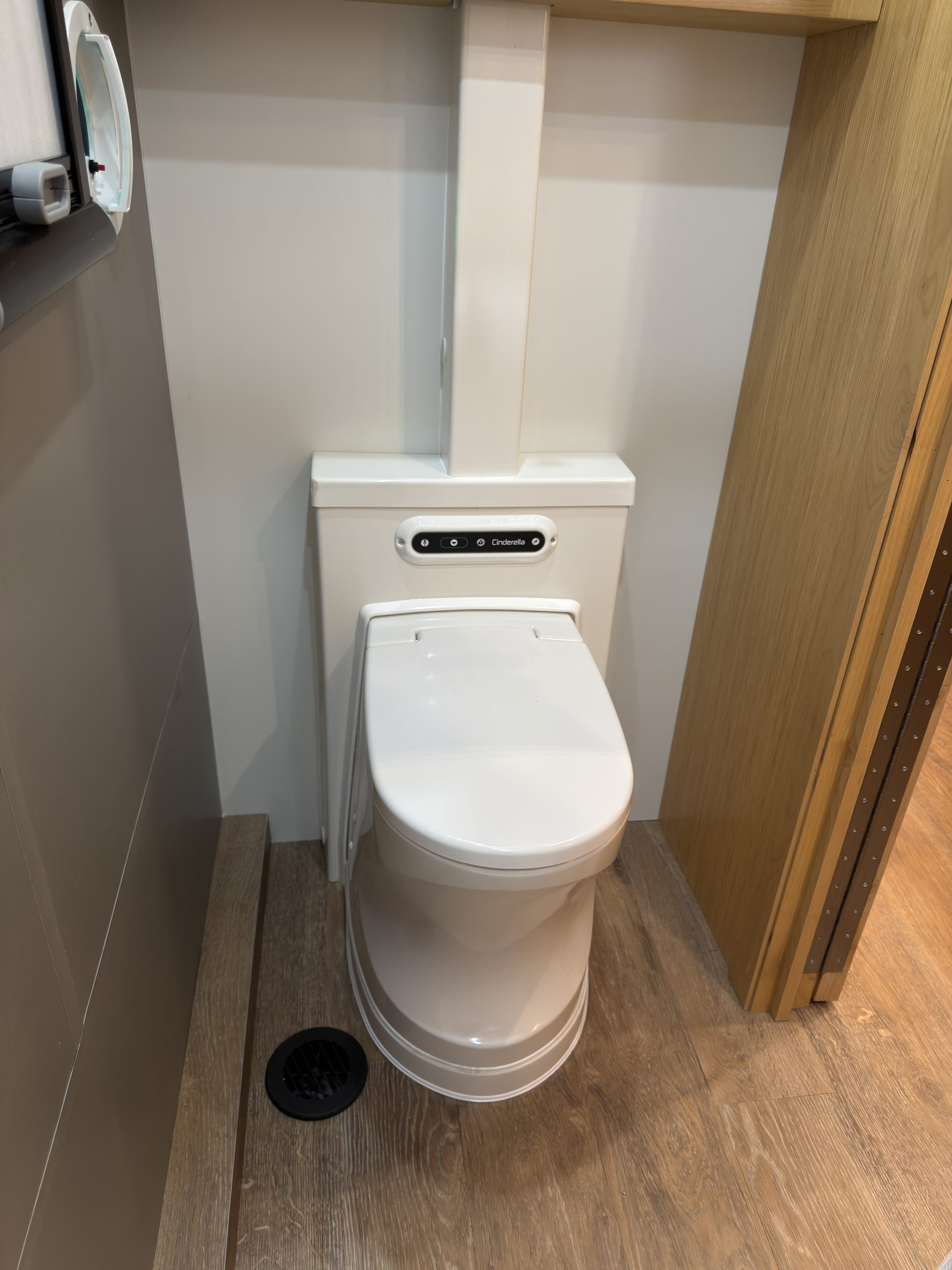

Van Niewkoop Camp #136: Cinderella incinerating travel toilet beneath the mirrored medicine cabinet.
Construction Van Niewkoop Camp #136 – Cinderella Incinerating Travel Toilet

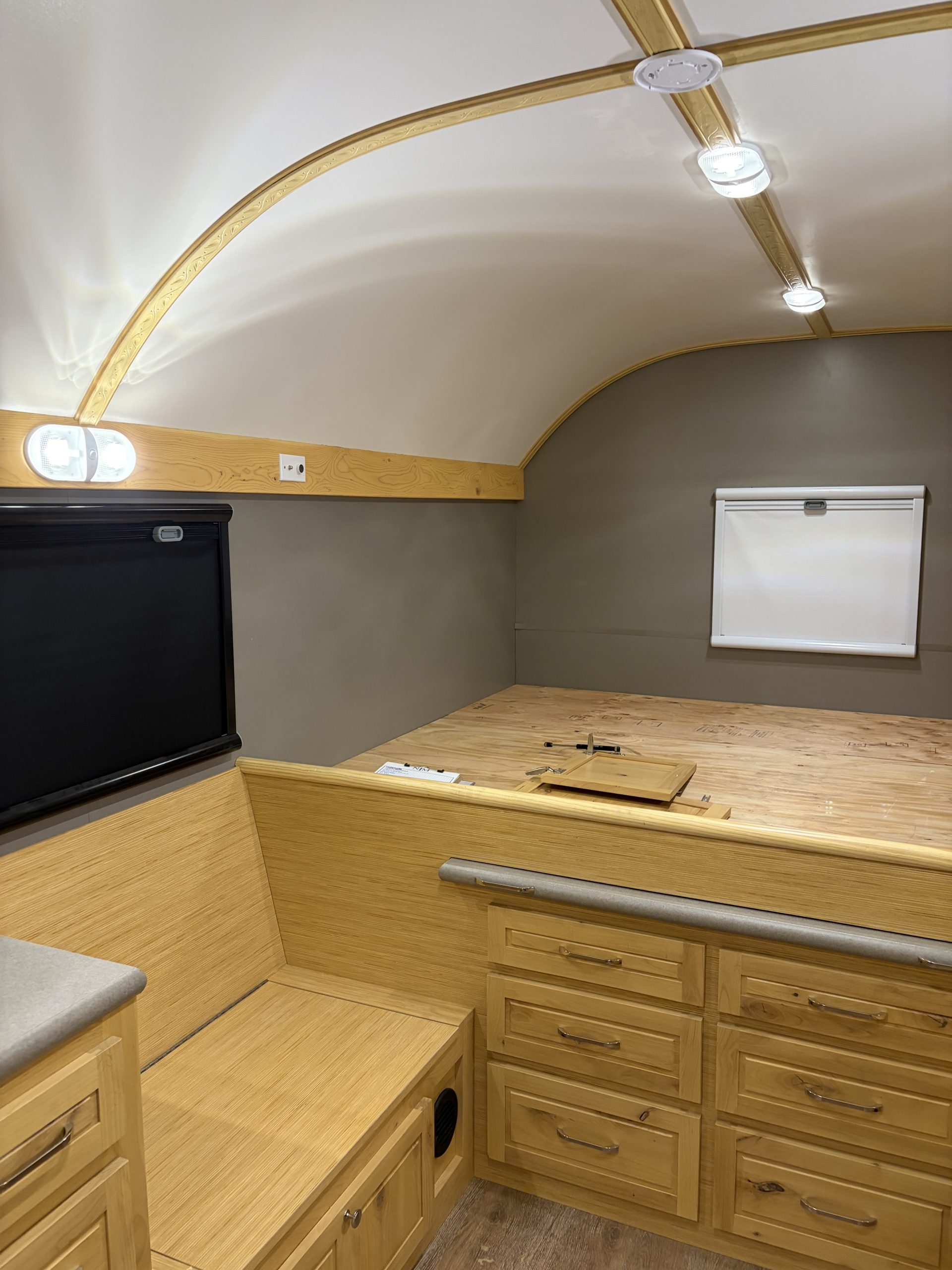

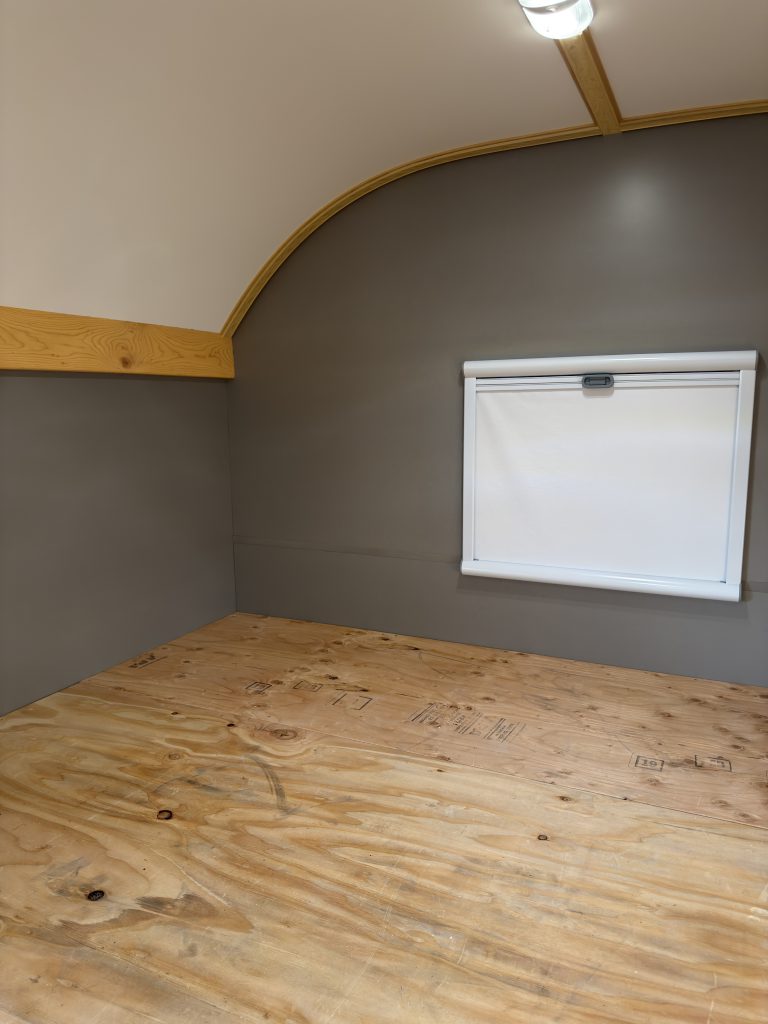

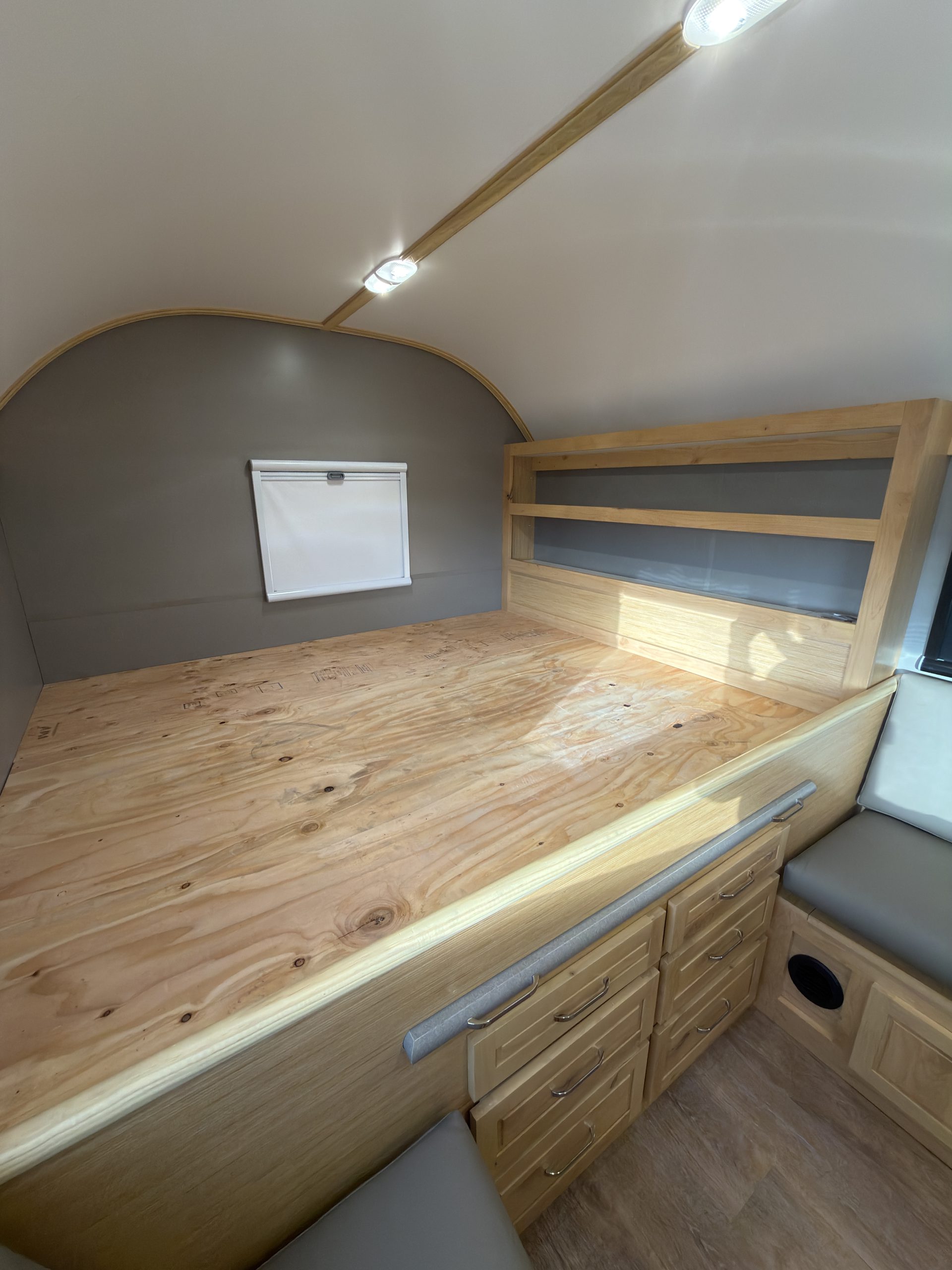

Van Niewkoop Camp #136: Raised east/west California king bed platform with built-in storage drawers and a rear window blind.
Interior Van Niewkoop Camp #136 – Raised California King Bed

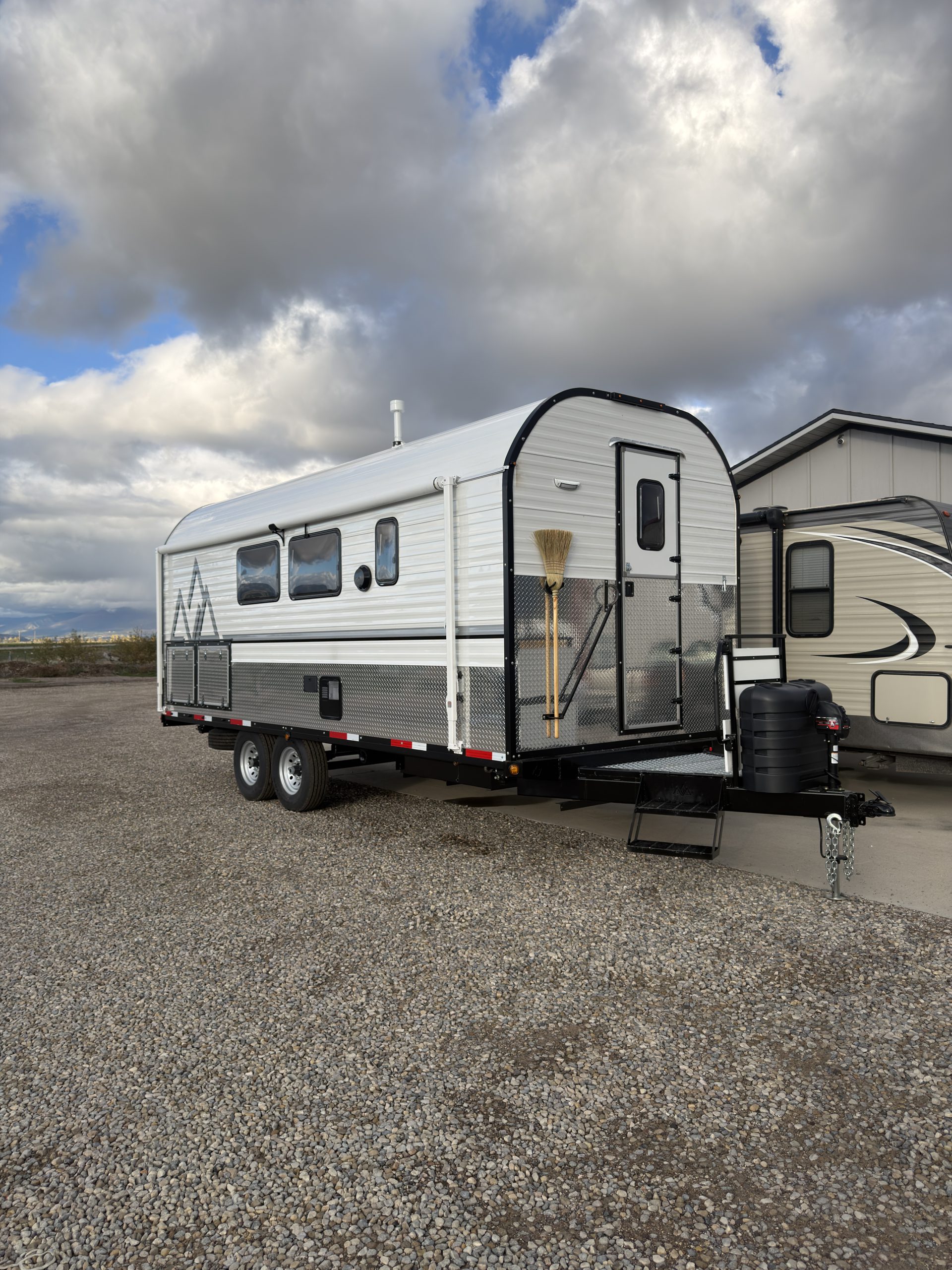

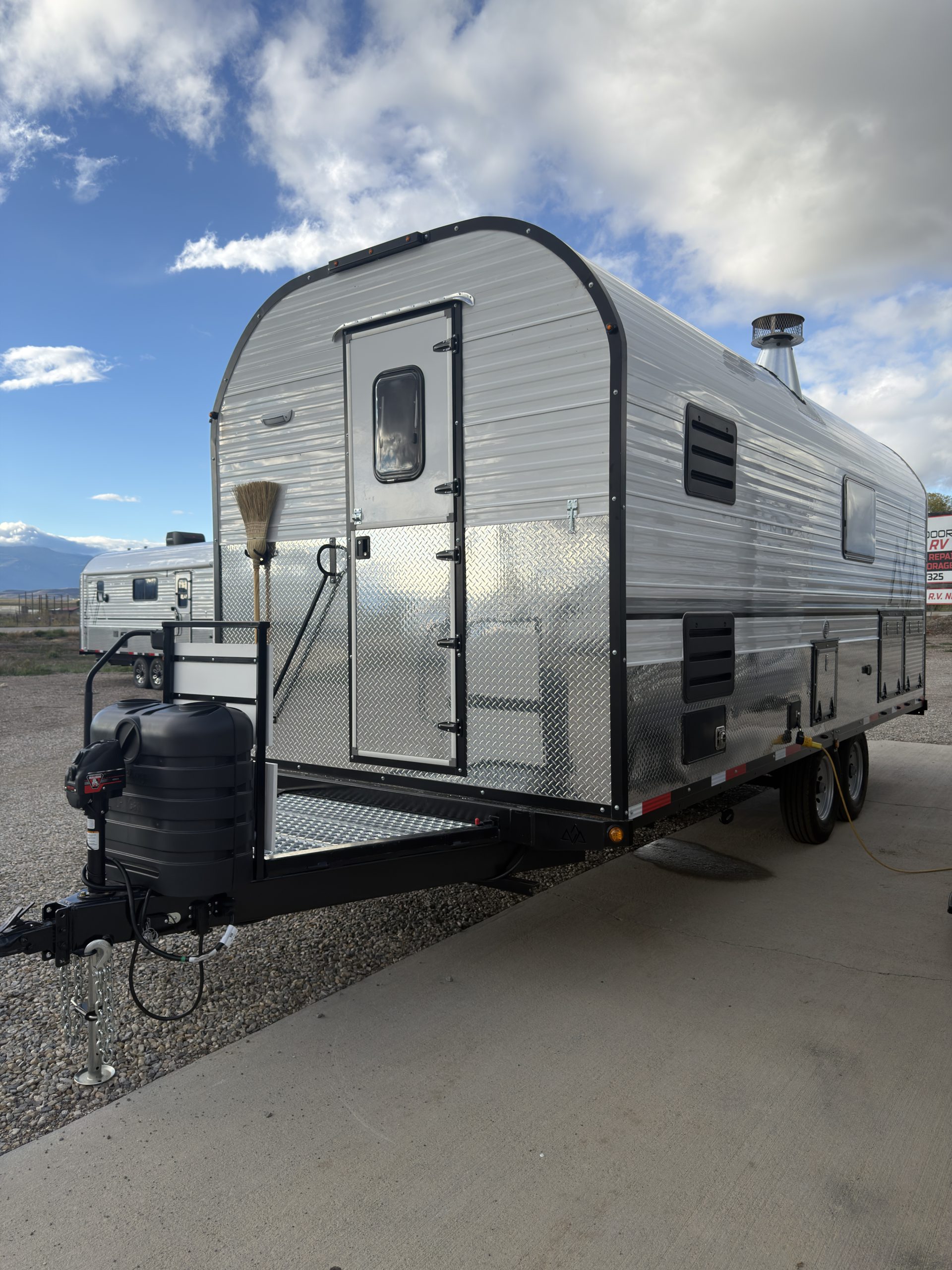

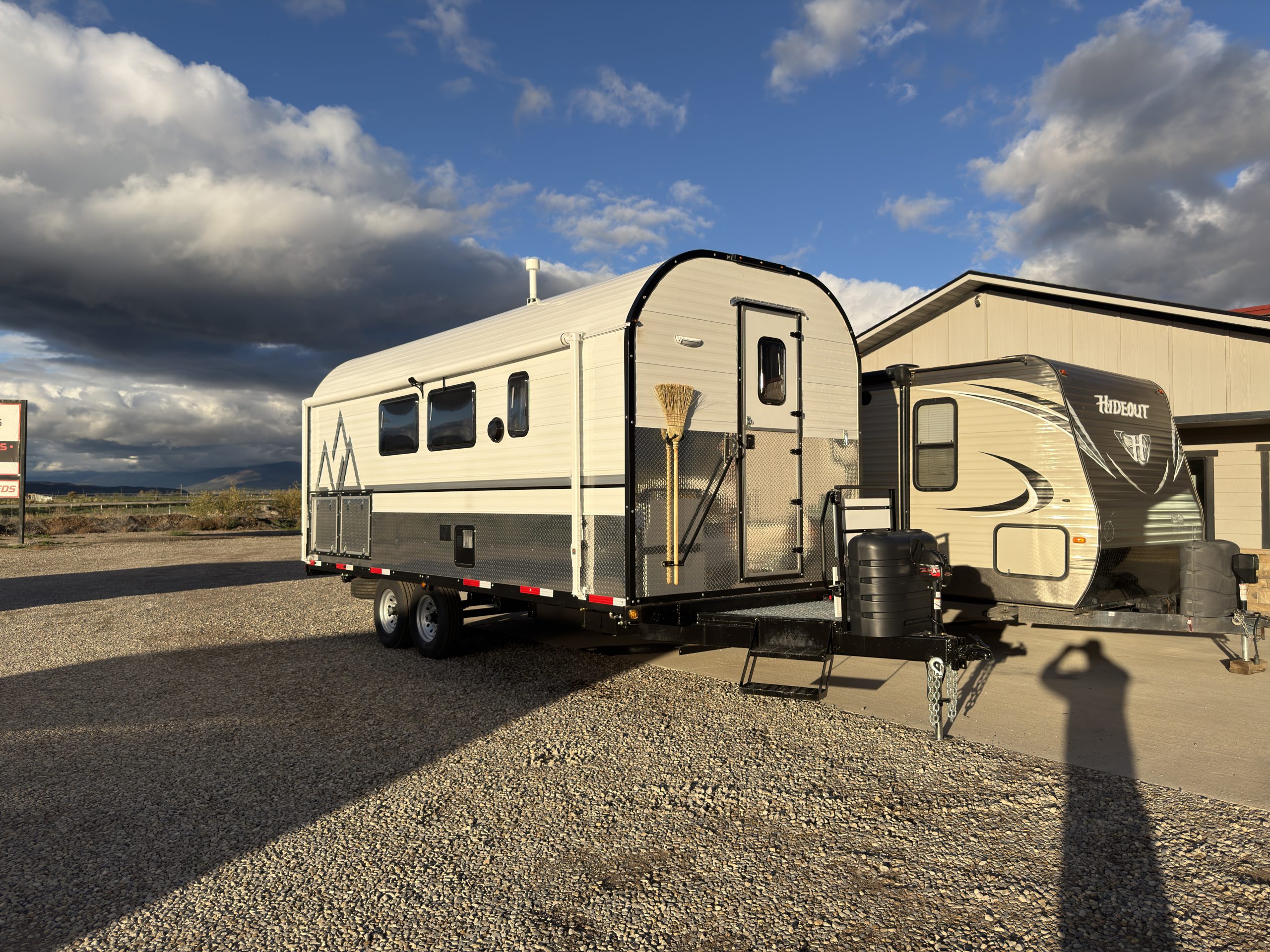

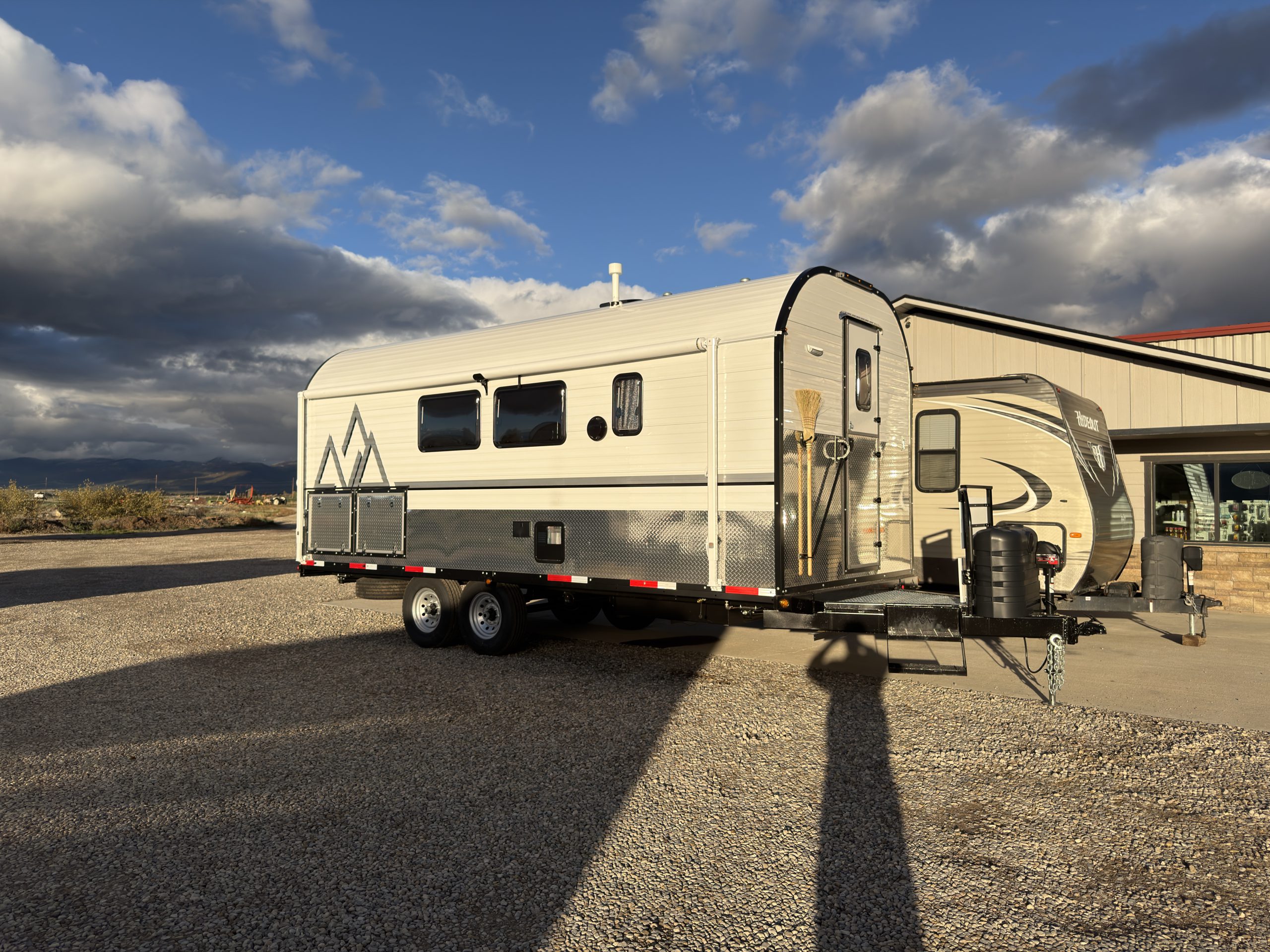

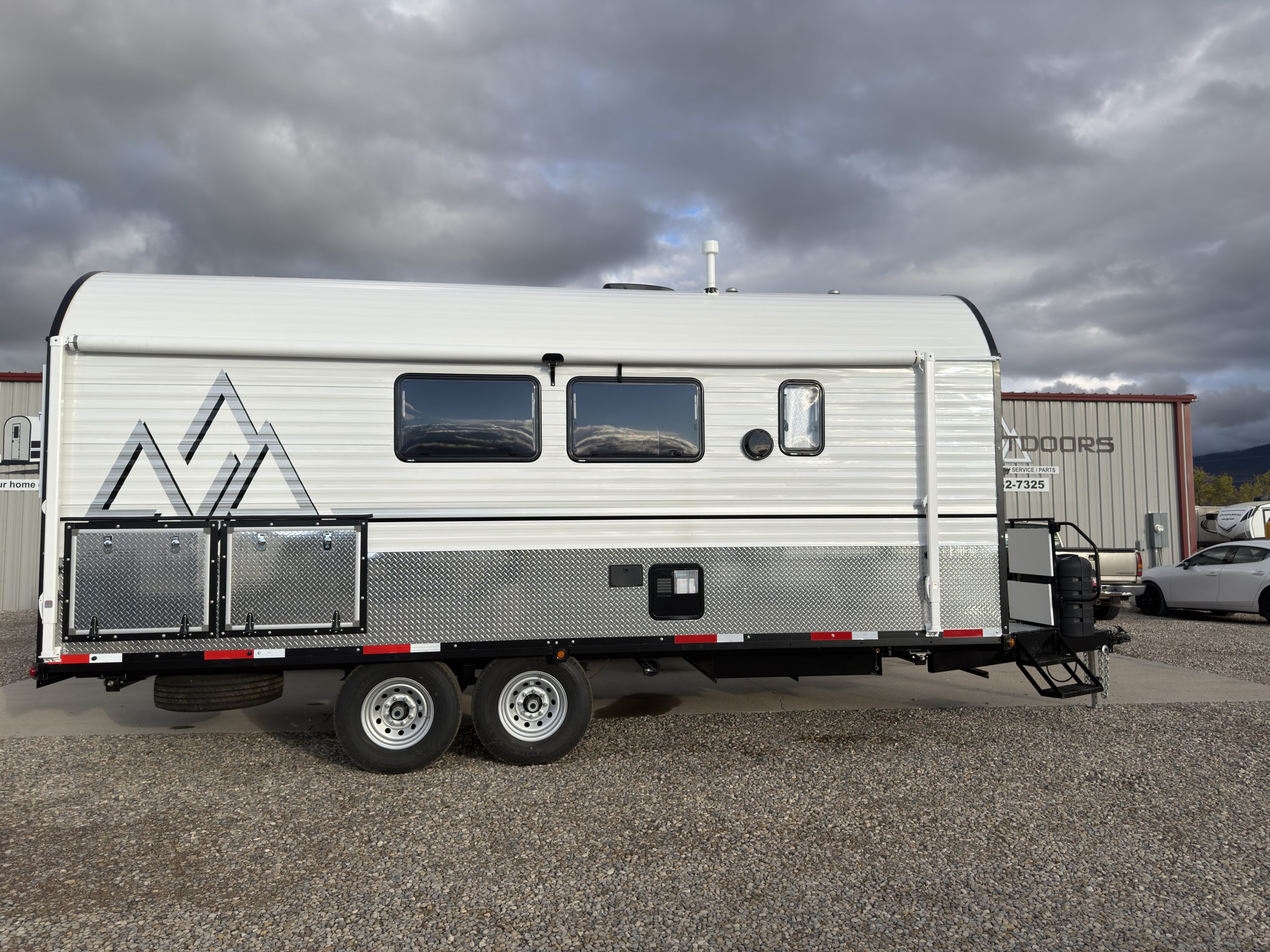

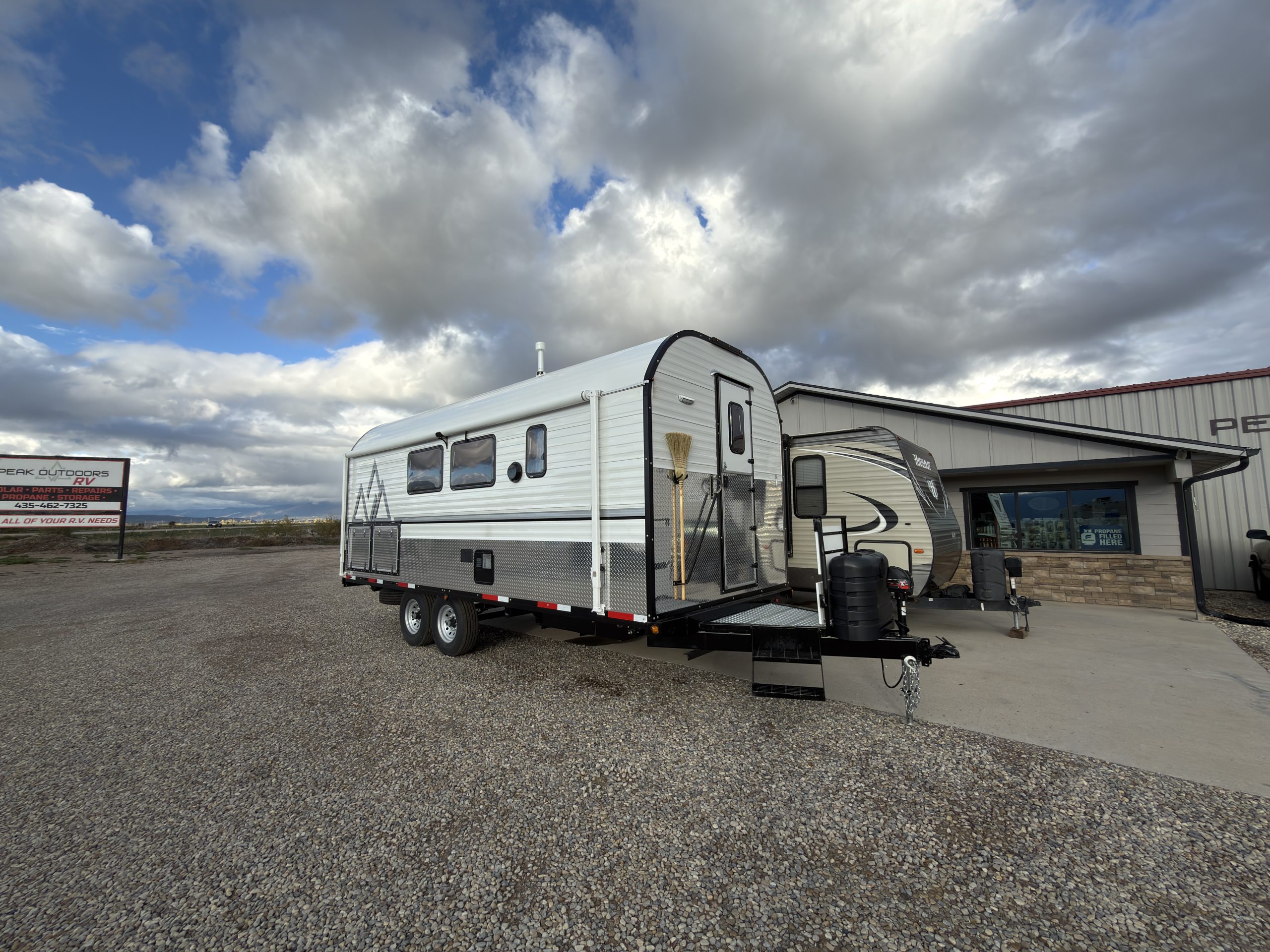

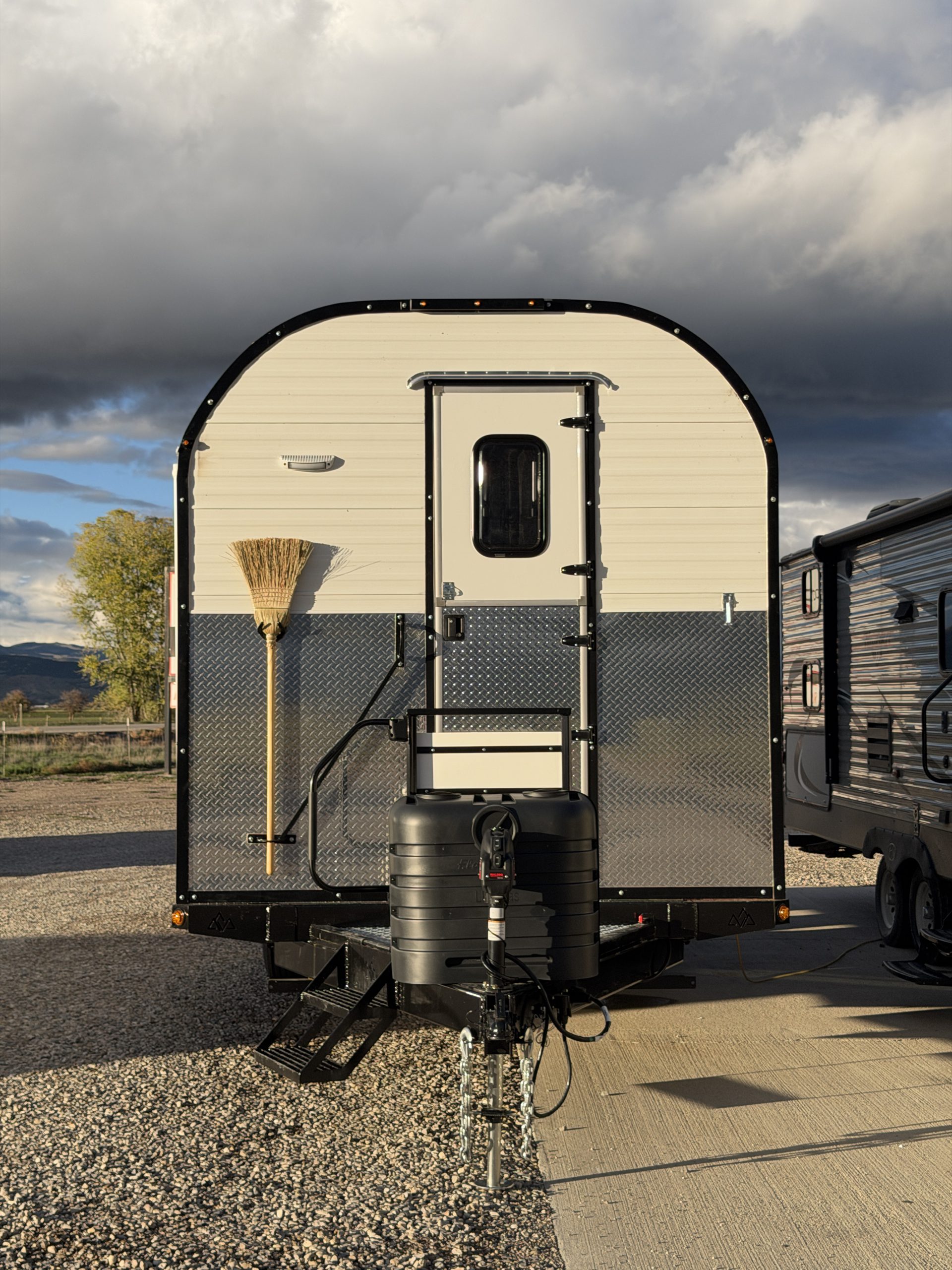

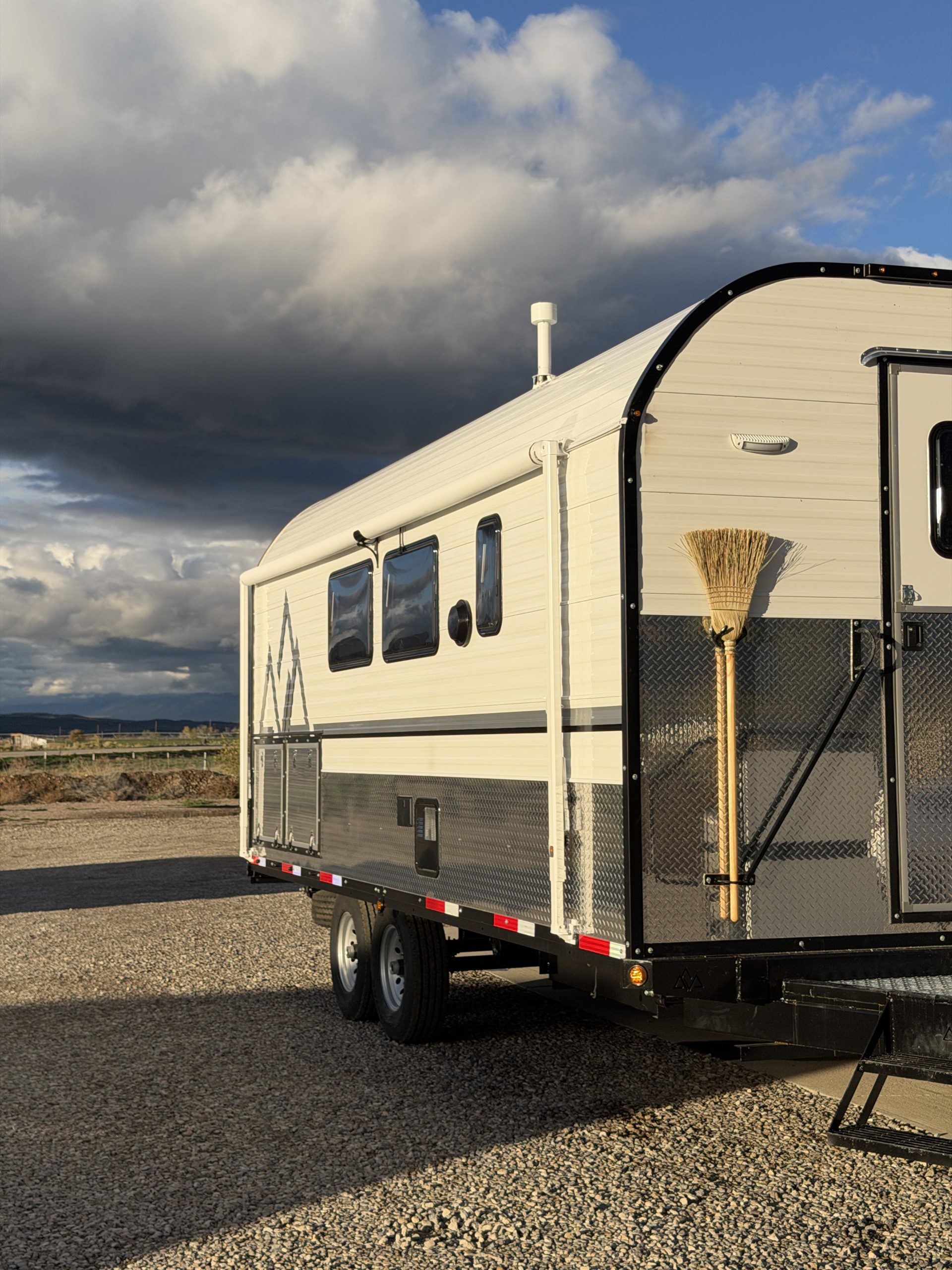

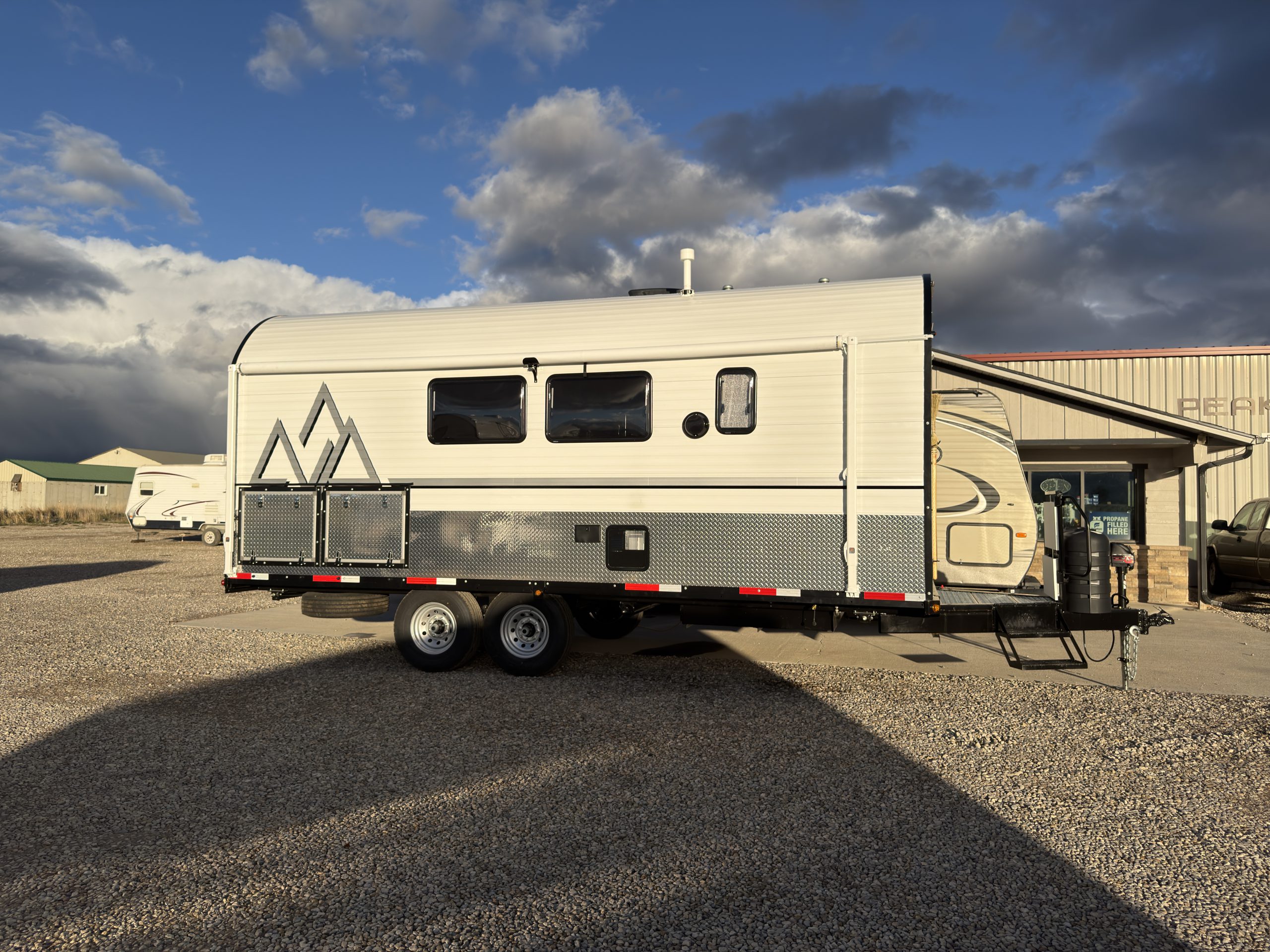

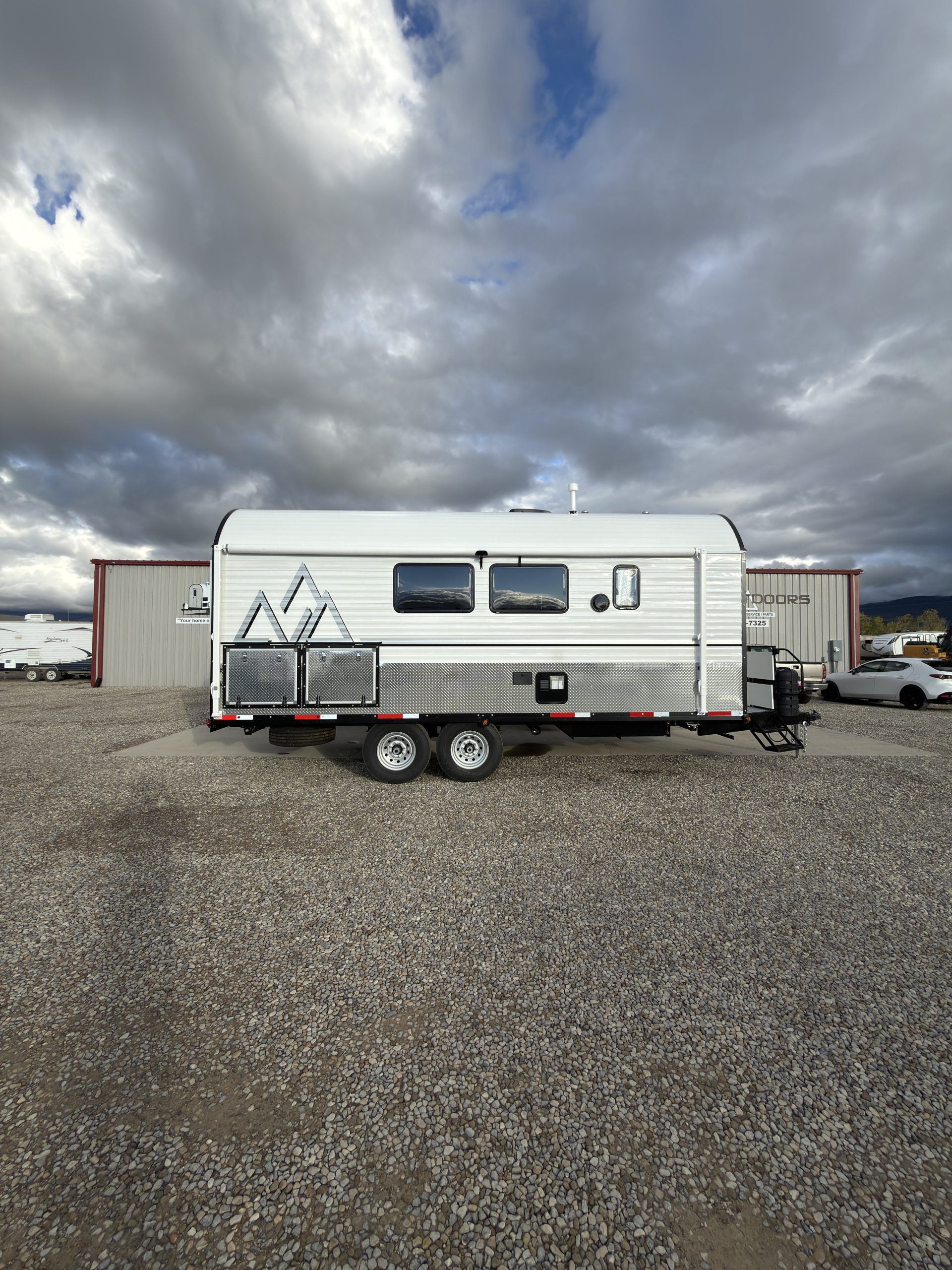

Front entry-side view of the camp with its hitch and tandem axles in Van Niewkoop Camp #136.
Exterior Van Niewkoop Camp #136 – Front Entry‑Side Exterior

Image zoom 100 percent

Layouts & Drawings

Floor Plans

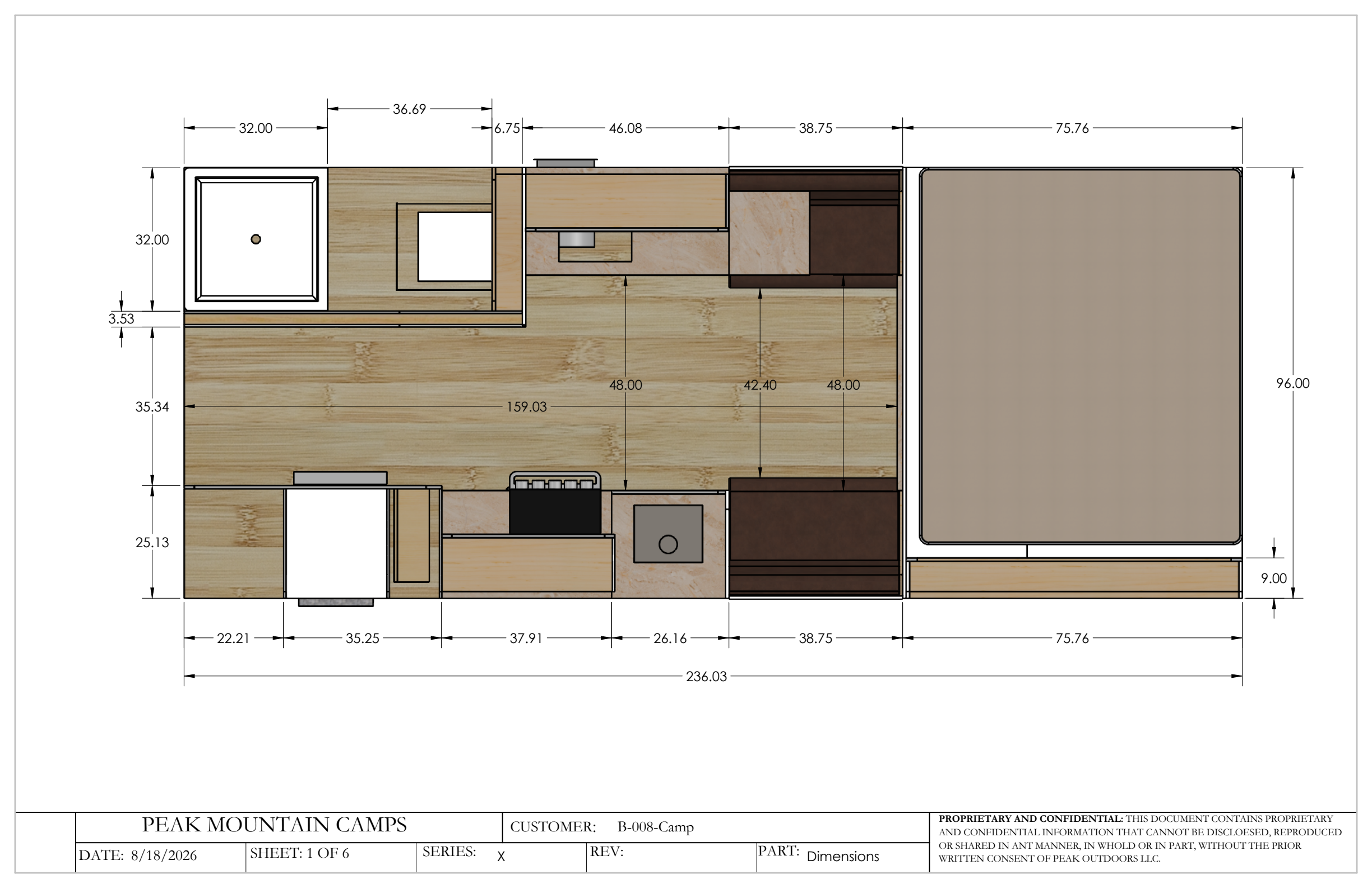

Dimensioned Floor Plan for Van Niewkoop Camp #136, page 1 of 6.
Van Niewkoop Camp #136 – Dimensioned Floor Plan

Van Niewkoop Camp Floorplan

Touch and hold to zoom and pan. Pinch or use the controls to zoom.

Image zoom 100 percent

Build Details

Specifications

Red-highlighted specifications indicate add-ons, upgrades, special characteristics, or highlighted features of this camp.

Exterior

Entry

Entry Layout
Traditional Front Entry
Entry Door Style

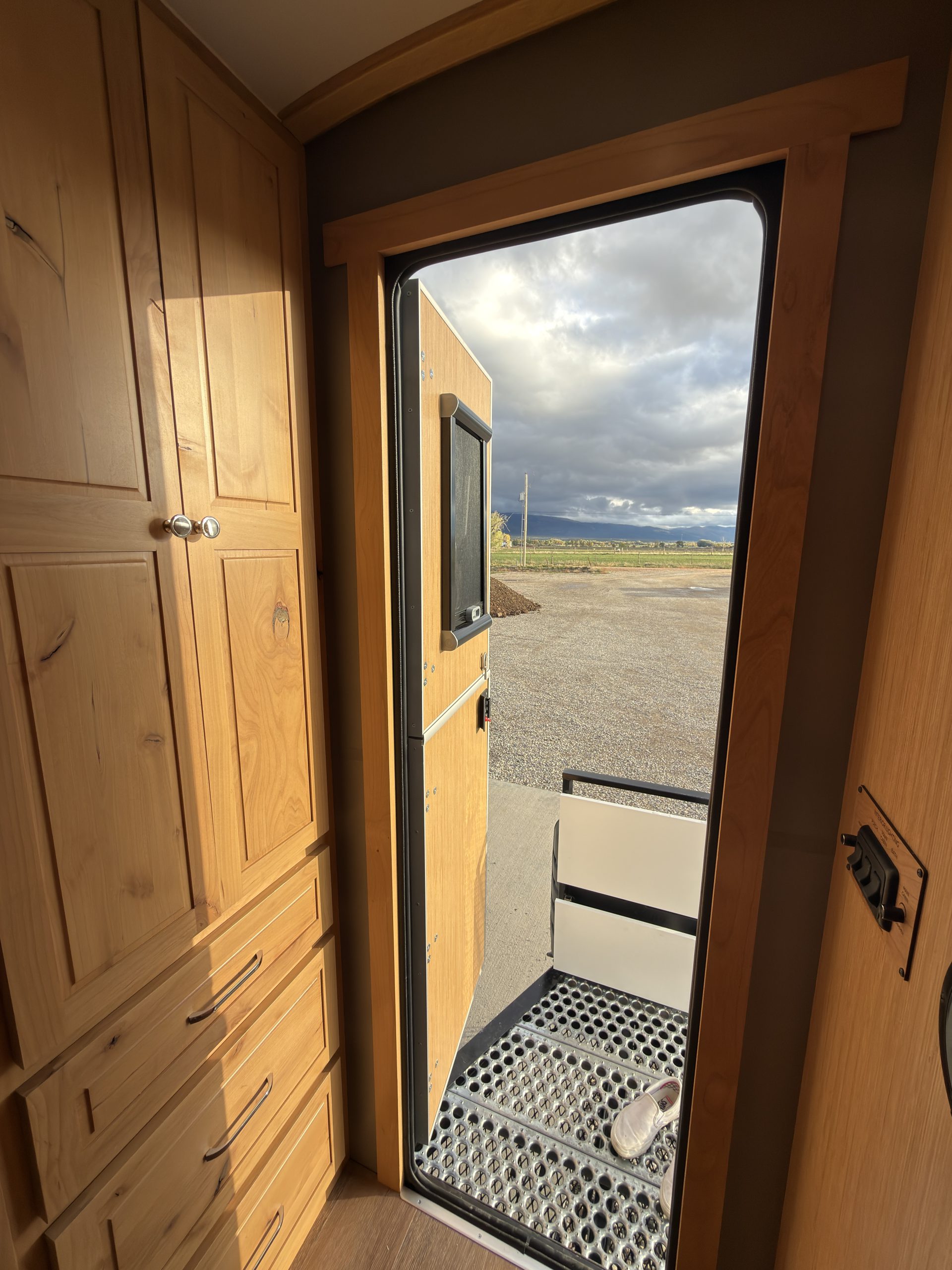

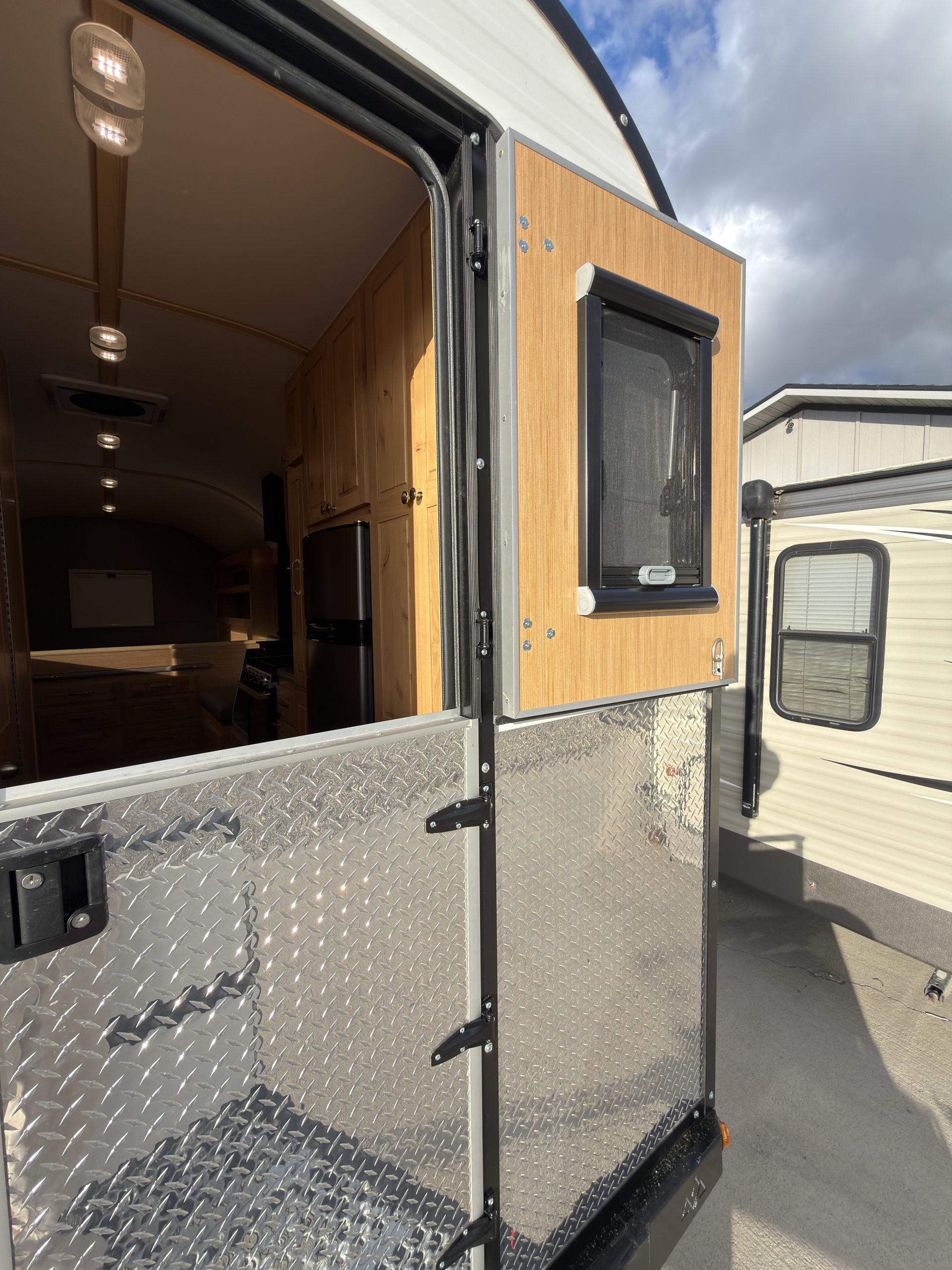

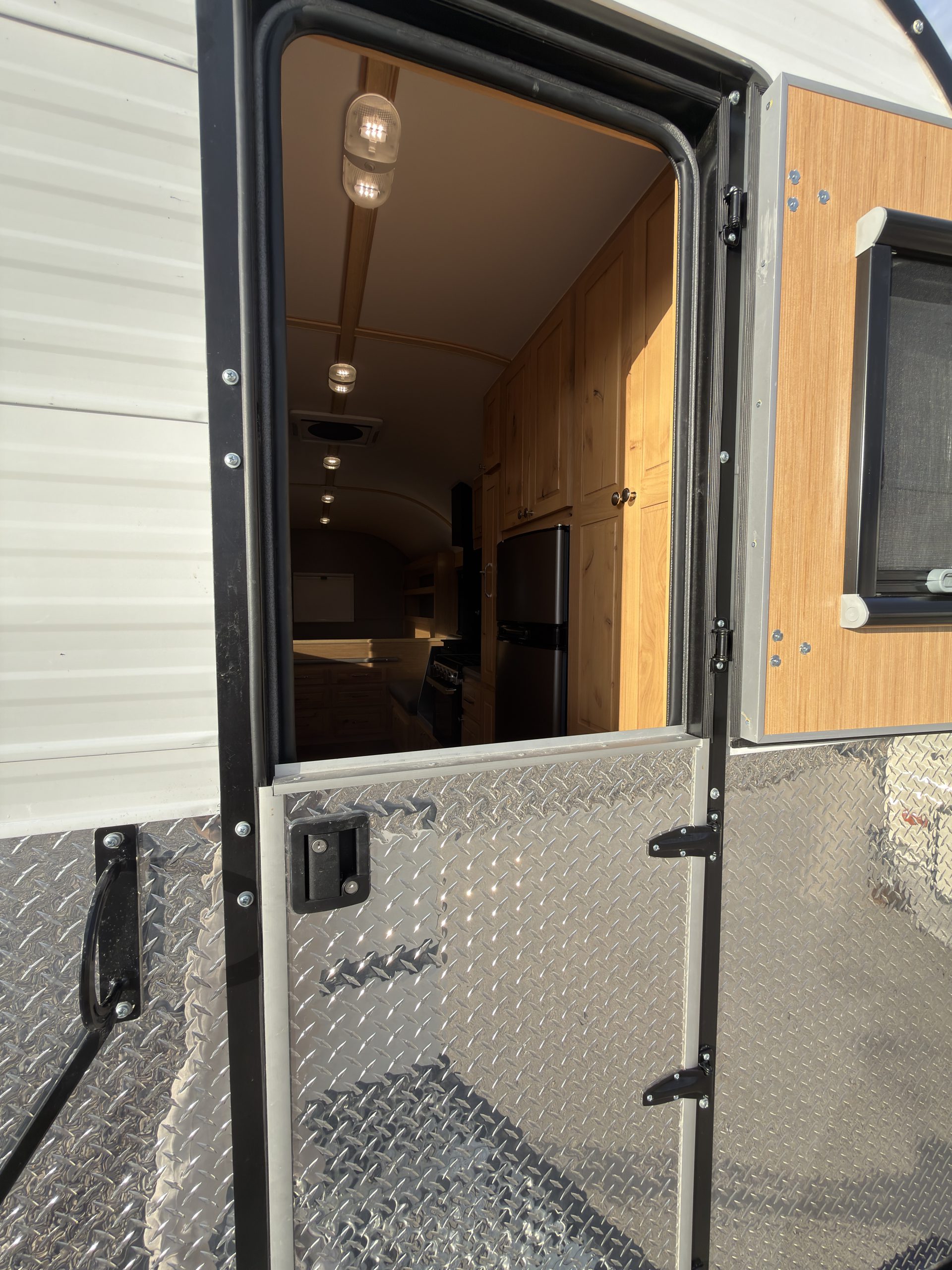

Dutch Door

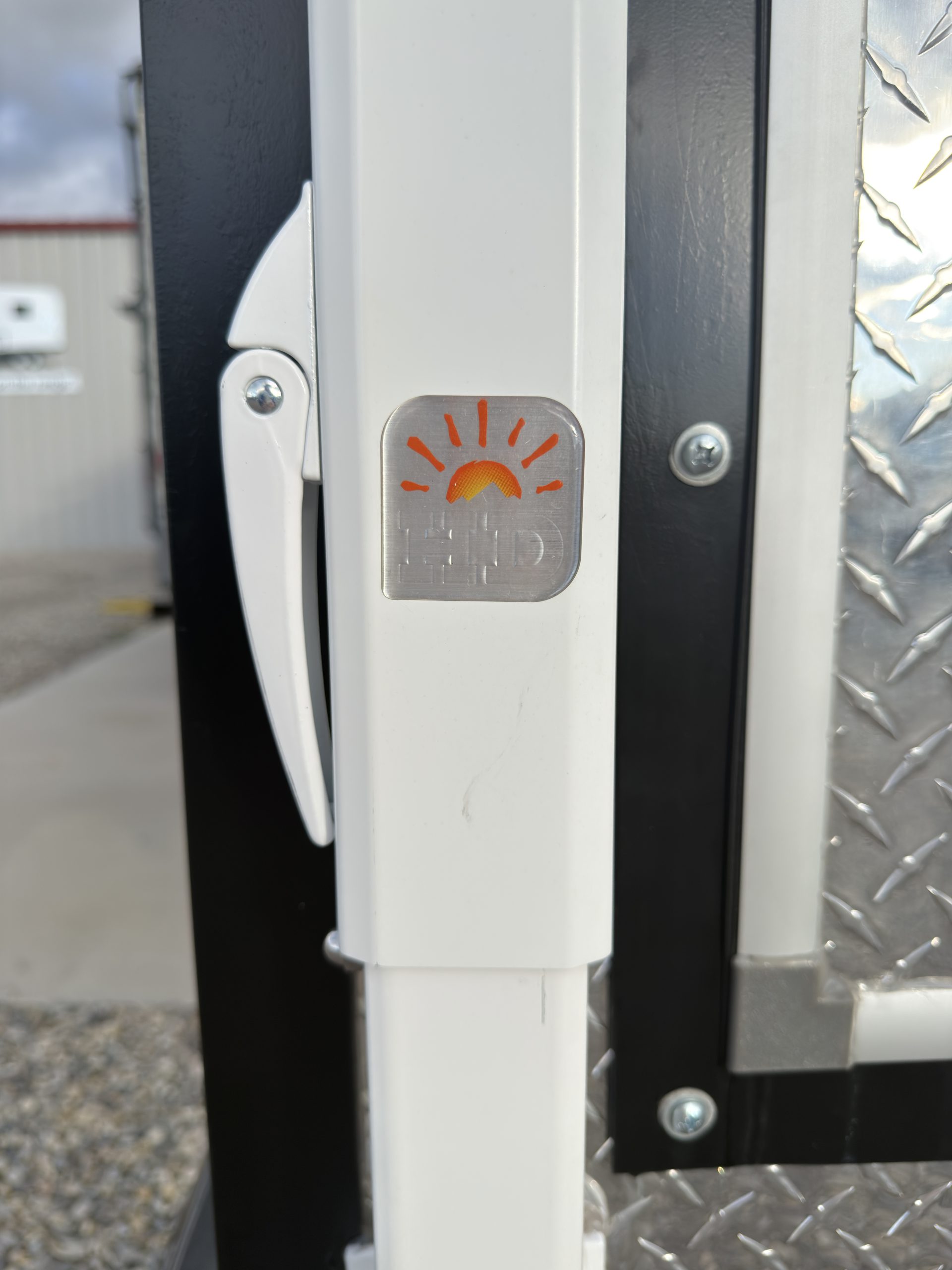

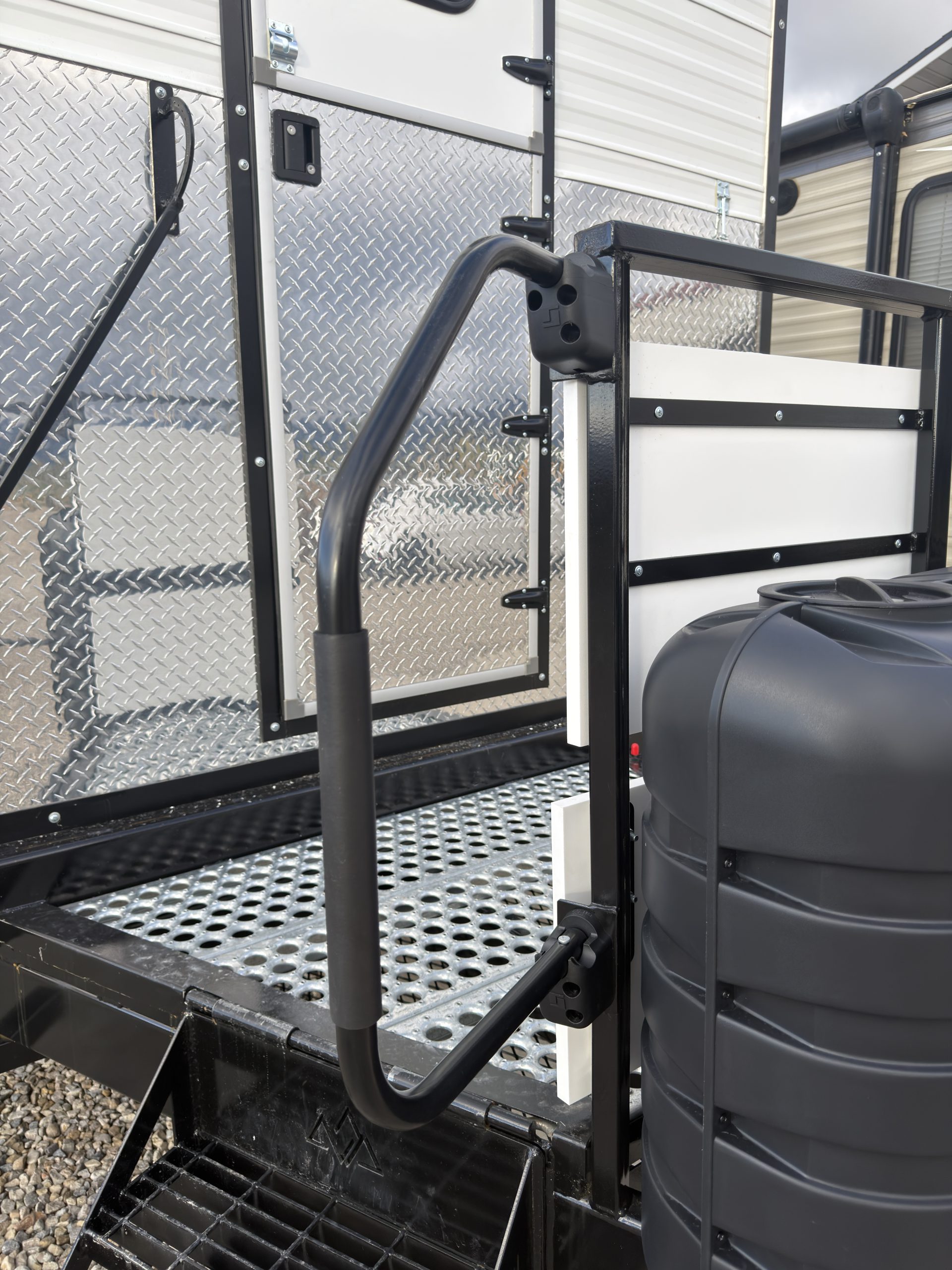

Entry Railing
Standard Fold-Away Hand Railing & Welded Wall Railing
Patio / Tongue
Standard
Entry Steps
Heavy-Duty Fold-Up Tongue Steps

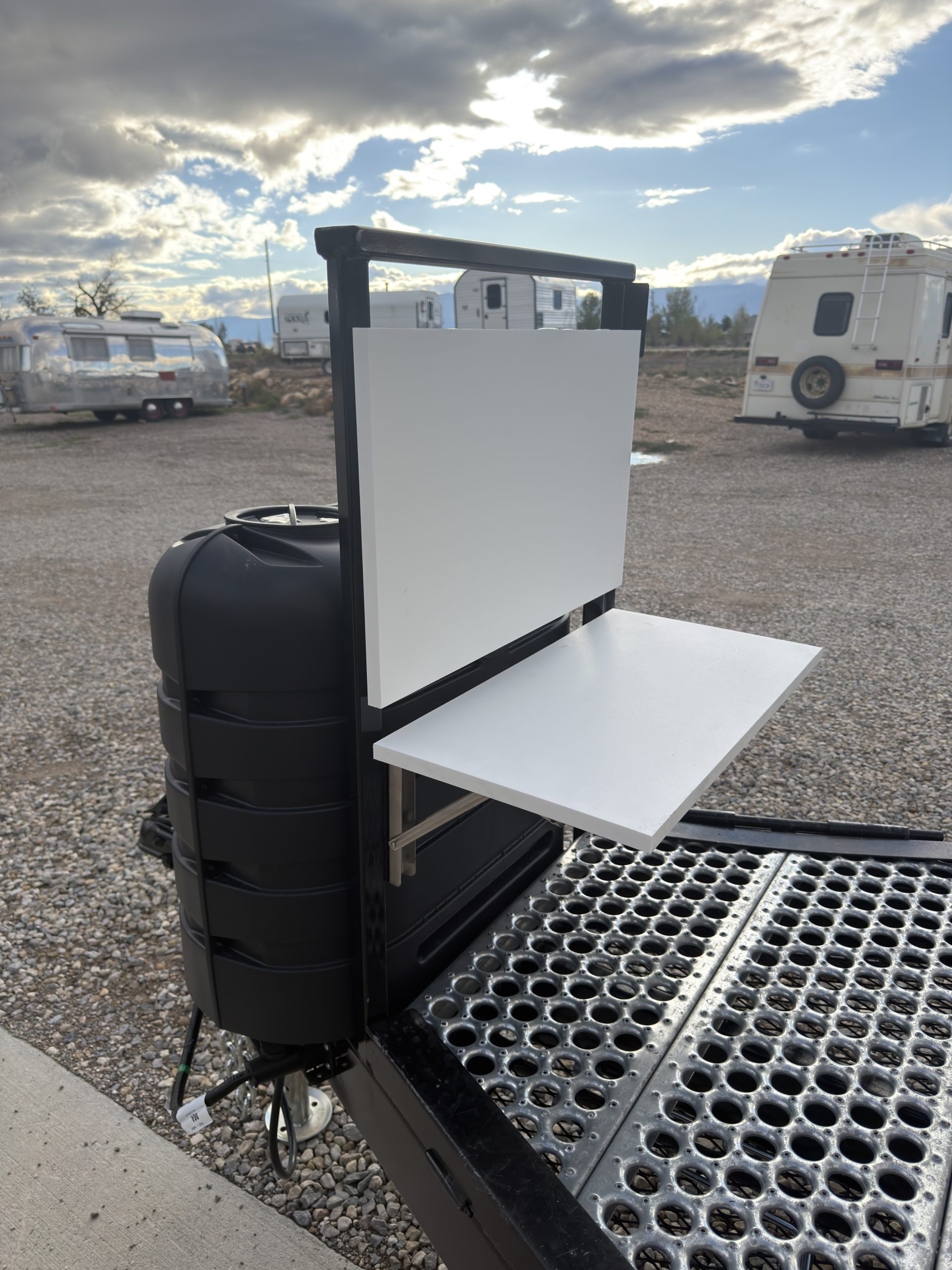

Exterior Boot Bench
Highlighted feature:
Fold-Down Seat Added to Tongue Railing

Storage

Tongue Storage Access
Removable Decking for Storing Chains, Tire Chocks, etc.
Exterior Compartments

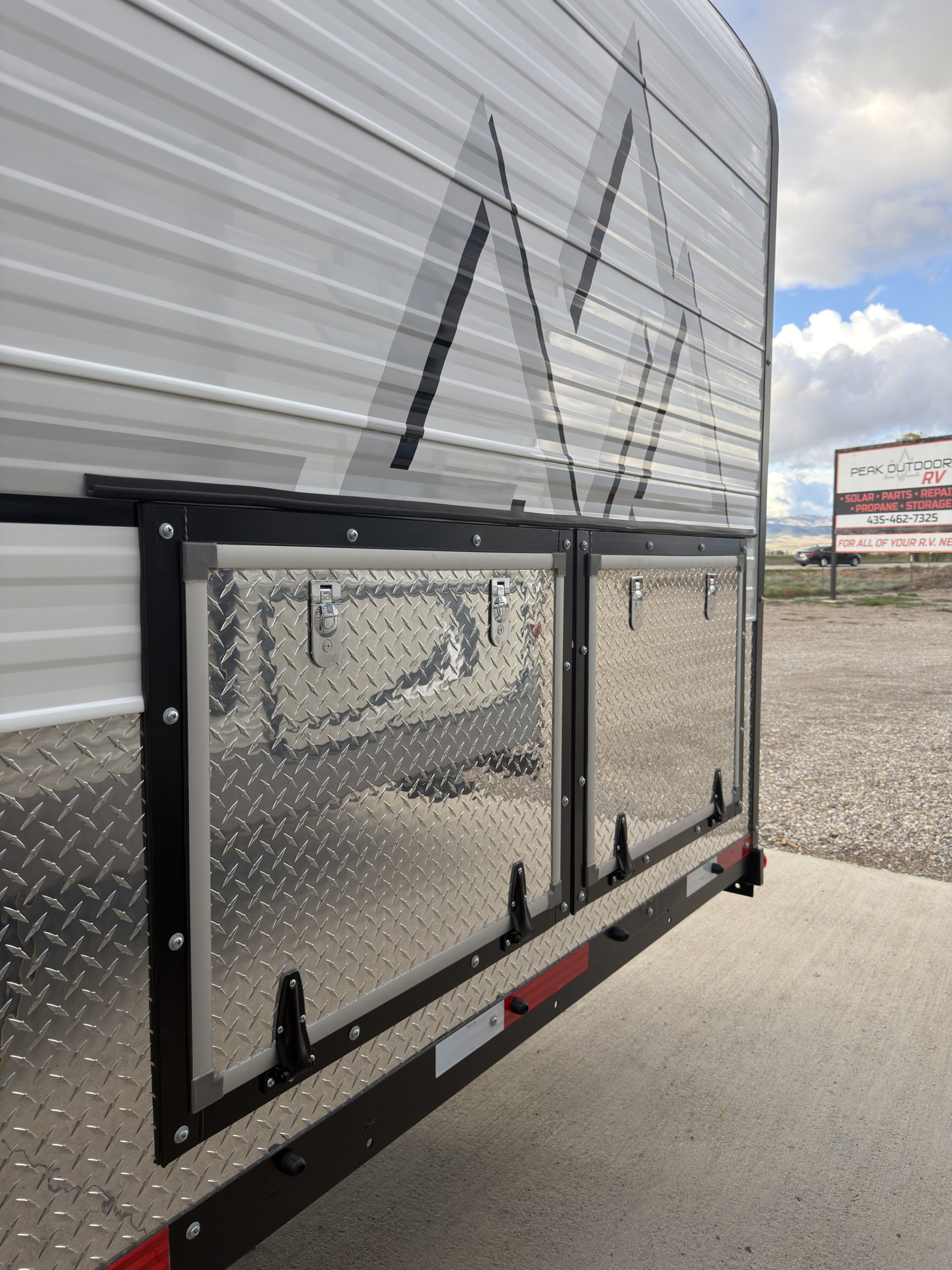

  • Highlighted feature:Large Tall Two-Door Curbside Storage Compartment (Setup for Fishing Rods)

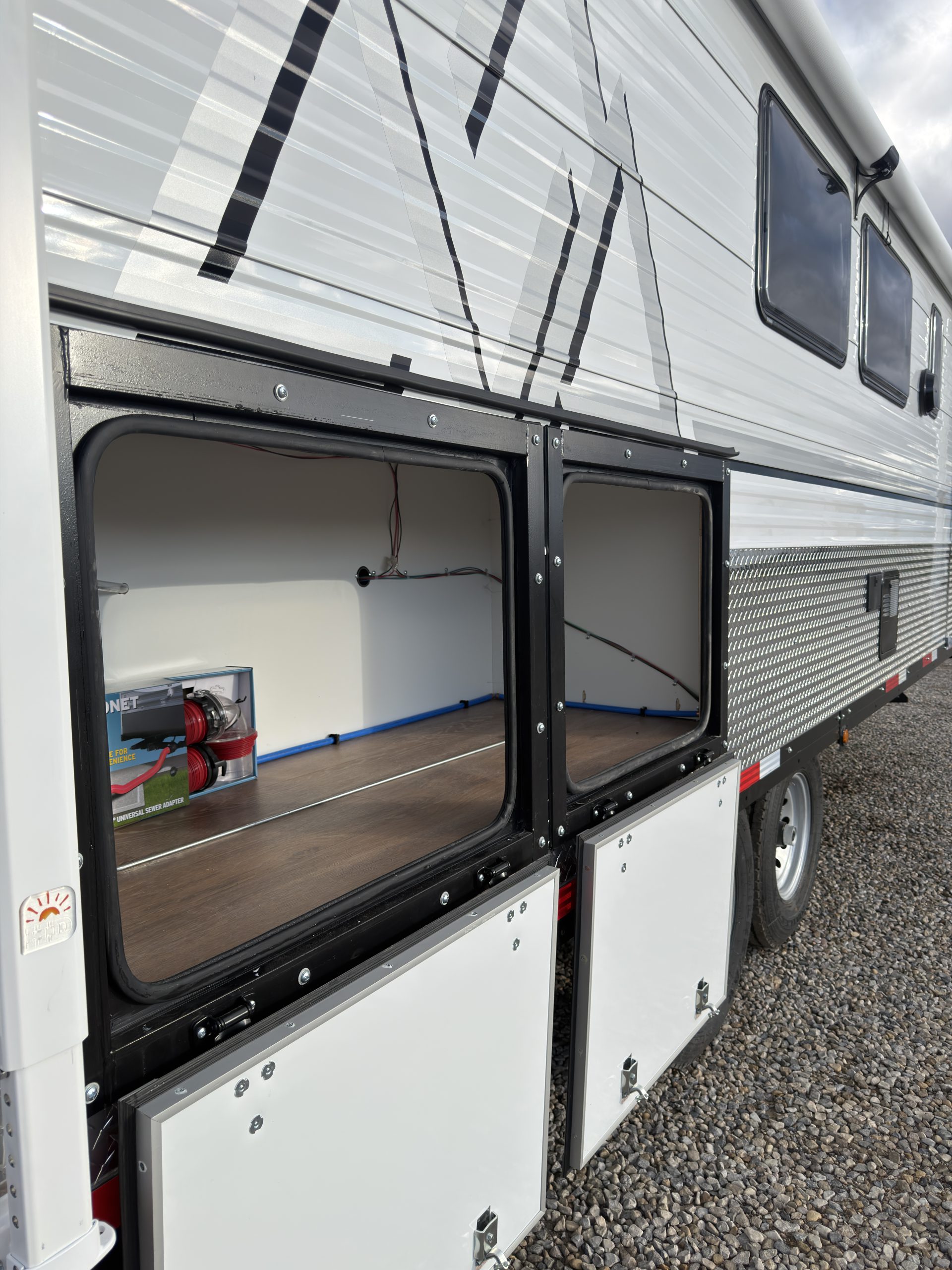

  • Large Tall Two-Door Roadside Storage Compartment with Battery System

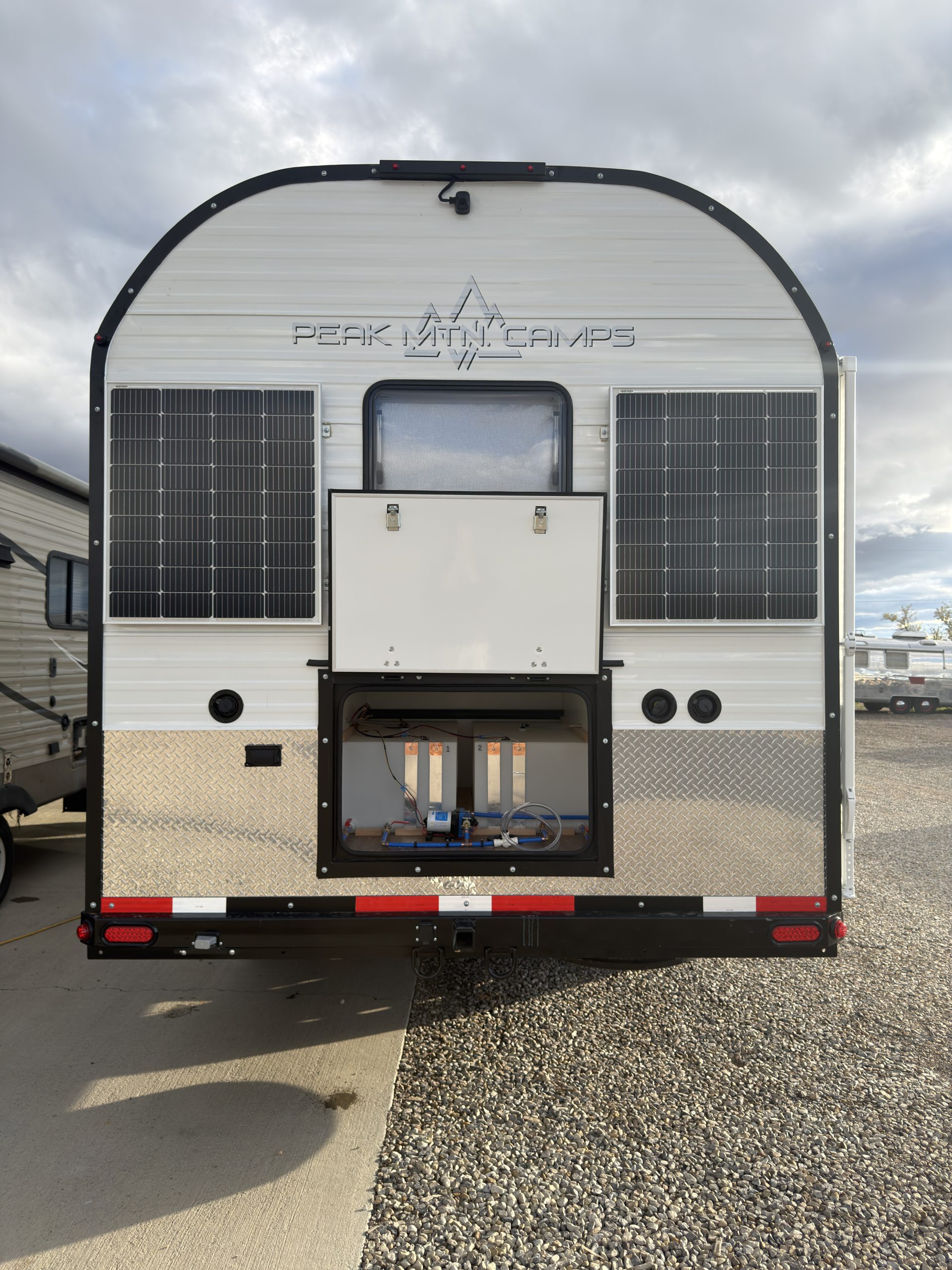

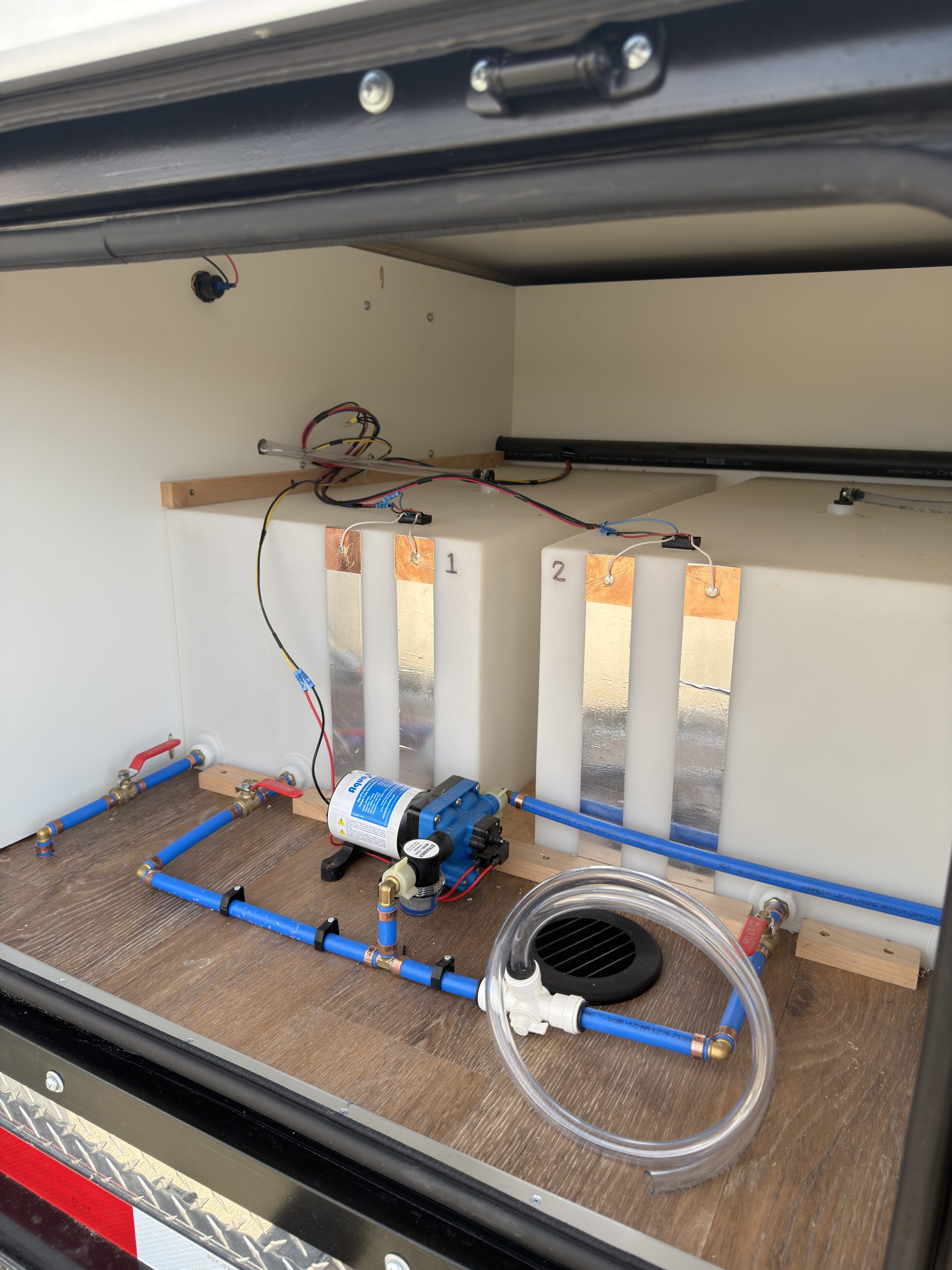

  • Large Back Storage Compartment w/ Fresh Water Tanks
  • Small Pass-Through Wood Box
Compartment Doors & Latches
Keyed Doors With Adjustable Latches
Compartment Sealing
Dual-Sealed
Compartment Lighting
LED Lighting Added to Exterior Compartments
Compartment Power
Highlighted feature:

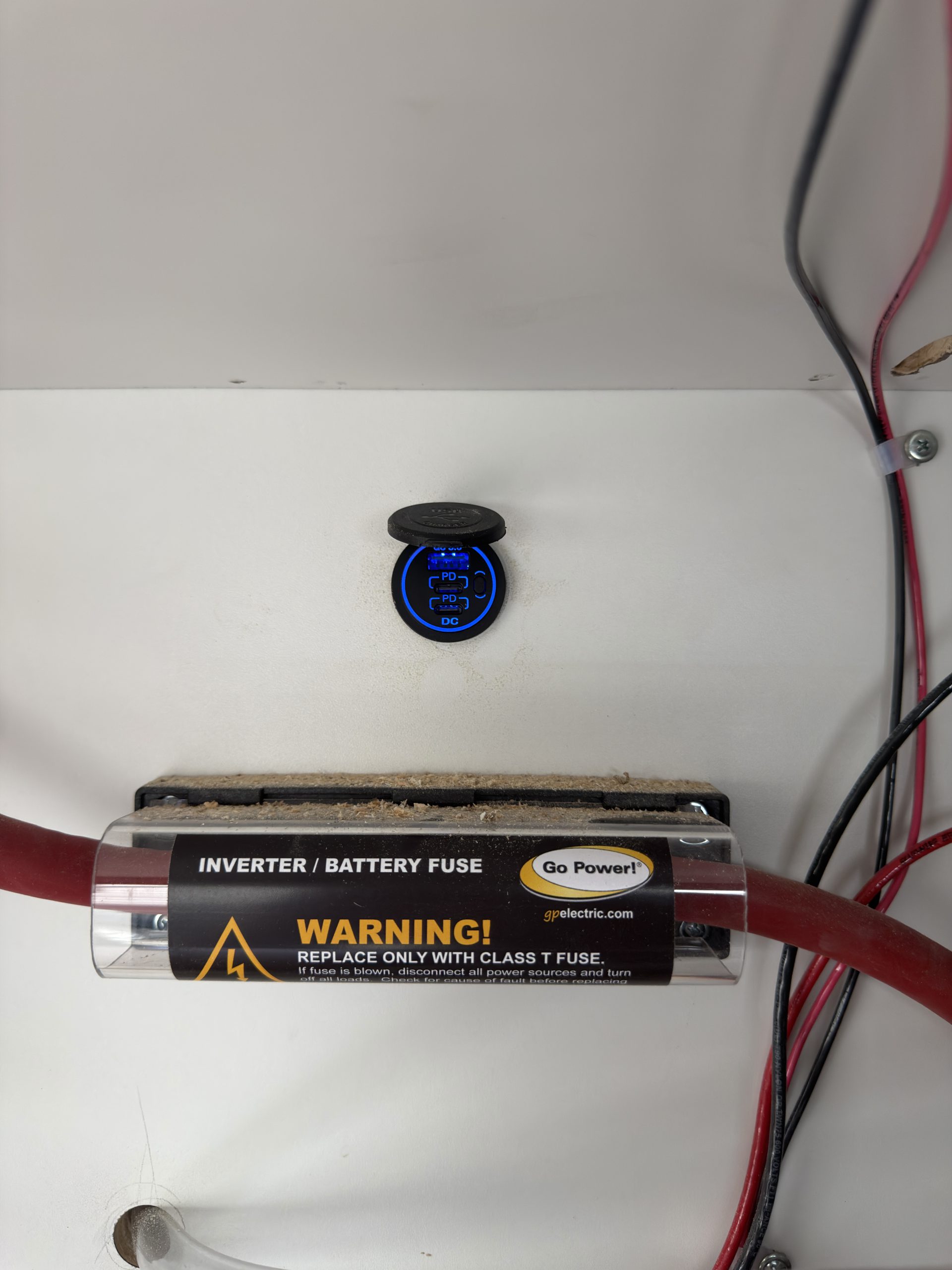

USB Ports In Power Compartment

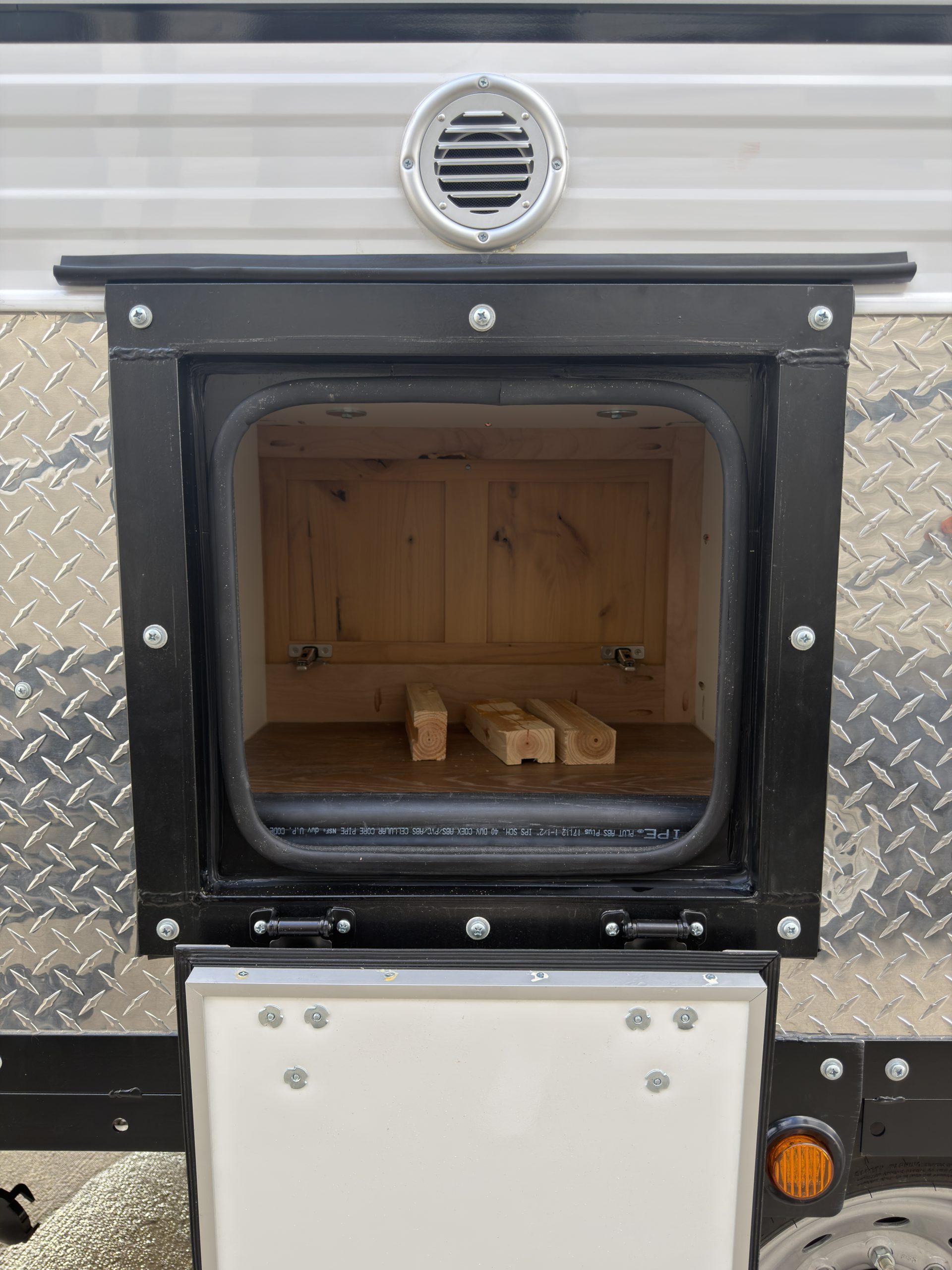

Wood Box
Standard Pass-Through Wood Box

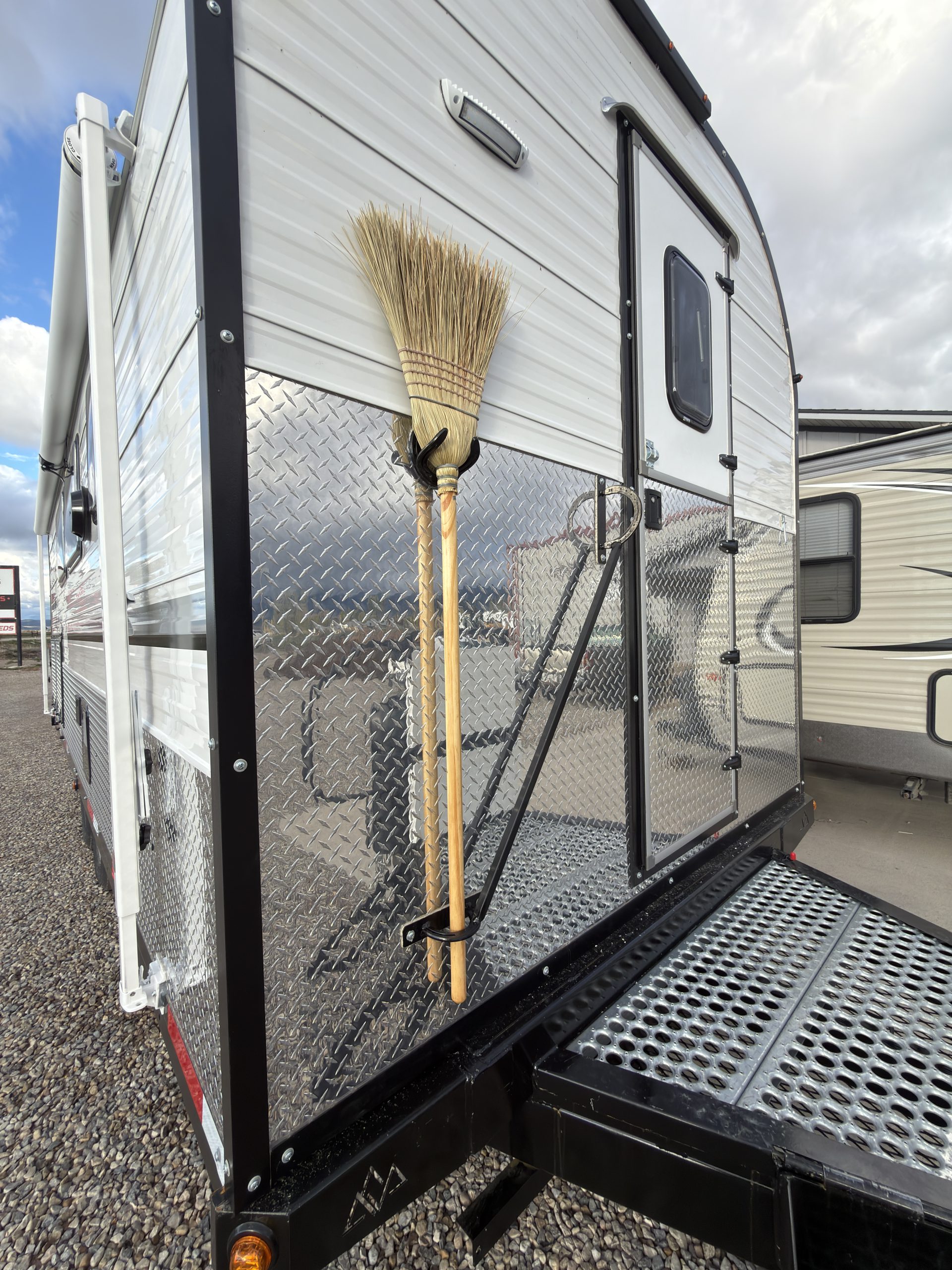

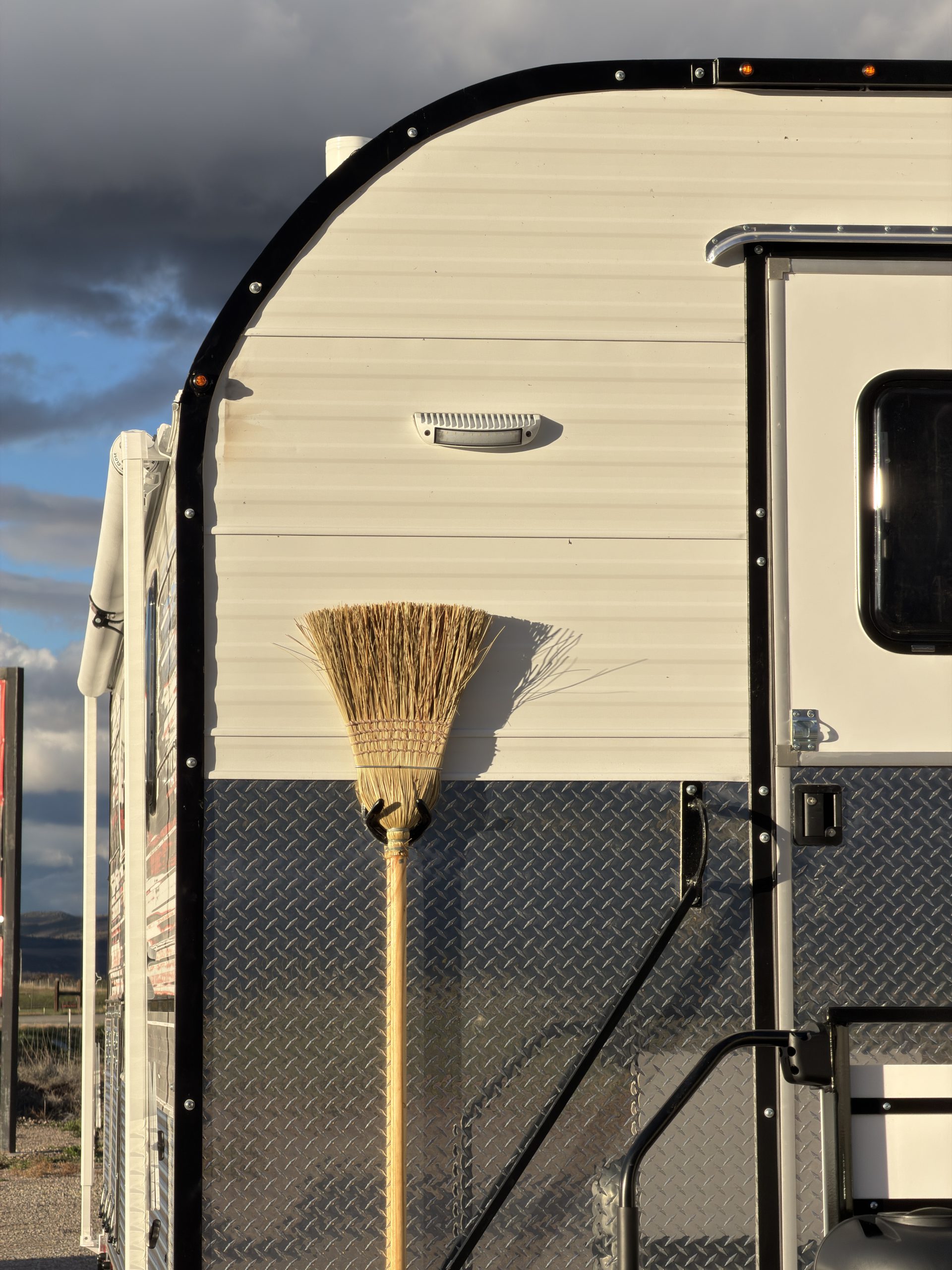

Broom Holder
Traditional Horseshoe Broom Holder With Corn Broom

Construction

Siding / Wrapping
Highlighted feature:

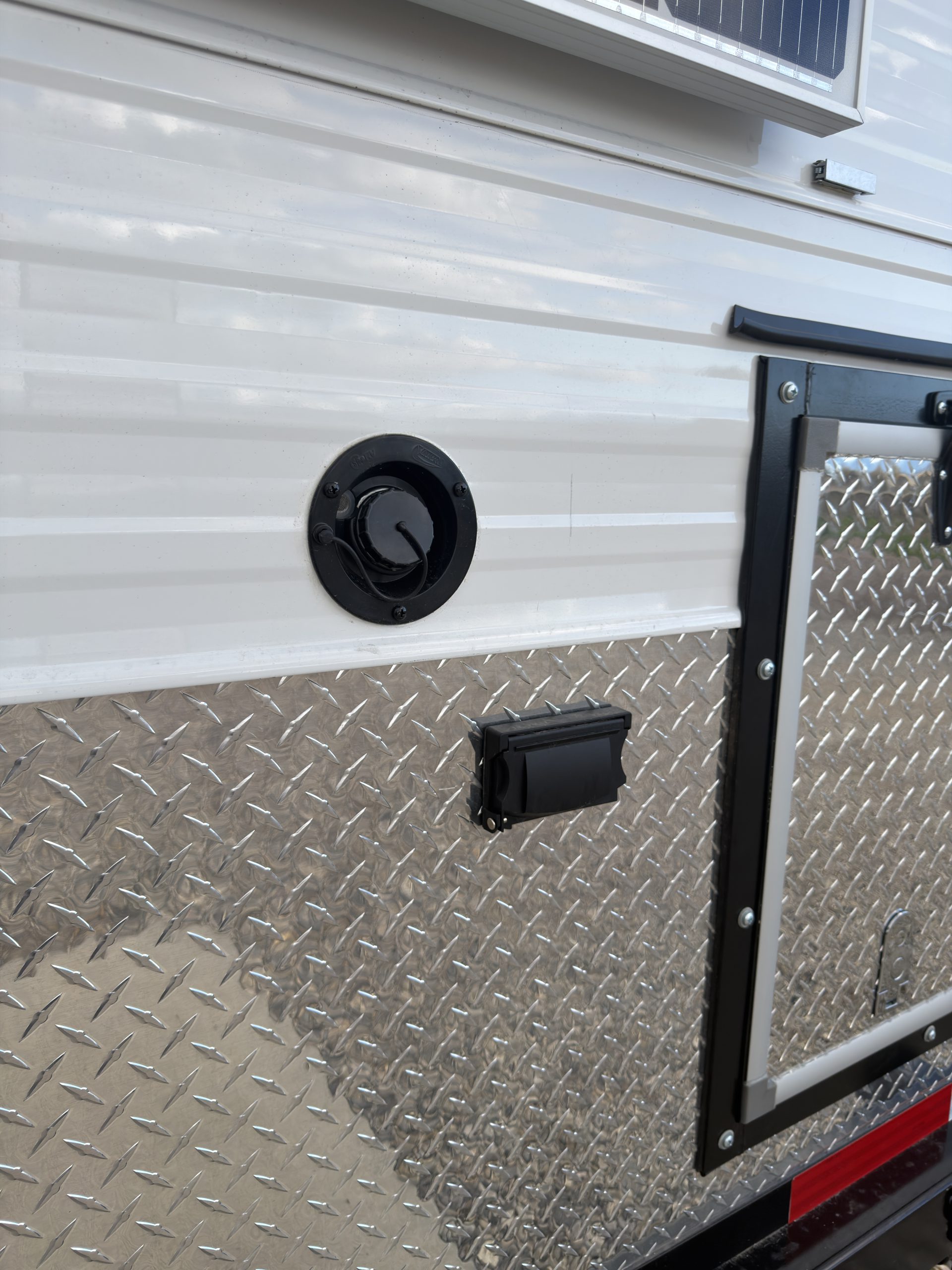

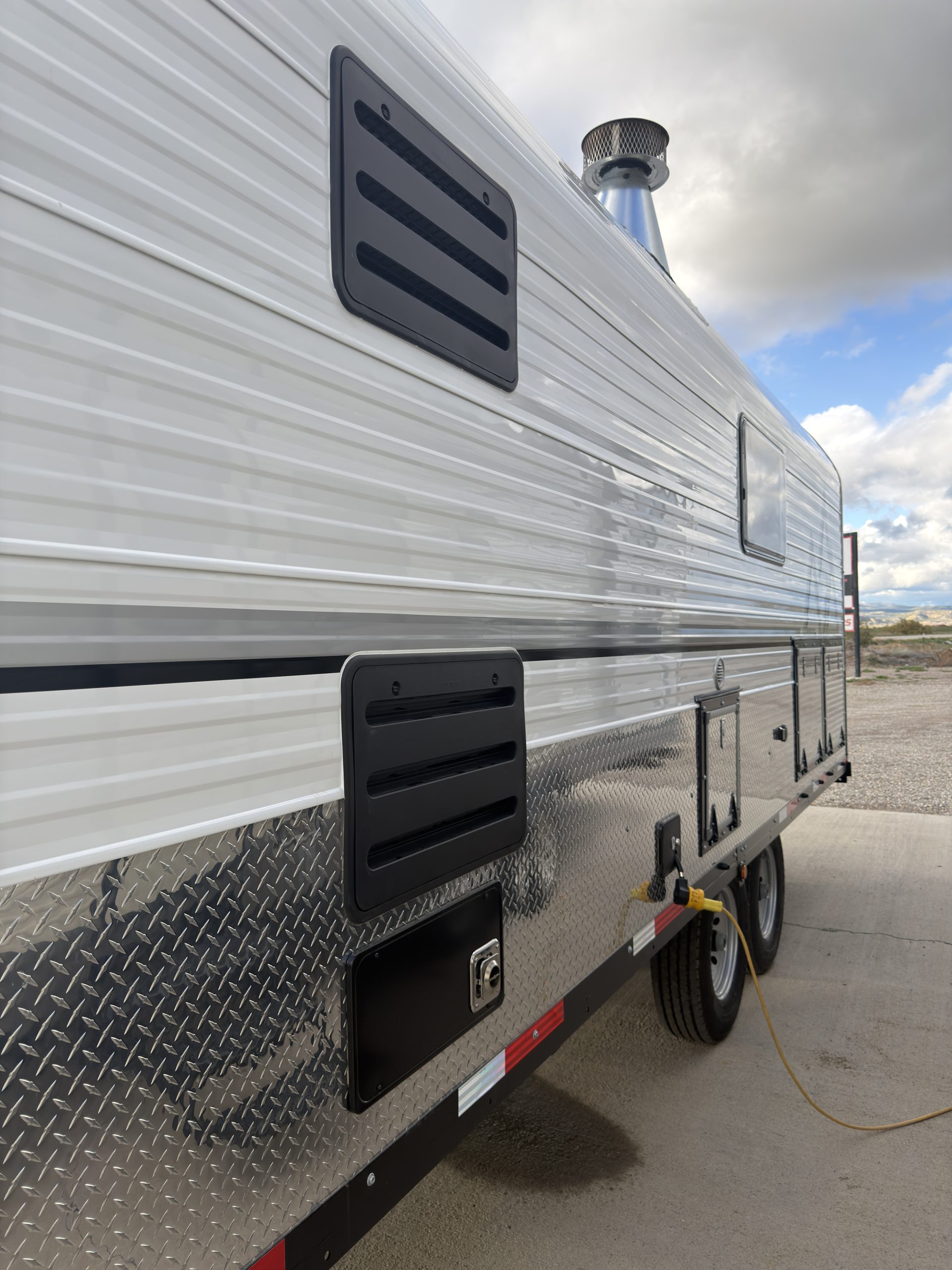

White Aluminum Siding With Diamond Plate Wainscoat (All Sides)
Graphics
Standard Black Stripe and Peak Graphics & Logos
Structural Reinforcement
Angle Iron On Exterior Edges

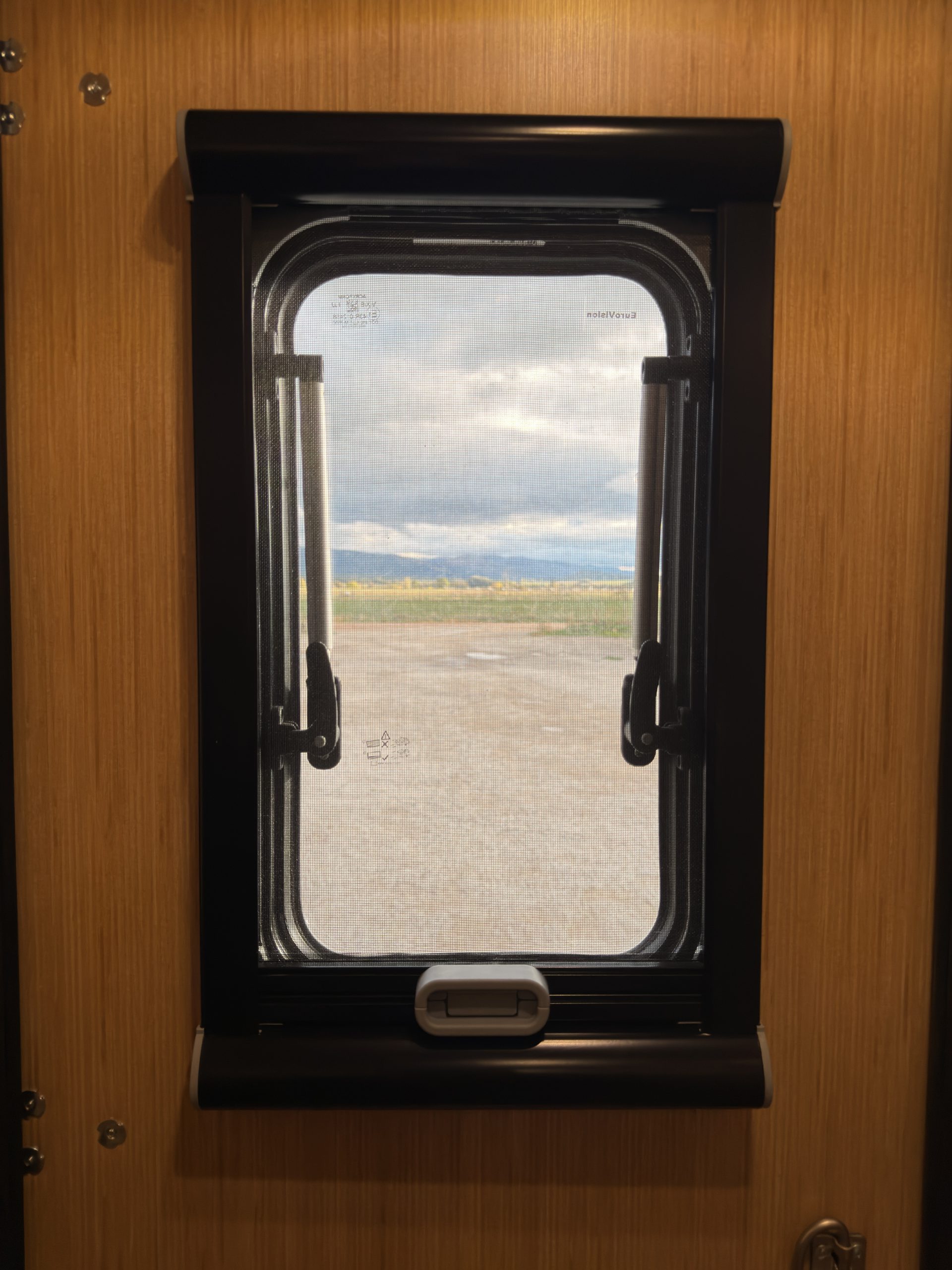

Windows
Highlighted feature:

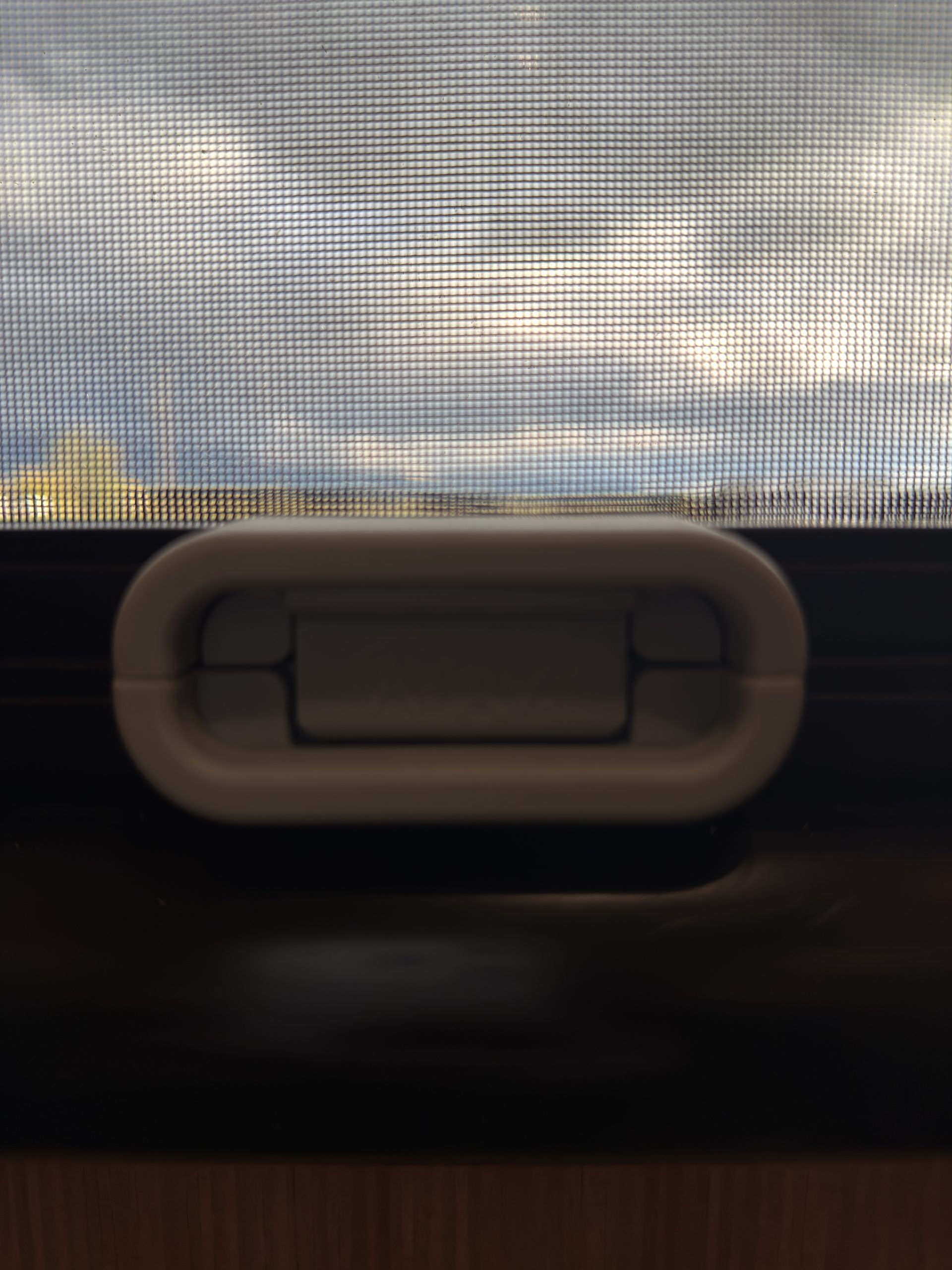

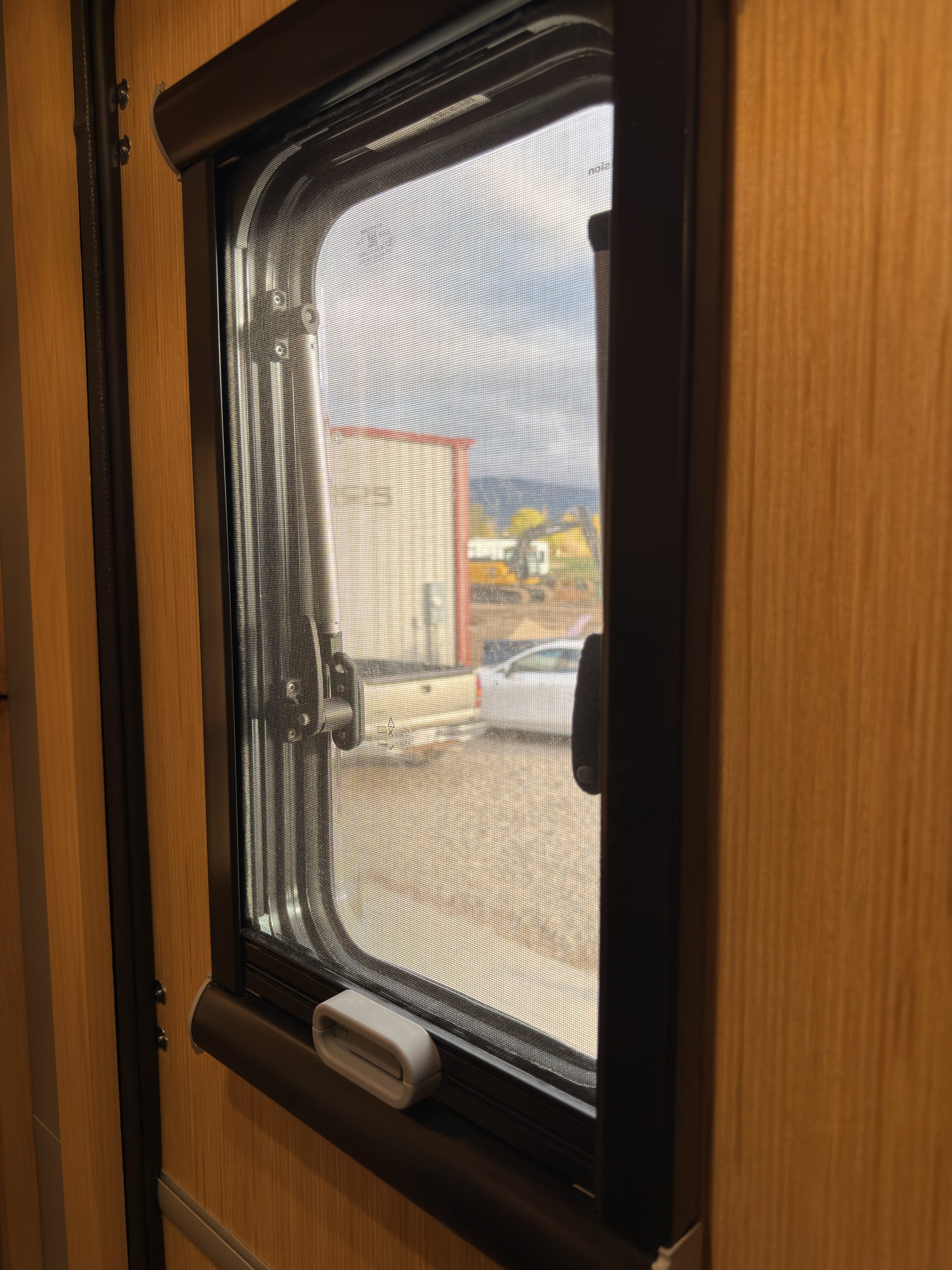

Insulated Arctic Tern Classic Windows w/ Integrated Bug Screens & Blackout Blinds
Skirting Angle Rails
Highlighted feature:
Added

Power & Lighting

Exterior Lights
Standard Front LED Light
Exterior Power Connections
Highlighted feature:

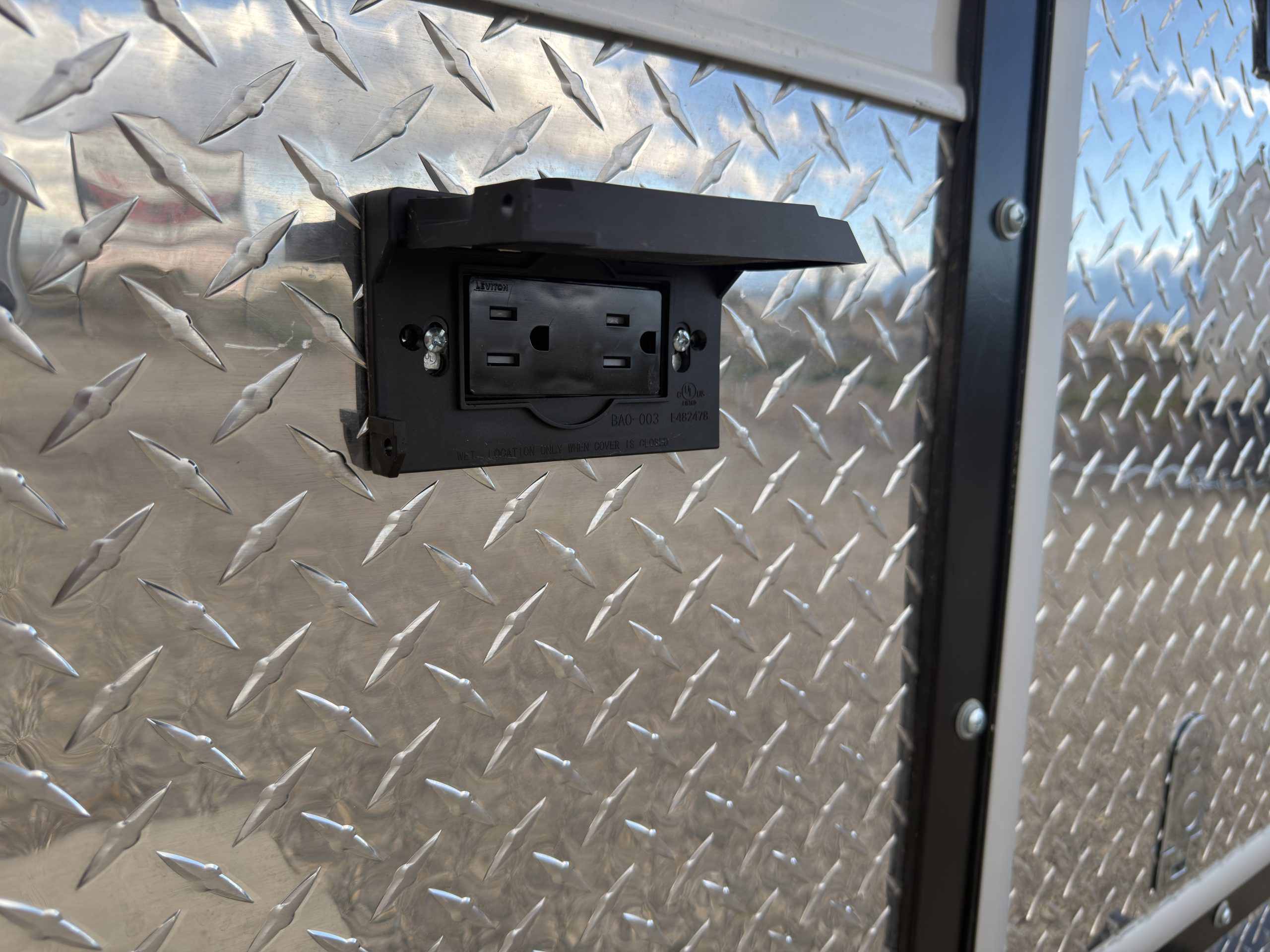

AC Outlet on Back of Camp

Additional Features

Exterior Awning
Highlighted feature:
Added

Interior

General

Layout
Fully Custom (Designed with Customer)
Sleep Capacity
2 Adults

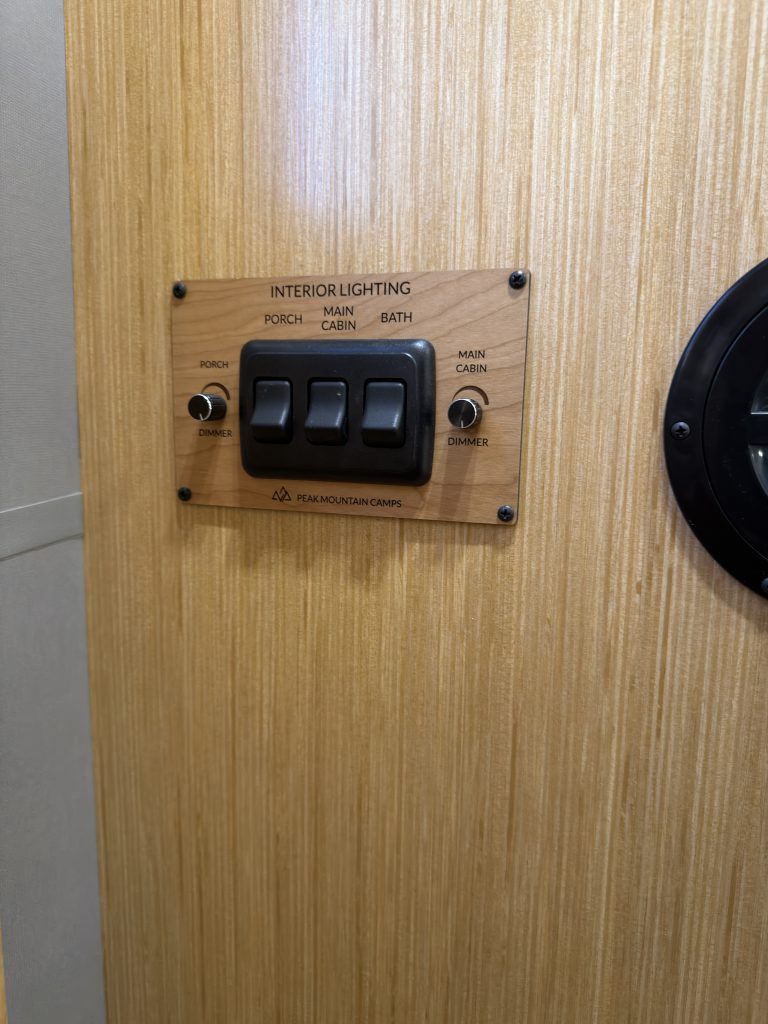

Interior Lights
Dimmable LED Ceiling Lights With Master & Individual Switches

Entry / Hallway

Configuration
Standard Entry

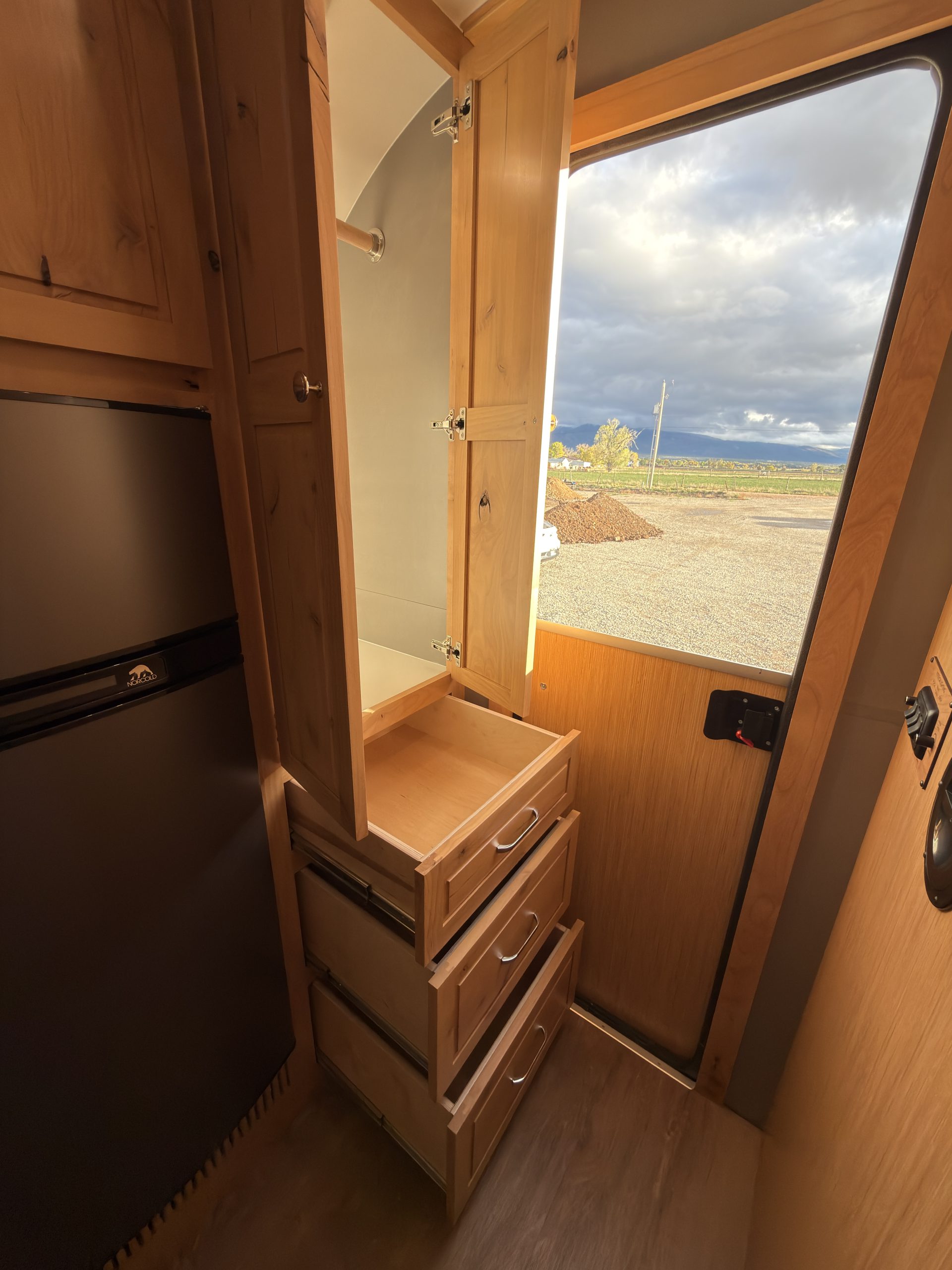

Closet Storage

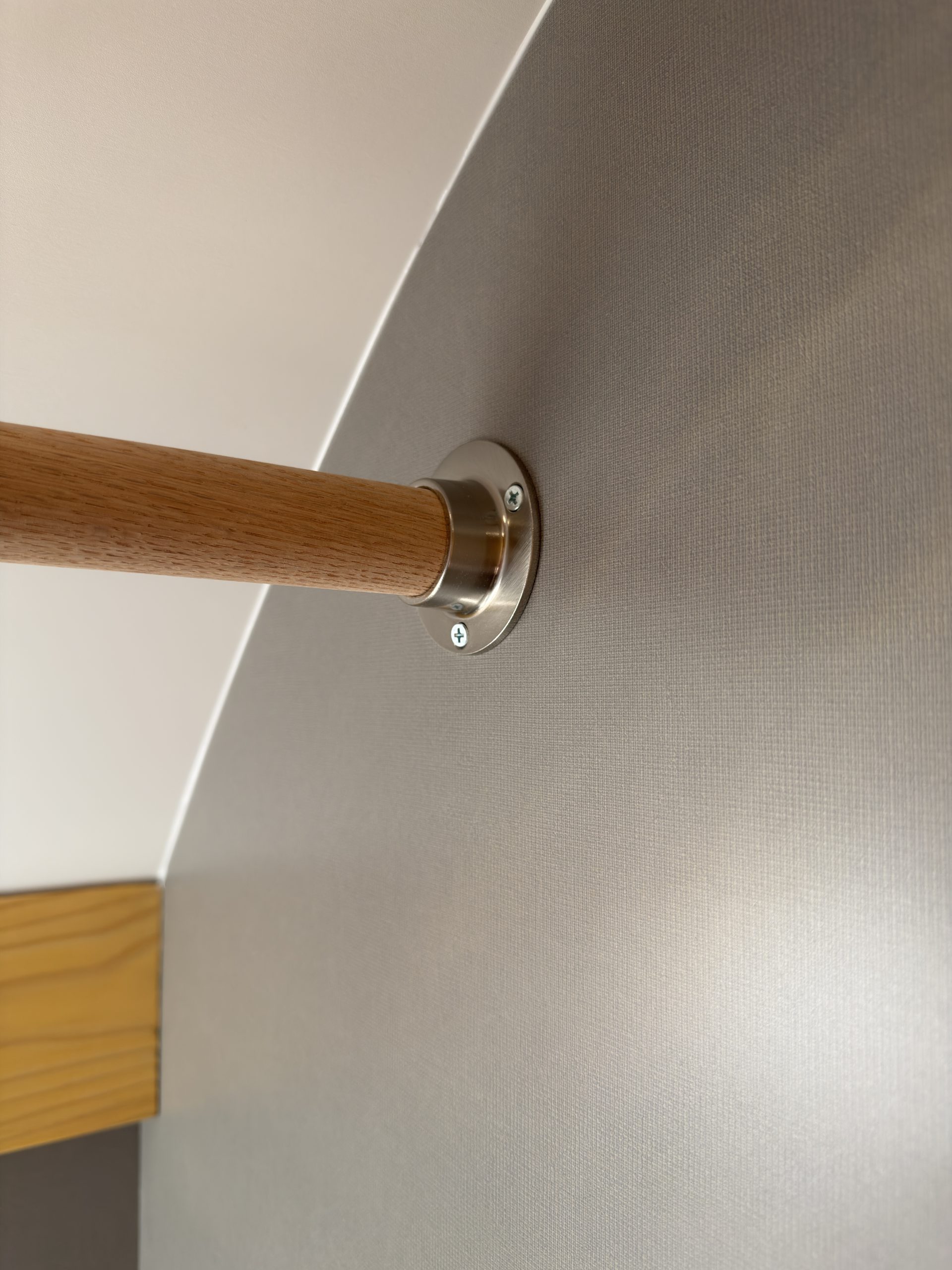

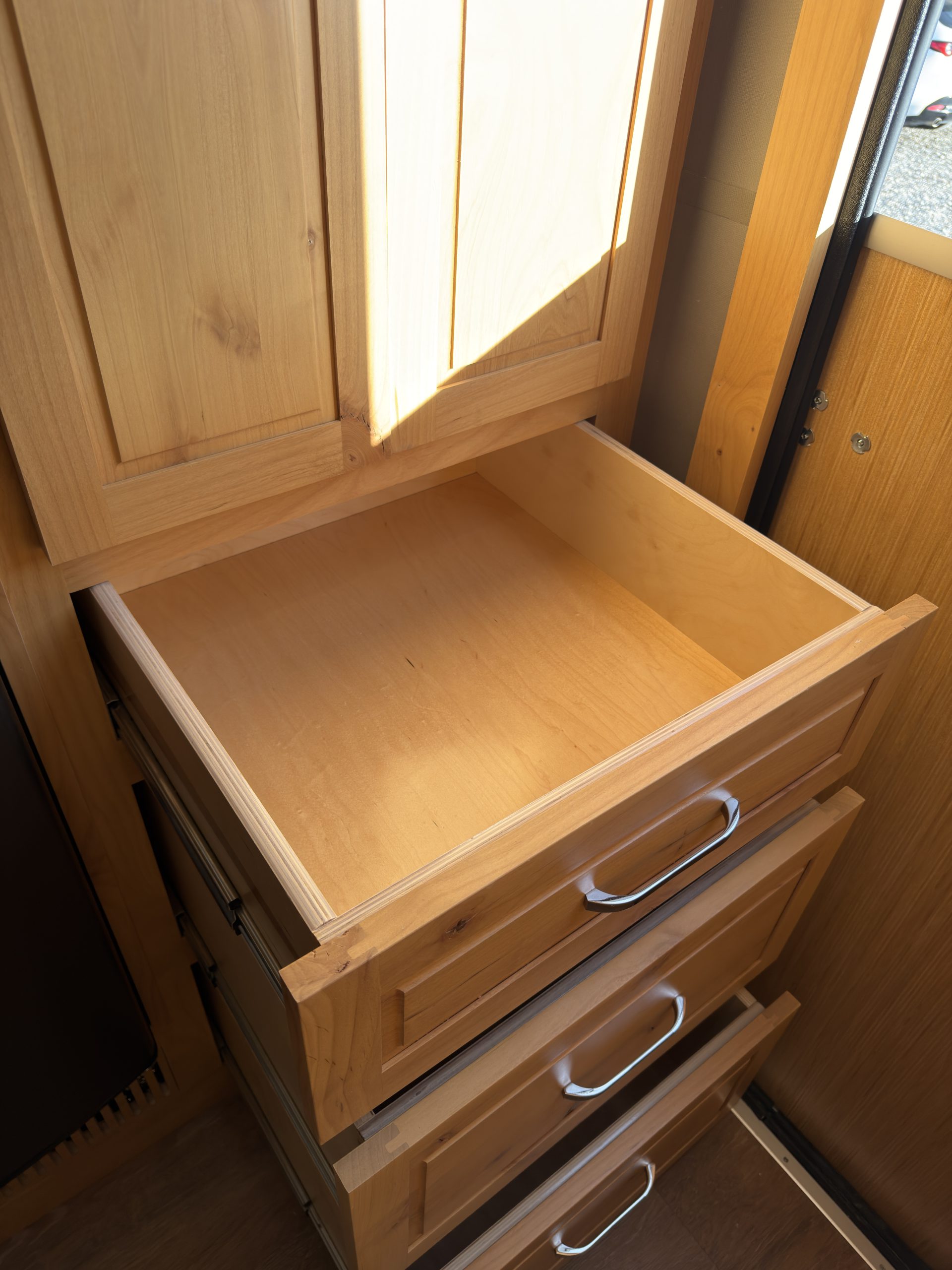

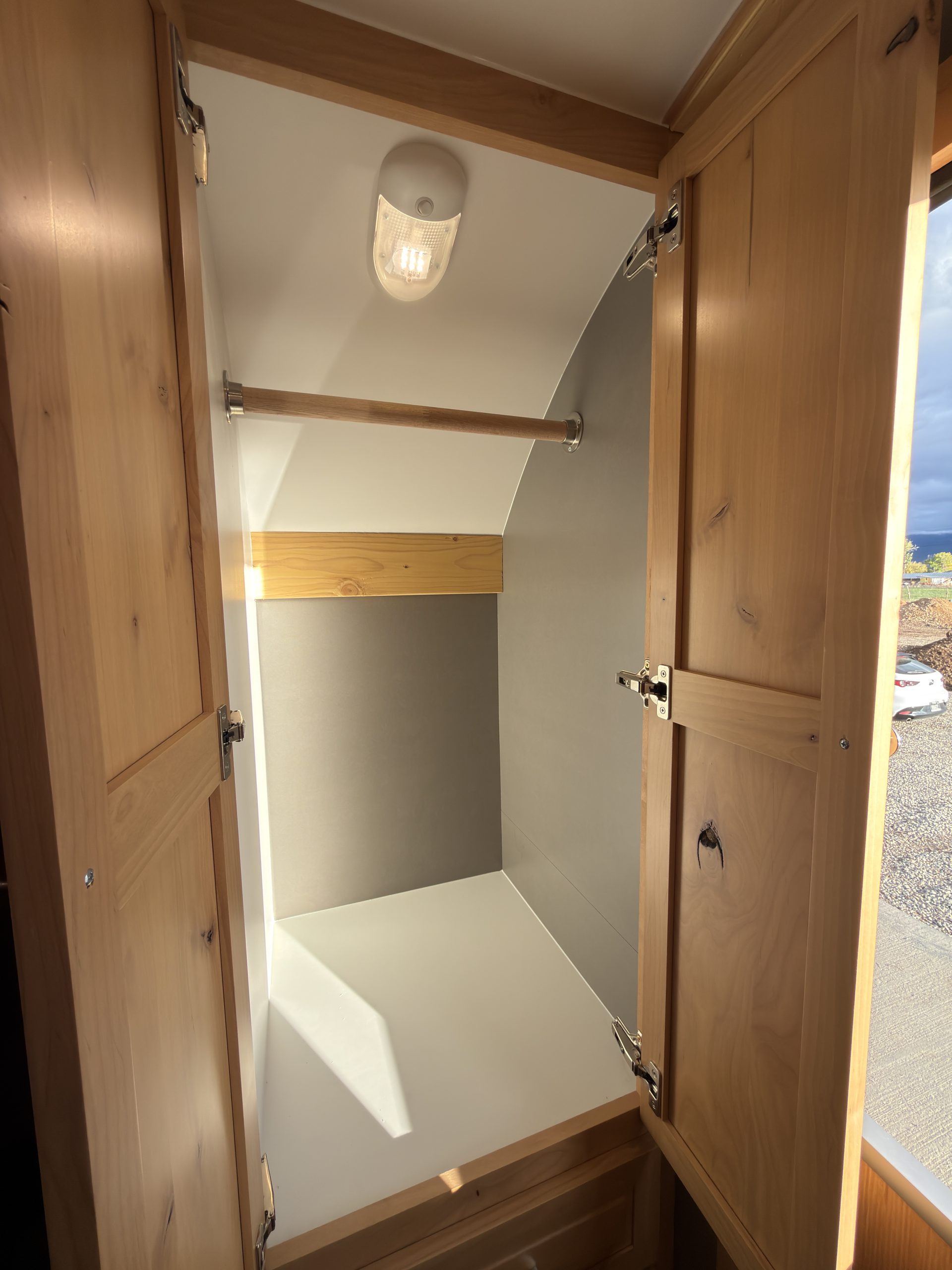

Medium-Sized Closet w/ Hanging Rod & Three Large Drawers
Lighting
LED Closet Lighting

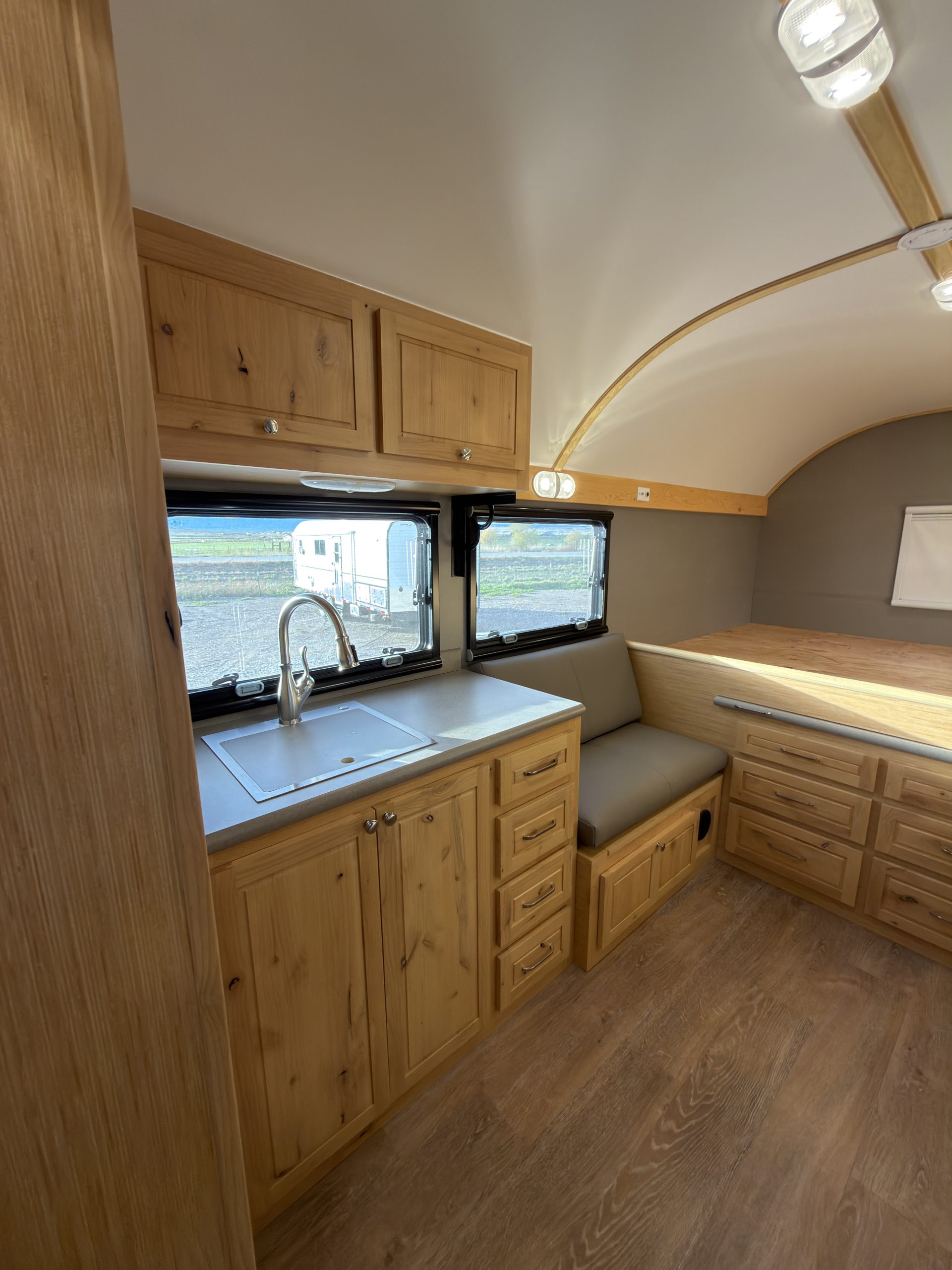

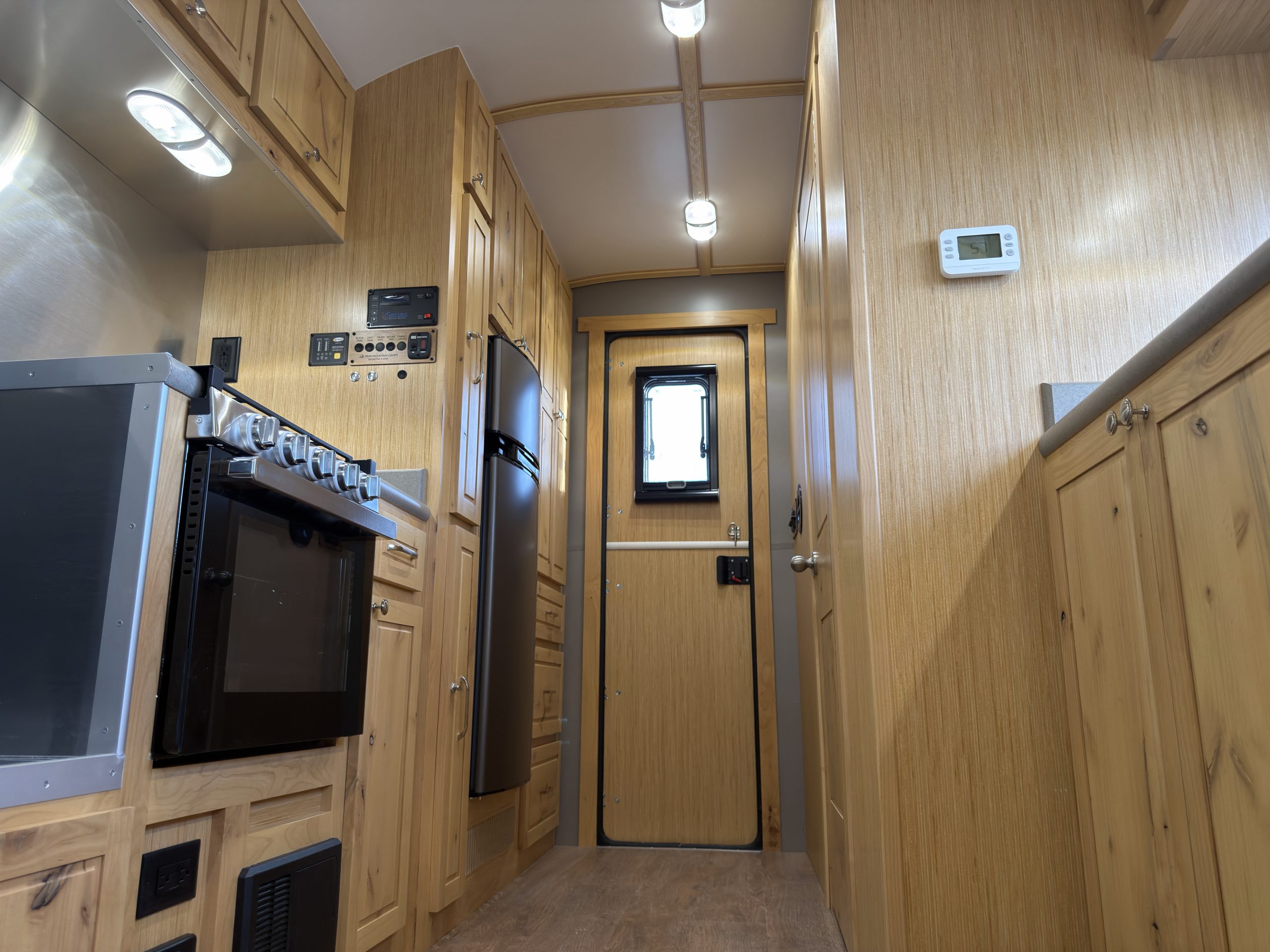

Kitchen

Refrigerator

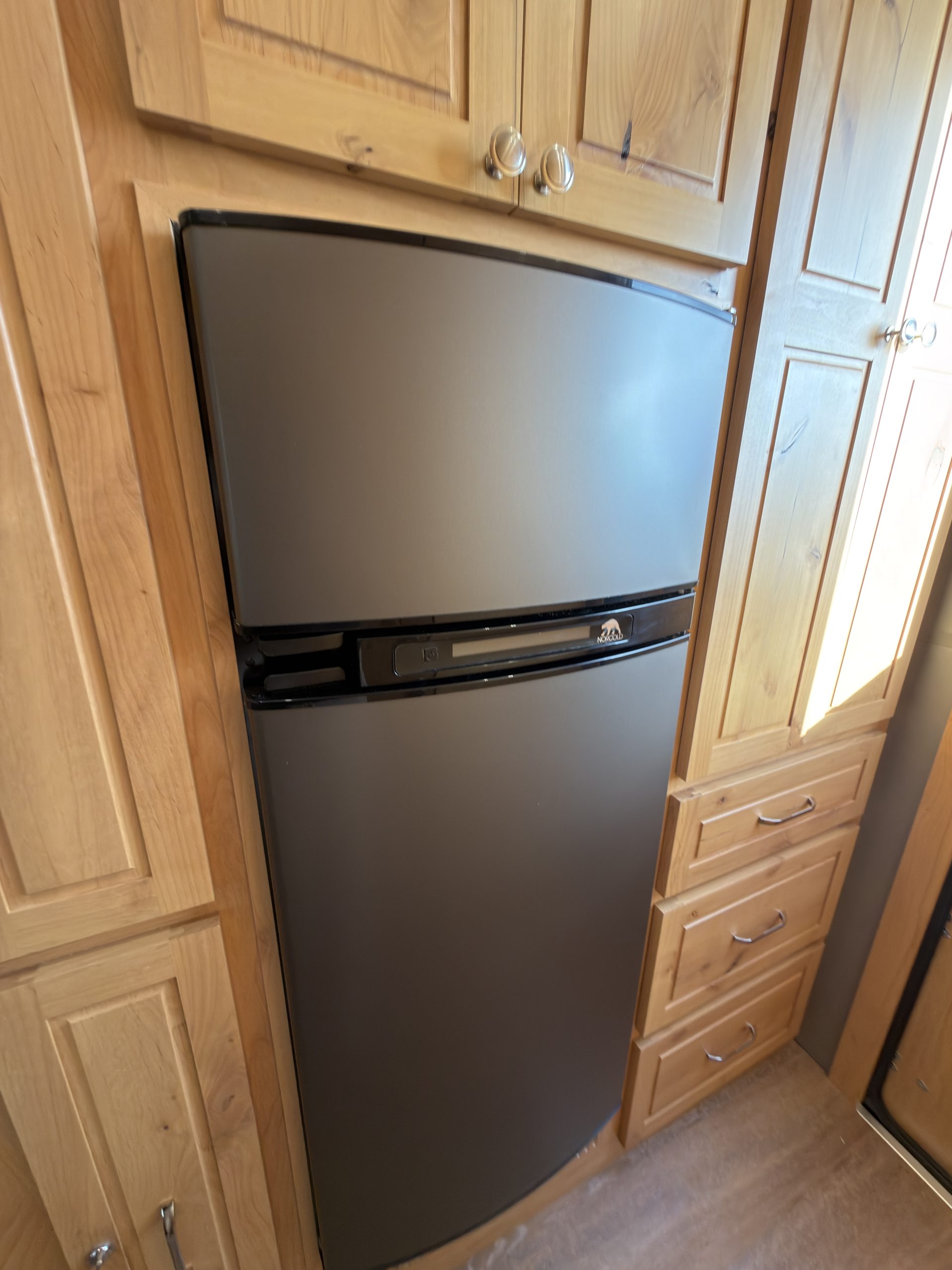

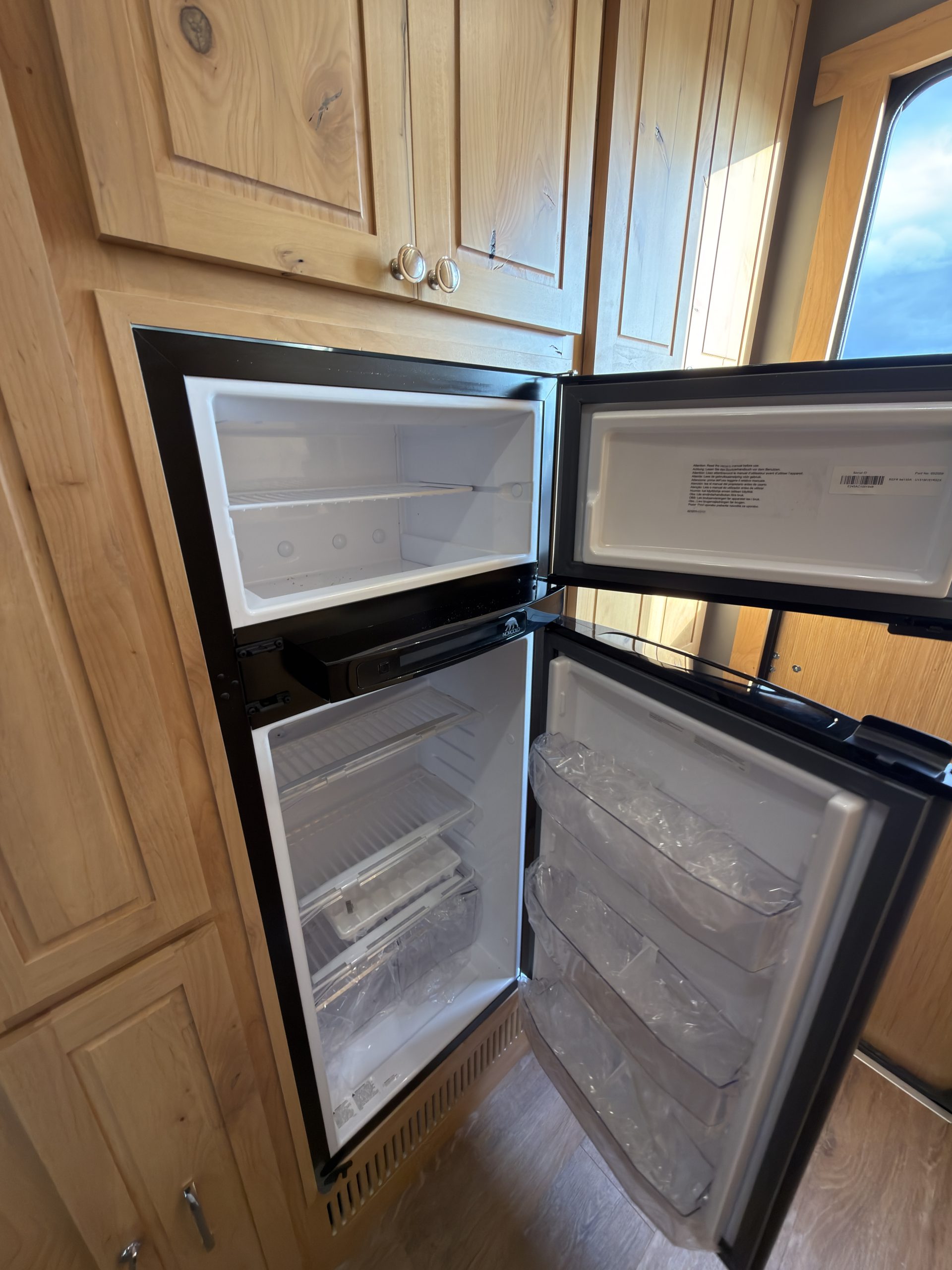

5.3 cu ft 3-Way Norcold Fridge-Freezer (N4150AGR 08-6145)
Microwave Cabinet
Standard Upper Microwave Cabinet with AC Outlet
Microwave
No Microwave
Stovetop / Oven
Highlighted feature:

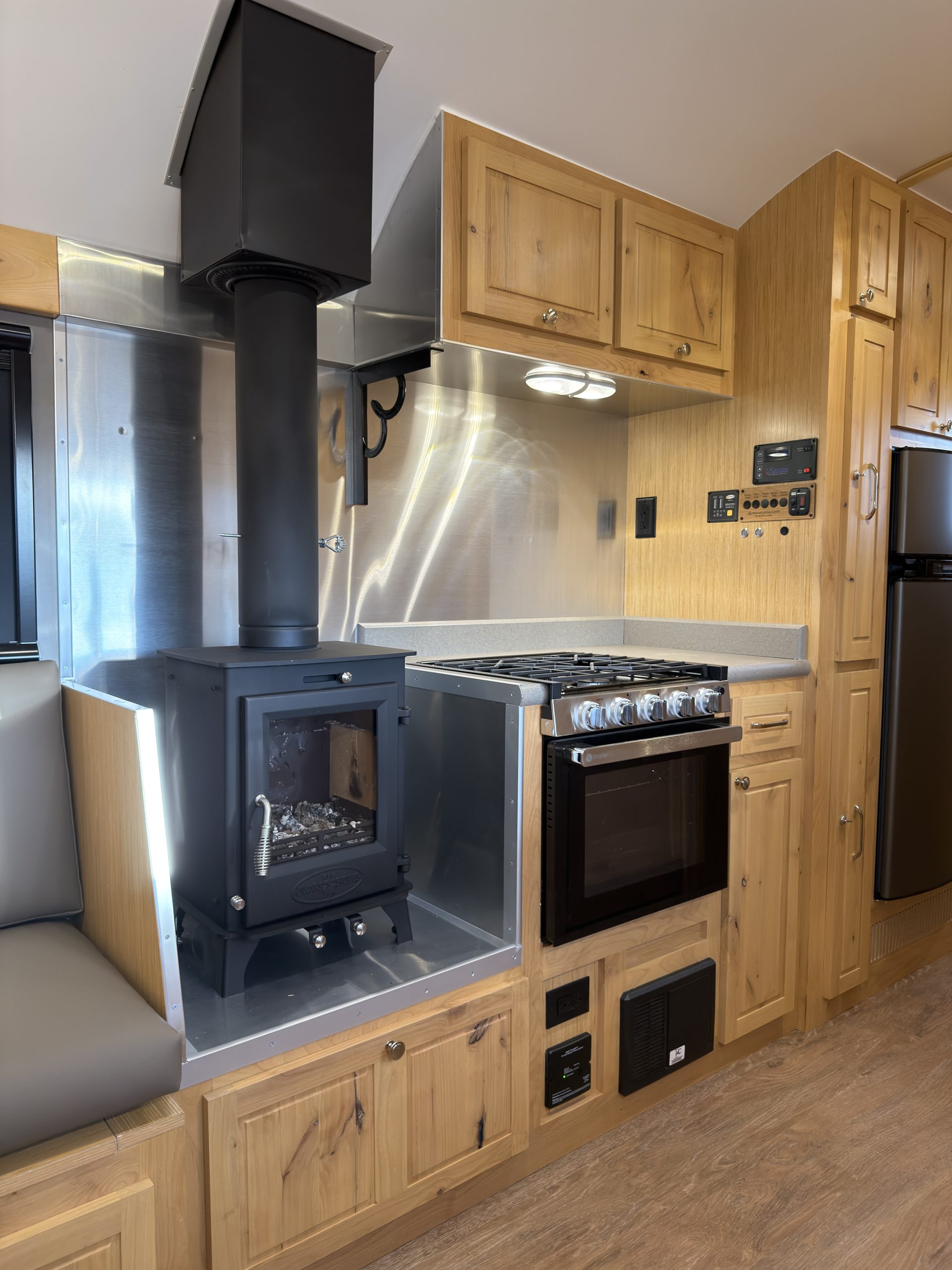

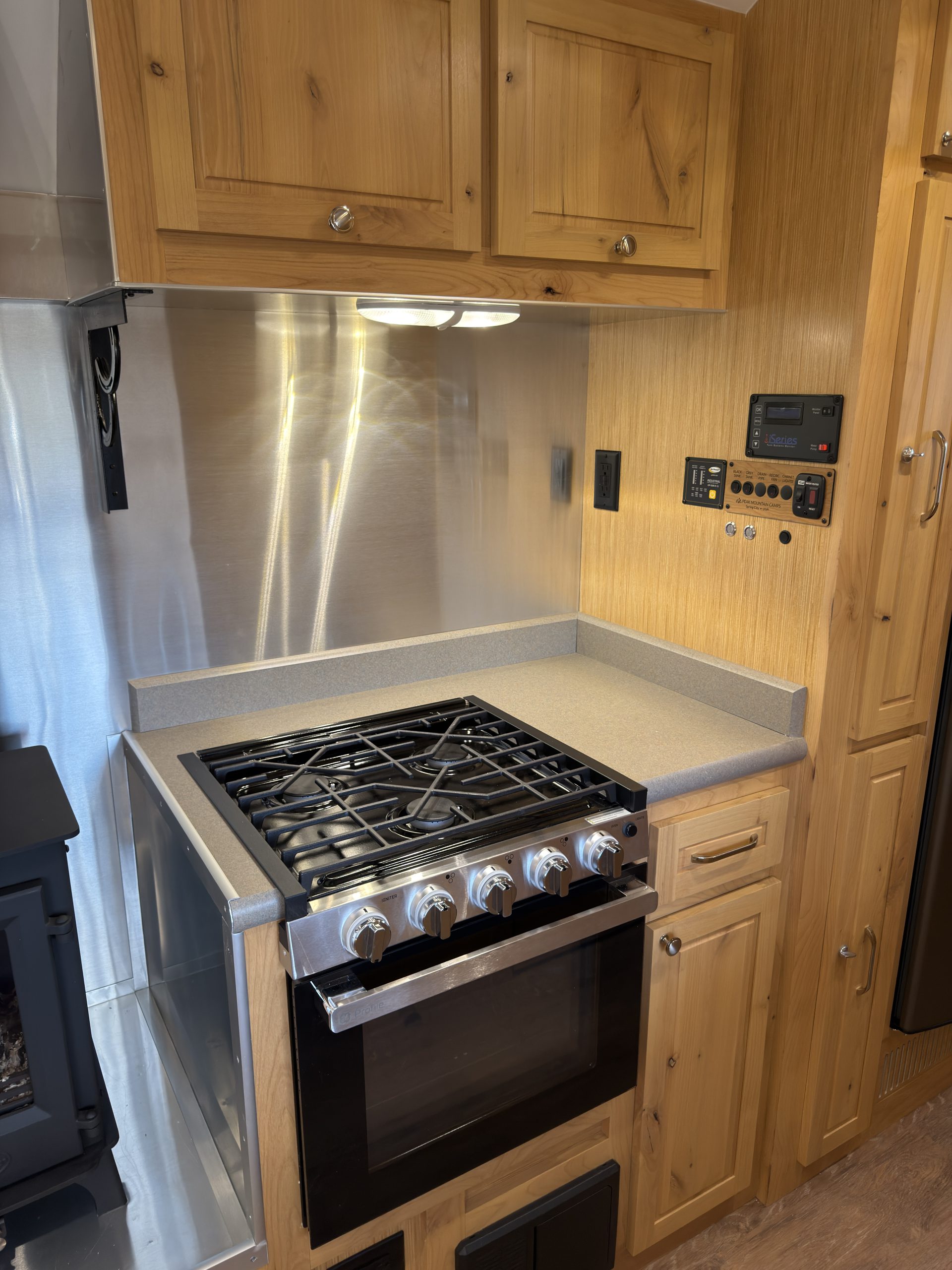

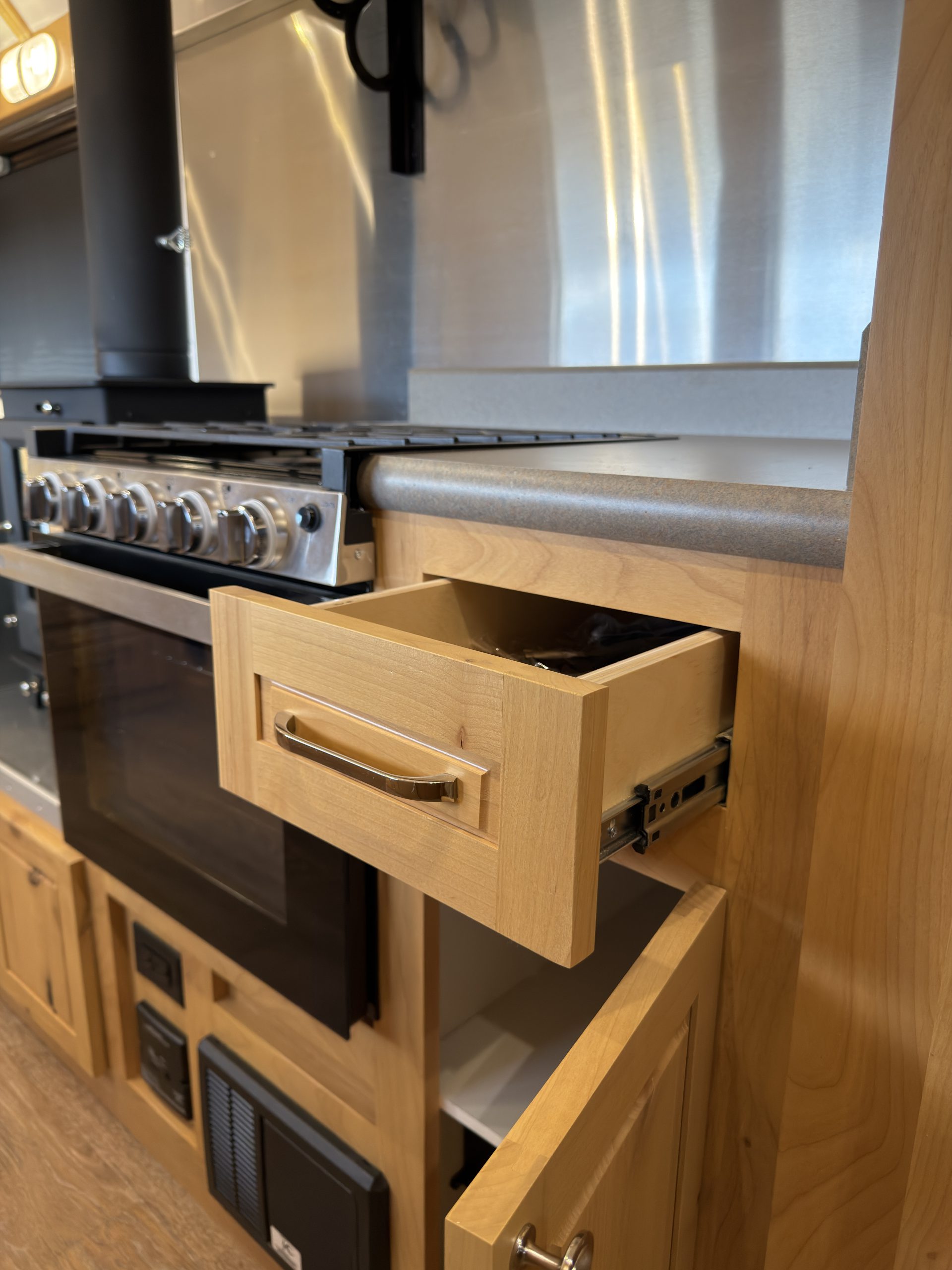

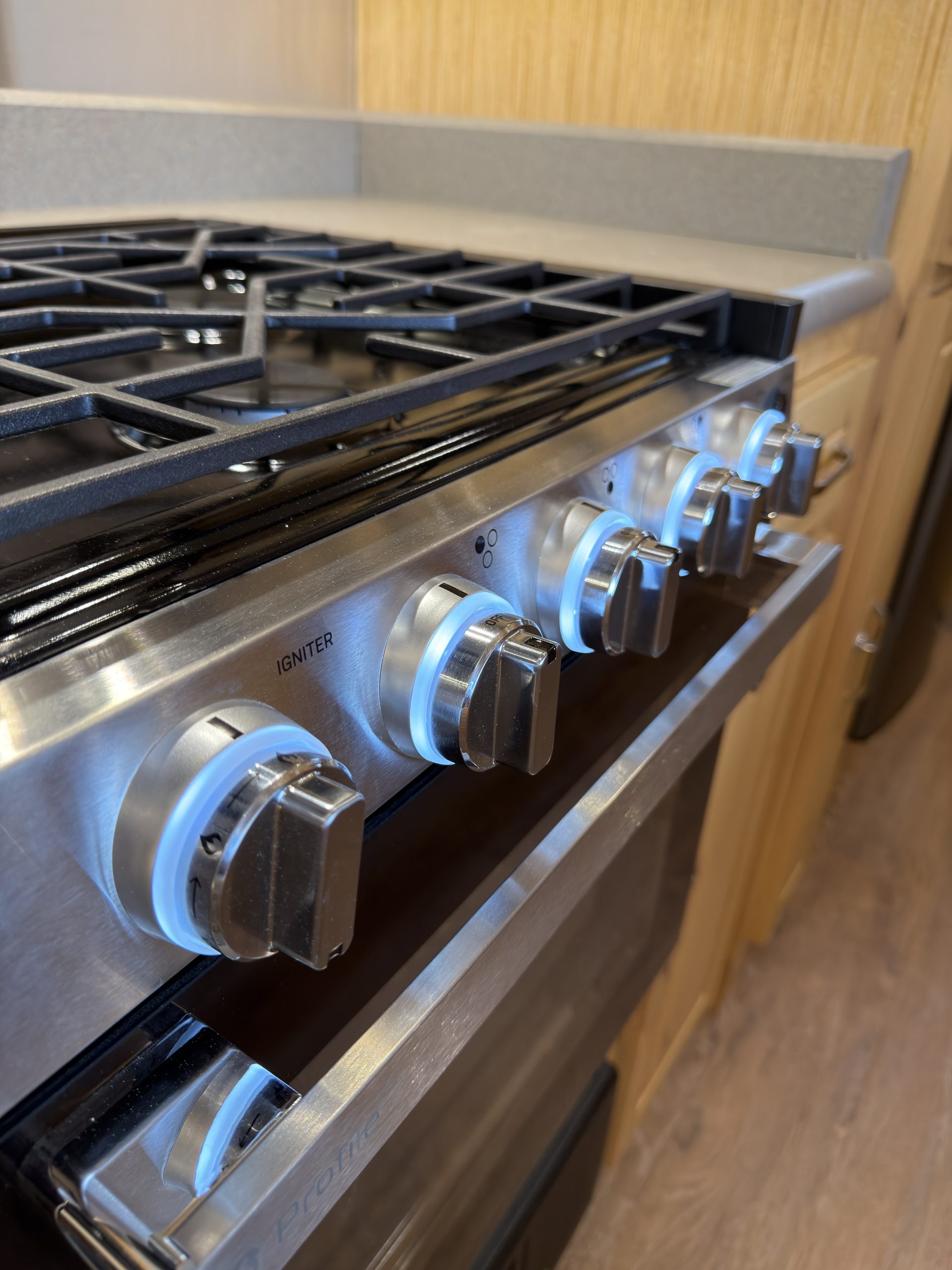

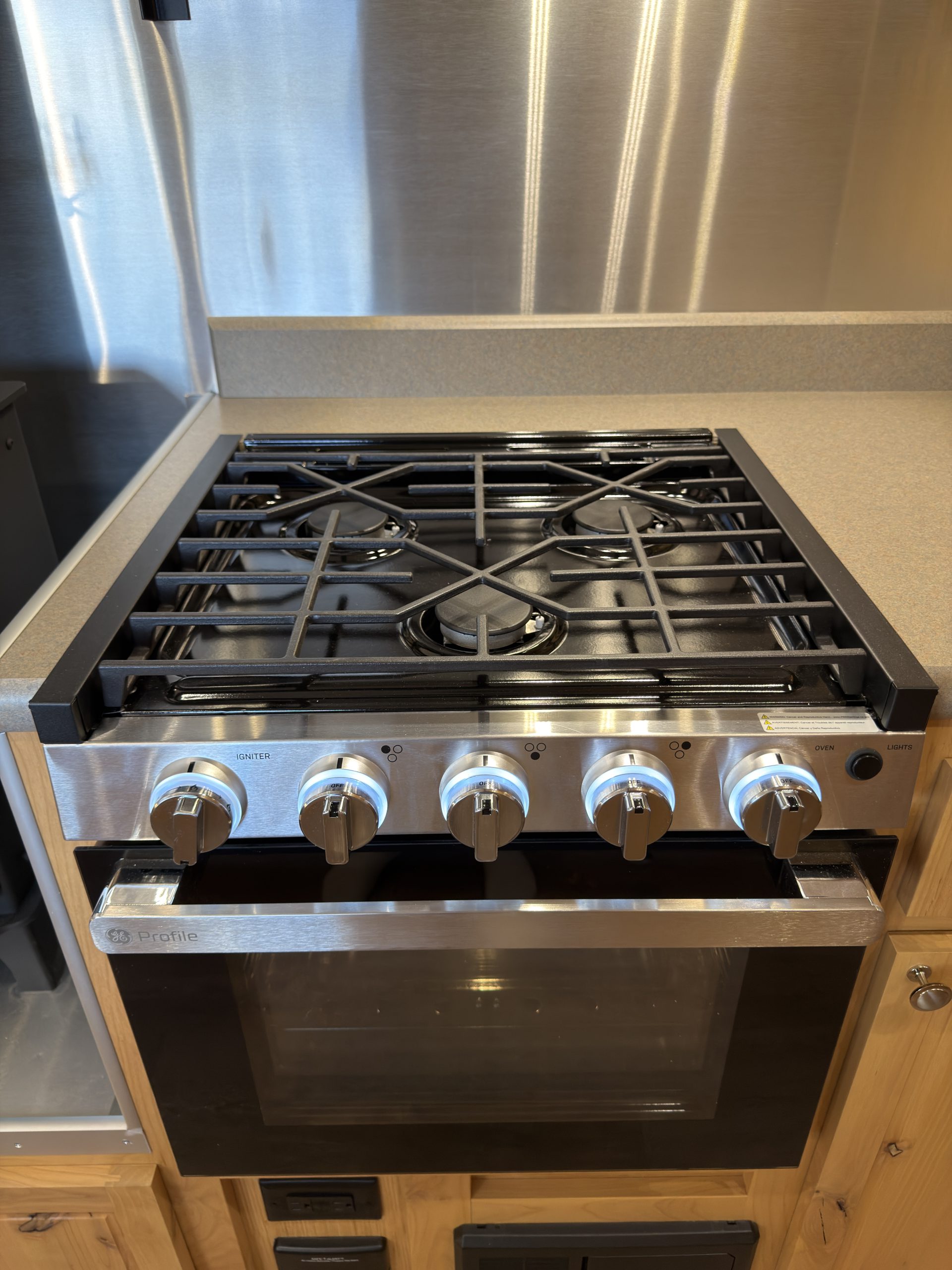

GE 3-Burner Cooktop and Oven with Direct Spark
Sink

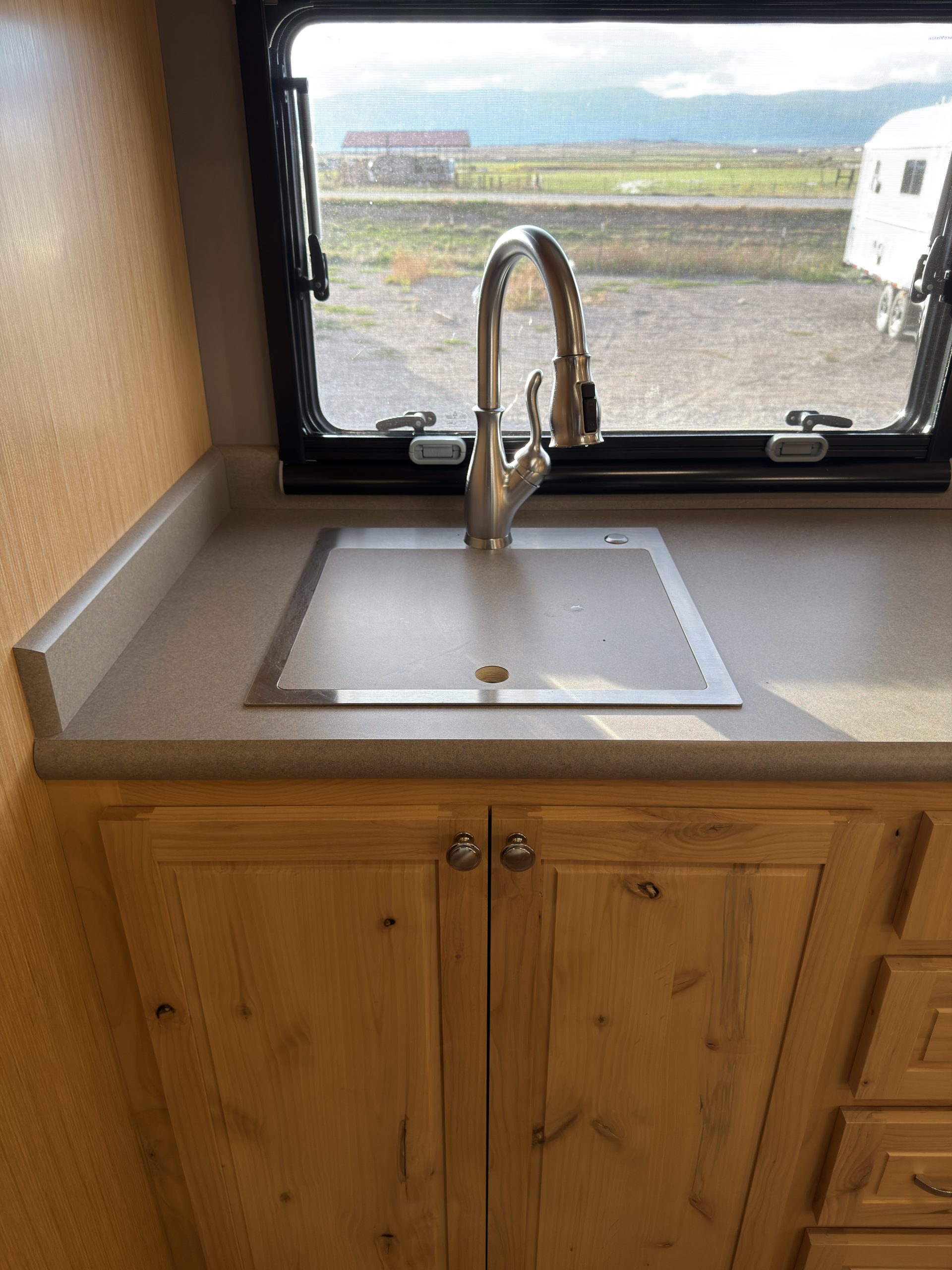

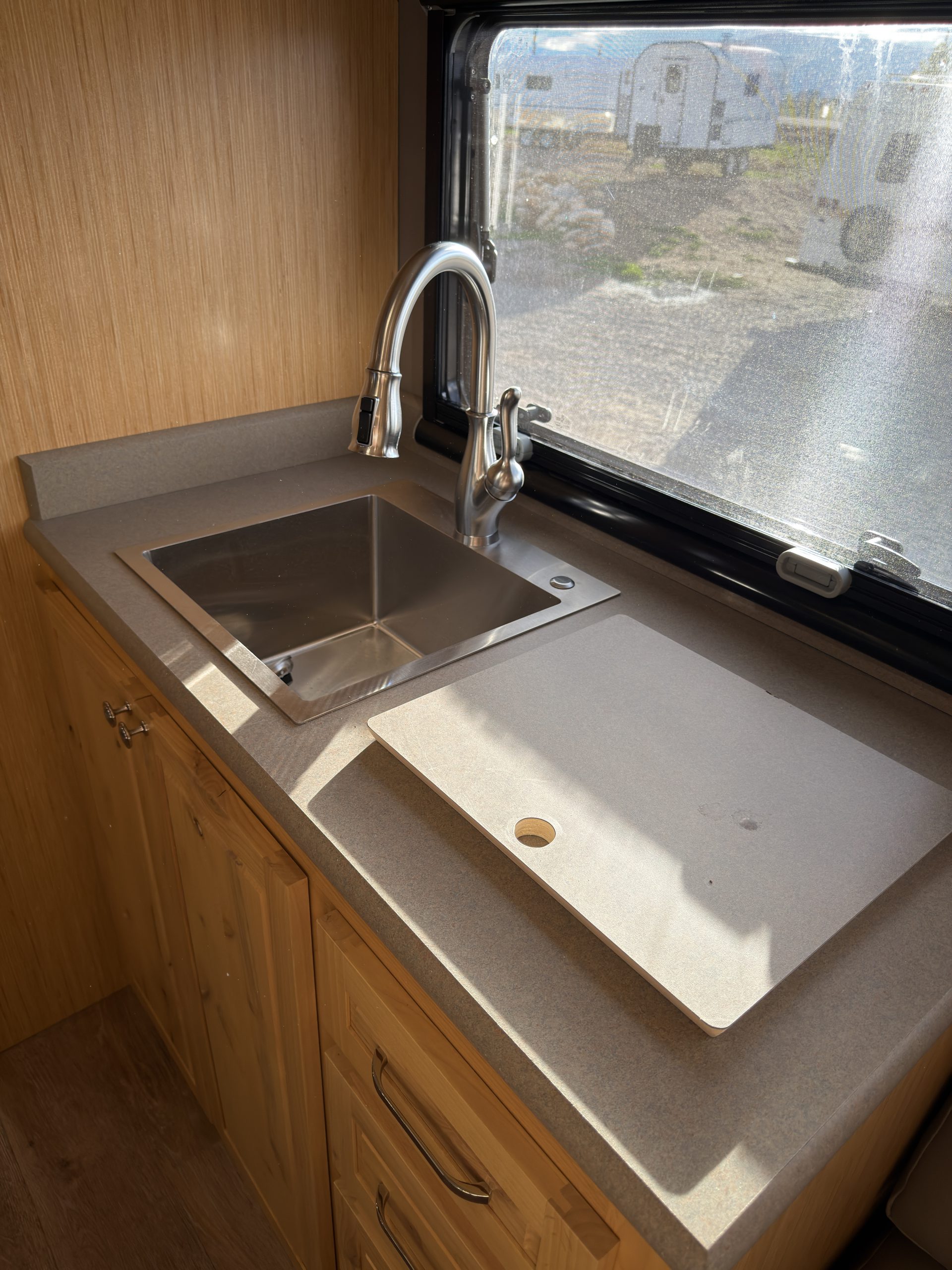

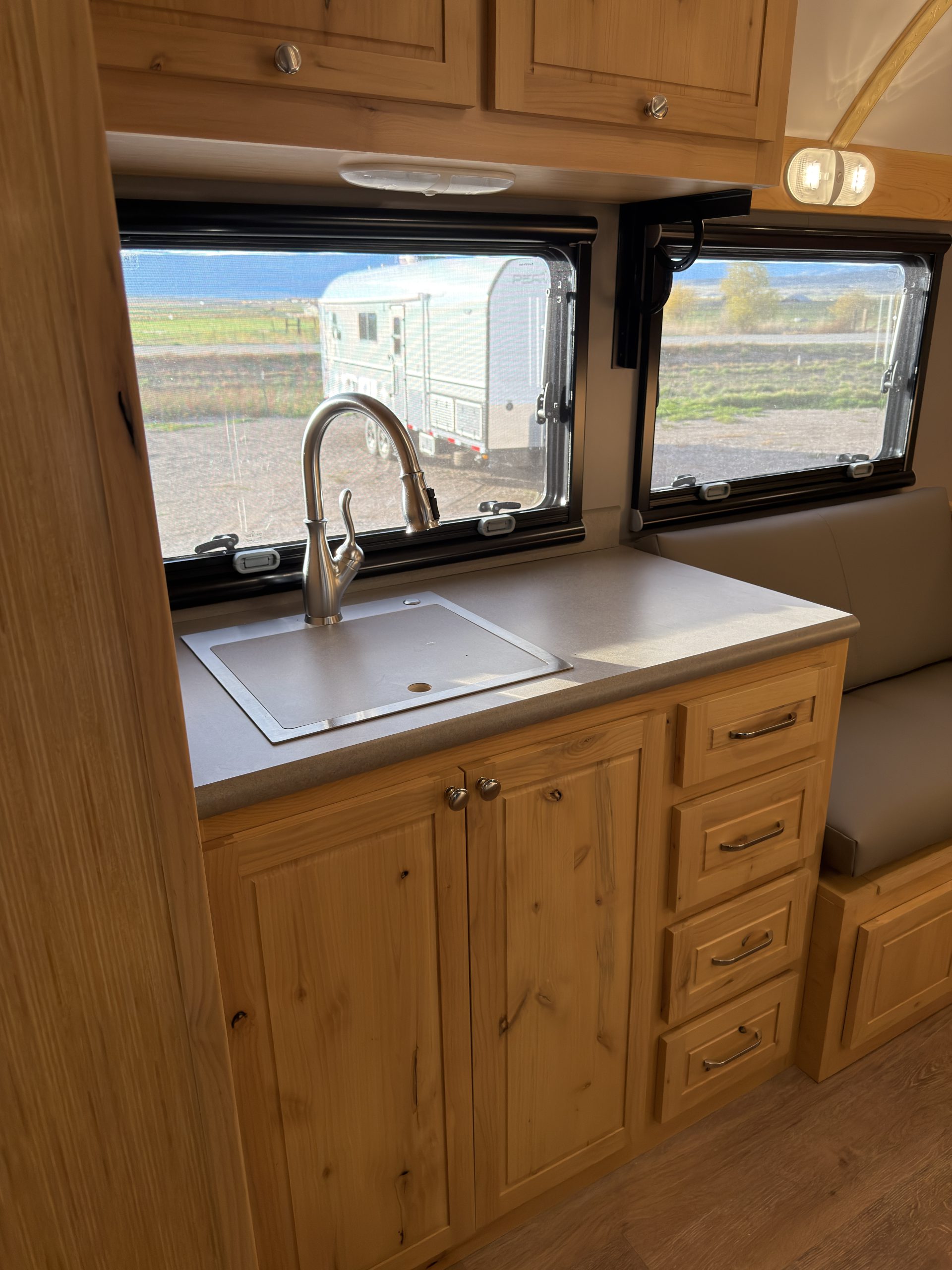

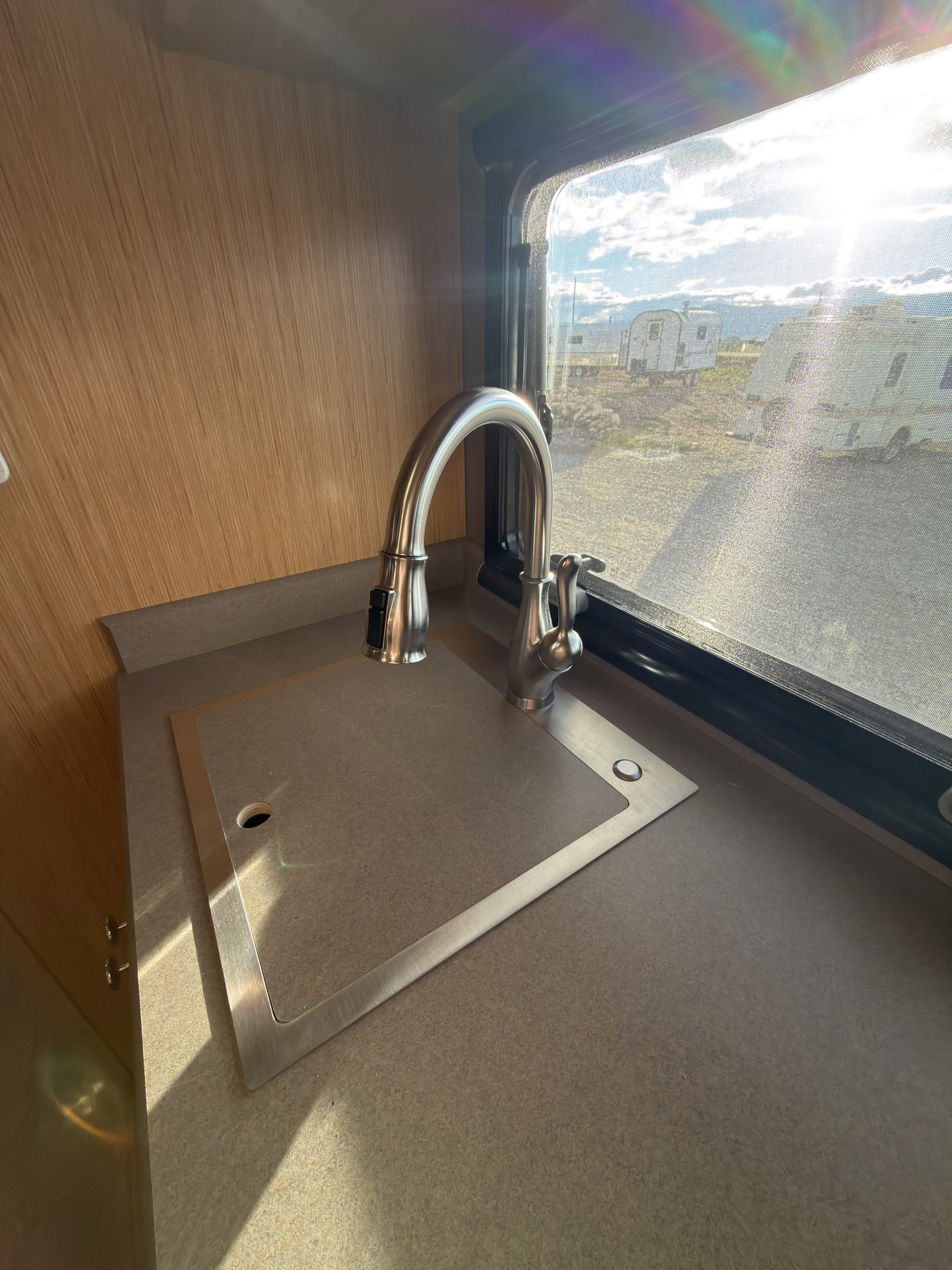

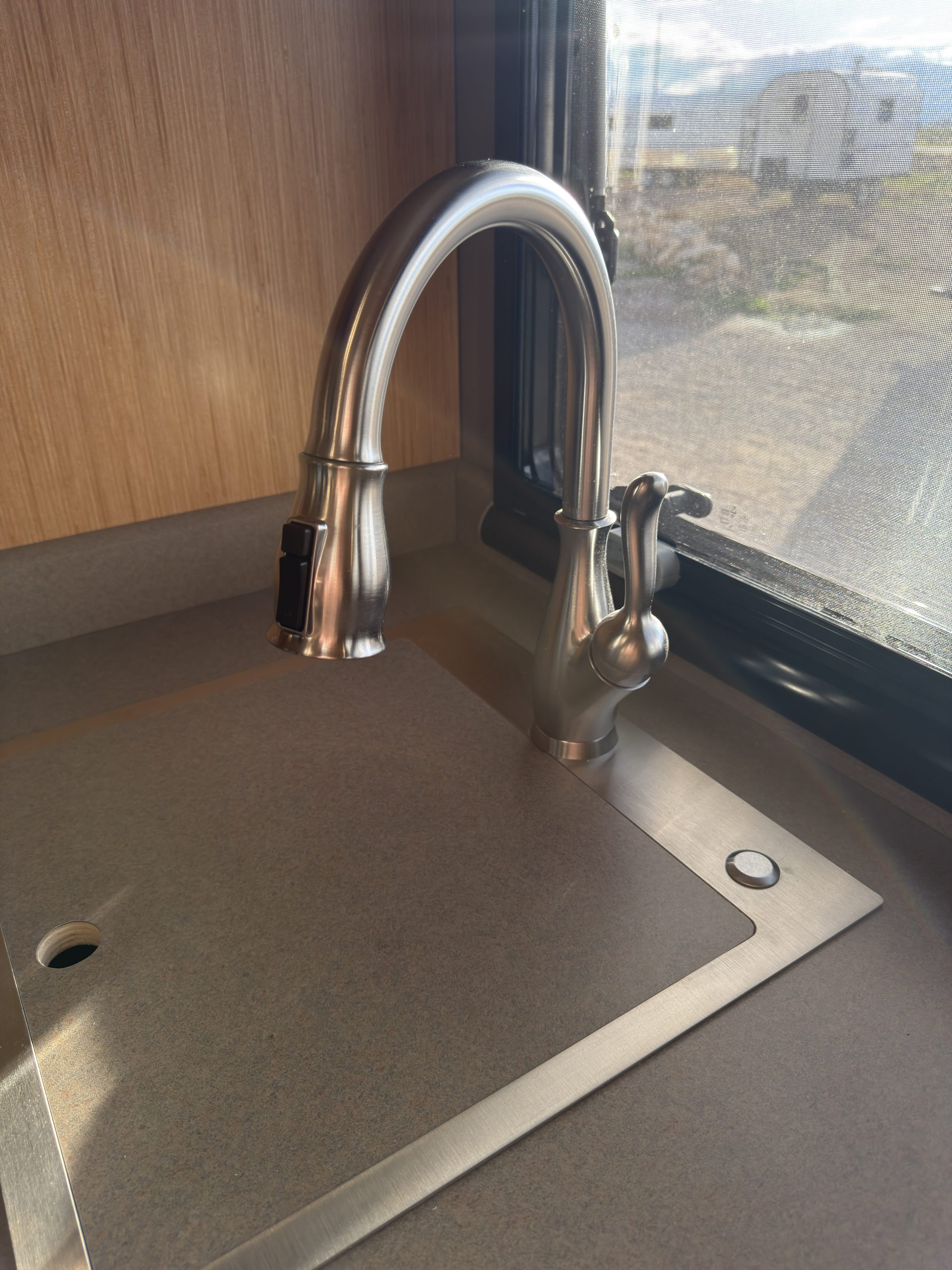

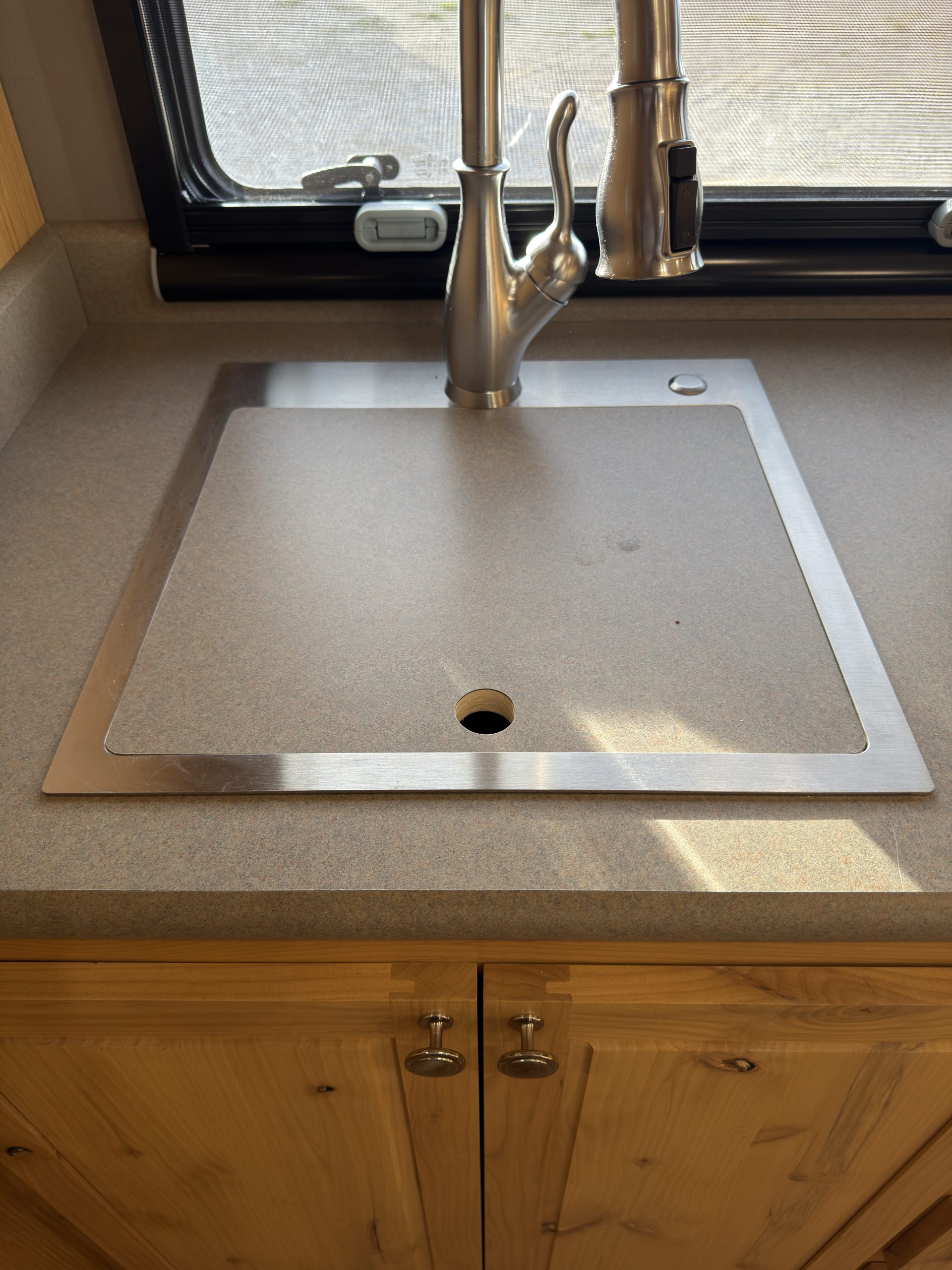

Single Stainless Steel Sink with Residential-Grade Faucet (With Countertop Cut-Out)
Pantry

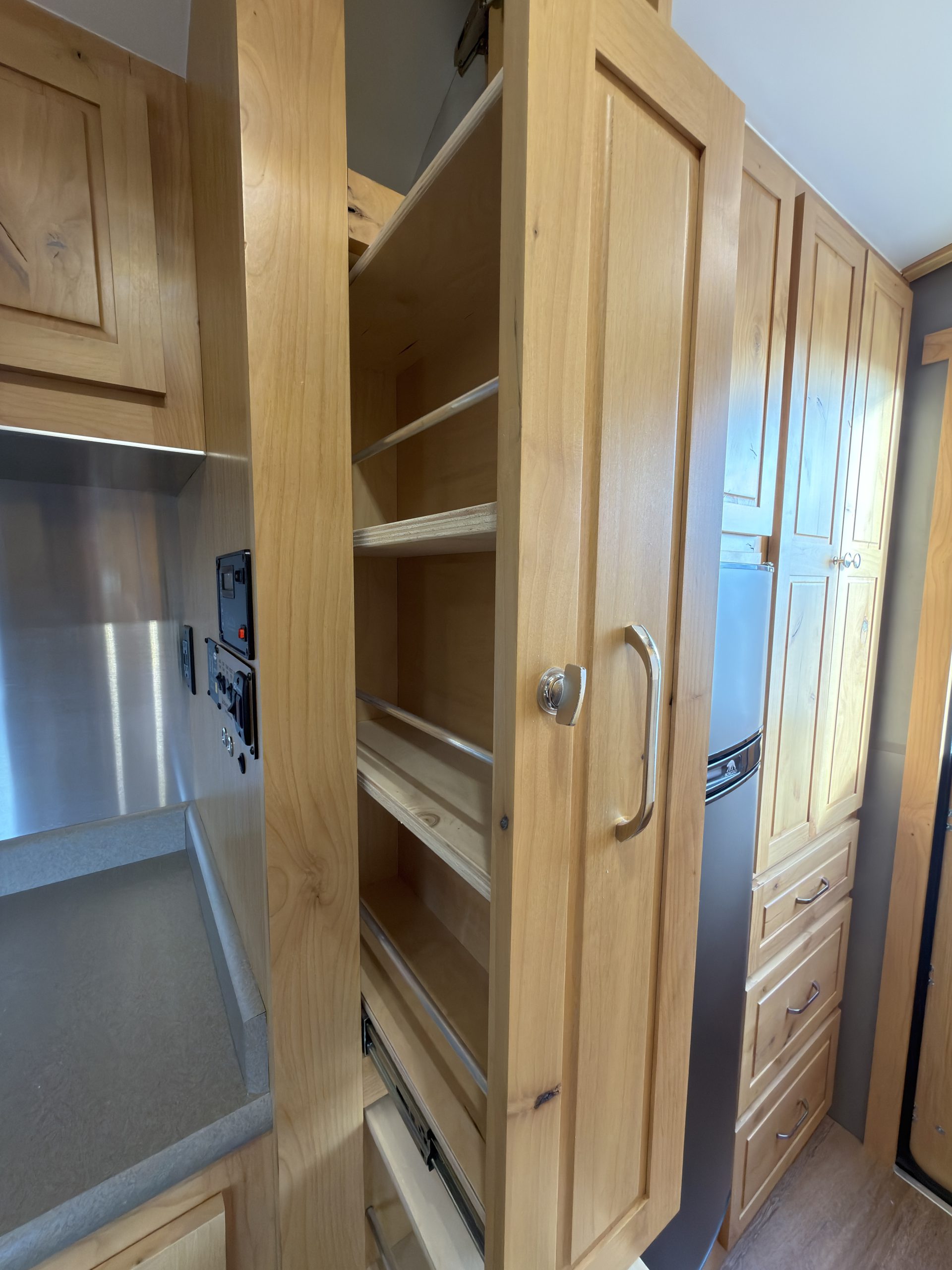

2x Pull-Out Pantries with Small Upper Cabinet
Prep Surface
Highlighted feature:
Large Counter + Countertop Cut-Out and Flip-Up Countertop
Overhead Cabinet Storage
Two Large Overhead Storage Cabinets Above Each Counter
Drawer Storage

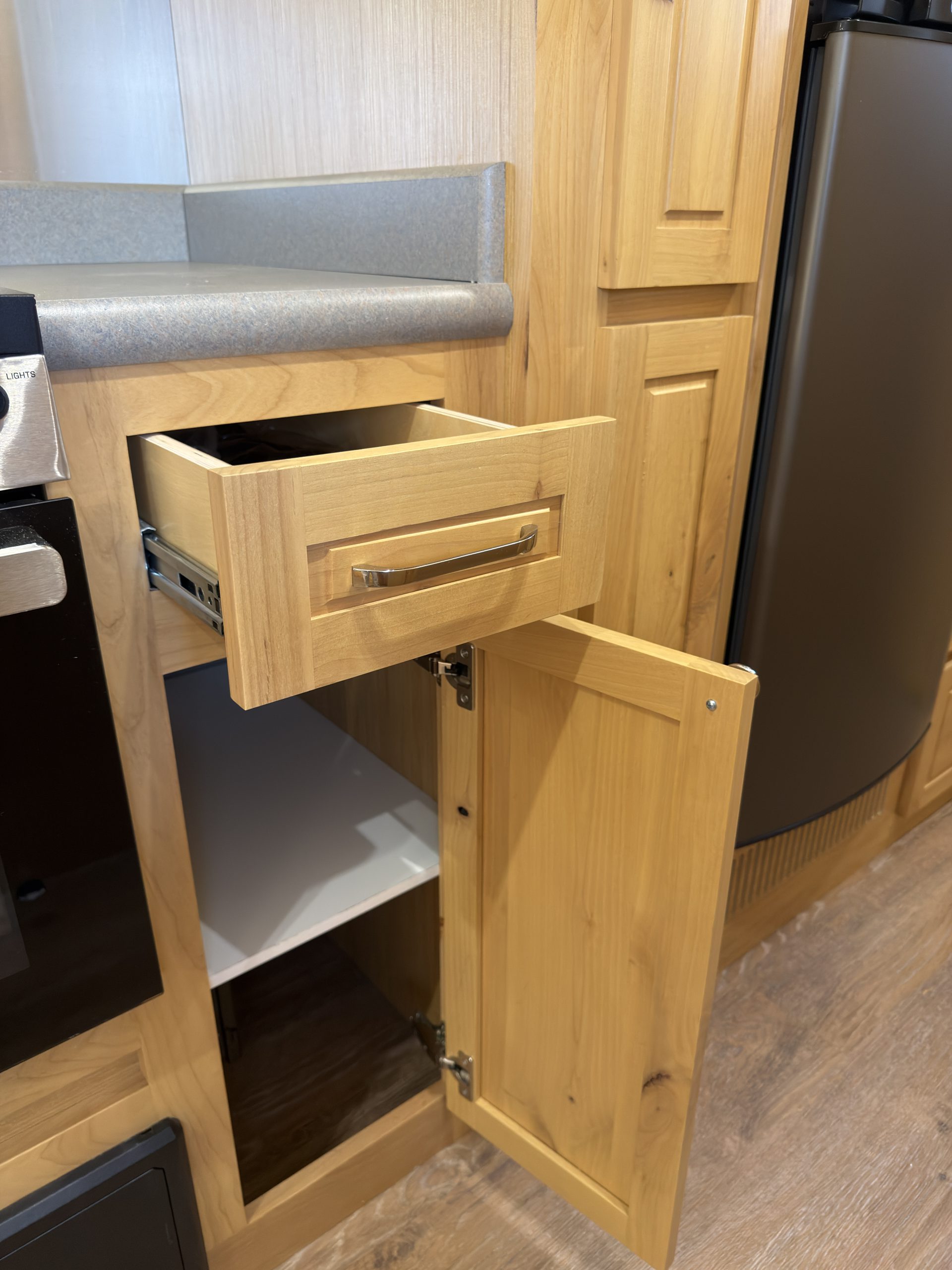

Four Drawers On Sink Side & Single Drawer Near Stove
Open Storage
Open Storage Below Sink
Additional Storage
Shelving in Oven Cabinet
Lighting
Highlighted feature:

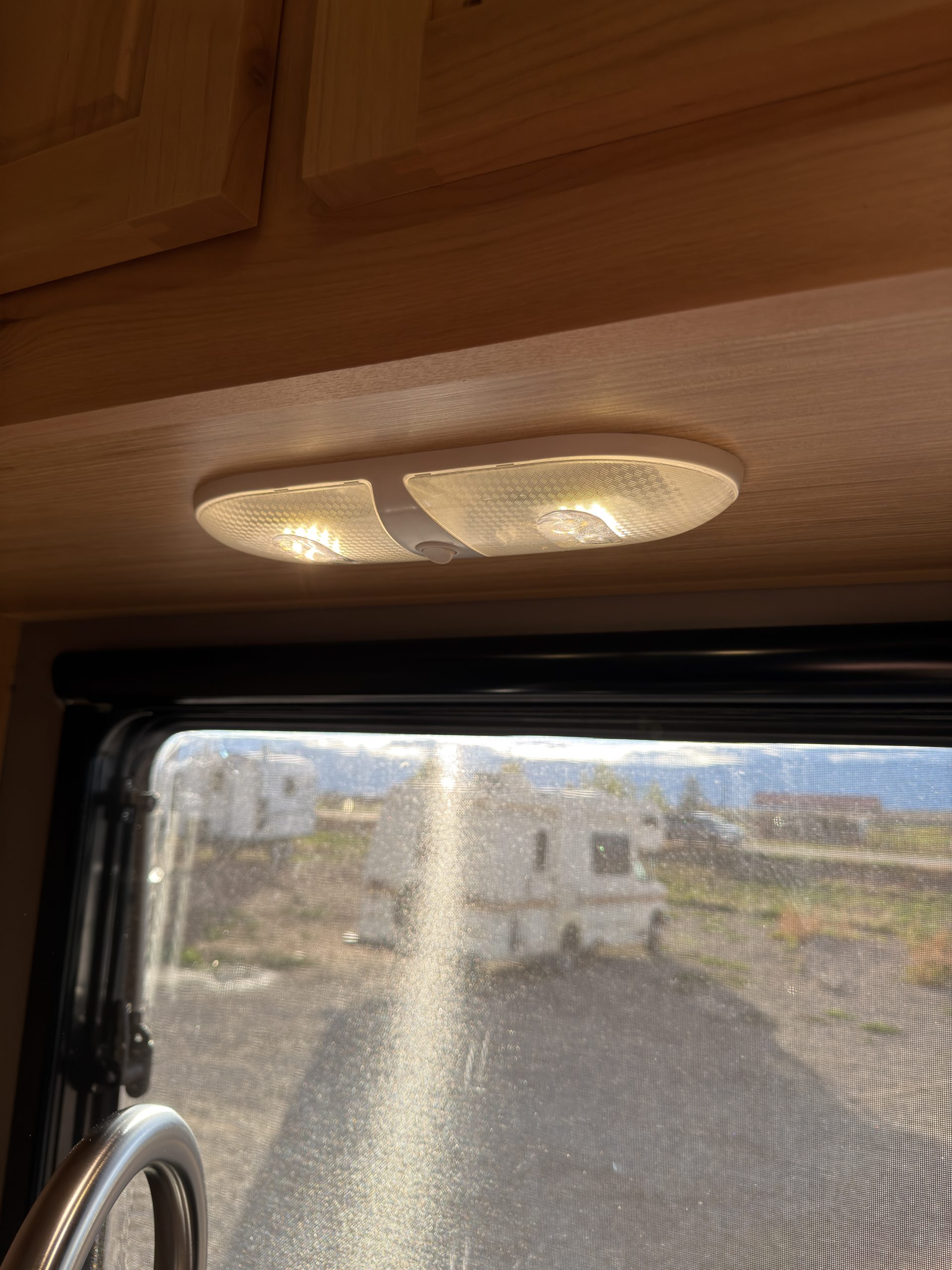

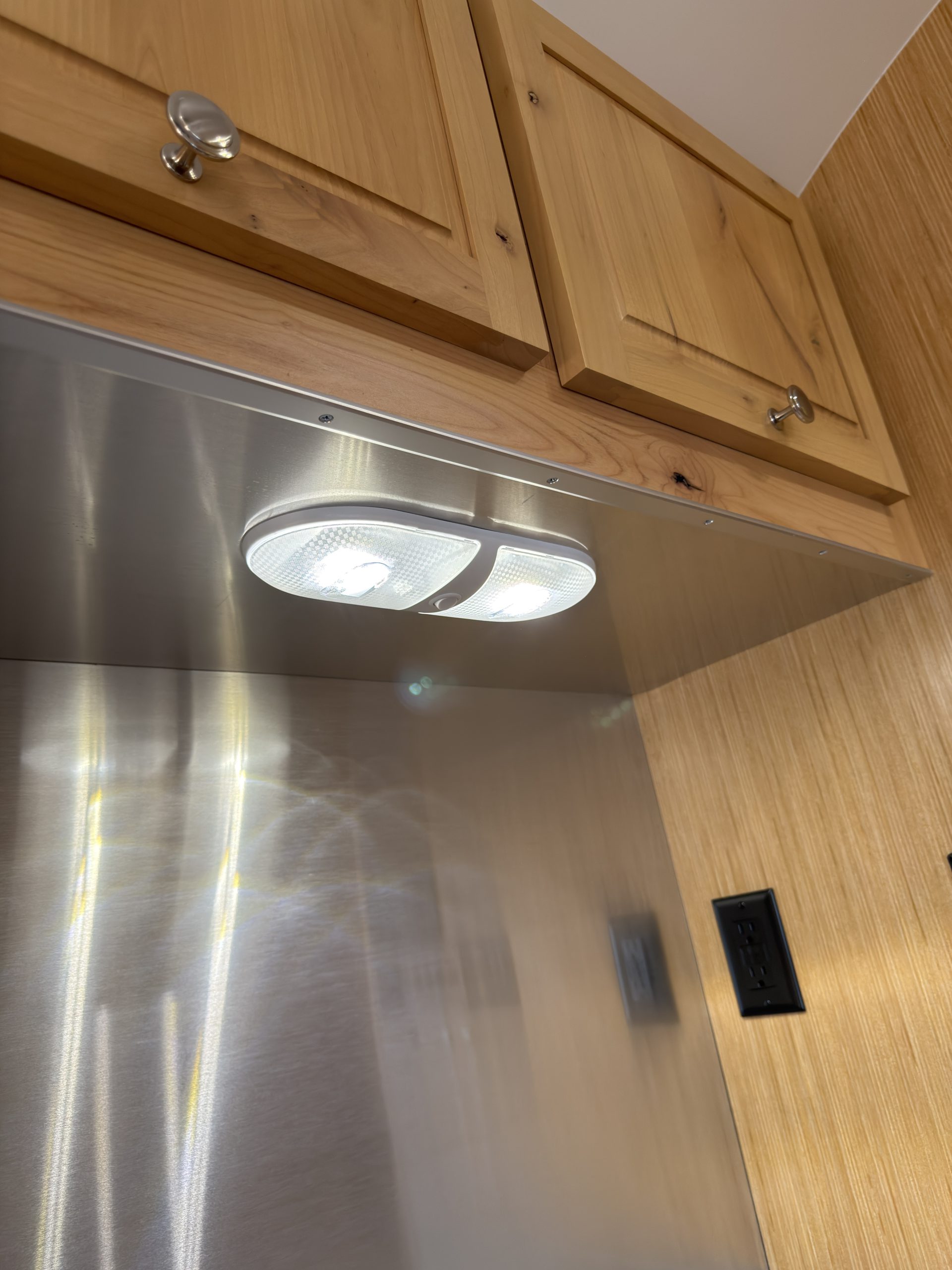

LED Lighting Below Overhead Cabinets

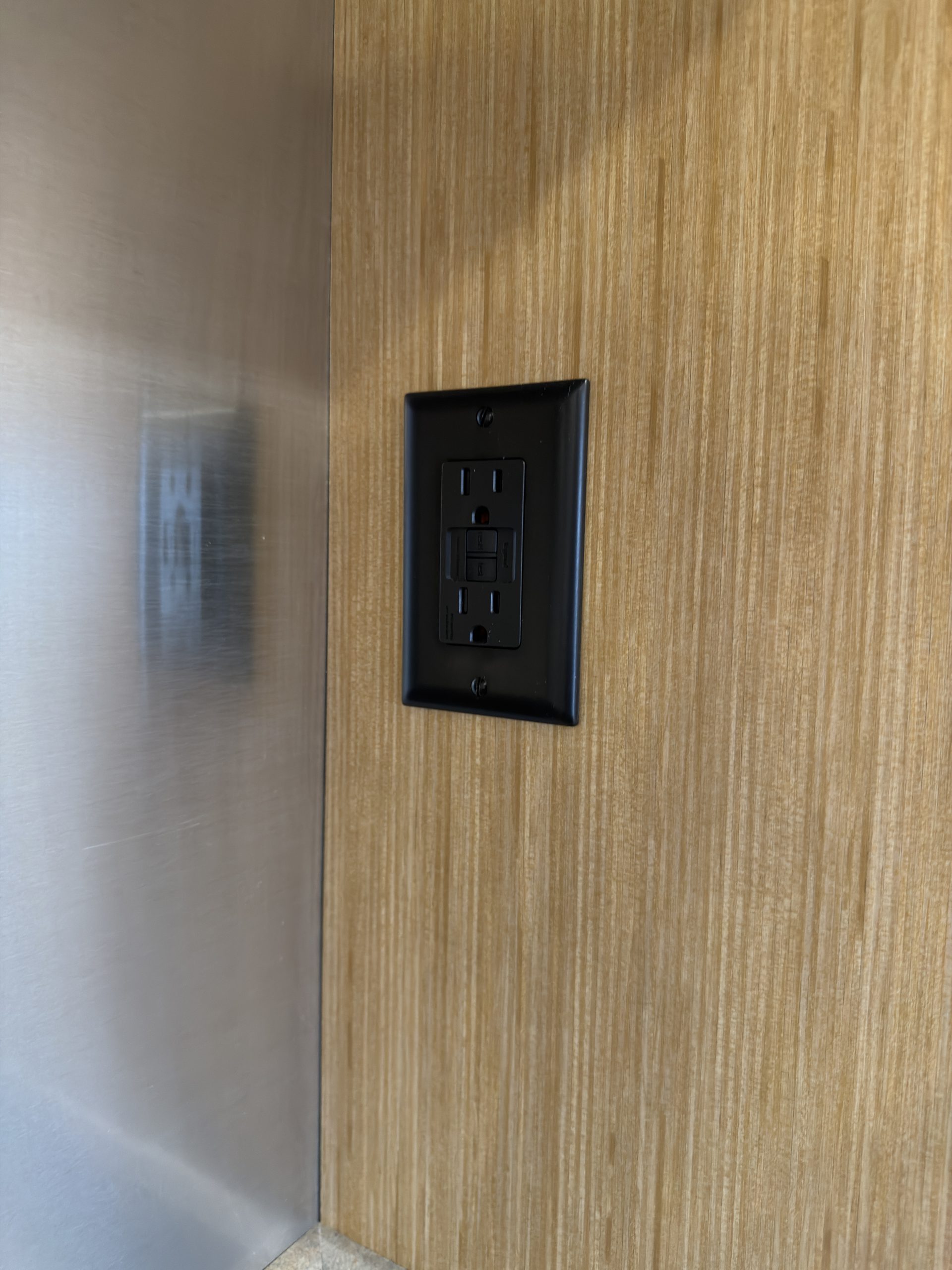

Power
Single AC Outlet On Wall Near Monitoring Panels & AC Outlet At Power Center Below Oven
Window

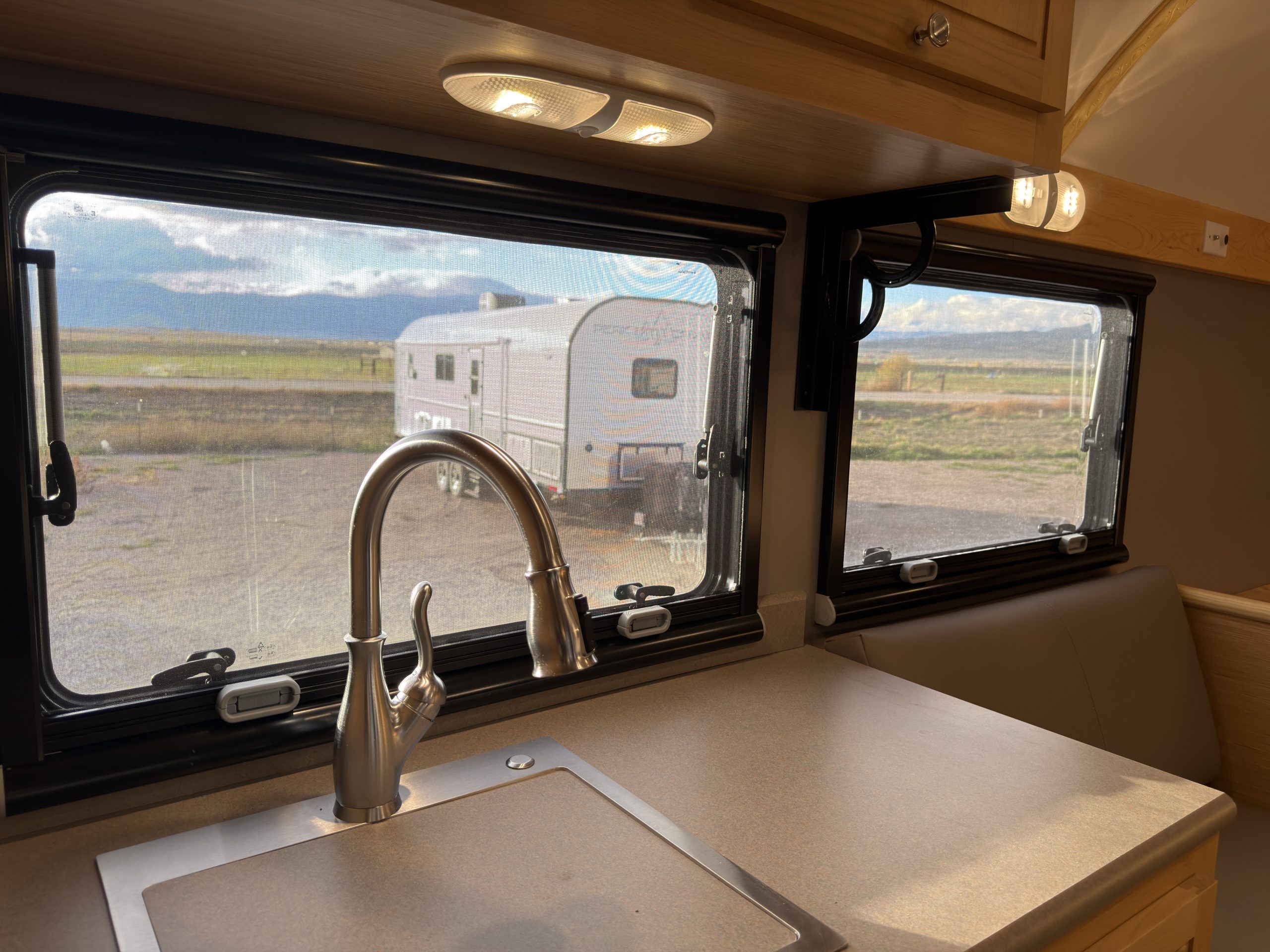

Large Window Above Kitchen Sink

Dining

Dinette

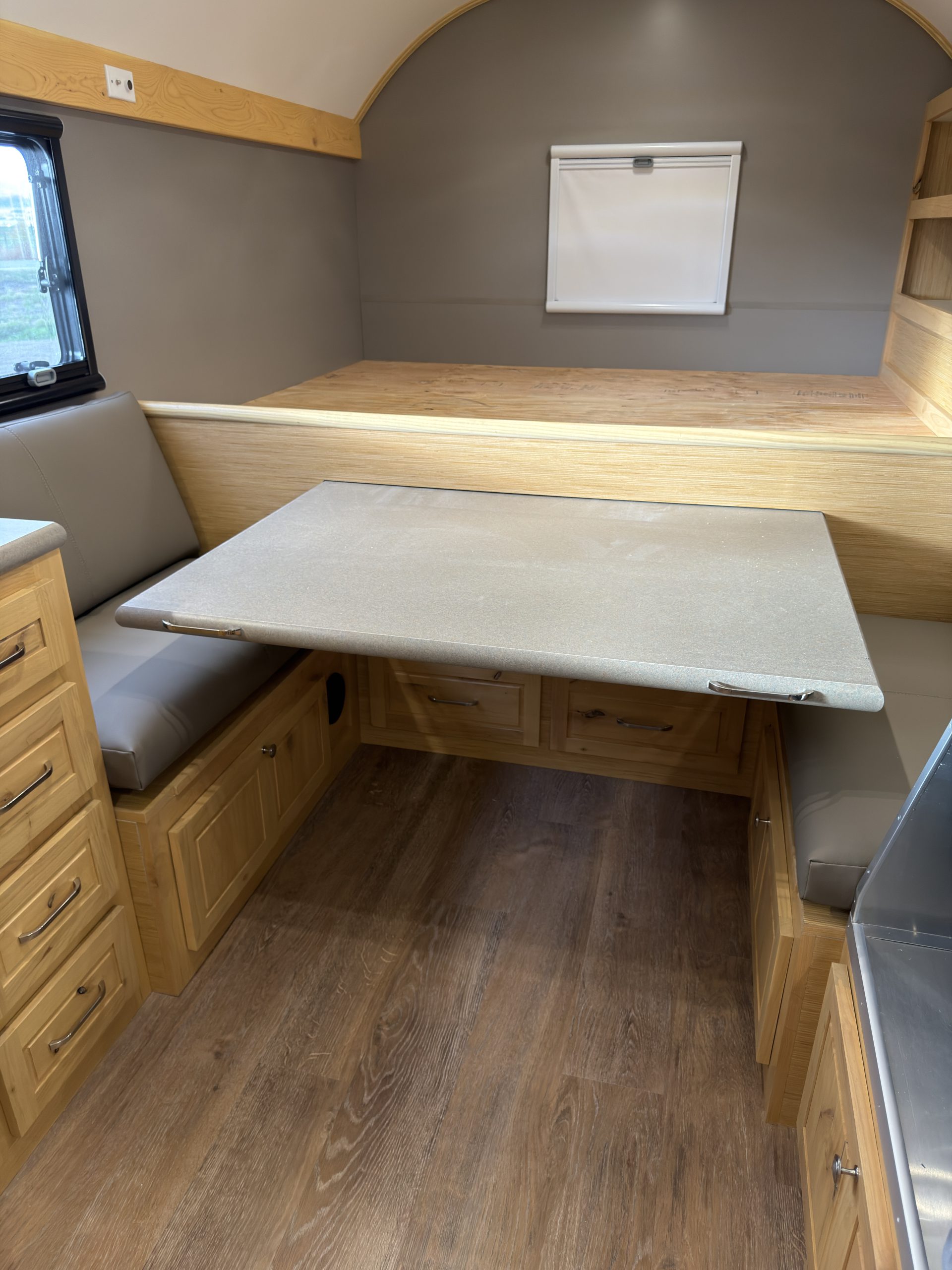

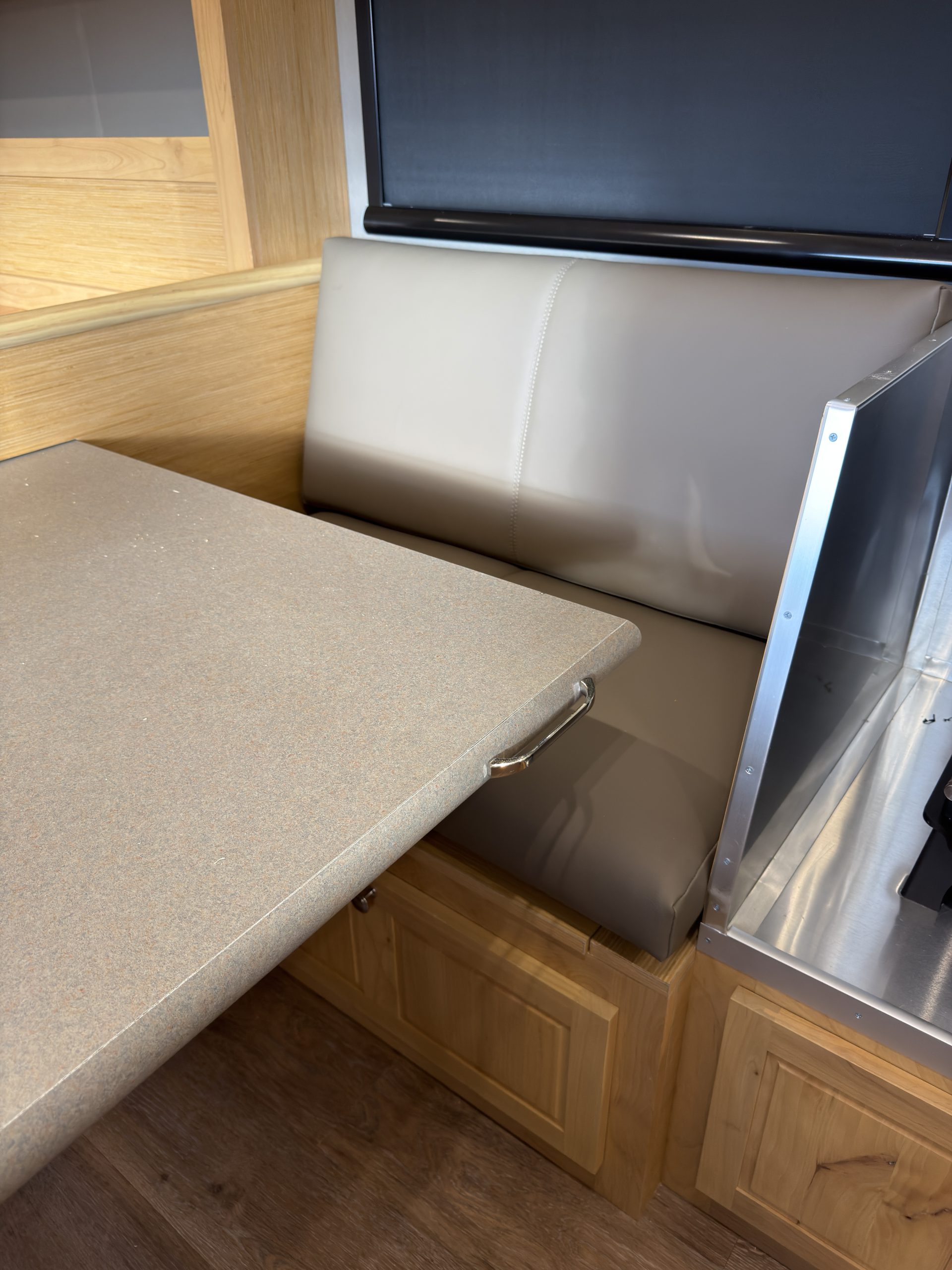

Traditional 4-Person Dinette w/ Pull-Out Table

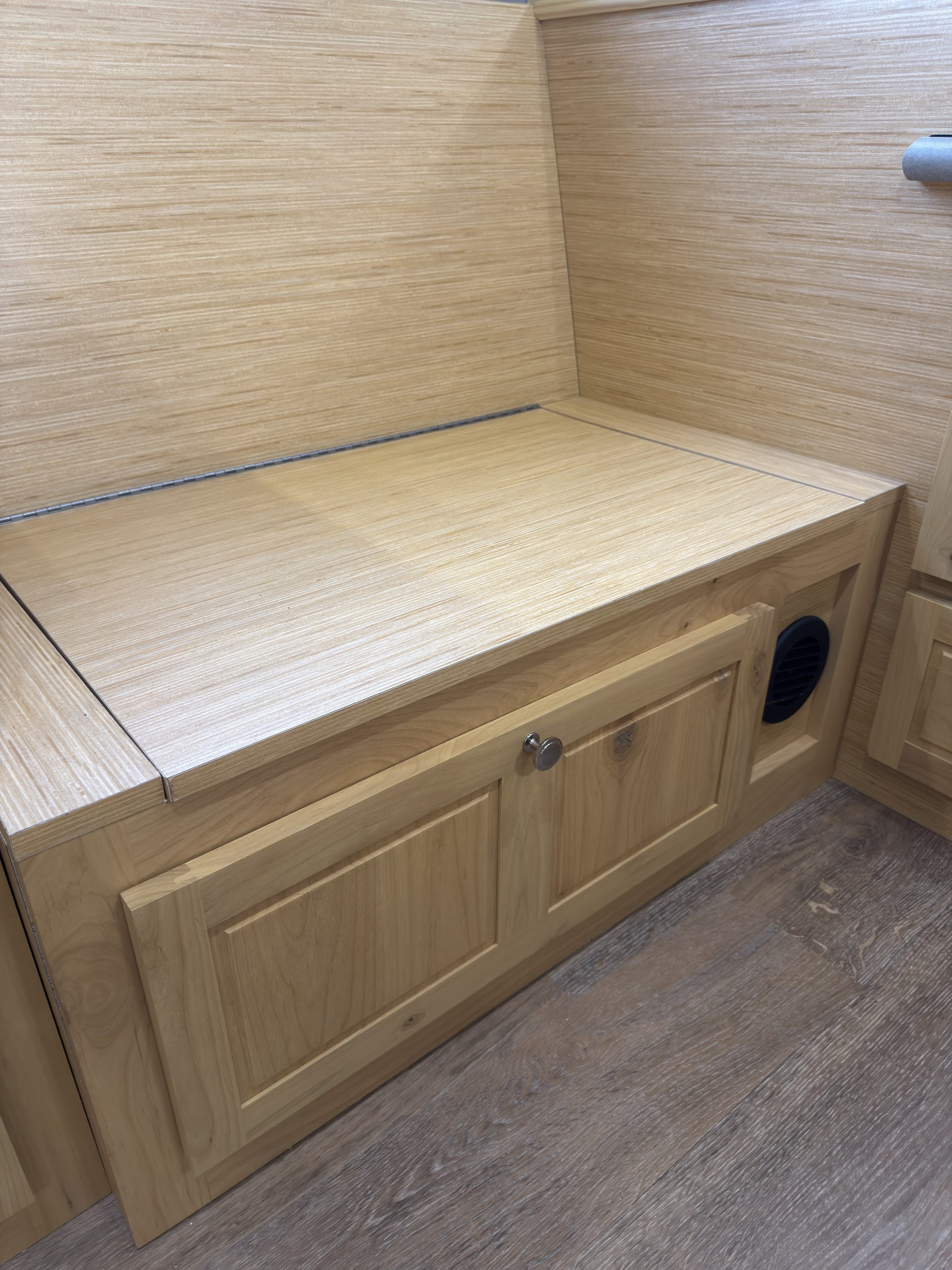

Bench Storage

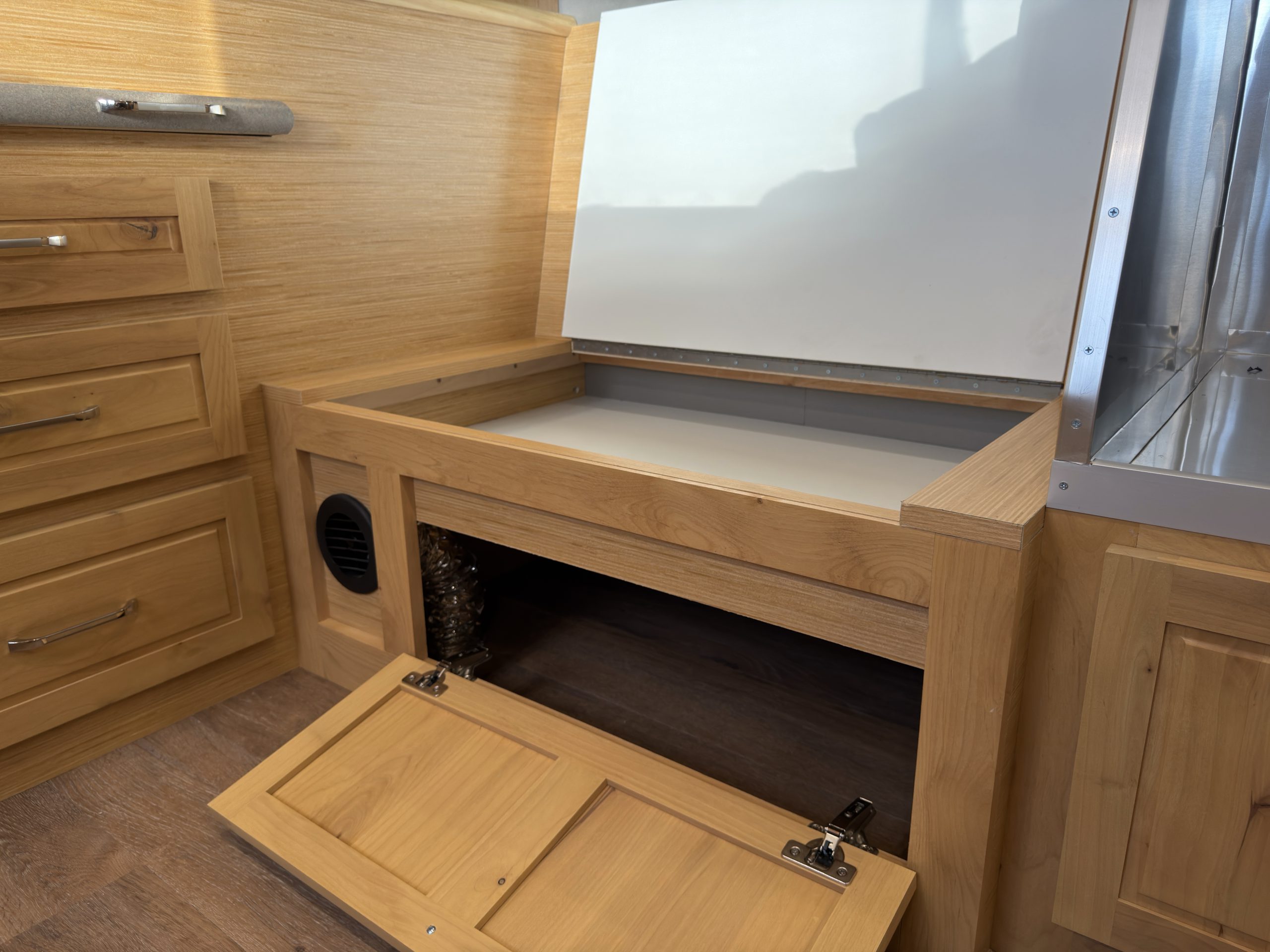

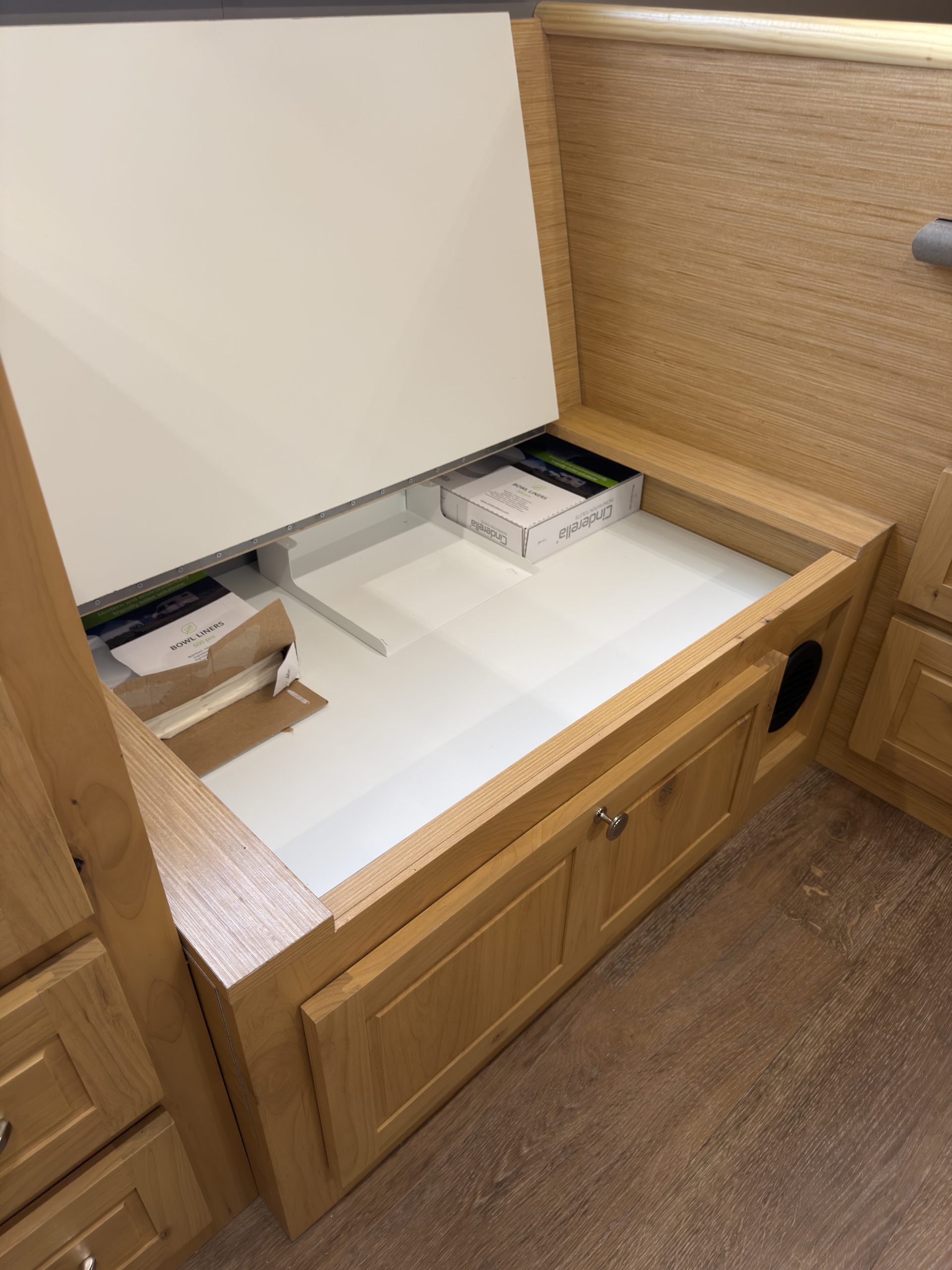

Soup Boxes in Each Bench & Cabinet Storage Beneath
Window(s)
Two Large Windows Above Each Bench

Living & Entertainment Space

Layout
Traditional Side Benches
Primary Seating
Highlighted feature:
Deep Angled Side Benches
Lighting
LED Lights Above Each Bench/Window

Bedroom / Sleeping

Layout
Traditional East/West Bed (No Trundle)
Bed Configuration
Highlighted feature:
High East/West California King Bed
Mattresses
No Mattress (Owner-Provided)
Headboard / Shelf Storage

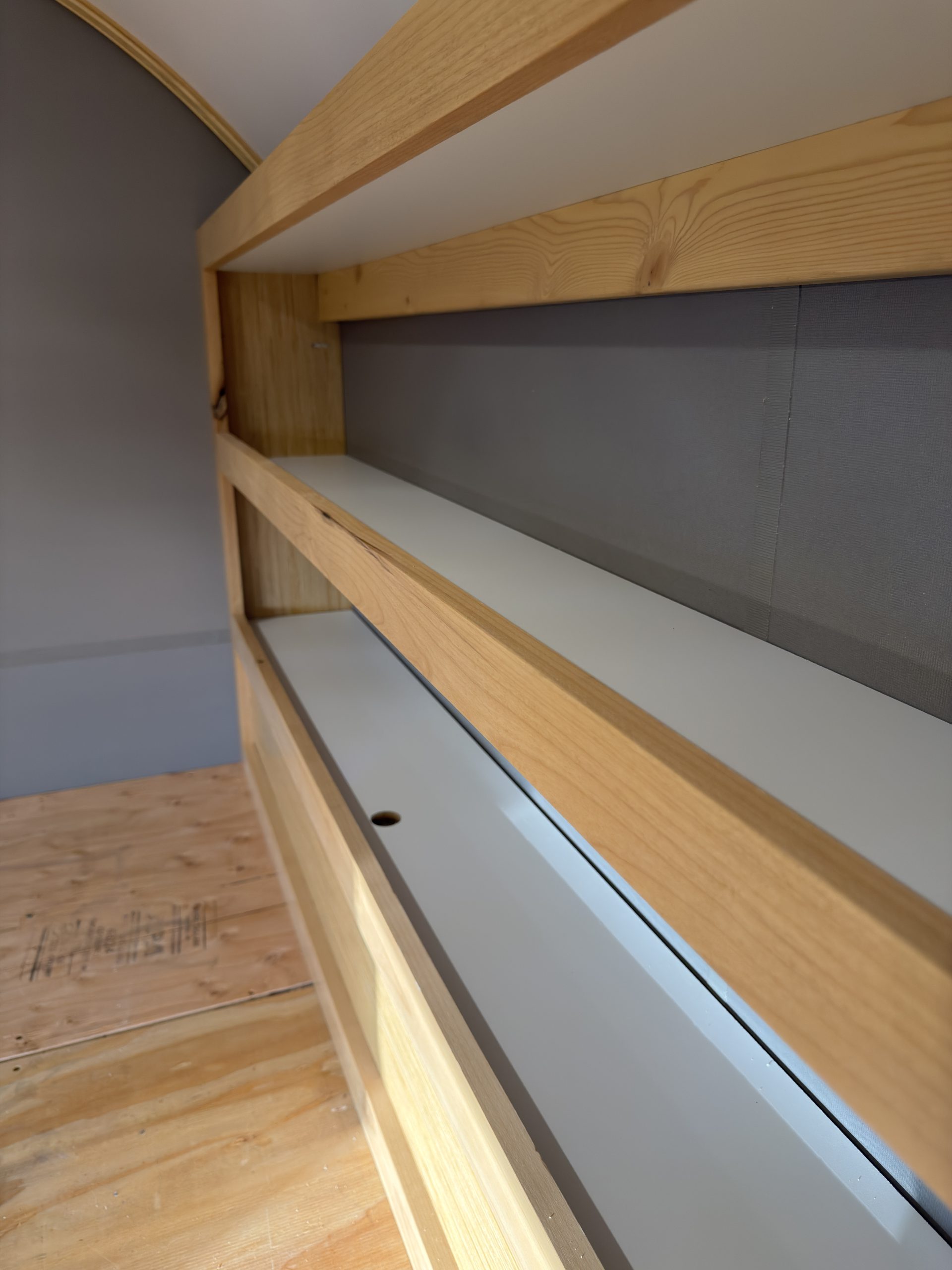

Roadside Headboard Bookshelf
Under-Bed / Trundle Storage

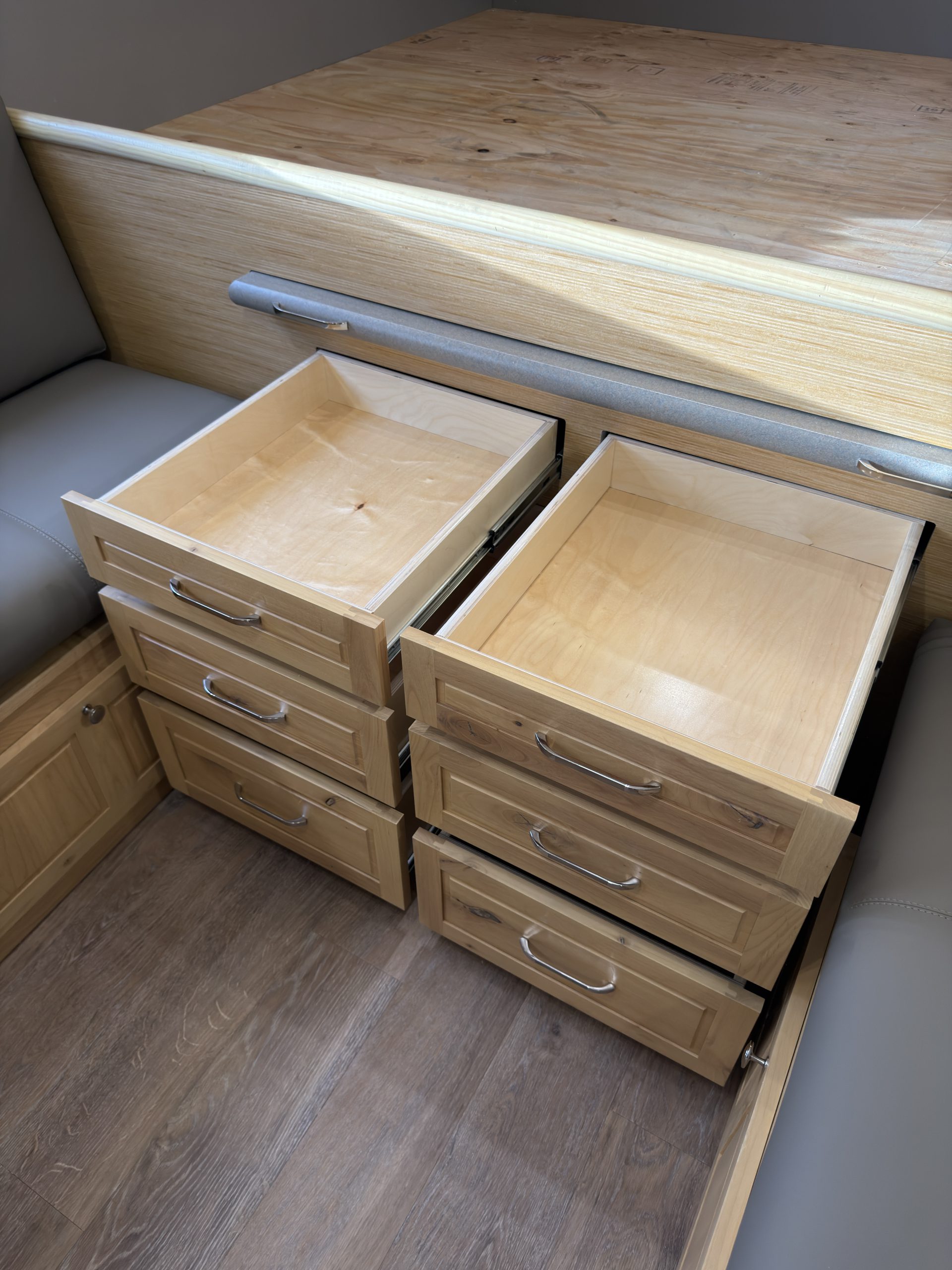

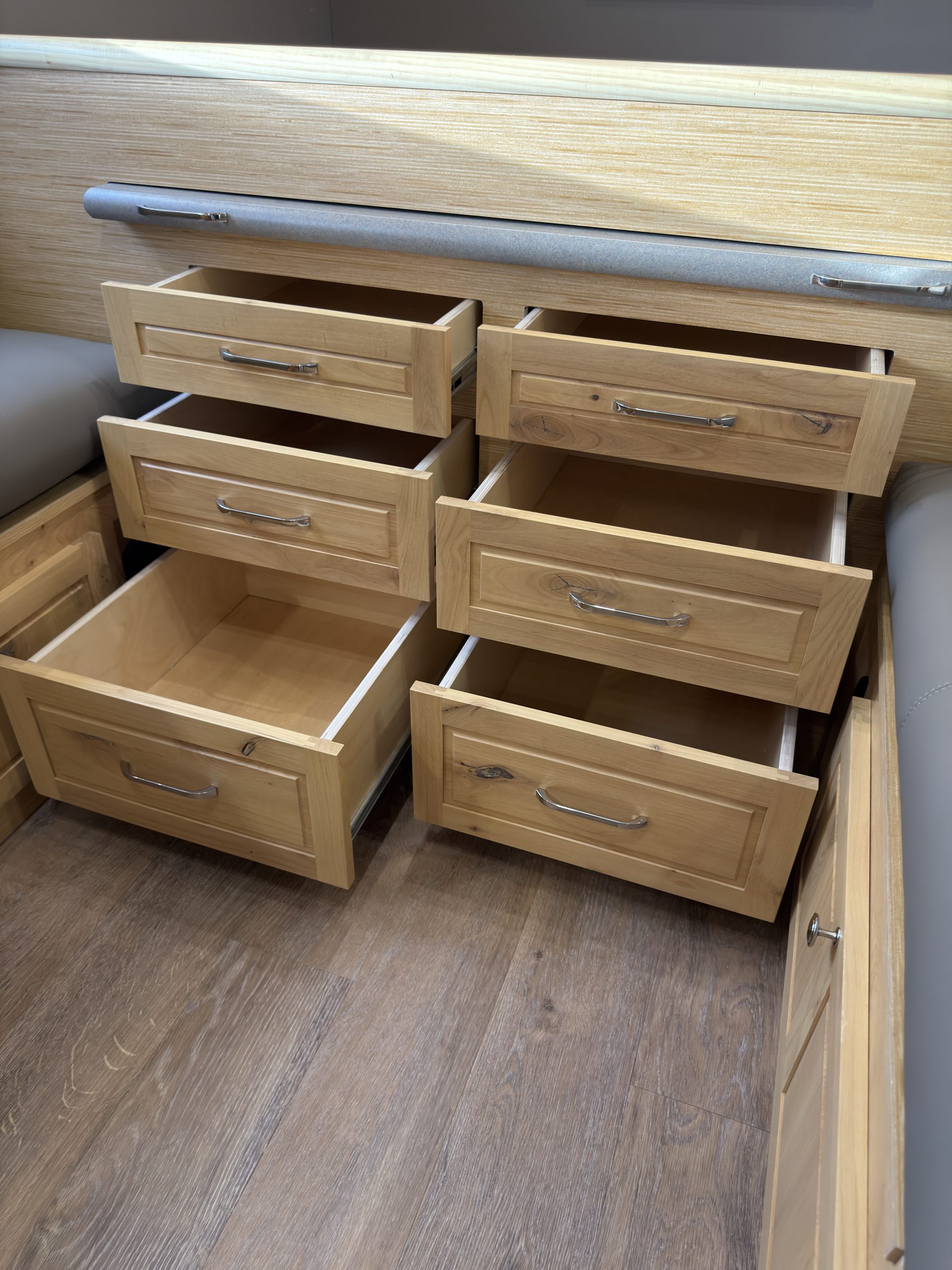

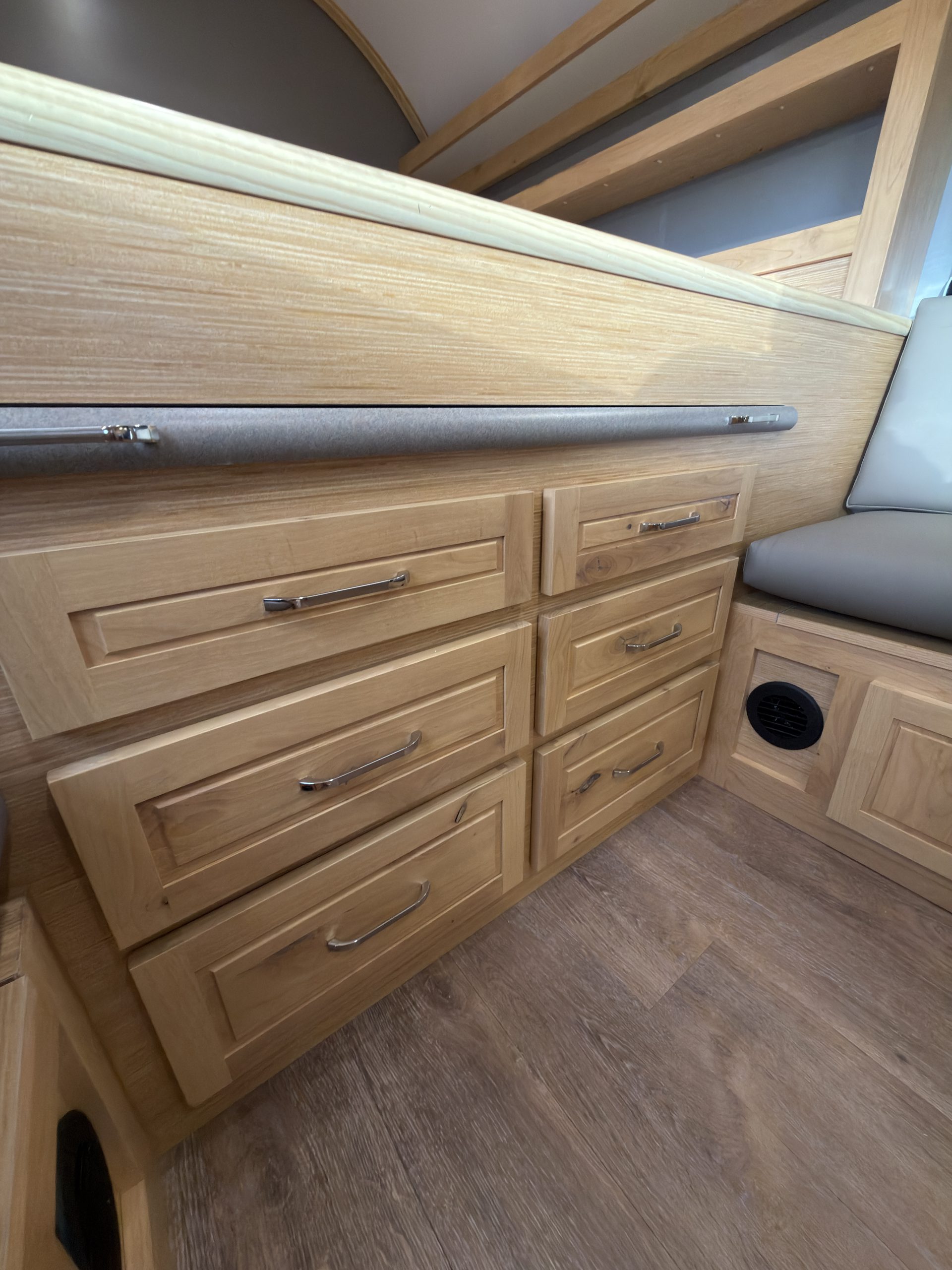

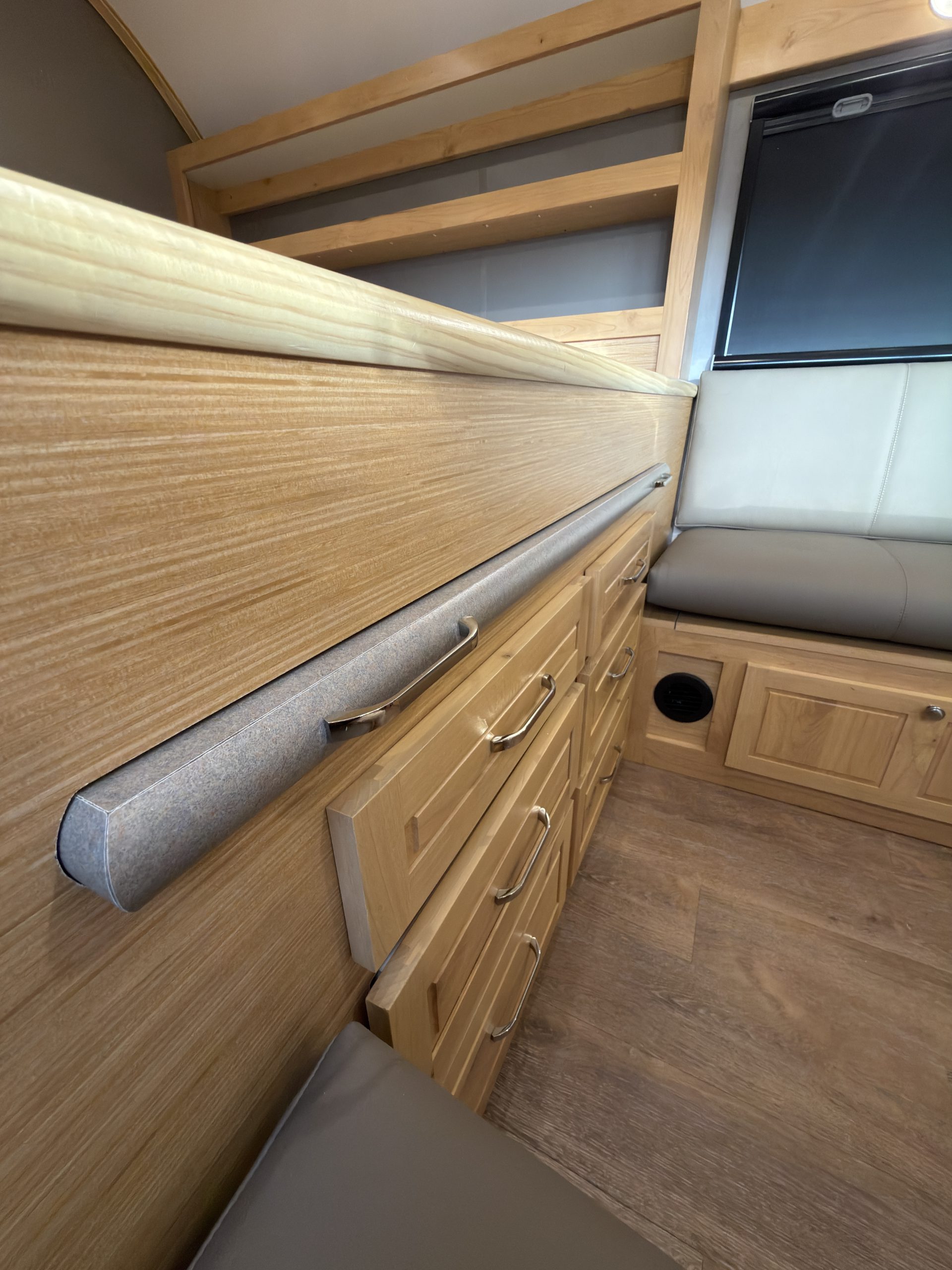

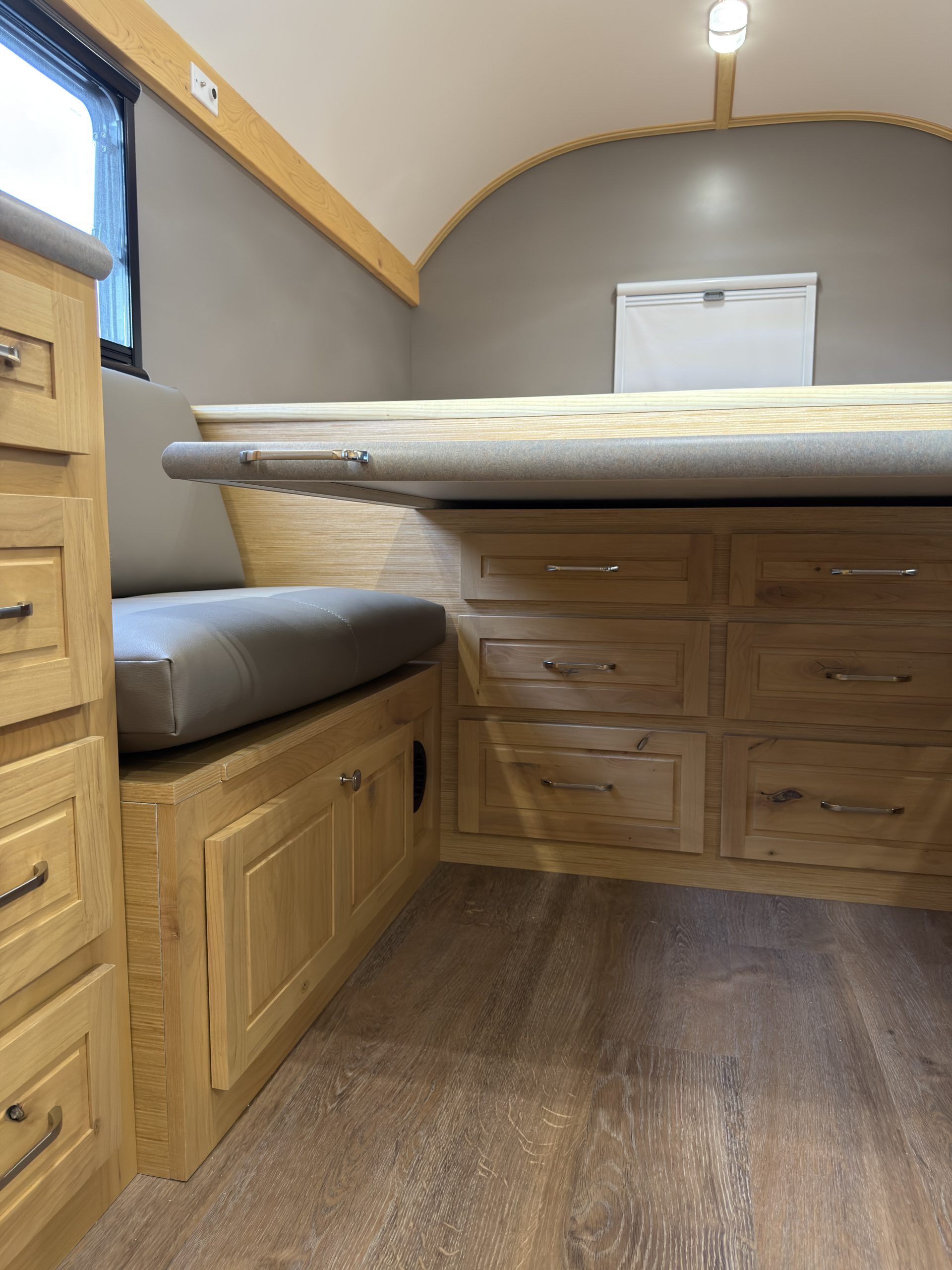

6x Medium Drawers Beneath Bed & Pull-Out Table
Power & Connections
AC Outlet & USB Ports In Headboard
Window
Small Rear Egress Window

Bathroom

Size / Configuration
Small Three-Quarter Bath (No Sink)

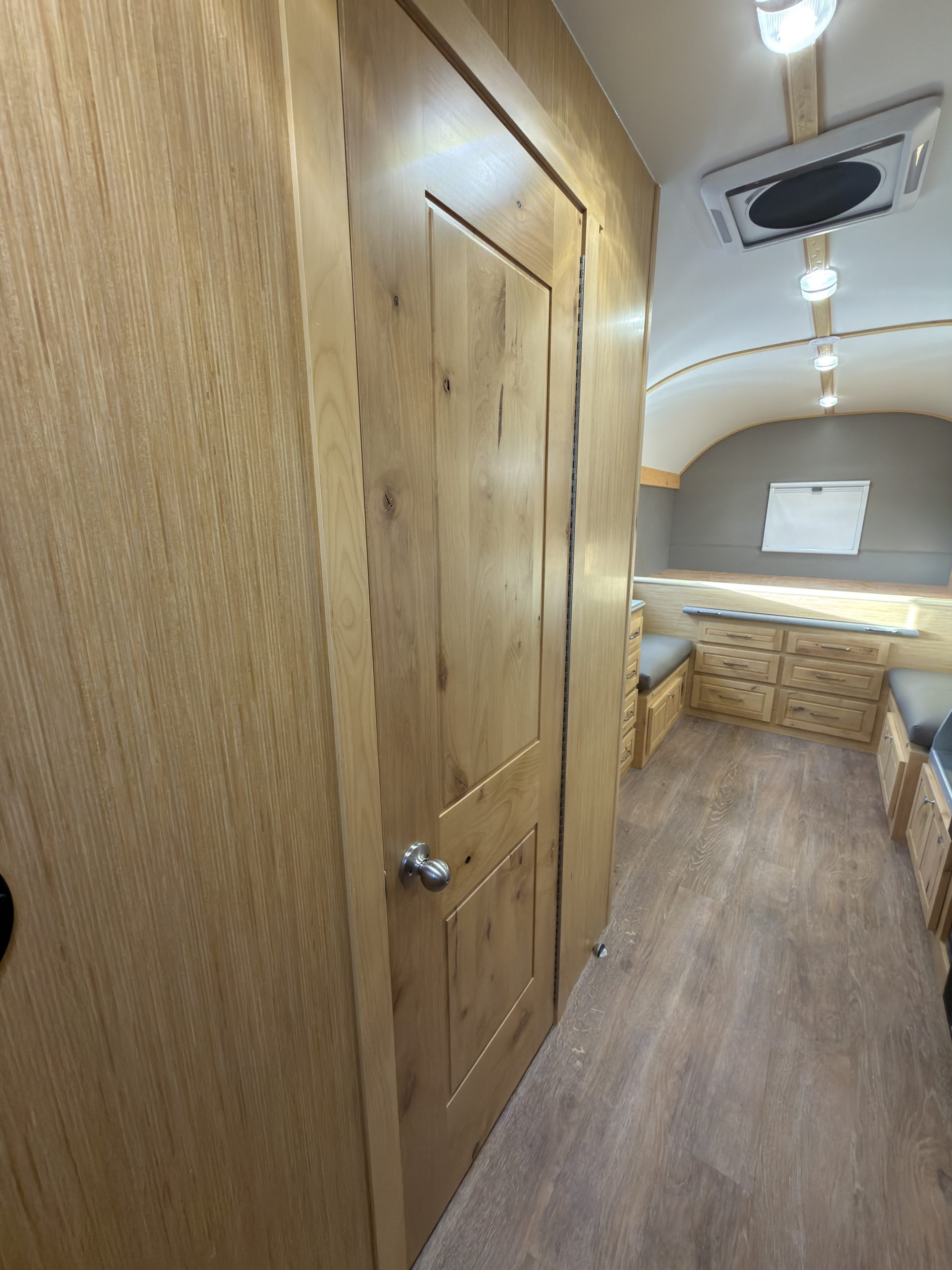

Door
Solid Hardwood Door with Full Length Hinge

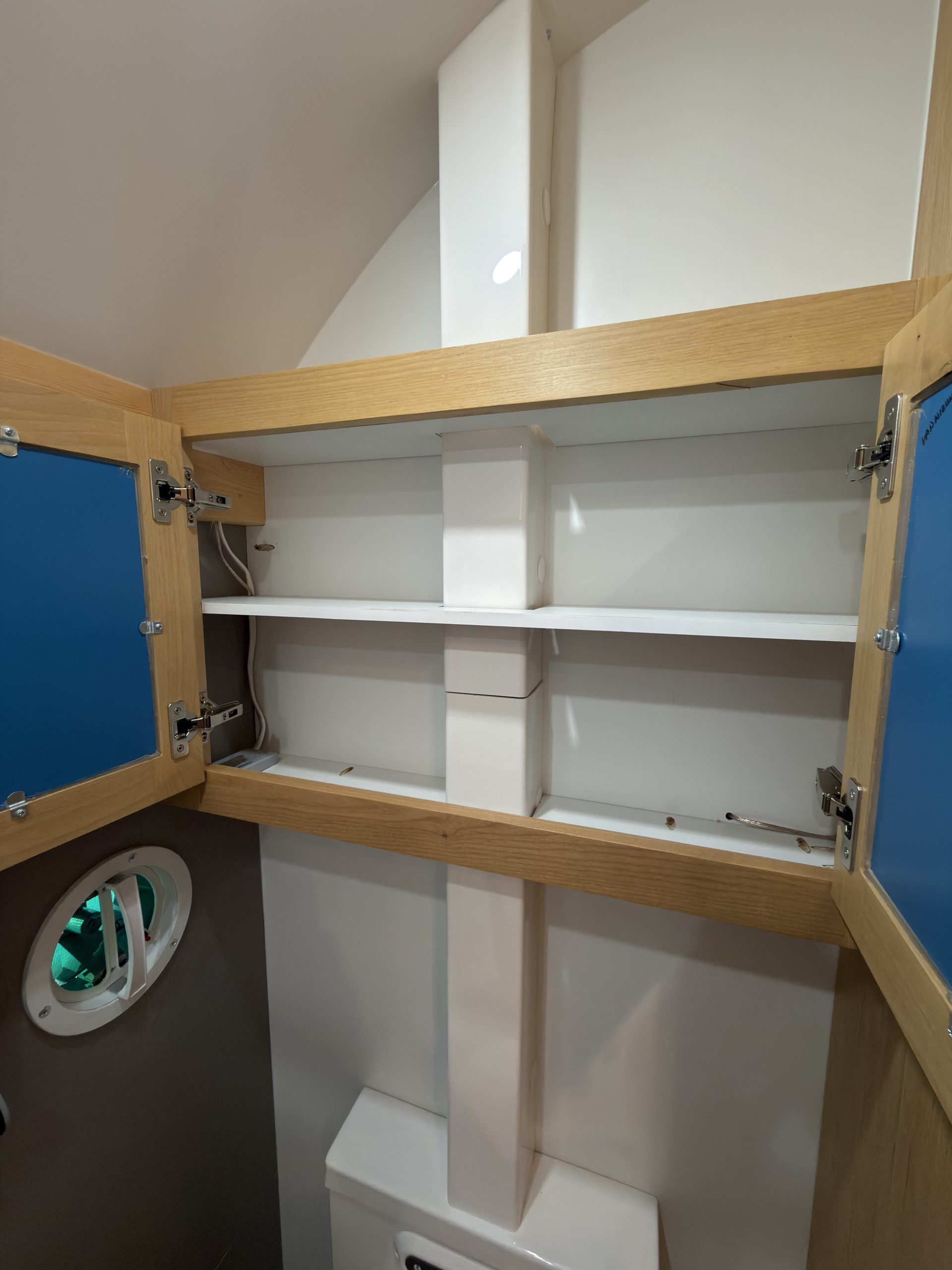

Medicine Cabinet

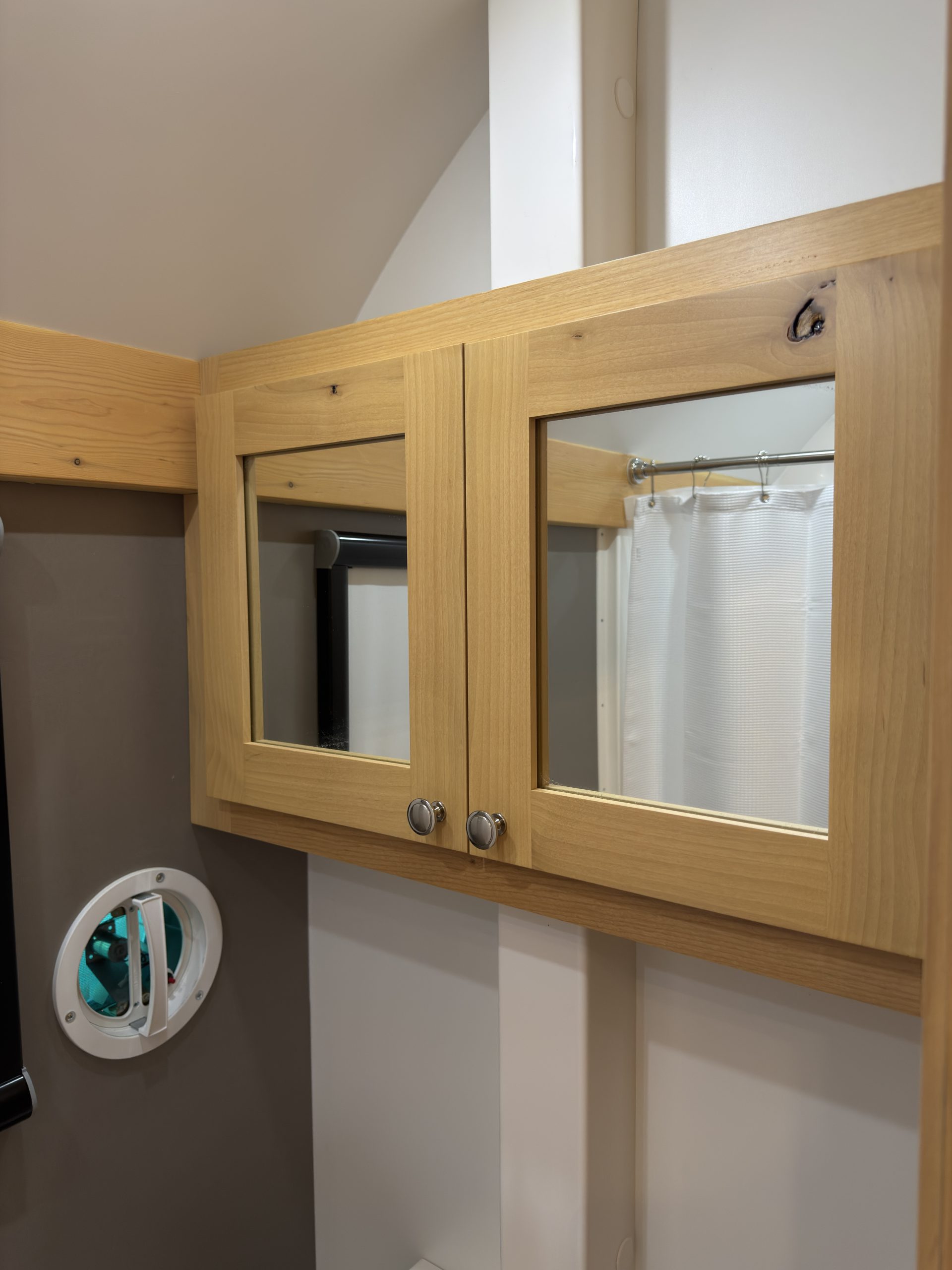

Mirrored Medicine Cabinet w/ Shelving

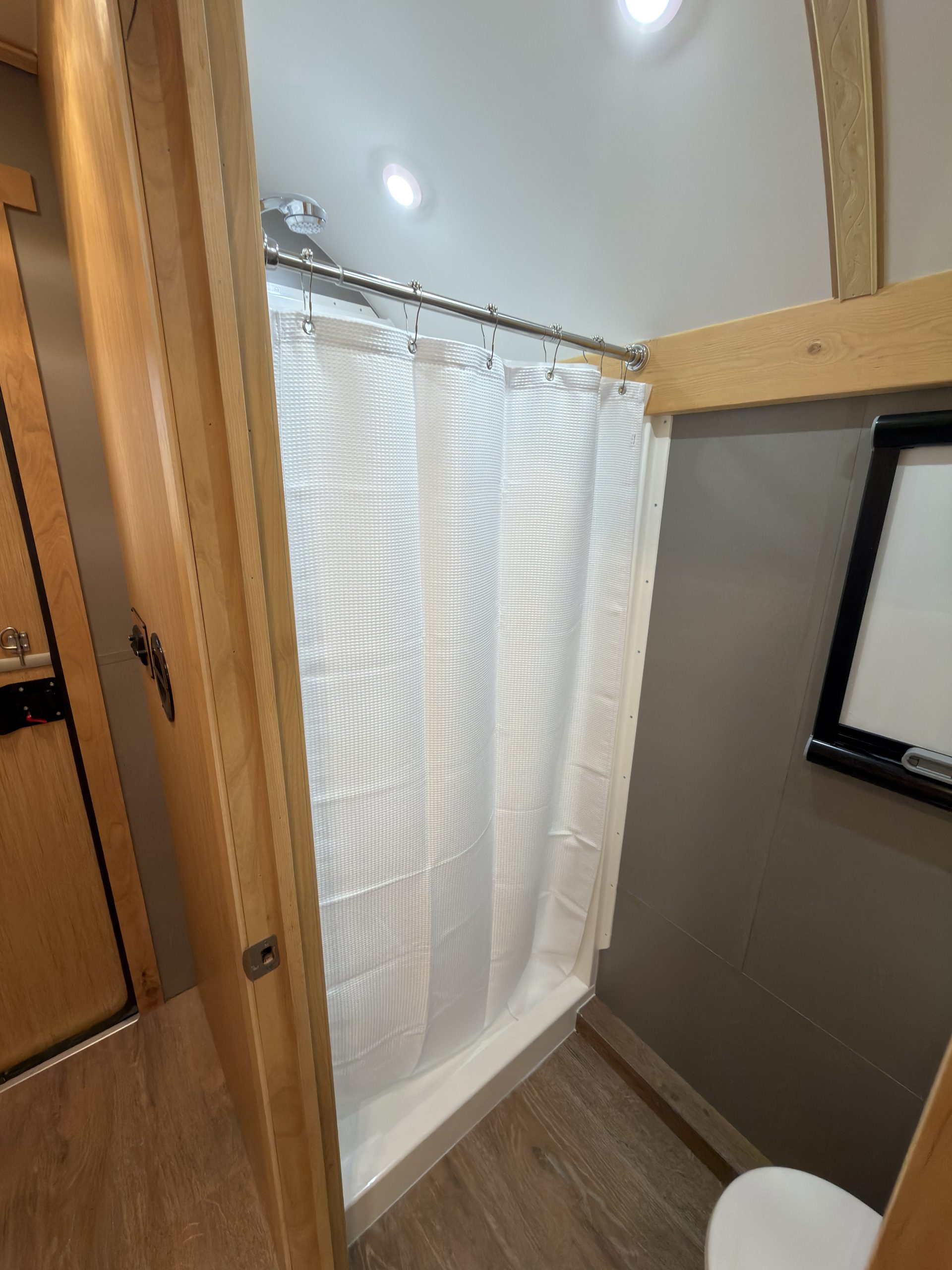

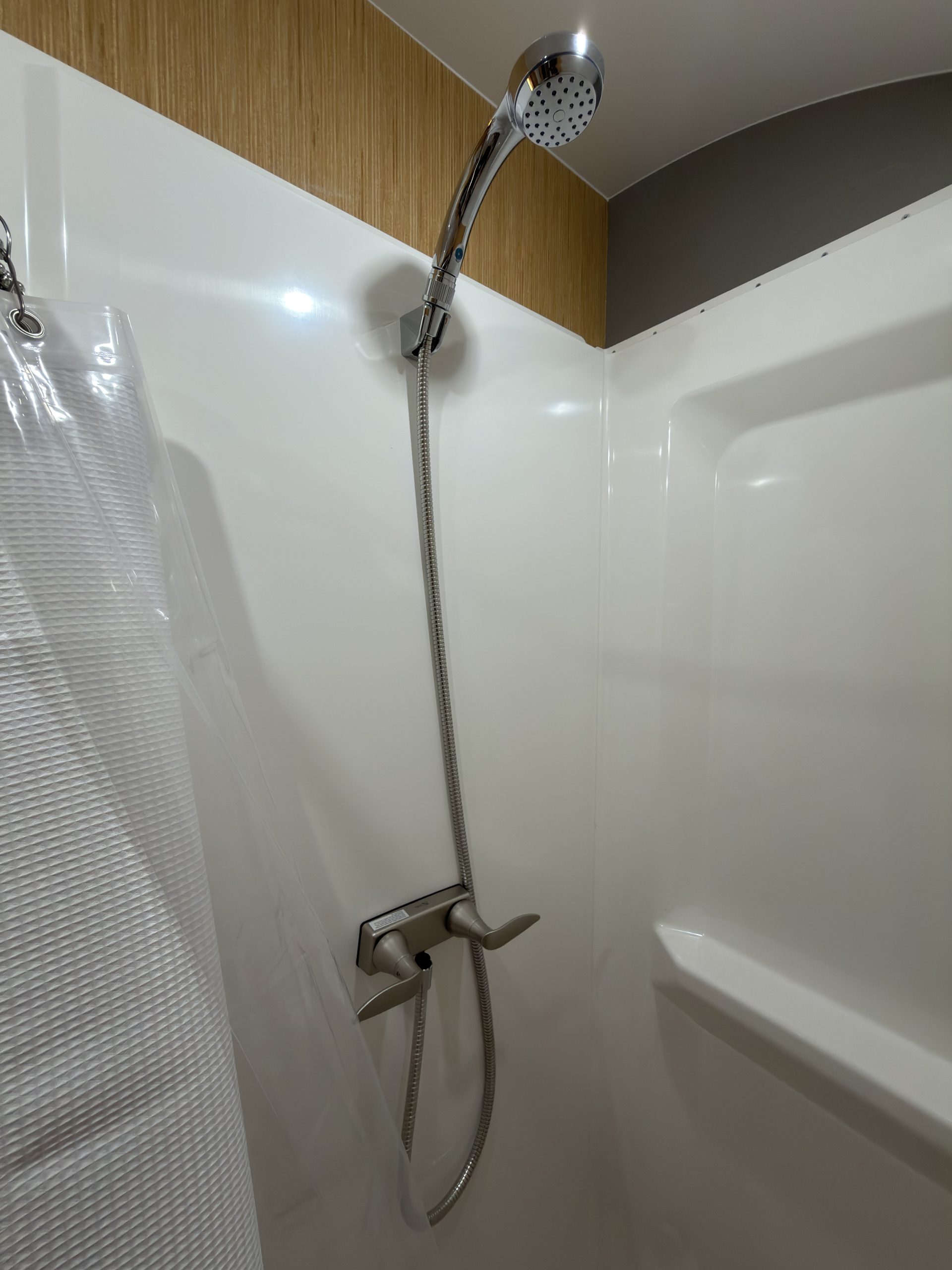

Shower

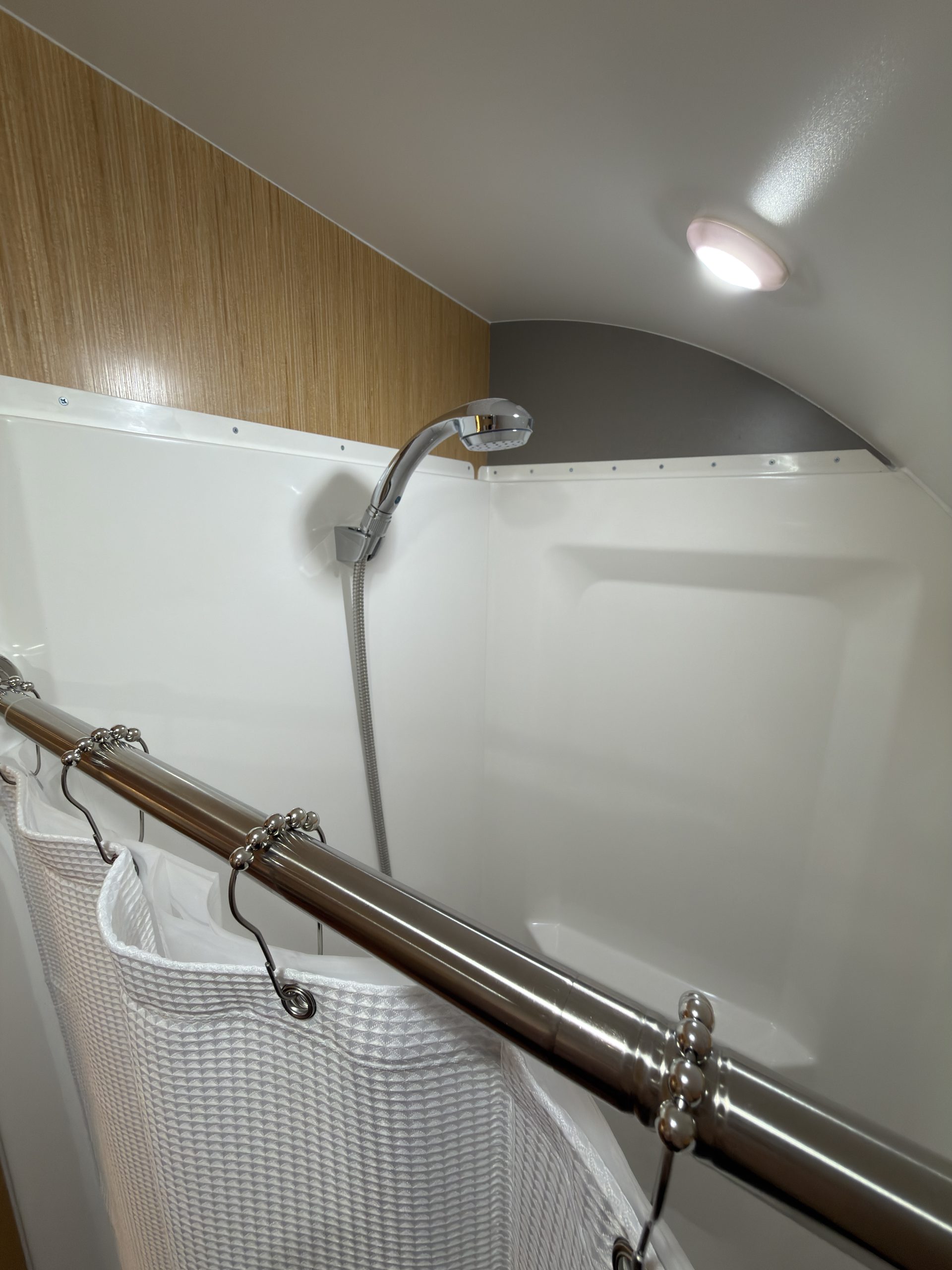

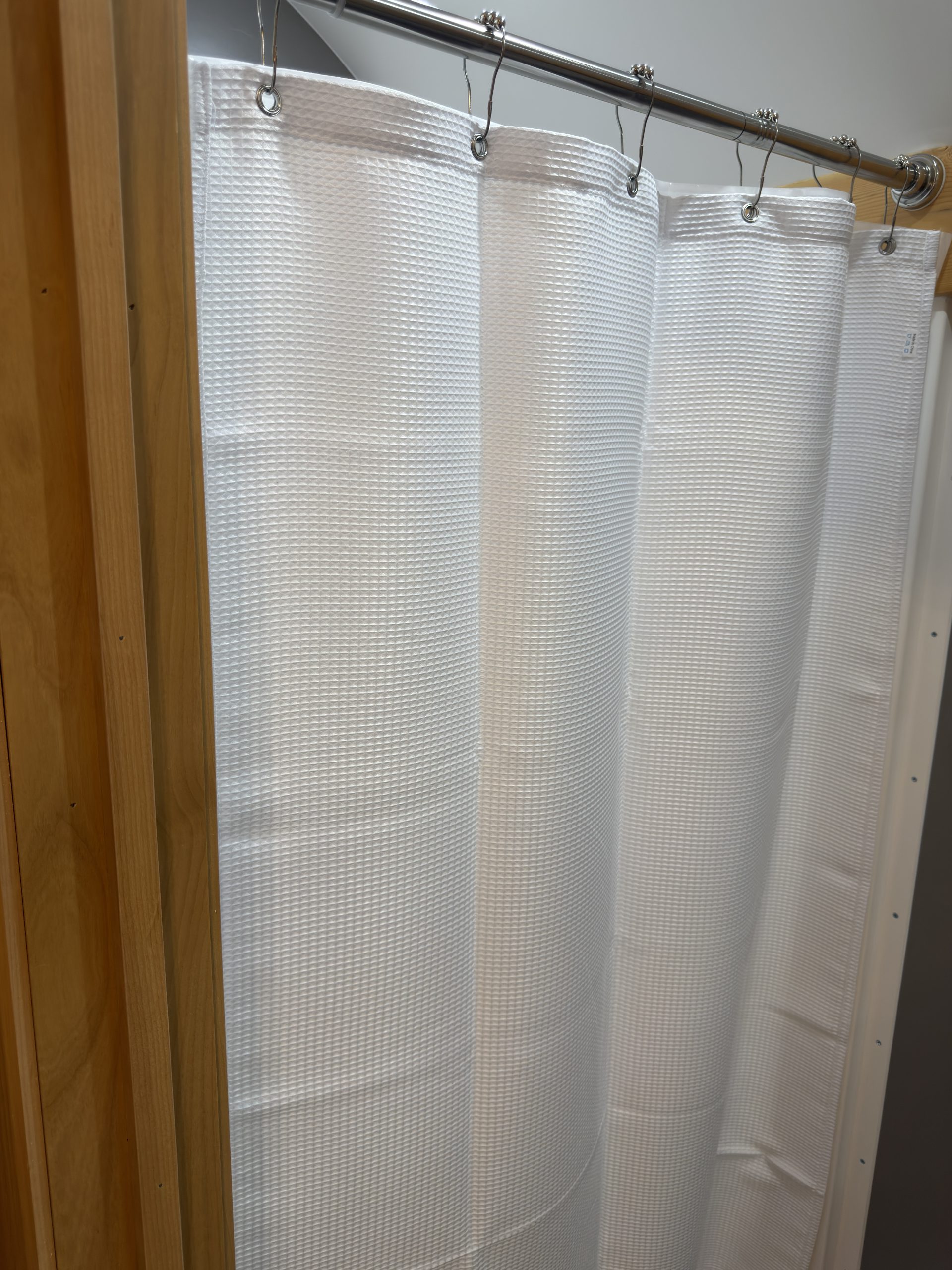

32 x 32 in. Shower with Curtain & Stainless Steel Fixtures
Toilet
Highlighted feature:
Cinderella Incinerating Travel Toilet
Window

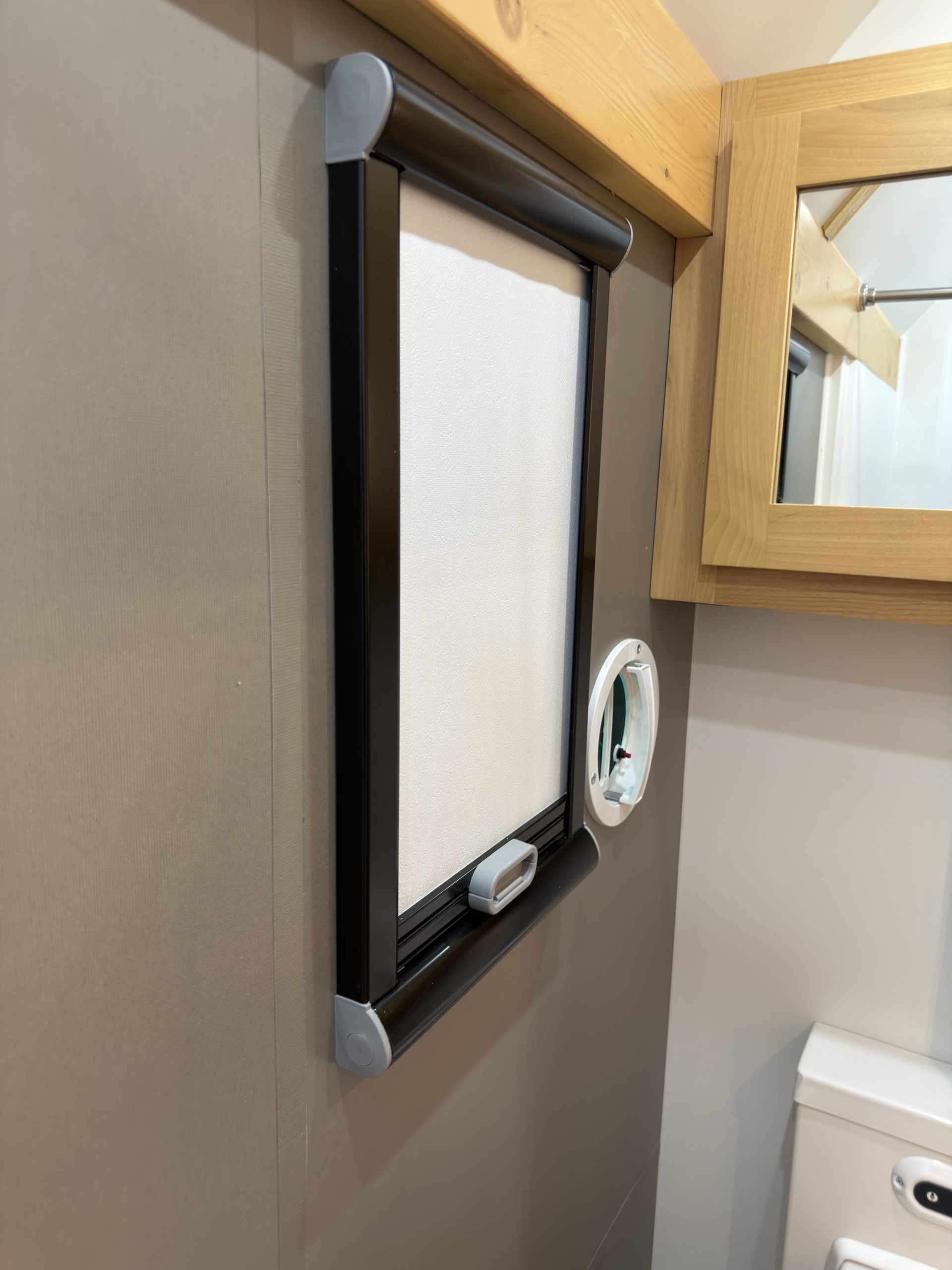

Small Bathroom Window
Ventilation
12V Bathroom Exhaust Fan
Lighting

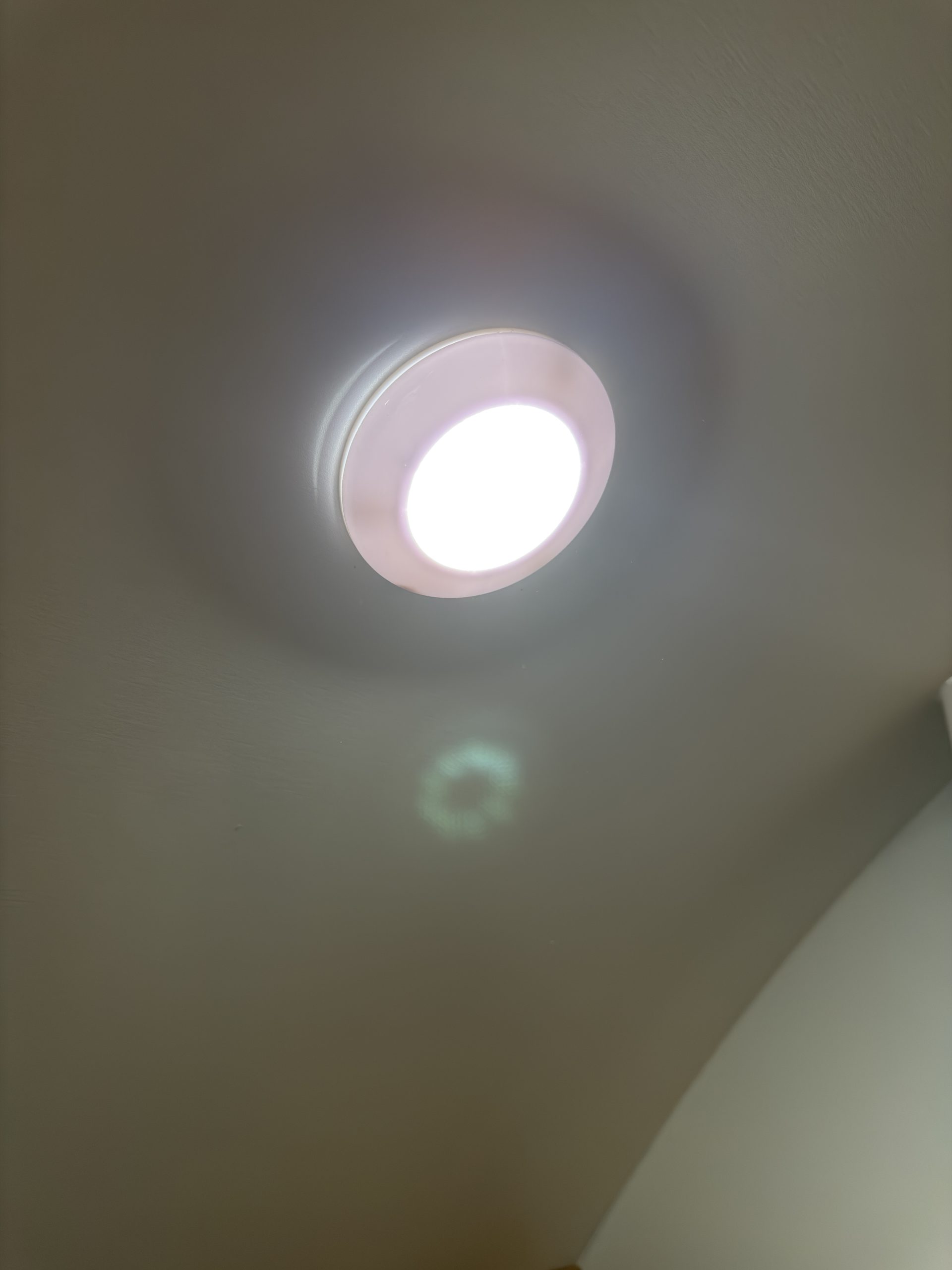

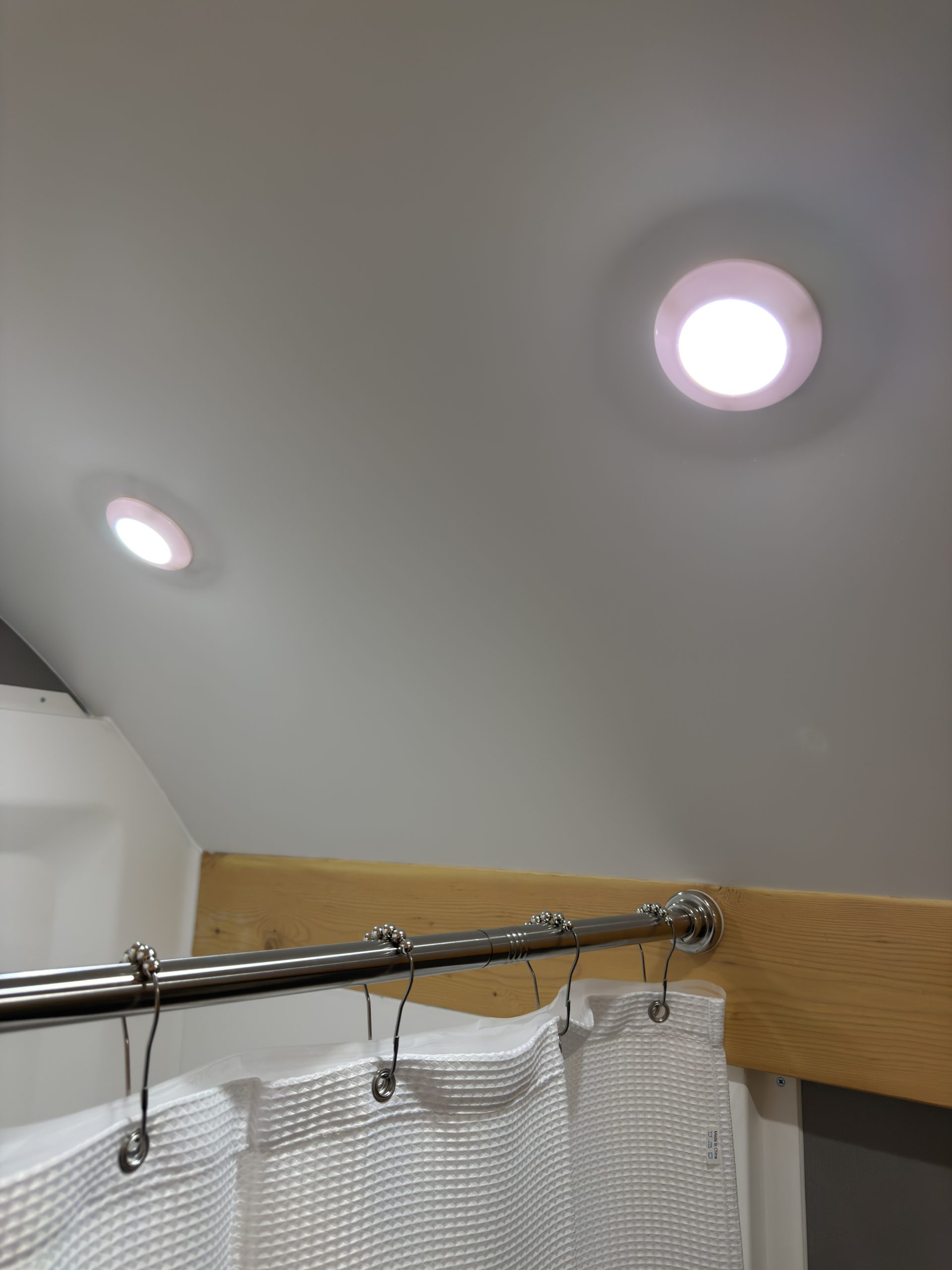

Small Dimmable LED Ceiling Pocket Lights
Power

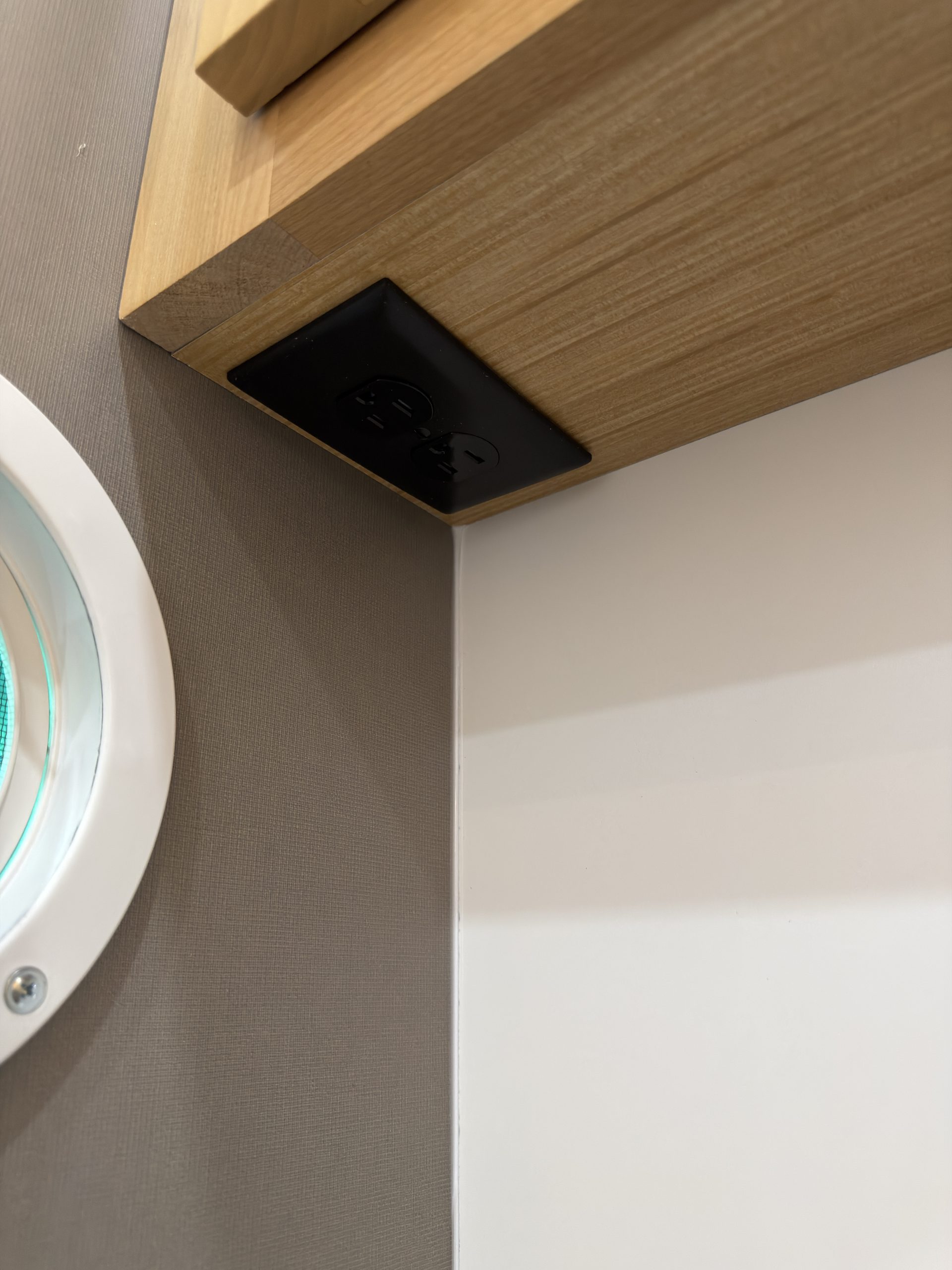

Single AC Outlet Below Medicine Cabinet

Fuel & Power

Power

Solar Panels
Two 100 W Panels
Solar Controller
Standard

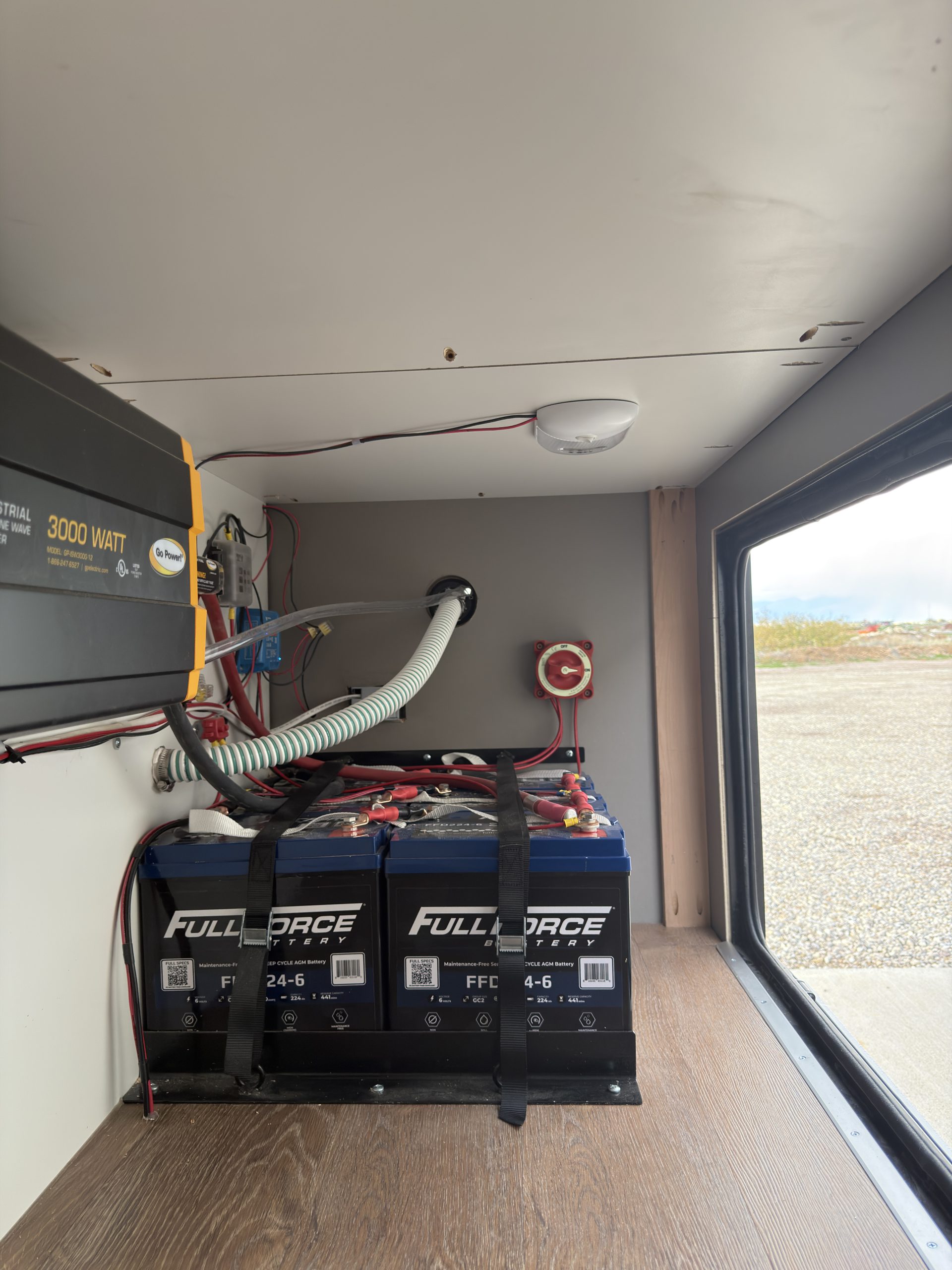

Battery Bank

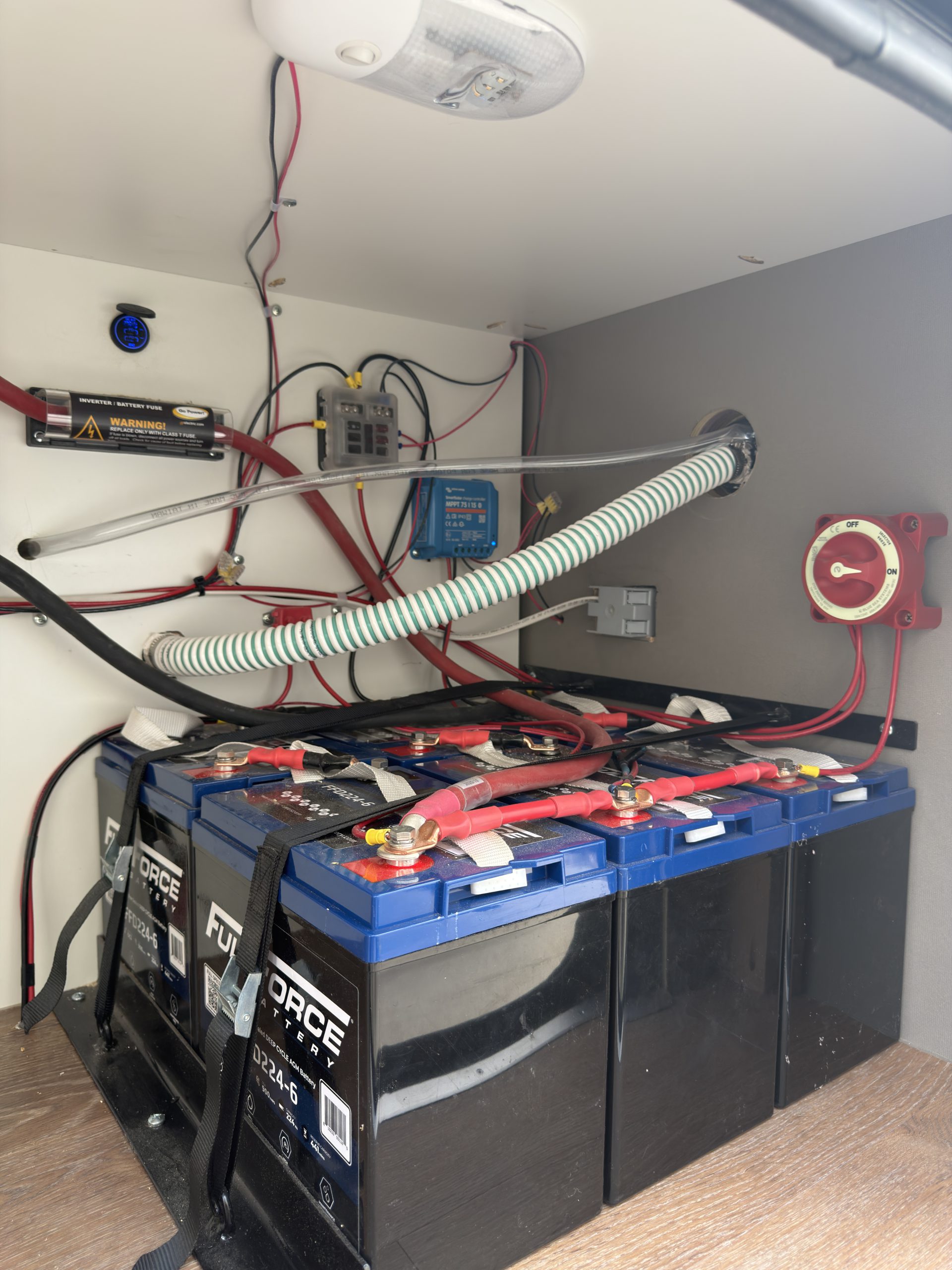

6x 6V Deep Cycle Batteries
Power Center
120V AC / 12V DC

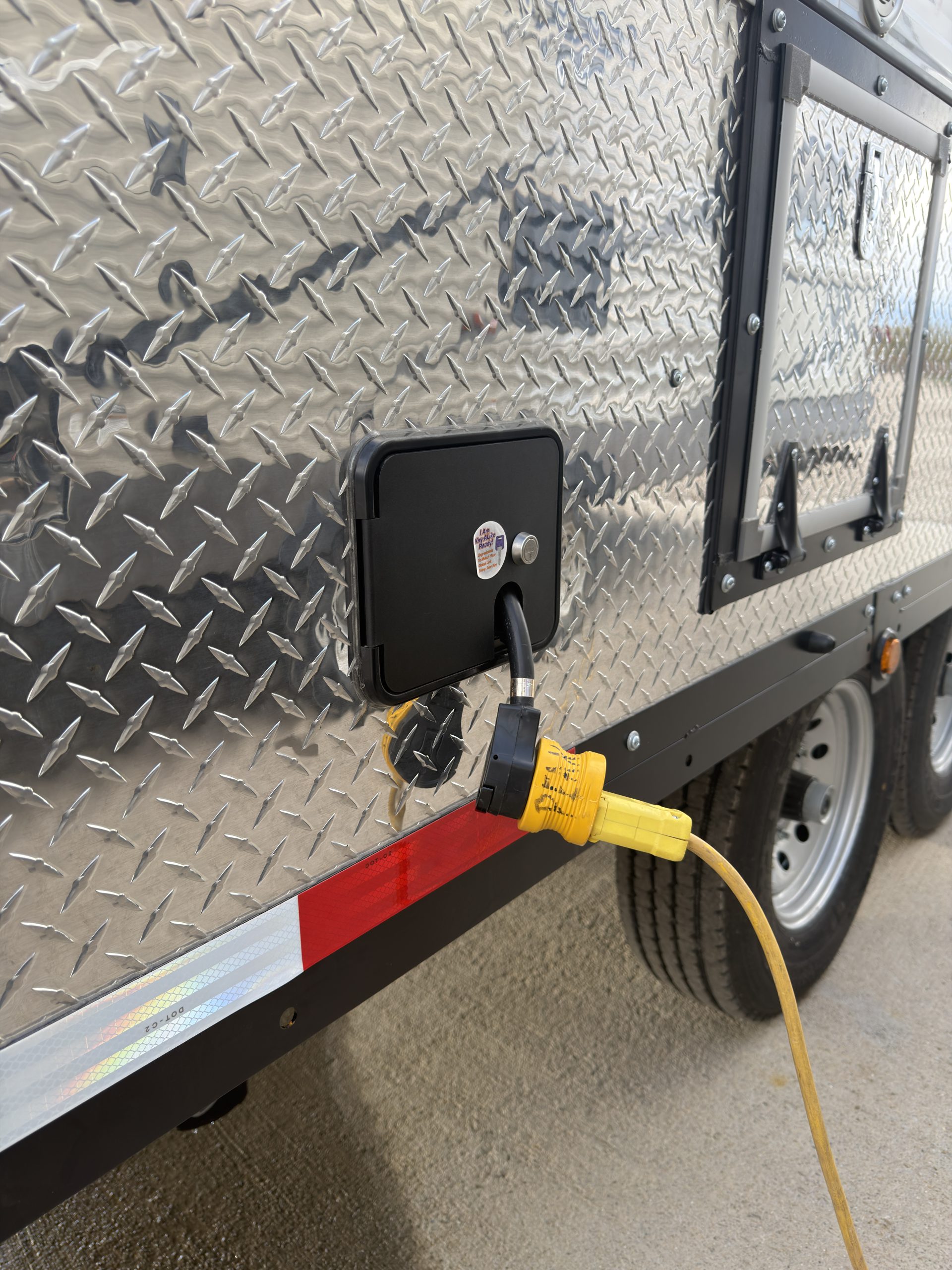

Shore Power
30 A Service Hookup (25 ft. Cord Included)
Inverter
Highlighted feature:

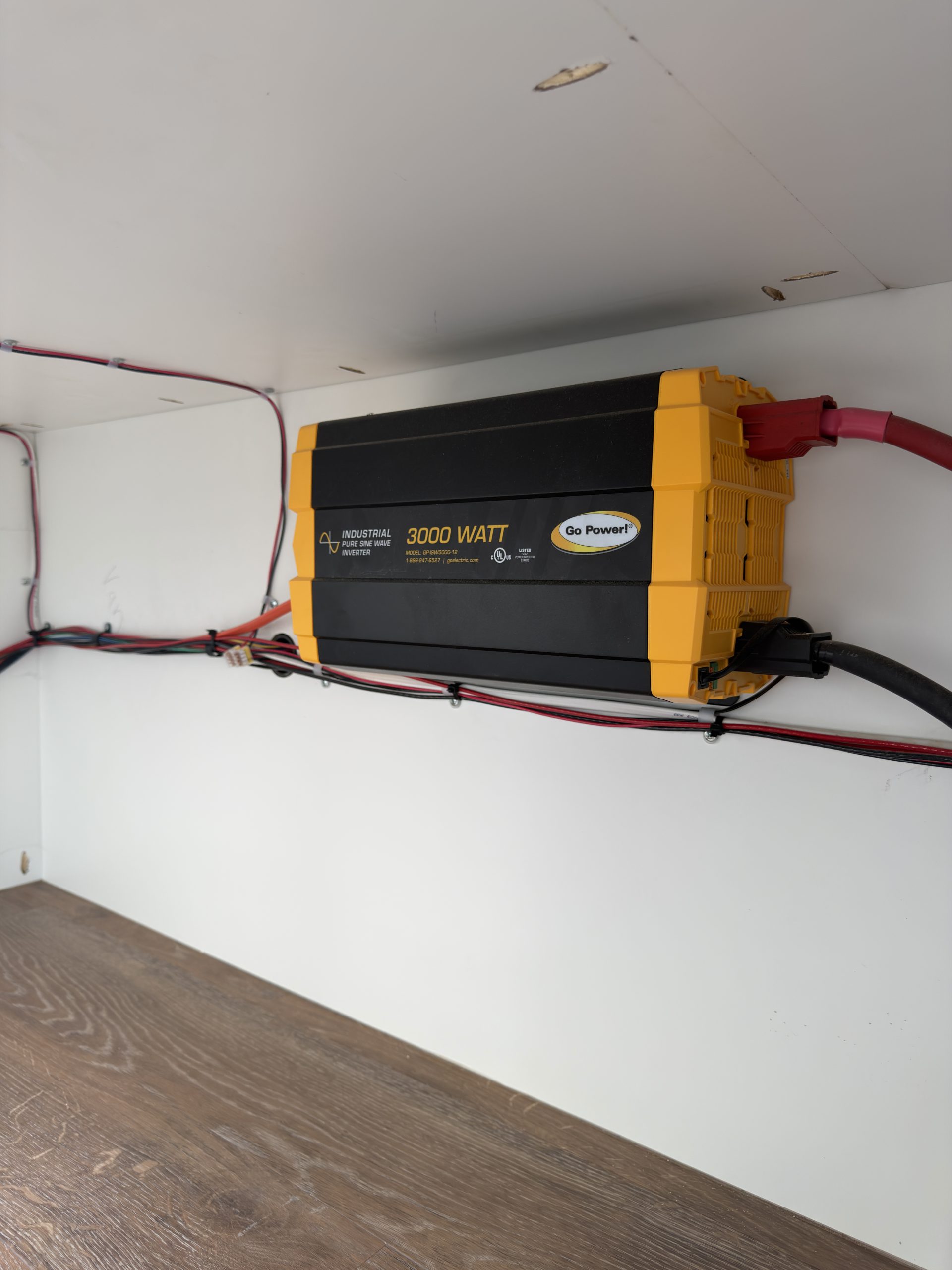

3,000W Inverter
Accessible Electrical Systems & Wiring
Standard

Propane

Tanks
Two 7 gal. 30 lb Tanks
Tank Cover
Quick Access Propane Tank Cover
Propane Connections
1x Quick-Connect (Curbside)

Plumbing

General

Plumbing Protection
Fully Insulated & Heated Plumbing
Fittings
Brass & Stainless Steel Water Fittings
Monitoring Panel

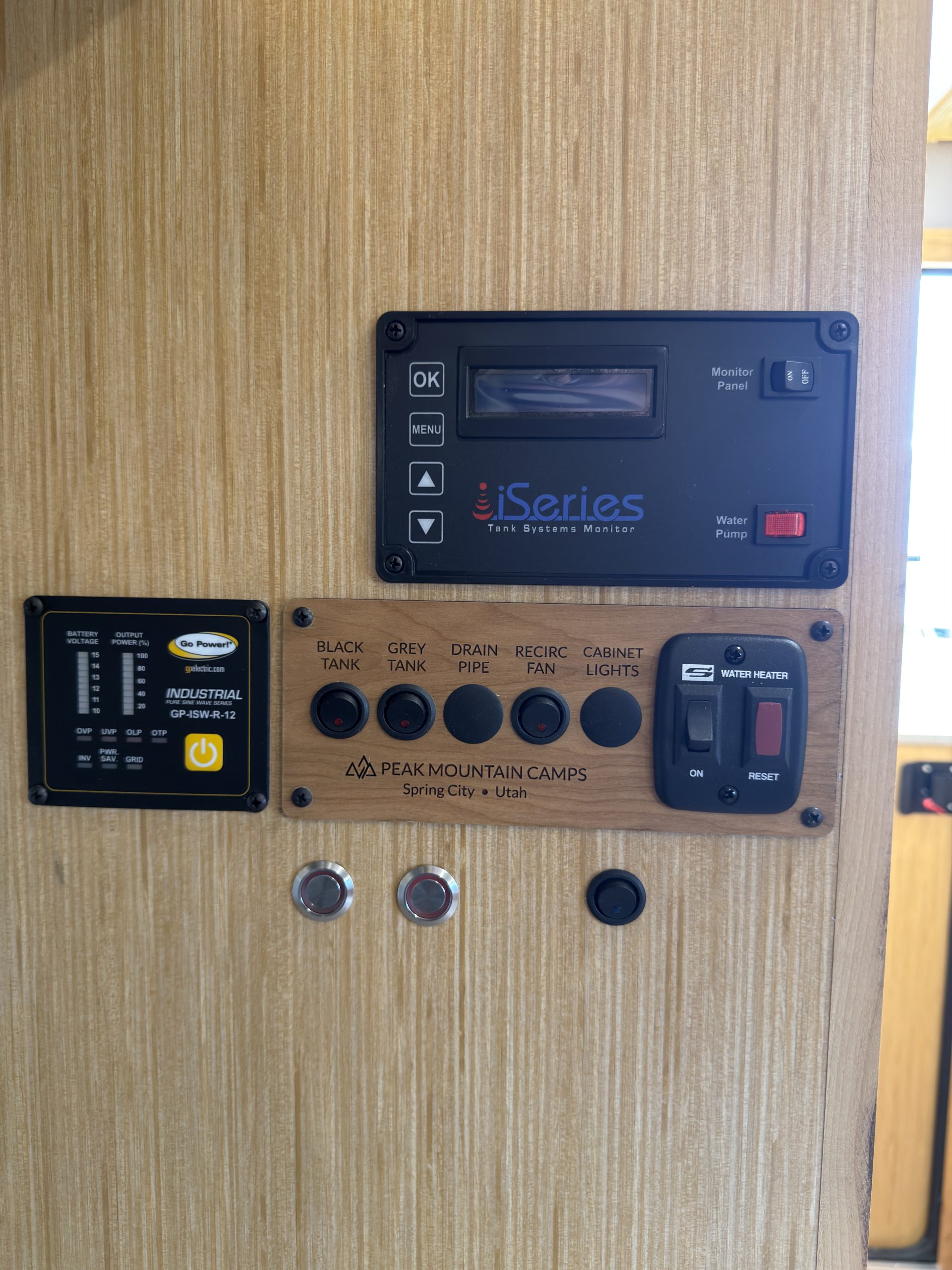

Tank Monitors for Fresh, Gray, and Black Water Tanks
Accessible Plumbing Systems
Standard

Fresh Water

Fresh Water Tank(s)
Highlighted feature:
2x 42 gal. Fresh Water Tanks
Water Heater

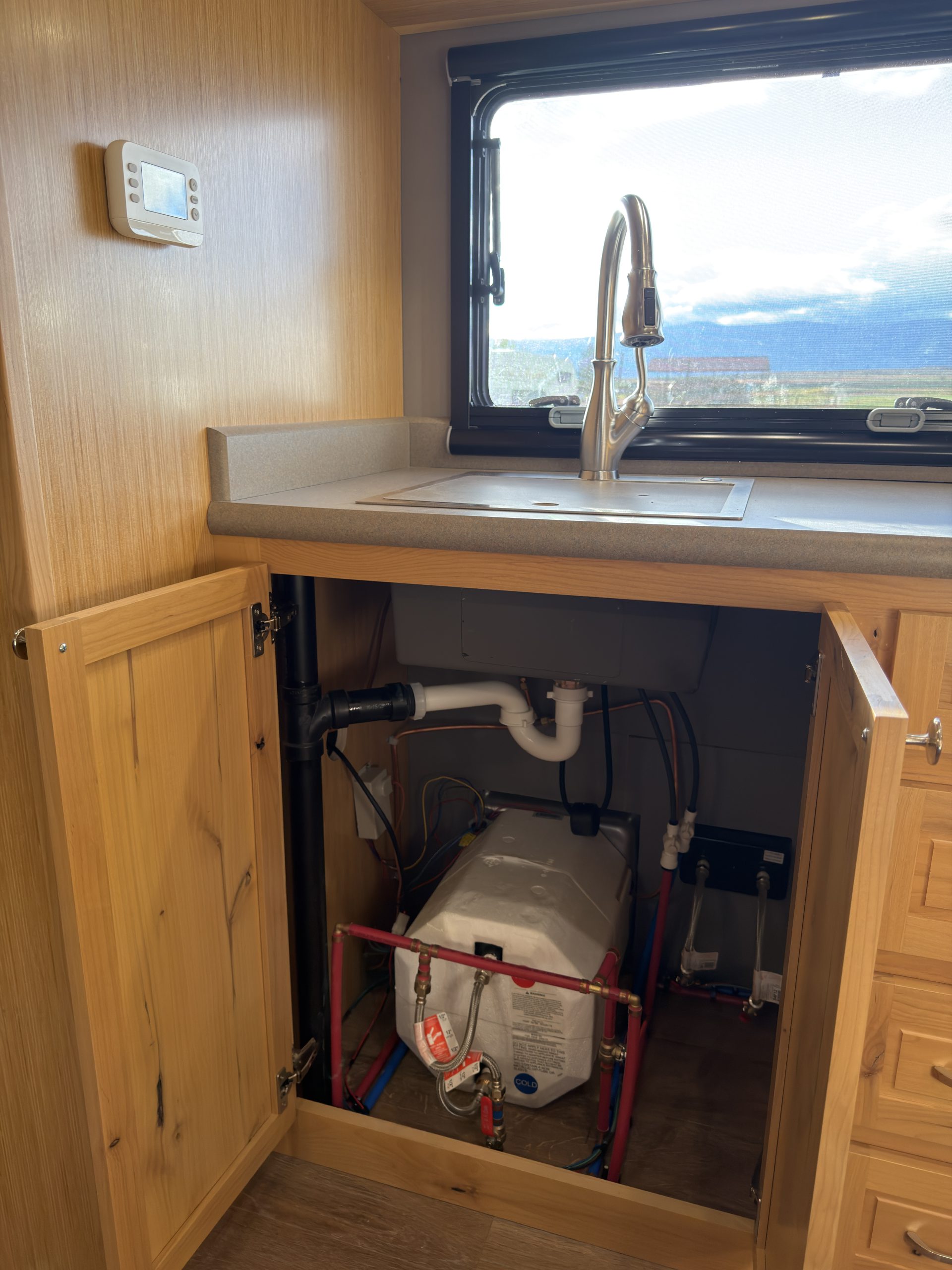

6 gal. Propane Water Heater (Under Kitchen Sink)
Water Pump

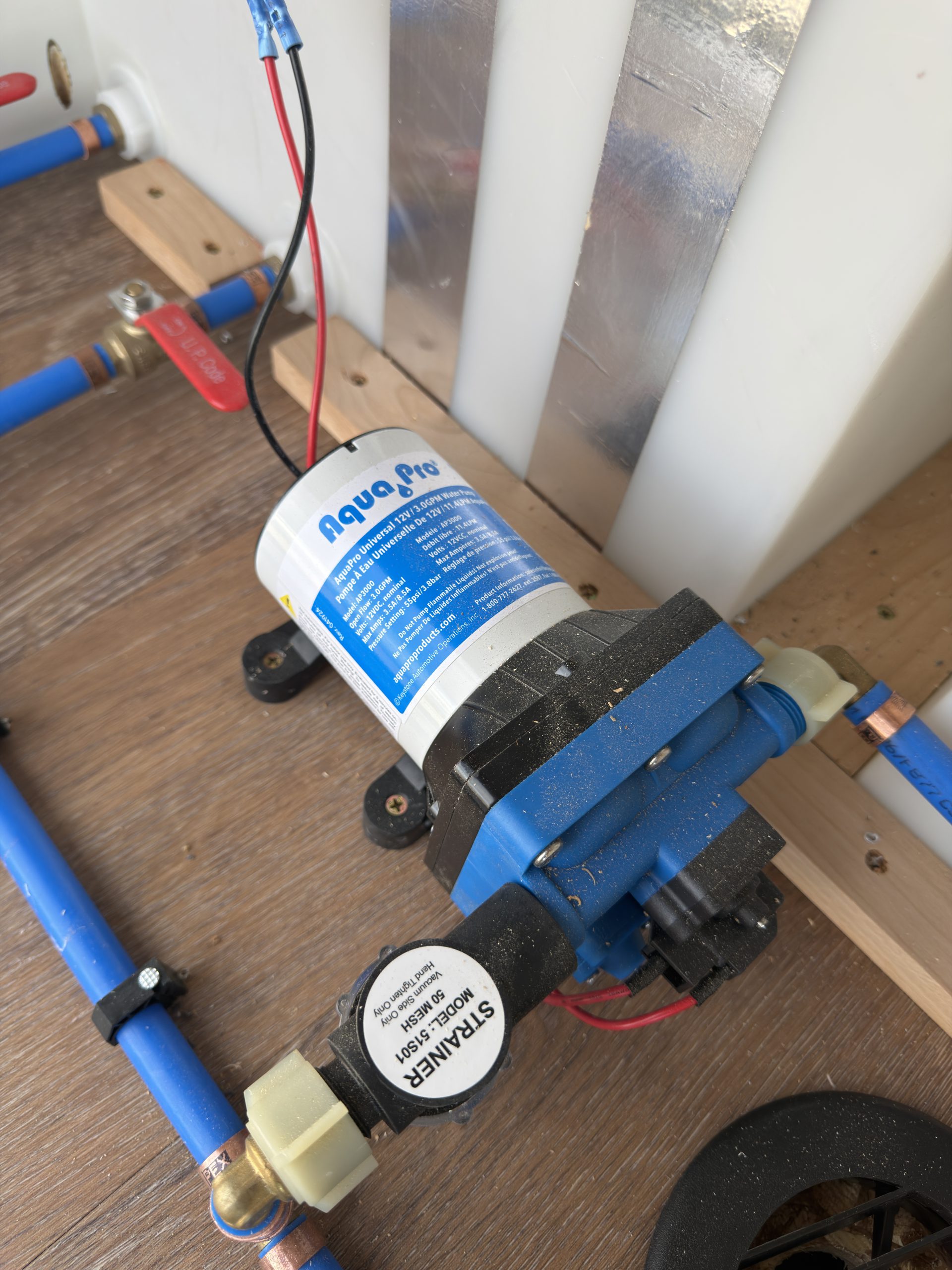

Standard Shurflo 12V Water Pump

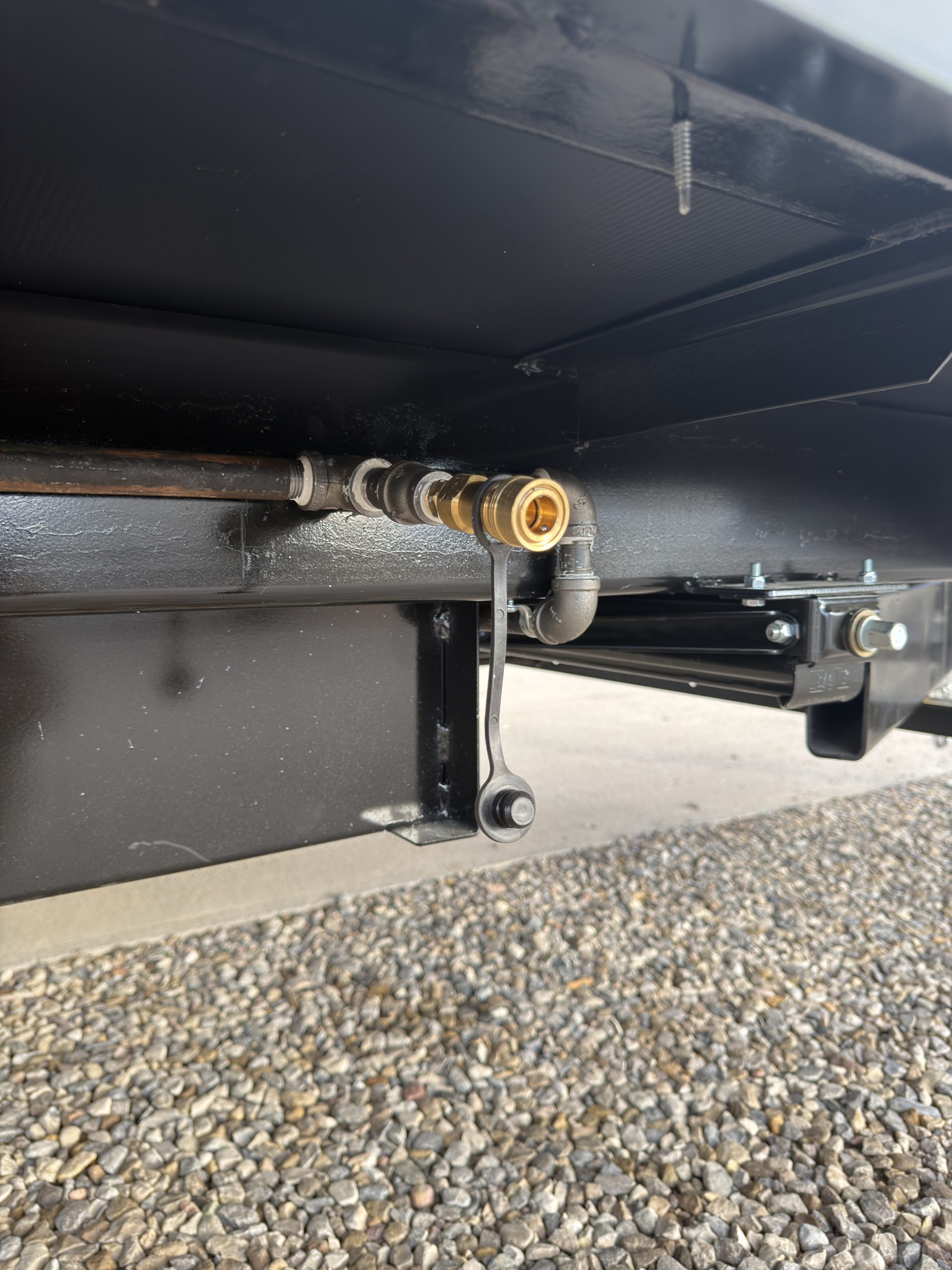

Exterior Shower

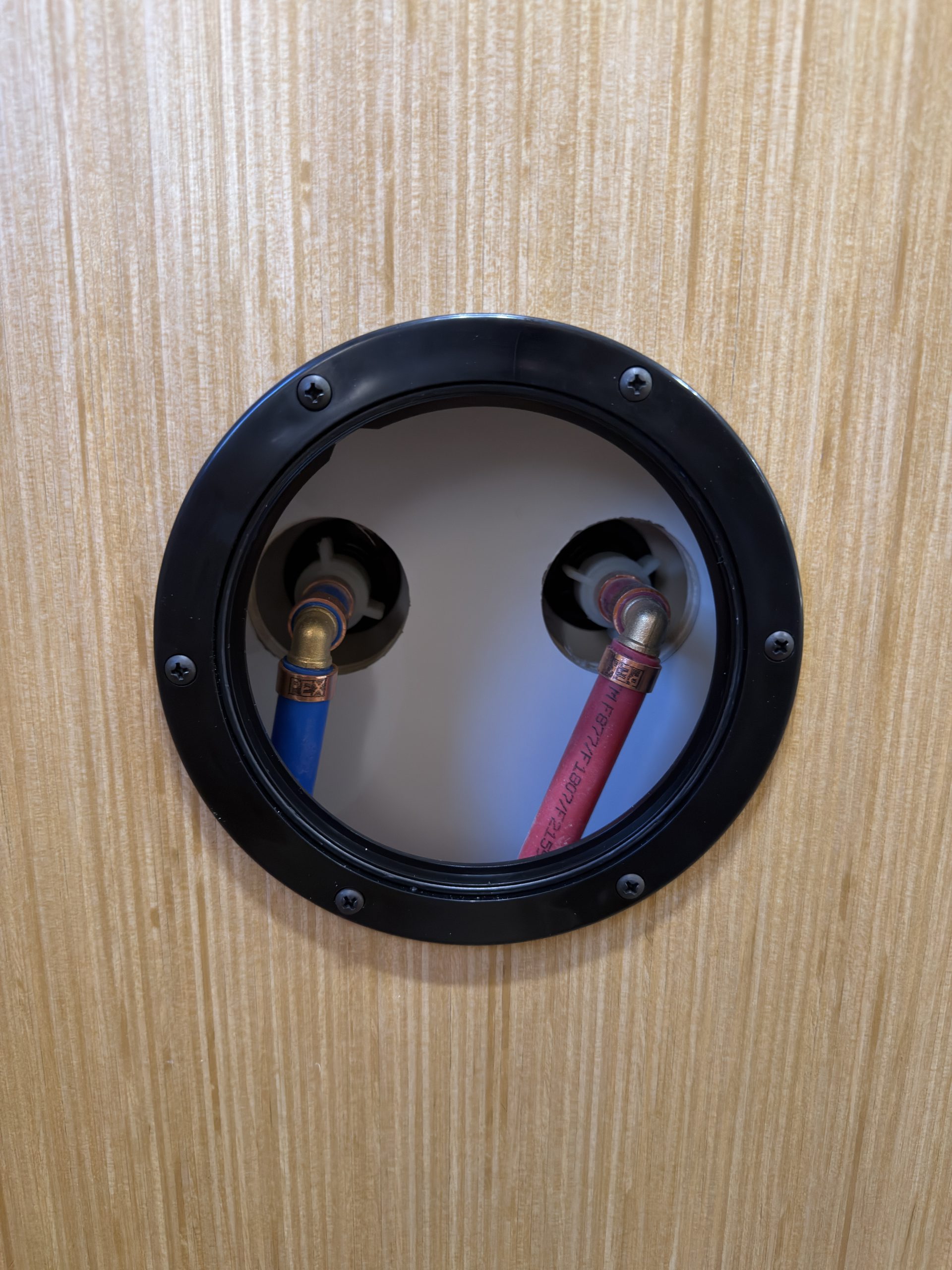

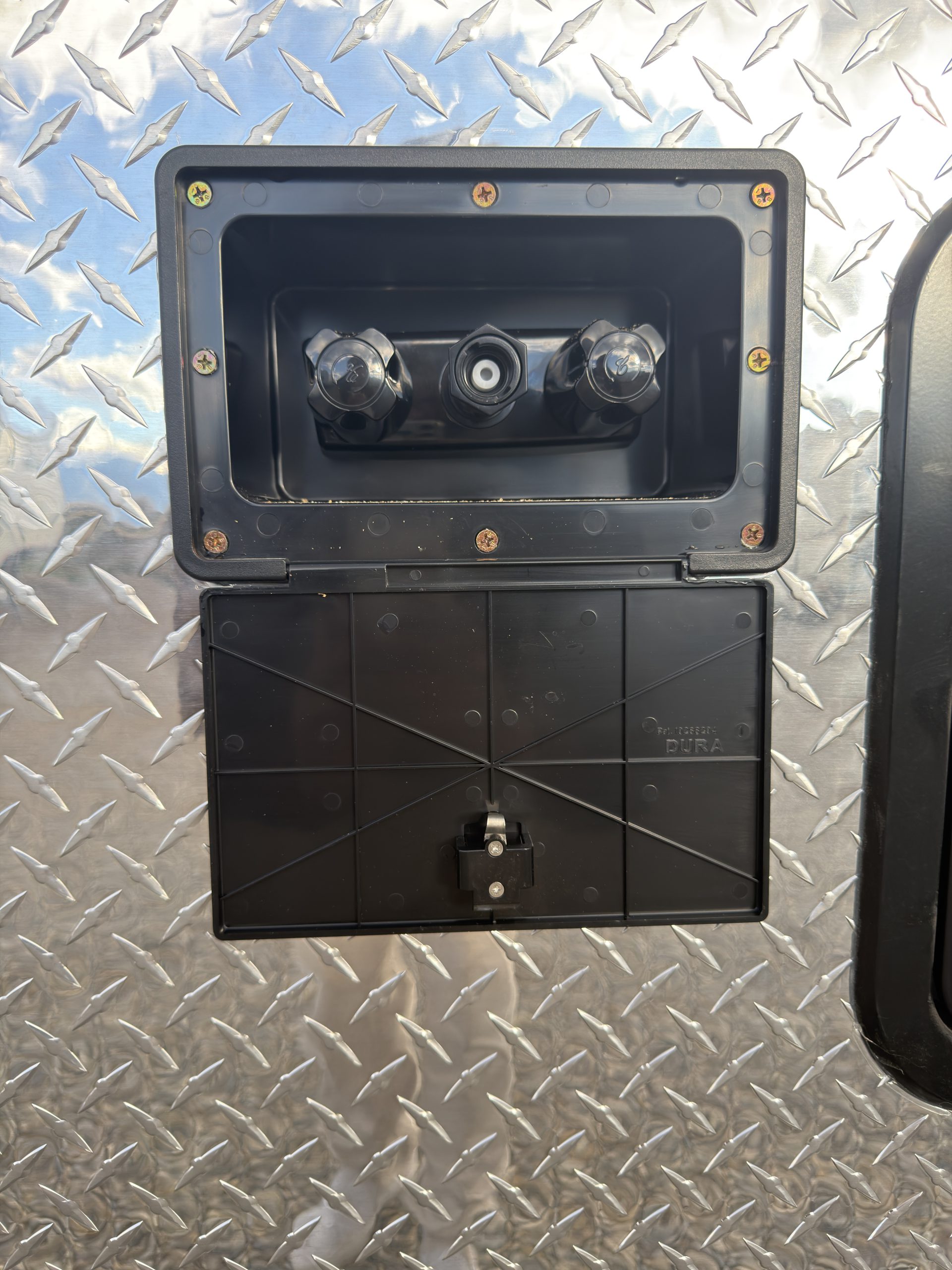

External Spray Port w/ Interior Shutoff Valves

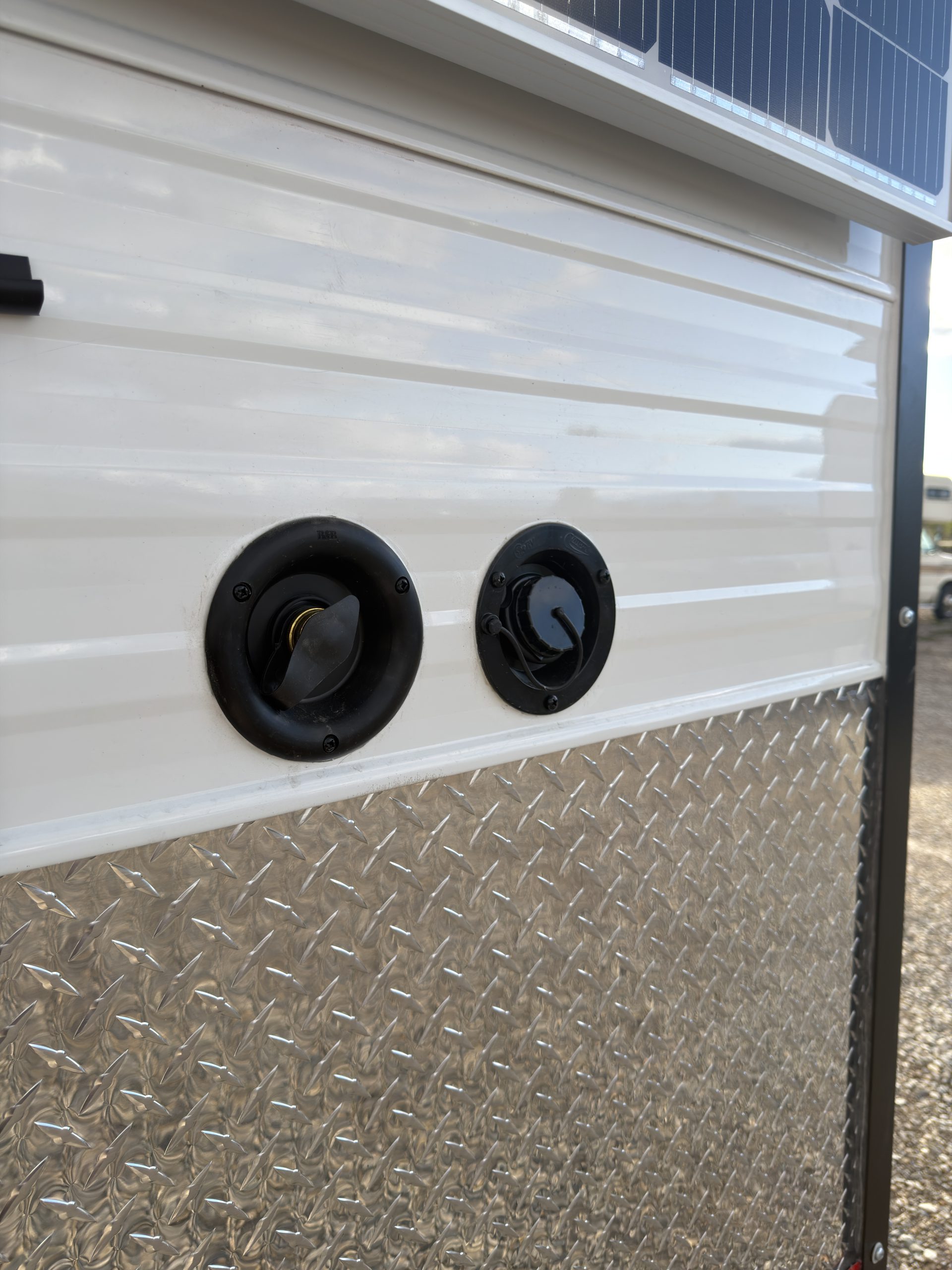

Fresh Water Connection
Standard
City Water Connection
Standard

Waste Water

Holding Tank Cover
Insulated Metal Tank Cover
Tank Heating Elements
Highlighted feature:
Added
Sewer Hose Storage
Standard
Black Water Tank
35 gal. Black Water Tank – Black & Gray Tanks Plumbed Together for More Gray Water Capacity
Gray Water Tank
35 gal. Gray Water Tank

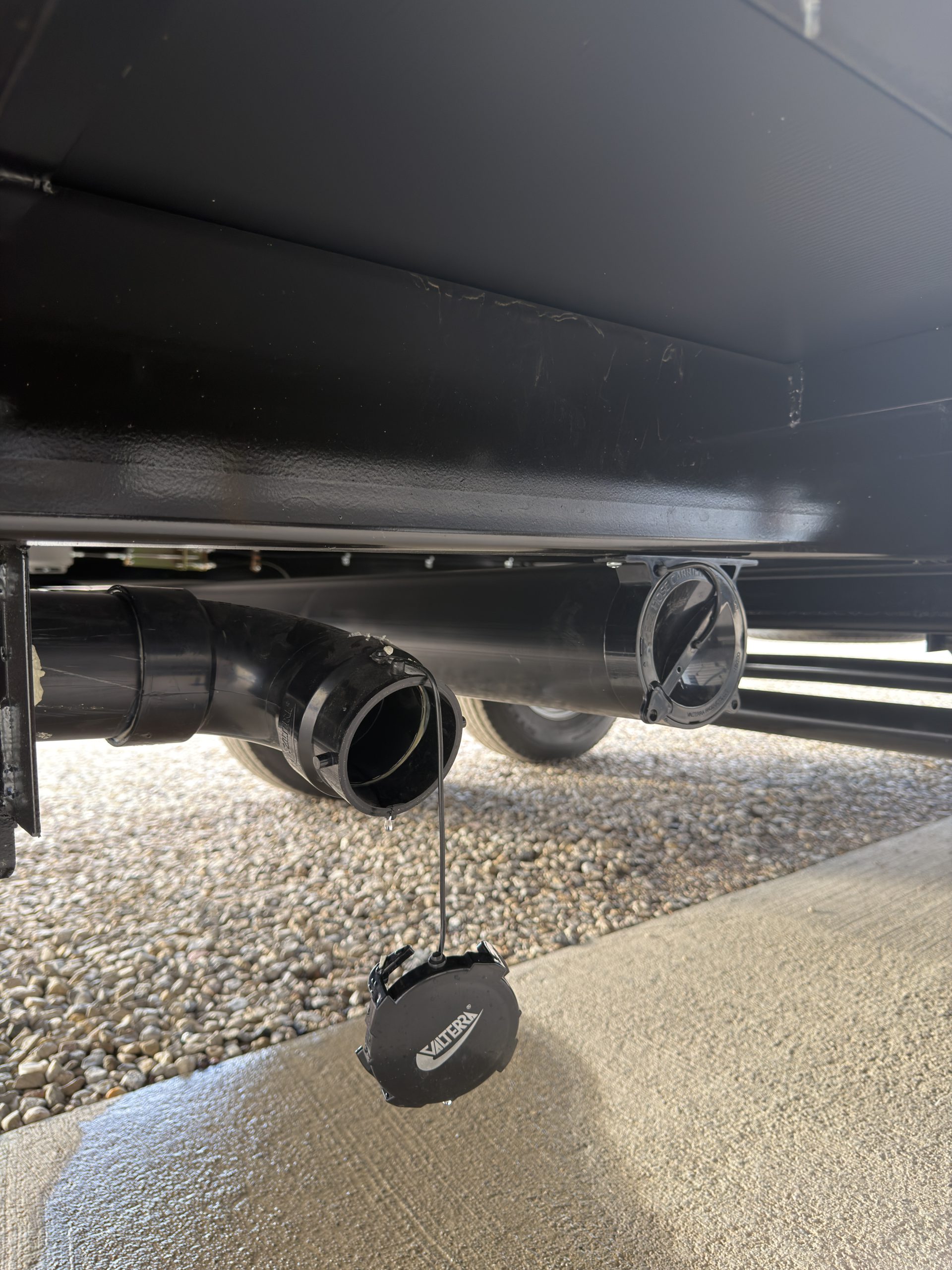

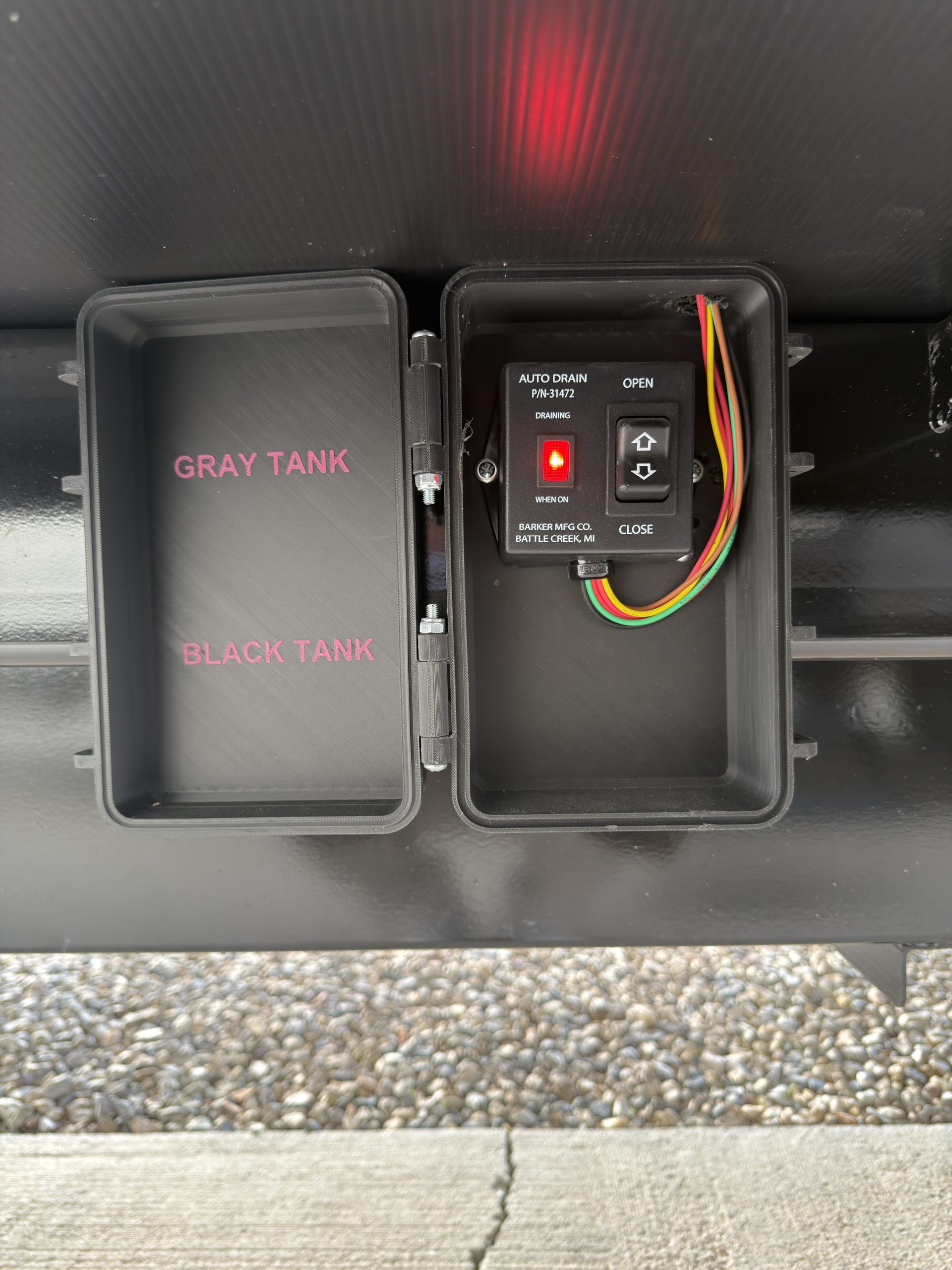

Electric Waste Gates
Highlighted feature:
Added
Sewage Hook-Up
Standard

Climate Control

Heating & Cooling

Wood Burning Stove

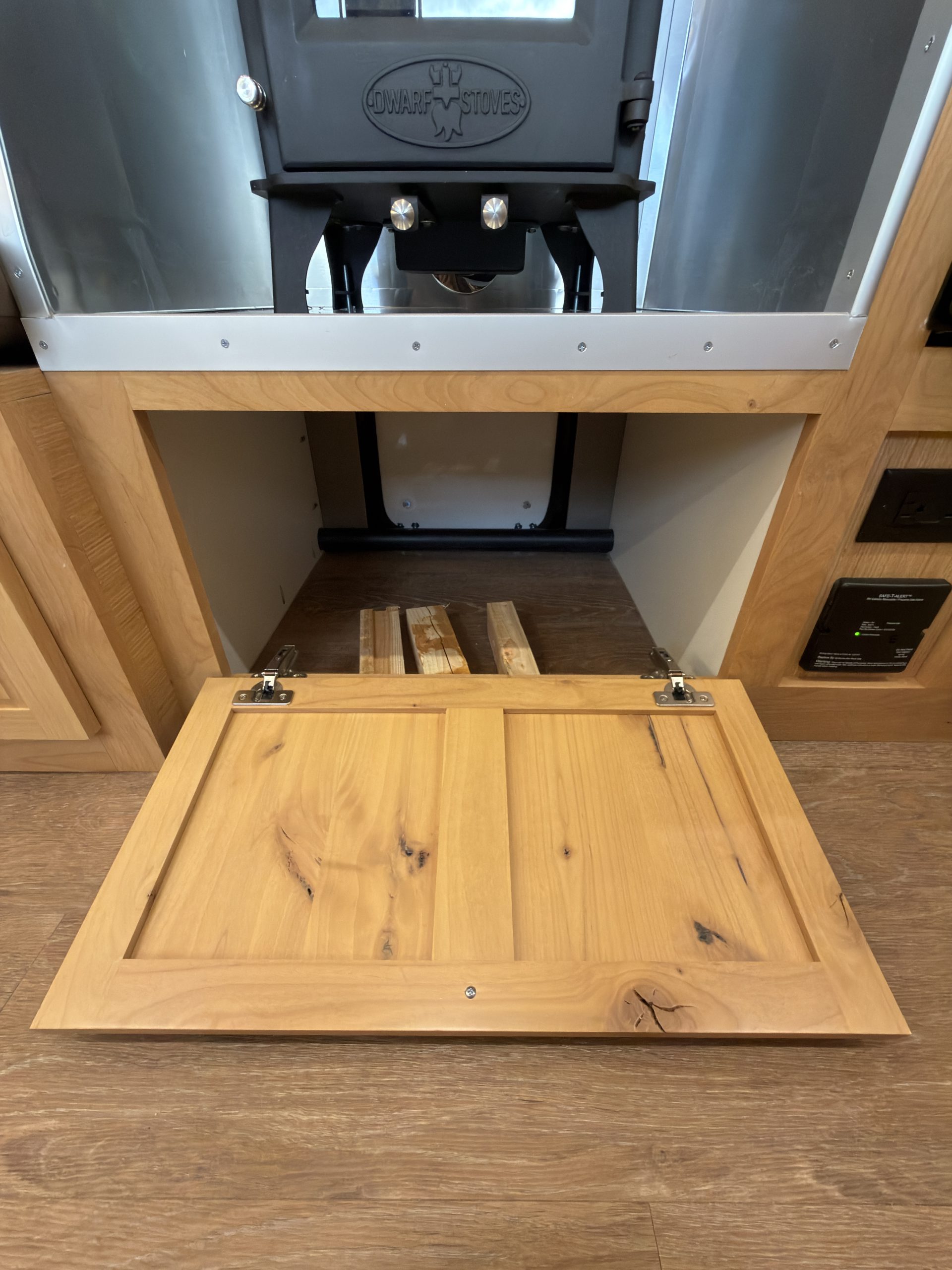

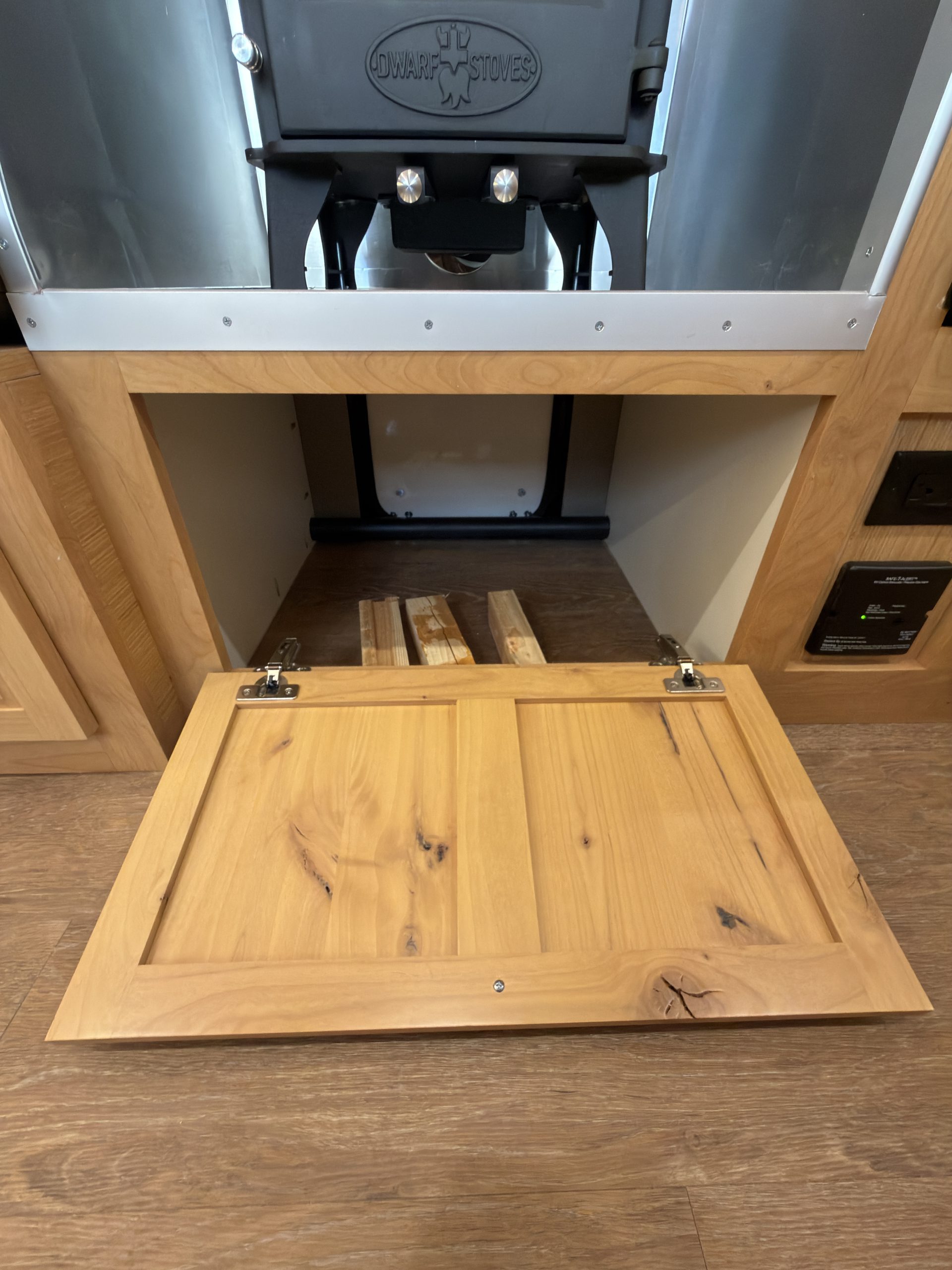

Small High-Efficiency Wood-Burning Stove
Furnace

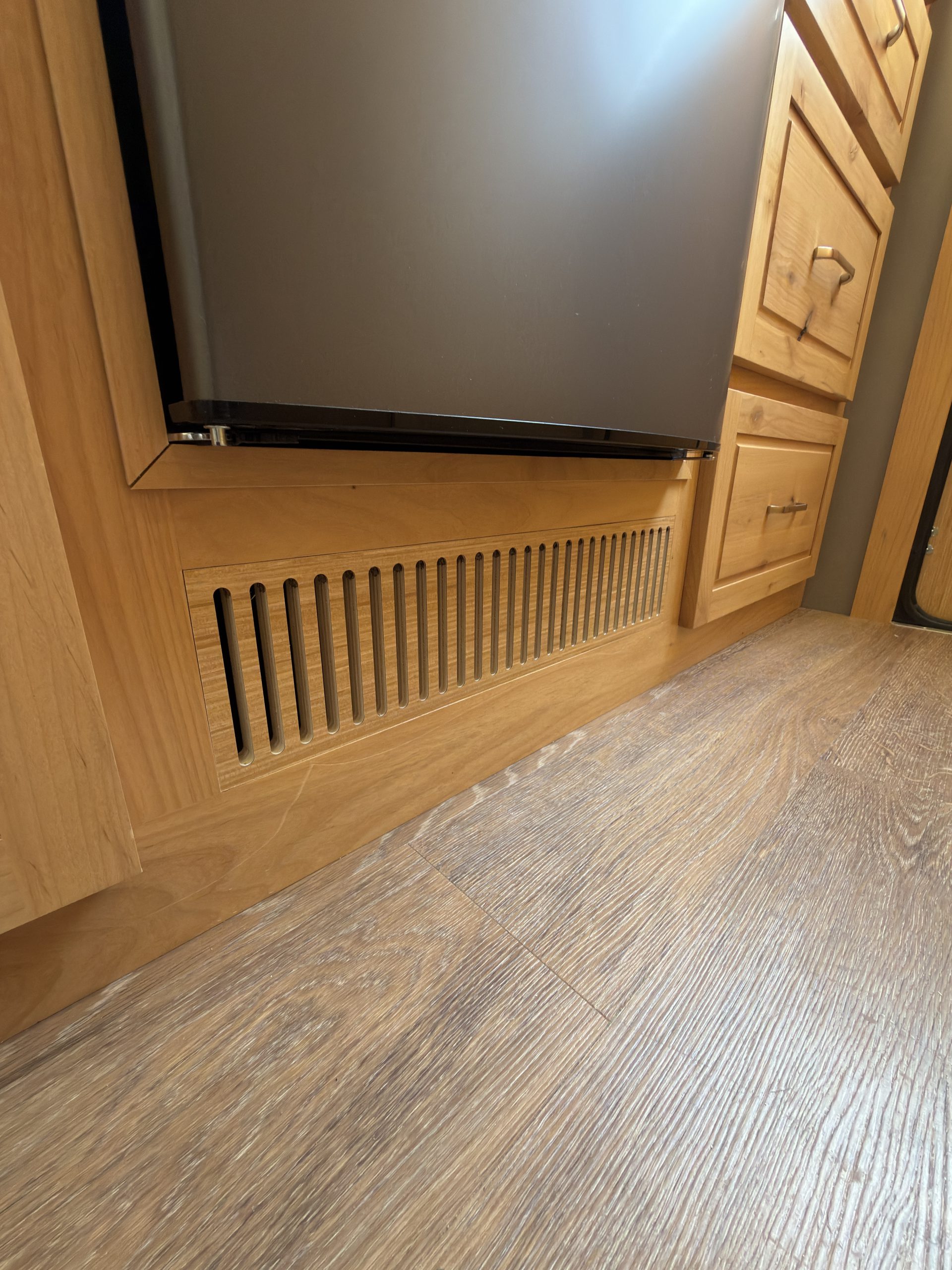

30,000 BTU Forced-Air Furnace (Under Fridge)
Air Conditioning
Pre-Wired for A/C
Ventilation
Highlighted feature:

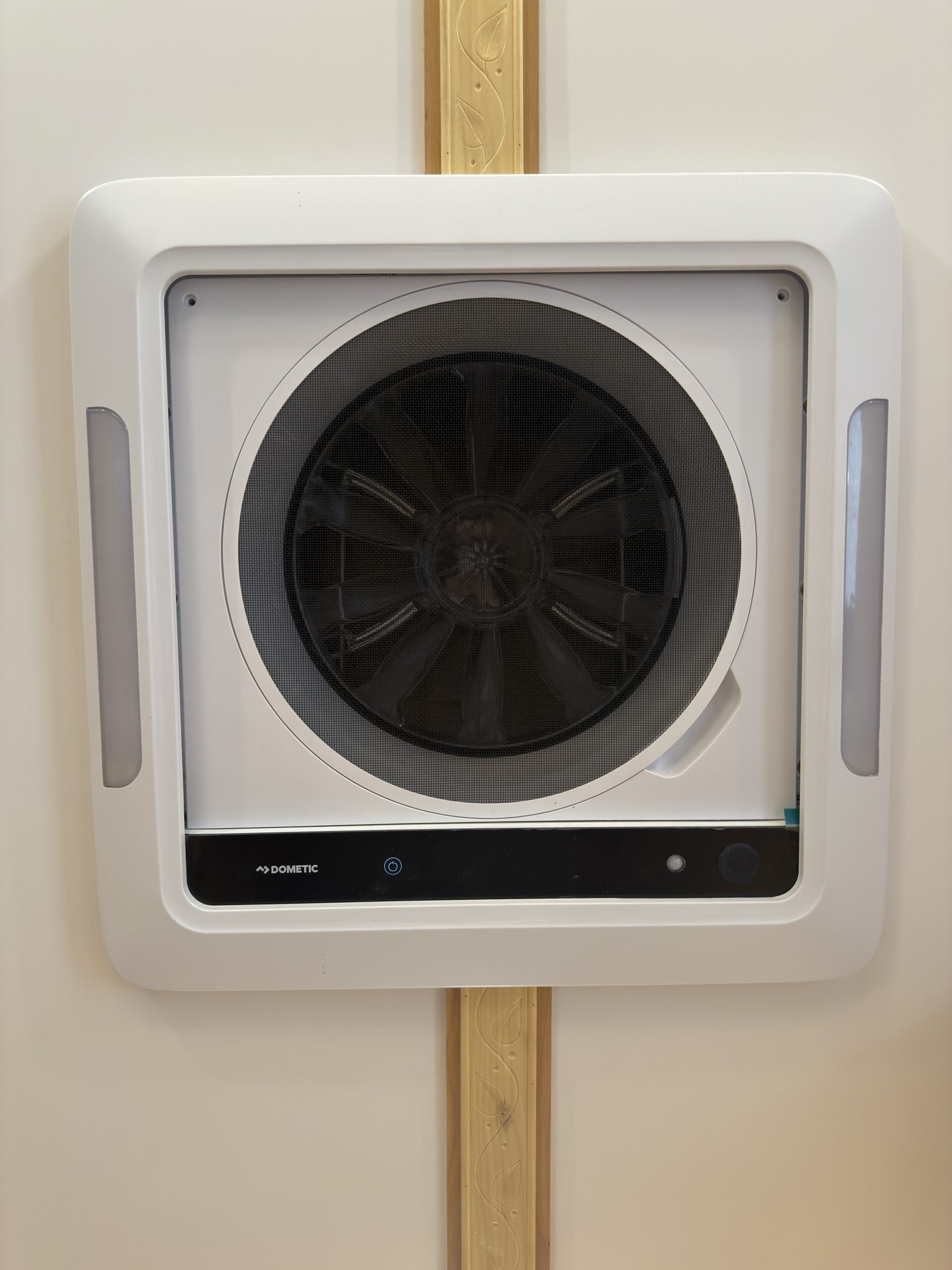

Fantastic Fan with Remote, Temperature Control, & Rain Sensing
Recirculation Fan
Standard 12V Air Circulating Fan

Internet & Entertainment

Connectivity

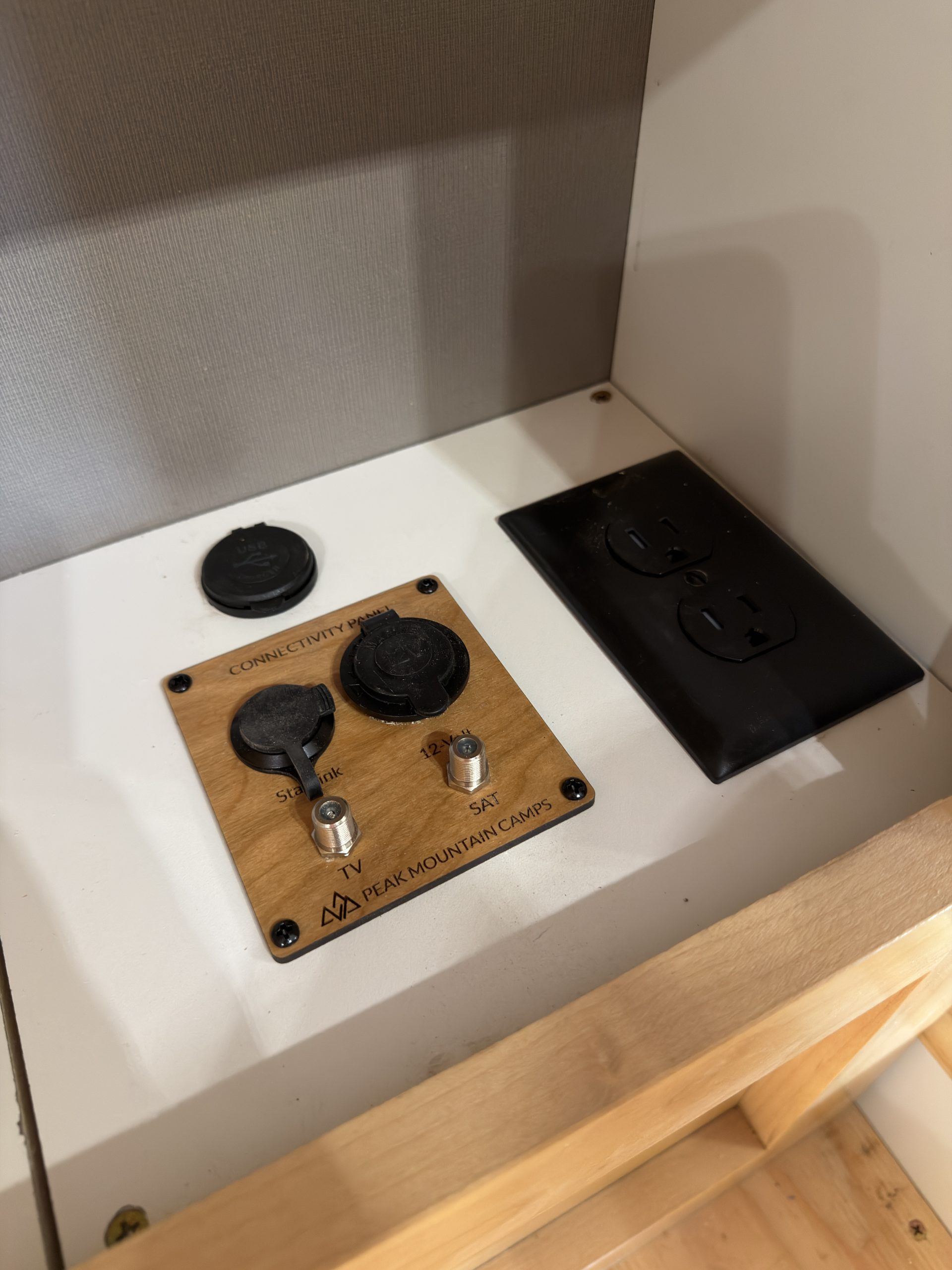

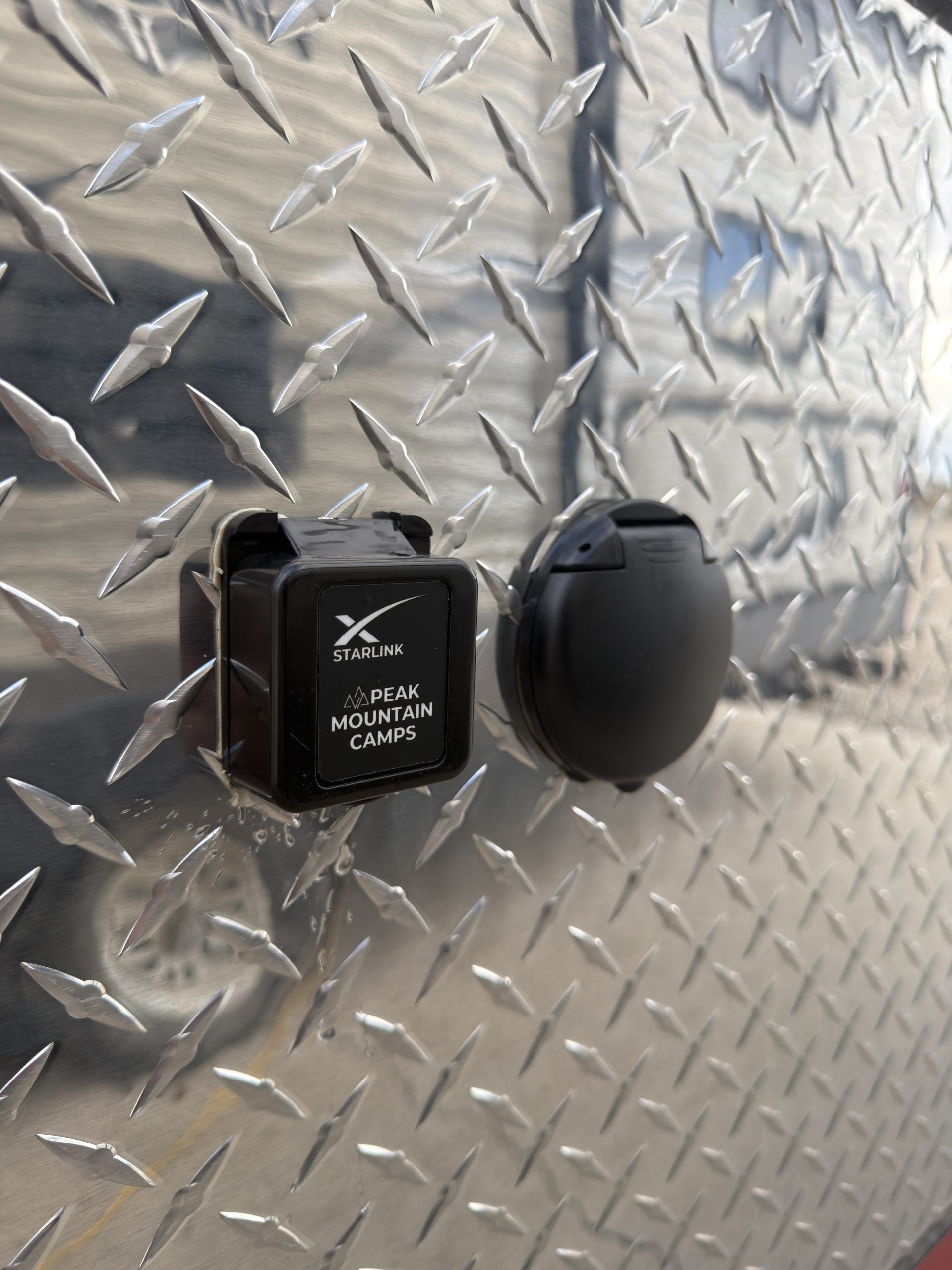

Exterior Ethernet Port (RJ45)
Standard (Ready For Starlink)

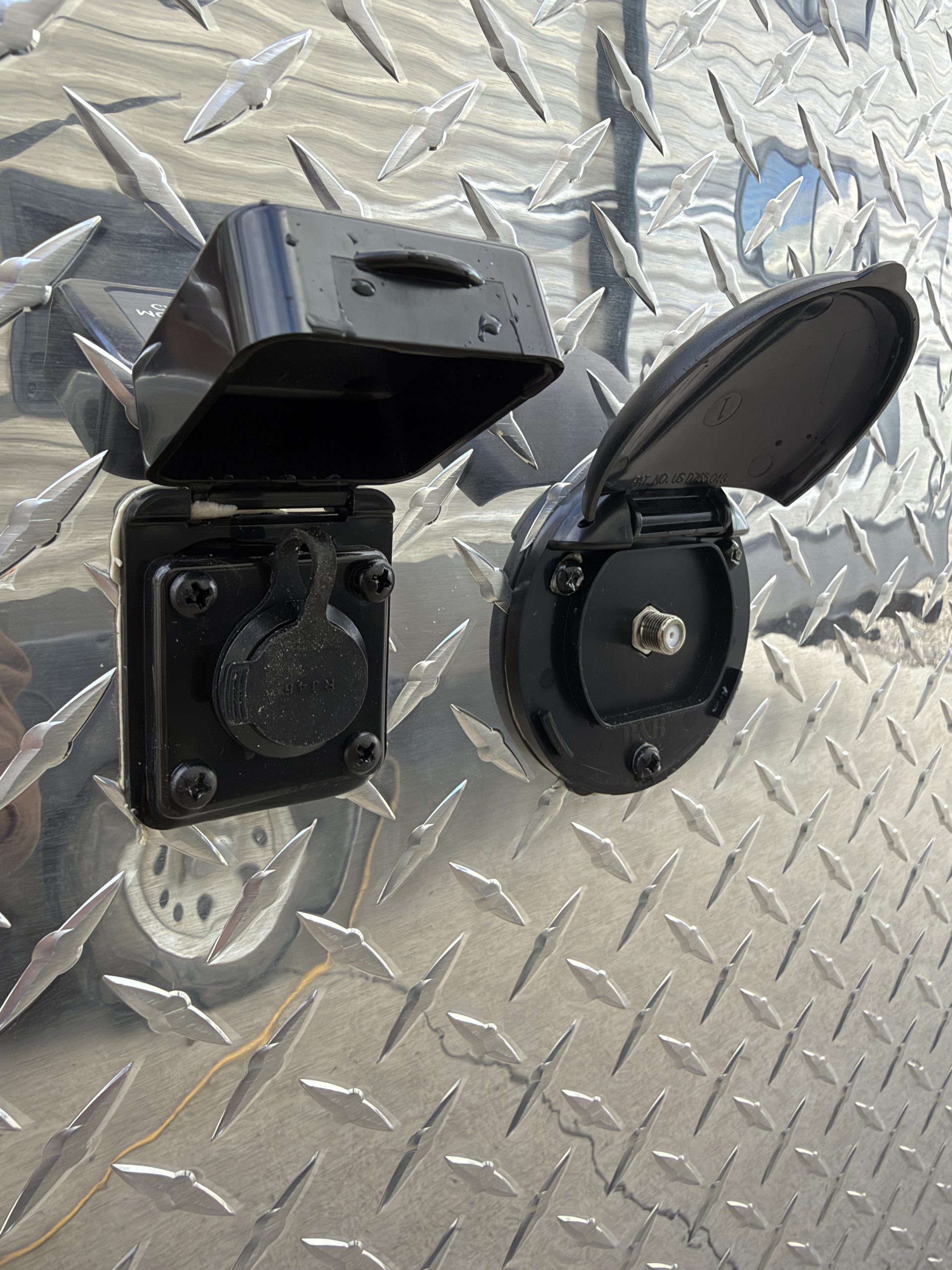

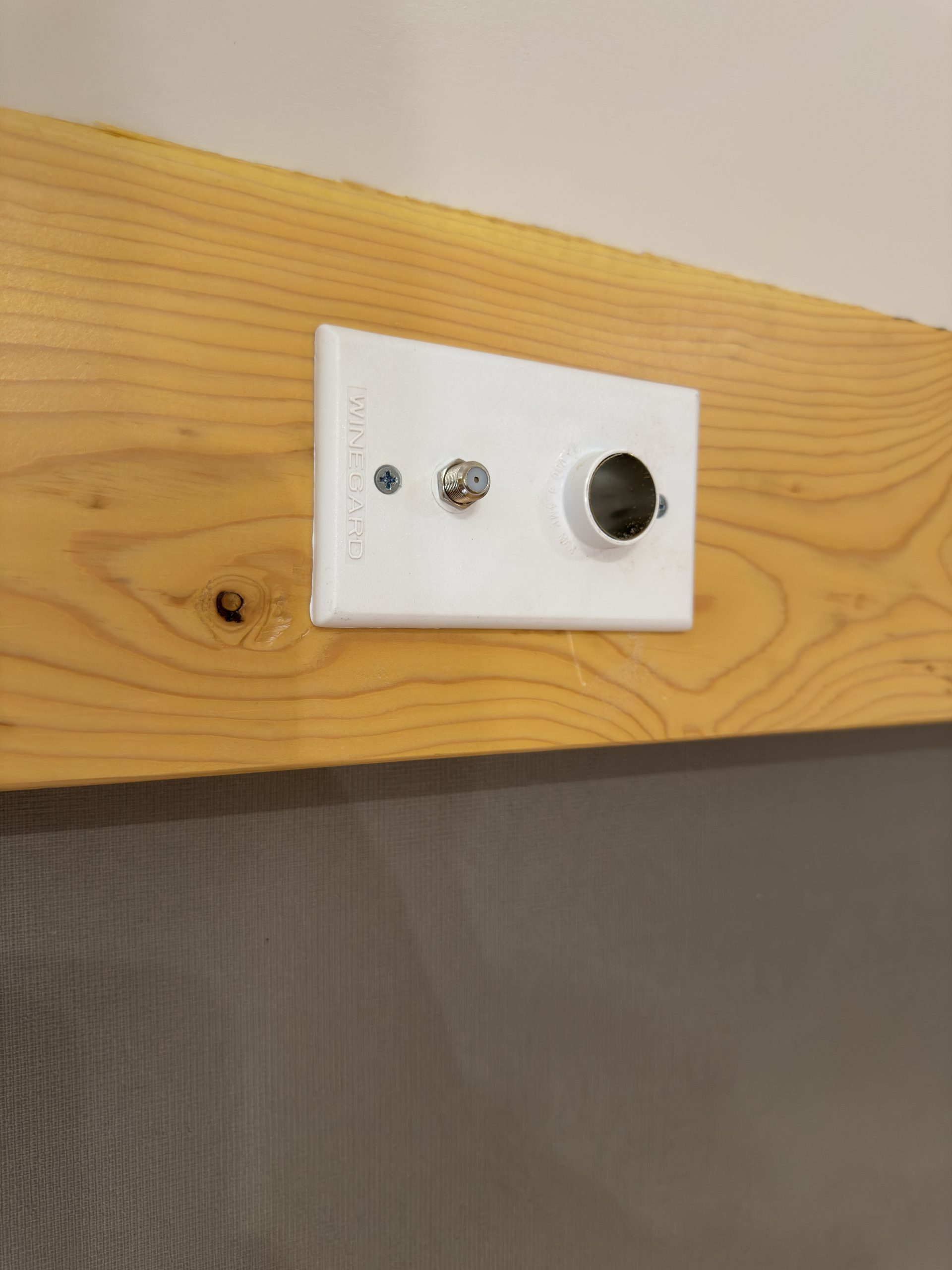

Exterior Coax Port
Standard

Entertainment

TV
Prepped for TV

Construction & Finishes

Construction

Ceiling Insulation
6 in., R-19
Floor Insulation
6 in., R-19
Walls
2 in. Thick
Serviceability
Utilities Remain Accessible For Repairs

Cabinetry

Cabinets
Highlighted feature:
All-Hardwood Cabinets (Shaker Style)
Hardwood
Knotty Alder
Hinges

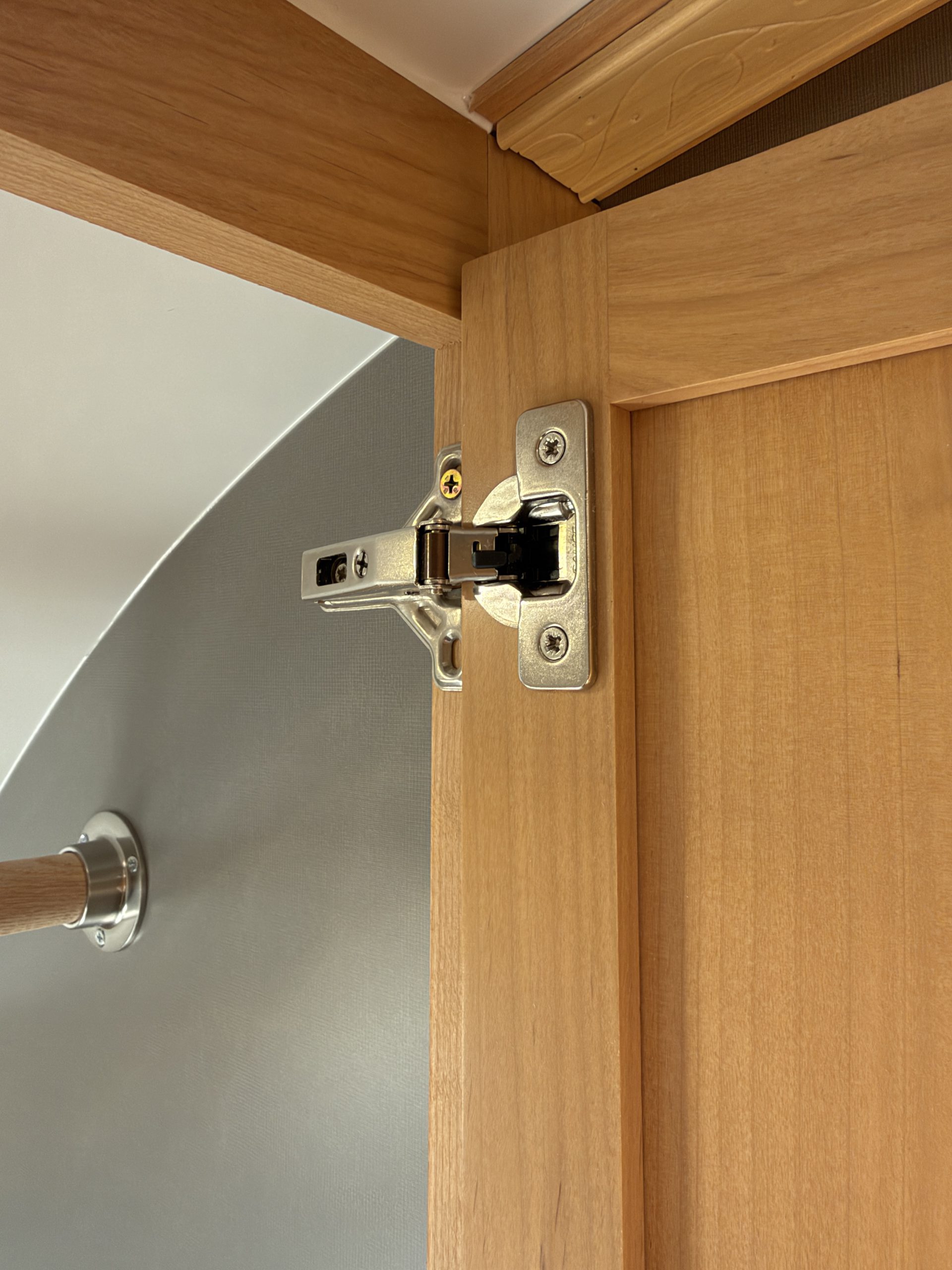

Soft-Close Hinges

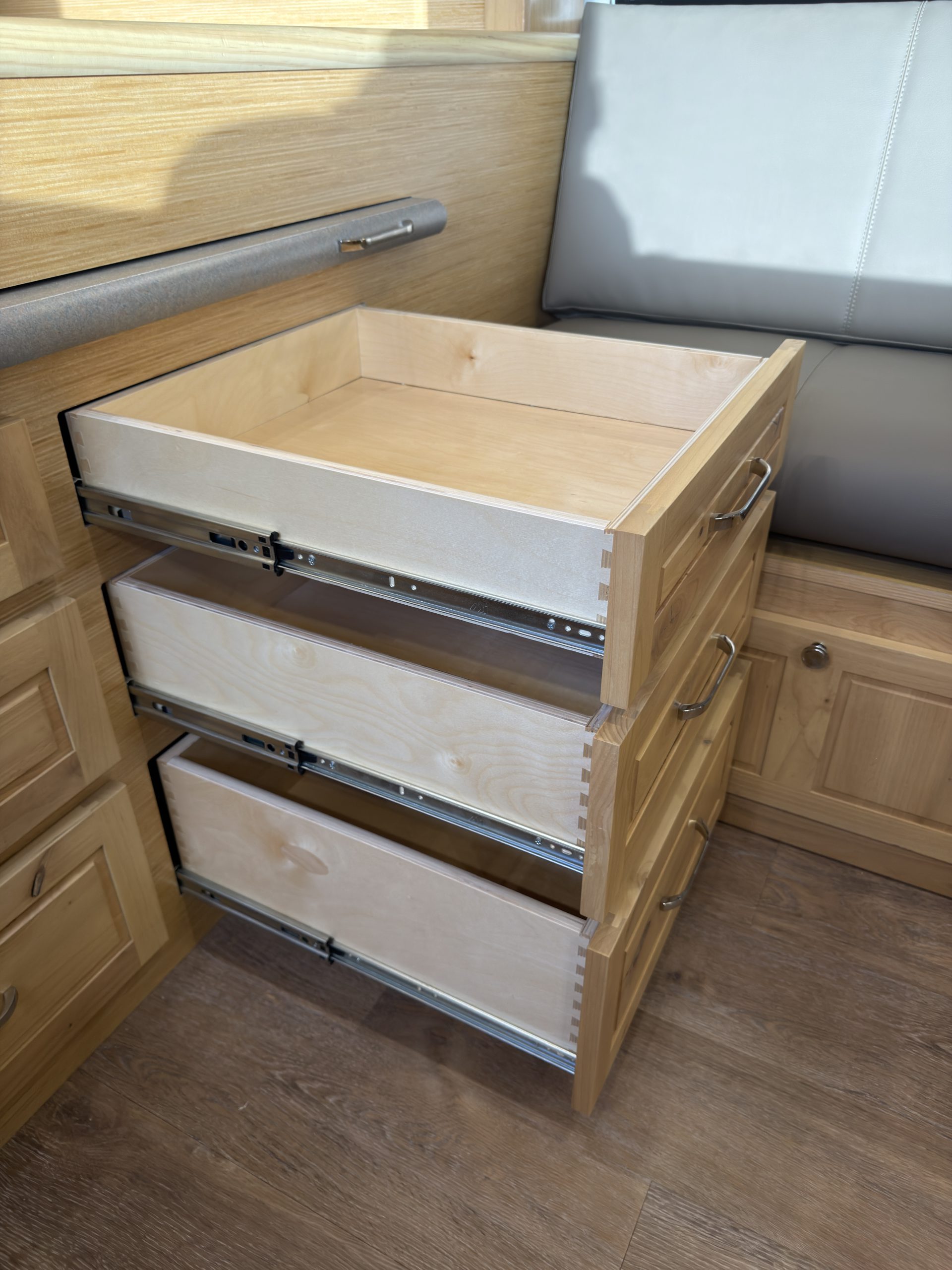

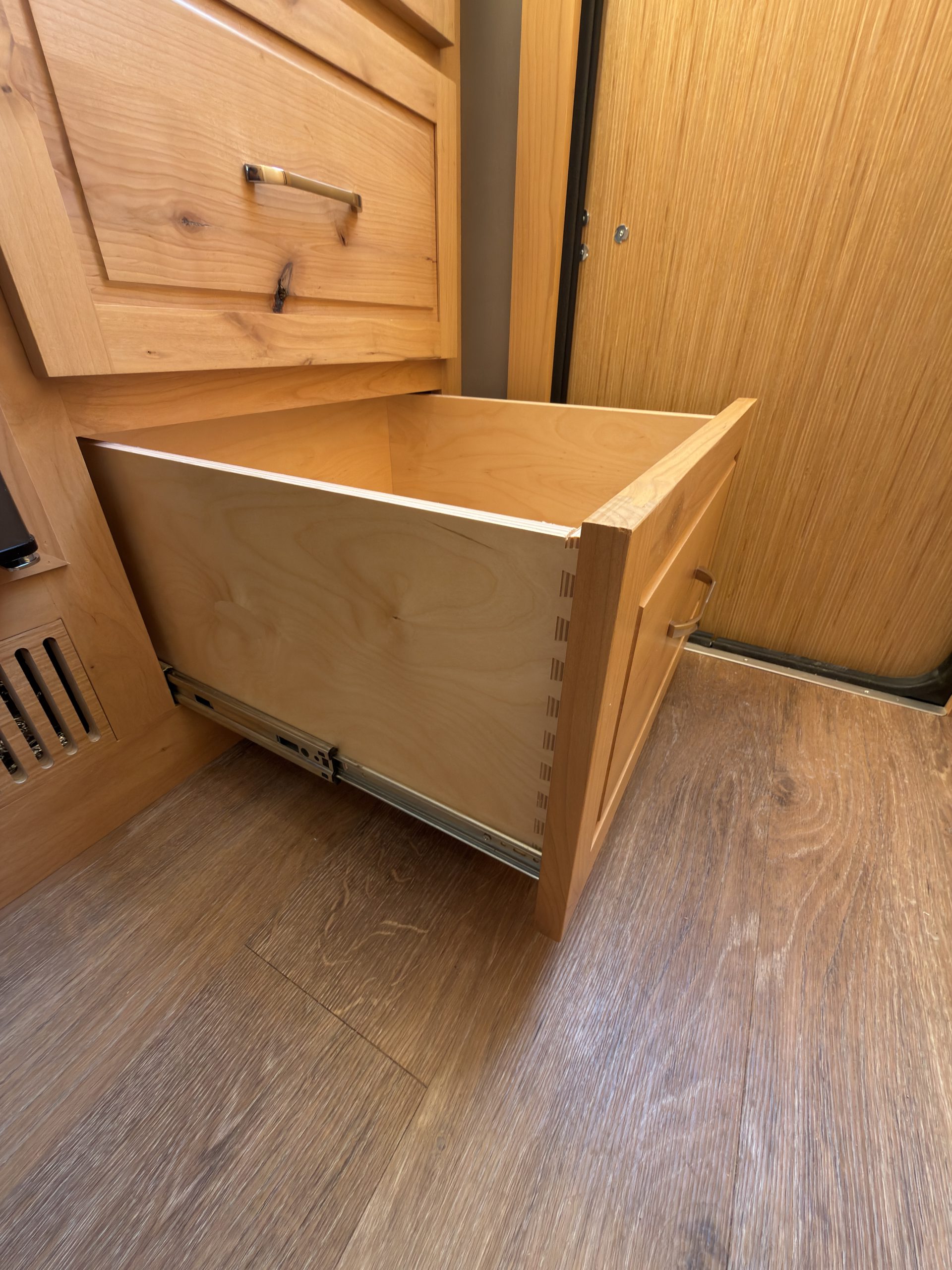

Drawer Construction
Dovetail Construction
Drawer Slides
Self-Latching, Travel-Secure Slides
Thumb Latches
Included On Large Drawers
Overhead Cabinet Doors
Gas-Strut-Supported Cabinet Doors

Finishes & Colors

Wall Color
Wilsonart Pewter Mesh (4878-38)
Cabinet Color
Wilsonart Tan Echo (7941-18)
Countertop
Wilsonart Bronze Legacy (4656-60)
Cabinet Hardware

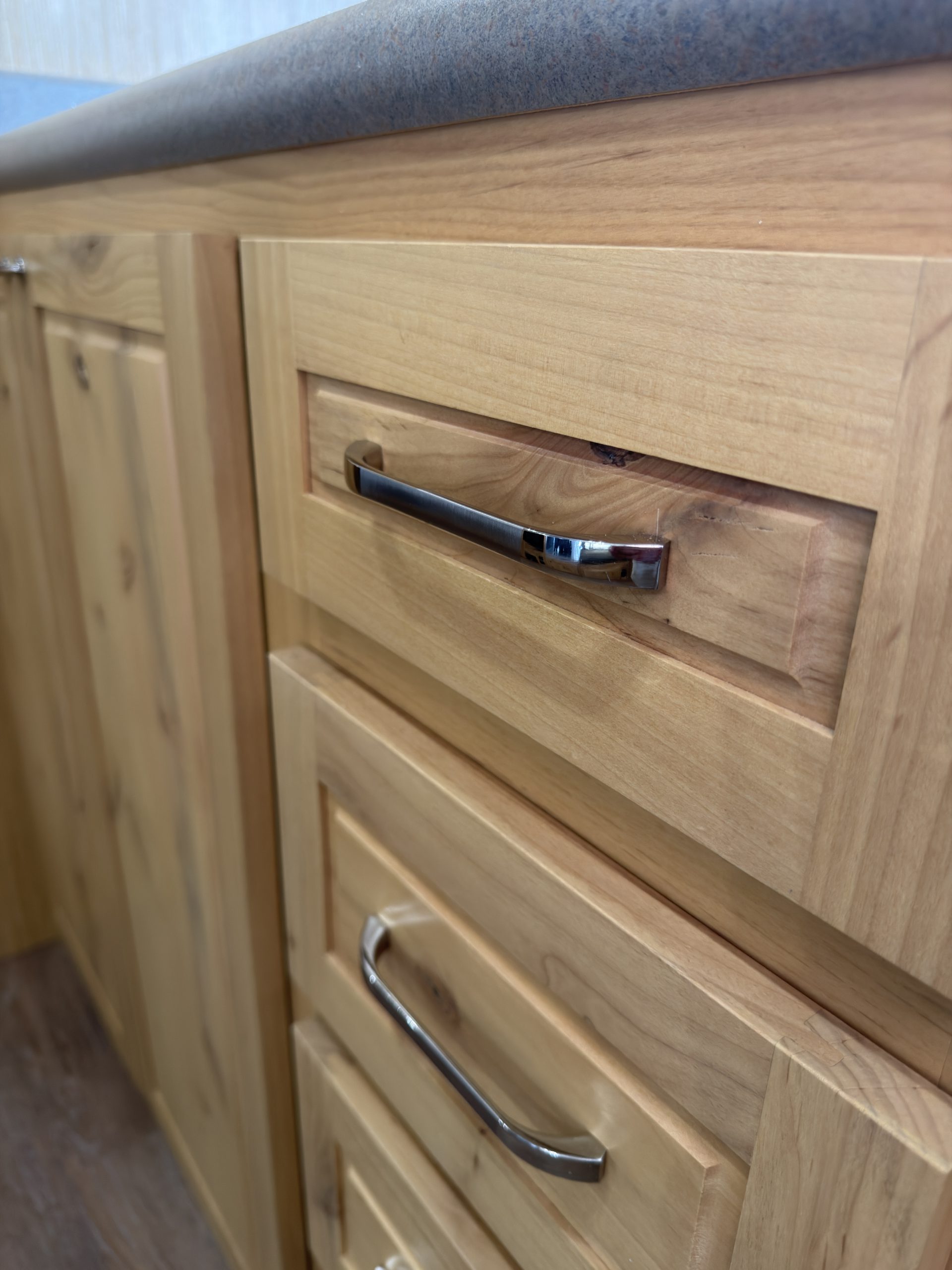

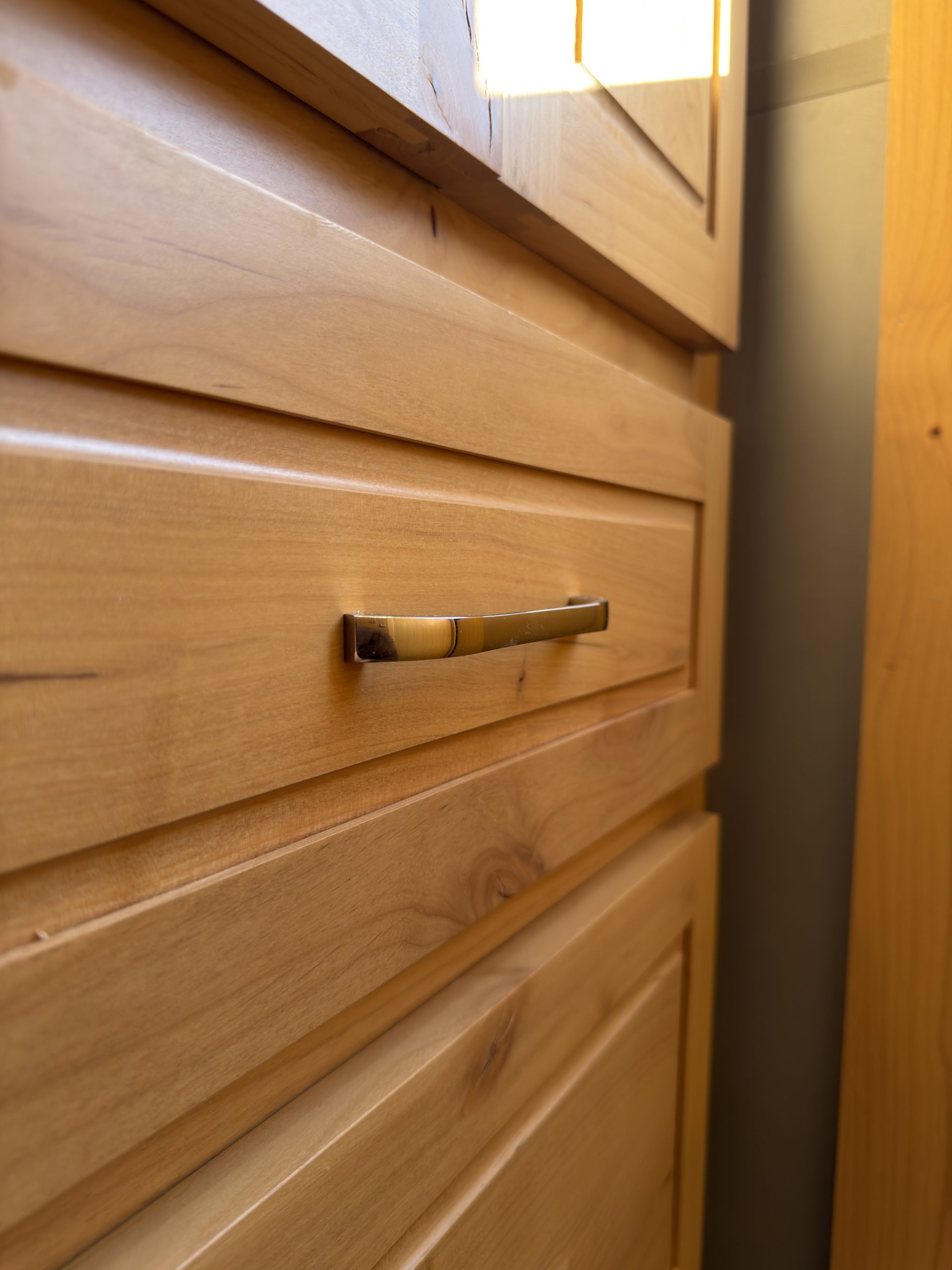

Brushed Nickel Round Knobs & Bar-Style Drawer Pulls
Recliners & Cushions
HQ Auto-Grade Bench Cushions
Cushion Color
Nuance Medium Neutral (NUA-2463)
Flooring
Luxury Vinyl Plank Flooring
Floor Color
Karndean Honey Oak (VGW94T)
Ceiling Trim

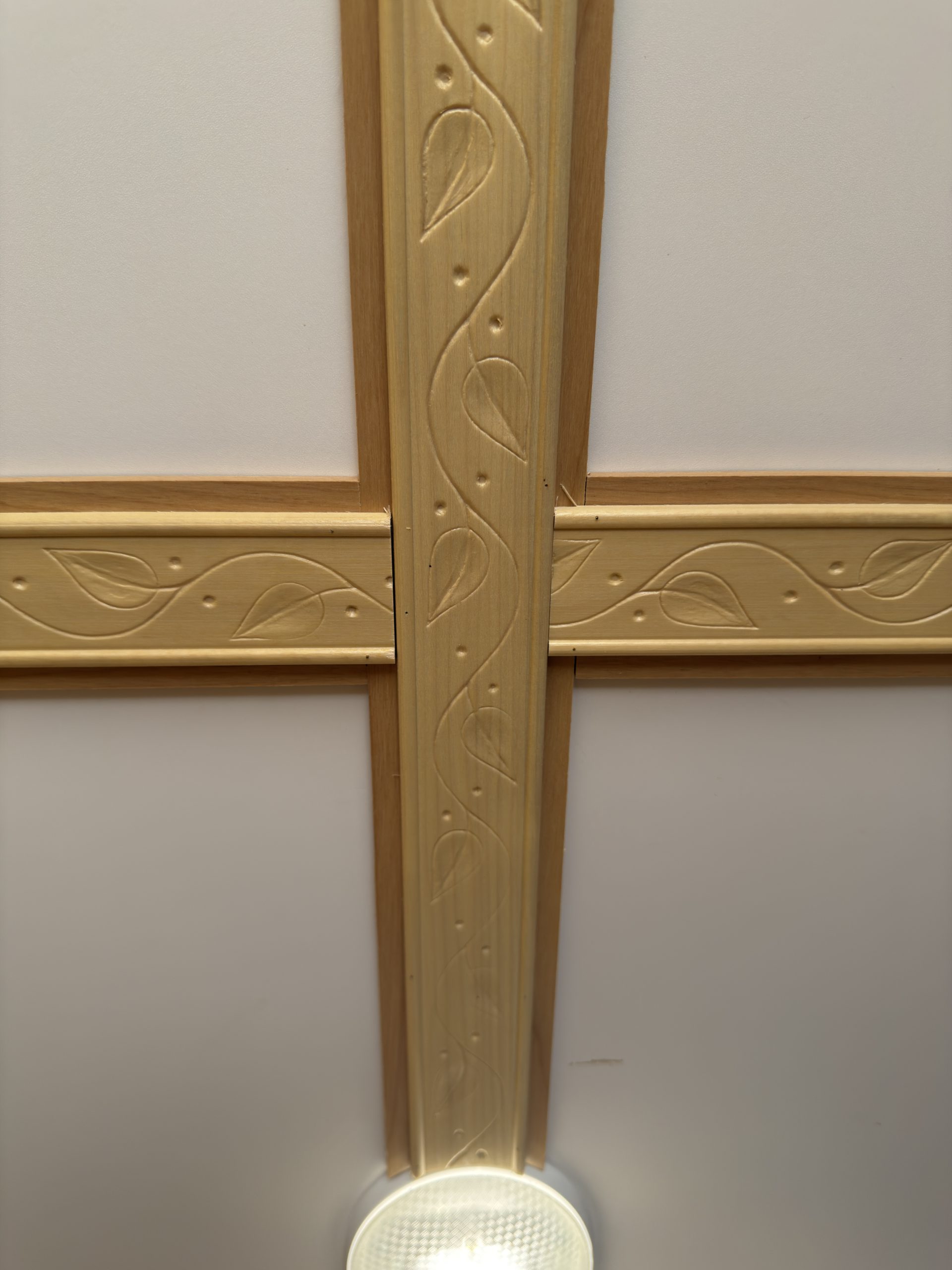

Rosewood Carved Ceiling Trim
Window Shades
Highlighted feature:
Blackout Blinds (Integrated Into Windows)

Frame, Chassis, & Towing

Frame

Frame Construction
Highlighted feature:
Custom-Engineered For Best Towing Characteristics
Platform
X27
Wheel Wells
Metal-Encased Wheel Wells to Protect from Road Debris and Damage from Tire Blowouts
Stabilizer Jacks
All Four Corners

Chassis

Axles

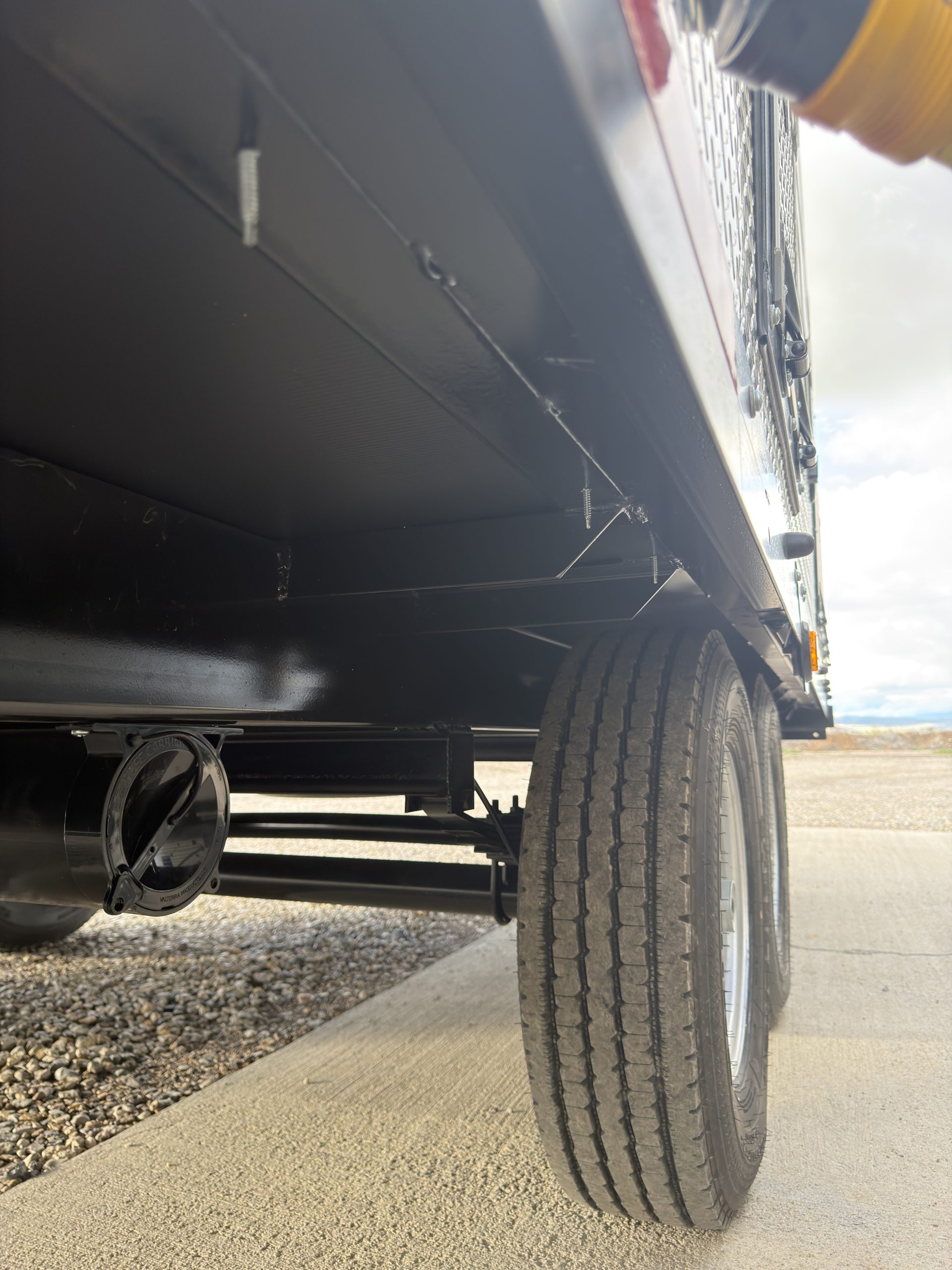

Dual 7,200 lb Axles w/ Easy Lube Hubs
Wheels
8-Lug Wheels with 16 in. Rims
Tires
16 in. E-Load ST235/80R16 (14-Ply)
Spare Tire

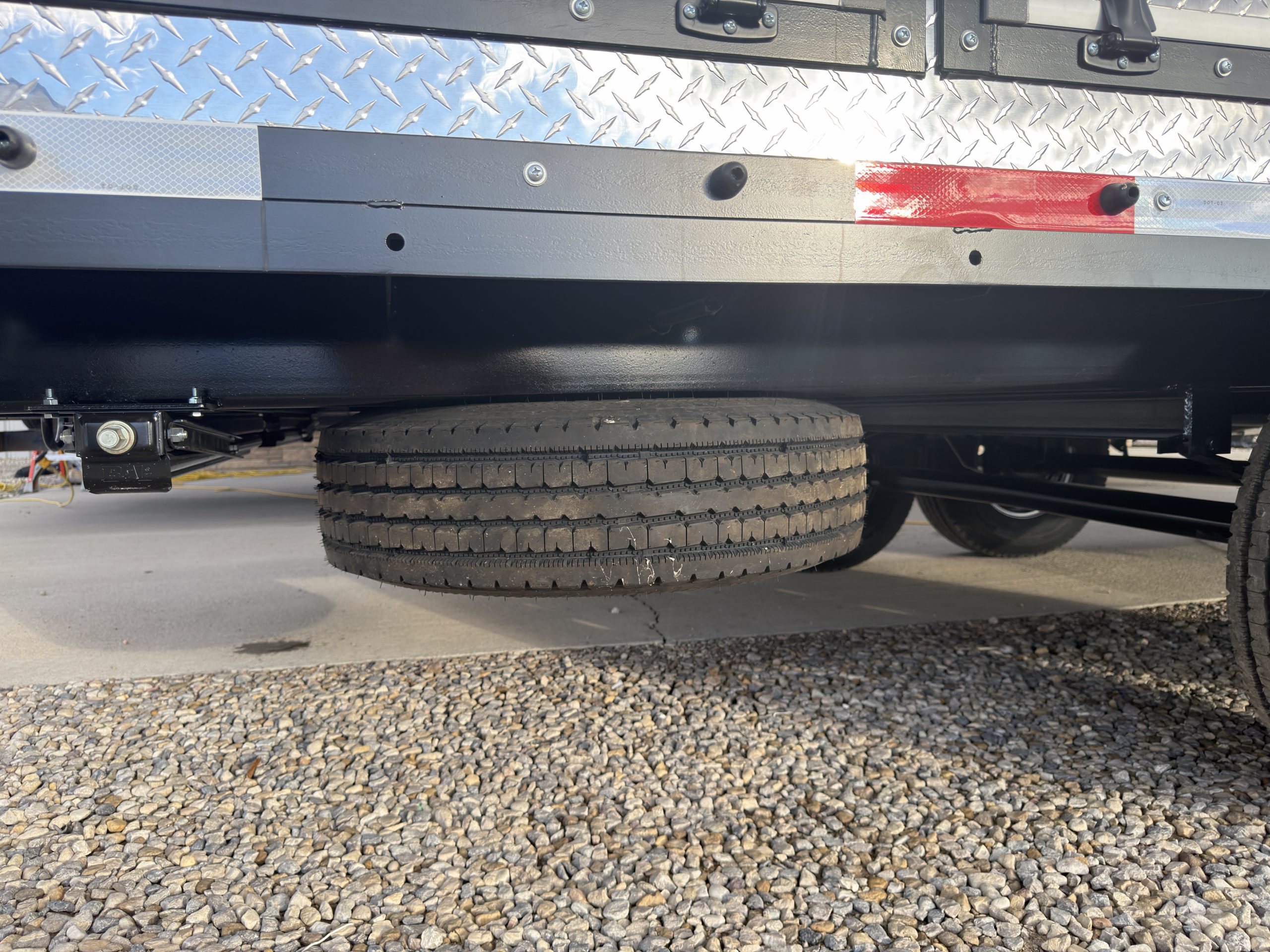

Standard Drop-Down Spare Tire
Brakes
Standard Trailer Brakes
Parking Brake
Highlighted feature:
Hand-Operated Trailer Parking Brake
Suspension
Over-The-Axle Leaf-Sprung Suspension
Tire Pressure Monitoring System
Highlighted feature:
Added

Towing

Hitch Type
Bumper Pull
Coupler

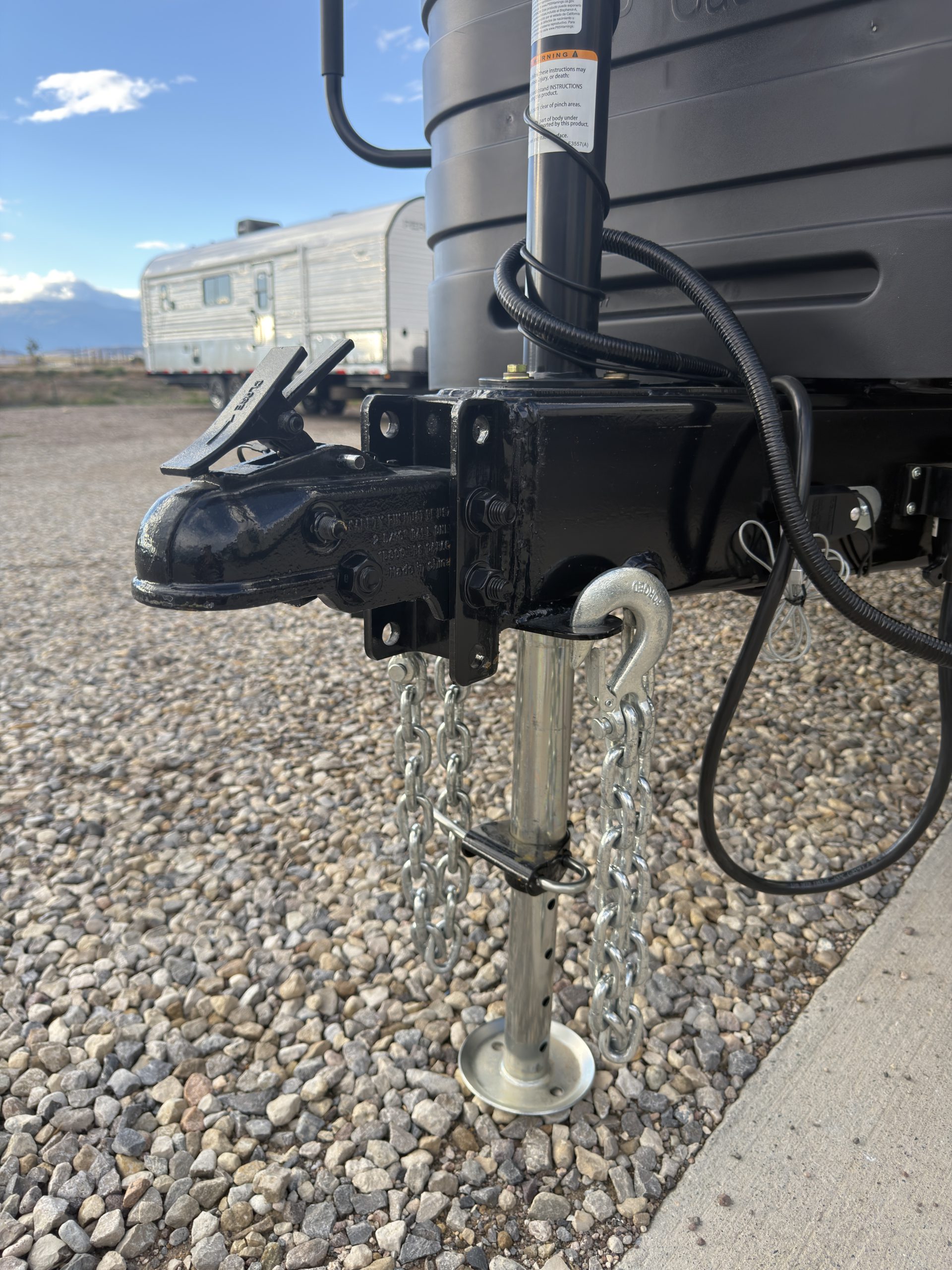

Adjustable 2 5/16 in. 15,000 lb Coupler
Ball Height
Adjustable
Tongue Jack
Highlighted feature:

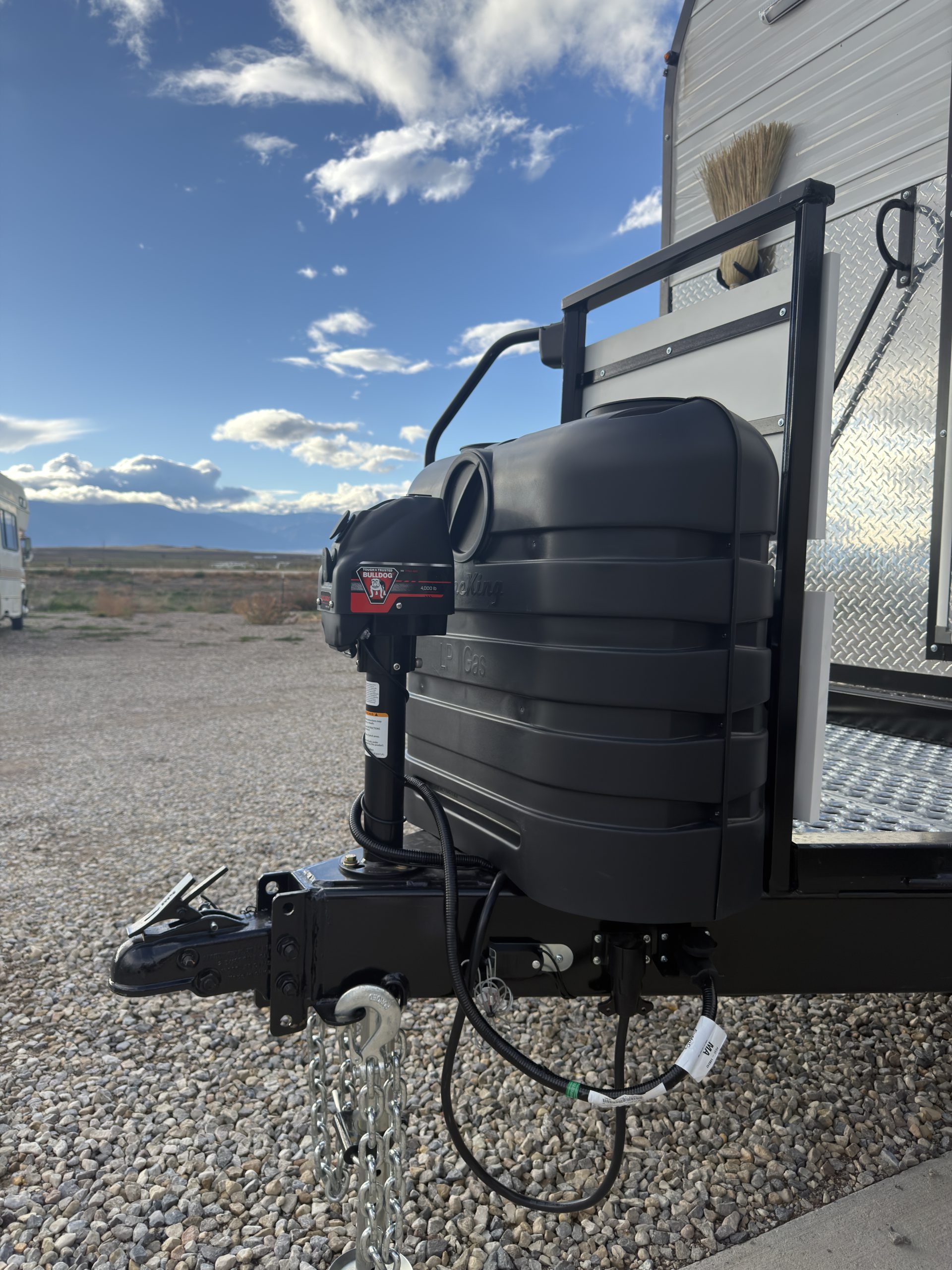

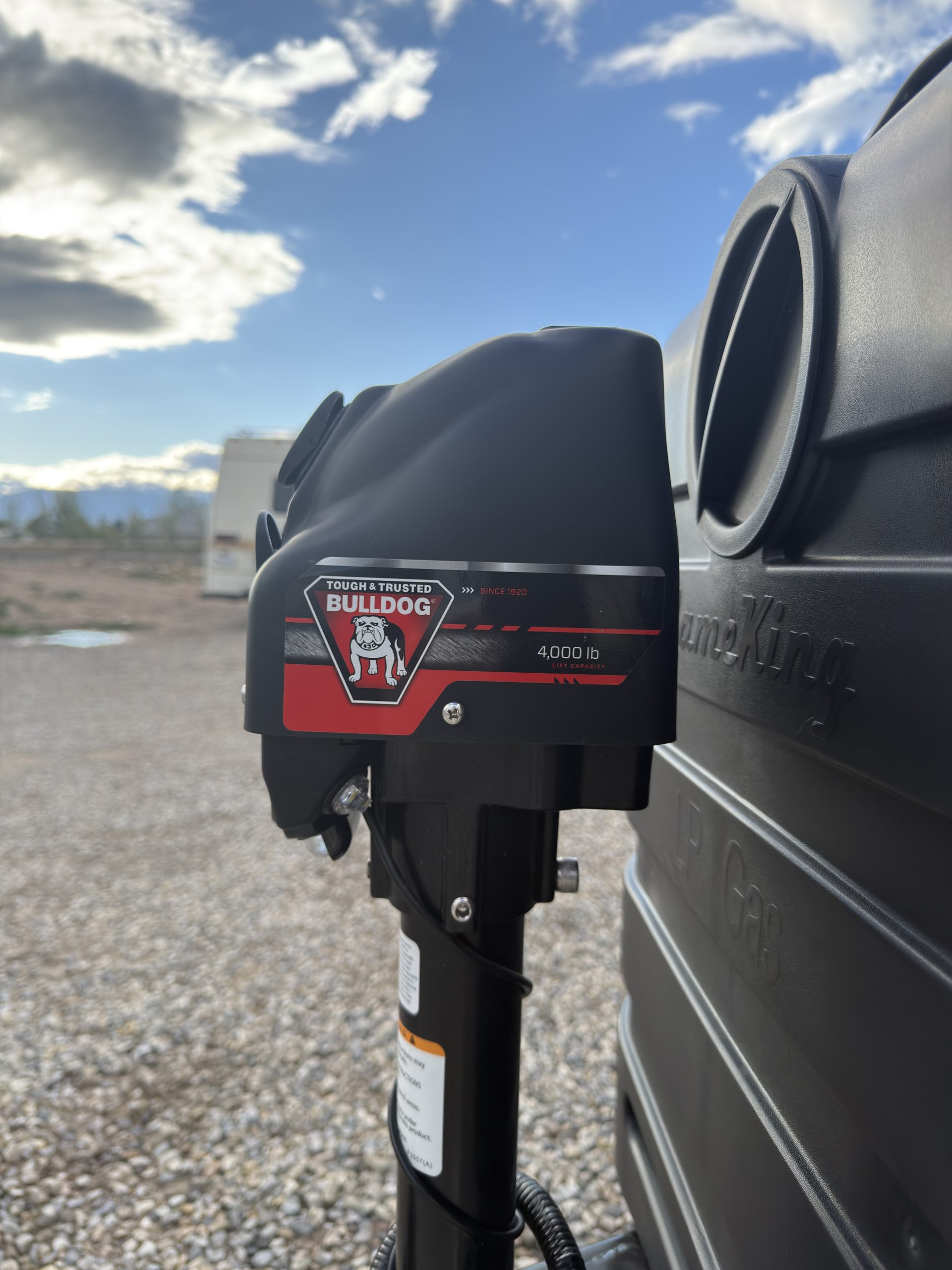

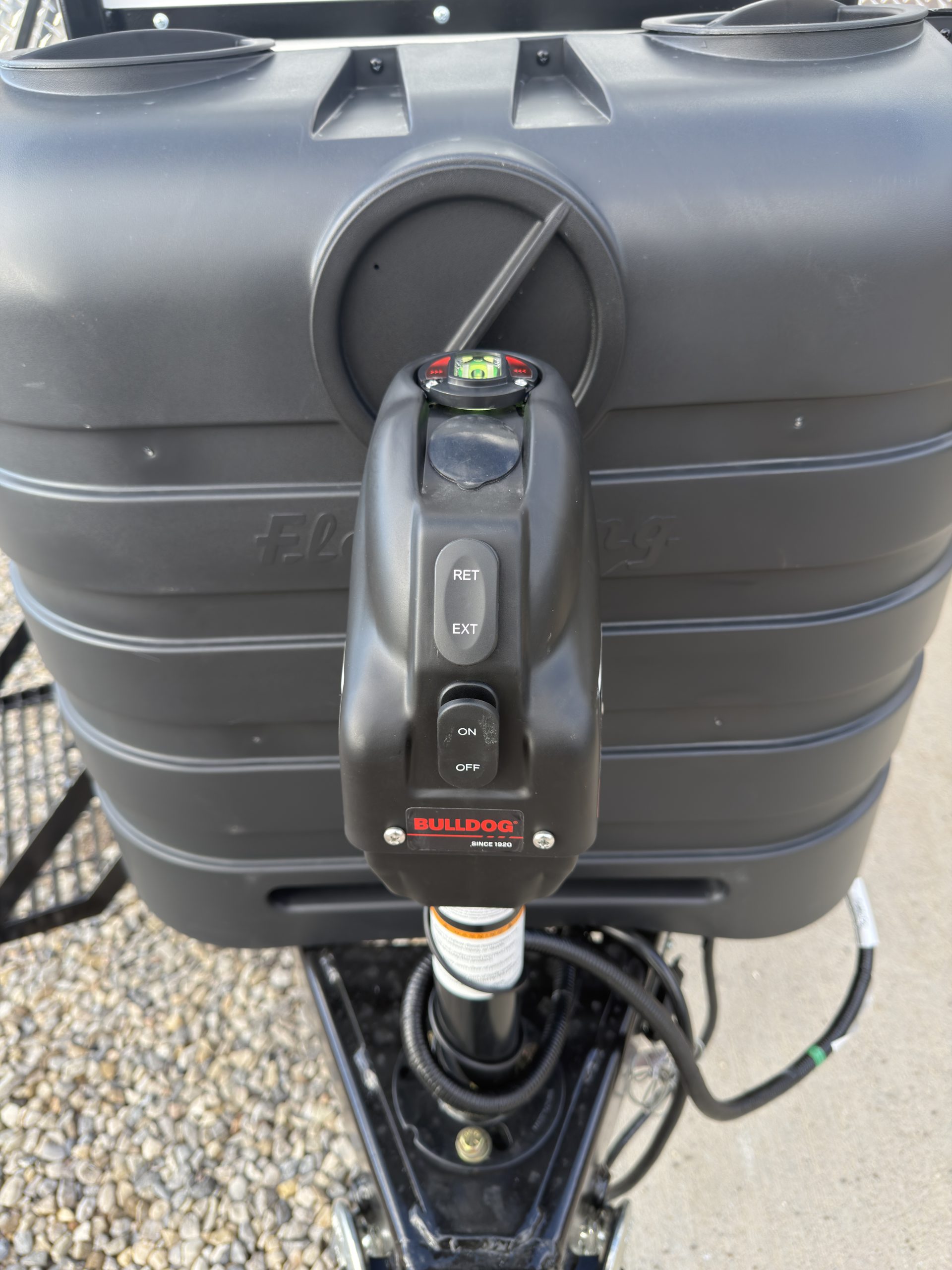

4,000 lb Bulldog Drop-Leg Electric Tongue Jack w/ Manual Crank
Rear Receiver Check Local Regulations

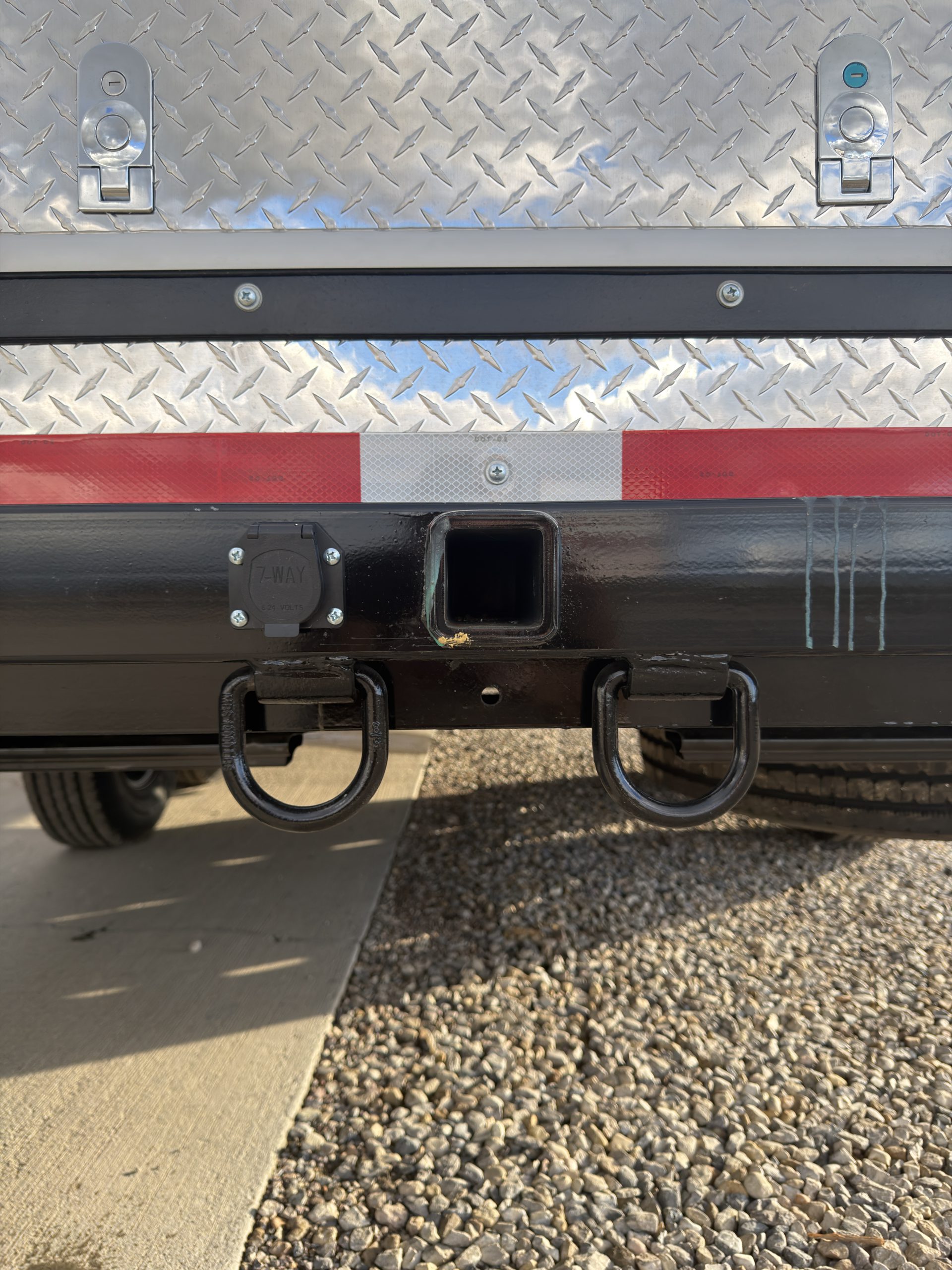

Standard 2 in. Receiver Rated For Pulling Doubles

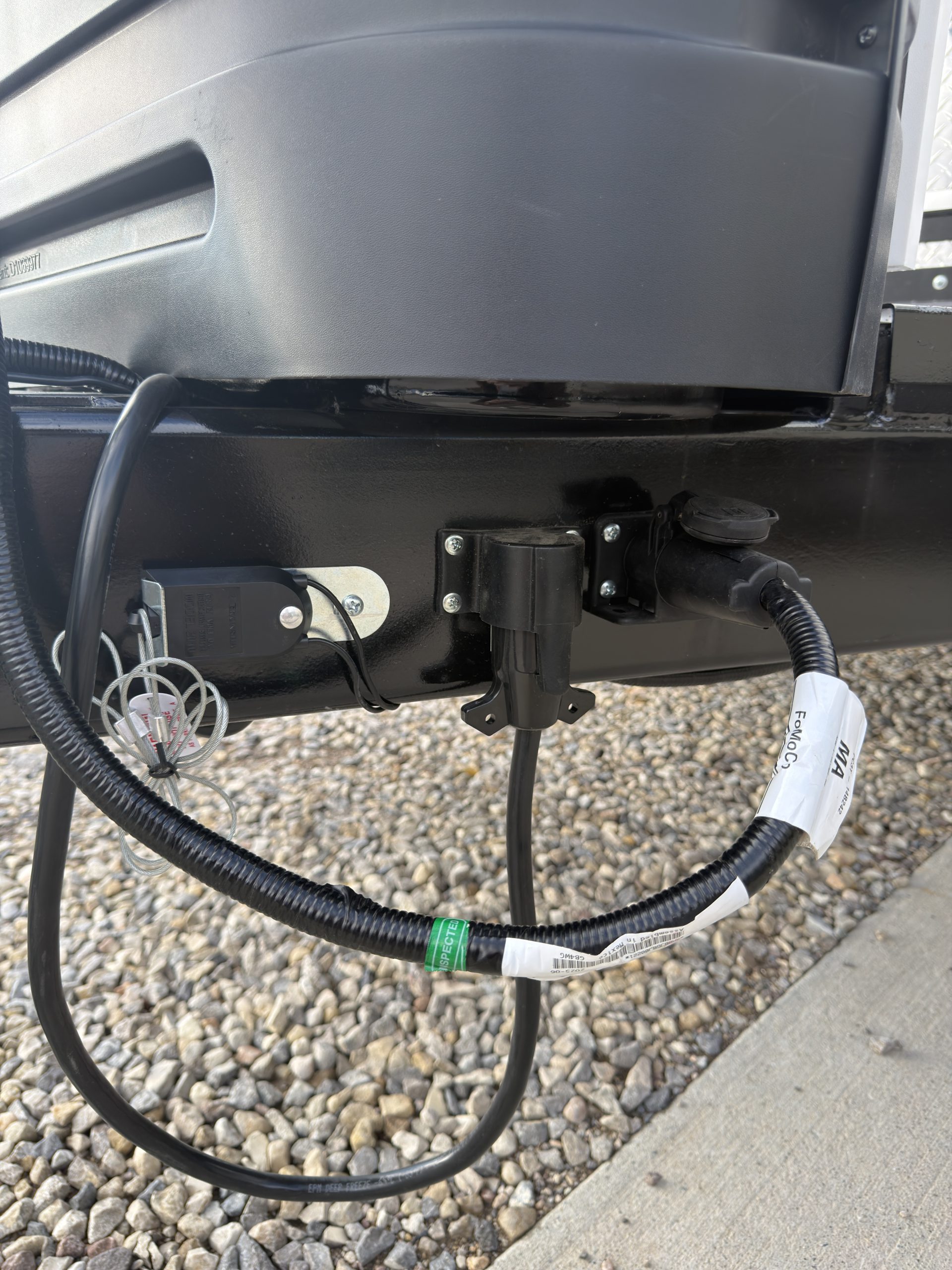

7-Way Plug
Standard
Towing Chains
Included

Safety

General

CO/LP Detector
Standard
Egress Window
Rear Egress Window

Highway Safety

Road Markers
DOT-Compliant Markers
Reflective Tape
Canadian-Compliant Reflective Striping
Taillights
Standard
Trailer Lights
DOT-Compliant LED Lights
License Plate Lighting
Standard
Cameras
Highlighted feature:

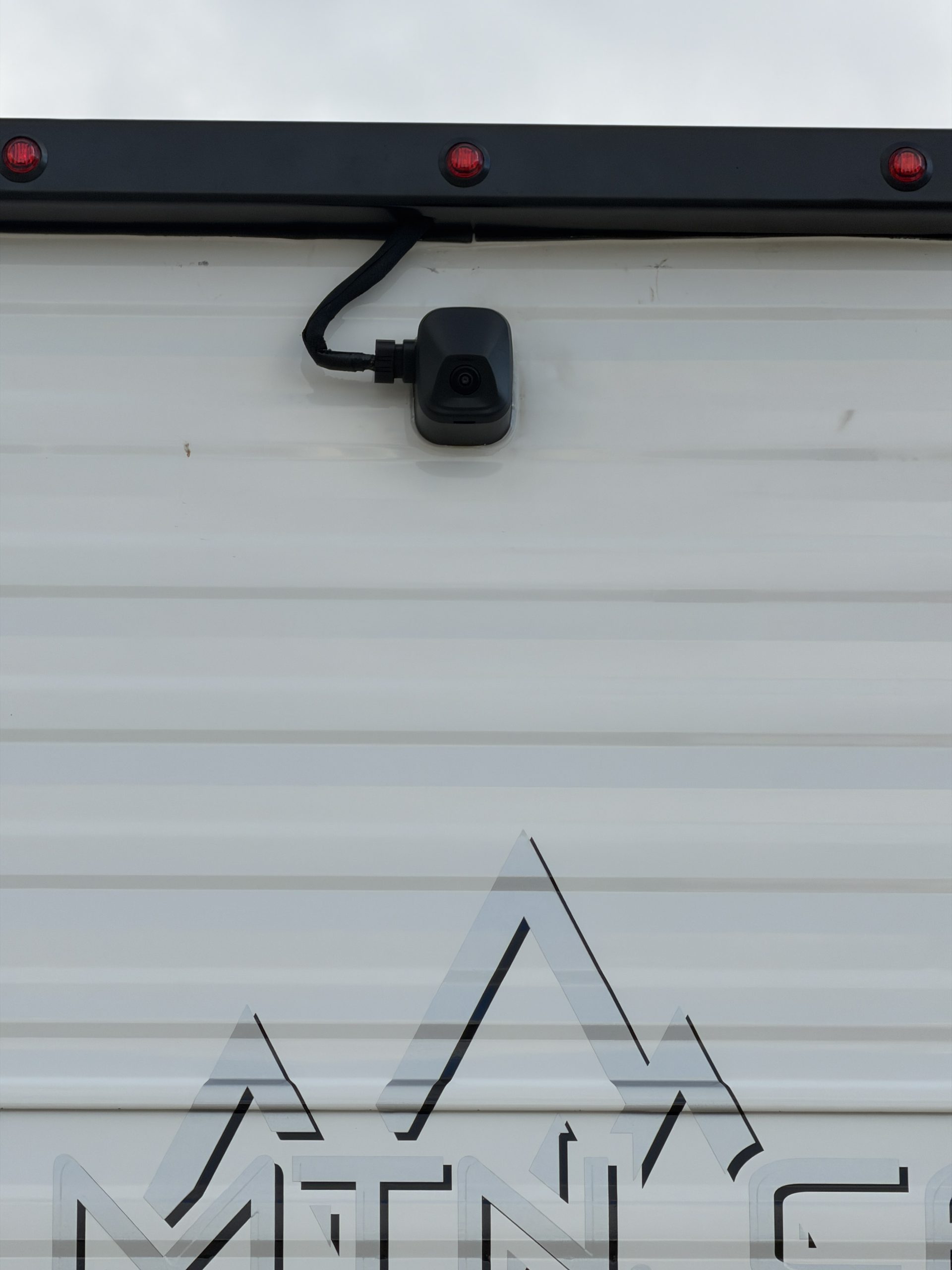

Ford Backup Camera System

Fire Safety

Smoke Detector
Standard
Fire Extinguisher
Standard
Fire Backer
Fire Backer Behind Wood Stove & Fire-Lined Cabinetry
Chimney
Triple-Wall Flue & Chimney
Battery Disconnect
Standard
NFPA 1192 Compliant National Fire Protection Association's Standard On Recreational Vehicles Learn more about NFPA 1192
Yes

Dimensions

Exterior Measurements

Length Bumper to Tongue
27 ft.
Width
102 in. (X-Series)

Interior Measurements

Length
19 ft. 8 in.
Width
96 in. (X-Series)
Height
7 ft. 10 in.
Area
157 sqft.

Weight

GVWR Gross Vehicle Weight Rating (Axle Weight Sum)
14,400 lbs (6,538 kg)

More Details

Build

Camp Name & Number
Van Niewkoop Camp (#136)
Completion
October 2026
