Choosing the Right Frame and Suspension for a Sheep Camp

A sheep camp is only as capable as the running gear beneath it. The right setup depends on the camp’s loaded weight, intended travel speed, terrain, required ground clearance, and access to service—not on a single suspension feature.

Start with intended use and loaded weight

Sheep camps, range camps, and sheepherders wagons can serve very different jobs. A recreational camp that regularly travels on paved roads needs a different frame and running-gear strategy from an agricultural camp that moves primarily across fields, ranch roads, or open range.

Before choosing a suspension, estimate the camp’s actual ready-to-travel weight. Include water, fuel, batteries, appliances, tools, food, personal gear, and optional equipment. The builder should then verify the complete trailer’s weight rating, axle capacity, tire and wheel ratings, braking requirements, hitch load, and fore-and-aft weight distribution as one system.

Understand the main suspension options

Leaf-spring suspension

Leaf springs remain common on camp trailers because the design is proven, familiar to service shops, and available in many capacities. Double-eye springs attach at both ends through hangers and shackles. Slipper springs have an eye at one end while the other end slides against a hanger or equalizer.

On many tandem leaf-spring systems, an equalizer helps transfer momentary loads between the axles as the trailer crosses uneven ground. Wear components such as bushings, shackles, bolts, U-bolts, and spring leaves can be inspected and replaced individually.

• Advantages: broad parts availability, straightforward inspection, serviceable components, and many capacity choices.
• Considerations: more exposed wear points and a need for regular inspection, lubrication where specified, and fastener checks.

Rubber torsion axles

A rubber torsion axle, such as Dexter’s Torflex design, contains the suspension inside the axle tube. Rubber cords surround an inner steel bar, allowing each torsion arm to react independently. The rubber cushioning eliminates spring-to-spring metal contact and can provide a smooth, quiet ride.

The suspension itself has few routine service points. Mounting fasteners still require inspection, and the brakes, bearings, hubs, seals, wheels, and tires retain their normal maintenance schedules. If the internal torsion components are damaged or worn, service commonly involves replacing the axle assembly rather than rebuilding an external spring pack.

• Advantages: compact construction, independent wheel movement, quiet operation, and limited suspension maintenance.
• Considerations: axle replacement can be more involved, and the axle’s starting angle, bracket position, capacity, and frame integration must be specified correctly.

Axle-less rubber suspension

An axle-less system is not simply another torsion axle. Timbren’s design mounts a separate suspension assembly at each side of the trailer and uses two rubber springs—one for jounce and one for rebound—with a control arm. Because there is no through axle, the system can increase ground clearance and allow each wheel to move independently.

That makes axle-less suspension attractive for some off-road and custom builds. Correct frame reinforcement, alignment, capacity selection, installation, and brake configuration remain essential. Service procedures also depend on the exact model, so the manufacturer’s instructions should guide inspection and maintenance.

• Advantages: high ground clearance, independent wheel movement, modular installation, and configurations designed for off-road use.
• Considerations: higher component cost than many conventional leaf-spring systems and greater sensitivity to correct frame preparation and installation.

Match the frame layout to the job

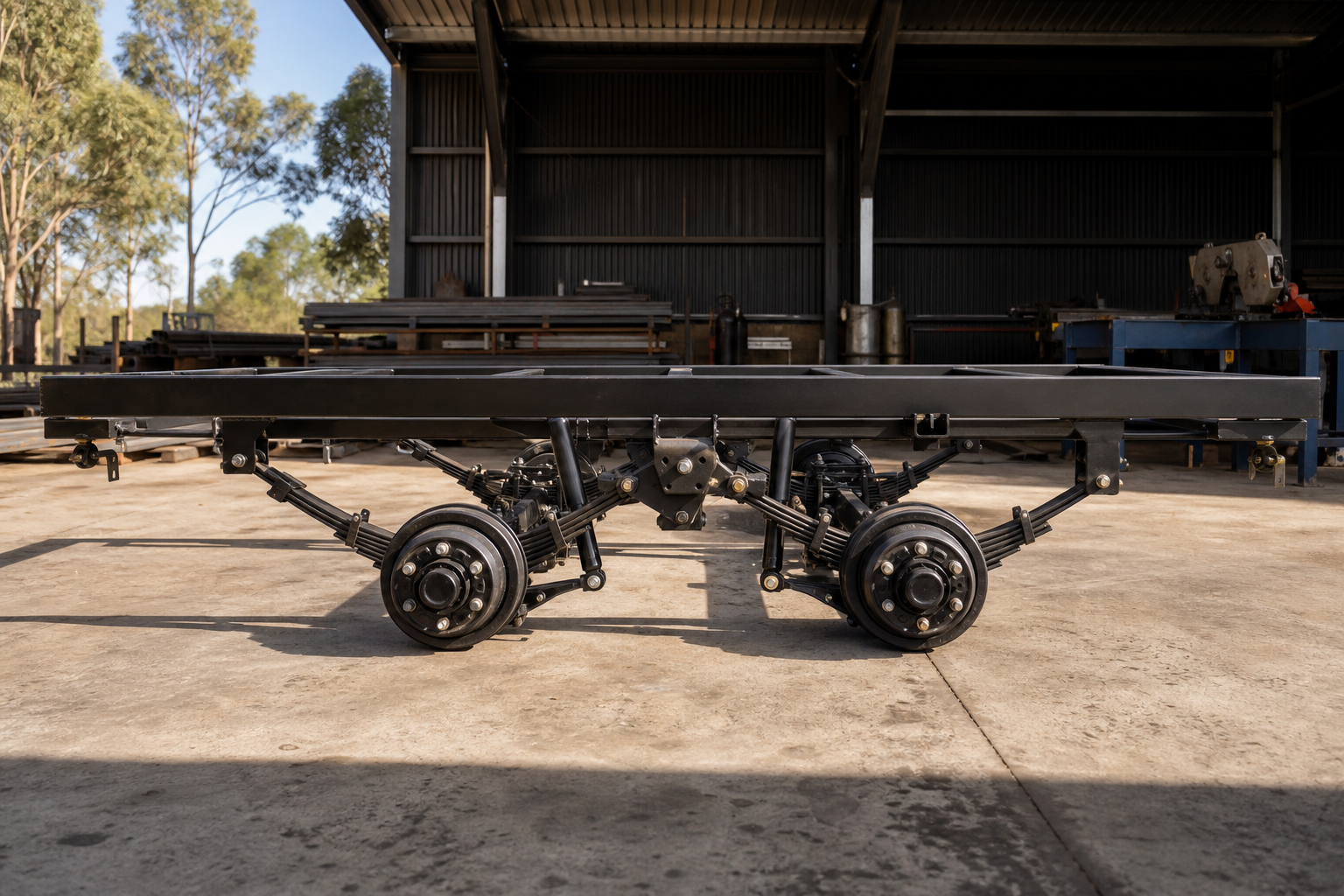

Tandem-axle frame

Many recreational range camps use a conventional tandem-axle frame. When the axles, hitch, brakes, tires, and load distribution are properly specified, a tandem layout can provide predictable highway handling, useful load capacity, and straightforward backing compared with wagon-style steering arrangements.

A tandem trailer places load on the hitch and must be moved with a suitable tow vehicle. Its rear axle also follows a tighter path through a turn than the tow vehicle, so drivers must allow for off-tracking around gates, rocks, trees, and narrow corners.

Front-dolly or fifth-wheel-plate wagon

Traditional agricultural camps often use a steerable front dolly and a fixed rear axle. This wagon-style arrangement avoids conventional tongue weight and can follow the tow vehicle’s path closely at low speed. Its simple construction suits field and ranch work.

Wagon-style steering is difficult to reverse and should not be assumed suitable for highway travel. Maximum speed, brake equipment, coupler design, lighting, and legal road use depend on the specific build and applicable regulations.

Tie-rod steering

A tie-rod system steers the front wheels through linked steering components rather than rotating the complete front axle assembly. It can make low-speed positioning easier than a basic dolly arrangement while preserving the tracking characteristics valued in agricultural use.

It remains a specialized design. Steering geometry, stops, coupler movement, braking, load capacity, and travel speed should be engineered for the intended application rather than inferred from appearance alone.

Questions to answer before the build begins

1. Where will the camp travel? Distinguish regular highway use from forest roads, ranch roads, fields, and open range.
2. What will it weigh when fully equipped? Include every tank, power system, appliance, supply, and option.
3. How much ground clearance is actually needed? More clearance can affect entry height, center of gravity, and frame design.
4. How will the camp be maneuvered? Consider backing, tight gates, uneven sites, and the available tow vehicle.
5. Where will it be serviced? Parts availability and repair access may matter as much as initial ride quality.
6. What inspections will the owner perform? No running gear is maintenance-free as a complete system; brakes, bearings, wheels, tires, fasteners, and suspension components all need attention.

Build the complete system around the route

Frame and suspension decisions belong near the beginning of a custom camp build. Once the intended use and loaded weight are clear, the frame, running gear, brakes, hitch, tires, layout, and equipment can be specified to work together.

Peak Outdoors can help compare the available configurations and identify the questions that should be resolved before fabrication. Final component selection should always follow the current specifications and installation requirements from the frame, axle, suspension, brake, wheel, and tire manufacturers.
