RV Inverters Explained: What They Power and How to Choose One

An inverter can make an RV more capable away from shore power, but it is only one part of the electrical system. Choosing the right one starts with understanding what it does, which appliances you expect it to run, and whether the battery bank and wiring can support those loads.

A larger inverter does not automatically create more usable energy. It can deliver more power at one time, but the batteries determine how long that power is available. A well-designed system balances the inverter, battery capacity, charging sources, cables, protection devices, and the owner’s actual energy use.

What an RV inverter does

An inverter converts direct-current power from the RV battery bank into alternating-current power for equipment designed to use a household-style outlet. That can include a laptop charger, television, microwave, coffee maker, or other 120-volt appliance, depending on the system.

Many RV loads already operate directly from the 12-volt DC system. Lights, water pumps, control boards, and some fans may not need an inverter at all. Running a DC load directly is usually simpler because it avoids the conversion losses and idle consumption of an inverter.

Inverter, converter, and inverter/charger are different

The similar names can be confusing:

• Inverter: Converts battery DC power into AC power for outlets and appliances.
• Converter or charger: Uses shore or generator AC power to supply DC loads and charge the battery bank.
• Inverter/charger: Combines both functions and often includes an automatic transfer feature.

Solar panels do not replace the inverter. A solar charge controller manages energy from the panels and charges the batteries; the inverter then draws from the battery bank when AC power is needed. Each component must be compatible with the system voltage and expected current.

Do you need an inverter?

You may not need one if you camp primarily with shore power, use a generator whenever AC power is required, or rely almost entirely on 12-volt equipment. A small portable inverter may be enough for occasional low-power electronics.

A permanently installed inverter becomes more useful when you want quiet AC power during travel or boondocking, need selected outlets available without starting a generator, or are building a larger battery-and-solar system. The right answer depends on the loads—not simply the size of the RV.

Start with the appliances you plan to run

List every AC device you expect to use away from shore power. Record its running wattage and note whether it has a motor, compressor, heating element, or other high-starting load. Then estimate which devices may operate at the same time.

The inverter’s continuous rating must cover the combined running load. Its short-duration surge rating must also handle startup demands. Refrigerators, air conditioners, pumps, power tools, and other motor-driven equipment can briefly draw substantially more power when starting than while running. Always use the appliance specifications and the inverter manufacturer’s ratings rather than relying on a generic rule.

Loads that deserve extra attention

• Microwaves and coffee makers
• Hair dryers, toasters, and electric heaters
• Air conditioners and refrigerators with compressors
• Power tools and other motor-driven equipment
• Medical equipment or electronics that require dependable waveform quality

Heating appliances can consume a large amount of battery energy even when the inverter is capable of starting them. A device that works for a few minutes may still be impractical to run for a long period.

Size the battery bank as carefully as the inverter

Inverter wattage describes how much AC power can be delivered, not how long the batteries will last. Runtime depends on the load, battery-bank energy, usable depth of discharge, temperature, inverter efficiency, cable losses, and the battery manufacturer’s limits.

For perspective, a 1,000-watt AC load requires roughly 83 amps from a 12-volt battery system before accounting for inverter losses. A 2,000-watt load is roughly double that. High DC current demands suitable batteries, short cable runs, properly sized conductors, correct terminals, and appropriate overcurrent protection.

Estimate daily energy in watt-hours: multiply each device’s watts by the hours you expect to use it, then add the totals. Account for conversion losses and preserve the battery manufacturer’s recommended reserve. The battery bank must also be able to deliver the inverter’s continuous and surge current without excessive voltage drop.

Pure sine wave or modified sine wave?

A pure sine wave inverter produces power that more closely matches utility power and is the safer general-purpose choice for a mixed RV system. It is commonly preferred for sensitive electronics, variable-speed equipment, audio devices, and motor-driven loads.

A modified sine wave inverter may operate simple resistive loads, but some equipment can run hotter, noisier, less efficiently, or not at all. Compatibility depends on the specific device. Do not assume that every appliance will tolerate a modified waveform; follow the appliance manufacturer’s requirements.

Decide which circuits should receive inverter power

An inverter does not automatically energize every outlet in the RV. A small unit may power only its built-in receptacles. A hardwired system may feed a dedicated subpanel or selected branch circuits through an appropriate transfer arrangement.

Planning selected circuits prevents high-demand equipment—such as an electric water heater or air conditioner—from being connected unintentionally. It also makes energy use easier to understand. The transfer equipment, grounding arrangement, neutral bonding, GFCI protection, and overcurrent protection must match the inverter instructions and applicable RV electrical requirements.

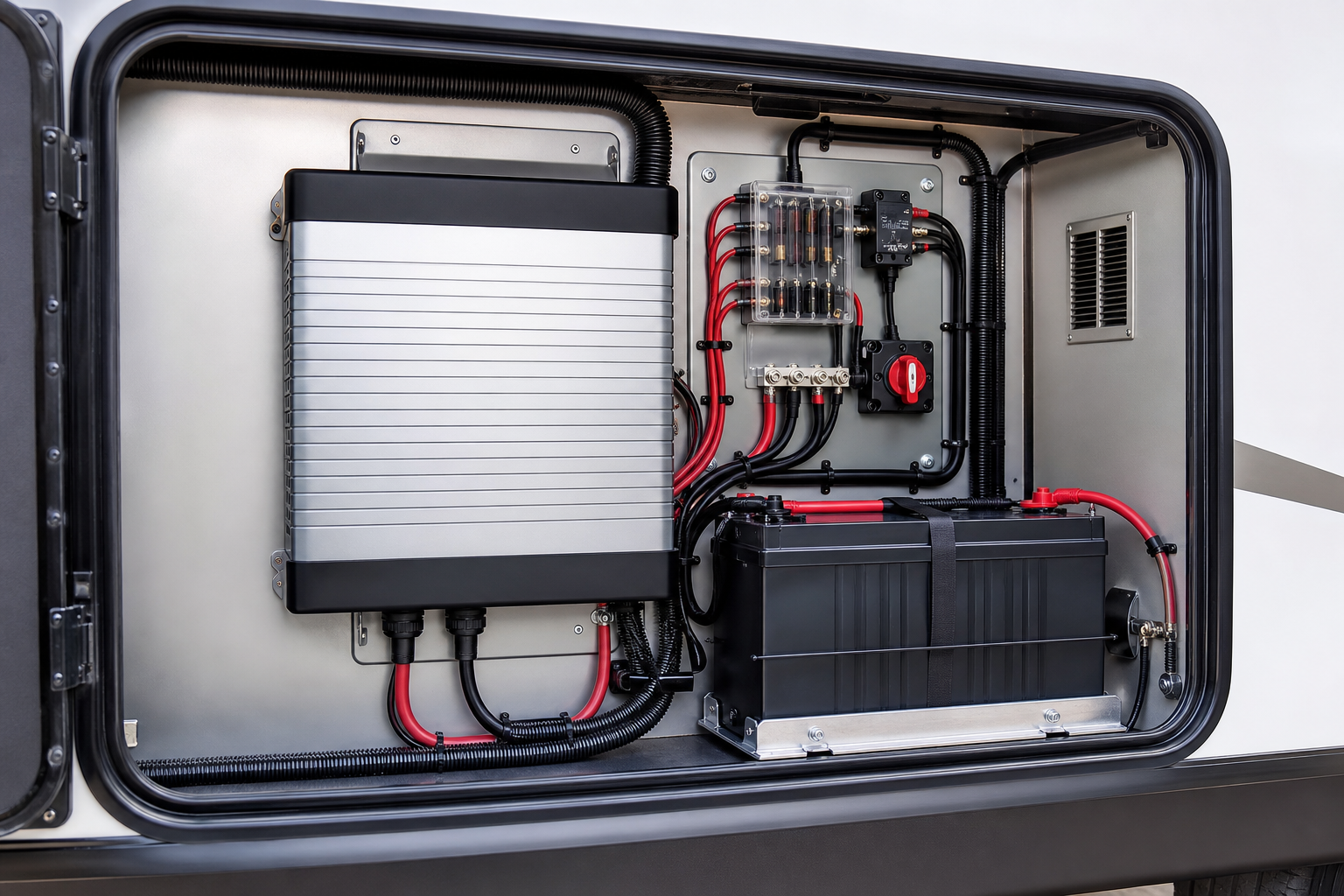

Installation is part of system sizing

High-power inverters can draw hundreds of amps on the DC side. Undersized cables, long cable runs, loose connections, missing fuses, poor ventilation, or incorrect grounding can create voltage drop, nuisance shutdowns, heat, and fire risk.

Install the inverter in a dry, protected, ventilated location that meets the manufacturer’s clearance requirements. Keep DC cable runs as short as practical, use the specified conductor size and protection, and follow battery and inverter instructions exactly. A permanently wired inverter or inverter/charger should be designed and installed by a qualified RV electrical technician.

Questions to answer before choosing

• Which AC devices must operate away from shore power?
• What is their combined running wattage and highest startup surge?
• How many watt-hours will they use during a typical day?
• Can the battery bank safely provide that energy and current?
• How will the batteries be recharged by shore power, the tow vehicle, solar, or a generator?
• Which outlets or circuits should receive inverter power?
• Does the installation require a transfer switch or inverter/charger?

Choose the system around how you camp

A modest inverter can be a practical way to charge electronics and run small AC devices. A larger inverter can support more demanding appliances, but only when paired with enough battery capacity, charging capability, wiring, and protection.

Start with the equipment you genuinely need, calculate its energy use, and design the entire electrical system around that demand. That approach produces a safer, more reliable off-grid setup than choosing the largest inverter that will fit.
